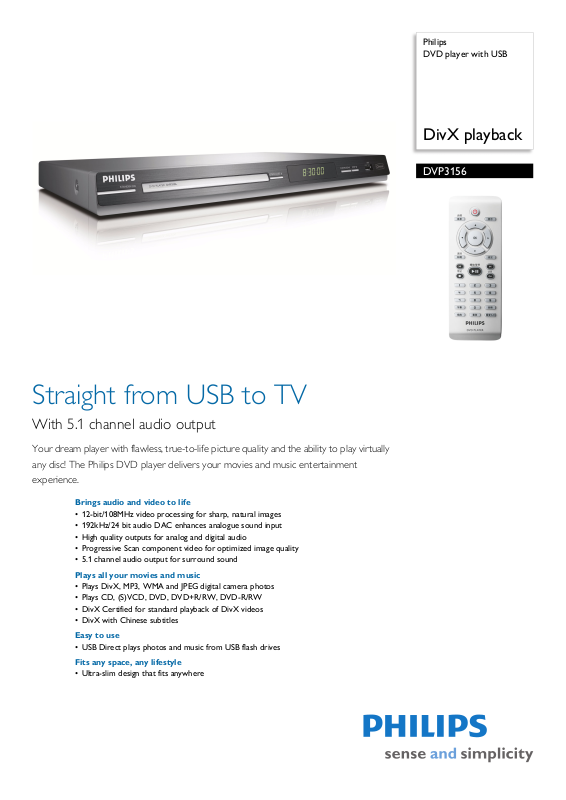

Page 1
Philips
DVD player with USB
DivX playback
DVP3156
Straight from USB to TV
With 5.1 channel audio output
Your dream player with flawless, true-to-life picture quality and the ability to play virtually
any disc! The Philips DVD player delivers your movies and music entertainment
experience.
Brings audio and video to life
• 12-bit/108MHz video processing for sharp, natural images
• 192kHz/24 bit audio DAC enhances analogue sound input
• High quality outputs for analog and digital audio
• Progressive Scan component video for optimized image quality
• 5.1 channel audio output for surround sound
Plays all your movies and music
• Plays DivX, MP3, WMA and JPEG digital camera photos
• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW
• DivX Certified for standard playback of DivX videos
• DivX with Chinese subtitles
Easy to use
• USB Direct plays photos and music from USB flash drives
Fits any space, any lifestyle
• Ultra-slim design that fits anywhere
Page 2
DVD player with USB
DivX playback
Highlights
DVP3156/93
Plays it all
Play virtually any media format you want whether they be DivX, MP3s, WMA or JPEGs.
Experience the unbeatable convenience of
great playability, and the luxury of sharing
media files on your TV or home theater system
- in the comfort of your living room.
192kHz/24 bit audio DAC
curves. Together with a 24-bit resolution,
more information is captured from the original
analogue sound wave form, giving a much
richer audio reproduction.
Progressive Scan
Progressive Scan doubles the vertical
resolution of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
5.1 channel audio output
5.1 channel audio output for surround sound
192KHz sampling enables you to have an
accurate representation of the original sound
Page 3
DVD player with USB
DivX playback
Specifications
DVP3156/93
Picture/Display
• D/A converter: 12 bit, 108 MHz
• Picture enhancement: Progressive Scan, Video
ampling
ups
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 30-20000 Hz
• Signal to noise ratio: 90
• Distortion and Noise (1kHz): 65 dB
• Crosstalk (1kHz): 70 dB
• Dynamic Range (1kHz): 80 dB
•Sound System: Dolb
y Digital, DTS
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DivX, DVD+R/+RW, DVD-R/-RW,
DVD-Video
• Compression formats: MPE
DivX 4.x, DivX 5.x, DivX 6.0
• Video disc playback system: PAL, NTSC
G1, MPEG2, DivX 3.11,
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMA-
CD, CD-R/RW, Audio CD
• Compression format: MP3, Dolby Digital, PCM,
WMA
• MP3 bit rates: 32 - 320 kbps
Still Picture Playback
• Playback Media: DVD+R/+RW, DVD-R/-RW, CD-
R/RW, Picture CD, Kodak Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Flip photos, Rotate, Zoom,
deshow
Sli
Connectivity
• Rear Connections: Digital coaxial out, Composite
video (CVBS) output, ComponentVideo out
Progressive, Analog audio Multi-channel out
Convenience
• Child Protection: Child Lock, Parental Control
• On-Screen Display languages
Chinese
: English, Simplified
Power
• Power supply: 110-240V, 50/60 Hz
• Power consumption: < 10 W
• Standby power consumption: < 0.8 W
Accessories
• Included Accessories: Audio/Video cable, 2 x AAA
Batteries, Remote Control, World Wide
Warranty leaflet, User Manual, Warranty Leaflet
Dimensions
•Set dimensions (W x H x D): 360 x 37 x 209 mm
• Packaging dimensions (W x H x D):
5 x 82 x 282 mm
41
Multimedia Applications
• Multimedia connections: USB memory class device
• Playback Formats: DivX, JPEG Still pictures, MP3
•
Issue date 2009-07-03
Version: 2.0.9
12 NC: 8670 000 27642
EAN: 87 12581 31955 7
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
