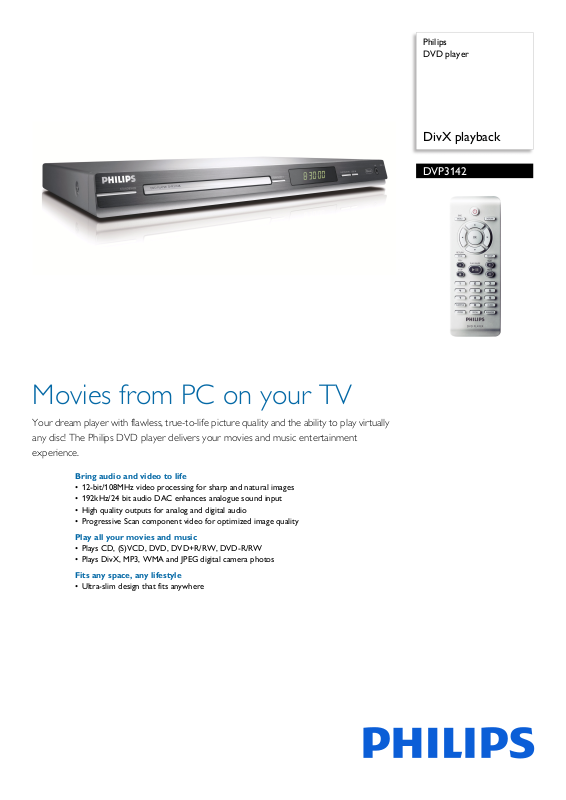

Page 1
Philips
DVD player
DivX playback
DVP3142
Movies from PC on your TV
Your dream player with flawless, true-to-life picture quality and the ability to play virtually
any disc! The Philips DVD player delivers your movies and music entertainment
experience.
Bring audio and video to life
• 12-bit/108MHz video processing for sharp and natural images
• 192kHz/24 bit audio DAC enhances analogue sound input
• High quality outputs for analog and digital audio
• Progressive Scan component video for optimized image quality
Play all your movies and music
• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW
• Plays DivX, MP3, WMA and JPEG digital camera photos
Fits any space, any lifestyle
• Ultra-slim design that fits anywhere
Page 2
DVD player
DivX playback
DVP3142/77
Specifications
Picture/Display
• D/A converter: 12 bit, 108 MHz
• Picture enhancement: Progressi
upsampling
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 30-20000 Hz
• Signal to noise ratio: 90
• Distortion and Noise (1kHz): 65 dB
• Crosstalk (1kHz): 70 dB
• Dynamic Range (1kHz): 80 dB
• Sound System: Dolby Digital
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DivX, DVD+R/+RW, DVD-R/-RW,
DVD-Video
• Compression formats: MPE
DivX 4.x, DivX 5.x, DivX 6.0
• Video disc playback system: PAL, NTSC
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD
• MP3 bit rates: 32 - 320 kbps
• Compression format: MP3, Dolby Digital, PCM,
WMA
Still Picture Playback
• Playback Media: DVD+R/+RW, DVD-R/-RW, CD-
ve scan, Video
G1, MPEG2, DivX 3.11,
R/RW, Picture CD, Kodak Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Flip photos, Rotate, Zoom,
Sli
deshow
Connectivity
• Rear Connections: Analog audio Left/Right out,
ComponentVideo out Progressive, Composite
video (CVBS) output, Digital coaxial out
Convenience
• Child Protection: Child Lock, Parental Control
• On-Screen Display languages: En
Portuguese, Mexican Spanish
glish, Brazilian
Power
• Power consumption: < 10 W
• Power supply: 110-240V, 50/60 Hz
• Standby power consumption: < 0.8 W
Accessories
• Included accessories: 2 x AAA Batteries, Remote
Control, World Wide Warranty leaflet, User
Manual, Audio/Video cable
Dimensions
• Packaging dimensions (W x H x D):
415 x 82 x 282 mm
•Set dimensions (W x H x D): 360 x 37 x 209 mm
•
Highlights
192kHz/24 bit audio DAC
192KHz sampling enables you to have an accurate
representation of the original sound curves.
Together with a 24-bit resolution, more information
is captured from the original analogue sound wave
form, giving a much richer audio reproduction.
Plays it all
Play virtually any media format you want - whether
they be DivX, MP3s, WMA or JPEGs. Experience the
unbeatable convenience of great playability, and the
luxury of sharing media files on your TV or home
theater system - in the comfort of your living room.
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
Issue date 2014-02-10
Version: 1.1.9
12 NC: 8670 000 28599
EAN: 87 12581 32631 9
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
