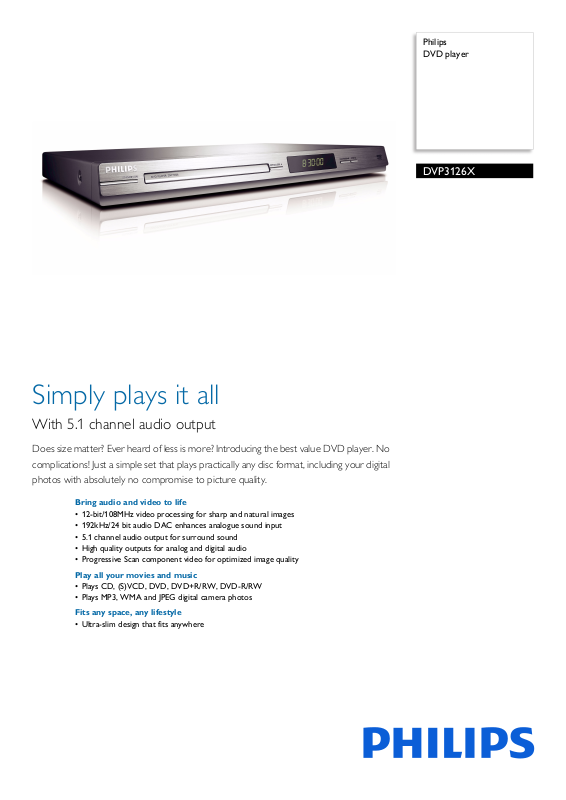

Page 1
Philips
DVD player
DVP3126X
Simply plays it all
With 5.1 channel audio output
Does size matter? Ever heard of less is more? Introducing the best value DVD player. No
complications! Just a simple set that plays practically any disc format, including your digital
photos with absolutely no compromise to picture quality.
Bring audio and video to life
• 12-bit/108MHz video processing for sharp and natural images
• 192kHz/24 bit audio DAC enhances analogue sound input
• 5.1 channel audio output for surround sound
• High quality outputs for analog and digital audio
• Progressive Scan component video for optimized image quality
Play all your movies and music
• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW
• Plays MP3, WMA and JPEG digital camera photos
Fits any space, any lifestyle
• Ultra-slim design that fits anywhere
Page 2
DVD player
Highlights
DVP3126X/94
192kHz/24 bit audio DAC
192KHz sampling enables you to have an
accurate re
curves. Together with a 24-bit resolution,
more information is captured from the original
analogue sound wave form, giving a much
richer audio reproduction.
5.1 channel audio output
5.1 channel audio output for surround sound
presentation of the original sound
Plays it all
Play MP3s, WMA and JPEGs, and experience
th
e convenience of sharing media files on your
TV or home theater system - in the comfort of
your living room.
Progressive Scan
Progressive Scan doubles the vertical
resoluti
on of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
Pow er
Resume
Page 3
DVD player
Specifications
DVP3126X/94
Picture/Display
• D/A converter: 12 bit, 108 MHz
• Picture enhancement: Progressi
upsampling
ve scan, Video
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 30-20000 Hz
• Signal to noise ratio: 90
• Distortion and Noise (1kHz): 65 dB
• Crosstalk (1kHz): 70 dB
• Dynamic Range (1kHz): 80 dB
• Sound System: Dolby Digital
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DVD+R/+RW, DVD-R/-RW, DVDVideo
• Compression formats: MPEG1, MPEG2
• Video disc playback system: PAL, NTSC
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD
• MP3 bit rates: 32 - 320 kbps
• Compression format: PCM,
WMA
MP3, Dolby Digital,
Still Picture Playback
• Playback Media: DVD+R/+RW, DVD-R/-RW, CD-
R/RW, Picture CD, Kodak Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Flip photos, Rotate,
deshow, Zoom
Sli
Connectivity
• Rear Connections: Composite video (CVBS)
output, Digital coaxial out, ComponentVideo out
Progressive, Analog audio Multi-channel out
Convenience
• Child Protection: Child Lock, Parental Control
• On-Screen Display languages: English
Power
• Power consumption: < 10 W
• Standby power consumption: < 0.8 W
• Power supply: 50/60 Hz, 110-240V
Accessories
• Included accessories: Audio/Video cable, World
Wide Warranty leaflet, Remote Control, 2 x AAA
Batteries, User Manual
Dimensions
•Set dimensions (W x H x D): 360 x 37 x 209 mm
• Packaging dimensions (W x H x D):
5 x 82 x 282 mm
41
•
Issue date 2014-02-10
Version: 1.0.3
12 NC: 8670 000 31285
EAN: 87 12581 34386 6
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
