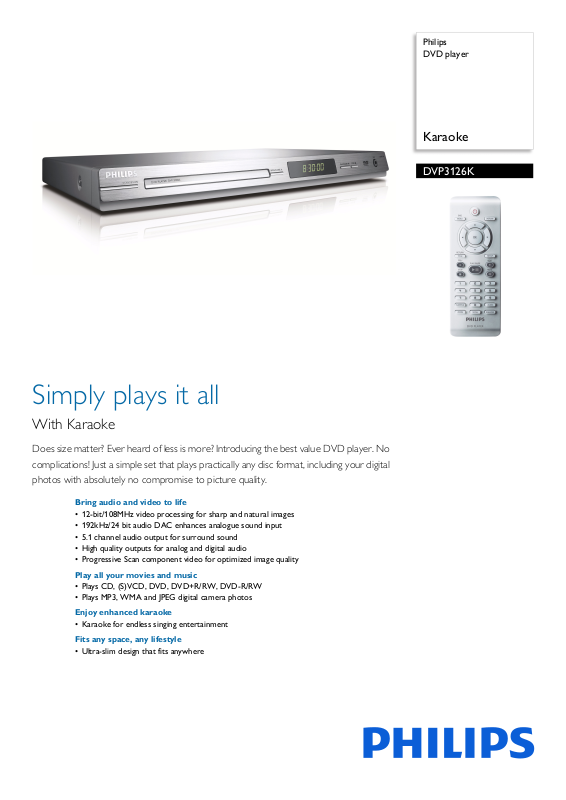

Page 1
Philips
DVD player
Karaoke
DVP3126K
Simply plays it all
With Karaoke
Does size matter? Ever heard of less is more? Introducing the best value DVD player. No
complications! Just a simple set that plays practically any disc format, including your digital
photos with absolutely no compromise to picture quality.
Bring audio and video to life
• 12-bit/108MHz video processing for sharp and natural images
• 192kHz/24 bit audio DAC enhances analogue sound input
• 5.1 channel audio output for surround sound
• High quality outputs for analog and digital audio
• Progressive Scan component video for optimized image quality
Play all your movies and music
• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW
• Plays MP3, WMA and JPEG digital camera photos
Enjoy enhanced karaoke
• Karaoke for endless singing entertainment
Fits any space, any lifestyle
• Ultra-slim design that fits anywhere
Page 2
DVD player
Karaoke
DVP3126K/56
Specifications
Picture/Display
• D/A converter: 12 bit, 108 MHz
• Picture enhancement: Progressi
upsampling
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 30-20000 Hz
• Signal to noise ratio: 90
• Distortion and Noise (1kHz): 65 dB
• Crosstalk (1kHz): 70 dB
• Dynamic Range (1kHz): 80 dB
• Sound System: Dolby Digital
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DVD+R/+RW, DVD-R/-RW, DVDVideo
• Compression formats: MPEG1, MPEG2
• Video disc playback system: PAL, NTSC
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD
• MP3 bit rates: 32 - 320 kbps
• Compression format: PCM,
WMA
Still Picture Playback
• Playback Media: DVD+R/+RW, DVD-R/-RW, CDR/RW, Picture CD, Kodak Picture CD
ve scan, Video
MP3, Dolby Digital,
• Picture Compression Format: JPEG
• Picture Enhancement: Flip photos, Rotate,
Sli
deshow, Zoom
Connectivity
• Front / Side connections: Microphone
• Rear Connections: Composite video (CVBS)
utput, Digital coaxial out, ComponentVideo out
o
Progressive, Analog audio Multi-channel out
Convenience
• Child Protection: Child Lock, Parental Control
• On-Screen Display languages
Chinese, Korean, Malay, Thai, Traditional Chinese
• Karaoke: MIC volume
: English, Simplified
Power
• Power consumption: < 10 W
• Standby power consumption: < 0.8 W
• Power supply: 50/60 Hz, 110-240V
Accessories
• Included accessories: Audio/Video cable, World
Wide Warranty leaflet, Remote Control, 2 x AAA
Batteries, User Manual
Dimensions
•Set dimensions (W x H x D): 360 x 37 x 209 mm
• Packaging dimensions (W x H x D):
5 x 82 x 282 mm
41
•
Highlights
192kHz/24 bit audio DAC
192KHz sampling enables you to have an accurate
representation of the original sound curves.
Together with a 24-bit resolution, more information
is captured from the original analogue sound wave
form, giving a much richer audio reproduction.
5.1 channel audio output
5.1 channel audio output for surround sound
Karaoke
The Karaoke feature on your DVD player provides
endless entertainment and maximum audio and
singing enjoyment.You can enhance your
performance by adding an ‘echo’ effect to your voice.
The key controls allows you to choose the optimal
key for your personal vocal range.
Plays it all
Play MP3s, WMA and JPEGs, and experience the
convenience of sharing media files on your TV or
home theater system - in the comfort of your living
room.
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
Issue date 2014-02-10
Version: 1.0.9
12 NC: 8670 000 30459
EAN: 87 12581 33875 6
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
