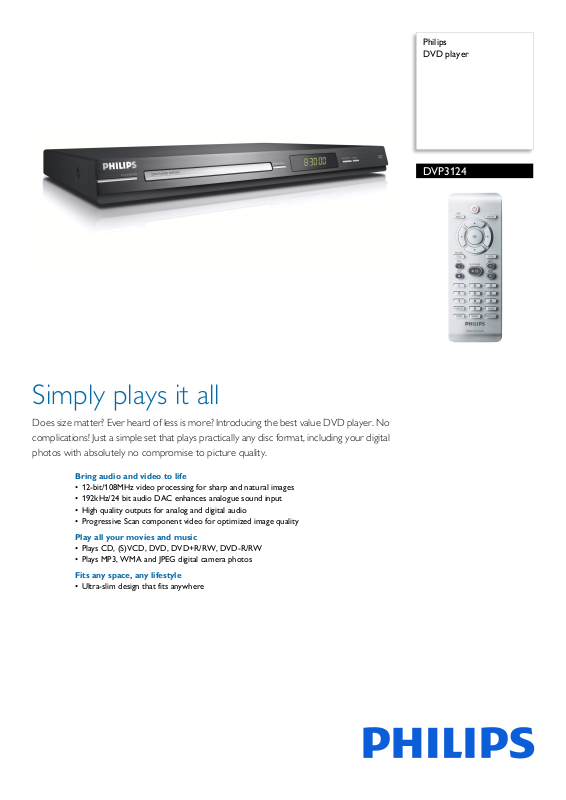

Page 1
Philips
DVD player
DVP3124
Simply plays it all
Does size matter? Ever heard of less is more? Introducing the best value DVD player. No
complications! Just a simple set that plays practically any disc format, including your digital
photos with absolutely no compromise to picture quality.
Bring audio and video to life
• 12-bit/108MHz video processing for sharp and natural images
• 192kHz/24 bit audio DAC enhances analogue sound input
• High quality outputs for analog and digital audio
• Progressive Scan component video for optimized image quality
Play all your movies and music
• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW
• Plays MP3, WMA and JPEG digital camera photos
Fits any space, any lifestyle
• Ultra-slim design that fits anywhere
Page 2
DVD player
DVP3124/78
Specifications
Picture/Display
• D/A converter: 12 bit, 108 MHz
• Picture enhancement: Progressi
upsampling
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 30-20000 Hz
• Signal to noise ratio: 90
• Distortion and Noise (1kHz): 65 dB
• Crosstalk (1kHz): 70 dB
• Dynamic Range (1kHz): 80 dB
• Sound System: Dolby Digital
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DVD-R/-RW, DVD+R/+RW, DVDVideo
• Compression formats: MPEG1, MPEG2
• Video disc playback system: PAL, NTSC
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD
• MP3 bit rates: 32 - 320 kbps
• Compression format: Dolby Di
PCM
Still Picture Playback
• Playback Media: DVD-R/-RW, DVD+R/+RW, CD-
ve scan, Video
gital, MP3, WMA,
R/RW, Picture CD, Kodak Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Flip photos, Rotate,
deshow, Zoom
Sli
Connectivity
• Rear Connections: Analog audio Left/Right out,
Composite video (CVBS) output, Digital coaxial
out, ComponentVideo out Progressive
Convenience
• Child Protection: Parental Control, Child Lock
• On-Screen Display languages: Spanis
Portuguese, English
h, Brazilian
Power
• Power consumption: < 10 W
• Power supply: 110-240V, 50/60 Hz
• Standby power consumption: < 1W
Accessories
• Included accessories: 2 x AAA Batteries, Remote
Control, World Wide Warranty leaflet, User
Manual, Audio/Video cable, VDE to 2-pin Flat
Adaptor
Dimensions
•Set dimensions (W x H x D): 360 x 37 x 209 mm
• Packaging dimensions (W x H x D):
5 x 82 x 282 mm
41
•
Highlights
192kHz/24 bit audio DAC
192KHz sampling enables you to have an accurate
representation of the original sound curves.
Together with a 24-bit resolution, more information
is captured from the original analogue sound wave
form, giving a much richer audio reproduction.
Plays it all
Play MP3s, WMA and JPEGs, and experience the
convenience of sharing media files on your TV or
home theater system - in the comfort of your living
room.
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
Issue date 2014-02-06
Version: 2.0.4
12 NC: 8670 000 34279
EAN: 87 12581 36665 0
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
