Philips DVP3012, DVP3010, DVP3012-02 User Manual

DVD VIDEO PLAYER

User manual

Thank you for choosing Philips.

Need help fast?

Read your User’s Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support

DVP3012

DVP3010

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse. 2 Fix new fuse which should be a BS1362 5 Amp,

A.S.T.A. or BSI approved type.

3 Refit the fuse cover.

If the fitted plug is not suitable for your jack outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13 Amp jack elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).

¶ As these colours may not correspond with the

colour markings identifying the terminals in your plug, proceed as follows: – Connect the blue wire to the terminal marked N or coloured black. – Connect the brown wire to the terminal marked L or coloured red. – Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

VAROITUS

Muiden kuin tässä esitettyjen toimintojen säädön tai asetusten muutto saattaa altistaa vaaralliselle säteilylle tai muille vaarallisille toiminnoille.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling.

Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.

Klass 1 laseraparat Varning! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.

Observera! Stömbrytaren är sekundärt kopplad och bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget.

Luokan 1 laserlaite Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle. Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle.

Huom. Toiminnanvalitsin on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta. Sisäänrakennettu verkko-osa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

Due to the inconsistency of disc formats provided by various disc manufacturers, your DVD system may require a playability enhancement or upgrade. As DVD technology advances, these enhancements will become common and will be easy to complete.

Go to www.philips.com/support for software upgrade.

‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘ST ANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’

General Information

Environmental Information

All unnecessary packaging has been omitted. The packaging has been made easy to separate into two materials: cardboard (box, buffer) and polyethylene (bags, protective foam sheet).

Your DVD player consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.

Windows Media is a trademark of Microsoft Coporation.

Laser safety

This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.

NOTE: PICTURES SHOWN MAYBE DIFFERENT BETWEEN COUNTRIES.

CAUTION (WARNING LOCATION: ON THE BACKPLATE OF THE SET)

NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON.

Important Note: Due to the numerous versions of new CD-Audio copy protection or enhanced CD-Audio protection recently available on certain discs, Philips is unable to guarantee that this DVD Player is fully compatible with such new discs. Should you have difficulty playing any such CD-Audio discs, kindly refer them to your CDAudio disc retailer.

For Customer Use: Read carefully the information located at

the rear of your DVD VIDEO player and enter below the Serial No. Retain this information for future reference.

Model No. DVP 3012 Serial No. _______________

This DVD player is in conformity with the EMC directive and lowvoltage directive.

LASER

Type Semiconductor laser

GaAlAs

Wave length 650 nm (DVD)

780 nm (VCD/CD)

Output Power 7 mW (DVD)

10 mW (VCD/CD)

Beam divergence 60 degree

CAUTION VISIBLE AND INVISIBLE LASER RADIA TION WHEN OPEN. AVOID EXPOSURE TO BEAM. ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN VORSICHT GEFAHR VON SICHTBARER UND UNSICHTBARER LASERSTRAHLUNG BEI GEÖFFNETEM GEHÄUSE. ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU

Index

English --------------------------------------- 6

English

Deutsch------------------------------------ 40

Deutsch

Contents

English

Introduction

Supplied accessories ....................................... 8

Care and safety information.......................... 8

Connections

Connecting TV............................................ 9-10

Using SCART jack........................................... 9

Using Composite Video jacks (CVBS)........ 9

Using Component Video jacks (Pr Pb Y). 10

Using an accessory RF modulator ............10

Connecting the power cord........................ 11

Optional : Connecting to an Audio System .

...........................................................................12

Stereo system has Dolby Pro Logic or Right

/ Left Audio In jack ....................................... 12

Optional: Connecting Digital AV Receiver...

...........................................................................12

Receiver has a PCM, Dolby Digital, or

MPEG2 decoder............................................ 12

Functional Overview

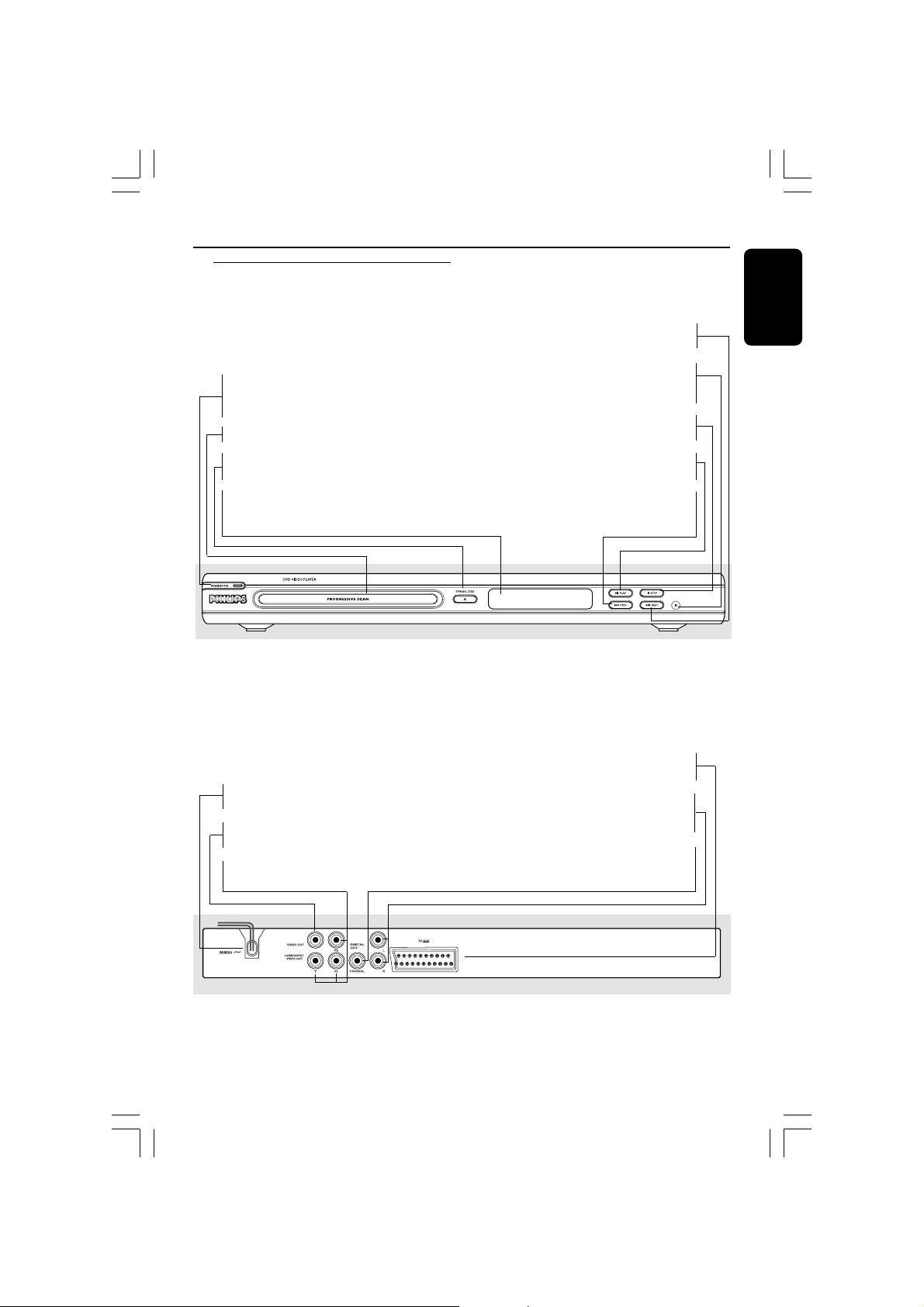

Front and Rear Panels ..................................13

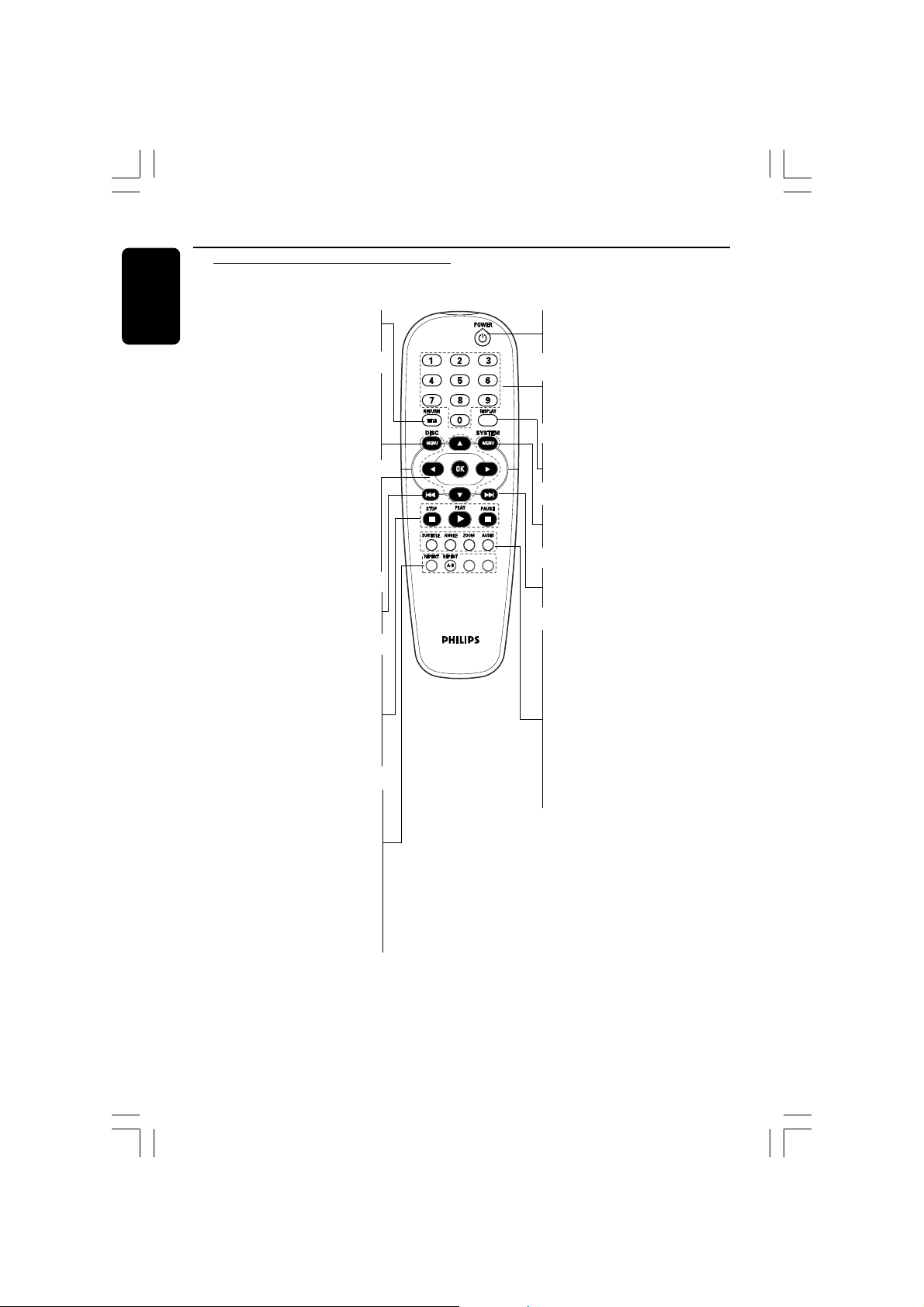

Remote Control ............................................14

Getting Started

Step 1: Inserting batteries into the

Remote Control ............................................15

Using the Remote Control to operate the

Player............................................................... 15

Step 2: Setting up the TV ........................15-17

Setting up Progressive Scan feature (for

Progressive Scan TV only)........................... 16

To deactivate Progressive manually ..........17

Selecting the colour system that

corresponds to your TV.............................. 17

Step 3: Setting language preference ...........18

Setting the OSD Language.......................... 18

Setting the Audio, Subtitle and Disc menu

language .......................................................... 18

Disc Operations

Playable Discs .................................................19

Region Codes .................................................19

Playing discs.....................................................19

Basic playback controls................................. 20

Selecting various repeat/shuffle functions 20

Repeat play mode......................................... 20

Repeating a section within a chapter/track .

.........................................................................

Operations for video playback ...................21

Using the Disc Menu.................................... 21

Zooming in..................................................... 21

Resuming playback from the last stopped

point ................................................................ 21

Slow motion................................................... 21

Using the OSD menu .................................. 21

Special DVD features ....................................22

Playing a Title ................................................. 22

Camera Angle ................................................22

Changing the Audio Language.................... 22

Subtitles .......................................................... 22

Special VCD & SVCD Features.............22-23

Playback Control (PBC).............................. 22

Preview ...........................................................23

Playing DivX disc ...........................................23

Playing MP3/Windows Media™ Audio/

MPEG-4/JPEG/Kodak Picture CD ..............24

General Operation....................................... 24

Selecting a folder and track/file .................24

Special picture disc features........................25

Preview Function..........................................25

Zoom picture ................................................25

Playback with multi-angles.......................... 25

Scan Effect ......................................................25

Playing MP3/Windows Media™ Audio music

and JPEG picture simultaneously...............25

DVD Menu Options

General Setup menu ...............................26-27

Locking/Unlocking the disc for viewing... 26

Dimming system’s display screen.............. 26

Programming disc tracks.......................26-27

OSD Language............................................... 27

Screen Saver - turning on/off..................... 27

Sleep ................................................................ 27

DivX VOD registration code ..................... 27

Audio Setup Menu................................... 28-29

Analogue output ........................................... 28

Digital Audio Setup....................................... 28

Sound Mode................................................... 29

CD Upsampling............................................. 29

Night Mode - turning on/off....................... 29

Video Setup Menu ................................... 30-32

TV T ype ........................................................... 30

Setting the TV Display ................................. 30

Progressive - turning on/off........................31

Picture Setting ........................................ 31-32

Switching the YUV/RGB .............................. 32

Preference Page........................................ 33-35

Audio, Subtitle, Disc Menu.......................... 33

Restricting playback by Parental Control.....

......................................................................... 33

PBC.................................................................. 34

MP3/JPEG Menu - turning on/off............... 34

Changing the Password............................... 34

Setting the DivX Subtitle ............................ 35

Restoring to original settings..................... 35

Contents

English

Troubleshooting ......................... 36–37

Specifications ...................................... 38

Glossary ......................................................................39

Introduction

PREVIEW

MUTE

10 cm

(4 inches)

10 cm

(4 inches)

10 cm

(4 inches)

PHILIPS

English

Supplied accessories

Remote Control and two AA batteries

Care and safety information

● Power consumption

– When the system is switched to Standby mode, it is still consuming power. To disconnect the system from the power supply completely, remove the AC power plug from the wall jack.

● Avoid high temperatures, moisture,

water and dust

– Do not expose the player, batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight.)

● Avoid condensation problem

– The lens may cloud over when the player is suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

● Do not block the vents

– Do not operate the DVD Player in an enclosed cabinet, allow about 10 cm (4 inch) of free space all around the player for adequate ventilation.

PREVIEW

MUTE

● Care of the cabinet

– Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

● Finding a suitable location

– Place the player on a flat, hard, and stable surface.

● Disc handling

– To clean a CD, wipe it in a straight line from the center towards the edge using a soft, lint-free cloth. A cleaning agent may damage the disc! – Write only on the printed side of a CDR(W) and only with a soft felttipped pen. – Handle the disc by its edge, do not touch the surface.

Connecting TV

AUDIO IN

S-VIDEO IN

VIDEO IN

TV IN

AUDIO

S-VIDEO

VIDEO IN

TV IN

S-VIDEO

AUDIO

VIDEO IN

Connections

English

TV IN

S-VIDEO IN

AUDIO

TV IN

VIDEO IN

IMPORTANT! – You only need to make

one video connection from the following options, depending on the capabilities of your TV system. – Connect the DVD system directly to the TV. – A SCART connection will let you use features both Audio and Video on the DVD Player.

Using SCART jack

● Use the SCART cable (black) to connect

the DVD Player’s SCART jack (TV OUT) to the corresponding Scart input jacks on the TV (cable not supplied).

Helpful Hint: – Ensure that the “TV” indication on SCART cable is connected to the TV set and “DVD” indication on SCART cable is connected to the DVD Player.

Using Composite Video jacks (CVBS)

1 Use the composite video cable (yellow) to

connect the DVD Player’s CVBS (VIDEO) jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV (cable not supplied).

2 To hear the sound of this DVD Player

through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV (cable not supplied).

Connections

AUDIO IN R L

VIDEO

TO TVINT IN

CH3 CH4

English

RF coaxial cable to TV

COMPONENT

VIDEO IN

S-VIDEO

V (Pr/Cr)

AUDIO

U (Pb/Cb)

COMPONENT

VIDEO IN S-VIDEO IN

V (Pr/Cr)

AUDIO IN

U (Pb/Cb)

VIDEO IN

IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr and a progressive scan TV is required.

Using Component Video jacks (Y Pb Pr)

1 Use the component video cables (red/

blue/green) to connect the DVD system’s Y Pb Pr jacks to the corresponding Component video input jacks (or labeled as Y Pb Pr) on the TV (cable not supplied).

2 To hear the sound of this DVD Player

through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV (cable not supplied).

3 Proceed to page 16 for detailed

Progressive Scan set up.

Back of RF Modulator

(example only)

Antenna or

Cable TV signal

IMPORTANT! – If your TV only has a single Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.

Using an accessory RF modulator

1 Use the composite video cable (yellow) to

connect the DVD Player’s CVBS jack to the video input jack on the RF modulator.

2 Use the RF coaxial cable (not supplied) to

connect the RF modulator to your TV’s RF jack.

Connecting the power cord

COMPONENT

VIDEO IN

S-VIDEO

V (Pr/Cr) AUDIO OUT

~ AC MAINS

U (Pb/Cb)

VIDEO IN

After everything is connected properly, plug in the AC power cord to the power outlet.

Never make or change any connections with the power switched on.

Connections

English

When no disc is loaded, press STANDBY ON on the DVD Player front panel, “NO DISC” may appear on the display panel.

NO DISC

Connections

AUDIO

DIGITAL

AV Receiver

English

Optional: Connecting to an Audio System

STEREO

Stereo system has Dolby Pro Logic or Right / Left Audio In jack

1 Select one of the video connections

(CVBS VIDEO IN, SCART or COMPONENT VIDEO IN) depending on the options available on your TV.

2 Use the audio cables (white/red) to

connect AUDIO OUT (L/R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the stereo system (cable not supplied).

Optional: Connecting Digital AV Receiver

AUDIO

DIGITAL

Receiver has a PCM, Dolby Digital, or MPEG2 decoder

1 Select one of the video connections

(CVBS VIDEO IN, SCART or COMPONENT VIDEO IN) depending on the options available on your TV.

2 Connect the COAXIAL jack of the DVD

Player to the corresponding Digital Audio In jack on your Receiver (cable not supplied).

3 Set the DVD Player’s Digital Output to

PCM-ONLY or ALL depending on the capabilities of your Receiver (see page 28

“Digital Output”).

Helpful Hints: – If the audio format of the Digital Output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

+ 27 hidden pages
