Philips DVP3005-37 User Manual

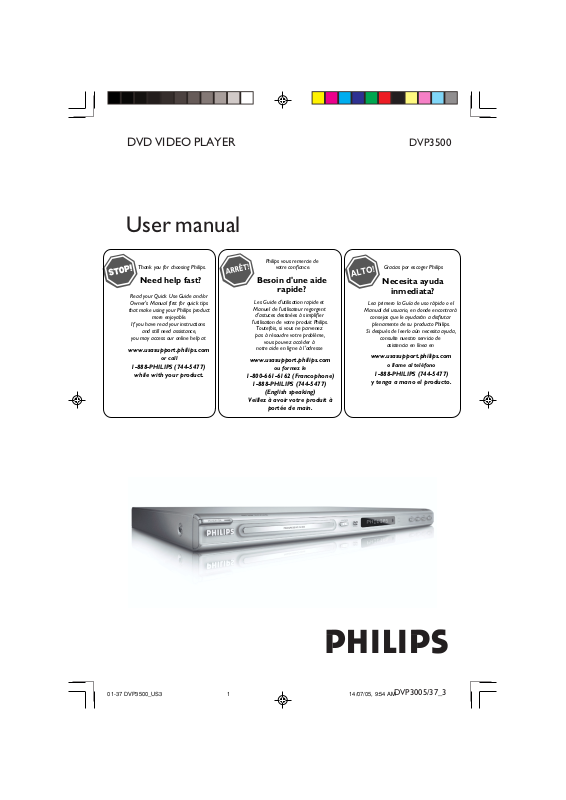

DVD VIDEO PLAYER

User manual

Thank you for choosing Philips.

Need help fast?

Read your Quick Use Guide and/or Owner's Manual first for quick tips

that make using your Philips product

more enjoyable.

If you have read your instructions

and still need assistance,

you may access our online help at

www.usasupport.philips.com

1-888-PHILIPS (744-5477)

or call

while with your product.

Philips vous remercie de

votre confiance.

Besoin d'une aide

rapide?

Les Guide d'utilisation rapide et

Manuel de l'utilisateur regorgent

d'astuces destinées à simplifier

l'utilisation de votre produit Philips.

Toutefois, si vous ne parvenez

pas à résoudre votre problème,

vous pouvez accéder à

notre aide en ligne à l'adresse

www.usasupport.philips.com

ou formez le

1-800-661-6162 (Francophone)

1-888-PHILIPS (744-5477)

(English speaking)

à avoir votre produit à

Veillez

portée de main.

DVP3500

Gracias por escoger Philips

Necesita ayuda

inmediata?

Lea primero la Guía de uso rápido o el

Manual del usuario, en donde encontrará

consejos que le ayudarán a disfrutar

plenamente de su producto Philips.

Si después de leerlo aún necesita ayuda,

consulte nuestro servicio de

asistencia en línea en

www.usasupport.philips.com

o llame al teléfono

1-888-PHILIPS (744-5477)

y tenga a mano el producto.

01-37 DVP3500_US3 14/07/05, 9:54 AM1

DVP3005/37_3

Return your Product Registration Card today

to get the very most from your purchase.

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once to ensure:

*Proof of Purchase

Returning the enclosed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service.

*Product Safety Notification

By registering your product, you'll receive notification directly from the manufacturer in the rare case of a product recall or safety defect.

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today.We’ll do everything in our power to

keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly, you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a PHILIPS product.

P.S. To get the most from your PHILIPS purchase, be sure to complete and return your Product Registration Card at once.

*Additional Benefits of Product Ownership

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

Know these

safety

This “bolt of lightning” indicates uninsulated material within your

unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which

you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING:To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large

de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. ____________________ Serial No. ____________________

symbols

Visit our World Wide Web Site at http://www.usasupport.philips.com

01-37 DVP3500_US3 14/07/05, 9:54 AM2

DVP3005/37_3

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer´s instructions.

Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that

produce heat.

Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/accessories

speciﬁed by the manufacturer.

AC Polarized

Plug

12 .

13 .

Unplug this apparatus during lightning

storms or when unused for long periods of time.

14 .

Refer all servicing to qualiﬁed service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.

Battery usage

prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:

●

Install all batteries correctly, + and - as marked on the unit.

●

Do not mix batteries (old and new or carbon and alkaline, etc.).

●

Remove batteries when the unit is not used for a long time.

16.

Apparatus shall not be exposed to

dripping or splashing.

17.

Do not place any sources of danger

on the apparatus (e.g. liquid filled

objects, lighted candles).

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

CAUTION

– To

01-37 DVP3500_US3 14/07/05, 9:54 AM3

18.

This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations.

For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance : www.eiae.org.

EL 6475-E005: 04/01

DVP3005/37_3

This warning label is located on the

Class II equipment symbol

This symbol indicates that the unit has

a double insulation system

rear panel and inside this laser

INVISIBLE

CAUTION

LASER RADIATION

WHEN OPEN. DO NOT STARE INTO BEAM.

INVISIBLE LASER RADIATION WHEN OPEN.

DANGER

AVOID DIRECT EXPOSURE TO BEAM.

AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET

VARO !

ALTTIINANAKYMATTOMAALLE LASERSATEILYLLE.ALA KATSO SATEESEEN.

OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.

VARNING!

OCH SPARREN AR URKOPPLAD.BETRAKTA EJ STRÅLEN.

DANGER - Invisible laser radiation when open.

AVOID DIRECT EXPOSURE TO BEAM.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

product.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure.

The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.

Canada

English:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Français:

Cet appareil numérique n'emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Class B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada.

01-37 DVP3500_US3 14/07/05, 9:54 AM4

DVP3005/37_3

ATTENTION

L'utilisation des commandes ou réglages ou le non-respect des procédures ci-incluses peuvent se traduire par une exposition dangereuse à l'irradiation.

ATENCIÓN

El uso de mando o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.

Important Note: Due to the numerous versions of new CD-Audio copy protection or enhanced CD-Audio protection recently available on certain discs, Philips is unable to guarantee that this DVD Player is fully compatible with such new discs. Should you have difficulty playing any such CD-Audio discs, kindly refer them to your CDAudio disc retailer.

Due to the inconsistency of disc formats provided by various disc manufacturers, your DVD system may require a playability enhancement or upgrade. As DVD technology advances, these enhancements will become common and will be easy to complete.

Go to www.philips.com/support for software upgrade.

‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’

01-37 DVP3500_US3 14/07/05, 9:54 AM5

DVP3005/37_3

General Information

Environmental Information

All unnecessary packaging has been omitted. The packaging has been made easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your DVD player consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Laser safety

This unit employs a laser. Due to possible

eye injury, only a qualified service person

should remove the cover or attempt to

service this device.

NOTE:

PICTURES SHOWN MAY BE

DIFFERENT BETWEEN

COUNTRIES.

CAUTION

(WARNING LOCATION: ON THE

BACKPLATE OF THE SET)

NEVER MAKE OR CHANGE

CONNECTIONS WITH THE

POWER SWITCHED ON.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro-Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from Digital Theater Systems, Inc. U.S. Pat. Nois. 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and world-wide patents issued and pending. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. All Right Reserved.

For Customer Use:

Read carefully the information located at the rear of your DVD Player and enter below the Serial No. Retain this information for future reference.

Model No. DVP 3500 Serial No. _______________

01-37 DVP3500_US3 14/07/05, 9:54 AM6

LASER

Type Semiconductor laser

GaAlAs

Wave length 650 nm (DVD)

780 nm (VCD/CD)

Output Power 7 mW (DVD)

10 mW (VCD/CD)

Beam divergence 60 degree

DVP3005/37_3

Index

English --------------------------------------- 6

Français ------------------------------------ 38

Español ------------------------------------ 64

English

Français

Español

01-37 DVP3500_US3 14/07/05, 9:54 AM7

DVP3005/37_3

Contents

English

Introduction

Supplied accessories ..................................... 10

Care and safety information........................ 10

Connections

Connecting TV .......................................... 11-12

Using Composite Video jacks (CVBS)...... 11

Using Component Video jacks (Pr Pb Y) . 11

Using an accessory RF modulator ............ 12

Connecting the power cord........................ 12

Optional : Connecting to an Audio System .

........................................................................... 13

Stereo system has Dolby Pro Logic or Right

/ Left Audio In jack ....................................... 13

Optional: Connecting Digital AV Receiver ...

........................................................................... 13

Receiver has a PCM, Dolby Digital, or

MPEG2 decoder ............................................ 13

Functional Overview

Front and Rear Panels .................................. 14

Remote Control ............................................ 15

Getting Started

Step 1: Inserting batteries into the

Remote Control ............................................ 16

Using the Remote Control to operate the

Player ............................................................... 16

Step 2: Setting up the TV ........................ 16-18

Setting up Progressive Scan feature (for

Progressive Scan TV only) ........................... 17

To deactivate Progressive manually .......... 18

Selecting the colour system that

corresponds to your TV.............................. 18

Step 3: Setting language preference ...........19

Setting the OSD Language .......................... 19

Setting the Audio, Subtitle and Disc menu

language .......................................................... 19

Disc Operations

Playable Discs ................................................. 20

Region Codes ................................................. 20

Playing discs..................................................... 20

Basic playback controls................................. 21

Selecting various repeat/shuffle functions 21

Repeat play mode ......................................... 21

Repeating a section within a chapter/track .

.........................................................................

Operations for video playback ................... 22

Using the Disc Menu.................................... 22

Zooming in ..................................................... 22

Resuming playback from the last stopped

point ................................................................ 22

OSD (On-Screen Display) .......................... 22

Special DVD features .................................... 23

Playing a Title ................................................. 23

Camera Angle ................................................ 23

Changing the Audio Language .................... 23

Subtitles .......................................................... 23

Special VCD & SVCD Features ................... 23

Playback Control (PBC) .............................. 23

Playing MP3/JPEG (Kodak) Picture CD ..... 24

General Operation ....................................... 24

Playback selection ......................................... 24

Repeat ............................................................. 24

Fast Forward/Reverse (MP3) ..................... 24

01-37 DVP3500_US3 14/07/05, 9:54 AM8

DVP3005/37_3

DVD Menu Options

General Setup menu ..................................... 25

Dimming system’s display screen .............. 25

OSD Language ............................................... 25

Sleep ................................................................ 25

Screen Saver - turning on/off ..................... 25

Audio Setup Menu ................................... 26-27

Setting the Downmix ................................... 26

Digital Audio Setup ................................ 26-27

Video Setup Menu ................................... 27-30

TV Type ........................................................... 27

Setting the TV Display ................................. 28

Progressive - turning on/off........................ 28

Sharpness ........................................................ 29

Brightness/Contrast ..................................... 29

Closed Captions ........................................... 30

Preference Page........................................ 31-32

Audio, Subtitle, Disc Menu .......................... 31

Restricting playback by Parental Control .....

......................................................................... 31

Changing the Password ............................... 32

Restoring to original settings ..................... 32

Specifications ......................................33

Troubleshooting ......................... 34–35

Contents

English

Glossary ......................................................................36

Limited Warranty ........................................37

Language Code............................................ 100

01-37 DVP3500_US3 14/07/05, 9:54 AM9

DVP3005/37_3

Introduction

PREVIEW

MUTE

10 cm

(4 inches)

10 cm

(4 inches)

10 cm

(4 inches)

DVD Home Cinema System

PHILIPS

English

Supplied accessories

Video cable (yellow)

Audio cable (white, red)

Remote Control and two AA batteries

Care and safety information

● Power consumption

– When the system is switched to Standby mode, it is still consuming power. To disconnect the system from the power supply completely, remove the AC power plug from the wall jack.

● Avoid high temperatures, moisture,

water and dust

– Do not expose the player, batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight.)

● Avoid condensation problem

– The lens may cloud over when the player is suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

● Do not block the vents

– Do not operate the DVD Player in an enclosed cabinet, allow about 10 cm (4 inches) of free space all around the player for adequate ventilation.

● Care of the cabinet

– Use a soft cloth slightly moistened with

PREVIEW

MUTE

a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

● Finding a suitable location

– Place the player on a flat, hard, and stable surface.

● Disc handling

– To clean a CD, wipe it in a straight line from the center towards the edge using a soft, lint-free cloth. A cleaning agent may damage the disc! – Write only on the printed side of a CDR(W) and only with a soft felttipped pen. – Handle the disc by its edge, do not touch the surface.

01-37 DVP3500_US3 14/07/05, 9:54 AM10

DVP3005/37_3

Connecting TV

AUDIO

V (Pr/Cr)

U (Pb/Cb)

S-VIDEO

VIDEO IN

COMPONENT

VIDEO IN

AUDIO

OUT

V (Pr/Cr)

U (Pb/Cb)

S-VIDEO IN

VIDEO IN

COMPONENT VIDEO IN

S-VIDEO

V (Pr/Cr)

AUDIO OUT

U (Pb/Cb)

VIDEO IN

S-VIDEO

VIDEO IN

Connections

English

COMPONENT

VIDEO IN

V (Pr/Cr)

AUDIO

U (Pb/Cb)

IMPORTANT! – You only need to make

one video connection from the following options, depending on the capabilities of your TV system. – Connect the DVD Player directly to the TV.

Using Composite Video jacks (CVBS)

1 Use the composite video cable (yellow) to

connect the DVD Player’s CVBS (VIDEO) jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV (cable supplied).

2 To hear the sound of this DVD Player

through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV (cable supplied).

IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr and a progressive scan TV is required.

Using Component Video jacks (Y Pb Pr)

1 Use the component video cables (red /

blue/green) to connect the DVD system’s Y Pb Pr jacks to the corresponding Component video input jacks (or labeled as Y Pb Pr) on the TV (cable not supplied).

2 To hear the sound of this DVD Player

through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV (cable supplied).

3 Proceed to page 17 for detailed

Progressive Scan set up.

01-37 DVP3500_US3 14/07/05, 9:54 AM11

DVP3005/37_3

Connections

~ AC MAINS

AUDIO OUT

V (Pr/Cr)

U (Pb/Cb)

S-VIDEO

VIDEO IN

COMPONENT VIDEO IN

English

RF coaxial cable to TV

Back of RF Modulator

(example only)

AUDIO IN

TO TVINT IN

VIDEO

R L

CH3 CH4

Antenna or

Cable TV signal

IMPORTANT! – If your TV only has a single Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.

Using an accessory RF modulator

1 Use the composite video cable (yellow) to

connect the DVD Player’s CVBS jack to the video input jack on the RF modulator.

2 Use the RF coaxial cable (not supplied) to

connect the RF modulator to your TV’s RF jack.

Connecting the power cord

After everything is connected properly, plug in the AC power cord to the power outlet.

Never make or change any connections with the power switched on.

When no disc is loaded, press

STANDBY ON on the DVD Player front panel, “NO DISC” may appear on the display panel.

NO DISC

01-37 DVP3500_US3 14/07/05, 9:54 AM12

DVP3005/37_3

+ 25 hidden pages
