DVD Player
DVP2702
Register your product and get support at
www.philips.com/welcome
For further assistance, call the customer
User Manual
• Toobtainassistance,contactPhilipsCustomer
support service in your country.
CareCenter;
IntheU.S.A.,Canada,PuertoRico,ortheU.S.Virgin
Islands;1- 866-515-1124
PRECAUTIONS
Supplied Accessories
• Remote Control (NC091UL)
• Audio / video cables
• Quick Start Guide
Connecting to RF Modulator (Not Supplied)
If your TV has “Antenna In (RF in)” jack only, it is still
possible to connect this unit to your TV by using an RF
Modulator.
In this case, follow the instructions below.
1) Disconnect the Power cords of the devices from the
AC outlet.
2) Make the Connection as illustrated below.
3) Set your RF Modulator’s channel 3/4 switch to
either 3 or 4, whichever the TV channel is least
used in your area. If your RF Modulator has a
Modulator / Antenna switch, set it according to the
manual supplied with the RF Modulator.
4) Plug in the Power cords of the devices to an AC outlet.
5) Turn On your TV and choose the same channel as
you set to the RF Modulator’s channel 3/4 switch
to. For more details, follow the manual supplied with
the RF Modulator.
Rear of this unit
VHF / UHF
antenna
Cable TV
company
or
RF coaxial
cable
No Antenna (RF) Output!
If your TV only has an Antenna input
(no A/ V inputs), you will need an
RF Modulator (NOT INCLUDED) to
connect this player.
RF Modulator
Video cable
Audio cable
Rear of your RF
Modulator
Set channel 3 or 4
Rear of TV
RF coaxial cable
TV
Note(s):
• RF Modulator is not supplied with this unit. You need to
purchase it at your local store.
• The quality of picture may become poor if this unit is
connected to an RF Modulator.
Contents
PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS ����������������������������������������������������������3
About the Discs ������������������������������������������������������������������������������������������������������� 6
Playable Discs....................................................................................................6
Unplayable Discs ............................................................................................. 6
SETUP
Connections ���������������������������������������������������������������������������������������������������������������7
Rear Terminals ....................................................................................................7
Connection to a TV ......................................................................................... 8

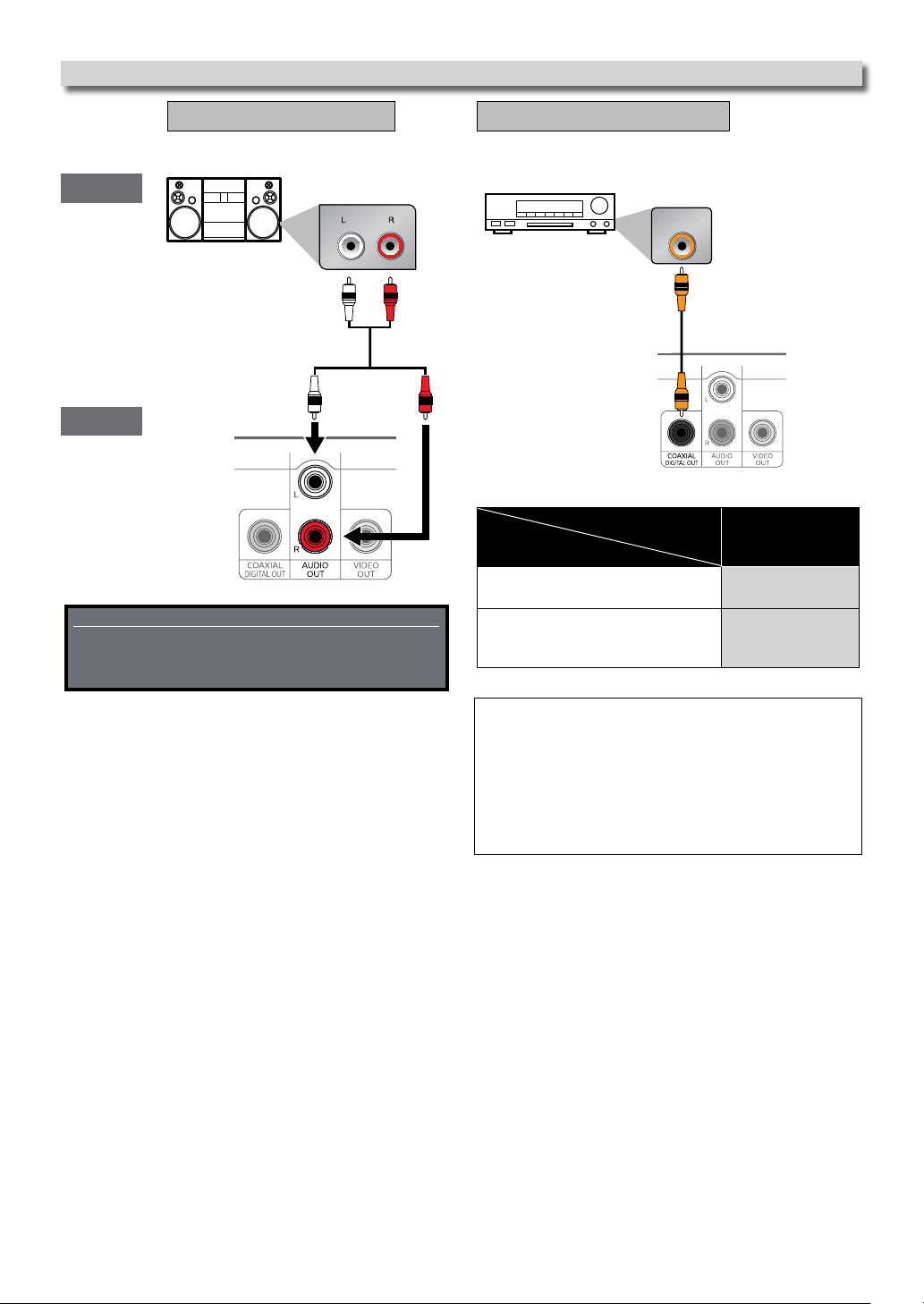

Connection to an Audio System ............................................................. 9
About the Remote Control ������������������������������������������������������������������������������� 10

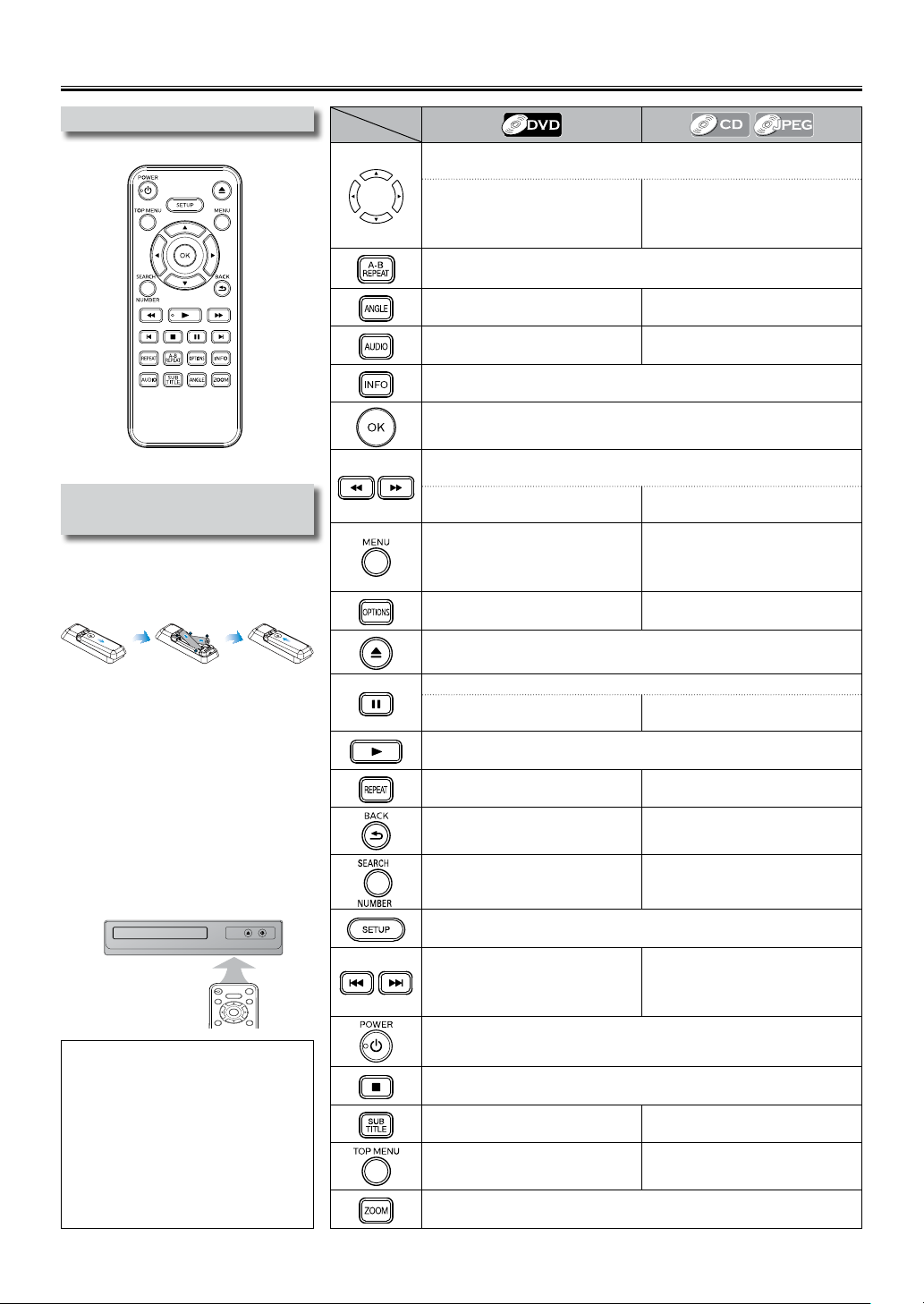

Remote Control............................................................................................... 10
Installing the Batteries for the Remote Control ............................ 10
DVD FUNCTIONS
Playback ���������������������������������������������������������������������������������������������������������������������11
JPEG Playback �������������������������������������������������������������������������������������������������������12

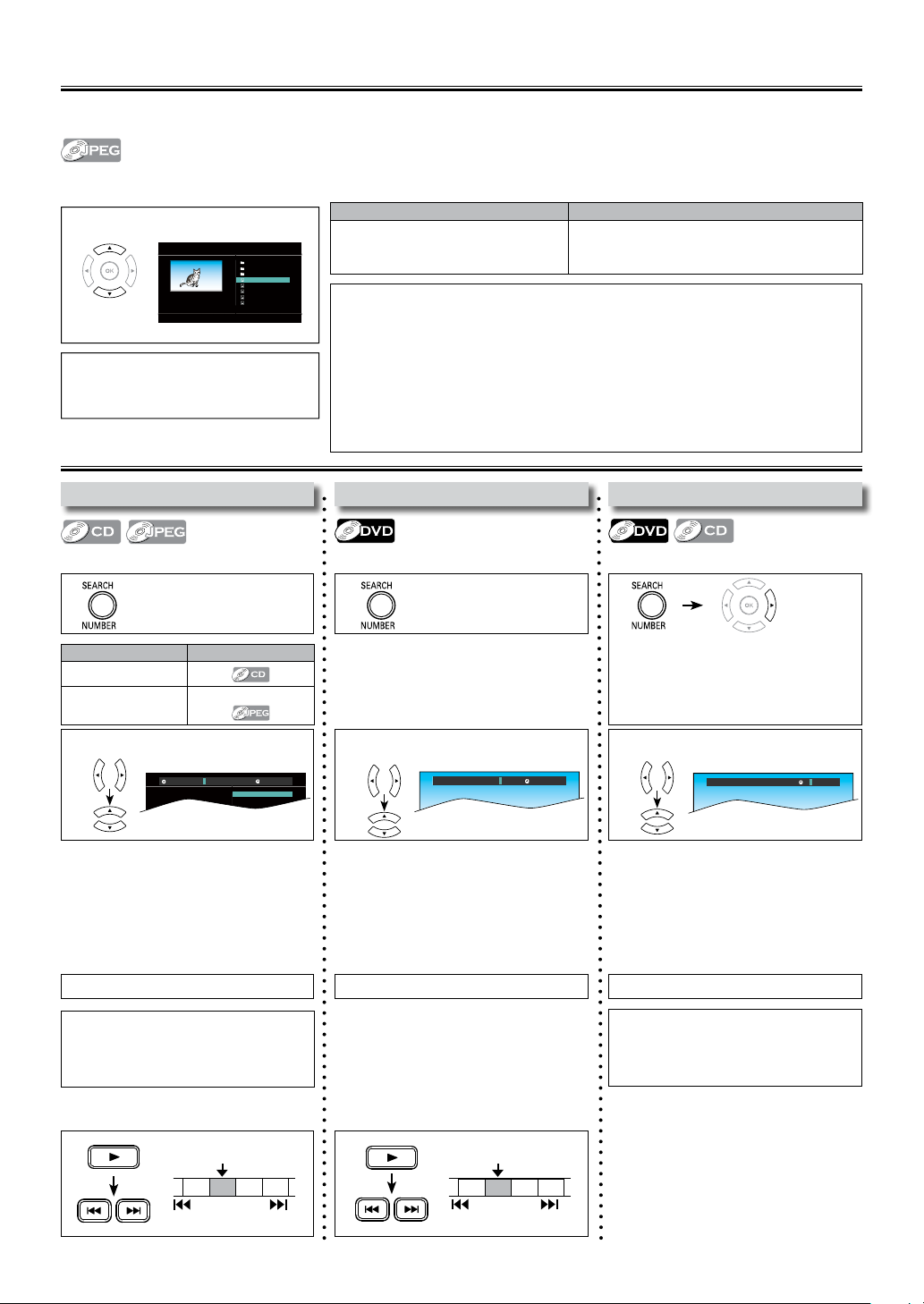

Search Functions ���������������������������������������������������������������������������������������������������12
Using Track / File Search ............................................................................12
Using Title / Chapter Search .....................................................................12
Using Time Search ..........................................................................................12

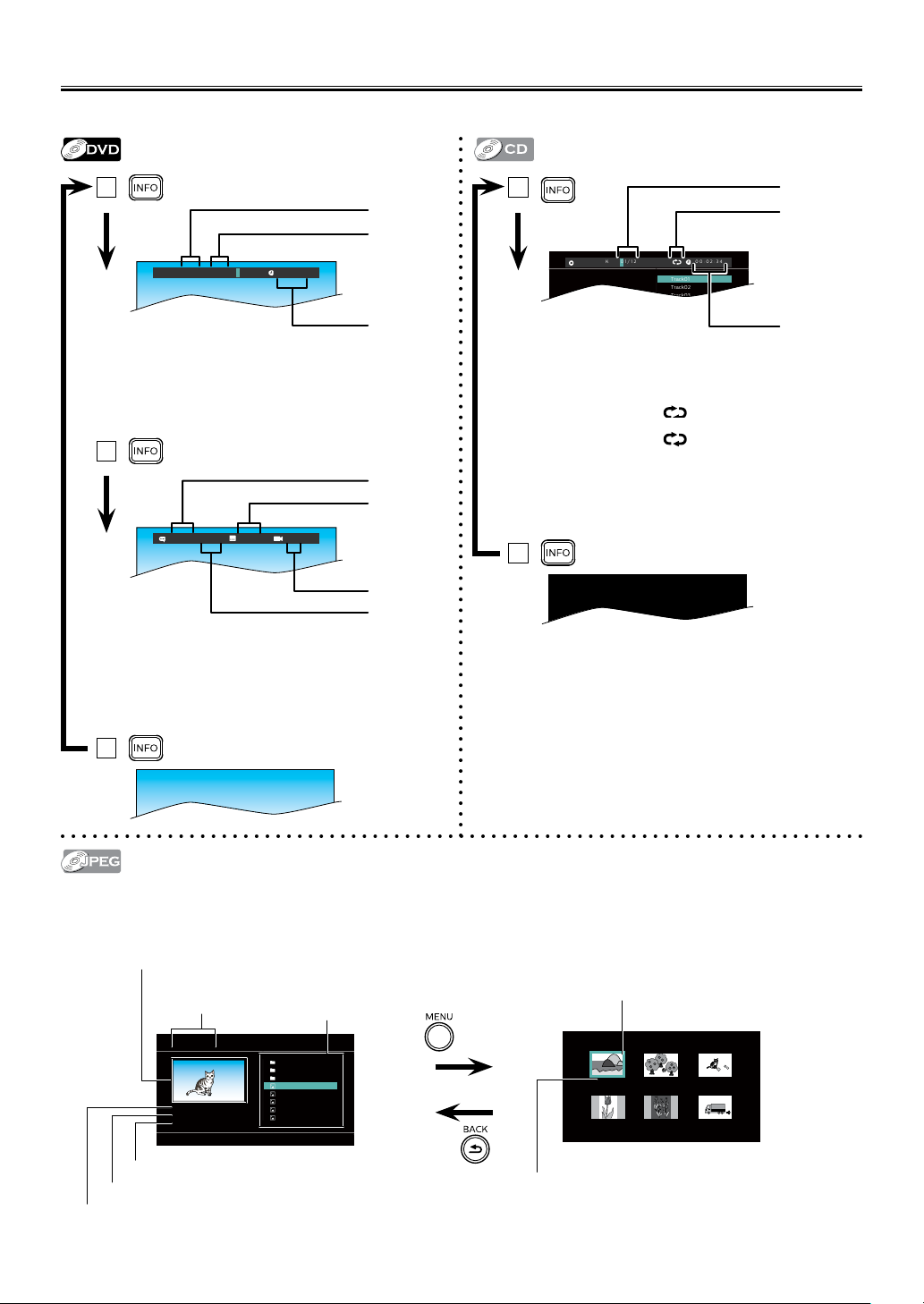

On-Screen Display ������������������������������������������������������������������������������������������������ 13

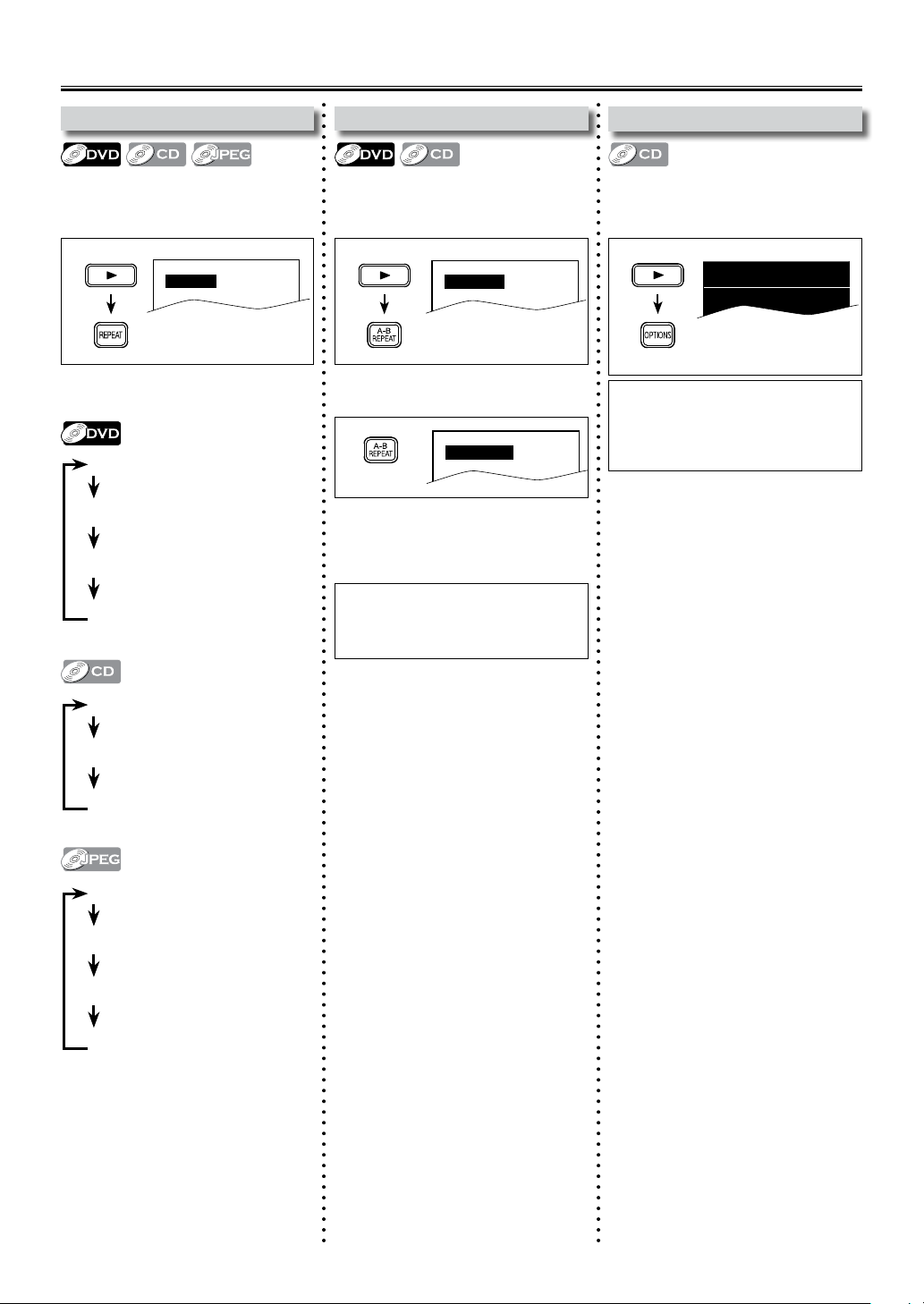

Repeat / Random Playback ����������������������������������������������������������������������������14
Repeat Playback .............................................................................................14
Repeat A-B Playback ...................................................................................14
Random Playback ..........................................................................................14

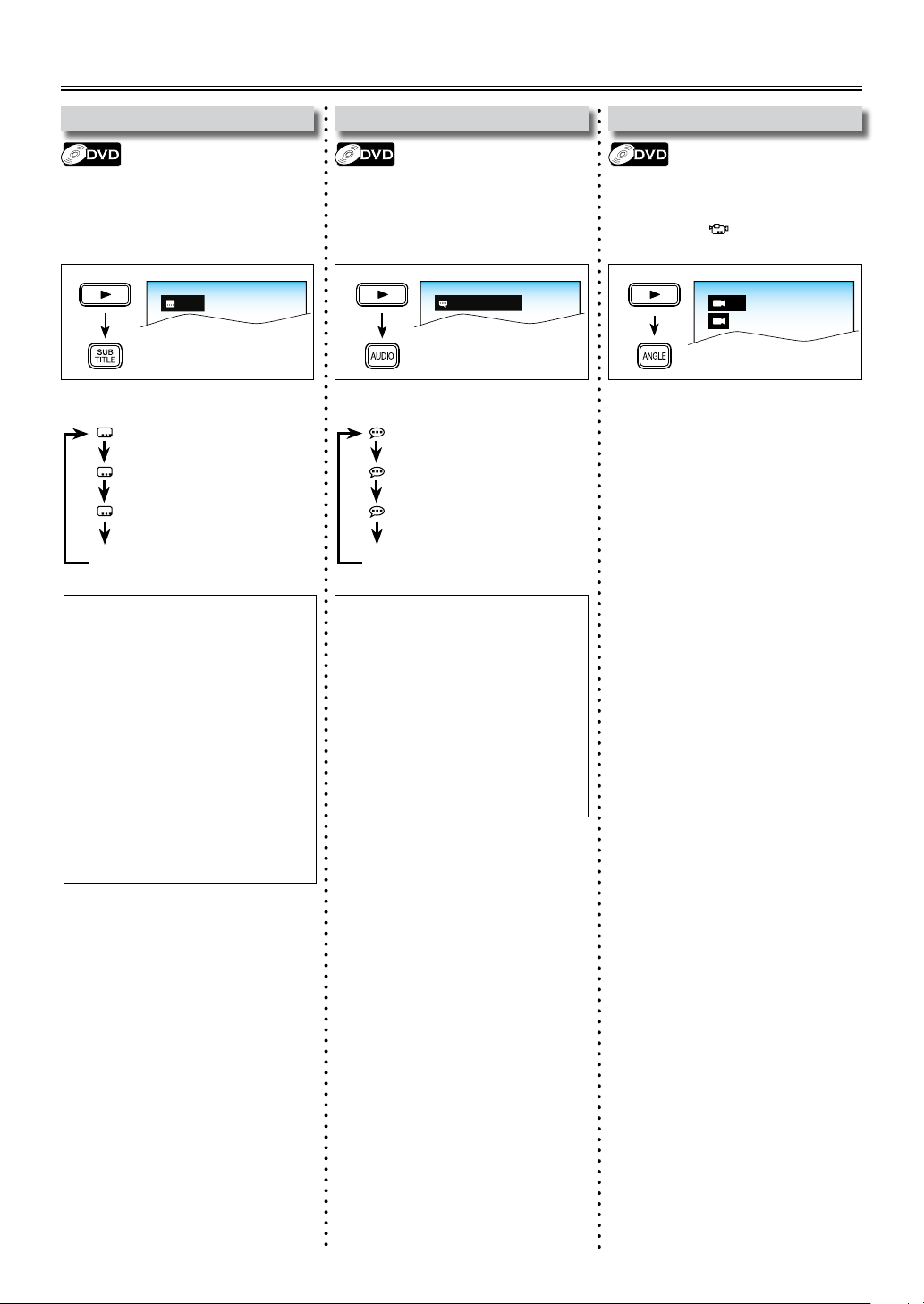

Special Settings ������������������������������������������������������������������������������������������������������15
Subtitle Language ...........................................................................................15
Audio Language ..............................................................................................15
Camera Angles .................................................................................................15

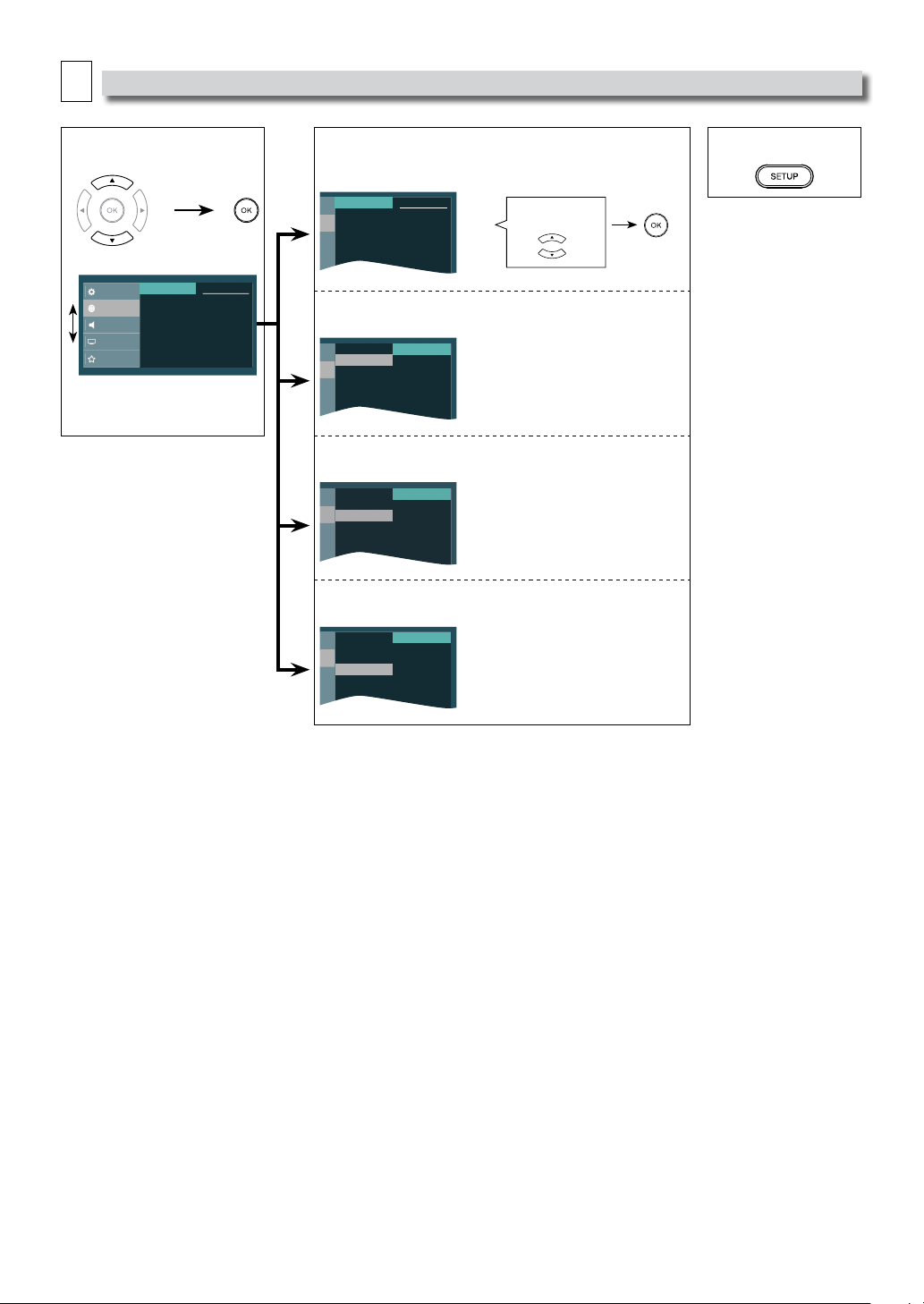

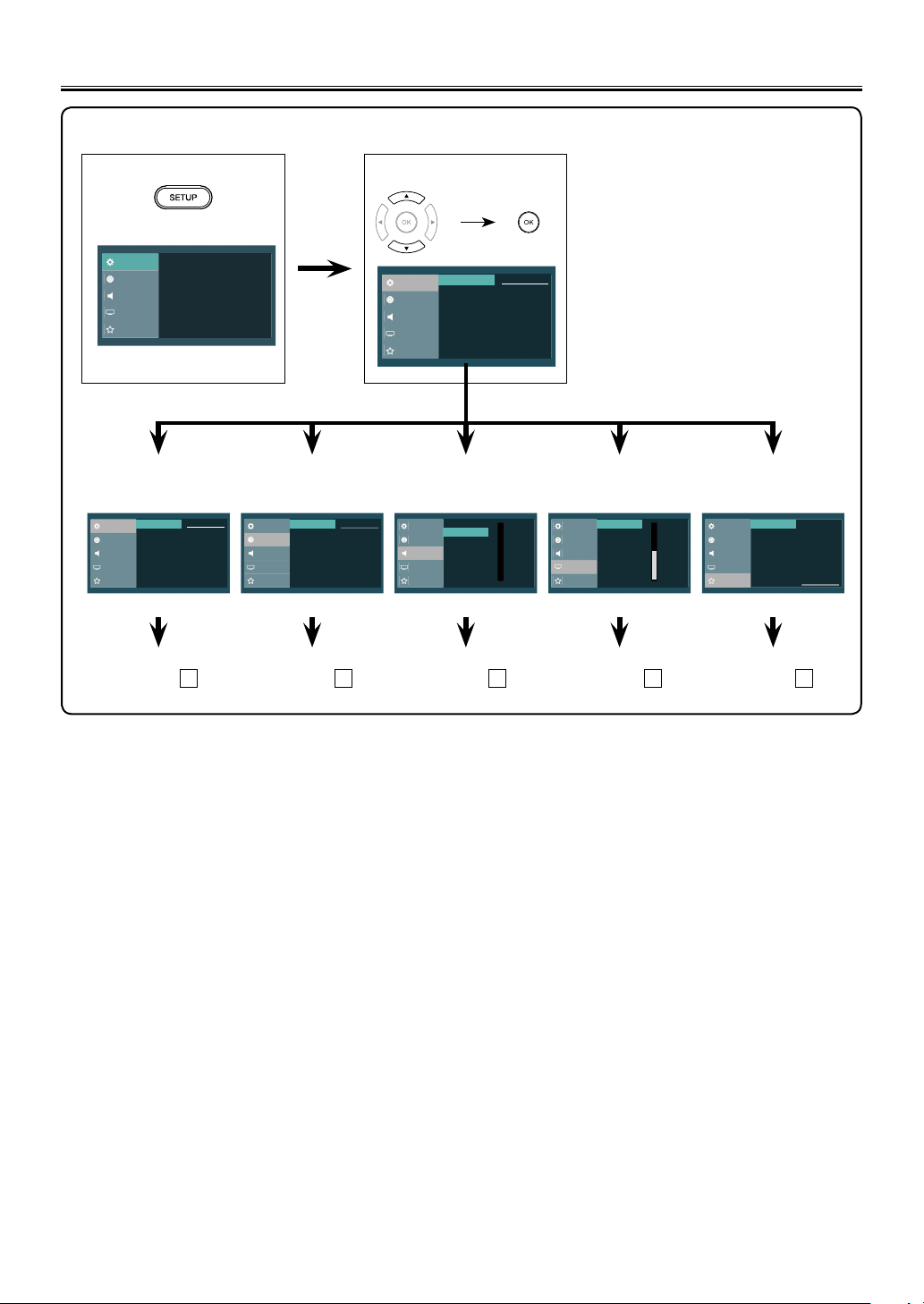

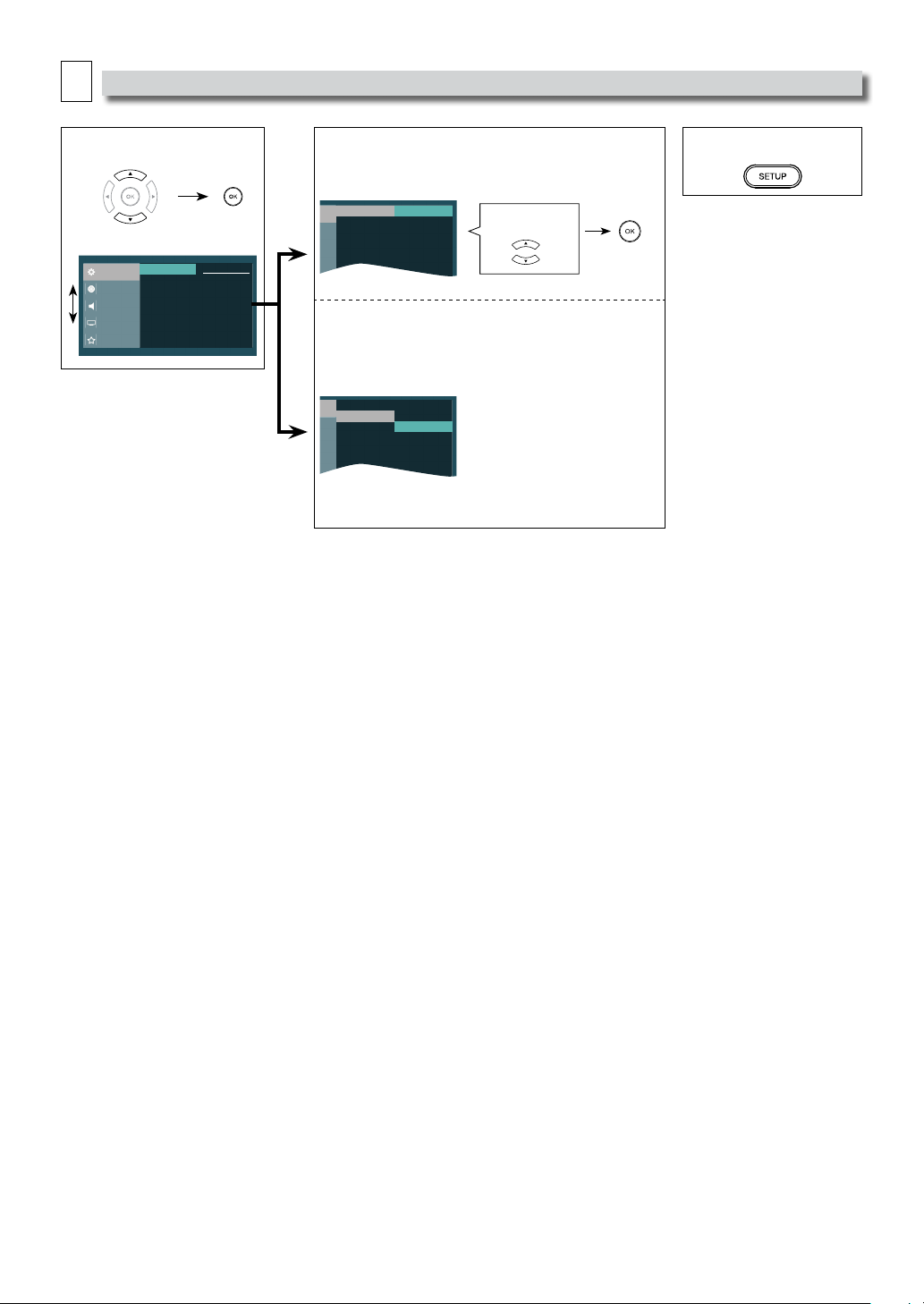

DVD Settings ������������������������������������������������������������������������������������������������������������16
System Settings................................................................................................17
Language Settings ..........................................................................................18

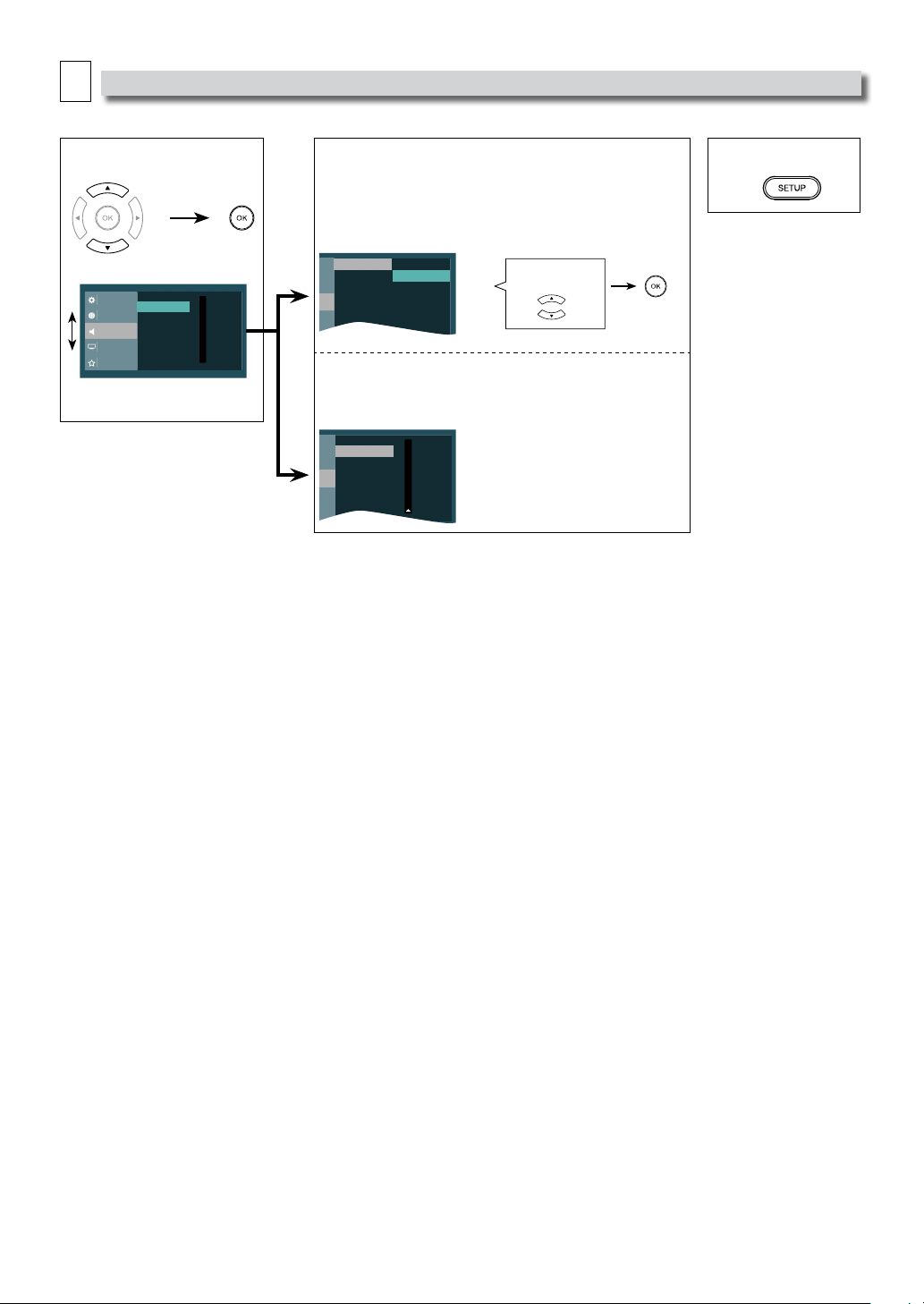

Audio Settings .................................................................................................. 19

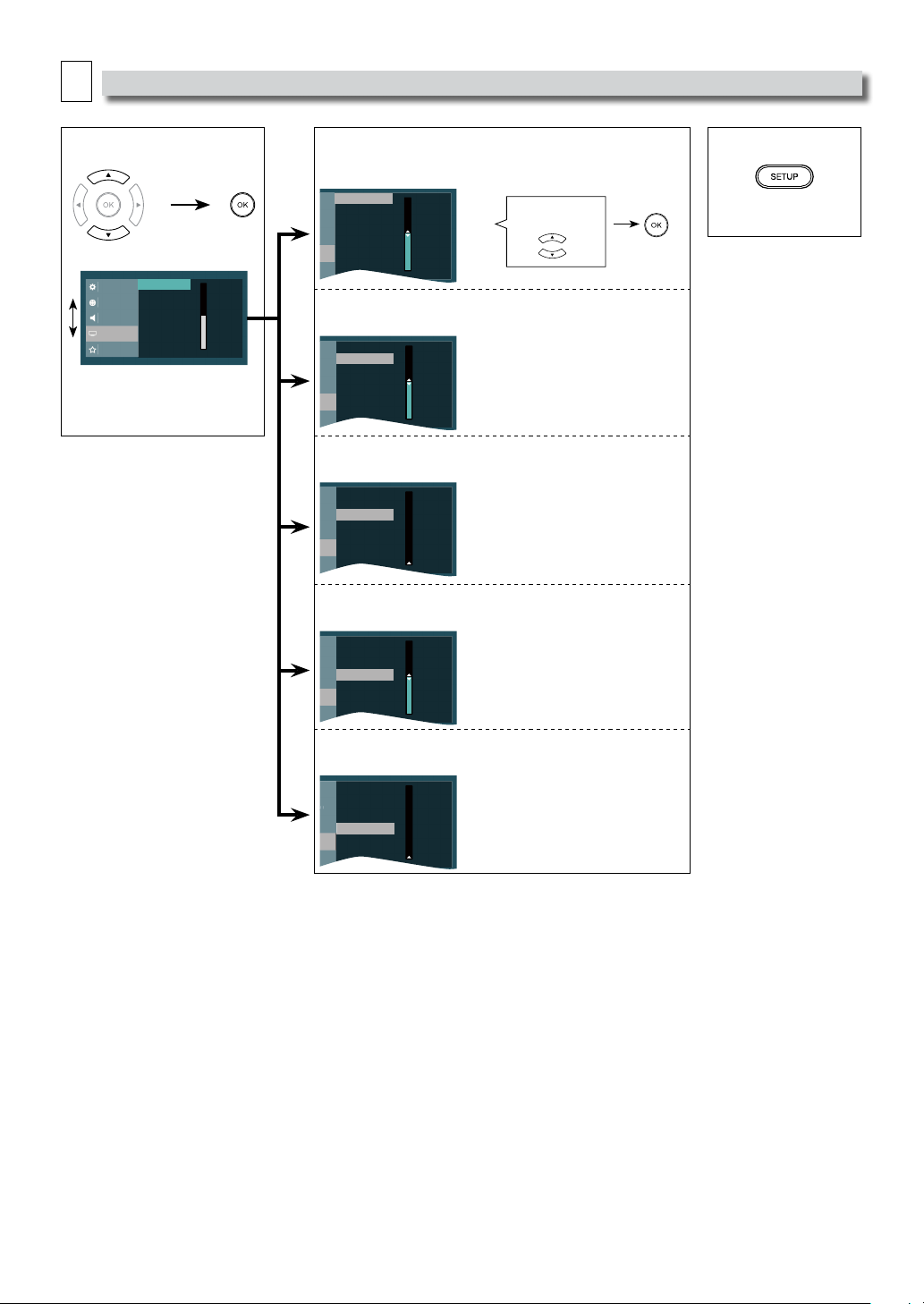

Video Settings ................................................................................................. 20

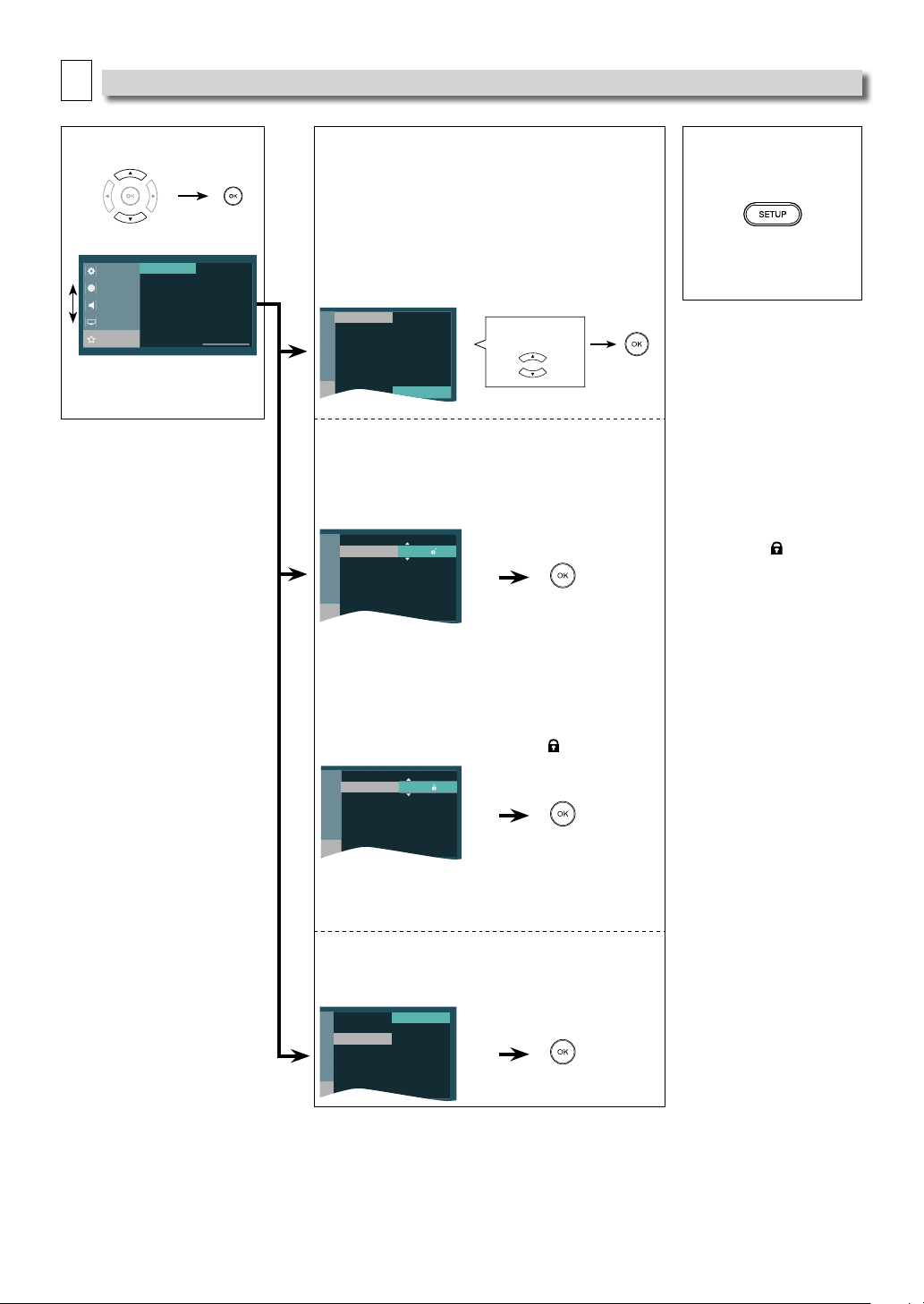

Preference Settings........................................................................................21
INFORMATION
Troubleshooting Guide ��������������������������������������������������������������������������������������22
Specifications ���������������������������������������������������������������������������������������������������������22
LIMITED WARRANTY������������������������������������������������������������������������������������������23
–
–
2
The model and serial numbers of this unit may be found on the cabinet.
You should record and retain those numbers for future reference.
Model No.:
Serial No.:
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The important note and rating are located on the rear or
bottom of the cabinet.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
The symbol for CLASS ll (Double Insulation)
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful
interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio / TV technician for help.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11. Only use attachments / accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the
cart / apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
EN
–
–
3
Continued on next page.
Disconnect the mains(AC) plug to shut off when find trouble or not in use. The mains(AC) plug shall remain readily
operable.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
WARNING: Batteries (Battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire
or the like.
LASER SAFETY
This apparatus is classified as a CLASS 1 LASER PRODUCT.
This apparatus employs a laser. Only a qualified service person should remove the cover or
attempt to service this apparatus, due to possible eye injury.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This item incorporates
copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi
Corporation. Reverse engineering and disassembly are prohibited.
Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing
or climbing on it. A falling unit can cause serious injury or even death.
In order to avoid interruption of ventilation, this unit should not be placed in built-in equipment such as a
book cabinet, rack, etc., and the vents of this unit should not be covered with anything such as a tablecloth,
curtain, newspaper, etc. Make sure to leave a space of 4.0 inches (10cm) or more around this apparatus.
When installing this unit in a temperate environment, avoid a place with rapid temperature changes.
This unit should not be used in a tropical environment as it has not been evaluated under such conditions.
No objects should be placed directly on or under this unit, especially lighted candles or other flaming objects.
Never use a gas duster on this unit.
The gas trapped inside of this unit may cause ignition and explosion.
To Avoid the Hazards of Electrical Shock and Fire
• Do not handle the AC power cord with wet hands.
• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.
• Do not put your fingers or objects into the unit.
Location and Handling
• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.
• Avoid a place with drastic temperature changes.
• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit.
Depending on your external devices, noise or disturbance of the picture and / or sound may be generated if the unit is
placed too close to them. In this case, please ensure enough space between the external devices and the unit.
• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.
• Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.
Dew Condensation Warning
• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few
hours until its inside gets dry.
–The unit is moved from a cold place to a warm place.
–Under conditions of high humidity.
–After heating a cold room.
Note about Recycling
• This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in
accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local
regulations concerning chemical wastes.
• For product recycling information, please visit - www.recycle.philips.com
Notice for Progressive Scan Output
• Consumers should note that not all high definition television sets are fully compatible with this product and may
cause artifacts to be displayed in the picture. In case of picture problems with 525(480) progressive scan output,
it is recommended that the user switch the connection to the ‘standard definition’ output.
Disposal of Used Batteries
• In certain localities, disposing batteries with household waste is not permitted. Please ensure you dispose of batteries
according to local regulations.
EN
–
–
4
TRADEMARK INFORMATION
Manufactured under license
from Dolby Laboratories. Dolby,
™
AUDIO
ENERGY STAR® is a joint program of the
U.S. Environmental Protection Agency
and the U.S. Department of Energy
helping us all save money and protect
the environment through energy efficient
products and practices.
is a trademark of DVD Format / Logo
Licensing Corporation.
Dolby Audio, and the double-D
symbol are trademarks of Dolby
Laboratories.
SYMBOLS USED IN THIS MANUAL
The following symbols appear in some headings in this manual.
: Description refers to DVD-video.
: Description refers to audio CD.
: Description refers to DVD, CD-RW/-R with JPEG
files.
MAINTENANCE
Servicing
• Please refer to relevant topics on the “Troubleshooting
Guide” on page 22. If you cannot find any solution
there, our service center is pleased to assist you.
• Even if this unit becomes inoperative, Do Not open
the cabinet to repair it by yourself. There are No userserviceable parts inside.
Turn Off the unit, unplug the AC Power plug and then call
our support center mentioned on the front page.
Before calling, please check Model and Serial number on
the unit.
Cleaning the Cabinet
• Wipe the front panel and other exterior surfaces of the unit
with a soft cloth.
• Never use a solvent, thinner, benzene or alcohol to clean
the
unit. Do not spray insecticide liquid near the unit.
Such chemicals may discolor the surface or damage the
unit.
Cleaning Discs
• When a disc is dirty, clean it with a cleaning cloth. Wipe the
disc from the center to the outside. Do not wipe in a circular
motion.
• Do not use solvents such as benzine, thinner, commercially
available cleaners, detergent, abrasive cleaning agents or
antistatic spray intended for analog records.
Cleaning the Disc Lens
Depends on unit circumstances, the laser optical pickup unit’s
Disc Lens may get dirty.
If this unit still does not perform properly although you refer
to the relevant sections and to “Troubleshooting Guide” in this
owner’s manual, consult a local dealer or an authorized service
center for inspection and cleaning of the Disc Lens.
Disc Handling
• When you handle a disc, hold it by its edge and try not to
touch the surface of the disc.
• Always store the disc in its protective case when not in use.
EN
–
–
5
About the Discs
1f
JPEG
audio CD
1f
JPEG
Playable Discs
Type of
media
DVD-video
*1, 2, 4, 6, 8
DVD-RW
DVD-R
*1, 3, 4, 5,
6, 7, 8
audio CD
*4, 6, 8
Mark (logos)
Region
codes
or
Recorded
signals
digital video
(MPEG2)
digital video
(MPEG2)
or JPEG
digital audio
Disc sizes Disc types
5 inches
(12 cm)
or
3 inches
(8 cm)
5 inches
DVD-Video
DVD
e.g.)
chapter 1 chapter 2 chapter 1
e.g.)
chapter 1 chapter 2 chapter 1
e.g.)
e.g.)
title 1 title 2
chapter 3 chapter 4
title 1 title 2
chapter 3 chapter 4
folder
file 1
track 1 track 2 track 5
file 3
file 2 file 1
track 3
file 4
track 4
chapter 2
chapter 2
older 2
file 2
track 6
(12 cm)
or
CD-RW
CD-R
*4, 5, 6, 7, 8
digital audio
or JPEG
3 inches
(8 cm)
e.g.)
folder
file 1
file 2 file 1
file 3
older 2
file 4
file 2
If you cannot play back a disc which bears one of the marks above, check the following notes.
*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back.
*2: Certain DVD-video do not operate as described in this manual due to the intentions of the disc’s producers.
*3: Discs recorded in the VR (Video Recording) format cannot be played back.
*4: Scratched or stained discs may not be played back.
*5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special
properties of discs.
*6: You can play back discs which bear the marks above. If you use non-standardized discs, this unit may not play them back.
Even if they are played back, the sound or video quality will be compromised.
*7: If the recorded portion of the disc is too small (smaller than 2-3/16 inches (55mm) across), it may not be played back.
*8: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.
Unplayable Discs
NEVER play back the following discs as a malfunction may result!
DVD-audio / DVD-RAM / DVD-ROM for personal computers / DVD with region codes other than 1 or ALL /
CD-ROM for personal computers / HD DVD / Blu-ray Disc™ / photo CD / CD-i / video CD
Any other discs without compatibility indications.
Note(s):
• Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD
layer cannot be delivered.
EN
–
–
6
Connections
Rear Terminals
SETUP
2 1
3
AUDIO OUT jacks
1
COAXIAL DIGITAL OUT jack
2
VIDEO OUT jack
3
Connect an Audio cable here through the Audio Input jacks on a Television or another
Audio device.
Connect a Digital Audio Coaxial cable here through the Digital Audio Coaxial Input jack
on a decoder or audio receiver.
Connect a Video cable here through the Video Input jack on a Television.
Note(s):
• Please purchase the necessary cables at your local store. (Refer to pages 8 - 9.)
EN
–
–
7
Connection to a TV
AUDIO IN
L
R
TV
This unit
VIDEO OUT
VIDEO IN
Video cable
(supplied)
VIDEO INPUT Y/VIDEO INVIDEO IN
oror
and
AUDIO OUT
(Analog Audio)
This unit
TV
Audio cable
(supplied)
Supplied cables used in this connection are as follows:
• Audio cable (L/R) × 1
• Video cable × 1
Note(s):
• Connect this unit directly to your TV.
If Audio / Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.
After connecting to your TV:
You will need to find the viewing channel (external input channel) on your TV.
Please refer to your TV’s Owner’s manual for details.
Input modes for common TV brands:
Listed below are inputs for common brand name TV’s.
Philips: VIDEO, SOURCE
Emerson: VIDEO, AUX
Hitachi: INPUT, AUX
JVC: VIDEO, VIDEO1, VIDEO2, VIDEO3
LG: INPUT, AUX
Magnavox: AUX CHANNEL, SOURCE
Panasonic: TV/VIDEO
RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93
Samsung: TV/VIDEO
Sanyo: VIDEO
Sharp: 00
Sony: VIDEO1, VIDEO2, VIDEO3
Toshiba: TV/GAME
EN
–
–
8
Loading...
