Philips DVDR9000 User Manual

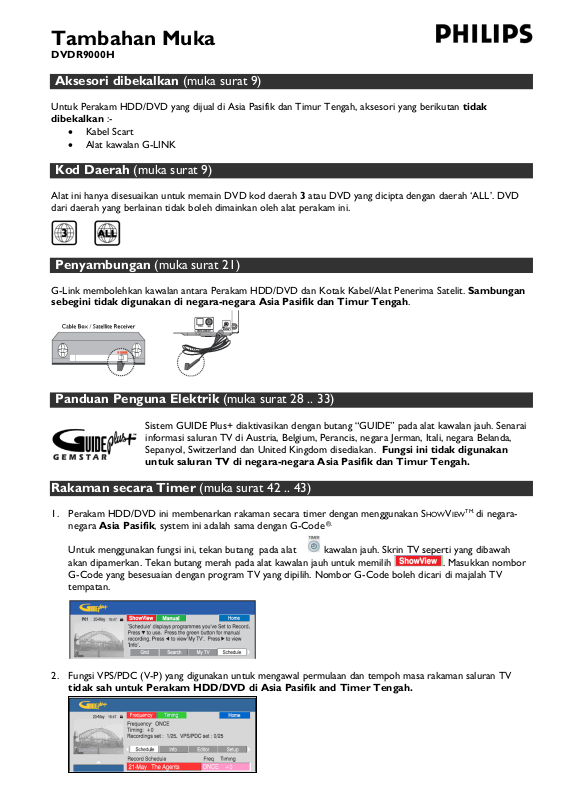

Tambahan Muka

DVDR9000H

Aksesori dibekalkan (muka surat 9)

Untuk Perakam HDD/DVD yang dijual di Asia Pasifik dan Timur Tengah, aksesori yang berikutan tidak dibekalkan :-

•Kabel Scart

•Alat kawalan G-LINK

Kod Daerah (muka surat 9)

Alat ini hanya disesuaikan untuk memain DVD kod daerah 3 atau DVD yang dicipta dengan daerah ‘ALL’. DVD dari daerah yang berlainan tidak boleh dimainkan oleh alat perakam ini.

Penyambungan (muka surat 21)

G-Link membolehkan kawalan antara Perakam HDD/DVD dan Kotak Kabel/Alat Penerima Satelit. Sambungan sebegini tidak digunakan di negara-negara Asia Pasifik dan Timur Tengah.

Panduan Penguna Elektrik (muka surat 28 .. 33)

Sistem GUIDE Plus+ diaktivasikan dengan butang “GUIDE” pada alat kawalan jauh. Senarai informasi saluran TV di Austria, Belgium, Perancis, negara Jerman, Itali, negara Belanda, Sepanyol, Switzerland dan United Kingdom disediakan. Fungsi ini tidak digunakan untuk saluran TV di negara-negara Asia Pasifik dan Timur Tengah.

Rakaman secara Timer (muka surat 42 .. 43)

1.Perakam HDD/DVD ini membenarkan rakaman secara timer dengan menggunakan SHOWVIEWTM. di negaranegara Asia Pasifik, system ini adalah sama dengan G-Code ®.

Untuk menggunakan fungsi ini, tekan butang pada alat

kawalan jauh. Skrin TV seperti yang dibawah

akan dipamerkan. Tekan butang merah pada alat kawalan jauh untuk memilih . Masukkan nombor G-Code yang besesuaian dengan program TV yang dipilih. Nombor G-Code boleh dicari di majalah TV tempatan.

2.Fungsi VPS/PDC (V-P) yang digunakan untuk mengawal permulaan dan tempoh masa rakaman saluran TV tidak sah untuk Perakam HDD/DVD di Asia Pasifik and Timer Tengah.

User Manual				6
Benutzerhandbuch				100

Important notes for users in the U.K.

Mains plug

This apparatus is fi tted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.

2Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.

3Refi t the fuse cover.

If the fi tted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fi tted in its place.

If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).

zAs these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

–Connect the blue wire to the terminal marked N or coloured black.

–Connect the brown wire to the terminal marked L or coloured red.

–Do not connect either wire to the earth terminal in the plug, marked E (or ˛) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio DVDR9000H, Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven

Philips Consumer Electronics

Philips, Glaslaan 2

5616 JB Eindhoven, The Netherlands

Norge

Typeskilt finnes på apparatens underside.

Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

For Customer Use:

Read carefully the information located at the bottom or rear of your DVD Recorder and enter below the Serial No. Retain this information for future reference.

Model No. DVD RECORDER DVDR9000H Serial No. _______________

Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling.

Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.

Klass 1 laseraparat

Varning! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.

Observera! Stömbrytaren är sekundärt kopplad och bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget.

Luokan 1 laserlaite

Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle.

Huom. Toiminnanvalitsin on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta. Sisäänrakennettu verkko-osa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.

CAUTION

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM

ADVARSEL

SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING

VARNING

SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN VARO!

AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN

VORSICHT

SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN

ATTENTION

RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Entsorgung Ihres Altgerätes (Deutsch)

Ihr Produkt ist aus hochqualitativen Materialien und Bestandteilen hergestellt, die dem Recycling zugeführt und wiederverwertet werden können.

Falls dieses Symbol eines durchgestrichenen Müllcontainers auf Rollen auf diesem Produkt angebracht ist, bedeutet dies, dass es von der Europäischen

Richtlinie 2002/96/EG erfasst wird.

Bitte informieren Sie sich über die örtlichen Sammelstellen für Elektroprodukte und elektronische Geräte.

Bitte beachten Sie die lokalen Vorschriften und entsorgen Sie Ihre Altgeräte nicht mit dem normalen Haushaltsmüll. Die korrekte Entsorgung Ihres Altgerätes ist ein Beitrag zur Vermeidung möglicher negativer Folgen für die Umwelt und die menschliche Gesundhei.

LASER

Type	Semiconductor laser
	InGaAlP (DVD)
	AIGaAs (CD)
Wave length	658 nm (DVD)
	790 nm (CD)
Output Power	30 mW (DVD+RW write)
	1.0 mW (DVD read)
	1.0 mW (CD read)
Beam divergence	84 degrees (DVD)
	61 degrees (CD)

‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’

This product incorporates copyright protection technology that is protected by US patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

U.S. Patent Numbers 4,631,603; 4,819,098; 4,907,093; 5,315,448 and 6,516,132.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro-Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Trade mark of the DVB Digital Video Broadcasting Project (1991 to 1996)

HDMI, and HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

GUIDE Plus+, SHOWVIEW, VIDEO Plus+, G-LINK are (1) registered trademarks or trademarks of, (2) manufactured under license from and (3) subject to various international patents and patents applications owned by, or licensed to, Gemstar-TV Guide International, Inc. and/or its related affiliates.

GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.

Index

English ------------------------------------------

Deutsch--------------------------------------

100

Deutsch English

This product complies with the radio interference requirements of the European Community.

This product complies with the requirements of the following directives and guidelines: 73/23/EEC + 89/336/EEC + 93/68/EEC

English

Table of Contents
General
Care and Safety Information ..........................................................................................	8
Setup precautions.................................................................................................................................................	8
Cleaning discs ........................................................................................................................................................	8
Hard Disk Drive (HDD) handling care ..........................................................................................................	8
Product Information ........................................................................................................	9
Introduction...........................................................................................................................................................	9
Accessories supplied ...........................................................................................................................................	9
Region codes..........................................................................................................................................................	9
Special features ...................................................................................................................................................	10
Product Overview
Main Unit .........................................................................................................................	11
Remote Control ........................................................................................................	12~15
Using the remote control ................................................................................................................................	14
Controlling TV with the recorder’s remote control ...............................................................................	15
Connection
Step 1: Basic Recorder Connections......................................................................	16~20
Connecting the antenna cables ..............................................................................................................	16~17
Connecting the video cable.....................................................................................................................	18~19
Connecting the audio cables..........................................................................................................................	20
Step 2: Optional Connections.................................................................................	21~25
Connecting to a Cable Box or Satellite Receiver .....................................................................................	21
Connecting to a VCR or other similar device...........................................................................................	22
Connecting to a VCR and Cable Box/Satellite Receiver........................................................................	23
Connecting to a camcorder ............................................................................................................................	24
Connecting the digital input for 5.1-channel recording..........................................................................	25
Step 3: Installation and Set-up ..............................................................................	26~27
Step 4: Set-up the GUIDE Plus+ system..............................................................	28~29
GUIDE Plus+
Using the GUIDE Plus+ system .............................................................................	30~33
GUIDE Plus+ system introduction...............................................................................................................	30
Quick access functions ....................................................................................................................................	30
GUIDE Plus+ menu bar .............................................................................................................................	31~33
Watch TV
Control TV Programmes ..............................................................................................	34
Switching on to TV programme....................................................................................................................	34
Pause live TV function......................................................................................................................................	34
Instant replay function .....................................................................................................................................	34
FlexTime function..............................................................................................................................................	34
Watching digital TV/radio broadcast...........................................................................................................	35
Viewing digital text service (MHEG) ...........................................................................................................	35
Recording
Before Recording .....................................................................................................	36~38
About temporary HDD storage/Time Shift video bar...........................................................................	36
Default recording settings .......................................................................................................................	37~38
Record to Hard Disk................................................................................................	39~45
Recording TV programmes .............................................................................................................................	39
Simultaneous record and play function.......................................................................................................	40
Direct recording from TV ...............................................................................................................................	41
Automatic recording from Satellite Receiver.............................................................................................	41
About timer recording.....................................................................................................................................	42
Timer recording (GUIDE Plus+ system) ....................................................................................................	42
Timer recording (ShowView / VIDEO Plus+ system).............................................................................	43
Timer recording (manually)............................................................................................................................	44
Changing/Deleting a timer recording ..........................................................................................................	45

	Table of Contents
Record to Hard Disk or recordable DVD.............................................................	46~49
Recording from a DV Camcorder .........................................................................................................	46~47
Recording from camcorder ............................................................................................................................	48
Recording from an external device (VCR/DVD player).........................................................................	49
Copy from Hard Disk to recordable DVD ...........................................................	50~51
About copying ....................................................................................................................................................	50
Discs for recording ...........................................................................................................................................	50
Copying to a recordable DVD........................................................................................................................	51
Disc Library
Using the Disc Library ...................................................................................................	52
Storing the recorded DVD data in the Disc Library................................................................................	52
Finding a recorded title.....................................................................................................................................	52
Playback
Playback from Hard Disk........................................................................................	53~54
Basic operation ...................................................................................................................................................	53
Viewing the hard disk information ................................................................................................................	53
Sorting the titles display order......................................................................................................................	54
Delete/Protect a title in the HDD...............................................................................................................	54
Playback from Disc ..................................................................................................	55~58
Playable discs .......................................................................................................................................................	55
Starting disc playback ................................................................................................................................	55~58
Additional Playback Features ................................................................................	59~64
Creating a slideshow playlist (album) ...................................................................................................	59~60
Selecting another title/chapter/ track ..........................................................................................................	61
Searching forwards/ backwards .....................................................................................................................	61
Pausing playback / slow motion play .............................................................................................................	61
Repeat / Scan / Shuffl e.......................................................................................................................................	62
Using the Toolbar options .......................................................................................................................	63~64
Edit Recordings
Edit Recordings - Hard Disk ...................................................................................	65~69
Changing the title name...................................................................................................................................	65
Selecting the genre............................................................................................................................................	65
Video editing................................................................................................................................................	66~69
Edit Recordings - Recordable DVD ........................................................................	70~74
About editing recordable DVDs ....................................................................................................................	70
Index Picture screen..........................................................................................................................................	70
Deleting recordings/titles ................................................................................................................................	71
Protecting the recorded titles (DVD±RW) ...............................................................................................	71
Changing the disc/title name..........................................................................................................................	72
Making the edited DVD±RW compatible ..................................................................................................	72
Finalising the DVD±R for playback ..............................................................................................................	72

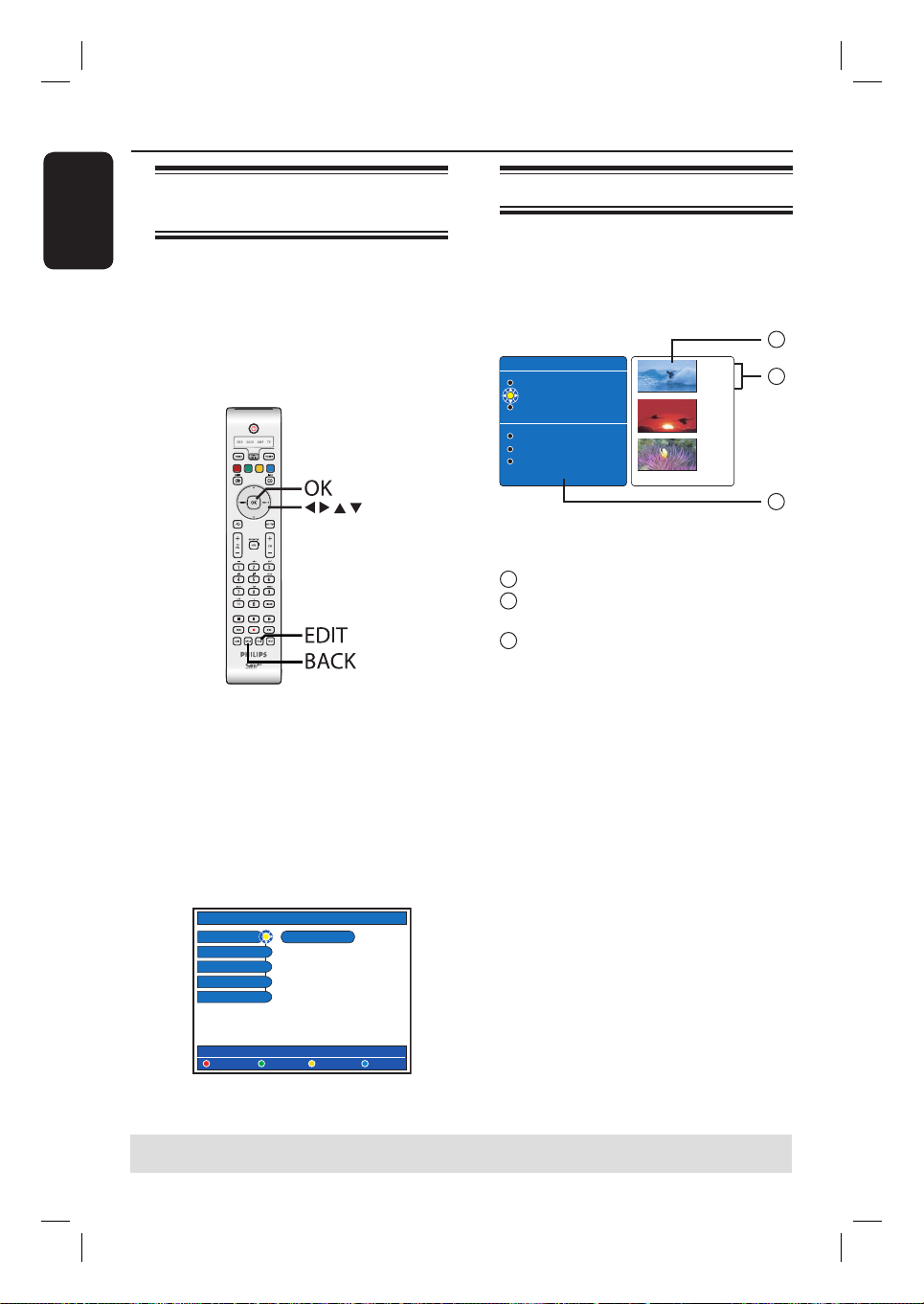

Video editing................................................................................................................................................	73~74
Others

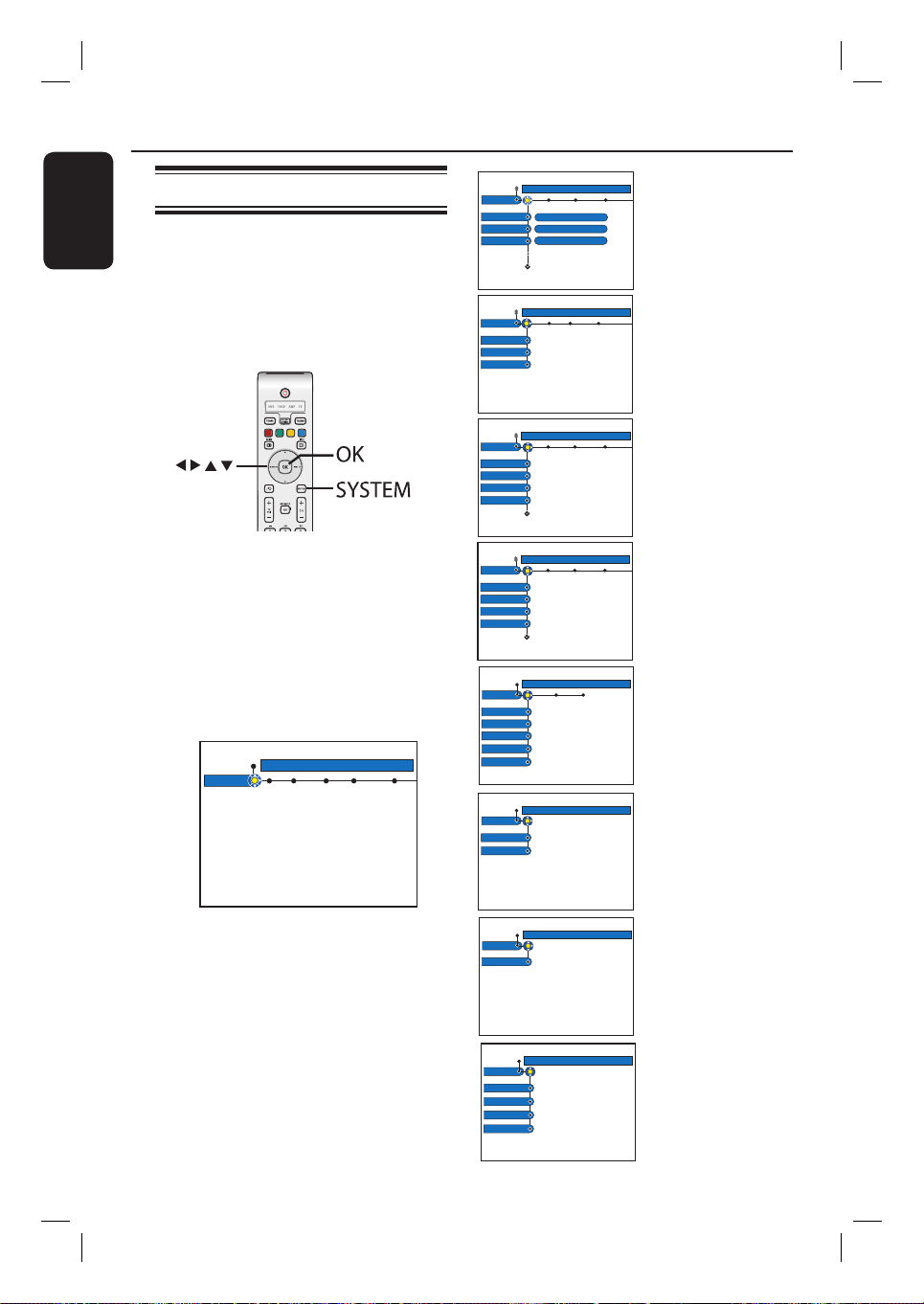

System Menu Options.............................................................................................	75~86
Recorder Preferences ...............................................................................................................................	75~77
Recorder Setup...........................................................................................................................................	78~86
General Information ......................................................................................................	87
Setting up Progressive Scan feature.............................................................................................................	87
Copyright notice................................................................................................................................................	87
Frequently Asked Questions..................................................................................	88~89
Software Upgrade ..........................................................................................................	90
Troubleshooting........................................................................................................	91~95
Specifications ..................................................................................................................	96
Glossary ...........................................................................................................................	97

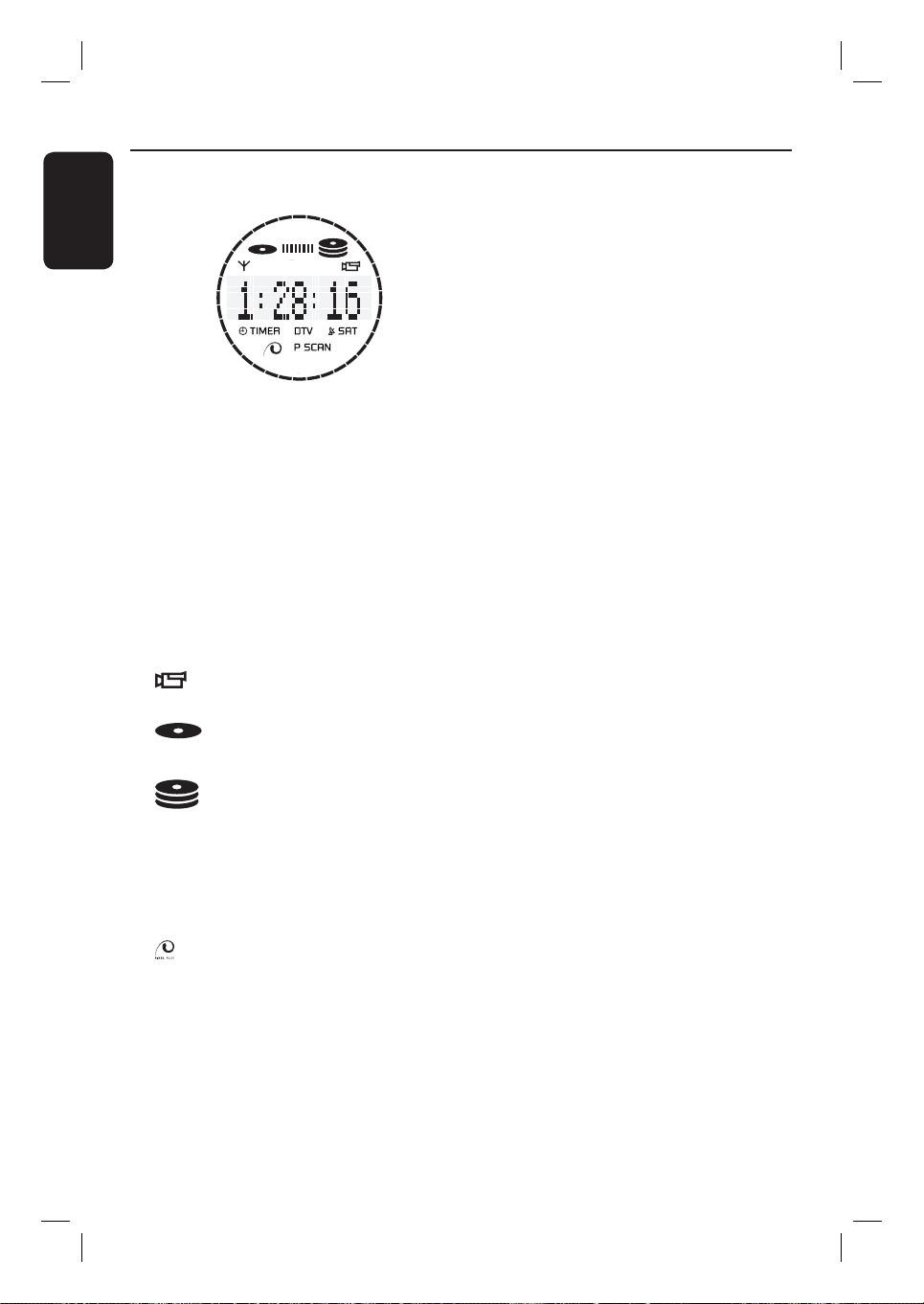

Display panel symbols/messages ...........................................................................	98~99

English

Care and Safety Information

CAUTION!

High voltage! Do not open. You run the risk of getting an electric shock.

The machine does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.

Setup precautions

Finding a suitable location

–Place the set on a flat, hard and stable surface. Do not place the set on a carpet.

–Do not position the set on top of other equipment that might heat it up (e.g., receiver or amplifier).

–Do not put anything under the set (e.g., CDs, magazines).

–Install this unit near the AC outlet and where the AC power plug can be reached easily.

Cleaning discs

Some problems occur (frozen picture, sound disruptions, picture distortions) because the disc inside the unit is dirty.

To avoid these problems, discs should be cleaned on a regular basis.

To clean a disc, use a micro fibre cleaning cloth and wipe the disc from the center to the edge in a straight line.

CAUTION!

Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for discs.

Space for ventilation

– Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4”) clearance from the rear and the top of the set and 5cm (2”) from the left and right to prevent overheating.

5cm (2.3")

10cm (4.5")

5cm (2.3")

Avoid high temperatures, moisture, water and dust

–Apparatus must not be exposed to dripping or splashing.

–Do not place any sources of danger on the apparatus (e.g., liquid filled objects, lighted candles).

Hard Disk Drive (HDD) handling care

The hard disk drive (HDD) has a high storage density that enables long recording duration and high speed data access. Depending on the setup environment and handling, some content may be damaged resulting in failure of playback and recording. To avoid damage to the HDD and losing important data, observe following precautions:

–Do not move the recorder or subject it to vibration.

–Do not remove the AC power plug from the mains socket without switching the recorder to standby mode.

WARNING!

The HDD is not a device for storing recorded content permanently. We recommend that you copy the important video content to a recordable DVD

disc as backup.

Product Information

Introduction

This recorder is equipped with a digital tuner (DVB - Digital Video Broadcast) to receive free-to-air digital terrestrial TV signals and an analogue tuner to receive analogue TV channels. It also has a built-in Hard Disk Drive (400 GigaByte) that can record up to 650 hours of video in SEP (super extended play) record mode. This gives you the flexibility to keep recordings on the HDD or copy to a recordable DVD for safekeeping or later viewing.

Helpful Hints:

–If you have questions or if problems occur during operation, see the chapter ‘Troubleshooting’.

–If you need further assistance, please call the customer support service for your country. The corresponding telephone numbers and e-mail addresses are given in the guarantee booklet.

–Refer to the type plate at the rear or bottom of the product for identifi cation and supply ratings.

In addition, it has a built-in GUIDE Plus+ system. The GUIDE Plus+ system offers a free programme listings guide for all the TV programmes available in your area. You can also use the GUIDE Plus+ system to programme your recorder to record your favourite TV programmes.

Furthermore, you can take advantage of features like ‘FlexTime’, ‘Instant Replay’, or ‘Pause Live TV’; see page 35 for more information.

Before you can start using this recorder, you must complete the basic connection and set-up in four easy steps.

Step 1: Basic recorder connections (pages 16~20)

Step 2: Optional connections for other devices (pages 21~25)

Step 3: Basic installation and set-up (pages 26~27)

Step 4: GUIDE Plus+ set-up (pages 28~29)

Please take time to read this user manual before using your recorder. It contains important information and notes regarding operation of the DVD recorder.

Accessories supplied

–Quick Start Guide

–RF coaxial cable

–Scart cable

–G-LINK transmitter

–Tuner interlink cable

–Remote control and batteries

–Power cable

Region codes

DVD films are usually not released at the same time in all regions of the world, thus all DVD players/recorders are keyed to a specific region code.

This device will only play
Region 2 DVDs or DVDs	ALL
manufactured to be played in all
regions ‘ALL’. DVDs from
other regions cannot be played	2
on this recorder.

English

Product Information (continued)

Special features

Philips provides the best possible connection between your recorder and other home cinema equipment. The recorder is controlled by external devices (for example, receivers and TVs) via Cinema Link and is automatically set to the right system settings.

With this function you can align the sequence of the channels on your TV (analogue only) with those on your recorder. Make sure you have connected the TV to the

EXT1 TO TV-I/O socket of this recorder.

This function enables you to record a programme from your Satellite Receiver or any other devices. Make sure that the device is connected to the EXT2 AUX-I/O socket of this recorder, and the timer setting has been done on the connected device.

Direct Record

This function allows you to instantly record the programme (analogue TV channels only) you see on the TV without tuning this recorder to the same programme.

Time Shift Buffer

As soon as you turn on this recorder, the programme showing on the TV will be stored into the ‘Time Shift Buffer’. It acts as a temporary HDD storage of your recordings. The contents will be automatically deleted after 6 (six) hours or when you turn off this recorder. To store the contents on the hard disk permanently, you have to mark the section in the ‘Time Shift Buffer’ for recording to prevent them from being deleted.

Instant Replay

You can repeat a scene of a live TV programme by pressing REPLAY button on the remote control, as often as you like. If you wish to return to the live TV programme, just press TUNER.

FlexTime

You can watch or recall a TV programme while it is still being recorded. You do not have to wait until the end of the recording before starting playback. You can also watch a different programme from the hard disk while it is recording something else.

Pause Live TV

A live TV programme is now under your control. You can pause the programme by pressing PAUSE button and resume playback at the scene it was interrupted by pressing PLAY button. If you want to return to the live TV programme, just press TUNER.

Pixel Plus

Pixel Plus improves the detail, depth and clarity level of video recordings from any source via the digital HDMI connector. The noise reduction and sharpness improvement are applied automatically on the HDMI output on any HDMI TV and Philips’ Pixel Plus TVs.

i.LINK, is also known as ‘FireWire’ and ‘IEEE 1394’. This connection is used for the transfer of high bandwidth digital signals as used by digital video (DV) devices. It carries all audio and video signals via a single cable.

This is a simple programming system for recorders. To use it, enter the programming number associated with your television programme. You can find this number in your favourite listings magazine.

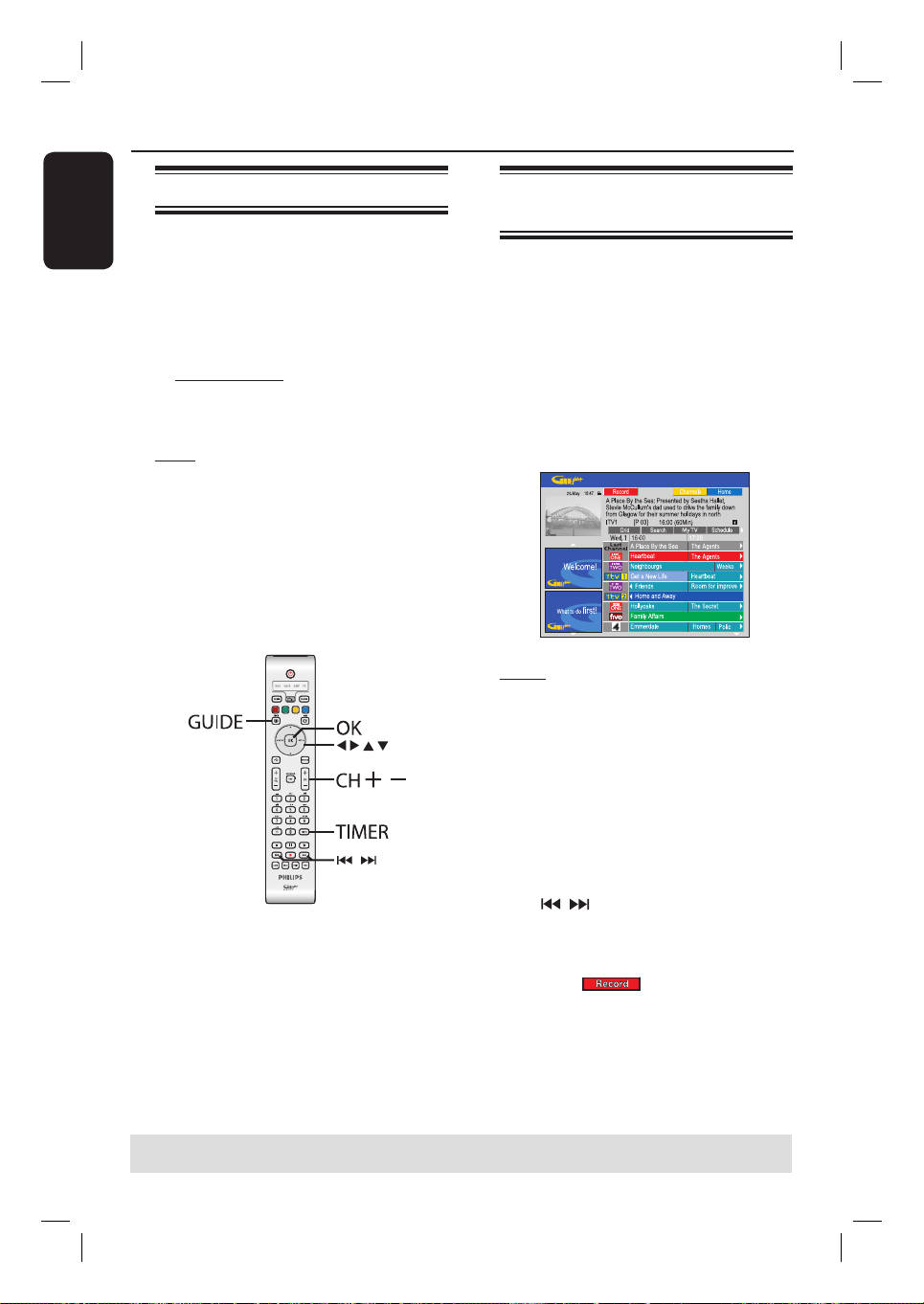

The GUIDE Plus+ system lists your TV channel programming information. You can use it to schedule recordings, glance at upcoming programme content, or change channels at your external receiver/cable box using this recorder’s remote control.

Main Unit

English

a STANDBY-ON 2

–Turns the recorder on or to standby mode.

b Display panel

–Shows information about the current status of the recorder.

c PIXEL PLUS

–Turns on/off the pixel plus picture enhancement.

d HDD BROWSER

– Displays the content browser menu.

e SYSTEM MENU

– Enters/Exits the system setup menu.

f Disc tray

g OPEN/CLOSE

– Opens or closes the disc tray.

h PAUSE

–Pauses the playback or recording.

–Press repeatedly to advance a paused picture one frame at a time.

i REC

–Starts recording the current TV programme or the current video input source.

–Marks the title in the time shift buffer for recording onto the HDD.

j iR

–Receives the signal from the remote control. Point the remote control towards this sensor.

– Starts playback of the selected title/track.

–Skips to the previous or next chapter/ track. Hold down the button to make a reverse/forward search.

–Stops playback/recording.

l Navigation cursor

–Selects the movement direction in the menu. Press the centre knob to confirm selection.

m TUNER

–Toggles between analogue TV tuner, digital TV tuner and digital radio tuner.

Sockets behind the flap

Flip down the door as indicated by the PULL TO OPEN label at the right hand corner.

n DV IN

–Inputs for digital camcorders using this connector.

o S-VIDEO

–S-video input for SVHS/Hi8 camcorders or SVHS/Hi8 video recorders.

p VIDEO

–Video input for camcorders or video recorders.

q AUDIO LEFT / RIGHT

–Audio input for camcorders or video recorders.

English

Remote Control

–Turns the recorder on or to standby mode.

bTV/HDD

(only applicable when using the EXT1 TO

TV-I/O scart socket to connect your TV)

–Switches to the device that is connected to the EXT2 AUX-I/O scart socket of this recorder.

–Toggles between the recorder and TV mode if there is no video input signal from EXT2 AUX-I/O scart socket.

c SELECT DEVICE

–Selects the active source mode: HDD, SACD, AMP or TV.

d INFO m

–Displays the Time Shift video bar while in tuner mode. It shows the timing of the TV programmes stored in the temporary HDD storage.

–Accesses the programme details in the GUIDE Plus+ system and when viewing digital tuner information.

e: Cursor buttons for moving to the left/right, or jump backward or forward by a specified length of time in tuner mode.

:Cursor buttons for moving up/ down or select previous/next title in the temporary HDD storage during playback.

fOK

– Confirms an entry or selection.

g SYSTEM

– Enters/Exits the system setup menu.

h CH +-

–While in tuner or camcorder mode, selects the next or previous TV channel or the external input source (EXT1, EXT2, CAM1).

–Skips to the next page up or down in the GUIDE Plus+ system.

i HDD-BROWSER

– Enters/Exits the content browser menu.

j TIMER

– Enters/exits the timer recording menu.

k REC

–Starts recording the current TV programme or the current video input source.

–Marks the title in the time shift buffer for recording onto the HDD.

l TEXT

–Enters/exits the MHEG service (interactive teletext - for UK only).

m EDIT

– Enters/exits the editing menu.

Remote Control (continued)

n TUNER

–Toggles between analogue TV tuner, digital TV tuner and digital radio tuner.

o Colour coded buttons

–These buttons are used to select the coloured options available in some menu displays on the TV screen.

p GUIDE

– Enters/Exits the GUIDE Plus+ system.

q(pixel plus)

–Turns on/off the pixel plus picture enhancement feature.

r TV VOL +-

–Adjusts the volume of the TV (for Philips TV with RC5 code only).

s Alphanumeric keypad

–Enters numbers or letters in appropriate entry fields.

–Selects a chapter/track/title number to play.

–Selects the recorder’s preset tuner channel.

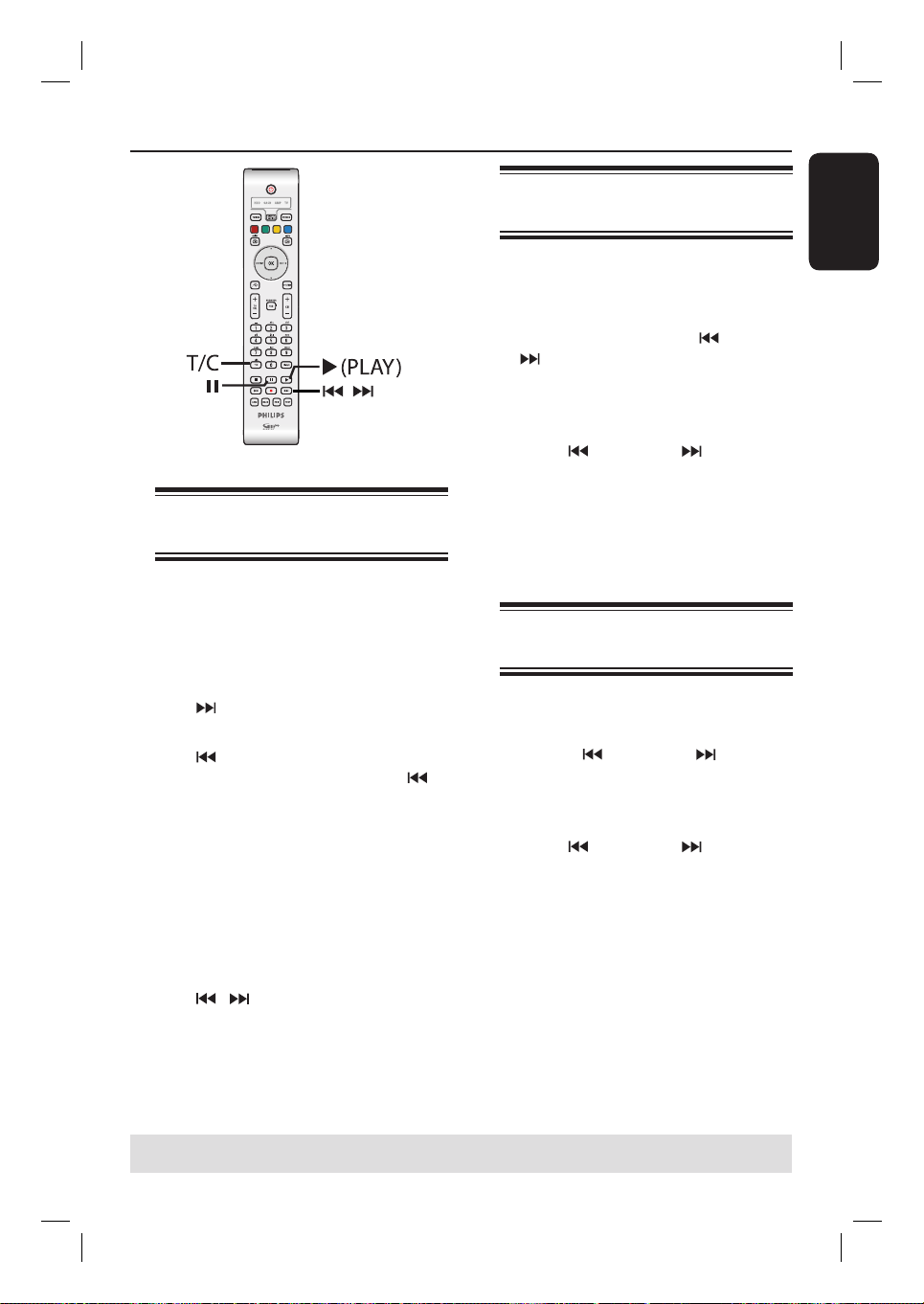

t T/C

–Toggles between ‘T’(title) and

‘C’(chapter) selection during disc playback, then use the keys to select a title/chapter number.

a/A

–Toggles between upper and lower case characters while using the alphanumeric keypad.

–Selects multiple photos in the thumbnail menu.

u PLAY

– Starts playback of the selected title/track.

v STOP

–Stops playback/recording.

–Hold down this button to open or close the disc tray.

w PAUSE Å

–Pauses the playback or recording.

–Press repeatedly to advance a paused picture one frame at a time.

14 15

x BACK

–Returns to the previous menu on a video CD (VCD) or some DVDs.

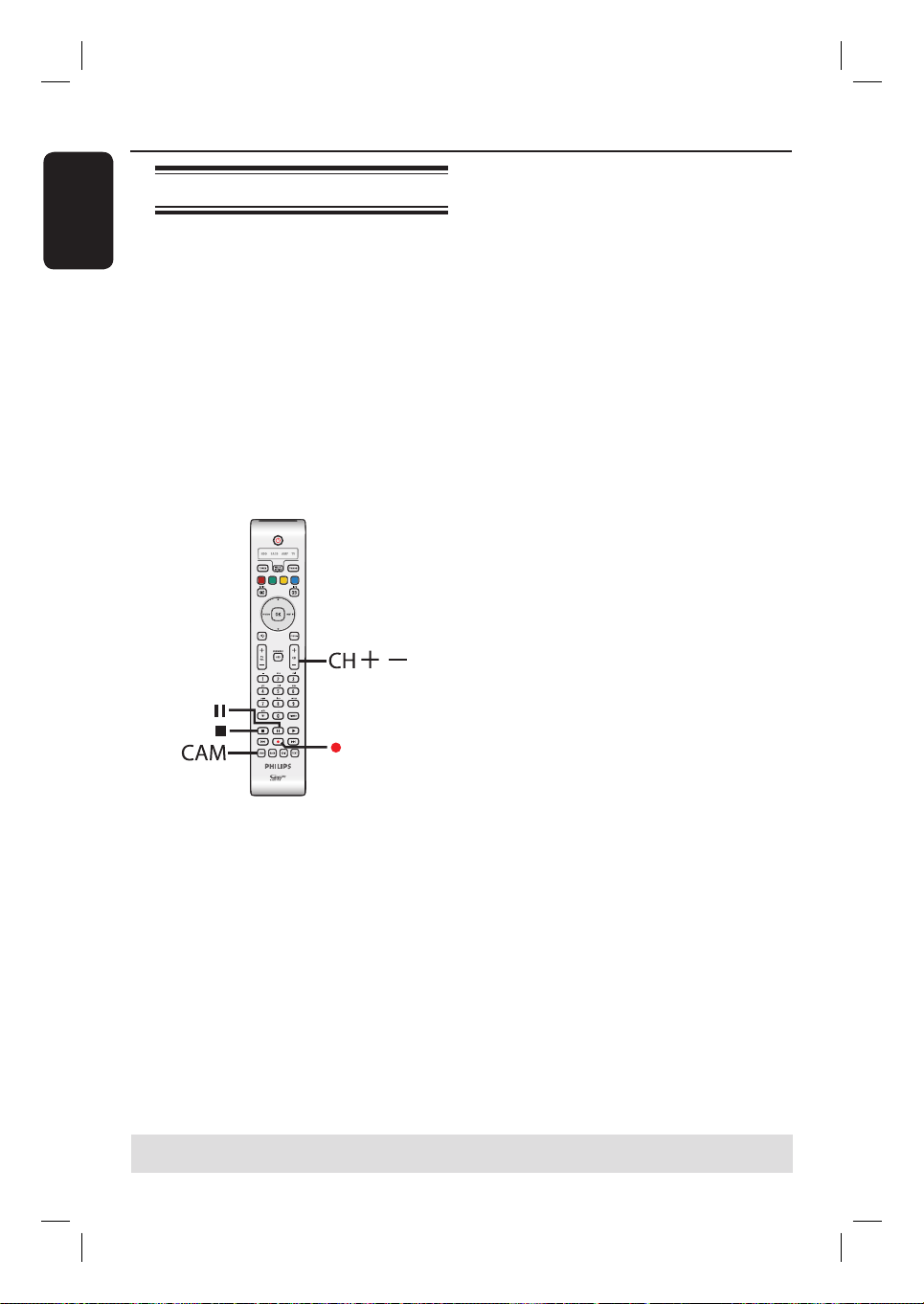

y CAM

–Accesses the camcorder mode (CAM2) for DV camcorder recording.

–In camcorder mode, press CH +/- to select other external input source (CAM1, EXT1 or EXT2).

z (Day-/ Day+)

–Skips to the previous or next day in the GUIDE Plus+ system.

–Skips to the previous or next title/ chapter/track.

–Hold down this button for fast reverse or fast forward search.

English

Remote Control (continued)

		Using the remote control to
Using the remote control		Using the remote control to
Using the remote control		operate the system
		operate the system

A Open the battery compartment.

B Insert two batteries type R06 or AA, following the indications (+-) inside the compartment.

C Close the cover.

CAUTION!

–Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

–Do not mix batteries (old and new or carbon and alkaline, etc.).

–Batteries contain chemical substances, so they should be disposed of properly.

A Aim the remote control directly at the remote sensor (iR) on the front panel.

B Select the desired function (for example, ).

C To control other devices using this remote control, press SELECT DEVICE to select the mode you wish to control (for example SACD, TV).

The selected source mode

will light up on the LED panel for a few seconds to confirm your selection.

Using the alphanumeric keypad to enter the characters

–Press a number button repeatedly until the required character or the number appears.

–To enter language-dependent characters, pressoron the corresponding character, e.g.,: ‘å’ press button {2} for ‘a’ and then pressuntil ‘å’ appears.

–To enter special symbols, press button {1} repeatedly.

–To select upper/lower case (capital/ small) letters, press a/A.

–To enter a space, press button {1}.

Remote Control (continued)

Controlling TV with the recorder’s remote control

This DVD recorder’s remote control has a universal TV control function that enables you to control the basic functions of your TV (Power, Volume and Channel Control), regardless of the TV’s brand.

A Hold down digit keys {1} and {3} together until the TV LED blinks twice.

B Within 10 seconds, enter digit key {0} followed by the remote control’s threedigit command code number (see last page of this manual), based on your TV’s brand.

If the code entered is valid, the TV LED will blink twice.

If more than one code number is listed, try entering them one at a time.

C Turn on the TV and try to perform the following operations using the recorder’s remote control.

If your TV does not react to the buttons pressed, repeat steps 1 to 3 with another code number listed for your TV’s brand until you have found the correct code that works with your TV.

Buttons	Operations

2	Turns your TV on or off.

TV VOL +/-	Adjusts the volume of your
	TV.

CH +/-	Selects the TV programme
Digit keys (0-9)	on your TV.

Note: You must be in the TV mode to perform above operations. If not, press SELECT DEVICE to select ‘TV’ mode.

Additional control functions for most of the Philips TV

TEXT Turns on/off the Teletext (TXT). TIMER Turns on/off clock display.

BACK Returns to the previous menu step. SYSTEM Calls up the system menu from

the TV.

Navigation keys in the TV menu. TUNER Switches to TV internal tuner mode.

Helpful Hints

–Depending on the connected unit, you may not able to control your TV or other devices with some or all of the buttons mentioned above.

–When the batteries of the remote control are removed, the code setting will be retained for 5 (fi ve) minutes during batteries replacement. After fi ve minutes without batteries, the remote control will reset to its default settings.

Using the DVDR9000H remote control together with the Philips Cineos DVP9000S and DFR9000

The main functions of the DVP9000S and DFR9000 can be controlled with this remote control (e.g. PLAY, TUNER, SYSTEM).

Additionally, the following functions are enabled in the SACD and AMP modes to allow maximum control of your Cineos 9000 series equipment:

Product	DVP9000S or	DFR9000
	Philips SACD/
	DVD players

DVDR9000H	SACD mode	AMP mode
Remote control

T/C	DISC MENU	Select main source:
		SACD, DVD, SAT,
		TV, GAME,
		DVD+RW, HDTV

HDD	SOUND	SURROUND
BROWSER	MODE	MODE

English

Step 1: Basic Recorder Connections

cable satellite antenna

Connecting the antenna cables

These connections enable you to watch and record TV programmes using this recorder. If the antenna signal is connected via a Cable Box or Satellite Receiver, ensure that these devices are turned on in order to watch or record the cable programmes.

If you want to connect to a VCR and/or a separate Cable Box/ Satellite Receiver, see page 21~23 for other possible connections.

Helpful Hint:

– Depending on how you have currently connected your TV channel (directly from an off-air antenna or cable box or VCR), you’ll have to disconnect some of the cables before you make the antenna connection.

Before you start ...

This recorder is equipped with two tuners, one for digital TV reception and one for analogue TV reception. If you have a separate digital terrestrial aerial, follow option 2. Otherwise, follow option 1.

Option 1: Connecting to the analogue antenna

A Connect the existing Antenna/Satellite Receiver/Cable TV signal (labelled as RF OUT or TO TV) to the ANTENNA socket on the recorder.

B Use the supplied Tuner interlink cable to connect the two ‘A’-sockets on the recorder.

C Use the supplied RF coaxial cable to connect the TV socket on the recorder to the antenna input socket (or labelled as VHF/UHF RF IN) on your TV.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 1: Basic Recorder Connections (continued)

cable

satellite antenna

TERRESTRIAL

A B

Option 2: Connecting to the analogue and terrestrial antennas

A Connect the existing Antenna/Satellite Receiver/Cable TV signal (labelled as RF OUT or TO TV) to the A-socket on the recorder.

B Connect the digital terrestrial antenna to the ANTENNA socket on the recorder.

C Use the supplied RF coaxial cable to connect the TV socket on the recorder to the antenna input socket (or labelled as VHF/UHF RF IN) on your TV.

Helpful Hints:

–The integrated DVB tuner allows you to receive digital terrestrial TV channels that will preserve the high picture quality, see page 89 for more information.

–Only free-to-air digital TV channels can be received (no reception of ‘condition access’ / Smartcard channels).

English

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 1: Basic Recorder Connections (continued)

English

OR	OR
Option 2	Option 3
Option 2
Option 1
	TV

Connecting the video cable

This connection enables you to view the playback from this recorder. You only need to choose one of the options below to make your video connection.

–For a standard TV, follow option 1, 2 or 3.

–For a progressive scan TV, follow option 4.

–For a HDMI TV, follow option 5.

Option 1: Using the Scart socket

Use the scart cable to connect the

EXT1 TO TV-I/O socket on the recorder to the corresponding SCART input socket on the TV.

If your TV has the Cinema Link feature or a similar feature, ensure that the scart cable is connected to the scart socket that supports CINEMALINK on your TV. All the available TV channels (analogue only) will automatically be downloaded to this recorder.

Helpful Hints:

–If your TV displays a selection for the SCART socket, select ‘VCR’ as the source for the SCART socket.

–The EXT2 AUX-I/O socket is intended only for additional devices.

Option 2: Using the S-Video socket

Use an S-video cable (not supplied) to connect the S-VIDEO (Y/C) socket on the recorder to the S-Video input socket (or labelled as Y/C or S-VHS) on the TV.

Audio connection is required in order to hear the sound, see page 20.

Option 3: Using the Video (CVBS) socket

Use a composite video cable (yellow - not supplied) to connect the VIDEO (CVBS) socket on the recorder to the video input socket (or labelled as A/V In, Video In, Composite or Baseband) on the TV.

Audio connection is required in order to hear the sound, see page 20.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 1: Basic Recorder Connections (continued)

English

Option 4: Connecting to a		Option 5: Connecting to a HDMI-
Progressive Scan TV		compatible TV

The progressive scan video quality is only available when using Y Pb Pr connection and a progressive scan TV is required. It provides superior picture quality when watching DVD movies.

A Use the component video cables (red/ blue/green - not supplied) to connect the OUT1- Y PB PR sockets on the recorder to the corresponding component video input sockets (or labelled as Y Pb/Cb Pr/Cr or YUV) on the TV.

B Use an audio cable (red/white - not supplied) to connect the OUT1AUDIO L/R sockets on the recorder to the audio input socket (or labelled as AV IN or AUDIO IN) on the TV.

C Once you have completed the necessary connections and the recorder basic installation/set-up, turn on the progressive scan feature, see page 87.

HDMI (High Definition Multimedia Interface) is a digital interface that allows pure digital video transmission without the loss of image quality.

A Use an HDMI cable (not supplied) to connect the HDMI OUT on this recorder to the HDMI IN on a HDMIcompatible device (e.g. HDMI TV, HDCP compliant DVI TV).

B Once you have completed the necessary connections, installation and set-up, see pages 84~85 for optimum HDMI setting.

Helpful Hints:

–Digital devices from different manufacturers may have different output standards which may result in unreliable signal transfers.

–The HDMI connector is only compatible with HDMI compliant devices and DVI-TV.

–The teletext information will not be accessible in the recorder’s tuner mode.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected from the power outlet.

Step 1: Basic Recorder Connections (continued)

English

OR OR

AV amplifier/receiver

Connecting the audio cables

Option 2: Using the digital audio socket (Optical or Coaxial)

This connection enables you to listen to the playback from this recorder. However, this connection is not required if this recorder is connected to the TV using the Scart or HDMI connectors.

Option 1: Using the analogue audio sockets

You can connect the recorder to a two channel stereo system (mini system, TV) or receiver in order to enjoy the stereo sound system.

Use an audio cable (red/white - not supplied) to connect the OUT2AUDIO L/R sockets to the audio input sockets of the connected device.

Helpful Hint:

– If you have connected this recorder to your TV using the OUT1-Y PR PB sockets, then connect the audio cables to the OUT1AUDIO L/R sockets as described in page 19.

You can connect the recorder to an AV amplifier/receiver in order to enjoy multichannel surround sound.

Use a coaxial cable (not supplied) to connect the COAXIAL OUT socket to the digital coaxial input socket (or labelled as COAXIAL IN or DIGITAL IN) of the connected device.

–an A/V receiver or amplifier with a digital multi-channel sound decoder.

–a receiver with two-channel digital stereo (PCM).

Use an optical fibre-optic cable (not supplied) to connect the OPTICAL OUT socket to the optical input socket of the connected device.

Make sure that both plugs are fully inserted (until a click is heard).

TIPS: For option 2 connection, you have to set the appropriate Digital Audio Output setting, see page 85. Otherwise, no sound or interference may occur.

Step 2: Optional Connections

(back panel) Cable Box / Satellite Receiver (front panel)

A E

Place this in front of the

Cable Box/Satellite Receiver, see E.

English

Connecting to a Cable Box or Satellite Receiver

Option 1

If your Cable Box/Satellite Receiver has only an antenna output socket (RF OUT or TO TV),

refer to “Connecting the antenna cables” on page 16 for the complete connection to your TV.

Option 2 (as shown on the above illustration)

If your Cable Box/Satellite Receiver has a Scart output socket

A Keep the existing antenna connection from the Cable Box/Satellite Receiver to your TV.

B Use the scart cable to connect the

EXT1 TO TV-I/O socket on the recorder to the corresponding SCART input socket on the TV.

C Use another scart cable to connect the EXT2 AUX-I/O socket on the recorder to the Scart output socket (or labelled as TV OUT or TO TV) on the Cable Box/ Satellite Receiver.

D Connect the supplied G-LINK cable to the G-LINK socket on the recorder.

E Place the other end of the G-LINK transmitter in front of the Cable Box/ Satellite Receiver near to the IR sensor (remote sensor) so that its infrared detector can receive a clear signal.

This will enable the recorder to receive data from the GUIDE Plus+ system and control the tuner of the external receiver.

Helpful Hint:

– If your TV is connected to the recorder via the COMPONENT VIDEO (Y Pb Pr) sockets, then connect the external cable box/satellite receiver to the EXT1 TO TV-I/O socket.

TIPS: Refer to the respective connected device’s user manual for other possible connections.

English

Step 2: Optional Connections (continued)

Back of a VCR (example only)

VHF/UHF
RF IN	SCART OUT	SCART IN
	SCART OUT	SCART IN

VHF/UHF

RF OUT

cable satellite antenna

Connecting to a VCR or other similar device

This connection enables you to record from video tape to HDD and allows the VCR to be used for playback on the TV if the recorder is turned off.

IMPORTANT!

Your new recorder can replace the VCR for all your recording needs. Just unplug all the connections to your VCR.

A Connect the existing Antenna/Satellite Receiver/Cable TV signal (labelled as RF OUT or TO TV) to the ANTENNA socket on the recorder.

B Use the supplied Tuner interlink cable to connect the two ‘A’-sockets on the recorder.

C Use the supplied RF coaxial cable to connect the TVsocket on the recorder to the antenna input socket (or labelled as VHF/UHF RF IN) on your TV.

D Use the scart cable to connect the

EXT1 TO TV-I/O socket on the recorder to the corresponding SCART input socket on the TV.

E Use another scart cable to connect the EXT2 AUX-I/O socket on the recorder to the Scart output socket (or labelled as TV OUT or TO TV) on the VCR.

Helpful Hints:

–Most commercial video cassettes and DVDs are copy-protected and therefore cannot be recorded.

–Connect the recorder directly to the TV. If there is a VCR or an additional device in between, the picture quality may be poor because of the copy protection system built into this recorder.

TIPS: Refer to the respective connected device’s user manual for other possible connections.

Step 2: Optional Connections (continued)

Back of a VCR	G	Back of a Satellite Box
Back of a VCR		Back of a Satellite Box
(example only)		(example only)

F B

English

Connecting to a VCR and Cable Box/Satellite Receiver

A Keep the existing antenna connection to the Cable Box/Satellite Receiver.

B Use the supplied RF coaxial cable to connect the antenna output (RF OUT) socket on the Cable Box/Satellite Receiver to the ANTENNA socket on the recorder.

C Use the supplied Tuner interlink cable to connect the two ‘A’-sockets on the recorder.

D Use another RF coaxial cable to connect the TVsocket on the recorder to the antenna input socket on the TV.

E Use the scart cable to connect the

EXT1 TO TV-I/O socket on the recorder to the corresponding SCART input socket on the TV.

F Use another scart cable to connect the EXT2 AUX-I/O socket on the recorder to the Scart output socket (or labelled as TV OUT or TO TV) on the VCR.

G Use another scart cable to connect the Scart input socket (or labelled as TV IN or TO DECODER) on the VCR to the Scart output socket (or labelled as TV OUT or TO VCR) on the Cable Box/ Satellite Receiver.

TIPS: Refer to the respective connected device’s user manual for other possible connections.

Step 2: Optional Connections (continued)

English
A
OR	B

Connecting to a camcorder

Option 2: Using the S-VIDEO In or VIDEO In socket

You can use the front sockets to copy camcorder recordings. These sockets are located behind the flap on the right hand side which provides convenient connections for a camcorder.

Option 1: Using the DV IN socket

Use this connection if you have a Digital Video or Digital 8 camcorder. The DV socket conforms to the i.LINK standard. It provides the best picture quality.

Use an i.LINK 4-pin cable (not supplied) to connect the DV IN socket on the recorder to the appropriate DV OUT socket on the camcorder.

Press CAM on the remote control to select ‘CAM2’ when using this input source.

Helpful Hint:

– It is not possible to record from this recorder to your camcorder via the DV IN socket on your recorder.

Use the S-VIDEO connection if you have a Hi8 or S-VHS(C) camcorder. It provides very good picture quality.

Alternatively, you can use VIDEO connection if your camcorder has only a single video output (Composite Video, CVBS). It provides good picture quality.

A Connect the S-VIDEO or VIDEO socket at the front panel of the recorder to the corresponding S-VHS or Video output socket on the camcorder.

Press CAM on the remote control, then press CH +/- repeatedly to select ‘CAM1’ when using this input source.

B Use an audio cable (red/white - not supplied) to connect the AUDIO LEFT/ RIGHT sockets at the front panel of the recorder to the audio output socket on the camcorder.

Helpful Hint:

– If you connect your camcorder to the scart socket at the rear of this recorder, select

{ EXT1 } or { EXT2 } as the input source.

TIPS: Refer to the respective connected device’s user manual for other possible connections.

Step 2: Optional Connections (continued)

Back of a Satellite Box (example only)

DIGITAL

OUT

Connecting the digital input for 5.1-channel recording

This recorder is equipped with a digital audio input socket that can support 5.1- channel recording. It allows you to capture the original sound from digital multi-channel sources such as the Cable Box/Satellite Receiver, when you record a video that produces the full cinema sound experience (Dolby Digital 2.0, 5.1, DTS surround or DTS ES, DOLBY DIGITAL EX).

A Use a scart cable to connect the

EXT2 AUX-I/O socket on the recorder to the Scart output socket (or labelled as TV OUT or TO TV) on the Cable Box/ Satellite Receiver.

B Use a coaxial cable (not supplied) to connect the COAXIAL IN on

the recorder to the DIGITAL or COAXIAL output socket on the connected Cable Box/Satellite Receiver.

5.1-channel surround sound output from the Cable Box/Satellite Receiver can be recorded onto this recorder, along with the video.

Before you start the 5.1-channel recording

A Press SYSTEM on the remote control. The system setup menu appears.

B Press to select { Preferences }.

C Press NEXTÉ to select { Recording }.

D Press	to select { 5.1 Recording } and
press NEXTÉ.
E Use	keys to select { On } and press

OK to confirm.

F Press SYSTEM to exit.

G Press CAM, follow the instructions on the screen to select the media type to record and press OK.

H Press CH +/- repeatedly until { EXT 2 } appears on the top left corner.

This is the correct input source for 5.1-channel recording.

I Turn on the connected device and press (RECORD) to start recording.

Helpful Hints:

–5.1-channel recording is only possible in HQ and SP recording mode.

–5.1-channel recording is only possible in

{EXT 2 } input source, which is accessed using the CAM button.

TIPS: Before recording, you have to turn on the 5.1 Recording in the Recording setup menu, see page 38.

English

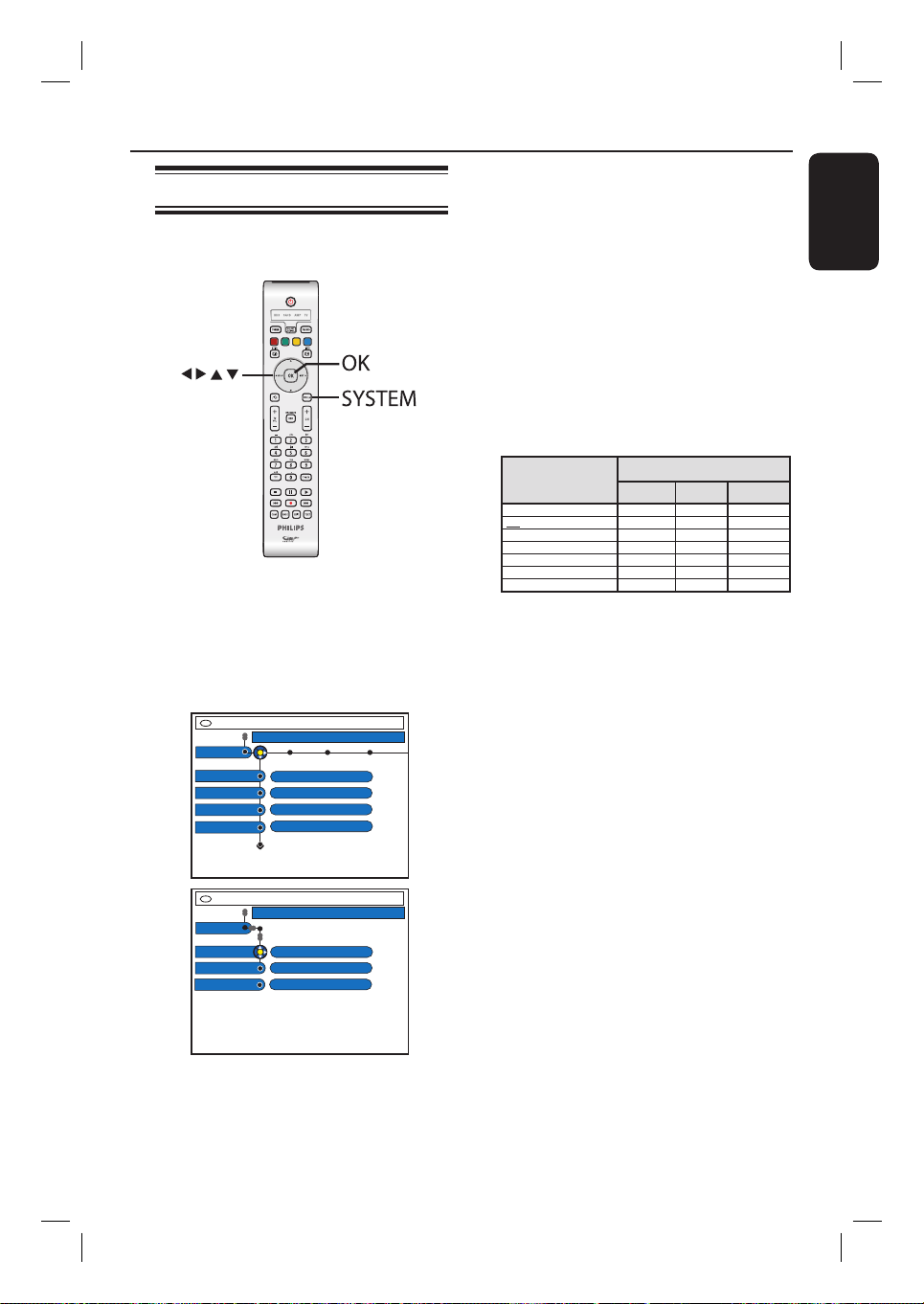

Step 3: Installation and Set-up

The basic installation menu will appear the very first time you turn on this recorder. These settings will help you set up the basic recorder features easily, including TV programme installation, language settings and the GUIDE Plus+ system.

IMPORTANT!

Complete the basic installation settings before inserting a disc for playback or recording. The disc tray will not open until the basic setup is completed.

A Press STANDBY-ON 2 to turn on the recorder.

B Turn on the TV to the correct programme number for the recorder (e.g. ‘EXT’, ‘0’, ‘AV’).

Î You may go to Channel 1 on your TV, then press the Channel down button on your TV’s remote control until you see

{ CINEMA LINK } or { LANGUAGE AND COUNTRY } menu appears on the TV.

zIf your TV has Cinema Link or a similar feature, downloading of the TV channels (analogue only) will start automatically.

As the TV channels information is downloaded from your TV settings, step 5 will be skipped.

CIMEMA LINK

Loading data from TV.

zIf { Language and Country } menu appears on the TV, use ST keys to

select the desired menu language and press W to confirm.

LANGUAGE AND COUNTRY

Select language and country

Language English

Country

GB United Kingdom

Done

Disc tray will not open until setup is completed

C Select the country of your residence.

i.Highlight { Country } and press NEXTÉ, then use ST keys to select and press W to confirm. If your country is not available in the list, select { Others }.

ii.Highlight { Done } and press OK on the remote control.

D The TV shape menu appears on the TV. Select the appropriate TV shape according to the TV you have connected.

TV SHAPE

Select TV shape in the way you want full-screen movies to be displayed on your TV.

	16:9
TV shape	4:3 Letterbox
	4:3 Panscan

Done

Disc tray will not open until setup is completed

i.Highlight { TV shape } and press NEXTÉ, use ST keys to select and press W to confirm.

16:9

4:3 Letterbox

4:3 PanScan

ii.Highlight { Done } and press OK on the remote control.

TIPS: After completing the basic installation, you can change or update your settings using the system setup menu, see page 78~86.

Step 3: Installation and Set-up (continued)

E The Channel Search menu appears on the TV. Select { Search channels } in the menu and press OK on the remote control to start analogue channel search. Î It takes a few minutes to complete.

CHANNEL SEARCH

This will search and install all Analogue and

Digital channels and services.

Search channels	Start
Skip search	OK

Disc tray will not open until setup is completed

Note: Make sure you have successfully made all the required connections to this recorder, the TV and Satellite Receiver/Cable Box (if any) and turned them on. The channel search will detect the signals and save all the available programme channels.

If no channels are found :

– Try the auto TV channel installation after completing the basic setup, see page 81.

F The recorder continues with the digital channel search (TV and radio).

CHANNEL SEARCH

Digital channel search.

This may take a few minutes. Please wait

Search channels

Skip search

Disc tray will not open until setup is completed

G After the channel search is finished, the number of found and stored channels (analogue TV, digital TV and digital radio) appear, press OK to continue.

CHANNEL SEARCH

Analogue TV channels found : XX

Digital TV channels found : XX

Digital Radio channels found : XX

Check signal

Restart Search

Continue OK

H The time and date menu appears.

TIME AND DATE

Please check the Time (hh:mm) and Date and correct if necessary.

Time 20:01

Date 31-01-2006

Done OK

Disc tray will not open until setup is completed

i.If the information is correct, select

{ Done } in the menu and press OK.

ii.If changes are required, use the alphanumeric keypad 0-9 to enter the correct time and date in the respective field.

I The basic installation is now completed.

Easy setup completed. Continue with the GUIDE Plus+ installation?

Continue OK

Donot install now

Disc tray will not open until setup is completed

i.Select { Continue } in the menu and press OK to start the GUIDE Plus+ installation. See next page for the complete detailed setup.

ii.Select { Do not install now } in the menu to skip the GUIDE Plus+ installation. The next time when you want to install the GUIDE Plus+ system, press GUIDE on the remote control, see next page.

J Wait until the recorder has finished initialising the system, then press OK to exit.

You may now enjoy using this recorder.

Helpful Hint:

– The TV programme listings do not appear on the GUIDE Plus+ system as soon as you complete the basic installation. It may take up to 24 hours to receive TV listings data.

TIPS: After completing the basic installation, you can change or update your settings using the system setup menu, see page 78~86.

English

Step 4: Set-up the GUIDE Plus+ system

Your recorder is equipped with the GUIDE Plus+ system. This system offers a free interactive programme guide that lists all the TV programmes available in your area. Before you can enjoy this feature, you have to define your geographic location and your current setup devices in order to receive correct GUIDE Plus+ TV listing data.

IMPORTANT!

To use the GUIDE Plus+ system, the analogue tuner has to be installed properly.

{ Language } / { Country }

These settings will be taken from the basic installation set up.

{ Postal code }

Press OK to access the entry menu. Use keys to enter the local postal code

and use keys to move to previous or next entry field.

Note: The postal code you enter must be correct, and must represent a postal code in the identified country. If not, you will receive no or incorrect TV listings data.

{ External Receiver 1/2/3 }

A If an introduction to the GUIDE Plus+ system appears on the TV, read the contents and press OK to continue.

The GUIDE Plus+ basic setup menu appears.

Otherwise, press GUIDE on the remote control, then press and press NEXTÉ repeatedly until you select the { Setup } menu bar.

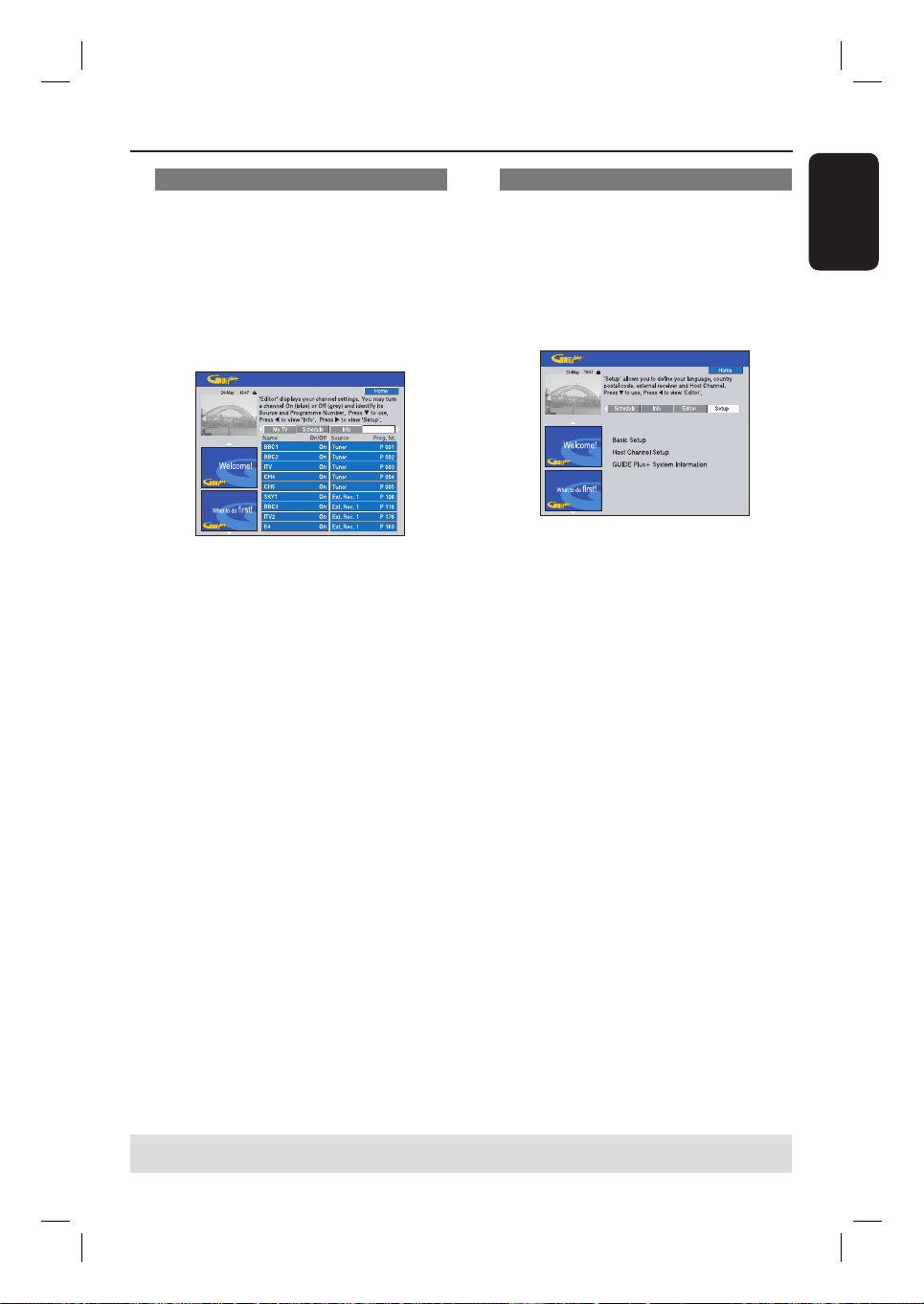

B Press to select { Basic Setup } in the menu and press OK to access the setup screen.

Note: If you do not have an external receiver connected, leave the fields as “None” and press the Red button on the remote control to exit the menu. Go direct to step H.

You can connect up to three external receivers (e.g., satellite receiver, cable box) to this recorder. Complete the installation of the external receiver as follows:

a) Use keys to select External Receiver 1, 2 or 3 and press OK.

b)Press OK again to continue. Select the type of the external receiver and press OK.

{ Cable }

Select this for cable receiver, cable box.

{ Satellite }

Select this for satellite receiver.

{ Terrestrial }

Select this for digital terrestrial decoder box.

c) Select the service provider from the list and press OK.

{ None }

Select this if you do not have a provider.

d)Select the brand of your receiver from the list and press OK.

{ None }

Select this if you do not find your brand.

TIPS: After completing the setup, leave the recorder in standby mode and turn on your external receivers overnight to receive the TV listing data.

Step 4: Set-up the GUIDE Plus+ system (continued)

e)Identify the socket through which your external receiver is plugged into the recorder (for example ‘EXT 2’ for EXT2 AUX-I/O) and press OK.

{ Antenna (RF lead) }

Select this if the external receiver is connected via the antenna cable. Enter the programme number which your external receiver is tuned to on your recorder.

C If you have connected an external receiver, ensure that the G-LINK transmitter is properly connected and positioned, see page 21.

This will allow you to control the tuner of the Satellite Receiver/Cable Box through the GUIDE Plus+ system.

D Turn on the external receiver and use the receiver’s remote control to select programme number {02} on the receiver.

E Press OK to continue.

The GUIDE Plus+ system is sending signal via the G-LINK connection to the external receiver to switch to a certain programme number.

F If the external receiver has switched to the programme number displayed on the TV, select { Yes } and press OK.

Otherwise, select { No } and press OK to try a different code. Repeat this process until the external receiver switches to another programme number.

G Press the Green button to return to the setup screen.

H If you want to specify the source and programme number of a GUIDE Plus+ host channel, select { Host Channel Setup } in the menu and follow the instructions on the TV to complete the setup.

The default host channel setup is set to ‘Automatic’.

I Once complete, press GUIDE to exit the menu.

J Leave the recorder in ‘standby’ mode during the night to load the TV listing data.

If you use an External Receiver, you have to tune your External Receiver manually to your host channel, see below table for details. Leave the External Receiver

‘ON’ overnight.

Note: If you tune to your Host Channel before going into ‘standby’, your recorder will start immediately to download TV listings data. This process can take up to two (2) hours. You can stop the download at any time by turning the device ‘on’.

Visit www.europe.guideplus.com/En/help/ countries hostchannels.html for more and latest information on the supporting host channels.

Country/City	Host Channel	Host Channel
(Language)	(aerial / cable)	(SAT)
Deutschland	Eurosport	Eurosport Astra1 19.2E
Österreich	Eurosport	Eurosport Astra1 19.2E,
		Hotbird 13.0E
Schweiz (Deutsch)	Eurosport	Eurosport Astra1 19.2E
United Kingdom	ITV	British Eurosport Astra2 28.2E
France	Canal +
España	Tele 5
Nederland	TMF/Eurosport	TMF Astra1 19.2E /
		Hotbird 13.0E
-Eindhoven	TMF	TMF Astra1 19.2E
-Rotterdam	TMF	TMF Astra1 19.2E
-Amsterdam	TMF	TMF Astra1 19.2E
België (Vlaanderen)	TMF
Italia	Sport Italia

Check your TV listings line-up on the

{ Editor } screen the next day to ensure the data download is completed, see page 33.

Helpful Hints:

–If your country/region is not in the list above or you are not able to receive TV listings data, you can still use the GUIDE Plus+ system for ShowView / VIDEO Plus+ and manual recordings.

–If a problem comes up during the GUIDE Plus+ system set-up, please visit the website at www.europe.guideplus.com for further assistance.

TIPS: After completing the setup, leave the recorder in standby mode and turn on your external receivers overnight to receive the TV listing data.
