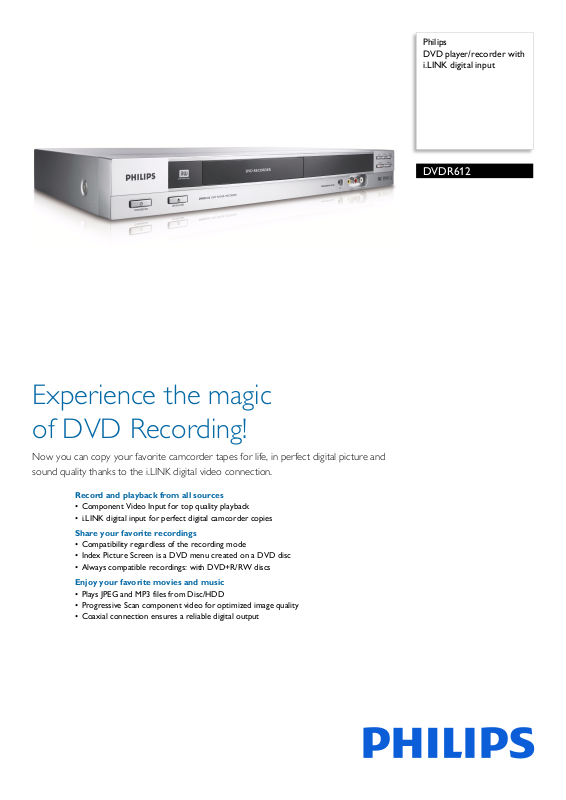

Page 1
Philips
DVD player/recorder with
i.LINK digital input
DVDR612
Experience the magic
of DVD Recording!
Now you can copy your favorite camcorder tapes for life, in perfect digital picture and
sound quality thanks to the i.LINK digital video connection.
Record and playback from all sources
• Component Video Input for top quality playback
• i.LINK digital input for perfect digital camcorder copies
Share your favorite recordings
• Compatibility regardless of the recording mode
• Index Picture Screen is a DVD menu created on a DVD disc
• Always compatible recordings: with DVD+R/RW discs
Enjoy your favorite movies and music
• Plays JPEG and MP3 files from Disc/HDD
• Progressive Scan component video for optimized image quality
• Coaxial connection ensures a reliable digital output
Page 2
DVD player/recorder with i.LINK digital input
DVDR612/97
Specifications
Picture/Display
• Aspect ratio: 4:3, 16:9
• D/A converter: 10 bit, 54 MHz
• Picture enhancement
Sound
• D/A converter: 24 bit, 96 kHz
• A/D converter: 24 bit
• Signal to noise ratio: 90
• Distortion and Noise (1kHz): 65 dB
• Crosstalk (1kHz): 110 dB
• Dynamic Range (1kHz): 80 dB
Video Recording
• Recording system: NTSC
• Compression formats: MPEG2
• Recording Modes: M1: 60 minutes, M2: 120
tes, M4: 240 minutes, M6: 360 minutes
minu
• Audio compression: PCM
Video Playback
• Compression formats: MPEG2, MPEG1
• Playback Media: CD-R/CD-RW, DVD+RW,
R, DVD-RW (Video mode), DVD-R, DVD-
DVD+
Video, MP3-CD, Video CD/SVCD
• Video disc playback system: NTSC, PAL
Audio Playback
• Playback Media: MP3-CD, CD-RW, CD, CD-R
• Compression format: Dolby Digital, MP3, PCM
• MP3 bit rates: 32 - 256 kbps
Still Picture Playback
• Playback Media: Picture CD
• Picture Compression Format: JPEG
Storage Media
• Recording media: DVD+R, DVD+RW
: Progressive scan
Tuner/Reception/Transmission
• TV system: NTSC
• Aerial Input: 75 ohm F-type
Connectivity
• Front / Side connections: Audio L/R in, S-video in,
Video in, i.LINK DV in (IEEE1394, 4-pin)
• Other connections: Analog audio Left/Right in,
og audio Left/Right out, Component Video
Anal
(YPbPr) input, Component Video out Interlaced,
ComponentVideo out Progressive, Composite
video (CVBS) input, Composite video (CVBS) out,
Digital coaxial out, Digital optical out, RF antenna
in / TV out, S-Video in, S-Video out
Convenience
• Programmable Events: 5
• Programming/Timer Enhancements: Daily/Weekly
peat Program, Manual Timer
Re
• Child Protection: Parental Control
Power
• Power supply: 110V, 60Hz
• Power consumption: 36 W
• Standby power consumption: 7 W
Accessories
• Included accessories: AC Power Cord, Audio
Cable, Remote Control, User Manual, Coax RF
antenna cable
Dimensions
•Set dimensions (W x H x D): 430 x 52 x 260 mm
• Set weight: 2.8 kg
• Packaging dimensions (W x H x D):
7 x 106 x 346 mm
49
• Weight incl. Packaging: 4.1 kg
•
Highlights
Component Video Input (YPbPr)
Component Video is the highest quality
interconnection standard for analog video. It is
sharper than S-video and composite video.
i.LINK digital input
Also known as IEEE 1394 and FireWire, i.Link carries
all audio and video signals via a single cable digitally,
with no loss in picture and sound quality. With i.Link
digital video input, you can copy your home videos in
their original digital picture quality.
Compatibility in all rec modes
Compatibility regardless of the recording mode
Index Picture Screen
The Index Picture Screen is a DVD menu created on
every DVD+R/RW disc that is also accessible on
regular DVD players. It gives you an instant overview
and easy access, so you can directly see what’s on
the disc and navigate to the recording you want to
watch.
Always compatible recordings
Always compatible recordings: with DVD+R/RW
discs
Plays JPEG and MP3 files
Plays JPEG and MP3 files from Disc/HDD
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
Issue date 2014-02-11
Version: 2.0.5
12 NC: 8622 810 12262
EAN: 87 10895 86496 1
Coaxial digital audio output
Coaxial connection ensures a reliable digital output
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
