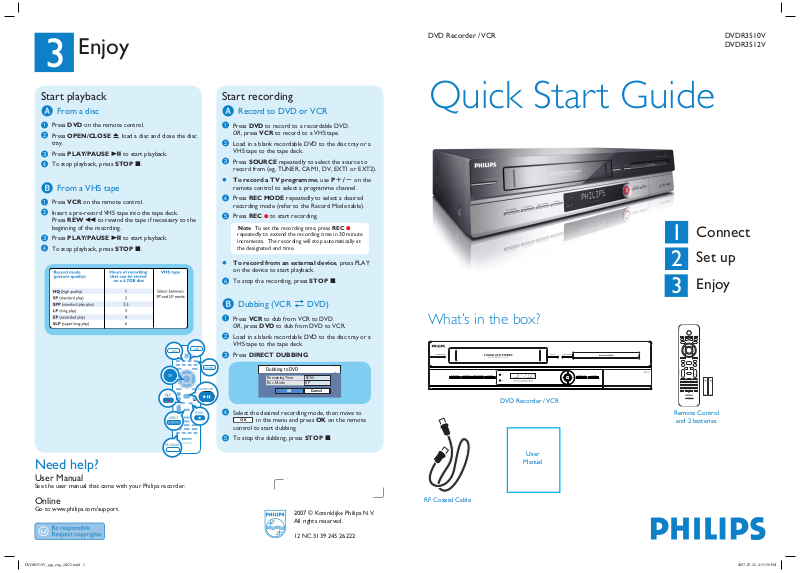

Quick Start Guide

2007 © Koninklijke Philips N.V.
All rights reserved.

12 NC 3139 245 26222

Need help?

User Manual

See the user manual that came with your Philips recorder.

Online

Go to www.philips.com/support.

3

Enjoy

Start recording

A

Record to DVD or VCR

A

Press DVD to record to a recordable DVD.

OR, press VCR to record to a VHS tape.

B

Load in a blank recordable DVD to the disc tray or a

VHS tape to the tape deck.

C

Press SOURCE repeatedly to select the source to

record from (eg, TUNER, CAM1, DV, EXT1 or EXT2).

z To record a TV programme, use P+/- on the

remote control to select a programme channel.

D

Press REC MODE repeatedly to select a desired

recording mode (refer to the Record Mode table).

E

Press REC z to start recording.

Note To set the recording time, press REC z

repeatedly to extend the recording time in 30 minute
increments. The recording will stop automatically at
the designated end time.

z To record from an external device, press PLAY

on the device to start playback.

F

To stop the recording, press STOP x.

B

Dubbing (VCR î DVD)

A

Press VCR to dub from VCR to DVD.

OR, press DVD to dub from DVD to VCR.

B

Load in a blank recordable DVD to the disc tray or a

VHS tape to the tape deck.

C

Press DIRECT DUBBING.

Dubbing to DVD

OK

SP

Rec. Mode

OK Cancel

01:54

Remaining Time

D

Select the desired recording mode, then move to

OK

in the menu and press OK on the remote

control to start dubbing.

E

To stop the dubbing, press STOP x.

DVD Recorder / VCR

DVDR3510V
DVDR3512V

Connect

Set up

Enjoy

1

2

3

What’s in the box?

DVD Recorder / VCR

Remote Control

and 2 batteries

RF Coaxial Cable

User

Manual

Start playback

A

From a disc

A

Press DVD on the remote control.

B

Press OPEN/CLOSE Z, load a disc and close the disc

tray.

C

Press PLAY/PAUSE u to start playback.

D

To stop playback, press STOP x.

B

From a VHS tape

A

Press VCR on the remote control.

B

Insert a pre-record VHS tape into the tape deck.

Press REW m to rewind the tape if necessary to the
beginning of the recording.

C

Press PLAY/PAUSE u to start playback.

D

To stop playback, press STOP x.

REC MODE

VCR

DVD

PLAY/PAUSE

SOURCE

DVDR3510V_qsg_eng_26222.indd 1DVDR3510V_qsg_eng_26222.indd 1 2007-07-26 4:53:58 PM2007-07-26 4:53:58 PM

1

Connect

2

Set up

D

Setup and install TV channels.

Highlight and press right X.
Select { Channel Search } and press OK to start
automatic TV channel search.

Note This process may take several minutes. Once
complete, the total number of channels found and
stored appears on the TV.

E

Set the date and time.

Highlight and press right X.
Select { Date (dd/mm/yy) } or { Time (hh:mm:ss) }
and press OK. Use the numeric keypad 0-9 to

input the date/time, then press OK to confirm.

Note The settings will be updated according to the
broadcast channel information of preset Programme
Number 1.

F

Press SETUP to exit.

Basic Connection

Before Connecting

Select one of the following basic connections ( A or B ) according to the type of connecting devices you have.

If your TV is currently connected to a VCR, you have to unplug all the connections from your VCR and TV.
Your new Philips Recorder replaces the VCR for your recording needs.

Option A

Use this connection if you are connecting the antenna
cable directly from the antenna wall socket or from a
Cable Box without a Scart output socket.

A

Unplug the antenna cable that is currently connected

to your TV and plug in the antenna cable to the
ANTENNA socket on this recorder.

B

Connect the supplied RF coaxial cable from the

TV socket on this recorder to the Antenna In
socket on the TV.

C

Connect a scart cable (not supplied) from the EXT1

TO TV-I/O socket on this recorder to the Scart

input socket on your TV.

D

Plug in the power cable from the recorder to an AC

power outlet.

From an off­air antenna
wall socket or
cable box

Television ( rear)

Note See the accompanying user manual for other possible connections (e.g. Composite Video, Component Video, S-VIDEO).

Option B

Use this connection if your current antenna cable is
connecting through a Cable Box with Scart output
socket.

A

Keep the existing antenna connection from the Cable

box to your TV.

B

Connect a scart cable (not supplied) from the EXT1

TO TV-I/O socket on this recorder to the Scart

input socket on your TV.

C

Connect another scart cable from the EXT2 AUX-

I/O socket on this recorder to the Scart output

socket on the Cable Box.

D

Plug in the power cable from the recorder to an AC

power outlet.

Philips Recorder (rear)

From an off-air
antenna wall socket

Television ( rear)

Philips Recorder
(rear)

Cable Box (rear)

A

Finding the viewing channel

A

Press STANDBY-ON on the recorder.

B

Turn on the TV and other connected devices (e.g.

Cable Box, Satellite Receiver).

C

If your TV does not switch to the correct viewing

channel, press the Channel Down button (or AV,
SELECT, ° button) on the TV’s remote control
repeatedly until you see the blue DVD background
screen. This is the correct viewing channel for the
recorder.

B

Start basic setup

Use the recorder’s remote control and follow the on­screen instructions to complete the installation.

A

Press SETUP on the remote control.

Setup - General

Screen Saver

Country

Video Output Selection

Restore Factory Settings

On

Germany

SCART RGB

OK

Note Use up S and down T keys to toggle
through the options. Select an item by pressing
right X. To con rm a setting, press OK.

B

Select the country of your residence.

Highlight and press right X.
Select { Country } and press OK to confirm
your selection.

C

Select the recorder’s menu display language.

Highlight and press right X.

Select { On Screen Display Language } and press
right X.

Select the desired language option and press

OK

to

con rm your selection.

SCART IN

ANTENNA

EXT2

AUX - I/O

EXT1

TO TV - I/O

TV

VIDEO
(

)

CVBS

S-VIDEO

(Y/C)

L

AUDIO

R

AUDIO / VIDEO OUT AUDIO OUT

SCART IN

Y

P

B

P

R

COMPONENT
VIDEO OUT

COAXIAL

DIGITAL AUDIO OUT

3139 241 26501

ANTENNA

EXT2

EXT1

TV

TO TV - I/O

VIDEO

Y

(

)

CVBS

S-VIDEO

AUX - I/O

(Y/C)

P

L

B

AUDIO

P

R

AUDIO / VIDEO OUT AUDIO OUT

R

COMPONENT
VIDEO OUT

COAXIAL

DIGITAL AUDIO OUT

MAINS

MAINS

Setup - Channel Setup

Channel Search

Modify Channel Information

Sort Channels

Search

Edit

Sort

Setup - Clock

Date (dd / mm / yy)

Time (hh : mm : ss)

Date - Time Setting

Date - Time Preset

Show DivX® Registration Code

01/01/07

00:01:08

Auto

P001/Ch003

OK
