PHILIPS DVDR 3380-31 User Manual

Download

Page 1

DVD Player/ Recorder

User Manual

DVDR3380

Page 2

Important notes for users in the U.K. Mains plug

This apparatus is  tted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.

2 Fix new fuse which should be a BS1362

5 Amp, A.S.T.A. or BSI approved type.

3 Re t the fuse cover.

If the  tted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug  tted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio DVDR3380, Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven

Philips Consumer Electronics

5616 JB Eindhoven, The Netherlands

Norge

Typeskilt  nnes på apparatens underside.

Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Philips, Glaslaan 2

As these colours may not correspond with the



colour markings identifying the terminals in your plug, proceed as follows: – Connect the blue wire to the terminal marked N or coloured black. – Connect the brown wire to the terminal marked L or coloured red. – Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Page 3

Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling.

Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.

Klass 1 laseraparat Varning! Om apparaten används på annat sätt än i denna bruksanvisning speci cerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.

Observera! Stömbrytaren är sekundärt kopplad och bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget.

Luokan 1 laserlaite Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle. Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle.

Huom. Toiminnanvalitsin on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta. Sisäänrakennettu verkko-osa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.

CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM

ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING

VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN

VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN

VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN

ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU

For Customer Use:

English

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for

electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Read carefully the information located at the bottom or rear of your DVD Recorder and enter below the Serial No. Retain this information for future reference.

Model No. DVD RECORDER DVDR3380 Serial No. _______________

Page 4

This product complies with the radio interference requirements of the European Community.

This product complies with the requirements of the following directives and guidelines: 73/23/EEC + 89/336/EEC + 93/68/EEC

LASER

Type Semiconductor laser InGaAlP (DVD) AIGaAs (CD) Wave length 658 nm (DVD) 790 nm (CD) Output Power 30 mW (DVD+RW write)

1.0 mW (DVD read)

1.0 mW (CD read) Beam divergence 84 degrees (DVD) 61 degrees (CD)

Page 5

This product incorporates copyright protection technology that is protected by US patents. Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only, unless otherwise authorised by Macrovision. Reverse engineering or disassembly is prohibited.

U.S. Patent Number: 4,631,603; 4,819,098; 4,907,093; 5,315,448; and 6,516,132

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol

are trademarks of Dolby Laboratories.

This is a simple programming system for recorders. To use it, enter the programming number associated with your television programme. You can  nd this number in your favourite listings magazine.

EnglishFrançaisEspañol

VIDEO Plus+

trademarks of Gemstar Development Corporation. The VIDEO Plus+® system is

manufactured under license from Gemstar Development Corporation.

and PlusCode are registered

DivX®, DivX Certi ed, and associated logos are trademarks of DivX Networks, Inc and are used

under license.

i.Link is also known as ‘FireWire’ and ‘IEEE1394’. This connection is used for the transfer of high bandwidth digital signals as used by digital video (DV) camcorders. It carries all audio and video

signals via a single cable.

Page 6

Table of Contents

English

General

Care and Safety Information ..........................................................................................8

Setup precautions .................................................................................................................................................8

Cleaning discs ........................................................................................................................................................8

About recycling .....................................................................................................................................................8

Product Information ........................................................................................................ 9

Intro duct ion ...........................................................................................................................................................9

Accessories supplied ...........................................................................................................................................9

Region codes ..........................................................................................................................................................9

Copyright notice ...................................................................................................................................................9

Product Overview

Remote Control ............................................................................................................. 10

Using the remote control ................................................................................................................................12

Main Unit ......................................................................................................................... 13

Connections

Step 1: Basic Recorder Connections ............................................................................ 14

Connecting the aerial cables ...........................................................................................................................14

Connecting the video cable .............................................................................................................................15

Connecting the audio cables ...........................................................................................................................16

Step 2: Optional Connections ....................................................................................... 17

Connecting to a Cable Box or Satellite Receiver .....................................................................................17

Connecting to a VCR or other similar device ............................................................................................18

Connecting to a VCR and Cable Box/Satellite Receiver .........................................................................19

Connecting a camcorder to the front sockets ......................................................................................... 20

Step 3: Installation and Setup ....................................................................................... 21

Finding the correct viewing channel .............................................................................................................21

Setting the OSD language ................................................................................................................................21

Select the country of your residence .......................................................................................................... 22

Setting your TV channelprogrammes ......................................................................................................... 22

Setting the date & time .................................................................................................................................... 23

Recording

Record ing .........................................................................................................................24

Discs for recording ............................................................................................................................................24

Recording settings ............................................................................................................................................24

RECORD settings ...................................................................................................................................... 25

Manual recording ............................................................................................................................................... 26

One Touch Recording - automatic turn-off ............................................................................................... 26

About timer recording ......................................................................................................................................27

Timer recording (manually) .............................................................................................................................27

Timer recording (VIDEO Plus+® System) ...................................................................................................29

Changing/ Deleting a timer recording ......................................................................................................... 30

Simultaneous recording and playback .......................................................................................................... 30

Page 7

Table of Contents

Playback

Playback ........................................................................................................................... 31

Playable discs .......................................................................................................................................................31

Inserting a disc ....................................................................................................................................................31

Starting disc playback ........................................................................................................................................32

Additional Playback Features .......................................................................................36

Changing to another chapter/track .............................................................................................................. 36

Pausing playback and step play ..................................................................................................................... 36

Searching forwards/backwards ..................................................................................................................... 36

Using T/C options ..............................................................................................................................................37

Edit Recordings

Editing/ Finalising Recording .........................................................................................40

About disc editing .............................................................................................................................................40

Accessing disc editing menu ........................................................................................................................... 40

Playing your recordings (DVD±R) on other DVD players .................................................................... 42

About title editing ............................................................................................................................................. 43

Accessing title editing menu ........................................................................................................................... 43

About video editing .......................................................................................................................................... 45

Accessing video editing menu ........................................................................................................................ 45

Other Information

DVD System Menu Options ..........................................................................................48

Accessing the System Menu ........................................................................................................................... 48

GENERAL settings ....................................................................................................................................49

PLAYBACK settings .................................................................................................................................. 50

RECORD settings ......................................................................................................................................52

LANGUAGE settings .................................................................................................................................52

CHANNEL SETUP settings ....................................................................................................................53

CLOCK settings ..........................................................................................................................................55

Firmware Upgrade .........................................................................................................56

Installing the latest  rmware .......................................................................................................................... 56

Speci cations .................................................................................................................. 57

Troublesho oting .............................................................................................................. 58

Frequently Asked Questions ......................................................................................... 61

Glossary ........................................................................................................................... 62

Display panel symbols/ messages .................................................................................63

TV System Guide ............................................................................................................ 64

English

Page 8

Care and Safety Information

English

CAUTION! High voltage! Do not open the device. You run the risk of getting an electric shock.

The machine does not contain any user-serviceable parts. Please leave all maintenance work to quali ed personnel.

Setup precautions

Finding a suitable location

– Place the set on a  at, hard and stable surface. Do not place the set on a carpet. – Do not position the set on top of other equipment that might heat it up (e.g., receiver or ampli er). – Do not put anything above or under the set (e.g., CDs, magazines). – Install this unit near the AC outlet and where the AC power plug can be reached easily.

Space for ventilation

– Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4”) clearance from the rear and the top of the set and 5 cm (2”) from the left and right to prevent overheating.

Cleaning discs

Some problems occur because the disc inside the recorder is dirty (frozen picture, sound disruptions, picture distortions). To avoid these problems, discs should be cleaned on a regular basis.

To clean a disc, use a micro  bre cleaning cloth and wipe the disc from the centre to the edge in a straight line.

CAUTION!

Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for analogue discs.

Since the optical unit (laser) of the recorder operates at a higher power than regular DVD or CD players, cleaning CDs intended for DVD or CD players may damage the optical unit (laser). Therefore, refrain from using a cleaning CD.

Avoid high temperatures, moisture, water and dust

– Apparatus shall not be exposed to dripping or splashing. – Do not place any sources of danger on the apparatus (e.g., liquid  lled objects, lighted candles).

About recycling

These operating instructions have been printed on non-polluting paper. This electronic equipment contains a large number of materials that can be recycled. If you are disposing of an old machine, please take it to a recycling centre. Please observe the local regulations regarding disposal of packaging materials, exhausted batteries, and old equipment.

Page 9

Product Information

ALL

Introduction

Your Philips recorder allows you to record the TV programmes or duplicate camcorder recordings to a DVD±RW or DVD±R and play pre-recorded DVDs. The recordings you make on the recorder will play on DVD players and DVD-ROM drives. The DVD±R discs have to be  nalised before they can be played back on other DVD players.

Before you start using this recorder, complete the basic connections and set-up in three easy steps.

Step 1: Basic recorder connections

Step 2: Optional connections for other devices

Step 3: Basic installation and set-up

Please take time to read this user manual before using your recorder. It contains important information and notes regarding the operations of the recorder.

Helpful Hints: – If you have questions or if problems come up during operation, please see the chapter ‘Troubleshooting’. – If you need further assistance, please call the customer support service for your country. The corresponding telephone numbers and email addresses are given in the guarantee booklet. – Refer to the type plate on the rear or bottom of the product for identi cation and supply ratings.

Accessories supplied

– Remote control and batteries – SCART cable – RF coaxial cable – Quick Start Guide

Region codes

DVD  lms are usually not released at the same time in all regions of the world, thus all DVD players are keyed to a speci c region code.

This device will only play Region 2 DVDs or DVDs manufactured to be played in all regions (‘ALL’). DVDs from other regions cannot be played on this recorder.

The making of unauthorised copies of copy-protected material, including computer programmes,  les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

English

Page 10

Remote Control

English

f g

h i j k l

SYSTEM-MENU

– Enters/exits the system menu.

W X : Cursor keys for moving to the

left/right or making a forward/reverse search.

ST : Cursor keys for moving up/down

or changing the recorder’s TV tuner channel.

SELECT

– Selects a track/chapter/ le in the

programme menu.

REC

– Starts recording the current TV channel

– Press repeatedly to set up a One Touch

– Skips to previous or next chapter/track. – Press and hold to make a fast forward/

TOP MENU (For DVD±R/±RWs only)

– Enters the disc editing menu.

ANGLE

– Selects a DVD disc camera angle (if



or the current video input source.

Recording at 30, 60 or 90 minutes interval.

. >

fast reverse search.

available).

STANDBY-ON

– Turns on the recorder or switches to

standby mode.

TIMER

– Enters/exits the timer recording menu.

RETURN

– Returns to the previous menu of a video

CD (VCD) or some DVDs.

SUBTITLE

– Selects a DVD subtitle language.

REC MODE

– Toggles between recording modes :

HQ, SP, EP or SLP.

This determines the quality of the

recording and the amount/length of time you can record on a DVD±R/±RW.

Page 11

Numeric keypad – Selects a chapter/track number to play. – Selects the recorder’s preset TV tuner

channel.

REC SOURCE

– Selects the recorder’s input source.

DISC-MENU – Access DVD disc menu or Index Picture

screen of a DVD±R/±RW.

– Access VCD disc menu when PBC is

turned on.

OK – Stores/con rms an entry. – Displays/removes the status bar.

EDIT (For DVD±R/±RWs only) – Enters/exits the video editing menu.

PLAY

– Plays a disc.

STOP – Stops playback/recording. – Holding down the key will open and close

– Pauses the playback or recording. – Press repeatedly to advance a paused



the disc tray.

picture one frame at a time.

Remote Control (continued)

English

q r s

t u v w x

AUDIO – Selects an audio language (DVD, VCD) or

an audio channel.

T/C (Title/Chapter) – Enters/exits the T/C menu.

TV/DVD – Switch between playback from the

additional devices (connected via EXT2 AUX I/O socket) and playback from the recorder.

CLEAR – Clears a track/chapter/ le in the

programme menu.

– Clears a timer entry.

Page 12

Remote Control (continued)

English

Using the remote control

Open the battery compartment.

Insert two batteries of type R06 or AA,

following the indications (+-) inside the compartment.

Close the cover.

Aim the remote control directly at the

remote sensor (IR) on the front panel.

Select the source you want to control by

pressing the REC SOURCE key on the remote control.

Select the desired function (for example

., >).

CAUTION! – Remove batteries if they are exhausted or if the remote control is not to be used for a long time. – Do not mix batteries (old and new or carbon and alkaline, etc). – Batteries contain chemical substances, so they should be disposed of properly.

Page 13

Main Unit

a b c d e f

STANDBY-ON – Turns on the recorder or switch to

standby mode.

Disc tray

OPEN/CLOSE – Opens/closes the disc tray.

System display panel

– Shows information about the current

status of the recorder.

.(PREV) / > (NEXT)

– Go to the previous/next chapter or track. Press and hold to make a forward/

reverse search.

(PLAY)

– Plays a disc.

(STOP)



– Stops playback/recording.

Sockets behind the  ap

Flip down the door as indicated by the OPEN X label at the right hand corner.

VIDEO

– Video input for camcorders or video

recorders.

Press REC SOURCE on the remote

control to select ‘CAM1’ in order to view the input source.

L/R AUDIO

– Audio input for camcorders or video

recorders.

DV IN

– Input for digital camcorders or other

suitable devices using this connector.

Press REC SOURCE on the remote

control to select ‘DV’ in order to view the input source.

English

(RECORD)



– Starts recording the current TV channel

or the current video input source.

– Press repeatedly to set up a One Touch

Recording at 30, 60 or 90 minutes interval.

Page 14

Step 1: Basic Recorder Connections

English

ANTENNA

SATELLITE

TV-OUT

ANTENNA-IN

EXT

AUX - I/O

EXT

Connecting the aerial cables

These connections enable you to watch and record TV programmes using the recorder. If the aerial signal is connected via a VCR, Cable Box or Satellite Receiver, ensure that these devices are turned on in order to watch or record the cable programmes.

CABLE

TO TV - I/O

S-VIDE O IN

AUDIO OUT

VIDEO IN

Connect the existing Aerial/Cable TV

signal (or from the Cable Box/Satellite Receiver {RF OUT or TO TV}) to the ANTENNA-IN recorder.

Use the supplied RF coaxial cable to

connect TV-OUT socket on the recorder to the aerial input socket on your TV (VHF/UHF RF IN).

socket on the

If you want to connect to a VCR



and/or Cable Box/Satellite Receiver, see the chapter “Step 2 : Optional Connections” for the complete connections to your TV.

Helpful Hint: – Depending on how you have currently connected your TV channel (directly from an off-air aerial or Cable box or VCR), you will have to disconnect some of the cables before you make the above connection.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Page 15

Step 1: Basic Recorder Connections (continued)

EXT

TV-OUT

ANTENNA-IN

AUX - I/O

Connecting the video cable

This connection enables you to view the disc playback from the recorder. You only need to choose one of the options below to make your video connection.

Option 1: Using a SCART cable

Use the SCART cable to connect the



EXT1 TO TV-I/O socket on the recorder to the corresponding SCART input socket on the TV set.

Helpful Hints: – If your TV set has several SCART sockets, select the SCART socket that is suitable for both video output and video input. – If your TV set displays a selection for the SCART socket, select ‘VCR’ as the source for the SCART socket. – The EXT2 AUX-I/O socket is intended only for additional devices.

EXT

Option 1

S-VIDE O IN

AUDIO OUT

VIDEO IN

TO TV - I/O

Option 2

Option 2: Using an S-Video cable

Use an S-video cable (not supplied) to



connect the S-VIDEO OUT socket on the recorder to the S-Video input socket (or labelled as Y/C or S-VHS) on the TV set.

 Audio connection is required in order

to hear the sound, see the next section “Connecting the audio cables”.

Option 3: Using a Video (CVBS) cable

Use a composite video cable (yellow -



not supplied) to connect the CVBS

OUT socket on the recorder to the

video input socket (or labelled as A/V In, Video In, Composite or Baseband) on the TV set.

 Audio connection is required in order

to hear the sound, see the next section “Connecting the audio cables”.

Option 3

English

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Page 16

Step 1: Basic Recorder Connections (continued)

English

EXT

TV-OUT

ANTENNA-IN

EXT

AUX - I/O

TO TV - I/O

COAXIAL

MAINS

STERE

O / TV

Option 1

Connecting the audio cables

This connection enables you to listen to the sound. This connection is not required if the recorder is connected to the TV using the SCART cable.

Option 1: Using an audio cable

You can connect the recorder to a two channel stereo system or receiver in order to enjoy the stereo sound system.

Use an audio cable (red/white ends) to



connect the AUDIO-L/-R sockets to one of the following devices with the same input sockets. – a stereo system (for example, TV or mini system). – a receiver with two channel analogue stereo.

Option 2

DIGITAL IN

AV ampli er/ receiver

Option 2: Using a coaxial cable

You can connect the recorder to an AV ampli er/receiver with a digital multichannel sound decoder in order to enjoy multichannel surround sound.

Use a coaxial cable (not supplied).



Connect the COAXIAL (DIGITAL AUDIO OUT) socket on the recorder

to the digital input of the receiver/ ampli er.

Before you start operating, set the digital audio output settings accordingly (see the chapter “DVD System Menu Options PLAYBACK settings). If the audio setting does not match your stereo’s capabilities, the stereo may produce a strong, distorted sound or no sound at all.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Page 17

Step 2: Optional Connections

VIDEO

AUDIO

R L

EXT

OUT

S-VIDEO

TO TV - I/O

CABLE

SATELLITE

ANTENNA

TV-OUT

ANTENNA-IN

EXT

AUX - I/O

Connecting to a Cable Box or Satellite Receiver

Option 1

If your Cable Box/Satellite Receiver has only an aerial output socket (RF OUT or TO TV),

see the section “Step 1: Basic Recorder Connections – Connecting the aerial cables” for the complete connections to your TV.

TO TV

Back of a Cable Box or Satellite Receiver (Example only)

MAINS

S-VIDEO IN

AUDIO OUT

VIDEO IN

Option 2 (see the above illustration)

If your Cable Box/Satellite Receiver has a SCART output socket

Keep the existing aerial connection from

the Cable Box/Satellite Receiver to your TV.

Use the SCART cable to connect the

EXT1 TO TV-I/O socket on the recorder to the corresponding SCART input socket on the TV.

Use another SCART cable to connect the

EXT2 AUX-I/O socket on the recorder to the SCART output socket (or labelled as TV OUT or TO TV) on the Cable Box/Satellite Receiver.

English

To start playback, select the TV channel directly on the Cable Box/Satellite Receiver. To view the picture from a connected external device, press the TV/DVD key on the remote control.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Page 18

Step 2: Optional Connections (continued)

English

CABLE

TV-OUT

SATELLITE

ANTENNA-IN

EXT2

ANTENNA

AUX - I/O

OUT

VIDEO

OUT

VHF/UHF

RF IN

AUDIO

VHF/UHF

RF OUT

EXT

TO TV - I/O

TV OUT

TV IN

VIDEO

AUDIO

Back of a VCR (Example only)

MAINS

Connecting to a VCR or other similar device

This connection enables you to record from video tape to a DVD±R/±RW and allows the VCR to be used for playback if the recorder is turned off.

IMPORTANT! Your new recorder can replace the VCR for all your recording needs. Just unplug all the connections to your VCR.

Connect the existing Aerial/Satellite/

Cable TV signal (or from the Cable Box/ Satellite Receiver, labelled as RF OUT or TO TV) to the ANTENNA-IN socket on the recorder.

S-VIDEO IN

AUDIO OUT

VIDEO IN

Use the supplied RF coaxial cable to

connect the TV-OUT

socket on the recorder to the aerial input socket (or labelled as VHF/UHF RF IN) on your TV.

Use the SCART cable to connect the

EXT1 TO TV-I/O socket on the recorder to the corresponding SCART input socket on the TV.

Use another SCART cable to connect the

EXT2 AUX-I/O socket on the recorder to the SCART output socket (or labelled as TV OUT or TO TV) on the VCR.

Helpful Hints: – Most commercial video cassettes and DVDs are copy-protected and therefore cannot be recorded. – Connect the recorder directly to the TV. If there is a VCR or an additional device in between, the picture quality may be poor because of the copy protection system built into this recorder.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Page 19

Step 2: Optional Connections (continued)

CABLE

SATELLITE

ANTENNA

VHF/UHF

RF IN

VHF/UHF RF OUT

VIDEO

OUT

AUDIO

TV-OUT

ANTENNA-IN

EXT

AUX - I/O

EXT

Connecting to a VCR and Cable Box/Satellite Receiver

Connect the Aerial/Cable TV signal to

the aerial input (RF IN) socket on the Cable Box/Satellite Receiver.

Use the supplied RF coaxial cable to

connect the aerial output (RF OUT) socket on the Cable Box/Satellite Receiver to the ANTENNA-IN socket on the recorder.

Use another RF coaxial cable to connect

the TV-OUT to the aerial input socket on the TV.

Use the SCART cable to connect the

EXT1 TO TV-I/O socket on the recorder to the corresponding SCART input socket on the TV.

socket on the recorder

OUT

TO TV - I/O

VIDEO

AUDIO

R L

OUT

S-VIDEO

TO TV

Back of a Cable Box or Satellite Receiver (Example only)

English

TV OUT

TV IN

VIDEO

AUDIO

Back of aVCR (Example only)

MAINS

S-VIDEO IN

AUDIO

OUT

VIDEO IN

Use another SCART cable to connect the

EXT2 AUX-I/O socket on the recorder to the SCART output socket (or labelled as TV OUT or TO TV) on the VCR.

Use another SCART cable to connect the

SCART input (TV IN) socket on the VCR to the SCART output socket (or labelled as TV OUT or TO TV) on the Cable Box/Satellite Receiver.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Page 20

Step 2: Optional Connections (continued)

English

DV OUT

Connecting a camcorder to the front sockets

You can use the front sockets to copy camcorder recordings. These sockets are located behind the  ap on the right and provides convenient connections for a camcorder.

Option 1: Using the DV IN socket

Use this connection if you have a Digital Video or Digital 8 camcorder. The DV socket conforms to the i.LINK standard.

Use an i.LINK 4-pin cable (not supplied)



to connect the DV IN socket on the recorder to the appropriate DV OUT socket on the camcorder.

Before you start operating, press REC SOURCE on the remote control repeatedly to select ‘DV’ as the input channel. See the chapter “Recording” for details.

Helpful Hints: – The DV IN socket does not support a connection to a Personal Computer. – It is not possible to record from the recorder to your camcorder via the DV IN socket on your recorder.

Option 2: Using the VIDEO In socket

Use the VIDEO connection if your camcorder has only a single video output (Composite Video, CVBS).

Connect the VIDEO(CAM1) socket on

the front panel of the recorder to the corresponding S-VHS or Video output socket on the camcorder.

Use an audio cable (red/white ends) to

connect the AUDIO L/R sockets on the front panel of the recorder to the audio output sockets on the camcorder.

Before you start operating, press REC SOURCE on the remote control repeatedly to select ‘CAM1’ as the input channel, depending on your connections. See the chapter “Recording” for details.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Page 21

Step 3: Installation and Setup

Before you start... When you complete the connections and switch on the recorder for the  rst time, it is advisable that you make several basic settings.

Please see the following pages on using the system menu features to programme TV channels, menu language and system clock settings. This will optimise the performance of this recorder.

Finding the correct viewing channel

Press STANDBY-ON on the recorder

to switch it on.

Switch on the TV set and set it to the

correct video-in channel. You should see the blue DVD background screen.

 You may go to Channel 1 on your TV,

then press the Channel Down button on your TV’s remote control until you see the Video In channel.

 You may press ° button repeatedly

on your TV’s remote control.

 Usually this channel is between the

lowest and highest channels and may be called FRONT, A/V IN, VIDEO. See your TV manual for more details.

Setting the OSD language

Select the menu language for this recorder’s on-screen display. The language options are different depending on your country or region. It may not correspond to the illustrations shown in the user manual.

The menu language (on-screen display) for the system will remain as you set it.

Language settings can only be changed when there is no disc in the disc tray.

SYSTEM

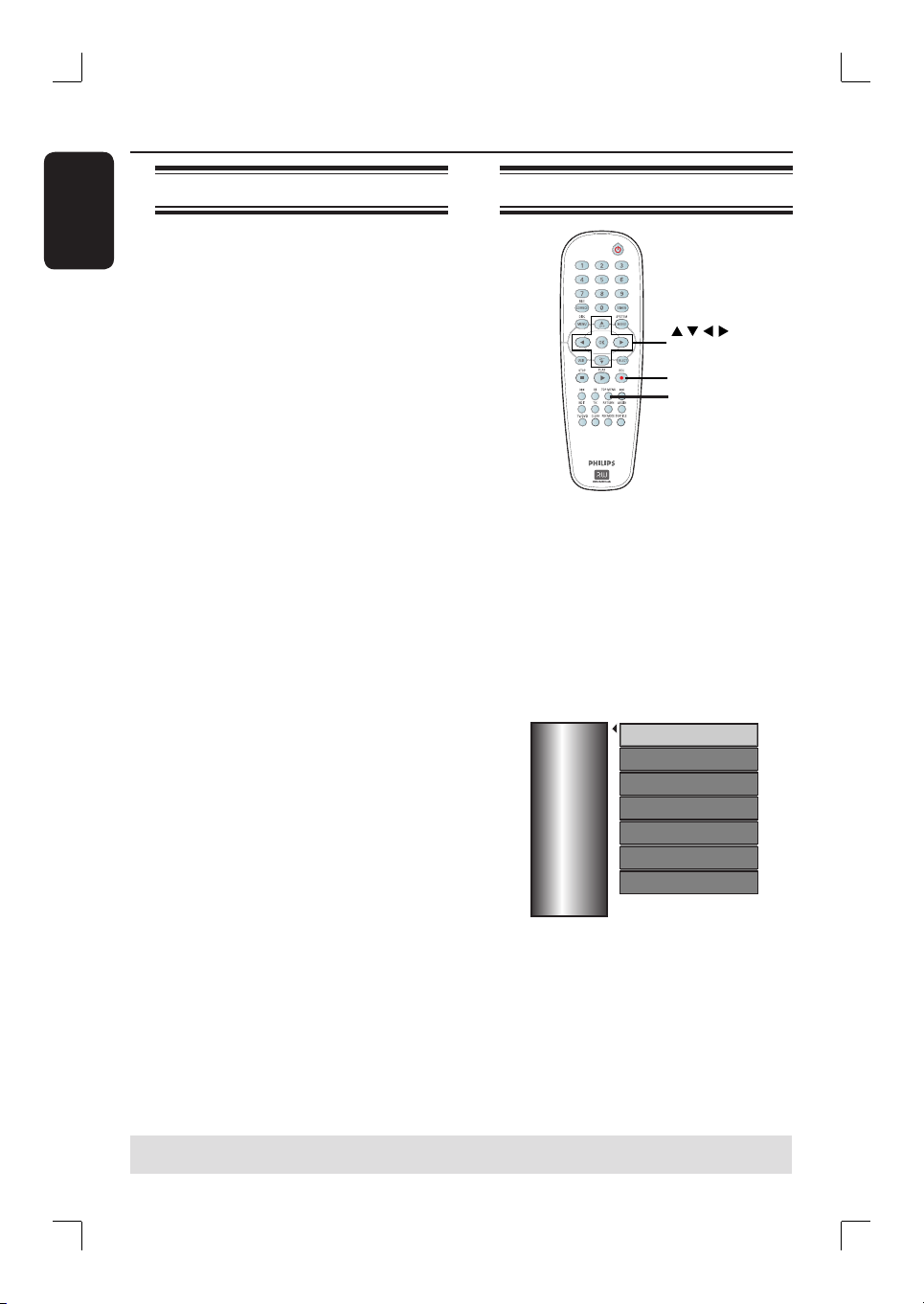

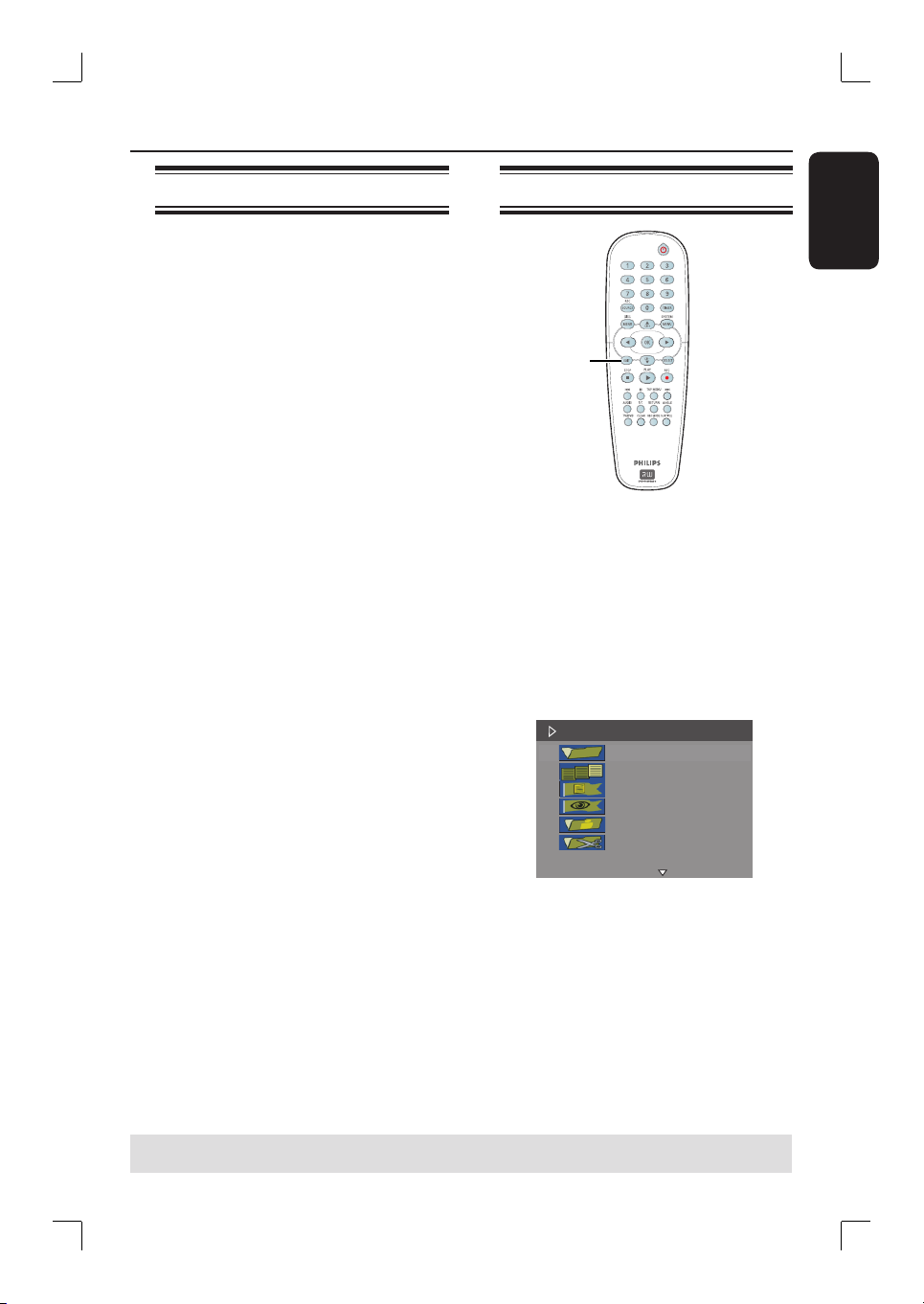

Press SYSTEM-MENU.

 The system menu appears.

Use ST keys to highlight

{ System Menu - Language } and press X to access the menu.

System Menu - Language

On Screen Display Language

Default Disc Menu Language

Default Subtitle Language

Default Audio Language

English

Off

English

TIPS: Press X to go access the options of an item in the menu. Press SYSTEM-MENU to exit the menu.

Use ST keys to highlight { On Screen

Display Language } and press OK to access its options.

Use ST keys to highlight the desired

language and press OK to con rm.

Page 22

Step 3: Installation and Setup (continued)

English

Select the country of your residence

Select the country of your area for auto channel tuning.

Press SYSTEM-MENU on the remote

control.

 The system menu appears on the TV.

Use ST keys to highlight

{ System Menu - General } and press X.

System Menu - General

Screen Saver

Country

Video Output Format

Restore Factory Settings

Use ST keys to highlight { Country }

and press OK.

Use ST keys to select the country of

your residence and press OK to con rm.

Setting your TV channel programmes

Before the recorder can start recording the TV channel programmes, you need to search for the available TV channels and store them in the recorder.

Note: Make sure you have successfully made all the required connections to the

PAL

recorder, the TV and Satellite Receiver/ Cable Box (if any) and switched them on.

Tuner settings can only be changed when there is no disc in the disc tray.

Press SYSTEM-MENU on the remote

control.

 The system menu appears on the TV.

Use ST keys to highlight

{ System Menu - Channel Setup } and press X.

System Menu - Channel Setup

Channel Search

Modify Channel Information

Sort Channels

Edit

Sort

TIPS: Press X to go access the options of an item in the menu. Press SYSTEM-MENU to exit the menu.

Use ST keys to highlight { Channel

Search } and press OK.

 The automatic TV channel search

starts. This process may take several minutes. Once complete, the total number of channels found appears on the TV.

To modify or sort the TV channels, see the chapter “DVD System Menu Options – CHANNEL SETUP settings.”

Page 23

Step 3: Installation and Setup (continued)

Setting the date & time

If the recorder has not set the time and date correctly, set the clock manually by following the steps below.

Press SYSTEM-MENU.

 The system menu appears.

Use ST keys to select

{ System Menu - Clock } and press X to con rm.

System Menu -

Date(dd/mm/yy)

Time(hh:mm:ss)

Date-Time Setting

Use ST keys to highlight

Clock

31/01/06

10 : 33 : 57

Auto

OKShow DivX registration code:

{ Date (dd/mm/yy) } and press OK.

Use ST keys to change the numbers

and use W X keys to select different entry  elds. Press OK to con rm.

Alternatively, you can key in the numbers



using the numeric keypad 0-9 on the remote control.

To con rm all changes, press OK.

Move to { Time (hh:mm:ss) } and

repeat step D~E.

English

TIPS: Press X to go access the options of an item in the menu. Press SYSTEM-MENU to exit the menu.

Page 24

Recording

English

Discs for recording

Several different formats of DVD recordable discs can be used with this recorder:

DVD±RW (DVD Rewritable) – Discs that are rewritable can be used for multiple recordings once

the existing data has been erased.

DVD±R (DVD Recordable)

– Discs can only be used for a single recording. Each new recording is always added at the end of all previous recordings as existing recordings cannot be overwritten. – Editing can be made on any DVD±R discs as long as they have not been  nalised. It is also possible to create additional chapter markers. – To play a DVD±R on other DVD player, it must be  nalised (See the chapter “Editing/ Finalising Recording – Playing your recordings (DVD±R) on other DVD players”). After this is done, no more data can be added to the disc.

IMPORTANT! Unrecordable pictures

Television programmes,  lms, video tapes, discs, and other materials may be copy-protected and therefore cannot be recorded on this recorder.

Recording settings

The default recording settings allow you to set the auto chapter markers, preferred recording input source and recording mode. Any changes made using the remote control will only apply to the current recording settings. The default recording settings will remain unchanged for the next recording.

Press SYSTEM-MENU on the remote

control.

 The system menu appears on the TV.

Use ST keys to select

Menu - Record } and press X to con rm.

System Menu - Record

Auto Chapter Marker

Default Recording Source

Default Recording Mode

{ System

Tuner

Supported disc types and media speeds

Disc

DVD+R 1x - 16x

DVD+RW 2.4 x - 4x

DVD-R 1x - 16x

DVD-RW 2x - 4x

TIPS: Press W to go back to previous menu item. Press SYSTEM MENU to exit the menu item.

Media speeds

Use ST keys to select the setting you

wish to change and press OK to con rm.

 Instructions and explanation of the

options are provided in the following pages.

To exit, press SYSTEM-MENU.

Page 25

Recording (continued)

RECORD settings (underlined options are the factory default settings)

Auto Chapter Automatically insert chapter markers within a title during Marker

recording. This helps you to access speci c points on the recorded disc as you would choose a chapter on other DVDs.

This allows you access to speci c points on the recording.

1) Use ST keys to select one of the options:

{ Off } – Disable this feature. { On } – Chapter markers will automatically be inserted

within the title during recording at every 5 minutes interval.

2) Press OK to con rm your selection.

Default Recording Source

De ne your preferred source of recording.

1) Use ST keys to select one of the options: { Tuner } – Input source from TV programmes.

{ CAM1 } – Input source from the device connected to the

VIDEO and AUDIO L/R sockets on the front panel.

{ DV } – Input source from the device connected to DV

IN socket on the front panel.

{ EXT 1 } – Input source from the device connected to the

EXT1 TO TV-I/O SCART socket on the back panel.

{ EXT 2 } – Input source from the device connected to the

EXT2 AUX-I/O SCART socket on the back panel.

2) Press OK to con rm your selection.

English

Default Recording De ne your preferred mode of recording. Mode

This function can also be accessed via the REC MODE on the remote control.

1) Use ST keys to select one of the options:

Record

Mode

SLP

Picture Quality

High quality

DVD quality-Standard Play

VHS quality-Extended Play

VHS quality-Super Long Play

2) Press OK to con rm your selection.

Maximum Recording

Time per Disc

1 hour

2 hours

4 hours

6 hours

Page 26

Recording (continued)

English

Manual recording

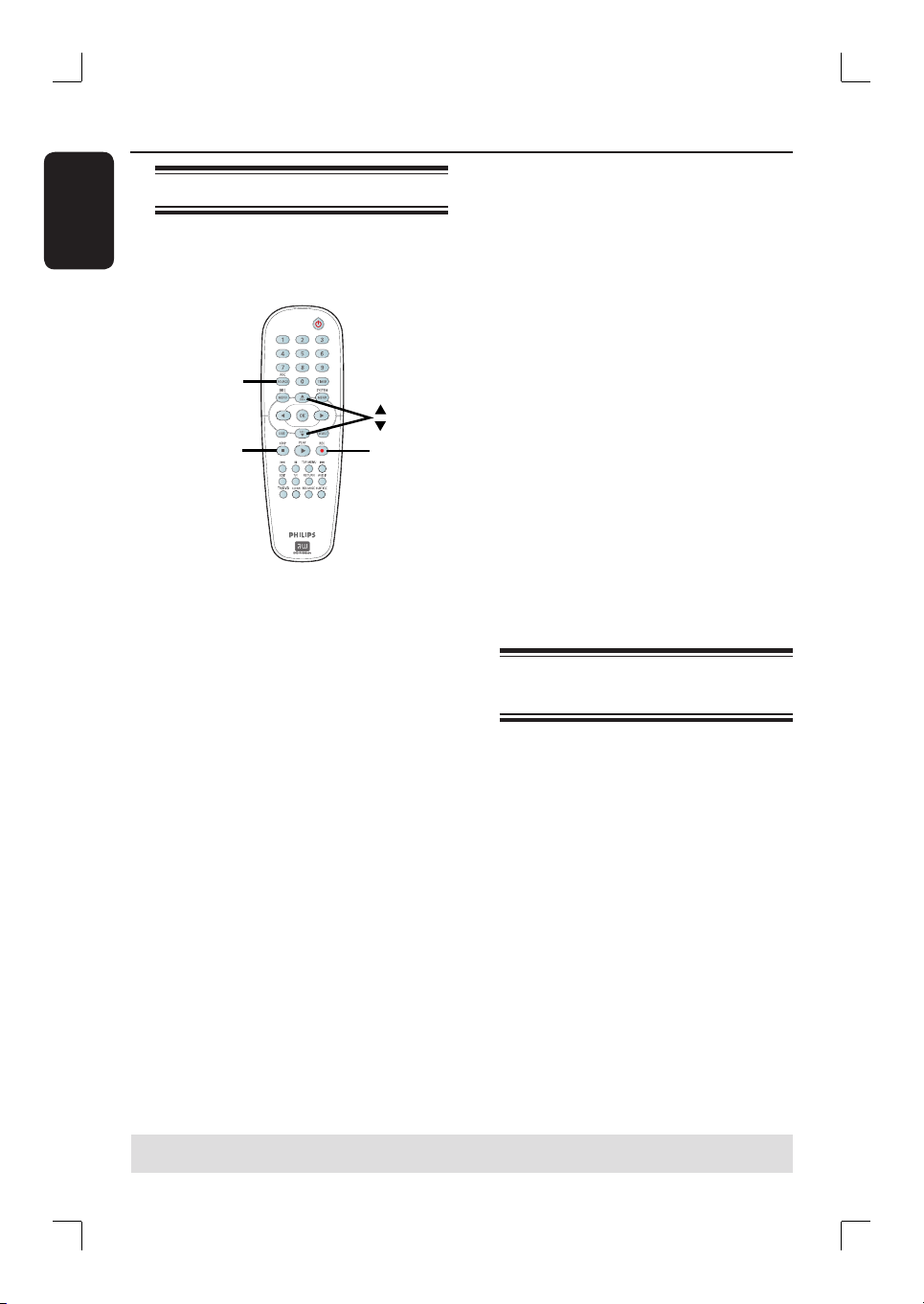

Use this feature to start recording immediately (e.g., to record a TV show already in progress).

REC

SOURCE

STOP

Switch on the TV set. Select the correct

Video In channel on the TV.

Insert a DVD±R/±RW into the recorder.

Press REC SOURCE on the remote

control to select { Tuner }, then use ST keys to select the TV channel you wish to record.

To record from an external device,



press REC SOURCE repeatedly to select the correct input channel that matches the socket which is connected to the recorder.

{ CAM1 } Input source from the device connected to the CAM1 and AUDIO L/R sockets on the front panel.

{ DV } Input source from the device connected to DV IN socket on the front panel.

REC

{ EXT 1 } Input source from the device connected to the EXT1 TO TV-I/O SCART socket on the back panel.

{ EXT 2 } Input source from the device connected to the EXT2 AUX-I/O SCART socket on the back panel.

Press REC  to start recording.

 The recording will automatically start

after the last recording on the DVD±R/±RW.

To stop the recording, press STOP .

Pausing a recording

During a recording, press PAUSEÅ.

 You can use this function to avoid

recording commercials.

To resume recording, press REC .

One Touch Recording automatic turn-off

Follow the steps A~C of “Manual

Recording” in the previous section.

Press REC  repeatedly to toggle

between OTR 30, 60 or 90- minutes recording options.

 The recorder will stop recording at

the designated end time and switch off automatically.

To interrupt the recording, press





STOP

TIPS: Press W to go back to previous menu item.

Press SYSTEM MENU to exit the menu item.

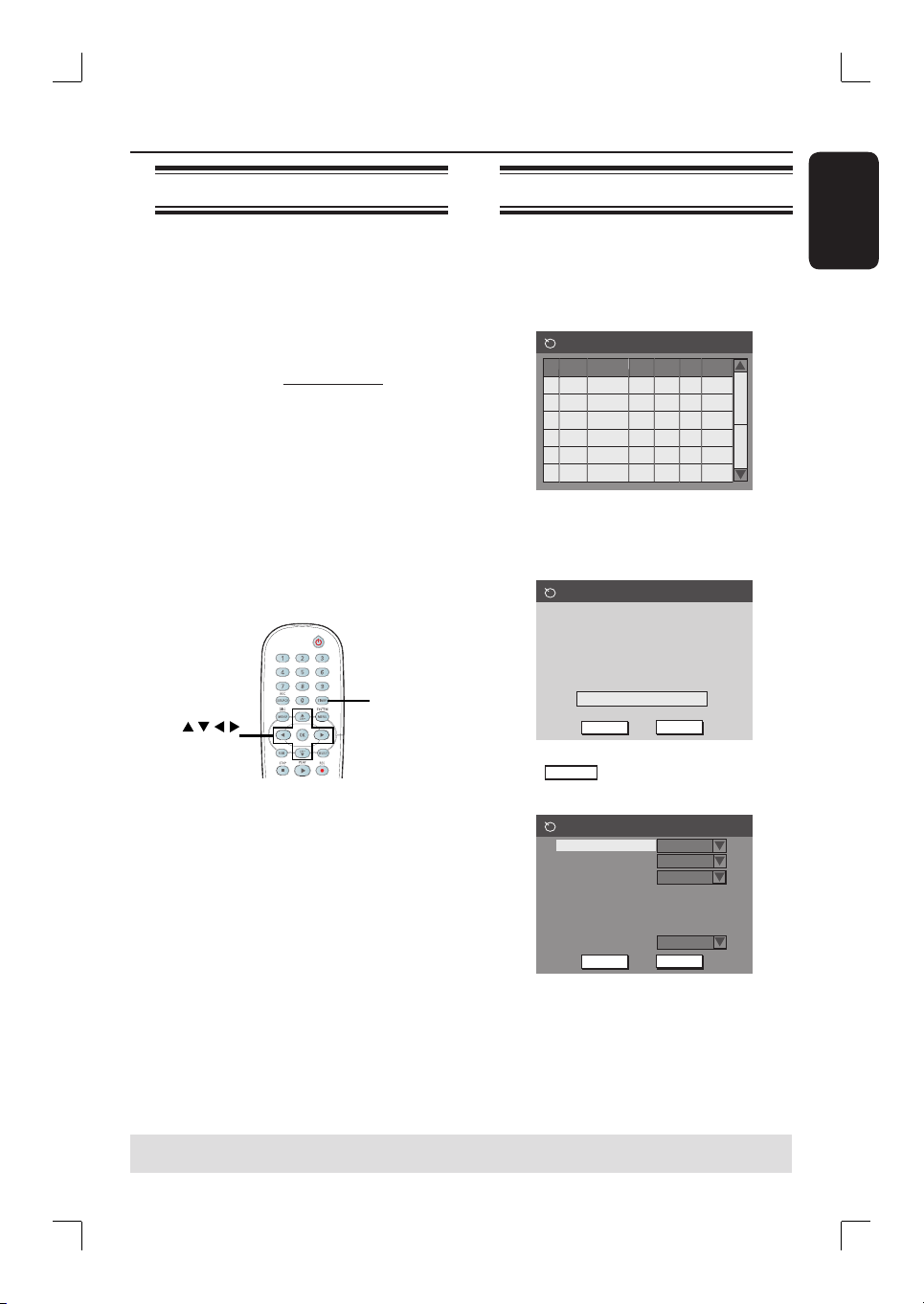

Page 27

Recording (continued)

About timer recording

Use ‘Timer Recording’ to automatically start and stop a recording at a later date/ time. The recorder will tune to the right programme channel and start recording at the speci ed time.

With this recorder, you can preprogramme up to 8 recordings.

To make a timer recording, your recorder needs to know:

– The date you want to make the

recording. – The recording input source. – The start and stop time of the

recording. – The recording mode, see the section “RECORD settings – Default Recording Mode” in this chapter.

TIMER

About ‘VPS/PDC’

‘VPS’ (Video Programming System) or ‘PDC’ (Programme Delivery Control) is used to control the start and end time of TV channel recordings. If a TV programme starts earlier or ends later than was scheduled, the recorder will then switch on and off at the correct time.

Timer recording (manually)

Switch on the TV set. Select the correct

Video In channel at the TV.

Press TIMER on the remote control.

 The timer schedule appears.

Timer Schedule

Source RecMode Date Start End

Press OK on the remote control.

 The VIDEO Plus+

appears.

VIDEO Plus+ System

Enter the PlusCode programming number for the show you wish to record or select CANCEL for manual timer recording. To go back to timer schedule press [RETURN].

CANCEL

Select

in the menu and press OK.

 The timer editor menu appears.

Timer Editor

Source

Rec Mode Mode Date Start End VPS/PDC

VPS/PDC

system menu

CancelConfirm

Ch003

Once

31 / 01 / 06

11 : 33

12 : 03

Off

CANCEL

English

VPS/PDC is intended to record the entire programme. To set a timer that is longer/ shorter than the VPS/PDC broadcast time, you must turn off the VPS/PDC.

TIPS: Ensure that there is enough space on the DVD±R/±RW before recording. Before you playback the DVD±R

on another player,  nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.

Page 28

Recording (continued)

English

Use ST keys to select an entry in the

menu and press X to enter its options. { Source } – Use ST keys to select the recording input source.

{ Rec Mode } – Use ST keys to select your option. See the chapter “Recording – RECORD settings - Default Recording mode”.

{ Mode } – Use ST keys to select { Once }, { Daily }, { Weekly }, { Mon-Fri } (Monday to Friday, ) { Mon-Sat } (Monday to Saturday) or { Weekend } (Saturday and Sunday) recordings.

{ Date } – Use ST keys or the numeric keypad 0-9 to enter the date for recording.

{ Start } – Use ST keys or the numeric keypad 0-9 to enter the start time of recording.

{ End } – Use ST keys or the numeric keypad 0-9 to enter the end time of recording.

{ VPS/PDC } – Use ST keys to turn on/off the VPS/ PDC mode (See the previous page “About VPS/PDC”).

Select

OK.

 The system will store the timer entry

and return to the timer schedule list.

To cancel the above timer setting, select



CANCEL

Press TIMER to exit the menu.

Insert a DVD±R/±RW into the DVD

recorder.

in the menu and press

in the menu and press OK.

Press STANDBY-ON to switch the

recorder to standby mode.

 If the DVD recorder is not in standby

mode, a warning message will appear three minutes before the recording starts.

 The ‘TIMER’ icon will light up on the

display panel if a timer recording is set.

Helpful Hint: – Set the timer recording one minute ahead of the programme’s start time. This helps ensure the entire programme is recorded as the disc requires about 30 seconds to prepare for recording.

Setting a timer recording from an external Cable Box/ Satellite Receiver

If you have a Satellite Receiver/Cable Box connected to this recorder via the EXT2 AUX-I/O scart connection (see “Step 2: Optional Connections”), follow the steps described below to programme the recordings.

Select the channel you want to record at

the Satellite Receiver/Cable Box.

Programme the recording with the

required information. Follow the steps

A~D

of “Timer Recording (manually)”

on the previous page. { Source }

– Use ST keys to select { EXT2 } as the input channel and press OK to con rm.

Leave the Satellite Receiver/Cable Box

switched on for the recording.

TIPS: Ensure that there is enough space on the DVD±R/±RW before recording. Before you playback the DVD±R

on another player,  nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.

Page 29

Timer recording (VIDEO

Plus+

This is a simple programming system for recorders. To use it, enter the PlusCode programming number associated with your television programme. You can  nd this number in your TV listings magazine.

All the information needed by the recorder for programming is contained in the programming number.

Switch on the TV set. Select the correct

Video In channel on the TV.

Press TIMER on the remote control.

 The timer schedule appears.

Press OK to con rm.

Alternatively, press T key to go to the next available empty slot and press OK.

 The VIDEO Plus+

appears.

System)

Timer Schedule

Source RecMode Date Start End

system menu

VPS/PDC

Recording (continued)

To clear the PlusCode programming



number, press CLEAR on the remote control.

To cancel the VIDEO Plus+®



programming, use ST keys to select

CANCEL

in the menu and press OK.

To con rm your entry, select

the menu and press OK.

 The system will store the timer entry

and return to the timer editor menu.

If the channel number of the TV channel



has not been assigned to the programming number, you will have to manually key in the channel number that is assigned to the VIDEO Plus+® code. Follow the instructions on the TV.

Press TIMER to exit the menu.

Insert a DVD±R/±RW into the recorder.

Press STANDBY-ON to switch the

recorder to standby mode.

 If the recorder is not in standby mode,

a warning message will appear three minutes before the recording starts.

 The ‘TIMER’ icon will light up on the

display panel if a timer recording is set.

CONFIRM

English

VIDEO Plus+ System

Enter the PlusCode programming number for the show you wish to record or select CANCEL for manual timer recording. To go back to timer schedule press [RETURN].

CancelConfirm

Use the numeric keypad 0-9 to enter

the PlusCode programming number for the show you wish to record. (e.g. : 5-312-4 or 5,312 4, key in ‘53124’).

TIPS: Ensure that there is enough space on the DVD±R/±RW before recording. Before you playback the DVD±R

on another player,  nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.

Page 30

Recording (continued)

English

Changing/ Deleting a timer recording

Switch on the TV set. Select the correct

Video In channel at the TV.

Press TIMER on the remote control.

 The timer schedule appears.

Timer Schedule

Source RecMode Date Start End

CH003 SP

CH010

CH008HQSP

CH005

Use ST keys to select a timer

programme which you want to change/ delete.

To delete a timer, press CLEAR on

the remote control.

To change the timer schedule, press

OK to enter the timer editor menu of

the selected timer programme.

Timer Editor

Source

Rec Mode Mode Date Start End VPS/PDC

Select the entry  eld and make the

necessary changes.

Once complete, select

menu and press OK to save the changes.

Press TIMER to exit the menu.

14/01/06

11.00 12.30

25/01/06

02.00

30/01/06

10.00

31/01/06

08.30

Ch003

Once

31 / 01 / 06

Off

11 : 33

12 : 03

CANCEL

06.30

11.15

09.00

VPS/PDC

Off

in the

Watching another TV programme during recording

While recording is in progress, you can watch another TV channel or playback from another audio/video device connected to this recorder.

TV/DVD

Watching playback from another device

This is only possible if the recorder is connected to the TV using the EXT1 TO TV-I/O socket.

Press TV/DVD to view the picture from



the device which is connected to the EXT2 AUX-I/O socket of this DVD recorder.

Watching another TV channel

If there is no device connected to the EXT2 AUX-I/O socket, pressing TV/DVD will switch to TV mode.

Use the TV’s remote control to change



the channels.

 The message “TV/LOOP” will be

displayed on the recorder’s system display panel.

To return to viewing playback from the



recorder, press TV/DVD on the remote control

Helpful Hint: – Remember to turn the TV back to its video input channel if you want to watch the TV channel through the recorder or playback the recorded disc.

TIPS: Ensure that there is enough space on the DVD±R/±RW before recording. Before you playback the DVD±R

on another player,  nalise the disc. See “Playing your recordings (DVD±R) on other DVD players”.

Page 31

Playback

Playable discs

Using this recorder, you can play and record on the following discs:

Recording and Playback DVD±RW (DVD

Rewritable); can be recorded on over and over again.

DVD±R (DVD Recordable); can be recorded only once.

Playback only: DVD Video (Digital Versatile

Disc)

CD-RW (CD-Rewritable) Audio/ MP3/ JPEG contents

CD-R (CD-Recordable) Audio/ MP3/ JPEG contents

Audio CD (Compact Disc Digital Audio)

MP3-Disc

Video CD

(Formats 1.0, 1.1, 2.0)

Super Video CD

DivX Disc

(DivX 3.11, 4.x, 5.x, 6)

ReWritable

Recordable

IMPORTANT! – If the inhibit icon (Error) appears on the TV screen when a key is pressed, it means the function is not available on the current disc or at the current time. – DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same region as your player. – Do not push on the disc tray or place any objects other than discs on the disc tray. It may cause the disc player to malfunction.

Inserting a disc

Press STANDBY-ON to switch on the

recorder.

Press OPEN/CLOSE ç on the front of

the recorder.

 The disc tray opens.

Carefully place the disc into the tray with

the label facing up, then press OPEN/CLOSEç.

 Make sure the disc label is facing up.

For double-sided discs, load the side as indicated on the label.

Switch on the TV set. Select the correct

Video In channel at the TV (See the chapter “Step 3: Installation and Setup – Finding the correct viewing channel”).

Playback will start automatically or a

dialogue will appear on the TV (see next page).

English

TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of the disc, or due

to the condition of recording and authoring software.

Page 32

Playback (continued)

English

Starting disc playback

Playback will begin automatically. If the



disc has its own menu this will be loaded, otherwise the recorder will launch an index screen.

If the pin code entry dialogue appears on



the TV, this means that the parental control was activated for the inserted disc (See the chapter “DVD System Menu Options – PLAYBACK settings”).

 Use the numeric keypad 0-9 on the

remote control to enter your pin code (password).

For more playback features, see the



chapter “Additional Playback Features”.

Playing a DVD video disc

Insert a DVD disc.

If the disc menu appears on the TV

Use numeric keypad 0-9 to input your



selection or use W XST keys to select a play option and press OK to start playback.

To select the previous or next chapter/title marker

During playback, press ./> to go to



the previous/next chapter/track.

To stop playback, press STOP .

Playing a (Super) Video CD

(Super) Video CDs may feature the ‘PBC’ (Play Back Control). This allows you to play the video CDs interactively by following the menu on the display.

Insert a (Super) Video CD.

If the ‘PBC’ is on, the disc index menu will appear on the TV

Use numeric keypad 0-9 to input your

selection or to select a play option.

Press RETURN on the remote control



to return to the previous menu.

To turn on/off the Playback Control



mode, press T/C on the remote control during playback to access the T/C menu. Then use ST keys to select { PBC On } or { PBC Off }.

To stop playback, press STOP .

Playing an audio CD

Insert an audio CD.

 Playback starts automatically.  The track number and elapsed playing

time appear on the display panel.

To stop playback, press STOP .

TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of the disc, or due

to the condition of recording and authoring software.

Page 33

Playback (continued)

Playing a DVD±R/±RW disc

Insert a DVD±R/±RW disc.

 The Index Picture screen appears.

Use ST keys to select a title and press

PLAY X to start playback.

To stop playback, press STOP .

Helpful Hint: – If the message ‘BLANK’ appears on the display panel, this means that there are no recordings on this disc..

Playing an MP3 disc

Insert an MP3 CD.

 The disc content menu appears.

File Play - Stop 0:00:00/ 0:00:00

Directory Selection

Bee Gees

Phil Collins

Bryan Adams

Collin Raye

Nat King Cole

UB40

Jordan Hill

Faith Hill

Note: It may require a longer time for the recorder to display the disc content menu on the TV due to the large number of songs/pictures compiled into one disc.

Use ST keys to navigate within the

menu and press OK to access the folder/ album.

Use ST keys to select the track/ le to

playback.

To move up to the previous level, press



RETURN.

To create a playlist, highlight the track/ le

and press SELECT.

 The selected tracks/ les will appear

on the right screen.

 Use WX keys to toggle between the

left and right screen.

 To remove the track/ le from the

selected playlist, press CLEAR.

To start playback, move the cursor to the

right selection screen, press PLAY X .

During playback, you can press ./ >

to select the next/previous track.

To stop playback, press STOP .

English

Helpful Hint: – Only the  rst session of a multi-session CD will playback.

TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of the disc, or due

to the condition of recording and authoring software.

Page 34

Playback (continued)

English

Playing a picture disc (or musical slide show)

You can display JPEG pictures in the selected list automatically one after the other.

Insert a JPEG picture disc (CD,

CD-R/RW, DVD±R/±RW).

 The disc content menu appears.

Use ST keys to navigate within the

menu and press OK to access the folder/ album.

To create a playlist, highlight the track/ le

and press SELECT.

 The selected tracks/ les will appear

on the right screen.

 To remove the track/ le from the

playlist, press CLEAR.

 You can select to playback from the

original disc content or from the playlist. Use WX keys to move to the correct screen before selecting the track/ le for playback.

File Play - Stop 0:00:00/ 0:00:00

Directory Selection

Japan trip

2 3 4

Bryan Bday My songs Hot Hits

File Play - Stop 0:00:00/ 0:00:00

Directory Selection

..\









If the disc contains MP3 music and JPEG picture  les, you can start a musical slide show playback,

Select an MP3  le and press OK to start



playback, then select a picture  le in the menu and press OK to start the musical slide show playback.

File Play

Type Mode Trick

Wipe

Zoom Rotate

During playback, press T/C once to show

PIC Normal Play

Top to bottom

Fitscreen Clockwise 0

Top to bottom

Down to top Left to right Right to left Extend center V.

the disc content menu. Press T/C again to access various settings for the slide show playback.

 The selected animation settings will

appear in the top left corner of the TV screen.

To stop playback, press STOP .

Playable JPEG picture disc

This recorder can read JPEG pictures stored on a CD-ROM, Picture CD, or DVD.

File format:

– The  le extension has to be ‘.JPG,’ ‘.JPE’ or ‘.JPEG.’ – Only DCF-standard still pictures or JPEG pictures (eg. TIFF) can be displayed. – It cannot playback moving pictures, Motion JPEG, pictures in non-JPEG formats or pictures associated with sound. – The recorder may require a longer time to display the disc content on the TV due to the large number of songs/ pictures compiled onto one disc.

TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of the disc, or due

to the condition of recording and authoring software.

Page 35

Playing a DivX ® disc

This DVD system supports the playback

of DivX

movies which you have copied from your computer onto a CD-R/RW, DVD±R/±RW.

Insert a DivX ® disc.

 The disc content menu appears.

If the DivX ® movie contains external



subtitles, you have to  rst select the subtitle  le from the  le list.

Press PLAY X to start playback.

During playback, you can press DISC



MENU to display the disc content menu.

To select another character set for the subtitle  le,

During playback, press T/C once to



show the disc content menu. Press T/C again to access various settings for the slide show playback.

Playback (continued)

English

File Play

Type Mode Trick

Character

Audio Time LANG Language 1

Use ST keys to select { Character }



Video Normal Play

Standard Set

Stereo 0:01:31 / 0: 41: 35

Standard Set

Alternative Set

and press X to access the options. Select the preferred subtitle set and press OK to con rm.

Helpful Hints: – Subtitle  les with the following  lename extensions (.srt, .smi, .sub, .sami) are supported. – It is normal to experience an occasional pixelation during DivX

playback due to poor clarity of digital contents during internet downloading

TIPS: Some discs cannot be played on this recorder due to the con guration and characteristics of the disc, or due

to the condition of recording and authoring software.

Page 36

Additional Playback Features

English

Changing to another chapter/track

When a disc contains more than one chapter or track, you can change to a different chapter or track as follows.

During playback,

Press > to go to the next chapter/



track.

Press .to return to the start of the



previous chapter/track.

Use the numeric keypad 0-9 to input



the title/chapter/track number.

Press T/C to enter the T/C menu and use



ST keys to select { Title } or { Chapter } and use numeric keypad

0-9 to input the title/chapter/track number.

Pausing playback and step play

Searching forwards/ backwards

You can search forward or backward on a disc at two, four, sixteen or thirty two times the normal playback speed.

During playback, press W (reverse) or

X (forward) to switch to the search

function.

 The search status bar appears.

It displays the search speed (FREV x2, FREV x4, FREV x16, FREV x32, FFWD x2, FFWD x4, FFWD x16, FFWD x32)

 The sound will be muted.

Use W X keys to cycle through the

search speeds.

To resume normal playback, press

PLAY X.

During playback, press PAUSEÅ to

pause playback and display a still picture.

Press PAUSEÅagain to move one frame

forward.

To resume normal playback, press

PLAY X.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Page 37

Additional Playback Features (continued)

Using T/C options

Selecting various repeat/ shuf e functions

You can select various repeat play or random play modes during playback.

During disc playback, press T/C on the

remote control.

 The T/C menu appears.

SELECT

Use ST keys to select { Mode } and

press OK.

T/C

CLEAR

Use ST keys to select one of the repeat

options. { Normal }

Select this to cancel the repeat mode and

During playback, press T/C on the

remote control.

 The T/C menu appears on the TV.

DVD

Mode

Trick mode

Title

Chapter

Audio

Subtitle

Angle

Title

Normal

Play 02/05 01/22 01/02 - OTH Off 01/03 00:22:03 / 01:27:24

return to normal playback. { Repeat A-B }

Select this to repeat the playback of a speci c segment within a title/chapter/ track. Press OK to mark the start and end of the segment you want to repeat.

{ Repeat Chapter } Select this to repeat playback of the current chapter (DVD, DVD±R/±RW only).

{ Repeat Track/Title } Select this to repeat playback of the

Use ST keys to select the setting you

want to adjust.

 Instructions and explanation of the

options are provided in the following pages.

To exit, press T/C.

current track/title. { Repeat Directory }

Select this to repeat playback of the current folder/directory (MP3, JPEG, picture disc only).

{ Repeat Disc } Select this to repeat playback of the entire disc. (MP3, JPEG, SVCD and CDDA discs only).

{ Shuf e } Select this to randomly playback all the tracks within the disc (MP3 and audio CD only).

To cancel repeat playback, press STOP

or select { Normal } and press OK.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

English

Page 38

Additional Playback Features (continued)

English

Creating a playlist

You can play the contents of the disc in the order you want by programming the tracks to be played.

Press T/C on the remote control.

 The T/C menu appears.

Select { Mode } > { Program }.

 The programme menu appears.

DVD

Title Selection

Title 1

Title 2 Title 3 Title 4 Title 5 Title 6 Title 7 Title 8

If the disc is recorded with Titles/Folders/

Albums, press OK to access the tracks/  les/chapters.

Pressing OK at the highlighted track/ le/



chapter will start playback.

Use W X keys to toggle between the left



and right screen.

To programme your favourite track/ le/chapter

Use ST keys to select the track/ le/

chapter to programme and press SELECT on the remote control.

 The selected track/ le/title will appear

at the right screen.

 The order on the right screen will be

the order of programme playback.

To remove the programmed item from your selection

Press X key to move to the right screen.

Select the track/ le/chapter and press

CLEAR on the remote control.

To start programme play

Press X key to move to the right screen

and press OK.

 Playback will start from the selected

track/ le/chapter according to the programmed sequence.

To exit programme play

Press STOP  to exit programme play.

Changing the audio soundtrack language

This operation works only on DVDs with multiple soundtrack language or VCDs with multiple audio channels.

During disc playback, press AUDIO



repeatedly to toggle through the audio channels on the disc.

Alternatively,

Press T/C on the remote control.

 The T/C menu appears.

Use ST keys to select { Audio } and

press X to access its options.

Use ST keys to select the audio

language and press OK to con rm.

 The languages may be numbered or

abbreviated, such as “En” for English.

 If the language selected is not available

on the disc, the disc’s default setting for language will be used instead.

Helpful Hint: – Some DVDs allow soundtrack language changes only via the DVD disc menu. To access the Disc Menu, press DISC-MENU.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Page 39

Additional Playback Features (continued)

Changing subtitle language

This operation works only on DVDs with multiple subtitle languages, you can change the language you want during playback of the DVD.

During disc playback, press SUBTITLE



repeatedly to toggle through the language options on the disc.

Alternatively,

Press T/C on the remote control.

 The T/C menu appears.

Use ST keys to select { Subtitle } and

press X to enter the menu and  nd the different available options.

Use ST keys to select the language and

press OK to con rm.

 The languages may be numbered or

abbreviated, such as “En” for English.

 If the language selected is not available

on the disc, the disc’s default setting language will be used instead.

Helpful Hint: – Some DVDs discs allow subtitle language changes only via the DVD disc menu. To access the disc menu, press DISC-MENU.

Switching camera angles

This option is only available with DVDs that contain sequences recorded from different camera angles. This allows you to view the picture from different angles.

Press T/C on the remote control.

 The T/C menu appears.

Use ST keys to select { Angle } and

press X to enter its options.

 The camera angles available for

selection appears.

Use ST keys to select the camera angle

you want to switch to, then press OK to con rm.

Time search

This option allows you to skip to speci c point in the current disc.

Press T/C on the remote control.

 The T/C menu appears.

Use ST keys to select { Title } and

press X to select time search by { Title } or { Chapter }. To con rm search option, press OK.

Use the numeric keypad (0-9) to

enter the time required.

 Playback skips to the selected time.

English

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Page 40

Editing/ Finalising Recording

English

About disc editing

This recorder offers various disc editing options for various disc types. You can change the disc content and settings of a recorded DVD±R/±RW from the disc editing menu. The edited contents may not be available when you play the disc on an another DVD player.

The displayed options in the disc editing menu differ depending on the type of disc.

{ Play } Start playing from the beginning of the disc.

{ Rename Disc } Change the name of the disc.

{ Erase Disc } - DVD±RW only Erase all the recordings on the disc.

{ Record New Title } Start recording from the last empty title on the disc.

{ Overwrite Disc } - DVD±RW only Start a new recording from the beginning of the disc, all the recorded content will be overwritten.

{ Make Compatible } - DVD±RW only To ensure the edited changes remain when the disc is played back on another DVD player. (eg., hidden chapters to remain hidden).

{ Lock/Unlock Disc } - DVD±RW only Lock or unlock a disc to prevent accidental erasure or changes being made.

{ Finalise Disc } - DVD±R only Finalise the disc to enable playback on other DVD players. Further recording and editing to the disc are not allowed. It is not possible to un nalise the disc.

Accessing disc editing menu

REC TOP MENU

Insert a recorded DVD±R/±RW into the

recorder.

 The Index Picture screen appears on

the TV.

Press TOP MENU on the remote

control.

 The disc editing menu appears. The

available editing options are different for DVD±R and DVD±RW discs.

Play

Rename Disc

PAL

DVD

EDIT

Use ST keys to access different options

and OK to select.

 Instructions and explanation of the

options are provided in the following pages.

To exit, press TOP MENU to go back

to the disc Index Picture screen.

Erase Disc

Record New Title

Overwrite disc

Make Compatible

LockDisc

TIPS: No further recording and editing can be carried out on a full or  nalised DVD±R. Press W to go back to the previous menu.

Page 41

Editing/ Finalising Recording (continued)

Rename disc

The original disc name is generated automatically by the recorder. You can change the disc name by following the steps below.

Press TOP MENU, then use ST keys

to select { Rename Disc } and press OK.

 The keyboard screen appears.

Use W XST keys to highlight a

character on the keyboard and press OK to select.

 The maximum input is up to 9

characters.

You can use the following keys on the



keyboard screen to edit your input:

BkSp

: to remove the character to

Delete

Space

Caps

Clear

To con rm your entry, select

the left of the cursor.

: to remove the character to

the right of the cursor.

: to create a space between the

characters.

: to toggle between upper and

lowercase characters.

: to clear the entry  eld

completely.

the keyboard and press OK.

 The info panel is now updated.

To cancel the changes, select



EXIT

the keyboard and press OK.

Erase disc (DVD±RW only)

This erases the content of the DVD±RW including those that was not recorded on this recorder. Once the existing content is erased, it can be used again for recording.

Press TOP MENU, then use ST keys

to select { Erase Disc } and press OK.

 A warning message will appear.

Select

YES

in the menu to proceed or

to abort, then press OK to

con rm.

Record new title

This function allows you to start a new recording at the remaining empty space on the DVD±R/±RW.

Press TOP MENU, then use ST keys to

select { Record New Title } and press OK.

Select the source you want to record

from and press REC  to start recording.

Overwrite disc (DVD±RW only)

This function allows you to start a new recording from the beginning of a DVD±RW regardless of the contents of the disc.

Press TOP MENU, then use ST keys

to select { Overwrite disc } and press OK.

Select the source you want to record

from and press REC  to start recording.

English

TIPS: No further recording and editing can be carried out on a full or  nalised DVD±R. Press W to go back to the previous menu.

Page 42

Editing/ Finalising Recording (continued)

English

Make compatible (DVD±RW only)

The edited DVD±RW may still display the original titles or hidden scenes when playbacked on other DVD players. This function ensures that the edited changes of the DVD±RW remain when played back on other players.

Press TOP MENU, then use ST keys to



select { Make Compatible } and press OK to con rm.

Helpful Hint: – If the option {Compatible} is not available for selection, it means that the disc is already compatible.

Lock/Unlock disc (DVD±RW only)

You can choose to protect the recorded DVD±RW in order to prevent accidental loss of recordings.

Press TOP MENU, then use ST keys

to select { Lock Disc } and press OK.

 The disc is locked for this DVD

recorder only.

 When the disc is locked, the option in

the disc editing menu will change to { Unlock Disc }.

If you want to overwrite or edit on the

protected disc, select { Unlock Disc }.

Playing your recordings (DVD±R) on other DVD players

It is necessary to  nalise a DVD±R disc before you can play it on any other DVD player. Otherwise, the DVD±R will only playback on this recorder.

After a DVD±R disc has been  nalised, no further recordings or editing can be made to it. Make sure that you have completed all the recordings and editing before  nalising the disc.

Press TOP MENU, then use ST keys

to select { Finalise Disc } and press OK.

 A warning message will appear.

Select

to start the process.

 Finalisation will take a few minutes.

Do not try to open the disc tray or turn the power off as this may render the disc unusable.

Select

YES

in the menu and press OK

to abort.

TIPS: No further recording and editing can be carried out on a full or  nalised DVD±R. Press W to go back to the previous menu.

Page 43

Editing/ Finalising Recording (continued)

About title editing

You can change the individual title information or delete a title (recording) in a recorded DVD±R/±RW. If a DVD±R has been  nalised, it cannot be edited.

The displayed options in the title editing menu differ depending on the type of disc.

{ Play Title } Start playing a recording.

{ Edit Title } Access the video editing menu.

{ Rename Title } Change the name of the recording.

{ Erase Title } - DVD±RW only Delete the title (recording).

{ Overwrite Title } - DVD±RW only Start a new recording, the existing title (recording) will be overwritten.

{ Overwrite Disc } - DVD±RW only Overwrite from the existing selected title onwards to the end of the disc.

{ Append Title } Insert a new recording to the last existing recording.

Accessing title editing menu

Insert a recorded DVD±R/±RW into the

recorder.

 The Index Picture screen appears on

the TV.

During playback, press DISC MENU to



access the Index Picture screen.

Use ST keys to highlight a title

(recording), and press X.

 The title editing menu appears.

Play Title

Edit Title Rename Title

Erase Title

Overwrite Title

Overwrite Disc

Append Title

2. My movie

Empty Title

Use ST keys to access different options

and OK to select.

 Instructions and explanation of the

options are provided in the following pages.

To exit, press W.

10 / 01 / 2006 12 : 31 : 53 HQ 00 : 05 : 59

English

Video editing

This feature allows access to the video editing menu. See the chapter “Editing/ Finalising Recording – About video editing” for more information.

In title editing menu, use ST keys to



select { Edit Title } and press OK.

 The video editing menu appears.  The recorder will play the

selected title.

TIPS: No further recording and editing can be carried out on a full or  nalised DVD±R. Press W to go back to the previous menu.

Page 44

Editing/ Finalising Recording (continued)

English

Rename title

The original title name is generated automatically by the recorder. You can give a new name to the title by following the steps below.

In title editing menu, use ST keys to

select { Rename Title } and press OK.

 The keyboard screen appears.

Use W X ST keys to highlight a

character and press OK to select.

 The maximum input is up to 9

characters.

You can use the following keys on the



keyboard screen to edit your input:

BkSp

: to remove the character to

Delete

Space

Caps

Clear

the left of the cursor.

: to remove the character to

the right of the cursor.

: to create a space between the

characters.

: to toggle between upper and

lowercase characters.

: to clear the entry  eld

completely.

To con rm your entry, select

the keyboard and press OK.

 The info panel is now updated.

To cancel the changes, select



the keyboard and press OK.

Erase title (DVD±RW only)

You can delete a speci c title (recording) from the disc.

Overwrite title (DVD±RW only)

This function allows you to record a new title from the beginning of the current title in the DVD±RW. The other titles will not be affected.

In title editing menu, use ST keys to

select { Overwrite Title } and press OK.

Select the source you want to record

from and press REC  to start recording.

Overwrite disc

You can select to overwrite only the recordings from the selected title to the end of the disc.

In video editing menu, use ST keys to



select { Overwrite Disc } and press OK to con rm.

Append recording

This function allows you to add a

recording to the last existing title.

In title editing menu, use ST keys to

select { Append Title } and press OK.

EXIT

Press REC SOURCE to select the input

channel to append.

Press REC  to start append recording.

To stop append recording, press

STOP .

In title editing menu, use ST keys to

select { Erase Title } and press OK.

 A warning message will appear.

Select

YES

in the menu to proceed or

to abort, then press OK to

con rm.

TIPS: No further recording and editing can be carried out on a full or  nalised DVD±R. Press W to go back to the previous menu.

Page 45

Editing/ Finalising Recording (continued)

About video editing

After a recording has been made, this recorder allows you to edit the video content. You can add/delete chapter markers, hide unwanted scenes, change the picture in the index picture screen and split a title (recording) into two.

When you playback a recording in video edit mode, the entire recording will be played back including hidden scenes.

The edit functions available in the disc editing menu are:

{ Title } Select a title (recording) to playback.

{ Chapter } Select a chapter within the selected title.

{ Chapter Marker } Insert a chapter marker in the recording or erase a chapter marker to combine two chapters.

{ Hide Chapter } Hide the unwanted scene in the recording.

{ Index Picture } Select a scene in the recording as the index picture screen.

{ Split Title } - DVD±RW only Divide the recording into two under separate titles.

Accessing video editing menu

EDIT

Insert a recorded DVD±R/±RW into the

recorder.

 The Index Picture screen appears on

the TV.

Use ST keys to select a title (recording).

Press PLAY X to start playback.

Press EDIT on the remote control.

 The video editing menu appears.

Edit Mode

Title 02/06

Chapter 01/10 Chapter Marker

Hide Chapter

Index Picture

Split Title

Use ST keys to access different options

and press OK to select.

 Instructions and explanation of the

options are provided in the following pages.

To exit, press EDIT.

English

TIPS: No further recording and editing can be carried out on a full or  nalised DVD±R. Press W to go back to the previous menu.

Page 46

Editing/ Finalising Recording (continued)

English

Selecting a title

This option shows the current title and the total number of titles on the disc.

During playback, press EDIT to display

the video editing menu, then useST keys to select OK.

Use the numeric keypad 0-9 to key in

a title and press OK.

 The recorder will playback the

selected title.

Selecting a chapter

This option shows the current chapter and the total number of chapters in the title.

During playback, press EDIT to display

the video editing menu, then use ST keys to select press OK.

Use the numeric keypad 0-9 to key in

the chapter and press OK.

 The recorder will playback the

selected chapter.

{ Title } and press

{ Chapter } and

Creating chapter markers

You can create a chapter by inserting chapter markers at any point within a title during playback. This will allow you to access a speci c point in the recording easily or set a chapter you wish to hide.

Title

Chapter Chapter Chapter Chapter

chapter markers

During playback, press EDIT to display

the video editing menu, then use ST keys to select Marker } and press OK.

Use ST keys to select one of the

options and press OK to con rm. { Insert Marker }

Select this to insert a new chapter marker at the current point of playback.

{ Delete Marker } Select this to delete the current chapter marker (it refers to the closest marker before the current point of playback).

{ Delete All Markers } Select this to delete all the chapter markers in the current title.

{ Chapter

TIPS: No further recording and editing can be carried out on a full or  nalised DVD±R. Press W to go back to the previous menu.

Page 47

Editing/ Finalising Recording (continued)

Hiding unwanted scenes

You can choose to hide certain scenes from playback (e.g. skipping commercials) or make it visible again.

Create a chapter marker at the start and

end of the scene you want to hide. ( See previous page on “Creating Chapter Markers”).

Select the chapter you want to hide and

start playback. (See previous page on “Selecting a chapter”).

During playback, press EDIT to display

the video editing menu, then use ST keys to select { Hide Chapter } and press OK.

 The current chapter will be hidden.

If the video editing menu does not show,



press EDIT on the remote control.

To unhide a chapter

Press EDIT on the remote control

during playback.

 The video editing menu appears.  While in editing mode, the hidden

chapter/chapters will be played back.

Wait for the chapter you want to unhide

to occur or use .> keys on the remote control to make a fast search.

Use ST keys to select { Unhide

Chapter } and press OK.

 The current chapter will be visible

during playback.

Changing Index Picture

The index picture is the picture of the title you will see when the recorder loads up the Index menu. Normally, the  rst frame of a recording is shown as the title’s index picture.

During playback, use W X keys on the

remote control to search for the scene to use, then press PAUSE

 Press PAUSE

forward to next pause scene.

Press EDIT to display the video editing

menu, then use ST keys to select

{ Index Picture } and press OK to select the current scene as the index picture for the title.

Splitting a title (DVD±RW only)

You can divide the current title into two new titles. Each of these titles is characterised by its own index picture.

Warning! Once a title is divided, the process cannot be reversed.

During playback, press EDIT to display



the video editing menu, then useST keys to select { Split Title } and press OK to divide the title at the current playback position.

 A new title will be shown at the Index

Picture screen.

again to move

English

Helpful Hint: – All the hidden chapters will be played back while in video editing mode. – To locate a speci c frame during playback,

press PAUSE search to the frame that you want.

TIPS: No further recording and editing can be carried out on a full or  nalised DVD±R. Press W to go back to the previous menu.

Årepeatedly to forward

Page 48

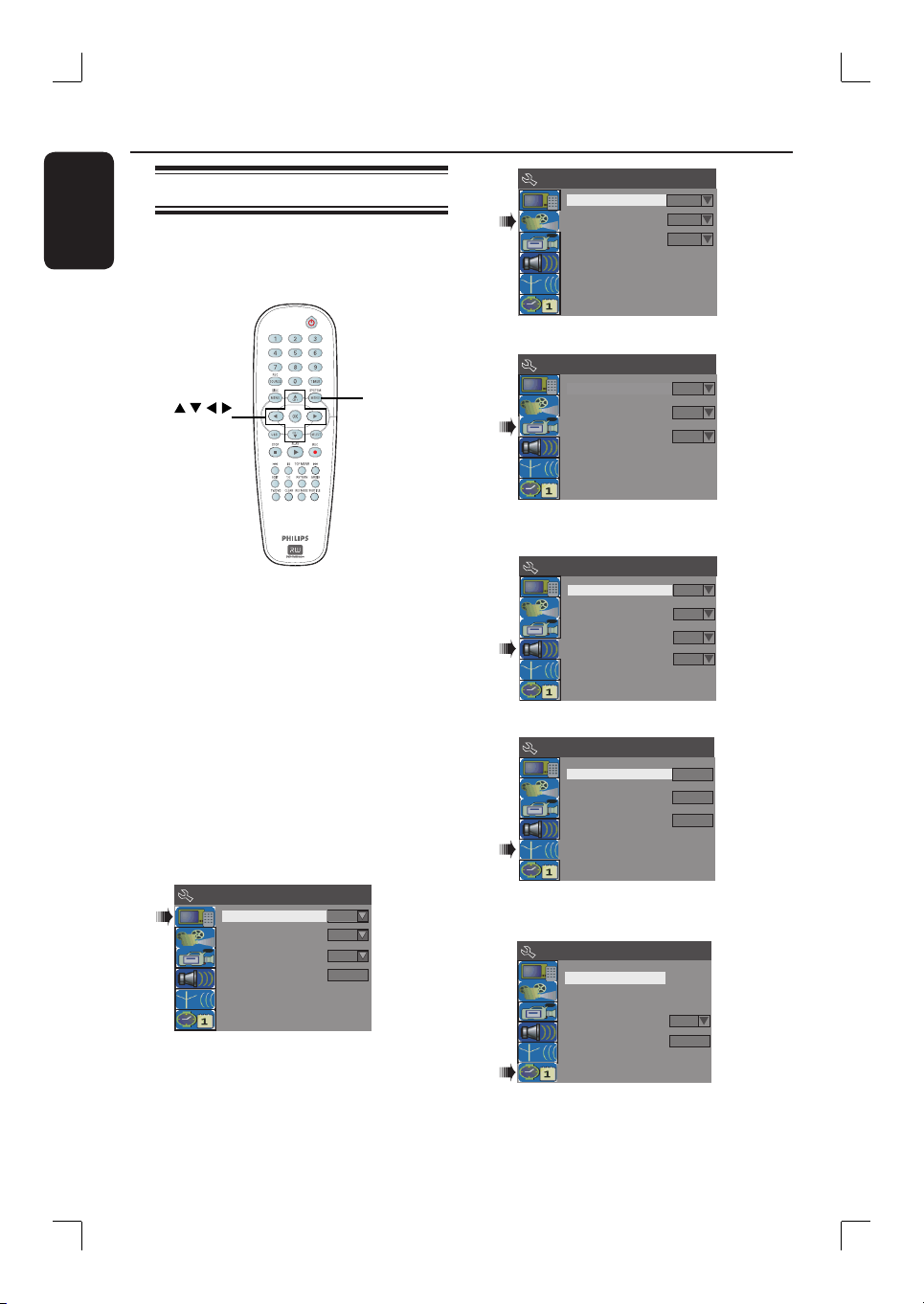

DVD System Menu Options

English

Accessing the System Menu

The system menu provides various options for you to adjust the recorder to suit your preferences.

Press SYSTEM MENU on the remote

control.

 The system menu appears on TV.

Use ST keys to highlight a menu item

and press X to access its options.

Use ST keys to highlight the setting you

wish to change and press OK to con rm and return to the previous menu item.

 Instructions and explanation of the

options are provided in the following pages.

To exit, press SYSTEM MENU.

SYSTEM

System Menu - Playback

TV Aspect Ratio

Parental Rating Level

Digital Audio Output

4:3 Letterbox

Off

All

See this chapter “ PLAYBACK settings”.

System Menu - Record

Auto Chapter Marker

Default Recording Source

Default Recording Mode

Tuner

See the chapter “Recording – RECORD settings”.

System Menu - Language

On Screen Display Language

Default Disc Menu Language

Default Subtitle Language

Default Audio Language

English

Off

English

See this chapter “LANGUAGE settings”.

System Menu - Channel Setup

Channel Search

Modify Channel Information

Sort Channels

Edit

Sort

System Menu - General

See the next page.

Screen Saver

Country

Video Output Format

Restore Factory Settings

See this chapter “CHANNEL SETUP

PAL

settings”.

System Menu -

Clock

Date(dd/mm/yy)

Time(hh:mm:ss)

Date-Time Setting

31/01/06

10 : 33 : 57

Auto

OKShow DivX registration code:

See this chapter “CLOCK settings”.

Page 49

DVD System Menu Options (continued)

GENERAL settings (underlined options are the factory default settings)

Screen Saver A screen saver prevents damage to the TV screen by avoiding

exposure to a static image for too long.

Use ST keys to select one of the options.

{ On } – Select this if you wish to turn off the TV screen

after playback had been stopped or paused for longer than 15 minutes.

{ Off } – Select this to disable the screen saver.

2) Press OK to con rm your selection.

Country Select the country of your area for auto channel tuning. (See section “ Step 3: Installation and Setup - Select the country

of your residence”)

Video Output Format The colour system of the DVD system, DVD and TV should

match. Only then will it be possible to play a DVD on this system. Before changing the TV system, determine the colour system of your TV set.

Use ST keys to select one of the options.

{ NTSC } – Select this if the connected TV set has the

NTSC colour system. It will change the video signal of a PAL disc and output it to NTSC format.

{ PAL } – Select this if the connected TV set has the PAL

colour system. It will change the video signal of an NTSC disc and output it to PAL format.

2) Press OK to con rm your selection.

Helpful Hint: – If a blank/distorted TV screen appears, wait for 10 seconds for the auto

recovery.

English

Restore Factory Settings

This option will restore all the settings of this recorder, except

for the PIN code.

Restore Factory settings can only be changed when there

is no disc in the disc tray.

1) Use ST keys to select { Restore Factory Settings } and press

OK.

 A warning message will appear.

2) Select press OK to con rm.

in the menu to proceed or

CANCEL

to abort, then

Page 50

DVD System Menu Options (continued)

English

PLAYBACK settings (underlined options are the factory default settings)

TV Aspect Ratio Set the aspect ratio of the recorder according to the TV type you

have connected.

Use ST keys to select one of the options.

16:9 } – Select this for wide screen TV

{

(frame ratio 16:9).

{ 4:3 Panscan } – Select this for a full-height

picture with both side trimmed.

{ 4:3 Letterbox } – Select this for a ‘wide screen’ display

with black bands on the upper and lower portions of the TV screen.

2) Press OK to con rm your selection.

Parental Rating Level

Some DVDs may have a parental level assigned to the complete

disc or to certain scenes on the disc. This feature lets you set a playback limitation level.

Press OK to access this menu and you will be prompted to enter

your four-digit pin code.

2) Use the numeric keypad 0-9 to enter your four-digit pin code.

 When doing this for the  rst time, enter the default password

‘3308’ .

 The set rating level menu appears.

If you forget your four-digit pin code, the default password is 3308.



3) Use ST keys to select the desired parental level, then move to

con rm.

 To disable parental controls and allow all discs to play, select

Rating explanations

{ Off }.

Press X to access this menu and use ST keys to select one of the



options.

{ Off } – Parental control is not active. { 1. Kid Safe } ~ { 2. G } – Childsafe; acceptable for viewers of all

ages.

{ 3. PG } – Parental Guidance suggested. {

4. PG13 } – Unsuitable for children under age 13.

5. PG R } ~ { 6. R } – Restricted; recommended that parents

{

restrict children under 17 from viewing or allow to view only when supervised by a parent or adult guardian.

in the menu and press OK on the remote control to

Page 51

DVD System Menu Options (continued)

PLAYBACK settings (underlined options are the factory default settings)

Parental Rating Level

{ 7. NC 17 } – No children under age 17; not recommended

viewing for children under age 17.

{ 8. Adult } – Mature material; should be viewed only by

adults due to graphic sexual material, violence or language.

DVDs that are rated higher than the level you have selected will not play unless you enter your four-digit pin code.

Helpful hints: – VCD, SVCD, CDs have no level indication, so parental control has no effect

on these type of discs. This also applies to most illegal DVDs.

– Some DVDs are not coded with a rating though the movie rating may be

printed on the disc cover. The rating level feature does not prohibit play of such discs.

To change your password

Enter Password

* * * *

Set Rating Level

4. PG 13

5. PG R

4. PG 13

New password

New Password

New password

* * * *

Confirm password

Select { Parental Rating Level } and press OK.

 You will be prompted to enter your four-digit pin code.

2) Use the numeric keypad 0-9 to enter your four-digit pin code

CancelOK

and select

to con rm.

 The set rating level menu appears.

3) Select

New

menu.

4) Use the numeric keypad 0-9 to enter your new four-digit pin

code, then press T to select the next entry  eld and enter the same pin code a second time.

5) Select

 To abort the change, select

Cancel

in the menu and press OK on the remote control

New

in the menu and press OK to access new password

in the menu and press OK to con rm.

CANCEL

English

and press OK.

Digital Audio

devices to the coaxial socket on the recorder.

Format

Adjust the digital output setting only if you have connected other

Use ST keys to select one of the options.

{ All } – Select this if you have used the COAXIAL

socket on the recorder to connect to a stereo receiver that has a built-in multichannel decoder.

{ LPCM } – Select this if the connected audio equipment is

not capable of decoding multichannel audio Dolby Digital and MPEG-2 multichannel signals are converted to PCM (Pulse Code Modulation).

2) Press OK to con rm your selection.

Page 52

DVD System Menu Options (continued)

English

RECORD settings

Auto Chapter Marker This allows you access to speci c points on the recording.

See the chapter “Recording – RECORD settings”.

Default Recording De ne your preferred source of recording. The default source is Source selected when the recorder is switched on.

Default Recording De ne your preferred mode of recording. Mode

LANGUAGE settings

On-Screen Display Select the menu language for this recorder on-screen display. Language

Default Disc Menu Select the preferred disc menu language for DVD playback. Language

Insert chapter markers within a title during recording.

See the chapter “Recording – RECORD settings”.

Default Subtitle Select the preferred subtitle language for DVD playback. Language

Default Audio Select the preferred audio language for DVD playback. Language

Helpful Hints:

– If the selected audio/subtitle language is not available on the disc, the disc’s default setting language will be used instead. – For some DVDs, the subtitle/audio language can only be changed via the DVD disc menu.

Page 53

DVD System Menu Options (continued)

CHANNEL SETUP settings

Channel Search Automatically scan all the receivable analogue local TV

System Menu - Channel Setup

Channel Search

Modify Channel Information

Sort Channels

channels and store these channels on the recorder.

Use ST keys to highlight { Channel Search } and press OK.



Edit

 The automatic TV channel search starts. This process may take

Sort

several minutes. Once complete, the total number of channels found and stored appears on the TV.

Modify Channel Adjust a stored TV channel to your preference, improve the Information reception and the sound quality of that TV channel.

1) Use ST keys to highlight { Modify Channel Information } and press OK.

Channel

Name Scan mode Frequency TV System NICAM Audio Decoder Skip Fine-tune

P001/Ch003

Frequency

55.26MHz PAL B/G On DUAL A Off

Cancel

 The channel menu appears.

2) Use ST keys to select one of the options.

{ Name } – You can use the numeric keypad 0-9 to select

the channel preset number which you wish to change.

– Use STkeys to change alphabet/ number and use WX keys to select different entry  elds, then press OK to con rm.

{ Scan Mode } – Select TV channel search mode based on

channel allocation or frequency.

– Use ST keys to select { Frequency }, { Channel } or { S-Channel } (Special Channel),

then press OK to con rm.

{ Frequency } – Shows the frequency of the current TV

channel.

– If required, use WX keys to start the automatic

frequency search and press OK to con rm.

{ TV System } – Set the TV system that produces the least

distortion of picture and sound.

– Use ST keys to select a suitable sound mode,

then press OK to con rm. (See chapter “TV System Guide” at the back of this manual for more information).

{ NICAM } – Turn on or off the digital sound transmission

system which improves the sound quality of the TV channel.

– Use ST keys to select { On } or { Off }, then

press OK to con rm.

English

Page 54

DVD System Menu Options (continued)

English

CHANNEL SETUP settings (continued)

Modify Channel Information

Channel

Name Scan mode Frequency TV System NICAM Audio Decoder Skip Fine-tune

P001/Ch003

Frequency

55.26MHz PAL B/G On DUAL A Off

Cancel

{ Audio } – For bilingual TV programmes, you can switch

between stereo (original) and additional audio language.

– Use ST keys to select { DUAL A } or

{ DUAL B }, then press OK to con rm.

{ Decoder } – If you have connected the recorder with an

external decoder, set it to { On } and press OK to con rm.

{ Skip } – Select this to set the channel to be skipped.

The skipped channels can only be accessed by pressing the corresponding number key on the remote control.

– Use ST keys to choose { Yes } if you wish to

skip this channel, then press OK to con rm.

{ Fine-Tune } – Select this to  ne-tune the TV channel

manually if the reception is poor.

– Use WX keys to adjust the frequency.

3) To con rm all settings, select

Sort Channels Rearrange all stored TV channels.

Sort Channels

P001

BC020

P002

SW006

P003

CH008

P004

CH004

P005

GG006

P006

CH010

P007

CH012

P008

CH005

Skip Unskip Unskip Unskip Skip Unskip Unskip Unskip

P003 CH008 Unskip

1) Use ST keys to highlight { Sort Channels } and press OK.

 The list of TV channel programmes appears.

2) Use ST keys to highlight the channel you want to change and press OK.

 The selected channel will move to the right side of the screen.

3) Use ST keys to shift the TV channel to the desired position and press OK again.

 The selected channel will be inserted before the current position.

4) Repeat steps B~C until you have sorted all the TV channels you want.

5) Press RETURN on the remote control to go back to the previous menu.

and press OK.

Page 55

DVD System Menu Options (continued)

CLOCK settings (underlined options are the factory default settings)

Date (dd/mm/yy) Use ST keys to change the number and use WX keys to select different entry  elds, then press OK to con rm.

Time (hh:mm:ss) Use ST keys to change the number and use WX keys to select different entry  elds, then press OK to con rm.

Date-Time Setting

You can choose to enable/disable the automatic setting of date

and time. This feature is dependent on your local broadcaster.

1) Use ST keys to select one of the options.

{ Auto } – Select to activate automatic setting of date

and time.

{ Manual } – Select this to manually set the date and time.

2) Press OK to con rm your selection.

Show DivX® Registration code

Select to view the DivX registration code that allows you to rent and purchase videos

VOD (Video On Demand)

using the DivX® VOD service. For more information, visit us at www.divx.com/vod.

1) Press X to display the registration code.

2) Use the registration code to purchase or rent videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and copy the video from your computer onto a CD-R/RW or recordable DVD disc for playback on this recorder.

English

Page 56

Software Upgrade

English

Installing the latest software

The software installed in your recorder is continuously being re ned for greater stability and compatibility of the set. Periodically, Philips will issue upgrades for the software which you copy onto a CD and install the software of your recorder.

Caution! Power supply must not be interrupted during upgrade!

Visit Philips’ website at



‘www.philips.com/support’ to check for the availability of the latest software upgrade.

Note: When checking for the latest

software upgrade, please also check for any accompanying instructions on installing the software.

Page 57

Speci cations

Picture/Display

• Aspect ratio: 4:3, 16:9

• D/A converter: 10 bit, 54 MHz

• A/D converter: 10 bit, 27 MHz

Sound

• D/A converter: 24 bit, 192 kHz

• A/D converter: 24 bit, 96 kHz

• Signal to noise ratio: 106

• Crosstalk (1kHz): 105 dB

• Dynamic Range (1kHz): 90 dB

Video Recording

• Recording system: PAL

• Compression formats: MPEG2

High Quality : HQ

Standard Play : SP Extended Play : EP

Super Long Play : SLP

• Audio compression: Dolby Digital, PCM

Video Playback

• Disc playback media: CD, CD-R/-RW, DVD, DVD-Video, DVD+R/+RW, DVD-R/-RW SVCD, Video CD

• Compression formats: MPEG2, MPEG1,DivX

• Video disc playback system: NTSC, PAL

Audio Playback

• Disc playback media: CD, CD-R/-RW, MP3-CD, MP3-DVD

• Compression formats: Dolby Digital, MP3, MPEG2 Multichannel, PCM

• MP3 bit rates: 32~256 kbps and VBR

Tuner/Reception/Transmission

• TV system: PAL

• Aerial Input: 75 Ohm coaxial (IEC75)

Connectivity Rear Connections:

• SCART (2x)

• S-Video Out

• Video (CVBS) Out

• Audio left/right Out

• Digital audio out (coaxial)

• RF aerial in

• RF TV out

• Mains Front Connections:

• i.LINK DV in (IEEE 1394 4-pin)

• Video In (CAM1)

• Audio left/right In

Convenience

• Programming/Timer Enhancements: Daily/ Weekly, Repeat Programme, Manual Timer,

One Touch Recording, VIDEO Plus+

• Programmable events: 8

Power

• Power supply: 220 – 230V; 50 Hz

• Consumption: 25 W (typical)

• Standby power consumption: < 3W

Cabinet

• Dimensions (W x H x D) : 360 x 43 x 322 mm

• Net Weight : 3 kg

English

Still Picture Playback

• Disc formats: DVD+R/+RW, DVD-R/-RW, Picture CD

• Picture compression formats: JPEG

• Picture enhancement: Rotate

Storage Media

• Recording media: DVD+R, DVD+RW, DVD-R, DVD-RW

Page 58

Tro ubl eshoot i ng

English

WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs,  rst check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.

Problem (General) Solution

No power.

Remote control does not work.

No picture.

No sound.

No TV signal received from the recorder.

– Press STANDBY-ON button on the front of the recorder to

switch on the system.

– Make sure the AC outlet has power.

– Aim the remote control directly at the sensor on the front of

the DVD recorder (not towards TV).

– Remove any obstacles between the recorder and the remote

control. Aim the remote control towards the set at different

angles and/or distances. – Batteries are weak, replace the batteries. – Press REC SOURCE on the remote control to select an input

source.

– Switch on your TV and set to the correct Video In channel.

Switch the TV channel until you see the DVD screen. Read

chapter “Step 3 - Installation and Setup – Finding the correct

viewing channel” for details. – Check the video connection between the recorder and the TV.

– Check the audio connections, the red and white sockets. Read

chapters “Step 1 : Basic Reorder Connections - Connecting the

audio cables” for details. – Set the Digital output correctly, based on the equipment you

connected to the recorder. Read chapter “DVD System Menu

Options - PLAYBACK settings – Digital Audio Output” for

details.

– Have your aerial or cable TV signal checked. – Install the TV channel. Read chapter “Step 3: Installation and

Setup - Setting your TV channel programmes” for details.

A TV channel installed during the DVD recorder’s automatic TV channel search is fuzzy or distorted.

Unable to eject tray

– Check the video connection between the DVD recorder and

the TV. – You can further  ne-tune the signal of the TV channel. Read

chapter on “DVD System Menu Options – CHANNEL SETUP

Settings” – Press CH +/– to search for the same TV channel which may

have a clearer picture.

– Exit from any on-screen menu until you see the Philips

wallpaper – Press STOP to stop any playback or recording, then press

EJECT on the set.

Page 59

Tro ubl eshoot i ng (continued)

Problem (Playback) Solution

Disc does not play.

Distorted sound coming from a connected hi- system or ampli er.

Unable to play DivX movies.

The picture is distorted or black and white during playback.

A DVD±R/±RW recorded on this DVD recorder does not play on a DVD player.

There is picture or sound interference with the TV reception.

The message ‘UNKNOWN DISC’ appears.

– Insert the disc with the label facing up. – Wrong region code. The DVD must be coded for ALL regions

or Region 2 in order to be played back on this DVD recorder.

– There is no recording on the disc or wrong disc type. Read

chapter “Playback - Playable discs” for details.

– Make sure the disc is not scratched or warped. Clean the disc

or replace a new one.

– Check if the disc is defective by trying another disc.

– Do not connect any cables from the recorder to the ‘Phono’

input of your ampli er.

– Check that the DivX  le is encoded according to the ‘Home

Theatre Pro le’ mode with DivX encoder.

– Check that the DivX movie downloaded is a complete  le.

– The disc does not match with the TV colour system standard

(PAL/NTSC). – The disc is dirty, clean the disc. – Sometimes a small amount of picture distortion may appear.

This is not a malfunction.

– If a recording is too short, it is possible that a DVD player

cannot detect it. Please observe the following ‘minimum

recording times’. Recording mode : {HQ} – 5 mins, {SP} – 10

mins, {EP} – 20 mins, {SLP} – 30 mins. – You have to  nalise the DVD±R. Refer to chapter “Playing your

recordings (DVD±R) on other DVD players” for details.

– Have your aerial or cable TV signal checked. – Fine-tune your TV channel. Read chapter “Step 3 : Installation

and Setup - Setting your TV channel programmes” for details.

– This message may appear if you insert a disc that may have

encountered one of the following:

– Error during recording: The title may be missing.

– Error while changing the title/index picture: The original title/

index picture may be visible.

– Error while  nalising or the disc has not been  nalised.

English

Page 60

Tro ubl eshoot i ng (continued)

English

Problem (Recording) Solution

The wrong TV channel was decoded (recorded) after you programmed a recording using the VIDEO Plus+ system.

Picture is fuzzy and brightness varies when copying DVD Video discs or prerecorded video cassettes.

Recordings are not occurring as scheduled. New recordings cannot be made.

The picture on my decoder appears to be distorted during recording.

1) Enter the PlusCode programming number of the desired TV

channel.

2) Press OK to con rm.

3) Check the channel number in the {Program #} input  eld. If this

does not correspond to the desired TV channel, select this entry  eld and change the channel number.

4) Press OK to con rm.

– This happens if you try to copy DVDs or video cassettes that

have been copy-protected. Even though the picture on the TV is  ne, but the recording on the DVD recordable disc is faulty.

This interference is unavoidable with copy-protected DVDs or

video cassettes.

– The DVD recordable disc has a limited recording lifetime, please

change a new disc for recording.

– The TV channel you want to record is not stored or you

selected the wrong program number. Check the TV channels stored.

– You have to reset the timer recording after adjusting the clock

setting.

– You cannot use the recorder to duplicate copy-protected

materials (DVDs or video tapes) onto a DVD recordable disc.

– If you are recording a programme from your decoder box, you

can view the same programme by pressing TV/DVD on the recorder’s remote control.

Page 61

Frequently Asked Questions

What kind of disc should I use for recording?

You can record on both DVD±R and DVD±RW discs. They are compatible with DVD-Video players and DVD-ROM drives in computers.

What is the capacity of a DVD±R/±RW disc?

4.7GB, or equivalent to six CDs. You can store only one hour of recordings on a single disc at the highest quality (DVD standard) and about 6 hours recordings at the lowest quality (VHS standard).

What is the difference between DVD±R and DVD±RW?

DVD±R is “recordable” and DVD±RW is “rewritable”. With a DVD±R, you can record multiple sessions on the same disc, but when the disc is full, you cannot record any more on the disc. The DVD±RW allows you to record over the same disc repeatedly.

What is DV?

Using DV, also known as i.LINK, you can connect a DV-equipped camcorder to this recorder using a single DV cable for input and output of audio, video, data and control signals.

This recorder is only compatible with DV-

– format (DVC-SD) camcorders. Digital satellite tuners and Digital VHS video recorders are not compatible.

– You cannot connect more than one DV camcorder at a time to this recorder.

– You cannot control this recorder from external equipment connected via the DV IN socket.

Can I copy a VHS tape or DVD from an external player?

Yes, but only if the VHS tape or DVD is not copy protected.

What are Titles and Chapters?

A DVD disc contains Titles and Chapters, which are similar to the Titles and Chapters of a book. A Title is often a complete movie and is broken down into Chapters, or individual scenes from the movies.

Title

Chapter

Title

Chapter Chapter Chapter Chapter

chapter markers

Programmes are recorded as a single title, it may consist of one chapter or a few chapters within a title, depending on the recording settings.

How do I set up Titles and Chapters?

The recorder automatically creates a new Title every time you start a new recording. You can then add Chapters to these recordings manually or have them automatically inserted at 5-minutes intervals.

What does “ nalising” a disc do?

Finalising a disc locks the disc so it can no longer be used for recording. This is only required for DVD±R discs. It will then be compatible with virtually any DVD player. To remove a disc without  nalising it, simply stop recording and eject the disc. You will still be able to record on the disc if there is storage space for more recordings.

How good is the quality of the recording?

There are a few quality levels to choose from, ranging from “HQ” - High Quality (1 hour mode) to “SLP” - Super Long Play (6 hours mode). Press the REC MODE key on the remote control to choose the quality level that best suits your purpose and the length of material.

Record

Mode

SLP

Picture Quality

High quality

DVD quality-Standard Play

VHS quality-Extended Play

VHS quality-Super Long Play

Maximum Recording

Time per Disc

1 hour

2 hours

4 hours

6 hours

English

Page 62

Glossary

Analogue: Sound that has not been turned into

English

numbers. Analogue sound varies, while digital sound has speci c numerical values. These sockets send audio through two channels, the left and right.

Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide-screens is 16:9.

AUDIO OUT sockets: Red and white sockets on the back of the system that send audio to another system (TV, Stereo, etc).

Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL. These sockets send audio through multiple channels, instead of just two channels as analogue does.

Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD.

DivX 3.11/4.x/5.x/6: The DivX code is a patentpending, MPEG-4 based video compression technology, developed by DivX Networks Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.

Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, centre and subwoofer).

Index Picture Screen: A screen that gives an overview of a DVD±RW or DVD±R. An Index Picture represents each recording.

JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.

MP3: A  le format with a sound data compression system. “MP3” is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. By using the MP3 format, one CD-R or CD-RW can contain about 10 times more data then a regular CD.

MPEG: Motion Picture Experts Group. A collection of compression systems for digital audio and video.

Multichannel: DVDs are formatted to have each sound track constitute one sound  eld. Multichannel refers to a structure of sound tracks having three or more channels.

PBC: Playback Control. Refers to the signal recorded on video CDs or SVCDs for controlling playback. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive playback and searching.

PCM: Pulse Code Modulation. A digital audio encoding system.

Parental control: Limits disc play according to the age of the users or the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level.

Region code: A system allowing discs to be played only in the region designated. This unit will only play discs that have compatible region codes. You can  nd the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions).

S-Video: Produces a clear picture by sending separate signals for the luminance and the colour. You can use S-Video only if your TV has an S-Video In socket.

Surround: A system for creating realistic three dimensional sound  elds full of realism by arranging multiple speakers around the listener.

Title: The longest section of a movie or music feature on DVD. Each title is assigned a title number, enabling you to locate the title you want.

VIDEO OUT socket: Yellow socket on the back of the DVD system that sends the DVD picture video to a TV.

Page 63

Display panel symbols/ messages

The following symbols/ messages may appear on your recorder display:

00:00:00



Multifunction display/ text line – Title/ track number – Total/ elasped/remaining title/track time – Additional information regarding the disc – TV channel number or source of video – Clock (This is displayed in Standby mode). – TV programme title

BLANK



There are no recordings on the disc in the tray.

FULL



Disc is full. There is no storage space for new recordings.



Disc is being recognised by the recorder.



The system setup menu, disc menu, title menu or timer menu display is on.

REGION



When the DVD inserted is in a wrong region code as the recorder.

STOP



When playback / recording is stopped.

TOPMENU



The recorder is in TOP MENU mode.

X TIMER



A timer recording has been programmed or is active.

UPDATE



The recorder is writing to the disc.

UNKNOWN



The recorder has encountered an error in handling the disc inserted.

English

NO DISC



No disc has been inserted. If a disc has been inserted, then it is possible that the disc cannot be read.

OPEN



Disc tray is opening or opened.




A picture disc has been inserted.

STARTUP



The recorder has been turned on.

Page 64

TV System Guide

English

COUNTRY VHF UHF DVD REGIONS

AFGHANISTAN PAL/SECAM B

ALBANIA PAL B PAL G 2 ALGERIA PAL B PAL G 5 ANGOLA PAL I 5

ARGENTINA PAL N PAL N 4

AUSTRALIA PAL B PAL H 4

AUSTRIA PAL B PAL G 2 AZORES PAL B

BAHAMAS NTSC M 4

BAHRAIN PAL B PAL G 2

BANGLADESH PAL B 5

BARBADOS NTSC M 4

BELGIUM PAL B PAL H 2

BERMUDA NTSC M

BOLIVIA NTSC M NTSC M 4

BOTSWANA PAL I 5

BRAZIL PAL M PAL M 4

BRUNEI PAL B PAL B

BULGARIA SECAM D SECAM K 2

BURKINA FASO SECAM K1 5

BURMA NTSC M

BURUNDI SECAM K1 5

CAMBODIA NTSC M 3

CAMEROON PAL B PAL G 5

CANADA NTSC M NTSC M 1

CANARY ISLANDS PAL B 2

CHAD SECAM K1 5 CHILE NTSC M NTSC M 4

CHINA PAL D 6

COLOMBIA NTSC M NTSC M 4

COSTA RICA NTSC M NTSC M 4

CROATIA PAL B PAL G 2

CUBA NTSC M NTSC M 4

CYPRUS PAL B PAL G

CZECH REPUBLIC PAL D PAL K 2

DAHOMEY SECAM K1 DENMARK PAL B PAL G 2

DJIBOUTI SECAM B SECAM G 5

DOMINICAN REP NTSC M NTSC M 4

ECUADOR NTSC M NTSC M 4

EGYPT SECAM B/PAL B SECAM G/PAL G 2

EL SALVADOR NTSC M NTSC M 4

EQUAT. GUINEA PAL B 5

ESTONIA PAL B (was SECAM) PAL D 5 ETHIOPIA PAL B PAL G 5

FIJI PAL B

FINLAND PAL B PAL G 2

FRANCE SECAM L SECAM L 2

FRENCH POLYNESIA SECAM K1

GABON SECAM K1 5

GAMBIA PAL I 5

GERMANY PAL B PAL G 2

GHANA PAL B PAL G 5

GIBRALTAR PAL B PAL H 2

GREECE PAL B (was SECAM) PAL G 2

GREENLAND NTSC/PAL B 2

GUADELOUPE SECAM K1

GUAM NTSC M 1

GUATEMALA NTSC M NTSC M 4

GUINEA PAL K 5

GUYANA (FRENCH) SECAM K1 4

HONDURAS NTSC M NTSC M 4

Page 65

TV System Guide (continued)

COUNTRY VHF UHF DVD REGIONS

LIBYA SECAM B SECAM G 5

LITHUANIA PAL D (was SECAM) PAL K 5 LUXEMBOURG PAL B/SECAM L PAL G/SEC L 2 MADAGASCAR SECAM K1 5

MADEIRA PAL B

MALAGASY SECAM K1

MALAWI PAL B PAL G 5

MALAYSIA PAL B 3

MALI SECAM K1 5

MALTA PAL B PAL H 2 MARTINIQUE SECAM K1 MAURITANIA SECAM B 5

MAURITIUS SECAM B 5

MEXICO NTSC M NTSC M 4

MONACO SECAM L 2

MONGOLIA SECAM D 5

MOROCCO SECAM B 5

MOZAMBIQUE PAL B 5

NAMIBIA PAL I 5

NEPAL PAL B

NETHERLANDS PAL B PAL G 2

NETH. ANTILLES NTSC M NTSC M

NEW CALEDONIA SECAM K1

NEW GUINEA PAL B PAL G 4

NEW ZEALAND PAL B PAL G 4

NICARAGUA NTSC M NTSC M 4

NIGER SECAM K1 5

NIGERIA PAL B PAL G 5

NORWAY PAL B PAL G 2

OMAN PAL B PAL G 2

PAKISTAN PAL B 5

PANAMA NTSC M NTSC M 4

PARAGUAY PAL N PAL N 4

PERU NTSC M NTSC M 4

PHILIPPINES NTSC M NTSC M 3

POLAND PAL D PAL K 2

PORTUGAL PAL B PAL G( was SECAM D ) 2

PUERTO RICO NTSC M NTSC M 1

QATAR PAL B 2

REUNION SECAM K1 RUMANIA PAL D PAL K 2

RUSSIA SECAM D SECAM K 5

RWANDA SECAM K1 5

SABAH/SAWARA PAL B

ST. KITTS NTSC M NTSC M

SAMOA (US) NTSC M 1

SAUDI ARABIA SECAM-B/PAL-B SECAM G 2

SENEGAL PAL 5

SEYCHELLES PAL B PAL G 5

SIERRA LEONE PAL B PAL G 5

SINGAPORE PAL B PAL G

SLOVAK REPUBLIC PAL PAL 2

SOMALIA PAL B PAL G 5

SOUTH AFRICA PAL I PAL I 2

SPAIN PAL B PAL G 2

SRI LANKA PAL B 5

SUDAN PAL B PAL G 5

SURINAM NTSC M NTSC M 4

SWAZILAND PAL B PAL G

SWEDEN PAL B PAL G 2

SWITZERLAND PAL B PAL G 2

SYRIA SECAM B 2

English

Page 66

English

Meet Philips at the Internet

http://www.philips.com/support

DVDR3380

CLASS 1

LASER PRODUCT

3139 245 21311

Sgp-0613/05-1

PHILIPS DVDR 3380-31 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
