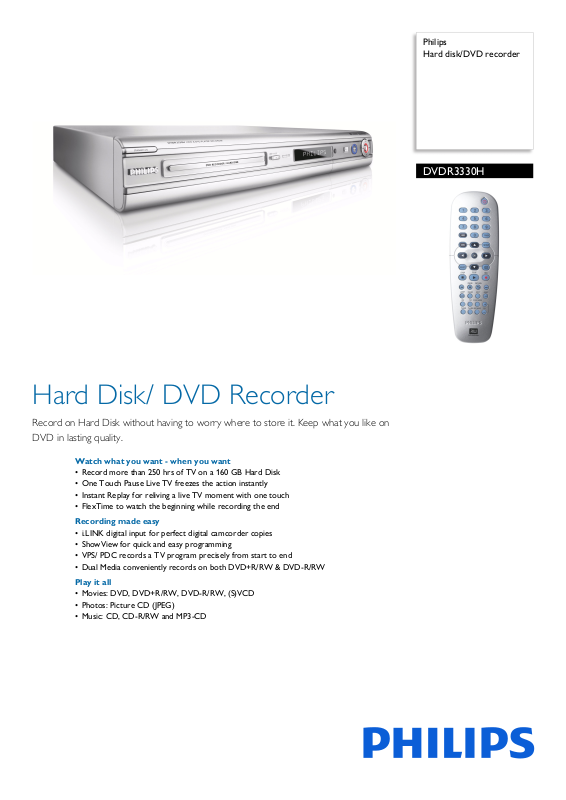

Page 1
Philips
Hard disk/DVD recorder
DVDR3330H
Hard Disk/ DVD Recorder
Record on Hard Disk without having to worry where to store it. Keep what you like on
DVD in lasting quality.
Watch what you want - when you want
• Record more than 250 hrs of TV on a 160 GB Hard Disk
• One Touch Pause Live TV freezes the action instantly
• Instant Replay for reliving a live TV moment with one touch
• FlexTime to watch the beginning while recording the end
Recording made easy
• i.LINK digital input for perfect digital camcorder copies
• ShowView for quick and easy programming
• VPS/ PDC records a TV program precisely from start to end
• Dual Media conveniently records on both DVD+R/RW & DVD-R/RW
Play it all
• Movies: DVD, DVD+R/RW, DVD-R/RW, (S)VCD
• Photos: Picture CD (JPEG)
• Music: CD, CD-R/RW and MP3-CD
Page 2
Hard disk/DVD recorder
Highlights
DVDR3330H/02
160 GB hard disk (250 hrs)
Record more than 250 hrs of TV on a 160 GB
Hard
Disk
One Touch Pause Live TV
Pause Live TV puts you in absolute control.
Onc
e the recorder is turned on, a large builtin memory automatically starts recording the
program you are watching -- allowing you to
pause, replay or save the program, anytime. If
you need to take a break, you can pause your
'live' TV program with just one touch of a
button, and resume watching when it suits you.
Instant Replay
With Instant Replay, you can relive magic
m
ovie moments and super sports scenes anytime you want. At the touch of a button,
the hard disk will replay the last 30 seconds.
Skipping backwards further requires nothing
more than pressing the button again.
i.LINK digital input
Also known as IEEE 1394 and FireWire, i.Link
carrie
s all audio and video signals via a single
cable digitally, with no loss in picture and sound
quality. With i.Link digital video input, you can
copy your home videos in their original digital
picture quality.
Dual Media
Philips DVD Recorders support ‘dual media’
rec
ording – the ability to create recordings on
DVD+R/RW and DVD-R/RW discs. Now you
can buy any disc and your Philips recorder will
always create fully compatible recordings,
which can be played on any DVD player.
Page 3
Hard disk/DVD recorder
Specifications
DVDR3330H/02
Picture/Display
• A/D converter: 10 bit, 54 MHz
• D/A converter: 10 bit, 54MHz
Sound
• A/D converter: 24 bit, 96 kHz
• D/A converter: 24 bit, 96 kHz
Video Recording
• Recording system: PAL
• Compression formats: MPEG2
• Recording Modes: High Quality (HQ), Standard
Play (SP),
Extended Play (EP), Super Long Play (SLP), Super
Extended Play (SEP)
• Audio compression: Dolby Digital
Standard Play Plus (SPP), Long Play (LP),
Video Playback
• Playback Media: CD-R/CD-RW, DVD+RW,
DVD+R, DVD-RW (Video mode), DVD-R, DVDVideo, MP3-CD, Video CD/SVCD
• Compression formats: MPEG2, MPEG1
• Video disc playback system: NTSC, PAL
Audio Playback
• Playback Media: MP3-CD, CD, CD-R, CD-RW
• Compression format: Dolby Digital,
Multichannel, PCM
• MP3 bit rates: 80 - 320 kbps
MP3, MPEG2
Still Picture Playback
• Playback Media: Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Rotate, Slideshow, Zoom
Storage Media
• Hard Disk Capacity: 160 GB
• Recording media: DVD+R, DVD+RW, DVD-R,
DVD-RW
• HDD recording enhancements: Instant Replay,
ime Shift Buffer
T
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL, SECAM
Connectivity
• Front: Audio L/R in, CVBS in, S-Video Y/C, i.Link
(DV-input)
• Other connections: SCART1 (C
out), SCART2 (CVBS, S-video/RGB in), Composite
video (CVBS) out, S-Video out, Analog audio Left/
Right out, Digital coaxial out, Digital optical out, RF
antenna in / TV out
VBS, S-video/RGB
Convenience
• Programming/Timer Enhancements: Automatic
Satellite Recording, Daily/Weekly Repeat Program,
Manual Timer, ShowView, VPS/PDC recording
control
• Child Protection: Parental Control
• Clock: Smart Clock
• Digital Content Management: Digital Photo
• Ease of Installation: Autoinstall
• Programmable Events: 8
Manage
r
Power
• Power supply: 200-240 V, 50Hz
• Standby power consumption: 3.0W
• Power consumption: 28 W
Accessories
• Included accessories: AC Power Cord, Antenna
cable, Batteries for remote control, Full SCART
cable, Quick start guide, Remote Control, User
Manual, Warranty certificate
• Remote Control 12NC: 242254900587
Dimensions
•Set dimensions (W x H x D): 435 x 65 x 340 mm
• Set weight: 4 kg
•Product weight: 6 kg
• Packaging dimensions (W x H x D):
7 x 155 x 516 mm
43
•
Issue date 2014-02-05
Version: 12.0.16
12 NC: 8622 810 12641
EAN: 87 10895 90536 7
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
