Philips DVDR17 User Manual

Download

DVD Recorder

DVDR 615/17

NEED HELP? CALL US!

PHILIPSREPRESENTATIVESAREREADYTO HELPYOUWITH ANY QUESTIONSABOUTYOURNEW

PRODUCT WE CAN GUIDE YOUTROUGH CONNECTIONS, FIRST-TIMESETUP,AND ANY OFTHE

FEATURES.WE WANTYOU TOSTARTENJOYINGYOURNEW PRODUCT RIGHTAWA'_

CALL US BEFORE YOU CONSIDER

RETURNING THE PRODUCT

1-800-531-0039

OR VISIT US ON THE WEB AT WWW.PHILIPS.COM

i 4

,_gN

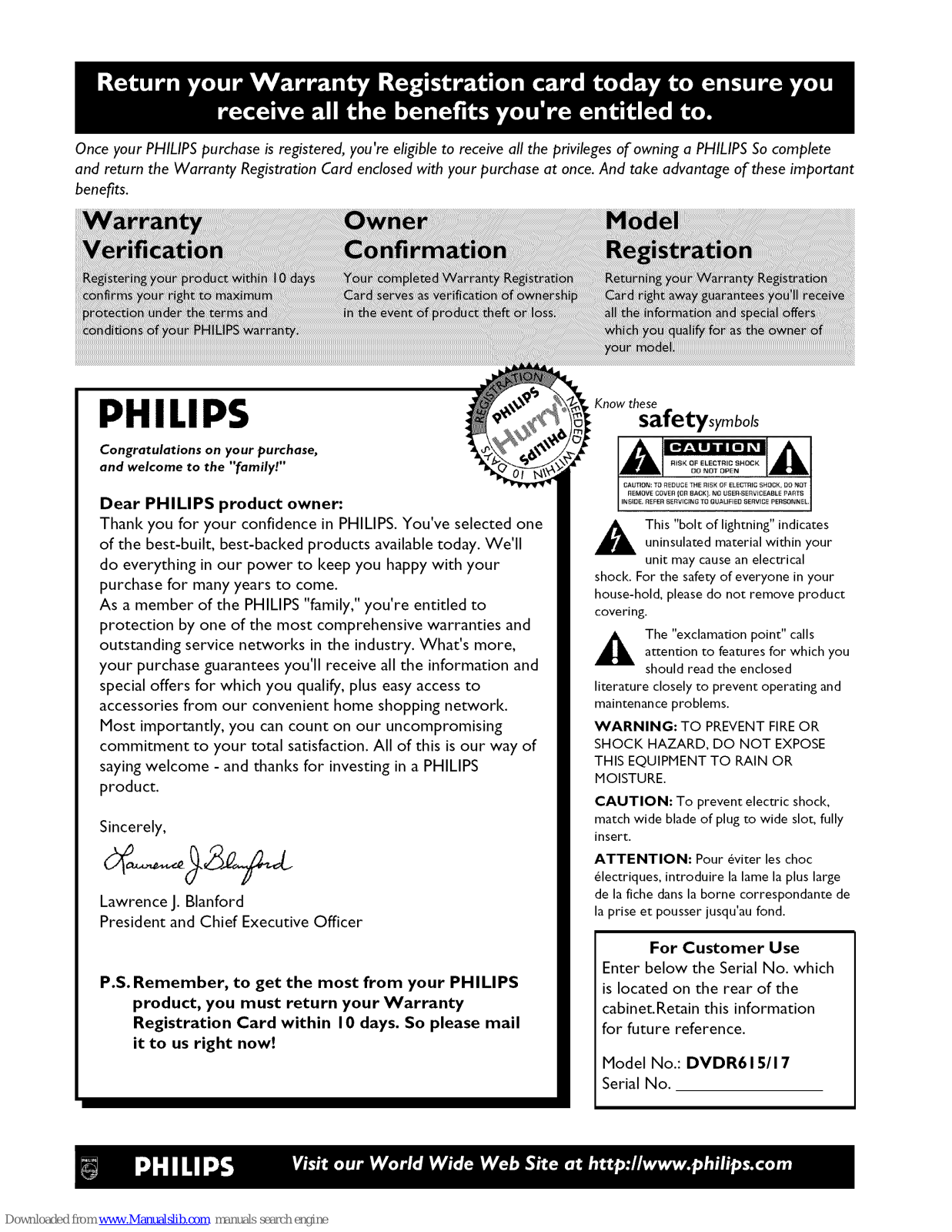

Once your PHILIPS purchase is registered, you're eligible to receive all the privileges of owning a PHILIPS So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

PHILIPS

Congratulations on your purchase,

and welcome to the "family!"

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You've selected one of the best-built, best-backed products available today. We'll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS "family," you're entitled to protection by one of the most comprehensive warranties and

outstanding service networks in the industry. What's more, your purchase guarantees you'll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly, you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome - and thanks for investing in a PHILIPS product.

Sincerely,

Lawrence J. glanford

President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty

Registration Card within I 0 days. So please mail

it to us right now!

Knowthese

safetysymbols

A his "bolt of lightning" indicates

uninsulated ma[erial wi[hin your

unit may cause an electrical

shock. For the safer7 of everyone in your house-hold, please do not remove product covering.

The "exclamation point" calls

attention to features for which you

should read the enclosed

literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR

MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully

insert. ATTENTION: Pour eviter les choc

electriques, introduire la lame la plus large de la fiche dans la borne correspondante de

la prise et pousser jusqu'au fond.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet.Retain this information

for future reference.

Model No.: DVDR615/I 7 Serial No.

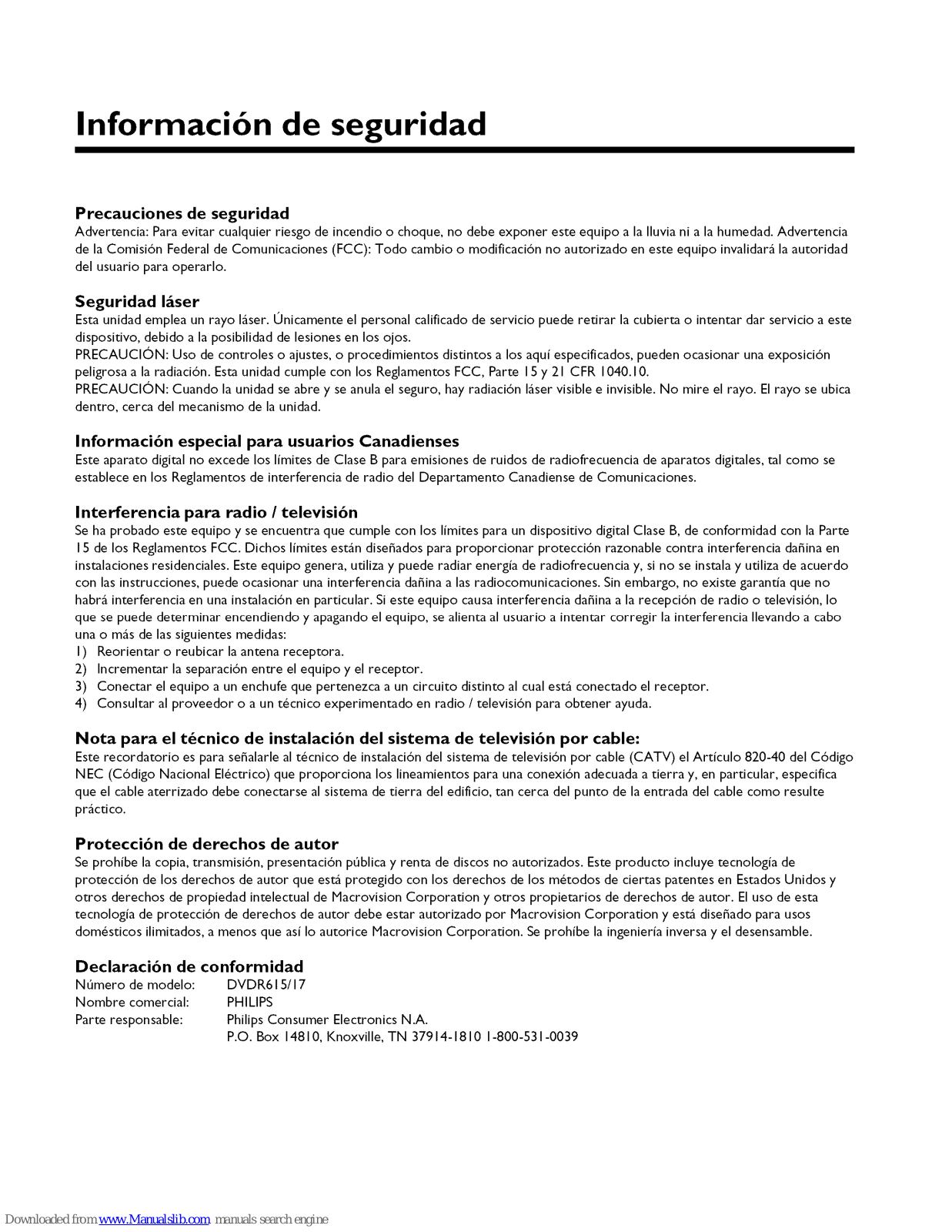

Safety Information

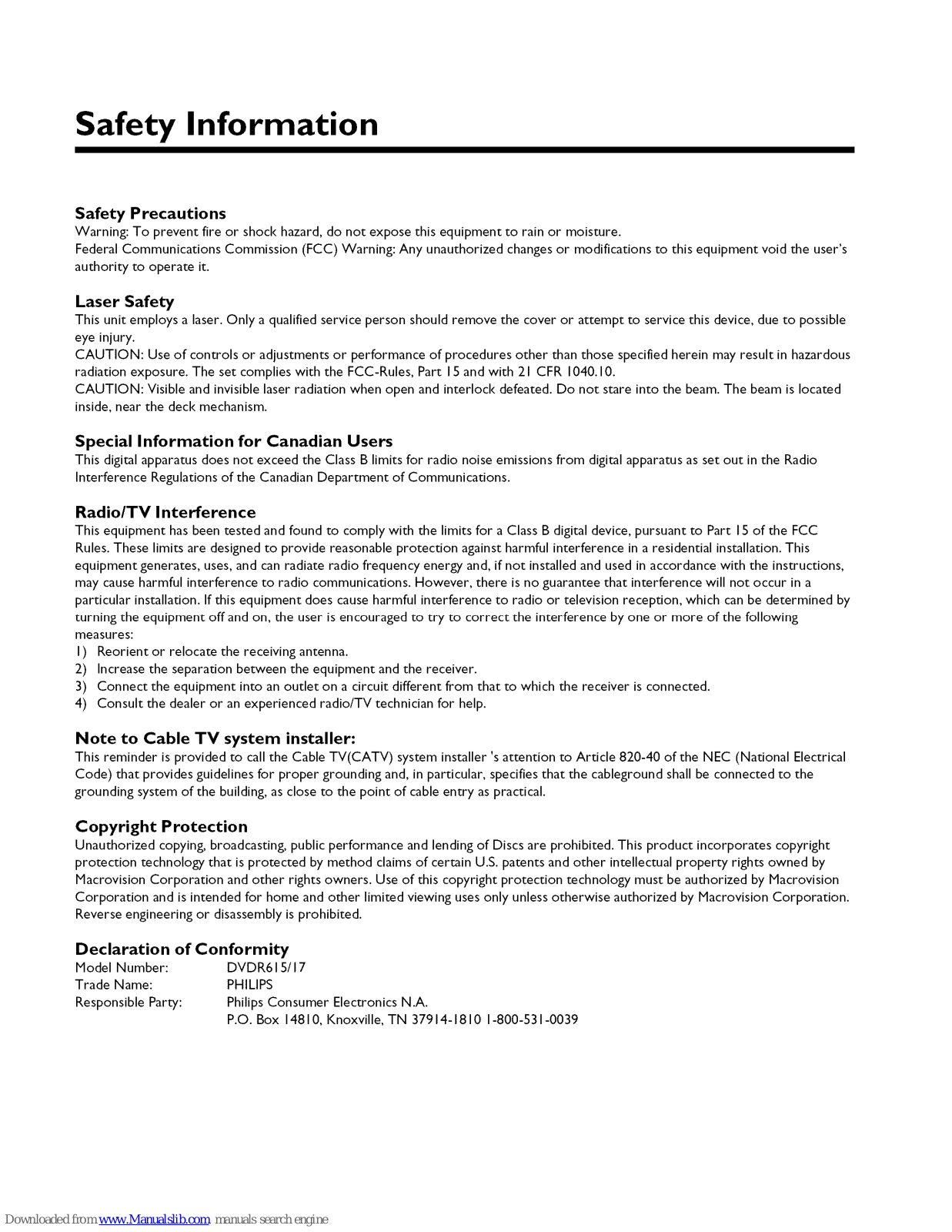

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

Federal Communications Commission (FCC) Warning: Any unauthorized changes or modifications to this equipment void the user's

authority to operate it.

Laser Safety

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. CAUTION: Visible and invisible laser radiation when open and interlock defeated. Do not stare into the beam. The beam is located inside, near the deck mechanism.

Special Information for Canadian Users

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio

Interference Regulations of the Canadian Department of Communications.

Radio/TV Interference

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

I) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and the receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

Note to Cable TV system installer:

This reminder is provided to call the Cable TV(CATV) system installer's attention to Article 820-40 of the NEC (National Electrical Code) that provides guidelines for proper grounding and, in particular, specifies that the cableground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Unauthorized copying, broadcasting, public performance and lending of Discs are prohibited. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by

Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by lacrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

Declaration of Conformity

Nodel Number: DVDR615/17 Trade Name: PHILIPS

Responsible Party: Philips Consumer Electronics N.A.

P.O. Box 14810, Knoxville, TN 37914-1810 1-800-531-0039

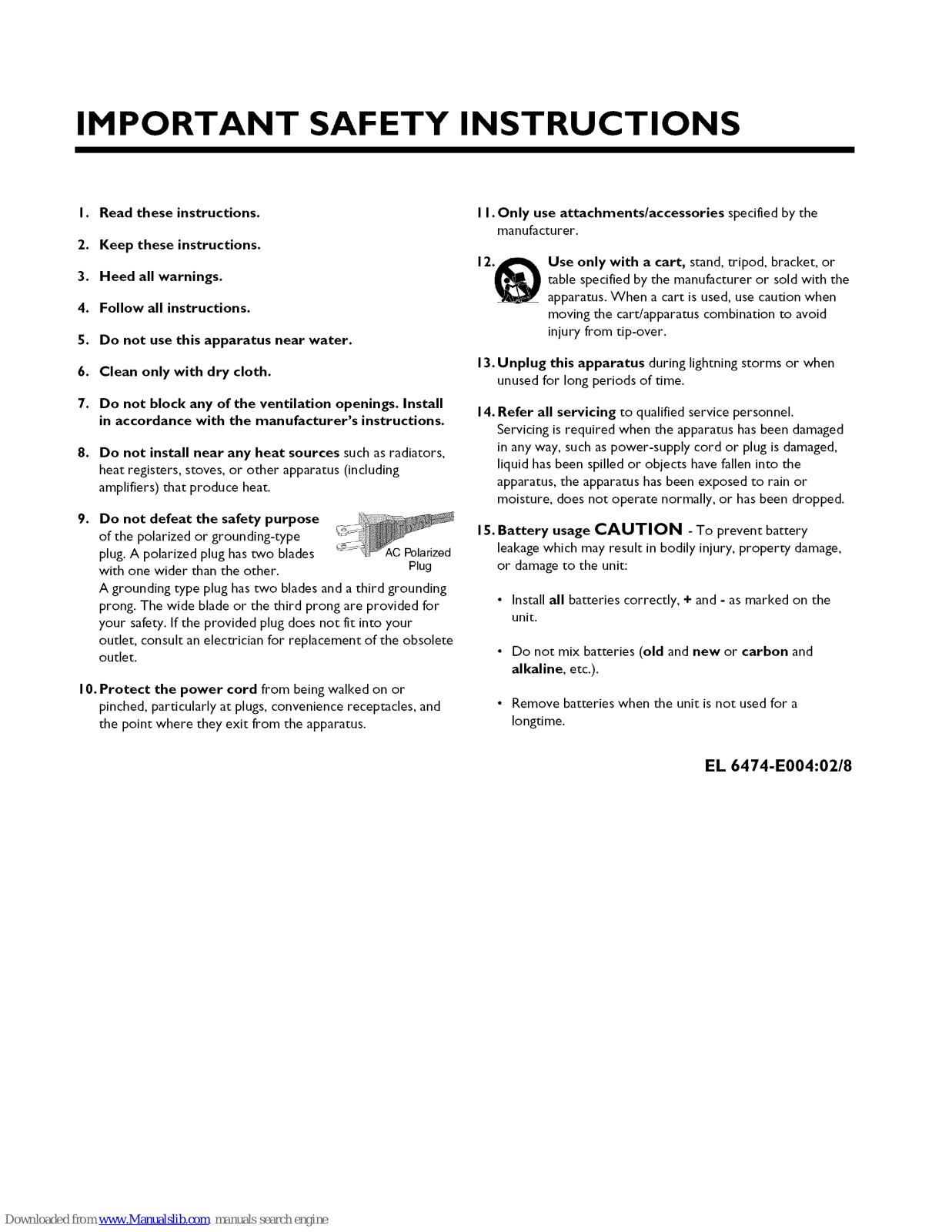

IMPORTANT SAFETY INSTRUCTIONS

I. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose

of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. Plug A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the obsolete outlet.

I 0. Protect the power cord from being walked on or

pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

I I. Only use attachments/accessories specified by the

manufacturer.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Battery usage CAUTION - To prevent battery leakage which may result in bodily injury, propert 7 damage, or damage to the unit:

• Install all batteries correctly, + and - as marked on the

unit.

• Do not mix batteries (old andnew or carbon and

alkaline, etc.).

• Remove batteries when the unit isnot used for a

Iongtime.

EL 6474-E004:02/8

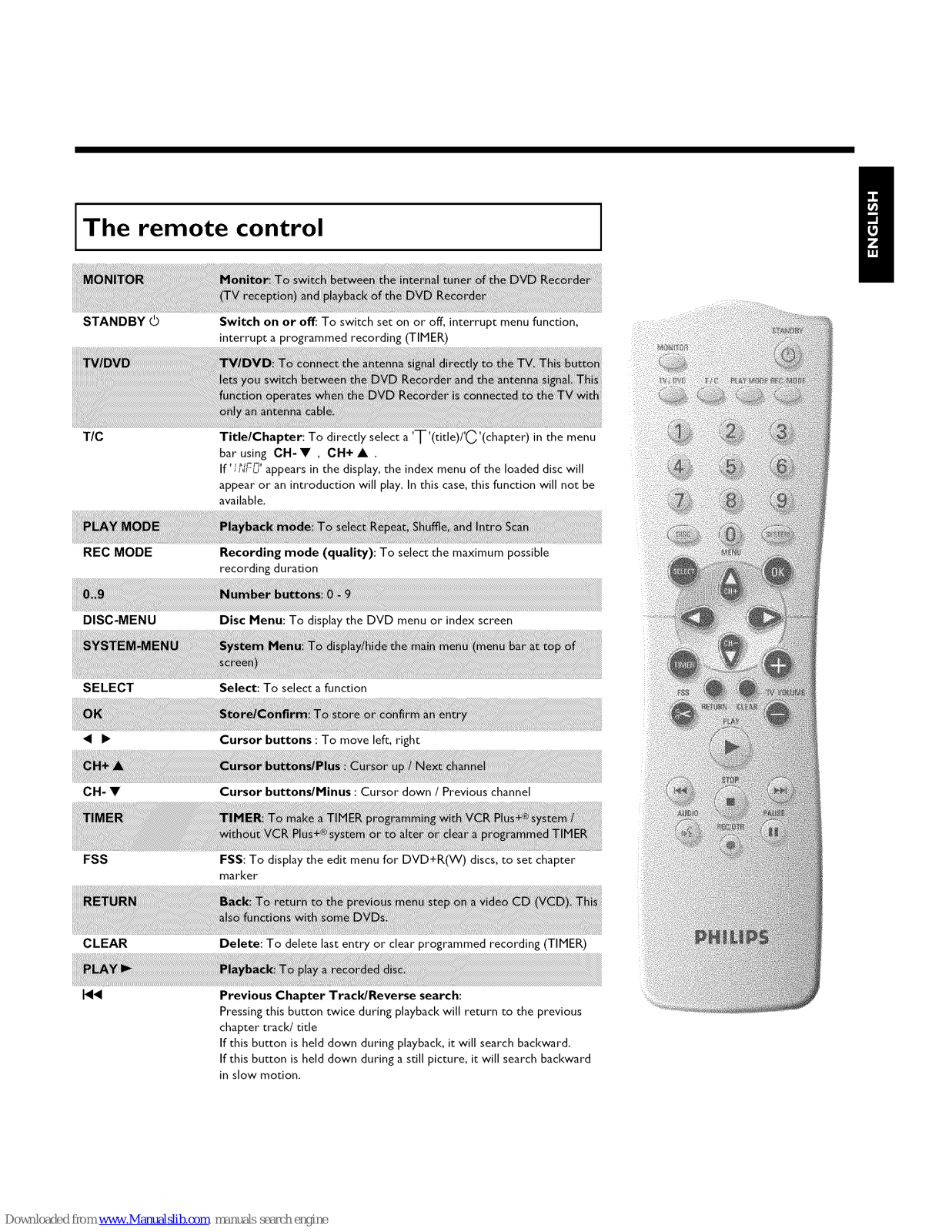

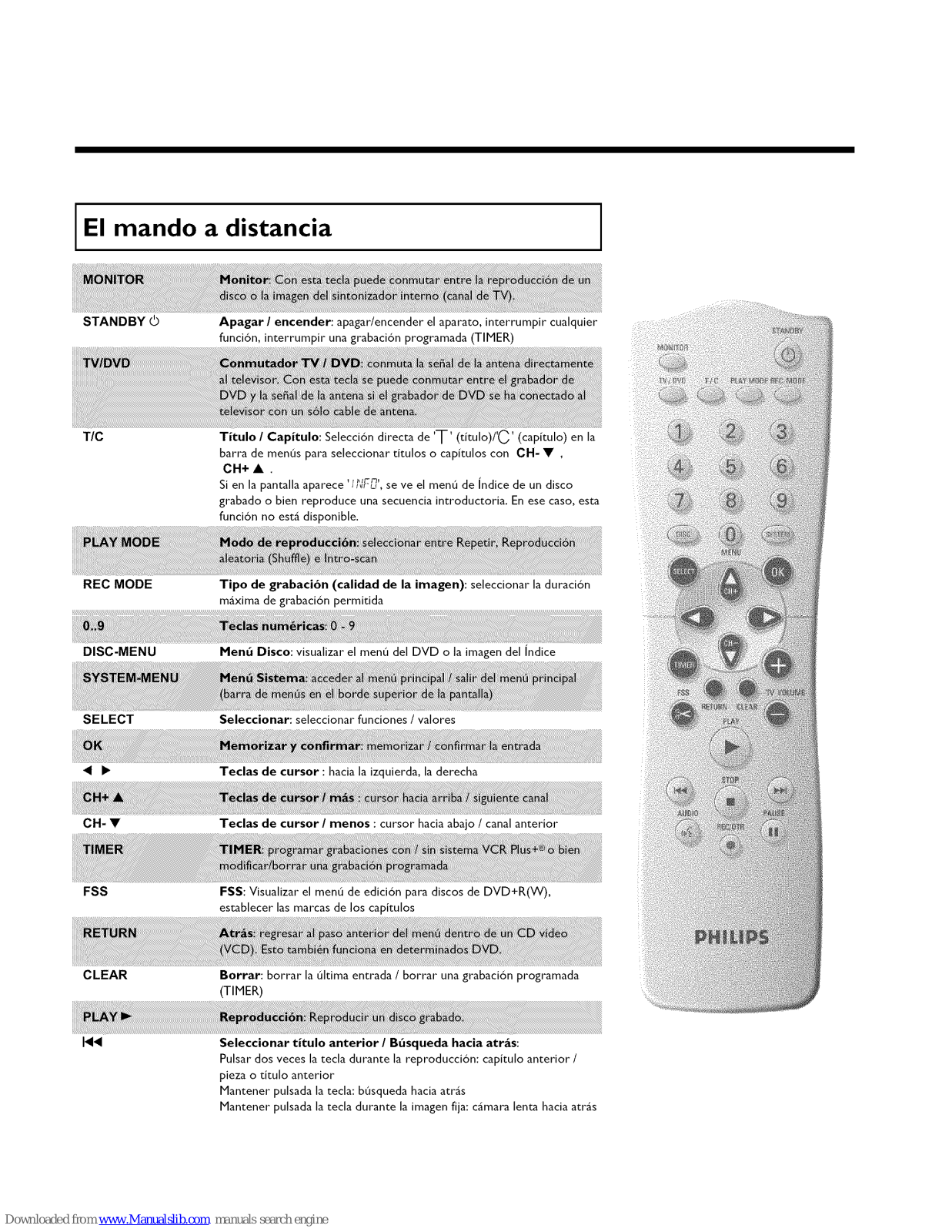

The remote control

STANDBY ©

Switch on or off: To switch set on or off, interrupt menu function,

interrupt a programmed recording (TIMER)

TIC

Title/Chapter: To directly select a 'T'(title)/'O'(chapter) in the menu

bar using CH-• , CH+ • .

if,,_,_-_, • .

_r-u appears m the display, the index menu of the loaded disc will

appear or an introduction will play. In this case, this function will not be available.

REC MODE

Recording mode (quality): To select the maximum possible

recording duration

DISC-MENU

Disc Menu: To display the DVD menu or index screen

SELECT Select: To select a function

< •

Cursor buttons : To move left, right

CH-• Cursor buttons/Hinus : Cursor down / Previous channel

FSS

FSS: To display the edit menu for DVD+R(W) discs, to set chapter

marker

CLEAR

Delete: To delete last entry or clear programmed recording (TIMER)

Previous Chapter Track/Reverse search: Pressing this button twice during playback will return to the previous

chapter track/title

If this button is held down during playback, it will search backward. If this button is held down during a still picture, it will search backward

in slow motion.

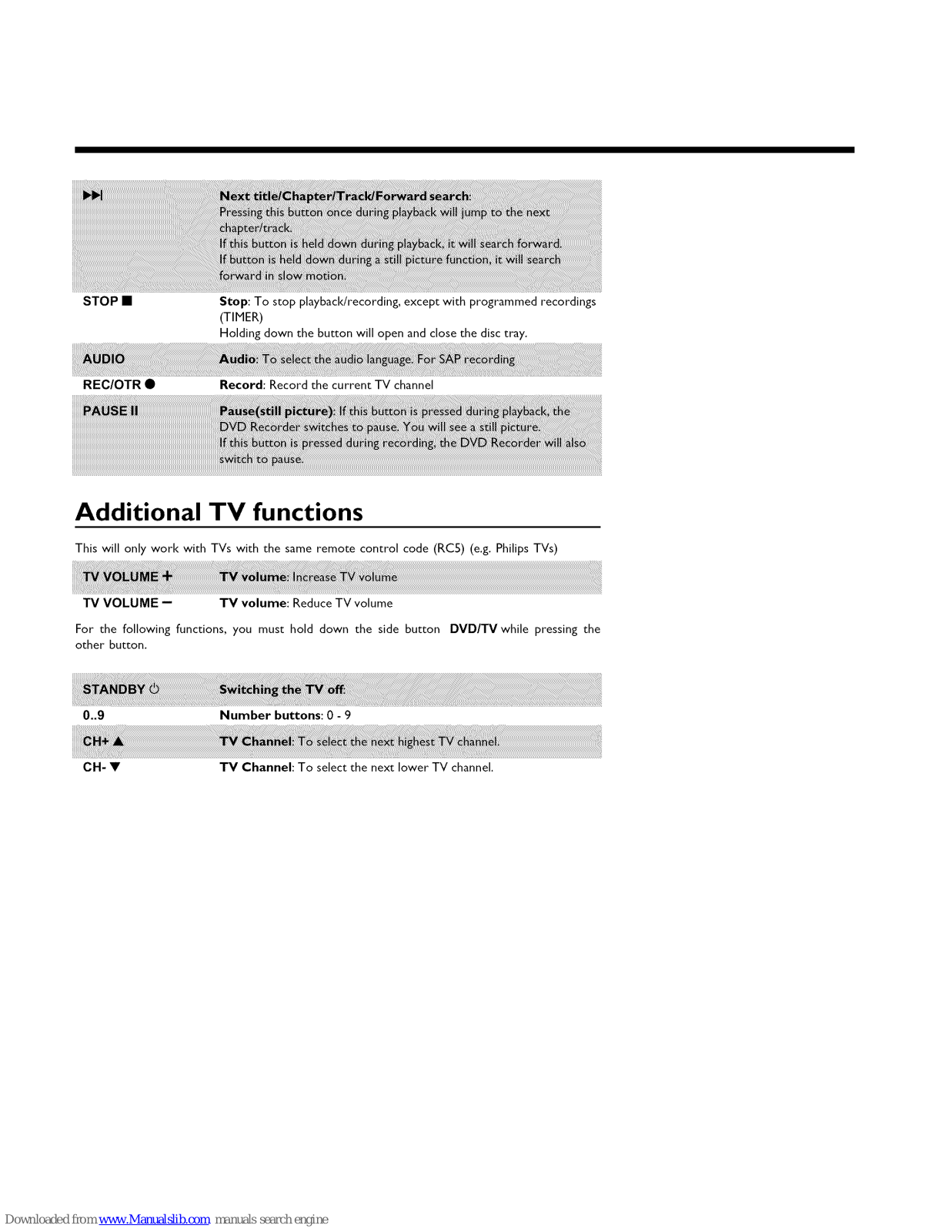

STOP •

Stop: To stop playback/recording, except with programmed recordings

(TIMER)

Holding down the button will open and close the disc tray.

REC/OTR Q Record: Record the current TV channel

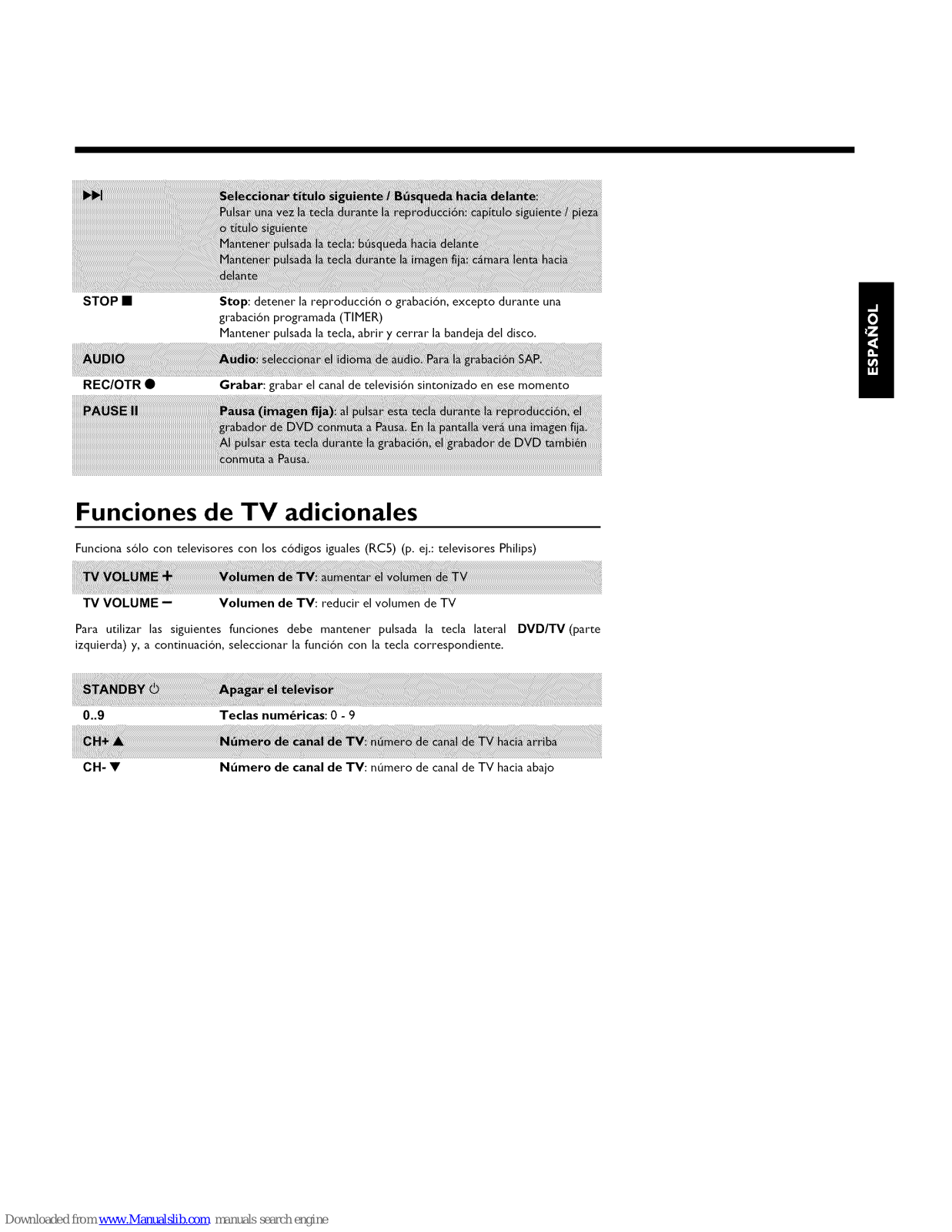

Additional TV functions

This will only work with TVs with the same remote control code (RC5) (e.g. Philips TVs)

TV VOLUME -- TV volume: Reduce TV volume

For the following functions, you must hold down the side button DVDITVwhile pressing the

other button.

0==9 Number buttons: 0 - 9

CH= • TV Channel: To select the next lower TV channel.

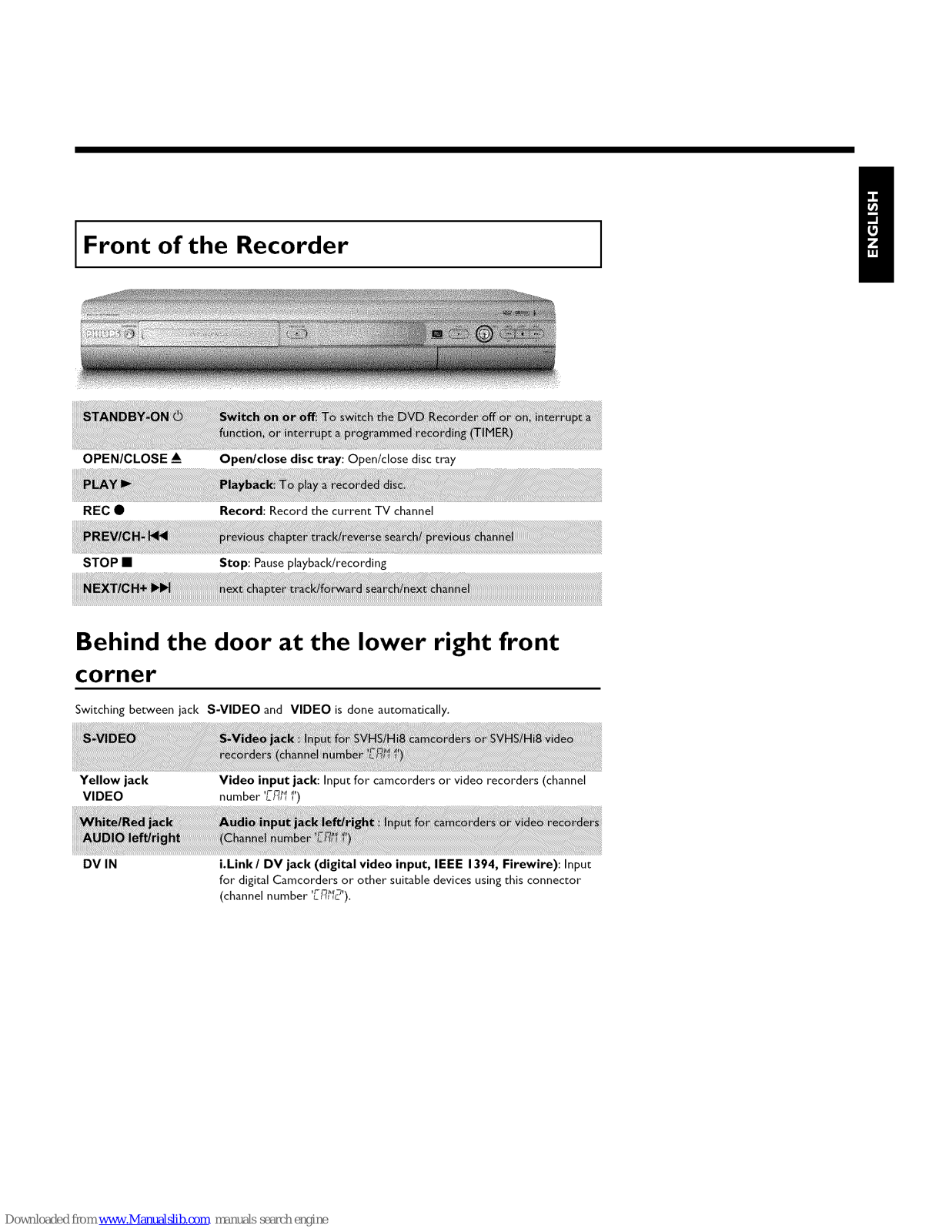

Front of the Recorder

OPEN/CLOSE _ Open/close disc tray: Open/close disc tray

REC Q Record: Record the current TV channel

STOP • Stop: Pause playback/recording

iiiiiiiiiiiii iii i ii !i!ii

Behind the door at the lower right front

corner

Switching between jack S-VIDEO and VIDEO is done automatically.

Yellow jack

VIDEO

Video input jack: Input for camcorders or video recorders (channel

number L/Ill

DV IN

i.Link / DV jack (digital video input, IEEE 1394, Firewire): Input

for digital Camcorders or other suitable devices using this connector

(channel number ,r_LF_I_,_:_'_c).

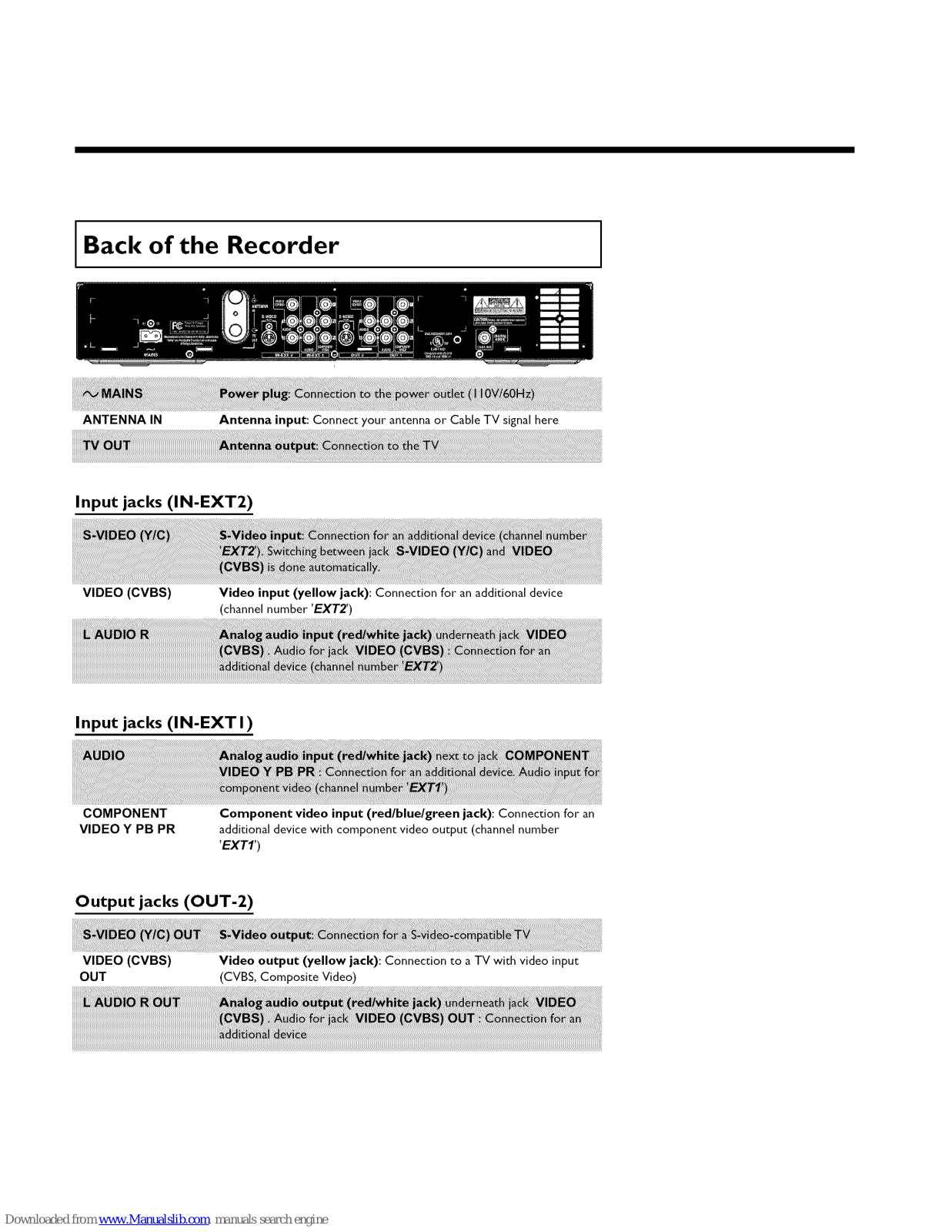

Back of the Recorder

ANTENNAIN

Antenna input: Connect your antenna or Cable TV signal here

Input jacks (IN-EXT2)

VIDEO (CVBS) Video input (yellow jack): Connection for an additional device

(channel number 'EXTZ)

Input jacks (IN-EXT I)

COMPONENT

VIDEO Y PB PR

Component video input (red/blue/green jack): Connection for an

additional device with component video output (channel number 'EXTI')

Output jacks (OUT-2)

VIDEO (CVBS)

OUT

Video output (yellow jack): Connection to a TV with video input (CVBS, Composite Video)

Output jacks (OUT-I 480p/480i)

COMPONENT VIDEO Y PB PR OUT

Component video output (redlbluelgreen jack): Connection for an additional device with component video/progressive scan output

Output jack (DIGITAL AUDIO OUT)

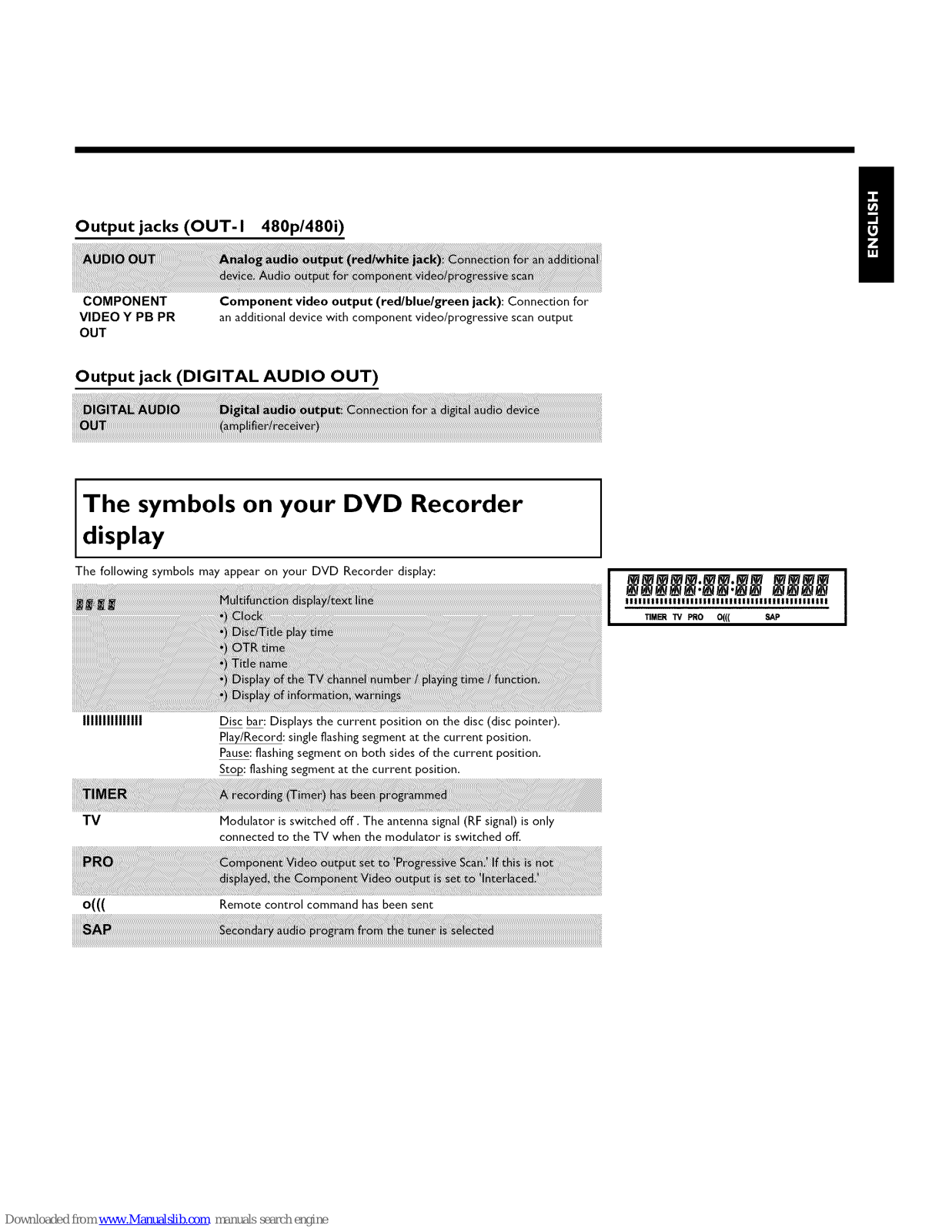

The symbols on your DVD Recorder

display

The following symbols may appear on your DVD Recorder display:

IIIIIIIIIIIIIlllIlllIIIIIIIIIIIIIIlUlIIIIIIIII

"riMERW PRO O((( SAP

IIIIIIIIIIIIIII

Disc bar: Displays the current position on the disc (disc pointer), Play/Record: single flashing segment at the current position. Pause: flashing segment on both sides of the current position,

_: flashing segment at the current position.

Modulator is switched off, The antenna signal (RF signal) is only

connected to the TV when the modulator is switched off.

O((( Remote control command has been sent

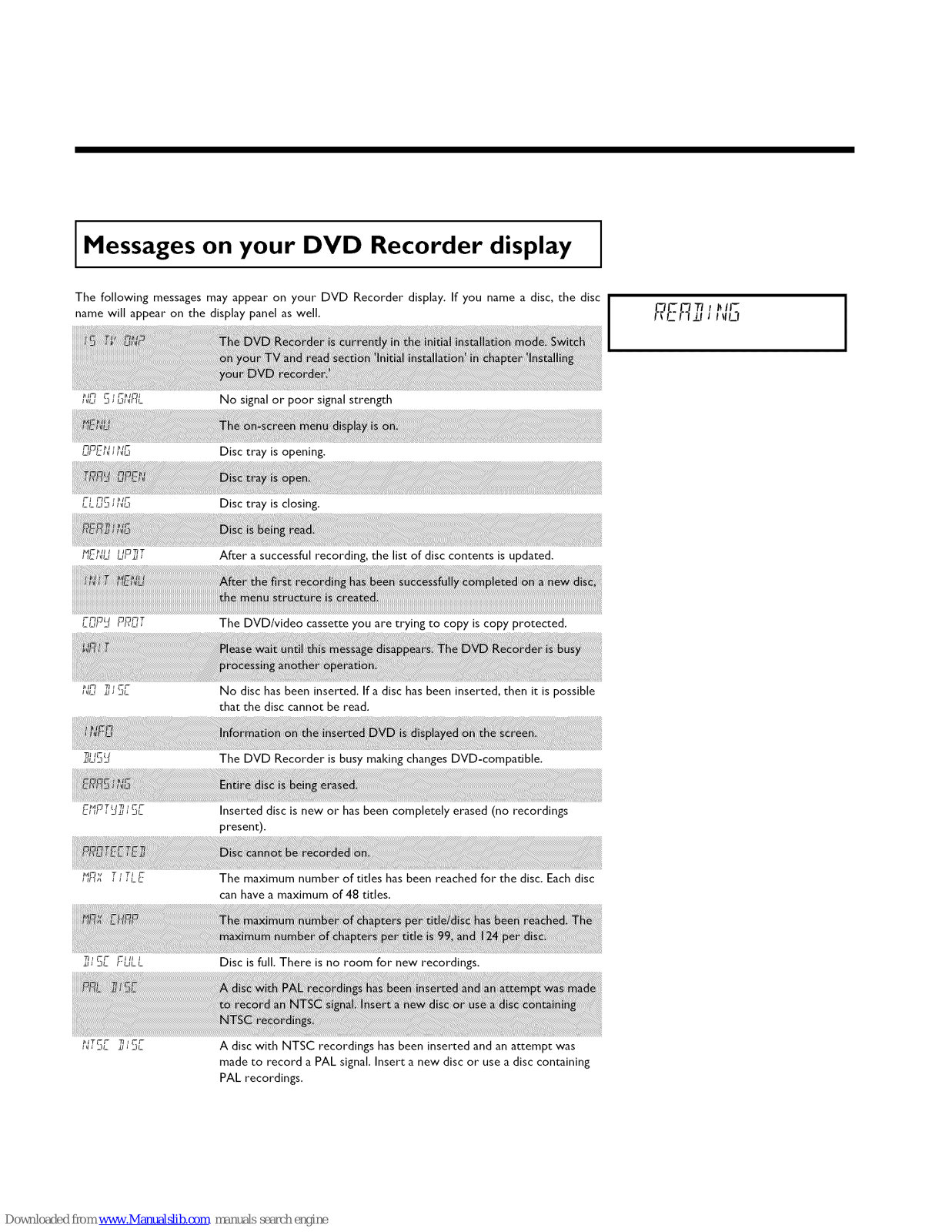

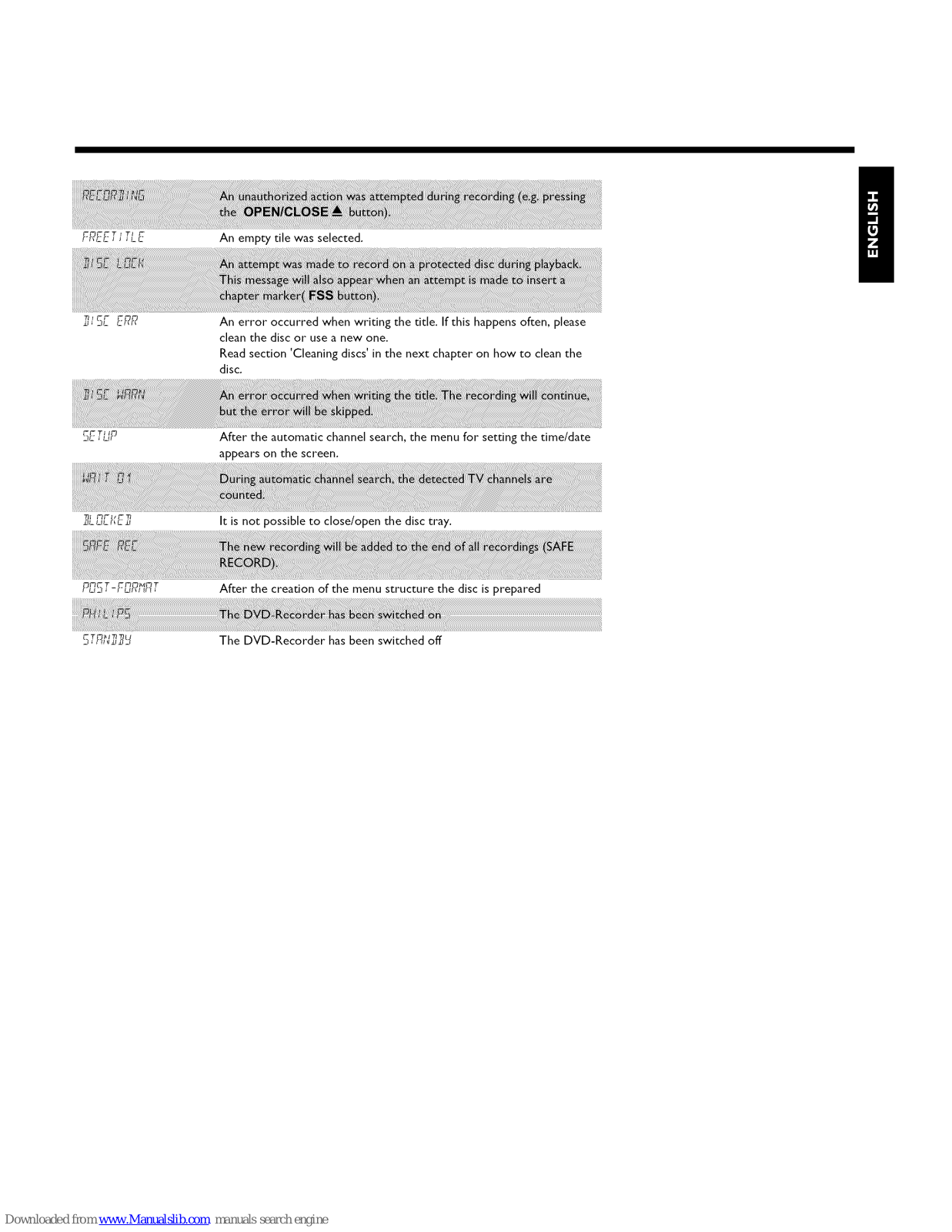

Messages on your DVD Recorder display

The following messages may appear on your DVD Recorder display. If you name a disc, the disc name will appear on the display panel as well.

F{../T/ I I_IF

I_F_'I IZI J I_!l_l

No signal or poor signal strength

L_P_,_ _,o Disc tray is opening.

LLL_ __,C_ Disc tray is closing.

After a successful recording, the list of disc contents is updated.

_ _T

rn_a j P_?u_ The DVD/video cassette you are trying to copy is copy protected.LUg _

No disc has been inserted. If a disc has been inserted, then it is possible

that the disc cannot be read.

The DVD Recorder is busy making changes DVD-compadble.

_/LrJT_J_ i rF"

IIF _ 2_ZI J Z_L

Inserted disc is new or has been completely erased (no recordings

present).

,,r_,, TITLE The maximum number of titles has been reached for the disc. Each disc

can have a maximum of 48 titles.

_; DL f LILL Disc is full. There is no room for new recordings.

_TCr _cr

A disc with NTSC recordings has been inserted and an attempt was made to record a PAL signal. Insert a new disc or use a disc containing

PAL recordings.

FREET_TLE

An empty tile was selected.

7]ICF

,_,:_L_ERR

An error occurred when writing the title. If this happens often, please clean the disc or use a new one.

Read section 'Cleaning discs' in the next chapter on how to clean the

disc.

_lC I Lit" After the automatic channel search, the menu for setting the time/date

appears on the screen.

I nFll_]1

_L LIL f_E _

It is not possible to close/open the disc tray.

n C T r" m _III_ T

PLIL1 _ -r-u_/irl_

After the creation of the menu structure the disc is prepared

, #_,JJ?_ The DVD-Recorder has been switched off

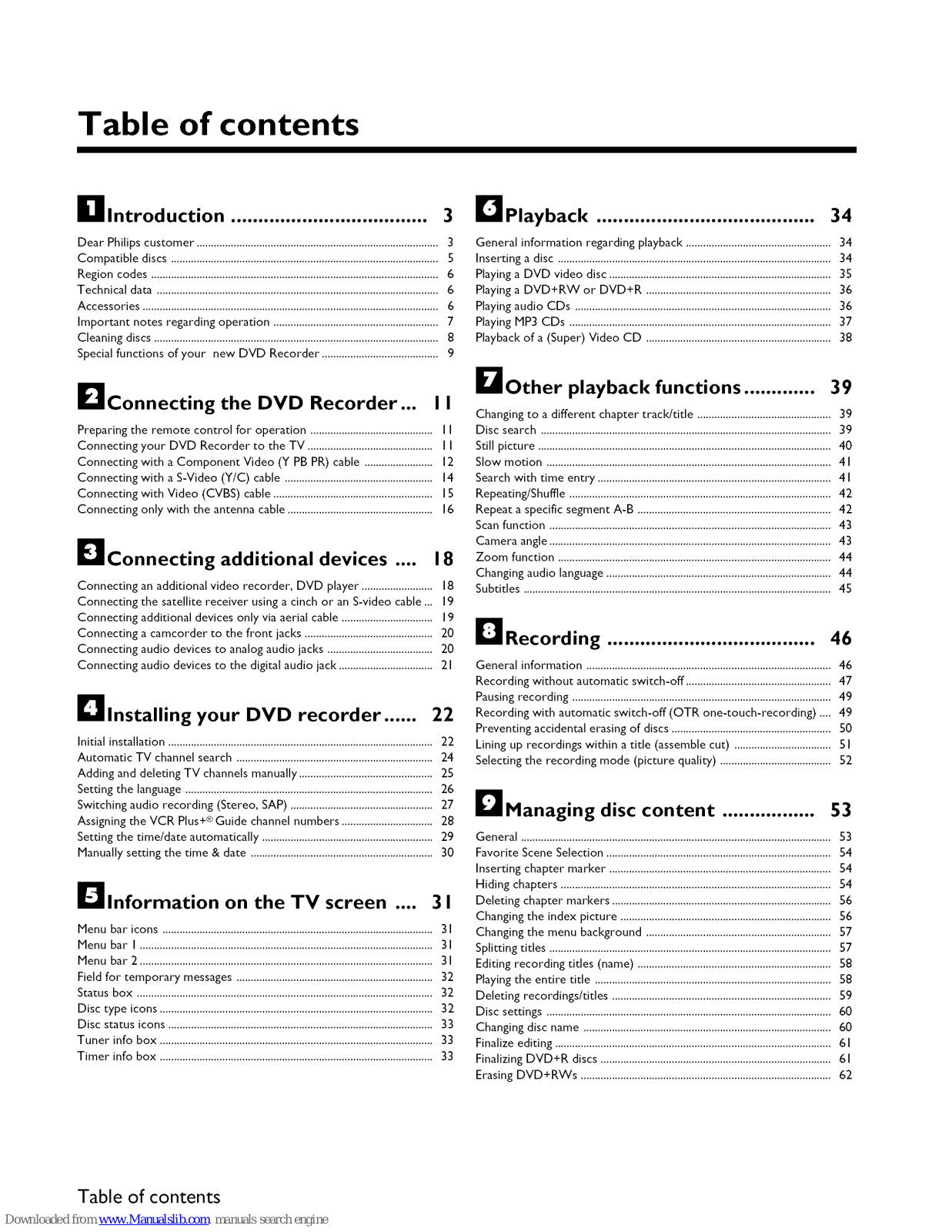

Table of contents

Introduction ....................................

Dear Philips customer ..................................................................................... 3

Compatible discs .............................................................................................. 5

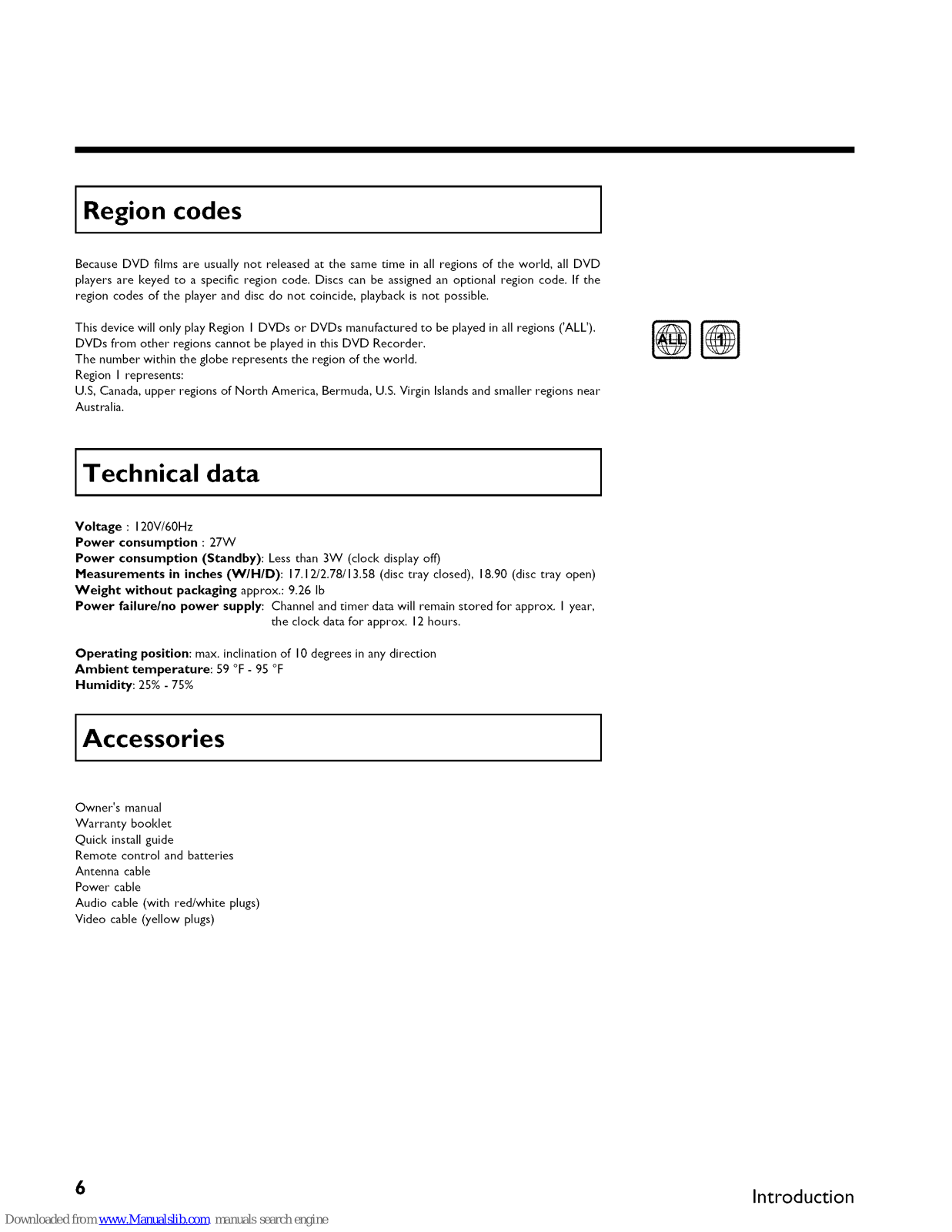

Region codes ..................................................................................................... 6

Technical data ................................................................................................... 6

Accessories ........................................................................................................ 6

Important notes regarding operation .......................................................... 7

Cleaning discs .................................................................................................... 8

Special functions of your new DVD Recorder ......................................... 9

DConnecting the DVD Recorder... I I

Preparing the remote control for operation ........................................... I I

Connecting your DVD Recorder to the TV ............................................ I I

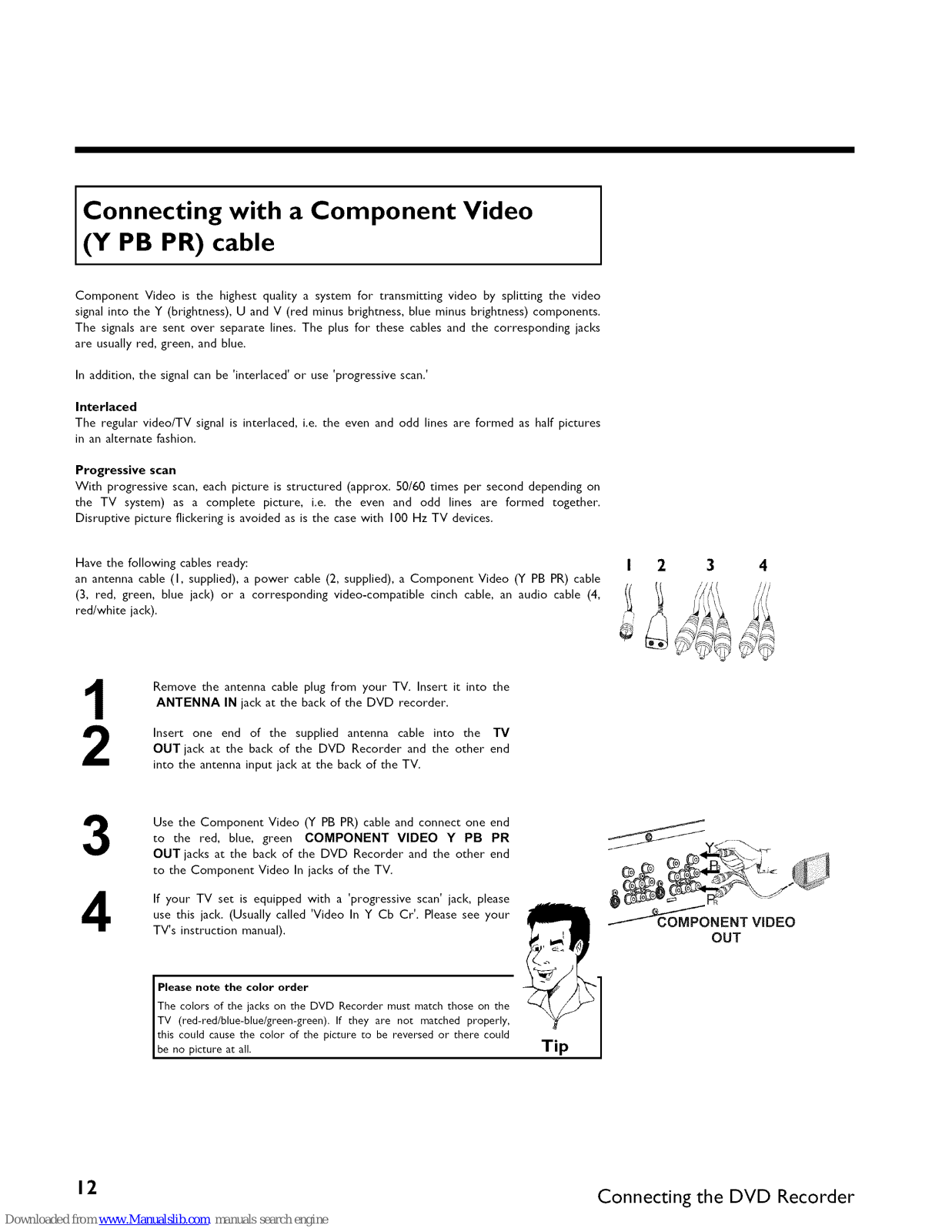

Connecting with a Component Video (Y PB PR) cable ........................ 12

Connecting with a S-Video (Y/C) cable .................................................... 14

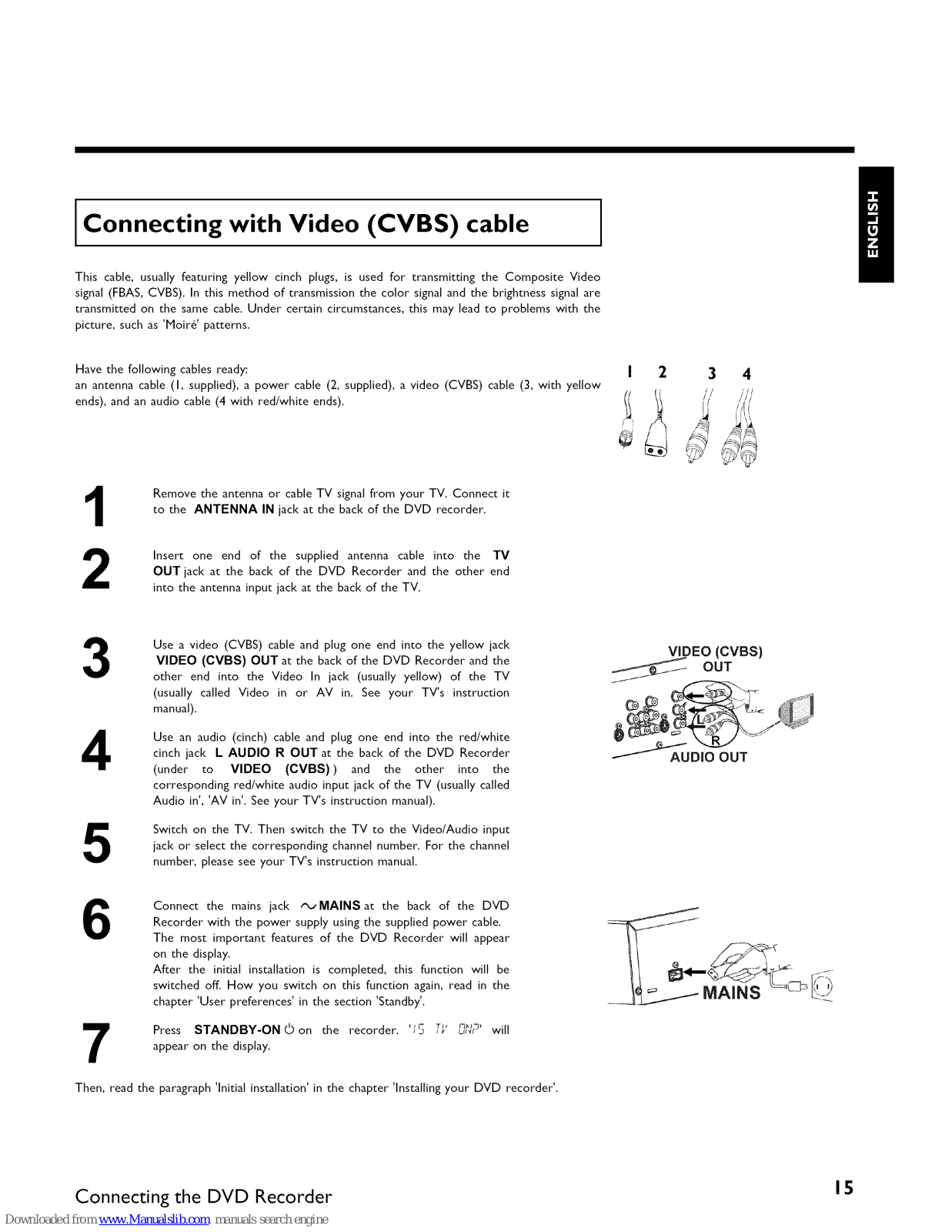

Connecting with Video (CVBS) cable ........................................................ 15

Connecting only with the antenna cable ................................................... 16

IF.iConnecting additional devices .... 18

Connecting an additional video recorder, DVD player ......................... 18

Connecting the satellite receiver using a cinch or an S-video cable ._ 19

Connecting additional devices only via aerial cable ................................ 19

Connecting a camcorder to the front jacks ............................................. 20

Connecting audio devices to analog audio jacks ..................................... 20

Connecting audio devices to the digital audio jack ................................. 21

Installing your DVD recorder ...... 22

Initial installation ............................................................................................. 22

Automatic TV channel search ..................................................................... 24

Adding and deleting TV channels manually ............................................... 25

Setting the language ....................................................................................... 26

Switching audio recording (Stereo, SAP) .................................................. 27

Assigning the VCR Plus+® Guide channel numbers ................................ 28

Setting the time/date automatically ............................................................ 29

Manually setting the time & date ................................................................ 30

r-Jlnformation on the TV screen .... 3 I

Menu bar icons ............................................................................................... 3 I

Menu bar I ....................................................................................................... 31

Menu bar 2 ....................................................................................................... 3 I

Field for temporary messages ..................................................................... 32

Status box ........................................................................................................ 32

Disc type icons ................................................................................................ 32

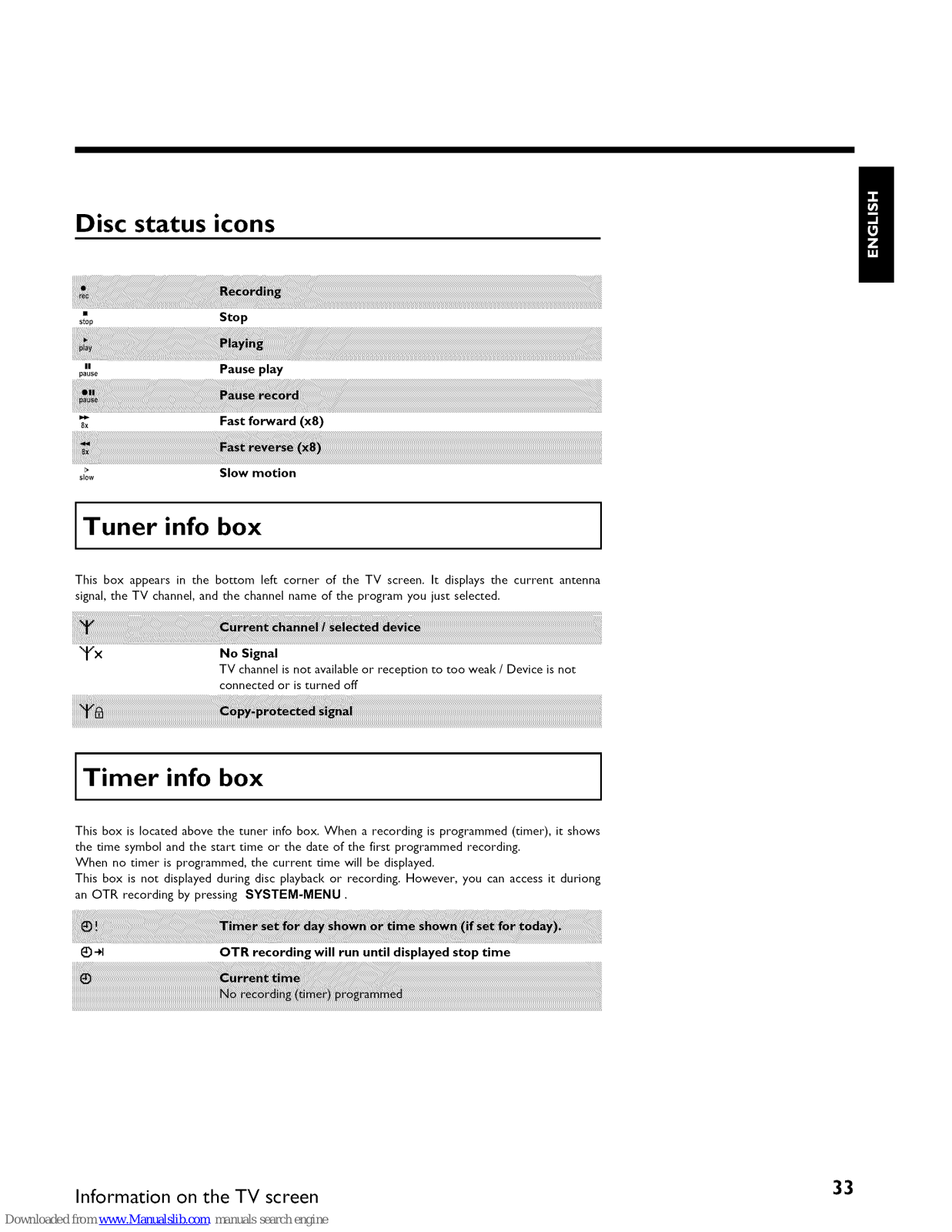

Disc status icons ............................................................................................. 33

Tuner info box ................................................................................................ 33

Timer info box ................................................................................................ 33

3 !_1 Playback ........................................ 34

General information regarding playback ................................................... 34

Inserting a disc ................................................................................................ 34

Playing a DVD video disc .............................................................................. 35

Playing a DVD+RW or DVD+R ................................................................. 36

Playing audio CDs .......................................................................................... 36

Playing MP3 CDs ............................................................................................ 37

Playback of a (Super) Video CD ................................................................. 38

_lOther playback functions ............. 39

Changing to a different chapter track/title ............................................... 39

Disc search ...................................................................................................... 39

Still picture ....................................................................................................... 40

Slow motion .................................................................................................... 4 I

Search with time entry .................................................................................. 4 I

Repeating/Shuffle ............................................................................................ 42

Repeat a specific segment A-B .................................................................... 42

Scan function ................................................................................................... 43

Camera angle ................................................................................................... 43

Zoom function ................................................................................................ 44

Changing audio language ............................................................................... 44

Subtitles ............................................................................................................ 45

_r_Recording ...................................... 46

General information ...................................................................................... 46

Recording without automatic switch-off ................................................... 47

Pausing recording ........................................................................................... 49

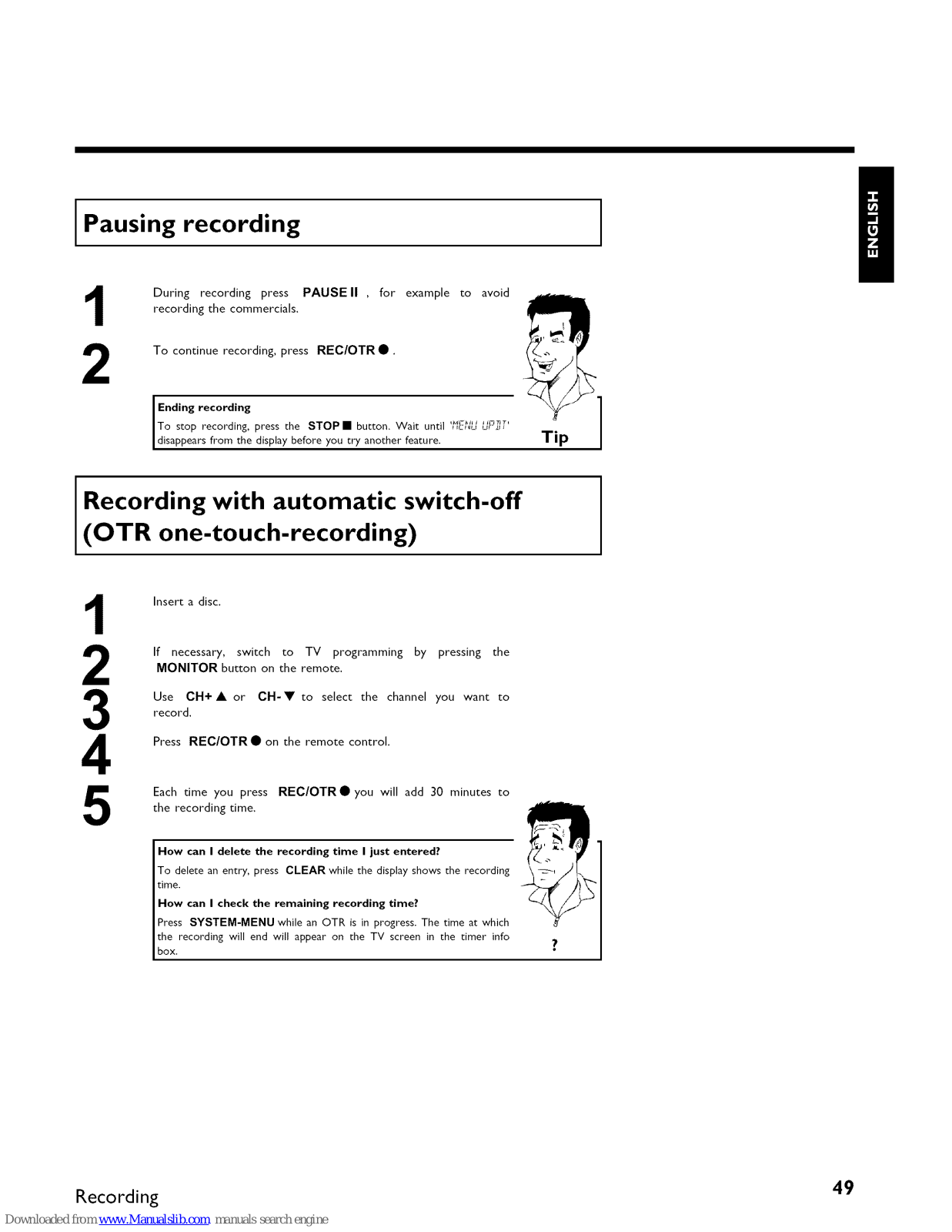

Recording with automatic switch-off (OTR one-touch-recording) .... 49

Preventing accidental erasing of discs ........................................................ S0

Lining up recordings within a title (assemble cut) .................................. S I

Selecting the recording mode (picture quality) ....................................... $2

LdlManaging disc content ................. 53

General ............................................................................................................. 53

Favorite Scene Selection ............................................................................... $4

Inserting chapter marker .............................................................................. $4

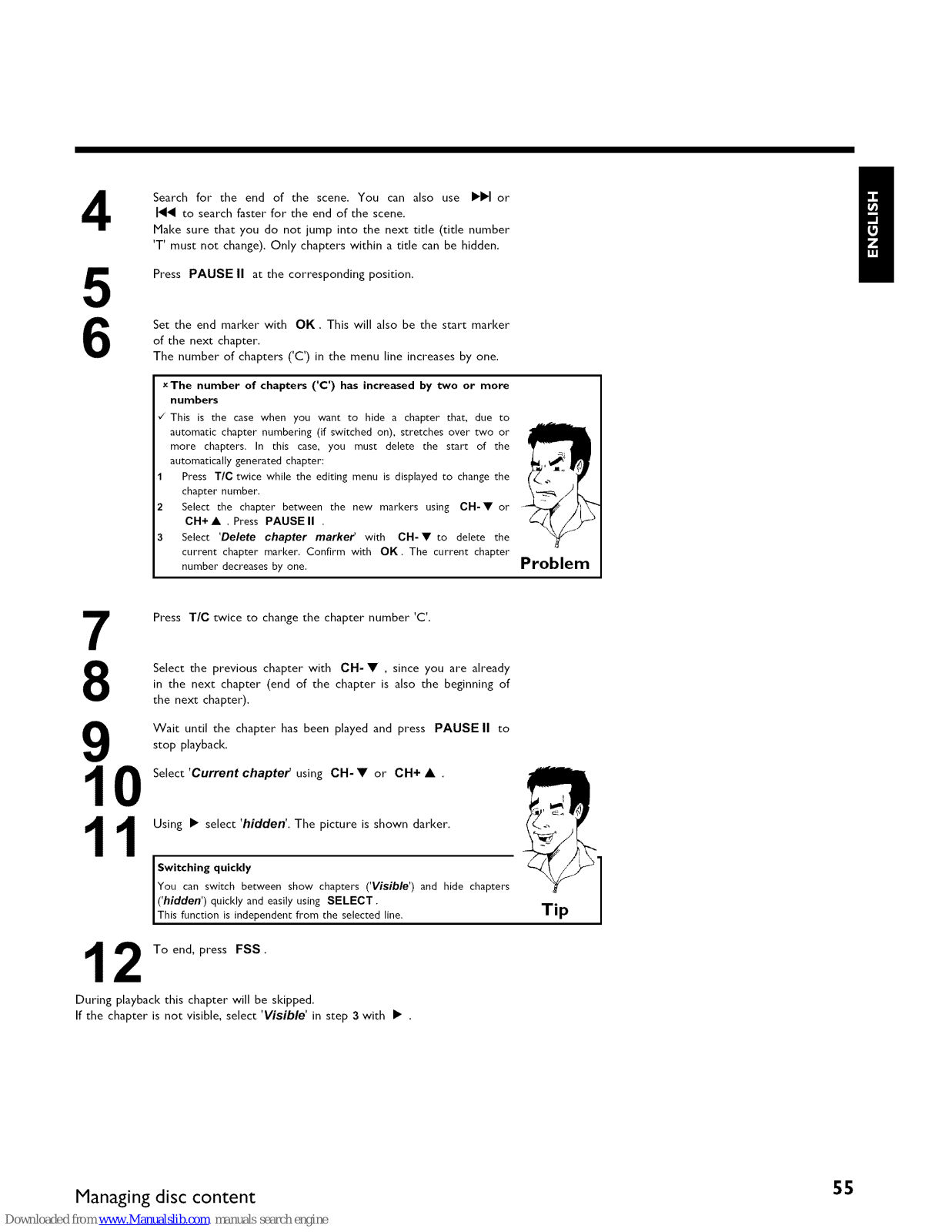

Hiding chapters ............................................................................................... $4

Deleting chapter markers ............................................................................. $6

Changing the index picture .......................................................................... $6

Changing the menu background ................................................................. $7

Splitting titles ................................................................................................... $7

Editing recording titles (name) .................................................................... $8

Playing the entire title ................................................................................... $8

Deleting recordings/titles ............................................................................. $9

Disc settings .................................................................................................... 60

Changing disc name ....................................................................................... 60

Finalize editing ................................................................................................. 61

Finalizing DVD+R discs ................................................................................. 61

Erasing DVD+RWs ........................................................................................ 62

Table of contents

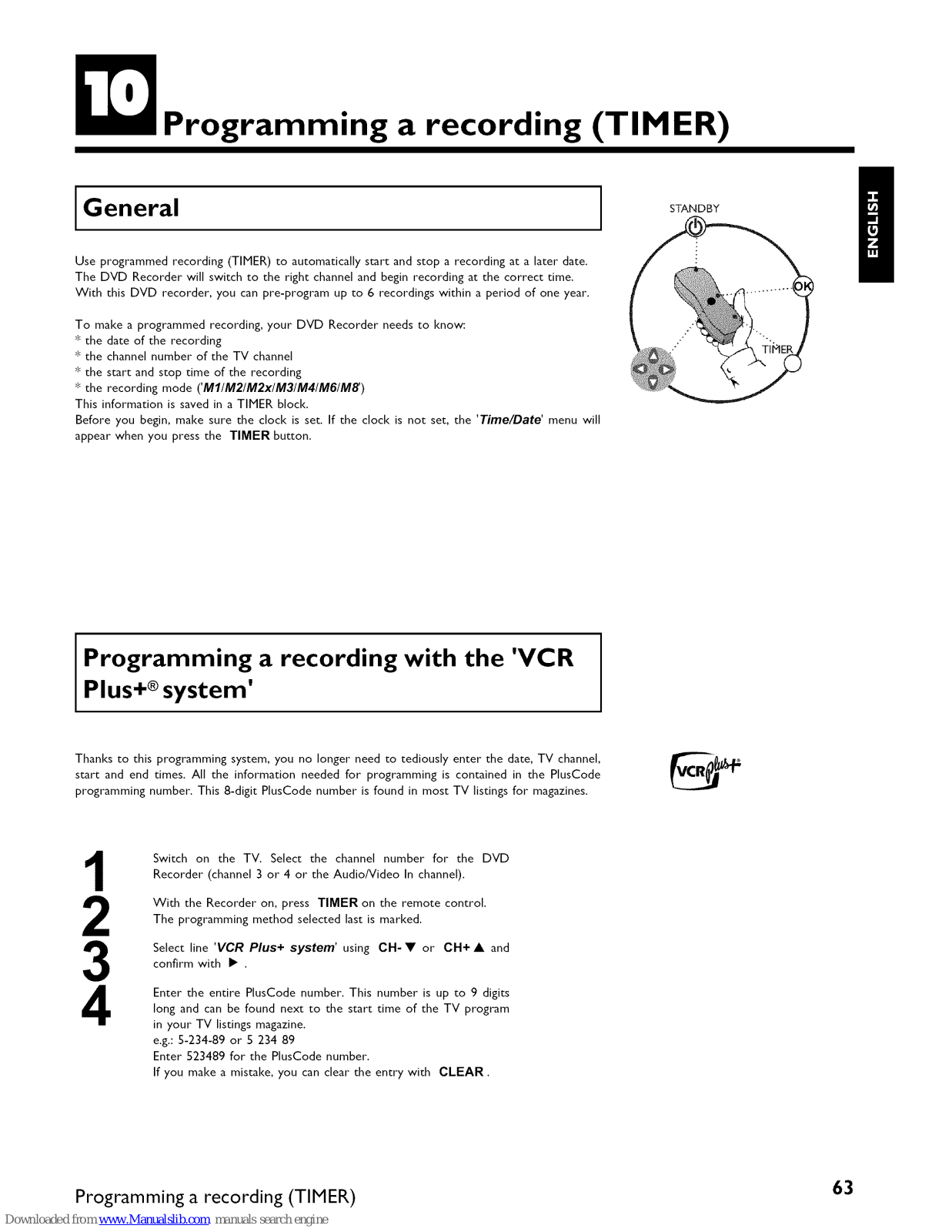

Programming a recording

(TIMER) .............................................. 63

General ............................................................................................................. 63

Programming a recording with the 'VCR Plus+® system ' ,..................... 63

Programming a recording without the VCR Plus+® system ................. 66

How to change or delete a programmed recording (TIMER) ............. 67

Problem solving for programmed recordings .......................................... 68

_'_luser preferences .......................... 69

Picture settings ................................................................................................ 70

Sound settings ................................................................................................. 7 I

Language settings ............................................................................................ 72

Additional settings .......................................................................................... 72

Remote control settings ............................................................................... 73

Disc feature menu .......................................................................................... 74

_'_Access control (Child lock) ......... 75

Child lock (DVD and VCD) ......................................................................... 75

Activating/Deactivating the child lock ........................................................ 75

Authorizing discs ............................................................................................ 76

Locking authorized discs ............................................................................... 76

Parental control (DVD video only) ............................................................ 76

Activating/Deactivating the parental control ............................................ 77

Changing the country .................................................................................... 78

Changing the PIN ........................................................................................... 79

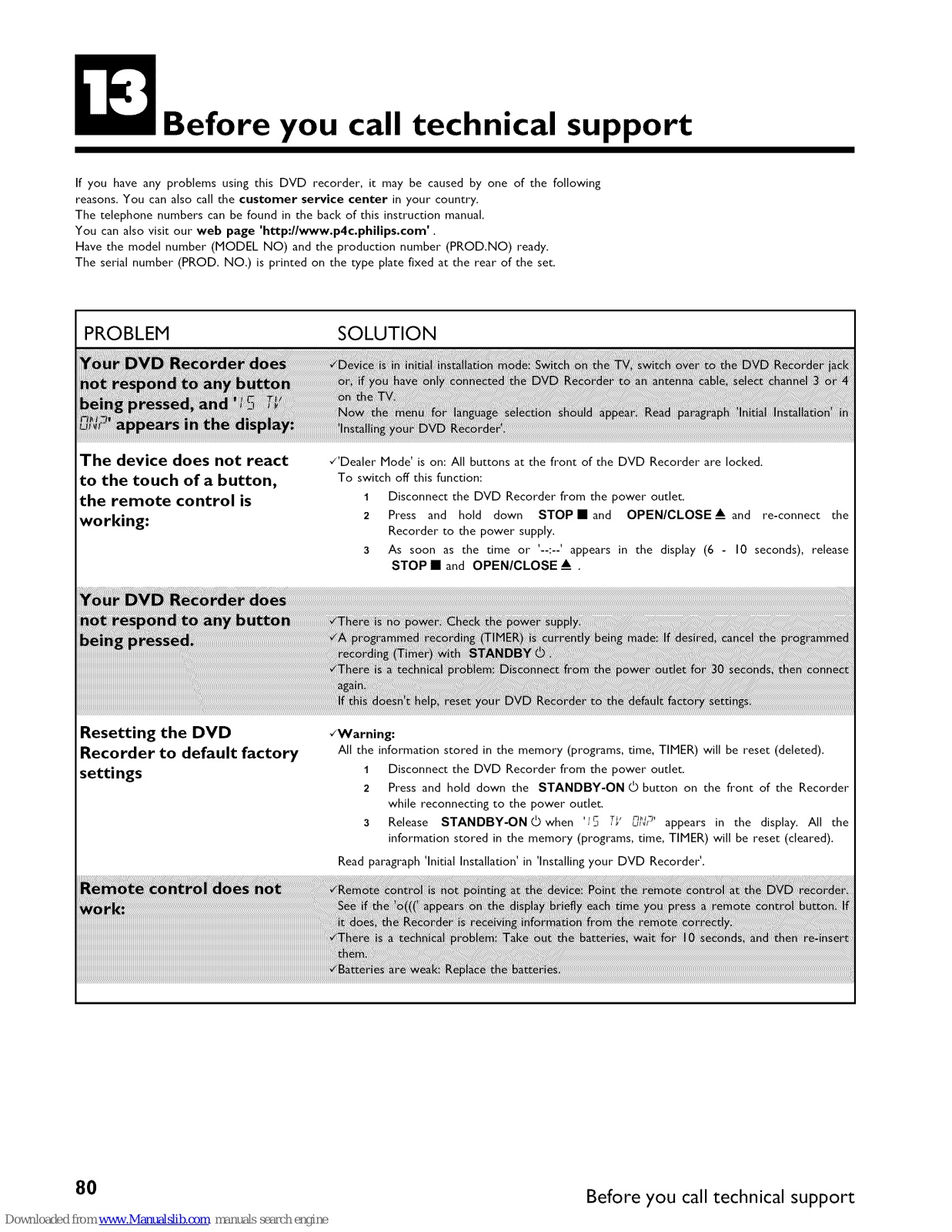

_'_JBefore you call technical support 80

Table of contents

Introduction

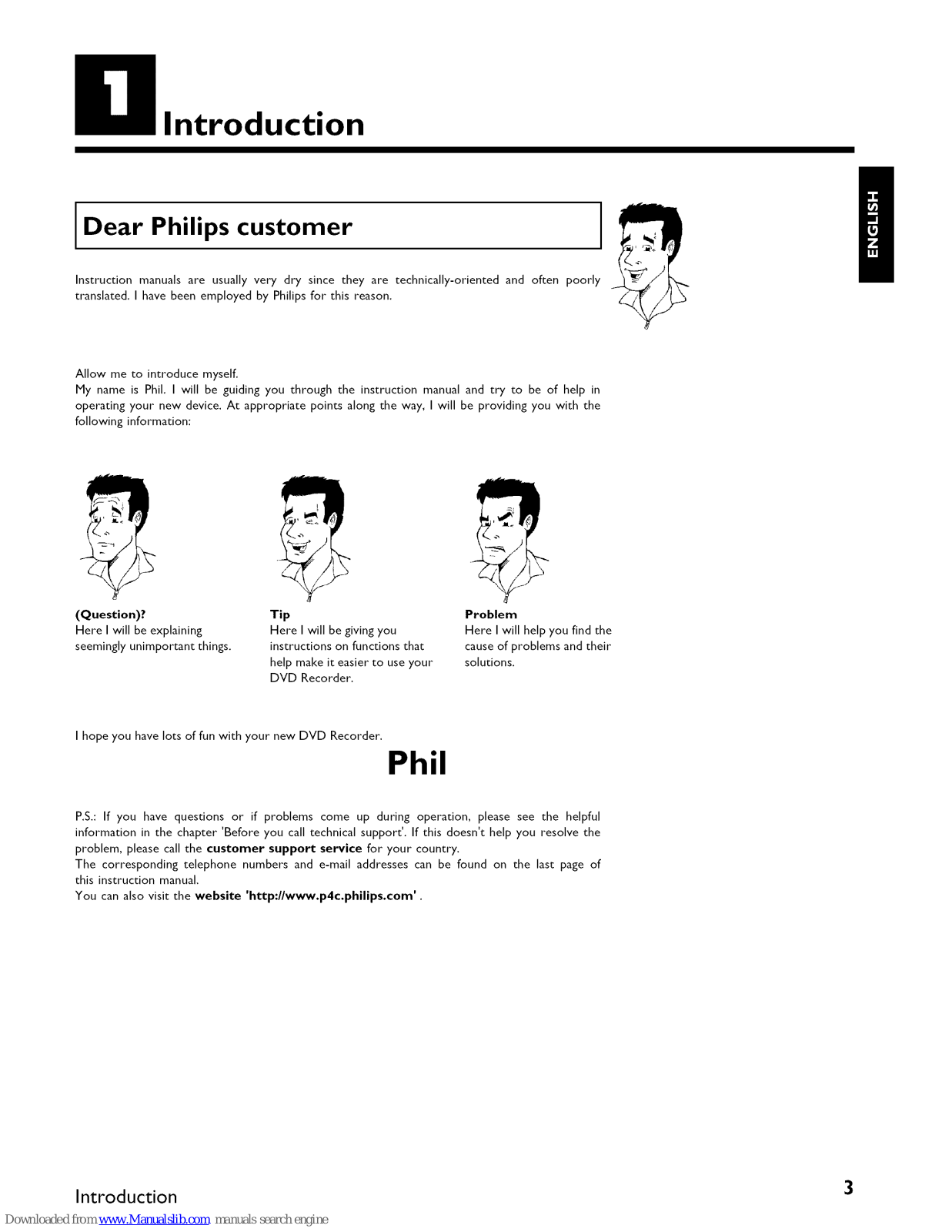

Dear Philips customer

Instruction manuals are usually very dry since they are technically-oriented and often poorly

translated. I have been employed by Philips for this reason.

Allow me to introduce myself.

My name is Phil. I will be guiding you through the instruction manual and try to be of help in operating your new device. At appropriate points along the way, I will be providing you with the following information:

(Question)?

Here I will be explaining seemingly unimportant things.

Tip

Here I will be giving you

instructions on functions that help make it easier to use your

DVD Recorder.

Problem

Here I will help you find the cause of problems and their solutions.

I hope you have lots of fun with your new DVD Recorder.

Phil

P.S.: If you have questions or if problems come up during operation, please see the helpful

information in the chapter 'Before you call technical support'. If this doesn't help you resolve the problem, please call the customer support service for your country. The corresponding telephone numbers and e-mail addresses can be found on the last page of

this instruction manual

You can also visit the website 'http://www.p4c.philips.com'.

Introduction 3

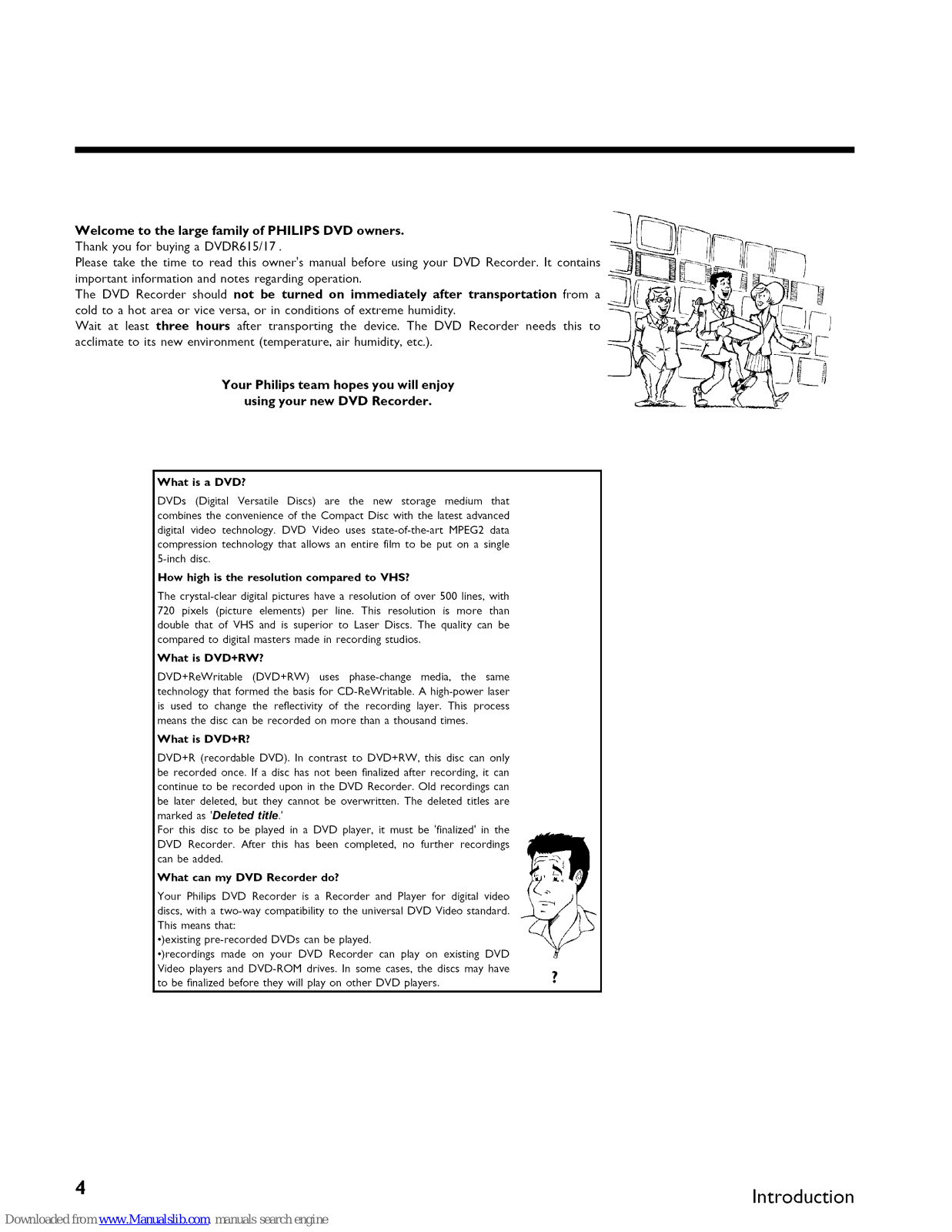

Welcome to the large family of PHILIPS DVD owners.

Thank you for buying a DVDR615/17.

Please take the time to read this owner's manual before using your DVD Recorder. It contains important information and notes regarding operation. The DVD Recorder should not be turned on immediately after transportation from a cold to a hot area or vice versa, or in conditions of extreme humidity. Wait at least three hours after transporting the device. The DVD Recorder needs this to

acclimate to its new environment (temperature, air humidity, etc.).

Your Philips team hopes you will enjoy

using your new DVD Recorder.

)

What is a DVD?

DVDs (Digital Versatile Discs) are the new storage medium that combines the convenience of the Compact Disc with the latest advanced digital video technology. DVD Video uses state-of-the-arc MPEG2 data compression technology that allows an entire film to be put on a single 5-inch disc.

How high is the resolution compared to VHS?

The crystal-clear digital pictures have a resolution of over 500 lines, with 720 pixels (picture elements) per line. This resolution is more than

double that of VHS and is superior to Laser Discs. The quality can be compared to digital masters made in recording studios.

What is DVD+RW? DVD+ReWritable (DVD+RW) uses phase<hange media, the same

technology that formed the basis for CD-ReWritable. A high-power laser is used to change the refiectivity of the recording layer. This process means the disc can be recorded on more than a thousand times.

What is DVD+R?

DVD+R (recordable DVD). In contrast to DVD+RW, this disc can only be recorded once. If a disc has not been finalized after recording, it can

continue to be recorded upon in the DVD Recorder. Old recordings can be later deleted, but they cannot be overwritten. The deleted titles are marked as 'Deleted title.' For this disc to be played in a DVD player, it must be 'finalized' in the DVD Recorder. After this has been completed, no further recordings can be added.

What can my DVD Recorder do? Your Philips DVD Recorder is a Recorder and Player for digital video

discs, with a two-way compatibility to the universal DVD Video standard. This means that:

*)existing pre-recorded DVDs can be played. *)recordings made on your DVD Recorder can play on existing DVD Video players and DVD-ROM drives. In some cases, the discs may have to be finalized before they will play on other DVD players.

4 Introduction

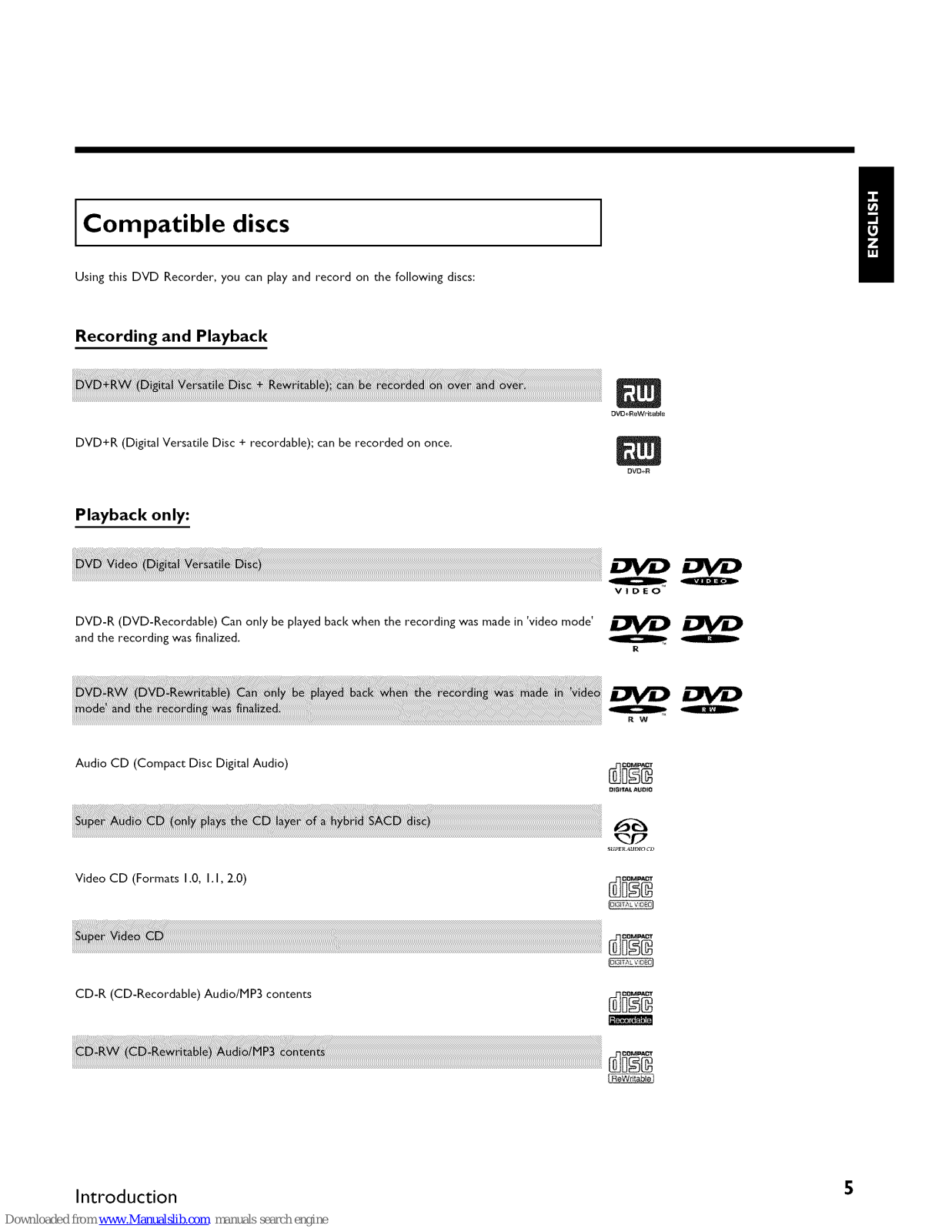

Compatible discs

Using this DVD Recorder, you can play and record on the following discs:

Recording and Playback

iiiiii_i!iiii iiiiiii ii !!i i !!ii!i i iiii iliii i!!!iii !i!i i i !ill!!!i !!!!i i!!!iiii i!!!iiiiii

DVD+R (Digital Versatile Disc + recordable); can be recorded on once.

DVD÷ReWr,itabl_

Playback only:

DVQ÷R

VIDEO

DVD-R (DVD-Recordable)Can only be played back when the recording was made in 'video mode' _ _

and the recording was finalized.

R W

Audio CD (Compact Disc Digital Audio)

i@;;_!!! !!!!_@ )Jii i _i i!))(i!!!!!!_ !!)iiiiii{J {i iiiiii_!!!!!!!!!!__ _ _ )(i)_)__ _jjj! ii _ii(iiii!!!iiiii__:!!!!!!i_ iil _;;;;;;;(___ _iii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;;;(_i_

SUpE_AUt_tO C_>

Video CD (Formats 1.0, I.I, 2.0)

CD-R (CD-Recordable) Audio/MP3 contents

!!i[iiiiii!i!! ! i ¸i¸i(ii !i{ i i;; !!)!)!)!)!)!)!)!)!!!!! i¸¸i¸¸i¸¸i¸) i! ¸I! !!i ¸¸ii i i ¸!iii i!iiiiiiiiii!i!!i!!! !iiiiiiiiiii

Introduction 5

Region codes

Because DVD films are usually not released at the same time in all regions of the world, all DVD players are keyed to a specific region code. Discs can be assigned an optional region code. If the

region codes of the player and disc do not coincide, playback is not possible.

This device will only play Region I DVDs or DVDs manufactured to be played in all regions ('ALL').

DVDs from other regions cannot be played in this DVD Recorder. The number within the globe represents the region of the world.

Region I represents: U.S, Canada, upper regions of North America, Bermuda, U.S. Virgin Islands and smaller regions near Australia.

Technical data

Voltage : 120V/60Hz

Power consumption : 27W

Power consumption (Standby): Less than 3W (clock display off)

Measurements in inches (W/H/D): 17.12/2.78/I 3.58 (disc tray closed), 18.90 (disc tray open) Weight without packaging approx.: 9.26 Ib

Power failure/no power supply: Channel and timer data wii[ remain stored for approx. I year,

the dock data for approx. 12 hours.

Operating position: max. inclination of 10 degrees in any direction Ambient temperature: 59 °F - 95 °F

Humidity: 25% - 75%

Accessories

Owner's manual Warranty booklet Quick install guide

Remote control and batteries Antenna cable

Power cable Audio cable (with red/white plugs) Video cable (yellow plugs)

6 Introduction

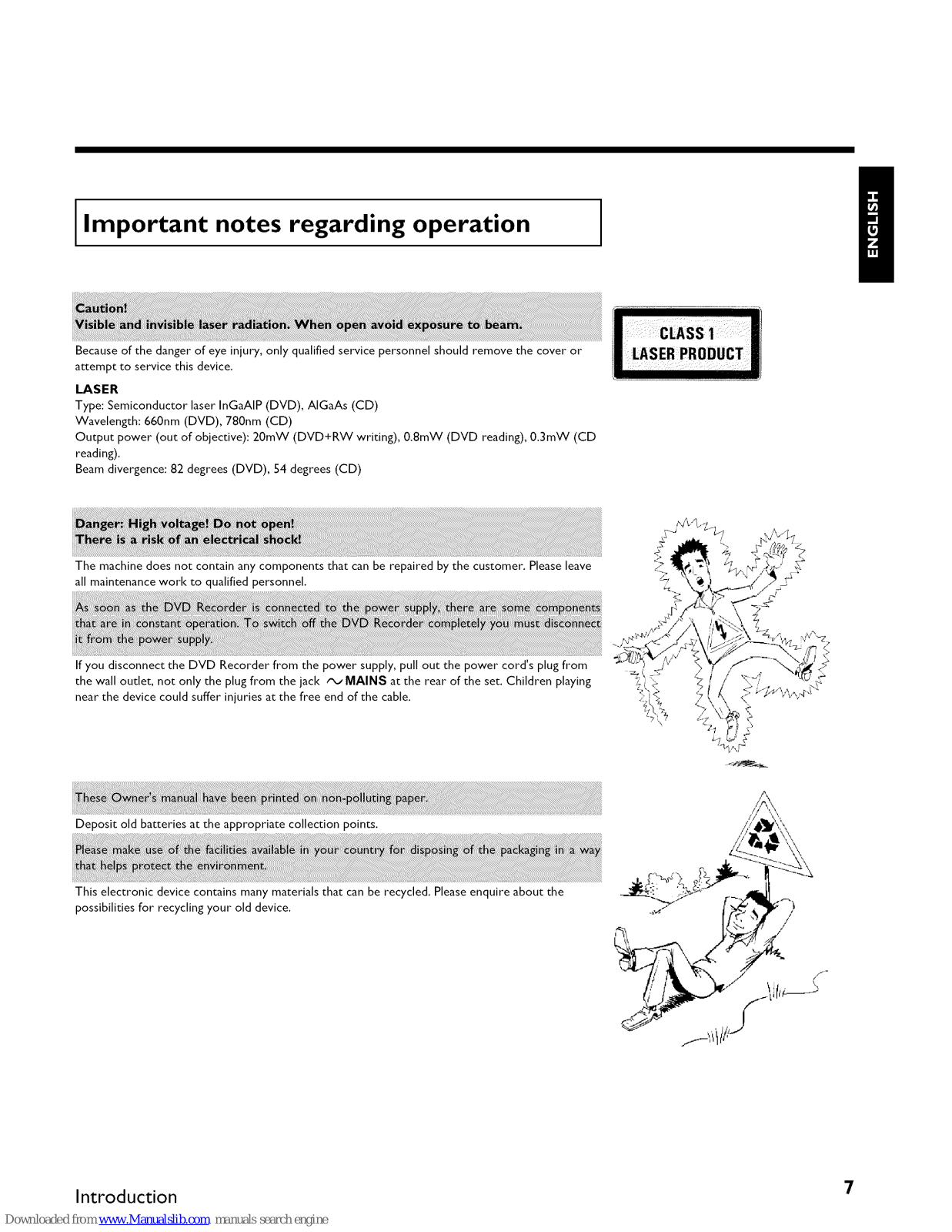

Important notes regarding operation

Because of the danger of eye injury, only qualified service personnel should remove the cover or attempt to service this device.

LASER

Type: Semiconductor laser InGaAIP (DVD), AIGaAs (CD) Wavelength: 660nm (DVD), 780nm (CD) Output power (out of objective): 20mW (DVD+RW writing), 0.8roW (DVD reading), 0.3roW (CD

reading).

Beam divergence: 82 degrees (DVD), 54 degrees (CD)

The machine does not contain any components that can be repaired by the customer. Please leave all maintenance work to qualified personnel.

If you disconnect the DVD Recorder from the power supply, pull out the power cord's plug from the wall outlet, not only the plug from the jack _ MAINS at the rear of the set. Children playing near the device could suffer iniuries at the free end of the cable.

Deposit old batteries at the appropriate collection points.

This electronic device contains many materials that can be recycled. Please enquire about the possibilities for recycling your old device.

Introduction 7

Make sure that air can circulate freely through the ventilation slots on the machine. Do not place the device on an unsteady base.

Keep the DVD Recorder away from domestic heating equipment and other sources of heat, as well as direct sunlight.

Make sure children do not place any foreign objects into the openings or the disc tray.

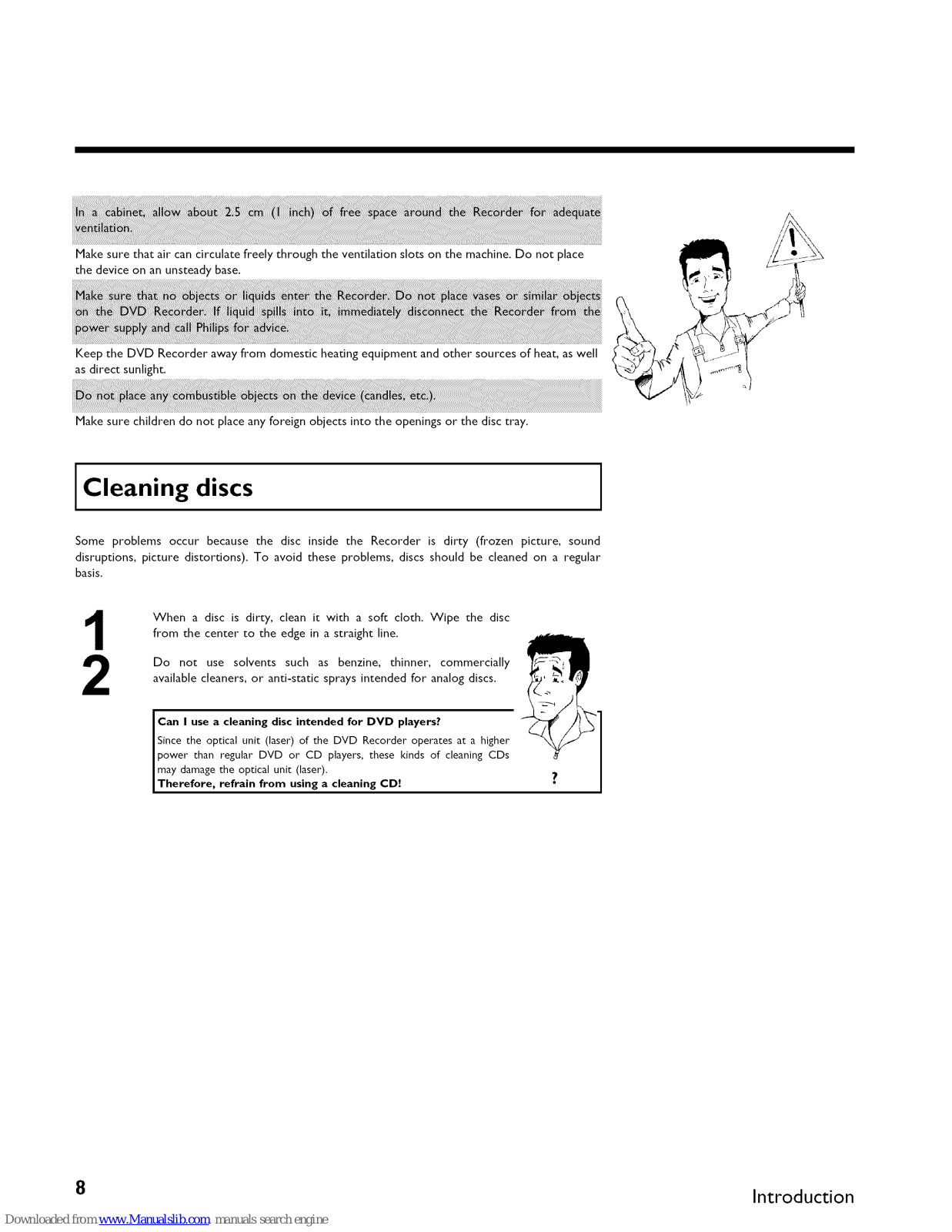

Cleaning discs

Some problems occur because the disc inside the Recorder is dirty (frozen picture, sound disruptions, picture distortions). To avoid these problems, discs should be cleaned on a regular

basis.

When a disc is dirty, clean it with a soft cloth. Wipe the disc from the center to the edge in a straight line.

Do not use solvents such as benzine, thinner, commercially

available cleaners, or anti-static sprays intended for analog discs.

Can I use a cleaning disc intended for DVD players?

Since the optical unit (laser) of the DVD Recorder operates at a higher power than regular DVD or CD players, these kinds of cleaning CDs may damage the optical unit (laser).

Therefore, refrain from using a cleaning CD!

8 Introduction

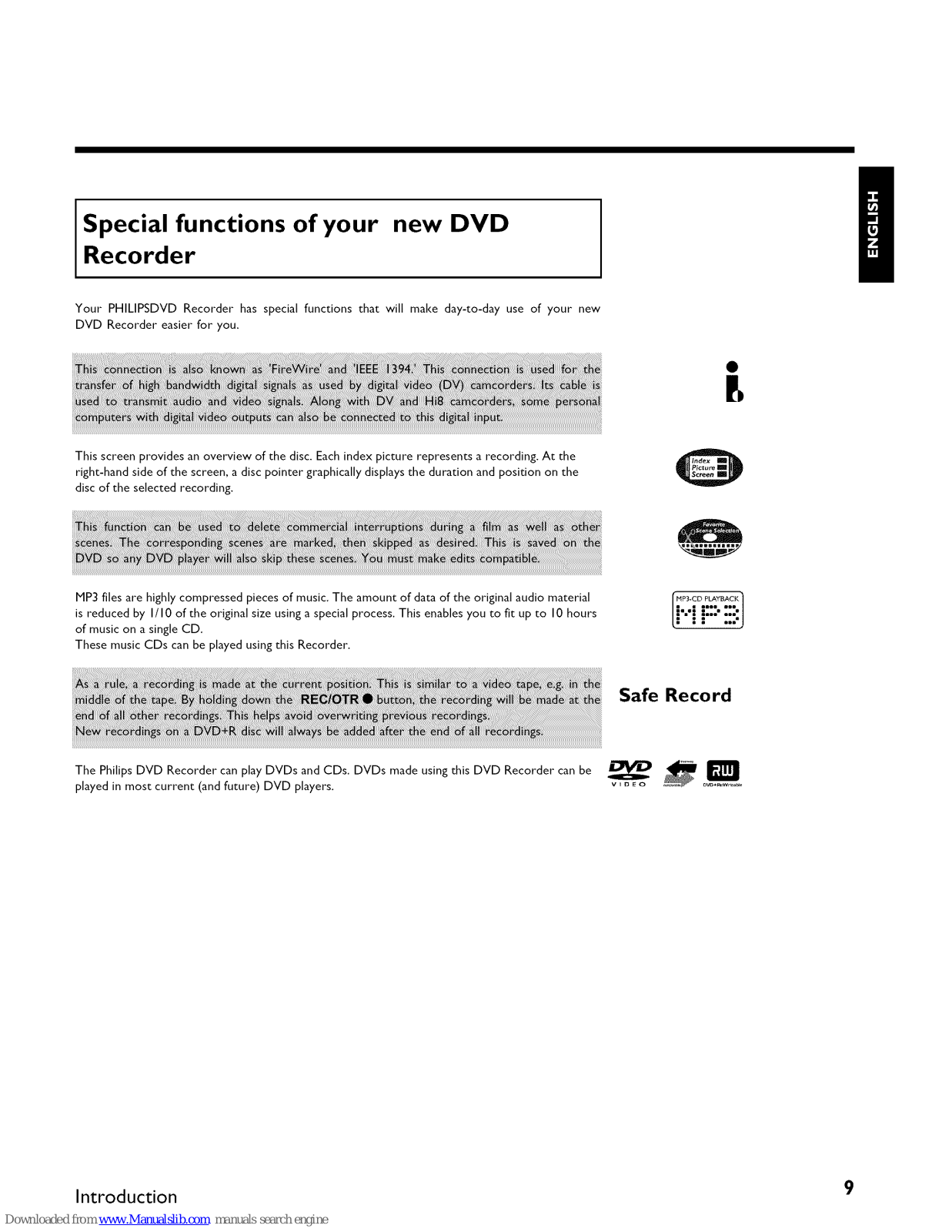

Special functions of your new DVD Recorder

Your PHILIPSDVD Recorder has spedal functions that will make day-to-day use of your new

DVD Recorder easier for you.

This screen provides an overview of the disc. Each index picture represents a recording. At the

right-hand side of the screen, a disc pointer graphically displays the duration and position on the disc of the selected recording.

MP3 files are highly compressed pieces of music. The amount of data of the original audio material is reduced by I/I 0 of the original size using a special process. This enables you to fit up to I0 hours of music on a single CD. These music CDs can be played using this Recorder.

Safe Record

The Philips DVD Recorder can play DVDs and CDs. DVDs made using this DVD Recorder can be _ _

played in most current (and future) DVD players, v_--_-..o _ o.............

Introduction 9

DIGITAL

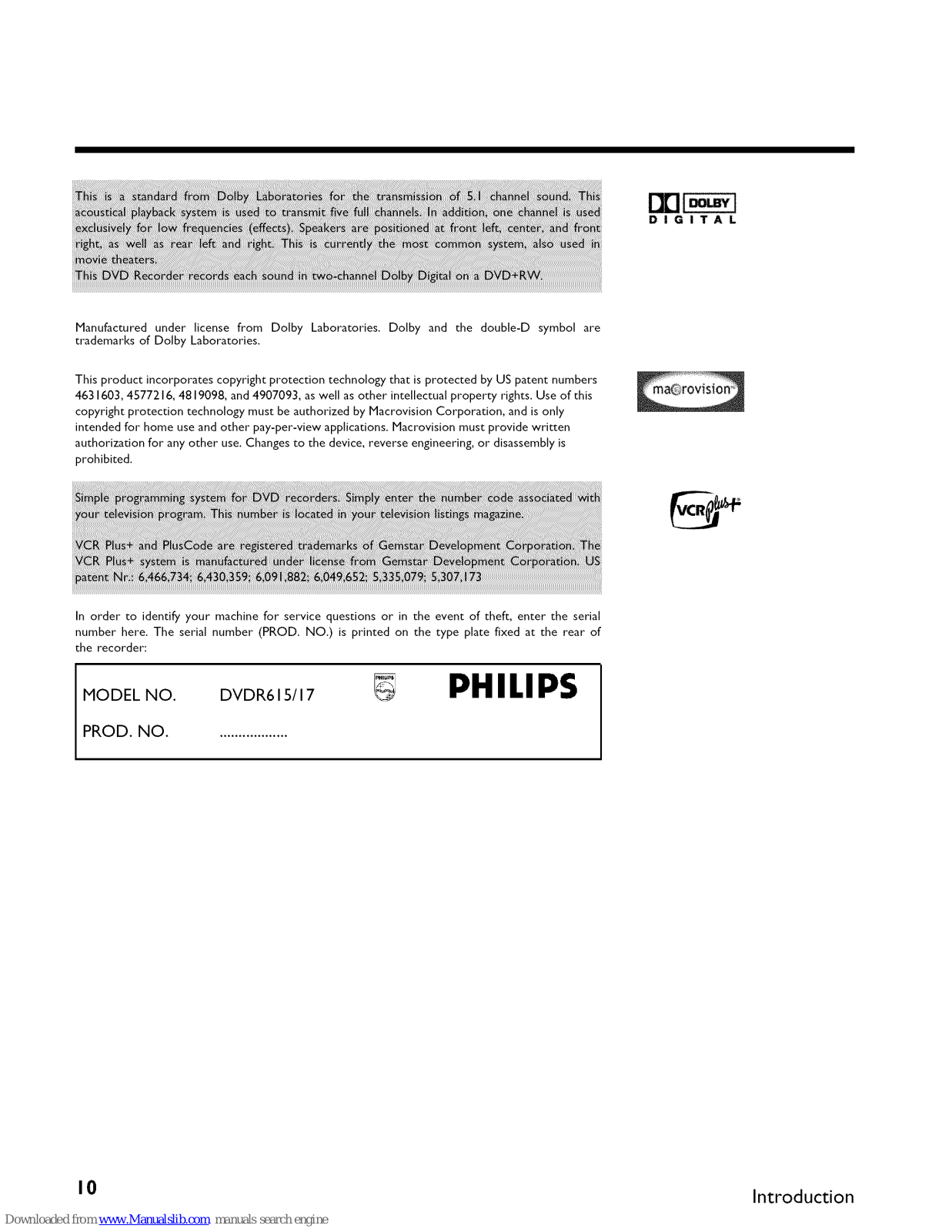

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

This product incorporates copyright protection technology that is protected by US patent numbers 4631603, 4577216, 4819098, and 4907093, as well as other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is only intended for home use and other pay-per-view applications. Macrovision must provide written authorization for any other use. Changes to the device, reverse engineering, or disassembly is prohibited.

In order to identify your machine for service questions or in the event of theft, enter the serial number here. The serial number (PROD. NO.) is printed on the type plate fixed at the rear of

the recorder:

MODEL NO. DVDR615/I 7

PHILIPS

PROD. NO ...................

I0 Introduction

Connecting the DVD Recorder

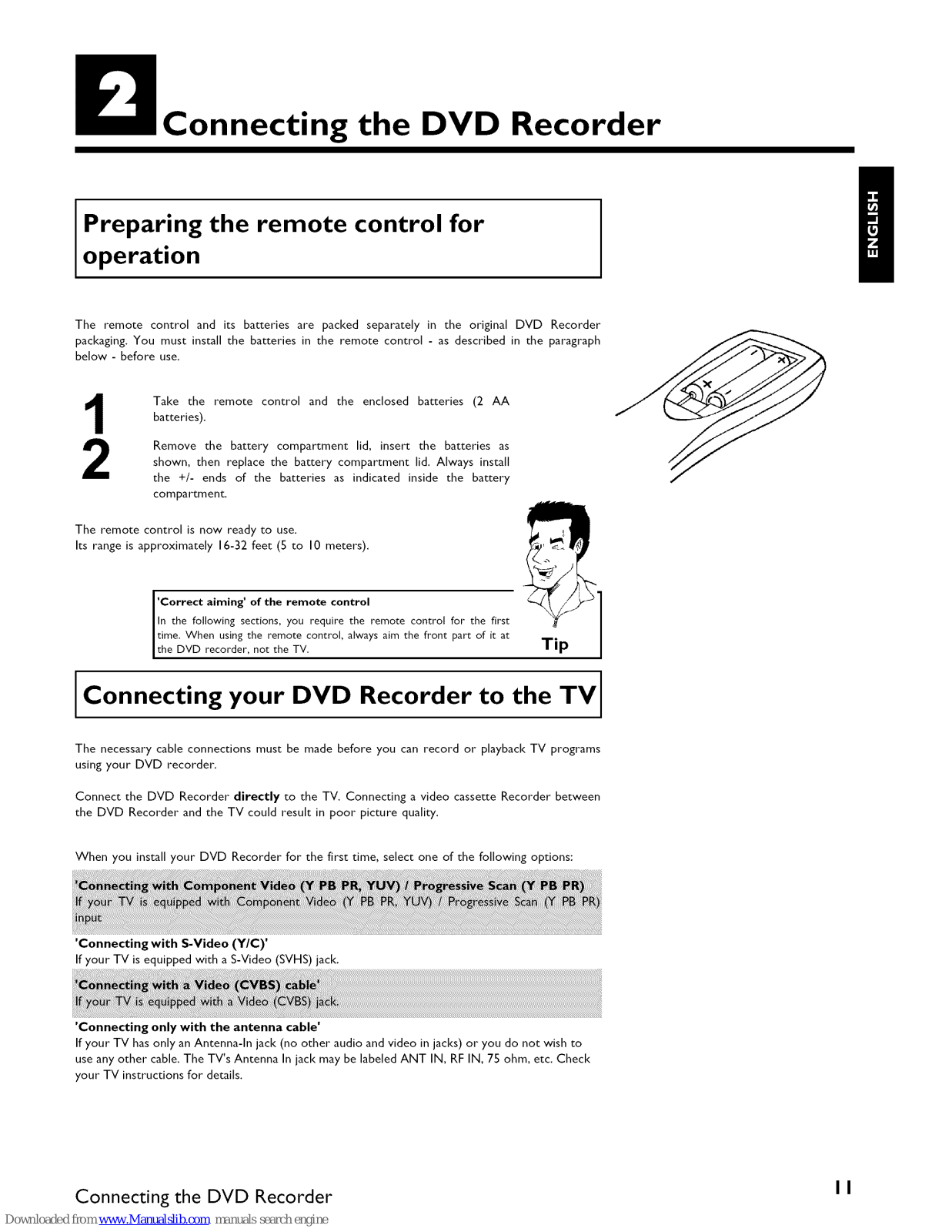

Preparing the remote control for operation

The remote control and its batteries are packed separately in the original DVD Recorder packaging. You must install the batteries in the remote control - as described in the paragraph

below - before use.

Take the remote control and the enclosed batteries (2 AA

batteries).

Remove the battery compartment lid, insert the batteries as

shown, then replace the battery compartment lid. Always install the +/- ends of the batteries as indicated inside the battery compartment.

The remote control is now ready to use.

Its range is approximately 16-32 feet (S to 10 meters).

'Correct aiming' of the remote control

In the following sections, you require the remote control for the first time. When using the remote control, always aim the front part of it at

the DVD recorder, not the TV.

Tip

Connecting your DVD Recorder to the TV

The necessary cable connections must be made before you can record or playback TV programs using your DVD recorder.

Connect the DVD Recorder directly to the TV. Connecting a video cassette Recorder between the DVD Recorder and the TV could result in poor picture quality.

When you install your DVD Recorder for the first time, select one of the following options:

'Connecting with S-Video (Y/C)'

If your TV is equipped with a S-Video (SVHS) jack.

'Connecting only with the antenna cable'

If your TV has only an Antenna-In jack (no other audio and video in jacks) or you do not wish to use any other cable. The TV's Antenna In jack may be labeled ANT IN, RF IN, 7S ohm, etc. Check

your TV instructions for details.

Connecting the DVD Recorder I I

Connecting with a Component Video (Y PB PR) cable

Component Video is the highest quality a system for transmitting video by splitting the video signal into the Y (brightness), U and V (red minus brightness, blue minus brightness) components.

The signals are sent over separate lines. The plus for these cables and the corresponding jacks are usually red, green, and blue.

In addition, the signal can be 'interlaced' or use 'progressive scan.'

Interlaced

The regular video/TV signal is interlaced, i.e. the even and odd lines are formed as half pictures

in an alternate fashion.

Progressive scan

With progressive scan, each picture is structured (approx. 50/60 times per second depending on the TV system) as a complete picture, i.e. the even and odd lines are formed together.

Disruptive picture flickering is avoided as is the case with 100 Hz TV devices.

Have the following cables ready: an antenna cable (I, supplied), a power cable (2, supplied), a Component Video (Y PB PR) cable

(3, red, green, blue jack) or a corresponding video-compatible cinch cable, an audio cable (4,

red/white jack).

Remove the antenna cable plug from your TV. Insert it into the

ANTENNA IN iack at the back of the DVD recorder.

Insert one end of the supplied antenna cable into the TV

OUT jack at the back of the DVD Recorder and the other end

into the antenna input jack at the back of the TV.

I 2 3 4

Use the Component Video (Y PB PR) cable and connect one end to the red, blue, green COMPONENT VIDEO Y PB PR OUT jacks at the back of the DVD Recorder and the other end to the Component Video In jacks of the TV.

If your TV set is equipped with a 'progressive scan' jack, please

use this iack. (Usually called 'Video In Y Cb Cr'. Please see your TV's instruction manual).

Please note the color order

The colors of the jacks on the DVD Recorder must match those on the TV (red-red/blue-blue/green-green). If they are not matched properly, this could cause the color of the picture to be reversed or there could be no picture at a .

Tip

Zv:0:T

OUT

12 Connecting the DVD Recorder

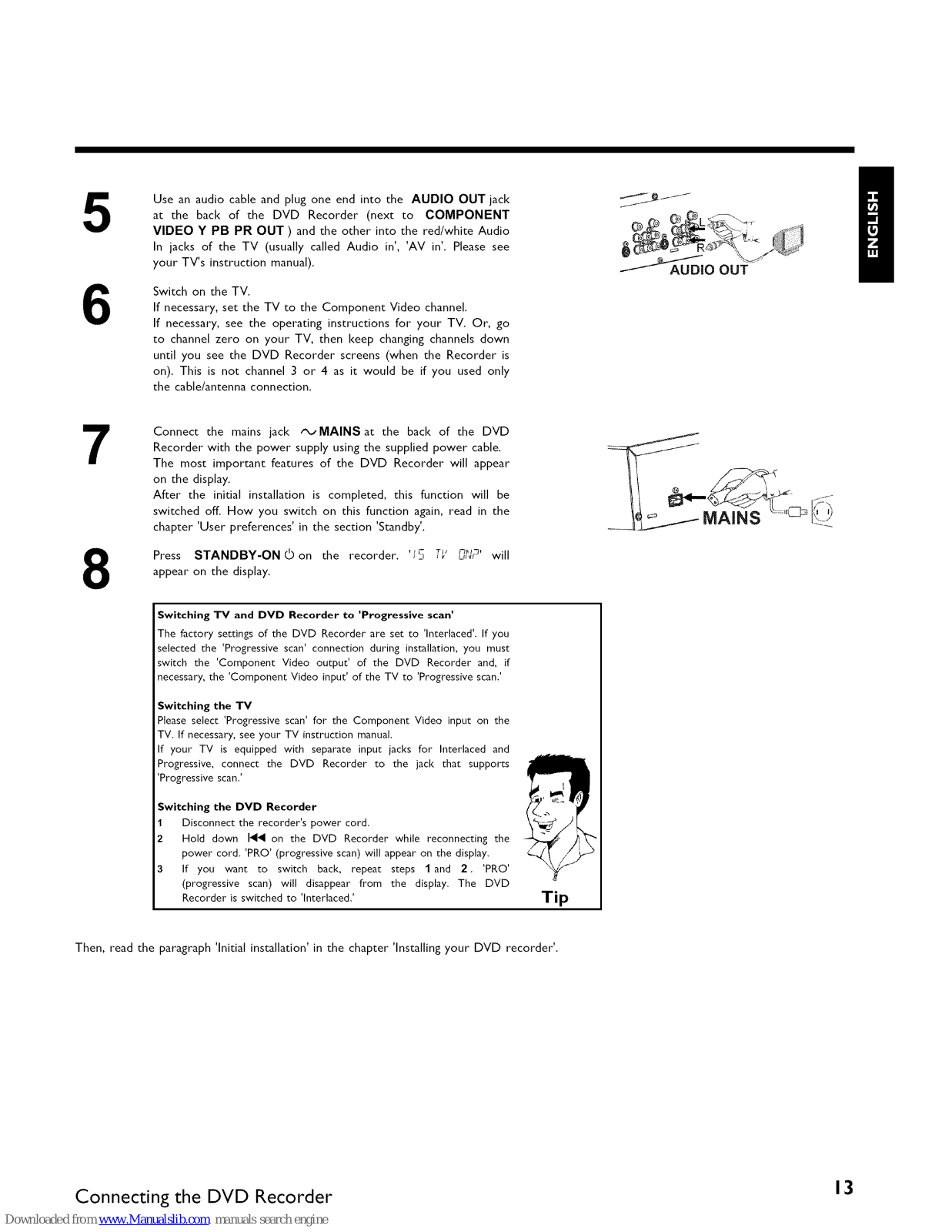

Use an audio cable and plug one end into the AUDIO OUT jack at the back of the DVD Recorder (next to COMPONENT VIDEO Y PB PR OUT ) and the other into the red/white Audio

In jacks of the TV (usually called Audio in'. 'AV in'. Please see your TV's instruction manual),

Switch on the TV.

If necessary, set the TV to the Component Video channel.

If necessary, see the operating instructions for your TV. Or, go to channel zero on your TV, then keep changing channels down

until you see the DVD Recorder screens (when the Recorder is on). This is not channel 3 or 4 as it would be if you used only

the cable/antenna connection.

Connect the mains jack _MAINS at the back of the DVD

Recorder with the power supply using the supplied power cable. The most important features of the DVD Recorder will appear

on the display. After the initial installation is completed, this function will be

switched off. How you switch on this function again, read in the chapter 'User preferences' in the section 'Standby'.

Press STANDBY-ON_)on the recorder. 'I_ TY n,,n,u_+r will

appear on the display.

Switching TV and DVD Recorder to 'Progressive scan' Tile factory settings of the DVD Recorder are set to 'Interlaced'. If you

selected the 'Progressive scan' connection during installation, you must switch the 'Component Video output' of the DVD Recorder and, if

necessary, the 'Component Video input' of the TV to 'Progressive scan.'

Switching the TV

Please select 'Progressive scan' for the Component Video input on the TV. If necessary, see your TV instruction manual. If your" TV is equipped with separate input jacks for Interlaced and

Progressive, connect the DVD Recorder to the jack that supports 'Progressive scan.'

Switching the DVD Recorder

Disconnect the recorder's power cord.

2 Hold down 14_1 on the DVD Recorder while reconnecting the

power cord. 'PRO' (progressive scan) will appear on the display.

3 If you want to switch back, repeat steps 1 and 2. 'PRO'

(progressive scan) will disappear from the display. The DVD

Recorder is switched to 'Interlaced.'

Tip

_.... MAINS :

Then, read the paragraph 'Initial installation' in the chapter 'Installing your DVD recorder'.

Connecting the DVD Recorder 13

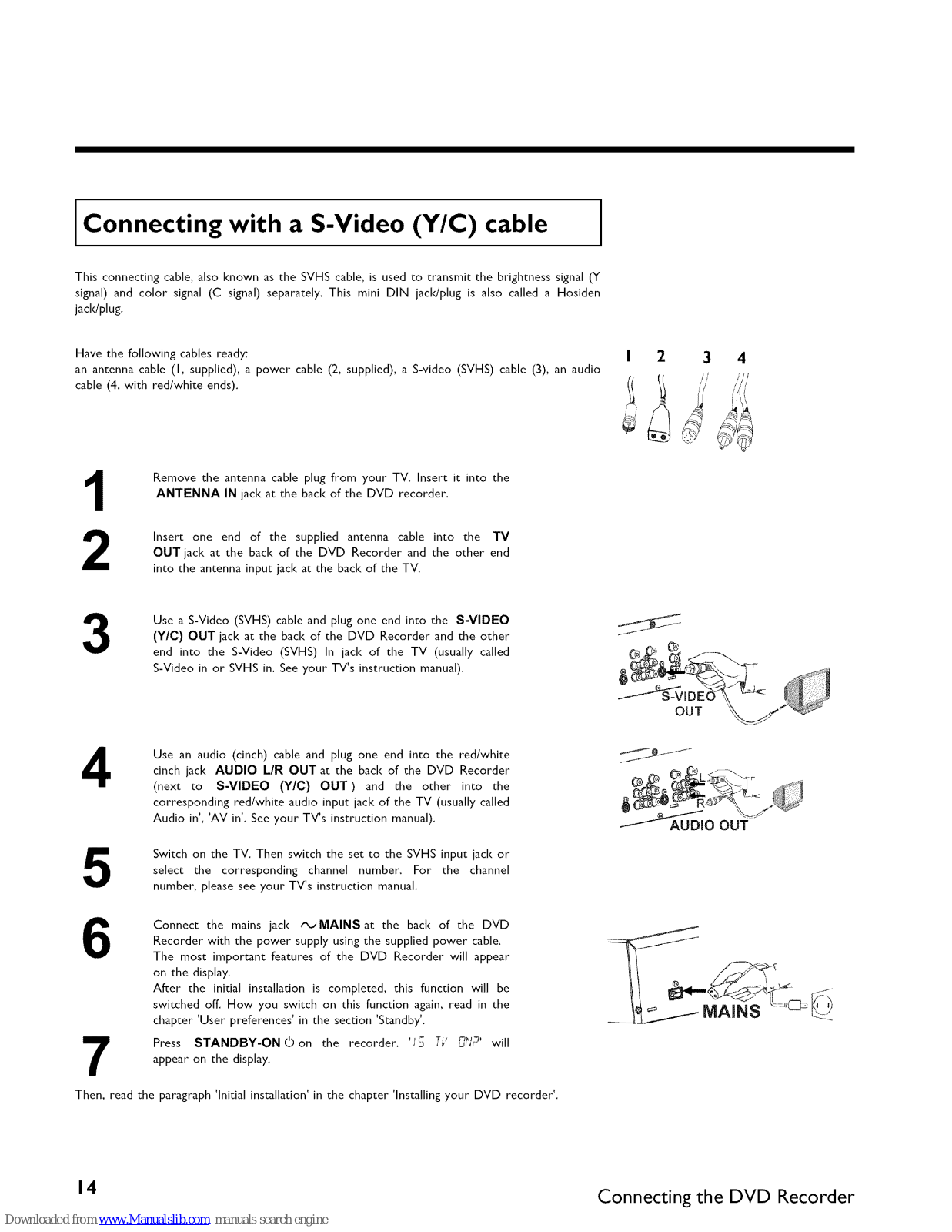

Connecting with a S-Video (Y/C) cable

This connecting cable, also known as the SVHS cable, is used to transmit the brightness signal (Y signal) and color signal (C signal) separately. This mini DIN jacldplug is also called a Hosiden

jack/plug.

Have the following cables ready: an antenna cable (I, supplied), a power came (2, supplied), a S-video (SVHS) cable (3), an audio cable (4, with red/white ends).

Remove the antenna cable plug from your TV. Insert it into the

ANTENNA IN jack at the back of the DVD recorder.

Insert one end of the supplied antenna cable into the TV

OUT jack at the back of the DVD Recorder and the other end

into the antenna input jack at the back of the TV.

I 2 3 4

Use a S-Video (SVHS) cable and plug one end into the S-VIDEO

(Y/C) OUT jack at the back of the DVD Recorder and the other end into the S-Video (SVHS) In jack of the TV (usually called S-Video in or SVHS in. See your TV's instruction manual).

Use an audio (cinch) cable and plug one end into the red/white cinch jack AUDIO L/R OUT at the back of the DVD Recorder

(next to S-VIDEO (Y/C) OUT) and the other into the corresponding red/white audio input jack of the TV (usually called Audio in', 'AV in'. See your TV's instruction manual).

Switch on the TV. Then switch the set to the SVHS input jack or select the corresponding channel number. For the channel

number, please see your TV's instruction manual.

Connect the mains jack _MAINS at the back of the DVD

Recorder with the power supply using the supplied power cable. The most important features of the DVD Recorder will appear

on the display. After the initial installation is completed, this function will be switched off. How you switch on this function again, read in the chapter 'User preferences' in the section 'Standby'.

Press STANDBY-ON©on the recorder. 'I_ TY n_,:>L.,'r will

appear on the display.

Then, read the paragraph 'Initial installation' in the chapter 'Installing your DVD recorder'.

I0 OUT

_....]_ MAINS : "_lug_._

14 Connecting the DVD Recorder

Connecting with Video (CVBS) cable

This cable, usually featuring yellow cinch plugs, is used for transmitting the Composite Video signal (FBAS, CVBS). In this method of transmission the color signal and the brightness signal are transmitted on the same cable. Under certain circumstances, this may lead to problems with the

picture, such as 'l'4oir6' patterns.

Have the following cables ready: an antenna cable (I, supplied), a power cable (2, supplied), a video (CVBS) cable (3, with yellow ends), and an audio cable (4 with red/white ends).

Remove the antenna or cable TV signal from your TV. Connect it

to the ANTENNA IN jack at the back of the DVD recorder.

Insert one end of the supplied antenna cable into the TV

OUTiack at the back of the DVD Recorder and the other end

into the antenna input jack at the back of the TV.

I 3 4

Use a video (CVBS) cable and plug one end into the yellow jack

VIDEO (CVBS) OUT at the back of the DVD Recorder and the

other end into the Video In jack (usually yellow) of the TV

(usually called Video in or AV in. See your TV's instruction

manual).

Use an audio (cinch) cable and plug one end into the red/white

cinch jack L AUDIO R OUT at the back of the DVD Recorder

(under to VIDEO (CVBS)) and the other into the corresponding red/white audio input jack of the TV (usually called Audio in', 'AV in'. See your TV's instruction manual).

Switch on the TV. Then switch the TV to the Video/Audio input jack or select the corresponding channel number. For the channel

number, please see your TV's instruction manual.

VIDEO (cvBs)

OUT

_DIO OUT

Connect the mains jack _MAINS at the back of the DVD

Recorder with the power supply using the supplied power cable. The most important features of the DVD Recorder will appear

Press STANDBY-ON Lb on the recorder. 'I_ T_' n,m,L.,r will appear on the display.

,_.t,1. ¸I

Then, read the paragraph 'Initial installation' in the chapter 'Installing your DVD recorder'.

Connecting the DVD Recorder 15

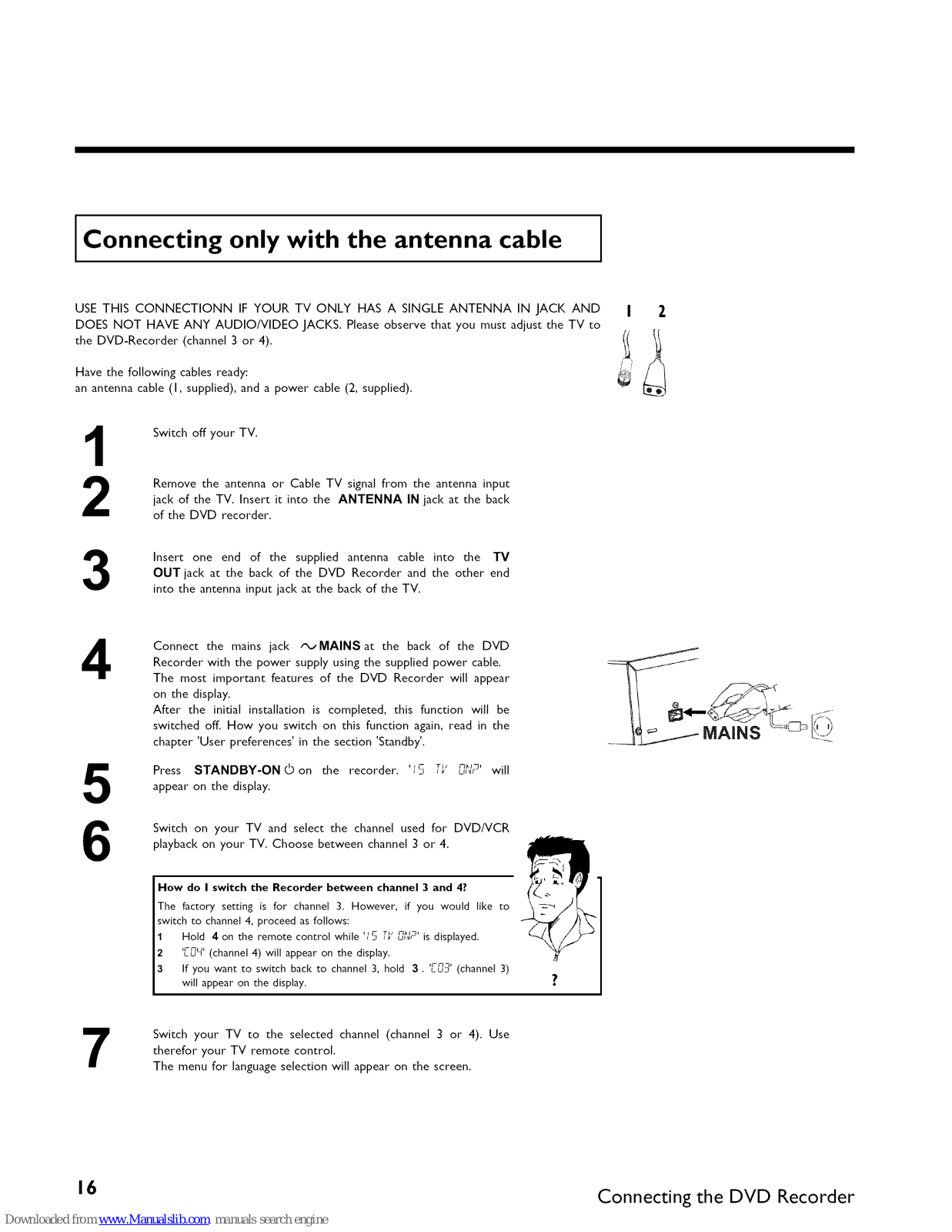

Connecting only with the antenna cable

USE THIS CONNECTIONN IF YOUR TV ONLY HAS A SINGLE ANTENNA IN JACK AND I _.

DOES NOT HAVE ANY AUDIO/VIDEO JACKS. Please observe that you must adjust the TV to

the DVD-Recorder (channel 3 or 4). It

Have the following cables ready:

an antenna cable (I, supplied), and a power cable (2, supplied).

Switch off your TV.

Remove the antenna or Cable TV signal from the antenna input jack of the TV. Insert it into the ANTENNA IN jack at the back

of the DVD recorder.

Insert one end of the supplied antenna cable into the TV OUT jack at the back of the DVD Recorder and the other end

into the antenna input jack at the back of the TV.

Connect the mains jack _MAINS at the back of the DVD

Recorder with the power supply using the supplied power cable. The most important features of the DVD Recorder will appear on the display. After the initial installation is completed, this function will be switched off. How you switch on this function again, read in the

chapter 'User preferences' in the section 'Standby'.

Press STANDBY-ON©on the recorder. 'I_ TJ/ n.,a,u_r will appear on the display.

,_.t,1. ¸I

Switch on your TV and select the channel used for DVDNCR

playback on your TV, Choose between channel 3 or 4.

How do I switch the Recorder between channel 3 and 4?

The factory setting is for channel 3. However, if you would like to switch to channel 4, proceed as follows: 1 Hold 4 on the remote control while ','5 TY ONr_' is displayed. 2 'EOff' (channel 4) will appear on the display. 3 If you want to switch back to channel 3, hold 3. 'EO3' (channel 3)

will appear on the display.

Switch your TV to the selected channel (channel 3 or 4). Use therefor your TV remote control.

The menu for language selection will appear on the screen.

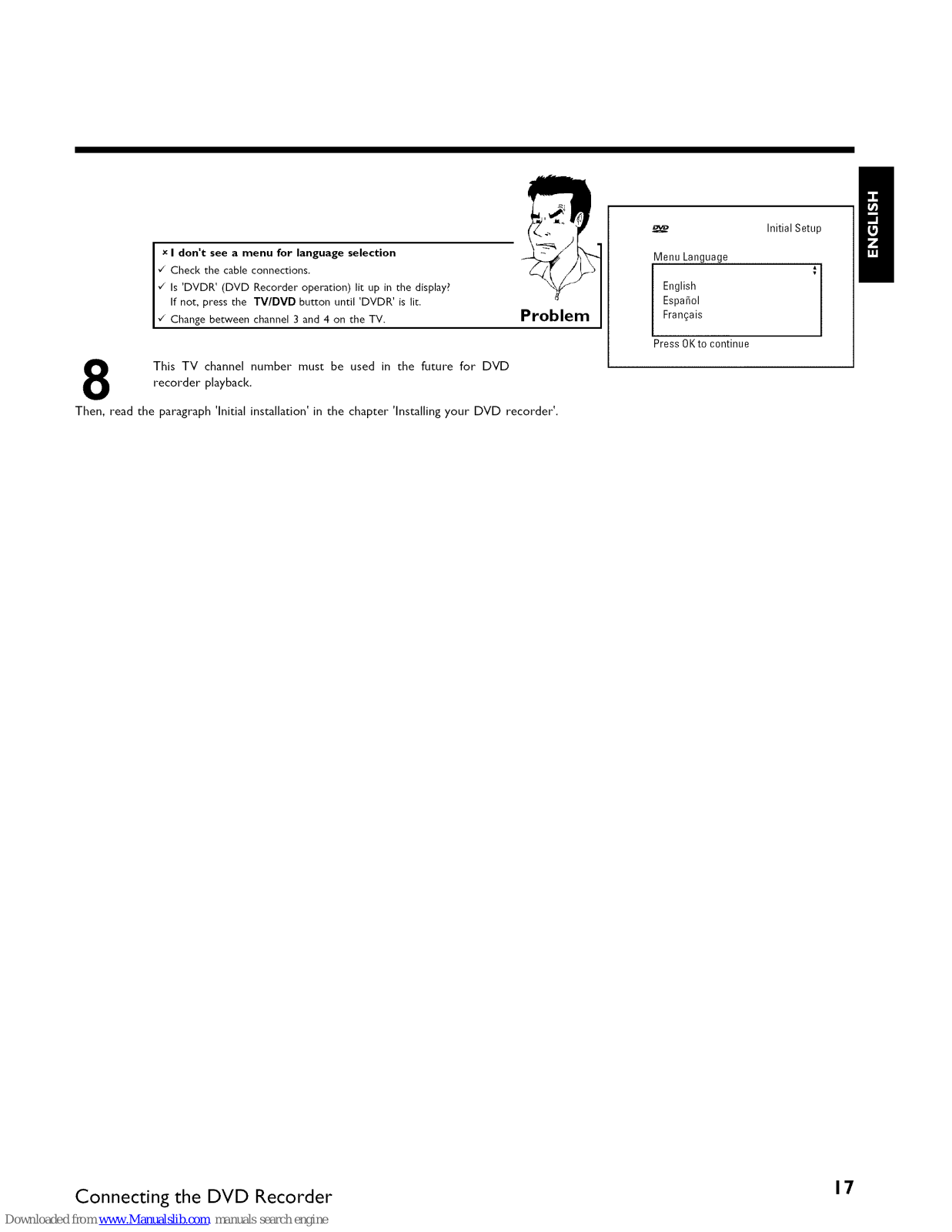

16 Connecting the DVD Recorder

x I don't see a menu for language selection

¢" Check the cable connections. "/ Is 'DVDR' (DVD Recorder operation) lit up in the display?

If not, press the TV/DVD button until 'DVDR' is lit

"/ Change between channel 3 and 4 on the TV.

Problem

This TV channel number must be used in the future for DVD

recorder playback.

Then, read the paragraph 'Initial installation' in the chapter 'Installing your DVD recorder'.

Initial Setup

Menu Language

English Espafiol Fran£ais

Press 0Kto continue

Connecting the DVD Recorder 17

Connecting additional devices

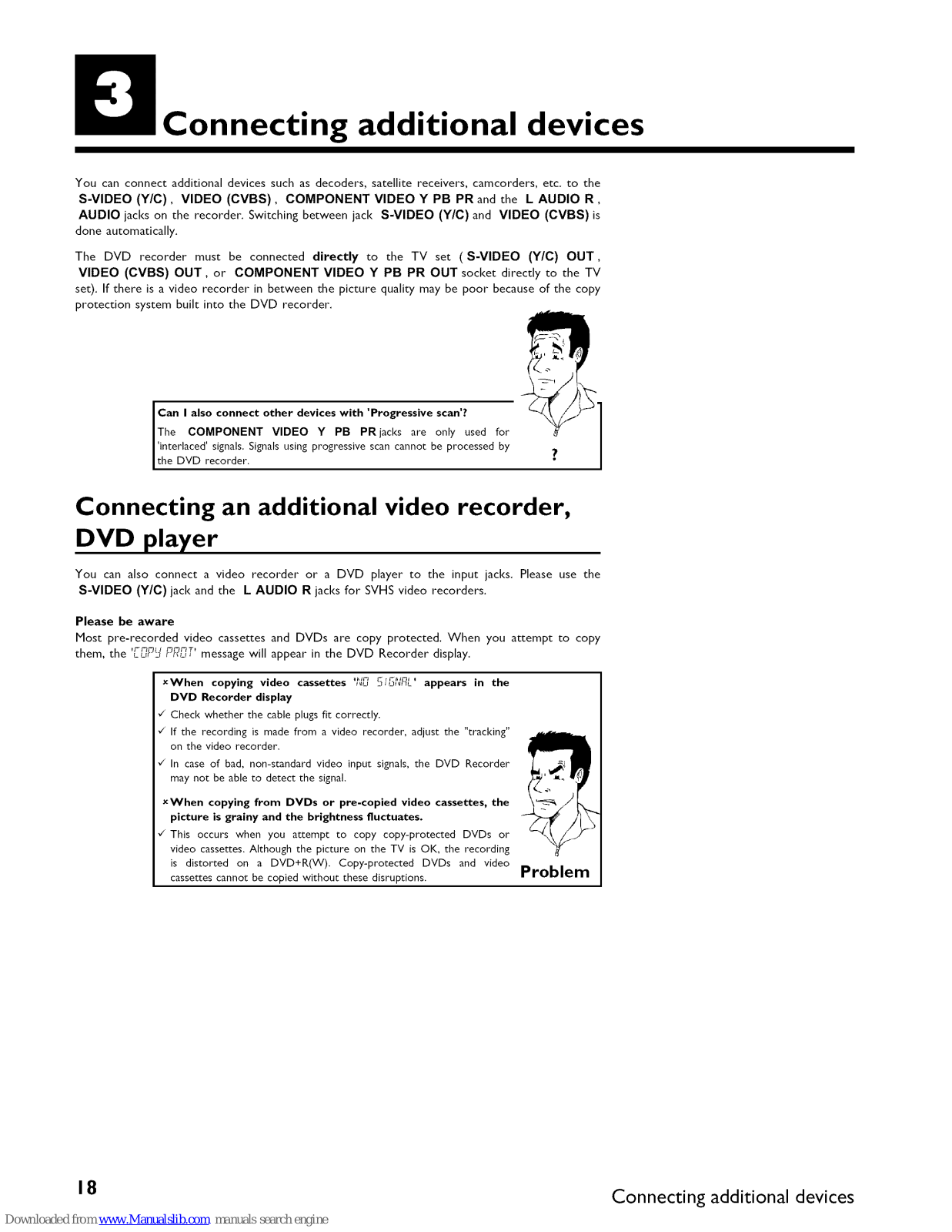

You can connect additional devices such as decoders, satellite receivers, camcorders, etc. to the

S-VIDEO (Y/C), VIDEO (CVBS), COMPONENT VIDEO Y PB PR and the L AUDIO R,

AUDIO jacks on the recorder, Switching between jack S-VIDEO (Y/C) and VIDEO (CVBS) is

done automatically,

The DVD recorder must be connected directly to the TV set (S-VIDEO (Y/C) OUT,

VIDEO (CVBS) OUT, or COMPONENT VIDEO Y PB PR OUT socket directly to the TV set), If there is a video recorder in between the picture quality may be poor because of the copy protection system built into the DVD recorder.

Can I also connect other devices with 'Progressive scan'? Tile COMPONENT VIDEO Y PB PRjacks are only used for

'interlaced' signals. Signals using progressive scan cannot be processed by

the DVD recorder.

Connecting an additional video recorder,

DVD player

You can also connect a video recorder or a DVD player to the input jacks. Please use the

S-VIDEO (Y/C) jack and the L AUDIO R jacks for SVHS video recorders,

Please be aware

Most pre-recorded video cassettes and DVDs are copy protected. When you attempt to copy

,rnn_, o_n T,

them, the Lu, J F F u message will appear in the DVD Recorder display,

xWhen copying video cassettes '_ _,'_NfYL' appears in the

DVD Recorder display

"/ Check whether the cable plugs fit correctly. ¢" If the recording is made from a video recorder, adjust the "tracking"

on the video recorder.

¢" In case of bad, non-standard video input signals, the DVD Recorder

may not be able to detect the signal.

xWhen copying from DVDs or pre-copied video cassettes, the

picture is grainy and the brightness fluctuates.

¢" This occurs when you attempt to copy copy-protected DVDs or

video cassettes. Although the picture on the TV is OK, the recording is distorted on a DVD+R(W). Copy-protected DVDs and video cassettes cannot be copied without these disruptions.

Problem

18 Connecting additional devices

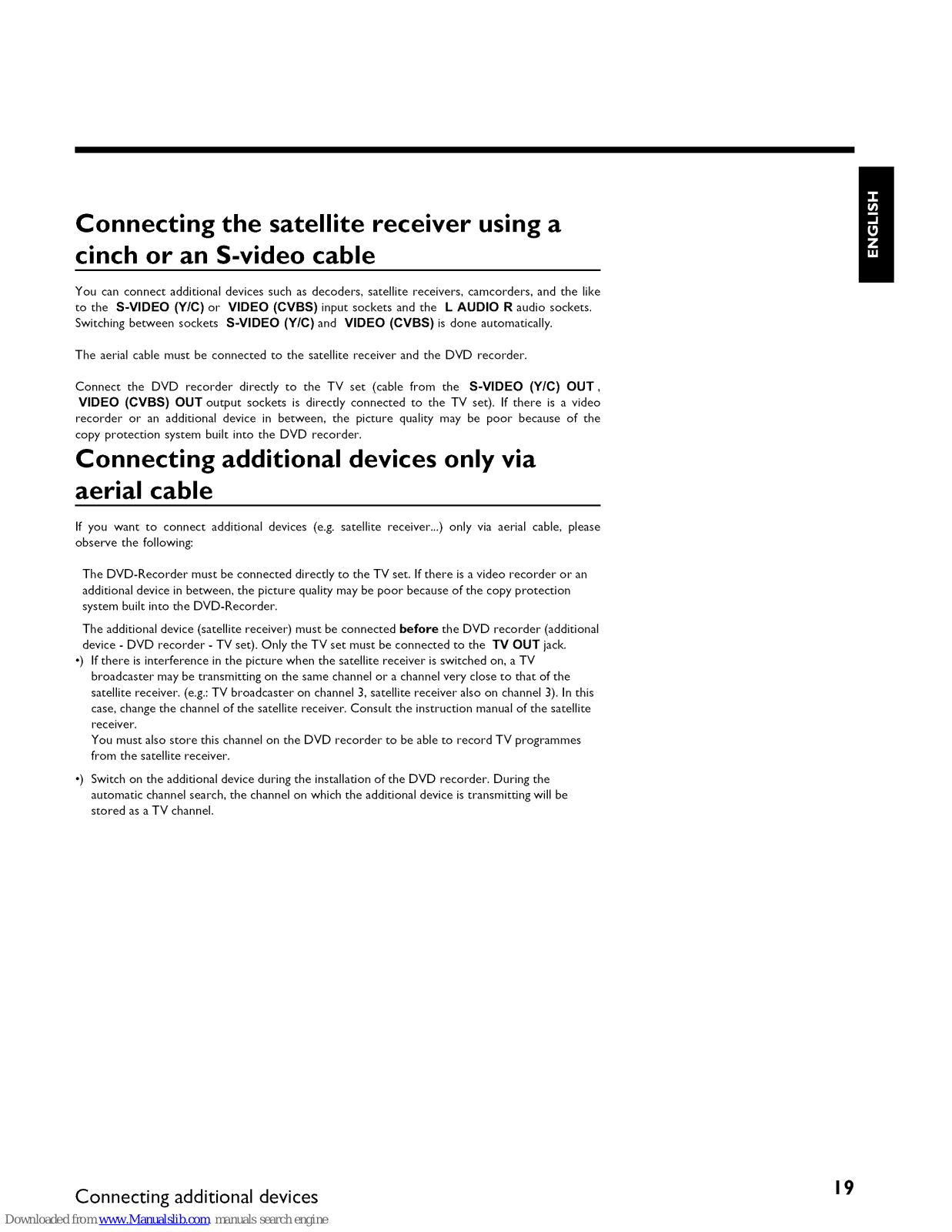

Connecting the satellite receiver using a cinch or an S-video cable

You can connect additional devices such as decoders, satellite receivers, camcorders, and the like to the S-VIDEO (Y/C) or VIDEO (CVBS) input sockets and the L AUDIO R audio sockets.

Switching between sockets S-VIDEO (Y/C) and VIDEO (CVBS) is done automatically.

The aerial cable must be connected to the satellite receiver and the DVD recorder.

Connect the DVD recorder directly to the TV set (cable from the S-VIDEO (Y/C) OUT,

VIDEO (CVBS) OUT output sockets is directly connected to the TV set). If there is a video

recorder or an additional device in between, the picture quality may be poor because of the copy protection system built into the DVD recorder.

Connecting additional devices only via aerial cable

If you want to connect additional devices (e.g. satellite receiver...) only via aerial cable, please observe the following:

The DVD-Recorder must be connected directly to the TV set. If there is a video recorder or an additional device in between, the picture quality may be poor because of the copy protection system built into the DVD-Recorder.

The additional device (satellite receiver) must be connected before the DVD recorder (additional device - DVD recorder - TV set). Only the TV set must be connected to the TV OUT jack.

•) If there is interference in the picture when the satellite receiver is switched on, a TV

broadcaster may be transmitting on the same channel or a channel very close to that of the

satellite receiver. (e.g.: TV broadcaster on channel 3, satellite receiver also on channel 3). In this case, change the channel of the satellite receiver. Consult the instruction manual of the satellite

receiver,

You must also store this channel on the DVD recorder tO be able to record TV programmes from the satellite receiver,

•) Switch on the additional device during the installation of the DVD recorder. During the

automatic channel search, the channel on which the additional device is transmitting will be stored as a TV channel.

Connecting additional devices 19

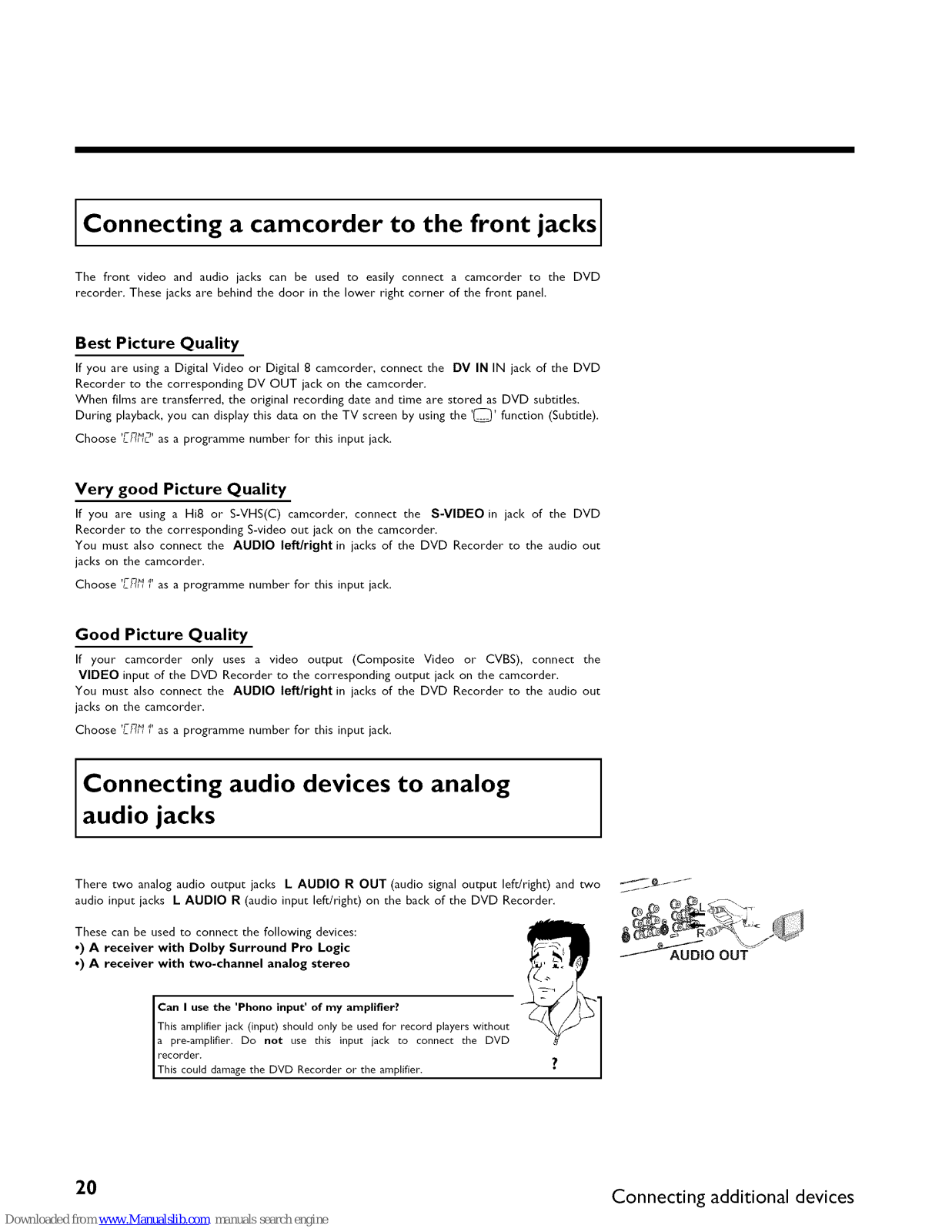

Connecting a camcorder to the front jacks

The front video and audio jacks can be used to easily connect a camcorder to the DVD

recorder. These jacks are behind the door in the lower right corner of the front panel.

Best Picture Quality

If you are using a Digital Video or Digital 8 camcorder, connect the DV IN IN jack of the DVD

Recorder to the corresponding DV OUT jack on the camcorder. When films are transferred, the original recording date and time are stored as DVD subtitles.

During playback, you can display this data on the TV screen by using the '(_' function (Subtitle).

Choose 'Lr_2 ' as a programme number for this input jack.

Very good Picture Quality

If you are using a Hi8 or S-VHS(C) camcorder, connect the S-VIDEO in jack of the DVD

Recorder to the corresponding S-video out jack on the camcorder. You must also connect the AUDIO left/right in jacks of the DVD Recorder to the audio out jacks on the camcorder.

Choose ,r_ _,_I'

Lf'_ as a programme number for this input jack.

Good Picture Quality

If your camcorder only uses a video output (Composite Video or CVBS), connect the

VIDEO input of the DVD Recorder to the corresponding output jack on the camcorder. You must also connect the AUDIO left/right in jacks of the DVD Recorder to the audio out jacks on the camcorder.

Choose 'Lr_ _' as a programme number for this input jack,

Connecting audio devices to analog audio jacks

There two analog audio output jacks L AUDIO R OUT (audio signal output left/right) and two audio input jacks L AUDIO R (audio input left/right) on the back of the DVD Recorder.

These can be used to connect the following devices:

•) A receiver with Dolby Surround Pro Logic

•) A receiver with two-channel analog stereo

Can I use the 'Phono input' of my amplifier?

This amplifier jack (input) should only be used for record players without a pre-amplifier. Do not use this input jack co connect the DVD

recorder.

This cou d damage the DVD Recorder or the amp ifier.

20 Connecting additional devices

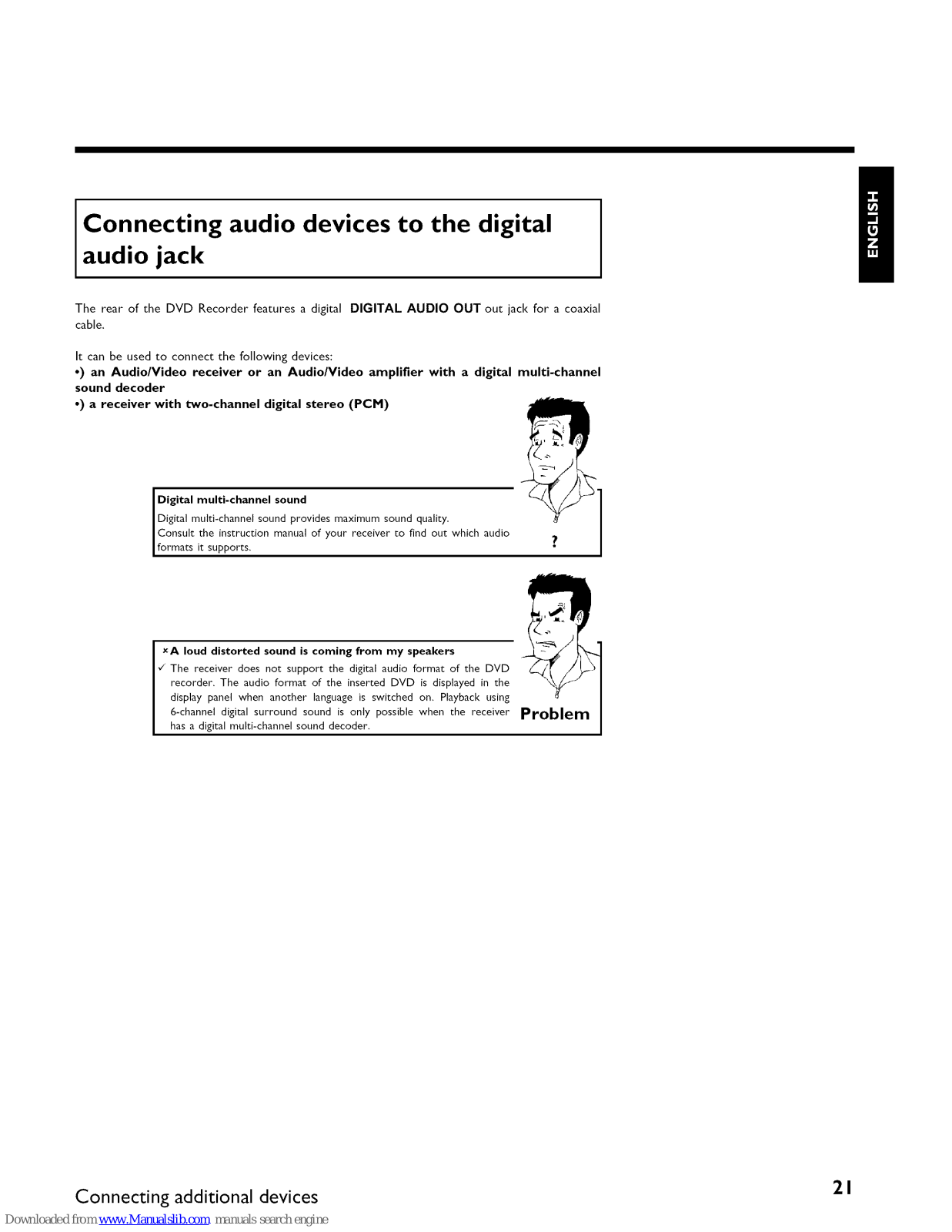

Connecting audio devices to the digital audio jack

The rear of the DVD Recorder features a digital DIGITAL AUDIO OUT out jack for a coaxial cable.

It can be used to connect the following devices:

•) an Audio/Video receiver or an Audio/Video amplifier with a digital multi-channel sound decoder

•) a receiver with two-channel digital stereo (PCM)

Digital multi-channel sound

Digital multi-channel sound provides maximum sound quality. Consult the instruction manual of your receiver to find out which audio formats it supports.

xA loud distorted sound is coming from my speakers

¢" The receiver does not support the digital audio format of the DVD

recorder. The audio format of the inserted DVD is displayed in the

display panel when another language is switched on. Playback using 6-channel digital surround sound is only possible when the receiver Problem

has a digital multi-channel sound decoder.

Connecting additional devices 21

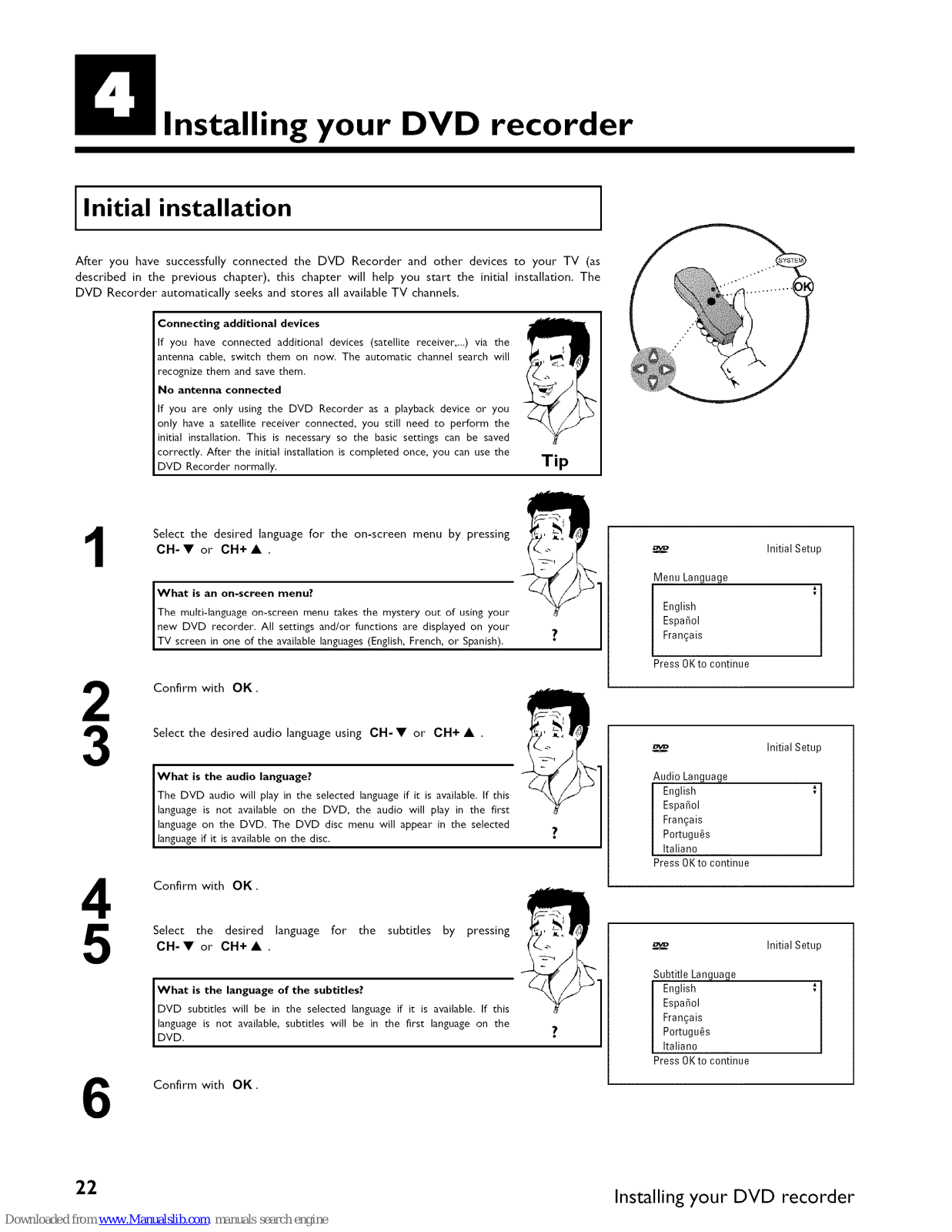

Installing your DVD recorder

Initial installation

After you have successfully connected the DVD Recorder and other devices to your TV (as described in the previous chapter), this chapter will help you start the initial installation. The

DVD Recorder automatically seeks and stores all available TV channels.

Connecting additional devices

If you have connected additional devices (satellite receiver,...) via the antenna cable, switch them on now. The automatic channel search will

recognize them and save them.

No antenna connected

If you are only using the DVD Recorder as a playback device or you only have a satellite receiver connected, you still need to perform the initial installation. This is necessary so the basic settings can be saved correctly. After the initial installation is completed once, you can use the DVD Recorder normally.

Tip

2 3

Select the desired languagefor the on-screen menu by pressing

CH-• or CH+• .

What is an on-screen menu?

Tile multi-language on-screen rnenu takes the mystery out of using your new DVD recorder. All settings and/or functions are displayed on your TV screen in one of the avai abe anguages (Eng ish, French, or Spanish).

Confirm with OK.

Select the desired audio language using CH- • or CH+ • .

What is the audio language? The DVD audio will play in the selected language if it is available. If this

language is not available on the DVD, the audio will play in the first language on the DVD. The DVD disc menu will appear in the selected

language if it is available on the disc.

Confirm with OK.

Select the desired language for the subtitles by pressing

CH-• or CH+• .

What is the language of the subtitles? DVD subtitles will be in the selected language if it is available. If this

language is not available, subtitles will be in the first language on the

DVD.

Confirm with OK.

Menu Language

English EspaSol Frangais

Press 0Kto continue

InitialSetup

Audio Lanquage

English EspaSol Fran_ais Portugu6s Italiano

Press 0Kto continue

Initial Setup

Subtitle Language

English EspaSol Fran_ais Portugu6s Italiano

Press 0Kto continue

InitialSetup

22 Installing your DVD recorder

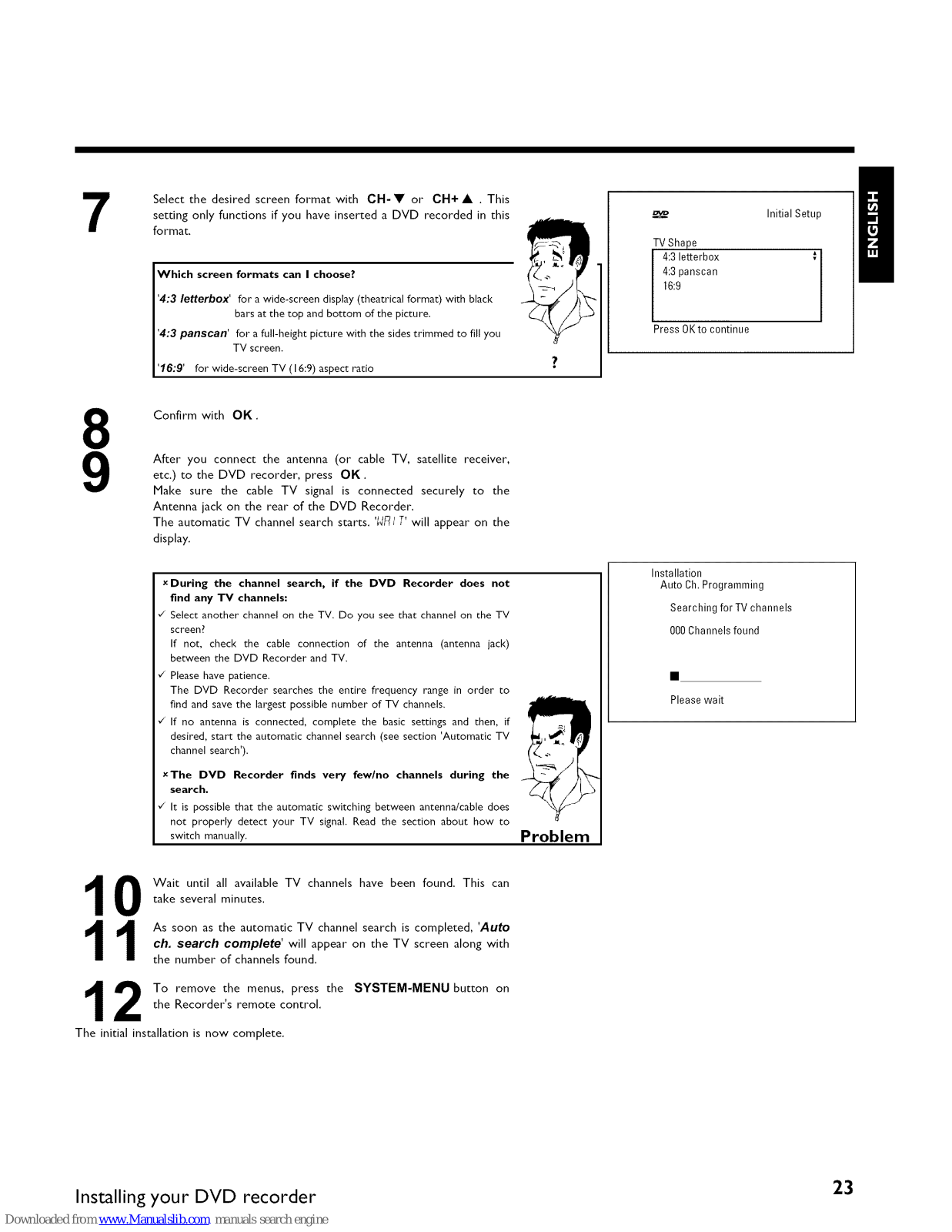

Select the desired screen format with OH- • or OH+ • . This setting only functions if you have inserted a DVD recorded in this

format.

Which screen formats can I choose?

'4:3 letterbo_ for a wide-screen display (theatrical format) with black

bars at the top and bottom of the picture.

'4:3 panscan' for a full-height picture with the sides trimmed to fill you

TV screen.

'16:9' for wide-screen TV (I 6:9) aspect ratio

TVShape

4:3 letterbox 4:3 panscan

16:9

InitialSetup

Press OKto continue

8 9

Confirm with OK.

After you connect the antenna (or cable TV, satellite receiver, etc.) to the DVD recorder, press OK.

Make sure the cable TV signal is connected securely to the Antenna jack on the rear of the DVD Recorder. The automatic TV channel search starts. '_f]I T' will appear on the display.

xDuring the channel search, if the DVD Recorder does not

find any TV channels:

-/ Select another channel on the TV. Do you see that channel on the TV

screen_

If not, check the cable connection of the antenna (antenna jack) between the DVD Recorder and TV.

"/ Please have patience.

The DVD Recorder searches the entire frequency range in order to find and save the largest possible number of TV channels.

"/ If no antenna is connected, complete the basic settings and then, if

desired, start the automatic channel search (see section 'Automatic TV channel search').

xThe DVD Recorder finds very few/no channels during the

search,

¢" It is possible that the automatic switcbing between antenna/cable does

not properly detect your TV signal. Read the section about how to switch manually. Problem

Installation

Auto Ch.Programming

Searching for TV channels 000Channels found

Please wait

Wait until all available TV channels have been found. This can take several minutes.

As soon as the automatic TV channel search is completed, 'Auto

ch. search complete' will appear on the TV screen along with

the number of channels found.

_1_ To remove the menus, press the SYSTEM-MENU button on

the Recorder's remote control.

The initial installation is now complete.

Installing your DVD recorder 23

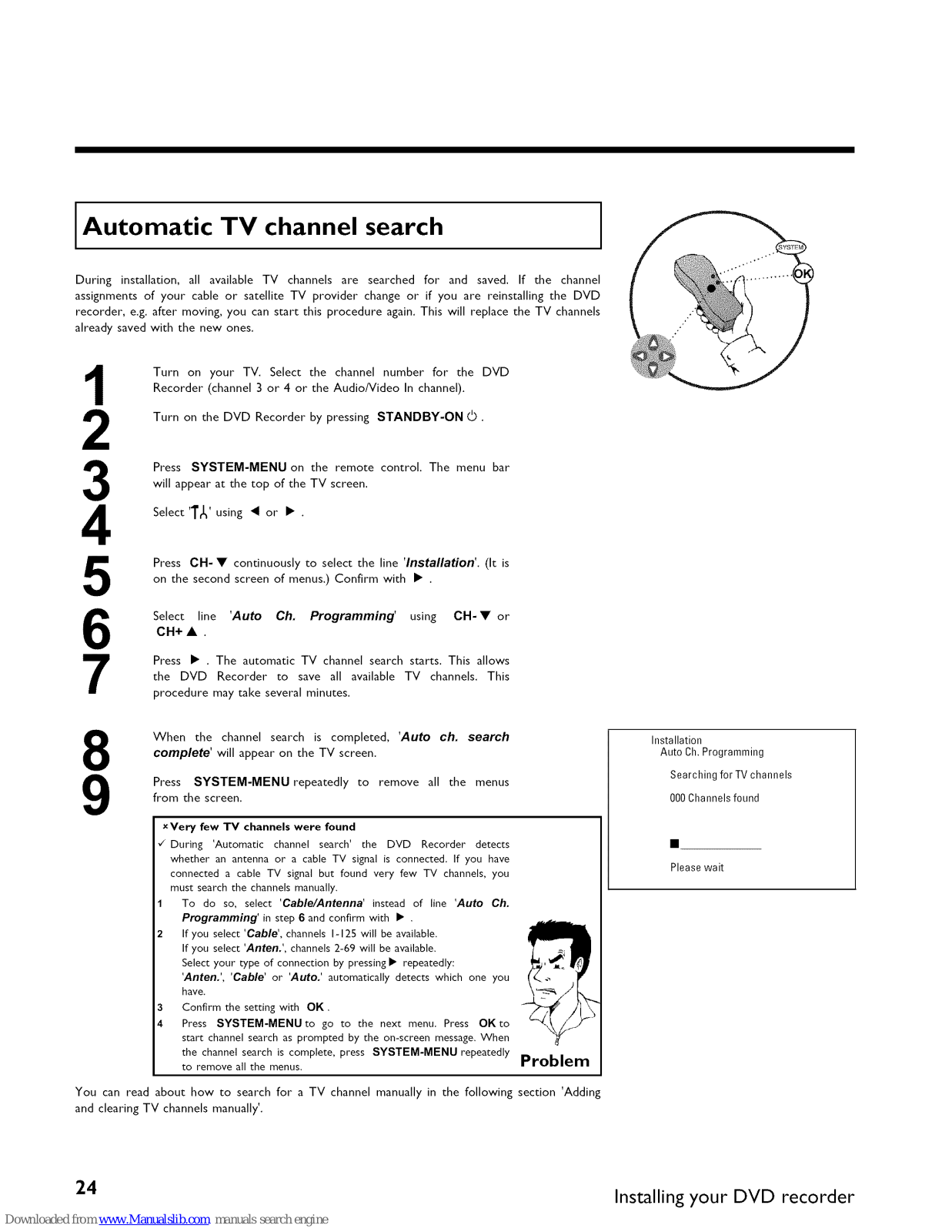

Automatic TV channel search

During installation, all available TV channels are searched for and saved. If the channel

assignments of your cable or satellite TV provider change or if you are reinstalling the DVD

recorder, e.g. after moving, you can start this procedure again. This will replace the TV channels

already saved with the new ones.

Turn on your TV. Select the channel number for the DVD

Recorder (channel 3 or 4 or the Audio/Video In channel).

Turn on the DVD Recorder by pressing STANDBY-ON (_

Press SYSTEM-MENU on the remote control. The menu bar will appear at the top of the TV screen.

Select 'T_' using _ or • .

Press CH- • continuously to select the line 'Installation'. (It is on the second screen of menus.) Confirm with • .

Select line 'Auto Ch. Programming' using CH-• or

CH+ • .

Press • . The automatic TV channel search starts. This allows the DVD Recorder to save all available TV channels. This

procedure may take several minutes.

8 9

When the channel search is completed, 'Auto ch. search

complete' will appear on the TV screen.

Press SYSTEM-MENU repeatedly to remove all the menus from the screen.

XVery few "IV channels were found

"/ During 'Automatic channel search'

the DVD Recorder detects

whether an antenna or a cable TV signal is connected. If you have connected a cable TV signal but found very few TV channels, you

must search the channels manually.

To do so, select 'Cable/Antenna' instead of line 'Auto Ch. Programming' in step 6 and confirm with •

If you select 'Cable', channels I-125 will be available. If you select 'Anten.', channels 2-69 will be available. Select your type of connection by pressing • repeatedly: 'Anten.', 'Cable' or 'Auto.' automatically detects which one you

have. Confirm the setting with OK Press SYSTEM-MENU to go to the next menu. Press OK to

star: channel search as prompted by the on-screen message. When the channel search is complete, press SYSTEM-MENU repeatedly Problem

to remove all the menus.

You can read about how to search for a TV channel manually in the following section 'Adding and clearing TV channels manually'.

Installation

Auto Ch,Programming

Searching for TV channels 000Channels found

Please wait

24 Installing your DVD recorder

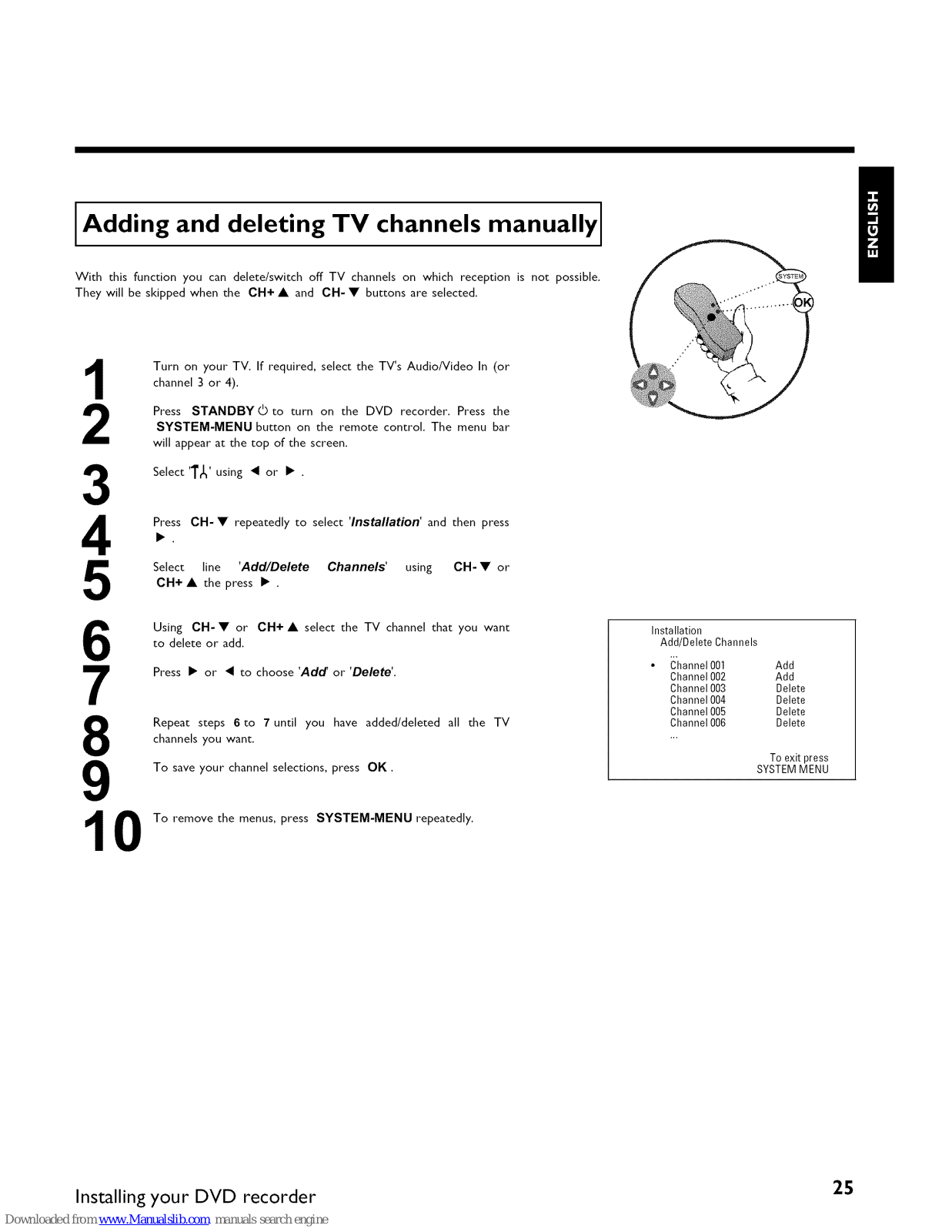

Adding and deleting TV channels manually

With this function you can delete/switch off TV channels on which reception is not possible. They will be skipped when the CH+ • and Cl-I- • buttons are selected.

Turn on your TV. If required, select the TV's Audio/Video In (or channel 3 or 4).

Press STANDBY(_ to turn on the DVD recorder. Press the

SYSTEM-MENU button on the remote control. The menu bar

will appear at the top of the screen.

Select 'T_' using • or • .

Press CH-• repeatedly to select 'Installation' and then press

Select line 'Add/Delete Channels' using CH- • or

CH+ • the press • .

8 9

Using CH-• or CH+ • select the TV channel that you want

to delete or add.

Press • or • to choose 'Add or 'Delete'.

Repeat steps 6 to 7 until you have added/deleted all the TV channels you want.

To save your channel selections, press OK.

To remove the menus, press SYSTEM-MENU repeatedly.

Installation

Add/Delete Channels

C'hanne1001 Add Channel002 Add Channel003 Delete Channel004 Delete Channel005 Delete Channel006 Delete

To exit press

SYSTEMMENU

Installing your DVD recorder 25

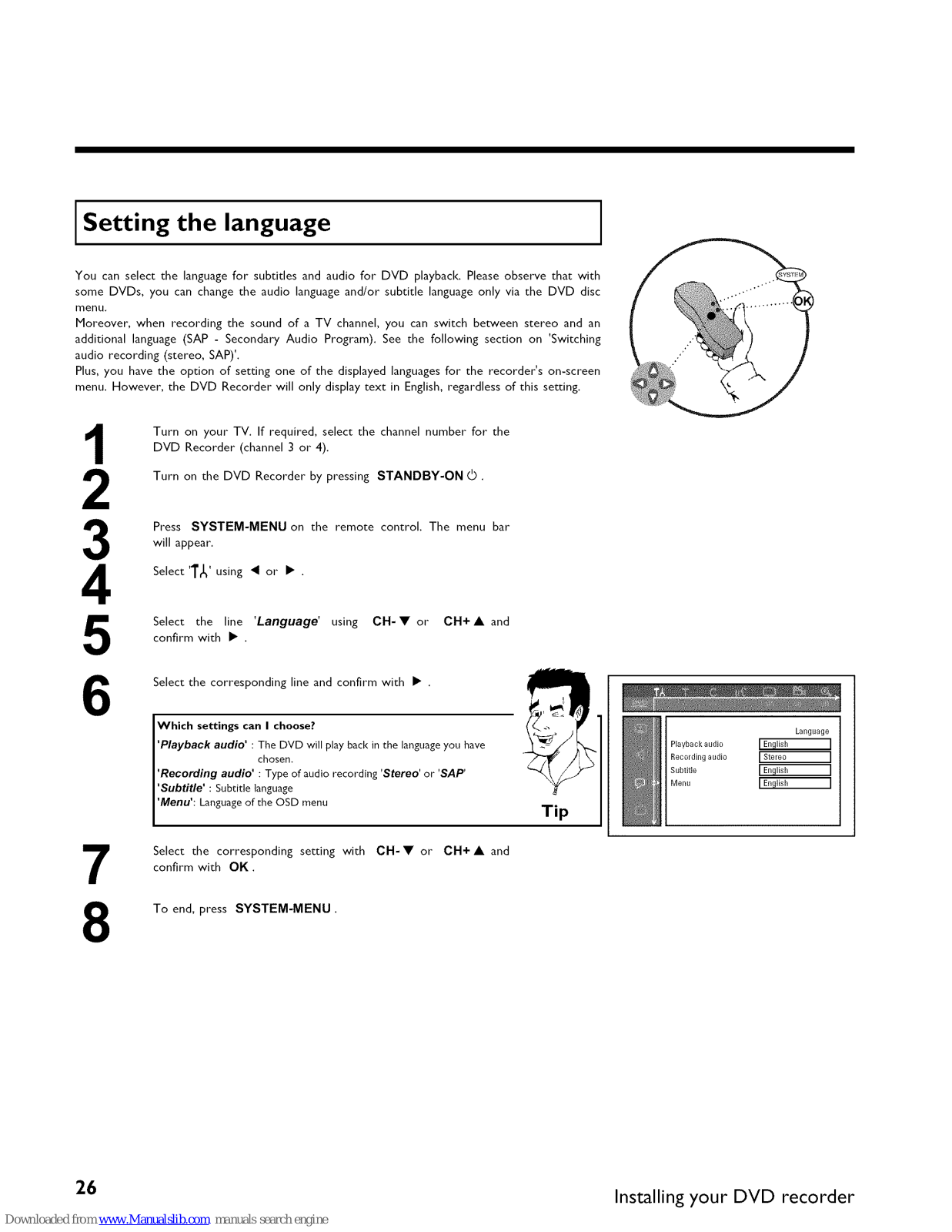

Setting the language

You can select the language for subtitles and audio for DVD playback. Please observe that with some DVDs, you can change the audio language and/or subtitle language only via the DVD disc

menu.

Moreover, when recording the sound of a TV channel, you can switch between stereo and an

additional language (SAP - Secondary Audio Program), See the folJowing section on 'Switching audio recording (stereo, SAP) _.

Plus, you have the option of setting one of the displayed languages for the recorder's on-screen

menu, However, the DVD Recorder will only display text in English, regardless of this setting.

Turn on your TV. If required, select the channel number for the

DVD Recorder (channel 3 or 4).

Turn on the DVD Recorder by pressing STANDBY-ON (_.

Press SYSTEM-MENU on the remote control, The menu bar will appear.

Select 'T_' using _ or •

Select the line 'Language' using CH-• or CH+A and confirm with •

Select the corresponding line and confirm with • .

Which settings can I choose? 'Playback audio' : The DVD will play back in the language you have

chosen.

'Recording audio' : Type of audio recording 'Stereo' or 'SAP' 'Subtitle' : Subtitle language

'Menu': Language of the OSD menu

Tip

Language Playback audio I Enqlish I Recording audio I Stele0 I

Subtitle IEnglish I Menu IEnglish I

Select the corresponding setting with OH-• or OH+ • and confirm with OK.

To end, press SYSTEM-MENU

26 Installing your DVD recorder

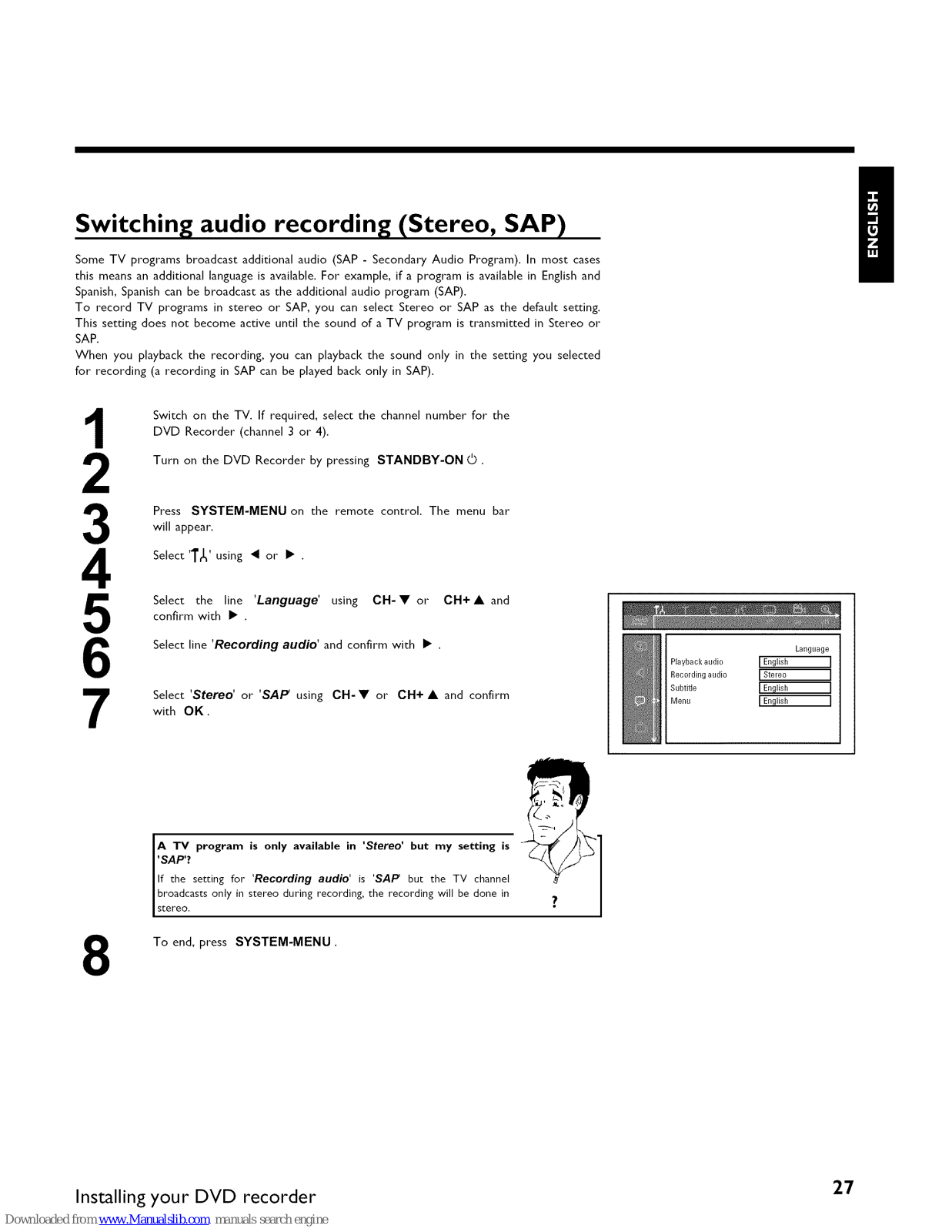

Switching audio recording (Stereo, SAP)

Some TV programs broadcast additional audio (SAP - Secondary Audio Program). In most cases this means an additional language is available For example, if a program is available in English and Spanish, Spanish can be broadcast as the additional audio program (SAP) To record TV programs in stereo or SAP, you can select Stereo or SAP as the default setting. This setting does not become active until the sound of a TV program is transmitted in Stereo or

SAP When you playback the recording, you can playback the sound only in the setting you selected

for recording (a recording in SAP can be played back only in SAP).

Switch on the TV. If required, select the channel number for the

DVD Recorder (channel 3 or 4).

Turn on the DVD Recorder by pressing STANDBY-ON (_

Press SYSTEM-MENU on the remote control. The menu bar

will appear.

Select 'T_' using _ or • .

Select the line 'Language' using CH-V or CH+A and confirm with • .

Select line 'Recording audio' and confirm with • .

Select 'Stereo' or 'SAI _ using CH-• or CH+ • and confirm with OK.

Language Playback audio I English I Recording audio I Stereo I

Subtitle IEnglish I

Menu I English I

A TV program is only available in 'Stereo' but my setting is 'SAP'?

If tile setting for 'Recording audio' is 'SAP but tile TV channel broadcasts only in stereo during recording, the recording will be done in

stereo.

To end, press SYSTEM-MENU

Installing your DVD recorder 27

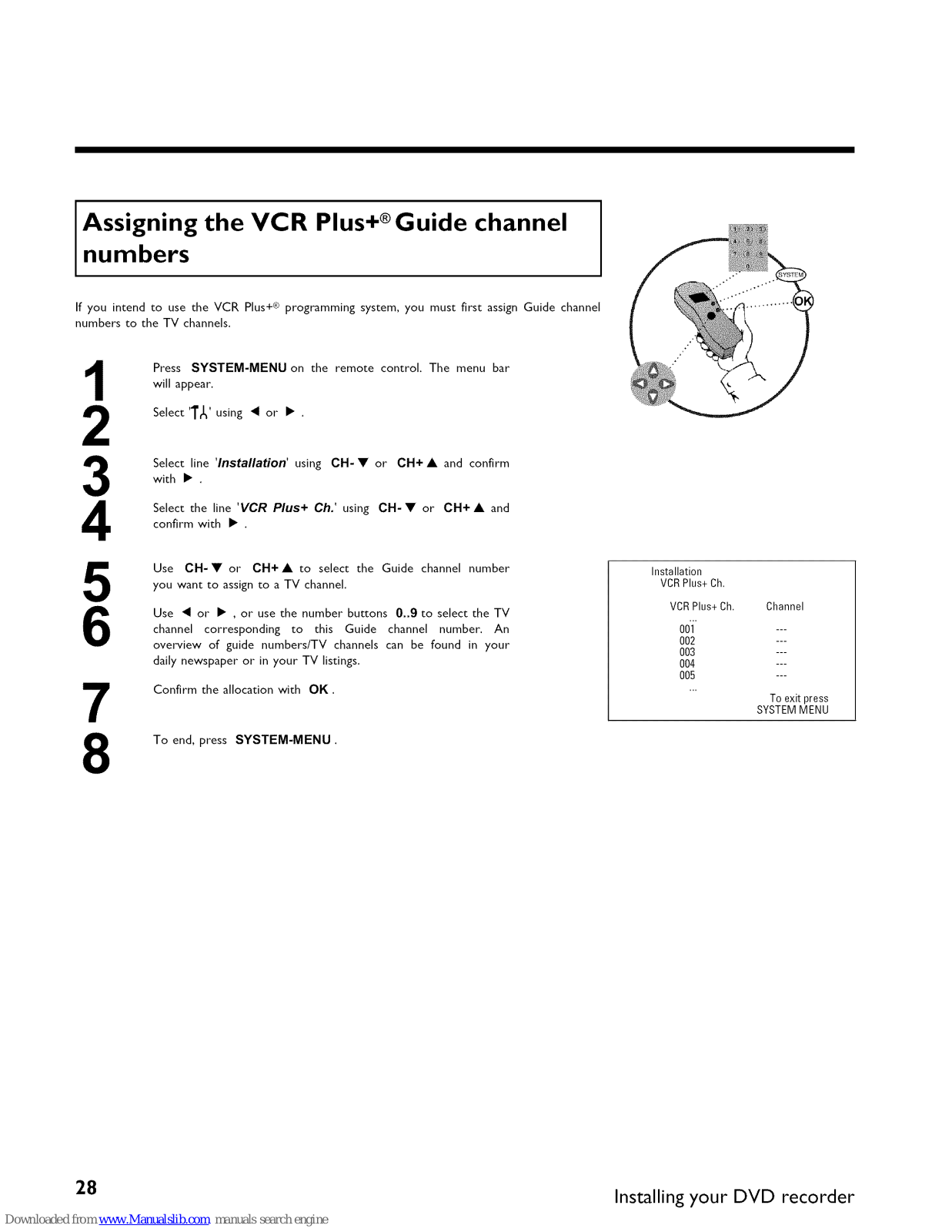

Assigning the VCR Plus+ ®Guide channel

numbers

If you intend to use the VCR Plus+ ® programming system, you must first assign Guide channel

numbers to the TV channels.

6 8

Press SYSTEM-MENU on the remote control. The menu bar

will appear.

Select 'T_' using • or • .

Select line 'Installation' using CH-• or CH+ • and confirm with •.

Select the line 'VCR Plus+ Ch.' using CH-• or CH+ • and confirm with • .

Use CH-• or CH+• to select the Guide channel number

you want to assign to a TV channel.

Use • or • , or use the number buttons 0..9 to select the TV channel corresponding to this Guide channel number. An overview of guide numbers/TV channels can be found in your daily newspaper or in your TV listings.

Confirm the allocation with OK.

To end, press SYSTEM-MENU

Installation

VCRPlus+ Ch.

VCRPlus+ Ch. Channel

O0'i' --- 002 --- 003 --- 004 --- 005 ---

To exit press

SYSTEMMENU

28 Installing your DVD recorder

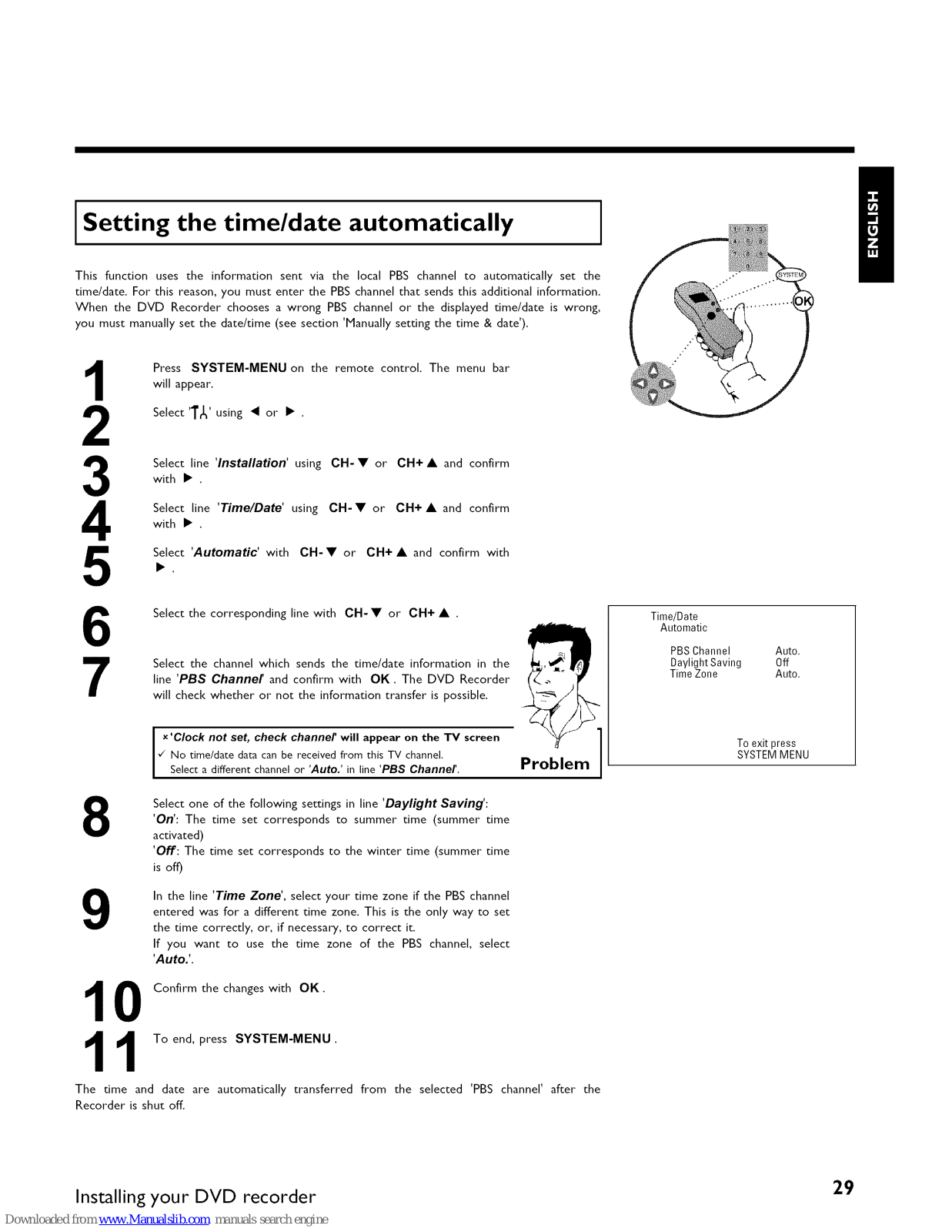

Setting the time/date automatically

This function uses the information sent via the local PBS channel to automatically set the time/date. For this reason, you must enter the PBS channel that sends this additional information. When the DVD Recorder chooses a wrong PBS channel or the displayed time/date is wrong, you must manually set the date/time (see section 'Manually setting the time & date').

Press SYSTEM-MENU on the remote control. The menu bar will appear.

Select 'T_' using _ or • .

Select line 'Installation' using CH-• or CH+ • and confirm with •.

Select line 'Time/Date' using OH-• or OH+ • and confirm with •.

Select 'Automatic' with CH-• or CH+ • and confirm with

6 7

Select the corresponding line with CH- • or CH+ •

Select the channel which sends the time/date information in the

line 'PBS Channel' and confirm with OK. The DVD Recorder will check whether or not the information transfer is possible.

x'Clock not set, check channel will appear on the TV screen

¢" No time/date data can be received from this TV channel.

Select a different channel or 'Auto.' in line 'PBS Channel. Problem

8 9

Select one of the following settings in line 'Daylight Saving': 'On': The time set corresponds to summer time (summer time activated) 'Off: The time set corresponds to the winter time (summer time

isoff)

In the line 'Time Zone', select your time zone if the PBS channel entered was for a different time zone. This is the only way to set the time correctly, or, if necessary, to correct it.

If you want to use the time zone of the PBS channel, select 'Auto.'.

Confirm the changes with OK.

To end, press SYSTEM-MENU

The time and date are automatically transferred from the selected 'PBS channel' after the

Recorder is shut off.

Time/Date

Automatic

PBSChannel Auto. Daylight Saving Off

Time Zone Auto.

To exit press SYSTEMMENU

Installing your DVD recorder 29

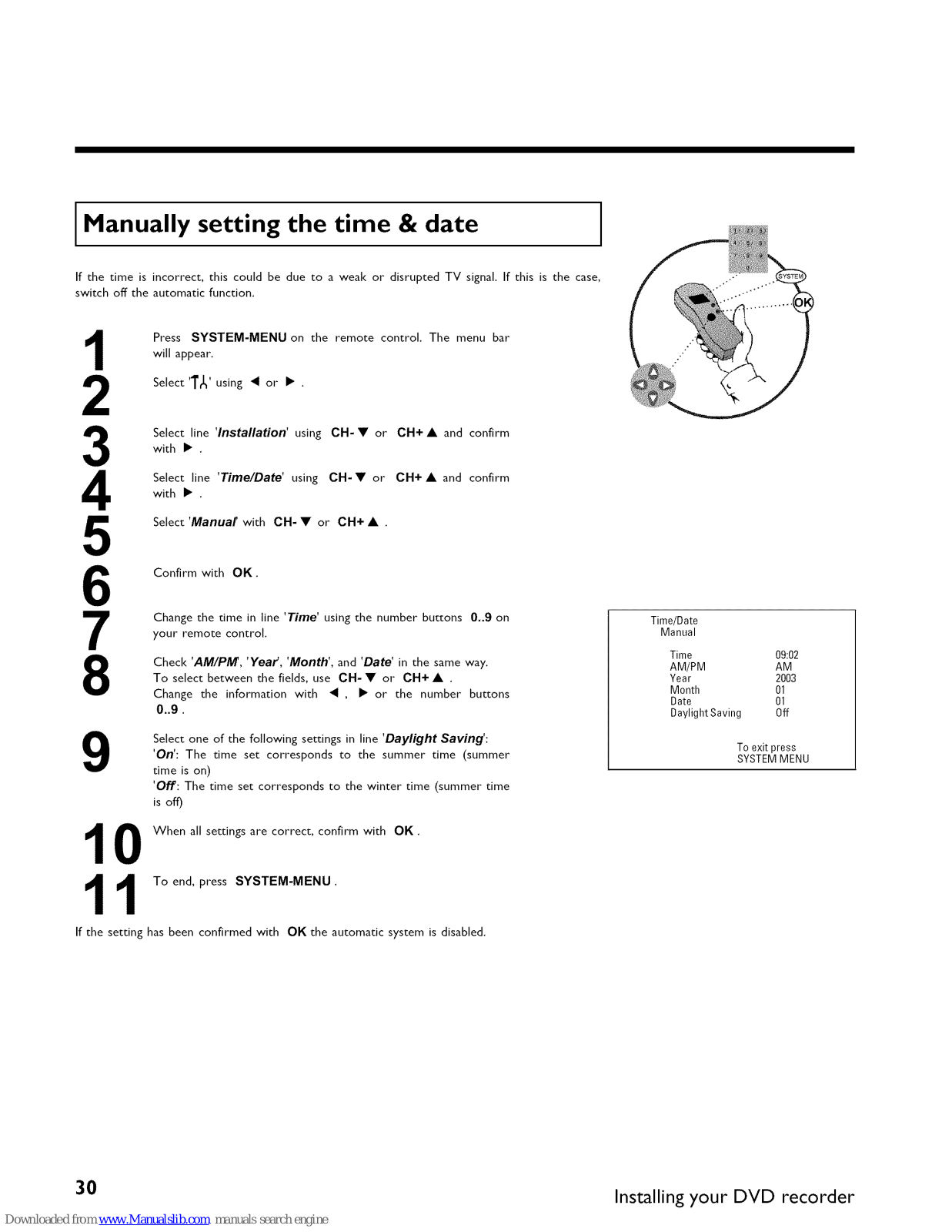

Manually setting the time & date

If the time is incorrect, this could be due to a weal< or disrupted TV signal. If this is the case,

switch off the automatic function.

Press SYSTEM-MENU on the remote control. The menu bar will appear.

Select 'Tg' using _ or •

Select line 'Installation' using CH-• or CH+ • and confirm with •.

Select line 'Time/Date' using OH-• or OH+ • and confirm with •.

Select 'Manual with CH- • or CH+ • .

Confirm with OK.

Change the time in line 'Time' using the number buttons 0,.9 on your remote control.

Check 'AM/PI_, 'Year, 'Month', and 'Date' in the same way. To select between the fields, use CH- • or CH+ • .

Change the information with 4, • or the number buttons

0..9.

Select one of the following settings in line 'Daylight Saving': 'On': The time set corresponds to the summer time (summer time is on) 'Off: The time set corresponds to the winter time (summer time

is off)

When all settings are correct, confirm with OK.

To end, press SYSTEM-MENU

If the setting has been confirmed with OK the automatic system is disabled.

Time/Date

Manual

Time 09:02 AM/PM AM

Year 2003 Month 01 Date 01 Daylight Saving Off

To exit press SYSTEMMENU

30 Installing your DVD recorder

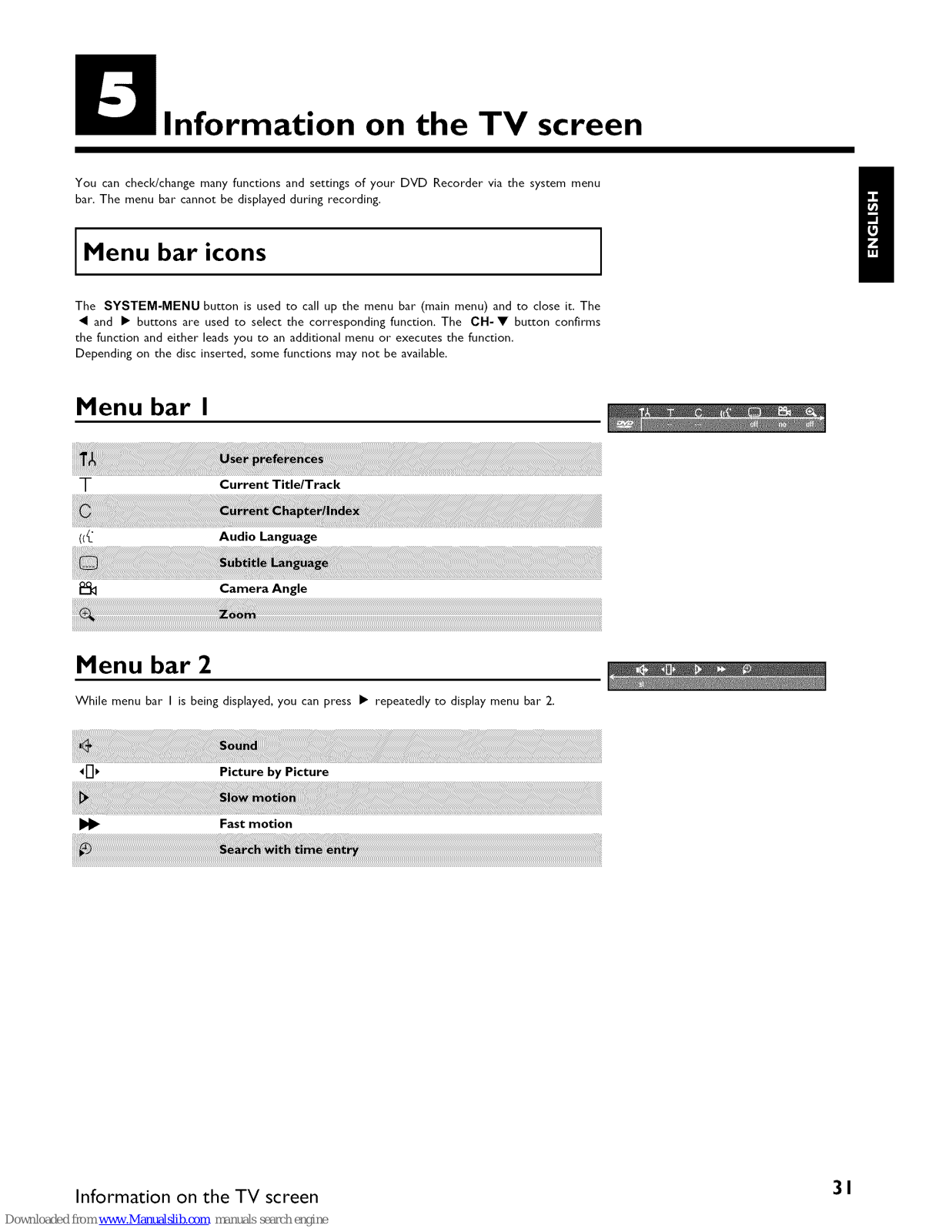

Information on the TV screen

You can check/change many functions and settings of your DVD Recorder via the system menu bar. The menu bar cannot be displayed during recording.

Menu bar icons

The SYSTEM-MENU button is used to call up the menu bar (main menu) and to close it. The

and • buttons are used to select the corresponding function. The CH- • button confirms

the function and either leads you to an additional menu or executes the function.

Depending on the disc inserted, some functions may not be available.

Menu bar I

T Current Title/Track

(i/_ Audio Language

Camera Angle

Menu bar 2

While menu bar I is being displayed, you can press • repeatedly to display menu bar 2.

_1_ Picture by Picture

_1_ Fast motion

Information on the TV screen 3 1

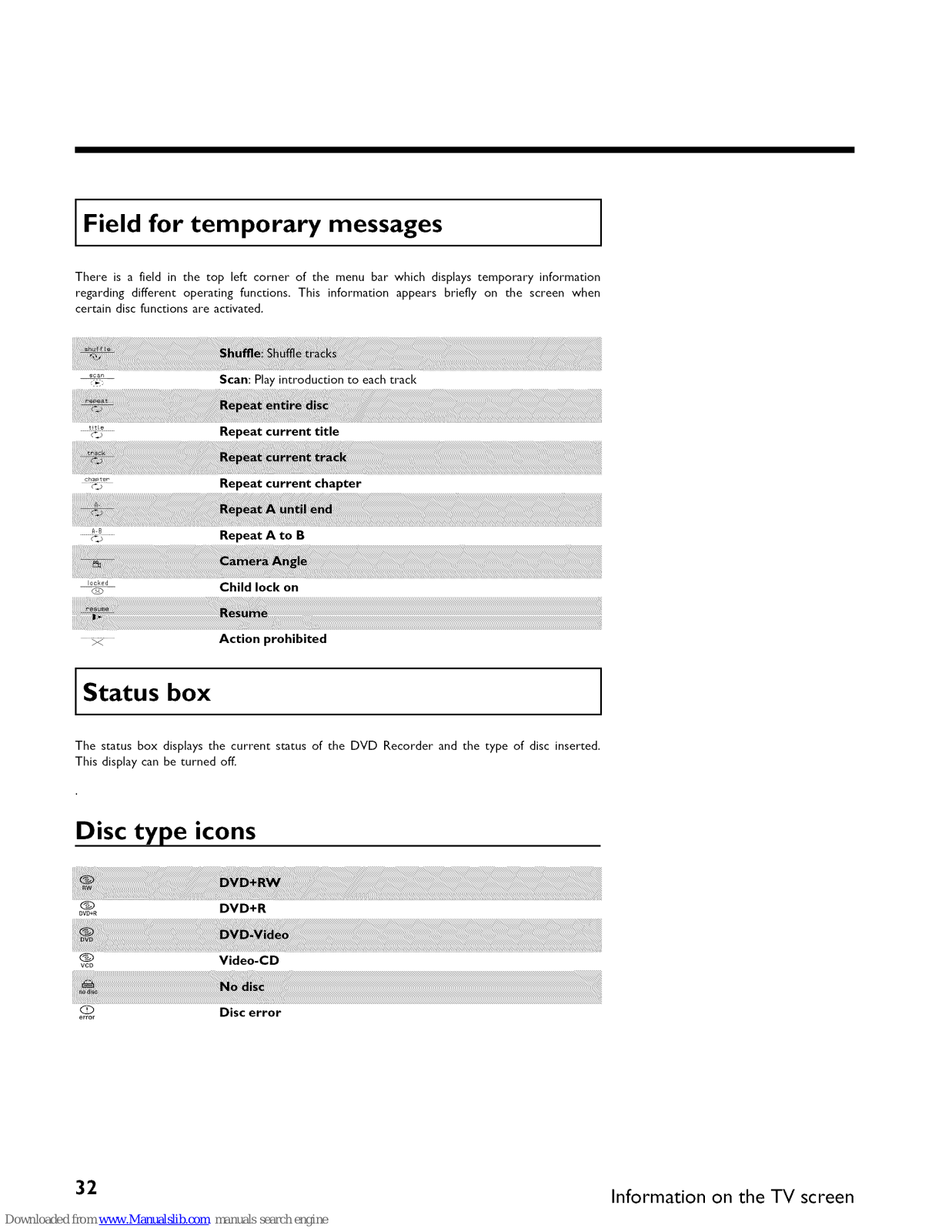

Field for temporary messages

There is a field in the top left corner of the menu bar which displays temporary information

regarding different operating functions. This information appears briefly on the screen when

certain disc functions are activated.

Scan: Play introduction to each track

title

c_ Repeat current title

Repeat current chapter

_ Repeat A to B

locked

0©

Status box

Child lock on

Action prohibited

The status box displays the current status of the DVD Recorder and the type of disc inserted. This display can be turned off.

Disc type icons

DVD+R

Video-CD

VCD

Q Disc error

error

32 Information on the TV screen

Disc status icons

s_'0p Stop

II Pause play

pause

Fast forward (x8)

Slow motion

slow

Tuner info box

This box appears in the bottom left corner of the TV screen. It displays the current antenna signal, the TV channel, and the channel name of the program you just selected.

"1!× No Signal

TV channel is not available or reception to too weak / Device is not

connected or is turned off

Timer info box

This box is located above the tuner info box. When a recording is programmed (timer), it shows the time symbol and the start time or the date of the first programmed recording. When no timer is programmed, the current time will be displayed. This box is not displayed during disc playback or recording. However, you can access it duriong an OTR recording by pressing SYSTEM-MENU.

E_)-M

OTR recording will run until displayed stop time

Information on the TV screen 33

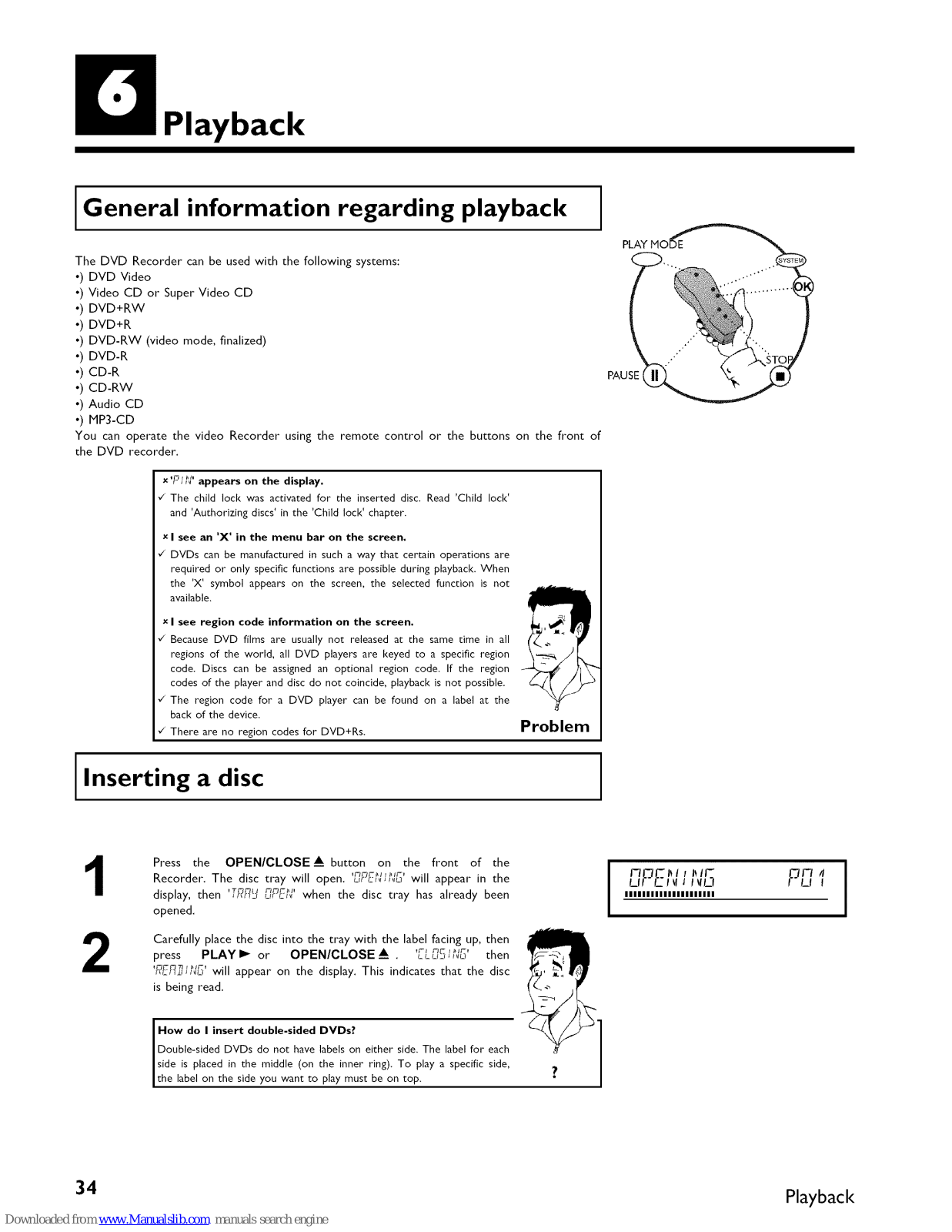

Playback

General information regarding playback

The DVD Recorder can be used with the following systems: o) DVD Video

•) Video CD or Super Video CD

•) DVD+RW

•) DVD+R

•) DVDRW (video mode finalized)

•) DVD-R

•) CDR

•) CD-RW

•) Audio CD

o) MP3-CD You can operate the video Recorder using the remote control or the buttons on the fi'ont of

the DVD recorder.

x'P,',_' appears on the display.

v_ The child lock was activated for the inserted disc. Read 'Child loci<'

and 'Authorizing discs' in the 'Child lock' chapter.

x I see an 'X' in the menu bar on the screen.

"/ DVDs can be manufactured in such a way that certain operations are

required or only specific functions are possible during playback. When

the 'X' symbol appears on the screen, the selected function is not available.

x I see region code information on the screen,

¢" Because DVD films are usually not released at the same time in all

regions of the world, all DVD players are keyed to a specific region

code. Discs can be assigned an optional region code. If the region codes of the player and disc do not coincide, playback is not possible.

"/ The region code for a DVD player can be found on a label at the

back of the device.

"/ There are no region codes for DVD+Rs.

Problem

Inserting a disc

Press the OPEN/CLOSE_ button on the front of the

Recorder• The disc tray will open• uFc_,_ will appear in the display, then 'T_n_ nPE/_' when the disc tray has already been opened•

Carefully place the disc into the tray with the label facing up, then

press PLAY I_ or OPEN/CLOSE _ ,r_ nc,._r,

• L L LI_ J /_L3 then

_Lr_,J,_C, will appear on the display. This indicates that the disc

is being read.

How do I insert double-sided DVDs?

Double-sided DVDs do not have labels on either side. The label for each side is placed in the middle (on the inner ring). To play a specific side, the label on the side you want to play must be on top.

I-/_Jl-I_ I I I_ll-

Lllf_'ll! J lllL'l

IIIIIIIIIIIIIIIIIIIII

P,qI

34 Playback

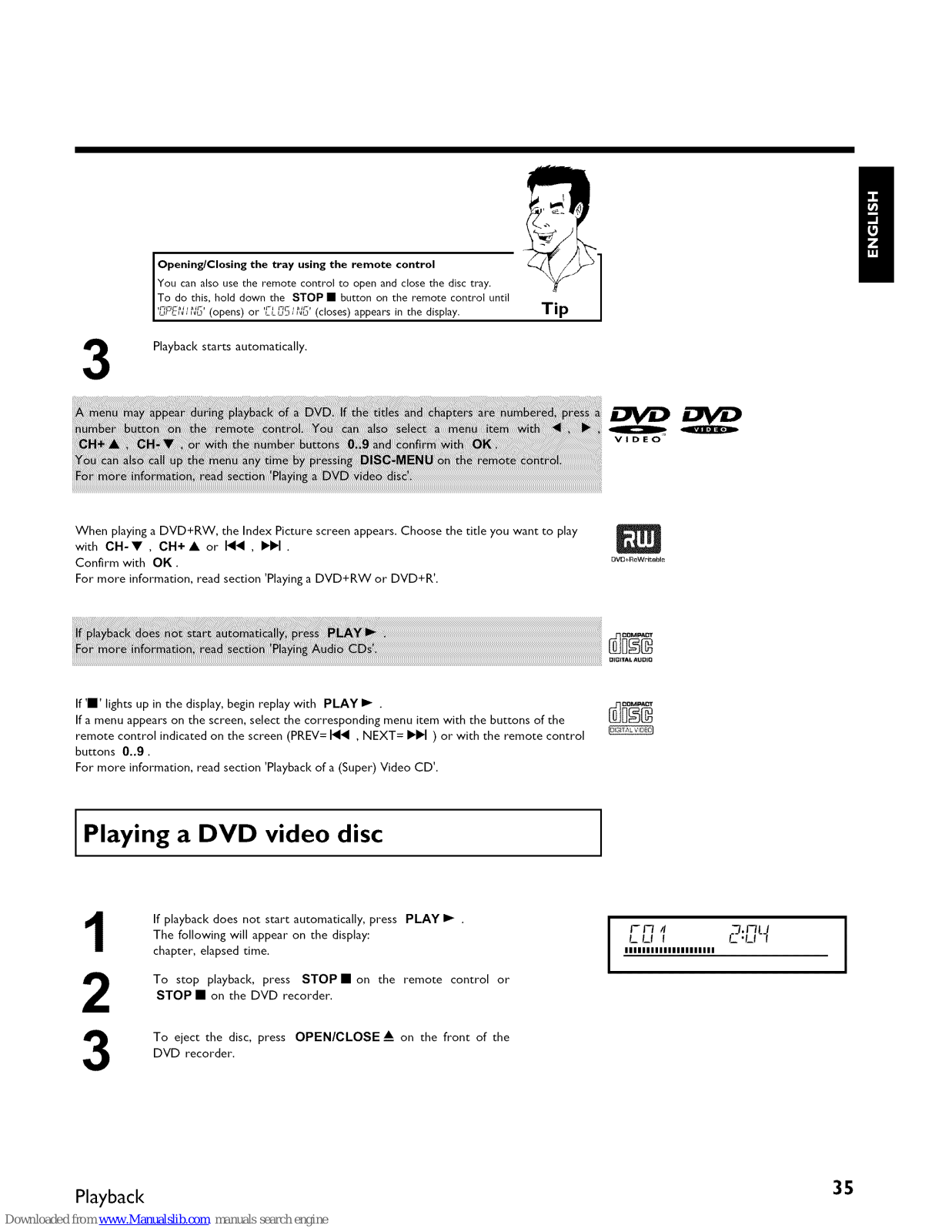

Opening/Closing the tray using the remote control

You can also use the remote control to open and close the disc tray.

ITo do this, hold down the STOP • button on the remote control until

18pEp ,,p ,s(opens) or 'EL051NLq' (closes) appears "n the d'splay.

Playback starts automatically.

Tip

VIDEO

When playing a DVD+RW, the Index Picture screen appears. Choose the title you want to play

with CH-• , CH+ • or I_" , I_1_1. Confirm with OK.

For more information,readsection'Playinga DVD+RW or DVD+R'.

OVO+_eWritabl_

If 'I' lights up in the display, begin replay with PLAY I_ . If a menu appears on the screen, select the corresponding menu item with the buttons of the

remote control indicated on the screen (PREV= I_" , NEXT= I_1_1) or with the remote control

buttons 0.,9.

For more information, read section 'Playback of a (Super) Video CD',

Playing a DVD video disc

2 3

If playback does not start automatically, press PLAY I_ .

The following will appear on the display: chapter, elapsed time.

To stop playback, press STOP I on the remote control or

STOP • on the DVD recorder.

To eject the disc, press OPEN/CLOSE A on the front of the

DVD recorder.

I-N 4 D.N[J

L LI I I: ,LI f

IIIIIIIIIIIIIIIIIIIII

Playback 35

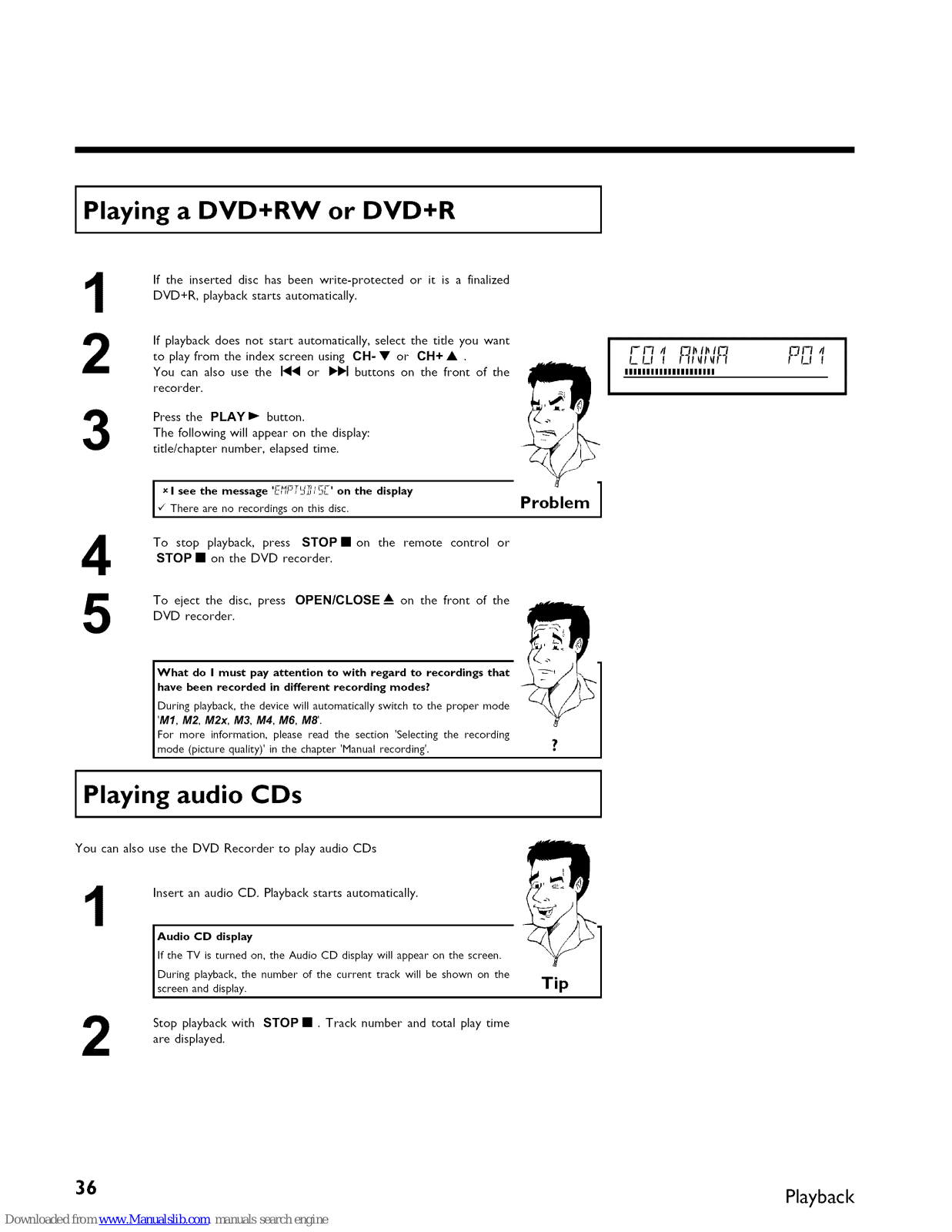

Playing a DVD+RW or DVD+R

If the inserted disc has been write-protected or it is a finalized

DVD+R, playback starts automatically.

If playback does not start automatically, select the title you want to play from the index screen using CH- • or CH+ • ,

You can also use the I_" or I_1_1 buttons on the front of the

recorder,

Press the PLAYI_ button. The following will appear on the display:

title/chapter number, elapsed time,

x I see the message E__P__ _:_L on the display

_" There are no recordings on this disc.

To stop playback, press STOP • on the remote control or

STOP • on the DVD recorder.

To eject the disc, press OPEN/CLOSE _ on the front of the

DVD recorder.

What do I must pay attention to with regard to recordings that have been recorded in different recording modes?

During playback, the device will automatically switch to the proper mode

'M1, M2, M2x, M3, 1t/14,M6, M8'.

For more information, please read the section 'Selecting the recording mode (picture quality)' in the chapter 'Manual recording'.

Problem ]

Playing audio CDs

_./1_ I1_I

FN II I I1_!1_! f-'lF-I

I_1_1 I

IIIIIIIIIIIIIIIIIIIII

P,_qI

You can also use the DVD Recorder to play audio CDs

Insert an audio CD, Playback starts automatically.

Audio CD display

If the TV is turned on, the Audio CD display will appear on the screen. During playback, the number" of the current track will be shown on the

screen and display.

Stop playback with STOP • , Track number and total play time are displayed.

Tip

36 Playback

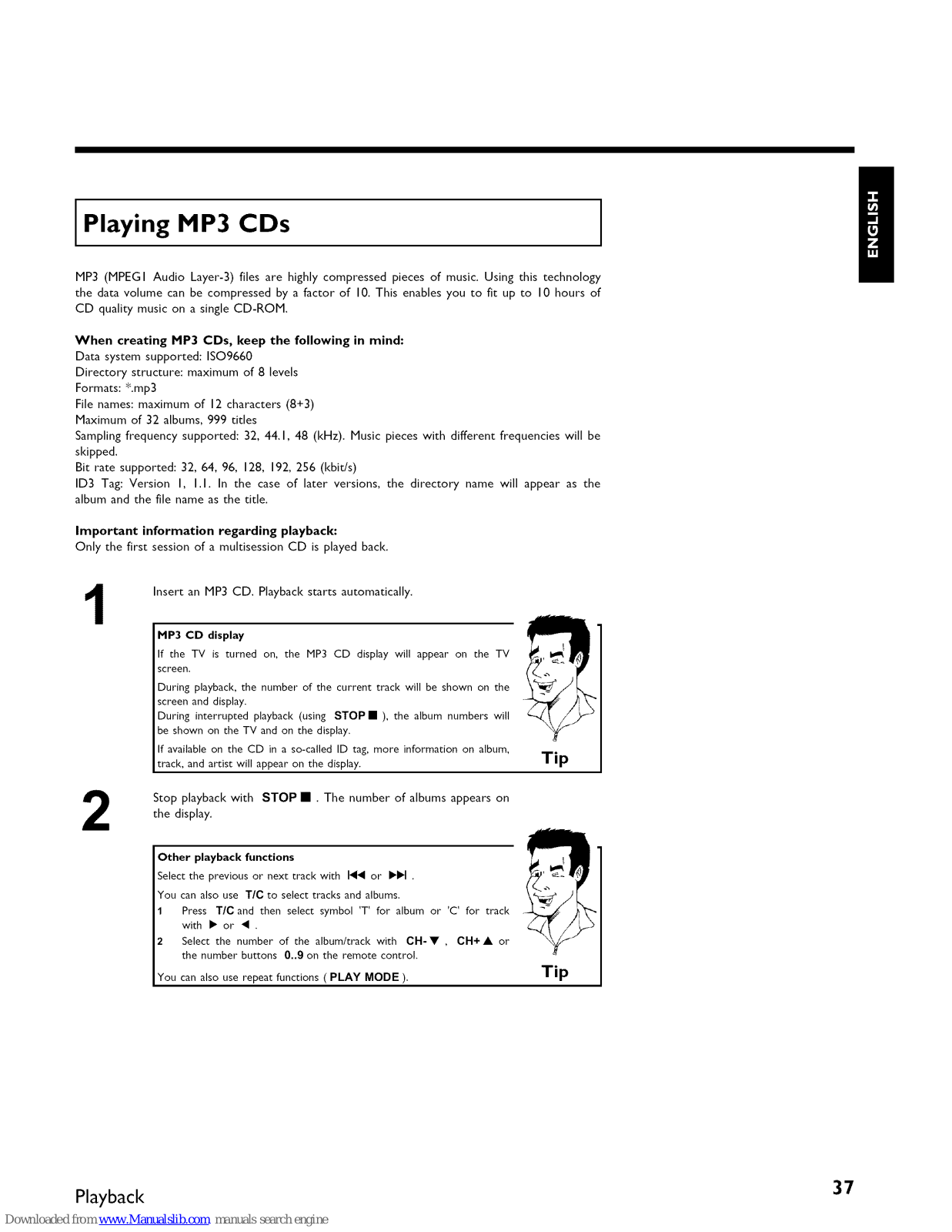

Playing MP3 CDs

MP3 (MPEGI Audio Layer-3) files are highly compressed pieces of music. Using this technology the data volume can be compressed by a factor of 10. This enables you to fit up to 10 hours of CD quality music on a single CD-ROM.

When creating MP3 CDs, keep the following in mind:

Data system supported: ISO9660

Directory structure: maximum of 8 levels

Formats: *.mp3

File names: maximum of 12 characters (8+3)

Maximum of 32 albums, 999 titles Sampling frequency supported: 32, 44.1, 48 (kHz). Music pieces with different frequencies will be skipped.

Bit rate supported: 32, 64, 96, 128, 192, 256 (kbit/s)

ID3 Tag: Version I, I.I. In the case of later versions, the directory name will appear as the album and the file name as the title.

Important information regarding playback: Only the first session of a multisession CD is played back.

Insert an MP3 CD. Playback starts automatically.

MP3 CD display

If the TV is turned on, the MP3 CD display will appear on the TV

screen. During playback, the number of the current track will be shown on the

screen aed display. During interrupted playback (using STOP • ), the album numbers will be shown on the TV and on the display.

If available on the CD in a so-called ID tag, more information on album, track, and artist will appear on the display.

Stop playback with STOP • . The number of albums appears on the display.

Other playback functions

Select the previous or next crack with 14• or ••1 . You can also use TIC to select tracks and albums. 1 Press TIC and then select symbol 'T' for album or 'C' for track

with • or • .

2 Select the number of the album/track with CH-V , CH+A or

the number buttons 0..9 on the remote control.

You can also use repeat functions ( PLAY MODE ).

Tip

Playback 37

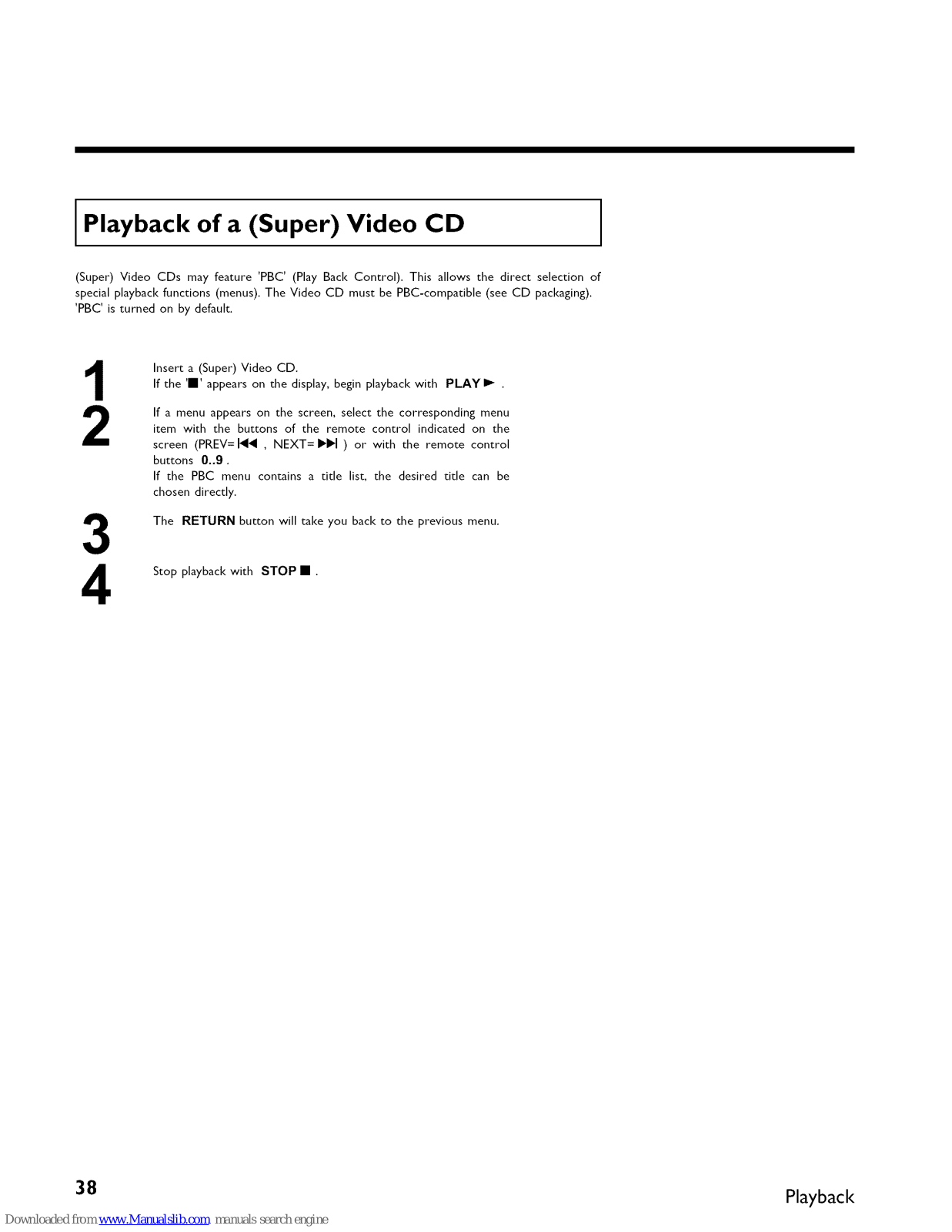

Playback of a (Super) Video CD

(Super) Video CDs may feature 'PBC' (Play Back Control). This allows the direct selection of special playback functions (menus). The Video CD must be PBC-compatible (see CD packaging). 'PBC' is turned on by default.

Insert a (Super) Video CD. If the ,11, appears on the display, begin playback with PLAY I_ .

If a menu appears on the screen, select the corresponding menu item with the buttons of the remote control indicated on the

screen (PREV=I_" , NEXT= I_1_1 ) or with the remote control

buttons 0.,9. If the PBC menu contains a title list, the desired title can be

chosen directly.

The RETURN button will take you back to the previous menu.

Stop playback with STOP • .

38 Playback

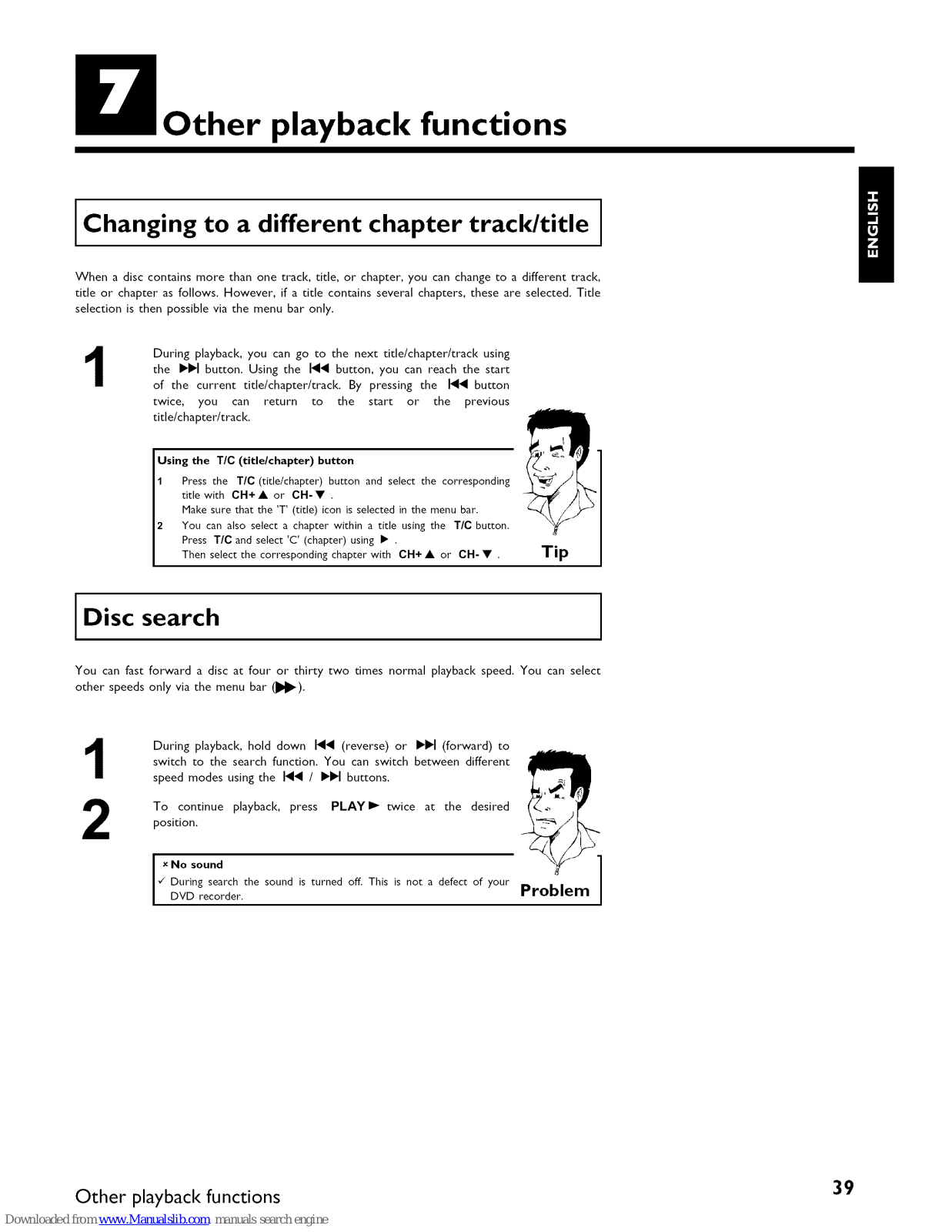

Other playback functions

Changing to a different chapter track/title

When a disc contains more than one track, title, or chapter, you can change to a different track, title or chapter as follows. However, if a title contains several chapters, these are selected. Title selection is then possible via the menu bar only.

During playback, you can go to the next title/chapter/track using

the I_l_l button. Using the I_1, button, you can reach the start of the current title/chapter/track. By pressing the I_" button twice, you can return to the start or the previous title/chapter/track.

Using the TIC (title/chapter) button

1 Press the TIC (title/chapter) button and select the corresponding

titlewith CH+A or CH-V. Make sure that the 'T' (tide) {con is selected in the menu bar.

2 You can also select a chapter within a tide using the TIC button.

Press TIC and select 'C' (chapter) using • .

Then select the corresponding chapter with CH+ • or CH- • .

Tip

Disc search

You can fast forward a disc at four or thirty two times normal playback speed. You can select other speeds only via the menu bar (_11_).

During playback, hold down I_ (reverse) or I_IN (forward) to

switch to the search function. You can switch between different speed modes using the I_ / I1_1_tbuttons.

To continue playback, press PLAY I_ twice at the desired

position.

x No sound /

During search tile sound is turned off. This is not a defect of your Problem

DVD recorder'.

Other playback functions 39

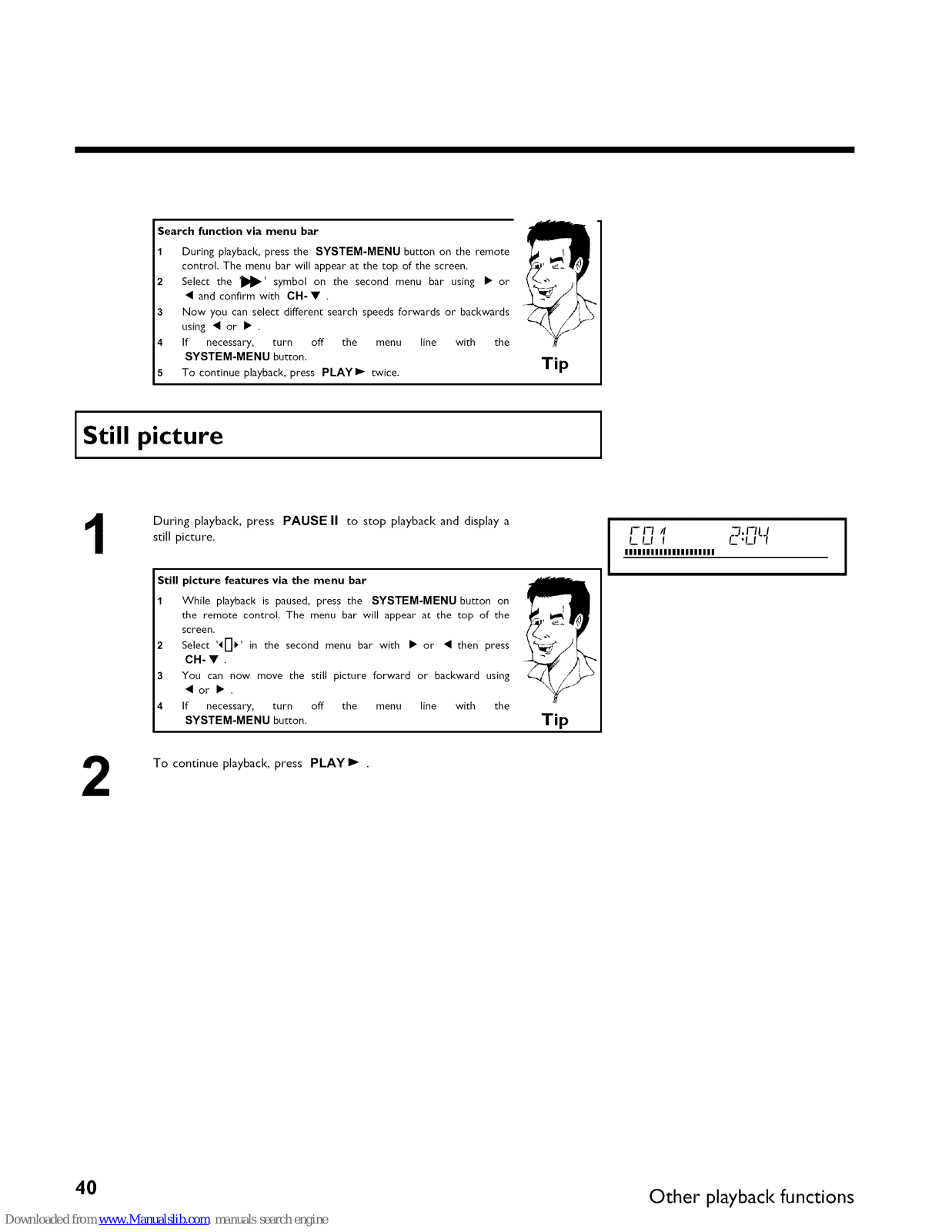

Search function via menu bar

During playback, press the SYSTEM-MENU button on the remote control. The menu bar will appear at the top of the screen.

2 Select the '1_11_' symbol on the second menu bar using • or

• and confirm with CH-• .

3 Now you call select different search speeds forwards or backwards

using • or • .

4 If necessary, turn off the menu line with the

SYSTEM-MENU button.

5 To continue playback, press PLAYI_ twice.

Still picture

During playback, press PAUSE I1 to stop playback and display a

still picture.

Still picture features via the menu bar 1 While playback is paused, press the SYSTEM-MENU button on

the remote control. The menu bar will appear at the top of the screen.

2 Select '_FI_ ' in the second menu bar with • or • then press

CH-• .

3 You can now move the still picture forward or backward using

• or •.

4 If necessary, turn off the menu line with the

SYSTEM-MENU button.

Tip

FI-/ // 7,NI I

L U I C'U']

IIIIIIIIIIIIIIIIIIIII

To continue playback, press PLAYI_ .

40 Other playback functions

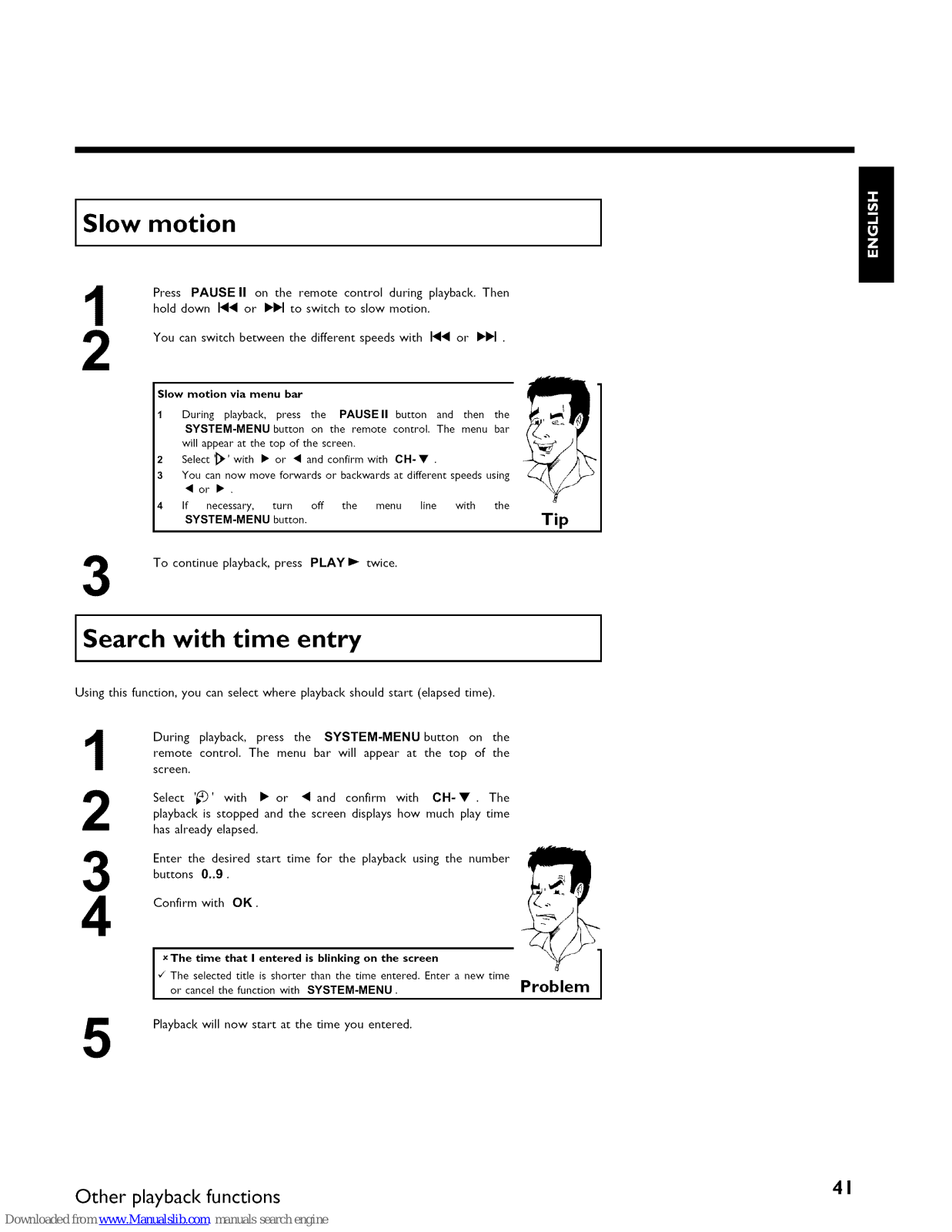

Slow motion

Press PAUSE I1 on the remote control during playback. Then hold down I_" or ••1 to switch to slow motion.

You can switch between the different speeds with I_" or ••1 .

Slow motion via menu bar

1 During playback, press the PAUSE II button and then the

SYSTEM-MENU button on the remote control. The menu bar

will appear at the top of the screen. 2 Select '[_' with • or • and confirm with CH-V . 3 You can now move forwards or backwards at different speeds using

• or •.

4 If necessary, turn off the menu line with the

SYSTEM-MENU button.

Tip

To continue playback, press PLAYI_ twice.

Search with time entry

Using this function, you can select where playback should start (elapsed time).

2 3

During playback, press the SYSTEM-MENU button on the remote control. The menu bar will appear at the top of the

screen.

Select ,_r4"_,with • or _ and confirm with CH-V. The

playback is stopped and the screen displays how much play time has already elapsed.

Enter the desired start time for the playback using the number buttons 0,.9.

Confirm with OK.

xThe time that I entered is blinking on the screen

"/ The selected title is shorter than the tirne entered. Enter a new time

or cancel the function with SYSTEM-MENU.

Playback will now start at the time you entered.

Problem ]

Other playback functions 41

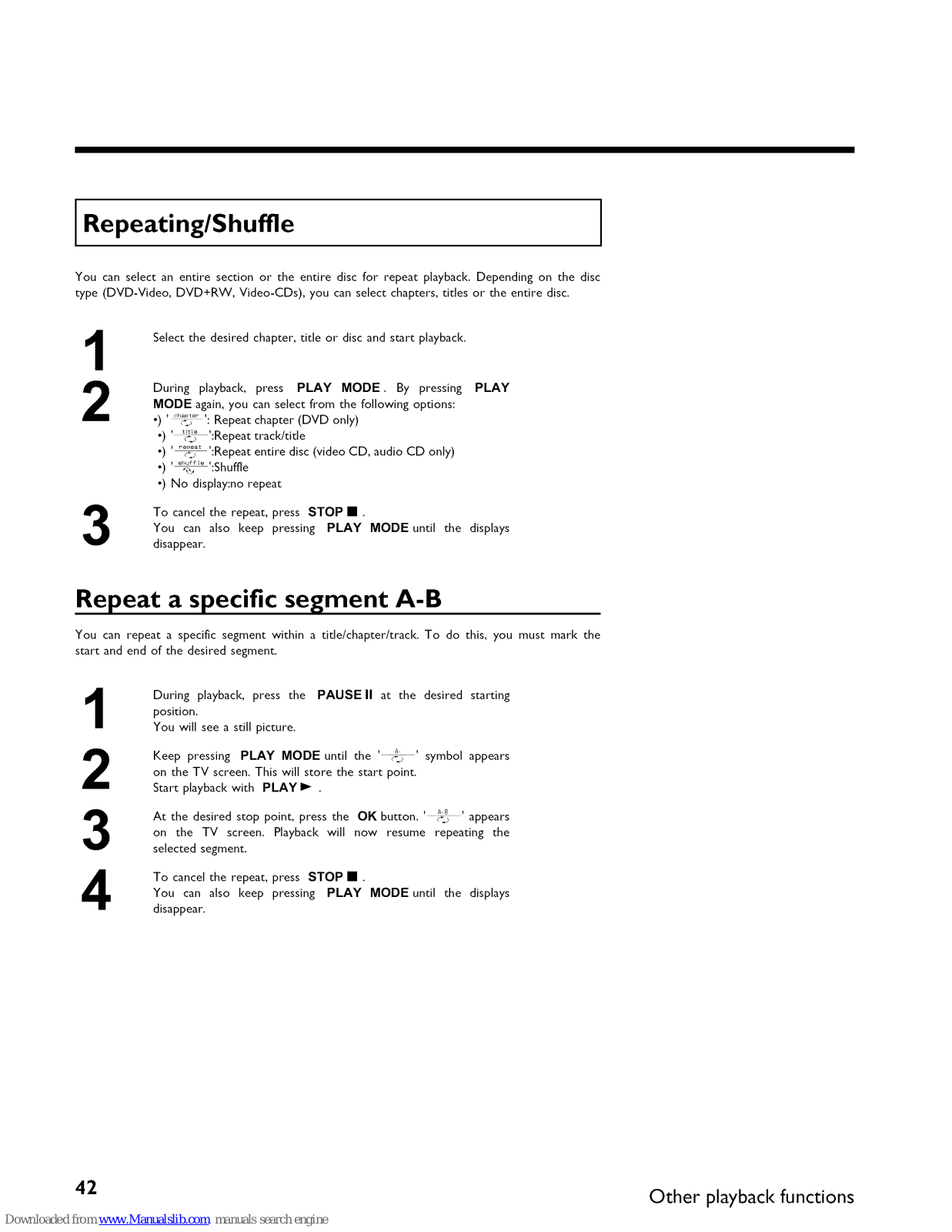

Repeating/Shuffle

You can select an entire section or the entire disc for repeat playback. Depending on the disc type (DVD-Video, DVD+RW, Video-CDs), you can select chapters, titles or the entire disc.

Select the desired chapter, title or disc and start playback.

During playback, press PLAY MODE. By pressing PLAY MODE again, you can select fl'om the following options:

_ : Repeat chapter (DVD only)

o) _ tte

Repeat track/tide

•) '_':Repeat entire disc (video CD, audio CD only)

t0_ :Shuffle

•) No display:no repeat

To cancel the repeat, press STOP • . You can also keep pressing PLAY MODE until the displays disappear.

Repeat a specific segment A-B

You can repeat a specific segment within a title/chapter/track. To do this, you must mark the start and end of the desired segment.

1 2 3

During playback, press the PAUSE I1 at the desired starting position.

You will see a still picture.

Keep pressing PLAY MODE until the ' ......_-_......' symbol appears

on the TV screen. This will store the start point. Start playback with PLAYI_ .

At the desired stop point, press the OK button. , _B ' appears on the TV screen. Playback will now resume repeating the selected segment.

To cancel the repeat, press STOP • . You can also keep pressing PLAY MODE until the displays disappear.

42 Other playback functions

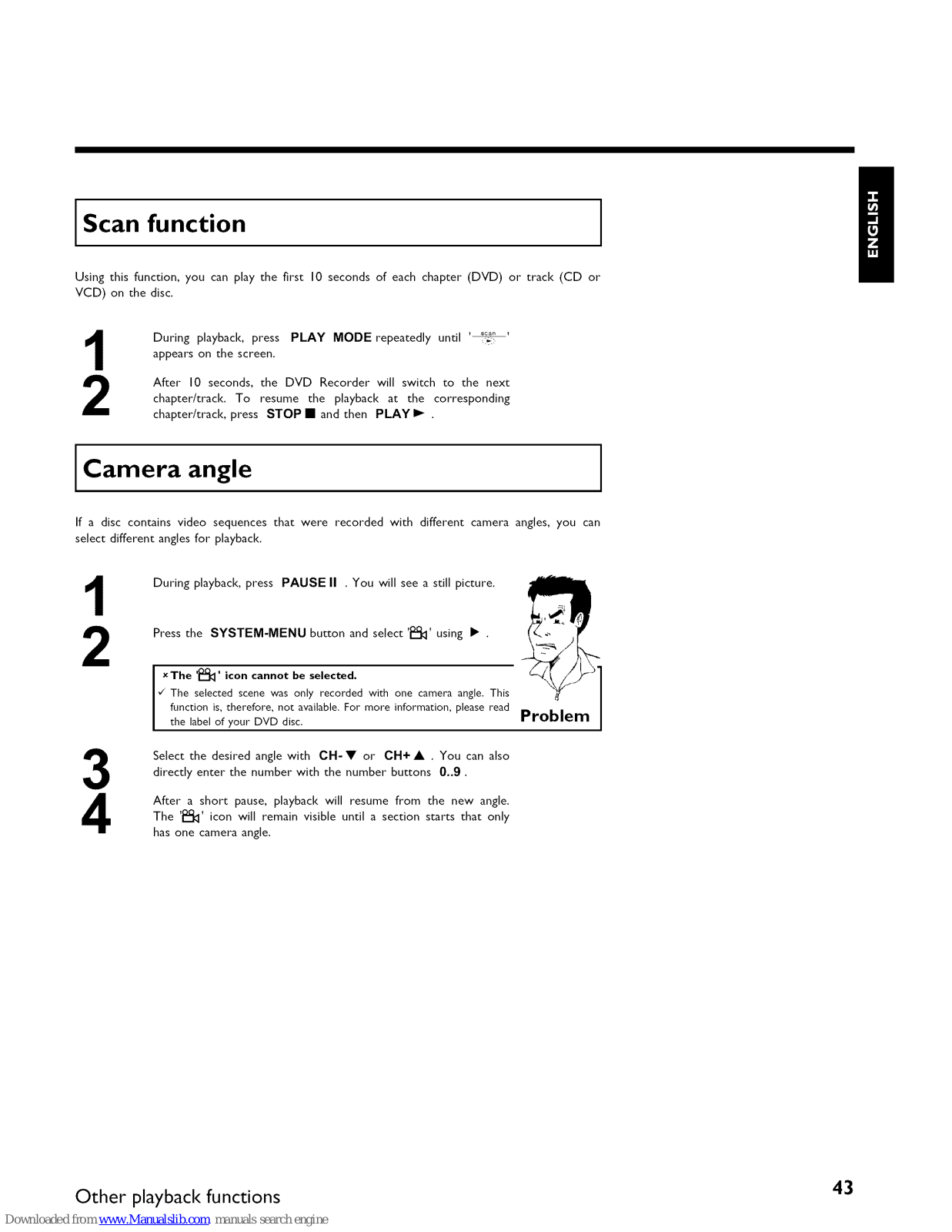

Scan function

Using this function, you can play the first 10 seconds of each chapter (DVD) or track (CD or VCD) on the disc,

During playback, press PLAY MODE repeatedly until ' _:_:_' '

appears on the screen.

After 10 seconds, the DVD Recorder will switch to the next chapter/track To resume the playback at the corresponding chapter/track, press STOP • and then PLAY I_

Camera angle

If a disc contains video sequences that were recorded with different camera angles, you can

select different angles for playback

During playback, press PAUSE 11 You will see a still picture

Press the SYSTEM-MENU button and select '_:_' using •

xThe '_' icon cannot be selected.

¢" The selected scene was only recorded with one camera angle. This

function is, therefore, not available. For more information, please read the label of your" DVD disc.

Select the desired angle with CH-• or CH+ • . You can also directly enter the number with the number buttons 0-9

After a short pause, playback will resume from the new angle. The '[_' icon will remain visible until a section starts that only

has one camera angle.

Problem

Other playback functions 43

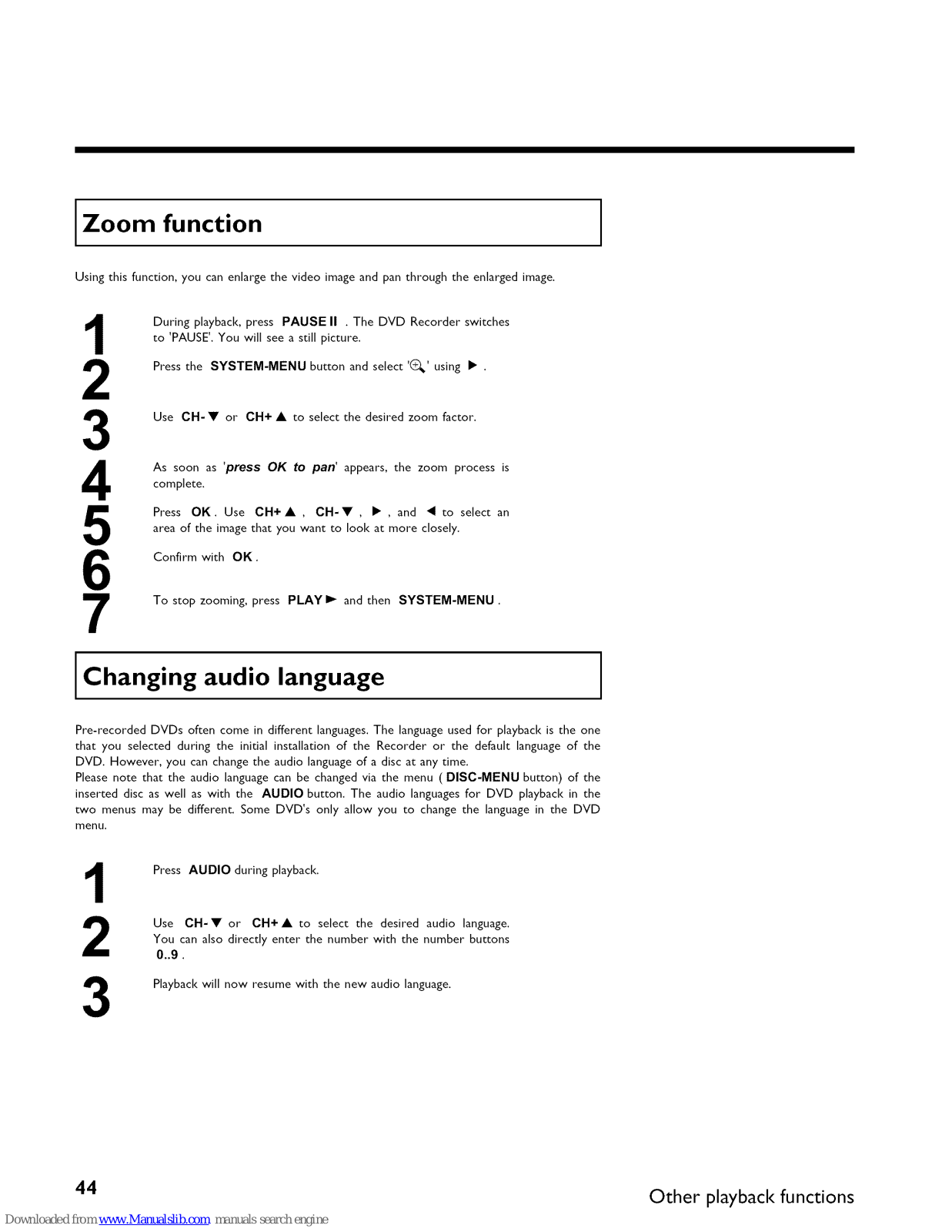

Zoom function

Using this function, you can enlarge the video image and pan through the enlarged image,

During playback, press PAUSE 11 . The DVD Recorder switches

to 'PAUSE'. You will see a still picture.

Press the SYSTEM-MENU button and select '(_' using • .

Use CH- • or CH+ • to select the desired zoom factor

As soon as 'press OK to pan' appears, the zoom process is comp]ete.

Press OK. Use CH+A, CH-•, •, and _ to select an

area of the image that you want to look at more closely.

Confirm with OK.

To stop zooming, press PLAYI_ and then SYSTEM-MENU

Changing audio language

Pre-recorded DVDs often come in different languages. The language used for playback is the one

that you selected during the initial installation of the Recorder or the default language of the

DVD, However, you can change the audio language of a disc at any time. Please note that the audio language can be changed via the menu ( DISC-MENU button) of the

inserted disc as well as with the AUDIO button. The audio languages for DVD playback in the two menus may be different. Some DVD's only allow you to change the language in the DVD menu,

Press AUDIO during playback.

Use CH-• or CH+• to select the desired audio language.

You can also directly enter the number with the number buttons

0..9.

Playback will now resume with the new audio language,

44 Other playback functions

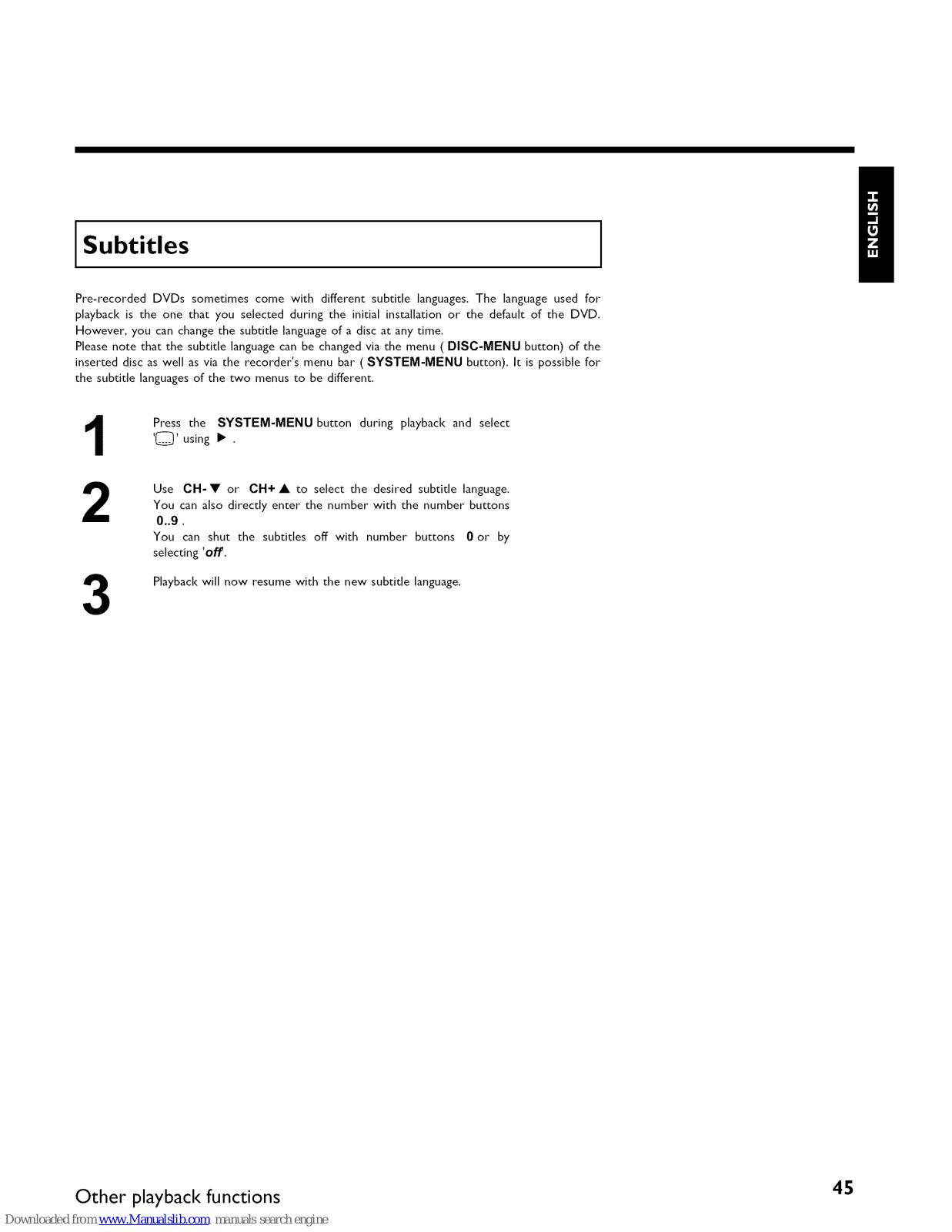

Subtitles

Pre-recorded DVDs sometimes come with different subtitle languages. The language used for

playback is the one that you selected during the initial installation or the default of the DVD.

However, you can change the subtitle language of a disc at any time.

Please note that the subtitle language can be changed via the menu ( DISC-MENU button) of the inserted disc as well as via the recorder's menu bar ( SYSTEM-MENU button). It is possible for the subtitle languages of the two menus to be different.

Press the SYSTEM-MENU button during playback and select

'(_' using • .

Use CH-• or CH+ • to select the desired subtitle language.

You can also directly enter the number with the number buttons

0,,9.

You can shut the subtitles off with number buttons 0 or by selecting 'off.

Playback will now resume with the new subtitle language.

Other playback functions 45

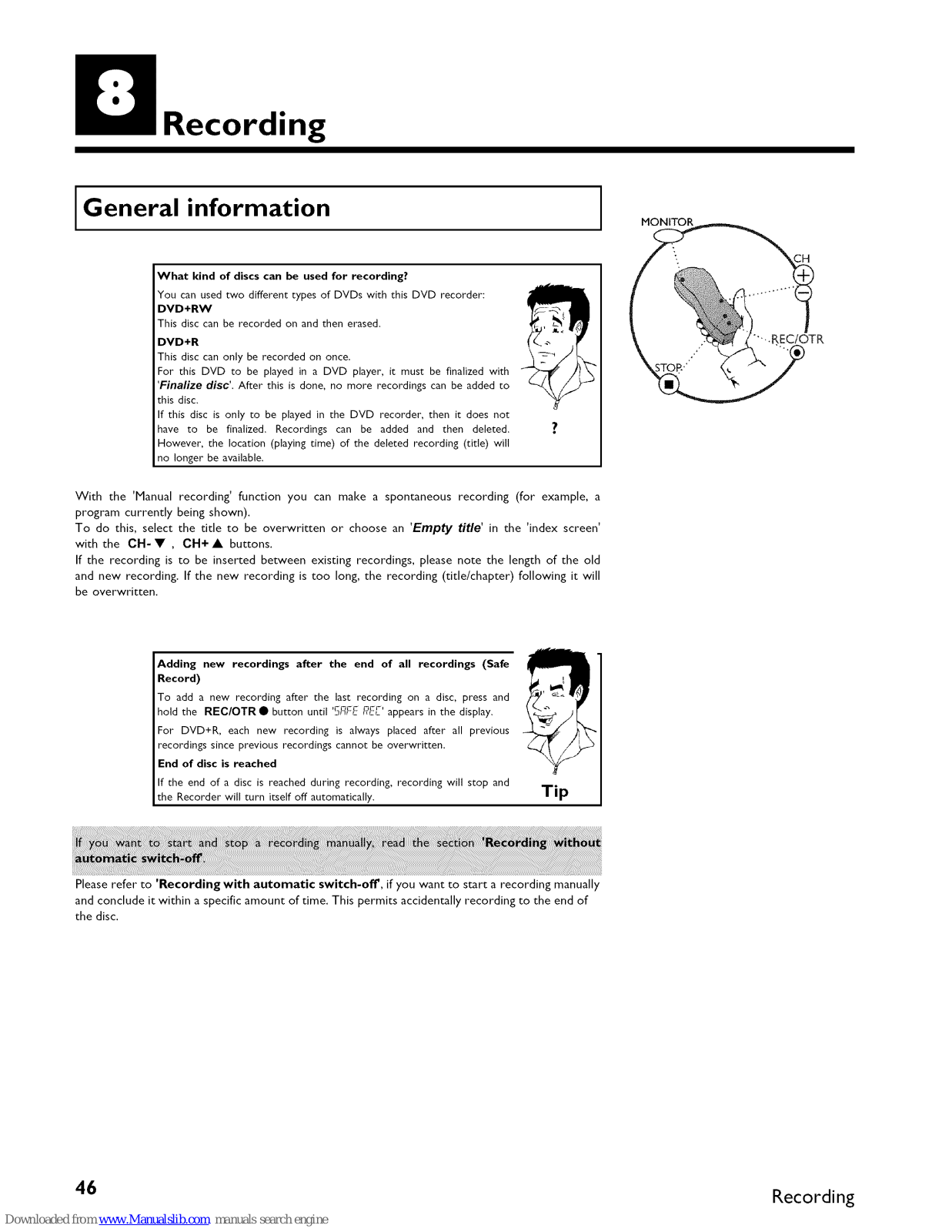

Recording

General information

What kind of discs can be used for recording? You can used two different types of DVDs with this DVD recorder':

DVD+RW

This disc can be recorded on and then erased.

DVD+R

This disc can only be recorded on once. For this DVD to be played in a DVD player, it must be finalized with 'finalize disc'. After this is done, no more recordings can be added to this disc.

If this disc is only to be played in the DVD recorder, then it does not have to be finalized. Recordings can be added and then deleted. However, the location (playing time) of the deleted recording (tide) will no longer be available.

With the 'Manual recording' function you can make a spontaneous recording (for example, a program currently being shown). To do this, select the title to be overwritten or choose an 'Empty title' in the 'index screen' with the CH- • , CH+• buttons.

If the recording is to be inserted between existing recordings, please note the length of the old and new recording. If the new recording is too long, the recording (title/chapter) following it will

be overwritten.

Adding new recordings after the end of all recordings (Safe Record)

To add a new recording after tile last recording on a disc, press and hold the REC/OTRO button until '_FE PE_L' appears in the display.

For DVD+R, each new recording is always placed after all previous

recordings since previous recordings cannot be overwritten.

End of disc is reached

If tile end of a disc is reached during recording, recording will stop and the Recorder will turn itself off automatically.

Tip

Please refer to 'Recording with automatic switch-off, if you want to Start a recording manually

and conclude it within a specific amount of time. This permits accidentally recording to the end of the disc.

46 Recording

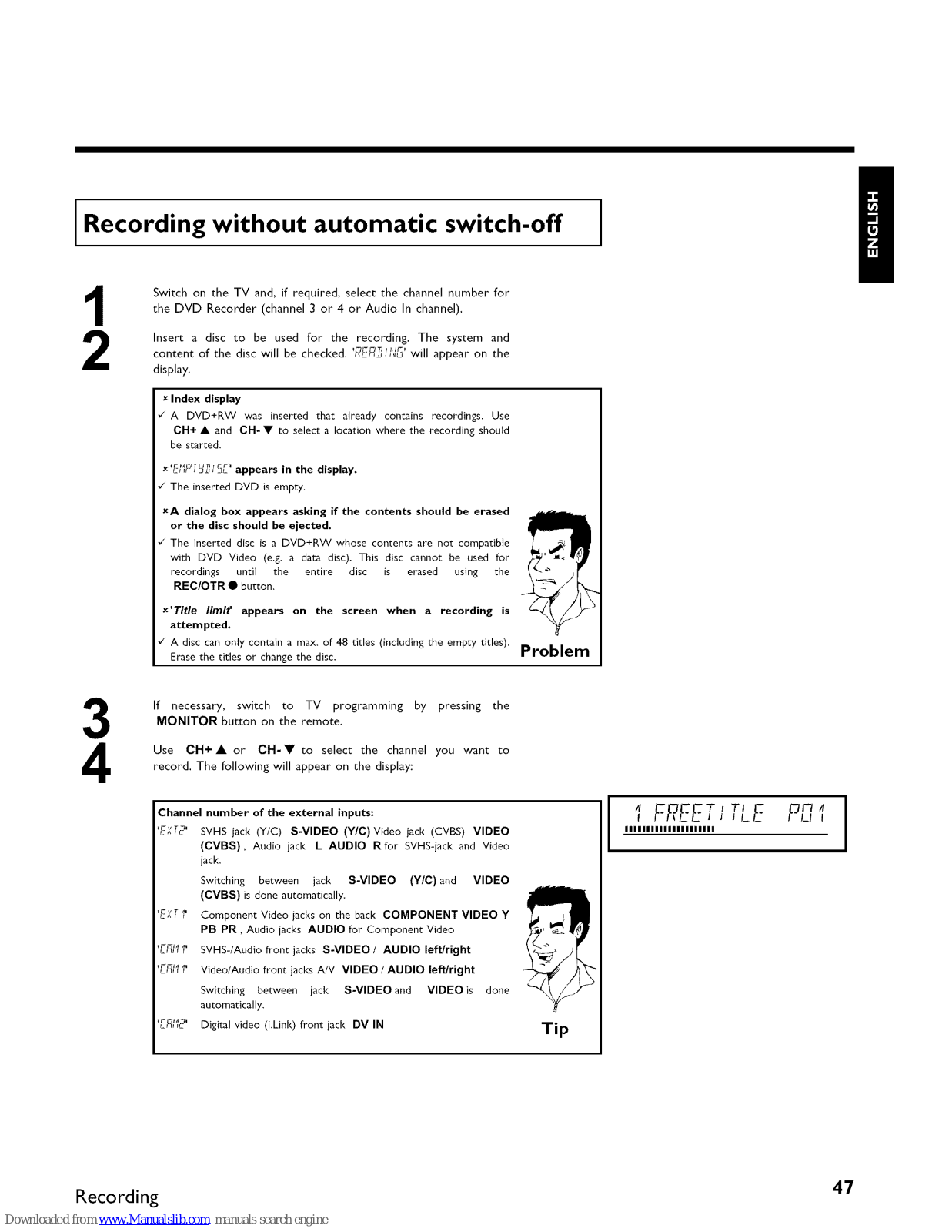

Recording without automatic switch-off

Switch on the TV and, if required, select the channel number for the DVD Recorder (channel 3 or 4 or Audio In channel).

Insert a disc to be used for the recording. The system and content of the disc will be checked. 'PcP_,J__- _,_F,_c_will appear on the display.

x Index display

"/ A DVD+RW was inserted that already contains recordings. Use

CH+ • and CH- • to select a location where the recording should

be started.

i _ T ]1 r C_1

x _- P_S]L appears in the display.

_" The inserted DVD is empty.

xA dialog box appears asking if the contents should be erased

or the disc should be ejected.

v" The inserted disc is a DVD+RW whose contents are not cornpatible

with DVD Video (e.g. a data disc). This disc cannot be used for

recordings until the entire disc is erased using the

REO/OTR • button.

x'Title limif appears on the screen when a recording is

attempted.

"/ A disc can only contain a max. of 48 titles (including the empty titles).

Erase the titles or change the disc.

Problem

If necessary, switch to TV programming by pressing the

MONITOR button on the remote.

Use CH+ • or CH-V to select the channel you want to

record. The following will appear on the display:

Channel number of the external inputs: 'E-XT2' SVHS iack (Y/C) S-VIDEO (Y/C)Video iack (CVBS) VIDEO

(CVBS), Audio iack L AUDIO R for SVHS-iack and Video

jack. Switching between jack S-VIDEO (Y/C) and VIDEO

(CVBS) is done automatically.

'EXT f Component Video iacks on the back COMPONENT VIDEO Y

PB PR, Audio jacks AUDIO for Component Video 'ER_ f SVHS-/Audio front jacks S-VIDEO/ AUDIO left/right 'E_ I' Video/Audio front jacks A/V VIDEO / AUDIO left/right

Switching between jack S-VIDEO and VIDEO is done

automatically. 'E_2' Digital video (i.Link) front iack DV IN

Tip

I r-°r-r-Tl TJF n,-,,co ,,_c P,_,I

IIIIIIIIIIIIIIIIIIIII

Recording 47

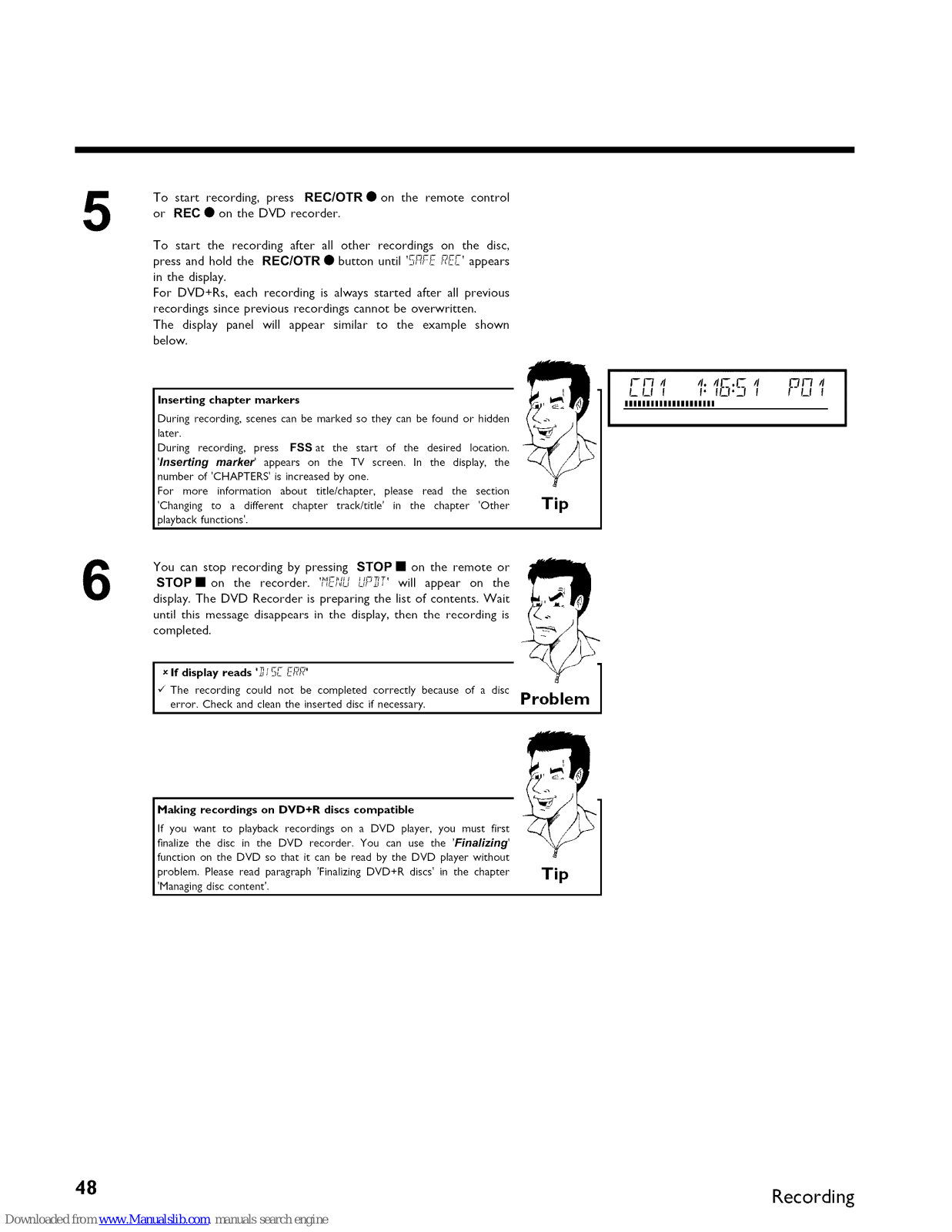

To start recording, press REC/OTR • on the remote control or REC • on the DVD recorder.

To start the recording after all other recordings on the disc,

press and hold the REC/OTR • button until '_'_FE REE' appears in the display.

For DVD+Rs, each recording is always started after all previous recordings since previous recordings cannot be overwritten.

The display panel will appear similar to the example shown

below.

Inserting chapter markers

During recording, scenes can be marked so they can be found or" hidden

later.

During recording, press FSS at the start of the desired location. 'Inserting marker appears on the TV screen. In the display, the number of 'CHAPTERS' is increased by one. For more information about title/chapter, please read the section 'Changing to a different chapter track/title' in the chapter 'Other playback functions'.

Tip

I-I-7 4 4. 41-,1"- 4

urn

LLI I I" If_I'll !

I LIt

IIIIIIIIIIIIIIIIIIIII

You can stop recording by pressing STOP • on the remote or

STOPII on the recorder. '_'J_-_'_c_uur_r_r'_, will appear on the

display. The DVD Recorder is preparing the list of contents. Wait

until this message disappears in the display, then the recording is

completed.

x If d splay reads _ _]L E-F_F_

¢" The recording could not be completed correctly because of a disc

error. Check and clean the inserted disc if necessary.

Problem 1

Making recordings on DVD+R discs compatible

If you want Lo playback recordings on a DVD player, you must first finalize the disc in Lhe DVD recorder. You can use the 'Finalizing' function on the DVD so that it can be read by the DVD player without problem. Please read paragraph 'Finalizing DVD+R discs' in Lhe chapter 'Managing disc content'.

Tip

48 Recording

Pausing recording

During recording press PAUSE II , for example to avoid recording the commercials.

To continue recording, press REC/OTR •.

Ending recording

To stop recording, press the STOP • button. Wait until ?fENU UP_T'

disappears from the disp ay before you try another feature. Tip

Recording with automatic switch-off (OTR one-touch-recording)

2 Insert a disc.

If necessary, switch to TV programming by pressing the

MONITOR button on the remote.

Use OH+ • or CH-V to select the channel you want to record.

Press REC/OTR • on the remote control.

Each time you press REC/OTR• you will add 30 minutes to

the recording time.

How can I delete the recording time I just entered?

To delete all entry, press CLEAR while the display shows tile recording time.

How can I check the remaining recording time?

Press SYSTEM-MENU while an OTR is in progress. The time at which the recording will end will appear on Lhe TV screen in the diner info box.

Recording 49

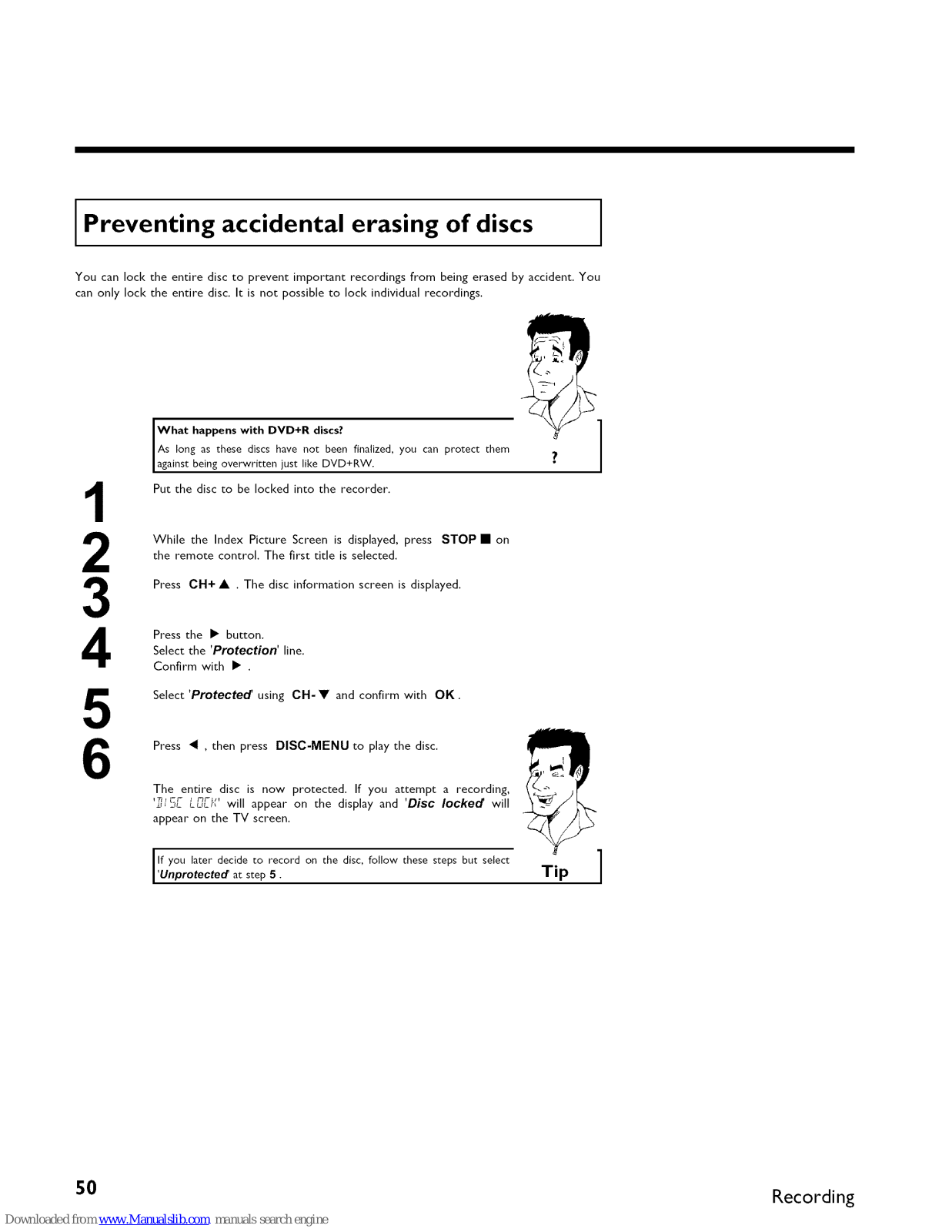

Preventing accidental erasing of discs

You can loci< the entire disc to prevent important recordings from being erased by accident. You can only lock the entire disc. It is not possible to lock individual recordings.

What happens with DVD+R discs? /

As long as these discs have not been finalized, you can protect them ? against being overwritten just like DVD+RW.

Put the disc to be locked into the recorder.

While the Index Picture Screen is displayed, press STOP • on the remote control. The first title is selected.

Press OH+ • . The disc information screen is displayed.

Press the • button.

Select the 'Protection' line.

Confirm with • .

Select 'Protected using CH-• and confirm with OK.

Press _ , then press DISC-MENU to play the disc.

The entire disc is now protected. If you attempt a recording,

'2:5E ......

LULr, will appear on the display and 'Disc locked will

appear on the TV screen.

ll you later decide to record on the disc, follow these steps but select

'Unprotected at step 5.

Tip ]

50 Recording

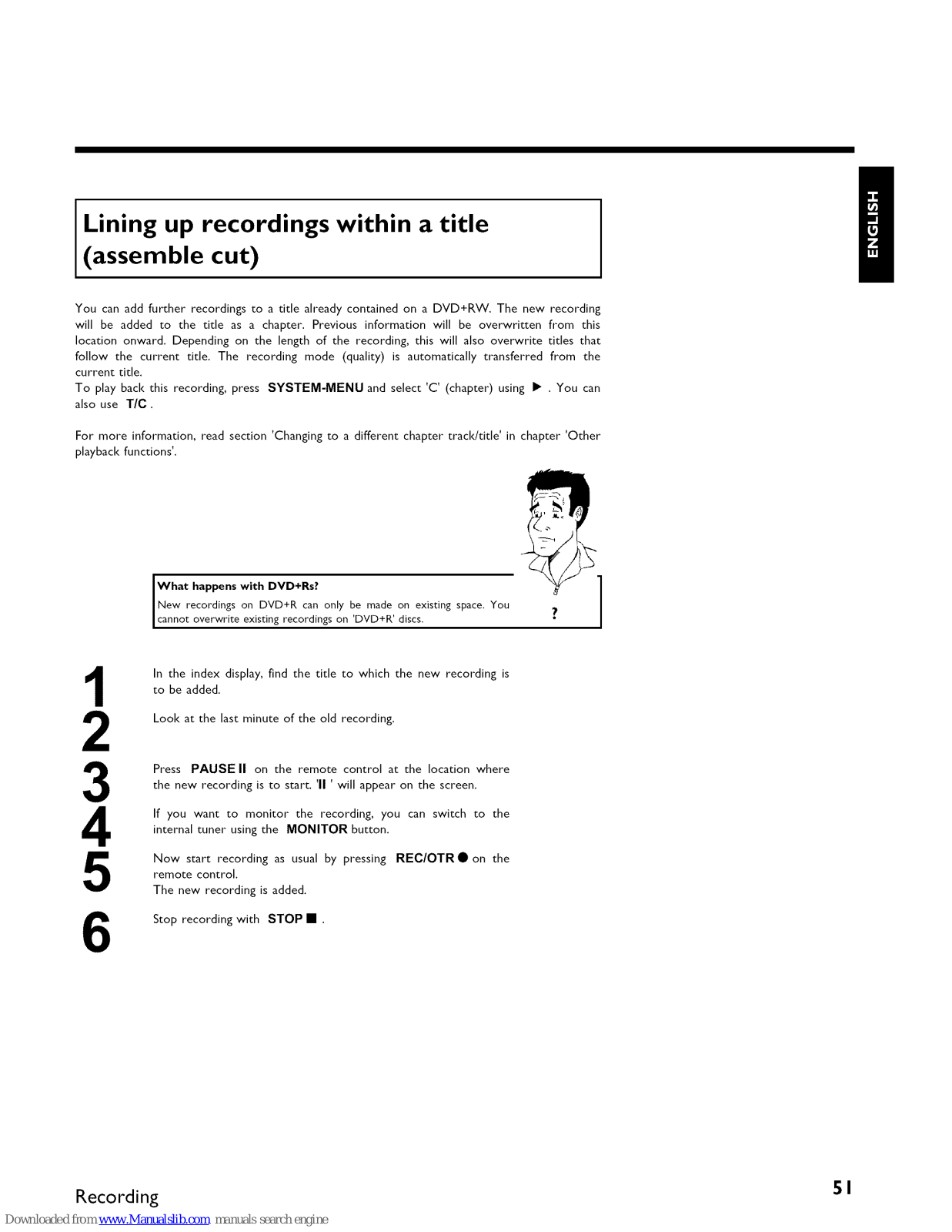

Lining up recordings within a title (assemble cut)

You can add further recordings to a title already contained on a DVD+RW. The new recording will be added to the title as a chapter. Previous information will be overwritten from this location onward. Depending on the length of the recording, this will also overwrite titles that follow the current title. The recording mode (quality) is automatically transferred from the

current title. To play back this recording, press SYSTEM-MENU and select 'C' (chapter) using • . You can

also use T/C.

For more information, read section 'Changing to a different chapter track/title' in chapter 'Other

playback functions'.

What happens with DVD+Rs?

New recordings on DVD+R can only be made on existing space. You

cannot overwrite existing recordings on 'DVD+R' discs.

]

In the index display, find the title to which the new recording is

to be added.

Look at the last minute of the old recording.

Press PAUSEII on the remote control at the location where

the new recording is to start. 'll ' will appear on the screen.

If you want to monitor the recording, you can switch to the internal tuner using the MONITOR button.

Now start recording as usual by pressing REC/OTRO on the remote control,

The new recording is added.

Stop recording with STOP • .

Recording 5 1

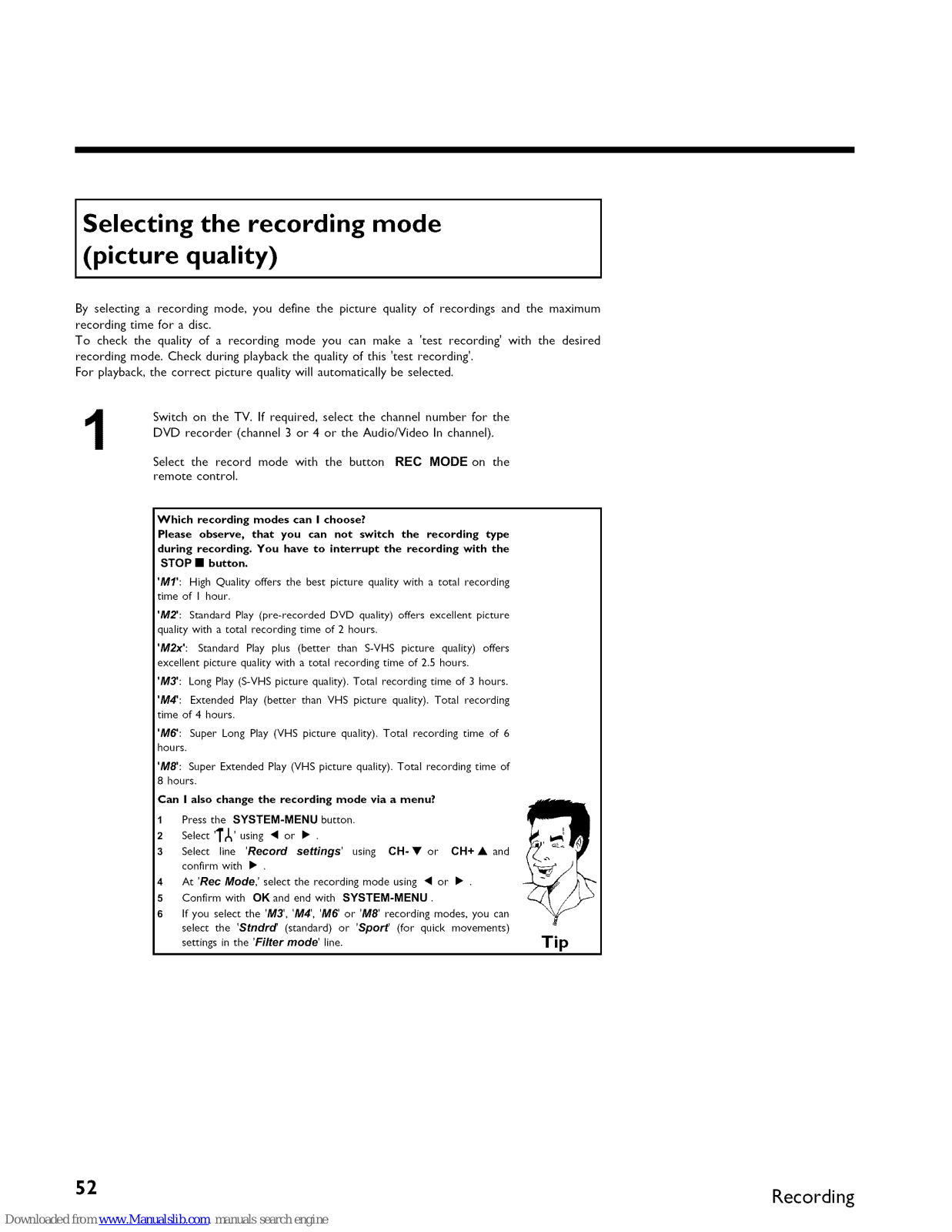

Selecting the recording mode (picture quality)

By selecting a recording mode, you define the picture quality of recordings and the maximum

recording time for a disc.

To check the quality of a recording mode you can make a 'test recording' with the desired

recording mode. Check during playback the quality of this 'test recording'. For playback, the correct picture quality will automatically be selected.

Switch on the TV. If required, select the channel number for the

DVD recorder (channel 3 or 4 or the Audio/Video In channel).

Select the record mode with the button REC MODE on the

remote control

Which recording modes can I choose?

Please observe, that you can not switch the recording type

during recording, You have to interrupt the recording with the

STOP • button,

'MI': High Quality offers the best picture quality with a total recording time of I hour.

'M2': Standard Play (pre-recorded DVD quality) offers excellent picture quality with a total recording time of 2 hours.

'M2x': Standard Play plus (better than S-VHS picture quality) offers excellent picture quality with a total recording time of 2.5 hours. 'M3': Long Play (S-VHS picture quality). Total recording time of 3 hours.

'M4': Extended Play (better than VHS picture quality). Total recording time of 4 hours.

'M6': Super Long Play (VHS picture quality). Total recording time of 6 hours.

'MS': Super Extended Play (VHS picture quality). Total recording time of 8 hours.

Can I also change the recording mode via a menu?

Press the SYSTEM-MENU button.

2 Select 'T_' using • or • .

3 Select line 'Record settings' using CH-V or CH+A and

confirm with • .

4 At 'Rec Mode,' select the recording mode using • or • .

5 Confirm with OK and end with SYSTEM-MENU. 6 If you select the 'M3', 'M4', 'M6' or 'M8' recording modes, you can

select the 'Stndrd (standard) or 'Spo_ (for quick movements) settings in the 'Filter mode' line.

Tip

52 Recording

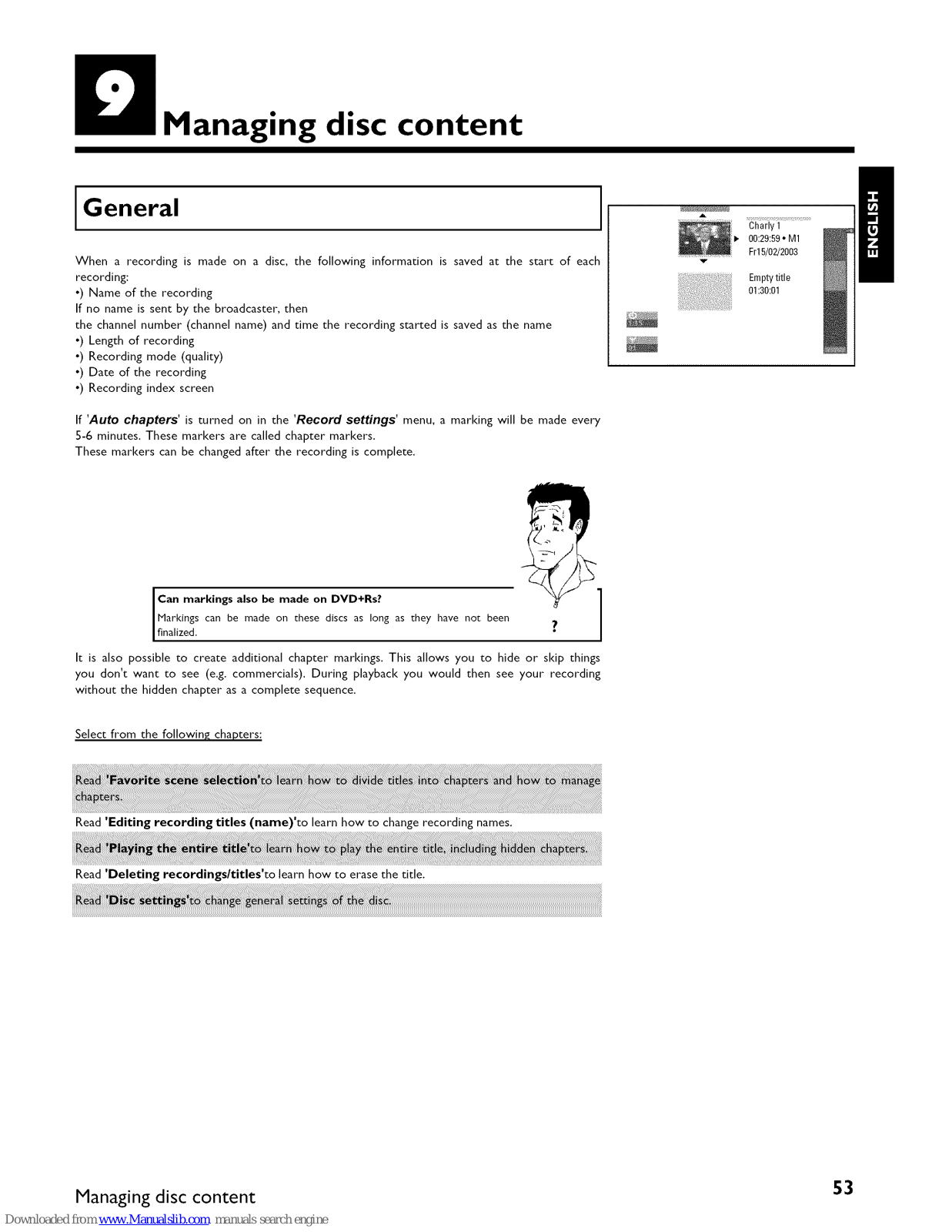

Managing disc content

General

When a recording is made on a disc, the following information is saved at the start of each

recording:

•) Name of the recording If no name is sent by the broadcaster, then

the channel number (channel name) and time the recording started is saved as the name

•) Length of recording

•) Recording mode (quality)

•) Date of the recording

•) Recording index screen

If 'Auto chapters' is turned on in the 'Record settings' menu, a marking will be made every 5-6 minutes. These markers are called chapter markers.

These markers can be changed after the recording is complete.

Charly 1

I_ 00:29:59o M1

Frl 5/02/2003

Emptytitle

01:30:01

Can markings also be made on DVD+Rs? Markings can be made on these discs as long as they have not been

finalized.

]

It is also possible to create additional chapter markings. This allows you to hide or skip things

you don't want to see (e.g. commercials). During playback you would then see your recording without the hidden chapter as a complete sequence.

Select from the following chapters:

Read 'Editing recording titles (name)'to learn how to change recording names.

Read 'Deleting recordings/titles'to learn how to erase the title.

Managing disc content 53

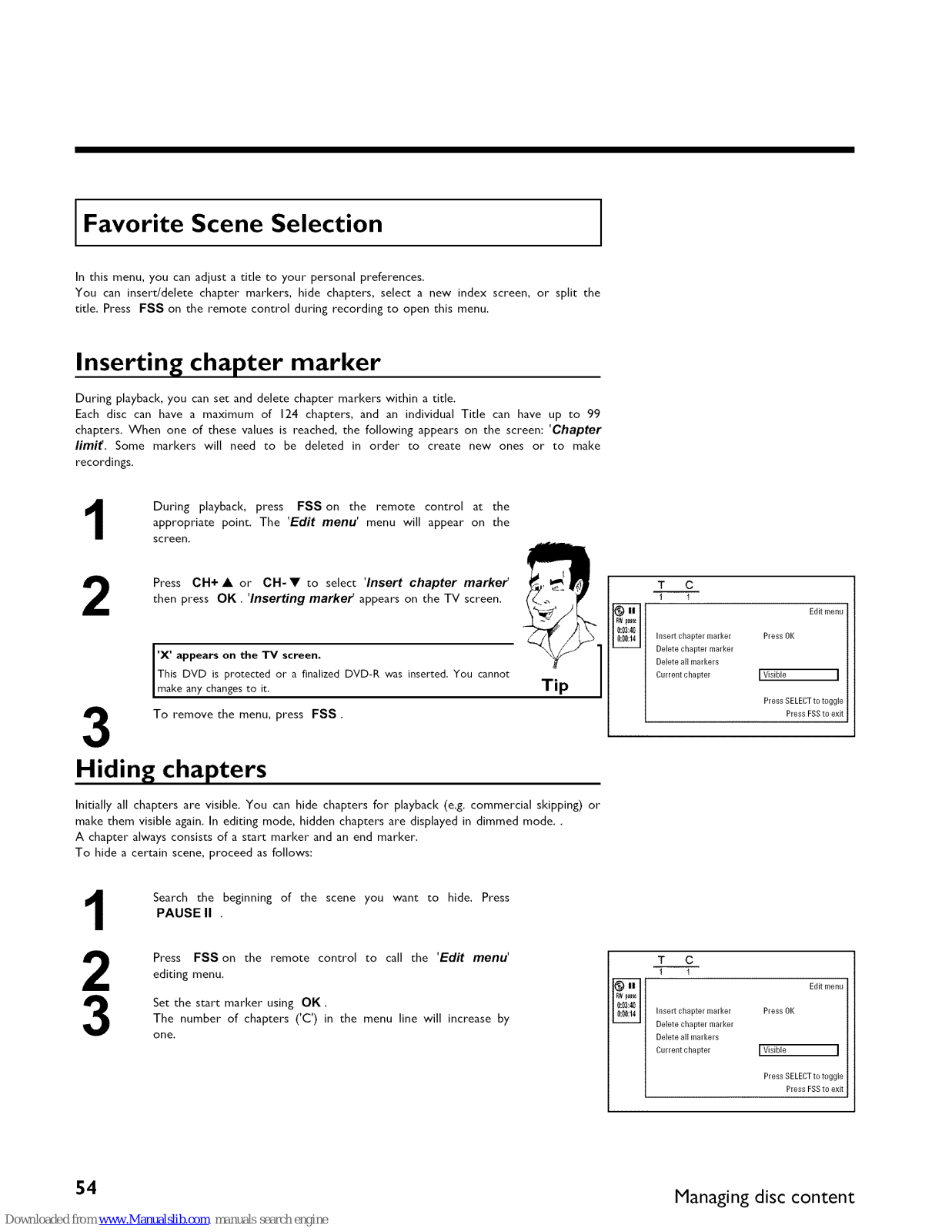

Favorite Scene Selection

In this menu, you can adjust a title to your personal preferences.

You can insert/delete chapter markers, hide chapters, select a new index screen, or split the title. Press FSS on the remote control during recording to open this menu.

Inserting chapter marker

During playback, you can set and delete chapter markers within a title. Each disc can have a maximum of 124 chapters, and an individual Title can have up to 99

chapters. When one of these values is reached, the following appears on the screen: 'Chapter limit. Some markers will need to be deleted in order to create new ones or to make

recordings.

During playback, press FSS on the remote control at the

appropriate point. The 'Edit menu' menu will appear on the

screen.

Press CH+ • or CH-• to select 'Insert chapter marker'

then press OK. 'Inserting market _ appears on the TV screen.

'X' appears on the TV screen. This DVD is protected or a finalized DVD-R was inserted. You cannot

make any changes to it. Tip

To remove the menu, press FSS,

Hiding chapters

Initially all chapters are visible. You can hide chapters for playback (e.g. commercial skipping) or

make them visible again. In editing mode, hidden chapters are displayed in dimmed mode.. A chapter always consists of a start marker and an end marker. To hide a certain scene, proceed as follows:

10 "

[0:0g:4_

[0004

T C

I !

Edit menu

Insert cbaptel marker Press OK Delete cbapter marker Delete all markels

Current cbapter [ Visible [

Press SELECTto toggle

Press FSSto exit

2 3

Search the beginning of the scene you want to hide. Press

PAUSE II .

Press FSS on the remote control to call the 'Edit menu'

editing menu.

Set the start marker using OK. The number of chapters ('C') in the menu line will increase by

one,

[O" [0:03:40

[0:00:14

T C

I I

Edit menu

Insert chaptel marker Press OK Delete cbapter marker

Delete all realkers Culrent cba pter I Visible [

Press SELECTto toggle

Pless FSSto exit

54 Managing disc content

Search for the end of the scene. You can also use ••1 or

I_" to search faster for the end of the scene.

Make sure that you do not jump into the next title (title number

'T' must not change). Only chapters within a title can be hidden.

Press PAUSE I1 at the corresponding position.

Set the end marker with OK. This will also be the start marker of the next chapter.

The number of chapters ('C') in the menu line increases by one.

xThe number of chapters ('C') has increased by two or more

numbers

"/ This is the case when you want to hide a chapter that, due to

automatic chapter numbering (if switched on), stretches over two or more chapters. In this case, you must delete the start of the

automatically generated chapter:

Press TIC twice while the editing menu is displayed to change the chapter number.

2 Select the chapter between the new markers using CH-V or

CH+• .Press PAUSEII .

3 Select 'Delete chapter market _ with CH-V to delete the

current chapter marker. Confirm with OK. The current chapter number decreases by one.

Problem

Press TIC twice to change the chapter number 'C'.

Select the previous chapter with OH- • , since you are already

in the next chapter (end of the chapter is also the beginning of

the next chapter).

Wait until the chapter has been played and press PAUSE I1 to stop playback.

Select 'Current chapter using CH- • or CH+ • .

Using • select 'hidden'. The picture is shown darker.

Switching quickly

You can switch between show chapters ('Visible') and hide chapters ('hidden') quickly and easily using SELECT.

This function is independent from the se ected ine.

2 To end, press FSS,

During playback this chapter will be skipped.

If the chapter is not visible, select 'Visible' in step 3 with • .

Tip

Managing disc content 55

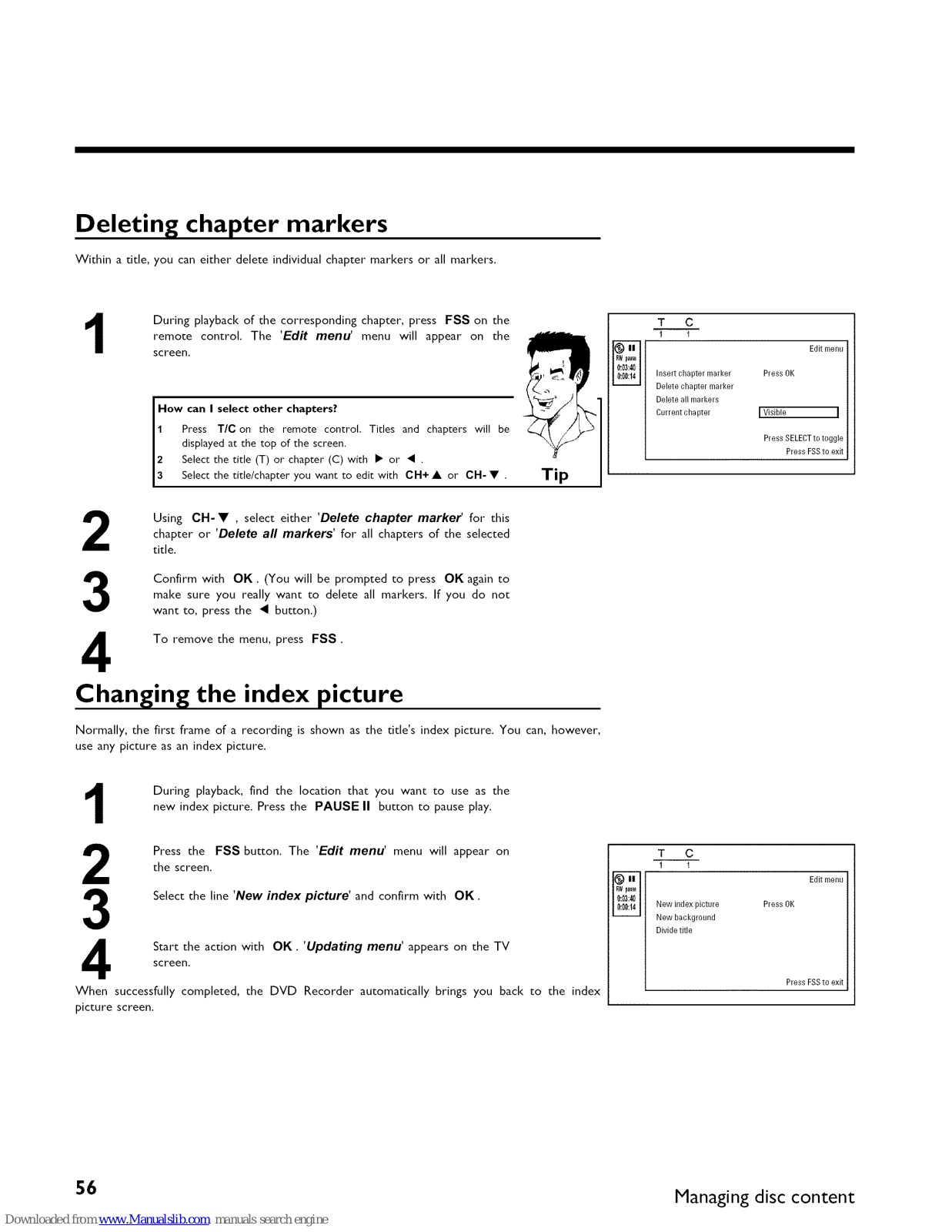

Deleting chapter markers

Within a title, you can either delete individual chapter markers or all markers.

During playback of the corresponding chapter, press FSS on the remote control, The 'Edit menu' menu will appear on the

screen.

How can I select other chapters?

1 Press TIC on the remote control Titles and chapters will be

displayed at the top of the screen.

2 Select the title (T) or" chapter (C) with • or • . 3 Select the t de/chapter you want to ed t w th OH+ • or OH- • .

Tip

Using CH-• , select either 'Delete chapter markef for this

chapter or 'Delete all markers' for all chapters of the selected

title.

Confirm with OK. (You will be prompted to press OK again to make sure you really want to delete all markers. If you do not

want to, press the _ button,)

To remove the menu, press FSS.

Changing the index picture

Normally, the first frame of a recording is shown as the title's index picture. You can, however,

use any picture as an index picture.

i®

i0_03:40 i0:00:14

T C

I !

Edit menu

Inselt chapter marker Press OK Delete chapter marker Delete all markels

Culrent cha pter I Visible I

PressSELECTtotoggle

Press FSSto exit

During playback, find the location that you want to use as the new index picture. Press the PAUSE II button to pause play.

2 3

Press the FSS button. The 'Edit menu' menu will appear on

the screen.

Select the line 'New index picture' and confirm with OK.

Start the action with OK. 'Updating menu' appears on the TV

screen.

When successfully completed, the DVD Recorder automatically brings you back to the index picture screen,

i® H

IRWa_

0:03:40

i0:00:14

T C

I !

New index picture Press OK New background

Divide title

Edit menu

Press FSSto exit

56 Managing disc content

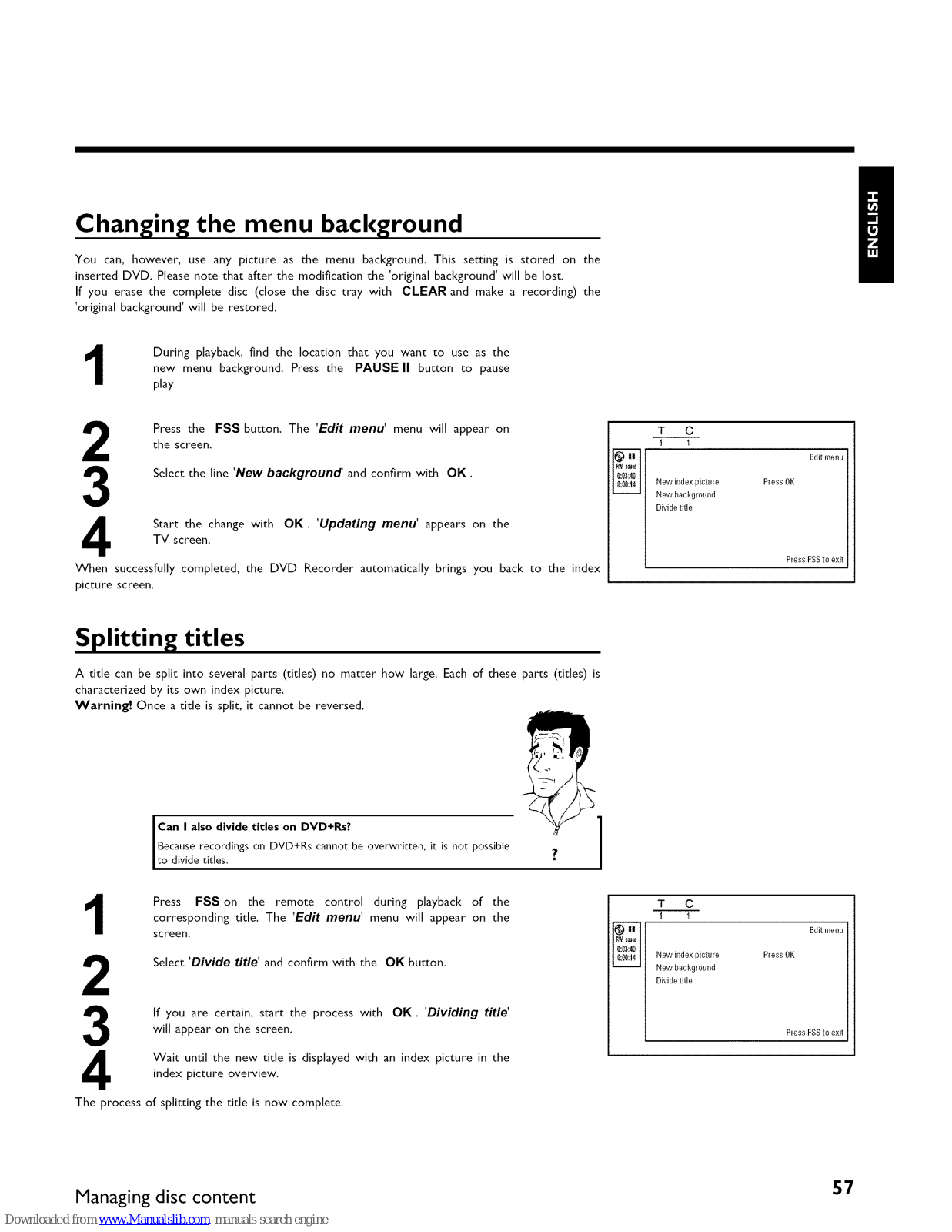

Changing the menu background

You can, however, use any picture as the menu background. This setting is stored on the inserted DVD. Please note that after the modification the 'original background' will be lost.

If you erase the complete disc (close the disc tray with CLEAR and make a recording) the

'original background' will be restored.

During playback, find the location that you want to use as the new menu background. Press the PAUSE 11 button to pause play.

2 3

Press the FSS button. The 'Edit menu' menu will appear on

the screen.

Select the line 'New background and confirm with OK.

Start the change with OK. 'Updating menu' appears on the

TV screen.

When successfully completed, the DVD Recorder automatically brings you back to the index picture screen.

i@"

IRWps,_

j0:03:40

i0004

T C

! !

New index pictme Press OK New background Divide title

Edit menu

Press FSSto exit

Splitting titles

A title can be split into several parts (titles) no matter how large. Each of these parts (titles) is characterized by its own index picture.

Warning! Once a title is split, it cannot be reversed.

Can I also divide titles on DVD+Rs?

Because recordings on DVD+Rs cannot be overwritten, it is not possible to divide tit es.

Press FSS on the remote control during playback of the

corresponding title. The 'Edit menu' menu will appear on the screen.

Select 'Divide title' and confirm with the OK button.

If you are certain, start the process with OK. 'Dividing title'

will appear on the screen,

Wait until the new title is displayed with an index picture in the

index picture overview,

The process of splitting the title is now complete,

]

iO"

i_Wpl,te i0:03:40 i8:00;14

T C

New index picture Press OK New backglound Divide title

Edit menu

Pless FSSto exit

Managing disc content 57

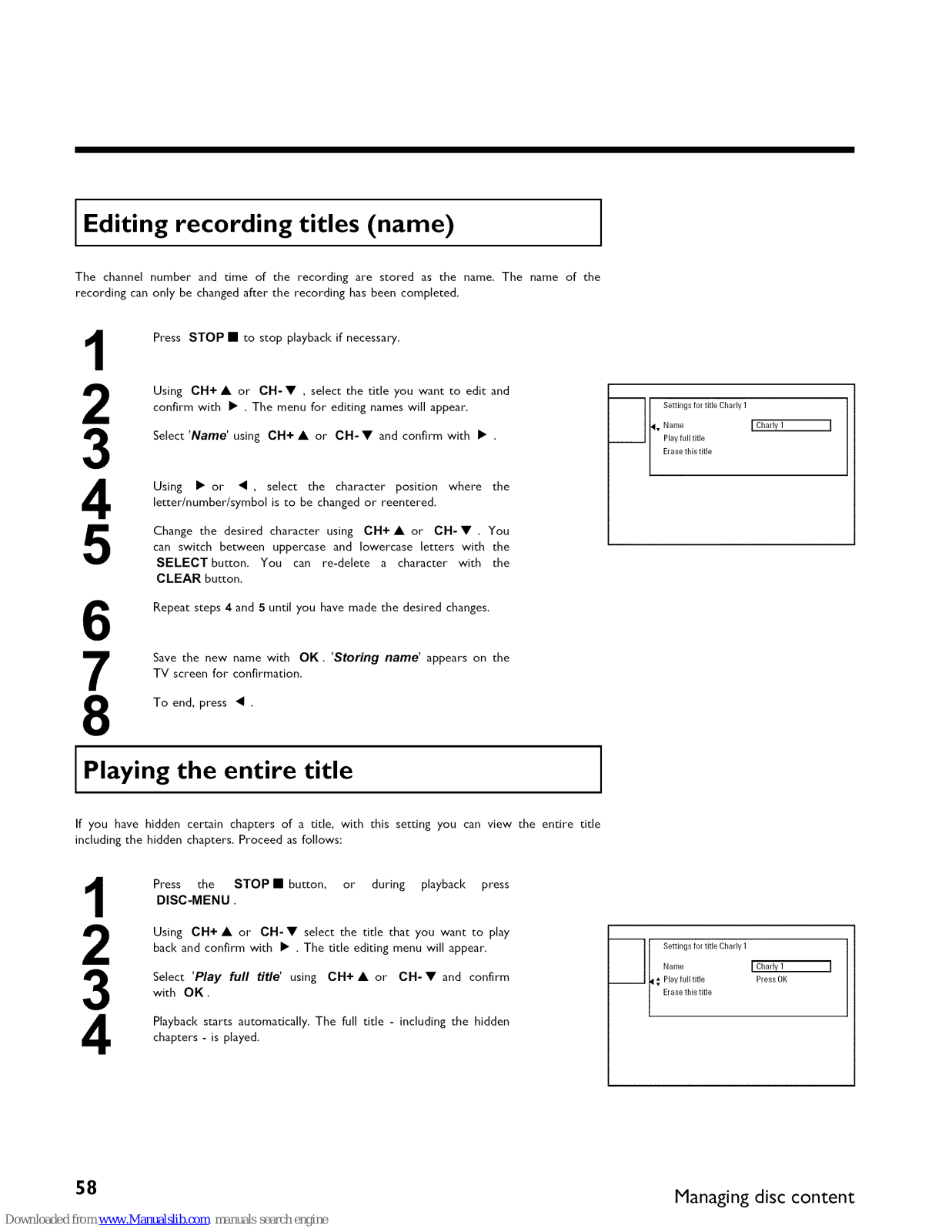

Editing recording titles (name)

The channel number and time of the recording are stored as the name. The name of the

recording can only be changed after the recording has been completed.

6 7

Press STOP • to stop playback if necessary.

Using CH+ • or CH- • , select the title you want to edit and

confirm with • . The menu for editing names will appear.

Select 'Name' using CH+ • or CH- • and confirm with • .

Using • or 4, select the character position where the letter/number/symbol is to be changed or reentered.

Change the desired character using CH+ • or CH-• You

can switch between uppercase and lowercase letters with the

SELECT button. You can re-delete a character with the

CLEAR button.

Repeat steps 4 and 5 until you have made the desired changes.

Save the new name with OK. 'Storing name' appears on the TV screen for confirmation.

To end, press _

Playing the entire title

It Settings fol title Charly 1

• Name Play full title Erase this title

I Charly1 I

If you have hidden certain chapters of a title, with this setting you can view the entire title

including the hidden chapters. Proceed as follows:

Press the STOP • button, or during playback press

DISC-MENU

Using CH+ • or CH-• select the title that you want to play back and confirm with • . The title editing menu will appear.

Select 'Play full title' using CH+ • or CH-• and confirm with OK.

Playback starts automatically, The full title - including the hidden

chapters - is played,

i_t Settings fol title Charlyl

Name Play full title

Erase this title

ICharly 1

Press OK

58 Managing disc content

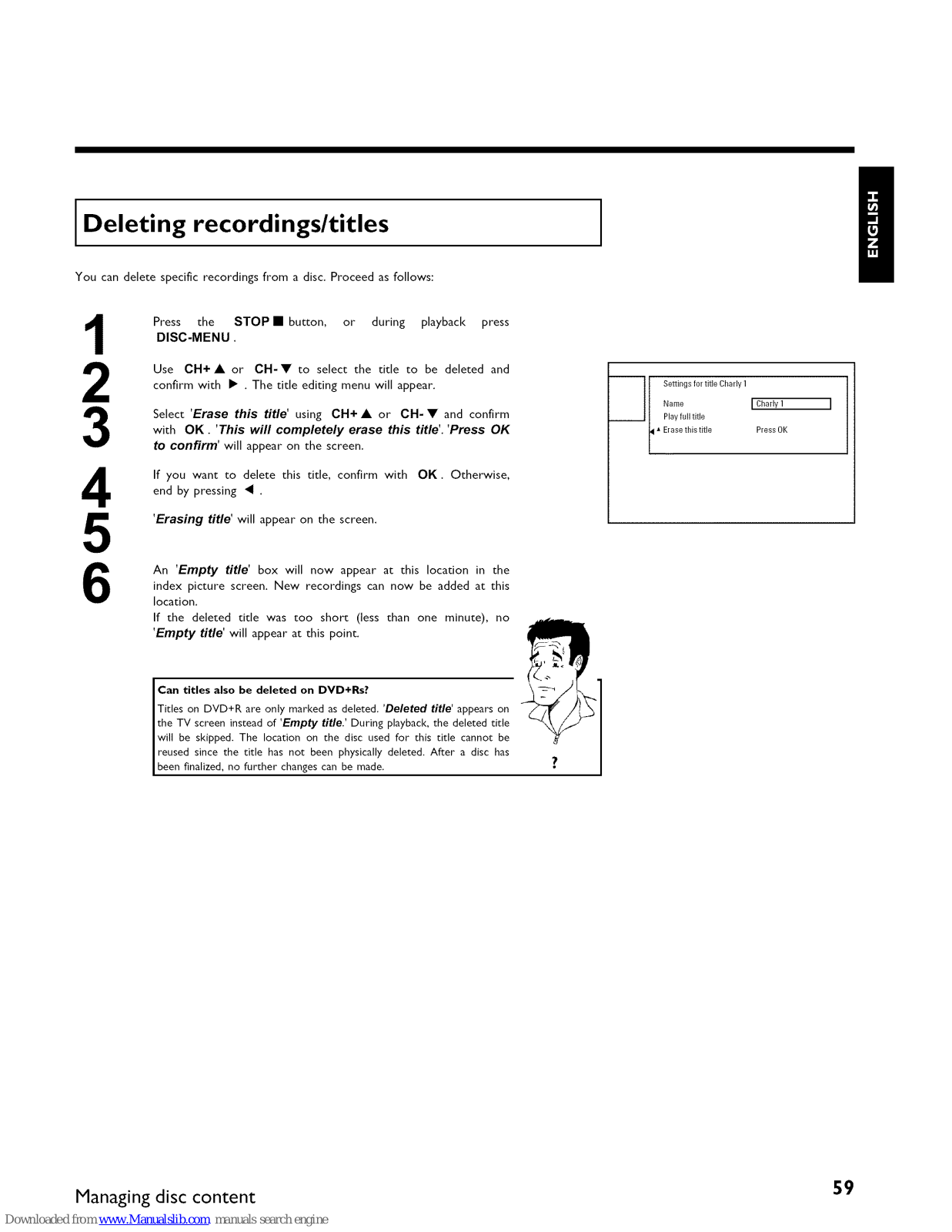

Deleting recordings/titles

You can delete specific recordings from a disc. Proceed as follows:

Press the STOP • button, or during playback press

DISC-MENU.

Use CH+ • or CH-• to select the title to be deleted and

confirm with • . The title editing menu will appear.

Select 'Erase this title' using CH+ • or CH-• and confirm with OK. 'This will completely erase this title', 'Press OK

to confirm' will appear on the screen.

If you want to delete this title, confirm with OK. Otherwise,

end by pressing _ .

'Erasing title' will appear on the screen.

J l Seltings fol title Charlyl

Name I Charly 1 I Play full title

• Erase this title Press OK

An 'Empty title' box will now appear at this location in the

index picture screen, New recordings can now be added at this

location. If the deleted title was too short (less than one minute), no

'Empty title' will appear at this point.

Can titles also be deleted on DVD+Rs?

Titles on DVD+R are only marked as deleted. 'Deleted title' appears on the TV screen instead of 'Empty title.' During playback, the deleted title

will be skipped. The location on the disc used for this title cannot be

reused since the title has not been physically deleted. After a disc has

been fina ized, no further changes can be made.

Managing disc content 59

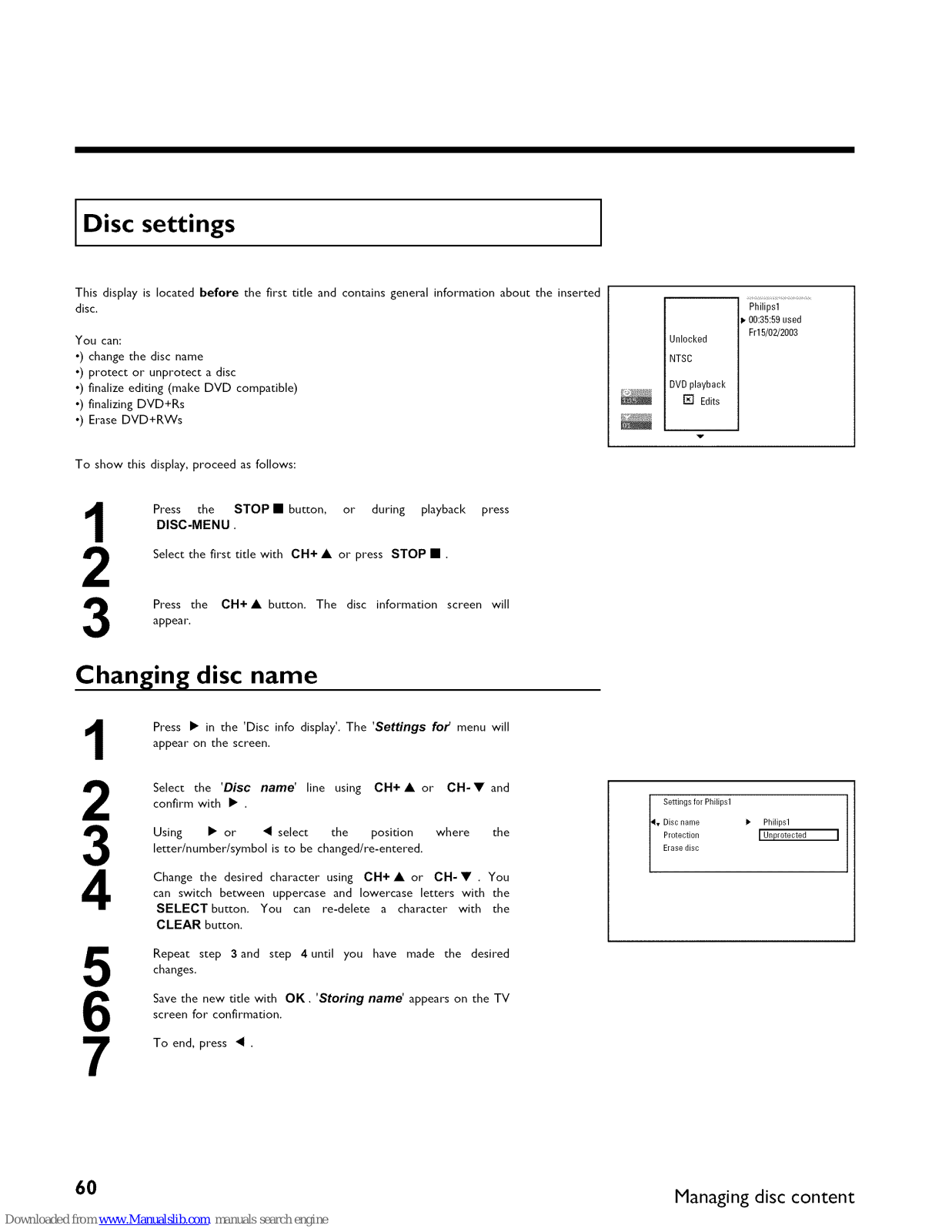

Disc settings

This display is located before the first title and contains general information about the inserted

disc.

You can:

") change the disc name

•) protect or unprotect a disc

•) finalize editing (make DVD compatible)

•) finalizing DVD+Rs

•) Erase DVD+RWs

To show this display, proceed as follows:

Philipsl

• 00:35:59used Frl5/02/2003

Unlocked NTSC

DVDplayback

[] Edits

Press the STOP • button, or during playback press

DISC-MENU.

Select the first title with OH+ • or press STOP • .

Press the OH+• button. The disc information screen will

appear.

Changing disc name

2 3

Press • in the 'Disc info display'. The 'Settings for menu will

appear on the screen.

Select the 'Disc name' line using CH+ • or CH-V and confirm with • .

Using • or _ select the position where the letter/number/symbol is to be changed/re-entered.

Change the desired character using OH+ • or OH-• . You

can switch between uppercase and lowercase letters with the

SELECT button. You can re-delete a character with the CLEAR button.

Repeat step 3 and step 4 until you have made the desired

changes.

Save the new title with OK. 'Storing name' appears on the TV screen for confirmation.

To end, press _ .

t Settings fol Phiiipsl

Disc name Protection Erase disc

_- Philipsl

IUnprotectedI

60 Managing disc content

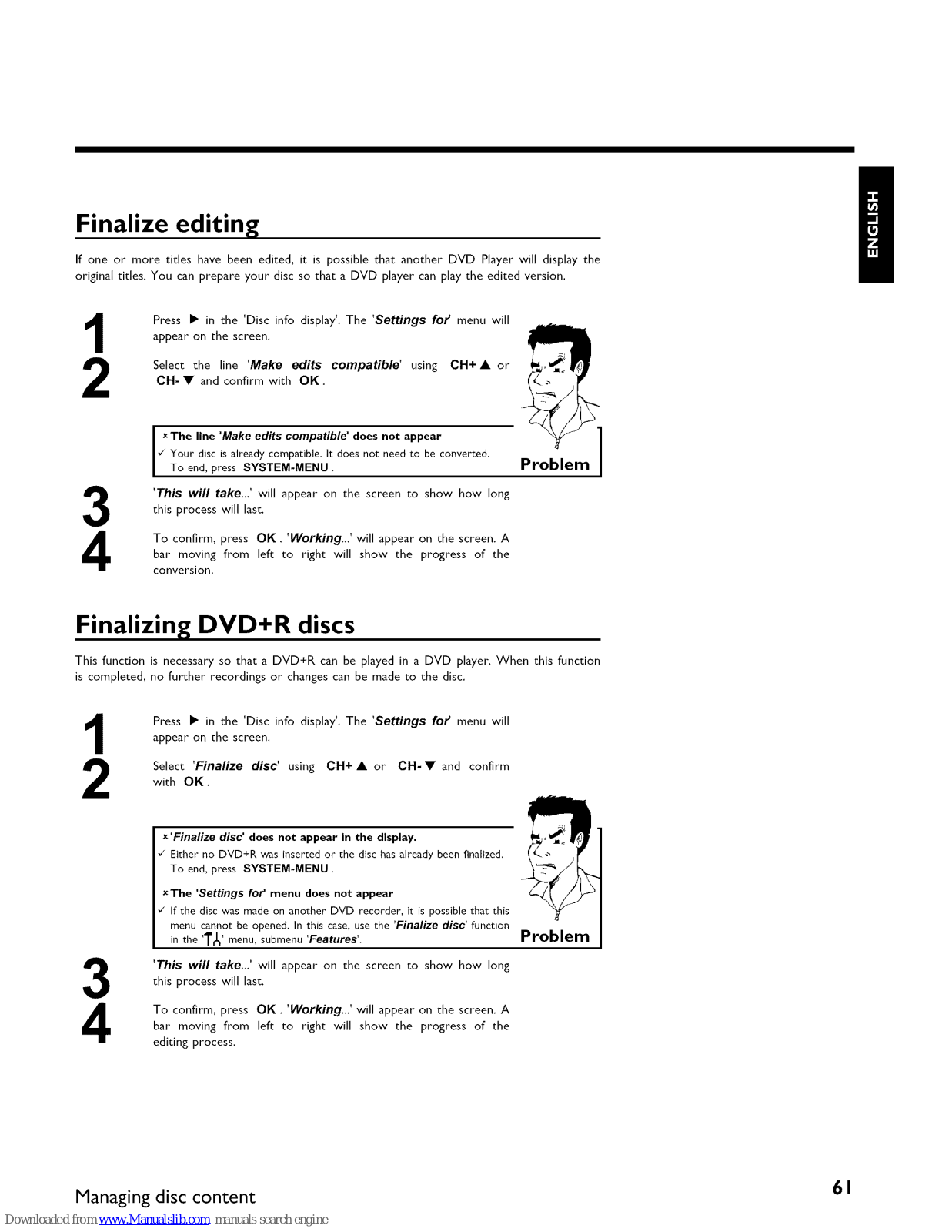

Finalize editing

If one or more titles have been edited, it is possible that another DVD Player will display the

original titles. You can prepare your disc so that a DVD player can play the edited version.

Press • in the 'Disc info display'. The 'Settings for menu will

appear on the screen.

Select the line 'Make edits compatible' using CH+ • or

CH- • and confirm with OK.

xThe line 'Make edits compatible' does not appear

"/" Your disc is already cornpatible. It does not need to be converted.

To end, press SYSTEM-MENU.

'This will take...' will appear on the screen to show how long this process will last.

To confirm, press OK. 'Working...' will appear on the screen. A

bar moving from left to right will show the progress of the

conversion.

Problem ]

Finalizing DVD+R discs

This function is necessary so that a DVD+R can be played in a DVD player. When this function is completed, no further recordings or changes can be made to the disc.

Press • in the 'Disc info display'. The 'Settings for menu will

appear on the screen.

Select 'Finalize disc' using CH+ • or CH-• and confirm with OK.

x'Finalize disc' does not appear in the display.

"/ Either no DVD+R was inserted or the disc has already been finalized.

To end, press SYSTEM-MENU.

xThe 'Settings fop menu does not appear

"/" If the disc was made on another DVD recorder, it is possible that this

menu cannot be opened. In this case, use the 'Finalize disc' function in the 'T_' menu, submenu 'Features'.

'This will take...' will appear on the screen to show how long

this process will last.

To confirm, press OK. 'Working...' will appear on the screen. A

bar moving from left to right will show the progress of the

editing process.

Problem

Managing disc content 6 1

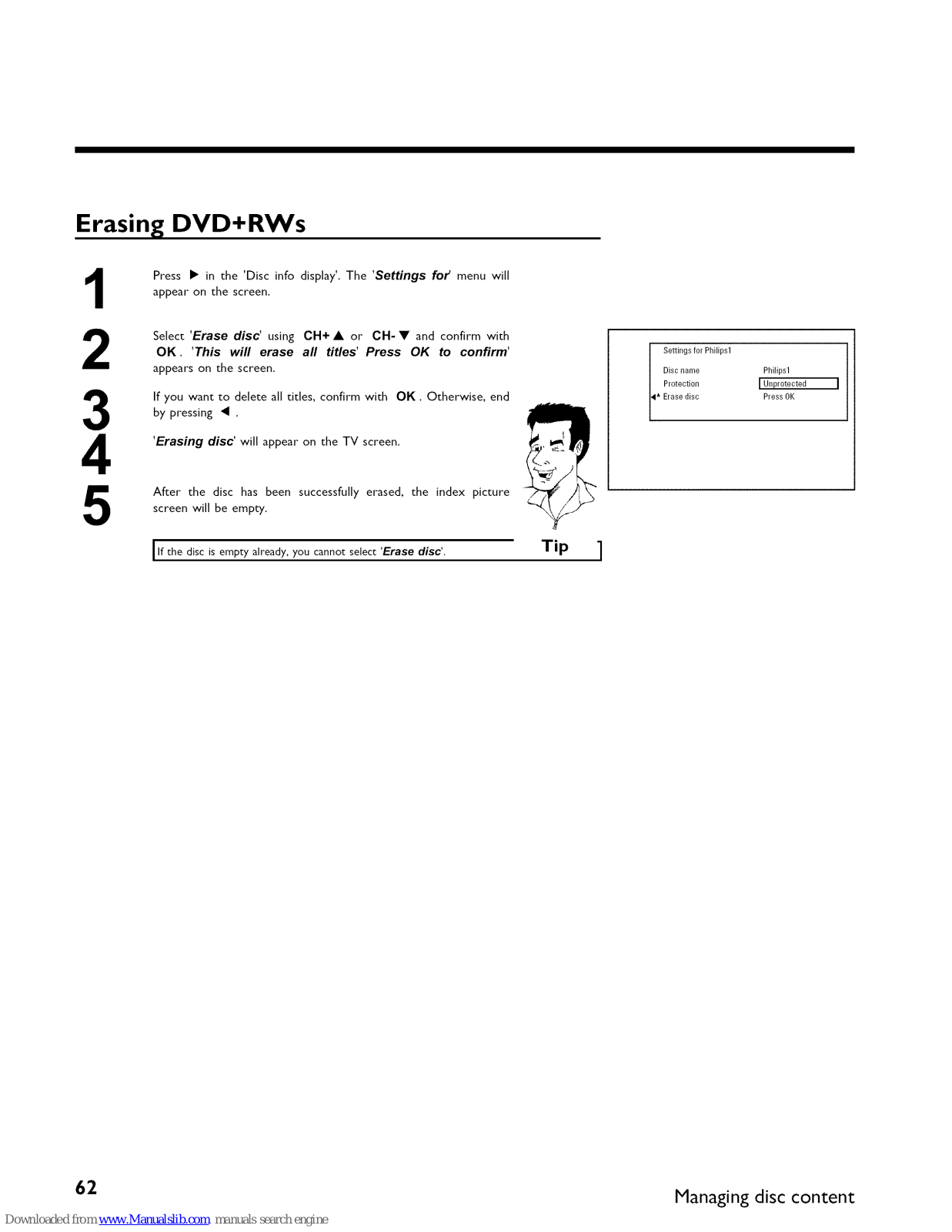

Erasing DVD+RWs

1 Press • in the 'Disc info display'. The 'Settings for menu will

appear on the screen.

Select 'Erase disc' using CH+ • or CH-• and confirm with

OK. 'This will erase all titles' Press OK to confirm'

appears on the screen.

'Erasing disc' will appear on the TV screen.

After the disc has been successfully erased, the index picture screen will be empty.

l If the disc is empty already, you cannot select 'Erase disc'. Tip ]

4 A Settings fol Philipsl

Disc name Philipsl Protection I Unprotected I

Erase disc Press OK

62 Managing disc content

Programming a recording (TIMER)

General

STANDBY

Use programmed recording (TIMER) to automatically start and stop a recording at a later date. The DVD Recorder will switch to the right channel and begin recording at the correct time. With this DVD recorder, you can pre-program up to 6 recordings within a period of one year.

To make a programmed recording, your DVD Recorder needs to know: * the date of the recording

* the channel number of the TV channel * the start and stop time of the recording

* the recording mode ('M1/M2/M2x/M3/M4/M6/M_) This information is saved in a TIMER block.

Before you begin, make sure the clock is set. If the clock is not set, the 'Time/Date' menu will

appear when you press the TIMER button.

Programming a recording with the 'VCR Plus+® system'

Thanks to this programming system, you no longer need to tediously enter the date, TV channel, start and end times. All the information needed for programming is contained in the PlusCode

programming number. This 8-digit PlusCode number is found in most TV listings for magazines.

Switch on the TV. Select the channel number for the DVD

Recorder (channel 3 or 4 or the Audio/Video In channel).

With the Recorder on, press TIMER on the remote control. The programming method selected last is marked.

Select line 'VCR Plus+ system' using CH-• or CH+ • and confirm with • ,

Enter the entire PlusCode number. This number is up to 9 digits long and can be found next to the start time of the TV program in your TV listings magazine.

e.g.: 5-234-89 or 5 234 89

Enter 523489 for the PlusCode number. If you make a mistake, you can clear the entry with CLEAR.

Programming a recording (TIMER) 63

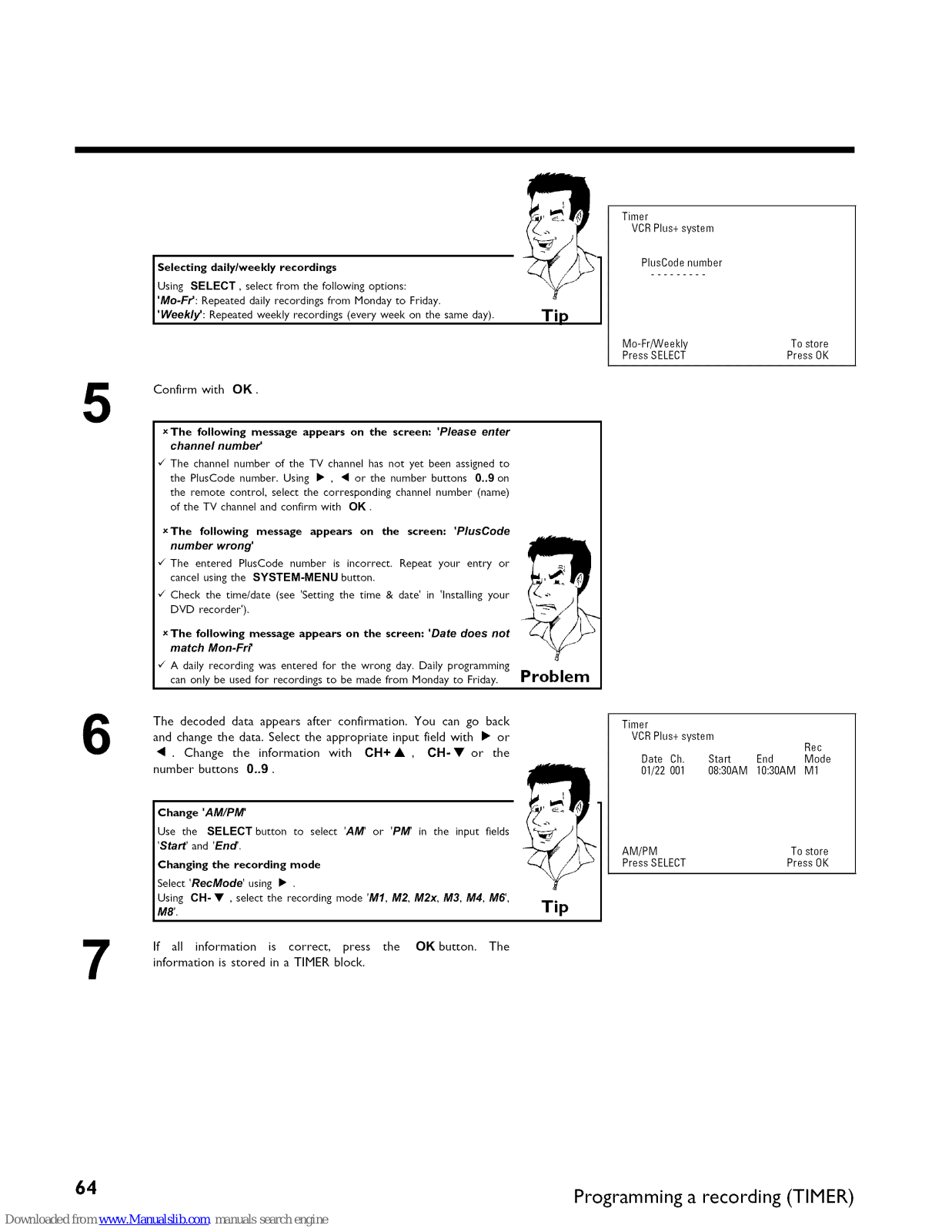

Selecting daily/weekly recordings Using SELECT, select from the following options:

'Mo-Fr': Repeated daily recordings from Monday to Friday. 'WeeM/: Repeated weekly recordings (every week on the same day).

Confirm with OK.

Timer

VCRPlus+ system

PlueC0denumber

M0-Fr/Weekly To store PressSELECT Press OK

xThe following message appears on the screen: 'Please enter

channel number'

¢" The channel number of the TV channel has not yet been assigned to

the PlusCode number. Using • , • or the number buttons 0..9 on the remote control, select the corresponding channel number (name) of the TV channel and confirm with OK.

xThe following message appears on the screen: 'PlusCode

number wrong'

"/ The entered PlusCode number is incorrect. Repeat your entry or

cancel using the SYSTEM-MENU button.

"/ Check the time/date (see 'Setting the time & date' in 'Installing your

DVD recorder').

xThe following message appears on the screen: 'Date does not

match Mon-Fru"

,/ A daily recording was entered for the wrong day. Daily programming

can only be used for recordings to be made from Monday to Friday.

The decoded data appears after confirmation. You can go back and change the data. Select the appropriate input field with • or

<. Change the information with CH+A , CH-V or the

number buttons 0,,9.

Change 'AM/PIVr Use the SELECT button to select 'AM' or 'P/ItT in the input fields

'Start' and 'Encf. Changing the recording mode

Select'RecMode' using • . Using CH- • , select the recording mode 'M1, M2, M2x, M3, M4, M6',

M8'.

If all information is correct, press the OK button. The information is stored in a TIMER block.

Problem

Tip

Timer

VCRPlus+ system

Rec Date Ch. Start End Mode 01/22 001 08:30AM 10:30AM M1

AM/PM To store

PressSELECT Press OK

64 Programming a recording (TIMER)

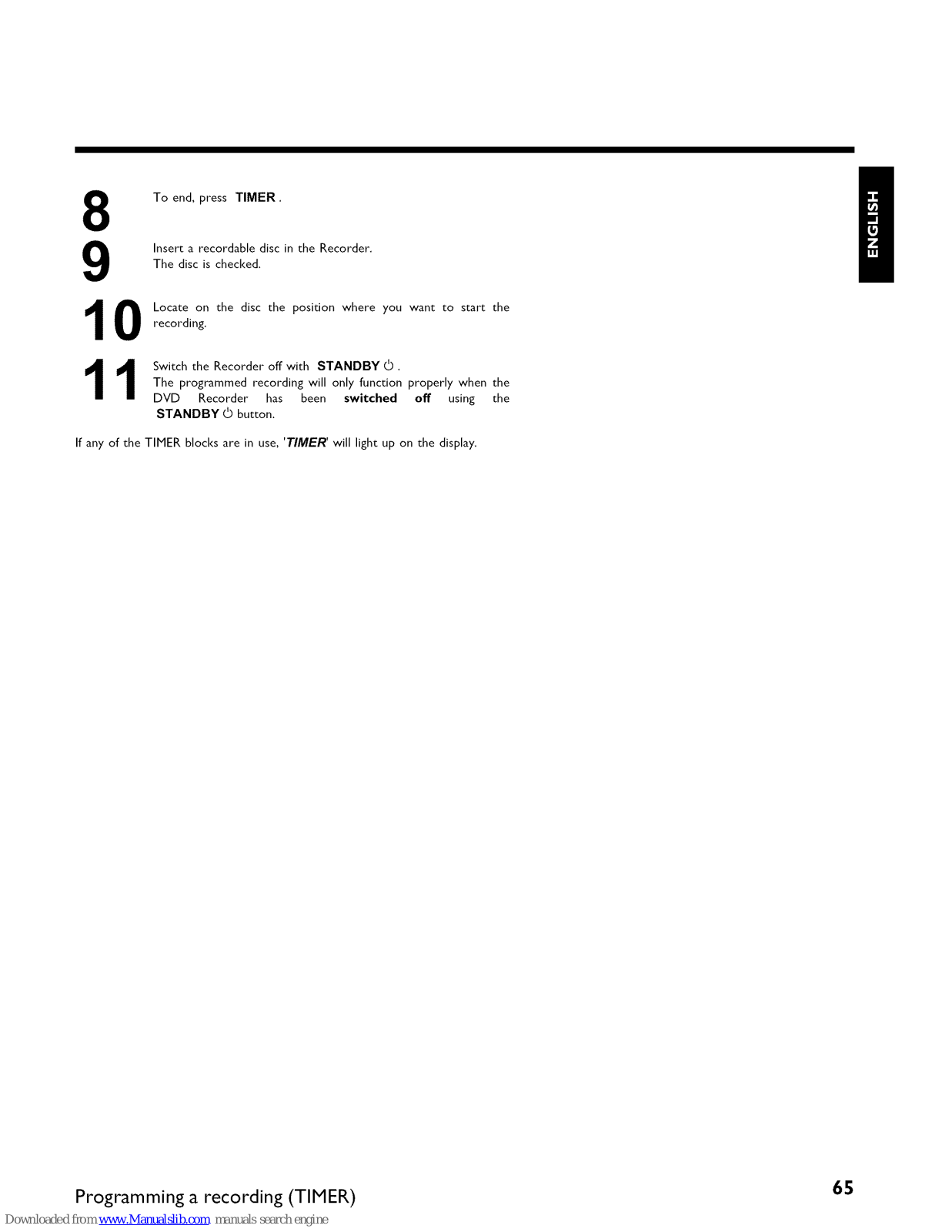

8 9

To end, press TIMER.

Insert a recordable disc in the Recorder.

The disc is checked.

_1_ Locate on the disc the position where you want to start the

recording.

A Switch the Recorder off with STANDBY _.

The programmed recording will only function properly when the

DVD Recorder has been switched off using the

If any of the TIMER blocks are in use, 'TIMER' will light up on the display.

Programming a recording (TIMER) 65

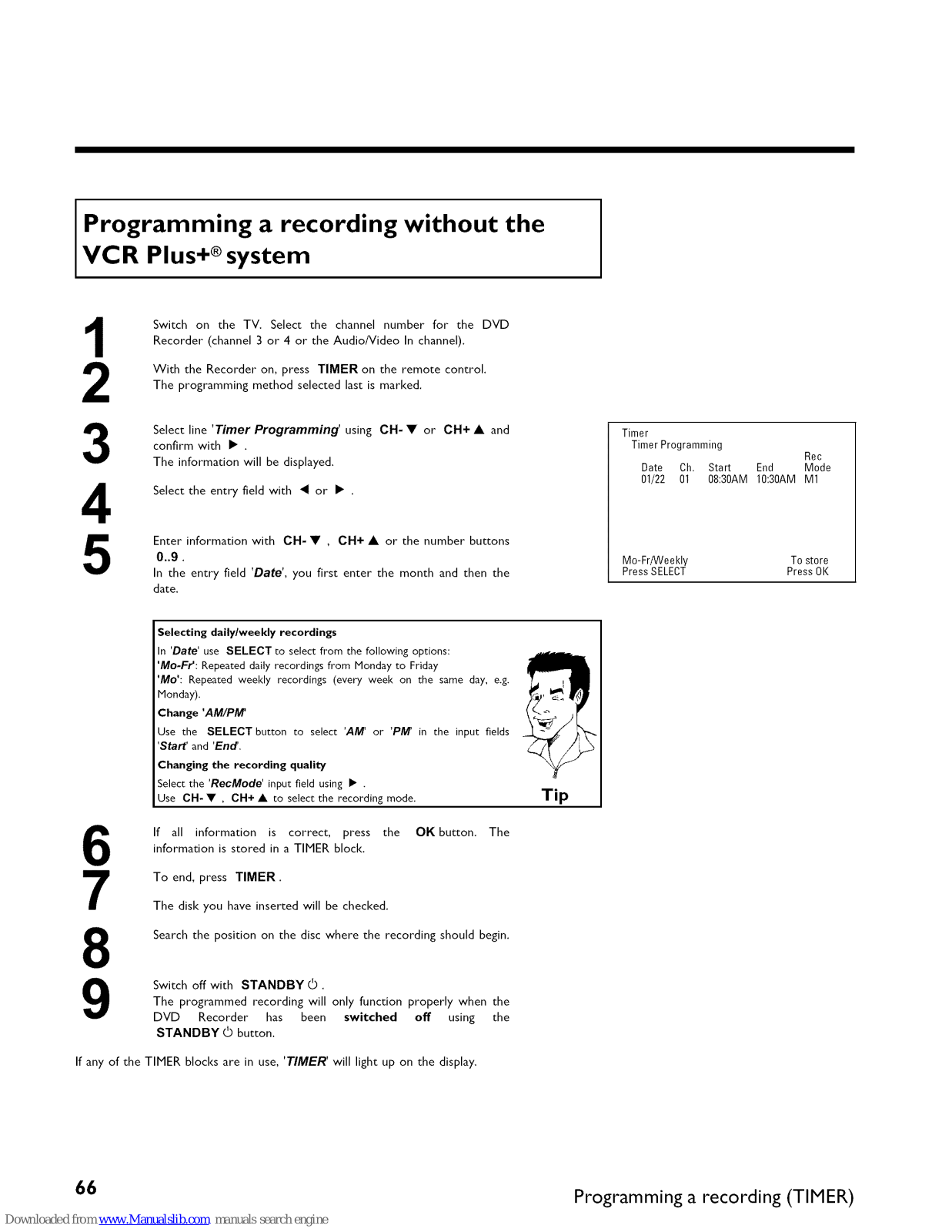

Programming a recording without the

VCR Plus+ ®system

Switch on the TV. Select the channel number for the DVD

Recorder (channel 3 or 4 or the Audio/Video In channel).

With the Recorder on, press TIMER on the remote control. The programming method selected last is marked.

Select line 'Timer Programming' using CH- • or CH+ • and confirm with • .

The information will be displayed.

Select the entry field with _ or • .

Enter information with CH- • , CH+ • or the number buttons

0..9.

In the entry field 'Date', you first enter the month and then the

date.

Timer

Timer Programming

Rec Date Ch. Start End Mode 01/22 01 08:30AM 10:30AM M1

Mo-Fr/Weekly To store PressSELECT Press OK

Selecting daily/weekly recordings In 'Date' use SELECT to select from the following options: 'Mo-FP: Repeated daily recordings from Monday to Friday

'Me': Repeated weeldy recordings (every week on the same day, e.g.

Monday).

Change 'AM/PIVr Use the SELECT button to select 'AM' or 'P/W in the input fields

'Start' and 'End. Changing the recording quality

Select the 'RecMode' input field using • . Use CH- • , CH+ • to select tile recording mode.

If all information is correct, press the OK button. The

information is stored in a TIMER block.

To end, press TIMER.

The disk you have inserted will be checked.

Search the position on the disc where the recording should begin.

Switch off with STANDBY _ .

The programmed recording will only function properly when the

DVD Recorder has been switched off using the

If any of the TIMER blocks are in use, 'TIMER' will light up on the display.

Tip

66 Programming a recording (TIMER)

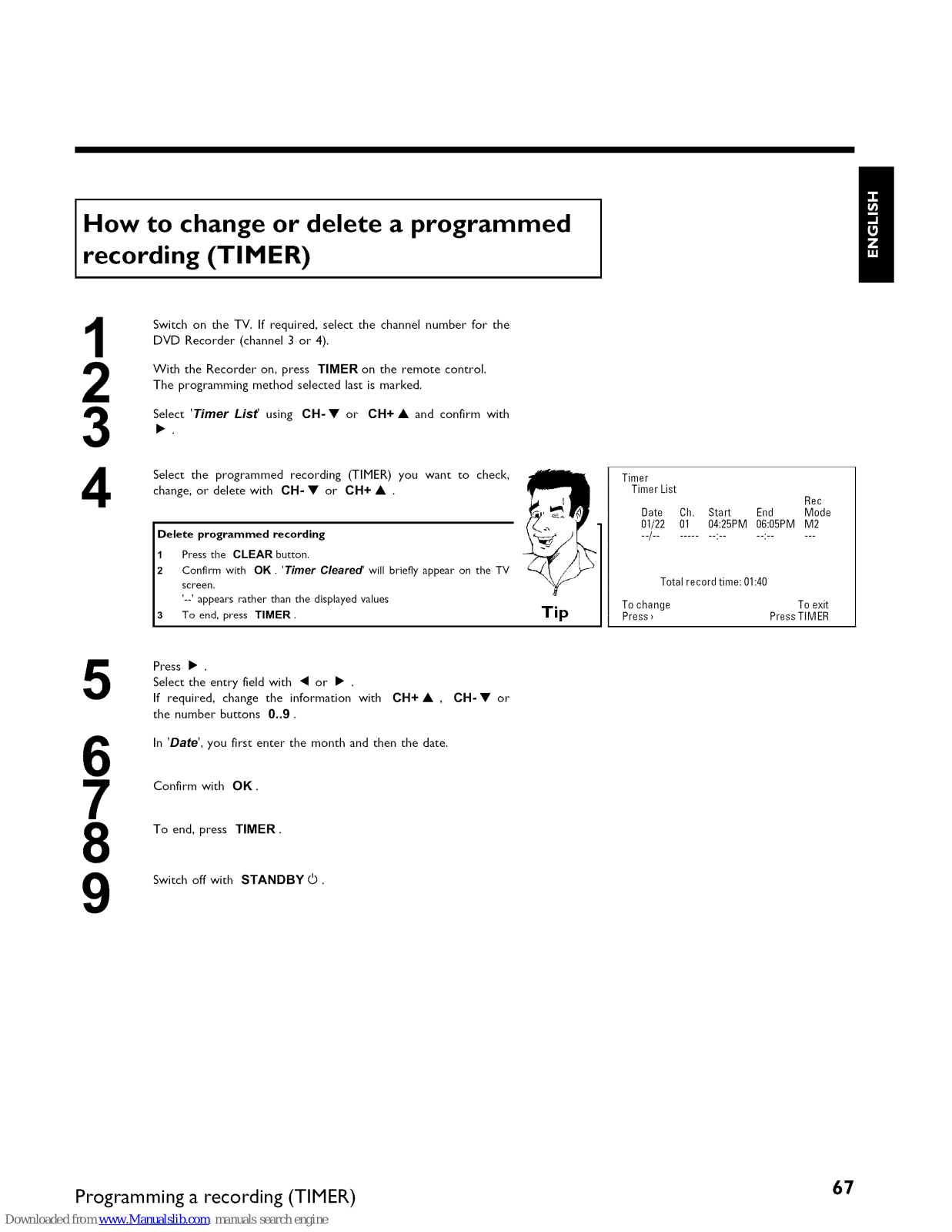

How to change or delete a programmed

recording (TIMER)

Switch on the TV. If required, select the channel number for the

DVD Recorder (channel 3 or 4).

With the Recorder on, press TIMER on the remote control. The programming method selected last is marked.

Select 'Timer List' using CH- • or CH+ • and confirm with

•.

Select the programmed recording (TIMER) you want to check, change, or delete with CH- • or CH+ • .

Delete programmed recording 1 Press the CLEAR button. 2 Confirm with OK. 'Timer Cleared' will briefly appear on the TV

screen.

'--' appears rather than the displayed values

3 To end, press TIMER. Tip

Timer

Timer List

Rec

Date Ch. Start End Mode 01/22 01 04:25PM 06:05PM M2

Total record time: 01:40

To change To exit

Press_ PressTIMER

Press • .

Select the entry field with _ or • .

If required, change the information with OH+ • , OH-• or

the number buttons 0-9,

In 'Date', you first enter the month and then the date.

Confirm with OK.

8 9

To end, press TIMER.

Programming a recording (TIMER) 67

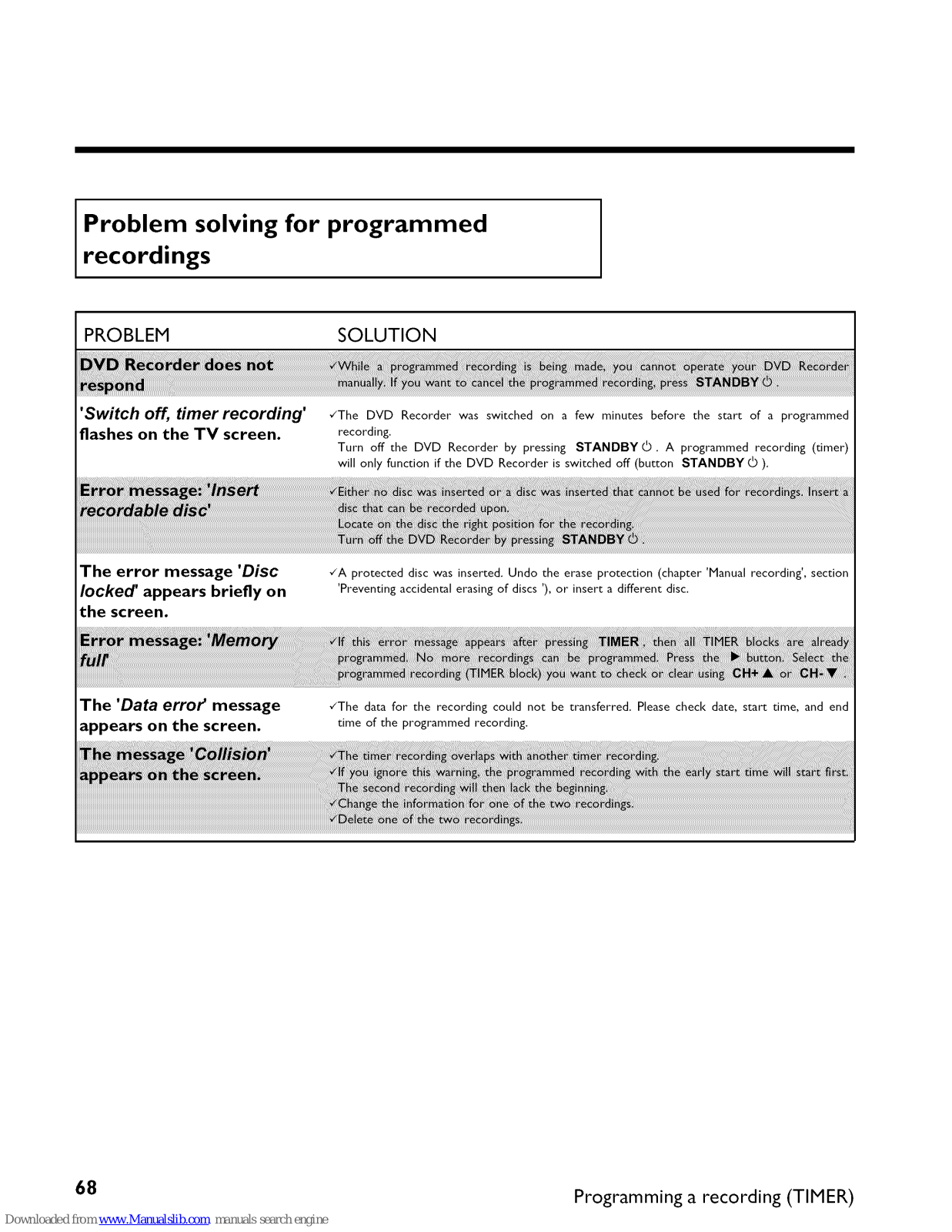

Problem solving for programmed

recordings

PROBLEM SOLUTION

'Switch off, timer recording'

flashes on the TV screen.

•ZThe DVD Recorder was switched on a few minutes before the start of a programmed recording.

Turn off the DVD Recorder by pressing STANDBY ©. A programmed recording (timer) will only function if the DVD Recorder is switched off (button STANDBY d) ).

The error message 'Disc

locked' appears briefly on

the screen.

¢'A protected disc was inserted. Undo the erase protection (chapter 'Manual recording', section

'Preventing accidental erasing of discs '), or insert a different disc.

The 'Data error' message appears on the screen.

•/The data for the recording could not be transferred. Please check date, start time, and end

time of the programmed recording.

68 Programming a recording (TIMER)

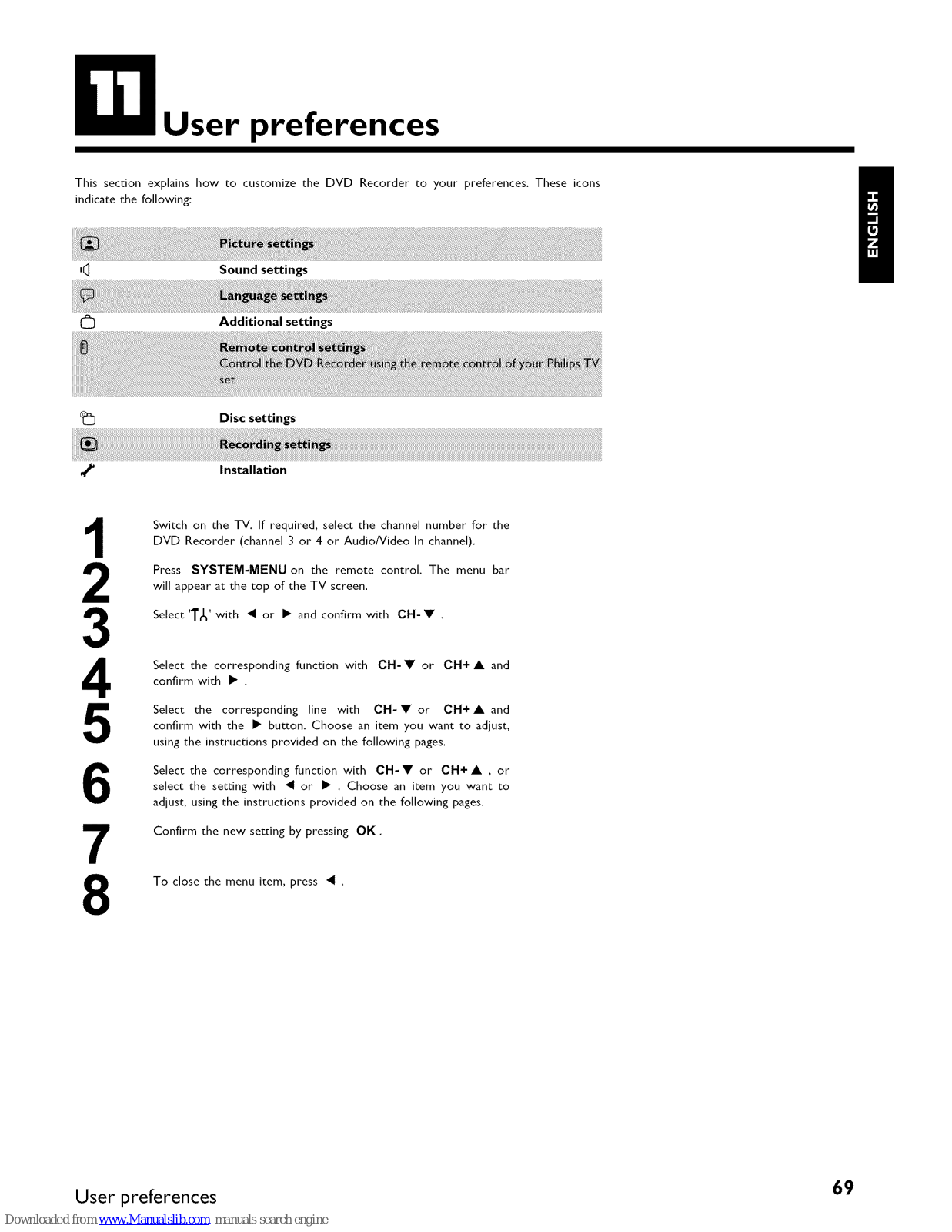

User preferences

This section explains how to customize the DVD Recorder to your preferences. These icons indicate the following:

_ Sound settings

Additional settings

Disc settings

_' Installation

Switch on the TV. If required, select the channel number for the

DVD Recorder (channel 3 or 4 or Audio/Video In channel).

Press SYSTEM-MENU on the remote control. The menu bar

will appear at the top of the TV screen.

Select '1'_' with 4 or • and confirm with CH-• .

Select the corresponding function with CH-• or CH+ • and confirm with • .

Select the corresponding line with CH-• or CH+A and confirm with the • button. Choose an item you want to adjust,

using the instructions provided on the following pages.

Select the corresponding function with OH-• or OH+ • , or select the setting with • or • . Choose an item you want to adjust, using the instructions provided on the following pages.

Confirm the new setting by pressing OK.

To close the menu item, press • .

User preferences 69

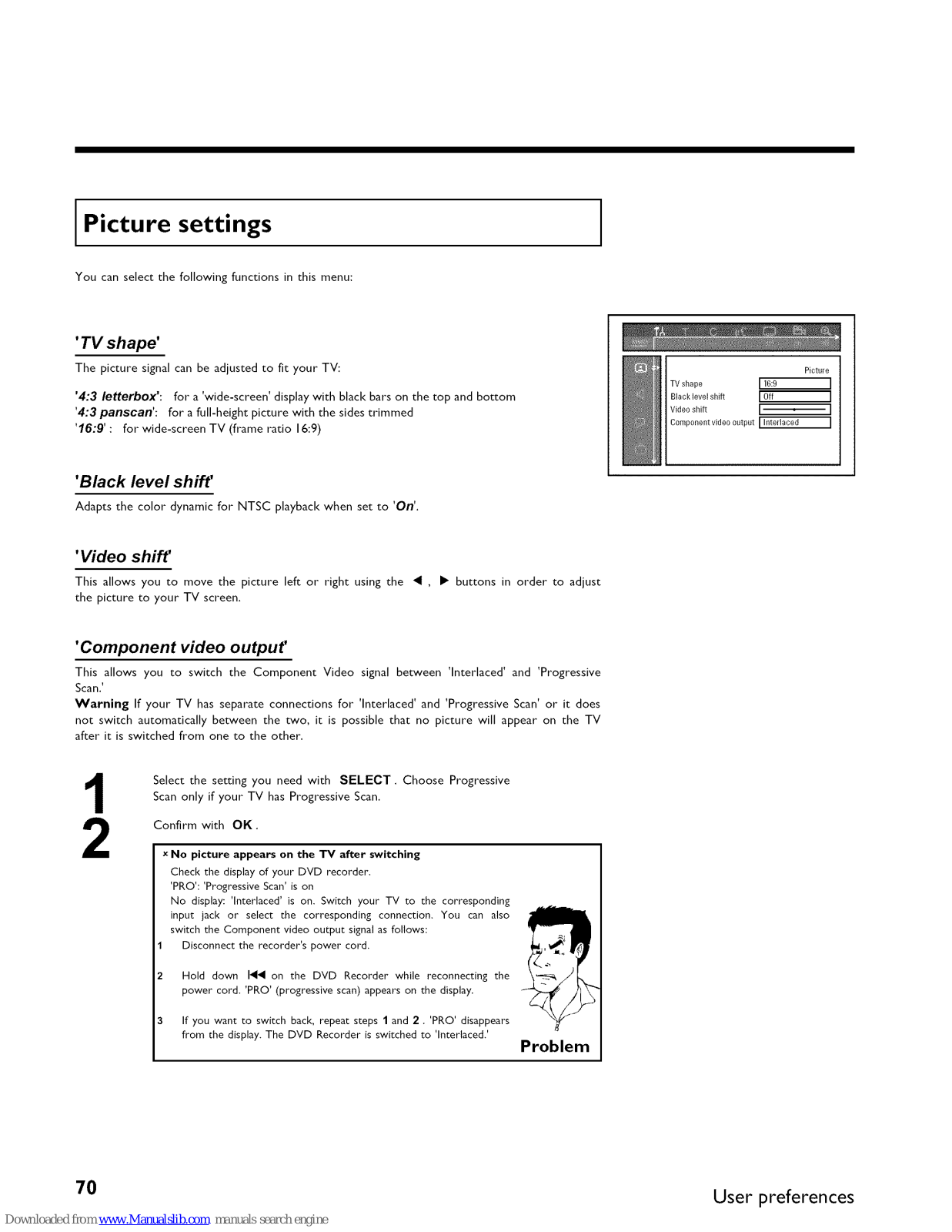

Picture settings

You can select the following functions in this menu:

'TV shape'

The picture signal can be adjusted to fit your TV:

'4:3 letterbox': for a 'wide-screen' display with black bars on the top and bottom '4:3 panscaff: for a full-height picture with the sides trimmed

'16:9' : for wide-screen TV (frame ratio 16:9)


TV shape 116:9 I Black level shift Ioff I Video shift I I

Component video output I Inte[laced I

'Black level shift'

Adapts the color dynamic for NTSC playback when set to 'On'.

'Video shift'

This allows you to move the picture left or right using the • , • buttons in order to adjust the picture to your TV screen.

'Component video output'

This allows you to switch the Component Video signal between 'Interlaced' and 'Progressive

Scan,' Warning If your TV has separate connections for 'Interlaced' and 'Progressive Scan' or it does not switch automatically between the two, it is possible that no picture will appear on the TV

after it is switched fl'om one to the other.

Select the setting you need with SELECT. Choose Progressive Scan only if your TV has Progressive Scan.

Confirm with OK.

x No picture appears on the TV after switching

Check the display of your DVD recorder. 'PRO': 'Progressive Scan' is on

No display: 'Interlaced' is on. Switch your TV to the corresponding input jack or select the corresponding connection. You can also switch the Component video output signal as follows:

Disconnect the recorder's power cord.

2 Hold down 14< on the DVD Recorder while reconnecting the

power cord. 'PRO' (progressive scan) appears on the display.

3 If you want to switch back, repeat steps 1 and 2. 'PRO' disappears

from the display. The DVD Recorder is switched to 'Interlaced.'

Problem

70 User preferences

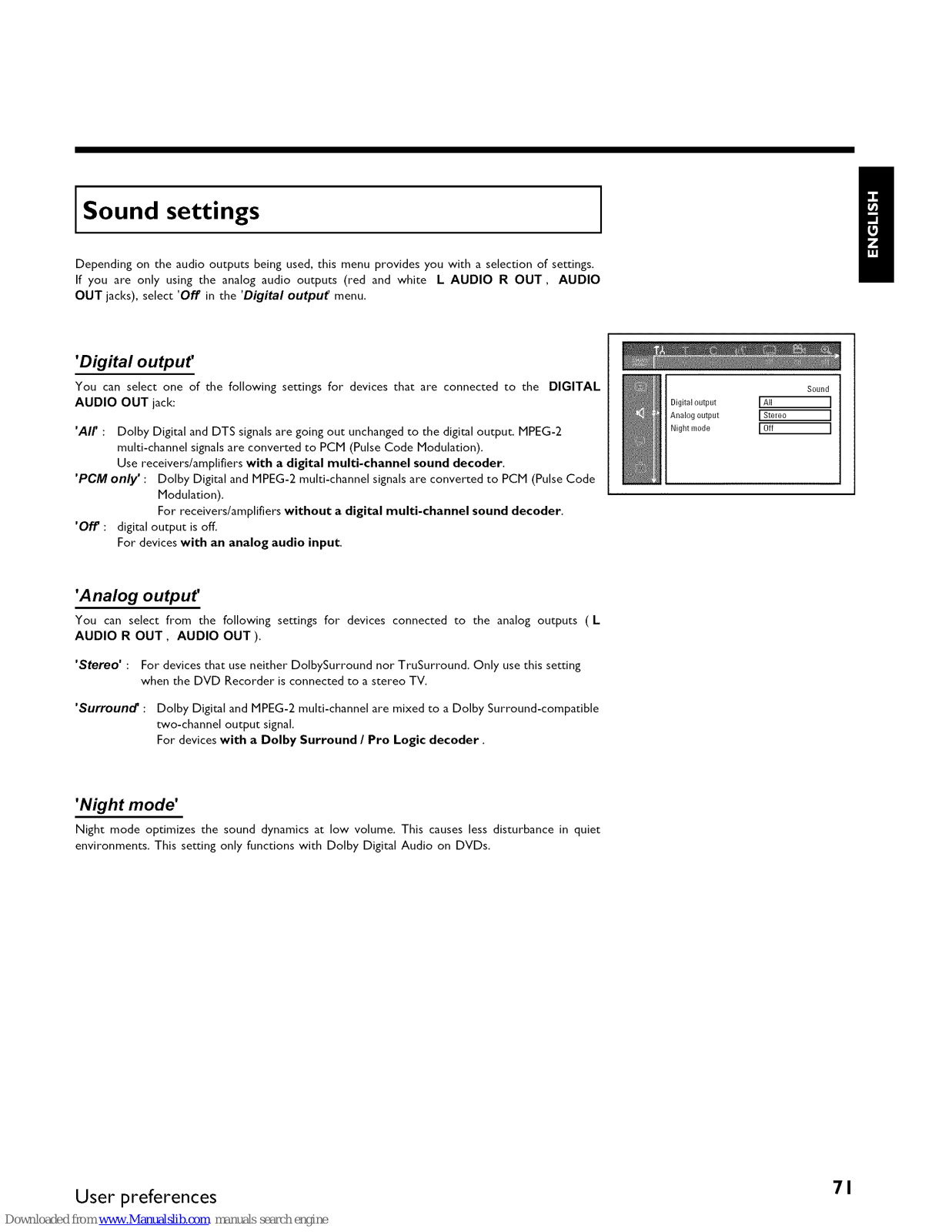

Sound settings

Depending on the audio outputs being used, this menu provides you with a selection of settings, If you are only using the analog audio outputs (red and white L AUDIO R OUT, AUDIO

OUT jacks), select 'Off in the 'Digital outpuf menu.

'Digital output'

You can select one of the following settings for devices that are connected to the DIGITAL AUDIO OUT jack:

'All' : Dolby Digital and DTS signals are going out unchanged to the digital output. MPEG-2

multi-channel signals are converted to PCM (Pulse Code Modulation),

Use receivers/amplifiers with a digital multi-channel sound decoder

'PCM only' : Dolby Digital and MPEG-2 multi-channel signals are converted to PCM (Pulse Code

Modulation),

For receivers/amplifiers without a digital multi-channel sound decoder

'Off' : digital output is off.

For devices with an analog audio input.

Sound

Digital output IAll I Analog output IStele0 I

Night mode ] Off ]

'Analog output'

You can select fi'om the following settings for devices connected to the analog outputs (L

AUDIO R OUT, AUDIO OUT)

'Stereo' : For devices that use neither DolbySurround nor TruSurround. Only use this setting

when the DVD Recorder is connected to a stereo TV.

'Surround' : Dolby Digital and MPEG-2 multi-channel are mixed to a Dolby Surround-compatible

two-channel output signal. For devices with a Dolby Surround / Pro Logic decoder.

'Night mode'

Night mode optimizes the sound dynamics at low volume. This causes less disturbance in quiet

environments. This setting only functions with Dolby Digital Audio on DVDs.

User preferences 71

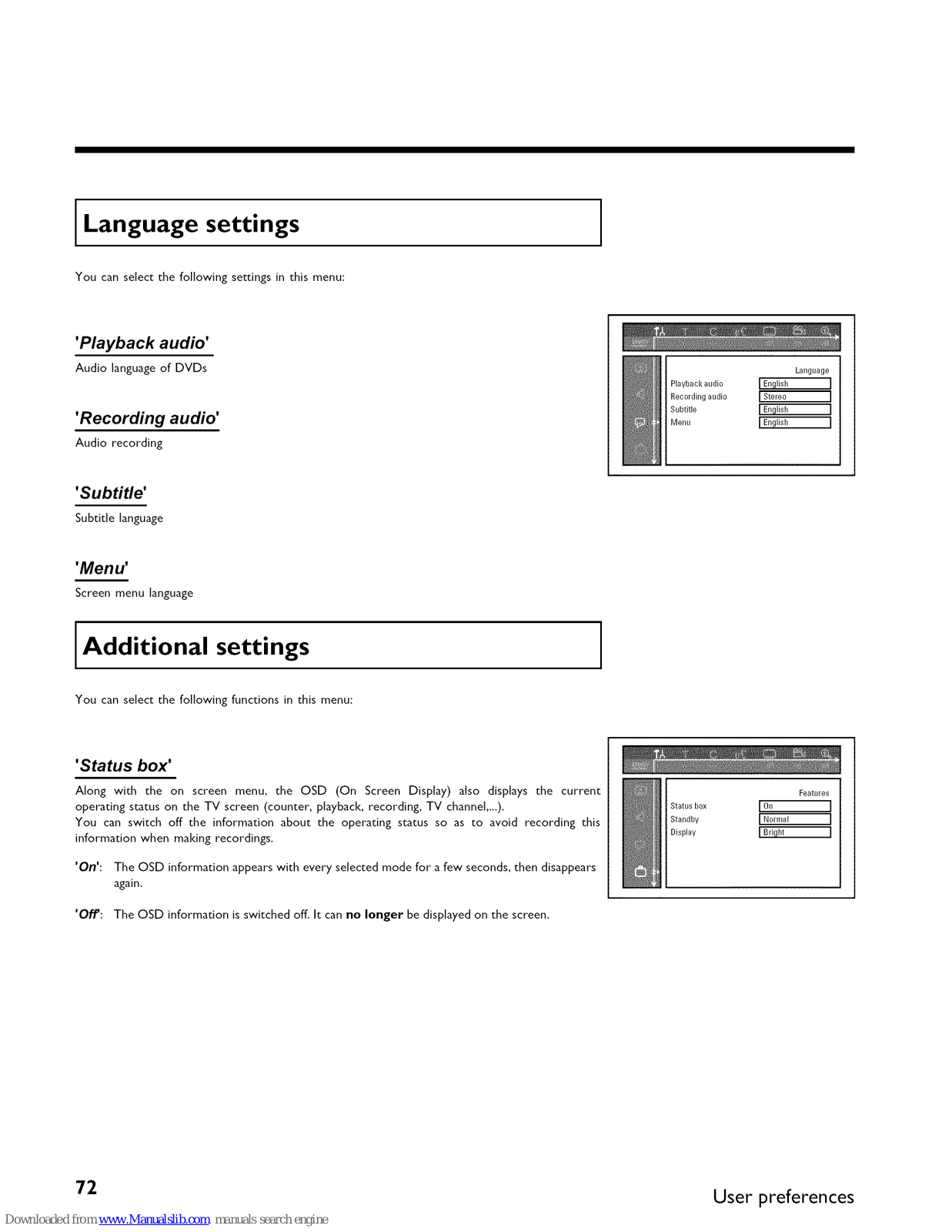

Language settings

You can select the following settings in this menu:

'Playback audio'

Audio language of DVDs

'Recording audio'

Audio recording

Language Playback audio I English I Recording audio I Stereo I

Subtitle IEnglish I

Menu I English I

'Subtitle'

Subtitle language

'Menu'

Screen menu language

Additional settings

You can select the following functions in this menu:

'Status box'

Along with the on screen menu, the OSD (On Screen Display) also displays the current operating status on the TV screen (counter, playback, recording, TV channel,.,,), You can switch off the information about the operating status so as to avoid recording this information when making recordings,

'On': The OSD information appears with every selected mode for a few seconds, then disappears

again.

'Off': The OSD information is switched off. It can no longer be displayed on the screen.

Features

Status box I On I Standby I Normal I

Display I Bright l

72 User preferences

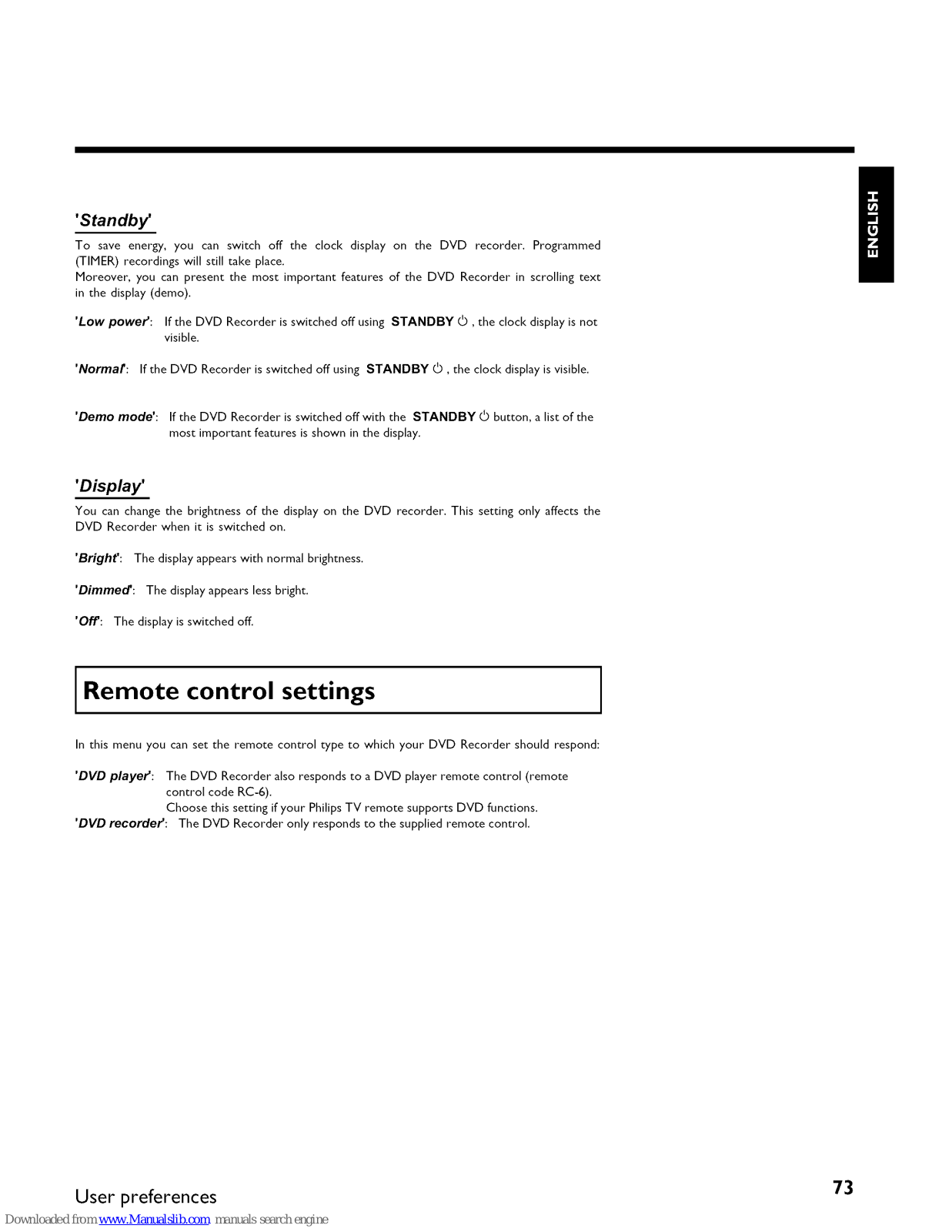

'Standby'

To save energy, you can switch off the clock display on the DVD recorder. Programmed

(TIMER) recordings will still take place. Moreover, you can present the most important features of the DVD Recorder in scrolling text

in the display (demo).

visible.

'Demo mode': If the DVD Recorder is switched off with the STANDBY (_ button, a list of the

most important features is shown in the display.

'Display'

You can change the brightness of the display on the DVD recorder. This setting only affects the

DVD Recorder when it is switched on.

'Bright': The display appears with normal brightness.

'Dimmed': The display appears less bright.

'Off': The display is switched off.

Remote control settings

In this menu you can set the remote control type to which your DVD Recorder should respond:

'DVD player': The DVD Recorder also responds to a DVD player remote control (remote

control code RC-6). Choose this setting if your Philips TV remote supports DVD functions.

'DVD recorder,: The DVD Recorder only responds to the supplied remote control.

User preferences 73

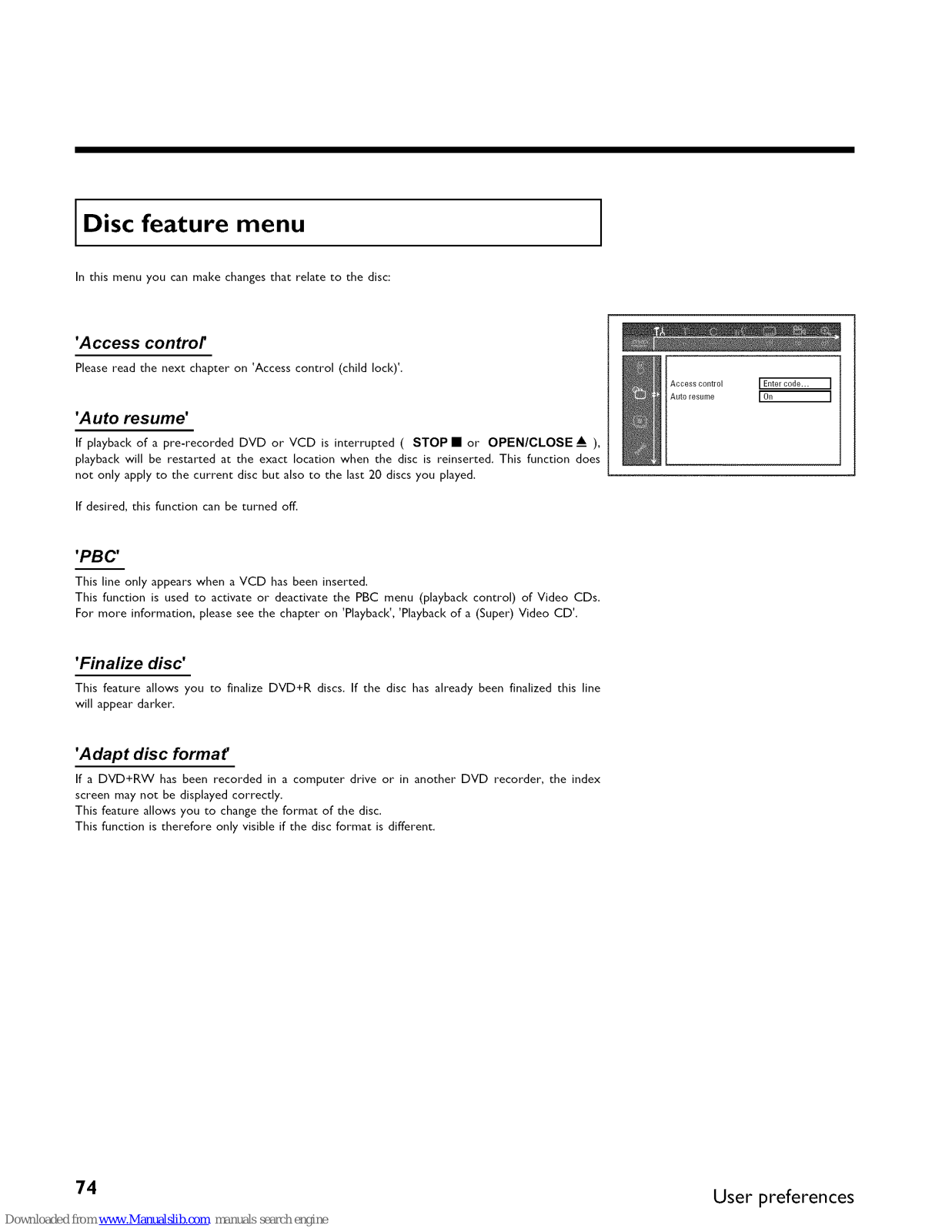

Disc feature menu

In this menu you can make changes that relate to the disc:

'Access control"

Please read the next chapter on 'Access control (child lock)'.

'Auto resume'

If playback of a pre-recorded DVD or VCD is interrupted ( STOP • or OPEN/CLOSE • ),

playback will be restarted at the exact location when the disc is reinserted. This function does not only apply to the current disc but also to the last 20 discs you played.

If desired, this function can be turned off.

Access control Auto resume

I Enter code... I

Io,, I

'PBC'

This line only appears when a VCD has been inserted. This function is used to activate or deactivate the PBC menu (playback control) of Video CDs.

For more information, please see the chapter on 'Playback', 'Playback of a (Super) Video CD'.

'Finalize disc'

This feature allows you to finalize DVD+R discs. If the disc has ah'eady been finalized this line will appear darker.

'Adapt disc forma#

If a DVD+RW has been recorded in a computer drive or in another" DVD recorder, the index screen may not be displayed correctly. This feature allows you to change the format of the disc. This function is therefore only visible if the disc format is different.

"/4 User preferences

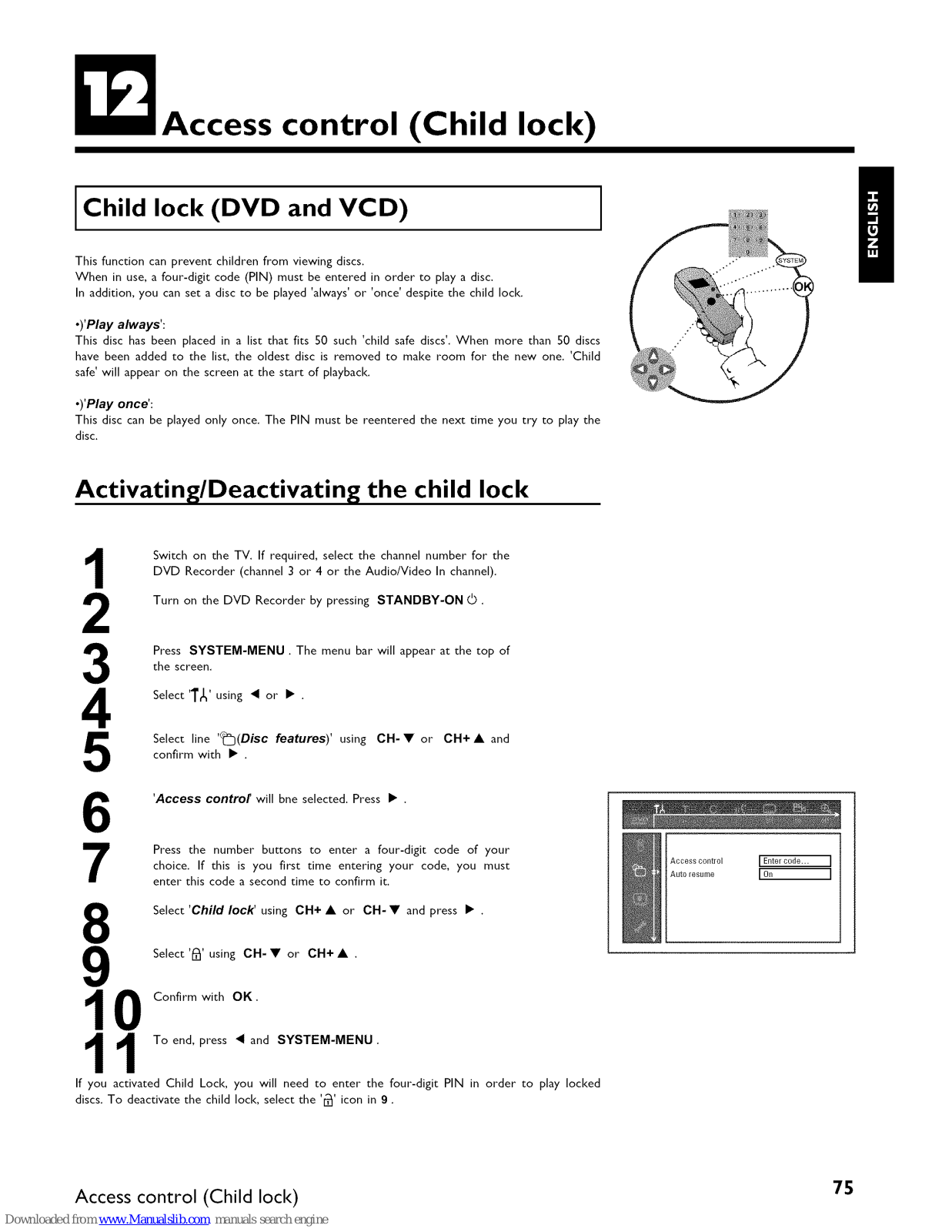

Access control (Child lock)

Child lock (DVD and VCD)

This function can prevent children from viewing discs. When in use, a four-digit code (PIN) must be entered in order to play a disc.

In addition, you can set a disc to be played 'always' or 'once' despite the child lock.

•)'Play always': This disc has been placed in a list that fits 50 such 'child safe discs'. When more than 50 discs have been added to the list, the oldest disc is removed to make room for the new one. 'Child safe' will appear on the screen at the start of playback.

•)'Play once': This disc can be played only once. The PIN must be reentered the next time you try to play the

disc.

Activating/Deactivating the child lock

Switch on the TV. If required, select the channel number for the

DVD Recorder (channel 3 or 4 or the Audio/Video In channel).

Press SYSTEM-MENU. The menu bar will appear at the top of

the screen.

Select 'T_' using • or • .

Select line '_3(Disc features)' using CH-• or CH+ • and

confirm with • .

'Access control will bne selected. Press • .

Press the number buttons to enter a four-digit code of your choice. If this is you first time entering your code, you must enter this code a second time to confirm it.

8 9

Select 'Child lock' using CH+ • or CH- • and press • .

Select 'f_' using CH- • or CH+ • .

_ Confirm with OK.

To end, press • and SYSTEM-MENU.

If you activated Child Loci<, you will need to enter the four-digit PIN in order to play locked

discs, To deactivate the child lock, select the '1_' icon in 9,

Access control Auto resume

I Enter code... I

I0n I

Access control (Child loci<) 75

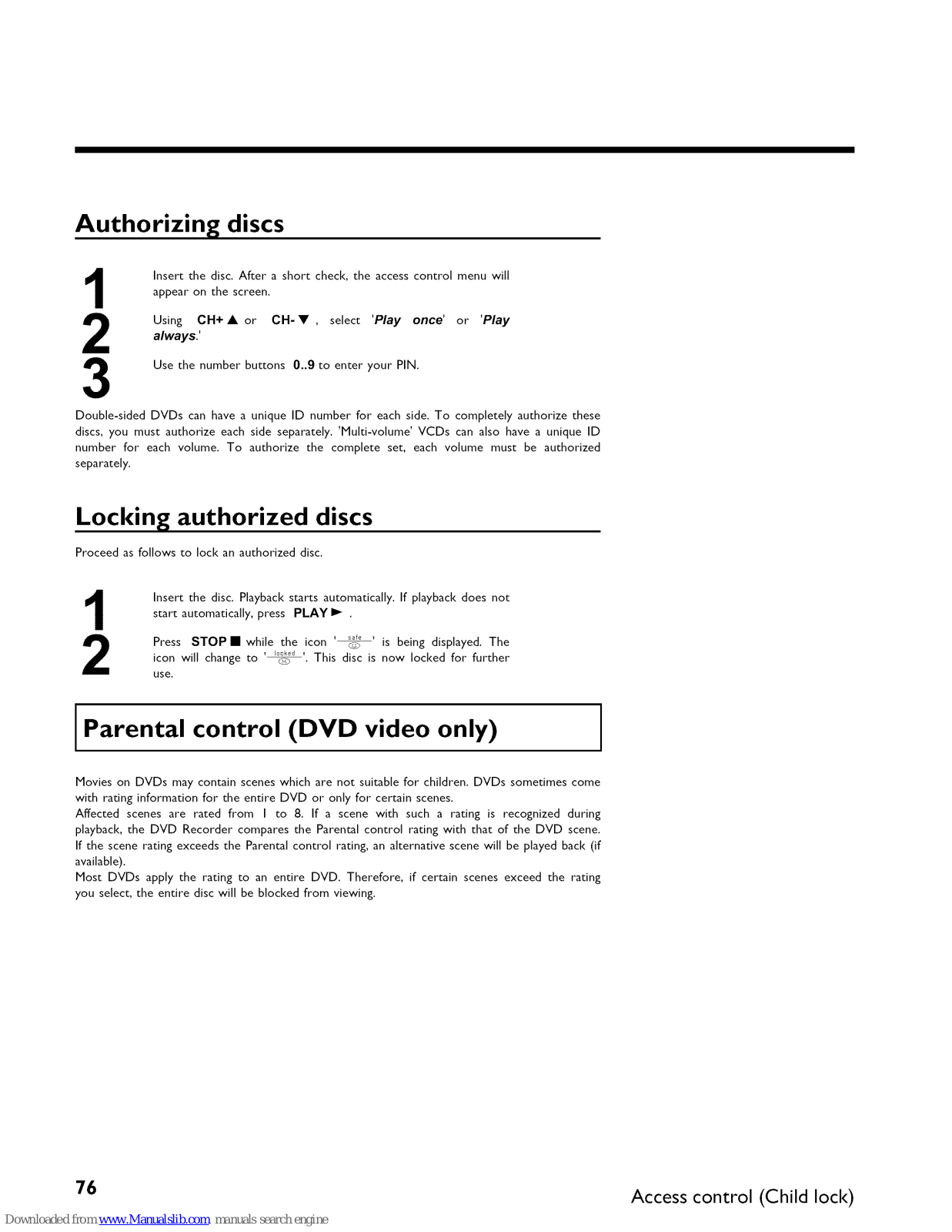

Authorizing discs

Insert the disc. After a short check, the access control menu will appear on the screen.

Using CH+ • or CH-• , select 'Play once' or 'Play

always.'

Use the number buttons 0..9 to enter your PIN.

Double-sided DVDs can have a unique ID number for each side. To completely authorize these discs, you must authorize each side separately. 'Multi-volume' VCDs can also have a unique ID number for each volume. To authorize the complete set, each volume must be authorized separately.

Locking authorized discs

Proceed as follows to lock an authorized disc.

Insert the disc. Playback starts automatically. If playback does not

start automatically, press PLAYI_ .

Press STOP• while the icon ' _ ' is being displayed. The

locked

icon will change to _ . This disc is now locked for further

use,

Parental control (DVD video only)

Movies on DVDs may contain scenes which are not suitable for children. DVDs sometimes come with rating information for the entire DVD or only for certain scenes. Affected scenes are rated from I to 8. If a scene with such a rating is recognized during playback, the DVD Recorder compares the Parental control rating with that of the DVD scene.

If the scene rating exceeds the Parental control rating, an alternative scene will be played back (if available).

Most DVDs apply the rating to an entire DVD. Therefore, if certain scenes exceed the rating you select, the entire disc will be blocked from viewing.

76 Access control (Child lock)

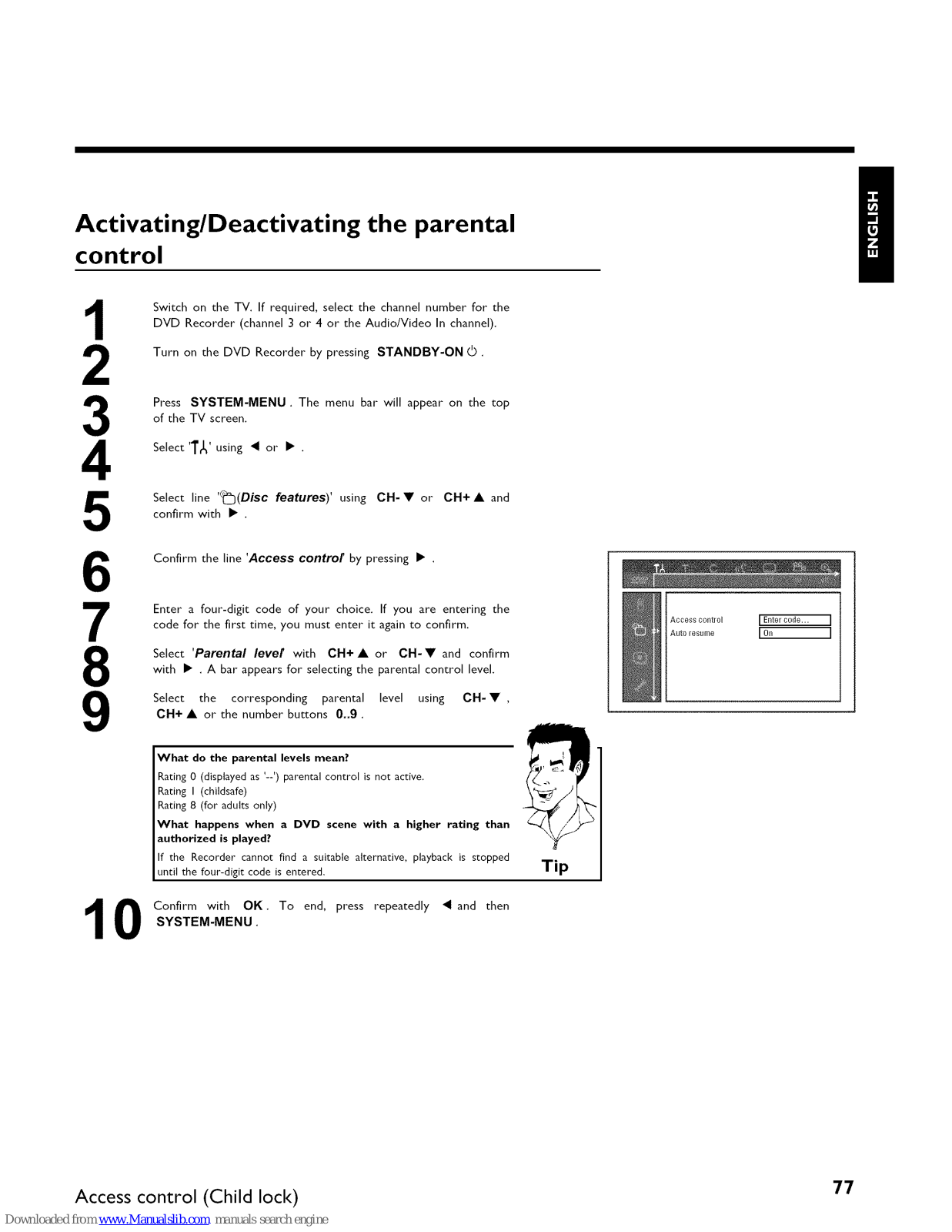

Activating/Deactivating the parental

control

Switch on the TV. If required, select the channel number for the

DVD Recorder (channel 3 or 4 or the Audio/Video In channel).

Turn on the DVD Recorder by pressing STANDBY-ON (_.

Press SYSTEM-MENU. The menu bar will appear on the top

of the TV screen,

Select '1"_' using _ or • .

Select line '_3(Disc features)' using CH-• or CH+ • and confirm with • ,

6 8

Confirm the line 'Access control by pressing • .

Enter a four-digit code of your choice. If you are entering the

code for the first time, you must enter it again to confirm.

Select 'Parental level with CH+ • or CH-• and confirm with • . A bar appears for selecting the parental control level.

Select the corresponding parental level using OH- • ,

CH+ • or the number buttons 0,,9 .

What do the parental levels meant

Rating 0 (displayed as '--') parental control is not active. Rating I (childsafe)

Rating 8 (for adults only)

What happens when a DVD scene with a higher rating than

authorized is played?

If the Recorder" cannot find a suitable alternative, playback is stopped until the four-digit code is entered.

_1_ Confirm with OK. To end, press repeatedly _ and then

SYSTEM-MENU.

Tip

Access contr0[ Aut0 resume

I Enter code... I

I0n I

Access control (Child loci<) 77

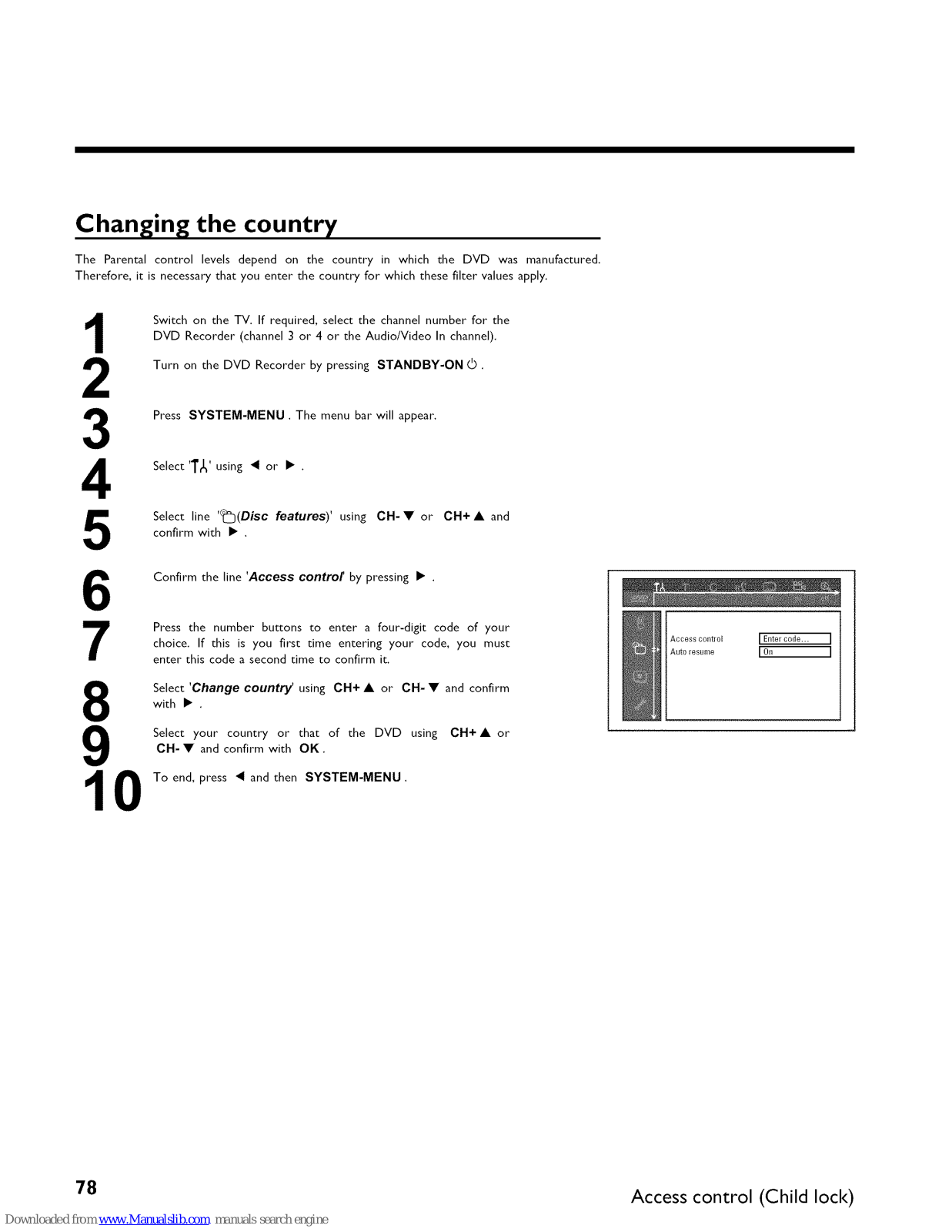

Changing the country

The Parental control levels depend on the country in which the DVD was manufactured. Therefore, it is necessary that you enter the country for which these filter values apply.

Switch on the TV. If required, select the channel number for the

DVD Recorder (channel 3 or 4 or the Audio/Video In channel).

Turn on the DVD Recorder by pressing STANDBY-ON _.

Press SYSTEM-MENU. The menu bar will appear.

Select '1'_' using < or • .

Select line '_3(Disc features)' using CH-• or CH+ • and confirm with • ,

8 9

Confirm the line 'Access control by pressing • .

Press the number buttons to enter a four-digit code of your choice. If this is you first time entering your code, you must enter this code a second time to confirm it.

Select 'Change country' using CH+ • or CH- • and confirm with •.

Select your country or that of the DVD using CH+ • or

CH- • and confirm with OK.

To end, press < and then SYSTEM-MENU,

Access control I Entel code... I Aut0 resume I On I

78 Access control (Child lock)

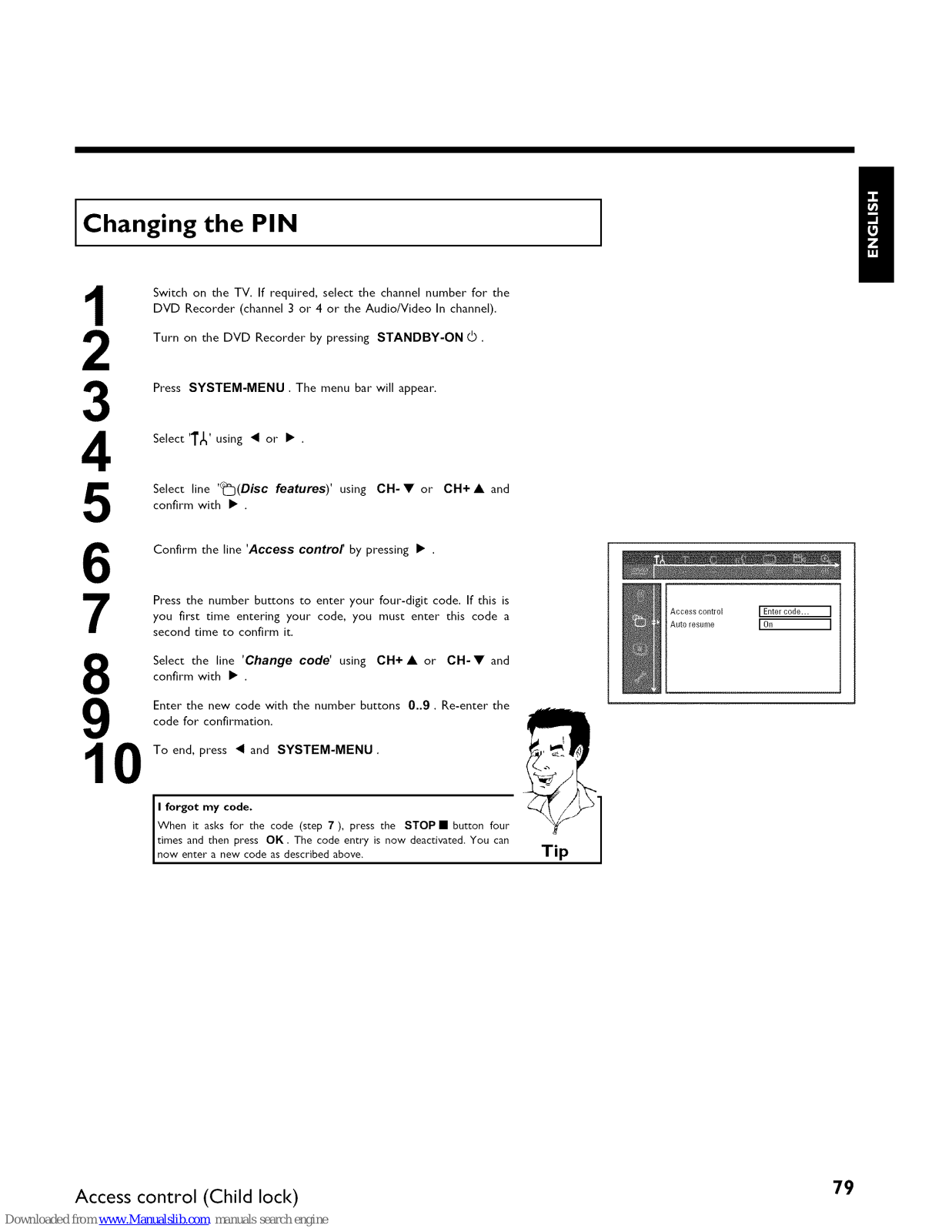

Changing the PIN

Switch on the TV. If required, select the channel number for the

DVD Recorder (channel 3 or 4 or the Audio/Video In channel).

Turn on the DVD Recorder by pressing STANDBY-ON (_

Press SYSTEM-MENU. The menu bar will appear.

Select 'T_' using • or • .

Select line '_3(Disc features)' using CH-• or CH+ • and confirm with • .

8 9

Confirm the line 'Access control by pressing • .

Press the number buttons to enter your four-digit code. If this is

you first time entering your code, you must enter this code a second time to confirm it.

Select the line 'Change code' using CH+ • or CH-• and confirm with • .

Enter the new code with the number buttons 0..9. Re-enter the code for confirmation.

To end, press • and SYSTEM-MENU.

I forgot my code. When it asks for the code (step 7), press the STOP• button four times and then press OK. The code entry is now deactivated. You can

now enter a new code as described above.

Tip

Access control

=Aut0 resume

I Enter code... I

Ion I

Access control (Child loci<) 79

Before you call technical support

If you have any problems using this DVD recorder, it may be caused by one of the following

reasons. You can also call the customer service center in your country. The telephone numbers can be found in the back of this instruction manual You can also visit our web page 'http://www.p4c.philips.com'.

Have the model number (MODEL NO) and the production number (PROD.NO) ready.

The serial number (PROD. NO.) is printed on the type plate fixed at the rear of the set.

PROBLEM SOLUTION

The device does not react to the touch of a button,

the remote control is working:

¢"Dealer Mode' is on: All buttons at the front of the DVD Recorder are locked.

To switch off this function:

1 Disconnect the DVD Recorder fl'om the power outlet.

2 Press and hold clown STOP1 and OPEN/CLOSE--and re-connect the

Recorder to the power supply.

3 As soon as the time or '--:--' appears in the display (6 - 10 seconds), release

STOP • and OPEN/CLOSE • .

Resetting the DVD Recorder to default factory

setti ngs

¢'Warning:

All the information stored in the memory (programs, time, TIMER) will be reset (deleted).

1 Disconnect the DVD Recorder fl'om the power outlet.

2 Press and hold down the STANDBY-ON O button on the fl'ont of the Recorder

while reconnecting to the power outlet.

3 Release STANDBY-ON (_ when 'I_ T_' n.m,

L._r appears in the display. All the

information stored in the memory (programs, time, TIMER) will be reset (cleared).

Read paragraph 'Initial Installation' in 'Installing your DVD Recorder'.

80 Before you call technical support

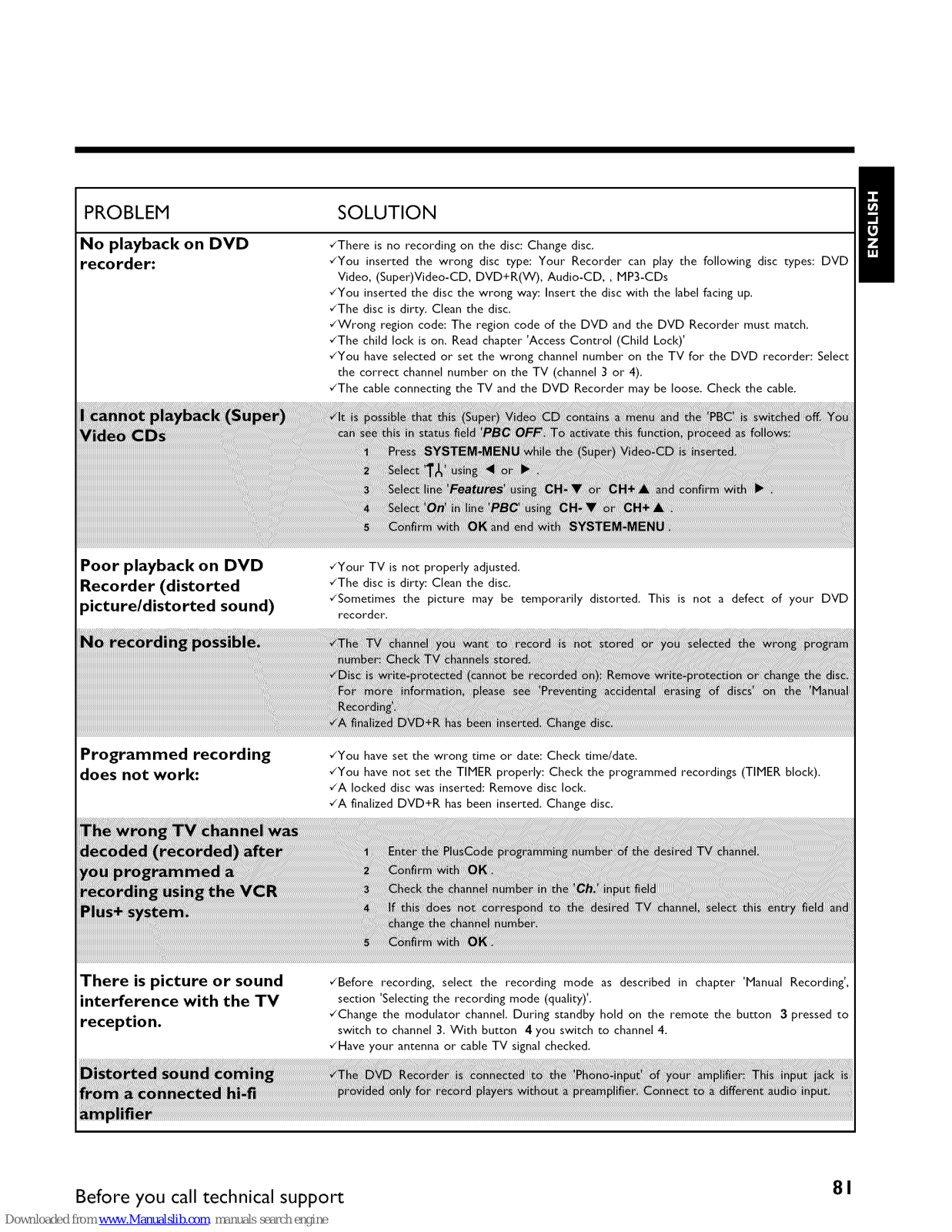

PROBLEM SOLUTION

No playback on DVD

recorder:

`/There is no recording on the disc: Change disc. `/You inserted the wrong disc type: Your Recorder can play the following disc types: DVD

Video, (Super)Video-CD, DVD+R(W), Audio-CD, , MP3-CDs

`/You inserted the disc the wrong way: Insert the disc with the label facing up.

`/The disc is dirty. Clean the disc. `/Wrong region code: The region code of the DVD and the DVD Recorder must match.

`/The child lock is on. Read chapter 'Access Control (Child Lock) _

•/You have selected or set the wrong channel number on the TV for the DVD recorder: Select the correct channel number on the TV (channel 3 or 4).

`/The cable connecting the TV and the DVD Recorder may be loose. Check the cable.

Poor playback on DVD Recorder (distorted

)icture/distorted sound)

`/Your TV is not properly adjusted. `/The disc is dirty: Clean the disc. `/Sometimes the picture may be temporarily distorted. This is not a defect of your DVD

recorder.

Programmed recording does not work:

`/You have set the wrong time or date: Check time/date.

•/You have not set the TIMER properly: Check the programmed recordings (TIMER block).

•/A locked disc was inserted: Remove disc lock.

`/A finalized DVD+R has been inserted. Change disc.

There is picture or sound

interference with the TV reception.

,/Before recording, select the recording mode as described in chapter 'Manual Recording',

section 'Selecting the recording mode (quality)'.

,/Change the modulator channel. During standby hold on the remote the button 3 pressed to

switch to channel 3. With button 4 you switch to channel 4.

,/Have your antenna or cable TV signal checked.

Before you call technical support 8 1

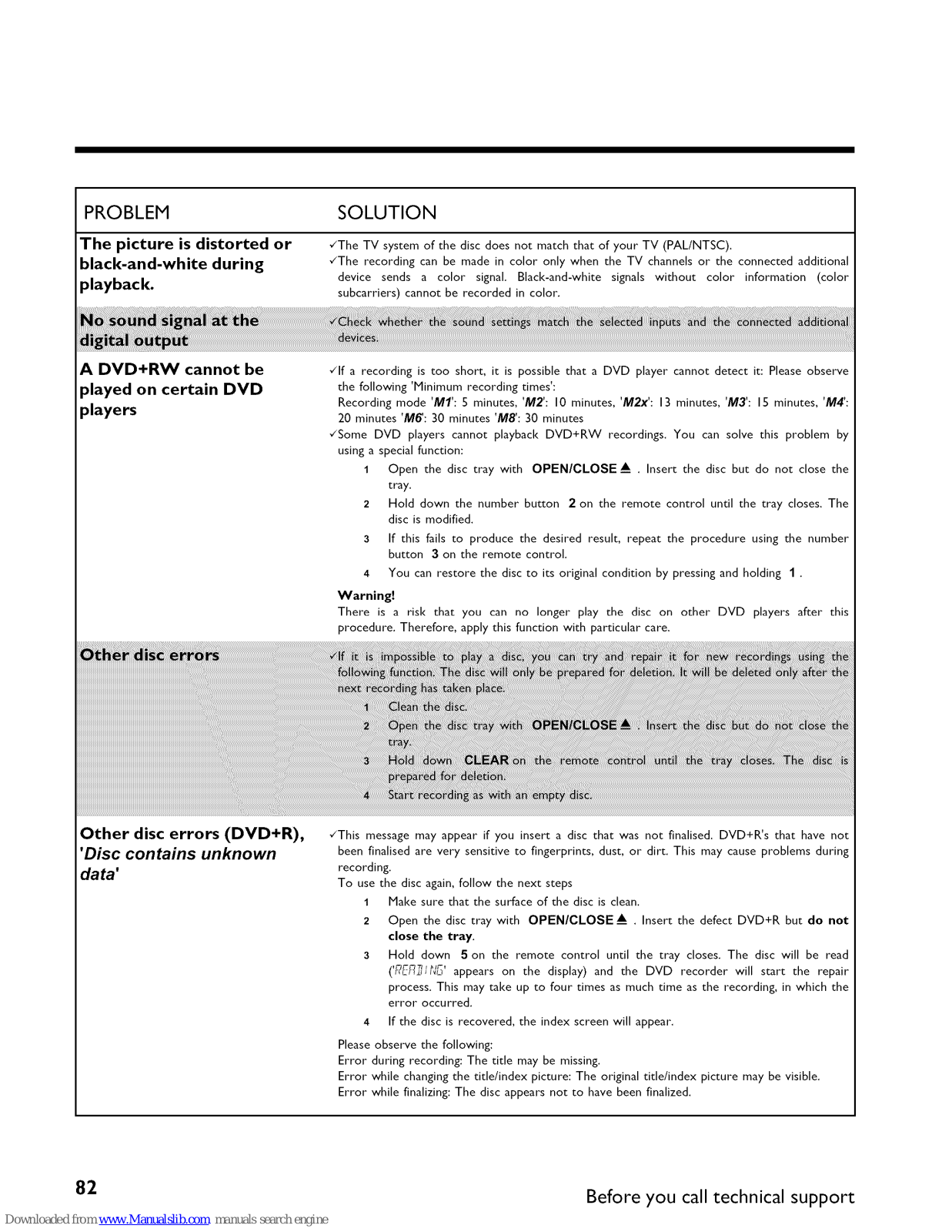

PROBLEM SOLUTION

The picture is distorted or

black-and-white during playback.

•ZThe TV system of the disc does not match that of your TV (PAL/NTSC).

•/The recording can be made in color only when the TV channels or the connected additional device sends a color signal. Black-and-white signals without color information (color subcarriers) cannot be recorded in color.

A DVD+RW cannot be

played on certain DVD players

,/If a recording is too short, it is possible that a DVD player cannot detect it: Please observe

the following 'Minimum recording times':

Recording mode 'MI': 5 minutes, 'M2': 10 minutes, 'M2x': 13 minutes, 'M3': 15 minutes, 'M4': 20 minutes 'M_: 30 minutes 'M8': 30 minutes

,/Some DVD players cannot playback DVD+RW recordings. You can solve this problem by

using a special function:

1 Open the disc tray with OPEN/CLOSE • . Insert the disc but do not close the

tray.

2 Hold down the number button 2 on the remote control until the tray closes. The

disc is modified.

3 If this fails to produce the desired result, repeat the procedure using the number

button 3 on the remote control.

4 You can restore the disc to its original condition by pressing and holding 1 .

Warning!

There is a risk that you can no longer" play the disc on other" DVD players after" this procedure. Therefore, apply this function with particular care.

Other disc errors (DVD+R), 'Disc contains unknown

data'

,/This message may appear if you insert a disc that was not finalised. DVD+R's that have not

been finalised are very sensitive to fingerprints, dust, or dirt. This may cause problems during

recording.

To use the disc again, follow the next steps

1 Make sure that the surface of the disc is clean.

2 Open the disc tray with OPEN/CLOSE-- . Insert the defect DVD+R but do not

close the tray.

3 Hold down 5 on the remote control until the tray closes. The disc will be read

(f?cr_c_ appears on the display) and the DVD recorder will start the repair process. This may take up to four times as much time as the recording, in which the

error occurred,

4 Ifthe discisrecovered,the index screen willappear.

Pleaseobserve the following:

Error during recording: The title may be missing. Error while changing the tide/index picture: The original tide/index picture may be visible. Error while finalizing: The disc appears not to have been finalized.

82 Before you call technical support

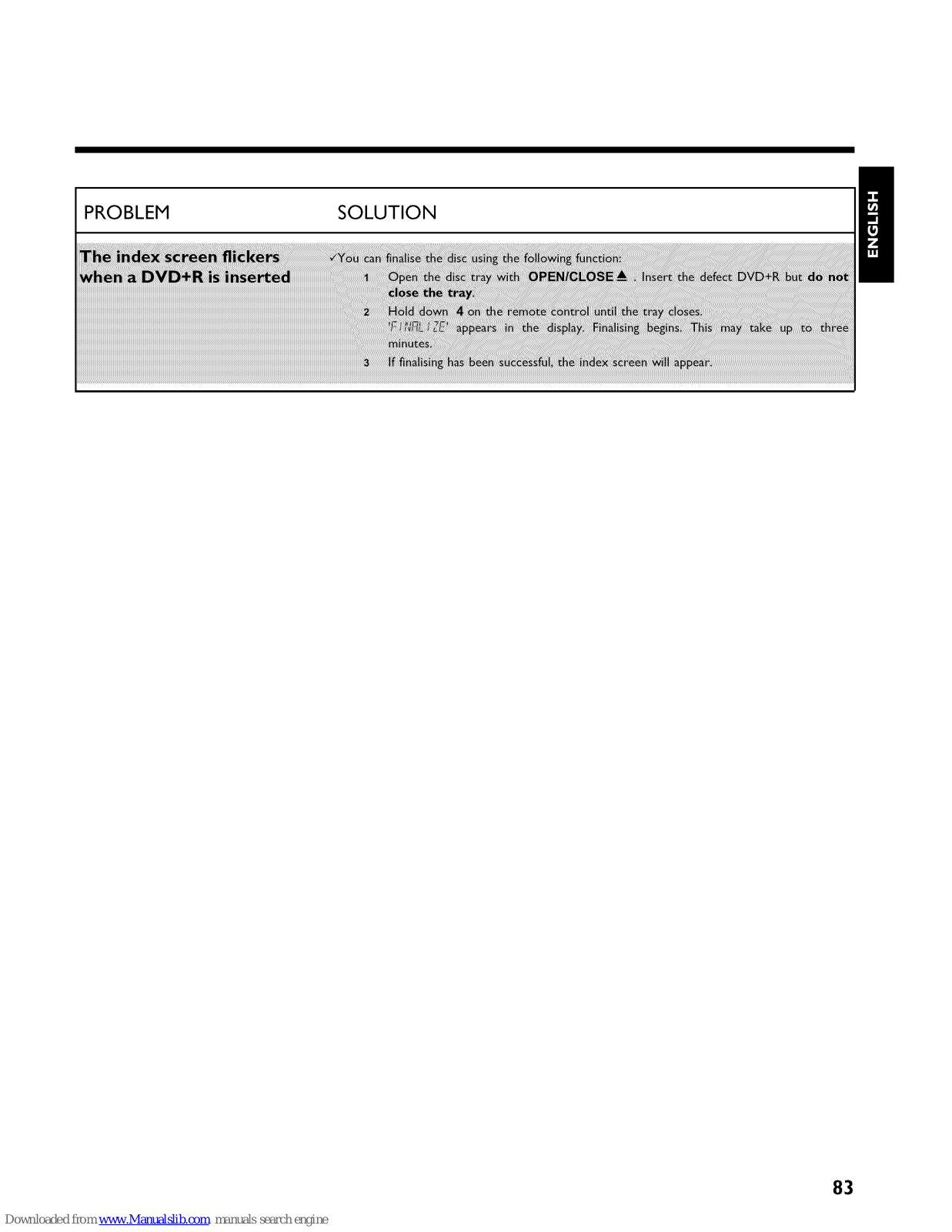

PROBLEM SOLUTION

Limited Warranty

DVD Recorder

One year Free Labor / One year Parts Exchange

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service.

A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product.

For one year thereafter, all parts will be repaired or replaced, and labor is free.

After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the

product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it

was designed, manufactured, approved and/or authorized, or

repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product that is used for commercial or institutional purposes (including but not limited to rental purposes).

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips. In countries where Philips does not distribute the product, the local Philips service organization

will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing

proof of purchase. Attach it to the owner's manual and keep both nearby. Also keep the original box and packing material in

caseyou need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner's manual before requesting service.

Adjustments of the controls discussed [here may save you a

service call.

TO GET WARRANTY SERVICE IN THE U.S.A., PUERTO RICO, OR U.S. VIRGIN

ISLANDS...

Take the product to a Philips factory service center (see

enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts. (In the U.S.A., Puerto Rico, and U.S. Virgin Islands,all implied

warranties, including implied warranties of merchantability and

fitness for a particular purpose, are limited in duration to the

duration of this express warranty. Because some states do not allow limitations on how long an implied warranty may last, this

limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-531-0039 (English or Spanish Speaking)

1-800-661-6162 (French Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the

product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

Model Number: DVDR615/I 7

Serial Number:

Philips, P.O. Box 520890, Miami, FL 33152, (402) 536-4171

EL6506E003/ 09-02

Una vez que haya registrado su compra PHILIPS, usted queda calificado para recibir todos los privilegios inherentes a la posesi6n de un producto PHILIPS. De modo que complete y devuelva de inmediato la Tarjeta de registro de garantia incluida en su compra. Y aproveche estos importantes beneficios.

PHILIPS

iFelicitaciones por su compra y bienvenido a la "familia"!

Estimado propietario de un producto PHILIPS:

Gracias por su confianza en PHILIPS. Usted ha escogido uno de los procluctos mejor construiclos y con mejor respalclo clisponibles hoy en clia. Y haremos toclo Io que est6 a nuestro alcance por mantenerle satisfecho con su compra clurante

muchos ahos venicleros. Como miembro de la "familia" PHILIPS, ustecl tiene clerecho a estar protegiclo por una de las garantias m_s completas y recles

de servicio m_s sobresalientes de la industria.

Lo que es m_s, su compra le garantiza que recibir_ tocla la informaci6n y ofertas especiales alas que tiene clerecho,

aclem_s cle un f_cil acceso a los accesorios clescle nuestra c6mocla red de compra clescle el hogar. Y Io que es m_s

importante, usted puecle confiar en nuestro irrestricto compromiso con su satisfacci6n total. Toclo esto es nuestra manera de clecirle bienveniclo y gracias por invertir en un producto PHILIPS.

Sinceramente,

Lawrence J. glanford

Presidente y Gerente General

P.S. Recuerde que para aprovechar al mgximo su

producto PHILIPS, debe devolver su Tarjeta de

registro de la garantia dentro de I 0 dias.

iEnviela ahora mismo!

A ste "rel_mpago" indica material no

aislado dentro de su unidad que

puede causar una descarga

electrica. Para la seguridad de todos en su hogar, por favor no retire la cubierta del producto.

El "signo de exclamacibn" llama la

atenci6n hacia funciones de las que

deberia lee con atenci6n

la literatura adjunta para evitar problemas operauvos y de mantenimiento.

ADVERTENClA: PARA EVITAR

PRECAUCION: Para evitar descargas

elecl;ricas, haga coincidir la palel;a ancha del

enchufe con la ranura ancha e introd_lzcala

hasta el rondo. ATTENTION: Pour eviter les choc

electriques, introduire la lame la plus large de la fiche clans la borne correspondanl;e de la prise el; pousser jusqu'au fond.

Informaci6n de seguridad

Precauciones de seguridad

Advertencia: Para evitar cualquier riesgo de incendio o choque, no debe exponer este equipo a la Iluvia ni a la humedad. Advertencia de la Comisi6n Federal de Comunicaciones (FCC): Todo cambio o modificaci6n no autorizado en este equipo invalidar_ la autoridad del usuario para operarlo.

Seguridad I_ser

Esta unidad emplea un rayo I_ser. Unicamente el personal calificado de servicio puede redrar la cubier13 o in[entar dar servicio a este

disposidvo, debido a la posibilidad de lesiones en lOS ojos.

PRECAUCION: Uso de controles o ajustes, o procedimientos distintos a los aqu{ especificados, pueden ocasionar una exposici6n

peligrosa a la radiaci6n. Esta unidad cumple con los Reglamentos FCC, Parte 15 y 21 CFR 1040.10.

PRECAUCION: Cuando la unidad se abre y se anula el seguro, hay,radiaci6n I_ser visible e invisible. No mire el ray'o. El ray'o se ubica

dentro, cerca del mecanismo de la unidad.

Informaci6n especial para usuarios Canadienses

Este aparato digital no excede los limites de Clase B para emisiones de ruidos de radiofrecuencia de aparatos digitales, tal como se

establece en los Reglamentos de interferencia de radio del Departamento Canadiense de Comunicaciones.

Interferencia para radio / televisi6n

Se ha probado este equipo y'se encuentra que cumple con los limites para un dispositivo digital Clase B, de conformidad con la Parte

I 5 de los Reglamentos FCC. Dichos limites est_n disefiados para proporcionar protecci6n razonable contra interferencia dafiina en instalaciones residenciales. Este equipo genera, utiliza y puede radiar energia de radiofrecuencia y, si no se instala y utiliza de acuerdo con las instrucciones, puede ocasionar una interferencia dafiina alas radiocomunicaciones. Sin embargo, no existe garantia que no habr_ interferencia en una instalaci6n en particular. Si este equipo causa interferencia dafiina a la recepci6n de radio o televisi6n, Io que se puede determinar encendiendo y apagando el equipo, se alienga al usuario a ingentar corregir la ingerferencia Ilevando a cabo una o m_s de las siguientes medidas:

I) Reorientar o reubicar la antena receptora.

2) Incrementar la separaci6n entre el equipo y el receptor.

3) Conectar el equipo a un enchufe que pertenezca a un circuito distinto al cual est_ conectado el receptor.

4) Consultar al proveedor o a un tecnico experimentado en radio / televisi6n para obtener ayuda.

Nota para el t_cnico de instalaci6n del sistema de televisi6n por cable:

Este recordatorio es para seffalarle al tecnico de instalaci6n del sistema de televisi6n por cable (CATV) el Articulo 820-40 del C6digo

NEC (C6digo Nacional Electrico) que proporciona los lineamientos para una conexi6n adecuada a tierra y, en particular, especifica que el cable aterrizado debe conectarse al sistema de tierra del edificio, tan cerca del punto de la entrada del cable como resulte pr_ctico.

Protecci6n de derechos de autor Se prohibe la copia, transmisi6n, presentaci6n pdblica y renta de discos no autorizados. Este producto incluye tecnologia de

protecci6n de los derechos de autor que est_ protegido con los derechos de los metodos de ciertas patentes en Estados Unidos y otros derechos de propiedad intelectual de Macrovision Corporation y otros propietarios de derechos de autor. El uso de esta

tecnologia de protecci6n de derechos de autor debe estar autorizado por Macrovision Corporation y est_ diseffado para usos domesticos ilimitados, a menos que asi Io autorice Macrovision Corporation. Se prohibe la ingenieria inversa y el desensamble.

Declaraci6n de conformidad

Ndmero de modelo: DVDR615/17

Nombre comercial: PHILIPS

Parte responsable: Philips Consumer Electronics N.A.

P.O. Box 14810, Knoxville, TN 37914-1810 1-800-531-0039

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

I. Lea estas instrucciones.

2. Conserve estas instrucciones.

3. Lea todos los avisos.

4. Siga todas las instrucciones.

5. No utilice este aparato cerca dei agua.

6. Para limpiar el aparato utilice s61o un trapo seco.

7. No tape las aperturas de ventilaci6n. Proceda a

instalaci6n de acuerdo con las instrucciones dei fabricante.

8. No instale el equipo cerca de fuentes de calor- Como

radiadores, calentadorcs, estufas o cualquer otro aparato (incluyendo los amplificadores) generador de calor.

9. No anule la seguridad de la clavija

de corriente (ya sea de tipo

polarizado o con toma de tierra Las Ctavija clavijaspolarizadas tienen dos patillas, polarizada de CA una m_s ancha que la otra. Las que disponen de toma de tierra tienen dos patiltas y una tercera que es la de conexi6n a tierra. Tanto la patilla m_s ancha como la toma de tierra han sido incorporadas a la

clavijapara su seguridad personal. Si la clavija suministrada con el equipo no es compatible con su toma de corriente,

consulte a un electricista para sustituir la toma de corriente

obsoleta.

I 0. Proteja debidamente el cable impidiendo que pueda

pisarse o incluso perforarse, especialmente en la parte m_s pr6xima a la clavijayen el punto de salida del equipo.

I I. Utilice exclusivamente aquellos

dispositivos/accesorios recomendados por el fabricante.

Coloque el equipo exclusivamente sobre aquellos carros, bases, tripodes, soportes o mesas

especificados por el comerciante o vendidos con el equipo. Cuando utilice un carro, tenga cuidado al

desplazar el conjunto carro/equipo para evitar posibles daffos por vuelco.

13. Desenchufe el aparato durante tormentas electricas o cuando no vaya a ser utilizado durante largo tiempo.

14. Confie ei mantenimiento y las reparaciones a

personal tecnico especializado. El equipo deber_ repararse siempre que haya resultado daffado de alguna manera, como

por ejemplo por daffos en el cable o en la clavija, por derrame de liquido sobre el equipo, por objetos que hubieran podido introducirse en su interior, por exposici6n del equipo a la Iluvia o a ambientes hdmedos, cuando el equipo no funcione con normalidad o cuando hubiera sufrido algdn tipo de caida.

15. Uso de las pilas PRECAUCION - Para prevenir escapes en las pilas, que pueden ocasJonar lesiones fisicas o

daffos en la unidad:

• Instale todas las pilas correctamente, + y - como est_

marcado en la unidad.

• No mezcle las pilas (viejas con nuevas o de carbono y

alcalinas, etc),

• Extraiga las pilas cuando no vaya a usar la unidad durante

largo tiempo.

EL 6474-E004:02/8

El mando a distancia

STANDBY ©

Apagar / encender: apagar/encender el aparato, interrumpir cualquier

funcibn, interrumpir una grabacion programada (TIMER)

TIC

Titulo / Capitulo: Seleccion directa de 'T' (tltulo)/'C'(cap tu o)en la

barra de menhs para seleccionar dtulos o capltulos con CH- • ,

CH+ • .

Si en la pantalla aparece 'I _}r_,, se ve el ment_ de [ndice de un disco grabado o bien reproduce una secuencia introductoria. En ese caso, esta

funci6n no est_i disponible.

REC MODE Tipo de grabaci6n (calidad de la imagen): seleccionar la duraci6n

m_ixima de grabacion permitida

DISC-MENU

Men_ Disco: visualizar el menh del DVD o la imagen del [ndice

SELECT Seleccionar: seleccionar funciones / valores

Teclas de cursor : hacia la izquierda, la derecha

CH-•

Teclas de cursor / menos : cursor hacia abajo / canal anterior

FSS

FSS: Visualizar el menQ de edici6n para discos de DVD+R(W),

establecer las marcas de los capitulos

CLEAR

Borrar: borrar la t_ltima entrada / borrar una grabacion programada

(TIMER)

Seleccionar tltulo anterior / B_squeda hacia atr&s:

Pulsar dos veces la tecla durante la reproduccion: capitulo anterior /

pieza o titu[o anterior

Mantener pulsada la tecla: bhsqueda hacia atr_is Mantener pulsada la tecla durante la imagen fija: cfimara lenta hacia atr_is

STOP •

REC/OTR •

Stop: detener la reproducci6n o grabaci6n, excepto durante una

grabaci6n programada (TIMER)

Mantener pulsada la teda, abrir y cerrar la bandeja del disco.

Grabar: grabar el canal de televisi6n sintonizado en ese momento

Funciones de TV adicionales

Funciona s61o con televisores con los c6digos iguales (RCS) (p. %: televisores Philips)

TV VOLUME -- Volumen de TV: reducir el volumen de TV

Para utilizar las siguientes funciones debe mantener pulsada la tecla lateral DVD/TV (parte

izquierda) y, a condnuacion, seleccionar la funcidn con la tecla correspondiente.

0..9 Teclas num_ricas: 0 - 9

CH- • N_mero de canal de TV: namero de canal de TV hacia abajo

Philips DVDR17 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
