Philips DVDR100099 User Manual
DVDR1000
Digital Video Disc Recorder
Owner's Manual
Read this manual first!
Congratulations on purchasing this Philips product.
We’ve included everything you need to get started.
If you have any problems, Philips Representatives can
help you get the most from your new product by explaining:
• Hookups,
• First Time Setup, and
• Feature Operation.
Do not attempt to return this product to the store.
For fast help, call us first!
1-800-531-0039
Thank you for making Philips a part of your home!
Important!
Return your
Warranty
Registration Card
within 10 days.
See why inside.
Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product.
So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage
of these important benefits.
Return your Warranty Registration card today to
ensure you receive all the
benefits
you’re entitled to.
For Customer Use
Enter below the Serial No. which is
located on the rear of the cabinet.
Retain this information for future
reference.
Model No. ____________________
Serial No. ____________________
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You’ve selected one of the
best-built, best-backed products available today. We’ll do everything in
our power to keep you happy with your purchase for many years to
come.
As a member of the PHILIPS “family,” you’re entitled to protection by
one of the most comprehensive warranties and outstanding service
networks in the industry. What’s more, your purchase guarantees you’ll
receive all the information and special offers for which you qualify, plus
easy access to accessories from our convenient home shopping
network.
Most importantly, you can count on our uncompromising commitment
to your total satisfaction. All of this is our way of saying welcome - and
thanks for investing in a PHILIPS product.
Sincerely,
Lawrence J. Blanford
President and Chief Executive Officer
P.S. Remember, to get the most from your PHILIPS
product, you must return your Warranty
Registration Card within 10 days. So please mail
it to us right now!
Know these
safetysymbols
This “bolt of lightning” indicates
uninsulated material within your
unit may cause an electrical shock. For
the safety of everyone in your household, please do not remove product
covering.
The “exclamation point” calls
attention to features for which
you should read the enclosed
literature closely to prevent operating
and maintenance problems.
WARNING: TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN
OR MOISTURE.
CAUTION: To prevent electric
shock, match wide blade of plug to
wide slot, fully insert.
ATTENTION: Pour éviter les choc
électriques, introduire la lame la plus
large de la fiche dans la borne correspondante de la prise et pousser
jusqu’au fond.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Warranty
Verification
Registering your product within 10 days
confirms your right to maximum
protection under the terms and
conditions of your PHILIPS warranty.
Owner
Confirmation
Your completed Warranty Registration
Card serves as verification of ownership
in the event of product theft or loss.
Model
Registration
Returning your Warranty Registration
Card right away guarantees you’ll
receive all the information and special
offers which you qualify for as the
owner of your model.
Visit our World Wide Web Site at http://www.philips.com
t
s
R
E
G
I
S
T
R
A
T
I
O
N
N
E
E
D
E
D
W
I
T
H
I
N
1
0
D
A
Y
S
Hurry!
Contents 3
General Information
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Getting Started
Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-15
Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17
Basic Disc Playback and Features
Quick Disc Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Quick Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
DVD Recorder Controls
Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-21
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

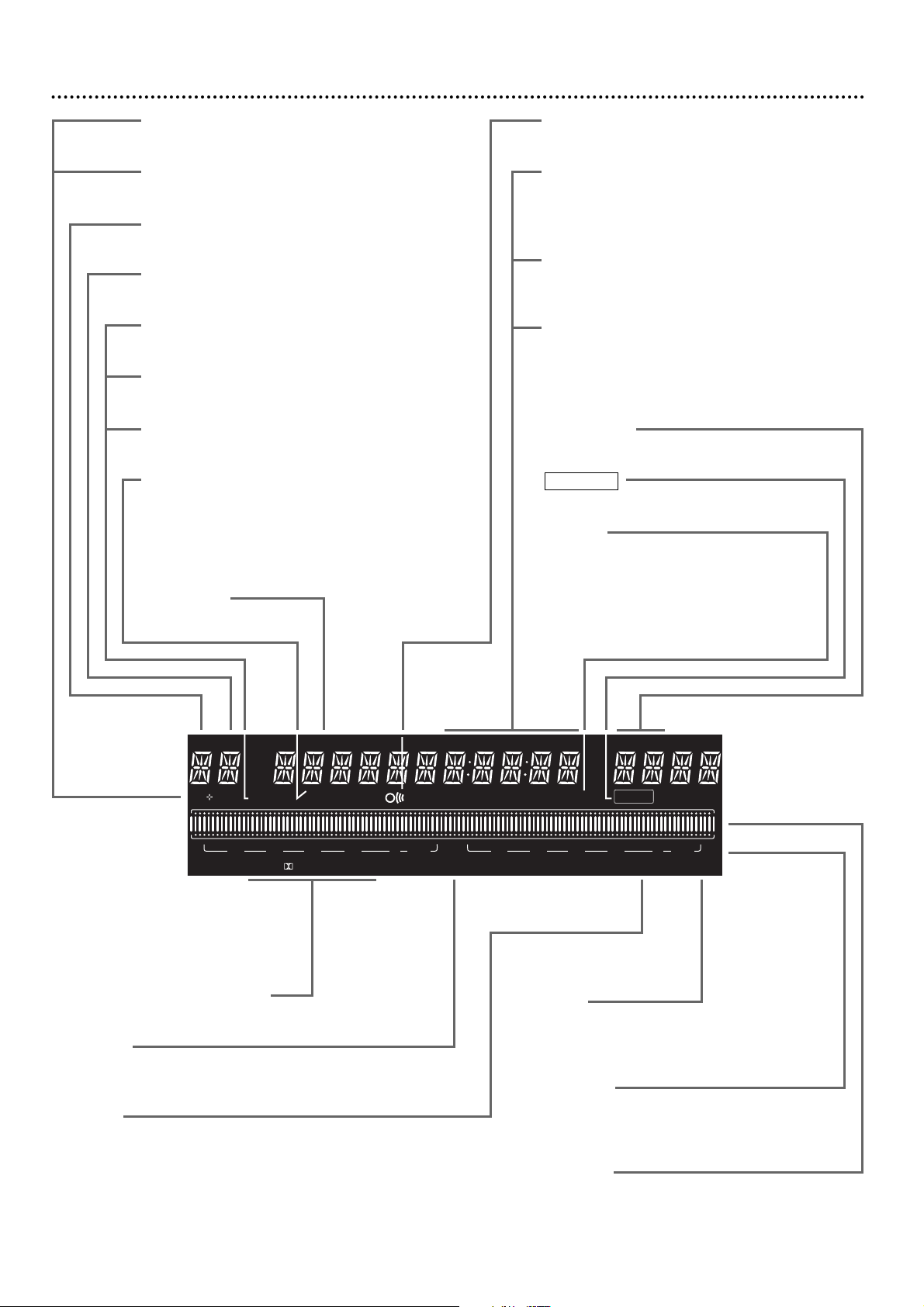

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Menu Bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
On-screen Symbols, Status Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Information Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Advanced Disc Playback and Features
Title/Disc Menus, Chapter/Track Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Audio Language, Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Zoom, Camera Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Sound, Still Picture/Frame-by-Frame Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Slow Motion, Forward and Reverse Searching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Time Search, Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Repeat, Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Index Picture Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Advanced Installation
Installation: Automatic Channel Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Installation: VCR Plus+ Ch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Installation: Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39
Recording Options
One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
VCR Plus+ Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Erasing Timer Recordings, Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Title Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Manual Recording Volume, Append Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Record Settings, Chapter Markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Editing
Editing: Disc Information Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Additional Features and Setup Options
Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49-53
User Preference Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Digital Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Analog Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Language Settings, Recording Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Night Mode, Remote Control Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Using Your Recorder’s Remote Control with Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60-61
Information You May Need
Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62-63
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Diagnostic Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Information Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Safety Precautions
Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.
Federal Communications Commission (FCC) Warning: Any unauthorized changes or modifica-
tions to this equipment void the user’s authority to operate it.
Laser Safety
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure. The set complies with the FCC-Rules, Part 15 and
with 21 CFR 1040.10.
CAUTION: Visible and invisible laser radiation when open and interlock defeated. Do not stare into
the beam. The beam is located inside, near the deck mechanism.
Special Information for Canadian Users
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
CET APPAREIL NUMÉRIQUE N'ÉMET PAS DE BRUITS RADIOÉLECTRIQUES DÉPASSANT LES LIMITES APPLICABLES DANS LA RÈGLEMENT SUR LE BROUILLAGE RADIOÉLECTRIQUES ÉDICTÉ
PAR LE MINISTÈRE DES COMMUNICATIONS DU CANADA.
Radio/TV Interference
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and the receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
WARNING:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT:
This product was FCC verified under test conditions that included use of shielded cables and connectors between system components. Use shielded cables to reduce the possibility of causing interference
to radios, televisions, and other electronic devices. If you have any problems, contact your supplier.
Copyright Protection
Unauthorized copying, broadcasting, public performance, and lending of Discs are prohibited. This
product incorporates copyright protection technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation
and is intended for home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Declaration of Conformity
Model Number: DVDR1000
Trade Name: Philips
Responsible Party: Philips Consumer Electronics
P.O. Box 14810, Knoxville, TN 37914-1810
(865) 521-4316
4 Safety Information
IMPORTANT SAFETY INSTRUCTIONS.
READ BEFORE OPERATING EQUIPMENT.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or third prong are provided for your safety. When
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as if the power-supply cord or
plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, or if the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
15. This product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the Electronic
Industries Alliance: www.eiae.org
16. Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
A. The power supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled into the
appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally
or exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure
damaged.
17. Tilt/Stability - All televisions must comply with
recommended international global safety standards for
tilt and stability properties of cabinet design.
• Do not compromise these design standards by
applying excessive pull force to the front, or top, of the
cabinet, which could ultimately overturn the product.
• Also, do not endanger yourself, or children, by placing
electronic equipment/toys on the top of the cabinet.
Such items could unsuspectingly fall from the top of the
set and cause product damage and/or personal injury.
18. Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by
the manufacturer.
19. Power Lines - An outdoor antenna should be located
away from power lines.
20. Outdoor Antenna Grounding - If an outside
antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection
against voltage surges and built up static charges.
Section 810 of the National Electrical Code, ANSI/NFPA
No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure
grounding of the lead-in wire to an antenna discharge
unit, size of grounding connectors, location of antenna
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure
below.
21. Object and Liquid Entry - Care should be taken so
that objects do not fall and liquids are not spilled into
the enclosure through openings.
22. Battery usage CAUTION - To prevent battery leakage that may result in bodily injury or damage to the
unit:
• Install all batteries correctly, with + and - aligned as
marked on the unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long
time.
Example of Antenna Grounding
per National Electrical Code
Safety Information (cont’d) 5
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
(NEC SECTION 810-20)
6 Introduction
Welcome!
Your Philips DVD Recorder both records DVD+RWs and plays prerecorded DVDs. You can record
TV programs, edit camcorder recordings, and quickly access your DVD+RW recordings in the Index
Picture Screen. Plus, the DVD+RW recordings you make on the Recorder will play on some DVD
Players and DVD-ROM drives. You’ll soon appreciate the digital picture and sound quality of DVD and
DVD+RW, which will exceed the quality you have had with video cassette tapes.
Read this manual carefully to understand the latest features, then enjoy your new DVD Recorder.
Features
● Digital Theater System
● Dolby Digital Surround Sound
● DVD-Video Compatibility
● Fast Forward/Reverse Search
● i.LINK Digital Video connection
● Index Picture Screen
● NTSC/PAL compatibility
● Paused/Fast/Slow/Step-by-Step/Zoomed
Playback
● Progressive Scan compatibility
● Repeat and Repeat A-B playback
● Screen Saver
● Time Search
● TruSurround by SRS
● VCR Plus+ Programming
Package Contents
● DVD Recorder
● Remote control with two AA batteries
● AC power cord
● One blank Philips DVD+RW
● One RF coaxial cable (black with silver tip,
with single prong in center of tip)
● One S-Video cable (black with silver tip)
● One three-strand Component Video Cable
(ends have blue, green, and red stripes)
● Two two-strand audio cables (ends have red
and white stripes)
● One composite video cable (end has a yellow
stripe)
● This owner’s manual and registration materials
Environmental Information
Your system has materials that can be recycled and reused if disassembled by a specialized company.
Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries,
and old equipment.
Safety Information
● Do not expose the system to excessive moisture, rain, sand, or heat sources.
● Place the DVD Recorder on a firm, flat surface.
● Keep the DVD Recorder away from domestic heating equipment and direct sunlight.
● When placing the DVD Recorder in a cabinet, allow about one inch of space all around the DVD
Recorder for ventilation.
Cleaning Discs
● When a Disc becomes dirty, clean it with a cleaning cloth. Wipe the Disc from the center out, in a
straight line.
● Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray
intended for analog discs.
● If the DVD Recorder cannot read Discs correctly, use a commonly available cleaning CD/DVD to
clean the lens. Other cleaning methods may destroy the lens. Always keep the tray closed to avoid
dust on the lens.
● The lens may cloud over if you suddenly move the DVD Recorder from cold to warm surround-
ings. Playing a Disc is not possible then. Leave the power on for about one hour with no Disc in the
Recorder until normal playback is possible.
Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby
Laboratories. “DTS” and “DTS DIGITAL SURROUND” are registered trademarks of Digital Theater Systems, Inc.
TRUSURROUND, SRS, and are trademarks of SRS Labs, Inc. TRUSURROUND technology is manufactured under license
from SRS Labs, Inc.
VCR Plus+and PlusCode are registered trademarks of the Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.
Copyright 2001 Philips Consumer Electronics.
This DVD Recorder will play various types of Discs. Some Disc types will only play on the Recorder;
others will record in the Recorder; some will record and play. There are also a few types of Discs that
will neither play nor record on this Recorder. To determine which Discs you should use with this
Recorder, refer to the following information. Look for these logos on your Discs to determine
whether the Disc will or will not play or record on the Philips DVD Recorder.
Playable Discs 7
Region Codes and Color Systems
DVDs must meet the requirements for Region Codes and Color Systems before you can use them
with the DVD Recorder. DVDs must be labelled for ALL regions or for Region 1 in order to play on
this DVD Recorder. You cannot play Discs that are labeled for other regions. These symbols must
appear on your DVDs, or you cannot play the DVD in this DVD Recorder.
The number inside the globe refers to a region of the world. Region 1 represents the United States,
Canada, upper regions of North America, Bermuda, the U.S. Virgin Islands, and small regions near
Australia.
Furthermore, recordings are made according to different color systems throughout the world. The
most common color systems are NTSC, which is used primarily in the United States and North
America, PAL, and SECAM.
This DVD Recorder is compatible with NTSC and PAL. Make sure the Discs you play were recorded
in NTSC or PAL. The color system of the DVD may appear on the DVD or on the Disc case.
Discs for Playing Only
DVD
(Digital Video Disc)
DVD-R
(DVD-Recordable)
DVD-RW
(DVD-Rewritable)
(plays only when recorded
in video mode and if
finalized)
Audio CD
(Compact Disc Digital Audio)
Super Audio CD
(plays only the CD layer)
Video CD
Super Video CD
CD-R (CD-Recordable)
(plays only Audio CD contents)
CD-RW (CD-Rewritable)
(plays only Audio CD contents)
Discs for Recording and Playing
DVD+RW
(Digital Video Disc + Rewritable)
Discs Unsuitable for Recording or Playing
DVD-RAM
DVD-Audio
SUPER AUDIO CD
Recordable
ReWritable
8 General Information
Battery Installation
1
Remove the battery compartment lid on the rear of the
remote control by sliding the lid down, then off.
2
Place two AA batteries inside the battery compartment
with their +and –ends aligned as indicated. Do not mix old
and new batteries or different types of batteries (standard, alkaline,
etc.).
3
Replace the battery compartment lid.
+
-
+
-
Using the Remote Control
Unless stated otherwise, the remote control can operate all the features of
the DVD Recorder. Always point the remote control directly at the
remote sensor on the front of the DVD Recorder, not the TV. Details are
on page 22. Make sure there are no barriers between the remote control
and the DVD Recorder.
The remote control also will operate some features of some TVs. Details
are on pages 60-61.
When referring to this manual, remember...
The feature is available on some Digital Video Discs.
The feature is available on some Audio Compact Discs.
The feature is available on some Video Compact Discs.
The feature is available on DVD+ReWritable Discs.
DVD Disc Menus...
Some explanations in this manual describe the DVD Disc Menus, which
vary among DVDs. Movie producers set these menus, and not all DVDs
have menus. But, if the DVD has a menu, access the Disc Menu by pressing
the DISC MENU button on the remote control. Details are on page 28.
DVD Recorder Menus...
Some instructions explain how to use the DVD Recorder’s menu (or the
System Menu or Menu Bars) to set up features of the DVD Recorder or
the Disc. You get to the DVD Recorder Menu by pressing SYSTEM MENU
on the remote control. Details are on page 25. Even if a feature is set up in
the DVD Recorder’s menu, it will not be available if the current Disc does
not include that feature.
Available Disc Features...
Features in this manual may not be available on every Disc. If the feature is
not available, you cannot use the DVD Recorder to make the feature available. An “X” will appear in the top left corner of the TV screen if you try
to access a feature that is not available on the current Disc.
DVD
AUDIO CD
VIDEO CD
DVD+RW
Hookups 9
Determining the best possible connection...
The capabilities of your existing equipment, especially your TV, will determine your connection possibilities.
However, the following guidelines describe which options provide the best picture and sound quality.
Component Video provides the best picture quality. Progressive Scan Component Video has
the highest quality, but use it only if the TV has Progressive Scan. Details are on page 10.
S-Video provides excellent picture quality. Details are on page 11.
Composite Video (a yellow Video jack) provides good picture quality. Details are on page 12.
Your TV may have only an RF-style jack, usually labeled Antenna In or 75 ohm. Connect the
supplied RF coaxial cable to the TV jack on the DVD Recorder and to the Antenna In jack on
your TV. Connect your antenna or Cable TV signal to the ANTENNA jack on the DVD
Recorder as shown on page 10.
You will need an RF modulator in order to view the DVD Recorder at your TV. Set the RF
modulator to channel 3 or 4, then set the TV to the same channel. Ask your dealer for details
on RF modulator availability and compatibility.
Digital audio connections provide the clearest sound. Connect one of the DVD Recorder’s
DIGITAL AUDIO OUT jacks (COAX (coaxial) or OPTICAL) to your Stereo for the best
sound quality. Details are on page 14.
If digital connections are not possible, connect the DVD Recorder’s red and white AUDIO
OUT jacks to the Audio In jacks of your Stereo or TV. Details are on pages 10-13.
Before you begin...
● Refer to the manuals of your TV, Stereo, or other equipment as necessary. Note the style of jacks and
connectors on the other equipment. Determine how to choose different Audio and Video In channels
on your other equipment so you can see and hear the DVD Recorder on the TV, Stereo, etc.
● Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only
after you have finished hooking up everything. Never make or change connections with equipment
connected to the power outlet.
Remember...
● Connect the DVD Recorder directly to the TV. For example, do not connect the DVD Recorder to a
VCR, then connect the VCR to a TV. This type of connection may distort the picture and sound. Also,
your VCR might have the copy protection system, which could distort the DVD image.
● Set the TV to the correct Video In channel. Such channels may be called AUX or AUXILIARY IN,
AUDIO/VIDEO or A/V IN, EXT1 or EXT2, etc. These channels often are near channel 00. See your
TV manual for details. Or, change TV channels until you see the blue Philips DVD screen saver on the
TV screen.
● Set the Stereo to the correct channel or “source” mode.
● Do not connect the DVD Recorder’s AUDIO OUT jacks to the PHONO IN jack of your Stereo.
● You only need one audio connection and one video connection between the DVD Recorder and your
TV. So, you might not use all the jacks on the Recorder.
Once you determine the best option, find your choice on pages 10-15. Follow the
steps for the hookup you chose.
When you finish your connections and turn on the DVD Recorder for the first time,
you must complete the Initial Setup. Initial Setup helps you set up TV channels,
menu languages, and other features. Go to page 16 to continue.
10 Hookups (cont’d)
Connecting to a TV Only
TV has Component Video In Jacks
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
BPB
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
Back of TV
(example only)
4
2
LEFT AUDIO IN
RIGHT AUDIO IN
Pr/Cr
Y
Pb/Cb
LEFT AUDIO IN
RIGHT AUDIO IN
Cr/R-Y
Y
Cb/B-Y
3
Antenna
or Cable TV
Signal
1
1
Connect your Antenna or Cable TV signal to the ANTENNA jack on the rear of the DVD Recorder.
2
Connect the DVD Recorder’s COMPONENT VIDEO OUT
Y PB PR jacks (EXT 3) to the corresponding COMPONENT
VIDEO IN jacks on the TV. Use the supplied three-strand com-
ponent video cable, which has ends with red, blue, and green
stripes. Match the cable stripe colors to the jack colors.
3
Connect the DVD Recorder’s red and white AUDIO OUT
(Left and Right) (EXT 3) jacks to the left/right AUDIO IN
jacks on the TV. Use one of the supplied two-strand audio cables,
which has ends with red and white stripes. Match the cable stripe
colors to the jack colors.
4
Connect the supplied power cord to the MAINS (AC
Power) jack on the rear of the DVD Recorder.
Connect the power cords of the DVD Recorder and the TV
to a power outlet.
5
Press the STAND BY/ON button on the front of the DVD
Recorder to turn on the DVD Recorder. The STAND BY/ON
light will turn green.
6
Turn on the TV power. Set the TV to the correct
Component Video In channel. See your TV owner’s manual for
details. Or, change channels at the TV until you see the DVD screen
saver or Initial Setup screen on the TV screen. The Initial Setup
screen will appear the first time you turn on the Recorder. Go to page 16
to continue.
•
If your TV has Progressive Scan,
connect the DVD Recorder’s
PROG SCAN OUT Y P
B PR jacks
to the TV’s Progressive Scan In
jacks instead. Progressive Scan
produces a clearer picture by
doubling the number of visible
picture lines per field. This provides a jitter-free, sharp, quiet
picture. Only use these connections if your TV has Progressive
Scan. Check your TV manual
for more information.
• On the TV, the component
video in jacks may be labeled
YUV or Pr/Cr Pb/Cb Y and may
be green, blue, and red.
Helpful Hints
1
Connect your Antenna or Cable TV signal to the ANTENNA
jack on the rear of the DVD Recorder.
2
Connect the supplied S-Video cable to the S-VIDEO OUT
(Y/C) (EXT 1) jack of the DVD Recorder and to the TV’s SVIDEO In jack.
3
Connect a supplied two-strand audio cable to the red and
white AUDIO OUT (EXT 1/2) left and right jacks on the
DVD Recorder and to the left/right AUDIO IN jacks on the
TV. The supplied two-strand audio cable has red and white stripes
on the cable ends. Match the cable stripe colors to the jack colors.
4
Connect the supplied power cord to the MAINS (AC
Power) jack on the rear of the DVD Recorder.
Connect the power cords of the DVD Recorder and the TV
to a power outlet.
5
Press the STAND BY/ON button on the front of the DVD
Recorder to turn on the DVD Recorder. The STAND BY/ON
light will turn green.
6
Turn on the TV power. Set the TV to the S-Video In channel. See your TV owner’s manual for details. Or, change channels at
the TV until you see the DVD screen saver or Initial Setup screen
on the TV screen. The Initial Setup screen will appear the first time you
turn on the Recorder. Go to page 16 to continue.
Hookups (cont’d) 11
Connecting to a TV Only
TV has an S-Video In Jack
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
BPB
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
Back of TV
(example only)
2
LEFT AUDIO IN
RIGHT AUDIO IN
LEFT AUDIO IN
RIGHT AUDIO IN
3
S-VIDEO IN
S-AUDIO IN
4
Antenna
or Cable TV
Signal
1
• On the TV, the S-Video In jack
may be labeled Y/C, S-Video, or
S-VHS (super video).
Helpful Hint
12 Hookups (cont’d)
Connecting to a TV Only
TV has a yellow CVBS Video In jack
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
BPB
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
Back of TV
(example only)
2
LEFT AUDIO IN
RIGHT AUDIO IN
LEFT AUDIO IN
RIGHT AUDIO IN
3
VIDEO IN
VIDEO IN
4
Antenna
or Cable TV
Signal
1
1
Connect your Antenna or Cable TV signal to the ANTENNA
jack on the rear of the DVD Recorder.
2
Connect the yellow VIDEO OUT (CVBS) (EXT 2) jack of the
DVD Recorder to the corresponding VIDEO IN jack on your
TV. Use the supplied video cable, which has a yellow stripe on the
cable end.
3
Connect a supplied two-strand audio cable to the red and
white AUDIO OUT (EXT 1/2) left and right jacks on the
DVD Recorder and to the left/right AUDIO IN jacks on the
TV. The supplied two-strand audio cable has red and white stripes
on the cable ends. Match the cable stripe colors to the jack colors.
4
Connect the supplied power cord to the MAINS (AC
Power) jack on the rear of the DVD Recorder.
Connect the power cords of the DVD Recorder and the TV
to a power outlet.
5
Press the STAND BY/ON button on the front of the DVD
Recorder to turn on the DVD Recorder. The STAND BY/ON
light will turn green.
6
Turn on the TV power. Set the TV to the correct
Audio/Video In channel. Such channels may be called AUX or
AUXILIARY IN, AUDIO/VIDEO or A/V IN, EXT1 or EXT2, etc.
These channels often are near channel 00. See your TV owner’s
manual for details. Or, change channels at the TV until you see the
DVD screen saver or Initial Setup menu on the TV screen.
The
Initial Setup screen will appear the first time you turn on the Recorder. Go
to page 16 to continue.
• On the TV, the Video In jack is
usually yellow and might be
labeled video, CVBS, composite,
or baseband.
Helpful Hint
Hookups (cont’d) 13
Connecting to a TV and a two-channel Stereo
(Stereo has Dolby Pro Logic or right/left Audio In jacks)
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
BPB
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
Back of TV
(example only)
2
LEFT AUDIO IN
RIGHT AUDIO IN
3
S-AUDIO IN
Stereo
(example only)
S-VIDEO IN
4
Antenna
or Cable TV
Signal
1
1
Connect your Antenna or Cable TV signal to the ANTENNA
jack on the rear of the DVD Recorder.
2
Connect the supplied S-Video cable to the S-VIDEO OUT
(Y/C) (EXT 1) jack of the DVD Recorder and to the TV’s
S-VIDEO IN jack.
3
Connect a supplied two-strand audio cable to the red and
white AUDIO OUT (EXT 1/2) left and right jacks on the
DVD Recorder and to the left/right AUDIO IN jacks on the
Stereo. The supplied two-strand audio cable has red and white
stripes on the cable ends. Match the cable stripe colors to the jack
colors.
4
Connect the supplied power cord to the MAINS (AC
Power) jack on the rear of the DVD Recorder.
Connect the power cords of the DVD Recorder, Stereo,
and TV to a power outlet.
5
Turn on the Stereo power and set your Stereo to the correct Audio In channel or sound source. Refer to the Stereo
owner’s manual.
6
Press the STAND BY/ON button on the front of the DVD
Recorder to turn on the DVD Recorder. The STAND BY/ON
light will turn green.
7
Turn on the TV power. Set the TV to the correct S-Video In
channel. These channels often are near channel 00. See your TV
owner’s manual for details. Or, change channels at the TV until you
see the DVD screen saver or Initial Setup menu on the TV screen.
The Initial Setup screen will appear the first time you turn on the
Recorder. Go to page 16 to continue.
• Set the Analog output accordingly. Details are on page 57.
• If you prefer or need to use the
VIDEO OUT (CVBS) or COMPONENT VIDEO OUT Y P
B PR
jacks instead, see pages 10 and
12. You only need one video
connection.
Helpful Hints
14 Hookups (cont’d)
Connecting to a TV and a Stereo Receiver
(Receiver has Dolby Digital
TM
, MPEG2, or Digital Theater System)
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
BPB
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
Back of TV
(example only)
3
COAXIAL DIGITAL
AUDIO IN
2
S-AUDIO IN
S-VIDEO IN
Receiver
(example only)
4
Antenna
or Cable TV
Signal
1
1
Connect your Antenna or Cable TV signal to the ANTENNA
jack on the rear of the DVD Recorder.
2
Connect one of the DVD Recorder’s DIGITAL AUDIO
OUT jacks (COAX (coaxial) or OPTICAL) to the corresponding DIGITAL AUDIO IN jack on your Stereo. You only
need one connection. Use an appropriate digital audio cable (not
supplied).
3
Connect the supplied S-Video cable to the S-VIDEO OUT
(Y/C) (EXT 1) jack of the DVD Recorder and to the TV’s
S-VIDEO IN jack.
4
Connect the supplied power cord to the MAINS (AC
Power) jack on the rear of the DVD Recorder.
Connect the power cords of the DVD Recorder, Stereo,
and TV to a power outlet.
5
Turn on the Stereo power and set your Stereo to the correct Digital Audio In channel or sound source. Refer to the
Stereo owner’s manual.
6
Press the STAND BY/ON button on the front of the DVD
Recorder to turn on the DVD Recorder. The STAND BY/ON
light will turn green.
7
Turn on the TV power. Set the TV to the correct S-Video In
channel. These channels often are near channel 00. See your TV
owner’s manual for details. Or, change channels at the TV until you
see the DVD screen saver or Initial Setup menu on the TV screen.
The Initial Setup screen will appear the first time you turn on the
Recorder. Go to page 16 to continue.
• Set the Digital output accordingly. Details are on page 56.
• If your Digital Output setting
does not match your Stereo’s
capabilities, the Stereo may
produce a strong, distorted
sound or no sound at all.
• Your Stereo must support
MPEG2, Dolby Digital
TM
or
Digital Theater System (DTS).
Check the Stereo’s manual.
• To use the VIDEO OUT (CVBS)
or COMPONENT VIDEO OUT
Y P
B PR jacks instead, see pages
10 and 12.
• A small, square, black cap protects the OPTICAL jack when it
is not in use. Remove the cap if
you want to use the jack;
replace the cap when the jack
is not in use.
Helpful Hints
Hookups (cont’d) 15
Connecting to Other Equipment (optional)
COMPONENT VIDEO PROG
SCAN
EXT 2
YY
P
BPB
P
R
Y
L
LL
R
RR
P
B
P
R
P
R
EXT 3 EXT 3
EXT 1 EXT 1/2
IN
RC 6
RIGHT AUDIO OUT
LEFT AUDIO OUT
VIDEO OUT
24
2
1
• After connecting the Recorder directly to your TV, additional IN jacks will be available on the rear
of the Recorder. You may connect other equipment to these jacks, including a Cable Box, Video
Cassette Recorder (VCR) or a DVD Player. The example above shows a Cable Box connection.
• To watch the material playing on the other equipment as usual, turn off the DVD Recorder.
• Most prerecorded video cassettes and DVDs are copy protected. If you try to copy them with the
DVD Recorder, the Recorder display may show ‘COPY PROTECT.’
• If you record material that is playing on a VCR onto a DVD+RW, adjust the tracking on the VCR
first. If the Recorder’s display shows “NO SIGNAL,” adjust the tracking. See your VCR owner’s
manual for details on tracking adjustment.
• Do not connect a Progressive Scan video source to the COMPONENT VIDEO IN jacks (EXT3).
The DVD Recorder cannot record material that is playing through a Progressive Scan source.
A
If you have a DV or Digital 8 camcorder, connect the Recorder’s I-LINK DV IN jack to the
Camcorder’s I-LINK OUT jack. Use an i-link cable (not supplied).
B
If you have a Hi-8 or S-VHS camcorder, connect an S-Video cable to the Recorder’s S-VIDEO
IN jack and to the camcorder’s S-Video Out jack. Connect Audio cables to the AUDIO IN (Left
and Right) jacks on the front of the Recorder and to the AUDIO OUT jacks on the camcorder.
C
If the camcorder only has a composite-style Video out jack (usually yellow), connect a video
cable to the DVD Recorder’s VIDEO IN jack and to the camcorder’s Video Out jack. Connect
Audio cables to the AUDIO IN (Left and Right) jacks on the front of the DVD Recorder and to
the AUDIO OUT jacks on the Camcorder.
You need only one connection. You might not use all the jacks on the front of the Recorder.
To see the camcorder picture on your TV, select the correct channel at the Recorder and the TV. At
the Recorder, in Tuner mode, choose CAM1, CAM2, or CAM3. Details are on page 22. At the TV,
choose the TV channel that corresponds to the jacks you used on the rear of the Recorder to connect the Recorder to the TV. The TV’s Video In channel may be referred to as Video In, Aux or
Auxiliary In, Audio/Video or A/V In, External or EXT IN, etc. If you have trouble finding the right channel, keep changing TV channels until you see the camcorder image playing on the TV screen.
S-VIDEO
VIDEO AUDIO
LEFT RIGHT
DV
Typical
Camcorder
C
D
B
A
Connecting to a Camcorder (optional)
TUNER ON/OFF
REC/OTR
PLAYSTOP
REVERSE PAUSE SLOW FORWARD
PREVIOUS
EDIT
NEXT
CLEAR
CH
SELECT
TIMER
T/C
ZOOM ANGLE SUBTITLE AUDIO
DIM REPEAT REPEAT SCAN
A/CH
MUTE
VOL
1
2,3
2,3
16 Initial Setup
Initial Setup screens will appear the very first time you turn on the Recorder.
These on-screen messages and menus will help you set up Recorder features
quickly, including TV channels and language options.
Follow the steps below to set up the Recorder as directed on the TV screen.
You can not turn off the Recorder until you finish the Initial Setup.
The only way to quit the Initial Setup is to disconnect the power
cord. If you quit, the Initial Setup screens will appear again the next
time you turn on the Recorder. The screens will not go away until
you finish the Initial Setup.
If the setup screens do not appear, your Recorder has been set up previously.
You can always change setup items later. For details on how to change these
items later, see the pages listed at each step below for each feature.
1
Press ON/OFF to turn on the Recorder.
2
The Menu Language screen will appear first automatically. Press
98 to choose English, Espanol, or Francais, then press the
OK button.
The DVD Recorder’s menus will be in the language you selected.
To change the Recorder’s Menu Language settings later, see page 58.
3
The Audio Language menu appears next. Press 98 to
choose the language you prefer, then press OK.
The Recorder will automatically play Discs in the language you
selected if the language is available on the Disc. The DVD Disc
menu will appear in the same language, if available on the Disc.
Some Discs require you to choose the audio language from the Disc
menu. The Disc preferences or defaults may override your selection
in the Recorder’s Audio Language menu.
To change the Audio Language settings later (as Playback Audio), see
page 58.
Continued on page 17
~
Initial Setup
Menu Language
English
K
L
Español
Français
Press OK to continue
~
Initial Setup
Audio Language
English
K
L
Español
Français
Português
Italiano
Press OK to continue
Initial Setup (cont’d) 17
TUNER ON/OFF
REC/OTR
PLAYSTOP
REVERSE PAUSE SLOW FORWARD
PREVIOUS
EDIT
NEXT
CLEAR
CH
SELECT
TIMER
T/C
ZOOM ANGLE SUBTITLE AUDIO
DIM REPEAT REPEAT SCAN
A/CH
MUTE
8
VOL
4,5
4-6
Continued from previous page
4
The Subtitle Language menu appears next. Press 98 to choose
the language you prefer for subtitles, then press OK.
The Recorder will automatically show subtitles in the language you
selected if subtitles are available in that language on the Disc. If your
selected subtitle language is not available, either there will be no
subtitles or subtitles will be in the default language of the Disc.
Some DVDs require you to choose a subtitle language from the
Disc menu. Disc preferences or defaults may override your selection in the Recorder’s Subtitle Language menu.
To change the Subtitle Language settings later, see pages 29 and 58.
5
The TV Shape menu appears next. Press 98 to choose the pre-
ferred TV Shape, then press OK.
To change the TV Shape later or for details on TV Shapes, see page 55.
6
“If you have connected the antenna - press OK” appears next. If
you have connected an Antenna or Cable TV signal to the
Recorder’s ANTENNA jack, press OK.
If you have not connected the Antenna or Cable TV signal, take a
moment now to do so. After the Antenna/Cable is connected, press
OK. Details are on pages 10-14.
To reset TV channels later, or to add/delete new channel choices later,
see page 36.
7
“Searching for TV channels” will appear, along with a scale
showing channels are being memorized. The number of channels
found will show on the screen as the searching progresses. This will
take a few minutes, depending on the number of channels available
in your area.
When the channel search finishes, “Auto ch. search complete” will
appear, along with the total number of channels found.
8
Press SYSTEM MENU.
The Recorder is ready for use!
~
Initial Setup
Subtitle Language
English
K
L
Español
Français
Português
Italiano
Press OK to continue
Installation
Auto Ch. Programming
Auto ch. search complete
024 Channels found
To exit press
SYSTEM MENU
~
Initial Setup
TV Shape
4:3 letterbox
K
L
4:3 panscan
16:9
Press OK to continue
18 Quick Disc Playback
There are many playback features and options available on Discs. After
familiarizing yourself with the DVD Recorder as described on pages 20-27,
see pages 28 and following to try additional playback features.
1
Press STAND BY / ON to turn on the DVD Recorder. The
STAND BY / ON light will be green when the power is On.
Turn on your TV. Set it to the correct Video In channel.
You should see the blue Philips DVD screen saver on the TV screen
(if no Disc is in the Recorder). Details are on pages 9-14.
2
Press OPEN/CLOSE A on the front of the DVD Recorder to
open the disc tray. (You can not open the disc tray using the
remote control.)
Load your Disc in the tray, with the label facing up. If the Disc
(DVD) is two-sided, make sure the side you want to play is facing
up.
3
Press OPEN/CLOSE A again to close the tray.
4
Playback may start automatically. If not:
• If you are playing a DVD, a Disc menu may appear. If the Title or
Chapter selections are numbered, press a Number button to select
an item. Or, press 9 8 ; : to select an item, then press OK.
Playback will begin. Or, follow the on-screen instructions as detailed
in the DVD Disc menu.
• If you are playing an Audio CD, press PLAY : to start playback.
• If you are playing a DVD+RW, the Index Picture Screen will
appear. Press 9 8 to select the Title you want to play, then press
OK. If the Disc is a new blank Disc, the display will show “EMPTY
DISC.” Details are on page 35.
5
To stop playback at any time, press STOP C.
• If the Disc is Locked by Access
Control, you must enter the fourdigit code or authorize the Disc.
Details are on pages 49-53.
• DVDs have a region code. Your
Recorder will not play Discs that
have a region code different from
the region code of your Recorder.
The Recorder’s region code is 1
(one). Details are on page seven.
• You can not record only Audio
(sound) to a DVD+RW. You
must record both audio and
video (sound and picture).
Helpful Hints
DVD AUDIO CD VIDEO CD DVD+RW
1,2
TUNER ON/OFF
REVERSE PAUSE SLOW FORWARD
PREVIOUS
5
REC/OTR
EDIT
4,5
PLAYSTOP
NEXT
CLEAR
VOL
T/C
TIMER
MUTE
SELECT
4
CH
A/CH
4
ZOOM ANGLE SUBTITLE AUDIO
Quick Recording 19
The DVD Recorder can record TV programming onto a DVD+RW.
Before you begin, make sure you have installed the TV channels. Details are
on pages 16-17 and 36. Using an unprotected, recordable DVD+RW, follow the steps below to record TV channels.
For additional recording options, see pages 40-46.
1
Press OPEN/CLOSE A on the front of the DVD Recorder to
open the disc tray. Or, press and hold STOP C on the remote control to open or close the Disc tray.
2
Insert a recordable DVD+RW, with the label facing up. Press
OPEN/CLOSE A to close the disc tray. The Index Picture Screen
will appear. Details are on page 35. If the Disc is empty and has no
recordings, “EMPTY DISC” will appear on the Recorder’s display.
3
Press 9 to select an empty Title box, which indicates space
available on the Disc for recording. To avoid overwriting previous
recordings, choose the last empty Title box.
4
Press TUNER to see TV channels through the DVD Recorder.
5
Press CH+/- or the Number buttons to select the channel you
wish to record.
To record material playing on equipment you connected to the
Recorder, select EXT1, EXT2, EXT3, CAM1, CAM2, or CAM3.
Choose the EXT (External) or CAM (Camera) channel that matches
the jack to which you connected the other equipment. For example,
if you connected a camcorder to the S-VIDEO CAM1 jack on the
front of the DVD Recorder, press CH+/- to choose CAM1. CAM1
will appear in the Tuner Information Box. Details are on page 27.
6
Press REC/OTR to begin recording the selected channel.
RECORD will appear in red on the Recorder’s display panel.
7
Press STOP C to stop recording. RECORD will flash briefly on
the display panel. The Index Picture Screen will reappear after a few
seconds. To edit your recordings later, see pages 47-48.
TUNER ON/OFF
REC/OTR
PLAYSTOP
REVERSE PAUSE SLOW FORWARD
PREVIOUS
EDIT
NEXT
CLEAR
CH
SELECT
TIMER
T/C
ZOOM ANGLE SUBTITLE AUDIO
DIM REPEAT REPEAT SCAN
A/CH
MUTE
4
6
7
VOL
3
5
DVD+RW
1,2
TUNER ON/OFF
REC/OTR
PLAYSTOP
REVERSE PAUSE SLOW FORWARD
PREVIOUS
EDIT
NEXT
CLEAR
CH
SELECT
TIMER
T/C
ZOOM ANGLE SUBTITLE AUDIO
DIM REPEAT REPEAT SCAN
A/CH
MUTE
VOL
20 Remote Control Buttons
TUNER Button
Press to choose disc mode or tuner
mode. In disc mode, use the Index
Picture Screen, view Disc playback, or
make recordings. In tuner mode, watch
or record TV channels through the
DVD Recorder. Details are on page 19.
STOP C Button
Press to stop Disc playback or recording.
Press and hold the STOP Cbutton for
three seconds to open or close the
Recorder’s disc tray.
DISC MENU Button
Press during playback to access a
DVD’s Title or Disc menu or the
Index Picture Screen of a DVD+RW.
Details are on page 28.
98;:Buttons
Press to select items.
Details are on pages 25, 28, and 35.
RETURN Button
Press to go back to a previous menu.
VOL (volume) +/- Buttons
Press to increase or decrease the TV
volume. Details are on page 60.
MUTE H Button
Press to silence the TV volume.
Press again to restore the volume.
Details are on page 60.
ZOOM a Button
Press to access a (Zoom) in the
Menu Bar and enlarge the video
image during paused or regular play-
back of a DVD or DVD+RW.
Details are on page 30.
DIM Button
Press repeatedly to adjust the bright-
ness of or to turn off the display on
the front of the DVD Recorder.
ON/OFF Button
Press to turn on or off the power of
the DVD Recorder.
The STAND BY/ON light on the
front of the Recorder is green when
the power is on. The light is red
when the power is off.
Details are on page 22.
REC/OTR Button (Record/OneTouch Recording)
Press to record the current TV
channel as seen in Tuner mode. Or,
press to start recording material that
is playing on equipment connected to
the Recorder (after choosing the
correct EXT or CAM channel).
Details are on page 19. Press repeatedly to set up One-Touch
Recordings. Details are on page 40.
SYSTEM MENU Button
Press to access or remove the Menu
Bars of the DVD Recorder.
Details are on page 25.
OK Button
Press to acknowledge or approve a
menu selection.
SELECT Button
Press to select an AM or PM Start or
End time for a timer recording.
Details are on page 41.
TV Switch
Press and hold while using buttons
on the remote control that operate
your TV. Details are on page 60.
AUDIO YYButton
Press to select a different audio language or soundtrack during DVD playback. Multiple languages or soundtracks must be available on the DVD.
Details are on page 29.
SCAN Button
Press to play the first 10 seconds of
each Track or Chapter on a Disc.
Details are on page 33.
Remote Control Buttons (cont’d) 21
REVERSE ÉE´´ Button
Press to search backward, or fast
reverse, during playback. Press
repeatedly to play the Disc backward
at 4 or 32 times the normal speed.
Details are on page 32.
PREVIOUS w Button
Press to return to the beginning of
the current Chapter/Track. Or, press
repeatedly to return to the beginning
of previous Chapters/Tracks.
Details are on page 28.
EDIT Button
Press to display or remove the edit
menu for a DVD+RW during playback.
Details are on page 48.
CLEAR Button
Press to delete the last entry of infor-
mation into a menu. Press to clear a
timer recording. Details are on page 43.
T/C (Title/Chapter) Button
Press to select “T” (Title/Track) or
“C” (Chapter) in the Menu Bar.
(Press T/C repeatedly to toggle
between T or C in the Menu Bar.)
Then press 98 to select the Title,
Track, or Chapter number you want
to play. The Title/Track/Chapter will
start to play automatically. This but-
ton has no effect during Tuner mode.
ANGLE } Button
Press to select a different camera
angle during DVD playback. Multiple
angles must be available on the Disc.
Details are on page 30.
REPEAT Button
Press repeatedly to play a Chapter,
Title, Track, or Disc repeatedly.
Details are on page 34.
REPEAT A-B Button
Press to set up Repeat A-B playback,
in which a certain segment of the
Track or Chapter plays repeatedly.
Details are on page 34.
SLOW H Button
Press repeatedly to select a slow
motion speed. You can choose to
play the Disc at 1/2, 1/4, or 1/8 the
normal speed. Details are on page 32.
PLAY : Button
Press to begin Disc playback.
FORWARD D Button
Press to search forward, or fast forward, during Disc playback. Press
repeatedly to play the Disc forward at
4 or 32 times the normal speed.
Details are on page 32.
NEXT ∑
Press to skip to the next Chapter or
Track during playback.
Details are on page 28.
PAUSE k Button
Press once to pause playback. Press
repeatedly to advance a paused DVD
or DVD+RW picture one frame at a
time (frame-by-frame playback).
Details are on page 31.
TIMER Button
Press to access or remove the Timer
Recording menu.
Details are on pages 41-43.
CH (channel) +/- Buttons
Press to select a TV channel in Tuner
mode.
Number Buttons
Press to select numbered items in a
menu. Details are on page 18. Press dur-
ing playback to directly select a Chapter
(within the current Title) or Track for
playback. Details are on page 28.
A/CH (Alternate Channel)
Button
Press to return to the previously
selected TV channel while the
Recorder is in Tuner mode.
SUBTITLE Z Button
Press repeatedly during playback to
select a subtitle language from those
available on the current Disc.
Details are on page 29.
TUNER ON/OFF
REC/OTR
PLAYSTOP
REVERSE PAUSE SLOW FORWARD
PREVIOUS
EDIT
NEXT
CLEAR
CH
SELECT
TIMER
T/C
ZOOM ANGLE SUBTITLE AUDIO
DIM REPEAT REPEAT SCAN
A/CH
MUTE
VOL
Loading...
