Introduction

English

DVD Video Recorder

DVD (Digital Versatile Disc) is the new storage medium that combines the convenience of the Compact Disc with the latest advanced digital video technology. DVD Video uses state-of-the-art MPEG2 data compression technology to register an entire movie on a single 5-inch disc. DVD’s variable bitrate compression, running at up to 9.8 Mbits/second, captures even the most complex pictures in their original quality. The crystal-clear digital pictures have a horizontal resolution of over 500 lines, with 720 pixels (picture elements) to each line. This resolution is more than double that of VHS, superior to Laser Disc, and entirely comparable with digital masters made in recording studios.

DVD recording is the next step in video technology. DVD+ReWritable (DVD+RW) uses phase-change media, the same technology that formed the basis for CDReWritable. A high-power laser is used to change the reflectivity of the recording layer. This process can be repeated more than a thousand times. DVD+Recordable (DVD+R) uses discs based on an organic dye, a technology pioneered with the successful CDRecordable format, to produce discs that keep your data for a lifetime.

With it, you will be able to record TV programmes or to edit and archive your own camcorder recordings. Superb digital picture and sound quality, quick access to the tracks you have recorded and extensive playback features contribute to a completely new video experience.

From now on you will enjoy full-length movies with true cinema picture quality, and stereo or Multi-channel sound (depending on the disc, and on your playback setup).You will find your recorder remarkably easy to use, by way of the On-Screen Display on your TV and the display on the DVD recorder, in combination with the remote control.

Your Philips DVD recorder is a recorder and player for digital video discs, with a two-way compatibility to the universal DVD Video standard. This means that:

- existing pre-recorded DVD Video discs can be played on your Philips DVD recorder and

- recordings, made on your Philips DVD recorder, can be played on most DVD Video players and DVD-ROM drives.

INTRODUCTION 6

Box contents

Cleaning discs

First check and identify the contents of your DVD recorder package, as listed below:

- DVD recorder

- Remote Control Handset with separately-packed batteries

- 2-core power cord

- SCART cable

- S-video cable

- Antenna (aerial) cable

- Audio cable

- Video cable

- DVD+RW disc

- User Manual

- Warranty card

If any item should be damaged or missing, please inform your supplier without delay.

Keep the packaging materials; you may need them to transport your recorder in the future.

Placement

Some problems may occur because the disc inside the recorder is dirty. To avoid these problems clean your discs regularly, in the following way:

l When a disc becomes dirty, clean it with a cleaning

cloth. Wipe the disc from the centre out.

Caution: Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for analogue discs. Do not use commercially available cleaning discs to clean the lens, as these discs may damage the optical unit.

Remote control

Loading the batteries

English

l Place the recorder on a firm, flat surface. l Keep away from domestic heating equipment and

direct sunlight.

l In a cabinet, allow about 2.5 cm (1 inch) of free

space all around the recorder for adequate ventilation.

l The lense may cloud over when the DVD recorder

is suddenly moved from cold to warm surroundings. Playing a CD/DVD is not possible then. Leave the DVD recorder in a warm environment for two hours before use, so the moisture can evaporate.

l The recorder should not be exposed to dripping or

splashing, no object filled with liquids, such as vases, should be placed on the recorder.

l Open the battery compartment cover. l Insert two 'AA' (LR-6) batteries as indicated inside

the battery compartment.

l Close the cover.

Caution: Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.). This may reduce the lifetime of the batteries.

INTRODUCTION 7

Installation

English

Connections - back side of your DVD recorder

- Please refer to your TV set, VCR, Stereo System and any other User Manual(s) as necessary to make the optimal connections.

- Do not connect the power until all other connections are made.

- Do not connect your DVD recorder to your TV set via your VCR, because the video quality could be distorted by the copy protection system.

- For better sound reproduction you can connect the recorder audio outputs to your amplifier, receiver, stereo system or A/V equipment. For this see ‘Connecting to A/V receiver or A/V amplifier’.

Caution: Do not connect the recorder’s audio output to the phono input of your audio system in order to avoid damage to your equipment.

Connecting to the antenna

l Remove the antenna (aerial) cable plug from your

TV set and insert it into the antenna socket at the back of the DVD recorder.

l Plug one end of the antenna (aerial) cable supplied (1)

into the TV socket on the DVD recorder and the other end into the antenna input socket on your TV set.

If your TV set is not equipped with a

SCART connector,

you can connect the DVD recorder with the S-video (Y/C) sockets.

S-video (Y/C) connection

l Connect the S-video output socket to the

corresponding input socket on the TV set, using the supplied S-video cable (3).

l Connect the audio Left (white) and Right (red)

output sockets to the corresponding sockets on the TV set using the audio cable supplied (5).

AUX- I/0

EXT 2

EXT 4 EXT 3

TO TV I/0

EXT 1

The antenna connection transmits TV channels through the Recorder to the TV, you still need a video connection to send DVD playback from the Recorder to the TV. See ‘Connecting to a TV’ set.

Connecting to a TV set

To obtain the highest possible picture and sound quality from your TV set it is recommended to use the SCART connector on both DVD recorder and TV set.

l Connect the bottom SCART connector (EXT 1) to

the TV set, using the SCART cable supplied (2) as shown in the drawing. If your TV set is equipped with Easylink or Cinema Link, make sure you use the correct SCART connector. For this, refer to the user manual of your TV set.

If your TV set is not equipped with S-video sockets, then connect the DVD recorder with the CVBS sockets to your TV set.

Video (CVBS) connection

l Connect the Video (CVBS) output socket (yellow)

to the corresponding input socket on the TV set using the video cable supplied (4).

l Connect the audio Left (white) and Right (red)

output sockets to the corresponding sockets on the TV set using the audio cable supplied (5).

8 INSTALLATION

EXT 4 EXT 3

AUX- I/0

EXT 2

TO TV I/0

EXT 1

EXT 4 EXT 3

EXT 2

TO TV I/0

EXT 1

Connecting to audio equipment

Connecting to A/V receiver or A/V amplifier with digital Multi-channel decoder

The best possible sound quality is obtained by connecting your DVD recorder to an A/V receiver with Multi-channel decoder (Dolby Digital, MPEG 2 and DTS).

Digital Multi-channel sound

Digital Multi-channel connection provides the optimum sound quality. For this you need a Multi-channel A/V receiver that supports one or more of the audio types supported by your DVD recorder (MPEG 2, Dolby Digital and DTS). For this you can check the receiver manual and the logos on the front of the receiver.

If you cannot connect your DVD recorder to an A/V receiver with Multi-channel decoder, choose one of the following alternatives.

Connecting to a receiver equipped with two channel digital stereo (PCM)

l Connect the recorder’s digital audio output to the

corresponding input on your receiver. Use the supplied video (CVBS) cable (7) or an optional digital optical audio cable (8).

l After installation you will need to activate PCM on

the DVD recorder’s digital output (see ‘User Preferences’).

Connecting to a receiver equipped with Dolby Pro Logic

English

l Connect the recorder’s digital audio output to the

corresponding input on the receiver. Use a digital coaxial cable (7) or a digital optical audio cable (8).

If you do not own a digital coaxial audio cable (not supplied), you may use the supplied video cable (4).

Note : If the audio type of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound. The audio type of the DVD disc in play is displayed in the Status Window, when changing the language. 6 Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

AMPLIFIER

l Connect the recorder to the TV set and connect

the recorder’s audio Left and Right output sockets to the corresponding inputs on the Dolby Pro Logic Audio/Video receiver, using the audio cable supplied (6).

AMPLIFIER

AUX- I/0

EXT 2

EXT 4 EXT 3

TO TV I/0

EXT 1

l Make the appropriate Sound settings for Analogue

Output in the user preferences menu.

Connecting to a TV set equipped with a

AUX- I/0

EXT 2

TO TV I/0

EXT 1

Dolby Pro Logic decoder

l Connect the recorder to the TV set as described in

chapter ‘Connecting to a TV set’.

INSTALLATION 9

English

Connecting to a receiver with two channel analogue stereo

l If you have a receiver with two-channel analogue

stereo without any of the above mentioned sound systems, connect the audio Left and Right output sockets to the corresponding sockets on your receiver, amplifier or stereo system. Use the audio cable supplied (6).

Connecting to other equipment

Use the top SCART connector (EXT 2) on your DVD recorder to make connections to a:

- Satellite receiver or Set top box,

- VCR,

- DVD Video player

Most pre-recorded video cassettes and DVD discs are copy protected. If you try to copy them the display shows ‘COPY PROTECT’.

For installation of a decoder, see ‘User Preferences’ ‘Installation’.

Connections - frontside of your DVD recorder

Camcorder connection

l If you have a DV or Digital 8 camcorder, connect

the i-link DV input socket (1) to the corresponding output socket on the camcorder using the i-link cable of your camcorder.

l If you have a Hi-8 or S-VHS(C) camcorder, connect

the S-video input socket to the corresponding output socket on the camcorder, using the S-video cable supplied (2) and connect the audio cable (4) supplied.

l Otherwise connect the Video input socket (yellow)

to the corresponding output socket on the camcorder using the video cable supplied (3) and connect the audio Left (white) and Right (red) input sockets to the corresponding sockets on the camcorder using the audio cable supplied (4).

l If your camcorder has mono sound, use only the left

audio connector. In this case the sound will be recorded on both audio channels.

EXT 4 EXT 3

AUX- I/0

EXT 2

TO TV I/0

EXT 1

Set top box

Notes :

- If the power is off or Low Power Standby is selected (see User Preferences - features), the signal from EXT 2 will not be passed on to the TV set on EXT 1.

- EasyLink functionality will not be available to devices connected via the DVD recorder’s EXT 2

10 INSTALLATION

SCART connector.

Camcorder

Power supply

First time set-up: virgin mode

l Make sure that all necessary connections are made

before connecting the DVD recorder to the power supply.

l Plug the power cable supplied into the Power

connector on the rear of the recorder.

l Plug the mains plug into an AC outlet.

Note : Always check if the local mains voltage matches the required 220V - 240V. When the recorder is in the Standby position, it is still consuming some power. If you wish to disconnect your DVD recorder completely from the mains, withdraw the plug from the AC Outlet. When the DVD recorder is disconnected from the mains, TV channels and timer data will be stored typically 1 year.

After switching on the DVD recorder for the very first time the ‘virgin mode screen’ will appear.

In ‘virgin mode’ you may have to set your preferences for some of the recorder features.

If the ‘virgin mode screen’ does not appear, your DVD recorder has been installed already. You may still change the settings via the ‘installation menu’. Depending on the kind of TV set, preferences will have to be set manually or they will be taken over automatically from the TV set.

Automatic setting

When your TV set is equipped with EasyLinkTM, Cinema LinkTM, N MegaLogicTM, the TV settings will be taken over from the TV set but they cannot be changed manually afterwards.

When preferences are taken over from your TV set, the message ‘

wait

Menus for which no preferences are available will be displayed. They have to be set manually.

EXTVIEW Link

Easylink loading data from TV -please

’ will appear.

, SmartLinkTM, Q-LinkTMor

English

Switching on

l Switch on the TV set and select the programme

number that you have chosen for video playback (see operating manual for your TV set).

l Press B STANDBY/ON.

‰ The recorder display lights up. If you have not

yet installed your DVD recorder, it will enter ‘virgin mode’. In this mode you will have to set your personal preferences.

Notes: Preferences have to be set in the order in which the item menus will appear on the screen. If the recorder is switched off while setting user preferences, all preferences have to be set again after switching the recorder on again. The ‘virgin mode’ will only be concluded after the preferences for the last item have been confirmed.

Follow TV

Easy Link loading data from TV please wait

INSTALLATION 11

English

TV Shape

Press OK to continue

4:3 letterbox

4:3 panscan

16:9

Subtitle language

Press OK to continue

English

Español

Français

Português

Italiano

Audio language

Press OK to continue

English

Español

Français

Português

Italiano

Manual setting

When a menu is displayed: l Use the wv (down up cursor) keys to go through

the options in the menu. The icon of the selected option will be highlighted.

l Use OK to confirm your selection and to select the

next menu.

The following items may have to be set in virgin mode:

Menu language

The on-screen menus of DVD Video discs will be displayed in the language you choose.

Virgin mode

Menu language

English

Español

Français

Italiano

Deutsch

Subtitle language

The subtitles of DVD Video discs will be in the language you choose provided this is available on the disc in play. If not, subtitles will revert to the first subtitle language on the disc.

TV Shape

Press OK to continue

Audio language

The sound of DVD Video discs will be in the language you choose, provided this is available on the disc in play. If not, speech will revert to the first spoken language on the disc. Also the DVD Video disc menu will be in the language you choose, provided this is available on the disc.

You can choose:

16:9

if you have a wide screen (16:9) TV set.

4:3

if you have a regular (4:3) TV set. In this case you

can also choose between:

Letterbox

for a ‘wide-screen’ picture with black

bars top and bottom,

Pan Scan

, for a full-height picture with the sides trimmed. If a disc has Pan Scan, the picture then moves (pans) horizontally to keep the main action on the screen.

12 INSTALLATION

Autom.search

Searching for TV channels

XX channels found

Please wait

English

Country

Select your country. This is used as input for the ‘Parental Control’ feature (see ‘Access Control’) as well as the searching of TV channels.

Country

Austria

Belgium

Denmark

Finland

France

‰ When Auto search is completed ‘

search complete- XX channels found

Autom.

’ appears

on the TV screen.

After Auto channel search you can have TV channels stored automatically in the same order as your TV set. See ‘User preferences installation’ - ‘Follow TV’.

Time/Date

When Channel auto search is completed the actual Time and Date are also set automatically. If the time in the DVD recorder display is not correct, the clock must be set manually.

Autom.search

Autom.search complete XX channels found

Time Year

Month Date

09: 40 2001

02 09

To continue Press OK

Press OK to continue

Auto TV Channel Search

Make sure the antenna is connected. See ‘Connecting to the antenna’. Your DVD recorder will search for all TV channels. It stores channels in the sequence they are found.

l Confirm with OK.

‰ Auto search starts. This can take several

minutes.

l Adjust ’

Time

’, ’

Year

’, ’

Month

’, ’

Date

’ if required,

with the w (down cursor) or v (up cursor) key.

l Change values with the the t (left cursor) or u (right

cursor) key or the digit keys 0-9.

l To end, press OK.

Note: All these items may have to be set after first start up (‘virgin mode’). After that they can always be adapted in the user preferences menu. When your TV set is equipped with Easylink the TV set presets will be taken over from the TV set but they cannot be changed manually afterwards.

Virgin mode settings are now completed. All settings can still be changed. See ‘User preferences’.

INSTALLATION 13

English

Functional overview

Front of recorder

B STANDBY/ON

- switches the recorder to Power/Standby mode

Standby indicator

- lights up red when the recorder is in standby mode

- lights up green when the recorder is operative

Infrared remote control

PANEL

- to open and close the panel that covers additional keys and connectors

Display

- displays the current status of the recorder

0 RECORD

- direct recording of the selected programme on TV set or the recorder (depending on the

DIRECT RECORD setting)

2 PLAY

- starts video/audio play

Disc loading tray

AUDIO (Left/Right)

- Audio input socket left/right to connect a camcorder or video

VIDEO (CVBS)

- Video input socket to connect a camcorder or video recorder

S-VIDEO

- Video input socket to connect a camcorder or video recorder

9 STOP

- stops video/audio play or recording

/ OPEN/CLOSE

- opens/closes the disc tray

TITLE

- J selects previous title

/chapter/track/index or beginning

current title/chapter/track/index

- K selects next title/ chapter/track/index

AUTO/MAN REC VOLUME

- to adjust the recording level automatically or manually

MANUAL

- 34to increase/decrease the recording level

- Audio/Video input socket to connect a digital camcorder

DV-indicator

- Lights up red when DV input is active

14 FUNCTIONAL OVERVIEW

CHANNEL

- to select channels manually

- Q search backward

- R search forward

Rear of recorder

MAINS

- connection to the mains

- RF connection to TV set

ANTENNA

- RF connection to antenna/cable TV signal

VIDEO (CVBS)

- OUT: for connection to a TV set, receiver or amplifier with CVBS video inputs

- IN: for connecting a video source with CVBS outputs

S-video (Y/C)

- OUT: for connection to a TV set, receiver or amplifier with S-video (Y/C) inputs

- IN: for connecting a video source with S-video (Y/C) outputs

AUX I/O (EXT II)

- for connection to a satellite receiver, decoder, video recorder, set top box etc. via

SCART

English

Apparatus Claims of U. S. Patent Nos.

4,631,603, 4,577,216, 4,819,098, and 4,907,093

licensed for limited viewing uses only.

AUX- I/0

EXT 2

EXT 4 EXT 3

TO TV I/0

EXT 1

TO TV I/O (EXT I)

- for connection to a TV set with

SCART

AUDIO OUT L/R

- connection to an amplifier, receiver, stereo system or

to a TV set that is not equipped with a

SCART connector

AUDIO IN L/R

- connection to the audio output of a video source that is not equipped with a

SCART connector

OUT OPTICAL

- connection to an amplifier, receiver or stereo system with a digital (optical) audio input

OUT COAX

- connection to an amplifier, receiver or stereo system

with a digital (coaxial) audio input

FUNCTIONAL OVERVIEW 15

English

Display

DVD

- DVD Video disc inserted

DVD+R

- DVD+Recordable disc inserted

DVD+RW

- DVD+Rewritable disc inserted

TITLE

- DVD title number

TRACK

- VCD/CD track number

VCD

- Video CD inserted

- Audio CD inserted

SVCD

- Super Video CD inserted

HQ - SP - LP - EP

- Selected recording mode: High Quality, Standard Play, Long Play or Extended Play

CHAPTER

- DVD chapter number

DECODER

- Decoder activated for current preset

VPS/PDC

- Video Programming System/Programme

Delivery Control active on current preset

CHANNEL

- Preset name or number

RECORD

- Recording in progress

TIMER

- Timer programmed or active

TRACK TIME

- Track time in minutes and seconds

TOTAL TIME

- Total playback or recording time in hours, minutes and seconds

TOTAL REMAIN

- Total remaining playback or recording time in hours, minutes and seconds

- remote control active (flashing)

16 FUNCTIONAL OVERVIEW

SAT

- Recorder prepared for or engaged in satellite recording

NICAM

- NICAM digital stereo sound on current preset

STEREO

- Stereo sound from tuner

dB scale

- indicates recording volume when using manual level control

Disc bar

- Displays disc content, recording level or formatting progress

MANUAL

- Manual recording level control

DIGITAL - DTS - MPEG - PCM

- Active audio format

Remote control

TV/DVD switch

- DVD mode/TV mode selector for TV set*

- stop

- direct recording of the currently selected programme

- play

- search backward

;

- pause

- slow motion

- search forward

- previous chapter, track or title

EDIT

- displays edit menu for DVD+RW or DVD+R disc

- next chapter, track or title

STANDBY

DISC MENU

- displays DVD disc menu or index picture screen

SYSTEM MENU

- displays recorder menu bar

w v u t

- down/up/right/left cursor movement

RETURN

- return to previous menu on (S)VCD disc

CLEAR

- delete last entry/clear timer

TIMER

- displays the ‘timer menu’

SELECT

- switches between different values in a menu

- switches between record modes in the Index Picture Screen and in tuner mode

- acknowledge menu selection

English

+/–

- TV volume up/down

- TV Mute ON/OFF

P +/–

- programme up/down

0-9

- numerical key pad

T/C

- select title

- select chapter

TUNER

- switches between disc mode and tuner mode

ZOOM

- enlarge video image

}}

ANGLE

- select DVD camera angle

SUBTITLE

- subtitle language selector

AUDIO

- audio language selector

SIDE SWITCH

- enables other keys to operate the TV set (see Appendix)

DIM

- changes brightness setting of display

REPEAT

- repeat chapter, track, title, disc

REPEAT A-B

- repeat sequence

SCAN

- playback of the first 10 seconds of each chapter within a title (DVD) or the first 10 seconds of each track on a disc (VCD/CD)

*Note: In a TV set - DVD recorder - Set top box configuration use the ‘TV/DVD’ switch to switch back and forth between Set top box reception and DVD recorder reception. This only functions when you used a Scart cable to connect the DVD recorder to your TV set and if your TV set responds to this switch-over. This function is useful when, for example, you want to watch a channel from the Set top box on your TV set and make at the same time a recording from another source.

FUNCTIONAL OVERVIEW 17

English

Operation

Important notes for operation

Disc types

You can switch on the DVD recorder with the B STANDBY/ON key. Keep your DVD recorder connected to the mains at all times to ensure that programmed recordings can be made and that the television functions normally.

Both the DVD recorder and the remote control have an ’Emergency interrupt’ button. You can use the B STANDBY/ON button to interrupt a function. When you have an operating problem, you can interrupt the function and start again.

You will recognize the different types of discs, that can be used in your DVD recorder by the logo. Depending on the disc type you can either use it for recording and playback or playback only. Some discs are not suitable at all to be used in the DVD recorder. In the next table a summary is given of all excisting disc types and their DVD recorder compatibility.

The following disc type can be used for recording and playback:

DVD+RW

Records and plays; In case of a new blank disc, after the first recording, some more time (up to two minutes) is needed to make the disc compatible with DVD video players.

DVD+R

Records and plays.

When you switch off the DVD Recorder, the display will briefly show “WAIT.”

Loading discs

1 Press / OPEN/CLOSE on the front of the

recorder. The disc loading tray opens.

2 Lay your chosen disc in the tray, label side up.

Make sure it is sitting properly in the correct recess.

3 Press / OPEN/CLOSE, to close the tray.

‰ ‘READING’ appears in the status box and on the recorder display. If the inserted disc is pre-recorded or write-protected, playback always starts automatically.

You can always unload a disc by pressing / OPEN/CLOSE again or pressing 9 STOP on the remote control for two seconds.

Note : If ‘Child Lock’ is set to ON and the disc inserted is not in the ‘child safe’ list (not authorized), the PIN code must be entered and/or the disc has to be authorized. (see ‘Access Control’)

The following disc types can be used for playback only:

DVD-Video

DVD-R

Only plays if it contains DVD-Video.

18 OPERATION

DVD-RW

Only plays if it is recorded in video mode and has been finalized.

CD Digital Audio

You can play digital audio CDs in conventional style through a stereo system, using the keys on the remote control and/or front panel, or via the TV set using the on-screen display (OSD).

Super Audio CD

Of hybrid SACD discs, the CD layer can be played.

(Super) Video CD

Depending on the material on the disc (a movie, video clips, a drama series, etc.) these discs may have one or more tracks, and tracks may have one or more indexes, as indicated on the disc case. To make access easy and convenient, your recorder lets you move between tracks, and between indexes.

On-screen display information

English

System menu bar

The System menu bar can be called up by pressing any of the following keys on the remote control: SYSTEM MENU, T/C, } ANGLE, Z SUBTITLE, Y AUDIO and a ZOOM.

Widescreen (16:9) TV sets may show only part of the system menu bar in certain screen modes. Select a different screen mode on the TV to see the full menu.

CD-R/CD-RW

Plays if it contains Audio CD.

The following disc types cannot be used at all, neither for recording nor for playback:

DVD-RAM

DVD-Audio

A number of recorder functions can be controlled via the system menu bar. You can navigate between the two parts of the system menu bar with the t (left cursor) and the u (right cursor) key.

Menu bar icons

PART 1 PART 2

User preference Sound

Title/Track Step motion

Chapter/Index Slow motion

Audio language Fast motion

Subtitle language Time search

Angle

Zoom

Temporary Feedback Field

The system menu bar contains a ‘Temporary Feedback Field’ with information concerning prohibited actions, playback modes, available angles, etc.

OPERATION 19

English

Scan

Repeat All

Repeat Title

Repeat Track

Repeat Chapter

Repeat A to end

Repeat A-B

Angle

Child Lock On

Child Safe

l You can navigate between the various items of the

user preferences menu with the v (up cursor) and the w (down cursor) key. To select an item press u (right cursor) key.

-- --- off on off

Resume

Action prohibited

User preference menu operation

l Press SYSTEM MENU on the remote control. l Select in the system menu bar and press w

(down cursor).

‰ The user preferences menu appears.

l Use the t u v w (left right up down cursor) keys

to toggle through the menus, sub menus and submenu options. ‰ When a menu item is selected, the cursor keys (on the remote control) to operate the item are displayed next to the item.

l Press OK to confirm and return to the main menu.

-- --- off on off

l By pressing SYSTEM MENU the system menu bar

will disappear from the screen.

Status box

The status box on the left hand side of the screen displays the current status of the recorder and the disc type loaded for several seconds.

The following functions can be operated via the user preference menu.

User preference menu icons

Picture settings

Sound settings

Language settings

Feature settings

Remote control settings

Record settings

Installation

20 OPERATION

Disc type icons

DVD+RW

DVD+R

DVD-Video

Super Video-CD

Video-CD

no disc

disc error

Timer info box

The timer info box is located above the tuner info box and is displayed in tuner mode. It displays the current status of the timer.

English

Disc status icons

recording

stop

playing

pause play

record pause

erasing

fast forward

fast reverse

slow motion

Tuner info box

The tuner info box is located at the bottom left of the screen and is displayed in tuner mode (See: Recording Checking input). It displays the currently selected input. When the tuner is selected it shows programme number and/or channel name.

When a timer is programmed it shows a timer indication and the start time or date of the first programmed recording.

Timer event due today

Timer event due on another day

When an OTR recording is in progress it shows the end time.

OTR recording in progress

Current channel

No signal

Copy-protected signal

When no timer is programmed it displays the current time.

Current time

Note : Tuner info box and timer info box disappear during playback and after recording is started.

Warning box

The warning box will be displayed near the bottom of the screen when appropiate. For instance: ‘

Disc locked

’.

OPERATION 21

English

prog

Index Picture Screen

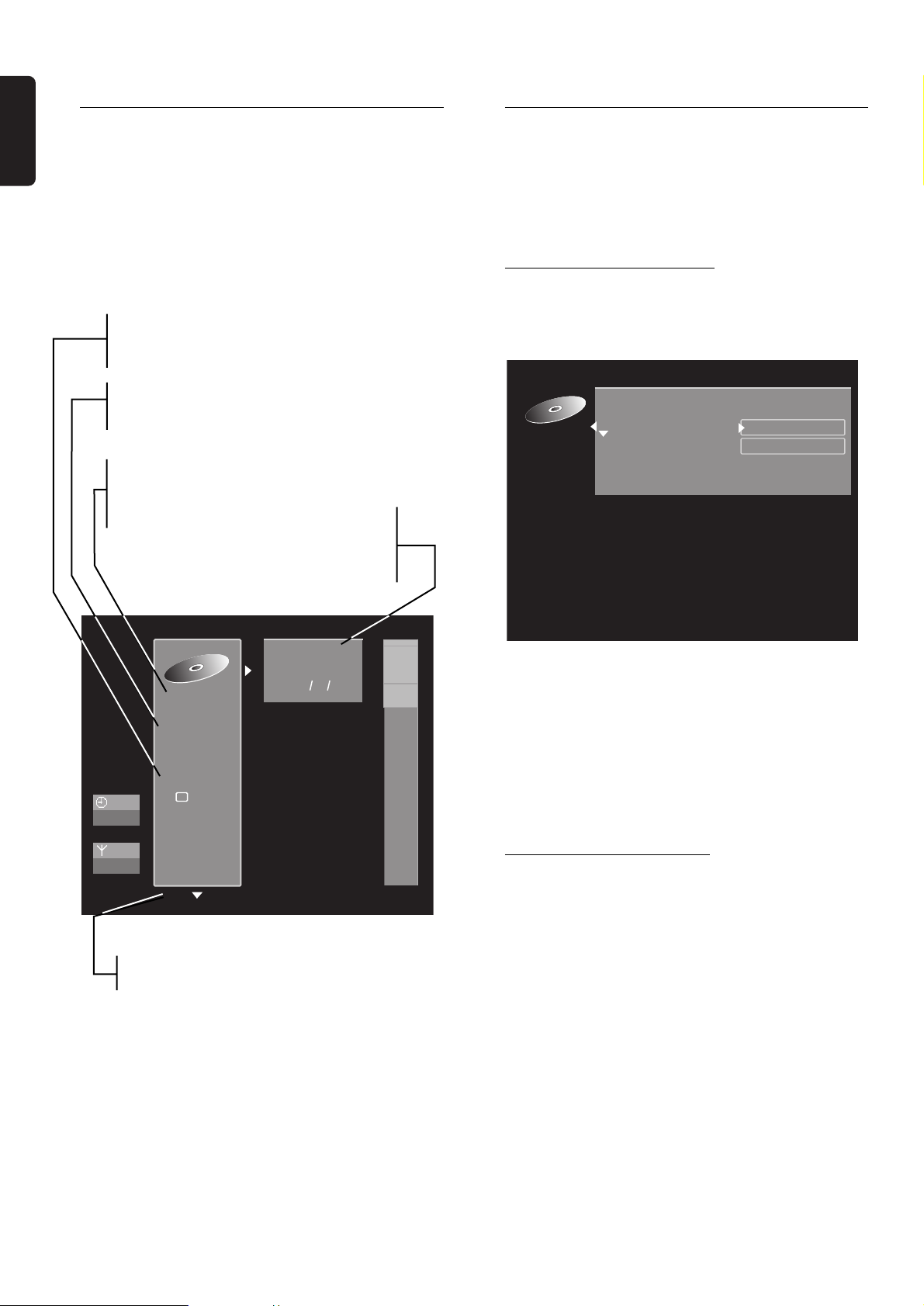

The Index Picture Screen displays an overview of the titles recorded on the disc. Each title is represented by an index picture. Next to the index picture the programme name, duration, recording mode and recording date of the title are shown. If no name is known, the DVD recorder will fill in the source and the time of the recording instead. Empty spaces (erased titles, or blank space at the end of the disc) are also shown as such. l At maximum three titles will be shown on the

screen at once. If more titles are present, you can navigate to those with the wv (down up cursor) keys.

l On the right hand side of the Index Picture Screen,

you can see the disc bar. This gives an overview of all titles on the disc, as well as any empty spaces. On the disc bar, an arrow – the disc pointer – indicates your current position on the disc. From this point you may resume playback or recording.

l If you navigate trough the list of titles with w v

(down up cursor) or J PREVIOUS / K NEXT, the disc pointer will move along.

l Press 9 STOP to reset the disc pointer to the

beginning of the disc.

l To move the disc pointer to the end of the last title,

keep K NEXT pressed.

l If you navigate from an Index Picture to the box

right next to it (containing name, rec mode, etc.), you enter the title settings menu (see under ‘Managing disc content - Title settings’).

Index Picture

- image that represents a recorded title

Title description

- programme name

- duration + recording mode

- recording date

Cue to go to Disc Info Screen or to title on previous screen

Empty title

Current title

Indication what disc area

will be overwritten by

upcoming timer event

Disc Pointer

- shows number and place of current title on disc

Other title

ZDF 11:11 00: 00: 55 -SP T h u 08 02 2001

VRT 11:13 00: 00: 57 -SP T h u 08 02 2001

22 OPERATION

1: 15

01 Z D F

Cue to go to title on next screen

Tuner Info Box

- displays the selected channel

Timer Info Box

- displays the current time or time/date of the next timer

ramme

Empty title 00: 00: 59-SP

Disc Bar

- shows an overview of

all titles on disc

User preferences

Setting user preferences

You can set your user preferences for some of the recorder features. (See ‘Operation’ - ‘User preferences menu operation’.)

The following items can be adapted:

Picture settings

TV Shape

With TV Shape you can adjust the output of your DVD Recorder to optimally fit your TV screen. You can choose:

16:9

if you have a wide screen (16:9) TV set.

4:3

if you have a regular (4:3) TV set. In this case you

can also choose between:

Letterbox

bars at the top and bottom,

Pan Scan

trimmed. If a disc has Pan Scan, the picture then moves (pans) horizontally to keep the main action on the screen.

: for a ‘wide-screen’ picture with black

: for a full-height picture with the sides

Video shift

Factory setting is such that the video will be centered on your screen. Use this setting to adjust the position of the picture on your TV set by scrolling it to the left or right.

-- --- off on off

Picture TV shape Black Level shift

Video shift

SCART video

SCART Video

Factory setting is RGB. Select S-

OK to exit

video

(Y/C) via SCART

when connecting to an S-VHS recorder.

English

Sound settings

Digital output

Factory setting ‘ outputs are switched on, and that Dolby Digital Multichannel is fed to the outputs as such MPEG audio is converted to PCM. If your equipment doesn't include a digital Multi-channel decoder, set the digital output to ‘

PCM only

optical outputs are then switched on, and Dolby Digital and MPEG audio are converted to PCM. If you are not connecting equipment with a digital input, change the setting to ‘

Analogue output

All

’ means that both coaxial and optical

’ (Pulse Code Modulation). Both coaxial and

Off

’.

-- --- off on off

Sound Digital output

Analogue output

Night mode

Stereo

Surround 3D sound

Black level shift (NTSC only)

Adapts the colour dynamics to obtain richer contrasts.

Off

Select

Stereo, Surround

is Stereo.

3D Sound

. Factory setting

OPERATION 23

English

Surround: Select this setting when using equipment

with a Dolby Surround Pro Logic decoder. In this setting the 5.1 audio channels (Dolby Digital, MPEG-2) are downmixed to a Surround-compatible 2-channel output.

3D Sound: In a set-up without rear speakers (analogue

stereo output), this option remixes the six channels of digital surround (Dolby Digital, MPEG-2) into a two speaker output, while retaining all of the original audio information. The result is the listening sensation of being surrounded by multiple speakers.

Adapt disc format

This option is only available when a DVD+RW or DVD+R disc recorded on a different brand of recorder is loaded. You can adapt the menu to your own recorder. A DVD+RW video disc that has been recorded on a different type or brand of recorder can be played, but may not provide all features commonly available to DVD+RW discs, such as the on-screen disc bar, the disc settings menu, the title settings menu, and editing. If the disc is not write-protected, the disc format can be adapted to the own recorder, after which these functions are available.

Connected audio system Digital out Analogue out

Amplifier or TV with two channel Off Stereo analogue stereo

Amplifier or TV with Dolby Surround Off Surround or Dolby Pro Logic

Amplifier with two channel digital PCM only Stereo stereo

A/V receiver with Multi-channel All Stereo or decoder (Dolby Digital, MPEG, DTS) Surround

Multi-channel A/V receiver with Off Surround 6-ch connectors

Night Mode

Night mode optimizes the dynamics of the sound with low volume playback for less disturbance in quiet environments. This only works for Dolby Digital audio on DVD video discs.

Status box

The status box displays the current status of the recorder and the disc type loaded (See ‘Operation’ ‘On-screen display information’). You can switch it on or off.

Off

= always Off.

= displayed together with the system menu bar or

displayed temporarily (disappears after time-out) when changing the playback or record status.

Factory setting is ‘On’.

Auto resume

The Auto resume setting only applies to pre-recorded DVD-video and Video CD discs only - not only to the disc in the recorder but also to the last twenty discs you have played. If

Autoresume

is set to ‘On’, playback will start from the point where it was stopped the last time the disc was played. When

Autoresume

is set to ‘

Off

’, the recorder will start playing from the beginning of a disc. In this case you can still resume when appears on screen by pressing 2 PLAY. Factory setting is ‘On’.

Language settings

The preferred language can be adapted via the system menu bar. Also see ‘virgin mode’. Settings can be changed for:

- Playback audio language

- Subtitle language

- Menu language

- Country

Feature settings

Access Control

Access Control contains the following features: Child Lock - When Child Lock is set on, a 4-digit code needs to be entered in order to play discs. Parental Level - Allows the conditional presentation of DVD discs containing Parental Level information. Change country - Allows conditional presentation of DVD-Video discs containing country information. Change code - To change the pin code. See ‘Access Contro.

24 OPERATION

Low Power Standby

If Low Power Standby is ‘On’, the recorder will consume minimum power in standby mode. Factory setting is ‘

Off

’.

Notes : When the recorder is in low power standby mode:

- the output of the equipment connected to EXT 2 will not be passed through to the TV set on EXT 1,

- the Display will be Off,

- the Standby indicator on the recorder will still light up in standby mode.

-- --- off on off

Features Access control Status box Autoresume

Low power standby

PBC

Enter code... On Off Off Off

PBC

This feature is only available when a (Super) Video CD is loaded. It allows you to disable or enable the PBC (Playback Control) menu of VCD discs. See under ‘Special VCD features’: Factory settings is ‘On’.

Finalise disc

This option is only available on unfinalised DVD+R discs. See ‘Managing disc content - Finalising a DVD+R disc’.

Record Settings

Record mode

By selecting a recording mode you define picture quality of recordings and maximum recording time for a disc.

Mode Picture quality Total recording

time

HQ best possible 60 minutes (High Quality) picture quality

SP pre-recorded 120 minutes (Standard Play) DVD quality

LP better than 180 minutes (Long Play) S-VHS picture quality

EP better than 240 minutes (Extended Play) VHS picture quality

In practice, the DVD recorder may record a few minutes more than indicated. For playback, the correct recording mode will automatically be selected. The mode is optimised for fecording via the i-link DV input. For all other sources use SP, LPor EP. l In the record settings menu, select ‘

Record mode

English

’.

Remote Control settings

Key sound

The recorder makes a ‘beep’ sound upon every key command given via recorder or remote control keys. Select ‘

Off

’ to disable this sound. Factory setting is ‘On’.

Remote control used

If you want to use the remote control of a Philips DVD player instead of the standard DVD recorder remote control, select ‘

recorder

System information

When you move further down in the Remote Control settings menu, the system status screen will appear. Press v (cursor up) to go back.

DVD player

’.

’. Factory setting is ‘

DVD

Record settings

Record mode Direct record Sat record Auto chapters LP/EP rec mode Stndrd

Off Off On

To exit press SYSTEM MENU

l Alter the recording mode with t or u (left right

cursor).

l Confirm with the OK key. l To end, press SYSTEM MENU.

An alternative way to select the record mode is available in the Index Picture Screen and in monitor mode:

l Press SELECT.

‰ The new record mode appears on the screen

and the display.

Record Mode: LP

It is not possible to switch record modes during recording.

OPERATION 25

English

Direct Record

With the Direct Record function switched Onand the DVD recorder switched to standby, the channel number selected on your television will be automatically taken over by the DVD recorder, at the moment it starts recording. This only applies for televisions connected via

SCART, which have video output via SCART or which have

EasyLink. Factory setting is On.

l In the record settings menu, select ‘ l Select On. If you select

Off

, the function will be

Direct record

’.

switched off.

l Confirm with OK. l To end, press SYSTEM MENU.

Sat record

You can only use this function, when you have a satellite receiver, which can control other equipment by a ’programming’ function. In this mode your DVD recorder starts recording when the satellite receiver releases a signal. The start and end of the recording is controlled via one of the l In the record settings menu, select ‘

SCART sockets.

Sat record

’.

l Select the SCART socket to which the satellite

receiver is connected with t or u (left right cursor).

l Confirm with OK. l Insert a recordable DVD+RW disc. l Press B STANDBY/ON.

‰ When this function is switched on, SAT appears

on the display. ‰ The DVD recorder is now prepared for recording.

Factory setting is

Off

Installation

Auto TV Channel Search

Your DVD recorder will search for all TV channels. It stores channels in the sequence they are found. (See ‘Installation - First time Set-up’)

Note : All channels stored so far will be erased.

Follow TV

With Follow TV you can programme the same channel sequence on the DVD recorder as on the TV set. This only functions if the recorder socket (EXT1) and the TV set are connected with a equipment connected to socket EXT2 must be switched off.

Installation

Autom.search Follow TV

Manual search Sort TV channels Time Date

SCART cable. Additional

To exit press SYSTEM MENU

Auto chapters

If autochapters is ‘On’ every five to six minutes a chapter marker (beginning of a new chapter) is inserted during recording. This enables easy navigation through a title during playback. In either case, you can manually insert chapter markers afterwards. (See ‘Managing disc content’ - ‘Edit in playback mode’.)

LP/EP rec mode

In long play or extended play recording mode you can select the

Sport

setting to optimize the video recording for images that contain fast movements, like sports programmes. The setting does not influence high quality or standard play recording mode. Factory setting is

Stndrd

l Press OK.

‰ If the DVD recorder recognizes that the TV set

has been connected with a

SCART cable, ‘TV01’

appears on the display.

‰ When ‘NOTV’ (no signal from TV set) appears on the display, the TV channels can not be allocated automatically. In this case read ‘Manual TV channel search’.

l Select programme number ‘1’ on the TV set. l Confirm with OK on the remote control of the

DVD recorder. ‰ The DVD recorder compares the TV channels on the TV set and the DVD recorder. If the channels match, this channel is stored at ‘P01’.

l Wait until 'TV02’ appears and repeat the previous

two steps for programme number 2 and the rest of the channels you want to store.

l To end, press SYSTEM MENU.

26 OPERATION

Manual TV channel search

You can perform a search to select and store TV channels manually. If the DVD recorder is connected via EasyLink, this function is not available.

l Press SYSTEM MENU. l Select l Select l In the line

Installation Manual search

Channel/freq

Freq.

: frequency

: channel

S-CH

: special channel

. select the display for:

l If you know the frequency or channel of the desired

TV channel, you can enter the data in line

Entry/search

with the digit keys 0-9. If you don’t

know the frequency or channel of the TV channel of your choice, press u (right cursor) to start channel search.

l In the line

Programme number

select the

programme number you want, using t or u (left right cursor) or digit keys 0-9.

l If you want to change the TV channel name, press

the u (right cursor) key in line

TV channel name

l Select the character you want to change with the t

(left cursor) or u (right cursor) key.

l Change the character with the w (down cursor) or

v (up cursor) key.

l Press OK to confirm.

This DVD recorder can receive HiFi sound transmissions in NICAM Stereo. However, if sound distorsion occurs, due to poor reception, you can switch off NICAM:

l In the line

NICAM

select Onor

Off

with the t (left

cursor) or u (right cursor) key. If you want to change the automatic TV channel setting, select the line

Fine tuning

. With the t (left cursor) or

u (right cursor) key you can vary the automatic TV

channel setting.

Sort/Clear TV channels manually

l If the DVD recorder is connected to the TV set

with Easylink or a similar system, manual sort cannot

English

be executed. In all other cases, you can select.

l Press SYSTEM MENU. l Select the line l Select the line

Installation

Sort TV channels

Installation Sort TV channels

...

PO1 NED 1 PO2 NED 2 PO3 NED 3 PO4 RTL 4 PO5 RTL 5 PO6 VERON

...

To sort

Press

l Select the TV channel to which you want to allocate

a programme number (starting with

v (up cursor) or w (down cursor) key and press the u (right cursor) key.

l Select the desired position with v or w (up down

cursor) key.

l To store, press OK. l To end, press SYSTEM MENU.

Time/Date

To adjust ‘

Time

’, ‘

Year

digit keys 0-9. Switch between fields with the wv (down up cursor) keys.

To exit press SYSTEM MENU

’, ‘

Month

’ and ‘

P01

Date

’ with the

) with the

Important: This re-tuning is only necessary and useful in special cases, e.g. when stripes appear on your TV screen when using a cable-TV system.

l Press OK to store the TV channel. l To end, press SYSTEM MENU.

Connecting a decoder:

l Switch on the TV set and select the programme

number for the DVD recorder. l Select the TV programme you wish to link with the

decoder function with P+ or P-.

l Press SYSTEM MENU. l Select l Select l Select

Installation. Manual search. Decoder.

l Select Onwith t (left cursor) or u (right cursor). l Confirm with OK.

‰ ‘DECODER’ apperars on the display. l To end, press SYSTEM MENU.

Installation

Time/ Date

Time Year

Month Date

09: 38 2001

02 09

To exit press SYSTEM MENU

OPERATION 27

English

Recording

Before you start recording

Recordings on a DVD disc are called ‘titles’. Every title consists of one or more chapters.

stop

Disc is not a DVD video disc

For more information about how to go to other titles or chapters see ‘Playback - general features’.

Important: Recordings on a DVD+RW disc are normally started from the position of the so-called disc pointer, i.e. the point where the last recording was stopped. From there on earlier recordings may be overwritten without notice, unless the disc is write protected. In this respect your DVD recorder behaves just like a Video Cassette Recorder.

If you want to make a recording without the risk of overwriting earlier recordings use the safe Record Function (see Manual Recording - Safe Record)

In the Index Picture Screen you can select the point where you want to start your recording. Use the wv (down up cursor) and 5 REVERSE / 6 FORWARD keys. You can see the the current location on the disc bar, indicated by the arrow.

11: 15

01 B B C 1

Press OK to open tray or press REC to erase disc

‰ A disc can hold up to 48 titles (including empty titles). When this maximum is reached the onscreen message ‘

Too many titles

’ appears, if you want to make a new recording. You have to erase a title first next to an empty title. (See ‘Managing Disc Content’.)

Your DVD recorder always checks the disc that you have inserted:

‰ When a DVD+RW disc is inserted on which recordings have been made, the Index Picture Screen is shown on your TV screen. ‰ If the inserted disc is a completely empty recordable disc, the message EMPTY DISC appears, on the display. ‰ If the inserted disc is a DVD+RW disc with a content that is not DVD video compatible (e.g. a data disc), a dialog box is shown with the option to erase or eject the disc. You can only record on this disc after erasing it with the RECORD key.

Notes :

- On a disc containing PAL recordings, no NTSC recordings can be made and vice versa. On an empty disc, either type of recordings can be made.

- No recordings can be made from so-called ‘Pseudo-PAL’ or PAL-60 sources.

28 RECORDING

Manual recording

Checking input

Normally, the DVD recorder displays the contents of the disc on screen. l Press TUNER in order to switch to the internal

tuner, or whichever other source is selected, if you want to check the input before starting a recording. ‰ On the TV screen, you will see the actual picture quality that you will get if you record: the video has been encoded and decoded again. This is why you will see a delay of about 1.5 seconds when using a ‘live’ source such as a camera.

l In monitor mode you can choose programme

numbers directly with the digit keys 0-9 on the remote control.

l Press SELECT repeatedly to select the desired

record mode.

l Press TUNER again to go back to disc mode.

Recording

The following programme numbers are provided for recording from external sources:

‘EXT1’ : TV set via

SCART 1 socket

‘EXT2’ : for recording from external sources via

SCART 2 socket

’EXT3’ : rear S-video ‘EXT4’ : rear CVBS ‘CAM1’ : front S-video (Y/C) ‘CAM2’ : front Video (CVBS) ‘CAM3’ : front DV.

l Press RECORD (on the recorder) or REC/OTR

(on the remote control).

‰ RECORD is shown on the display. ‰ The status box is shown on the screen for a few

seconds.

rec

1 59 59 0 00 01

English

l Insert a recordable DVD+RW or DVD+R disc. l Normally, the DVD Recorder displays the contents

of the disc on the screen.

l Use the TUNER key to see the currently selected

TV channel.

l Use CHANNEL 3 or CHANNEL 4 (on the

recorder) or P+, P- (on the remote control) to select the programme number (programme name) from which you wish to record. ‰ When a TV channel transmits a channel name, it will be shown on the display.

C A M 1

l To bring back the status box during recording press

SYSTEM MENU. Pressing SYSTEM MENU once more will remove the status box again.

l Press ; PAUSE to pause recording. You can

resume recording by pressing ; PAUSE once more. The DVD recorder will a make seamless connection.

l Press 9 STOP to stop recording. If you are

recording from a camcorder watch the video output of the DVD recorder on the TV - instead of the camcorder viewer - to determine the right moment to stop.

l The Index Picture Screen is updated.

‰ MENU UPDATE is shown on the display.

l After a short recording on a new DVD+RW disc, a

few minutes will be needed to complete the formatting of the disc.

Safe Record

When you start recording on a DVD+RW disc by briefly pressing the RECORD or REC/OTR key, a recording on DVD+RW will be made from the current position of the disc pointer. To prevent this do the following:

l Hold the RECORD key (on the recorder) or

REC/OTR key (on the remote control) press for

about two seconds until ‘SAFE RECORD’ appears on the display.

RECORDING 29

English

l The recorder automatically jumps to the end of the

last title on the disc and starts recording. ‰ If no free space is left. The display will show ‘DISC FULL’. Safe record is not possible then.

Recordings on DVD+R are always automatically made after the last title on the disc.

Direct Record

l Make sure ‘Direct Record’ is switched On.

(See record settings).

l On the TV set, select the programme number you

want make the recording from.

l Make sure the DVD recorder is switched to

standby.

l Press RECORD (on the recorder) or REC/OTR

(on the remote control).

Notes :

- Don’t select another programme number on your TV set, until the ‘WAIT’ on the display of your DVD recorder disappears. This can take up to one minute.

- When ‘NOTV’ appears on the display, the programme number could not be found. The DVD recorder switches off automatically.

- If your loudspeakers are connected (via an amplifier / receiver) to your DVD recorder, the sound will be delayed relative to the TV picture when recording directly from the TV set.

- You can use Direct Record in combination with Safe Record.

Recording with automatic switch-off (OTR One-Touch Recording)

l Insert a recordable DVD+RW or DVD+R disc. l Use CHANNEL 3 or CHANNEL 4 (on the

recorder) or P+, P- (on the remote control) to select the programme number (programme name) from which you wish to record.

l Press RECORD (on the recorder) or REC/OTR

(on the remote control) twice.

‰ A recording will be made of 30 minutes. ‰ The required end time of the recording is shown

in the timer box on screen. The remaining recording time is shown on the display.

Manual audio control

You can control the audio recording level of your DVD recorder manually. l In tuner mode, press AUTO/MAN REC VOLUME

on the DVD recorder. ‰ The display will show the current audio level and

MANUAL appears.

l Adjust the recording level with MANUAL 3 or 4

on the DVD recorder, so that the ‘0 dB’ mark lights up during the loudest parts of the recording.

l You can switch back to automatic audio level control

by pressing AUTO/MAN REC VOLUME again. ‰ The display will show the current disc position

MANUAL disappears.

and

Note : When DV input is selected, manual volume control is disabled.

l Press RECORD or REC/OTR again to obtain a

30 minute increment.

l Shortly after pressing REC/OTR, OTR can be

cancelled by pressing CLEAR.

Timer programming

The DVD recorder needs the following information for every programmed recording:

- the date on which the recording is to be made;

- the channel;

- the start and stop time of the recording;

- VPS/PDC on or off;

- the recording mode (HQ, SP, LP or EP).

The DVD recorder stores all the information mentioned above in a timer block. You can programme up to six timer blocks, one month in advance.

When you have programmed the timer, a red line on the disc bar (both on the display and on the Index Picture Screen) indicates what part of the disc will be overwritten by the programmed recording from the current disc position (on DVD+RW) or after the last title (on DVD+R).

30 RECORDING

When all timer blocks are full, the options timer programming and G-CODE programming cannot be accessed. For clearing a timer block, see ‘How to clear a timer block’.

What is ’VPS’/‘PDC’?

With ’VPS/PDC’, the TV station controls the beginning and the length of the programmed recording. This means that the video recorder switches itself on and off at the right time even if a TV programme you have programmed begins earlier or finishes later than expected. Usually the start time is the same as the VPS/PDC time. If, however, in the TV guide, in addition to a TV programmes start time, a different VPS/PDC time is given, e.g.: ’20.15 (VPS 20.14)’, you must enter ’20.14’ as the start time exactly to the minute. If you want to enter a time that differs from the VPS/PDC time, you must switch off ’VPS/PDC’.

Timer programming with the G-

CODE

system

Timer

G - Code programming

G - Code number

Mo- Fr/ Weekly Press SELECT

l Enter the entire G-

CODE programming number (up

To store Press OK

to nine digits) printed in your TV guide next to the start time of a TV programme. If you made a mistake, you can correct it with CLEAR.

l Confirm with OK. l If the G-CODE system does not recognize the TV

channel, the message ‘

number

’ will appear on screen. Select the required

Please enter programme

programme number (programme name) with tu (left right cursor) or the digit keys 0-9 and confirm with OK.

English

A G-CODE programming number is a number of up to nine digits, printed in most TV guides next to the start time of a TV programme. All the information required for a programming is contained encoded in the G-CODE programming number.

l Press TIMER on the remote control. l Select ‘

G-CODE programming

’ with v (up cursor) or

w (down cursor).

Timer

G - Code programming Timer programming

Timer list

To exit Press TIMER

Timer

G - Code programming

Please enter programme number

‰ The data will appear on the TV screen.

l Use SELECT to select the programming key at

daily or weekly intervals. Mo-Fr: Recording at daily intervals from Mondays to Fridays inclusive. Weekly: Recording at weekly intervals on the same day of the week.

l Press u (right cursor). l Use SELECT to switch VPS/PDC on or off.

‰ When VPS/PDC is switched on, the start time is

marked with an asterisk.

l Press u (right cursor). l Use SELECT to select the recording mode (HQ,

SP, LP, EP

l Press u (right cursor).

RECORDING 31

English

Timer

G - Code programming

Date

Prog. Start

09 N E D 1 09: 35 11: 35 S P

LP/ SP Press SELECT

VPS PDC End

To store Press OK

Rec Mode

l Confirm with OK.

‰ The data has been stored in a timer block.

l To end, press TIMER. l Make sure that you inserted a recordable disc. If you

inserted a write-protected disc recording will be refused.

l Switch off with B STANDBY/ON.

Timer programming without the G-

CODE

system

l If desired, select recording at daily or weekly

intervals in the field ‘

Date

’ with SELECT. ‘Mo-Fr’:

Recording to be made from Mondays to Fridays inclusive. ‘

Weekly

’: Recording at weekly intervals on

the same day of the week.

l Press u (right cursor). l Enter the programme number from which you want

to record. If you want to record from an external source, select

CAM2

EXT1, EXT2, EXT3, EXT4, CAM1

CAM3

with vw (up down cursor).

l Press u (right cursor). l Enter the Start time with vw (up down cursor) or

the digit keys 0-9.

l After entering the Start time, use SELECT to

switch VPS/PDC on or off. With most TV stations the VPS/PDC time is always the same as the start time. ‰ When VPS/PDC is switched on, the start time is marked with an asterisk.

l Press u (right cursor). l Enter the End time with vw (up down cursor) or

the digit keys 0-9.

l Use SELECT to choose the recording mode HQ,

LP, SP

or EP.

l If you made a mistake, you can go back with t (left

cursor).

Timer

Timer programming

Date

Prog. Start

VPS PDC End

Rec Mode

l Press TIMER on the remote control. l Select ‘

Timer programming’

with v (up cursor) or

w (down cursor).

Timer

G - Code programming Timer programming Timer list

To exit Press TIMER

09 N E D 1 09: 35 11: 35 S P

Mo Fr Weekly Press SELECT

To store Press OK

l Confirm with OK .

‰ The data has been stored in a timer block.

l To end, press TIMER .

‰ Make sure that you inserted a disc without write

protection. If you inserted a write-protected (locked) disc, recording will be refused.

l Switch off with B STANDBY/ON.

l Press u (right cursor). l Enter the date with v (up cursor) or w (down

cursor), or with the digit keys 0-9.

32 RECORDING

Programming with ’NEXTVIEW Link’

How to check or alter a timer block

This DVD recorder is equipped with the function ’NEXTVIEW Link’. If your television is also equipped with this function, you can mark TV programmes on the television for programming. These TV programmes will automatically be transmitted to a timer block on the DVD recorder. If you clear the marking of the TV programme on the television, the corresponding timer block on the DVD recorder will also be cleared. For more information, read the instruction manual of your TV set.

If a timer setting is incorrect

The following warnings can be displayed in the timer menu:

Collision

recording programme overlaps with another recording programme.

Solution:

l Ignore by pressing TIMER. The programme

with the earlier start time will be recorded completely before the later programme starts.

l Edit one or both timers. l Delete one of the recording programmes.

Please enter programme number

The G-CODE system does not recognize the TV channel.

Solution:

l Select the required programme number

(programme name) with t or u (left right cursor).

l Confirm with OK.

G-CODE number wrong

You entered an incorrect G-CODE programming number or the incorrect date.

Solution:

l Repeat the entry or end by pressing TIMER.

Weekend programming

Date was incorrectly entered. Daily programming can only be used for recordings to be made from Mondays to Fridays inclusive.

Memory full

The maximum number of recording programmes is used.

Solution:

l Delete one of the recording programmes.

not possible

l Press TIMER on the remote control. l Select ‘

Timer list

Timer

G - Code programming Timer programming

Timer list

’ with w or v (down up cursor).

To exit Press TIMER

l Press u (right cursor).

Timer

Timer list

Date

Prog. Start

NED 1

12 14

To change Press

09: 35 P M

RTL 2

21: 00 P M

VRT

20: 30 A M

Total record time: 05: 30

VPS PDC End

To exit Press TIMER

11: 35

23: 00 22: 00

Rec Mode

SP SP

l Select the timer block you want to check or alter

with w or v (down up cursor).

l Press u (right cursor). l Select what you want to check or alter with t or u

(left right cursor).

l Alter data with w or v (down up cursor) or with

the digit keys 0-9.

l Confirm with OK. l To end, press TIMER. l Switch off by pressing B STANDBY/ON.

English

RECORDING 33

English

How to clear a timer block

l Press TIMER on the remote control. l Select l Press u (right cursor). l Select the timer block you want to clear with w or

l Press CLEAR. l Confirm with OK. l Switch off by pressing TIMER.

Timer list

v (down up cursor).

with w or v (down up cursor).

34 RECORDING

Playback

Playing a DVD+RW or DVD+R disc

l Insert a DVD+RW or DVD+R disc.

‰ If the inserted disc is write-protected, playback

starts automatically otherwise the Index Picture Screen appears.

l Press ) PLAY.

‰ Playback starts automatically from the point

where it was stopped the last time the disc was played or recorded. If you want to start playback from the beginning of the disc, you can do so via the Index Picture Screen (see ‘Index Picture Screen’). ‰ If the disc is a new blank disc, the display will show ‘EMPTY DISC’.

l To stop playback at any time, press 9 STOP.

‰ You return to the Index Picture Screen.

Notes:

- DVD movies to be released at different times in different regions of the world, all players have region codes and discs can have an optional region code. If you load a disc of a different region code to your recorder, you will see the region code notice on the screen. The disc will not play, and should be unloaded.

- The region code is stated on a label on the

back side of your recorder.

- Regional coding is not applicable for recordable DVD discs.

l The disc may invite you to select an item from a

menu. If the selections are numbered, press the appropriate numerical key; if not, use the w v u t (down up right left cursor) keys to highlight your selection, and press OK.

l To stop play at any time, press 9 STOP.

‰ The default screen will appear, giving information

about the current status of the recorder.

English

Playing a pre-recorded DVDVideo disc

Some DVD discs are produced in a way that requires specific operation or allows only limited operation during playback. In these cases the recorder may not respond to all operating commands. When this occurs, please refer to the instructions in the disc inlay. When a

appears on the TV screen, the operation is not

permitted by the recorder or the disc.

l Insert a pre-recorded DVD-Video disc.

Make sure the label is facing up. If the disc is two-sided, make sure the label of the side you want to play is facing up. ‰ When ‘ Preferences’) playback starts automatically from the point where it was stopped, the last time the disc was played. ‰ When ‘ play from the start of the disc. You can however resume play from the point at which you stopped, the last time the disc was played, by pressing 2 PLAY when appears on screen. ‰ The currently playing title and chapter number are displayed on the recorder display. The elapsed time is shown also.

autoresume

’ is set to ‘On’ (see ‘User

’ is set to ‘

Off

’, the disc will

Note : During playback you can display and enter the menu by pressing DISC MENU.

Playing a (Super) Video CD disc

l Insert a (Super) Video CD.

‰ When ‘

Preferences’) playback starts automatically from the point where it was stopped, the last time the disc was played. ‰ The disc may invite you to select an item from a menu. If the selections are numbered, press the appropriate numerical key 0-9.

l To stop play at any time, press 9 STOP.

‰ The default screen will appear.

autoresume

’ is set to ‘On’ (see ‘User

PLAYBACK 35

English

General features

Note : Unless stated otherwise, all operations described are based on remote control operation. A number of operations can also be carried out via the system menu bar on the screen. (see ‘System menu bar operation’)

Moving to another title/track

When a disc has more than one title or track, you can move to another title as follows:

Moving to another chapter/index

When a title on a disc has more than one chapter or a track has more than one index, you can move to another chapter/index as follows: l Press K NEXT during play to select the next

chapter/index.

l Press J PREVIOUS during play to return to the

beginning of the current chapter/index. Rapidly press J PREVIOUS twice to step back to the previous chapter/index.

l To go directly to any chapter or index, enter the

chapter or index number using the numerical keys 0-9.

Notes :

- If the number has more than one digit, press the keys in rapid succession.

- If the system menu bar is on screen, make sure the icon is selected.

Slow Motion

l Press T/C. l Press K NEXT during play to step forward to the

next title.

l Press J PREVIOUS during play to return to the

beginning of the current title. Rapidly press J PREVIOUS twice to step back to the previous title.

l To go directly to any title or track, enter the title

number using the numerical keys 0-9.

Notes :

- If the number has more than one digit, press the keys in rapid succession.

- If the system menu bar is on screen, make sure the icon is selected.

l Select (Slow motion) in the system menu bar. l Use the w (down cursor) key to enter the slow

motion menu.

‰ The recorder will now go into pause mode.

l Use the t u (left right cursor) keys to select the

required speed: -

1/8, 1/4, 1/2

l Select 1to play at normal speed again. l If ; PAUSE is pressed, the speed will be set to 0. l Press 2 PLAY to exit slow motion mode. l Press v (up cursor) to delete the slow motion menu.

You can also select Slow motion speeds by using the

SLOW key on the remote control.

, -1/2, -1/4or -1/8(backward);

or 1(forward).

36 RECORDING

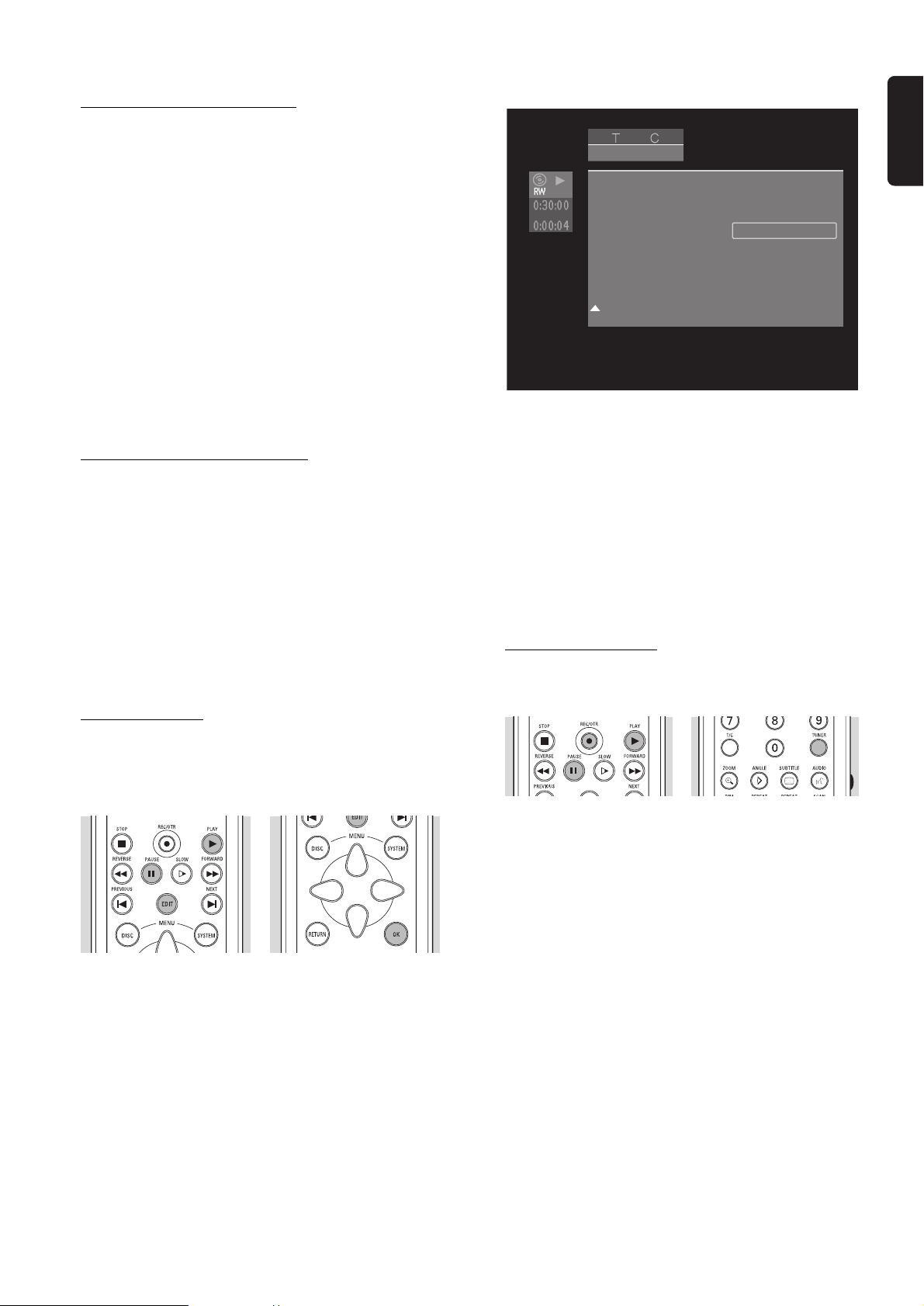

Still Picture and Step Frame

l Select (picture by picture) in the system menu

bar.

l Use the w (down cursor) key to enter the picture

by picture menu. ‰ The recorder will now go into pause mode.

Repeat

English

DVD Discs - Repeat chapter/title/disc

l To repeat the currently playing chapter, press

REPEAT.

‰ appears on screen.

l To repeat the currently playing title, press REPEAT

a second time.

‰ appears on screen.

l To repeat the entire disc, press REPEAT a third time.

‰ appears on screen.

l To exit repeat mode, press REPEAT a fourth time.

l Use tu(left right cursor) keys to select previous

or next picture.

l Press 2 PLAY to exit picture by picture mode. l Press v (up cursor) to exit the picture by picture

menu.

You can also step forward by using the ; PAUSE repeatedly on the remote control.

l Select (Fast motion) in the system menu bar. l Use the w (down cursor) keys to enter the fast

motion menu.

Video CDs - Repeat track/disc

l To repeat the currently playing track, press REPEAT.

‰ appears on screen.

l To repeat the entire disc, press REPEAT a second

time.

‰ appears on screen.

l To exit repeat mode, press REPEAT a third time.

Repeat A-B

To repeat or loop a sequence in a title:

l Press REPEAT A-B at your chosen starting point;

‰ appears on screen.

l Press REPEAT A-B again at your chosen end

point;

l Use the t u (left right cursor) keys to select the

required speed: -

(forward).

l Select 1to play at normal speed again. l Press 2 PLAY to exit fast motion mode. l Press v (up cursor) to delete the fast motion menu.

To search forward or backward through different speeds, you can also press 5 REVERSE or 6 FORWARD again.

, -8or -4(backward); 4, 8,

‰ repeat appears on screen, and the repeat sequence begins.

l To exit the sequence, press REPEAT A-B.

PLAYBACK 37

English

Scan

Plays the first 10 seconds of each chapter/index on the disc.

l Press SCAN. l To continue play at your chosen chapter/index,

press SCAN again or press 2 PLAY.

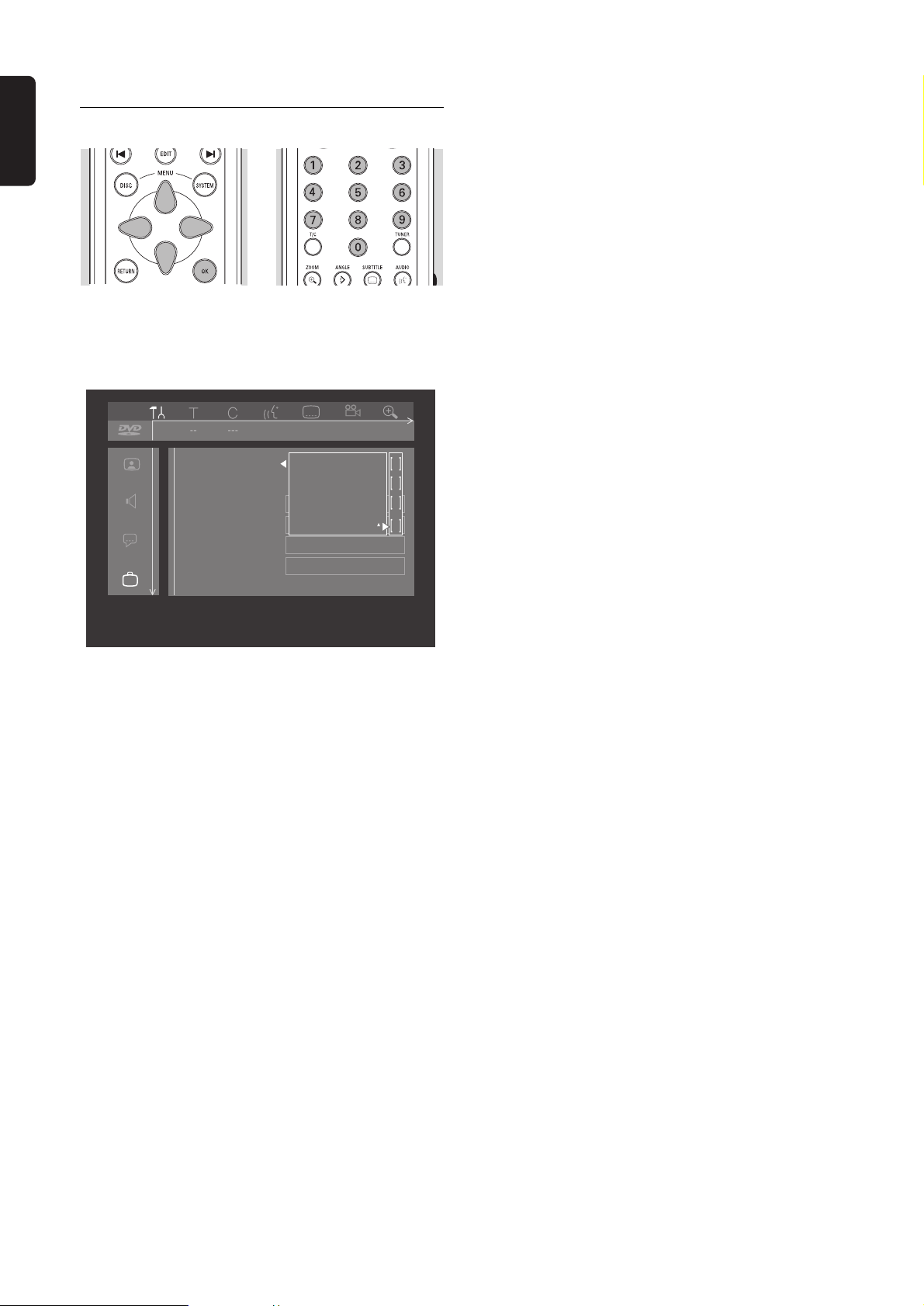

Time search

The Time Search function allows you to start playing at any chosen time stamp.

l Select (Time Search) in the system menu bar. l Press w (down cursor).

‰ The recorder will now go into pause mode. ‰ A time entry box appears on the screen showing

the elapsed playing time of the current disc.

Zoom

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

l Select a Zoom in the system menu bar. l Press w v (down up cursor) to activate the Zoom

function and select the required zoom factor; 1.33 or 2 or 4.

‰ The recorder will go into pause mode. ‰ The selected zoom factor appears below the

Zoom icon in the system menu bar and ‘

to pan

’ appears below the system menu bar.

Press OK

l Use the digit keys 0-9 to enter the required start

time. Enter hours, minutes and seconds in the box. ‰ Each time an item has been entered, the next item will be highlighted.

l Press OK to confirm the start time.

‰ The time entry box will disappear and play starts

from the selected time position.

press OK to pan

‰ The picture will change accordingly.

l Press OK to confirm the selection.

‰ The panning icons appear on the screen: wvu

t (down up right left cursor) and OK.

l Use the wvut(down up right left cursor) keys

to pan all over the screen.

l When OK is pressed only the zoomed picture will

be shown on the screen.

l If you wish to zoom at any moment, press a Zoom

and select the required zoom factor as described above.

l Press 2 PLAY to exit zoom mode.

38 PLAYBACK

Special DVD+R(W) features

Recording date and time

If a recording was made from a digital camcorder using the i.LINK DV input, the original recording date and time are automatically stored as DVD subtitles. l Press Z SUBTITLE to display the recording date

and time. ‰ The recording date and time are displayed in the right bottom corner of the screen.

31/ 08/ 2001

14:30

Special DVD-Video features

Menus on the disc

l Press T/C followed by DISC MENU.

‰ The disc menu is displayed.

l To remove the disc menu, press DISC MENU

again.

Camera Angle

If the disc contains sequences recorded from different camera angles, the angle box appears, showing the number of available angles, and the angle being shown. You can then change the camera angle if you wish.

English

For titles and chapters, selection menus may be included on the disc. The DVD’s menu feature allows you to make selections from these menus. Press the appropriate numerical key; or use the wvut(down up right left cursor) keys to highlight your selection, and press OK.

Title menus

l Press DISC MENU.

‰ If the current title has a menu, this appears on

the screen. If no menu is present in the title, the disc menu will be displayed.

l The menu can list camera angles, spoken language

and subtitle options, and chapters for the title.

l To exit the title menu, press DISC MENU again.

Note : Most DVD discs do not have separate disc and title menus.

l Use the wvkeys to select the required angle in the

angle box.

l To go to any angle directly, enter the angle number

using the numerical keys 0-9. ‰ After a small delay, play changes to the selected angle. The angle box remains displayed until multiple angles are no longer available.

Changing the audio language

l Select Y (Audio) in the system menu bar. l Press Y AUDIO or wv(down up cursor)

repeatedly to step through the different languages.

l You can enter the required language number directly

using the numerical keys 0-9.

Disc menu

If a DVD-video disc has separate disc and title menus, you can navigate to the disc menu as follows :

PLAYBACK 39

English

Audio disc mode

141 2 78

1 12 78

play track time total tracks total time

repeat track

Subtitles

l Select Z (Subtitle) in the system menu bar. l Press Z SUBTITLE or wv(down up cursor)

repeatedly to step through the different subtitles or to switch subtitles off.

l You can enter the required subtitle number directly

using the numerical keys 0-9.

Special VCD features

Playback Control (PBC)

l Make sure PBC is switched On. See ‘User

Preferences-features settings’.

l Load a (Super) Video CD with PBC and press

2 PLAY.

‰ The PBC menu appears on screen.

l Go through the menu with the keys indicated on the

TV screen until your chosen passage starts to play. If a PBC menu consists of a list of titles, you can select a title directly.

l Enter your choice with the numerical keys 0-9. l Press RETURN to go back to the previous menu.

Playing an audio CD

l Insert the disc.

‰ After loading the disc, playback starts

automatically. ‰ If the TV set is on, the Audio CD screen appears. ‰ During play, the current track number and its elapsed playing time will be shown on the screen and the recorder display.

40 PLAYBACK

l To stop play at any time, press 9 STOP.

‰ The number of tracks and the total playing time

will be shown on the screen and the recorder display.

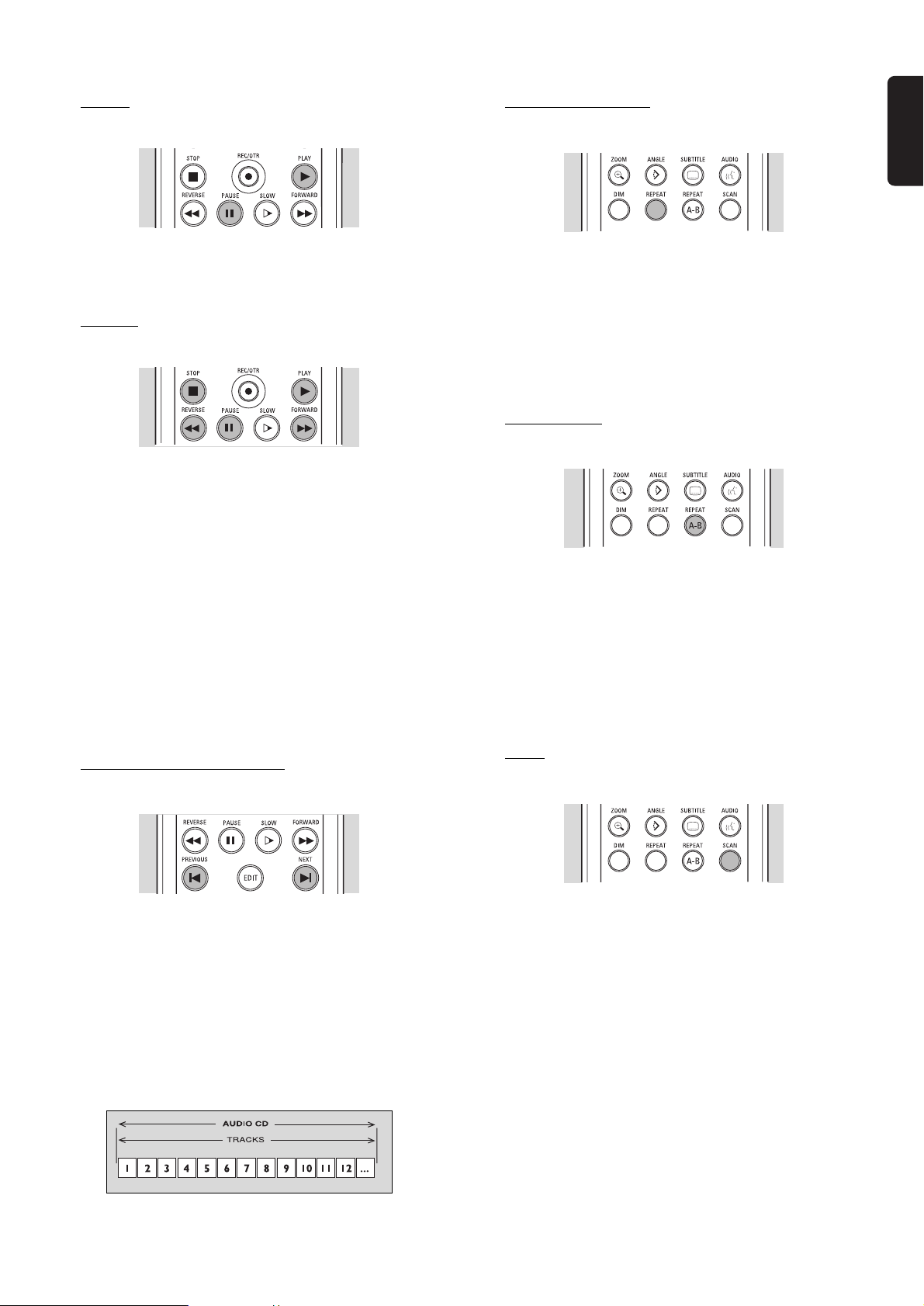

Pause

Repeat track/disc

English

l Press ; PAUSE during play. l To return to play, press 2 PLAY.

l To search forwards or backwards through the disc

at 4x normal speed, press 5 REVERSE or 6 FORWARD.

‰ Search begins.

l To step up to 8x normal speed, press 5 REVERSE

or 6 FORWARD again.

‰ Search goes to 8x speed, and the sound is muted.

l To return to 4x normal speed, press 5 REVERSE

or 6 FORWARD again.

l If the TV set is on, search speed and direction are

indicated on the screen each time 5 REVERSE or 6 FORWARD is pressed.

l To end the search, press 2 PLAYor 9 STOP as

desired.

l To repeat the currently playing track, press

REPEAT.

‰

repeat track

l To repeat the entire disc, press REPEAT a second

time.

‰

repeat disc

l To exit repeat mode, press REPEAT a third time.

appears on screen.

Repeat A-B

To repeat or loop a sequence:

l Press REPEAT A-B at your chosen starting point;

‰

repeat a

l Press REPEAT A-B again at your chosen end

point;

‰

repeat a-b

repeat sequence begins.

l To exit the sequence, press REPEAT A-B again.

appears on screen.

appears on the display, and the

Moving to another track

l Press K NEXT during play to step forward to the

next track.

l Press J PREVIOUS during play to return to the

beginning of the current track. Rapidly press J PREVIOUS twice to step back to the previous track.

l To go directly to any track, enter the track number

using the numerical keys 0-9.

Scan

Plays the first 10 seconds of each track on the disc.

l Press SCAN. l To continue play at your chosen track, press SCAN

again or press 2 PLAY.

PLAYBACK 41

English

Access control

Child Lock (DVD and VCD)

When activating Child lock, only discs that are authorised can be played without PIN code. The recorder memory maintains a list of 50 authorized (‘Child safe’) disc titles. A disc will be placed in the list when ‘Play Always’ is selected in the ‘Child protect’ dialog. Each time a ‘Child safe’ disc is played it will be placed on top of the list. When the list is full and a new disc is added, the least recently used disc will be removed from the list.

Activating/deactivating the child lock

off on off

Child lock Access control

Status box Autoresume Low power standby PBC

Parental level

Change country

Change code

l Select Ç using wv(down up cursor). l Press OK or t (left cursor) to confirm and press

SYSTEM MENU to exit the menu.

‰ Now unauthorized discs will not be played unless the 4-digit code is entered.

l Select É to deactivate the Child Lock.

l Select

Access control

in the features menu using

wv(down up cursor) and press u (right cursor).

-- --- off on off

Features

Access control

Status box Autoresume Low power standby PBC

Enter code

l Enter a 4-digit PIN code of your own choice using

the digit keys 0-9.

l Enter the code a second time. l Move to

Child lock

using wv(down up cursor).

l Move to Ç / É using the u (right cursor) key.

Note : Reconfirmation of the 4-digit PIN code is necessary when: The code is entered for the very first time (see above); The code is changed (see ‘Changing the 4-digit code’); The code is cancelled (see ‘Changing the 4-digit code’); Both Child Lock and Parental Control are switched Off and the code is requested.

Authorizing discs when Child Lock is activated

l Insert the disc.

‰ The ‘Child protect’ dialog will appear. You will be

asked to enter your secret code for ‘ ‘

Play always

.’ If you select ‘

Play once

can be played as long as it is in the recorder and the recorder is in the On position. If you select ‘

always

’, the disc will become Child safe (authorized) and can always be played even if the Child lock is set to On.

Play once

’, the disc

Play

’ or

42 ACCESS CONTROL

locked

Play once

Play always Choose 'Play always' to insert the disc in the child-safe list

Access Control

Note: Double sided DVD discs may have a different ID for each side. In order to make the disc ‘Child safe’, each side has to be authorized. Multi volume VCD disc may have a different ID for each volume. In order to make the complete set ‘Child safe’, each volume has to be authorized.

Securing discs

l Insert the disc.

‰ Playback starts automatically.

l Press 9 STOP while { is visible.

‰ | will appear and the disc is now banned i.e. it is

not Child safe any longer.

l Use the wv(down up cursor) keys or the

numerical keys 0-9 on the remote control to select a rating from 1 to 8 for the disc inserted.

Rating 0 (displayed as ‘– –’):

Parental Control is not activated. The disc will be played in full.

Ratings 1 to 8 (1 = childsafe - 8 = adults only):

The disc contains scenes not suitable for children. If you set a rating for the recorder, all scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, play will stop and the 4-digit code has to be entered.

l Press OK or t (left cursor) to confirm and press

SYSTEM MENU to exit the menu.

English

Parental Level (DVD-Video only)

Movies on pre-recorded DVD discs may contain scenes not suitable for children. Therefore discs may contain ‘Parental Control’ information which applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8 and alternative, more suitable scenes are available on the disc. Ratings are country dependent. The ‘Parental Control’ feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.

Activating/Deactivating Parental Control

l Select

l Enter your 4-digit PIN code using the digit keys 0-9.

l Move to l Move to the Value Adjustment bar using u (right

Access control

in the features menu using

wv(down up cursor) and press u (right cursor).

If necessary enter the code a second time.

Parental level

using wv(down up cursor).

cursor).

Country

l Select

l Enter the four digit PIN code. l Move to l Press u (right cursor).

Access control

in the features menu using

wv(down up cursor) and press u (right cursor).

Change country

Access control

Status box Auto resume Low power standby PBC

using w (down cursor).

off on off

Austria

Belgium

Denmark. Finland

-- --- off on off

Child lock

Access control

Status box Autoresume Low power standby PBC

Parental level

Change country

Change code

Features

l Select a country using wv (down up cursor). l Press OK or t (left cursor) to confirm and press

SYSTEM MENU to exit the menu.

ACCESS CONTROL 43

English

Changing the 4-digit code

l Select

Access control

in the features menu using

wv (down up cursor) and press u (right cursor).

l Enter the old code. l Move to

Change code

Access control

Status box Autoresume Low power standby PBC

using w (down cursor).

off on off

Child lock Parental level Change country

Change code

l Press u (right cursor). l Enter the new 4-digit PIN code. l Enter the code a second time and reconfirm with

OK.

l Press SYSTEM MENU to exit the menu.

Note:

If you forgot your code, press

STOP four times while in

the access control PIN code box and exit with OK. Access control is now switched off. You can then enter a new code as described above.

44 ACCESS CONTROL

Managing disc content

Title settings

For each title on a DVD+RW or DVD+R disc the default settings can be changed to your personal preference in the title settings menu.

Changing the title name

l In the Index Picture Screen, select the required title

with wv(down up cursor).

l Press u (right cursor) to enter the title settings

menu.

Settings for title BBC soccer

Name

Play full title Erase this title

BBC soccer

Erasing a title

You may simply erase a title on DVD+RW by recording over it, but if you want to erase the whole title instantly, do the following: l In the Index Picture Screen, select the required title

with wv(down up cursor).

l Press u (right cursor) to enter the title settings

menu.

l Select ‘

l Press OK to confirm.

On DVD+R titles can also be erased but the space occupied cannot be used anymore. During finalisation erased titles are removed from the Index Picture Screen

Erase this title’.

‰ The message ‘

title

’, ‘

Press OK to confirm

‰ ‘

Erasing title

completed. ‰ After the title has been erased, the Index Picture Screen will show an empty space instead. If there was an empty space in front of or behind this title, then these are combined into one empty space. Empty spaces of less then one minute will not be shown.

This will completely erase this

’ is shown.

...’ is shown until the action is

English

l Enter the new name. A name may contain a

maximum of 64 characters.

l Use tu(left right cursor) for the position of the

characters. Use wv(down up cursor) to change characters.

l Use SELECT to toggle between capitals and lower

case characters.

l Use CLEAR to erase a character. l Confirm by pressing OK.

Play full title

l In the Index Picture Screen, select the required title

with wv(down up cursor).

l Press u (right cursor) to enter the title settings

menu. l Select ‘ When this item is selected the title will be played in full, including hidden chapters. Follow the instructions on the screen. (See ‘Managing disc content - Favorite Scene Selection’.)

Play full title

’.

MANAGING DISC CONTENT 45

English

Disc Info Screen

Disc Settings

l When on the Index Picture Screen, press 9 STOP.

‰ You are now on Title 1. l Press v (up cursor).

‰ You enter the Disc Info Screen. l Press w (down cursor) to exit the Disc Info Screen.

The Disc Info Screen contains the following information:

Compatibility status

- indicates compatibility of any edits with DVD players

Video system

- PAL or SECAM

- NTSC

DVD+R disc status

- unlocked

- locked

- finalised

Disc description

- disc name

- total recording duration

- date of last recording

For each DVD+RW or DVD+R disc the settings can be changed to your personal preference in the disc settings menu.

l In the Disc Info Screen press u (right cursor).

‰ You will now enter the ‘disc settings’ menu.

Changing the Disc Name

l In the Disc Info Screen press u (right cursor).

‰ You will now enter the ‘disc settings’ menu.

Settings for Summer holiday

Disc name

Protection Erase disc

Summer holiday Unprotected

Summer holiday 02:05:10 used Sun 13 12 99

Unlocked

PAL

DVD playback

Edits

23: 13 h r

12 B B C 1

Cue to go back to the Index Picture Screen

l Enter the new name. A name may contain a

maximum of 64 characters.

l Use tu(left right cursor) for the position of the

characters. Use the wv(down up cursor) keys to change characters.

l Use SELECT to toggle between capitals and lower

case characters.

l Use CLEAR to erase a character. l Confirm by pressing OK.

Protection of recordings

l In the Disc Info Screen press u (right cursor).

‰ You will now enter the ‘disc settings’ menu. l Select l Select ‘ l Press OK on the remote control to confirm.

Protection

Protected

and press u (right cursor).

’ with wv(down up cursor).

‰ No further changes can be made to the disc.

It will also disable most title/disc settings options, as

well as the complete edit menu.

‰ Future editing is only possible after resetting the

Protection feature to ‘

Unprotected

’ again.

46 MANAGING DISC CONTENT

Erasing a disc

This option is only aivailable for DVD+RW discs that are not erase-protected.

l In the Disc Info Screen press u (right cursor).

‰ You will now enter the ‘disc settings’ menu.

l Select ‘

Erase disc

‰ The message ‘

’ and press OK.

This will erase all titles

’ is

displayed.

l Press OK to confirm or t (left cursor) to cancel.

‰ ‘

Erasing disc

’ is shown until the action is completed. ‰ After the disc has been erased the Index Picture Screen will show the free space on the disc.

Finalising a DVD+R disc

-- --- off on off

Access control Status box Autoresume Low power standby

Finalise disc

Enter code... On Off Off

Press OK

English

Features

While a DVD+RW disc can be played instantly on most DVD players, a DVD+R disc can be played only on the DVD recorder until it is finalised. After finalisation no changes can be made to the disc anymore.

l In the Disc Info Screen press u (right cursor).

‰ You will now enter the ‘disc settings’ menu.

Settings for Summer holiday

Summer holiday Unprotected

Press OK

l Select ‘

‰ ‘F

inalising disc

Disc name Protection Erase disc

Finalise disc

’ and press OK to confirm.

’ is shown until the action is completed. ‰ After finalisation the Index Picture Screen will appear.

Making your edits DVD-compatible

If one or more titles have been edited (see ‘Favourite Scene Selection’), then the edits will play on your DVD recorder, but a DVD player may show the original versions instead of the edits. You can prepare your DVD+RW discs so that also a DVD player will show the edited version. This is not possible with DVD+R discs.

l If the Disc Settings menu shows the option ‘

edits DVD-compatible

’, select this option. If the menu does not show this option, then your DVD+RW disc is already compatible, and no conversion is needed.

Settings for Summer holiday

Disc name Protection Erase disc

Make edits DVD compatible

Summer holiday Unprotected

Press OK

Make

If the DVD+R disc was recorded on a different brand of DVD recorder you may not be able to access the Disc Settings screen. In this case you can use the ‘

disc

’ option in the Features Menu of the User

Finalise

Preferences Menu.

l Press OK on the remote control to confirm.

‰ The messages ‘

to confirm

This will take

...’ and ‘

Press OK

’ will appear to indicate how long the

action will take.

l Press OK on the remote control to confirm.

‰ ‘

Processing

...’ and a progress bar are shown

until the action is completed.

MANAGING DISC CONTENT 47

English

Favorite Scene Selection

The basic function of any edit operations is to improve accessibility and handling of your recordings. For instance: scenes you do not want to see during playback (e.g. commercials during a movie) can be marked as chapters and made hidden. During playback you will see your recording without the hidden chapters as one sequence.

Note: In between the scenes the picture may freeze for a short moment.

Each title consists of chapters. With the FSS menu any chapter can be made hidden or made visible again. Normally, during recording, chapter markers are inserted automatically every five to six minutes (this setting can be changed in the record settings menu). After the recording is finished, you can manually add and remove chapter markers via the FSS menu. Both automatically generated and manually inserted chapter markers can be removed.

After editing, the modified version of a title is the default playback version. The original can be accessed via the ‘

Play full title

DVD players may still play the original. To guarantee that the edited version will play on these DVD players, choose ‘ settings menu (only available on DVD+RW discs).

Calling up the FSS menu

’ option in the title settings menu. Other

Make edits DVD-compatible

’ in the disc

l Use w or v (down up cursor) to toggle through the

menu’s functions:

Inserting chapter markers

l In play mode press EDIT on the remote control to

call up the FSS menu.

l Select ‘

Insert chapter marker

‘.

l Press OK on the remote control to insert a marker. The maximum number of chapter markers is 99. When this maximum is reached the on-screen message ‘

Too many chapters

’ appears. You have to delete some,

before inserting new chapter markers.

During recording you can add chapter markers by pressing EDIT on the remote control. The message ‘

Chapter marker inserted

‘ will appear on the screen.

Hiding chapters

Initially all chapters are visible. You can hide chapters or make them visible again on playback. In edit mode however hidden chapters are displayed in a dimmed mode.

l Play the title you want to edit. l Press the EDIT key on the remote control.

‰ The video image is overlayed with a transparant

edit menu. Title and chapter information appear in an information box at the top of the screen.

Note : The Favorite Scene Selection menu may disappear after about five minutes if you do not edit any information.

1 1

play

Insert chapter marker

Current chapter

Delete chapter marker Delete all chapter markers

Use picture as index Divide title

Favourite scene selection

Press OK

Hidden

l In play mode press EDIT on the remote control to

call up the FSS menu.

1 2

play

l Select

Insert chapter marker

Current chapter

Delete chapter marker Delete all chapter markers Divide title

‘‘Current chapter‘’

Favourite scene selection

Hidden

with w or v (down up

cursor).

l Select

Visible

Hidden

with the u (right cursor)

key.

l You can toggle between

Visible

and

Hidden

directly

from any line in the FSS menu with the SELECT key on the remote control.

48 MANAGING DISC CONTENT

Deleting chapter markers

You van combine a chapter with the previous chapter in the current title by deleting the chapter at the beginning of the current chapter. l In play mode press EDIT on the remote control to

call up the FSS menu.

l Select ‘

Delete chapter marker

‘.

l Press OK on the remote control to confirm

‰ ‘

Deleting marker

’ will appear. You can delete all chapter markers (manually and automatically generated) in the current title. l In play mode press EDIT on the remote control to

call up the FSS menu.

l Select ‘

Delete chapter markers

‘.

l Press OK on the remote control to confirm

‰ ‘

Deleting markers

’ will appear.

Changing the index picture

You can define the current video frame as a miniature picture to be used for this title’s entry in the Index Picture Screen. l In play mode press EDIT on the remote control to

call up the FSS menu.

l Select ‘ l You can use ; PAUSE and/or x SLOW to

l Press OK on the remote control to confirm.

New index picture

‘.

accurately choose the desired picture.

‰ ‘

Updating menu

’ will appear.

1 2

play

Insert chapter marker Current chapter Delete chapter marker Delete all chapter markers Use picture as index

Divide title

Favourite scene selection

Hidden

Press OK

l Press OK on the remote control to confirm.

‰ ‘

Dividing title

...’ is shown until the action is

completed. This divide operation cannot be undone.

The Index Picture Screen will show two titles instead of one. Both will have the same name. If you want to change the name, you can do so in the title settings menu. For one of the two resulting titles, a new index picture is created.

If you want to divide one title into more than two titles, use the above procedure several times.

Append recording

This function is only available on DVD+RW discs.

English

Dividing a title

On a DVD+RW disc you can split onte title into two separate titles. (On DVD+R this is not possible.)

l On the Index Picture Screen, select the title you

want to divide.

l Press 2 PLAY. l Go to the point where you want to divide the title

and press ; PAUSE.

l Press EDIT.

‰ The Favorite Scene Selection menu is shown.

l Select ‘

Divide title

’.

If you want to append a video recording to an earlier recorded title, do the following. l On the Index Picture Screen, select the title to

which you want to add a video recording.

l Press 2 PLAY. l At the point where you want to append the title

press ; PAUSE.

l To monitor the video input you may press TUNER. l Press RECORD (on the recorder) or REC/OTR

(on the remote control).

The video recording will now be appended from this point. Video material beyond this point is overwritten. This may include titles following the current title.

Any remaining video material that is not overwritten, which may include the last part of the original title, is maintained. You can access these titles from the Index Picture Screen.

MANAGING DISC CONTENT 49

Troubleshooting

English

If it appears that the DVD recorder is faulty, first consult this checklist. It may be that something has been overlooked. Under no circumstances attempt to repair the system yourself; this will invalidate the warranty. Look for the specific symptom(s). Then perform only the actions listed to remedy the specific symptom(s).

Symptom Remedy

The recorder does not respond to • The remote control may be configured for a second DVD recorder. the remote control Hold SELECT+1 pressed simultaneously to revert to DVD recorder 1.

• Aim the remote control directly at the sensor on the front of the

recorder.

• Avoid all obstacles which may interfere with the signal path.

• Inspect or replace the batteries.

Keys on the DVD recorder do not work • The DVD recorder may still be in Virgin mode. See ‘First time set-up:

virgin mode’.

• Otherwise disconnect and reconnect the DVD recorder from the mains.

• If this does not solve the problem, check if the remote control still works. If so, the recorder is probably in trade mode. Disconnect the recorder from the mains and reconnect it while holding

/ OPEN/CLOSE and 9 STOP pressed.

No picture • Check if the TV set is switched on.

• Check the video connection.

• When the DVD recorder is connected to the TV set via SCART, you

may not see the picture at the DVD recorder after selecting the correct programme number on your TV set when a timer recording takes place. This way, you can still view another device (e.g. a satellite receiver). To view the DVD recorder press TV/DVD on the remote control.

Distorted picture distorted sound • Check the disc for fingerprints and clean with a soft cloth, wiping from

centre to edge.

• Sometimes a small amount of picture distortion may appear. This is not a malfunction.

Recorder does not play disc • Ensure the disc label is upwards and that the right disc type is inserted.

• Clean the disc.

• Check if the disc is defective by trying another disc.

• Check if the region code of the disc matches the region code of the

recorder. (pre-recorded DVD discs only). See ‘playing a pre-recorded DVD-Video disc’.

• Check if Child Lock is activated.

Distorted sound from HiFi amplifier • Check to make sure that no audio connections are made to amplifier

phono input.

• Check to make sure that analogue input of the amplifier is not connected to the digital output of DVD the recorder.

Distorted or black and white picture with • The disc format is not according to the TV set used (PAL/NTSC). DVD or Video CD disc

No audio at digital output • Check the digital connections.

• Check the settings menu to make sure that the digital output is set to

on.

• Check if the audio format of the selected audio language matches your receiver capabilities.

Recorder does not respond to all • Some operations are not permitted by the disc. Refer to the operating commands during playback of instructions in the disc inlay. a DVD-Video disc

50 TROUBLESHOOTING

The recorder does not record a • Make sure that the recorder is switched to standby before the timer programme timer starts.

No new title can be recorded • Check if the maximum number of titles has been reached (message:

‘

too many titles

’ on screen). If so, delete a title next to a free space.

• Check if the disc is write protected. If so, unlock the disc in the disc settings menu (message: ‘

Disc locked

’ on screen).

• Check if the (DVD+R) disc has been finalized. If so, no new titles can be recorded anymore.

Service codes on the display • Clean the disc. The recording was most probably done correctly.

‘Disc warning’ message on screen • A write error has occured, but it could be corrected. No user action

is required.

‘Disc error’ message on screen • A write error has occured from which the recorder could not

recover. Inspect the disc and clean it if necessary (refer to ‘Intoduction Cleaning discs’ for cleaning instruction). Record (overwrite) again over the same part of the disc to see if the problem is solved.

Other disc errors • A disc might be corrupted because of dust, scratches or fingerprints.

If the disc cannot be accessed anymore, use the back-up disc erase procedure to repair it. Proceed as follows:

1. Clean the disc.

2. Put disc in the drawer (do not close the tray).

3. Press and hold CLEAR for several seconds until the tray closes.

English

Two languages are ‘mixed’ when recording • When the TV set does not automatically detect the dual-language from a stereo VCR signal, use left/right audio balance on the TV set to amplify the one or

the other language.

The disc cannot be erased because the 1. Open the tray while leaving the disc in. Index Picture Screen does not appear 2. Hold CLEAR pressed for around 5 seconds until the tray closes. The

disc is technically not yet erased but you can start a new recording like on a blank disc.

The Index Picture Screen does not appear • Take out the disc. Clear the disc. Insert the disc. but the titles on the disc can still be played Choose ‘Adapt to own disc format’ (See ‘User Preferences - Features).

A DVD player shows the Index Picture • Press 9 STOP to exit the Index Picture Screen, then press 2 PLAY. Screen but does not react to the 2 PLAY key

A DVD+RW disc does not play on • There are DVD Players that will not play recordings made with a DVD a certain DVD player Recorder. With a special procedure the recorder will solve this problem

for some players. Proceed as follows:

1. Put the disc in the drawer (do not close the tray)

2. Press and hold the 2 key on the remote control for several seconds until the tray closes. The disc is now modified.

3. If the change has no effect, you may perform the same procedure with the 3 key on the remote control.

Note : Modifying the disc can solve the problem for a specific player model, but playback in other DVD players may no longer be possible. It is therefore recommended to use this procedure carefully and only when needed.

• To revert the disc to the original state, follow the same procedure with the 1 key on the remote control.

TROUBLESHOOTING 51

English

Diagnosis programme

If the recorder is still faulty you can start the Diagnosis Programme in the recorder.

You can operate the Diagnosis Programme by following the instructions step by step.

Instructions

l Unplug the power cord of the recorder. l Press the 2 PLAY key and keep them pressed

while you plug the recorder. ‰ On the display the message BUSY appears together with a counter. This counter indicates the termination of the test when zero is reached. ‰ After a few minutes the message on the local display changes over from BUSY to FAIL or to PASS. ‰ If the message FAIL appears on the display, there is apparently a failure in your recorder and your recorder should be repaired.

l Consult your dealer or the Philips Customer Care

Centre for the nearest Service Repair Shop in your country. The phone number is given in your warranty booklet.

l If the message PASS appears on the display, there is

apparently no failure in your recorder, in this case the failure can be caused by incorrect interpretation of the operating instructions or a wrong disc is used or your recorder is not correctly connected. In this case you should consult your dealer or the Philips Customer Care Centre for further assistance in solving the problem.

l If the problem remains, then consult your Philips

Customer Care Centre.

System limitations

DVD+RW and DVD+R discs may not play on certain DVD Video players.

A DVD+RW video disc that has been recorded on a different type or brand of recorder can be played, but may not provide all features commonly available to DVD+RW discs, such as the on-screen disc bar, the disc settings menu, the title settings menu, and editing. Refer to ‘Adapt disc format’. If the disc is writeprotected, the status cannot be changed.

When using manual recording, the DVD recorder will warn before adapting the format of the disc or removing non-video data. When using timer recording however, the DVD recorder will always start to record, unless the disc is write-protected. Menus, edits and other data recorded on a different device (e.g. a PC) may be lost.

Because of the Variable Bit Rate, a title map take up less or more space than the overwritten title, even though the duration is the same. As a result, a part of the original title may remain, or a part of the next title may be lost. The maximum deviation is five minutes.

After a power interruption during recording, the Index Picture Screen will may not match with the actual video content on the disc. The last recorded title may be lost.

52 TROUBLESHOOTING

Glossary

This section explains most important terms, abbreviations, and acronyms used in this document.

Term Explanation

AC-3 Audio Coding 3, also known as Dolby Digital. Multi-channel digital audio

compression system from Dolby Labs.

A/V Audio/Video

Chapter A part of a title.

Disc Bar A graphical representation of the contents of a (DVD+RW) disc.

Disc Pointer An arrow indicating the current playback/recording position on the

DVD+RW disc, displayed on the ‘disc bar’.

DTS Digital Theater System. A high-end Multi-channel audio compression

format.

DV Digital Video. A camcorder format for high-quality video, different from

MPEG. It is converted into MPEG 2 Video when recorded on DVD+RW

DVD Digital Versatile Disc

DVD+R DVD+Recordable. The write-once disc standard used by the

DVD recorder.

English

DVD+RW DVD+ReWritable. One of the disc standards used by the DVD

recorder.

EasyLink If your TV set and your video recorder are equipped with this feature,

they can exchange information to adjust certain settings to each other, such as the TV channel order and other user preferences.

FSS Favorite Scene Selection. See ‘Managing disc content’.

i.LINK Also known as ‘FireWire’ and ‘IEEE 1394’. A cable for transfer of high-

bandwidth digital signals, as used by Digital Video camcorders.

Index Picture Screen A screen that gives an overview of a DVD+RW disc, wih ‘index

pictures’ that each represent a recording.

MPEG Motion Picture Experts Group. A collection of compression systems for

digital audio and video.

NEXTVIEW Link A system that enables easy programming of a video recorder via a TV

set. Also see EasyLink.

NICAM System for reception of digital stereo TV sound.

NTSC See TV system.

OSD On-screen Display. The ‘user interface’ by which you can control the

DVD recorder via the TV screen.

OTR One-Touch Recording. With this feature you can easily start a

recording (by pushing just one button) and select the switch-off time in intervals of 30 minutes.

GLOSSARY 53

English

PAL See TV system.

PBC Playback Control. A special feature on a VCD 2.0 or Super VCD disc

that enables interactive use.

PCM Pulse Code Modulation. A digital audio encoding system.

PDC Program Delivery Control

RGB Red-Green-Blue. A top-quality video connection where red, green and

blue components of a video signal are carried through separate wires.

SCART cable Also known as Euro-AV cable. This standard cable is an easy way to

connect various AV devices and televisions. In addition to audio and video it can carry control signals.

SECAM See TV system.

G-CODE A system by which you can easily program a timer recording by entering

a nine-digit G-CODE number found next to the programme description in participating TV listings.

S-video Sometimes also called S-VHS or Super-VHS. A high-quality video

connection standard.

SVCD Super Video Compact Disc.

Title It is the name given to the unit of recording on the disc. A title,

typically, represents one recording.

TruSurround A system for simulating Multi-channel sound reproduction via a two-

channel set-up, by SRS Labs, Inc.

TV system There are various systems for transmitting television signals, for example

PAL, PAL-I, PAL-BG, SECAM, SECAM-DK, NTSC, etc. The TV system is country dependant.

VCD Video Compact Disc

VCR Video Cassette Recorder

VPS Video Programming System

54 GLOSSARY

Appendix

Using your DVD recorder remote control with your TV set

Your DVD recorder remote control can transmit several commands to TV sets of different brands. The following keys will always operate the TV set:

+ increase TV volume

- decrease TV volume

Some other keys normally operate the DVD recorder, but will operate the TV set when you keep the button on the side of the remote control pressed:

mute TV

If your TV set does not respond to the remote control, you can re-programme your remote control. Below you will find a list of all available remote control codes for various TV brands. The following procedure reprogrammes your remote control: l Look up the set-up code for your TV set in the code

list below.

l Press and hold the RETURN and SELECT key

simultaneously for at least 3 seconds.

l Release both keys. l Enter, within 30 seconds, the correct three-digit code

with the digit keys 0-9.

l If the selected code does not work with your TV set,

or if the brand of your TV set is not in the list, try out the codes one after the other.

Alternative procedure:

English

- P + next TV programme number

- P - previous TV programme number

- 0 - 9 choose TV channel

- B switch TV to standby

Remote control set-up codes for television

AOC . . . . . . . . . . . . . . 046, 057

Acura . . . . . . . . . . . . . . . . . 036

Admiral . . . . . . . . . . . . 120, 490

Adyson . . . . . . . . . . . . . . . . 244

Aiko . . . . . . . . . . . . . . . . . . 119

Akai . . . . . . . . . . . . . . . . . . 057

Akura . . . . . . . . . . . . . 245, 291

Alaron . . . . . . . . . . . . . 206, 243

Alba . . . 064, 036, 245, 063, 398

Allorgan . . . . . . . . . . . . . . . 321

America Action. . . . . . . . . . 207

Amplivision . . . . . . . . . . . . . 244

Amstrad. . . . 198, 398, 036, 064

Anam . . . . . . . . . . . . . 207, 036

Anitech . . . . . . . . . . . . . . . . 036

Arcam . . . . . . . . . . . . . 243, 244

Asuka . . . . . . . . . . . . . . . . . 245

Atlantic . . . . . . . . . . . . . . . . 233

Audiosonic . . . . . . . . . 064, 136

Audiovox. . . . . . . 119, 207, 478

Autovox . . . . . . . . . . . . . . . 233

BPL . . . . . . . . . . . . . . . . . . . 309

BSR . . . . . . . . . . . . . . . . . . . 321

BTC . . . . . . . . . . . . . . . . . . 245

Bang & Olufsen . . . . . . . . . . 592

Basic Line . . . . . . . . . . 036, 245

Baur. . . . . . . . . . . 064, 037, 581

Baysonic . . . . . . . . . . . . . . . 207

Beaumark . . . . . . . . . . . . . . 205

Beko . . . . . . . . . . . . . . . . . . 397

Belcor . . . . . . . . . . . . . . . . . 046

Bell & Howell . . . . . . . . . . . 181

Beon . . . . . . . . . . . . . . . . . . 064

Binatone . . . . . . . . . . . . . . . 244

Blaupunkt . . . . . . . . . . . . . . 581

Blue Sky . . . . . . . . . . . . . . . 245

Blue Star . . . . . . . . . . . . . . . 309

Boots . . . . . . . . . . . . . . . . . 244

Bradford . . . . . . . . . . . . . . . 207

Brandt. . . . . . . . . . . . . . . . . 136

Britannia . . . . . . . . . . . . . . . 243

Brockwood . . . . . . . . . . . . . 046

Broksonic . . . . . . . . . . 263, 490

Bush . . 064, 398, 245, 036, 063,

. . . . . . . . . . . . . . 309, 321, 401

CCE . . . . . . . . . . . . . . 064, 244

CS Electronics. . . . . . . . . . . 243

l Switch on your television set. l Press and hold the RETURN and SELECT key

simultaneously for at least 3 seconds.

l Release both keys. l Point the remote control to your TV set. l Press and hold the B STANDBY key.

‰ Your TV set switches off when the right code is

found.

l When your TV set switches off, immediately release

the B STANDBY key.

‰ Your remote control is now re-programmed.

l This complete procedure may take up to 2 minutes.

CXC . . . . . . . . . . . . . . . . . . 207

Candle. . . . . . . . . . . . . 057, 083

Carnivale. . . . . . . . . . . . . . . 057

Carrefour . . . . . . . . . . . . . . 063

Carver . . . . . . . . . . . . . . . . 081

Cascade . . . . . . . . . . . . . . . 036

Cathay . . . . . . . . . . . . . . . . 064

Celebrity. . . . . . . . . . . . . . . 027

Centurion . . . . . . . . . . . . . . 064

Cimline . . . . . . . . . . . . . . . . 036

Cineral . . . . . . . . . . . . 478, 119

Citizen . . . . 083, 057, 066, 087,

. . . . . . . . . . . . . . . . . . . . . . 119

Clarivox . . . . . . . . . . . . . . . 064

Clatronic. . . . . . . . . . . . . . . 397

Concerto . . . . . . . . . . . . . . 083

Condor . . . . . . . . . . . . 347, 397

Contec. . . . . 036, 063, 207, 243

Craig. . . . . . . . . . . . . . . . . . 207

Crosley . . . . . . . . . . . . . . . . 081

Crown . . . . 397, 036, 064, 066,

. . . . . . . . . . . . . . . . . . 207, 445

Crystal . . . . . . . . . . . . . . . . 458

Curtis Mathes . . . 087, 057, 066,

. . . . . . 074, 078, 081, 083, 120,

. . . . . . . . . . 172, 181, 193, 478

Cybertron. . . . . . . . . . . . . . 245

Daewoo . . . 119, 046, 401, 478,

. . . . . . . . . . . . . . 036, 064, 066

Dainichi. . . . . . . . . . . . . . . . 245

Dansai. . . . . . . . . . . . . . . . . 064

Dayton . . . . . . . . . . . . . . . . 036

Daytron . . . . . . . . . . . . . . . 046

Decca . . . . . . . . . . . . . 064, 099

Denon. . . . . . . . . . . . . . . . . 172

Dixi . . . . . . . . . . . . . . . 036, 064

Dual Tec . . . . . . . . . . . . . . . 244

Dumont. . . . . . . . 044, 046, 097

Electroband. . . . . . . . . . . . . 027

Elin . . . . . . . . . . . . . . . . . . . 064

Elite. . . . . . . . . . . . . . . 245, 347

Elta . . . . . . . . . . . . . . . . . . . 036

Emerson . . . 263, 207, 205, 206,

. . . . . . 490, 309, 066, 046, 181

Envision. . . . . . . . . . . . . . . . 057

Erres . . . . . . . . . . . . . . 039, 064

Expert. . . . . . . . . . . . . . . . . 233

Ferguson . . . . . . . . . . . 136, 064

Fidelity . . . . . . . . . . . . . . . . 243

Finlux . . 064, 132, 097, 099, 206

APPENDIX 55

English

Firstline. . . . 348, 036, 243, 244,

. . . . . . . . . . . . . . . . . . . . . . 321

Fisher . . . . . . . . . 244, 181, 397

Flint. . . . . . . . . . . . . . . . . . . 482

Formenti . . . . . . . . . . . 347, 064

Frontech . . . . . . . . . . . 458, 291

Fujitsu . . . . . . . . . 206, 099, 233

Funai . . 321, 198, 206, 207, 291

Futuretech . . . . . . . . . . . . . 207

GE. . . . 048, 074, 078, 205, 478,

. . . . . . . . . . . . . . . . . . 120, 309

GEC . . . . . . . . . . 099, 064, 244

GPM . . . . . . . . . . . . . . . . . . 245

Geloso . . . . . . . . . . . . . . . . 036

Genexxa . . . . . . . . . . . . . . . 245

Gibralter . . . . . . . 044, 046, 057

GoldStar . . . 064, 046, 057, 205,

. . . . . . . . . . . . . . 244, 083, 136

Goodmans . . . . . 064, 099, 206,

. . . . . . . . . . 398, 063, 244, 401

Gorenje. . . . . . . . . . . . . . . . 397

Gradiente . . . . . . . . . . 083, 080

Granada. . . . . . . . 064, 099, 244

Grandin. . . . . . . . . . . . . . . . 309

Grundig . . . . . . . . 097, 581, 064

Grunpy . . . . . . . . . . . . 206, 207

HCM . . . . . . . . . . . . . . 036, 309

Hallmark . . . . . . . . . . . . . . . 205

Hanseatic. . . . . . . . . . . 064, 347

Harley Davidson . . . . . . . . . 206

Harman/Kardon . . . . . . . . . 081

Harvard. . . . . . . . . . . . . . . . 207

Hinari . . . . . 036, 063, 064, 245,

. . . . . . . . . . . . . . . . . . . . . . 206

Hisawa. . . . . . . . . . . . . 309, 482

Hitachi. . . . . 136, 071, 172, 244,

. . . . . . . . . . . . . . 063, 083, 132

Huanyu . . . . . . . . . . . . 243, 401

Hypson . . . . . . . . 291, 064, 309

ICE . . . . . . . . . . . 244, 291, 398

ICeS . . . . . . . . . . . . . . . . . . 245

ITS . . . . . . . . . . . . . . . . . . . 398

Imperial . . . . . . . . . . . . 445, 397

Indiana. . . . . . . . . . . . . . . . . 064

Infinity . . . . . . . . . . . . . . . . . 081

Inno Hit. . . . . . . . . . . . . . . . 099

Innova . . . . . . . . . . . . . . . . . 064

Inteq . . . . . . . . . . . . . . . . . . 044

Interfunk . . . . . . . . . . . . . . . 064

Intervision . . 064, 129, 244, 291

Isukai. . . . . . . . . . . . . . . . . . 245

JBL . . . . . . . . . . . . . . . . . . . 081

JCB . . . . . . . . . . . . . . . . . . . 027

JVC . . . . . . . 080, 063, 398, 680

KEC . . . . . . . . . . . . . . . . . . 207

KTV . . . . . . . 207, 244, 057, 066

Kaisui . . 245, 244, 036, 243, 309

Kamp . . . . . . . . . . . . . . . . . 243

Kapsch . . . . . . . . . . . . . . . . 233

Kawasho . . . . . . . . . . . . . . . 243

Kendo . . . . . . . . . . . . . . . . . 064

Kenwood. . . . . . . . . . . 057, 046

Kingsley. . . . . . . . . . . . . . . . 243

Korpel. . . . . . . . . . . . . . . . . 064

Koyoda . . . . . . . . . . . . . . . . 036

LG. . . . . . . . . . . . . . . . . . . . 083

LXI . . . . 181, 074, 081, 183, 205

Leyco . . . . . . 099, 064, 291, 321

Liesenk & Tter . . . . . . . . . . 064

Luma . . . . . . . . . . . . . . . . . . 233

Luxman . . . . . . . . . . . . . . . . 083

M Electronic . . . . 132, 244, 036,

. . . . . . . . . . . . . . 064, 136, 401

MGA . . . . . . 177, 046, 057, 205

MTC. . . 087, 057, 046, 083, 243

Magnadyne . . . . . . . . . . . . . 129

Magnafon. . . . . . . . . . . . . . . 129

Magnavox. . . 081, 057, 063, 206

Manesth . . . . . . . . 347, 244, 291

Marantz . . . . . . . . 064, 081, 057

Mark . . . . . . . . . . . . . . . . . . 064

Matsui . 036, 064, 244, 398, 062,

. . . . . . . . . . . . . . 063, 099, 321

Matsushita . . . . . . . . . . 277, 677

Mediator . . . . . . . . . . . 039, 064

Megatron. . . . . . . . . . . 172, 205

Memorex . . 205, 036, 083, 177,

. . . . . . . . . . . . . . 181, 277, 490

Midland . . . . 044, 066, 074, 078

Minerva . . . . . . . . . . . . 097, 581

Minutz . . . . . . . . . . . . . . . . . 048

Mitsubishi . . 063, 135, 177, 205,

. . . . . . . . . . . . . . . . . . 046, 120

Mivar. . . . . . . . . . . . . . . . . . 243

Motorola. . . . . . . . . . . . . . . 120

Multitech . . . 036, 129, 207, 243,

. . . . . . . . . . . . . . . . . . . . . . 244

NAD . . . . . . . . . . 183, 193, 205

NEC . . . 057, 063, 046, 083, 482

NEI . . . . . . . . . . . . . . . 064, 458

NTC . . . . . . . . . . . . . . . . . . 119

Neckermann . . . . . . . . 064, 581

Nesco . . . . . . . . . . . . . . . . . 206

Netsat . . . . . . . . . . . . . . . . . 064

Nikkai . 064, 062, 245, 099, 243,

. . . . . . . . . . . . . . . . . . . . . . 291

Nikko . . . . . . . . . 205, 057, 119

Nobliko. . . . . . . . . . . . . . . . 129

Nordmende . . . . . . . . . . . . 136

Onwa . . . . . . . . . . . . . . . . . 207

Optimus. . . . 277, 193, 181, 677

Optonica . . . . . . . . . . . 120, 192

Orion . 321, 490, 064, 206, 263,

. . . . . . . . . . . . . . . . . . 347, 348

Osaki . . . . . . 099, 244, 245, 291

Oso. . . . . . . . . . . . . . . . . . . 245

Osume . . . . . . . . . . . . . . . . 099

Otto Versand . . . 064, 037, 063,

. . . . . . . . . . . . . . 244, 347, 581

Palladium . . . . . . . . . . . 397, 445

Panama . . . . . . . . . . . . 244, 291

Panasonic. . . . . . . 078, 277, 677

Pathe Cinema . . . . . . . 347, 243

Pausa. . . . . . . . . . . . . . . . . . 036

Penney . . . . 074, 087, 057, 048,

. . . . . . . . . . 205, 078, 066, 046,

. . . . . . . . . . . . . . . . . . 083, 183

Perdio . . . . . . . . . . . . . . . . . 347

Philco . . 172, 046, 057, 081, 490 Philips. . 064, 039, 081, 401, 581

Phonola . . . . . . . . . . . . 064, 039

Pilot . . . . . . . . . . . 046, 057, 066

Pioneer . . . . . . . . . . . . 136, 193

Portland. . . . . . . . 046, 066, 119

Prism. . . . . . . . . . . . . . . . . . 078

Profex . . . . . . . . . . . . . . . . . 036

Proline . . . . . . . . . . . . . . . . 348

Proscan . . . . . . . . . . . . . . . . 074

Protech . . . . 064, 129, 036, 458,

. . . . . . . . . . . . . . 244, 291, 445

Proton. . . . . . . . . . . . . . . . . 205

Pulsar . . . . . . . . . . . . . 044, 046

Pye . . . . . . . . . . . . . . . . . . . 039

Quasar . . . . . 078, 277, 192, 677

Quelle . . . . . 064, 097, 037, 581

Questa . . . . . . . . . . . . . . . . 063

R-Line . . . . . . . . . . . . . . . . . 064

RBM . . . . . . . . . . . . . . . . . . 097

RCA . . . 074, 046, 078, 117, 120

Radio Shack . . . . 192, 207, 057,

. . . . . . . . . . 205, 066, 181, 046,

. . . . . . . . . . . . . . . . . . 074, 083

Radiola . . . . . . . . . . . . 064, 039

Rank Arena . . . . . . . . . . . . . 063

Realistic. . . . 192, 207, 181, 057,

. . . . . . . . . . 066, 205, 046, 083

Revox . . . . . . . . . . . . . . . . . 064

Rex . . . . . . . . . . . . . . . 233, 291

Rhapsody. . . . . . . . . . . . . . . 243

Roadstar . . . 036, 291, 245, 445

Runco . . . . . . . . . . . . . 044, 057

SBR . . . . . . . . . . . . . . . 039, 064

SEG . . . . . . . . . . . 244, 063, 291

SEI . . . . . . . . . . . . 129, 037, 321

SKY. . . . . . . . . . . . . . . . . . . 064

SSS . . . . . . . . . . . . . . . 046, 207

Saba. . . . . . . . . . . . . . . . . . . 136

Saisho . . . . . . . . . 036, 291, 458

Sambers . . . . . . . . . . . . . . . 129

Sampo . . . . . . . . . . . . . 057, 066

Samsung . . . 064, 046, 205, 244,

. . . . . . . . . . 291, 397, 036, 057,

. . . . . . . . . . 066, 083, 087, 117

Samsux . . . . . . . . . . . . . . . . 066

Sandra . . . . . . . . . . . . . . . . . 243

Sansei . . . . . . . . . . . . . . . . . 478

Sansui . . . . . . . . . . . . . . . . . 490

Sanyo. . . . . . . . . . 181, 063, 099

Schneider. . . . . . . 064, 245, 398

Scimitsu. . . . . . . . . . . . . . . . 046

Scotch . . . . . . . . . . . . . . . . . 205

Scott. . . 263, 046, 205, 206, 207 Sears . . 181, 083, 183, 074, 081,

. . . . . . . . . . . . . . 198, 205, 206

Seleco . . . . . . . . . . . . . . . . . 233

Semivox . . . . . . . . . . . . . . . 207

Semp. . . . . . . . . . . . . . . . . . 183

Sentra . . . . . . . . . . . . . . . . . 062

Sharp . . . . . . 120, 192, 063, 066

Shogun . . . . . . . . . . . . . . . . 046

Shorai . . . . . . . . . . . . . . . . . 321

Siarem . . . . . . . . . . . . . . . . . 129

Siemens . . . . . . . . . . . . 581, 064

Silver . . . . . . . . . . . . . . . . . . 063

Sinudyne . . . . . . . 129, 037, 321

Sonoko . . . . . . . . . . . . 036, 064

Sontec. . . . . . . . . . . . . . . . . 064

Sony. . . . . . . . . . . 037, 063, 027

Soundesign. . . . . . 205, 206, 207

Soundwave . . . . . . . . . 064, 445

Squareview . . . . . . . . . . . . . 198

Standard . . . . . . . 244, 245, 036

Starlite. . . . . . . . . . . . . . . . . 207

Stern . . . . . . . . . . . . . . . . . . 233

Sunkai . . . . . . . . . . . . . 321, 348

Supra. . . . . . . . . . . . . . . . . . 083

Supreme . . . . . . . . . . . . . . . 027

Susumu . . . . . . . . . . . . . . . . 245

Sylvania . . . . . . . . . . . . 081, 057

Symphonic. . . . . . . . . . . . . . 198

Sysline . . . . . . . . . . . . . . . . . 064

TMK . . . . . . . . . . . . . . 083, 205

Tandy. . . . . . 245, 099, 244, 120

Tashiko . . . . . . . . . . . . 063, 244

Tatung . . . . . . . . . 099, 244, 064

Tec . . . . . . . . . . . . . . . . . . . 244

Technema . . . . . . . . . . . . . . 347

Technics . . . . . . . 078, 277, 677

Technol Ace . . . . . . . . . . . . 206

Techwood . . . . . . . . . . 078, 083

Teknika . . . . 081, 206, 207, 046,

. . . . . . . 066, 119, 083, 087, 177

Telefunken. . . . . . . . . . 136, 083

Telemeister . . . . . . . . . . . . . 347

Teletech . . . . . . . . . . . . . . . 036

Teleton . . . . . . . . 233, 063, 244

Tensai . . . . . . . . . 245, 321, 347

Texet. . . . . . . . . . . . . . 243, 245

Thomson. . . . . . . . . . . . . . . 136

Thorn . . . . . . . . . 064, 062, 099

Tomashi . . . . . . . . . . . . . . . 309

Toshiba . . . . 062, 183, 063, 097,

. . . . . . . . . . . . . . . . . . 087, 181

Totevision . . . . . . . . . . . . . . 066

Uher . . . . . . . . . . . . . . 233, 347

Ultravox . . . . . . . . . . . . . . . 129

Universum . . 132, 064, 291, 397

Vector Research . . . . . . . . . 057

Vestel . . . . . . . . . . . . . . . . . 064

Victor . . . . . . . . . . . . . . . . . 080

Videotechnic . . . . . . . . . . . . 244

Vidikron . . . . . . . . . . . . . . . 081

Vidtech . . . . . . . . 046, 063, 205

Vision . . . . . . . . . . . . . . . . . 347

Waltham . . . . . . . . . . . . . . . 244

Wards. . . . . 081, 192, 205, 046,

. . . . . . . . . . 048, 057, 083, 206

Watson . . . . . . . . . . . . 347, 064

Watt Radio . . . . . . . . . . . . . 129

Wega . . . . . . . . . . . . . . . . . 063

White Westinghouse . . . . . 347,

. . . . . . . . . . . . . . 064, 243, 490

Yamaha . . . . . . . . . . . . 046, 057

Yoko . . . . . . 244, 064, 291, 458

Zanussi . . . . . . . . . . . . . . . . 233

Zenith . . . . . . . . . 044, 119, 490

56 APPENDIX

Notes

English

NOTES 57

Philips Customer Care Centers

Austria

tel: 43-0-810 001 203

Belgium

tel: 32-2-070 222 303

Denmark

tel: 808 82 814

Finland

tel: 358-09-6158 0250

France

tel: 33-1-825 889 789

Germany

tel: 49-0-180-535 6767

Greece

tel: 30-0-0800-3122 1280

Ireland

tel: 353-1-7640292

Italy

tel: 800-820026 (Toll Free)

Luxembourg

tel: 352-404061215

Netherlands

tel: 0900-8406

Norway

tel: 22-748 250

Portugal

tel: 352-1-4163063

Spain

tel: 34-902-113 384

Sweden

tel: 08 5985 2250

Switzerland

tel: 0844 800 544

United Kingdom

tel: 44-0-208 665 6350

Poland

tel: 48-22-571 0571

Philips DVDR1000-001 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
