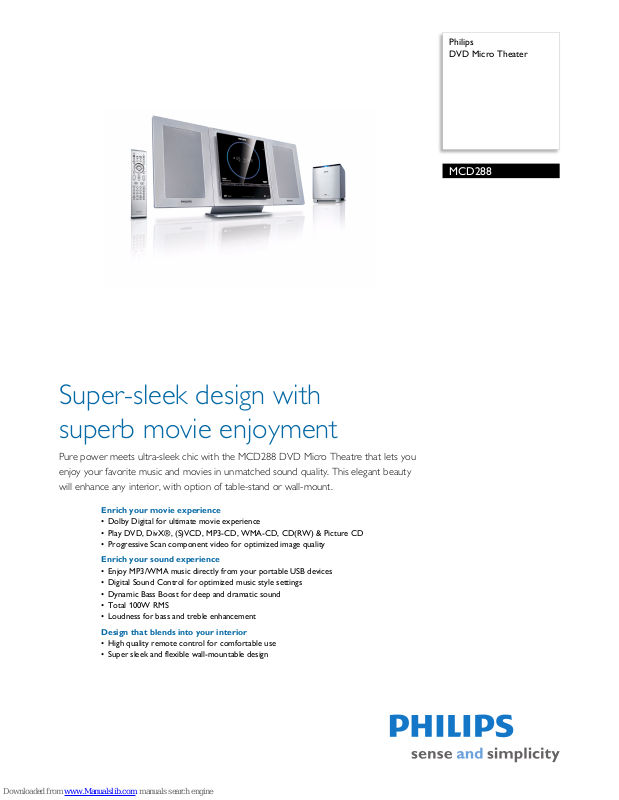

Page 1
Philips
DVD Micro Theater
MCD288
Super-sleek design with
superb movie enjoyment
Pure power meets ultra-sleek chic with the MCD288 DVD Micro Theatre that lets you
enjoy your favorite music and movies in unmatched sound quality. This elegant beauty
will enhance any interior, with option of table-stand or wall-mount.
Enrich your movie experience
• Dolby Digital for ultimate movie experience
• Play DVD, DivX®, (S)VCD, MP3-CD, WMA-CD, CD(RW) & Picture CD
• Progressive Scan component video for optimized image quality
Enrich your sound experience
• Enjoy MP3/WMA music directly from your portable USB devices
• Digital Sound Control for optimized music style settings
• Dynamic Bass Boost for deep and dramatic sound
• Total 100W RMS
• Loudness for bass and treble enhancement
Design that blends into your interior
• High quality remote control for comfortable use
• Super sleek and flexible wall-mountable design
Page 2
MCD288/05
Highlights
DVD Micro Theater
USB Direct for MP3/WMA music
Simply plug in your device to the USB port on
y
our Philips Hi-Fi system. Your digital music
will be played directly from the device. Now
you can share your favorite moments with
family and friends.
Digital Sound Control
Digital Sound Control offers you a choice of
pre-se
t Jazz, Rock, Pop and Classic controls
you can use to optimise the frequency ranges
for different musical styles. Each mode uses
graphic equalizing technology to automatically
adjust the sound balance and enhance the most
important sound frequencies in your chosen
music style. Ultimately, Digital Sound Control
makes it easy for you get the most out of your
music by precisely adjusting the sound balance
to match the type of music you are playing.
Dynamic Bass Boost
Dynamic Bass Boost maximizes your music
e
njoyment by emphasizing the bass content of
the music throughout the range of volume
settings - from low to high – at the touch of a
button! Bottom-end bass frequencies usually
get lost when the volume is set at a low level.
To counteract this, Dynamic Bass Boost can be
switched on to boost bass levels, so you can
enjoy consistent sound even when you turn
down the volume.
Dolby Digital
Because Dolby Digital, the world's leading
digit
al multi-channel audio standards, make use
of the way the human ear naturally processes
sound, you experience superb quality
surround sound audio with realistic spatial
cues.
Progressive Scan
Progressive Scan doubles the vertical
resoluti
on of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
Loudness for bass and treble
In the sound spectrum, high and low
frequenc
ies are relatively less audible to human
ears - especially at low volumes. By activating
the Loudness feature, the bass and treble will
be amplified so you can savor a more balanced
sound perception overall.
Page 3
Issue date 2010-10-28
Version: 1.2.7
12 NC: 8670 000 31644
EAN: 87 12581 34695 9
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
MCD288/05
Specifications
DVD Micro Theater
Sound
• Output Power: Total 100W RMS
• Sound Enhancement: Digital Sound Control 4
mo
des, Dynamic Bass Boost, Loudness, Class "D"
Digital Amplifier
• Sound System: Dolby Digital
Loudspeakers
• Main Speaker: Bass Reflex Speaker System, 3"
woofer
• Subwoofer type: Active
Video Playback
• Playback Media: DVD, DivX, DVD+RW, DVDVideo, Video CD/SVCD, Picture CD
• Disc Playback Modes: A-B Repeat, Angle, PBC,
Sl
ow Motion, Zoom, Parental control, OSD
•DVD Region.: 2
• Loader Type: Slot
• Video Enhancement: Progressive Scan
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD,
WMA-CD
• Disc Playback Modes: Rep
eat/one/all/program,
Shuffle Play, 20-Track Programmable
• ID3-tag support
• Loader Type: Slot
• USB Direct Modes: Fast Backward/Fast Forward,
Play/Pause, Previou
s/Next, Program Play, Repeat,
Shuffle, Stop
Tuner/Reception/Transmission
• Tuner Bands: FM Stereo
• Auto digital tuning
• RDS: Station Name, RDS Clock Set, Program Type,
Radi
o Text
• Station presets: 20
• Tuner Enhancements: Auto Store
Connectivity
• Aux in: Line-in, 3.5 mm
• Headphone: 3.5 mm
• Other connections: FM An
tenna, Digital audio
coaxial out, AV out
• Video Output - Analog: SCART, Component Y Pb
Pr (cin
ch)
• USB: USB host
Convenience
• Alarms: CD Alarm, Sleep timer
• Clock: On main display
• Display Type: VFD display
• OSD Languages: English, Portuguese, Spanish,
Dutch, F
rench, German, Italian, Swedish, Turkish
• Indications: DIM mode
• Wall mountable / Ceiling Throw: Wall Mountable
• Eco Power Standby: 1 watt
Accessories
• Included accessories: Screws for wall mounting x2,
Quick Use Guide, Audio/Video cable, Component
video cable (R/G/B), FM antenna, Stand
• Remote control: 47-key with 2xAAA batteries
• User Manual: English
• Cables: 15-pin D-Sub cable
Dimensions
• Set dimensions (W x H x D): 200 x 250 x 110 mm
• Main speaker dimensions (W x H x D):
14
0 x 220 x 33 mm
• Packaging dimensions (W x H x D):
48
0 x 244 x 370 mm
• Subwoofer dimensions (W x H x D):
17
0 x 197 x 302 mm
• Weight incl. Packaging: 10.5 kg
•
