For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. ___________________________

Serial No. ____________________________

To prevent electric shock,

Page 3

Index

LASER SAFETY

English -------------------------------------------------------- 7

English

Français ------------------------------------------------------ 26

Español ------------------------------------------------------ 48

Español Français

This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

LASER

Type Semiconductor laser GaAlAs Wave length 650 nm (DVD)

780 nm (VCD/CD)

Output Power 7 mW (DVD)

10 mW (VCD/CD)

Beam divergence 60 degree

Manufactured under license from Dolby Laboratories. “Dolby”and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©19921997 Dolby Laboratories, Inc. All rights reserved.

The region code for this set is 1.

Since it is usual for DVD movies to be released at different times in different regions of the world, all players have region codes and discs can have an optional region code. If you load a disc of a different region code to your player, you will see the region code notice on the screen. The disc will not play and should be unloaded.

NOTE: PICTURES SHOWN MAYBE DIFFERENT BETWEEN COUNTRIES.

NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON.

CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM (WARNING LOCATION: INSIDE ON LASER COVERSHIELD OR THE BACKPLATE OF SET)

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

For Customer Use:

Read carefully the information located at the bottom of your DVD-VIDEO player and enter below the Serial No. Retain this information for future reference.

Model No. DVD-VIDEO 941 Serial No. __________________________

TruSurround and the SRS symbol are trademarks of SRS Labs., Inc. TruSurround technology is manufactured under license from SRS Labs., Inc.

INDEX

Page 4

General Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure.

The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.

Canada

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

AVIS

RISQUE DE CHOCS ÉLECTRIQUES

NE PAS OUVRIR

Attention: Afin de prévenir le risque de chocs électriques,

Toute réparation devrait être confiée à un personnel qualifié.

ne pas retirer les vis.

Ce symbole indique la présence d’une tension suffisamment élevée pour engendrer un risque de chocs électriques.

Ce symbole indique que le manuel d’installation fourni avec l’appareil contient d’importantes recommandations quant au fonctionnement et à l’entretien de ce dernier.

AVISO

RIESGO DE CHOQUE ELÉCTRICO

Atención: Para reducir el riesgo de choque elécrico,

En su interior no hay piezas que el usuario pueda reparar.

no quite la tapa (o el panel posterior).

Para servicio dirijase a personal calificado.

Este símbolo tiene por finalidad advertir al usuario de la presencia de tensión peligrosa no aislada dentro de la caja del aparato, que puede ser lo suficientemente fuerte para constituir un peligro de choque eléctrico.

Este símbolo sirve para advertir al usuario de la presencia de instrucciones de manejo y mantenimiento (servicio) importantes en el manual que acompaña al aparato.

NO ABRIR

AVISO

Para reducir el riesgo de fuego o choque eléctrico, no exponga el aparato a la lluvia o humedad.

ATENCIÓN

El uso de mando o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.

El aparato cumple las normas FCC, Parte 15 y 21 CFR

1040.10.

AVIS

Afin de réduire tout risque d’incendie ou de choc électrique, il ne faut pas exposer cet appareil à la pluie ou à l’humidité.

ATTENTION

L'utilisation des commandes ou réglages ou le non-respect des procédures ci-incluses peuvent se traduire par une exposition dangereuse à l'irradiation.

L'appareil répond aux normes FCC, Part 15 et 21 CFR

1040.10.

Canada

Cet appareil numérique n'emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Class B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada.

GENERAL INFORMATION

Page 5

IMPORTANT SAFETY INSTRUCTIONS

– Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards.There are, however, some installation and operation precautions which you should be particularly aware of.

Read these instructions – All the safety and operating

instructions should be read before the appliance is operated.

Keep these instructions – The safety and operating

instructions should be retained for future reference.

Heed all warnings – All warnings on the appliance and in

the operating instructions should be adhered to.

Follow all instructions – All operating and use

instructions should be followed.

Do not use this apparatus near water – for example,

near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

Clean only with a damp cloth.The appliance should

be cleaned only as recommended by the manufacturer.

Install in accordance with the manufacturers instructions. Do not block any of the ventilation openings. For example, the appliance should not be

situated on a bed, sofa, rug, or similar surface or placed in a built-in installation, such as a bookcase or cabinet that may impede the ﬂow of air through the ventilation openings.

Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.The wide blade or the third prong are provided for your safety. When the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/accessories speciﬁed by the

manufacturer.

12.

13.

Unplug this apparatus during lightning storms or when

unused for long periods of time.

14.

Refer all servicing to qualiﬁed service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Battery usage

15.

which may result in bodily injury or damage to the unit:

●

Install all batteries correctly, + and - as marked on the unit.

●

Do not mix batteries (old and new or carbon and alkaline, etc.).

●

Remove batteries when the unit is not used for a long time.

Use only with a cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a car t is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

CAUTION

– To prevent battery leakage

AC Polarized

Plug

EL 6475-E001: 00/8

IMPORTANT SAFETY INSTRUCTION

Page 6

LIMITED WARRANTY

VD VIDEO PLAYER

90 Days Free Labor

One Year Exchange Warranty on Parts

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced, and labor is free. From 90 days to one year from the day of purchase, all parts will be repaired or replaced, but you pay for all labor charges. After one year from the day of purchase, you pay for the replacement or repair of all parts, and for

all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period.When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product that is used for commercial or institutional purposes (including but not limited to rental purposes).

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manu-

al(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase.Attach it to this owner’s manual and keep both nearby.Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair.When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts.

(In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. Because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record the model and serial numbers found on the product below.Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary. MODEL # ___________________________________________ SERIAL # ___________________________________________

This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province.

Philips Service Solutions Group, P.O. Box 2976, Longview,Texas 75606, (903) 242-4800

LIMITED W ARRANTY

EL6191E003 / MAC 6058 / 12-98

Page 7

Contents

Introduction

Philips DVD-Video Introduction ------------------------- 8 Unpacking ---------------------------------------------------- 8 Remote Control battery installation -------------------- 8 Safety Information ------------------------------------------ 8 Cleaning Discs ---------------------------------------------- 8

Functional overview

Front panel and Display ----------------------------------- 9 Remote control -------------------------------------------- 10 Rear panel -------------------------------------------------- 11

Preparation

General notes ---------------------------------------------- 12 Connecting to a TV --------------------------------------- 12 Connecting to optional equipment----------------- 12-13 NTSC/PAL Settings---------------------------------------- 13 General explanation -------------------------------------- 13 Menu bar/Status window--------------------------------- 14 Temporary feedback field icons ------------------------- 14 Personal Preferences---------------------------------- 14-15

English

Operation

Loading discs ----------------------------------------------- 16 Playing a DVD-Video and Video CD disc -------------- 16 General Features --------------------------------------16-18 Special DVD features ------------------------------------- 19 Special VCD features -------------------------------------- 19 Playing an Audio CD ----------------------------------19-20 FTS Program ----------------------------------------------- 20

Access Control

Access Control: child lock ------------------------------- 21 Access Control: parental control -------------------21-22

Before requesting service

Before requesting service -------------------------------- 23

Appendix

Speaker Settings ----------------------------------------- 24

Specifications

Specifications -----------------------------------------------25

CONTENTS

Page 8

Introduction

English

Philips DVD-Video Introduction

Your Philips DVD-Video player will play digital video discs conforming to the universal DVD-Video standard. With it, you will be able to enjoy full-length movies with true cinema picture quality, as well as stereo or multi-channel sound (depending on the disc and your playback setup). The unique features of DVD-Video, such as selection of sound track, subtitle languages and different camera angles (again depending on the disc), are all included. In addition to DVD-Video discs, you will be able to play all Video CDs and Audio CDs (including finalized CD Recordable and CD Rewritable).

DVD-Video

You will recognize DVD-Video discs by the logo shown. Depending on the material on the disc (a movie, video clips, a drama series, etc.) the disc may have one or more Titles.

DVD-VIDEO DISC

TITLE 1 TITLE 2

CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 2 CHAPTER 3

Video CD

You will recognize Video CDs by the logo shown.

Audio CD

Audio CDs contain music tracks only. You will recognize Audio CDs by the logo shown.

Remote control battery installation

¶ Insert batteries as indicated inside the batter y

compartment.

Caution: Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Safety Information

¶ Do not expose the system to excessive moisture, rain, sand,

or heat sources.

¶ Place the player on a firm, flat surface. ¶ Keep the player away from domestic heating equipment

and direct sunlight.

¶ In a cabinet, allow about 2.5 cm (1 inch) of free space all

around the player for adequate ventilation.

¶ If the DVD-Video player cannot read CDs/DVDs correctly,

use a commonly available cleaning CD/DVD to clean the lens before taking the DVD-Video player to be repaired. Other cleaning methods may destroy the lens. Always keep the tray closed to avoid dust on the lens.

¶ The lens may cloud over when the DVD-Video player is

suddenly moved from cold to warm surroundings. Playing a CD/DVD is not possible then. Leave the power on for about one hour with no disc in the unit until normal playback is possible.

Unpacking

First check and identify the contents of your DVD-Video player package. You should have the following items. – DVD-Video player – Remote Control with batteries – AC power cord – Audio cable – Video cable – Instructions for use If any item is damaged or missing, contact your retailer or Philips. Keep the packaging material; for future transpor tation.

INTRODUCTION

Cleaning discs

¶ When a disc becomes dirty, clean it with a cleaning cloth.

Wipe the disc from the center out.

¶ Do not use solvents such as benzine, thinner, commercially

available cleaners, or anti-static spray intended for analog discs.

Page 9

Functional Overview

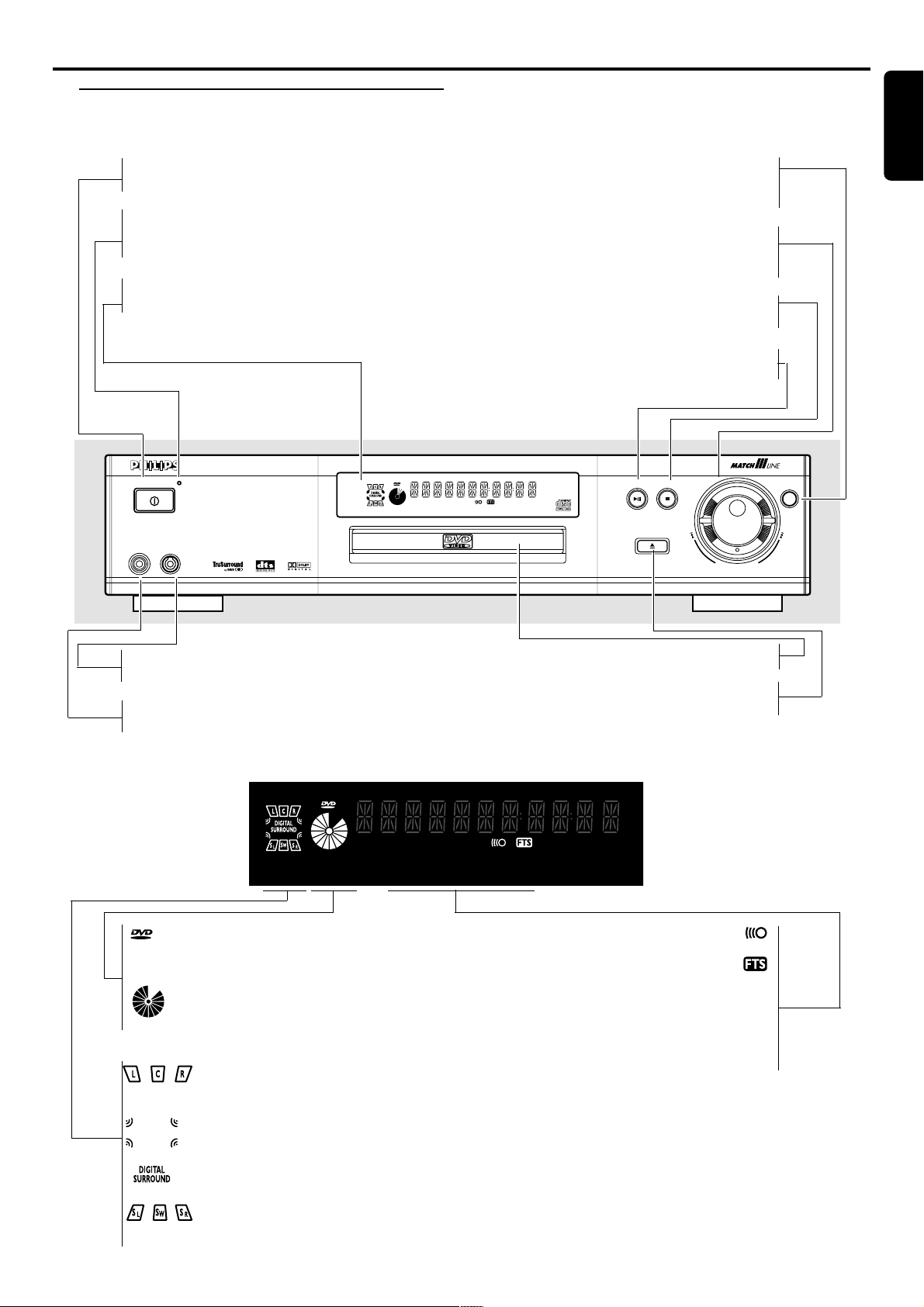

Front panel and Display

POWER ON/OFF

– switches the player to ON or OFF

STANDBY INDICATOR

– lights red when the player is in Standby

mode

DISPLAY

– shows the current status of the player

DVD941

POWER ON/OFF

HEADPHONE

MIN

LEVEL

DVD/VIDEO CD/CD PLAYER

MAX

SOUND

English

– select Stereo, Dolby Surround, 3D

Sound(TruSurround) or multi-channel

ST EASY JOG

– controls Fast Forward/Rewind/Previous/

Next and Slow motion in various steps

9 STOP

– stops video/audio playback

2; PLAY/PAUSE

– starts or interrupts playback

PLAY/PAUSE

STOP

TITLE

CHAPTER

TRACK

SCAN

SHUFFLE

-BA

REPEAT

CHAPTER

TIMETRACKTOTAL

TRACKTITLE

OPEN/CLOSE

EASY JOG

SOUND

LEVEL

– headphone volume control

HEADPHONE

– for connecting headphones

TITLE

CHAPTER

SCAN

DVD inserted

Video CD or Audio CD inserted

Indicates current player function:

Playback, Pause, Search, etc.

Front (left and right) and Center speakers active

-BA

REPEAT

TRACK

SHUFFLE

DISC TRAY

/ OPEN/CLOSE

– opens/closes the disc tray

TIMETRACKTOTAL

CHAPTER

TRACKTITLE

Remote control active (flashing)

FTS active

SCAN active

REPEAT A-B active

SHUFFLE active

SCAN

-BA

REPEAT

SHUFFLE

Test tone active

Active audio format

Surround (left and right) and

Subwoofer speakers active

FUNCTIONAL OVERVIEW

Page 10

English

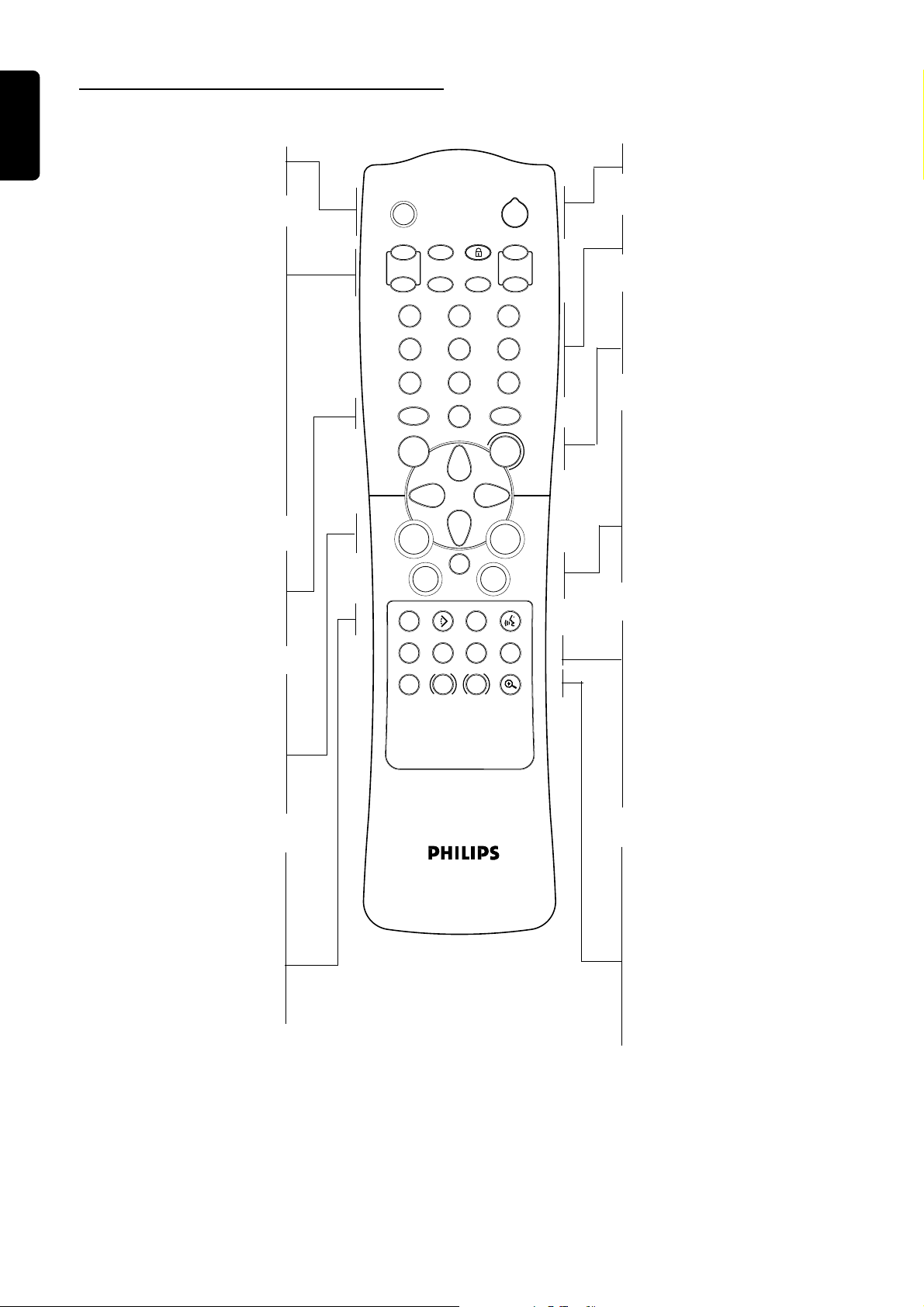

Remote control

TV ON/OFF

– switches TV to ON/OFF mode

TV VOL (+/–)

– to turn TV volume up/down

PBC (ON/OFF)

– activate/deactivate PBC

FTS

– activate FTS

DISC LOCK ( Ç )

– to activate/deactivate an

authorized disc

RESUME

– to continue playback from

STOP/PAUSE mode

TV P (+/–)

– to turn TV program up/down

DISC MENU

– access menu of a DVD disc

SYSTEM MENU

– access or remove player’s menu

1 2 3 4

– (left/right/up/down) cursor

movement for selection

STOP ( 9 )

– to stop playback

PLAY ( 2 )

– to start playback

ON/OFF

TV VOL

DISC

RETURN

PBC

ON/OFF

FTS

DISC / LOCK

RESUME

ON/OFF

SYSTEM

SUBTITLE ANGLE TTL/CHAP AUDIO

REPEAT REPEAT SHUFFLE SCAN

A-B

SLOW ZOOM

T-C

TIMEBIT

SEARCHRATE

DVD

TV P

DVD ON/OFF

– switches DVD to ON/OFF mode

0-9 numerical key pad

– direct numerical inputs

RETURN

– go back to previous menu

– acknowledge menu selection

Q O

– search backward* / go to

previous chapter or track

;

– pause playback temporarily /

PLAYSTOP

frame-by-frame playback

R P – search forward* / go to next

chapter or track

REPEAT

– repeat chapter, track, title, disc

REPEAT (A-B)

– repeat sequence

SHUFFLE

– play tracks in random order

SCAN

– play of the first 10 seconds of

each track/chapter within a disc

SUBTITLE ( Z )

– subtitle language selector

ANGLE ( } )

– select DVD camera angle

TTL/CHAP (T-C)

– select title/chapter

AUDIO ( Y )

– audio language selector

* Press and hold key for about 2 seconds

FUNCTIONAL OVERVIEW

SLOW ( x )

– slow motion

BIT RATE

– displays bit rate indicator during

playback

TIME SEARCH

– start playback at a specific time

ZOOM ( a )

– enlarge video image

Page 11

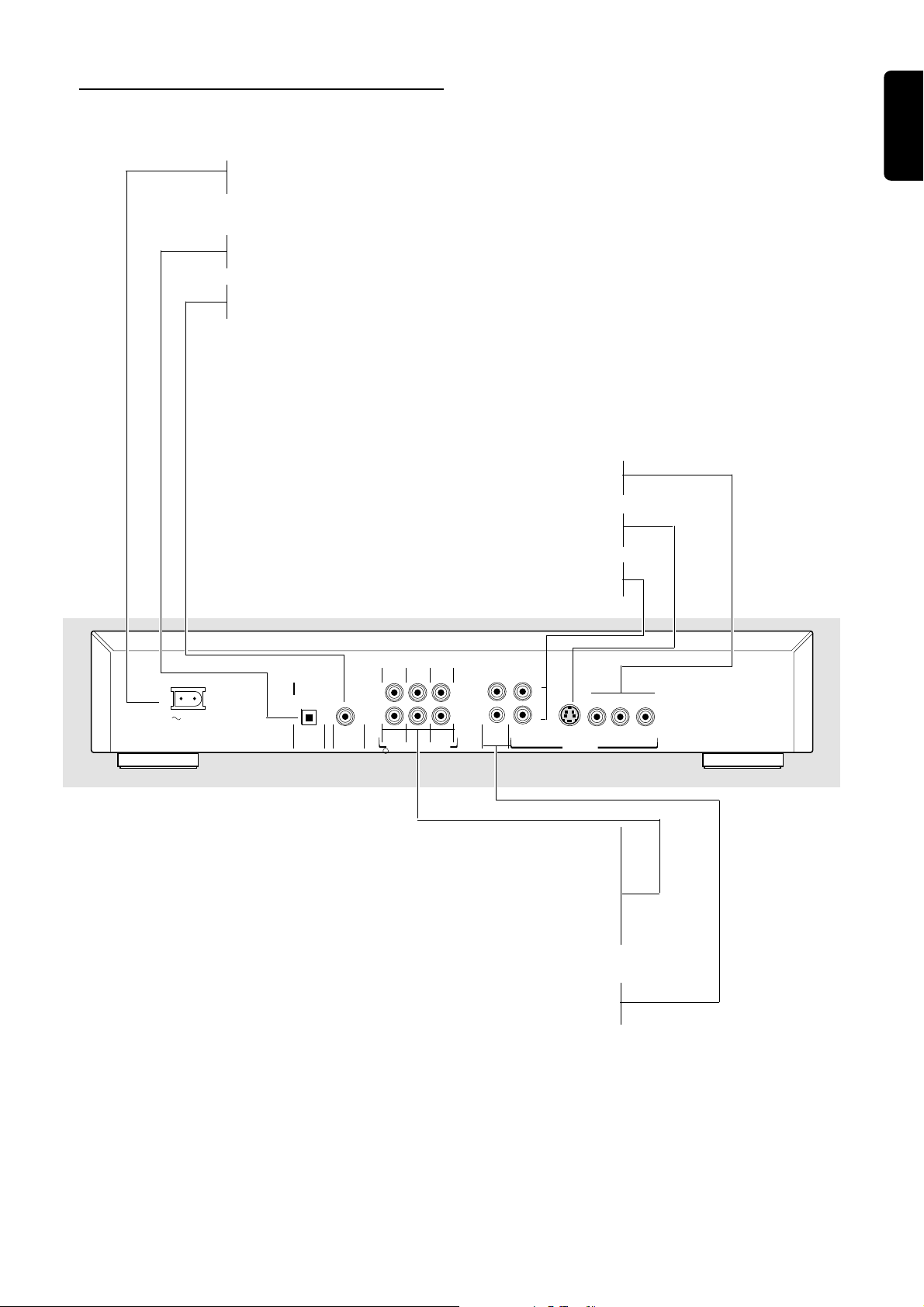

Rear panel

English

MAINS (AC)

– connect to power source

OPTICAL (Digital audio out jack)

– connect to digital (optical) equipment

COAXIAL (Digital audio out jack)

– connect to digital (coaxial) equipment

Y CB CR

– connect to TV with Y CB CR inputs

S-VIDEO OUT (Y/C)

– connect to TV with S-Video (Y/C) inputs

MAINS

VIDEO OUT (CVBS)

– connect to TV with CVBS video inputs

SURROUND FRONT

DIGITAL AUDIO OUT

PCM/MPEG2/AC-3/DTS

COAXIALOPTICAL

CENTER

SURROUND FRONT

SUB WF

MULTICHANNEL AUDIO OUT

AUDIO OUT

CVBS

S-VIDEO

VIDEO OUT

MULTICHANNEL AUDIO OUT

(For connection to a multichannel receiver)

– center speaker connection

– subwoofer connection

– front speakers connections

– surround speakers connections

AUDIO OUT (Left/Right)

– connect to amplifier, receiver or stereo system

Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

FUNCTIONAL OVERVIEW

Page 12

Preparation

English

General notes

¶ Depending on your TV and other equipment you wish to

connect, there are various ways you could connect the player.

¶ Please refer to the manuals of your TV, VCR, Stereo System

or other devices as necessary to make the best connections.

¶ For better sound reproduction, connect the player’s audio

out jacks to the audio in jacks of your amplifier, receiver, stereo or audio/video equipment. See ‘Connecting to optional equipment’.

Caution: – Do not connect the player’s audio out jack to the phono in jack of your audio system. – Do not connect your DVD-player via your VCR. The DVD image could be distorted by the copy protection system.

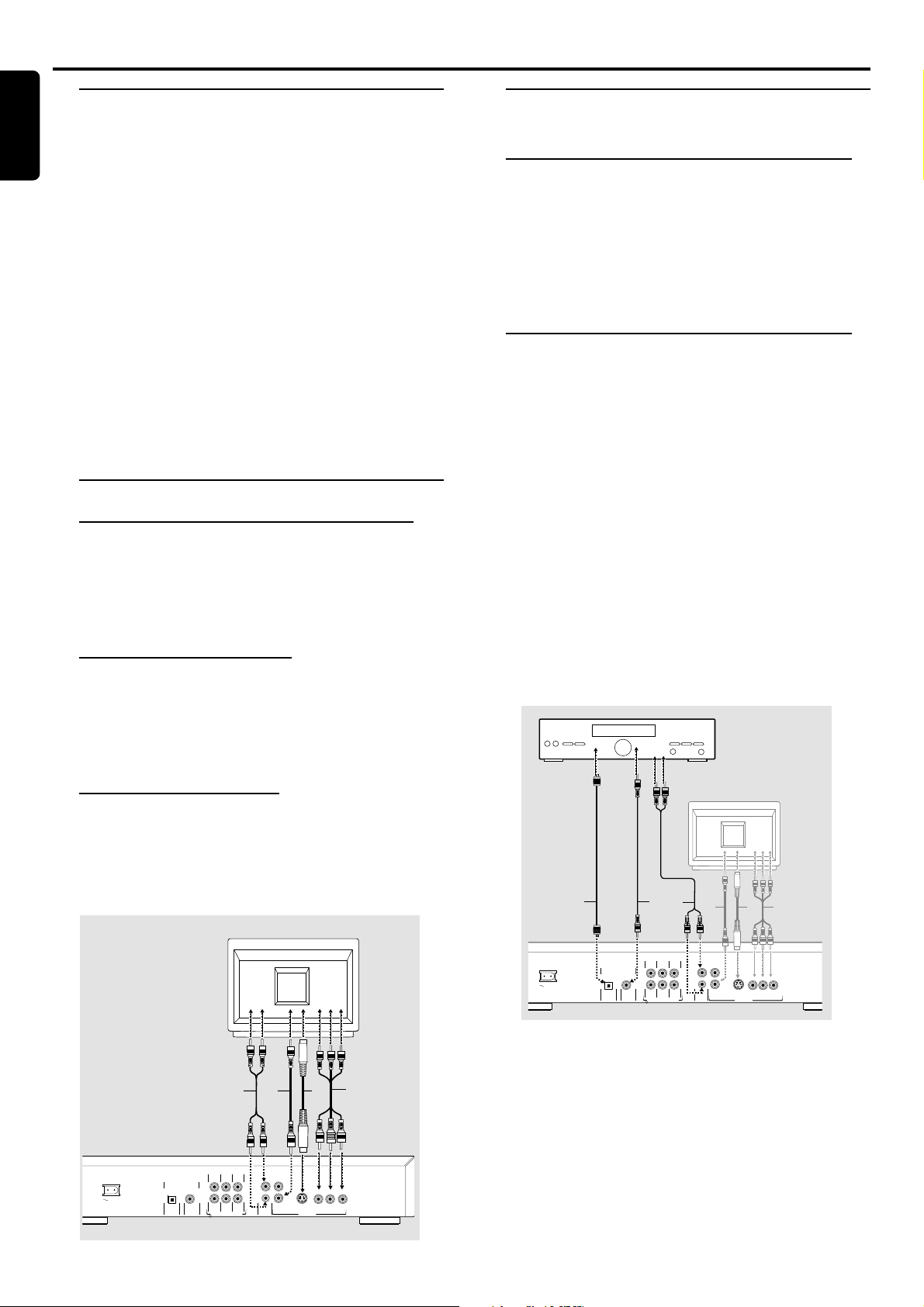

Connecting to a TV

Component Video (Y CB CR) connection

Connect the Y, CB, CR out jacks on the DVD-player to the corresponding in jacks on the TV using optional Y, CB, CR cable (Z).

2 Connect the Left and Right audio out jacks to the audio

left/right in jacks on the TV (A).

S-Video (Y/C) connection

1 Connect the S-Video out jack on the DVD-player to the S-

Video in jack on the TV using an optional S-Video cable (Y).

2 Connect the Left and Right audio out jacks to the audio

left/right in jacks on the TV (A).

Connecting to optional equipment

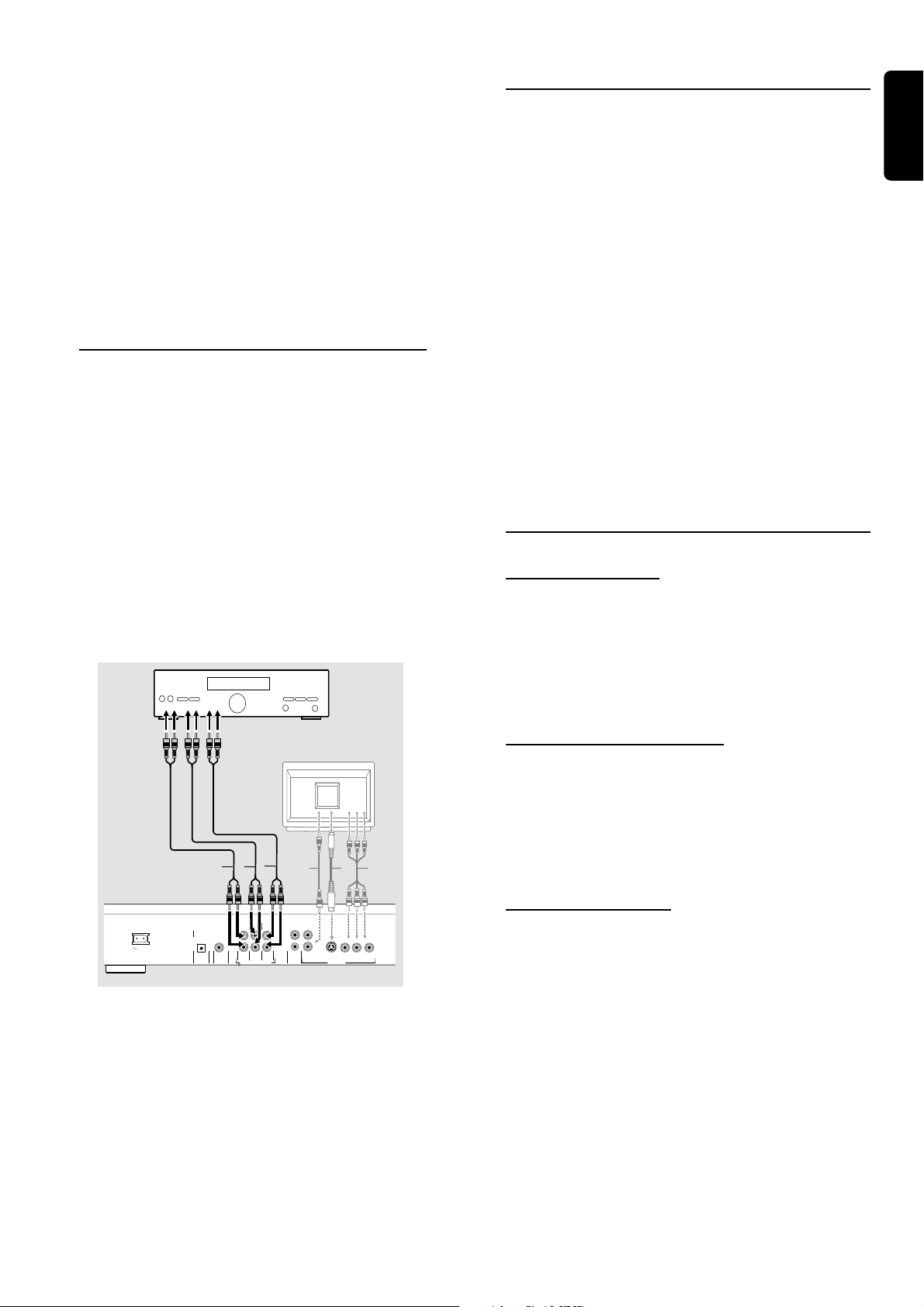

Connecting to an amplifier equipped with two channel analog stereo or Dolby Surround

1 Connect the Left and Right audio out jacks of the DVD

player to the audio left and right in jacks on your amplifier, receiver or stereo system, using the optional audio cable (A).

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2 and DTS)

1 Connect the player’s digital audio out jack (optical G or

coaxial F) to the corresponding in jack on your amplifier. Use an optional digital (optical G or coaxial F) audio cable.

2 You will need to activate the player’s digital output (see

‘Personal Preferences’).

Digital Multi-channel sound

The digital multi-channel connection provides the best sound quality. For this you need a multi-channel A/V receiver that supports one or more of the audio formats supported by your DVD player (MPEG 2, Dolby Digital™ and DTS). Check the receiver manual and the logos on the front of the receiver.

AMPLIFIER

Video CVBS connection

1 Connect the Video out (CVBS) jack on the player to the

video in jack on the TV using the video cable supplied (X).

2 Connect the Left and Right audio out jacks to the audio

left/right in jacks on the TV (A).

YXA

SURROUND FRONT

COAXIALOPTICAL

CENTER

SURROUND FRONT

SUB WF

MULTICHANNEL AUDIO OUT

CVBS

S-VIDEO

VIDEO OUT

AUDIO OUT

DIGITAL AUDIO OUT

MAINS

PCM/MPEG2/AC3/DTS

DIGITAL AUDIO OUT

MAINS

PCM/MPEG2/AC3/DTS

COAXIALOPTICAL

SURROUND FRONT

CENTER

SURROUND FRONT

SUB WF

MULTICHANNEL AUDIO OUT

CVBS

AUDIO OUT

S-VIDEO

VIDEO OUT

PREPARATION

Page 13

Note: – If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all. – The selected audio format of the DVD is displayed in the Status Window when the SYSTEM MENU is activated or when the Audio button is pressed. – Six Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder. – To see the selected audio format of the current DVD in the Status Window, press the SYSTEM MENU or the Audio Language selector button.

Analog connection to a multi-channel A/V receiver with 6 Channel connectors

This DVD player contains a multi-channel decoder. This enables playback of DVDs recorded in Multi-channel Surround without the need for an optional decoder.

1 Connect the audio out jacks for the Center speaker and

the Subwoofer connection (C) to the corresponding in jacks on your receiver.

2 Connect the Left and Right audio out jacks for the Front

speaker (B) to the corresponding in jack on your receiver.

3 Connect the Left and Right audio out jacks for Surround

speaker (D) to the corresponding in jacks on your receiver.

4 Make the appropriate Sound settings for Analog Output

and Speaker Settings in the Personal Preferences menu.

AMPLIFIER

NTSC/PAL Settings

You can switch the NTSC/PAL setting of the DVD player to match the video signal of your TV. This setting only affects the television’s on-screen display that shows the stop and setup modes. You may select either NTSC or PAL. To change the DVD player setting to PAL or NTSC, follow the steps below.

1 Press the POWER ON/OFF button on the front panel of

the DVD player to turn OFF the DVD player.

2 Press and hold 9 and SOUND, on the front of the DVD

player. While holding 9 and SOUND, press POWER ON/ OFF.

3 After PAL or NTSC appears on the display panel of the

DVD player, release 9 and SOUND, at the same time. The PAL or NTSC indicator that appears on the display panel indicates the current setting.

4 To change the setting, press SOUND, within three

seconds. The new setting (PAL or NTSC) will appear on the display panel.

General explanation

About this manual

This manual gives the basic instructions for operating the DVD player. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol Ä appears on the TV screen, indicating that the operation is not permitted by the player or the disc.

English

Remote control operation

¶ Unless stated, all operations can be carried out with the

remote control. Always point the remote control directly at the player, making sure there are no obstructions between the remote and the player.

Corresponding keys on the front panel of the player can also be used.

SURROUND FRONT

COAXIALOPTICAL

CENTER

SURROUND FRONT

SUB WF

MULTICHANNEL AUDIO OUT

CVBS

S-VIDEO

VIDEO OUT

AUDIO OUT

DIGITAL AUDIO OUT

MAINS

PCM/MPEG2/AC3/DTS

Menu bar operation

¶ A number of operations can be carried out via the menu

bar on the screen. The menu bar can be accessed by pressing the cursor keys on the remote control.

¶ Pressing SYSTEM MENU while the menu bar is displayed

will clear the menu bar from the screen.

¶ The selected item will be highlighted and the appropriate

cursor keys to operate will be displayed below the icon.

¶ The symbols < or > indicates that more items are available

at the left/right of the menu bar. Press t or u to select these items.

PREPARATION

Page 14

English

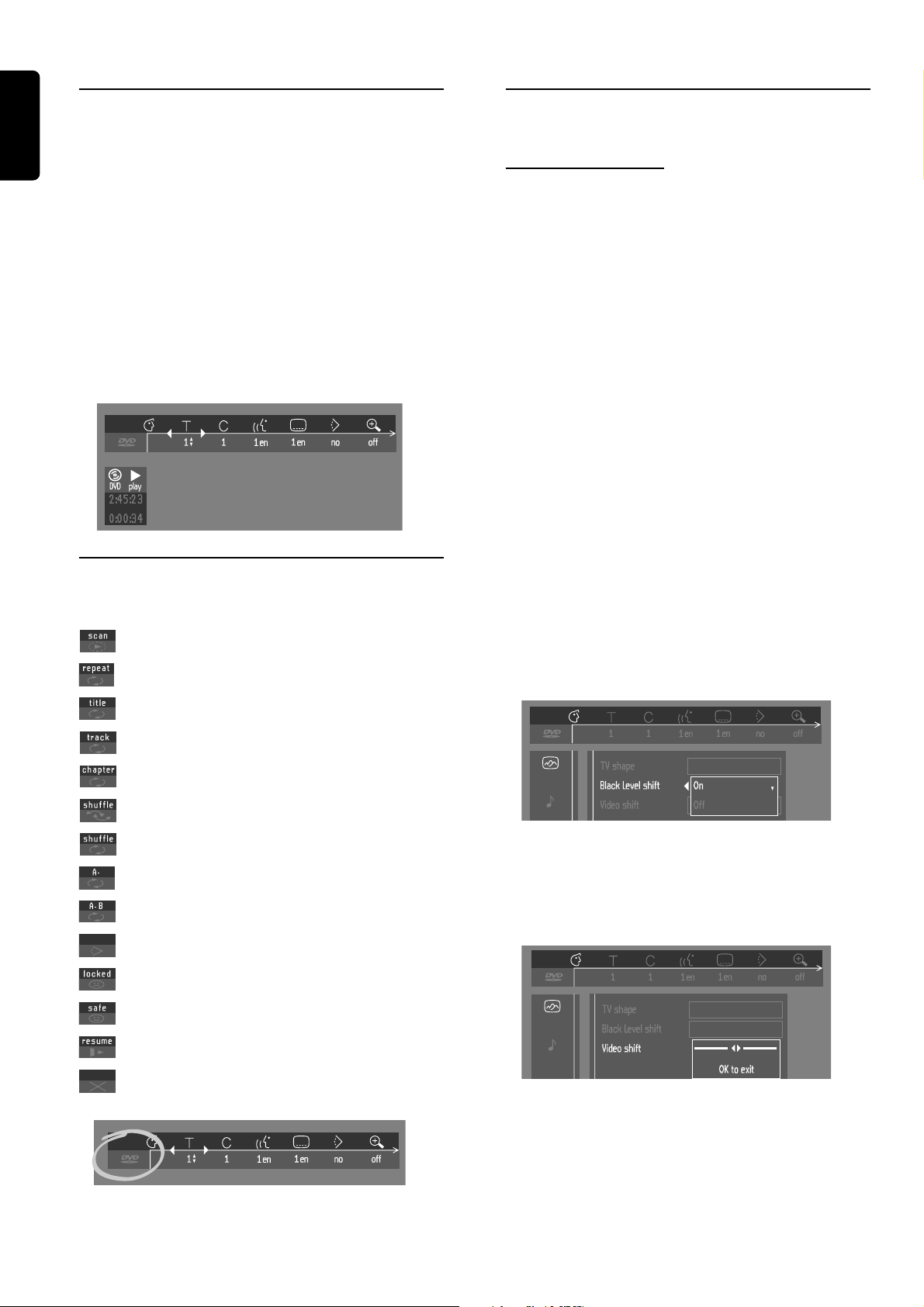

Menu bar/Status window

Personal Preferences

V Personal Preferences W Title/Track X Chapter/Index Y Audio language Z Subtitle language } Angle a Zoom b Color Settings (Smart Picture) c Video Program d Sound e Picture by Picture f Slow motion g Fast motion h Time search

Temporary Feedback Field icons

You can set your own personal preferences on the player.

General operation:

¶ Press SYSTEM MENU on the remote control. ¶ Select V in the menu bar.

➜ The Personal Preferences menu appears.

¶ Use the t u w v keys to move through the menus,

submenus and submenu options.

➜ When a menu item is selected, the cursor keys (on the

remote control) needed to operate the item are displayed next to the item.

¶ Press OK to confirm your selection and return to the main

menu. The following items can be adapted:


– TV Shape

If you have a wide screen (16:9) TV, select 16:9. If you have a regular (4:3) TV, select 4:3. If you have a 4:3 TV, you can also select between: Letterbox for a ‘wide-screen’ picture with black bars at the top and bottom of the screen, or Pan Scan, for a full-height picture with the sides trimmed. If a disc supports the format, the picture will be shown accordingly.

Scan

Repeat All

Repeat Title

Repeat Track

Repeat Chapter

Shuffle

Shuffle Repeat

Repeat A to end

Repeat A-B

Angle

Child Lock On

Child Safe

Resume

Action prohibited

– Black level shift (NTSC users only)

Select ON for adapting the color dynamics to obtain richer contrasts.

– Video shift

The factory centers the video on your screen. Use this setting to personalize the position of the picture on your TV by moving it to the left or right.

PREPARATION

Page 15

– Color settings (Y CB CR connection only)

You can select one of five predefined sets of color settings or define one set (Personal) yourself.

– Personal color (Y CB CR connection only)

Allows you to fine-tune saturation, brightness and contrast of the selected color settings.

– Speaker settings

Allows you to select speaker settings including volume balance and delay time and to test the speaker settings. Speaker settings are only active on the Analog MultiChannel Output. (See appendix)

English

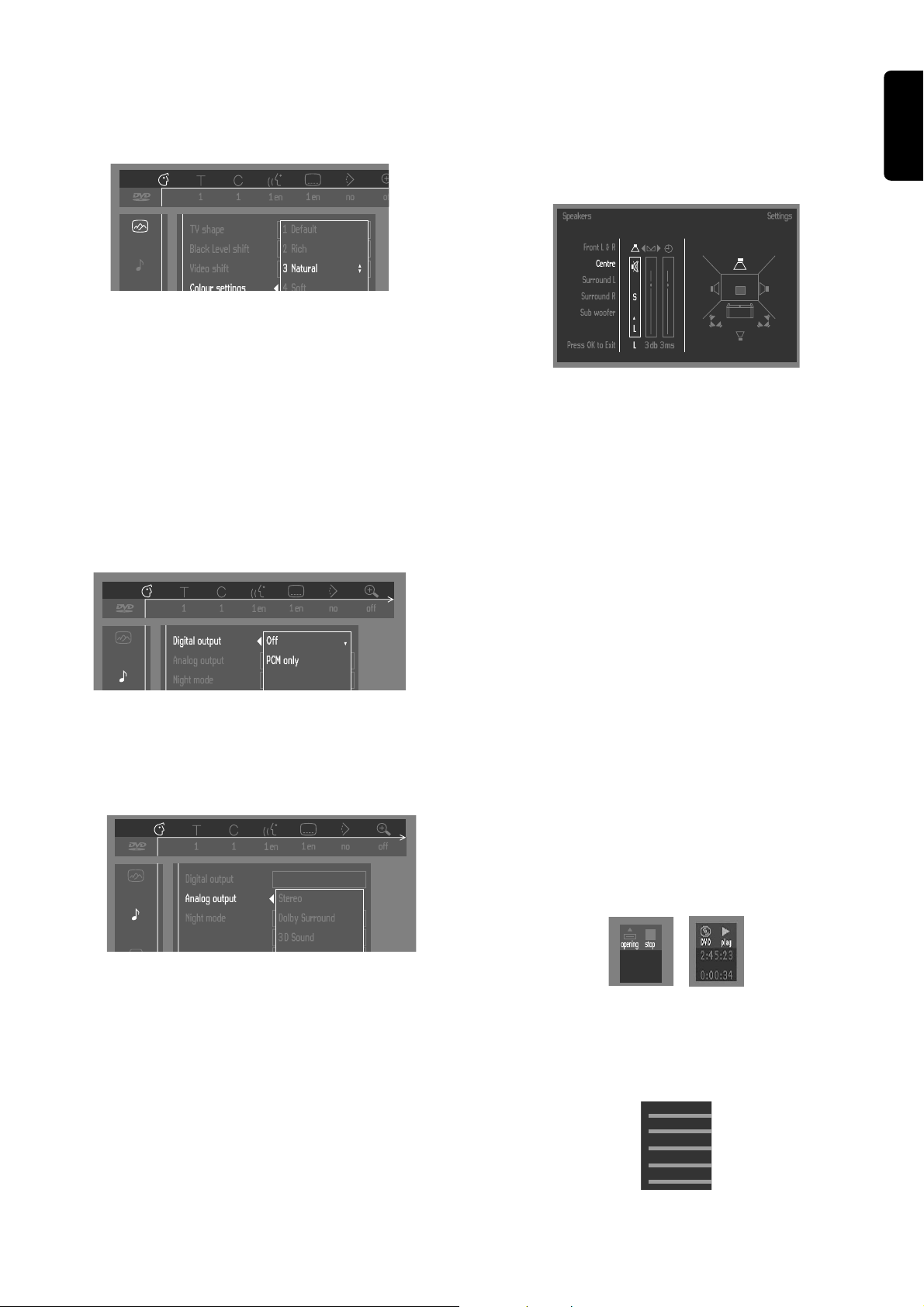

Sound

– Digital output

Factory setting: ALL. This means that both coaxial and optical outputs are on. If you are not connecting equipment with a digital input, change the setting to OFF. If your equipment doesn't include a digital multi-channel decoder, set the digital output to PCM (Pulse Code Modulation).

All

– Analog output

Select Stereo, Dolby Surround, 3D Sound (TruSurround) or multi-channel output to match your system’s playback capability.

– Karaoke vocal

Put this setting to ON only when a multi-channel karaoke DVD is being played. The karaoke channels on the disc will then be mixed into a normal stereo sound.

Language

Select the required Menu, Audio and Subtitle language. Audio language and Subtitle language can also be adapted using the Menu bar.

Features

– Access Control

Access Control contains the following features: Child Lock - When Child Lock is set to ON, a 4-digit code must be entered in order to play discs. Parental control - Allows the conditional viewing of DVDs containing Parental Control information (see ‘Access Control’).

– Status Window

Displays the current status of the player and is displayed with the menu bar. When disc playback is stopped, it is displayed with the ‘Temporar y Feedback Field’ in the default screen. See ‘On-Screen Display’ information. The factory setting is ON. Select OFF to suppress display of the Status Window.

– Night Mode

Optimizes the dynamics of the sound for low volume playback.

– Bit Rate Indicator

When activated, the bit rate for video and audio as well as the total bit rate is displayed. This is only applicable during playback of DVD and SVCD discs.

– Beeper

The beeper can be set to ON or OFF.

PREPARATION

Page 16

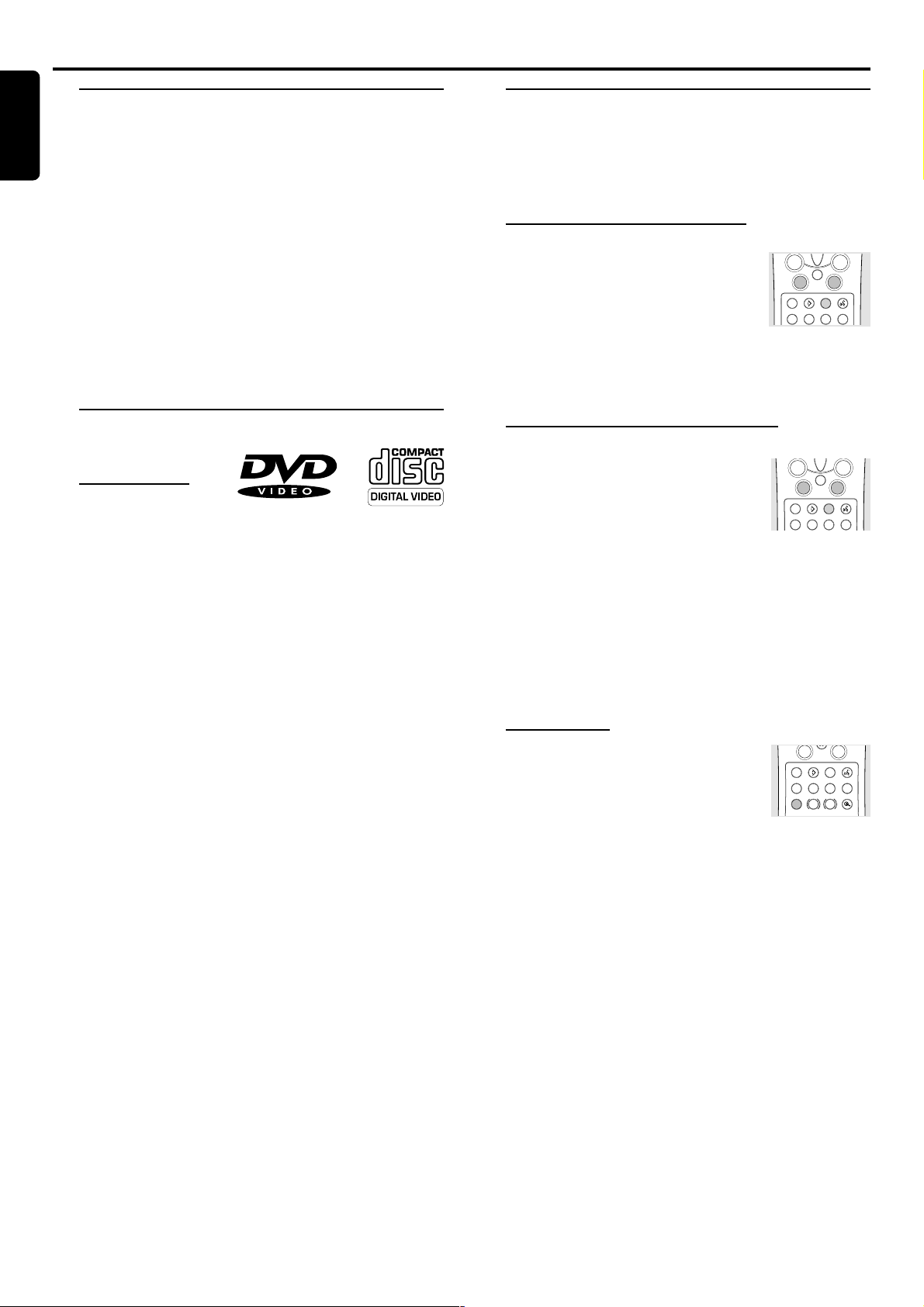

Operation

PLAYSTOP

English

Loading discs

1 Press OPEN/CLOSE on the front of the player to open the

disc tray.

2 Load your chosen disc in the tray, label side up (also when a

double sided DVD is inserted).

3 Press OPEN/CLOSE again to close the tray.

➜ READ appears in the status window and on the player

display, and playback starts automatically.

Note: – If ‘Child Lock’ is set to ON and the disc inserted is not in the ‘child safe’ list (not authorized), the 4-digit code must be entered and/or the disc must be authorized (see ‘Access Control’).

Playing a DVD and Video CD disc

Playing a disc

¶ After inser ting the disc and closing the tray, playback starts

automatically and the status window of the player display shows the type of disc loaded, as well as the disc’s information and playing time.

¶ The disc may invite you to select an item from a menu. If

the selections are numbered, press the appropriate numerical key; if not, use the w/v, t/u keys to highlight your selection, then press OK.

¶ The number if the current title and chapter are displayed. ¶ Playback may stop at the end of the Title, and you may

return to the DVD menu. To go to the next title, press 2.

¶ To stop playback, press 9.

➜ The default screen will appear, giving information about

the current status.

¶ You can resume playback from the point at which you

stopped playback. Press 2; when you see the Resume icon . on the screen, press 2 again.

➜ The RESUME feature applies not only to the disc in the

player, but also to the last four discs you have played. Simply reload the disc and press RESUME on the remote control or; press 2 when you see the Resume icon . on the screen, press 2 again.

Note: – DVDs may be labeled with a region code. – Your player will not play discs that are labeled with a region code different from your player.

General features

Note: – Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the screen.

Moving to another title/track

When a disc has more than one title or track, you can move to another title as follows:

¶ Press T-C (TTL/CHAP), then press P

or O briefly during playback to select the next or to return to the beginning of the current title/track.

¶ Press O twice briefly to step back to the previous title/

track.

Moving to another chapter/index

When a title on a disc has more than one chapter or a track has more than one index , you can move to another chapter/ index as follows:

¶ Press P or O briefly during playback to select the next or

to return to the beginning of the current chapter/index.

¶ Press O twice briefly to step back to the previous chapter/

index.

¶ To go directly to any chapter or index, select T-C (TTL/

CHAP), then enter the chapter/index number using the

numerical keys (0-9).

Note: – For two digit numbers, press the keys in rapid succession.

Slow Motion

¶ Select f (SLOW MOTION) in the

menu bar.

¶ Use the w keys to enter the SLOW

MOTION menu. ➜ The player will now go into PAUSE mode.

¶ Use the cursor keys t u to select the required speed: -1, -

1/2, -1/4 or -1/8 (backward), or +1/8, +1/4, +1/2 or +1 (forward).

¶ Select 1 to playback at normal speed again. ¶ If ; is pressed, the speed will be set to zero (PAUSE). ¶ To exit slow motion mode, press 2 and v.

You can also select Slow Motion speeds by using the H button on the remote control.

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

OPERATION

Page 17

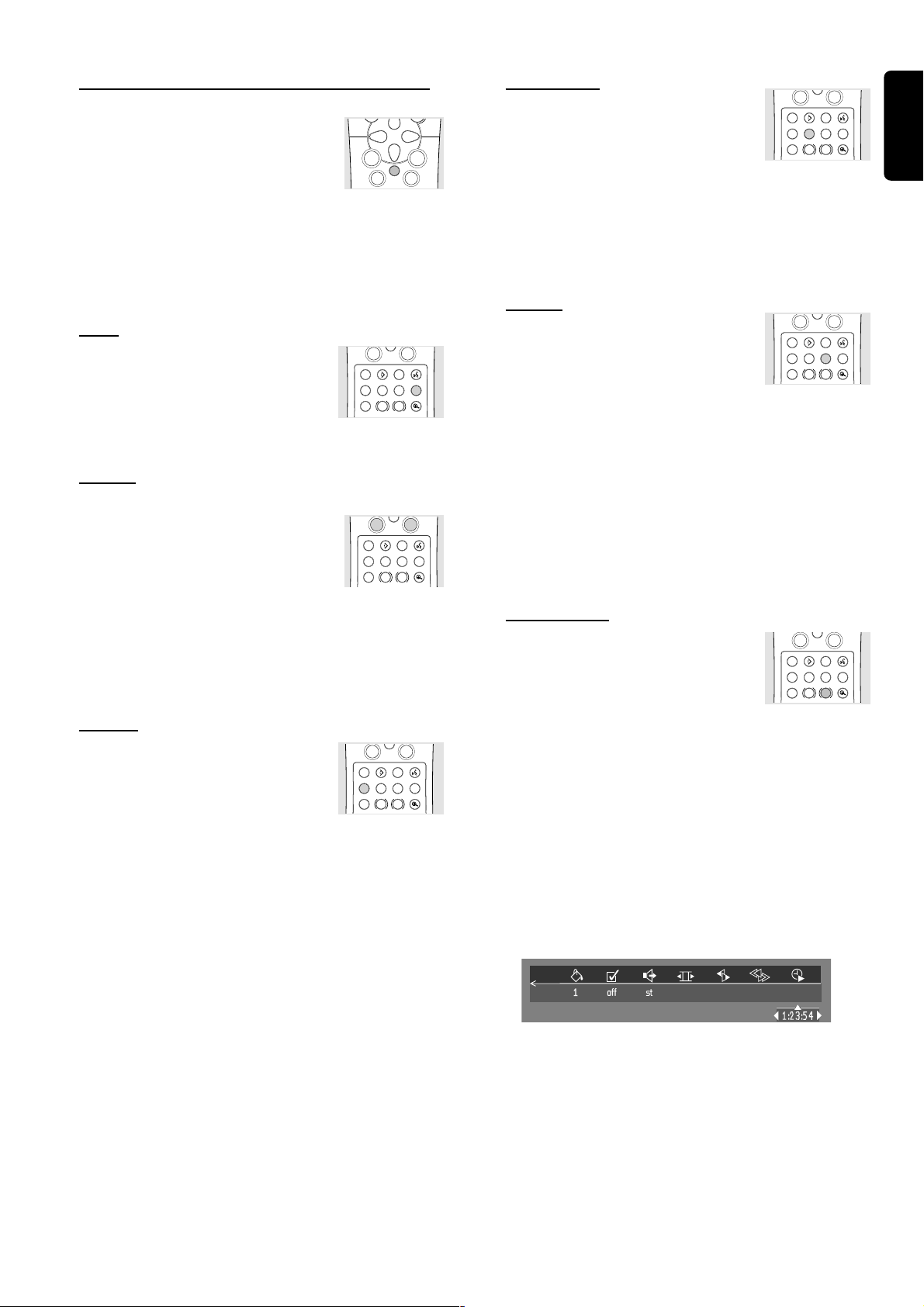

Still Picture and Frame-by-frame playback

¶ Select e (PICTURE BY PICTURE)

in the menu bar.

¶ Use the w key to enter the picture by

picture menu.

➜ The player will now go into PAUSE mode.

¶ Use the cursor keys t u to select the previous or next

picture frame.

¶ To exit PICTURE BY PICTURE mode, press 2 or v.

You can also step forward by pressing ; repeatedly on the remote control.

Scan

Plays the first 10 seconds of each chapter/tracks on the disc.

¶ Press SCAN. ¶ To continue playback at your chosen chapter/tracks, press

SCAN again or press 2.

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

PLAYSTOP

¶ Select g (FAST MOTION) in the

menu bar.

¶ Use the w key to enter the FAST

MOTION menu.

SUBTITLE ANGLE TTL/CHAP AUDIO

REPEAT REPEAT SHUFFLE SCAN

SLOW ZOOM

¶ Use the t u keys to select the required speed: -32, -8 or -4

(backward), or +4, +8, +32 (forward).

¶ Select 1 to play at normal speed again. ¶ To exit FAST MOTION mode, press 2 or v.

To search forward or backward through different speeds, you can also hold down Q or R.

Repeat

DVD-Video Discs - Repeat chapter/ title/disc

¶ To repeat the currently playing chapter,

SUBTITLE ANGLE TTL/CHAP AUDIO

REPEAT REPEAT SHUFFLE SCAN

SLOW ZOOM

press REPEAT.

➜ REPEAT CHAPTER appears on the display.

¶ To repeat the title currently playing , press REPEAT a

second time.

➜ REPEAT TITLE appears on the display.

¶ To repeat the entire disc, press REPEAT a third time.

➜ REPEAT appears on the display.

¶ To exit Repeat mode, press REPEAT a fourth time.

T-C

A-B

TIMEBIT

SEARCHRATE

T-C

A-B

TIMEBIT

SEARCHRATE

Repeat A-B

To repeat a sequence in a title:

¶ Press REPEAT A-B at your chosen starting

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

point.

➜ A- appears briefly on the screen.

¶ Press REPEAT A-B again at your chosen end point.

➜ A-B REPEAT appears briefly on the display, and the repeat sequence begins(A-B REPEAT is displayed on the front panel

of the player).

¶ To exit the sequence, press REPEAT A-B.

Shuffle

DVD-Video discs

This shuffles the playing order of chapters within a title, if the title has more than

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

one chapter.

¶ Press SHUFFLE during playback.

➜ SHUFFLE appears on the screen for about two

seconds.

¶ To return to normal playback, press SHUFFLE again.

Video CDs

¶ Press SHUFFLE during playback.

➜ SHUFFLE appears on the screen for about two

seconds.

¶ To return to normal playback, press SHUFFLE again.

Time search

The Time Search function allows you to start playing at any chosen time on the disc.

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

¶ Select h (TIME SEARCH) in the menu bar. ¶ Press w.

➜ The player will now go into PAUSE mode. ➜ A time edit box appears on the screen, showing the

elapsed playing time of the current disc.

¶ Use the numerical keys to enter the required star t time.

Enter hours, minutes and seconds from left to right in the box.

➜ Each time an item has been entered, the next item will

be highlighted.

¶ Press OK to confirm the star t time.

➜ The time edit box will disappear and playback starts

from the selected time on the disc.

English

Video CDs - Repeat track/disc

¶ To repeat the track currently playing , press REPEAT.

➜ REPEAT TRACK appears on the display.

¶ To repeat the entire disc, press REPEAT a second time.

➜ REPEAT appears on display and screen.

¶ To exit Repeat mode, press REPEAT a third time.

OPERATION

Page 18

English

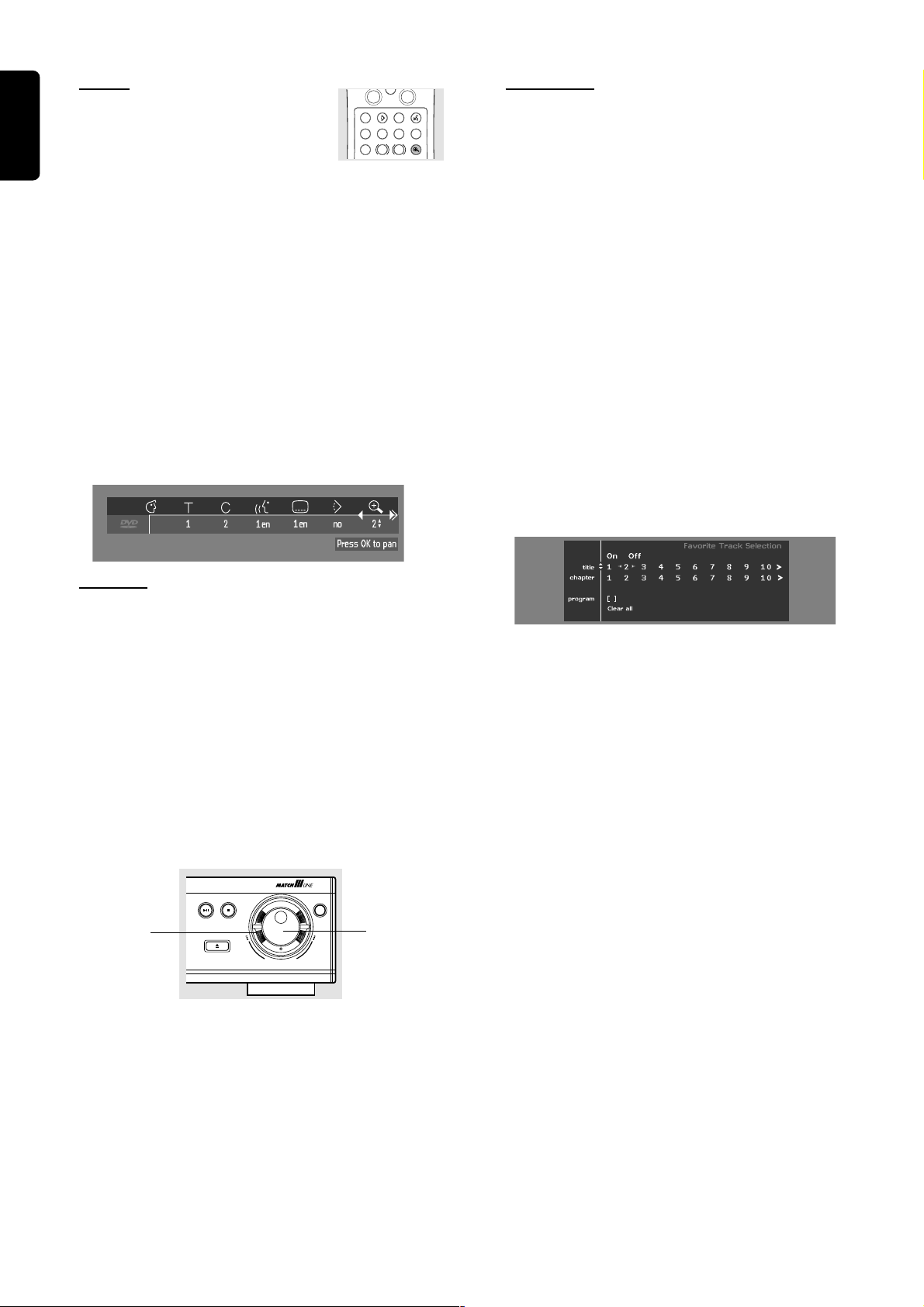

Zoom

The Zoom function allows you to enlarge the video image and to move through the enlarged image.

¶ Select a (ZOOM). ¶ Press w/v to activate the ZOOM function and select the

required zoom factor: 1.33, 2 or 4.

➜ The player will go into Pause mode. ➜ The selected zoom factor appears below the Zoom icon

in the menu bar and ‘Press OK to pan’ appears below the menu bar.

➜ The picture will change accordingly.

¶ Press OK to confirm the selection.

➜ The panning icons appear on the screen.

¶ Use the t u w v keys to move across the screen. ¶ When OK is pressed, only the zoomed picture will be

shown on the screen.

¶ To exit ZOOM mode:

– Press 2 to resume playback, STOP or SYSTEM MENU.

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

FTS-Video

¶ The FTS-Video function allows you to store your favorite

titles and chapters (DVD) and favorite tracks and indexes (VCD) for a particular disc in the player memory.

¶ FTS program can contain 20 items (titles, chapters). ¶ A programmed FTS will be placed on top of the list when

playback is activated. When the list is full, a new program will replace the last program on the list.

¶ The selections can be chosen and played at any time.

Storing a FTS-Video Program

¶ When playback is stop, select VIDEO FTS c in the menu

bar.

¶ Press w to open the menu.

➜ The VIDEO FTS menu appears.

¶ Press u or t or FTS to select ON or OFF.

Storing titles/tracks

¶ Press w to select TITLES. ¶ Use u and t to select the required title. ¶ Press OK if you wish to store the entire title.

➜ The title number will be added to the list of selections.

Easy Jog

EASY JOG consists of JOG and SHUTTLE control

which allows you to playback in various steps:

¶ In playback mode - search forward/backward within a

chapter/index or move to the next/previous chapter/index.

➜ SHUTTLE control: +4x, +8x, +32x, Next (clockwise

direction), -4x, -8x, -32x, Previous (anti-clockwise direction).

¶ In pause mode - change playback speed or select next/

previous frame-by-frame picture.

➜ SHUTTLE control: +1/8x, +1/4x, +1/2x, (clockwise

direction), -1/8x, -1/4x, -1/2x, (anti-clockwise direction).

➜ JOG control: to select Next Picture Frame (clockwise

direction), or Previous Picture Frame (anti-clockwise direction).

PLAY/PAUSE

SHUTTLE

STOP

OPEN/CLOSE

SOUND

JOG

EASY JOG

Storing chapters/indexes

¶ Press w on the selected title number.

➜ The title number will be marked and the highlight moves

to the first available chapter number for this title.

¶ Use u and t to select the required chapter. ¶ Press OK to confirm the selection.

➜ The title/chapter selection will be added to the list of

selections.

¶ Press SYSTEM MENU to exit the VIDEO FTS c menu.

Erasing a FTS-Video Program

¶ When playback is stop, select VIDEO FTS c in the menu

bar.

¶ Use w to select PROGRAM. ¶ Use u and t to select the required number. ¶ Press OK to erase the selection. ¶ Press SYSTEM MENU to exit.

If you wish to erase all selections:

¶ When playback is stop, select VIDEO FTS c in the menu

bar.

¶ Use w to select CLEAR ALL. ¶ Press OK.

➜ All selections will now be erased.

¶ Press SYSTEM MENU to exit.

OPERATION

Page 19

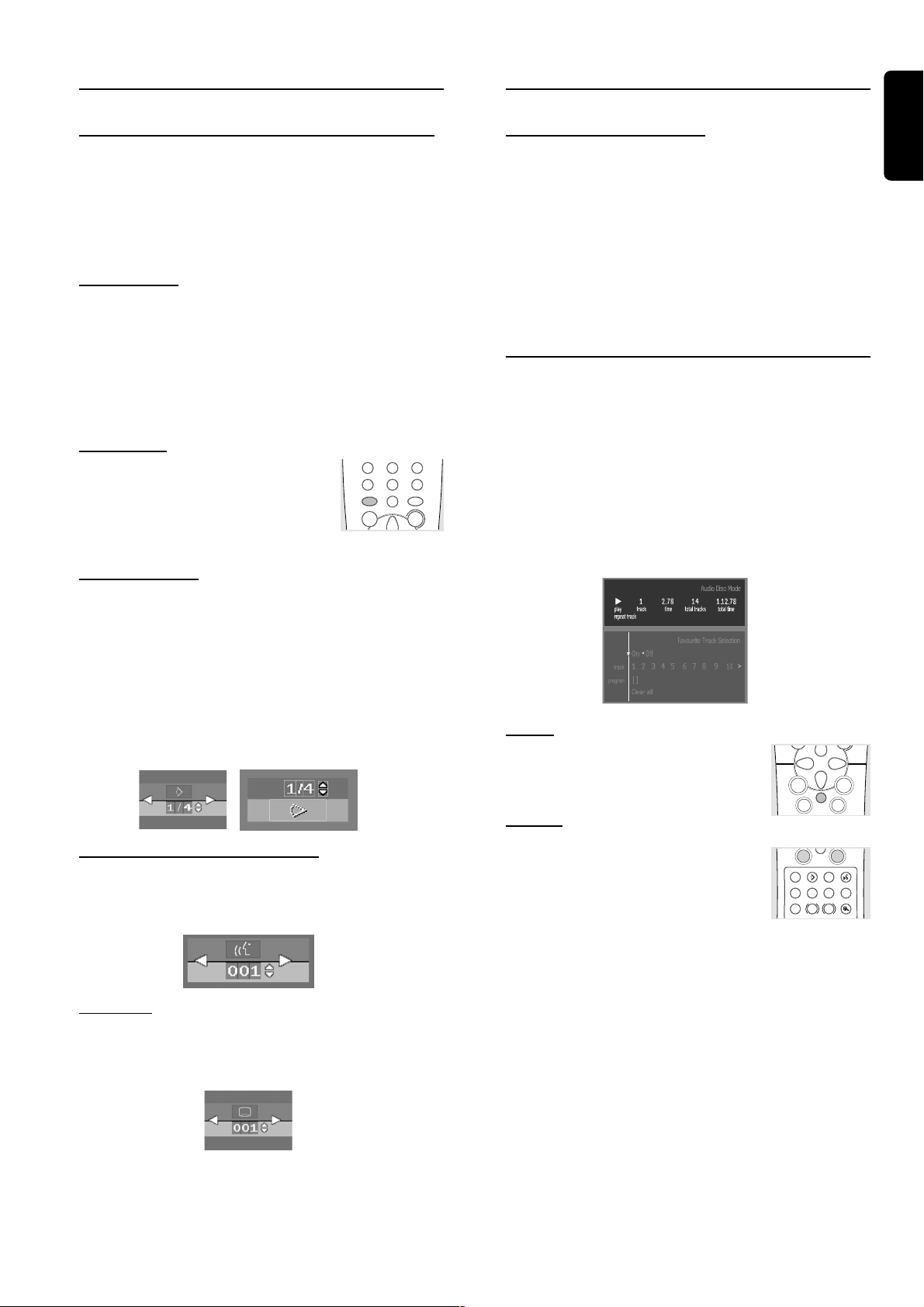

Special DVD features

Special VCD Features

Checking the contents of DVD-Video discs: Menus

DVDs may contain menus to access special features. To use the disc menu, press the appropriate numerical key; or, use the w, v, u, t keys to highlight your selection, then press OK.

Title menus

¶ Press DISC MENU.

➜ If the current title has a menu, the menu will appear on

the screen. Otherwise, the disc menu will be displayed.

¶ The menu can list camera angles, spoken language and

subtitle options, and chapters for the title.

¶ To remove the title menu, press DISC MENU again.

Disc menu

¶ Press T-C, then press DISC MENU.

➜ The disc menu is displayed.

¶ To remove the disc menu, press T-C, then

RETURN

DISC

press DISC MENU.

Camera Angle

SYSTEM

Playback Control (PBC)

English

¶ Load a Video CD with PBC and press 2. ¶ Go through the menu with the keys indicated on the TV

screen until your chosen passage starts to play. If a PBC menu includes titles, you can select a title directly.

¶ Enter your choice with the numerical keys (0-9). ¶ Press RETURN to go back to the previous menu. ¶ You may also set to PBC OFF under Personal

Preferences.

Playing an audio CD

¶ After loading the disc, playback starts automatically. ¶ If the TV is on, the Audio CD screen appears. ¶ The number of tracks and the total playing time of the disc

will be shown on the screen.

¶ During playback, the current track number and its elapsed

playing time will be shown on the screen and on the player display.

¶ Playback will stop at the end of the disc. ¶ To stop playback at any other time, press 9.

If the disc contains sequences recorded from different camera angles, the angle icon appears, showing the number of available angles and the angle being shown currently. You can then change the camera angle if you wish.

¶ Use the w/v keys to select the required angle icon.

➜ After a while, playback changes to the selected angle. The

angle icon remains displayed until multiple angles are no longer available.

Changing the audio language

¶ Select Y (AUDIO) in the menu bar. ¶ Press Y or w/v repeatedly to see the different languages.

Subtitles

¶ Select Z (SUBTITLE) in the menu bar. ¶ Press Z or w/v repeatedly to see the different subtitles.

Pause

¶ Press ; during playback. ¶ To return to playback, press 2.

PLAYSTOP

¶ To search forward or backward through

the disc at four times the normal speed, hold down 5 or 6 for about one

SUBTITLE ANGLE TTL/CHAP AUDIO

REPEAT REPEAT SHUFFLE SCAN

SLOW ZOOM

second during playback.

➜ Search begins, and sound is partially muted.

¶ To step up to eight times the normal speed, press 5 or 6

again.

➜ Search goes to eight times the speed, and the sound is

muted.

¶ To return to four times the normal speed, press 5 or 6

again.

¶ If the TV is on, search speed and direction are indicated on

the screen each time 5 or 6 is pressed.

¶ To end the search, press 2 to resume playback or 9 to stop

playback.

T-C

A-B

TIMEBIT

SEARCHRATE

OPERATION

Page 20

English

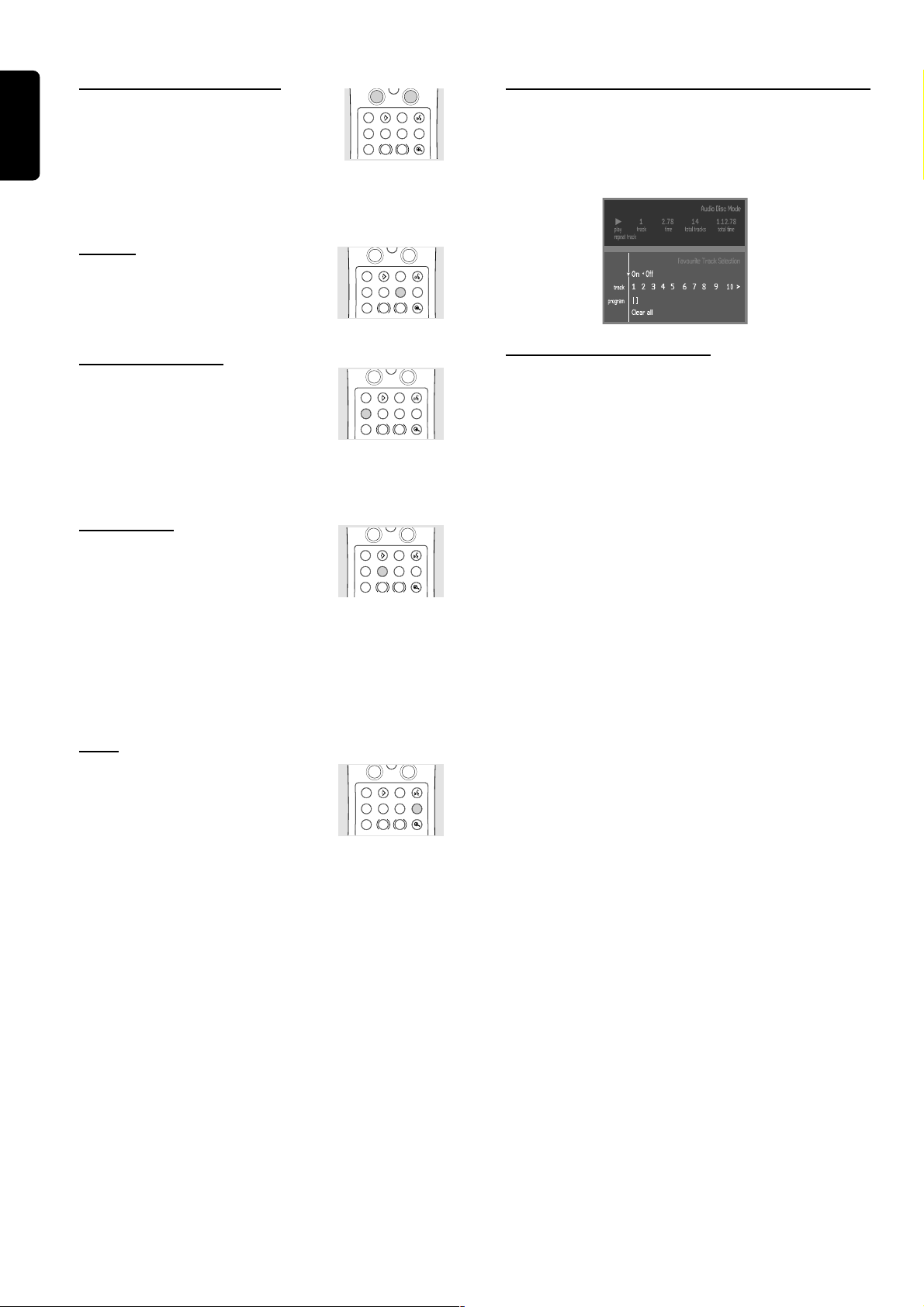

Moving to another track

¶ Press P or O briefly during playback to

go to the next track or to return to the beginning of the current track.

¶ Press O twice briefly to step back to the previous track. ¶ To go directly to any track, enter the track number using

the numerical keys (0-9).

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

FTS Program

¶ FTS Program allows you to store your favorite tracks for a

particular disc in the player memory.

¶ Each FTS Program can contain 20 tracks.

Shuffle

¶ Press SHUFFLE during playback.

➜ The order of the tracks is changed.

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

¶ To return to normal playback, press SHUFFLE again.

Repeat track/disc

¶ To repeat the track currently playing,

press REPEAT.

➜ REPEAT TRACK appears on the display.

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

¶ To repeat the entire disc, press REPEAT a second time.

➜ REPEAT appears on the display.

¶ To exit Repeat mode, press REPEAT a third time.

Repeat A-B

To repeat a sequence:

¶ Press REPEAT A-B at your chosen starting

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

point.

➜ A- appears on the player display.

¶ Press REPEAT A-B again at your chosen end point.

➜ A-B appears on the display, and the sequence begins to

play repeatedly.

¶ To exit the sequence and return to normal play, press

REPEAT A-B again.

Storing an FTS Program

1 Load a disc and stop playback. 2 Use w to go to the list of available tracks. 3 Use u or t to select tracks from the list.

To go directly to any track, enter the track number using the numerical keys (0-9).

4 Store each track by pressing OK.

➜ The track numbers will be added to the list. ➜ The number of tracks and the playing time of the

program will be shown on the screen and the player display.

When your FTS Program is complete, press 2 to start playback or v to stop playback. In either case, the FTS Program will be automatically memorized.

Switching FTS ON/OFF

1 Use v w to move to the FTS ON/OFF selection. 2 Use u or t to select either ON or OFF.

Scan

Plays the first 10 seconds of each track on the disc.

¶ Press SCAN.

SUBTITLE ANGLE TTL/CHAP AUDIO

T-C

REPEAT REPEAT SHUFFLE SCAN

A-B

TIMEBIT

SLOW ZOOM

SEARCHRATE

¶ To continue playback at your chosen chapter/track, press

SCAN again or press 2.

Erasing a track from an FTS Program

1 Use w to go to the list of selected tracks. 2 Use u and t to select the track number you wish to erase. 3 Press OK.

➜ The track number will be erased from the list of selected

tracks.

Erasing the complete program

1 Use w to select CLEAR ALL, then press OK.

➜ The complete FTS Program for the disc will be erased.

OPERATION

Page 21

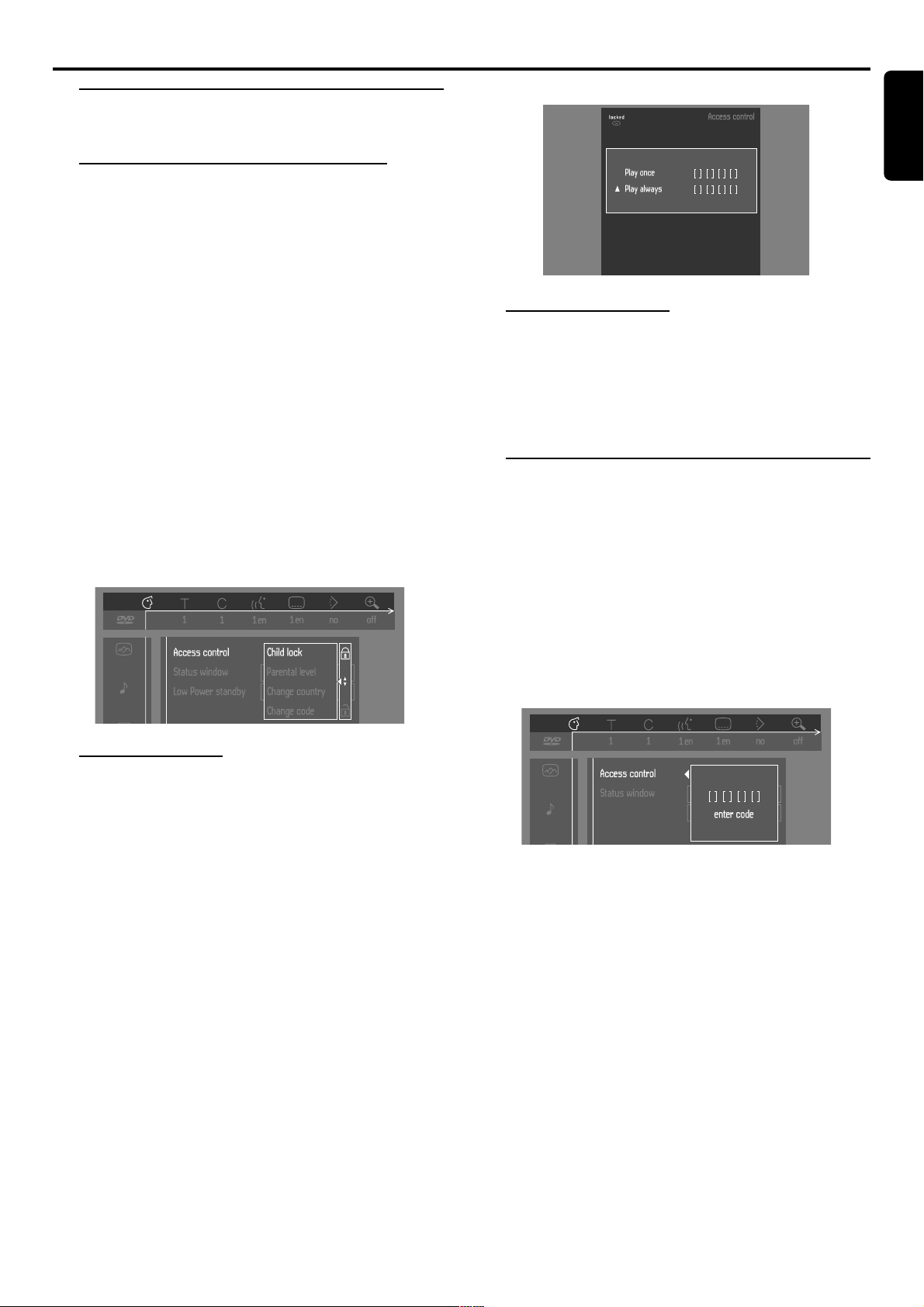

Access Control

Access control; child lock (DVD and VCD)

Activating/deactivating the child lock

1 When disc playback is stopped, select ACCESS

CONTROL in the features menu using the w/v keys.

¶ Alternatively, you can press DISC LOCK on the remote

control if the child lock has been activated.

2 Enter a 4-digit code of your own choice. 3 Enter the code a second time. 4 Move to “CHILD LOCK” using the w/v keys. 5 Move to LOCK/UNLOCK using the u key. 6 Select LOCK using the w/v keys. 7 Press OK or t to confirm, then press t again to exit the

menu.

➜ Now unauthorized discs will not be played unless the

4-digit code is entered.

8 Select UNLOCK to deactivate the CHILD LOCK.

Note: Confirmation of the 4-digit code is necessary when: – The code is entered for the very first time (see above), – The code is changed (see ‘Changing the 4-digit code’), – The code is cancelled (see ‘Changing the 4-digit code’).

Choose 'Play always' to remove the disk from the child-safe list

Deauthorizing discs

¶ Inser t the disc. See ‘Loading discs’.

➜ Playback starts automatically.

¶ Press 9 while { is visible.

➜ The | will appear and the disc is now deauthorized.

Access control; Parental control (DVD only)

Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain ‘Parental Control’ information which applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternative, more suitable scenes are available on the disc. Ratings are country dependent. The ‘Parental Control’ feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.

English

Authorizing discs

¶ Inser t the disc. See ‘Loading discs’.

➜ The ‘child protect’ dialog will appear.

You will be asked to enter your 4-digit code for ‘Playback Once’ or ‘Playback Always.’ If you select ‘Playback Once’, the disc can be played as long as it is in the player and the player is ON. If you select ‘Playback Always’, the disc will become child safe (authorized) and can always be played, even if the Child Lock is set to ON.

Notes: – The player memory maintains a list of 120 authorized (‘Child safe’) disc titles. A disc will be placed in the list when ‘Playback Always’ is selected in the ‘child protect’ dialog. – Each time a ‘child safe’ disc is played, it will be placed on top of the list. When the list is full and a new disc is added, the last disc in the list will be removed from the list. – Double sided DVDs may have a different ID for each side. In order to make the disc ‘child safe’, each side has to be authorized. – Multi-volume VCDs may have a different ID for each volume. In order to make the complete set ‘child safe’, each volume has to be authorized.

ACCESS CONTROL

Page 22

English

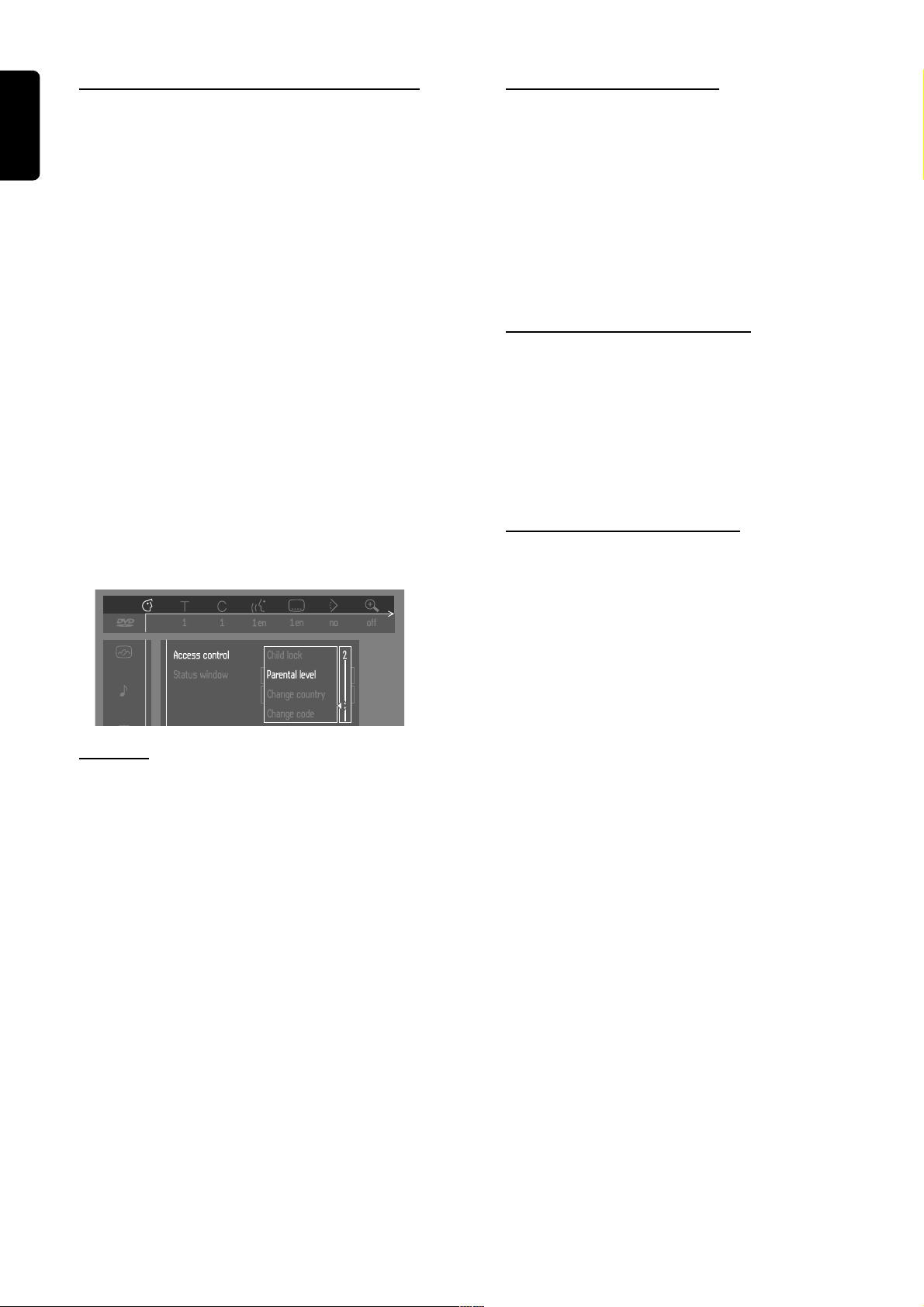

Activating/Deactivating Parental Control

Changing the 4-digit code

1 When disc playback is stopped, select ACCESS

CONTROL in the features menu using the w/v keys.

2 Enter your 4-digit code. If necessary, enter the code a

second time.

3 Move to Parental Level using the w/v keys. 4 Move to VALUE ADJUSTMENT (1-8) using the u key. 5 Then use the w/v keys or the numerical keys on the

remote control to select a rating from 1 to 8 for the disc inserted.

Rating 0 (displayed as ‘– –’):

Parental Control is not activated. The Disc will be played in full.

Ratings 1 to 8:

The disc contains scenes not suitable for children. If you set a rating for the player, all scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop and the 4-digit code has to be entered.

6 Press OK or t to confirm, then press t again to exit the

menu.

Country

1 When disc playback is stopped, select ACCESS

CONTROL in the features menu using the w/v keys.

2 Enter the 4-digit code. 3 Move to CHANGE COUNTRY using the w key. 4 Press the u key. 5 Select a country using w/v. 6 Press OK or t to confirm, then press t again to exit the

menu.

1 When disc playback is stopped, select ACCESS

CONTROL in the features menu using the w/v keys.

2 Enter the old code. 3 Move to CHANGE CODE using the w key. 4 Press the u key. 5 Enter the new 4-digit code. 6 Enter the code a second time and reconfirm by pressing

OK.

7 Press t to exit the menu.

If you forget your 4 digit code

1 Press 9 to exit ‘Child Protect’ screen. 2 Select ACCESS CONTROL in the features menu using

the w/v keys.

3 The 4-digit code can be cancelled by pressing 9 four times

in the ‘Access Control’ dialog.

4 You can then enter a new code (twice!) as described above

(Changing the 4 digit code).

Parental Control Disclaimer

This DVD player features the PARENTAL CONTROL system which is intended to be active when playing DVD discs with certain software coding. This is according to technical standards adopted by the set maker and disc content industries. Please note that the PARENTAL CONTROL system will not operate a DVD which does not have with the appropriate software coding. Also note that at the time of release of this DVD player, certain aspects of the technical standards had not been settled between set makers and the disc industries. On this basis Philips cannot guarantee the functioning of PARENTAL CONTROL and denies any liability associated with unintended watching of disc content. If in doubt, please make sure the disc plays according to your PARENTAL CONTROL settings before you allow children access.

ACCESS CONTROL

Page 23

Before Requesting Service

If it appears that the DVD-Video player is faulty, first consult this checklist. It may be that something has been overlooked. Under no circumstances should you attempt to repair the system yourself; this will invalidate the warranty.

Look for the specific symptom(s). Then perform only the actions listed to remedy the specific symptom(s).

Symptom Remedy

No power – Make sure the mains cord (AC) is properly connected.

– Check if there is power at the AC outlet by plugging in another appliance.

No picture – Check if the TV is switched on.

– Check the video connection.

Distorted picture – Check the disc for fingerprints and clean with a soft cloth, wiping from center

to edge.

– Sometimes a small amount of picture distortion may appear .This is not a

malfunction.

Completely distorted picture – If the picture is distor ted completely or if the picture rolls vertically, or no color with player menu. make sure the NTSC/PAL setting at the DVD player matches the video

signal of your television. – If your TV video signal is NTSC, select the NTSC setting at the DVD player. – If your video signal is PAL, select the PAL setting - see NTSC/PAL SETTINGS.

Distorted or Black/White picture – The disc format does not match your TV’s video signal (PAL/NTSC). with DVD or Video CD.

English

No sound – Check audio connections.

– If you are using a HiFi amplifier, try another sound source.

Distorted sound from HiFi – Check to make sure that no audio connections are made to the amplifier amplifier. phono input.

No audio at digital output. – Check the digital connections.

– Check the settings menu to make sure the digital output is set to ALL or

PCM. – Check if the audio format of the selected audio language matches your

receiver capabilities.

Disc can’t be played. – Ensure the disc label is facing up.

– Clean the disc. – Check if the disc is defective by trying another disc. – Check to see if the disc is defective, badly scratched or warped (not flat)

No return to start-up screen when – Reset by switching the player off, then on again. disc is removed. – Check to see if the program requires another disc to be loaded.

The player does not respond to – Aim the remote control directly at the sensor on the front of the player. the remote control. – Remove any obstacles between the player and the remote control.

– Inspect or replace the batteries in the remote control.

Buttons do not work. – In order to completely reset the player, unplug the AC cord from the AC

outlet. (Please ensure that the set is not in Initial Setup mode)

Player does not respond to some – Operations may not be permitted by the disc. Refer to the instructions of operating commands during the disc. playback.

DVD-Video player cannot read – Use a commonly available cleaning CD/DVD to clean the lens before CDs/DVDs sending the DVD-Video player for repaired.

BEFORE REQUESTING SERVICE

Page 24

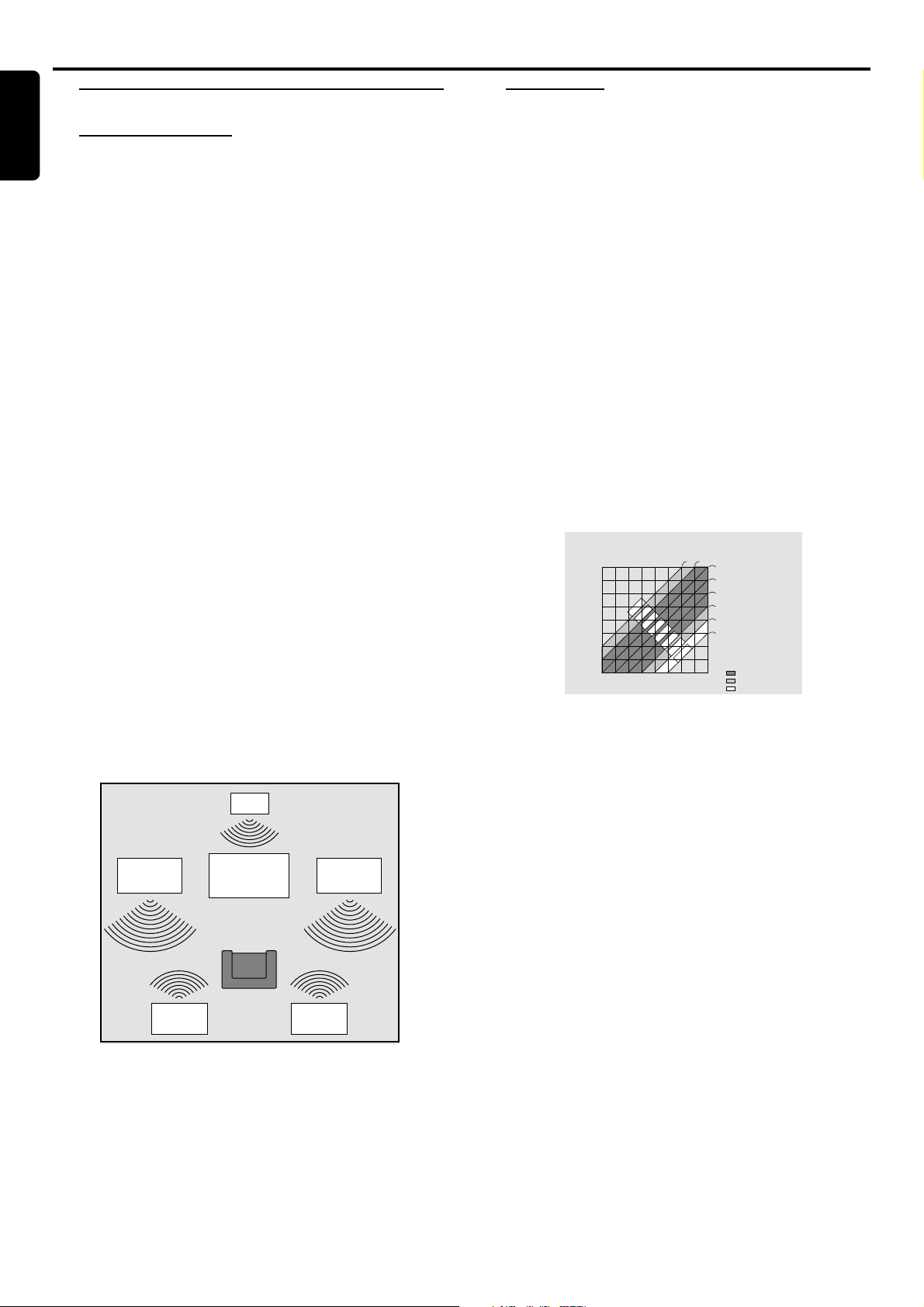

Appendix

0 ms

5 ms

10 ms

15 ms

0 ms

-5 ms

Preferred Acceptable Not recommended

-10 ms

5 10152025303540

Differential arrival time

Digital Surround Delay

Distance from surround speakers (feet)

Distance from front speakers (feet)

10ms5

English

Speaker Settings

6 Channel settings

Front speaker

L (Large): When the front speakers can reproduce

low frequency signals below 120Hz

S (Small): When the front speakers cannot produce

low frequency signals below 120Hz

Center Speaker*

L (Large): When the center speaker can reproduce

low frequency signals below 120Hz

S (Small): When the center speaker cannot produce

low frequency signals below 120Hz

Off: When the center speaker is not connected

Surround speakers

L (Large): When the surround speakers can

reproduce low frequency signals below 120Hz

S (Small): When the surround speakers cannot

produce low frequency signals below 120Hz

Off: When the surround speakers are not

connected

Delay times

The DVD player is set to reproduce correctly synchronized Digital Surround Sound in a listening area where the surround speakers are about 150cm nearer to the listening position than the front speakers, and the center speaker is in line with the front speakers. To adjust for other listening area arrangements, adapt delay times according to the following instructions:

Digital Surround

Measure the distances in centimeters from the front speaker and the surround speaker to the listening positioning. Subtract the surround distance from the front distance and divide by 30. The result is the required Surround Channel delay time in milliseconds. If the center speaker is in line with the front speaker, no center speaker delay is needed. If, however, it is nearer the listening position, measure the distance in centimeters between the front and center speaker planes, and divide by

30. The result is the required Center Channel delay time in milliseconds.

Subwoofer

On: When you connect a subwoofer Off: When a subwoofer is not connected

Note: – Certain speaker settings are prohibited by the Dolby Digital licensing agreement.

Center

speaker

Front speaker

left

Rear speaker

(left surround)

Front speaker

Rear speaker

(right surround)

right

APPENDIX

Page 25

Specifications

PLAYBACK SYSTEM

DVD-Video Video CD CD (CD-R and CD-RW) DVD+RW

OPTICAL READOUT SYSTEM

Lasertype Semiconductor AlGaAs Numerical Aperture 0.60 (DVD)

0.45 (VCD/CD)

Wavelength 650 nm (DVD)

780 nm (VCD/CD)

DVD DISC FORMAT

Medium Optical Disc Diameter 12cm (8cm) Playing time One layer 2.15 h* (12cm) Dual layer 4 h*

Two side 4.30 h* Single layer Two side 8 h* Dual layer

VIDEO FORMAT

DA Converter 10 bits Signal handling Components Digital Compression MPEG2 for DVD,

MPEG1 for VCD

TV STANDARD (PAL/50Hz) (NTSC/60Hz)

Number of lines 625 525 Playback Multistandard (PAL/NTSC)

DVD

Horiz. Resolution 720 pixels 720 pixels Vertical Resolution 576 lines 480 lines

VCD

Horiz. Resolution 352 pixels 352 pixels Vertical Resolution 288 lines 240 lines

VIDEO PERFORMANCE

Video output 1 Vpp into 75 ohm S-Video output Y: 1 Vpp into 75 ohm

C: 0.3 Vpp into 75 ohm

Y CB CR (YUV) output Y: 1 Vpp into 75 ohm

CB CR: 0.7 Vpp into 75 ohm Black Level Shift On/Off Video Shift Left/Right

AUDIO FORMAT

Digital MPEG Compressed Digital

DTS/Dolby Digital

PCM 16, 20, 24 bits

fs, 44.1, 48, 96 kHz Analog Sound Stereo Dolby Pro Logic downmix from Dolby Digital multi-channel sound Full decoding of Dolby Digital multi-channel surround sound 3D Sound (TruSurround) for vir tual 5.1 channel sound on 2 speakers

AUDIO PERFORMANCE

DA Converter 24 bits DVD fs 96 kHz 4 Hz - 44 kHz

fs 48 kHz 4 Hz - 22 kHz Video CD fs 44.1 kHz 4 Hz - 20 kHz CD fs 44.1 kHz 4 Hz - 20 kHz Signal-Noise (1kHz) 103 dB Dynamic Range (1kHz) 100 dB Crosstalk (1kHz) 113 dB Distortion and Noise (1kHz) 92 dB Headphone 30mW at 32 Ohm load,

headphone imp. 8-2k Ohm

CONNECTIONS

Y Output Cinch (green)

B (U) Output Cinch (blue)

C CR (V) Output Cinch (red) S-Video Output Mini DIN, 4 pins Video Output Cinch (yellow) Audio L+R output Cinch (white/red)

6 Channel Analog Output

Audio Front Left/Right Cinch (white/red) Audio Surround Left/Right Cinch (white/red) Audio Center Cinch (blue) Audio Subwoofer Cinch (black) Digital Output 1 coaxial, 1 optical

Headphone 6.3 mm Jack

CABINET

Dimensions (w x h x d) 17.12 x 3.94 x 12.64 inch

Weight Approx. 8.8 pounds

GENERAL FUNCTIONALITY

Stop / Play / Pause Fast Forward / Backward Time Search Step Forward / Backward Slow Motion Title / Chapter / Track Select Skip Next / Previous Repeat (Chapter / Title / All) or (Track / All) A-B Repeat Shuffle Scan Enhanced ease of use graphical interface Perfect Still with digital multi-tap filter Zoom (xl.33, x2. x4) with picture enhancement Smart Picture (Personal Colour Settings) 3D Sound (TruSurround)

5.1 Channels user defined speaker settings Easy Jog Audio and video bit rate indicator Beeper

DVD FUNCTIONALITY

Multi-angle Selection Audio Selection (1 out of max. 8 languages) Subtitles Selection (1 out of max. 32 languages) Aspect Ratio conversion (16:9, 4:3 Letterbox, 4:3 Pan Scan) Parental Control and Disk Lock Disc Menu support (Title Menu and Access Control) Resume (5 discs) after stop / standby Programming Titles/chapters with Favorite Selection

VIDEO CD FUNCTIONALITY

Playback Control for VCD 2.0 discs Disc Lock Resume (5 discs) after stop / standby Programming Tracks with Favorite Selection

AUDIO CD FUNCTIONALITY

Time Display (Total / Track / Remaining Track Time) Full audio functionality with remote control Programming with Favorite Track Selection

Specifications subject to change without prior notice

IEC958 for CDDA / LPCM IEC1937 for MPEG1/2, Dolby Digital and DTS

435 x 100 x 321mm

Approx. 4 Kg

English

* typical playing time for movie with 2 spoken languages and 3 subtitle languages.

SPECIFICATIONS
