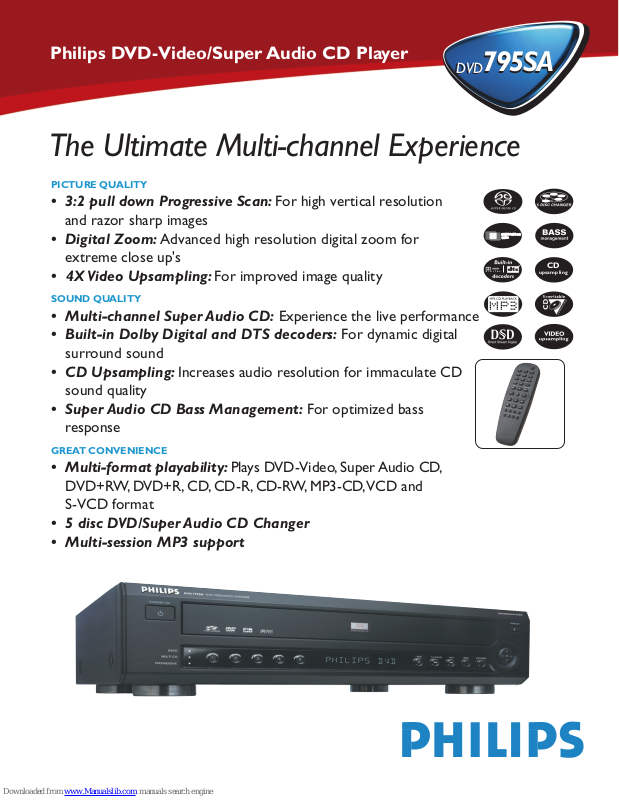

Philips DVD795SA Specifications

Download

Page 1

The Ultimate Multi-channel Experience

PICTURE QUALITY

• 3:2 pull down Progressive Scan: For high vertical resolution and razor sharp images

• Digital Zoom: Advanced high resolution digital zoom for

extreme close up's

• 4X Video Upsampling: For improved image quality

SOUND QUALITY

• Multi-channel Super Audio CD: Experience the live performance

• Built-in Dolby Digital and DTS decoders: For dynamic digital

surround sound

• CD Upsampling: Increases audio resolution for immaculate CD sound quality

• Super Audio CD Bass Management: For optimized bass response

GREAT CONVENIENCE

• Multi-format playability: Plays DVD-Video, Super Audio CD, DVD+RW, DVD+R, CD, CD-R, CD-RW, MP3-CD, VCD and S-VCD format

• 5 disc DVD/Super Audio CD Changer

• Multi-session MP3 support

DVD

Philips DVD-Video/Super Audio CD Player

795SA

upsampling

Page 2

Playback system

• Super Audio CD multi-channel

• Super Audio CD Stereo

• DVD-Video

• Video CD (VCD)

• S-Video CD (SVCD)

• MP3-CD

• CD (CD-R and CD-RW)

• DVD+RW

• DVD+R

Optical read-out system

• Laser type Semiconductor AlGaAs

• Numerical Aperture 0.60 (DVD)

0.45 (VCD/SVCD/CD)

• Wavelength 650 nm (DVD) 780 nm (VCD/SVCD/CD)

DVD disc format

• Medium Optical disc

• Diameter 12 cm (8 cm

)

• Playing time One layer 2.15 h

(12cm) Dual layer 4 h

Two side, 4.30 h

single layer

Two side, 8 h

dual layer

TV standard PAL NTSC

50 Hz 60Hz

• Number of lines 625 525

• Playback Multi standard (PAL/ NTSC)

Video format

• Digital compression MPEG 2 for DVD, SVCD

MPEG 1 for VCD DVD 50Hz 60Hz Horiz. resolution 720 pixels 720 pixels Vertical resolution 576 lines 480 lines VCD 50Hz 60Hz Horiz. resolution 352 pixels 352 pixels Vertical resolution 288 lines 240 lines

Video performance

• Component Video Y: 1 Vpp into 75 ohm

Output (480 i/p) PbPr: 0.7 Vpp into 75 ohm

• S-Video Output Y: 1 Vpp into 75 ohm

C: 0.3 Vpp into 75 ohm

• Video Output 1 Vpp into 75 ohm

• Black Level Shift On/off

• Video Shift Left/right

Printed in the USA

Cabinet

• Dimension 17.1 x 16.3 x 4.5 inch (w x h x d)

• Weight Approx. 12.8 lbs

• UPC 0 37849 93592 7

Package contents

• DVD-video/Super Audio CD player

• Remote control with batteries

• User manual

• Video cable, Audio cable

General functionality

• Stop/ play/ pause

• Fast forward/ backward

• Step forward/ backward

• Slow motion

• Title / chapter/ track select

• Skip next/ skip previous

• Repeat (Chapter/ title/ all) or (Track/ all)

• A-B repeat, Shuffle & Scan

• Zoom (x1.33, x2, x4) with picture enhancement

• 3D sound

• Dialogue Enhancer

• Super Audio CD bass management

• 5.1 Channels user defined speaker settings

• Virtual Jog Shuttle

• Enhanced smart picture with Monitor type selector

• Super Audio CD/CD Text

• Resume (5 disc) after stop / standby

• Farourite Track Selection (FTS)

• Parental Control and Disc lock (120 disc)

• NTSC/PAL conversion

• Smart power off for better energy saving

• Progressive Scan

• 5 disc changer

DVD functionality

• Multi-angle selection

• Audio selection (1 out of max. 8 languages)

• Subtitles selection (1 out of max. 32 languages)

• Aspect ratio conversion (16:9, 4:3 letterbox, 4:3 Pan Scan)

• Disc Menu support (title menu and root menu)

Video CD, SVCD functionality

• Playback control for VCD 2.0 discs and SVCD

• Audio Selection (1 out of max. 4 languages) for SVCD

MP-3 functionality

• Time display (Track)

• Album and track selection

• Repeat (disc/album/ track)

• Nested directory levels supported to 8 levels

• Max. albums possible is 32

• Max. number of tracks is 999

1 Applicable for finalized multi-session discs only. 2 Typical playing time for movie with 2 spoken languages and 3 subtitle languages. 3 Applicable only for DVD, VCD, SVCD discs

www.philips.com or AOL keyword: Philips

SACD audio performance

D/A converter DSD Super Audio CD: fs 2.8224Mhz DC - 100kHz Max. output 2V rms voltage (OdB) Channel unbalance <0.5 dB Cut-off frequency 40kHz

• Signal-Noise (1kHz) 105 dB

• Dynamic Range (1kHz) 100 dB

• Crosstalk (1kHz) 98 dB

• Total harmonic distortion (1kHz) 91 dB

Audio format

DSD Stereo and Multi Channel MPEG/ Dolby Compressed digital, Digital/DTS/PCM 16, 20, 24 bits fs, 44.1, 48, 96 kHz MP3 (ISO 9660) 96, 112, 128, 256kbps and variable bit rate fs 32,44.1, 48kHz

• Full decoding of Dolby Digital and DTS multi channel sound

• Analog Sound Stereo

• Dolby surround compatible downmix from

Dolby Digital multi-channel sound

• 3D Sound for virtual 5.1 channel sound on 2 speakers

Audio performance (typical)

• D/A converter 24 bits DVD: Fs 96 kHz 4 Hz- 44 kHz Fs 48 kHz 4 Hz- 22 kHz CD/Video CD: Fs 44.1 kHz 4 Hz- 20 kHz S-Video CD: Fs 48 kHz 4 Hz- 22 kHz Fs 44.1 kHz 4 Hz- 20 kHz

• Signal-Noise (1kHz) 100 dB

• Dynamic Range (1kHz) 98 dB

• Crosstalk (1kHz) 95 dB

• Total harmonic distortion (1kHz) 91 dB

• MPEG MP3 MPEG audio layer3

Connections

• Y, Pb, Pr output (480i/p) Cinch 3x (green, blue,red)

• S-Video output Mini DIN, 4 pins

• Video Output Cinch (yellow) 2x

• Audio L+R output Cinch (white/red)

• Digital Output 1 coaxial, 1 optical

IEC958 for CDDA/LPCM IEC1937 for MPEG1/2, Dolby Digital, DTS

6 Channel analog output

• Audio Front L/R Cinch (white/red)

• Audio Surround L/R Cinch (white/red)

• Audio Centre Cinch (blue)

• Audio Subwoofer Cinch (black)

Power supply

• Power inlet 110V, 60 Hz

• Power usage Approx. 20 watt

• Power usage standby Less than 4 watt

Technical specifications DVD 795SA

Philips DVD-Video/Super Audio CD Player

DVD

795SA

Dolby Digital is trademark of Dolby Laboratories Licensing Inc. "DTS" and "DTS DIGITAL SURROUND" are registered trademarks of Digital Theater Systems, Inc.

Specifications subject to change without prior notice. 795SA-USA
