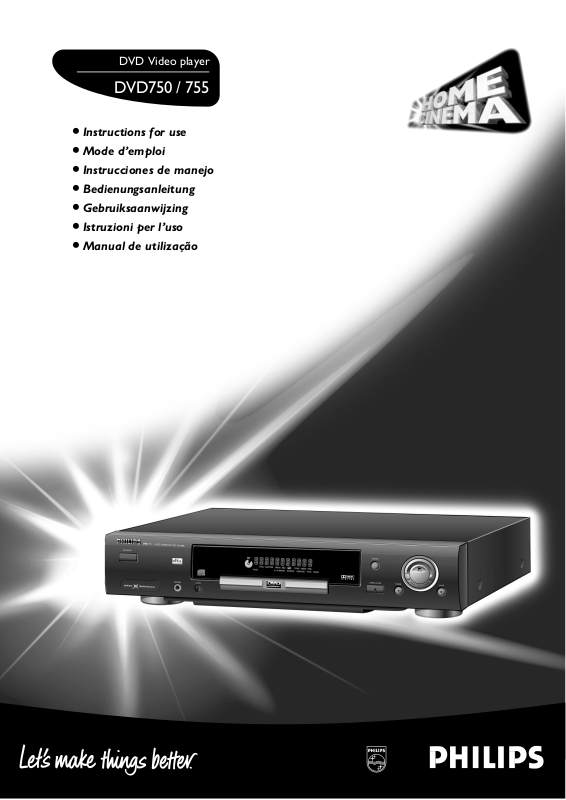

Philips DVD755-05 User Manual
DVD Video player
DVD750 / 755
•
Instructions for use
•
Mode d’emploi
•
Instrucciones de manejo
•
Bedienungsanleitung
•
Gebruiksaanwijzing
•
Istruzioni per l’uso
•
Manual de utilização
Laser safety
This unit employs a laser. Only a qualified service person should remove
the cover or attempt to service this device, due to possible eye injury.
For Customer Use:
Read carefully the information located at the bottom of
your DVD-VIDEO player and enter below the Serial
N°.Retain this information for future reference.
Model N°. DVD-VIDEO 750 / 755
Serial N°. __________________________
CAUTION WARNING LOCATION: INSIDE ON LASER COVERSHIELD
CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO
BEAM
AD
VARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE
FOR STRÅLING
AD
VARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ
EKSPONERING FOR STRÅLEN
V
ARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD
BETRAKTA EJ STRÅLEN
V
ARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER
SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
V
ORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG
GEÖFFNET NICHT DEM STRAHL AUSSETSEN
D
ANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT
EXPOSURE TO BEAM
A
TTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE
EXPOSITION DANGEREUSE AU FAISCEAU
LASER
Type Semiconductor laser GaAlAs
Wave lenght 650 nm (DVD)
780 nm (VCD/CD)
Output Power 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence 60 degree.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
2 GENERAL INFORMATION
General information
NEVER MAKE OR CHANGE CONNECTIONS WITH THE
POWER SWITCHED ON.
The DVD-VIDEO player is in conformity with the EMC
directive and low-voltage directive.
CLASS 1
LASER PRODUCT
GENERAL INFORMATION 3
English
English ------------------------------------------------------------------------------------------------------------------------------ 5
Français-------------------------------------------------------------------------------------------------------------------------- 35
Français
Español -------------------------------------------------------------------------------------------------------------------------- 65
Español
Deutsch-------------------------------------------------------------------------------------------------------------------------- 95
Deutsch
Nederlands ---------------------------------------------------------------------------------------------------------------- 125
Nederlands
Italiano ------------------------------------------------------------------------------------------------------------------------ 155
Italiano
Português ------------------------------------------------------------------------------------------------------------------ 185
Português
English
4 GENERAL INFORMATION
English
Introduction
Functional overview
Front of player ---------------------------------------------------------------------------------------------------------------- 8
Rear of player ------------------------------------------------------------------------------------------------------------------ 9
Display ---------------------------------------------------------------------------------------------------------------------------- 10
Remote control ------------------------------------------------------------------------------------------------------------ 11
On screen display information
Menu bar/Status window ------------------------------------------------------------------------------------------ 12
Status window icons -------------------------------------------------------------------------------------------------- 12
Default screen -------------------------------------------------------------------------------------------------------------- 12
Preparation
Connections ------------------------------------------------------------------------------------------------------------ 14-16
General explication ------------------------------------------------------------------------------------------------------ 17
Switching on ------------------------------------------------------------------------------------------------------------------ 18
Virgin Mode ------------------------------------------------------------------------------------------------------------------ 18
Personal Preferences -------------------------------------------------------------------------------------------------- 19
Access Control ------------------------------------------------------------------------------------------------------------ 21
Operation
DVD-Video discs and Video CDs ---------------------------------------------------------------------- 23-28
Playing an Audio CD ---------------------------------------------------------------------------------------------- 29-31
Before requesting service ------------------------------------------------------------------------------------------ 32
TRUSURROUND, SRS, and symbol are trademarks of SRS Labs,Inc.
TRUSURROUND technology is manufactured under license from SRS
Labs, Inc.
Manufactured under license from Dolby Laboratories.“Dolby” and the
double-D symbol are trademarks of Dolby Laboratories. Confidential
Unpublished Works. ©1992-1997 Dolby Laboratories, Inc.All rights
reserved.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intented for home
and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is
CONTENTS 5
Contents
English
Introduction
The entertainment medium for the
millenium
Video was never like this before! Perfect digital studio-quality pictures
with truly 3- dimensional digital multichannel audio. Story sequences
screened from your own choice of camera angle.
Language barriers broken down by sound tracks in as many as eight
languages, plus subtitles - if available on disc - as many as 32.And
whether you watch DVD-Video on wide-screen or regular TV, you
always see it the way it was meant to be.
Digital video
DVD-Video uses state-of-the-art MPEG2 data compression technology
to register an entire movie on a single 5-inch disc. DVD’s variable bitrate
compression, running at up to 9.8 Mbits/second, captures even the most
complex pictures in their original quality.
The crystal-clear digital pictures have a horizontal resolution of over 500
lines, with 720 pixels (picture elements) to each line.This resolution is
more than double that of VHS, superior to Laser Disc, and entirely
comparable with digital masters made in recording studios.
DVD-Video discs conform to either the PAL or NTSC video standard.
This dual-standard player can play both types, and presents them in the
best possible way on your multistandard TV screen.
As the universal video system of the future, DVD-Video offers optimal
pictures on any TV screen.
Introduction
Your Philips DVD-Video player is a player for digital video discs
conforming to the universal DVD Video standard.With it, you will be
able to enjoy full-length movies with true cinema picture quality, and
stereo or multichannel sound (depending on the disc, and on your
playback set-up).The unique features of DVD-Video, such as selection of
sound track and subtitle languages, and of different camera angles (again
depending on the disc), are all included.What’s more, Philips Child Lock
lets you decide which discs your children will be able to see.
You will find your player remarkably easy to use, by way of the OnScreen Display and player display, in combination with the remote
control.
In addition to DVD-Video discs, you will also be able to play all Video
CDs and audio CDs (including CDR and CDRW).
DVD-Video
You will recognize DVD-Video discs by the logo.
Depending on the material on the disc (a movie, video clips, a drama
series, etc.) these discs may have one or more Titles, and each Title may
have one or more Chapters.To make access easy and convenient, your
player lets you move between Titles, and also between Chapters.
6 INTRODUCTION
DVD-VIDEO DISC
TITLE 1 TITLE 2
CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 2 CHAPTER 3
English
Video CD
You will recognize Video CDs by the logo.
Depending on the material on the disc (a movie, video clips, a drama
series, etc.) these discs may have one or more tracks, and tracks may
have one or more indexes, as indicated on the disc case.To make access
easy and convenient, your player lets you move between tracks, and
between indexes.
Audio CD
Audio CDs contain music tracks only.
You will recognize CDs by their logo.
You can play them in conventional style through a stereo system, using
the keys on the remote control and/or front panel, or via the TV using
the On Screen Display (OSD).
Unpacking
First check and identify the contents of your DVD-Video player package,
as listed below:
- DVD-Video player
- Remote Control Handset with separately-packed batteries
- 2-core power cord
- Euroconnector cable
- Audio cable
- Video cable
- User Manual
If any item should be damaged or missing, please inform your supplier
without delay.
Keep the packaging materials; you may need them to transport your
player in the future.
Placement
● Place the player on a firm, flat surface.
● Keep away from domestic heating equipment and direct sunlight.
● In a cabinet, allow about 2.5 cm (1 inch) of free space all around the
player for adequate ventilation.
● If the DVD-Video player cannot read CDs/DVDs correctly, use a
commonly available cleaning CD/DVD to clean the lens before taking the
DVD-Video player to be repaired. Other cleaning methods may destroy
the lens.Always keep the tray closed to avoid dust on the lens.
● The lense may cloud over when the DVD-Video player is suddenly
moved from cold to warm surroundings. Playing a CD/DVD is not
possible then. Leave the DVD-Video player in a warm environment until
the moisture evaporates.
INTRODUCTION 7
VIDEO CD
TRACK 1 TRACK 2
INDEX 1 INDEX 2 INDEX 1 INDEX 2 INDEX 3
AUDIO CD
TRACKS
23 56789101112...41
/
English
Functional overview
Front of player
PHONES
- for connecting headphones
LEVEL
- headphone volume control
9 STOP
- stops video/audio play
; PAUSE
- interrupts video/audio play or steps
to the next picture frame
3 OPEN/CLOSE
- opens/closes the disc tray
Disc loading tray
SOUND
- selects stereo, Dolby Surround, 3D Sound
S
- selects previous title/chapter/track/index or
beginning current title/chapter/track/index
2 PLAY
- starts video/audio play
T
- selects next title/chapter/track/index
Display
- displays the current status of the player
Standby indicator
- lights up red when the player is in Standby mode
STANDBY
- switches the player to Power/Standby mode
8 FUNCTIONAL OVERVIEW
DVD 75X DVD VIDEO CD CD PLAYER
STAND BY
MPEG Multichannel
/
/
SOUND
DIGITAL OUT
PHONES
TITLE
CHAPTER
TRACK
SHUFFLE
CD
V
LEVEL
REPEAT-BA
CHAPTER
TIMETRACKTOTAL
TRACKTITLE
OPEN/ CLOSE
PLAY
PAUSE STOP
English
Rear of player
Caution: Do not touch the inner pins of rear panel connectors.
Electrostatic discharge may cause permanent damage to the
unit.
TV connections
Video (CVBS)
- for connection to a TV with CVBS video inputs
S-Video (Y/C)
- for connection to a TV with S- Video (Y/C) inputs
TV OUT (TV)
- for connection to a TV with Euroconnector
Euroconnector (AUX)
- for connection to your VCR
Audio connections
Digital audio output connector (optical)
- connection to digital (optical) equipment
Digital audio output connector (coaxial)
- connection to digital (coaxial) equipment
Audio /LR
- connection to an amplifier, receiver or stereo system
Power supply socket
- connection to the mains
FUNCTIONAL OVERVIEW 9
MAINS
DIGITAL AUDIO OUT
PCM/MPEG2/AC3/DTS
OPT OUT
DIG OUT
I
AUX-I/O
STEREO OUT VIDEO OUT
II
TO TV-I/O
L
R
(CVBS) (Y/C)
VIDEO OUT S-VIDEO OUT
AUDIO
English
Display
DVD disc inserted
(V)CD disc inserted
Indicates current player function: Play, Pause, Search, etc.
DVD TITLE number
DVD CHAPTER number
VCD/CD TRACK number
TRACK TIME in hours, minutes and seconds
TOTAL TIME in hours, minutes and seconds
REPEAT CHAPTER/TITLE/TRACK active
Remote control active (flashing)
Program active
REPEAT A-B active
SHUFFLE active
10 FUNCTIONAL OVERVIEW
CD
V
CHAPTER
TRACK
TITLE
CHAPTER
CD
V
REPEAT-BA
TRACK
SHUFFLE
CHAPTER
TIMETRACK
TIMETOTAL
TIMETRACKTOTAL
TRACKTITLE
REPEAT-BA
SHUFFLE
English
Remote control
FUNCTIONAL OVERVIEW 11
0-9 numerical key pad
RETURN
- go back to previous menu step
OK
- acknowledge menu selection
Q O
- search backward / previous
chapter or track
R P
- search forward / next chapter or
track
2
- play
9
- stop
;
- pause or still frame /step frame
REPEAT
- repeat chapter, track, title, disc
REPEAT A-B
- repeat sequence
SHUFFLE
- playback in random order
STANDBY
DVD MENU
- select DVD-defined menu
MENU OSD
- (On-Screen Display) on/off
v w
- up/down cursor movement
t u
- left/right cursor movement
- subtitle language selector
- audio language selector
T- C
- select title/select chapter
- select DVD camera angle
- enlarge video image
Loading...
