Owner’s Manual

Important!

Return your Warranty Registration

Card within 10 days. See why inside.

Digital Video Disc Player

DVD710AT

Page 2

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the

benefits

you’re entitled to.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. ________________ Serial No. ________________

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network. And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Know these

safetysymbols

This “bolt of lightning” indi-

cates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point”

calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Hurry!

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

Visit our World Wide Web Site at http://www.philips.com

Page 3

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture. Federal Communications Commission (FCC) Warning: Any unauthorized changes or

modifications to this equipment void the user’s authority to operate it.

Laser Safety

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM. THE BEAM IS LOCATED INSIDE, NEAR THE DECK MECHANISM.

Special Information for Canadian Users

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio/TV Interference

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and the receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

Unauthorized copying, broadcasting, public performance and lending of Discs are prohibited. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Declaration of Conformity

Model Number: DVD710AT Trade Name: Philips Responsible Party: Philips Consumer Electronics

P.O. Box 14810 Knoxville, TN 37914-1810 (865) 521-4316

Safety Information 3

As an ENERGY STAR®Partner, Philips Consumer Electronics has determined that this product meets the ENERGY STAR®guidelines for energy efficiency. ENERGY STAR®is a U.S. registered mark. Using products with

the ENERGY STAR®label can save energy. Saving energy reduces air pollution and lowers utility bills. Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. (© 1992-1997 Dolby Laboratories, Inc. All rights reserved.) DTS is a trademark of Digital Theater Systems Inc. in the United States of America. Copyright 2000 Philips Consumer Electronics. All rights reserved.

Page 4

4 Table of Contents

General Information

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Getting Started

Remote Control Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-12

DVD Player Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

Disc Playback and Features

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Disc Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Pausing Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Step by Step Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Fast Forward/Reverse Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Track Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Title/Chapter Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Specific Time Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

A-B Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Audio Language/Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Parental Lock Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Parental Lock Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

DVD Player Setup and Features

Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Video Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39

Language Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-42

Other Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Information You May Need

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Page 5

Introduction 5

Welcome!

This Digital Video Disc Player will allow you to enjoy better picture quality, clearer sound, and endless playback features available on Digital Video Discs (DVDs). Expanding technology allows you to add options to your viewing - watch a director’s cut of a movie, listen to the producer’s comments, or play your favorite scene over and over again. Hear a movie in different languages, or listen only to the soundtrack. The possibilities are limited only by your choices and the materials available on the DVD. Of course, you can listen to your favorite Audio Compact Discs on this DVD Player as well. Determine the order in which you want to hear the songs, or play the Disc repeatedly - all while seeing the status of the CD on your television. We hope you enjoy this DVD Player and learn to use all of its features. To get the most out of the DVD Player, read this owner’s manual carefully. It will describe how you can access all the features listed below.

Features

When referring to this manual, remember...

Indicates that the feature described is available on some Digital Video Discs.

Indicates that the feature described is available on some Audio Compact Discs.

Disc Menus...

Some explanations in this manual are intended to describe the Disc Menus. These menus are set by the movie producers or by the music industry, and the menus will vary among Discs. Furthermore, not all Discs are guaranteed to have menus. However, if the Disc has a menu, you can access the Disc Menu by pressing the MENU button on the remote control.

DVD Player Menus...

Some instructions explain how to use the DVD Player’s menu to set up features of the DVD Player or the Disc. You get to the DVD Player Menu by pressing the SETUP button on the remote control when playback is stopped. Even if a feature is set up in the DVD Player’s menu, it may not be available if the current Disc does not include that feature.

Available Disc Features...

Not all of the features described in this manual may be available on every DVD or Audio CD. If the feature is not available on the Disc, you cannot use the DVD Player to make these features available. The “No feature” symbol will appear on the TV screen if you try to set up a feature that is

not available on the current Disc or not available at the current time.

DVD

AUDIO CD

• Audio Language/Sound Mode Choices

• Automatic Detection of Disc Type

(Audio CD or DVD)

• DVD Menus in a Desired Language *

• On-Screen Display for DVD Player

• Parental Lock

• Paused/Fast/Slow/Step-by-Step Playback

• Program Playback (Audio CD only)

• Random Playback (Audio CD only)

• Screen Saver

• Selecting a Camera Angle *

• Subtitles in a Desired Language *

* If available on the Disc

Page 6

Playable Discs

This DVD Player will play Digital Video Discs (DVDs) and Audio CDs. In order to play a DVD or Audio CD on this DVDPlayer, make sure the Disc meets the requirements for Region Codes and Color Systems as described on this page. Also, the Discs should be labelled with the following logos and should meet these standards.

• CD-ROM

• Compact Disc-Interactive (CD-I)

• Compact Disc-Recordable (CD-R)

• Digital Video Disc-Video Recordable

(DVD-VR)

• DVD-RAM

• DVD-ROM

• Photo CD

• Video CD

• Video Single Disc (VSD)

Digital

Video

Disc

12 cm

Approx. 4 hours

(single-sided)

Approx. 8 hours

(double-sided)

Approx. 80 minutes

(single-sided)

Approx. 160 minutes

(double-sided)

20 minutes

8 cm

(singles)

Logo

Maximum

Playback Time

ContentsDisc Type

Sound

and

Pictures

Audio

Disc Size

Sound

74 minutes

Disc

Segments

DVDs are

divided into Titles,

which are divided

into Chapters.

Titles and Chapters

are numbered.

Audio CDs are divided

into numbered Tracks, i.e.,

a track may be one song.

6 Playable Discs

Region Codes

DVDs also must be labelled for ALL regions or for Region 1 in order to be played on this DVDPlayer. You can not play Discs that are labelled for other regions. Look for the symbols below on your DVDs. If these region symbols do not appear on your DVD, you cannot play the DVD in this DVD Player.

The number inside the globe refers to a region of the world. Region 1 represents the United States, Canada, upper regions of North America, Bermuda, the U.S. Virgin Islands, and small regions near Australia. A Disc encoded in a specific region format can only be played on DVD Players with the same region code. For example, if a Disc is labelled for Region 2, you can not play the DVD on this DVD Player.

Color Systems

Different color systems are available throughout the world. The most common color systems are NTSC, which is used primarily in the United States and North America, PAL, and SECAM. This DVD Player uses the NTSC color system. Therefore, the Discs that you play must be recorded in the NTSC system. You cannot play Discs recorded in other formats. The color system of the DVD may be listed on the DVD or on the Disc jacket.

Unacceptable Discs

The following Discs cannot be played on this DVD Player.

• Compact Disc-Graphic (CD-G) • Compact Disc-Video (CD-V)

The following discs may be played, but only the audio will be available. There will be no picture.

Page 7

Remote Control Setup 7

• The remote control and its batteries are supplied.

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Helpful Hints

Using the Remote Control

● Point the remote control at the DVD Player’s remote sensor

(see page 14) when using the remote control to operate the DVD Player.

● Do not put objects between the remote control and the DVD

Player.

Putting Batteries in the Remote Control

Remove the battery compartment lid on the bottom of the

remote control by pressing the tab, then lifting the lid.

Place two AA batteries inside the battery compartment

with their +and –ends aligned as indicated.

Replace the battery compartment lid.

2 3

Recycling Guidelines/Battery Safety

Your new product and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount that needs to be properly disposed. Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste. Please find out about the local regulations on disposal of your old product, batteries, and packaging whenever you replace existing equipment.

Page 8

8 Hookups

Connecting the DVD Player to a TV only (no stereo or amplifier)

TV has AUDIO (red and white) and VIDEO (yellow) IN jacks

DIGITAL AUDIO OUT PCM / BITSTREAM

AUDIO OUT

COAXIAL

OPTICAL

S-VIDEO

OUT

COMPONENT

VIDEO OUT

VIDEO

OUT

R L

VIDEO

L/MONO AUDIO R

VIDEO IN

LEFT AUDIO IN

RIGHT AUDIO IN

You may connect the DVD Player several different ways, depending on your existing equipment and your preferences for sound and picture quality. To determine which hookup is best for you, examine the options on the following pages, then see which best matches your situation. Before you hook up the DVD Player, remember:

● Connect the DVD Player directly to a TV. If you connect the DVD Player to a VCR, then connect the VCR

to the TV, the picture may be distorted by the copyright protection system.

● Turn off the power of all equipment before making any connections.

● Refer to the owner’s manuals of your other equipment for additional information.

● Depending on your connection, you may need to purchase additional cables.

● If you do not connect the DVD Player to a Dolby Digital or DTS Decoder, set DOLBY DIGITAL and DTS

to OFF on the DVD Player. Details are on pages 11 and 38-39. If you play a DVD when the settings are wrong, the sound will be distorted or you may damage the speakers.

Connect the red and white audio cables to the red and white AUDIO OUT jacks on the DVD Player (either 1 or 2) and to the red and white AUDIO IN jacks on the TV, matching the cable colors to the jack colors. If the TV has a single AUDIO IN jack, use the white audio cable to connect the

DVD Player’s white AUDIO OUT jack to the TV’s AUDIO IN jack. You will not use the red audio cable.

Connect the yellow video cable to the VIDEO OUT jack on the DVD Player and to the VIDEO IN jack on the TV.

Connect the TV’s power cord to a power outlet. Turn on the TV and set it to the Audio/Video In channel, which also may be referred to as A/V In or

Auxiliary In. This channel usually is located near channel 00. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER button to turn on the DVD Player. “HELLO” will appear briefly on the DVD

Player’s display panel. You should see the DVD logo on the TV screen briefly. If you do not, check your connections and make sure the TV is set to the correct Audio/Video In channel. If there is no disc in the DVD player, “no DISC” will appear on the display panel.

Back of TV

(example only)

DVD Player

Page 9

Hookups (cont’d) 9

Connecting the DVD Player to a TV only (no stereo or amplifier)

TV has audio (red and white) and S-Video In jacks

● For better picture quality, use an optional S-Video cable to connect the S-VIDEO OUT jack on the DVD

Player to the S-VIDEO IN jack on your TV. You will not use the yellow VIDEO OUT jack on the DVD Player, and you will not need the yellow video cable.

● Set DOLBY DIGITAL and DTS to OFF on the DVD Player. Details are on pages 38-39. If you play a DVD

when the settings are wrong, the sound will be distorted or you may damage the speakers.

DIGITAL AUDIO OUT PCM / BITSTREAM

AUDIO OUT

COAXIAL

OPTICAL

S-VIDEO

OUT

COMPONENT

VIDEO OUT

VIDEO

OUT

R L

VIDEO

L/MONO AUDIO R

S-VIDEO IN

LEFT AUDIO IN

RIGHT AUDIO IN

Connect the red and white audio cables to the red and white AUDIO OUT jacks (either 1 or 2) on the DVD Player and to the red and white AUDIO IN jacks on the TV, matching the cable colors to the jack colors. If the TV has a single AUDIO IN jack, use the white audio cable to connect the DVD

Player’s white AUDIO OUT jack to the TV’s AUDIO IN jack. You will not use the red audio cable.

Connect an S-Video cable (not supplied) to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO IN jack on the TV.

Connect the TV’s power cord to a power outlet. Turn on the TV and set it to the S-VIDEO IN channel. This channel usually is located near channel 00.

See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER button to turn on the DVD Player. “HELLO” will appear briefly on the DVD

Player’s display panel. You should see the DVD logo on the TV screen briefly. If you do not, check your connections and make sure the TV is on the correct S-Video In channel. If there is no disc in the DVD player, “no DISC” will appear on the display panel.

Back of TV

(example only)

DVD Player

Page 10

10 Hookups (cont’d)

Connecting to a TV and a Stereo

TV has Component Video In Jacks

● Set DOLBY DIGITAL and DTS to OFF on the DVD Player. Details are on pages 38-39. If you play a DVD

when the settings are wrong, the sound will be distorted or you may damage the speakers.

DIGITAL AUDIO OUT PCM / BITSTREAM

AUDIO OUT

COAXIAL

OPTICAL

S-VIDEO

OUT

COMPONENT

VIDEO OUT

VIDEO

OUT

R L

Cb/B-Y

Cr/R-Y

AUDIO (RIGHT) IN

AUDIO (LEFT) IN

Back of TV

(example only)

COMPONENT

VIDEO IN

DVD Player

Back of Stereo (example only)

VIDEO

L/MONO AUDIO R

Connect the red and white audio cables to the red and white AUDIO OUT jacks (either 1 or 2) on the DVD Player and to the red and white AUDIO IN jacks on the Stereo, matching the cable colors to the jack colors.

Connect an optional component video cable to the COMPONENT VIDEO OUT jacks on the DVD Player and to the COMPONENT VIDEO IN jacks on the TV.

Plug in the Stereo’s power cord. Turn on the Stereo and select the Stereo’s Auxiliary IN station.

During Disc playback, you will adjust the volume at your Stereo. See your Stereo owner’s manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to the Component Video In channel, which usually is located near channel 00. During Audio CD playback, you may check the status of Audio

CDs on your TV screen. During DVD playback, you will watch the program on the TV. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER button to turn on the DVD Player. “HELLO” will appear briefly on the DVD

Player’s display panel. You should see the DVD logo on the TV screen briefly. If you do not, check your connections and make sure the TV is on the correct channel. If there is no disc in the DVD player, “no DISC” will appear on the display panel.

Page 11

Hookups (cont’d) 11

Connecting to a Dolby Digital Decoder or DTS Decoder

Some Discs are recorded in a 5.1 channel Dolby Digital Surround or Digital Theater System (DTS) Surround format. These Discs will sound best if you connect the DVDPlayer to a Dolby Digital or DTS Decoder.

● You will need a coaxial digital audio cable or an audio optical cable (not supplied). Details are on page 12.

● If you use the OPTICAL jack, remove the protective cap.

● If you connect the DVD Player to a Dolby Digital Decoder, set DOLBY DIGITAL to ON. Details are on

pages 38-39.

● If you connect the DVD Player to a DTS Decoder, set DTS to ON. Details are on pages 38-39.

If the DVD Player is not connected to a Dolby Digital or DTS decoder, set DOLBY DIGITAL and DTS to OFF. Incorrect settings may cause noise distortion and damage the speakers.

● Select the 5.1 channel Dolby Digital Surround sound in the Disc menu.

● Connect a subwoofer and the center, front, and surround speakers to the Decoder as described in the

Decoder owner’s manual.

DIGITAL AUDIO OUT PCM / BITSTREAM

AUDIO OUT

COAXIAL

OPTICAL

S-VIDEO

OUT

COMPONENT

VIDEO OUT

VIDEO

OUT

R L

VIDEO

L/MONO AUDIO R

VIDEO IN

COAXIAL DIGITAL AUDIO IN

Back of Decoder

(example only)

DVD Player

Back of TV

(example only)

Connect a coaxial digital audio cable to the COAXIAL jack on the DVD Player and to the COAXIAL DIGITAL AUDIO IN jack on the Decoder. (Or, you may connect an audio optical cable to

the OPTICAL jack on the DVD Player and to the OPTICAL DIGITAL AUDIO IN jack on the Decoder.)

Connect the supplied yellow video cable to the yellow VIDEO OUT jack on the DVD Player and to the VIDEO IN jack on the TV. (Or, you may connect an optional component video cable to the COM-

PONENT VIDEO OUT jacks on the DVD Player and to the COMPONENT VIDEO IN jacks on the TV. Or, you may connect an optional S-Video cable to the S-VIDEO OUT jack on the DVD Player and to the S-VIDEO IN jack on the TV.)

Plug in the Decoder’s power cord. Turn on the Decoder and select the Auxiliary IN station.

During Disc playback, you will adjust the volume at the Decoder. See your Decoder owner’s manual for details.

Plug in the TV’s power cord. Turn on the TV and set it to the correct Video In channel. During

Audio CD playback, you may check the Disc status on your TV screen. During DVD playback, you will watch the program on the TV. See your TV owner’s manual for details.

Connect the DVD Player’s power cord to a power outlet. Press the POWER button to turn on the DVD Player. “HELLO” will appear briefly on the DVD Player’s display panel. You should see the DVD

logo on the TV briefly. If you do not, check your connections and make sure the TV is on the correct channel. If there is no disc in the DVD player, “no DISC” will appear on the display panel.

Page 12

Connecting to a TV and an Amplifier with Coaxial Digital Audio In jacks,

a Mini-Disc Deck or a Digital Audio Tape Deck

● Use a coaxial digital audio cable or an audio optical cable (not supplied) for this connection.

● If you use the OPTICAL jack, remove the protective cap.

● If the Disc is recorded in 5.1 channel Dolby Digital Surround, you cannot dub the Disc in digital sound using

a Mini-Disc or Digital Audio Tape Deck.

● Set DOLBY DIGITAL and DTS to OFF on the DVD Player. Details are on pages 38-39. If you play a DVD

when the settings are wrong, the sound will be distorted or you may damage the speakers.

DIGITAL AUDIO OUT PCM / BITSTREAM

AUDIO OUT

COAXIAL

OPTICAL

S-VIDEO

OUT

COMPONENT

VIDEO OUT

VIDEO

OUT

R L

VIDEO

L/MONO AUDIO R

VIDEO IN

COAXIAL DIGITAL AUDIO IN

Back of TV

(example only)

Back of Amplifier

(example only)

DVD Player

12 Hookups (cont’d)

Connect a coaxial digital audio cable to the COAXIAL jack on the DVD Player and to the COAXIAL DIGITAL AUDIO IN jack on the Amplifier. (Or, you may connect an audio optical cable

to the OPTICAL jack on the DVD Player and to the OPTICAL DIGITAL AUDIO IN jack on the Amplifier.)

Connect the supplied yellow video cable to the yellow VIDEO OUT jack on the DVD Player and to the VIDEO IN jack on the TV. (Or, you may connect an optional component video cable to the COM-

Plug in the Amplifier’s power cord. Turn on the Amplifier and select the Auxiliary IN station.

During Disc playback, you will adjust the volume at the Amplifier. See your Amplifier owner’s manual for details.

• Optical cable (not supplied) may be damaged when bent at acute angles. Ensure cables are coiled in loops with a diameter of 6 inches or more when storing them.

• Use a cable which is 9.8 feet or shorter.

• Insert cable plugs firmly into the jacks when making connections.

• If a plug has minor scratches or is dirty, clean it with a soft cloth before inserting it into a jack.

• Replace the protective cap on the OPTICAL jack when it is not in use.

Helpful Hints

Plug in the TV’s power cord. Turn on the TV and set it to the correct Video In channel. During Audio CD playback, you

may check the status of the Disc on your TV screen. During DVD playback, you will watch the program on the TV. See your TV owner’s manual for details.

Plug in the DVD Player’s power cord. Press the POWER button to turn on the DVD Player. “HELLO” will appear

briefly on the DVD Player’s display panel. You should see the DVD logo on the TV briefly. If you do not, check your connections and make sure the TV is on the correct channel. If there is no disc in the DVD player, “no DISC” will appear on the display panel.

Minimum 6 in.

in diameter

Page 13

POWER

DVD / CD PLAYER

STANDBY

PAUSE

STOP PLAY

SKIPOPEN/CLOSE

Lit when an Audio CD is inserted. When the CD light is on, the disc is loaded completely and is ready for playback.

Lit when a DVD is inserted. When the DVD light is on, the disc is loaded completely and is ready for playback.

Displays a chapter (DVD) or track (Audio CD) number

Displays a title number (DVD)

Displays the elapsed time of the current title (DVD) or track (Audio CD)

DVD Player Display 13

Display

Messages about current DVD Player operations appear here. See Display Messages below.

Disc loading tray

Insert a Disc here.

Power is turning off.

Tray is opening or is open.

Tray is closing.

Appears after the disc tray closes if the tray is empty.

Appears briefly when you press the SKIP buttons to search for the next or previous chapter/track.

Power is turning on.

Disc is loading.

Display Messages

Page 14

14 Front Panel

POWER

DVD / CD PLAYER

STANDBY

PAUSE

STOP PLAY

SKIPOPEN/CLOSE

OPEN/CLOSE Button

Press to open or close the Disc tray.

Details are on page 18.

PLAY Button

Press to start or resume Disc playback. Details are on page 18.

STOP Button

Press to stop Disc playback.

Details are on page 18.

PAUSE Button

Press to pause Disc playback.

Details are on page 21.

POWER Button

Press to turn the power on and off.

Details are on page 18.

SKIP Buttons

Press to go to subsequent or previous Tracks or Chapters. Details are

on pages 24-25.

SEARCH Buttons

Press for a fast forward or reverse search during playback. Details are on page 22.

Remote Sensor

Receives a signal from your remote control so you can operate your DVD Player from a distance.

STANDBY Indicator

Lit when the power cord is connected to the wall outlet and the DVD player is in standby mode.

Page 15

COMPONENT VIDEO OUT Jacks

Connect an optional component video cable here and to the component Video In jacks of a television or stereo. Details

are on pages 10-12.

Rear Panel 15

DIGITAL AUDIO OUT PCM / BITSTREAM

AUDIO OUT

COAXIAL

OPTICAL

S-VIDEO

OUT

COMPONENT

VIDEO OUT

VIDEO

OUT

R L

AC Power Cord

Connect to a standard AC outlet to supply power to the DVD Player.

COAXIAL Jack

Connect an optional coaxial digital audio cable here and to the Coaxial Digital Audio In jack of a decoder or amplifier.

Details are on pages 11-12.

S-VIDEO OUT Jack

Connect an optional S-Video cable here and to the S-Video In jack of a television. Details

are on pages 9, 11, and 12.

VIDEO OUT Jack

Connect the yellow video cable (supplied) here and to the TV’s Video In jack. Details are on pages

8 and 11-12.

AUDIO OUT Jacks

Connect the supplied audio cables here and to the Audio In jacks of a television or stereo.

Details are on pages 8-10.

OPTICAL Jack

Connect an optional audio optical cable here and to the Optical Digital Audio In jack of a decoder or amplifier. Details are on pages 11-12. When the OPTICAL jack is not in use, make sure its protective cap is in place.

• You only need one audio connection and one video connection, so you will not have a cable connected to every jack. For example, if you are using the S-VIDEO OUT jack, you will not use the yellow VIDEO OUT jack or the COMPONENT VIDEO OUT jacks.

Helpful Hint

Page 16

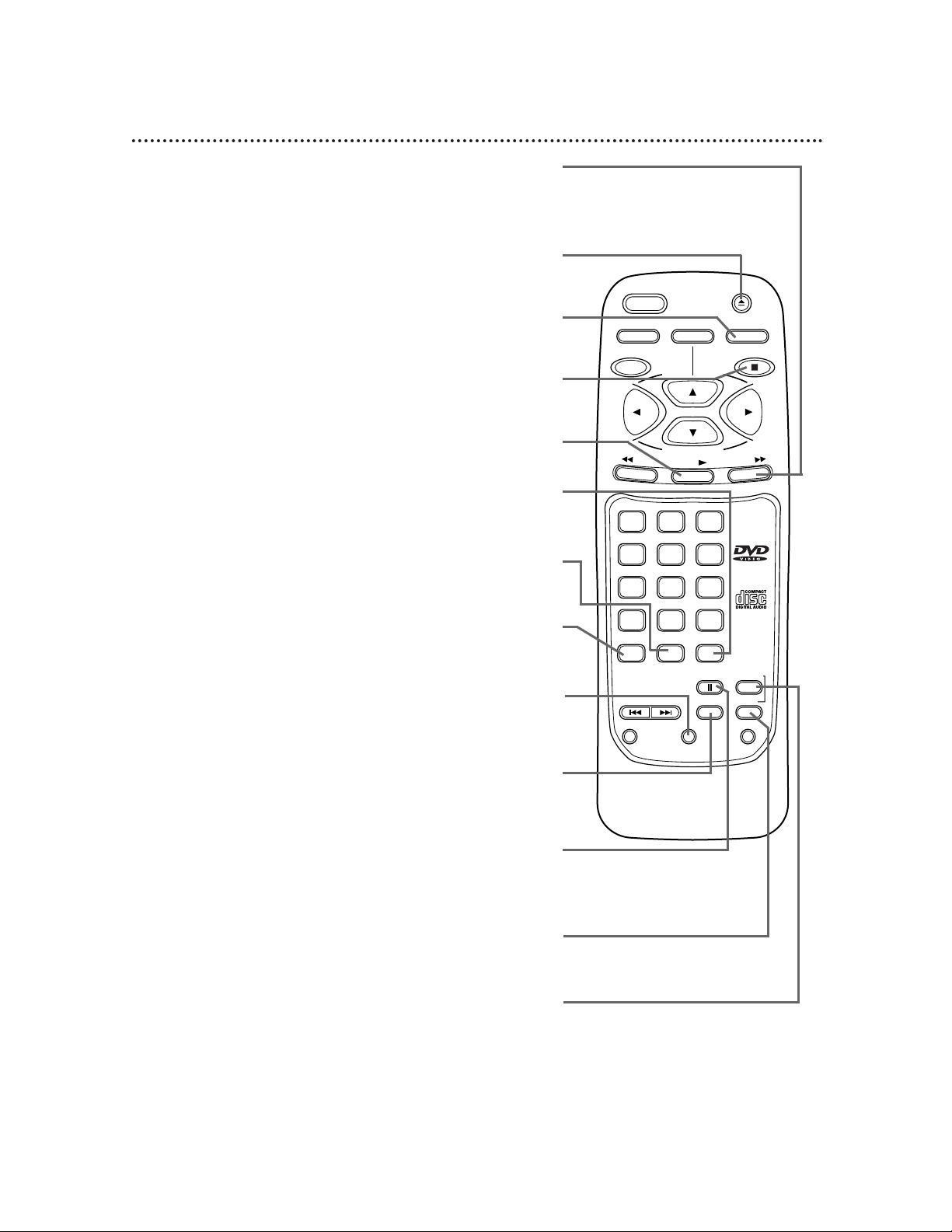

16 Remote Control Buttons

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

POWER Button

Press to turn the power on and off. “HELLO” appears

briefly on the display panel as the DVD Player turns

on. “BYE” appears briefly as the DVD Player turns off.

MENU Button

Press to display the menu of the Disc. Details are on pages 5 and 19.

TITLE Button

Press to display the Title menu of the

Disc, if available. Details are on page 19.

ENTER Button

Press to select a setting in the Player menu or

to select a feature in the Disc menu.

ARROW Buttons

Press to select an item in the DVD Player menu or in the Disc menu.

REV (reverse) h Button

Press to view the picture in fast reverse motion (DVD) or to

reverse playback of an Audio CD. Details are on page 22.

Number Buttons

Press to directly select a Track (Audio CD) or a Chapter or Title

(DVD) for playback. Details are on pages 24-25. For single-digit

Tracks, press a single number button. For example, to play Track

three, press the Number 3 button. For Tracks numbered 10 and

above, press the +10 button as often as needed, then press the

Number button of the second digit. For example, to play Track 12,

press the +10 button, then press the Number 2 button. For Track

22, press the +10 button twice, then press the Number 2 button.

Press to program Tracks (Audio CD) for playback.

Details are on page 29.

CLEAR Button

Press to remove Track numbers from a Program. Details are on

page 29.

SKIP Buttons

Press to skip Chapters or Tracks. Details are on pages 24-25.

AUDIO Button

Press the AUDIO button, then press the o /p buttons to choose

one of the audio languages or sound modes available on the Disc.

Details are on page 31.

ANGLE Button

Press to view the picture from a different angle (if available). Press

the ANGLE button, then press the o /p buttons to choose one

of the available angles. Details are on page 33.

Page 17

Remote Control Buttons (cont’d) 17

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

STOP Button

Press to stop Disc play.

PLAY Button

Press to begin Disc play.

OPEN/CLOSE Button

Press to open or close the Disc tray.

FWD (forward) g Button

Press to fast forward the Disc. Details are on page 22.

Press the PAUSE/STILL button, then press the FWD button to

begin slow motion playback. Press the FWD button repeatedly to

change the forward speed of slow motion. Details are on page 23.

DISPLAY Button

Press to display information about the disc. Details are on page 36.

RETURN Button

Press to return to the previous DVD Player SETUP menu or to

remove the SETUP menu from the TV screen.

SETUP Button

When Disc playback is stopped, press to access or remove the

DVD Player’s SETUP menu. Details are on pages 34-35 and 37-43.

PAUSE/STILL Button

Press to pause Disc playback. Details are on page 20. Press repeat-

edly to advance the DVD picture step by step (or one frame at a

time). Details are on page 21.

REPEAT Button

Press to repeat playback of the current Disc or Track (Audio CD)

or a Title or Chapter (DVD). Details are on page 27.

SUBTITLE Button

During disc playback, press to access the subtitle menu, then press

the o/p buttons to select a language for the subtitles (among

those available) or to turn off the subtitles. Details are on page 32.

SEARCH MODE Button

Press to access or remove the SEARCH menu, which allows you to

go directly to a specific Title/Chapter/Track/Time.

Details are on pages 24-26.

A-B REPEAT Button

Press to set up A-B Repeat Play, which repeatedly plays a specific

segment of a Disc. Details are on page 28.

MODE Button

Press to set up programmed or random playback for an Audio

CD. Details are on pages 29-30.

Page 18

18 Playing a Disc

• A “No Feature” symbol may appear at the bottom right of the TV screen. This symbol means either the feature you tried is not available on the Disc, or the DVD Player can not access the feature at this time. This does not indicate a problem with the DVDPlayer.

• If a Disc is dirty or has scratches, the pictures may appear distorted and playback may stop. In such cases, remove the Disc and turn off the DVD Player. Disconnect the power cord, then reconnect it. Clean the Disc, then turn on the DVD Player again and reinsert the Disc for playback.

• When the DVD or CD light appears on the display panel, the Disc is loaded completely and is ready for playback.

Helpful Hints

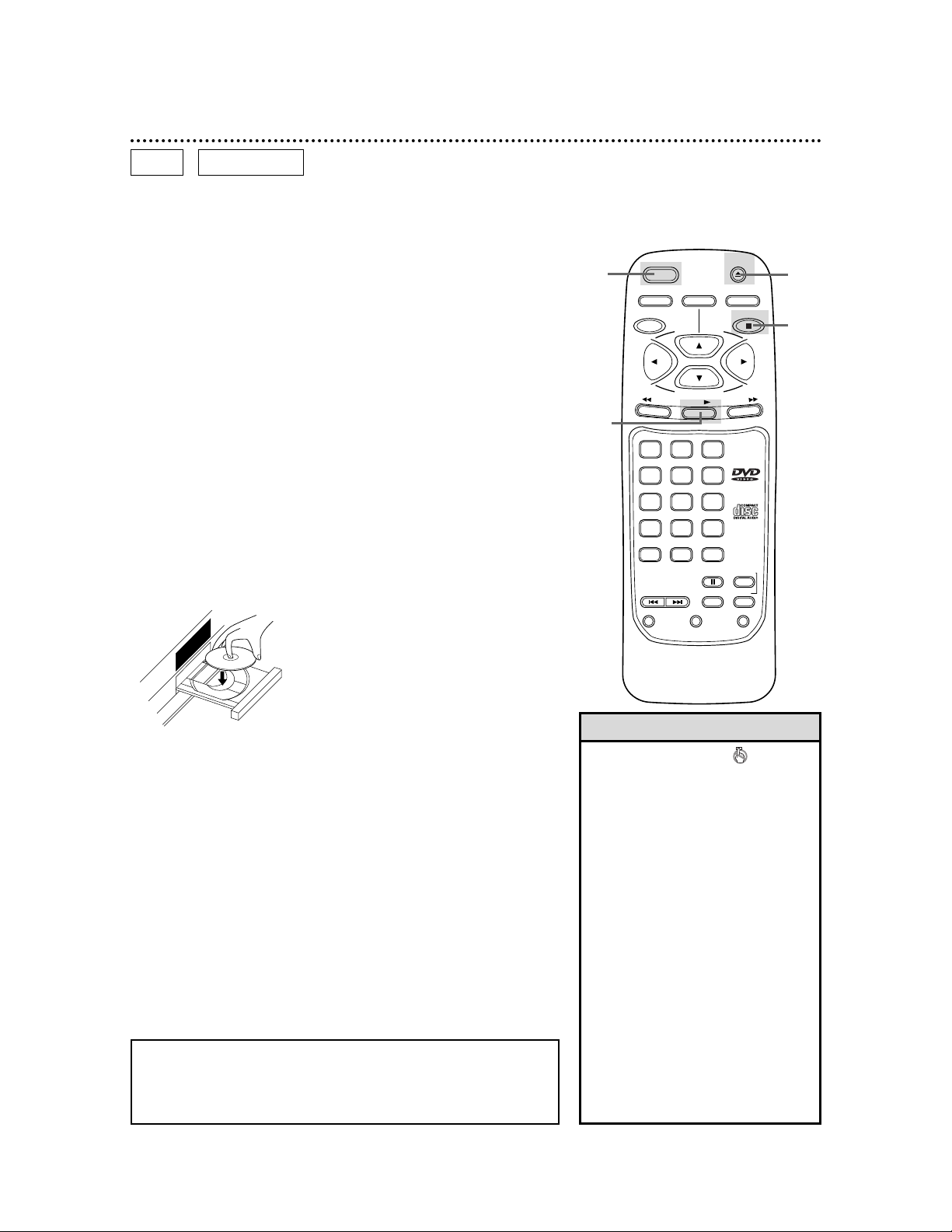

Playing a DVD or an Audio CD

Before you begin...

Turn on the power of the TV, amplifier and any other equipment connected to the DVD Player. Make sure the TV and the stereo or amplifier (if applicable) are set to the correct channel. Details

are on pages 8-12.

Press the OPEN/CLOSE button to open the Disc tray.

Press the POWER button to turn on the DVD Player.

“HELLO” will appear briefly on the display panel.

Place a Disc into the tray. Make sure the Disc is sitting prop-

erly in the correct recess. Some DVDs are recorded on both sides. Make sure the side you want to play is facing up. Or, if the DVD is recorded on only one side, place the Disc in the tray with the label facing up.

Press the PLAY button. The tray will close automatically, and

playback will begin at the first Chapter or Track of the Disc. Or, you may press the OPEN/CLOSE button to close the tray, and DVD playback will start automatically. (You also may close the tray by gently pressing the Disc tray toward the DVD Player.) If the DVD in the tray has a menu, the menu may appear on the screen instead. Details are on page 19. With some Audio CDs, playback will not begin unless you press the PLAY button.

Press the STOP button to stop playback.

DVD

AUDIO CD

Insert a Disc.

Remember, this DVD Player

will play only certain Discs.

See page six for details.

POWER

TITLE

ENTER

REV

PLAY

CLEAR

SETUP MODE DISPLAY

AUDIO SUB TITLE

+10

SKIP

SEARCH MODE

OPEN/ CLOSE

RETURN

FWD

REPEATPAUSE/STILL

ANGLE

STOP

A-B

Page 19

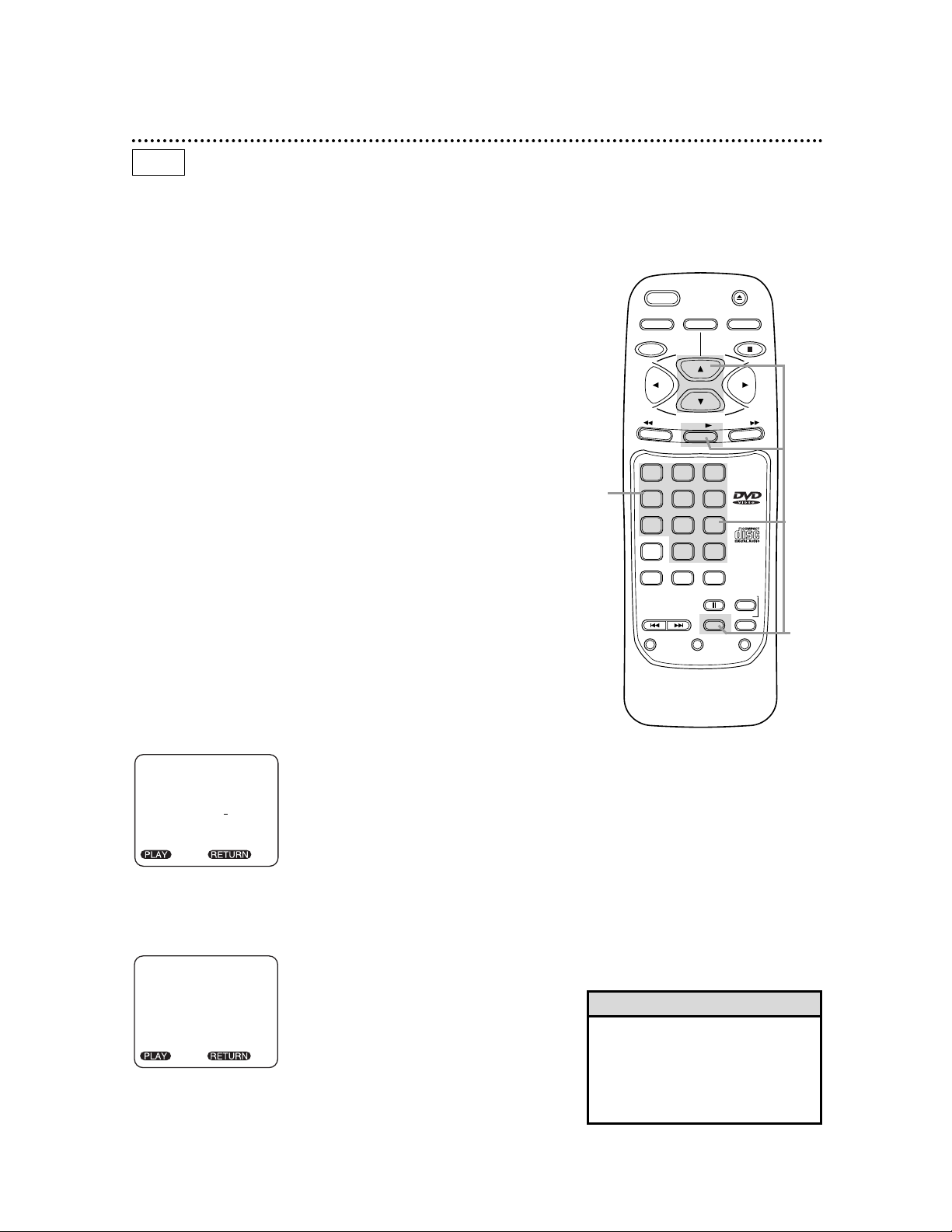

Using the Title Menu

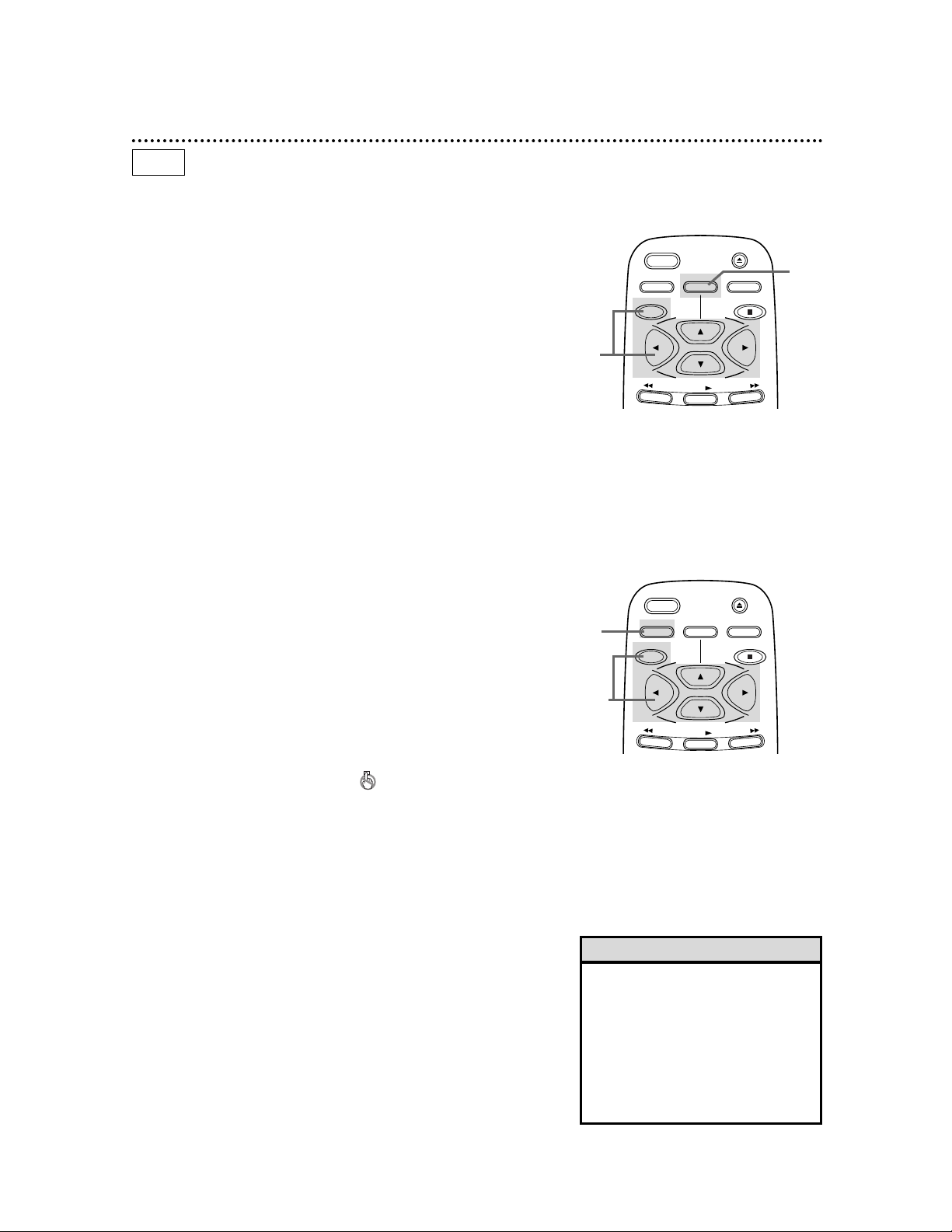

Some DVDs have a Title Menu, which lists the Titles available on the Disc. Use the Title Menu to start playback at a specific Title. Some DVDs may allow you to choose Chapters from the Title menu. For example, if a DVD has 10 Titles and you want to go directly to Title 5, follow these steps.

Press the TITLE button. The Title Menu will appear.

If a Title menu is not available, the symbol will appear on the TV screen. NOTE: If the DVD only has a main menu, the main menu may appear when you press the TITLE button.

Press the arrow buttons (o /p /s /B ) to select the desired Title, then press the ENTER button.

Playback will begin at the Title you selected.

• Menus may vary among Discs. Refer to the information accompanying the Disc for details.

• Not all DVDs have Title menus.

• Some DVDs may refer to Chapters as “scenes.” Some DVDs may refer to the Title Menu as the “scene index.”

Helpful Hints

Disc Menus 19

Press the MENU button. The DVD’s main menu will appear.

Press the arrow buttons (o /p /s /B ) to select an item, then press the ENTER button. Continue this process to set

up all the features you wish to see on the Disc.

Using the DVD Menus

Some DVDs contain menus that describe the contents of the Disc or allow you to customize Disc playback. For example, the menu may offer choices for subtitle languages, director’s commentary, or soundtrack playback. To use the DVD menu and select playback features, follow these steps.

DVD

To access the DVD’s Main Menu...

To access the DVD’s Title Menu...

ENTER

POWER

TITLE

REV

POWER

TITLE

REV

PLAY

OPEN/

RETURN

OPEN/

RETURN

STOP

FWD

STOP

FWD

Page 20

20 Pausing Playback

Pausing Playback

During playback, press the PAUSE/STILL button on the remote control (or press the PAUSE button on the DVD Player). Playback will pause and the sound will be muted.

Press the PLAY button to resume playback.

• Memory On can be erased by pressing the STOP button a second time while playback is stopped. MEMO OFF will appear briefly at the top left corner of the TV screen.

• Memory On is not available with Audio CDs.

• The DVD player will turn itself off automatically after being in Pause mode for 30 minutes. This helps avoid the possible burning of the still image into the TV screen.

• To see the on-screen display messages, such as PLAY, STOP, or PAUSE, set OSD MESSAGE to ON. Details are on page 43.

Helpful Hints

PAUSE

PLAY

Memory On: Resuming playback from the point where playback stopped

Press the STOP button during playback. Playback will stop,

and STOP will appear at the top right corner of the TV screen. In a few seconds, MEMO ON (Memory On) will appear in the top left corner of the TV screen.

STOP

MEMO ON

Press the PLAY button. Playback will resume from the point where playback stopped last.

PLAY

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

PLAY

FWD

REV

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

DVD

AUDIO CD

DVD

Pausing Playback...

Memory On...

ENTER

POWER

TITLE

OPEN/ CLOSE

RETURN

STOP

PLAY

FWD

REV

Page 21

Step by Step Playback 21

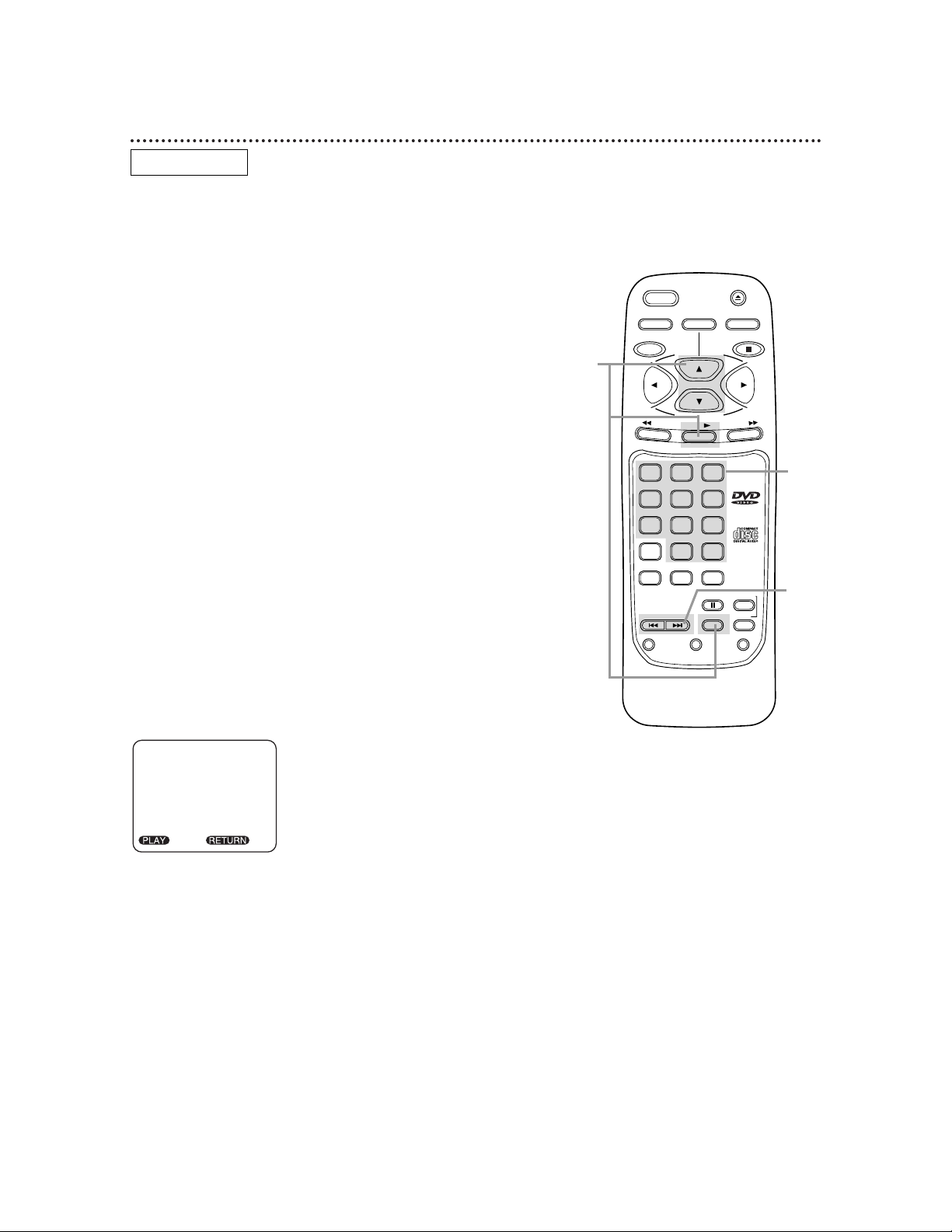

Press the PAUSE/STILL button to pause playback. The

sound will be muted.

Press the PLAY button to resume playback.

PLAY will appear briefly on the screen. (OSD MESSAGE must be set to ON. Details are on page 43.)

Press the PAUSE/STILL button repeatedly to see the picture advance one frame (or step) at a time.

The sound will remain muted. PAUSE will appear briefly on the screen each time you press the PAUSE/STILL button. (OSD MESSAGE must be set to ON. Details are on page 43.)

DVD

1,2

PAUSE

OPEN/

RETURN

STOP

POWER

TITLE

ENTER

PLAY

REV

PLAY

CLEAR

SETUP MODE DISPLAY

AUDIO SUB TITLE

+10

SKIP

SEARCH MODE

FWD

REPEATPAUSE/STILL

A-B

ANGLE

Page 22

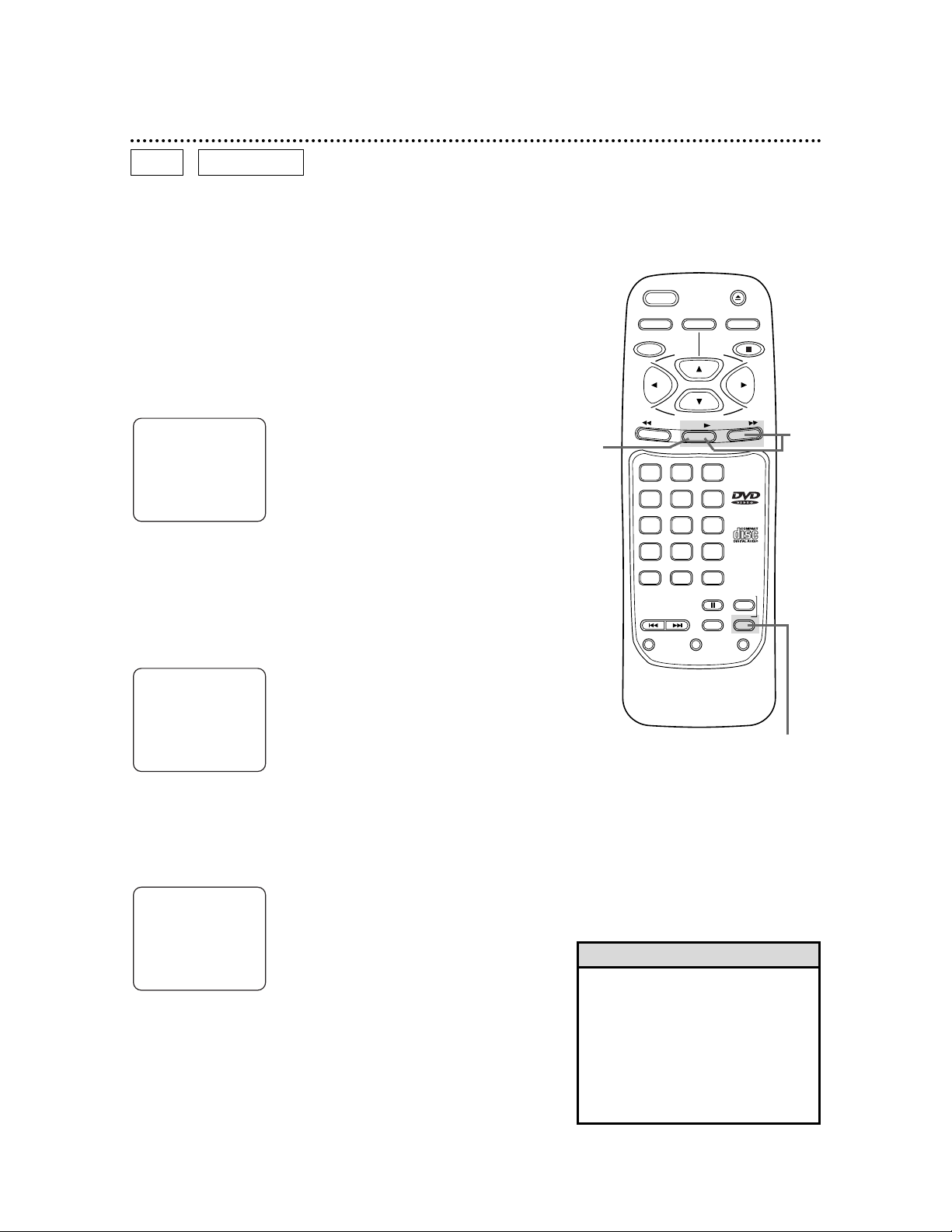

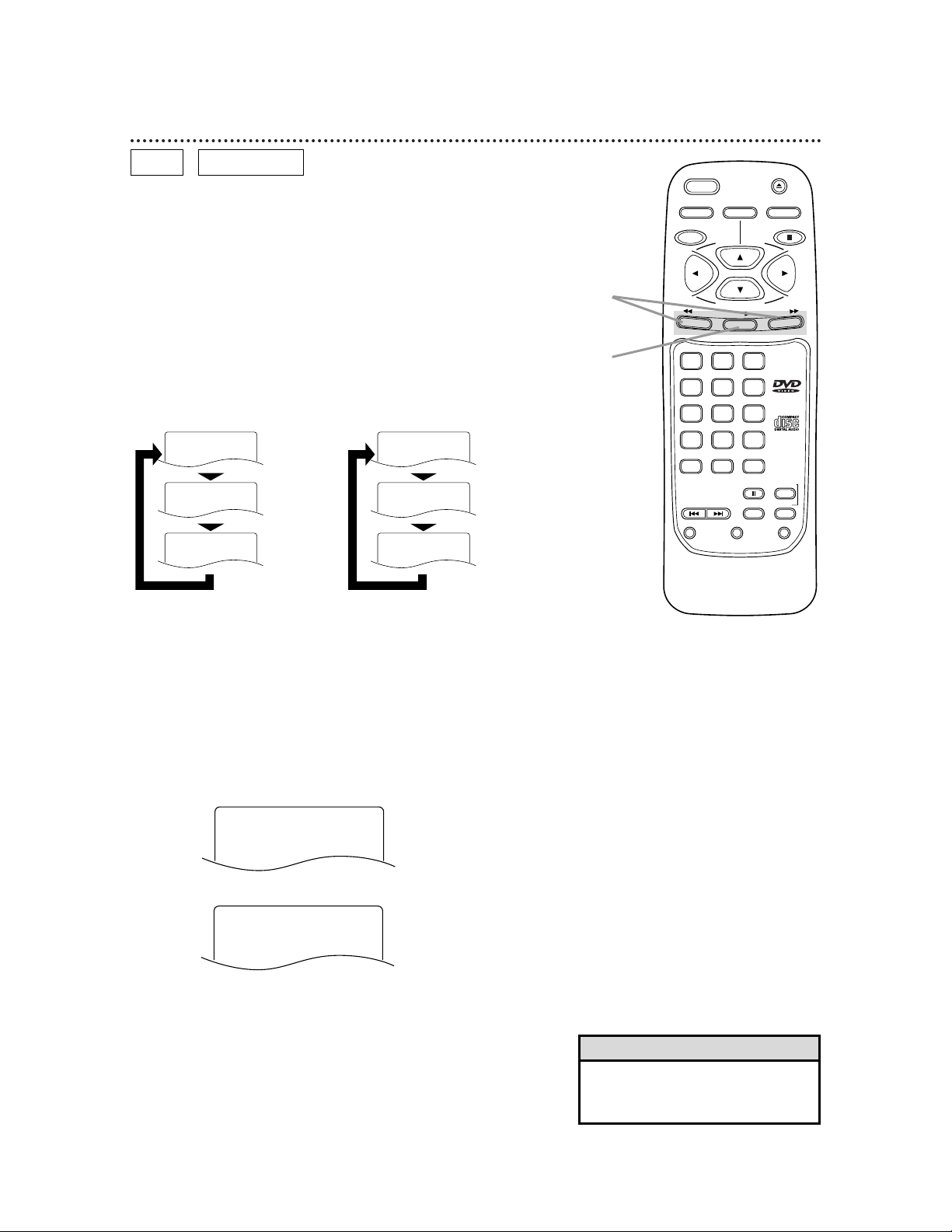

22 Fast Forward/Reverse Search

Press the PLAY button to return to normal playback.

During playback, press the FWDg button or the REVh button on the remote control (or press the SEARCH buttons

on the DVD Player).

● On a DVD, pressing the FWDg or REVh button repeatedly

will forward or reverse the picture at twice, eight times, or 32 times the normal playback speed. Sound will be muted during searching.

● Use the FWD g button for a forward search. Press the

REVh button for a reverse search.

DX8

DX32

DX2

Press the FWD button.

Press the FWD button again.

EX2

EX8

EX32

Press the REV button.

Press the REV button again.

DX16

Press the FWD button during Audio CD playback.

EX16

Press the REV button during Audio CD playback.

DVD

AUDIO CD

1 2

● On an Audio CD, you may search forward or backward at 16

times the normal playback speed (hX16 or gX16). Pressing the FWD g or REVh button repeatedly will not affect the

speed of the search. Sound will be intermittent during searching on an Audio CD.

● Use the FWD g button for a forward search. Press the

REVh button for a reverse search.

• To see the search speed on the screen, OSD MESSAGE must be set to ON. Details are on page 43.

Helpful Hint

POWER

TITLE

ENTER

REV

PLAY

CLEAR

SETUP MODE DISPLAY

SKIP

AUDIO SUB TITLE

+10

SEARCH MODE

OPEN/ CLOSE

RETURN

STOP

FWD

REPEATPAUSE/STILL

A-B

ANGLE

Page 23

Press the PLAY button to return to normal playback.

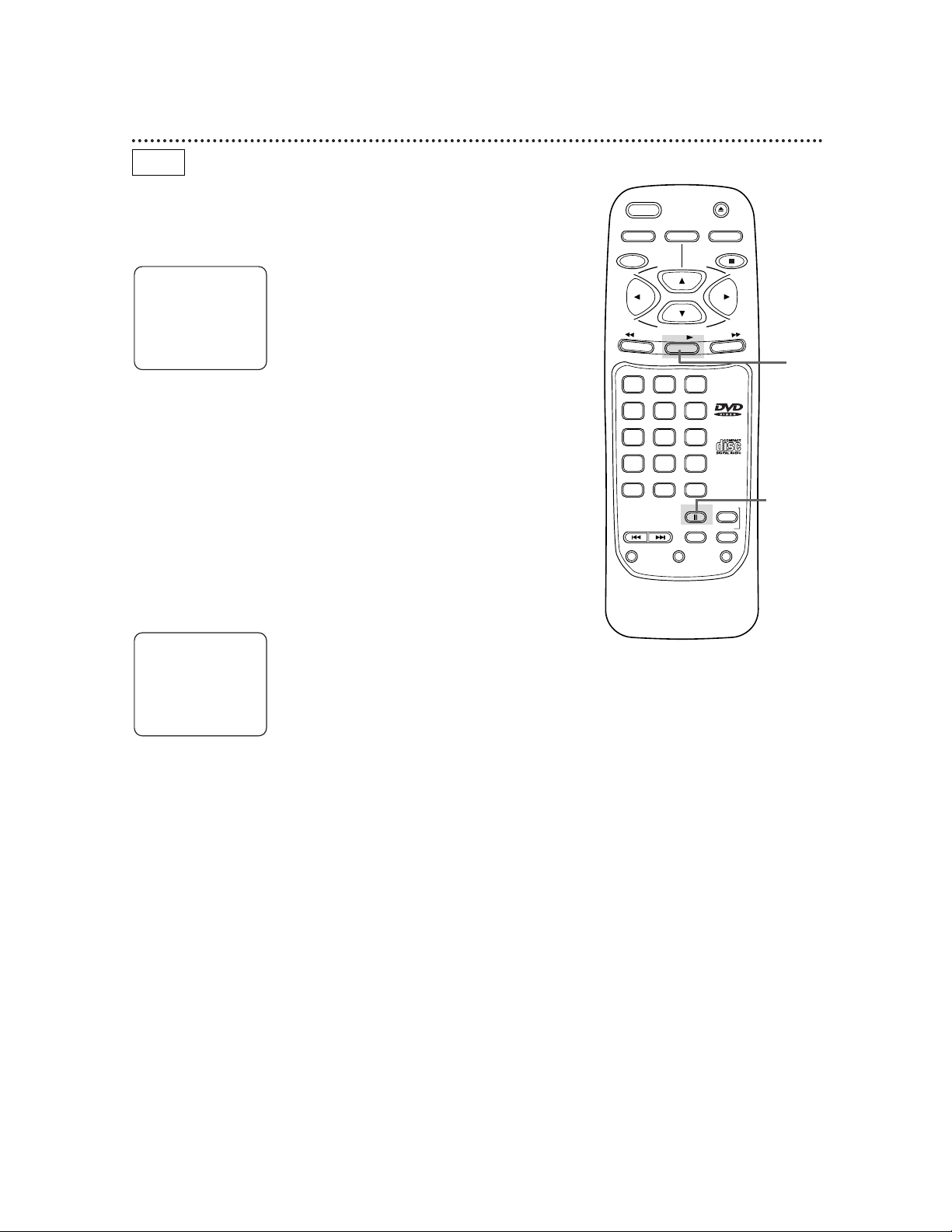

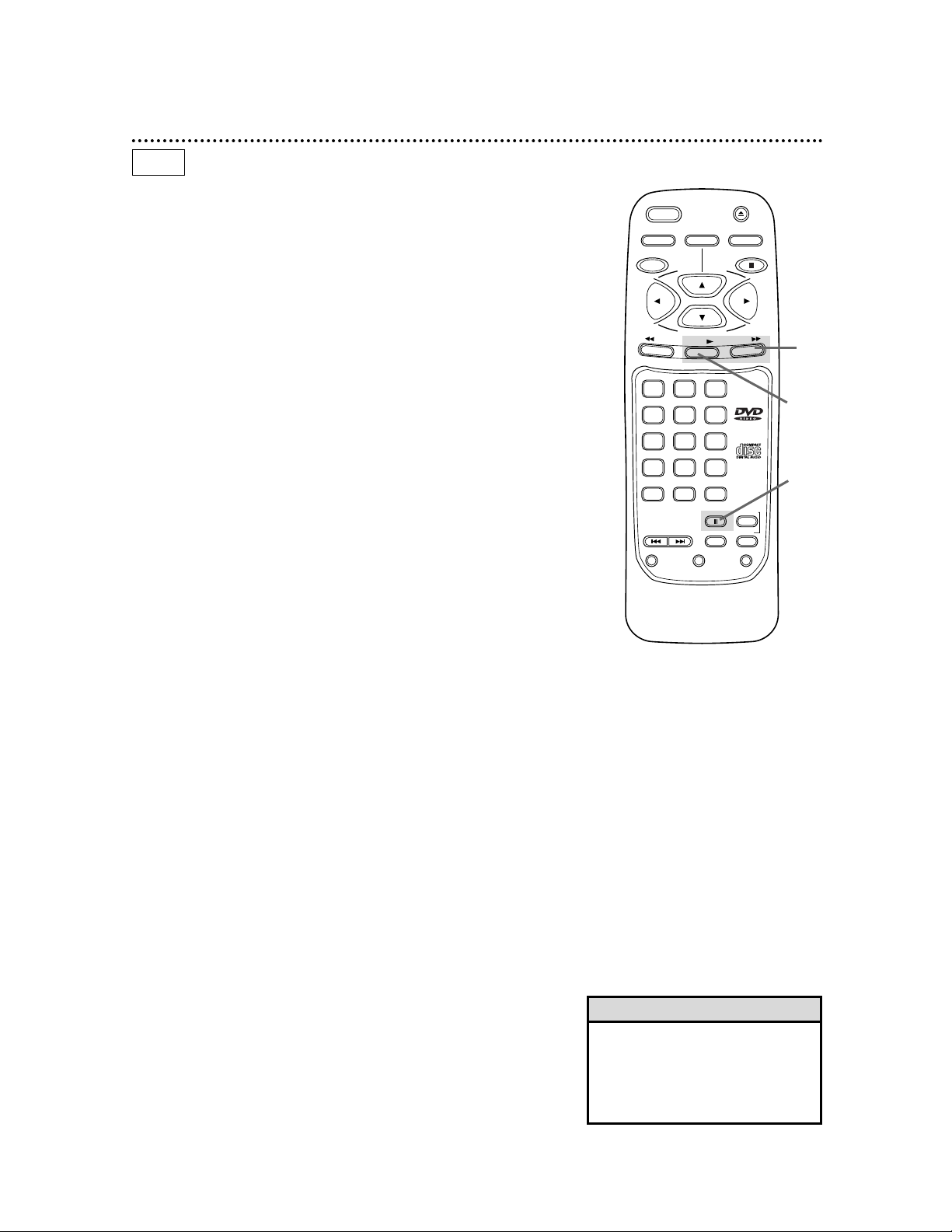

Press the FWD button. Slow motion playback will begin.

Press the FWD button repeatedly during slow motion playback to vary the speed of slow motion playback. You may play the DVD at 1/16, 1/8, or 1/2 the normal playback speed.

Press the PAUSE/STILL button during playback.

• The sound will be muted when playback is paused and during slow motion playback.

• You can not play the DVD in reverse slow motion.

Helpful Hints

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

DVD

Slow Motion 23

Page 24

24 Track Playback

Starting Playback at a Specific Track

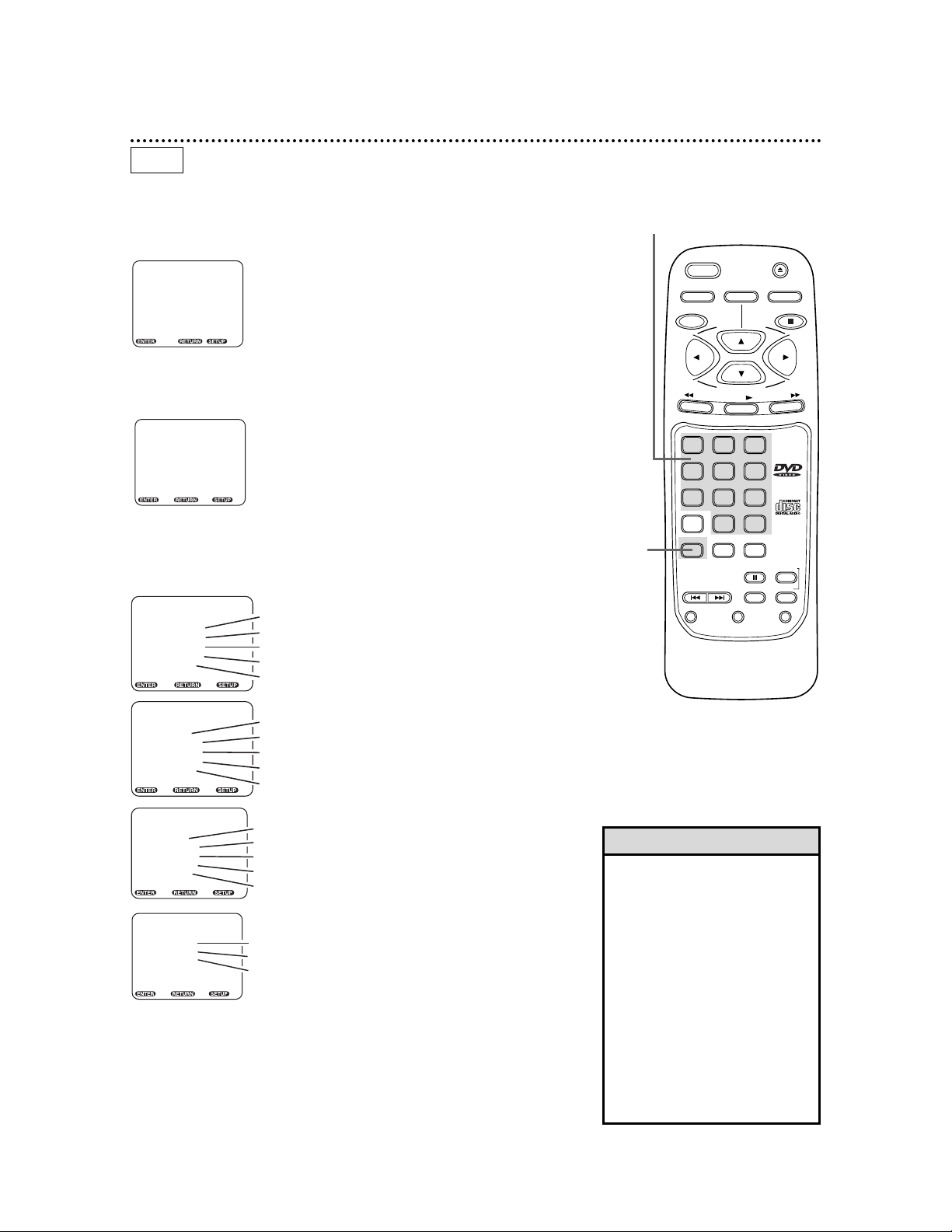

There are three ways to begin playback on an Audio CD at a specific Track. You may use the Number buttons, the SEARCH MODE button, or the SKIP H G buttons. For details, read the information below.

Using the SEARCH MODE Button to Select a Track Press the SEARCH MODE button once, then press the oo/

buttons to select the Track number you desire. Finally, press the PLAY button to begin playback at the selected Track.

If you press the SEARCH MODE button once during playback, the current Track number will be displayed inside the brackets.

Using the Number Buttons to Select a Track Press the Number buttons to enter the desired Track number. The selected Track will be located, and playback will start. You

may select a Track with the Number buttons during playback or when playback is stopped. For single-digit Tracks, press a single Number button. For example, to play Track three, press the Number 3 button. For Tracks numbered 10 and above, press the +10 button (repeatedly, if necessary), then press the Number button of the second digit. For example, to play Track 12, press the +10 button, then press the Number 2 button. For Track 22, press the +10 button twice, then press the Number 2 button. If you enter a Track number that is not available on the Disc, playback will not begin (or the current Track will continue to play).

SEARCH/TRACK

TOTAL TRACKS: 07

TRACK: [ _ ]

Start Exit

Using the SKIPH G Buttons to Select a Track Press the SKIP GGbutton during playback to skip the current Track and move to the next Track. Press the SKIP

button repeatedly to skip subsequent Tracks. The Track number will appear briefly on the TV screen.

Press the SKIP

button during playback to return to the

beginning of the current Track. Press the SKIP

button

repeatedly to go to previous Tracks. The Track number will

appear briefly on the TV screen. If you press a SKIP button when playback is paused, you must press the PLAY button to resume playback. If you press a SKIP button when playback is stopped, the selected Track will begin playing automatically.

AUDIO CD

POWER

TITLE

ENTER

REV

PLAY

CLEAR

SETUP MODE DISPLAY

AUDIO SUB TITLE

+10

SKIP

SEARCH MODE

OPEN/

RETURN

STOP

FWD

REPEATPAUSE/STILL

A-B

ANGLE

Page 25

Title/Chapter Playback 25

DVD

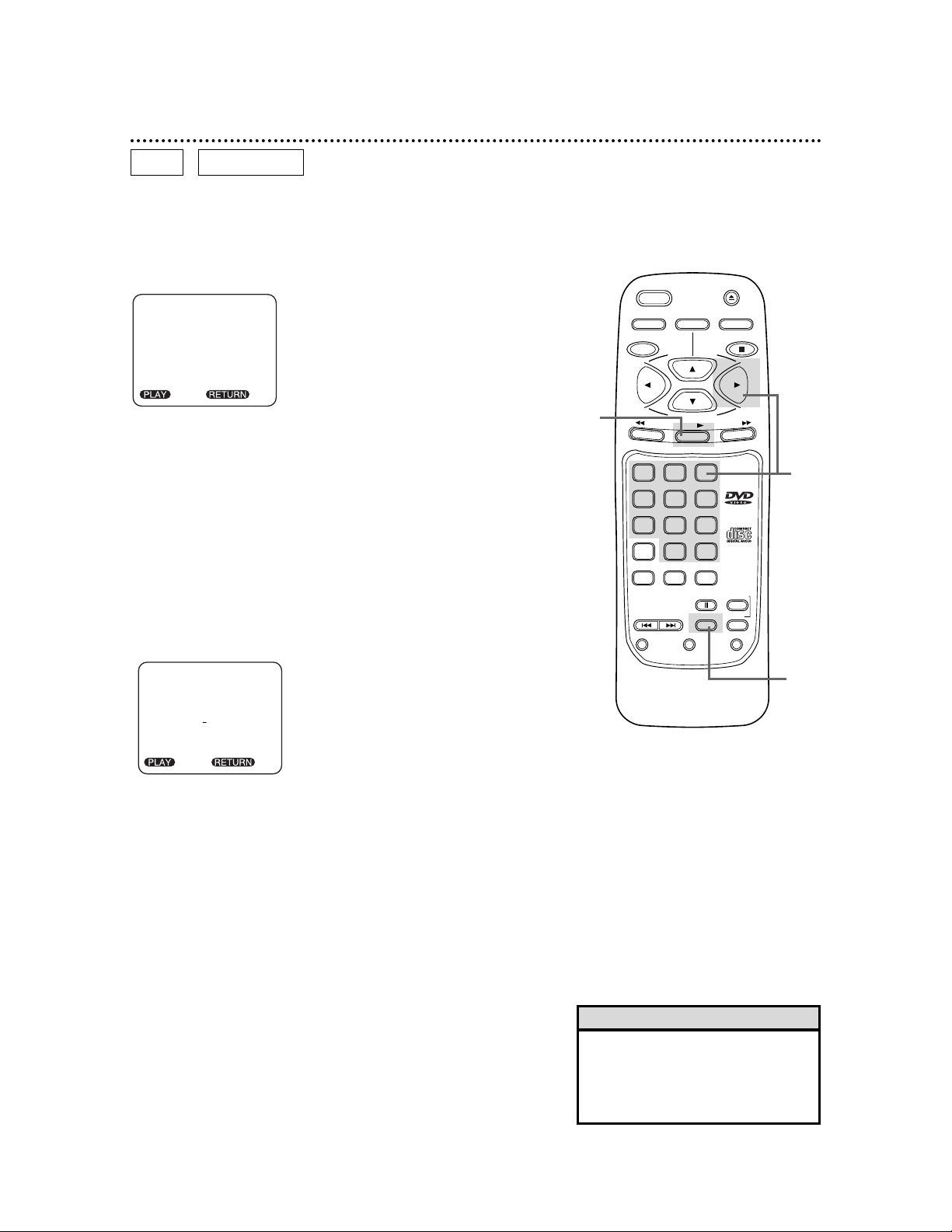

Starting Playback at a Specific Title/Chapter

There are two ways to begin DVD playback at a specific Title or Chapter. You may use the Number buttons or the SEARCH MODE button.

Using the Number Buttons to Select a Title/Chapter During playback, press the Number buttons to select a Chapter. The Chapter will be located and playback will start. When playback is stopped, press the Number buttons to select a Title. The Title will be located and playback will begin.

For single-digit Chapters or Titles, press a single Number button. For example, to play Chapter three, press the Number 3 button during playback. To play Title two, press the Number 2 button while playback is stopped. For Chapters/Titles numbered 10 and above, press the +10 button (repeatedly, if necessary), then press the Number button of the second digit. For example, to play Chapter 12, press the +10 button, then press the Number 2 button during playback. For Title 22, press the +10 button twice, then press the Number 2 button when playback is stopped.

Using the SEARCH MODE Button to Select a Title/Chapter To start playback at a specific Chapter, press the SEARCH MODE button once, then press the Number buttons or the

oo/pp

buttons to enter the Chapter number. Press the

PLAY button to begin playback at the selected Chapter.

SEARCH/TITLE

TOTAL TITLES: 07

TITLE: [ _ ]

Start Exit

SEARCH/CHAPTER

TOTAL CHAPTERS: 027

CHAPTER: [ 15]

Start Exit

To start playback at a specific Title, press the SEARCH MODE button twice, then press the Number buttons or the oo/ppbuttons to enter the Title number. Press the PLAY button to begin playback at the selected Title.

• During DVD playback, press the SKIP buttons to go to the next chapter, return to the beginning of the current chapter, or go to a previous chapter.

Helpful Hint

OPEN/

PLAY

SEARCH MODE

RETURN

STOP

FWD

+10

REPEATPAUSE/STILL

A-B

ANGLE

POWER

TITLE

ENTER

REV

CLEAR

SETUP MODE DISPLAY

SKIP

AUDIO SUB TITLE

Page 26

Press the SEARCH MODE button repeatedly (three times

for DVDs or two times for Audio CDs).

Use the Number buttons to enter the Disc time at which you want playback to begin.

● Example: 1 hour, 23 minutes and 30 seconds

1 → +10 → +10 → 3 → +10 → +10 → +10 → 0

● To enter zero, press the Number 0 (zero) button or press the

B button.

● Make sure the time you enter is within the total time of the

Disc. If it is not, you will have to enter a different time.

● If you make a mistake, press the B button repeatedly until you

reach the item you need to correct (hour, minute, or second), then enter the correct information.

Within 30 seconds, press the PLAY button. Playback will start at the time that you specified.

Starting Playback at a Specific Disc Time

SEARCH/TIME

TOTAL TIME: 1h23m45s

TIME [ _h_ _m_ _s ]

Exit

Start

SEARCH/TIME

TOTAL TIME: 1h23m45s

TIME [1h05m30s]

Start Exit

26 Specific Time Playback

DVD

AUDIO CD

• Specific time playback is not available with some discs or if MEMORY OFF is activated for a DVD. Details are on page 20.

Helpful Hint

POWER

TITLE

ENTER

REV

PLAY

CLEAR

SETUP MODE DISPLAY

SKIP

AUDIO SUB TITLE

+10

SEARCH MODE

OPEN/

RETURN

FWD

REPEATPAUSE/STILL

ANGLE

STOP

A-B

Page 27

Repeat Playback 27

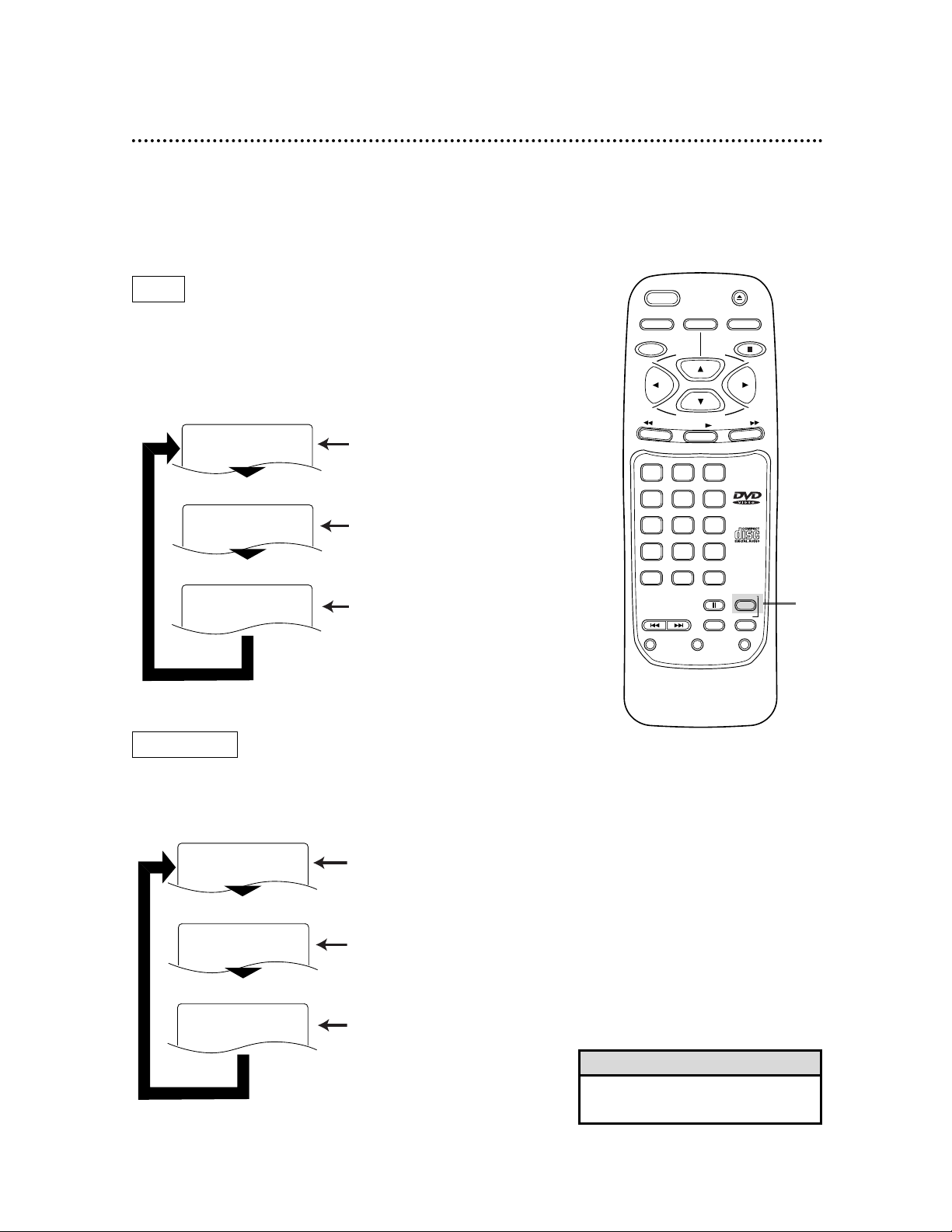

● Repeatedly pressing the REPEAT button during playback lets

you choose REPEAT CHAPTER, REPEAT TITLE, or REPEAT OFF.

● If a Chapter is playing repeatedly, then you press the Number

buttons to select a new Chapter, the new Chapter will play repeatedly.

Press the REPEAT button repeatedly until the repeat mode you want appears in the top left corner of the TV screen.

REPEAT

[CHAPTER]

REPEAT

[OFF]

REPEAT

[TITLE]

● Repeatedly pressing the REPEAT button during playback lets

you choose REPEAT TRACK, REPEAT ALL and REPEAT OFF.

● If a Track is playing repeatedly, then you press the Number but-

tons to select a new Track, the new Track will play repeatedly.

REPEAT

[TRACK]

REPEAT

[OFF]

REPEAT

[ALL]

DVD

Press the REPEAT button to select REPEAT TRACK. The current Track plays over and over.

Press the REPEAT button to select REPEAT CHAPTER. The current Chapter plays over and over.

Press the REPEAT button again to select REPEAT ALL. The entire Audio CD plays over and over.

Press the REPEAT button again to select REPEAT TITLE. The entire Title plays over and over.

Press the REPEAT button again to select REPEAT OFF. Regular playback will resume.

AUDIO CD

• Repeat playback is not available with some discs.

Helpful Hint

OPEN/

PLAY

SEARCH MODE

RETURN

STOP

FWD

+10

REPEATPAUSE/STILL

A-B

ANGLE

POWER

TITLE

ENTER

REV

CLEAR

SETUP MODE DISPLAY

SKIP

AUDIO SUB TITLE

Page 28

28 A-B Repeat Playback

• A-B Repeat playback is not available with some DVDs.

• With DVDs, the entire A-B repeat section must be within a single Title.

• With Audio CDs, the A-B repeat section can contain multiple Tracks.

• Point B must be later on the Disc than Point A.

Helpful Hints

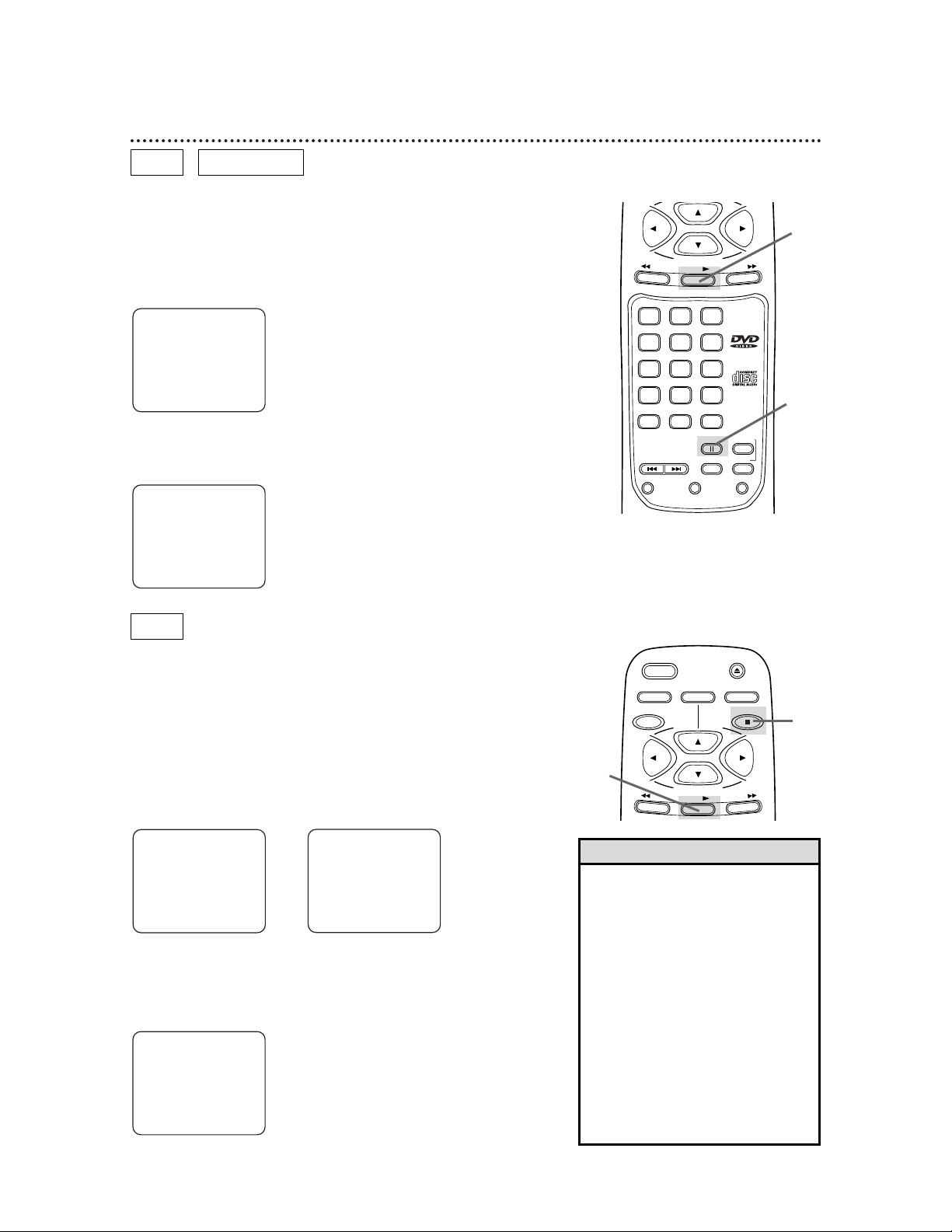

You can play a section of an Audio CD or DVDrepeatedly. Follow these steps to set up the section that you want to play over and over.

Play the Disc to the point at which you want repeated playback to begin.

REPEAT [ A - ]

Press the A-B REPEAT button to set the starting point (A).

Play or fast forward the Disc to the point at which you want repeated playback to end, then press the A-B REPEAT button again.

The section will begin to play immediately, playing over and over until you cancel the A-B Repeat feature.

REPEAT [ A - B ]

To cancel the A-B Repeat feature, press the A-B REPEAT button so that REPEAT [OFF] appears on the TV screen.

Regular Disc playback will resume.

REPEAT [ OFF ]

2-4

DVD

AUDIO CD

POWER

TITLE

ENTER

REV

PLAY

CLEAR

SETUP MODE DISPLAY

AUDIO SUB TITLE

+10

SKIP

SEARCH MODE

OPEN/

RETURN

FWD

REPEATPAUSE/STILL

ANGLE

STOP

A-B

Page 29

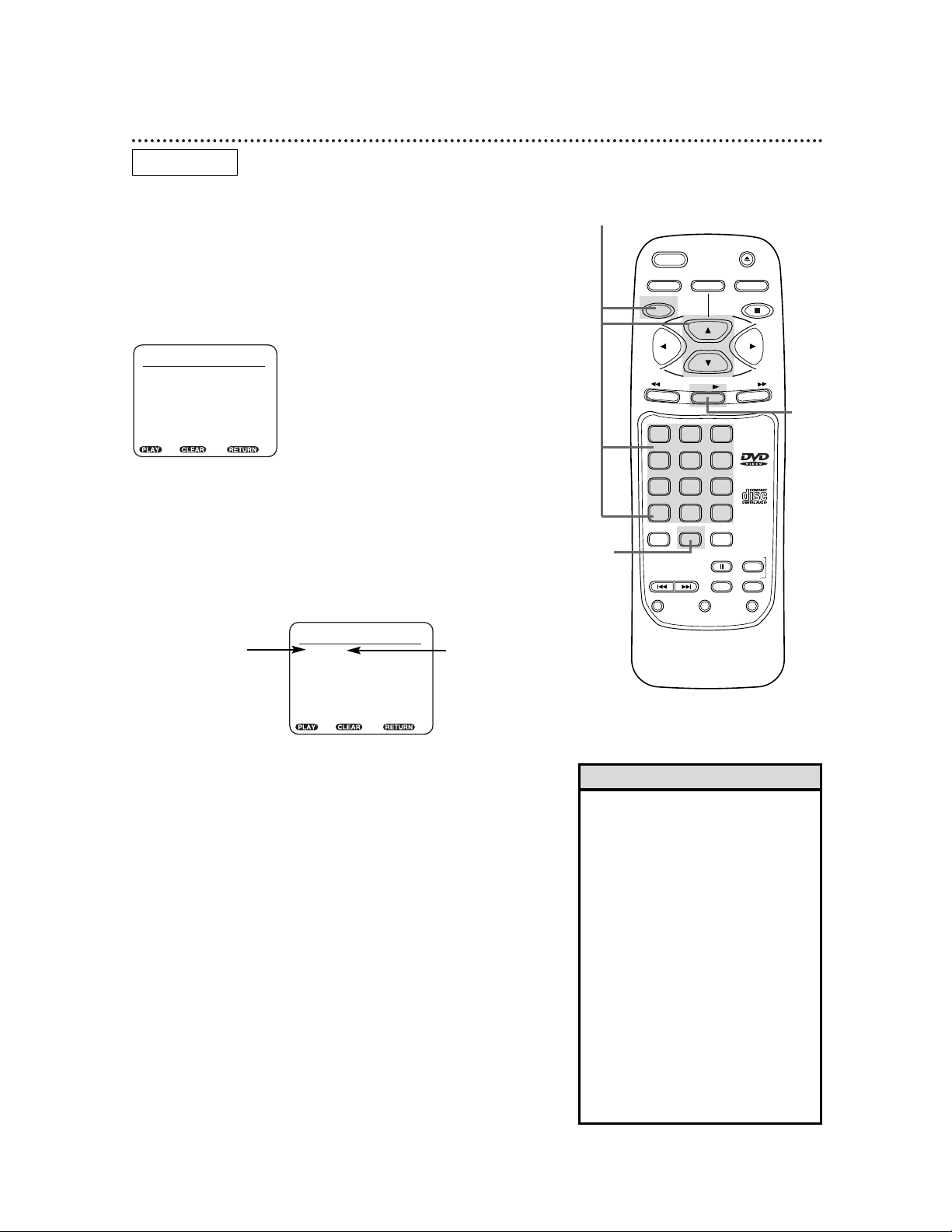

Programmed Playback 29

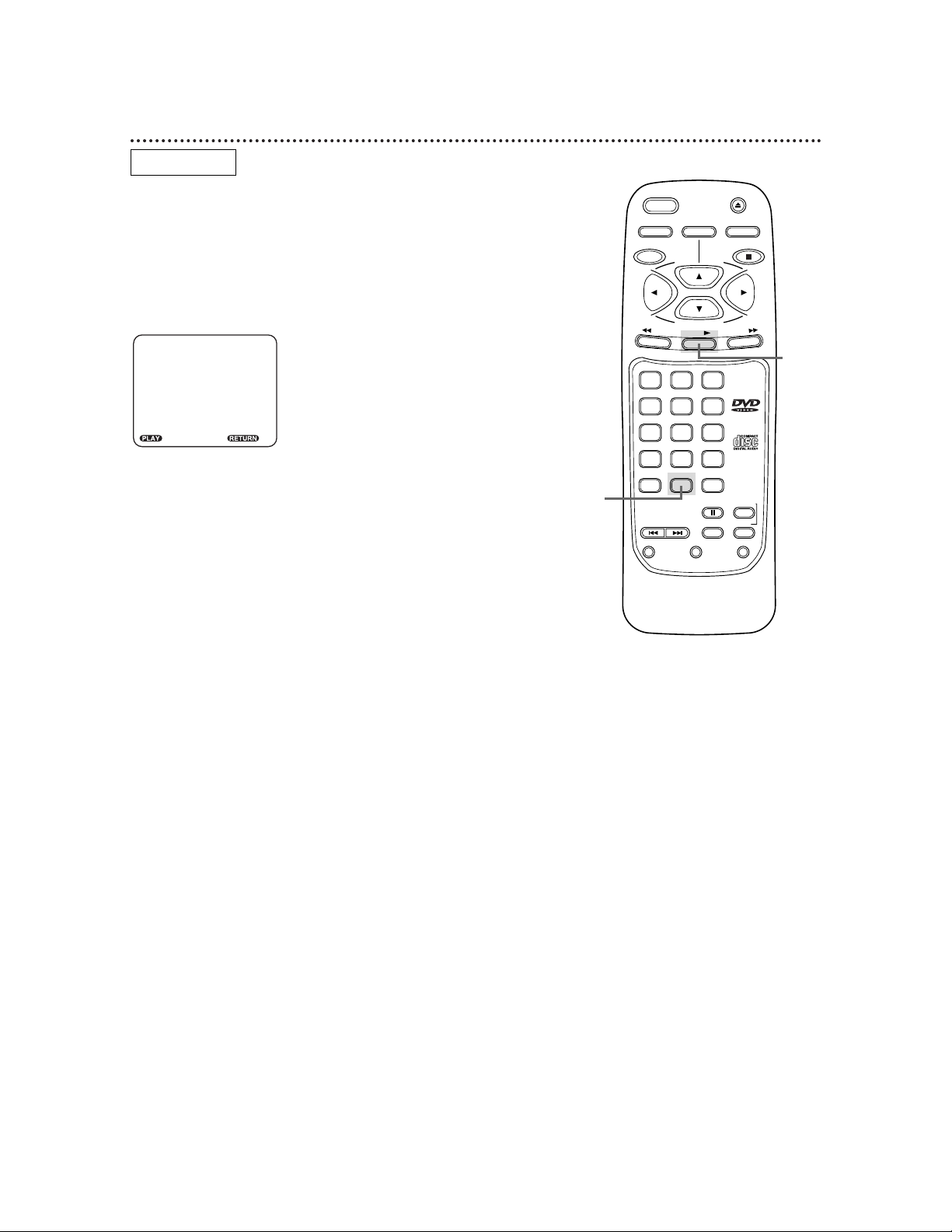

You may determine the order in which Tracks will play. The order that you set is called the Program. To set up programmed playback, follow these steps.

While playback is stopped, press the MODE button. The

program screen will appear.

PROGRAM T [_ _] / 14 TOTAL 0h00m00s

Start, Delete Exit

Press the Number buttons or the o/p buttons to enter the number of the first Track that you want to play. Then, press the ENTER button to store the selected Track in the Program.

● If you enter a wrong Track number, press the CLEAR button.

The last Track in the Program will be removed.

Repeat step 2 until you have selected all the Tracks you wish to play in the Program.

● Up to 20 Tracks may be stored in the Program.

● Make sure the Track numbers you enter are available on the

Audio CD. If it is not, you will have to enter a different track.

PROGRAM T [_ _] / 14 TOTAL 0h07m46s

01: 12

Start, Delete Exit

Press the PLAY button. The Tracks will play in the order in

which you programmed them. The Program will play once.

● The contents of the program will be stored until you turn off

the DVD Player or open the Disc tray.

• Specific Track and random playback cannot be combined with programmed playback. During programmed playback, the MODE and SEARCH MODE buttons will not operate.

• You may play a Program repeatedly. During programmed playback, press the REPEAT button so that REPEAT [ON] appears. The program will play over and over.

• To see which Tracks you stored in the Program, press the STOP button to stop playback, then press the MODE button so that the PROGRAM screen appears.

• Programmed playback can only be started from the program screen.

Helpful Hints

2-3

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

AUDIO CD

position in program

track number

Page 30

30 Random Playback

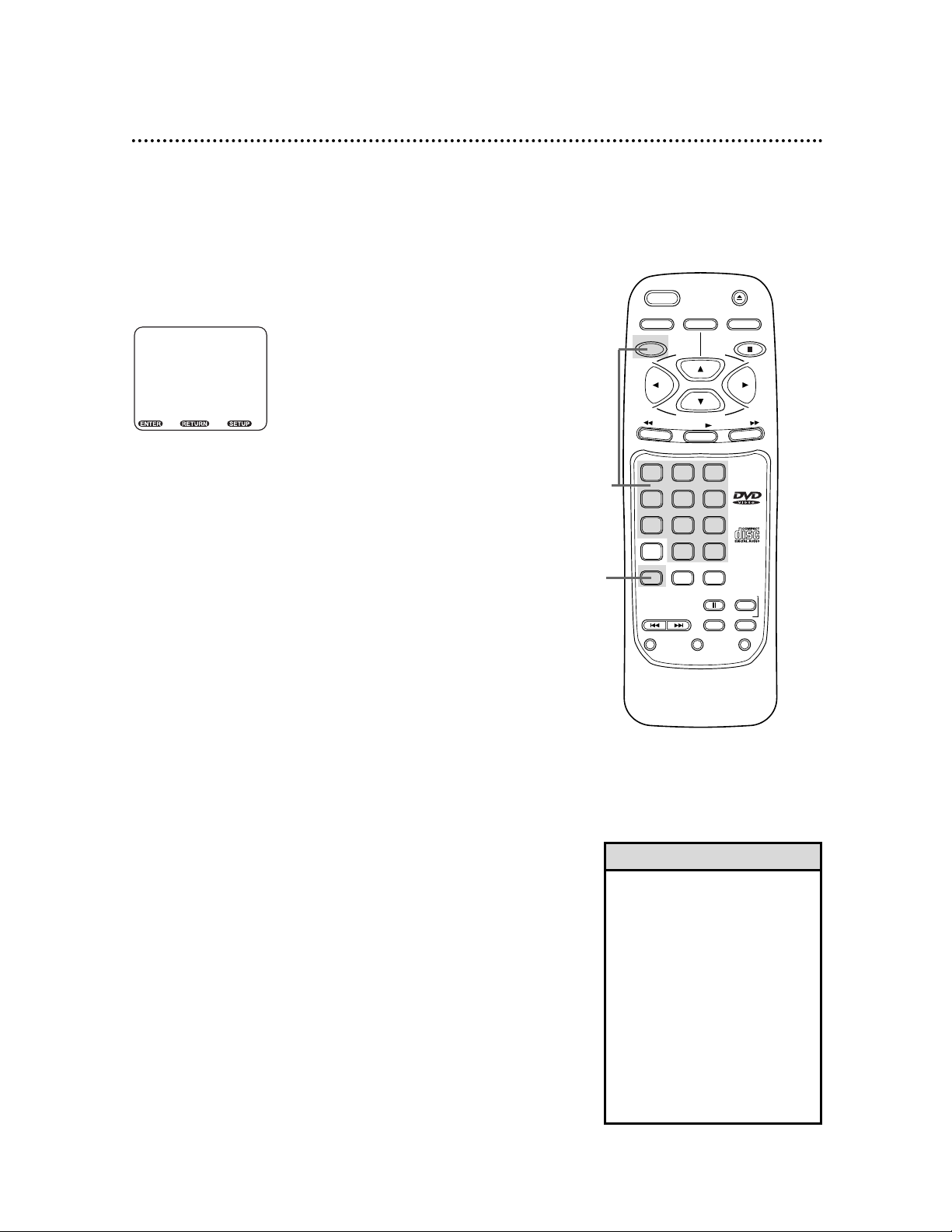

You may play the Tracks of an Audio CD in Random order instead of the order in which they are recorded (1,2,3...). To set up Random Playback, follow these steps.

While playback is stopped, press the MODE button repeatedly so that the RANDOM screen appears.

RANDOM

Start Exit

While the RANDOM screen appears, press the PLAY button. The Tracks will play in random order. After all the Tracks on

the disc have played once, playback will stop.

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

AUDIO CD

Page 31

Audio Language/Sound Mode 31

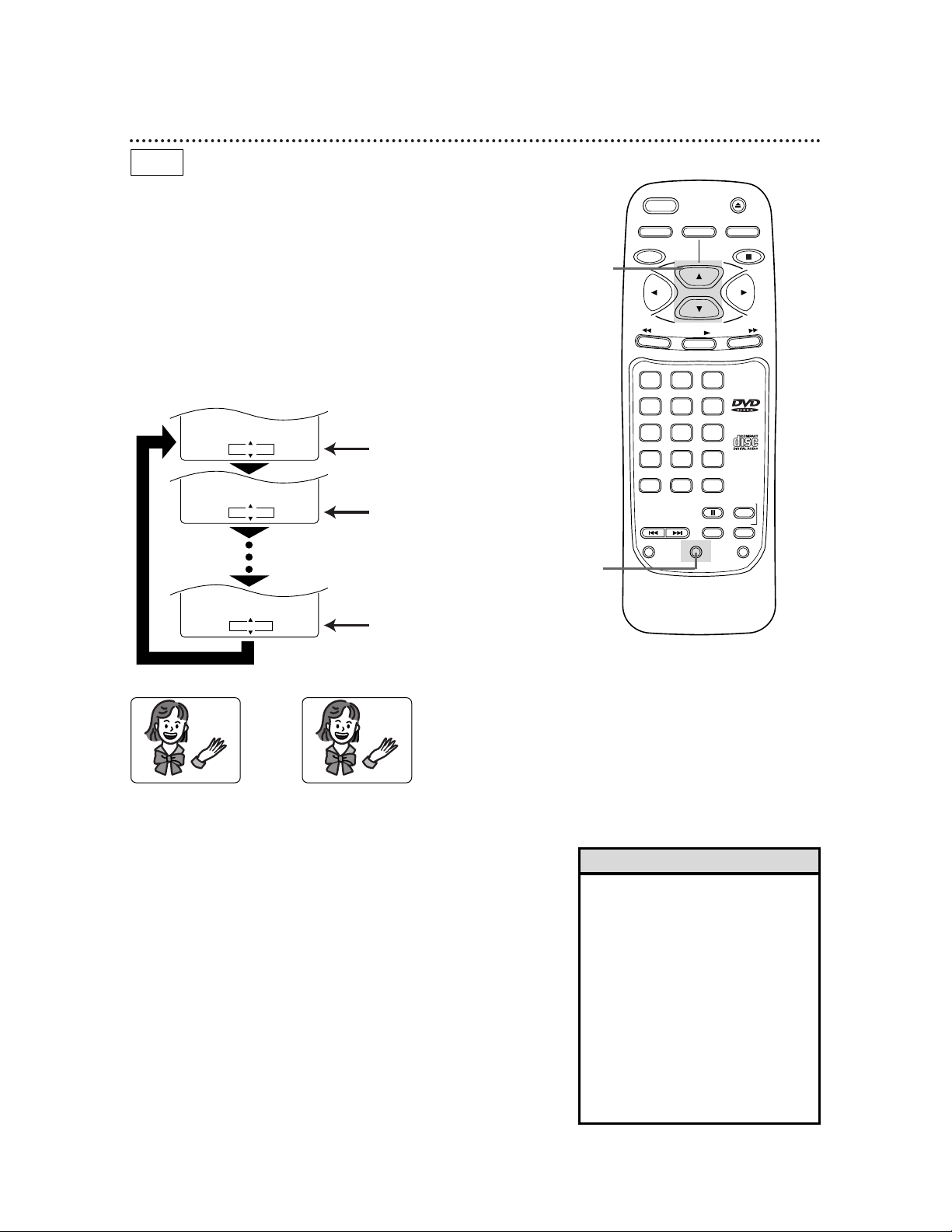

• If a desired language is not shown after pressing the o/pbuttons several times, the DVD does not have that language.

• The display will disappear after about 15 seconds.

• Some DVDs only allow you to change the language in the Disc menu.

• When you use the DIGITAL AUDIO OUT COAXIAL jack, the sound mode of audio CDs cannot be changed.

Helpful Hints

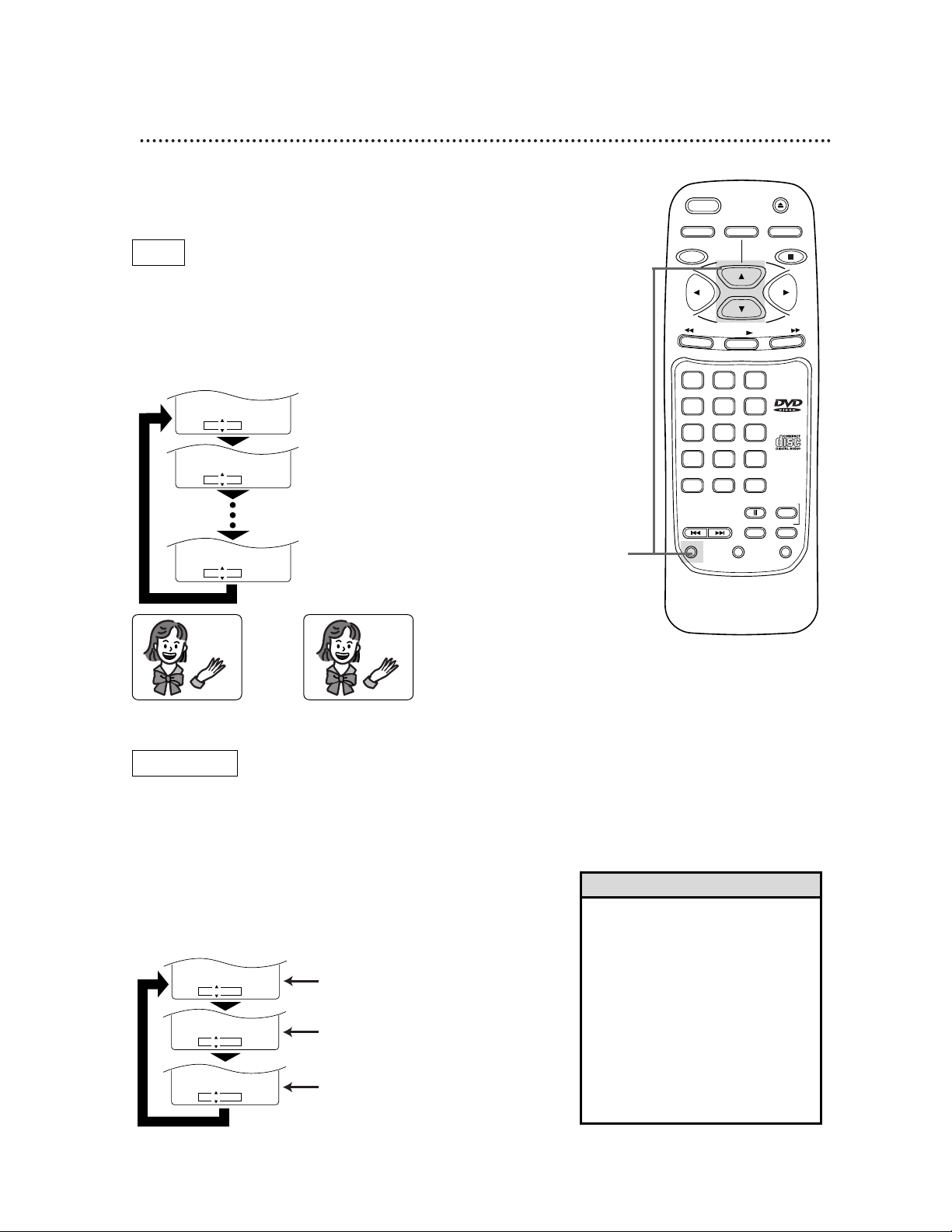

The DVD Player allows you to select a Language for DVDs or a Sound Mode for Audio CDs.

Press the AUDIO button during playback, then press the o/p buttons to select the desired language.

● The language can be changed only if multiple languages are avail-

able on the DVD.

Press the AUDIO button during playback, then press the o/p buttons until the sound mode you want appears.

● When producers record an Audio CD, they record the sound

on two channels - the left and the right. You can choose to hear the sound on the left channel, the sound on the right channel, or the sound on both channels (Stereo). You will select L-CH, R-CH, or STEREO.

HELLO

BONJOUR

➜

•••

AUDIO 1 AUDIO 2

Only the right channel is active.

AUDIO R -

C H

Only the left channel is active.

AUDIO L - C H

Both right and left channels are active (stereo).

AUDIO S T

E R E O

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

DVD

AUDIO CD

Language

Sound Mode

Press the o/p buttons.

Press the o/p buttons again.

AUDIO 1 : E N G / 8

AUDIO 2 :

F R E / 8

AUDIO 8 :

J P N /

Page 32

32 Subtitle Language

• With some DVDs, you may select a subtitle language in the Disc menu.

• If the desired language is not shown after pressing the o/pbuttons several times, the Disc does not have subtitles in that language.

• The subtitles may be delayed for a few seconds.

• Your subtitle selection will be cancelled if you open the Disc tray or turn off the power. The default setting of the DVD will be selected again.

Helpful Hints

The DVD Player allows you to select a language for subtitles.

Press the SUBTITLE button during playback. The subtitle

menu will appear on the TV screen.

Within 15 seconds, press the o/p buttons to select a subtitle language. Select a language from those available on the

DVD.

The subtitle menu will disappear after about 15 seconds.

HELLO

BONJOUR

➜

•••

SUBTITLE 1 SUBTITLE 2

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

DVD

SUBTITLE 1 :

E N G /

Press the o/p buttons.

Press the o/p buttons to select another language. Subtitle 2

To turn off subtitles, press the o/p buttons repeatedly until OFF appears in the subtitle menu. No subtitles

SUBTITLE 2 :

SUBTITLE 0:O F F

F R E / 8

Page 33

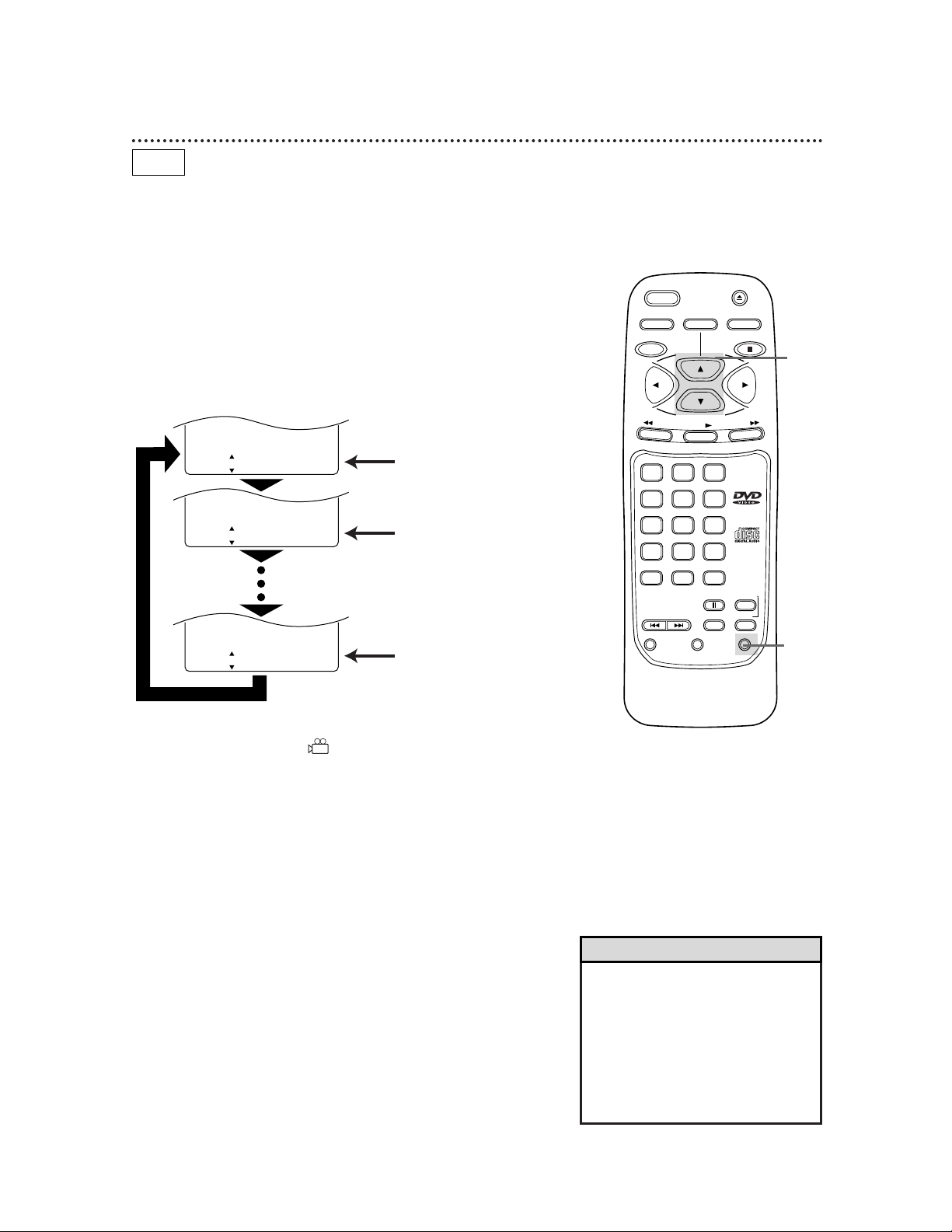

Camera Angles 33

• The ANGLE ICON must be set to ON in order for the angle symbol to appear as described in step 2. To set ANGLE ICON to ON, see page 43.

• If the angle status appears on the screen (for example, ANGLE [1]/8), the angle symbol will not appear on the screen.

Helpful Hints

Some DVDs contain scenes that were recorded from different angles. You may select a camera angle with the DVD Player.

Press the ANGLE button during playback.

ANGLE [ 1 ] / 8

Angle 1 (default) of eight possible angles

Angle 8

ANGLE [ 2 ] / 8

ANGLE [ 8 ] / 8

Press the o/p buttons to select another angle. Angle 2

Press the o/p buttons again.

Within 15 seconds, press the o/p buttons to select a different angle.

DVD

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

● If the Disc contains sequences recorded from different camera

angles, the angle symbol will appear at the bottom-right of the screen. You can change the camera angle when the symbol appears on the screen.

● The camera angle cannot be changed if the Disc does not con-

tain sequences recorded from different camera angles.

Page 34

• Write down the password in case you forget it.

• To erase the old password, press the POWER button to turn off the DVD Player. Then, press and hold the STOP button on the DVD Player while pressing the POWER button on the DVD Player to turn on the power again. When “HELLO” appears on the display panel, you may release the STOP button. Follow the steps on this page to set the password that you desire.

Helpful Hints

34 Parental Lock Password

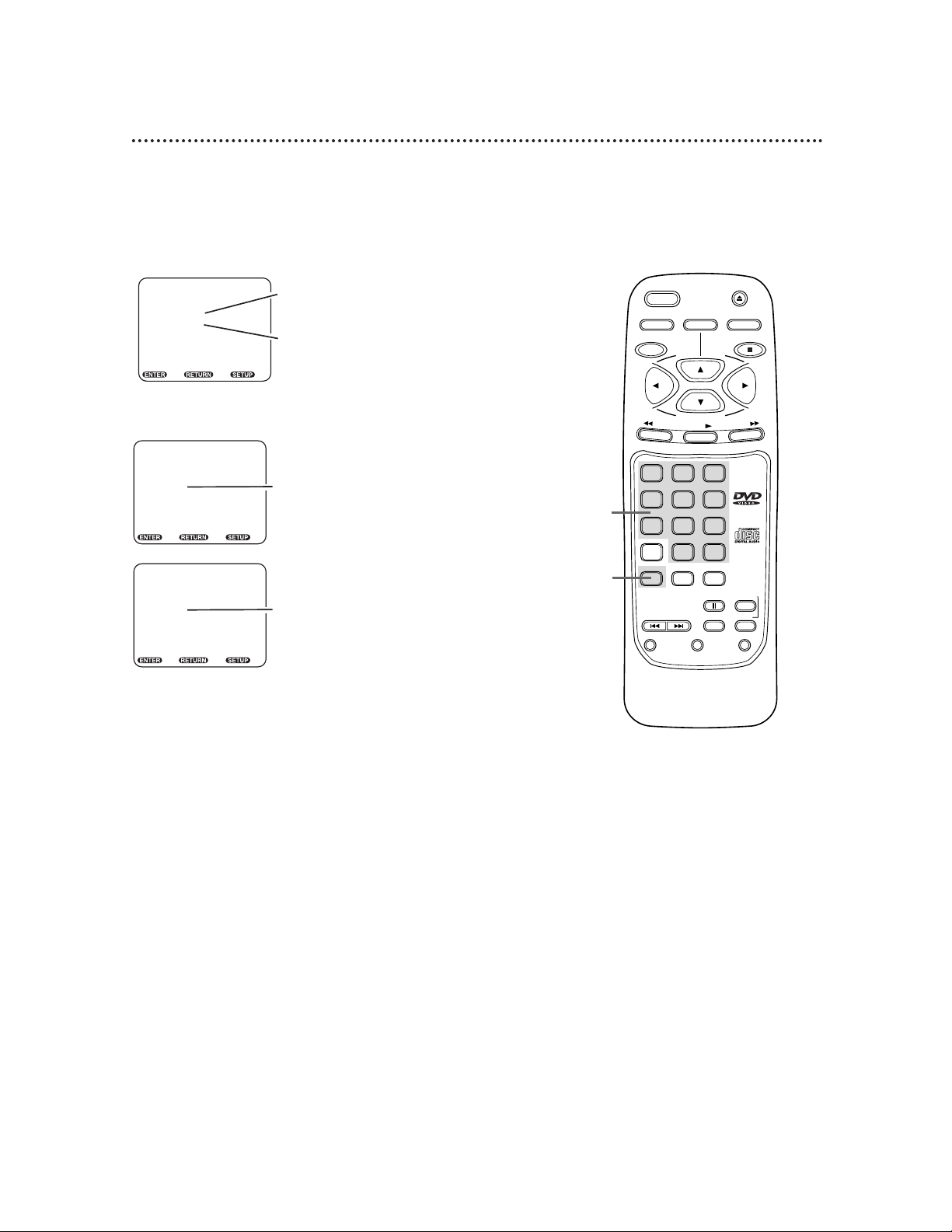

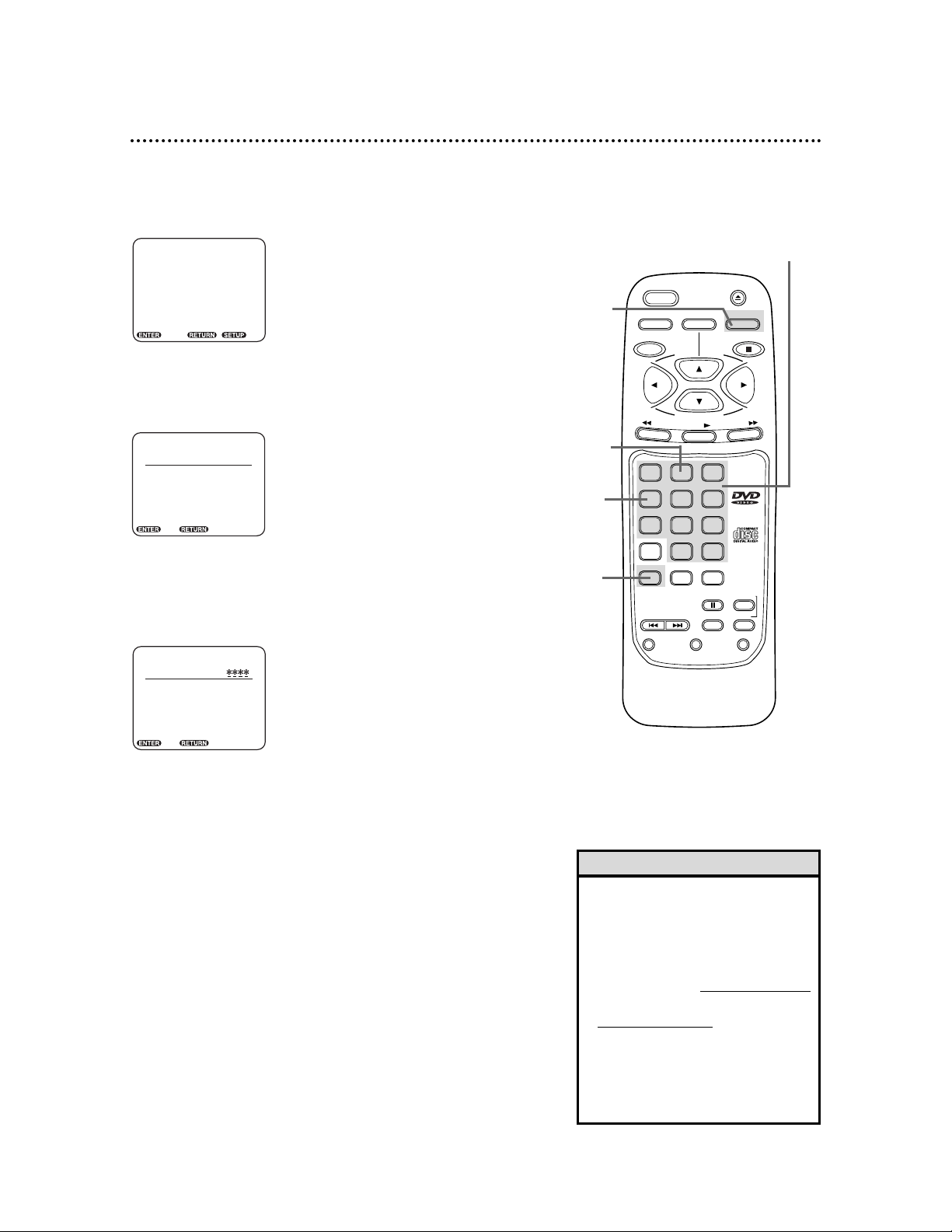

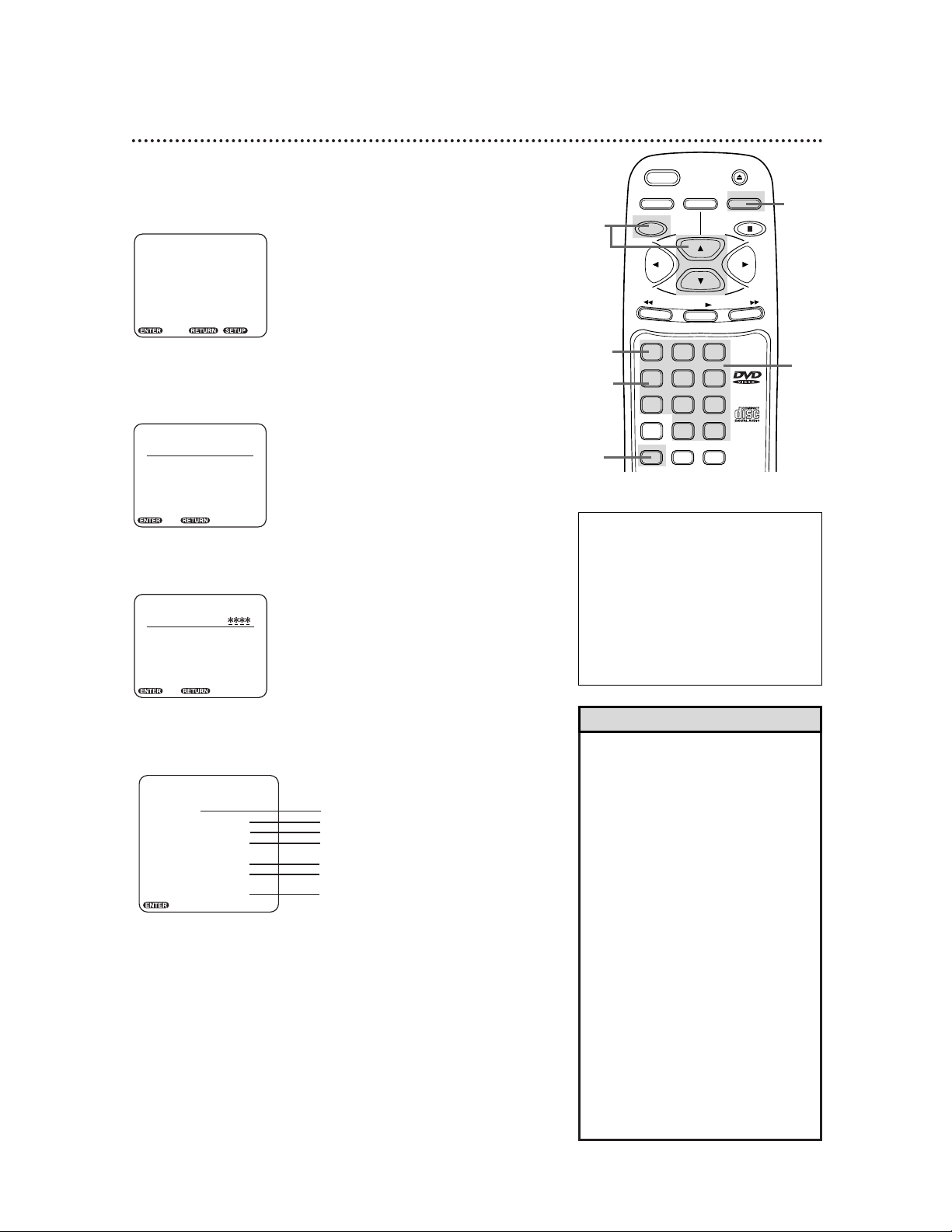

While playback is stopped, press the SETUP button. The

setup screen will appear.

Press the Number 4 button to select LOCK.

The SETUP/LOCK menu will appear.

Press the Number buttons to enter the 4-digit password.

● When doing this for the first time, enter any 4 digits. That num-

ber will be the password until you change it.

SETUP

1. LANGUAGE

2. VIDEO

3. AUDIO

4. LOCK

5. OTHERS

Enter / Exit

SETUP/LOCK PASSWORD [ _ _ _ _ ]

1. LEVEL [NONE]

2. CHANGE PASSWORD

Enter, Back

SETUP/LOCK PASSWORD [ ]

1. LEVEL [NONE]

2. CHANGE PASSWORD

Enter, Back

3,5

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

Press the Number 2 button to select CHANGE PASSWORD. The first space in the PASSWORD will start flashing.

Press the Number buttons to enter your new password.

Press the RETURN button twice to remove the menu.

Page 35

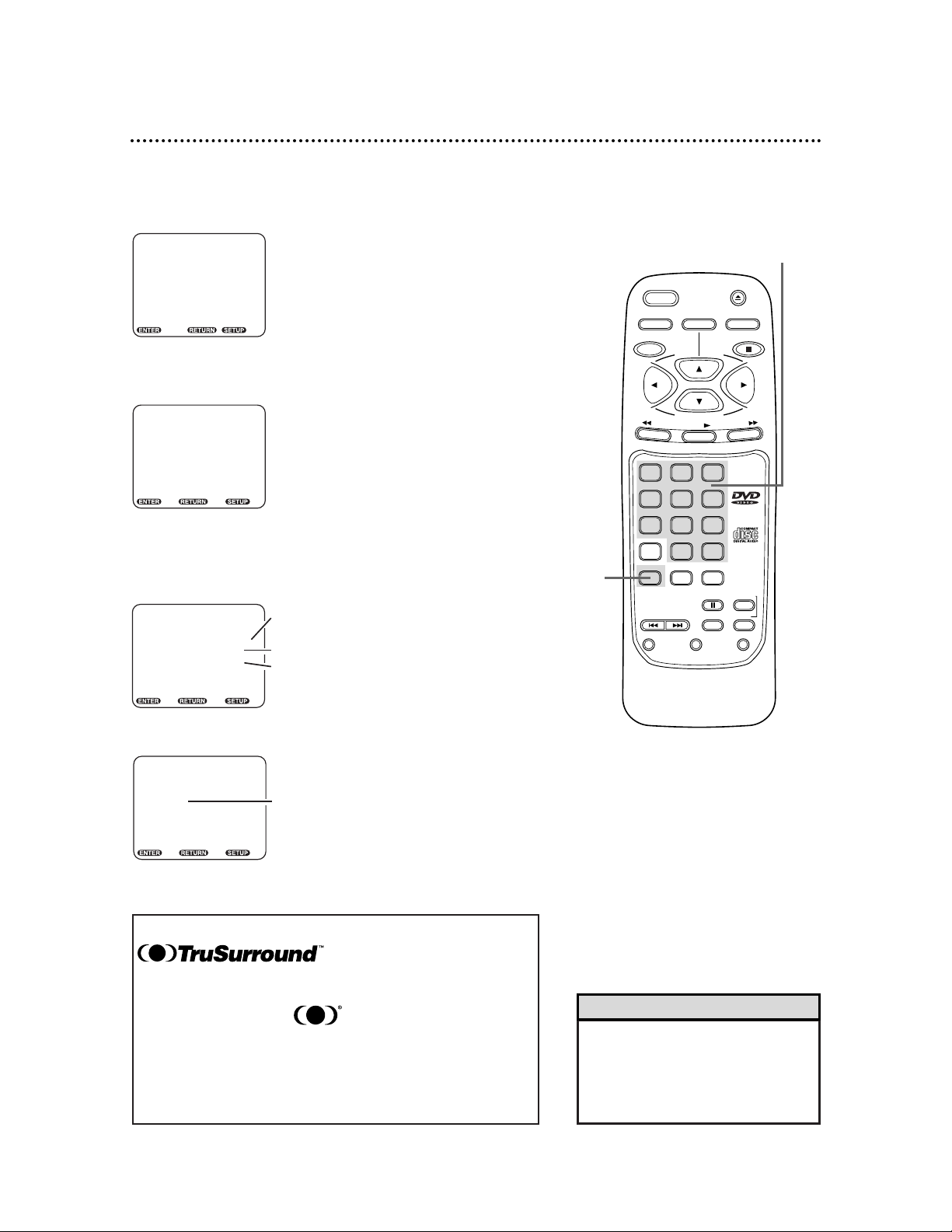

Parental Lock Levels 35

• Some DVDs are not compatible with Parental Lock. Make sure the DVD plays according to the Parental Lock settings you have made.

• The DVD Player will not allow you to change LEVEL settings until you enter the correct password.

• When you try to play a Disc that has a rating that exceeds the level you set, a message will appear on the screen, indicating the Disc cannot be played. If this happens, press the OPEN/CLOSE button to remove the Disc, then select a level that allows playback. Or select NONE to turn off Parental Lock. Load the Disc again and begin playback as usual. Some Discs may allow you to simply enter your 4-digit password, then begin playback automatically. Follow the instructions provided by the Disc message.

Helpful Hints

RATING EXPLANATIONS

• NC-17 - Under 17 not admitted

• R - Restricted; under 17 requires accompanying parent or adult guardian

• PG13 - Unsuitable for children under 13

• PG - Parental Guidance suggested

• G - General Audience

While playback is stopped, press the SETUP button. The

setup screen will appear.

Press the Number 4 button to select LOCK.

The SETUP/LOCK menu will appear.

Press the Number buttons to enter your 4-digit password.

SETUP

1. LANGUAGE

2. VIDEO

3. AUDIO

4. LOCK

5. OTHERS

Enter / Exit

SETUP/LOCK PASSWORD [ _ _ _ _ ]

1. LEVEL [NONE]

2. CHANGE PASSWORD

Enter, Back

SETUP/LOCK PASSWORD [ ]

1. LEVEL [NONE]

2. CHANGE PASSWORD

Enter, Back

SETUP MODE DISPLAY

CLEAR

+10

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

OPEN/

Press the Number 1 button to select LEVEL.

Press the o/p buttons to select the level you desire, then press the ENTER button. For example, if you want to play

Discs rated PG13, you must select LEVEL 5 or higher. The SETUP/LOCK menu will reappear. The level you selected will appear on the screen beside LEVEL.

Press the RETURN button twice to remove the menu.

SETUP/LOCK PARENTAL LOCK

NONE LEVEL 8 [PLAY ALL] LEVEL 7 [NC-17] LEVEL 6 [R] LEVEL 5 LEVEL 4 [PG13] LEVEL 3 [PG] LEVEL 2 LEVEL 1 [G]

Enter

Parental Lock is off. All DVDs will play, regardless of rating.

DVDs rated NC-17 or higher will not play. DVDs rated R or higher will not play.

DVDs rated PG13 or higher will not play. DVDs rated PG or higher will not play.

DVDs rated G or higher will not play. Only DVDs that are not rated will play.

Page 36

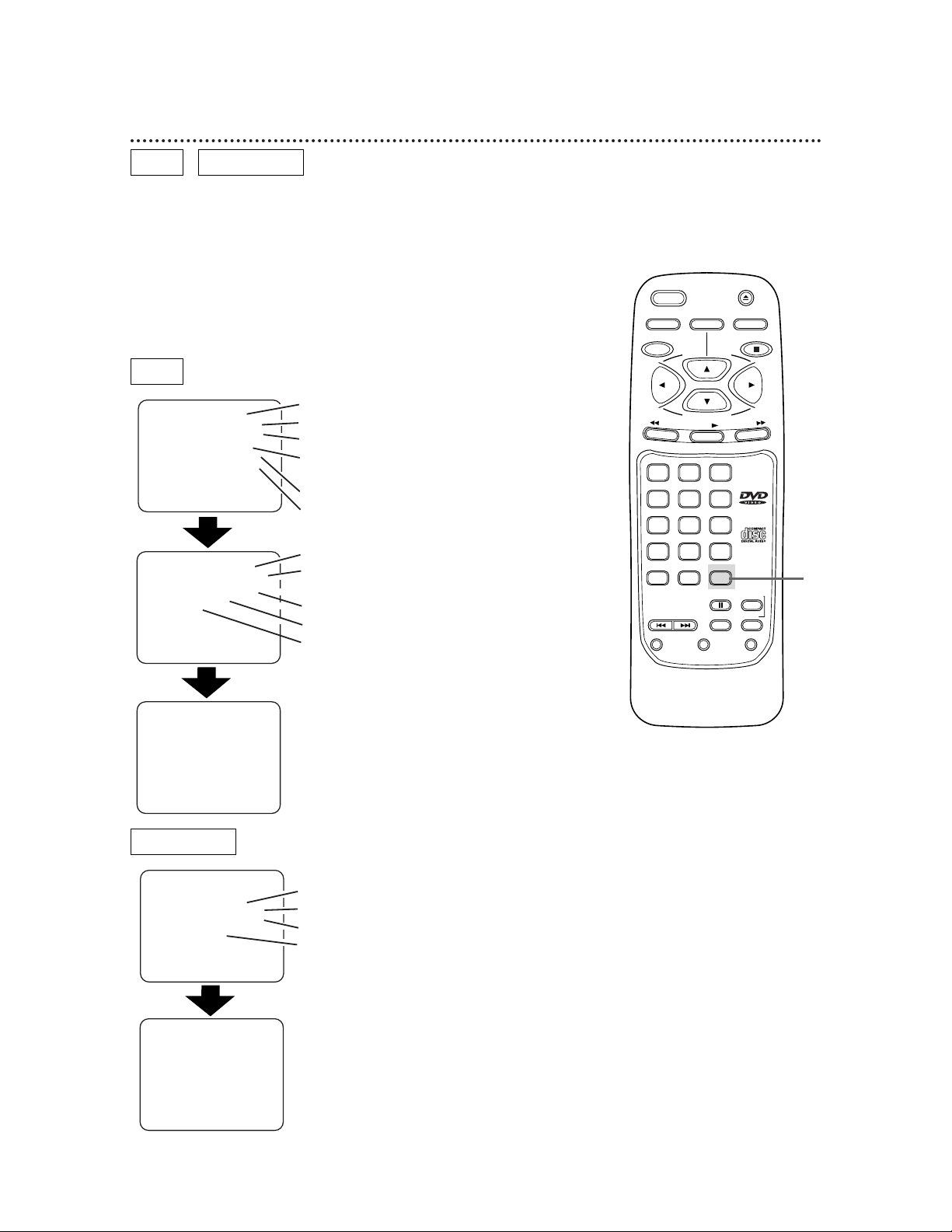

36 Status Display

Accessing the Status Display

You can check the information about the current Disc by pressing the DISPLAY button on the remote control.

Press the DISPLAY button repeatedly to access or remove the status displays.

TITLE : 01/04

TIME 0h24m14s REMAIN 0h05m25s

CHAPTER : 001/010

TIME 0h02m25s REMAIN 0h01m31s

AUDIO : 1.ENGLISH

DOLBY DIGITAL

6CH SUBTITLE : 2.FRENCH ANGLE : 8/8 VIRTUAL 3D

• Current Title number / total number of Titles

• Elapsed time of the current Title

• Remaining time of the current Title

• Current Chapter number / total number of Chapters in the current Title

• Elapsed time of the current Chapter

• Remaining time of the current Chapter

• Current language for the sound

• Current audio format (DOLBY DIGITAL 5.1 Channel is displayed as DOLBY DIGITAL 6 CH.)

• Current language for the subtitles

• Selected angle / total number of angles

• VIRTUAL 3D setting (appears only if

VIRTUAL 3D is ON)

No display

TRACK : 01/04

TIME 0h05m25s REMAIN 0h01m31s

PROGRAM

• Current Track number / total Track numbe

• Elapsed time of the current Track

• Remaining time of the current Track

• Current play mode

No display

DVD

AUDIO CD

POWER

TITLE

ENTER

REV

PLAY

CLEAR

SETUP MODE DISPLAY

AUDIO SUB TITLE

+10

SKIP

SEARCH MODE

OPEN/

RETURN

FWD

REPEATPAUSE/STILL

ANGLE

STOP

A-B

Page 37

Video Settings 37

When playback is stopped, press the SETUP button. The

setup screen will appear.

Press the Number 2 button to select VIDEO.

Press the corresponding Number button to select an item: TV MODE or STILL MODE.

SETUP

1. LANGUAGE

2. VIDEO

3. AUDIO

4. LOCK

5. OTHERS

Enter / Exit

SETUP/VIDEO

1. TV MODE [4:3LB]

2. STILL MODE [AUTO]

Enter, Back Exit

SETUP/VIDEO TV MODE

1. 4:3 PAN&SCAN

2. 4:3 LETTER BOX

3. 16:9 WIDE

•

Full-height pictures are shown, with one

or both sides trimmed

• Wide screen (full-width) pictures are

shown, with black bars at top and bottom.

• Select if a wide screen TV

is connected to the DVD Player.

Enter, Back Exit

SETUP/VIDEO STILL MODE

1. AUTO

2. FIELD

3. FRAME

• AUTO is normally selected.

• Select if pictures are blurred in auto mode.

• Select to show Still pictures in high resolution.

Enter, Back Exit

1,5

2-4

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

Press the corresponding Number button to select a setting.

Press the SETUP button to remove the menu.

• You may select a different TV MODE setting only if it is available on the Disc.

Helpful Hint

Page 38

• To enjoy Dolby Digital Surround or DTS Surround sound, you must have the DVD Player connected to a Dolby Digital or DTS decoder. Details are on page 11.

Helpful Hint

38 Audio Settings

While playback is stopped, press the SETUP button. The

setup screen will appear.

Press the Number 3 button to select AUDIO.

Press the corresponding Number button to select an item: DIGITAL OUT or VIRTUAL 3D.

SETUP

1. LANGUAGE

2. VIDEO

3. AUDIO

4. LOCK

5. OTHERS

Enter / Exit

SETUP/AUDIO

1. DIGITAL OUT

2. VIRTUAL 3D [OFF]

Enter, Back Exit

SETUP/AUDIO DIGITAL OUT

1. PCM [48kHz]

2. DOLBY DIGITAL [ON]

3. DTS [ON]

• Sets the sample rate for playing a disc

recorded with high sound quality

• Select when a Dolby Digital decoder

is connected.

• Select when a DTS decoder is connected.

Enter, Back Exit

SETUP/AUDIO VIRTUAL 3D

1. OFF

2. ON

• Select ON to activate the 3D effect.

Enter, Back Exit

2-3

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

To change the DIGITAL OUT settings, go to step 4.

To change the VIRTUAL 3D setting, press the corresponding Number button, then go to step 5.

This unit employs TruSurround system of SRS Labs, Inc. as the VIRTUAL 3D technology.

TruSurround and the symbol are trademarks of SRS Labs, Inc. in the United States and selected foreign countries. TruSurround technology is incorporated under license from SRS Labs, Inc.

Page 39

Audio Settings (cont’d) 39

To change the PCM, DOLBY DIGITAL, or DTS settings, press the corresponding Number button to select the desired item, then press the Number button to choose the setting (i.e. ON or OFF).

SETUP/AUDIO PCM

1. 48kHz

2. 96kHz

• Audio signals are converted to

48 kHz/16 bit signals when playing a DVD recorded with high sound quality (48 kHz/20 bit/24 bit, 96 kHz).

• Sound is reproduced at 96 kHz if a DVD

is recorded with high sound quality. If you are playing 48 kHz discs or if 4:3 LETTER BOX is selected, sound is reproduced

at 48 kHz.

Enter, Back Exit

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

SETUP/AUDIO DOLBY DIGITAL

1. OFF

2. ON

•

Select ON when a Dolby Digital decoder

is used.

Enter, Back Exit

SETUP/AUDIO DTS

1. OFF

2. ON

• Select ON when a DTS decoder is used.

Enter, Back Exit

Press the SETUP button to remove the menu.

Page 40

While playback is stopped, press the SETUP button. The

setup screen appears.

Press the Number 1 button to select LANGUAGE.

40 Language Settings

Press a Number button to select an item: AUDIO, SUBTITLE, DISC MENU, or PLAYER MENU.

SETUP

1. LANGUAGE

2. VIDEO

3. AUDIO

4. LOCK

5. OTHERS

Enter / Exit

SETUP/LANGUAGE

1. AUDIO [ORIG]

2. SUBTITLE [AUTO]

3. DISC MENU [AUTO]

4. PLAYER MENU [ENG]

Enter, Back Exit

SETUP/LANGUAGE AUDIO

1. ORIGINAL

2. ENGLISH

3. SPANISH

4. FRENCH

5. OTHER

• The original language of each disc will be selected.

• Voice is played back in English.

• Voice is played back in Spanish.

• Voice is played back in French.

• You can select other languages for audio playback.

Enter, Back Exit

• Subtitles are shown in the automatically selected language.

• Subtitles are shown in English.

• Subtitles are shown in Spanish.

• Subtitles are shown in French.

• You can select other languages for subtitles.

SETUP/LANGUAGE SUBTITLE

1. AUTO

2. ENGLISH

3. SPANISH

4. FRENCH

5. OTHER

Enter, Back Exit

SETUP/LANGUAGE DISC MENU

1. AUTO

2. ENGLISH

3. SPANISH

4. FRENCH

5. OTHER

• The disc menu is shown in the automatically selected language.

• The disc menu appears in English.

• The disc menu appears in Spanish.

• The disc menu appears in French.

• You can select other languages for the disc menu.

Enter, Back Exit

SETUP/LANGUAGE PLAYER MENU

1. ENGLISH

2. SPANISH

3. FRENCH

• The on-screen display and DVD Player menus appear in English.

• The on-screen display and DVD Player menus appear in Spanish.

• The on-screen display and DVD Player menus appear in French.

Enter, Back Exit

2-3

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

DVD

Go to step 4 to change the settings within AUDIO, SUBTITLE, DISC MENU or PLAYER MENU.

• If the original or automatic settings for AUDIO and SUBTITLE are the same language, the subtitles will not be shown.

• Language settings for AUDIO, SUBTITLE, and DISC MENU are not available with some discs. Use the AUDIO and SUBTITLE buttons instead to select different languages for the audio and subtitles. Details are on pages 31 and 32.

• Not all discs provide different languages for audio, subtitles, or disc menus.

Helpful Hints

Page 41

Language Settings (cont’d) 41

Press a Number button to select a setting.

● If OTHER is selected on the AUDIO, SUBTITLE or DISC

MENU screen, the COUNTRY CODE screen will appear. Press four Number buttons to enter the country code you desire, then press the ENTER button. Refer to the list on page 42.

● You can only select other languages for AUDIO, SUBTITLE, and

DISC MENU if the language is available on the Disc.

Press the SETUP button to remove the menu.

SETUP/LANGUAGE COUNTRY CODE

[ _ _ _ _ ]

Enter, Back Exit

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

• If you accidentally set the PLAYER MENU LANGUAGE to French or Spanish and need English:

1) Press the SETUP button.

2) Press the Number 1 button (IDIOMA or LANGUE).

3) Press the Number 4 button (MENÚ EN PANTALLA or MENU SUR ÈCRAN).

4) Press the Number 1 button (INGLÉS or ANGLAIS).

5) Press the SETUP button to remove the menu.

Helpful Hint

Page 42

42 Language Settings (cont’d)

A-B

Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bangla 4860 Bashkir 4847 Basque 5167 Bengali 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851

C-E

Cambodian 5759 Catalan 4947 Chinese (CHI) 7254 Corsican 4961 Croatian 5464 Czech 4965 Danish 5047 Dutch (DUT) 6058 English (ENG) 5160 Esperanto 5161 Estonian 5166

F-H

Faroese 5261 Fiji 5256 Finnish 5255 French (FRE) 5264 Frisian 5271 Gaelic (Scots) 5350 Galician 5358 Georgian 5747 German (GER) 5051 Greek 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian 5467

I-K

Icelandic 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish 5347 Italian (ITA) 5566 Japanese (JPN) 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean (KOR) 5761 Kurdish 5767

L-N

Laothian 5861 Latin 5847 Latvian 5868 Lettish 5868 Lingala 5860 Lithuanian 5866 Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian 6061

O-R

Occitan 6149 Oriya 6164 Oromo (Afan) 6159 Panjabi 6247 Pashto 6265 Persian 5247 Polish 6258 Portugese 6266 Pushto 6265 Quechua 6367 Rhaeto-Romance 6459 Romanian 6461 Russian 6467

Samoan 6559 Sangho 6553 Sanskrit 6457 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555 Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish (SPA) 5165 Sundanese 6567 Swahili 6569 Swedish 6568

Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6652 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Turkish 6664 Turkmen 6657 Twi 6669

U-Z

Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6961 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yoruba 7161 Zulu 7267

Language Country Code Language Country Code Language Country Code

Page 43

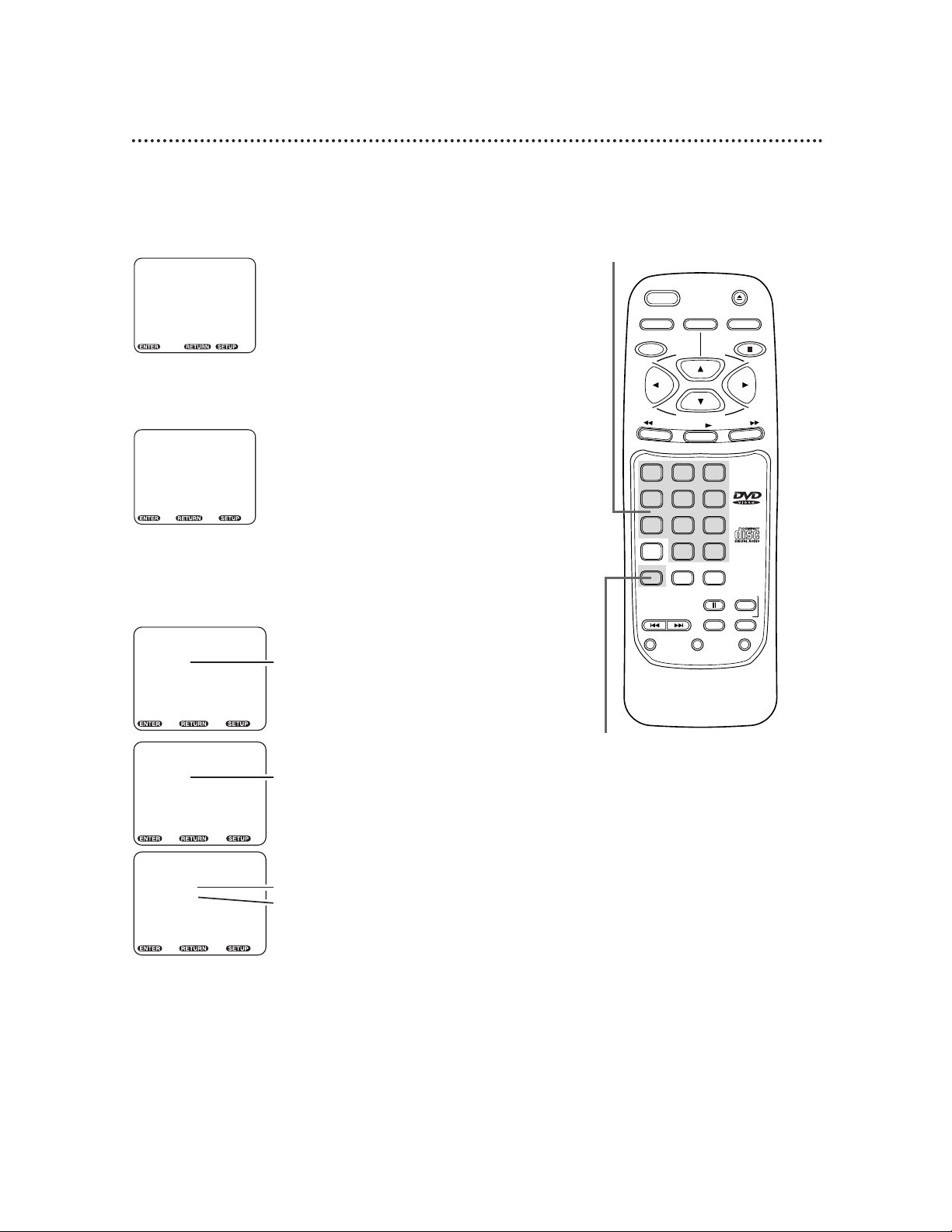

Other Menu Settings 43

When disc playback is stopped, press the SETUP button.

The setup screen will appear.

Press the Number 5 button to select OTHERS.

Press the corresponding Number button to select an item: OSD MESSAGE, ANGLE ICON, or BACKGROUND.

SETUP

1. LANGUAGE

2. VIDEO

3. AUDIO

4. LOCK

5. OTHERS

Enter / Exit

SETUP/OTHERS

1. OSD MESSAGE [ON]

2. ANGLE ICON [ON]

3. BACKGROUND [BLUE]

Enter, Back Exit

SETUP/OTHERS OSD MESSAGE

1. ON

2. OFF

• Select ON to display messages on the screen,

such as PLAY, STOP, etc.

Enter, Back Exit

1,5

2-4

SETUP MODE DISPLAY

CLEAR

+10

SKIP

SEARCH MODE

TITLE

ENTER

POWER

STOP

PLAY

FWD

REV

RETURN

A-B

REPEATPAUSE/STILL

AUDIO SUB TITLE

ANGLE

OPEN/

SETUP/OTHERS ANGLE ICON

1. ON

2. OFF

• Select ON to display the angle icon.

Enter, Back Exit

SETUP/OTHERS BACKGROUND

1. BLUE

2. GRAY

• Turns the Player menu background to blue

• Turns the Player menu background to gray

Enter, Back Exit

Press a Number button to select a setting.

Press the SETUP button to remove the menu.

Page 44

44 Helpful Hints

If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself. If you need to call a customer service representative, please know the model number and serial number of your product before you call. This information is displayed on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If you believe the representative will need to help you with operations, please stay near the product. Our representatives will be happy to assist you.

The DVD Player has no power.

• Make sure the power cord is connected completely to an AC (alternating current) outlet.

• Press the POWER button to turn on the DVD Player. “HELLO” will appear briefly on the display panel as the power is turning on.

The remote control will not operate the DVD Player.

• Aim the remote control directly at the DVD Player’s remote sensor. Details are on page 14.

• Remove all obstacles between the remote control and the DVD Player.

• Inspect and/or replace the batteries in the remote control. Details are on page

seven.

• Use the remote control within 23 feet of the DVD Player.

No picture

• Make sure the video cable is connected correctly. You may connect either the yellow video cable (supplied), an optional S-Video cable, or optional component video cables. Details are on pages 8-12.

• Make sure the TV is set to the correct Video channel (usually the AUX IN, A/V IN, Auxiliary In, Component Video In or S-Video In channel). Check your TV owner’s manual for details.

• Insert a Disc that is playable on this DVD Player. Details are on page six.

Disc cannot be played.

• Insert a playable Disc. Details are on page six.

• Place the Disc correctly in the recesses in the Disc tray. If the Disc is one-sided, place the Disc in the tray with the label facing up. If the Disc is two-sided, make sure the side you want to play is facing up.

• Clean the Disc.

• Cancel the parental lock, enter the password, or change the control level. Details

are on pages 34-35.

• Make sure the Disc is labelled for use in Region 1 or ALL regions. Details are on page six.

No sound

• Connect the audio cables firmly. Make sure the cables are connected to the AUDIO IN jacks on the TV or audio equipment. Details are on pages 8-12.

• Check the audio settings of the DVD Player. Details are on pages 38-39.

• Turn on the power of the audio equipment and make sure it is set to the correct channel, usually Auxiliary IN. Refer to the owner’s manual of the audio equipment for details.

• Check the audio settings of the Disc. For example, you may have selected “soundtrack” playback on a DVD. Only the music of the movie will play, not the characters’ dialog; music might not be recorded throughout the entire DVD.

Page 45

Helpful Hints (cont’d) 45

Distorted picture

• Connect the DVD Player directly to the TV.

• There are some cases where the picture may be distorted slightly; this is not a malfunction of the DVD Player.

The camera angle cannot be changed.

• The DVD might not contain segments recorded from different camera angles. See if multiple angles are available. Details are on page 33.

The audio or subtitle language cannot be changed.

• The DVD does not contain audio or subtitles in the desired language. Not all DVDs contain audio or subtitles in multiple languages. See if other languages are available. Details are on pages 31-32.

"No feature" symbol appears on the screen, prohibiting an operation.

• That operation is currently prohibited by the DVD Player or is not available on the Disc. Details are on page five.

The DVD Player turns off after 30 minutes.

• The power is turned off automatically if playback is paused or stopped for more than 30 minutes (and no buttons are pressed on the remote control or the DVD Player).

A screen saver appears on the TV screen.

• The DVD whale will appear on the TV screen if Disc playback is stopped for more than one minute (and no buttons are pressed on the remote control or the DVD Player). The DVD whale moves around on the screen to prevent damage to your TV’s picture tube. A prolonged still image, including TV station identification logos or video games, may damage the picture tube.

Page 46

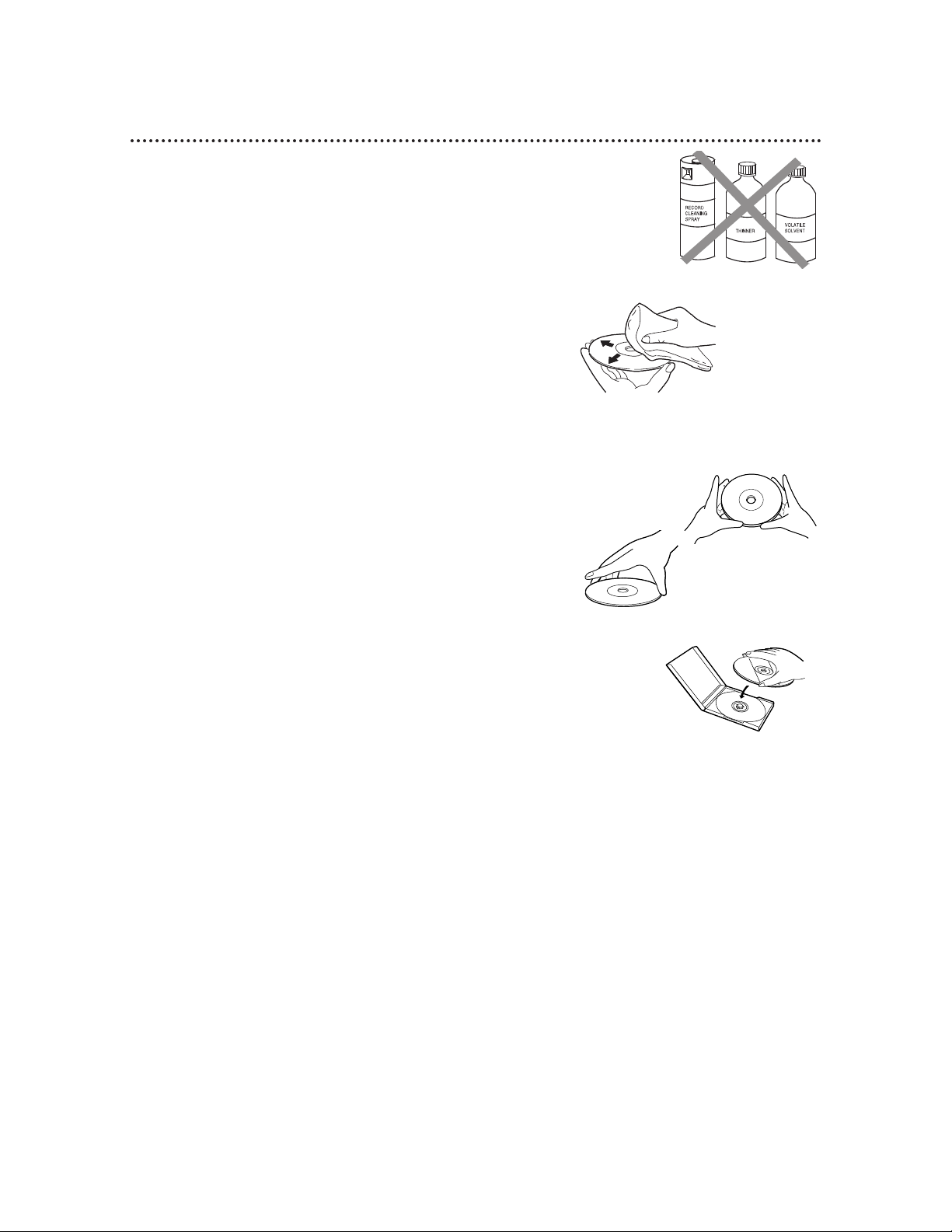

46 Care and Maintenance

Cleaning the DVD Player

• Wipe the front panel and other exterior surfaces of the DVD Player with a soft, slightly damp cloth.

• Never use a solvent, thinner, benzene or alcohol to clean the DVD Player. Do not spray insecticide liquid near the DVD Player. Such chemicals may discolor the surface or damage the DVD Player.

Cleaning a Disc

• Use a soft, dry cloth to wipe the Disc.

• Wipe the Disc in a straight line from the center to the edge. Never wipe the Disc in a circular motion.

• Do not use detergent or abrasive cleaning agents.

• Handle the Discs so that fingerprints and dust do not adhere to the surfaces of the Discs.

• Always store the Disc in its protective case when it is not in use.

Checking the Laser

• If the DVD Player does not operate as described in this owner’s manual, the laser may be dirty. Consult an Authorized Service Center for inspection and cleaning of the laser.

Don’t use cleaners.

Wipe Discs from the

center to the edge.

Handle Discs by the edges.

Keep the Disc in its case.

Page 47

AUDIO OUT Jacks: jacks located on the back of the DVD Player which are used to send audio to another system (TV, decoder, or amplifier).

: Compact Disc (audio)

Coaxial jack:

Used to send digital audio to a decoder or amplifier, allowing you to adjust the volume at the decoder or amplifier. This connection provides the 5.1 channel surround sound as heard in movie theaters.

COMPONENT VIDEO OUT Jacks

: jacks located on the back of the DVD Player which are used to send high-quality video to a TV with Component Video In jacks.

Dolby Digital:

A surround sound system that provides 5.1 channel sound as used

in movie theaters.

DTS: Digital Theater Systems. This is a surround sound system, but it is different from Dolby Digital. The formats were developed by different companies.

DVD

: Digital Video Disc.

OPTICAL Jack:

Converts electrical signals into optical signals before sending the audio to the amplifier. Optical audio is not prone to external electrical influences and has less noise, which reduces adverse effects on external equipment. Be sure to keep the protective cap on the jack when the jack is not being used. This keeps dust out of the jack.

Remote Control:

the small unit that came with your DVD Player; allows you to

operate your DVD Player from a distance.

S-Video:

Produces a clearer picture by sending separate signals for the luminance and the color. If you connect an optional S-Video cable, you will not need to use the supplied yellow video cable.

VIDEO OUT Jack: jack located on the back of the DVD Player which is used to send video to a TV.

Glossary 47

Page 48

48 Specifications

Product Type

Digital Video Disc Player

Playable Discs

DVD-Video Audio CD

Color System

NTSC

Frequency Response

DVD (linear sound): 20 Hz to 22 kHz (sample rate: 48 kHz)

20 Hz to 44 kHz (sample rate: 96 kHz)

Audio CD: 20 Hz to 20 kHz

Signal-to-Noise Ratio (S/N Ratio)

Audio CD: 110 dB EIAJ (Electronic Industries Association of Japan)

Dynamic Range

DVD (linear sound): 95 dB Audio CD: 94 dB (EIAJ)

Total Distortion Factor

Audio CD: 0.007% (EIAJ)

Wow and Flutter

Below the measurement limitation (±0.001% W PEAK) (EIAJ)

Power Requirement

120V AC ± 10%, 60 Hz ± 0.5%

Connections

S-Video output Mini DIN 4-pin jack (75 Ω) Video output One pin jack, 1 Vpp (75 Ω) Coaxial digital output One pin jack, 500m Vpp (75Ω) Analog audio output Four pin jacks

(two left channels, two right channels) 2 Vrms (47 kΩ)

Component video output

One pin jack (Y), 1 Vpp (75Ω) Two pin jacks (CB)/(CR), 700m Vpp (75Ω)

Optical digital output Optical connector

Power Consumption

Power on: 22 W Standby (power off): 2.7 W

Operating Temperature

41°F (5°C) to 104°F (40°C)

Relative Humidity

30% to 80%

Dimensions

16-15/16” (W) x 3-3/8” (H) x 12-3/16” (D) (430mm x 85mm x 309mm)

Weight

6.17 lbs. (2.8 kg.)

NOTE: Designs and specifications are subject to change without notice.

Page 49

DVD PLAYER

90 Days Free Labor/One Year Parts Exchange. This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced, and labor is free. From 90 days to one year from the day of purchase, all parts will be repaired or replaced, but you pay for all labor charges. After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the

product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because

of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics.

• reception problems caused by signal conditions

or cable or antenna systems outside the unit.

• a product that requires modification or adapta-

tion to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting

from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• damage caused by the use of non-VHS tapes or

tapes that have not been tested and labeled for use in two, four, six, and eight hour VHS recorders.

• a product that is used for commercial or institu-

tional purposes (including but not limited to rental purposes).

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will

attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. Because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental, or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # ________________________________ SERIAL # ________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state to state.

Philips Service Solutions Group,

P.O. Box 2976, Longview, Texas 75606, (903) 242-4800

EL6235E004 / MAC6183 / 3-00

Limited Warranty 49

Page 50

ac power cord..........................................................15

accessories.................................................................52

angle button.......................................................16, 33

arrow buttons...........................................................16

audio button.......................................................16, 31

audio cd.................................................................6, 18

audio out jacks...............................................8-10, 15

a-b repeat...................................................................28

a-b repeat button..............................................17, 28

batteries........................................................................7

bit rate ..................................................................38-39

camera angle.............................................................33

chapters.................................................................6, 25

clear button...............................................................16

coaxial jack...................................................11-12, 15

component video out jacks...............10-12, 15, 47

connections...........................................................8-12

contents, table of.......................................................4

controls, remote................................................16-17

display button....................................................17, 36

display panel..............................................................13

dvd video......................................................................6

enter button..............................................................16

fast forward........................................................17, 22

front panel.................................................................14

fwd button.................................................................17

glossary.......................................................................47

helpful hints.........................................................44-45

hookups

amplifier with digital in jacks/

md deck/dat deck ...............................................12

dolby digital decoder/

dts decoder...........................................................11

dolby surround compatible amplifier

.............................................11

s-video......................................................................9

stereo.....................................................................10

tv..........................................................................8-12

language...................................................31-32, 40-42

menu button.............................................................16

menus..........................................................................19

mode button.............................................................17

number buttons........................................................16

on-screen display.....................................................36

open/close button.......................................14, 17-18

optical jack.............................................11-12, 15, 47

parental lock.......................................................34-35

password ....................................................................34

pause button.............................................................14

pause/still button......................................................17

play button..........................................................14, 17

playing.........................................................................18

power

button..............................................................14, 16

cord.........................................................................15

program......................................................................29

random.......................................................................30

rear panel...................................................................15

remote

control

buttons .....................................................16-17

sensor.............................................................14

using..................................................................7

repeat button .....................................................17, 27

repeat playback.........................................................27

resuming play............................................................20

return button ............................................................17

rev button...........................................................16, 22

reverse........................................................................22

safety precautions......................................................3

search buttons..........................................................14

search mode button................................................17

setting

audio.................................................................38-39

language ............................................................40-42

other.......................................................................43

video.......................................................................37

setup button..............................................................17

skip buttons .................................................14, 16, 24

slow motion..............................................................23

sound mode..............................................................31

standby indicator......................................................14

still picture.................................................................20

stop button.........................................................14, 17

subtitle button...................................................17, 32

s-video out jack...................................................9, 15

table of contents........................................................4

title button..........................................................16, 19

titles .................................................................6, 19, 25

tracks......................................................................6, 24

video out jack..........................................8, 11-12, 15

warranty.....................................................................49

50 Index

Page 51

IB8235E001

Printed In China

0VMN02551 / E5430UD * * * * *

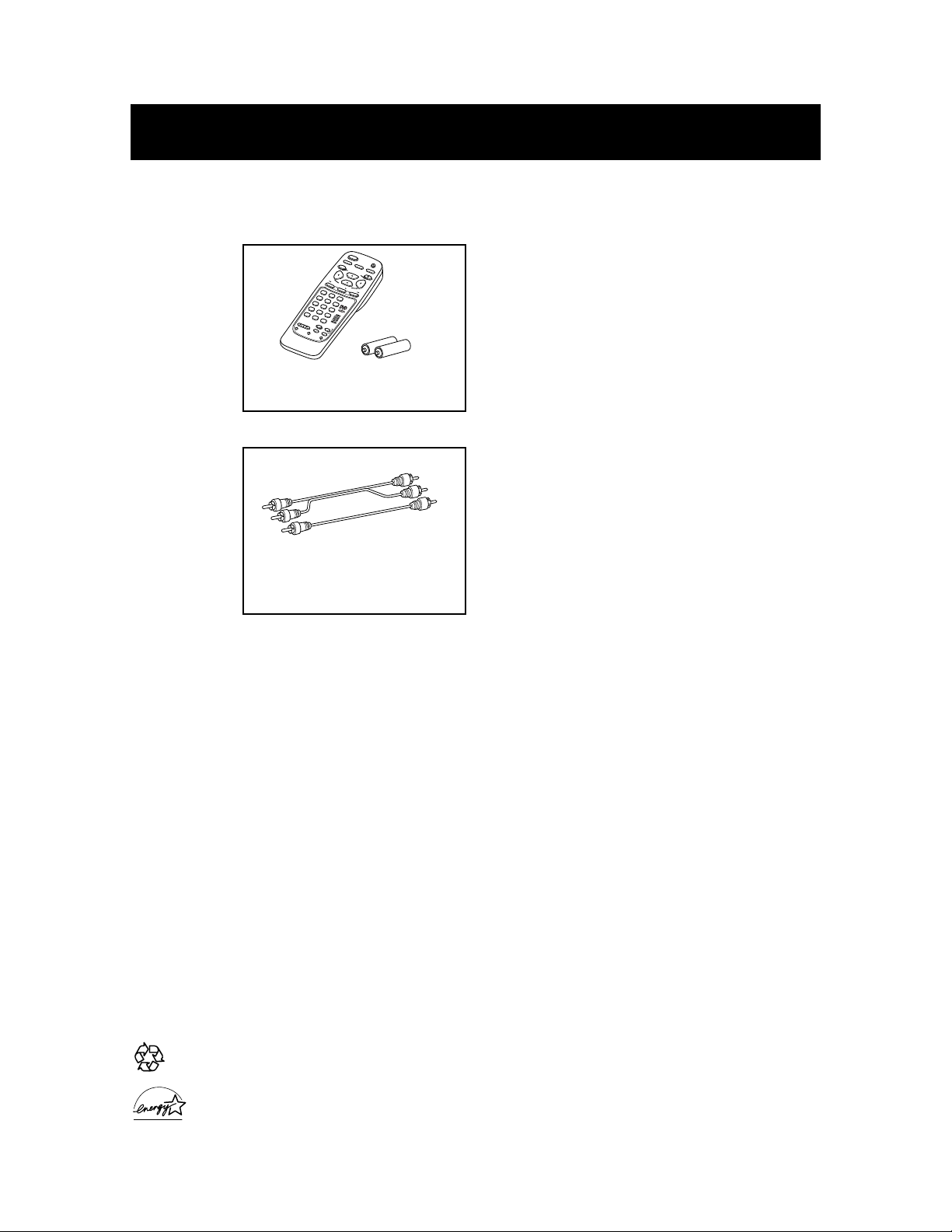

SUPPLIED ACCESSORIES

The following items are supplied with your DVD Player;

they are provided to help you use or set up your DVD Player.

Remote Control 4835 218 37267

Two AA Batteries 4835 138 17012

This owner’s manual is made of recyclable materials. Remember to recycle!

As an ENERGY STAR®Partner, Philips Consumer Electronics has determined that this product meets the E

NERGY STAR

guidelines for energy efficiency.

NERGY STAR

is a U.S. registered mark.

Audio and Video Cables

4835 321 17148

POWER

TITLE

CLEAR

SETUP MODE DISPLAY

+10

PAUSE/STILL

SKIP

AUDIO SUBTITLE ANGLE

REPEAT

SEARCH MODE

A-B

OPEN

ENTER

RETURN

STOP

REV

PLAY

FWD
