Philips DSX 5350 User Manual

DIRECTV PLUS™

Satellite Receiver

User Manual

DSX 5350

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once, and take advantage of these important benefits.

Return your Warranty Registration card today to ensure

you receive all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

Know these

safetysymbols

t This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock.

For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed litera-

ture closely to prevent operating and maintenance problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Hurry!

Visit our World Wide Web Site at http://www.philipsusa.com

SAFETY INSTRUCTIONS - READ BEFORE OPERATING EQUIPMENT.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE ANYELECTRICALEQUIPMENT TO RAIN OR MOISTURE.

1. Read Instructions – All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions – The safety and operating instructions should be retained for future reference.

3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should be followed.

5. Attachments – Do not use attachments not recommended by the manufacturer as they may cause hazards.

6. Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, etc.

7. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of the appliance should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

7A. An appliance and cart combination should be moved with

care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

8. Ventilation – Slots and openings on the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed near or over a radiator or heat register. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

9. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.

10. Grounding or Polarization – This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

11. Power Cord Protection – Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

12. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded to provide protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

13. Phone Line Use – Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak.

14. Lightning – For added protection for this product during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product from lightning and power line surges.

15. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall onto such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. Refer to Satellite Dish Antenna Assembly & Alignment Guide.

16. Overloading – Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18. Servicing – Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally when following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or the cabinet has been damaged.

20. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or which have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22. Carts and Stands – The appliance should be used only with a cart or stand recommended by the manufacturer.

23. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products that produce heat.

Figure A

GENERAL INFORMATION

Federal Communication Commission (FCC) Part 68 ANALOG DEVICE WARNINGS

This equipment complies with part 68 of the FCC rules. A label on the rear panel of this equipment contains,

among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

The REN is used to determine the number of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

Note: RENs are associated with loop-start and ground-start ports. Do not use for E & M or digital ports.

This equipment uses the following USOC jack: RJ-11C.

No modular plug is provided with this equipment.

If the DSX 5350 causes harm to the telephone network, the telephone company will notify you in advance that

temporary interruption of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information.)

For repair or warranty information on hardware service only, please call:

1-800-464-1131.

SAFETY INSTRUCTIONS (CONT’D)

NOTE TO CATV SYSTEM INSTALLER

Article 820-40 of the NEC (National Electrical Code) provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point cable entry as practical.

WARNING

This device complies with Part 15 of the FCC (U.S.A.) Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received, includ-

ing interference that may cause undesired operation.

FCC Regulations and Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

interference to radio or television reception (which you can determine by turning the equipment off and on), you are encouraged to try to correct the interference by one or more of the following measures:

1. Change the position of the Satellite Receiver with respect to the radio or television equipment that is receiving the interference.

2. Move the Satellite Receiver away from the equipment that is receiving the interference.

3. Plug the Satellite Receiver into a different outlet so that the Satellite Receiver and the equipment receiving the interference are on different branch circuits.

4. Use shielded cables and I/O cords with this equipment to comply with the relevant FCC regulations.

5. If these measures do not eliminate the interference, you should consult your dealer or an experienced radio/ television technician for help.

IMPORTANT

Any change or modifications to the equipment by the user not expressly approved by the warranty or manufacturer could void the user’s authority to operate the equipment.

Domestic use U.S.A – For units used at 100-120V, use only the power supply cord which is supplied with the product.

TABLE OF CONTENTS

Overview ..................................................................................6

Modes ........................................................................................7

Preparing your Remote Control..................................8

Controls and Connections ..............................................9

Connecting to your Existing Equipment ................10

Inserting your Access Card ..........................................12

Replacing the Access Card............................................13

Remote Control Use ........................................................14

On Screen Installation ....................................................19

General Operation of your DIRECTV PLUS™

Receiver..................................................................................22

Banner ....................................................................................22

Notification Displays ........................................................23

DIRECTV

Programming Guide ..............................24

Favorite Channels..............................................................28

Themes ..................................................................................29

Alternate Audio..................................................................29

Options Menu......................................................................30

Messages ................................................................................31

Using the Menu ..................................................................32

General Settings ................................................................33

Screen Format....................................................................33

Banner Duration ................................................................34

Access Control....................................................................35

Language................................................................................38

Upgrades................................................................................41

Mail............................................................................................41

Smart Help............................................................................42

Expert Installation ............................................................44

Glossary..................................................................................45

Specifications........................................................................46

Index ........................................................................................47

Limited Warranty..............................................................48

CREDITS

Philips is a registered trademark of Koninklijke Philips Electronics, NV. DIRECTV and the Cyclone Design logo, DIRECTV PLUS and Advanced Program Guide are trademarks of DIRECTV Inc., a unit of

Hughes Electronics Corp., and are used with permission.

are met:

1.Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2.Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the

documentation and/or other materials provided with the distribution.

3.All advertising materials mentioning features or use of this software must display the following acknowledgment: This product includes

software developed by the University of California, Berkeley and its contributors.

4.Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this

software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

OVERVIEW

Your Satellite Receiver lets you receive television signals from up to three satellites. You can customize your viewing schedules, set up favorite programs, set viewing preferences, and order pay per view (PPV) programs.

• Use the on-screen DIRECTV

Programming Guide to see what's on, then set a reminder so you don't miss the

program.

• Create your own list of favorite channels.

• Restrict viewing based on the ratings of programs.

• Tag programs for future viewing.

• Receive mail messages from DIRECTV.

FEATURES

This user manual will help you set up and use your Philips manufactured DIRECTV PLUSTMSatellite Receiver. On-screen messages will provide additional help, as will the glossary on page 45 of this manual.

SMART HELP

Your Satellite Receiver has a first

time setup on-screen guide. This offers important and helpful operation instructions. For details, refer to page 19.

When you press the POWER button on either the Satellite Receiver or remote control, the Satellite Receiver enters Standby mode. When you are not using the Satellite Receiver, DO NOT TURN OFFTHE POWER to the Satellite Receiver; when the Satellite Receiver is in Standby mode, the Guide refreshes itself continuously to ensure that it is up to date.

Temporarily unlocked channels are NOT kept in memory when the system goes into standby mode; themes and favorite channels are kept in memory.

TANDBY MODE

In Guide mode, you can view lists of programs according to their time slot and channel. You can tune to a program, receive notification when a program is about to start, order pay per view programs, search through listings for a specific type of program, and tag programs for future viewing. You can also access the menu, other guides, a tag list, or help.

GUIDE MODE

Menu mode lets you access or customize the features of your Satellite Receiver. Categories include Guide, General Settings, Access Control, Preferred Language, Purchases, Installation, Upgrades, and Mail. Details of each option are explained in this user manual.

MENU MODE

Before you can use your system, you must do the following:

•Install your Satellite Receiver according to the instructions in the Satellite Dish Antenna Assembly & Alignment Guide.

•Install the Access Card as described on page 12.

•Connect the telephone line to the Satellite Receiver so that you can purchase pay per view programs. Note: A telephone cord is included with the Satellite Receiver.

•To activate your service call: DIRECTVat 1-800-DIRECTV (347-3288).

The next few pages will explain these processes in detail. It's time to connect the Satellite Receiver to your TV and other equipment. Go to page 8 to begin.

GETTING STARTED

MODES

Your Satellite Receiver has four modes:

•Standby - Satellite Receiver is on but inactive; television is off.

•TV - displays television programming.

•Guide - for viewing schedules and tuning to a program.

•Menu - for setting preferences and access codes.

To change modes, press the POWER, GUIDE, or MENU buttons on the remote. Features available in each mode are described below.

This is the normal viewing mode in which programs are viewed without Guide or Menu displayed.

TV MODE

Menu Mode Screen

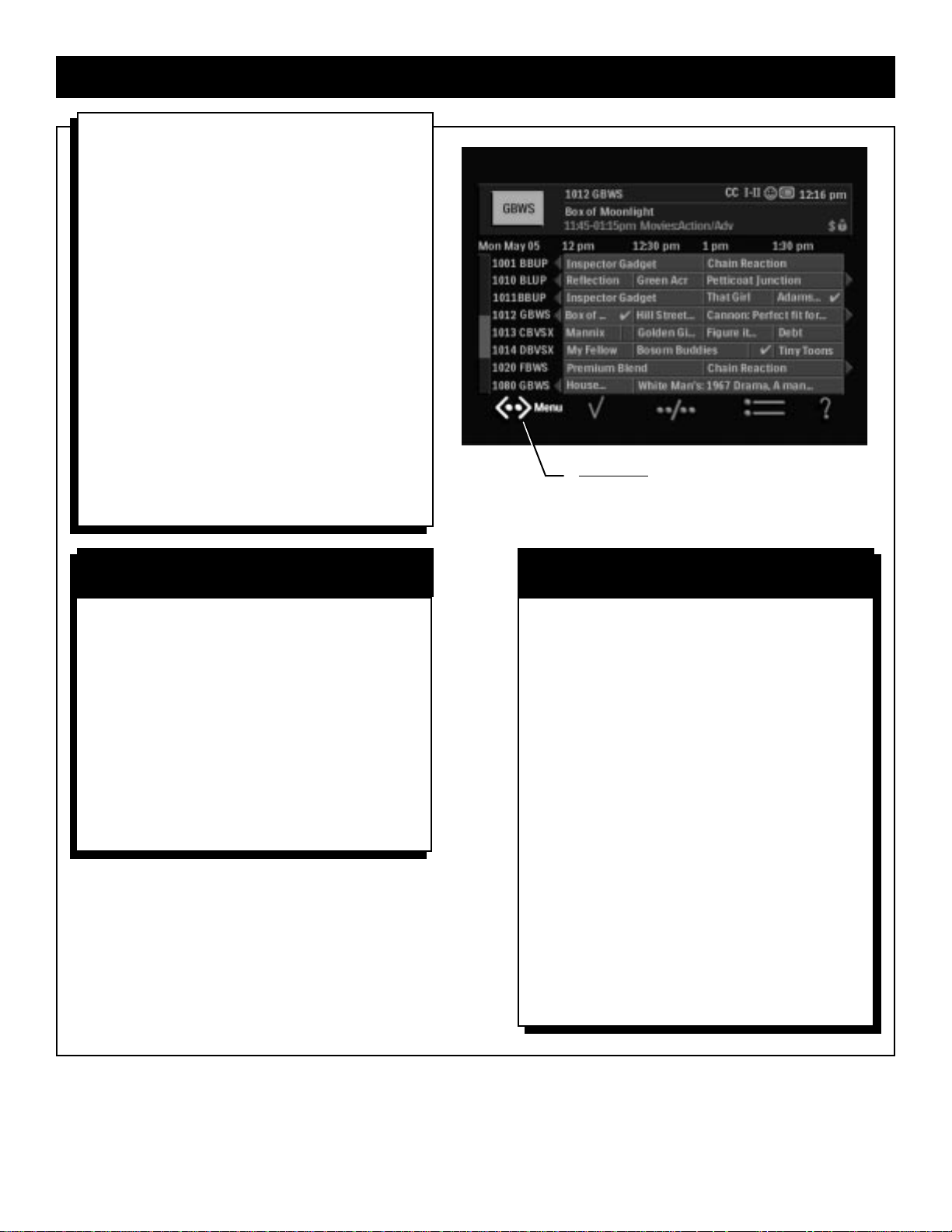

Guide Mode Screen

PREPARING YOUR REMOTE CONTROL

BATTERY INSTALLATION

Remove the battery compartment cover. Insert the two batteries (type LR6/AA - 1.5 V) supplied. Position them, as shown in the diagram, in the battery compartment. Replace the cover.

CAUTION: DO NOT MIX OLD AND NEW

BATTERIES, AND NEVER MIX DIFFERENT TYPES OF BATTERIES (STANDARD, ALKALINE, AND SO ON).

The batteries supplied with your Satellite Receiver’s remote control do not contain heavy metals such as mercury or nickel cadmium. Nevertheless, in many countries exhausted batteries may not be disposed of with your household waste. Please dispose of exhausted batteries according to local regulations.

CAUTION

Now, go to Controls and Connections on page 9.

Note: For more information on using your remote control refer to page14.

CONTROLS AND CONNECTIONS

FRONT VIEW

Power button Press to turn the Satellite Receiver on or press to place the Satellite Receiver in Standby Mode.

OK button Press to confirm a selection in the menu or Program Guide.

Power indicator Lights when the Satellite Receiver is on.

REAR VIEW

Phone jack Connect the phone cord here and to the wall phone jack in your home.

Now, go to Connecting To Your Existing Equipment on page 10.

Menu button Press to access or exit the menu.

Back button Press to return to the previous menu screen.

Arrow buttons (§ ▼ ▲ ©) Press to select items in the menu or Program Guide.

SMART HELP

These functions are also

available on the remote control and are described in that section (page 14). The Standby/ IR indicator lights when your system is active. The light is off when the unit is in Standby mode.

Channel 3/4 switch Set to channel 3 or 4. Details are on page 10.

100-120V - 60 Hz AC power input Connect the supplied power cord here.

Card Access Install Access Card here. Details are on page 12.

Sat In Connect the coaxial cable from the Satellite Dish antenna here. Details are in the Satellite Dish Antenna Assembly & Alignment guide.

RF In

Left/right Audio output Connect red and white (RCA-style) audio cables here and to the left/right Audio In jacks of your TV. Details are on page 10.

Video output Connect yellow (RCA-style) audio cable here and to the Video In jack on your TV. Details are on page 10.

To TV/VCR

S-Video Connect an S-Video cable here and to the S-Video IN jack on the TV or other video equipment

CONNECTING TO YOUR EXISTING EQUIPMENT

Unplug all equipment from the AC power before hooking up.

Refer to the illustration:

Using a RF coaxial cable, connect the Satellite Receiver’s ‘TO TV/VCR’ output jack to the TV’s UHF/VHF input jack.

If the RF coaxial cable from the satellite dish has not been connected to the Satellite Receiver, connect it to SATIN jack.

Connect one end of the AC power cord to the Satellite Receiver’s AC IN jack. Connect the plug end to an AC outlet. The power LED should light to indicate that the power is on.

Connect other equipment to an AC outlet.

Switch on your TV first and select channel 3 or 4, whichever channel is not used or least used in your area. Set the CHANNEL 3/4 switch on the back of the Satellite Receiver to the same channel.

IF YOUR T ELEVISION HAS

RF (UHF/VHF) CONNECTION ONLY

Refer to the illustration:

Using RCA type cables (red, white, and yellow, not included), connect the Satellite Receiver AUDIO OUT and VIDEO OUT jacks to the TV’s A/V IN jacks. Connect the red cable to the red jacks, the white cable to the white jacks, and the yellow cable to the yellow jacks. Note: you can also connect the Satellite Receiver’s AUDIO out jacks to your audio receiver’s AUDIO IN jacks using audio cables.

If the RF coaxial cable from the satellite dish has not been connected to the Satellite Receiver, connect it to SATIN jack.

Connect one end of the AC power cord to the Satellite receiver’s AC IN jack. Connect the plug end to an AC outlet.

Connect other equipment to an AC outlet.

Switch on your TV first and select the appropriate A/V mode. Refer to the user manual of your TV set to select the proper A/V mode (AUX/VCR, S-VIDEO, …)

IF YOUR TELEVISION HAS

AUDIO/VIDEO (A/V) CONNECTORS

Next, go to Inserting Your Access Card on page 12.

SMART HELP

If the audio and

video jacks on your TV are not color-coded, make sure you connect the audio/video out jacks on the Satellite Receiver to the audio/video in jacks on the TV. Connect right jacks to right jacks, and left jacks to left jacks.

RF coaxial cable

VHF/UHF

Rear of TV

VIDEO

AUDIO

VIDEO

AUDIO

Audio cables

Video cable

VHF/UHF

Rear of TV

VIDEO

AUDIO

VIDEO

AUDIO

CONNECTING TO YOUR EXISTING EQUIPMENT (CONT’D)

Unplug all equipment from the AC outlet before making connections.

Refer to the illustration at right:

Connect the Satellite Receiver A/V jacks to the VCR’s A/V IN jacks. Connect the red cable to the red jacks, the white cable to the white jacks, and the yellow cable to the yellow jacks.

Connect the VCR’s A/V OUT jacks to the TV’s A/V IN jacks.

Connect TV, VCR or other equipment to AC outlet.

Switch on your TV first and select the appropriate channel or A/V mode depending on the connection chosen in step 2. Refer to the user manuals for your TV and VCR to select proper channel or A/V mode (AUX/VCR, S-VIDEO, …).

IF YOU HAVE A

TV AND A VCR

Next, go to Inserting Your Access Card on page 12.

SMART HELP

• If the audio and video jacks on

your TV are not color-coded, make sure you connect the audio/video out jacks on the Satellite Receiver to the audio/video in jacks on the TV. Connect right jacks to right jacks, and left jacks to left jacks.

• If your VCR or TV does not have audio and video jacks, use RF coaxial cables for connections instead. Connect the RF coaxial cable to the TV/VCR jack on the Satellite Receiver and to the RF or ANTENNA IN jack on the VCR.

Then, connect a second RF coaxial cable to the ANTENNA OUT or RF OUT jack of the VCR and to the ANTENNAIN, RF in, or UHF/VHF IN jack of the TV.

Rear of VCR

Audio cables

AUDIO

ANT

OUT

VIDEO

CH3CH4

INOUT

Video cable

Rear of TV

OUT

VHF/UHF

VIDEO

AUDIO

ANT

OUT

VIDEO

OUT

CH3 CH4

INOUT

Video cable

Audio cables

VIDEO

AUDIO

INSERTING YOUR ACCESS CARD

The access card provided with your system includes information about your purchase authorization and other data. To watch channels, your viewing access card needs to be inserted in the access card slot on the rear of your Satellite Receiver.

When the card is removed, the system will not display any programming guides or video signal. The message, "Please insert your Access Card" will show on the TV screen.

The access card only needs to be inserted during system setup and generally does not need to be removed. Each access card has a unique number. Be sure to record this number in the space provided on the back cover of this manual.

Hold the card with the arrow facing upwards and pointing toward the slot in the Satellite Receiver rear panel.

Gently push the card into the slot until it meets the stop. Do not use undue force when inserting. The end will be visible outside of the slot.

Keep your access card permanently inserted in your Satellite Receiver.

Connect one end of the AC power cord to the Satellite Receiver’s AC IN jack. Connect the plug end to an AC outlet. This will turn unit on.

When replacing the access card, the system will prompt you with instructions. Gently remove the card from its slot. If you have to reinsert the card, you should have the ARROW facing forward into the box and the GOLD CHIP facing down. Push the card into the slot as far as it will go, the end will be visible outside of the slot.

The old card passes information to the new card, and then the old card no longer functions.

REPLACING THE ACCESS CARD

• YOUR ACCESS CARD IS FRAGILE.

• ALWAYS INSERT CORRECTLY AND CAREFULLY.

• DO NOT BEND.

• DO NOT REMOVE AND RE-INSERT UNNECESSARILY.

• NEVER SUBMERGE IN LIQUID OR APPLY CLEANING FLUIDS.

CAUTION

Next, go to Switching your Satellite Receiver On and Off on page 12.

SMART HELP

Once the Satellite Receiver is powered on,

the Installation Wizard will appear on your TV screen. You should then proceed to the Installation Wizard details on page 19.

Note: The Installation Wizard will remain on the screen only for a few minutes and needs to be accessed as quickly as possible. This screen will ONLY appear the very first time your Satellite Receiver is in use.

REPLACING THE ACCESS CARD

Your service provider may periodically send you a new access card. You will need to use this card in place of the current card.

Press MENU. Use the ▲ and ▼ buttons to highlight Access Control. Press OK. Choose Replace Access card, then press OK. Be sure the current access card is inserted in the Satellite Receiver. "Copying OLD access card information…." will appear on the screen. When prompted, remove the old card, insert the new card, then press OK. Data from the old card will be copied to the new card. A message will inform you when the process is complete. Press OK to return to the previous menu. Discard the old card. It no longer works.

TO REPLACE THE ACCESS CARD

Pressing the POWER button on your remote control or on the front of the Satellite Receiver will turn on or turn off your Satellite Receiver.

Note: Pressing the POWER button on your remote control again will put the Satellite Receiver into standby. There is no need to remove power from the Satellite Receiver (by unplugging the AC power cord).

SWITCHING YOUR SATELLITE RECEIVER ON AND OFF

Next, go to Preparing your Remote Control on page 14.

REMOTE CONTROL USE - SATELLITE

INFO

• Guide mode: pressing INFO switches

between short and long program information in the banner.

• Menu mode: inactive.

• TV mode: switches between short and

extended banners.

MODE

• Three different modes (SAT, VCR, TV) are selected by pressing the "MODE" button. The mode selected is the one with the lighted LED.

FAVORITES

• Guide mode: switches display of

Favorite channel list.

• Menu mode: inactive.

• TV mode: switches display of the

Favorites dialog.

PAGE+/-

• Guide mode: displays the contents of

the next or previous Guide screen.

• Menu mode: used with long lists of options such as favorite channels, system information, PPV, and system test to scroll a full page of selection items.

• TV mode: lets you view the program banner of other channels while still viewing the video in from the current channel.

GUIDE

• Guide mode: switches display of the Guide.

• Menu mode: inactive.

• TV mode: displays the Guide.

§ © ▲ ▼

• Guide mode: navigates through the Guide.

• Menu mode: ▲ ▼ select and highlight menu options and move between items on a screen. § © change settings in an item on the screen.

TV/SAT

• All modes: switches to local cable

or antenna broadcasts.

0-9

• Guide mode: goes to channel

entered in Guide.

• Menu mode: lets you enter numeric values.

• TV mode: allows direct number entry for tuning to a channel. Tuning occurs immediately after the channel is entered, or you can press OK after entering the third digit to tune immediately to the channel.

POWER

• All modes: switches the satellite

receiver between active and standby modes but does NOT turn off power to the unit.

THEMES

• Guide mode: switches display of

themes. Themes indicate the type of program, for example, movie/action adventure.

• Menu mode: inactive.

• TV mode: displays the Themes menu. MENU

• Guide mode: enables selection of

icons at the bottom of the Guide. A second press redisplays the Guide.

• Menu mode: removes the menu from the screen and accepts changes. Pressing MENU again exits the menu and returns to the TV confirming any previously set values.

• TV mode: displays the main menu.

• Guide mode: confirms current

programming. Pressing OK confirms a selection in a dialog. For future programming, tags the selection or starts the PPV sequence.

• Menu mode: confirms the selection of a menu option or list choice.

• TV mode: when browsing channels, goes to the channel displayed in the browse banner.

BACK

• Guide mode: returns to the

previous state.

• Menu mode: exits the current menu and confirms selections in dialogs with non-exclusive options.

• TV mode: inactive.

EXIT

• In Guide and Menu modes: returns

to video and cancels the transaction.

• TV mode: inactive.

: is not used with this model. ALT AUDIO

• Guide mode: when alternate audio

tracks are available, lets you select another audio track.

• Menu mode: inactive.

• TV mode: displays a dialog for

selecting alternate audio tracks.

SMART HELP

Some of the

buttons on this remote control operate differently depending on whether you are in Guide, Menu, or TV mode.

REMOTE CONTROL USE - TV

MODE

Three different modes (SAT, VCR, TV) are selected by pressing the "MODE" button. The mode selected is the one with the lighted LED.

VOL +/-

Increases and decreases volume.

0-9

Allows direct number entry for tuning to a channel. Tuning occurs immediately after the channel is entered, or you can press OK after entering the third digit to tune immediately to the channel.

POWER

Press to turn TV on or off.

▲ ▼ ▲ ▼ for channel surfing.

MUTE

• Switches audio on and off.

SMART HELP

This remote

control will operate most TVs and VCRs. See Programming the Universal Remote on page 17.

+ 33 hidden pages
