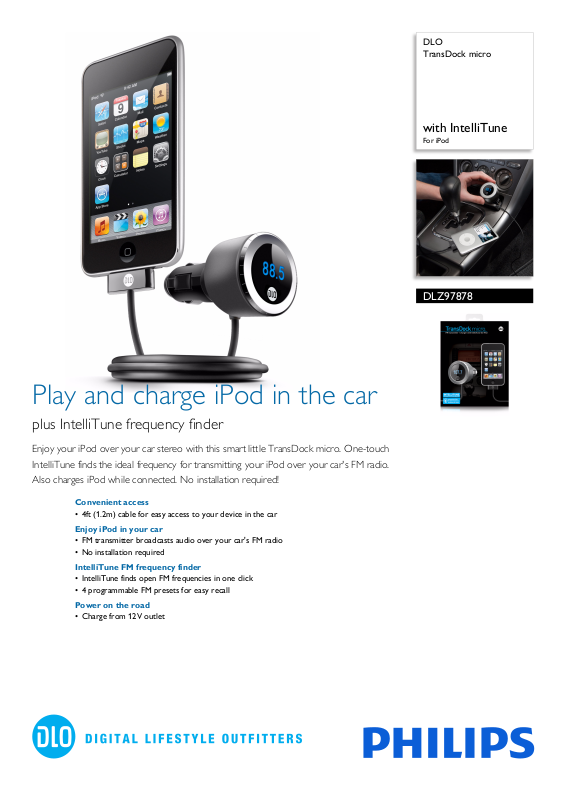

Page 1
DLO
TransDock micro
with IntelliTune
For iPod
DLZ97878
Play and charge iPod in the car
plus IntelliTune frequency finder
Enjoy your iPod over your car stereo with this smart little TransDock micro. One-touch
IntelliTune finds the ideal frequency for transmitting your iPod over your car's FM radio.
Also charges iPod while connected. No installation required!
Convenient access
• 4ft (1.2m) cable for easy access to your device in the car
Enjoy iPod in your car
• FM transmitter broadcasts audio over your car's FM radio
• No installation required
IntelliTune FM frequency finder
• IntelliTune finds open FM frequencies in one click
• 4 programmable FM presets for easy recall
Power on the road
• Charge from 12V outlet
Page 2
TransDock micro
with IntelliTune For iPod
DLZ97878/17
Specifications
Compatibility
• Compatible with: iPod
iPod compatibility
• Compatible with: iPod with docking connector
Power
• Output: 5VDC, 500mA
• Power input: 12VDC, 10W
• Replaceable Fuse
FM Transmitter
• Default Preset Frequencies: 88.1, 94.9, 100.9,
107.9 MHz
• Frequency Adjustment: 0.2 Hz
• Modulation: FM Stereo
• Frequency Range: 88.1 - 107.9
Packaging dimensions
• Packaging type: Blister
• Number of products included: 1
• Packaging dimensions (W x H x D):
5.5 x 9.3 x 2.5 inch
• Gross weight: 0.750 lb
• Nett weight: 0.088 lb
• Tare weight: 0.661 lb
• UPC: 8 36258 97878 1
Outer Carton
• Number of consumer packagings: 36
•Outer carton (L x W x H): 24.5 x 22.3 x 13.3 inch
• Gross weight: 30.000 lb
• Nett weight: 3.175 lb
• Tare weight: 26.826 lb
• GTIN: 2 08 36258 97878 5
Inner Carton
• Number of consumer packagings: 6
• Inner carton (L x W x H): 12.0 x 8.0 x 6.5 inch
• Gross weight: 5.000 lb
• Nett weight: 0.529 lb
• Tare weight: 4.471 lb
• GTIN: 1 08 36258 97878 8
•
Highlights
IntelliTune frequency finder
At the touch of a button, IntelliTune scans the
airwaves to find open FM frequencies. You'll know in
an instant which station to tune to for broadcasting
your device's audio content over the FM radio in
your car.
Car FM transmitter
The FM transmitter wirelessly broadcasts the audio
content of your device over your car's radio using an
open FM frequency, so you can enjoy your music on
the road.
No installation required
Quick and easy to use, it requires no custom
installation. Simply plug into any 12V auto outlet and
you're ready to go, right out of the box.
Issue date 2014-02-06
Version: 1.1.3
12 NC: 8670 000 47326
UPC: 8 36258 97878 1
© 2014 Koninklijke Philips N.V. All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
The DLO logo and Digital Lifestyle Outfitters are trademarks of Philips Consumer
Lifestyle.
www.philips.com
