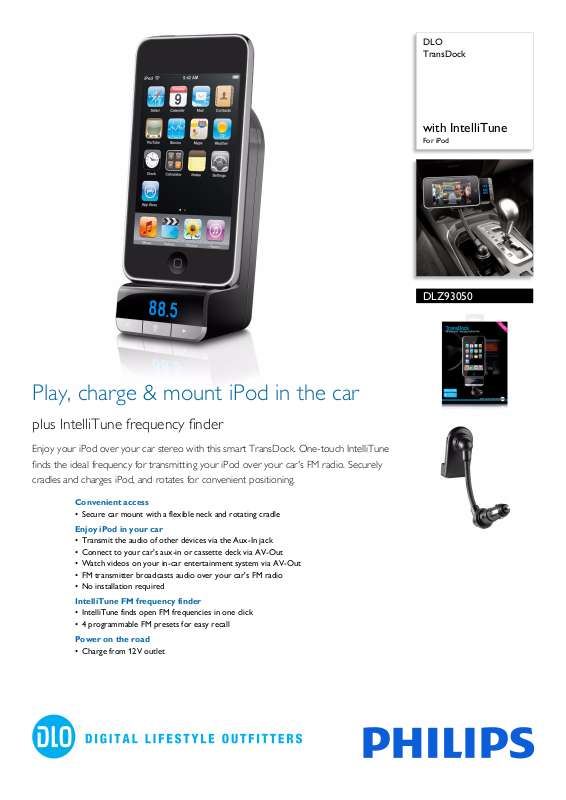

Page 1
DLO
TransDock
with IntelliTune
For iPod
DLZ93050
Play, charge & mount iPod in the car
plus IntelliTune frequency finder
Enjoy your iPod over your car stereo with this smart TransDock. One-touch IntelliTune
finds the ideal frequency for transmitting your iPod over your car's FM radio. Securely
cradles and charges iPod, and rotates for convenient positioning.
Convenient access
• Secure car mount with a flexible neck and rotating cradle
Enjoy iPod in your car
• Transmit the audio of other devices via the Aux-In jack
• Connect to your car's aux-in or cassette deck via AV-Out
• Watch videos on your in-car entertainment system via AV-Out
• FM transmitter broadcasts audio over your car's FM radio
• No installation required
IntelliTune FM frequency finder
• IntelliTune finds open FM frequencies in one click
• 4 programmable FM presets for easy recall
Power on the road
• Charge from 12V outlet
Page 2
TransDock
with IntelliTune For iPod
DLZ93050/17
Specifications
Compatibility
• Compatible with: iPod
iPod compatibility
• Compatible with: iPod with docking connector
Connectivity
•AV out: 3.5 mm
• Line in: 3.5 mm
Power
• Output: 5VDC, 500mA
• Power input: 12VDC, 10W
• Replaceable Fuse
FM Transmitter
• Default Preset Frequencies: 88.1, 94.9, 100.9,
107.9 MHz
• Frequency Adjustment: 0.2 Hz
• Modulation: FM Stereo
• Frequency Range: 88.1 - 107.9
Packaging dimensions
• Packaging type: Blister
• Number of products included: 1
• Packaging dimensions (W x H x D):
5.8 x 7.5 x 2.5 inch
• Gross weight: 0.659 lb
• Nett weight: 0.088 lb
• Tare weight: 0.571 lb
• UPC: 8 36258 93050 5
Outer Carton
• Number of consumer packagings: 36
•Outer carton (L x W x H): 20.5 x 11.9 x 15.8 inch
• Gross weight: 13.900 lb
• Nett weight: 3.175 lb
• Tare weight: 10.725 lb
• GTIN: 2 08 36258 93050 9
Inner Carton
• Number of consumer packagings: 6
• Inner carton (L x W x H): 11.4 x 6.4 x 7.2 inch
• Gross weight: 2.299 lb
• Nett weight: 0.529 lb
• Tare weight: 1.770 lb
• GTIN: 1 08 36258 93050 2
•
Highlights
Flexible, rotating car mount
Securely mount your iPod in the car inside a flexible,
rotating cradle. The neck is flexible for best
positioning, while the rotating cradle allows for easy
access and at-a-glance horizontal viewing of the iPod
touch.
IntelliTune frequency finder
At the touch of a button, IntelliTune scans the
airwaves to find open FM frequencies. You'll know in
an instant which station to tune to for broadcasting
your device's audio content over the FM radio in
your car.
Car FM transmitter
The FM transmitter wirelessly broadcasts the audio
content of your device over your car's radio using an
open FM frequency, so you can enjoy your music on
the road.
No installation required
Quick and easy to use, it requires no custom
installation. Simply plug into any 12V auto outlet and
you're ready to go, right out of the box.
Issue date 2014-02-06
Version: 1.1.3
12 NC: 8670 000 47325
UPC: 8 36258 93050 5
© 2014 Koninklijke Philips N.V. All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
The DLO logo and Digital Lifestyle Outfitters are trademarks of Philips Consumer
Lifestyle.
