Philips body analysis scale with Bluetooth® Smart

DL8781, DL8780

EN-US

Page 2

Page 3

3 4

6 7 8 9

Page 4

Page 5

English 6

Page 6

English

Contents

Introduction 7

General 7

Explanation of symbols 8 General description (Fig. 1) 9 Intended use 9 IMPORTANT SAFEGUARDS 9

Contraindications 9

Warnings 10

Caution 10

SAVE THESE INSTRUCTIONS 11

Compliance with standards 11 Using the body analysis scale 11 Preparing for use 11

Inserting/removing the batteries 11

Placing the carpet feet 12

Setting the measurement unit 13

Pairing the body analysis scale to your mobile device and create a user prole 13 Measuring weight and body fat 14

Tips for proper measurement 14 Performing a measurement 15

Performing a measurement with app 15

Performing a measurement without app 16

Factory reset 17 Cleaning and storage 18 Accessories 18 Disposal 18 Assistance 18 Full Two-Year Warranty 19 Troubleshooting 19 Specications 21 Electromagnetic emissions and immunity 22 EMC Guidance 22

Table 1 Guidance and manufacturer's declaration – electromagnetic emissions - for all

ME equipment and ME systems

Table 2 Guidance and manufacturer's declaration – electromagnetic immunity – for all

ME equipment and ME systems

Table 4 Guidance and manufacturer's declaration – electromagnetic immunity –for ME

equipment and ME systems that are not life supporting

Table 6 Recommended separation distances between portable and mobile RF

communications equipment and the ME equipment or ME system – for ME equipment

and ME systems that are not life supporting FCC Compliance information 25

Radio interference 25

RF Radiation exposure statement 25

BlueTooth wordmark 26

App Store and iPhone 26

Google Play and Android 26

Page 7

Introduction

General

English

Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/welcome.

This Philips body analysis scale oers you a convenient tool to measure your weight.

The scale enables you to perform a body weight and fat measurement. It also transmits data via Bluetooth® Smart to your mobile device and to calculate and display weight, BMI and body fat percentage in the Philips HealthSuite health app. The scale has a maximum weighing capacity of 28 st 5 lb (397 lb) / 180 kg.

Note: Only weight measurement is displayed on the scale. BMI and body fat percentage are only shown in the app.

This user manual contains important safety information and provides step-by-step instructions for using the device.

Read this information carefully before you use the device and save it for future reference.

Features:

- Memory for up to 40 measurements per user for 8 separate users.

- Measures body fat with BIA (bioelectrical impedance analysis) technology.

- User recognition based on weight.

- Automatic activation of the scale when you step on it thanks to the Sense-On technology.

- LCD display.

Page 8

English

Explanation of symbols

The warning signs and symbols are essential to ensure that you use this product safely and correctly and to protect you and others from injury. Following is the meaning of the warning signs and symbols on the label and in the user manual.

Symbol indicates the need

Type BF applied part for the user to consult the instructions for use

Indicates the need for the user to consult the instructions for use for important cautionary information such as warnings

This symbol means that this device emits

nonionizing radiation. All devices with RF

transmitters or that use RF electromagnetic

energy must have a label with this symbol. and precautions that cannot, for a variety of reasons, be presented on the medical device itself.

Indicates the manufacturer's

Symbol for the 2 year Philips warranty. serial number so that a specic device can be identied.

Indicates manufacturer's

For indoor use only. catalog number of the appliance.

Indicates manufacturing date Indicates the temperature limits to which the

140ºF

–4ºF

device can be safely exposed: -4°F to 140°F /

-20°C to 60°C.

This symbol on the device means: protected against access to hazardous parts with

Indicates the relative humidity limits to which

the device can be safely exposed: 10% to

93%. a nger and against vertically falling water drops when tilted up to 15 degrees.

Symbol for the 'Bluetooth Combination mark'. The device uses Bluetooth for communication.

Compliant with the Waste Electrical and

Electronic Equipment/Restriction of the Use

of Certain Hazardous Substances in Electrical

and Electronic Equipment (WEEE) recycling

directives.

Page 9

General description (Fig. 1)

1 Display 2 Measurement platform 3 Bluetooth® symbol 4 Measurement results 5 Battery low symbol 6 Bioelectrical impedance analysis (BIA) 7 Stone (st) 8 Pound (lb) 9 Kilogram (kg) 10 Feet of the scale 11 Measurement unit button 12 Battery compartment

Intended use

The Philips body analysis scale measures body weight and uses bioelectrical impedance analysis (BIA) technology to estimate body fat percentage of healthy adults.

The device is intended for use in the home/domestic environment only.

IMPORTANT SAFEGUARDS

Waning: READ ALL INSTRUCTIONS BEFORE USING

English

When using battery-operated products, basic safety precautions should always be followed, including the following:

Contraindications

- This device is contraindicated for women who are pregnant or think they are pregnant. The eects of this device on the fetus are unknown.

- This device is contraindicated for any person who is connected to a wearable or implanted electronic medical device or instrument such as a pacemaker or debrillator. This device can cause the electronic medical device to malfunction.

Page 10

English

Warnings

Caution

- Keep the device out of reach of infants, children or pets, since inhalation or swallowing of small parts (e.g. carpet feet, batteries) can be dangerous or even fatal.

- Do not step on the device when your body or feet are wet, especially after bathing or showering to prevent slipping.

- Always check the device before you use it. Do not use the device if it is damaged, as this may cause injury.

- Only use this device for its intended use as described in this user manual.

- If the device will not be used on a regular basis, remove the batteries to prevent possible damage due to chemical leakage. If battery does leak, remove it carefully. Do not allow bare skin to touch leaking uid.

- The device requires no calibration.

- The manufacturer does not require such preventive inspections by other persons.

- The device contains no user serviceable parts.

- Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness. If in doubt, contact your physician.

- This device should not be used by anyone who is acutely or chronically ill, suering from a disease or taking medications that aect the amount of water in your body. The accuracy of readings for these patients has not been veried. Specic medical advice should be obtained from a physician.

- This device is equipped with a data transmission function. It may emit electromagnetic energy so as to perform its intended function. Nearby portable and mobile Radio Frequency (examples include cell phones, Bluetooth® equipped music players, speakers and headsets as well as Wi access points) communication equipment can aect the performance of the device. The device can also interfere with electrical equipment in the vicinity. Therefore do not keep it in close proximity of portable and mobile Radio Frequency communication equipment.

- Use and store the device as described in the user manual.

- Do not expose the device to extreme temperatures, direct sunlight, moist or a corrosive environment (see 'Specications').

- Do not expose the batteries to ames or res, otherwise batteries may explode.

- No modications of this device are allowed.

- Do not use the device on a slippery oor.

- Treat the scale with care. Do not drop it or jump on it.

- This device is not washable. Never immerse the device in water and do not rinse it under the tap.

SAVE THESE INSTRUCTIONS

Page 11

Compliance with standards

- The device meets the relevant standards for this type of Class II electrical medical equipment for home use.

- This Philips device complies with all applicable standards and regulations regarding exposure to electromagnetic elds and complies with IEC 60601-1-2.

- This Philips device complies with applicable standards and regulations of the FCC Rules.

Using the body analysis scale

This Philips body analysis scale automatically switches on as soon as you step on the measurement platform. The device applies BIA (bioelectrical impedance analysis) technology. Weak current ows through the human body to measure the bioelectrical impedance and estimate body fat percentage. The electrical current is small and may not be felt. This BIA technology is non-invasive. The electrical current mentioned above is less than 1mA.

Preparing for use

Inserting/removing the batteries

Insert new batteries (4x 1.5V AAA alkaline) before the rst use.

Replace weak batteries before they discharge completely.

English

Note: Data will be lost when the battery is completely empty.

If you do not intend to use the device for a long period of time, it is advised to remove the batteries before storing.

Caution: Replace all four batteries at the same time. Do not mix the old batteries with the new ones.

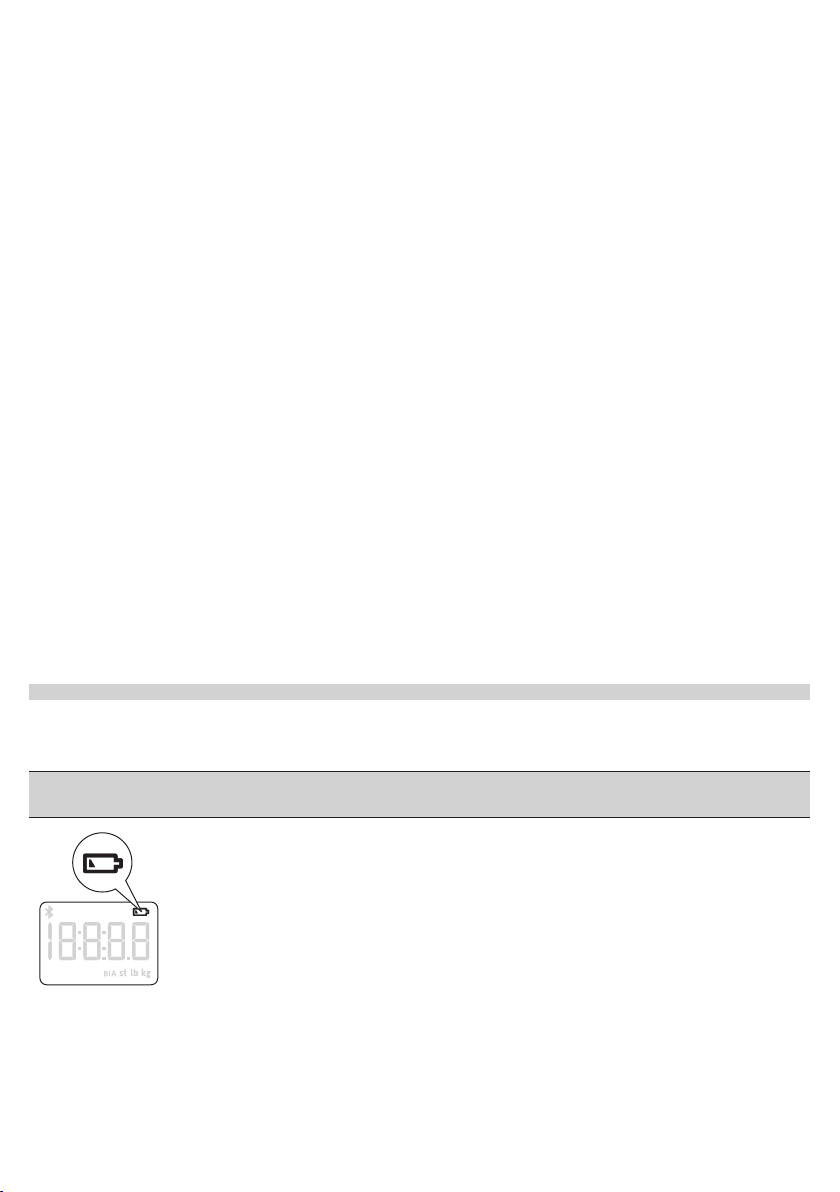

This device has a battery low indication. When the battery level is below operating value, this will be indicated by the low battery icon after which the device shall switch o within 4 sec.

Page 12

English

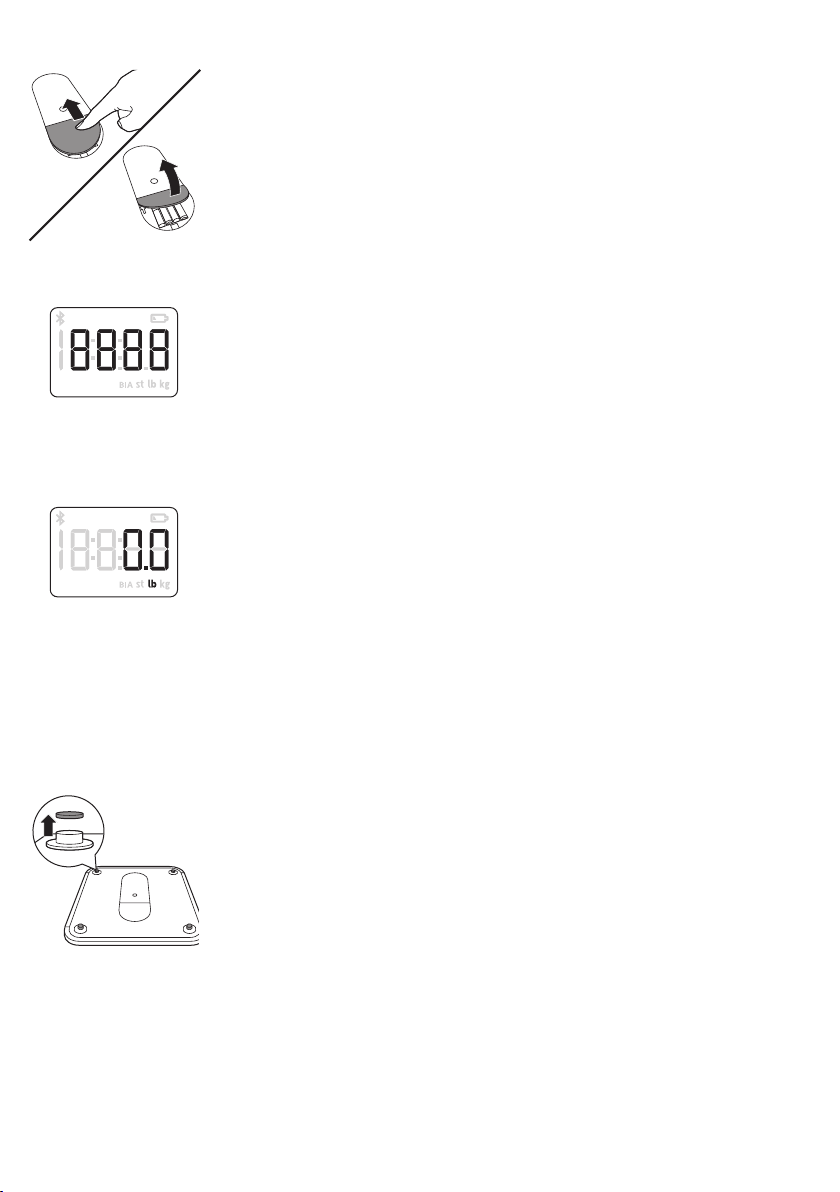

1 Open the battery compartment at the back of the device.

2 Insert the batteries (4x 1.5V AAA alkaline) into the battery compartment

according to the polarity indications marked inside the compartment.

- The digits “8888” will show on the display.

3 Close the battery compartment and wait until the digits “0.0lb” are

shown on the display. You can change measurement 'Setting the measurement unit' section.

Placing the carpet feet

Soft surfaces such as carpet will aect the performance of the device. Always install the supplied carpet feet in case you place the device on a soft surface to prevent the soft surface from aecting the performance.

1 Remove the non-slip pads from the feet of the device.

Page 13

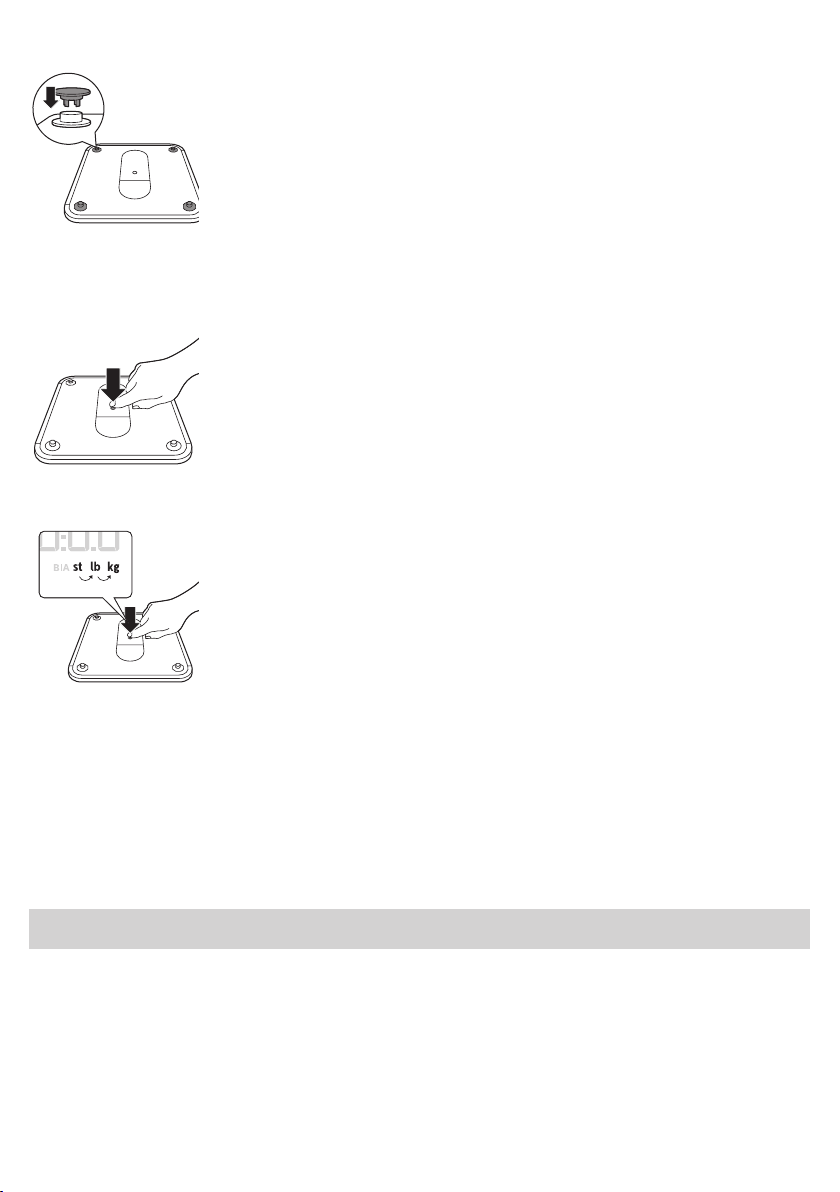

2 Fit the carpet feet rmly onto the feet of the device.

1x 1x

Setting the measurement unit

1 Press the measurement unit button in the bottom of the device to select

the measurement unit.

2 Press the measurement unit button again to switch between the

available measurement units: kilograms, pounds and stones.

English

Pairing the body analysis scale to your mobile device and create a user prole

Your Philips body analysis scale is equipped with Bluetooth® Smart. Download the Philips HealthSuite health app from the App store or Google Play. Use the search term 'Philips HealthSuite health app'. The app is available for iOS

Note: You can only use the Philips HealthSuite health app to communicate with the scale. It is not possible to use third party applications.

1 Download the Philips HealthSuite health app on your mobile device, start

the Setup wizard and follow the steps to create a user prole and add the scale.

2 Make sure the app is open and Bluetooth® is on when pairing is in

progress.

- Keep the mobile device and the scale at transmission distance (no more than 16 feet / 5 meters from each other, in the same room).

8.0+ and Android

4.4+.

Page 14

English

3 To start the pairing process press the measurement unit button for

3 seconds.

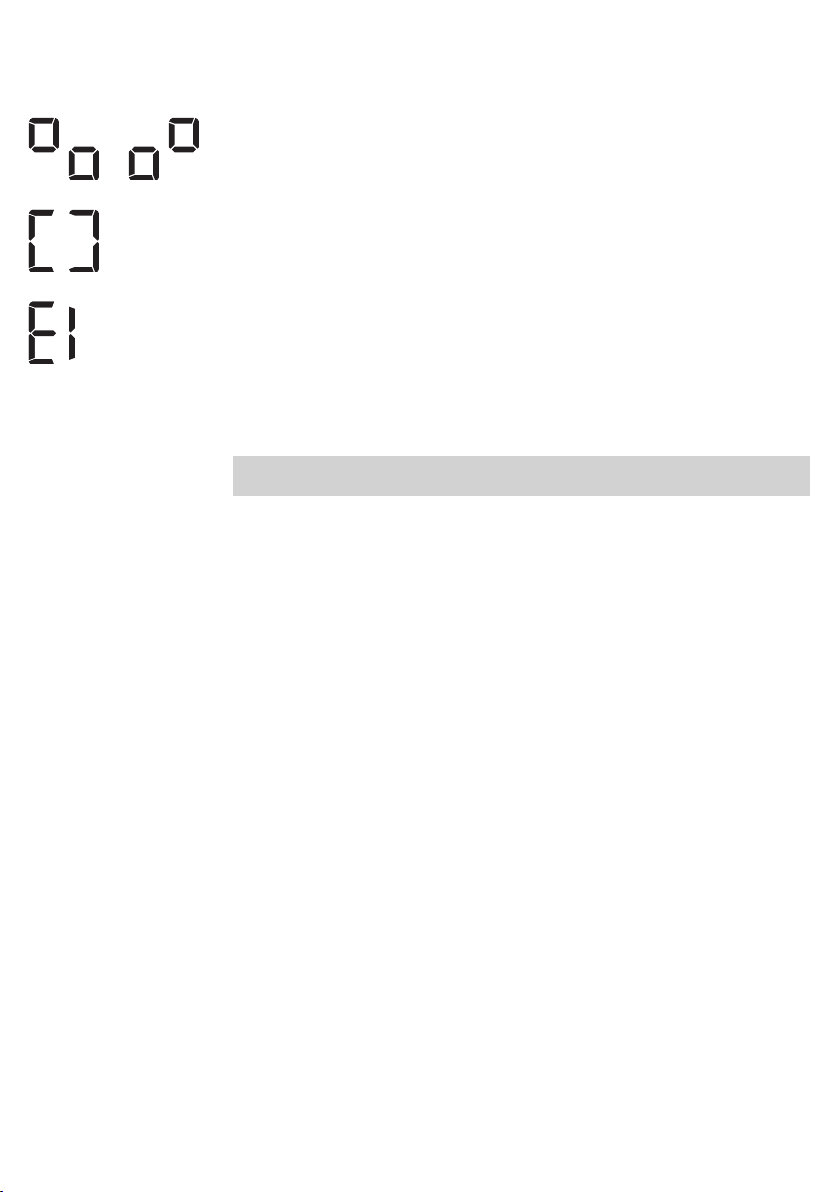

- These symbols are shown on the display alternately, indicating that the connection is being established.

- If the connection has been established successfully, the display shows this symbol.

- If the connection has failed, the display shows this symbol.

4 In the app, create the prole you want to use for the connection.

- The scale can create 8 user proles.

- If all proles are in use, choose an existing prole to overwrite.

5 Step on the scale barefoot to do an initial weighing. That weight is

assigned to your user prole. The scale switches o automatically.

Note: If you want to edit your user prole later on, make sure the scale is turned on and connected to the health app.

Measuring weight and body fat

Tips for proper measurement

To ensure accurate measurements, please follow these instructions when you start measuring.

- Place the device on a at, hard surface. Soft surfaces such as carpet aect the performance of the device. If you use the device on a soft surface, make sure you attach the carpet feet supplied to the feet of the device (see 'Placing the carpet feet'). This helps to prevent soft surfaces from aecting the performance of the device.

- A bioelectrical impedance analysis (BIA) measurement can only be performed if you are barefoot.

- Step onto the device barefoot, make sure your feet are slightly damp and clean. Stand still and keep full contact with the measurement platform until the measurement is complete. Be careful not to slip. The condition of the skin of the soles of your feet can aect the measurement. The natural eects of aging or activity can make this skin hard.

- Do not stand on the edge of the scale as you may fall or receive inaccurate measurements.

- Do not use the device on an uneven oor as it may result in unreliable data.

- Replace batteries before they are completely empty.

- For a meaningful comparison, try to measure under similar conditions. For example, take measurements at approximately the same time, on the same surface. Body fat percentage estimates will vary as a result of the amount of water in the body, and can be aected by dehydration or over-hydration due to such factors as alcohol consumption, menstruation, illness, intense exercise, etc.

Page 15

We advise you not to use the scale in the following circumstances, as this may cause inaccurate measurements:

- Immediately after strenuous exercise.

- Immediately after a sauna or bath.

- Immediately after eating or drinking.

Performing a measurement

Performing a measurement with app

Note: Your personal measurement data can only be stored and displayed via the Philips body analysis scale and Philips HealthSuite health app and not by use of third party apps.

Note: When the scale is connected via Bluetooth® to the app of a user, the scale will automatically select that user and measurements can only be done for that user.

1 Switch on Bluetooth® on your mobile device and open the health app.

- Keep the mobile device and the scale at transmission distance (no more than 16 feet / 5 meters from each other, in the same room).

- The Bluetooth® symbol lights up when the scale is connected to the mobile device. The Bluetooth® symbol ashes when data transmission has succeeded.

2 Step onto the scale to switch it on. The scale beeps to indicate that it is

ready for weighing. The scale is equipped with user prole recognition and automatically selects the user when the health app is connected.

- You can take a measurement barefoot. The scale is able to perform the weight measurement and the BIA measurement and store this measurement data in the health app. Make sure your feet are clean and slightly damp.

- You can also take a measurement wearing footwear. The scale is only able to perform the weight measurement and not the body fat estimation and BMI calculation. Your measurement results will not be stored or sent to the health app.

3 Weight measurement starts.

- Weight is shown on the display of the scale after weight measurement ends.

English

Page 16

English

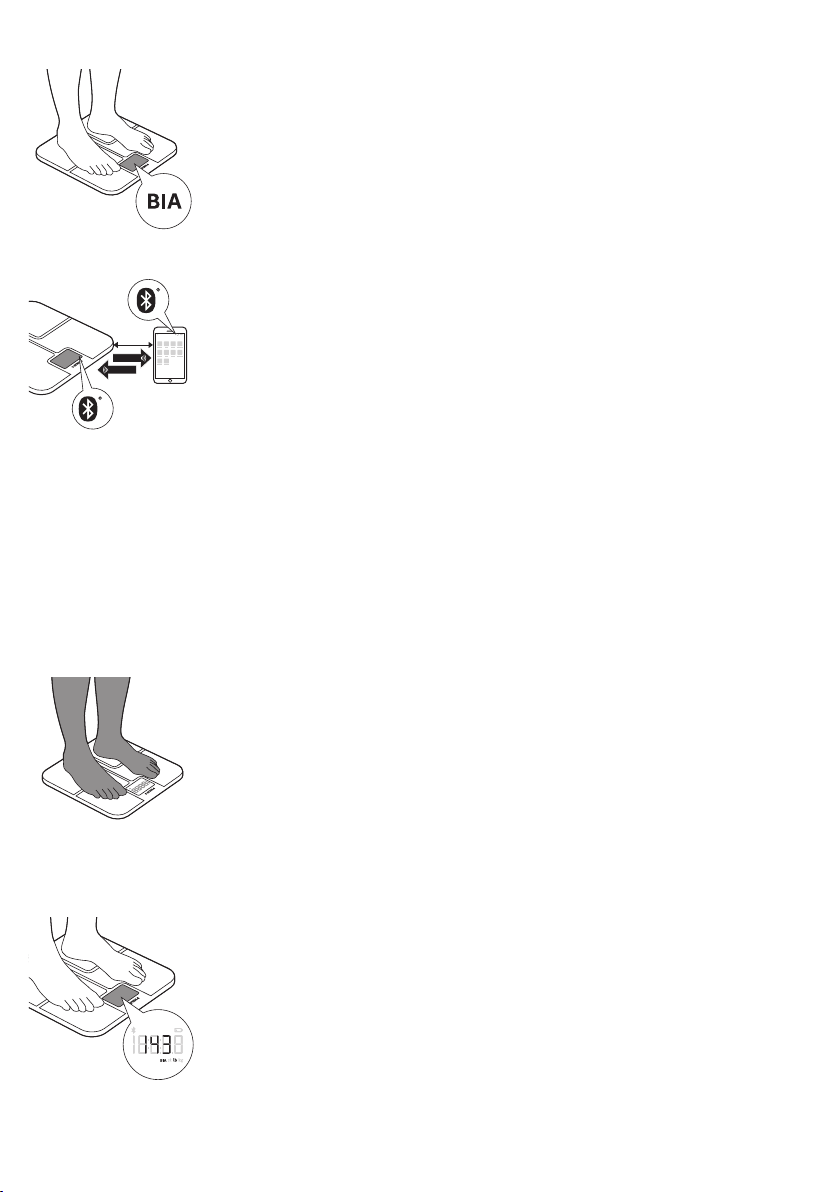

4 BIA measurement starts (when measuring barefoot).

- The symbol 'BIA' ashes on the display to indicate the scale is analyzing your data.

5 Stand still and keep full contact with the measurement platform until

the symbol ‘BIA’ stops ashing. The device beeps to indicate that the measurement is completed. The results of the BIA are shown in the app.

6 With the scale successfully connected to your mobile device, the

measurement data is automatically transmitted to your mobile device via

< 16ft

Bluetooth® Smart.

- The Bluetooth® symbol on the scale ashes while the measurement data is transmitted to the app.

- The measurement results are shown and stored in the health app.

7 After measuring, step o the scale. The scale switches o automatically.

Performing a measurement without app

The scale can be used without the app. This allows you to measure your weight. When you have created a user prole in the scale, you can measure

your weight and perform BIA. You can also upload your measurement data to the health app later on, when the scale and your mobile device are connected. Results of the body analysis measurement can only be accessed using the Philips HealthSuite health app. The scale cannot directly communicate BIA results to the user.

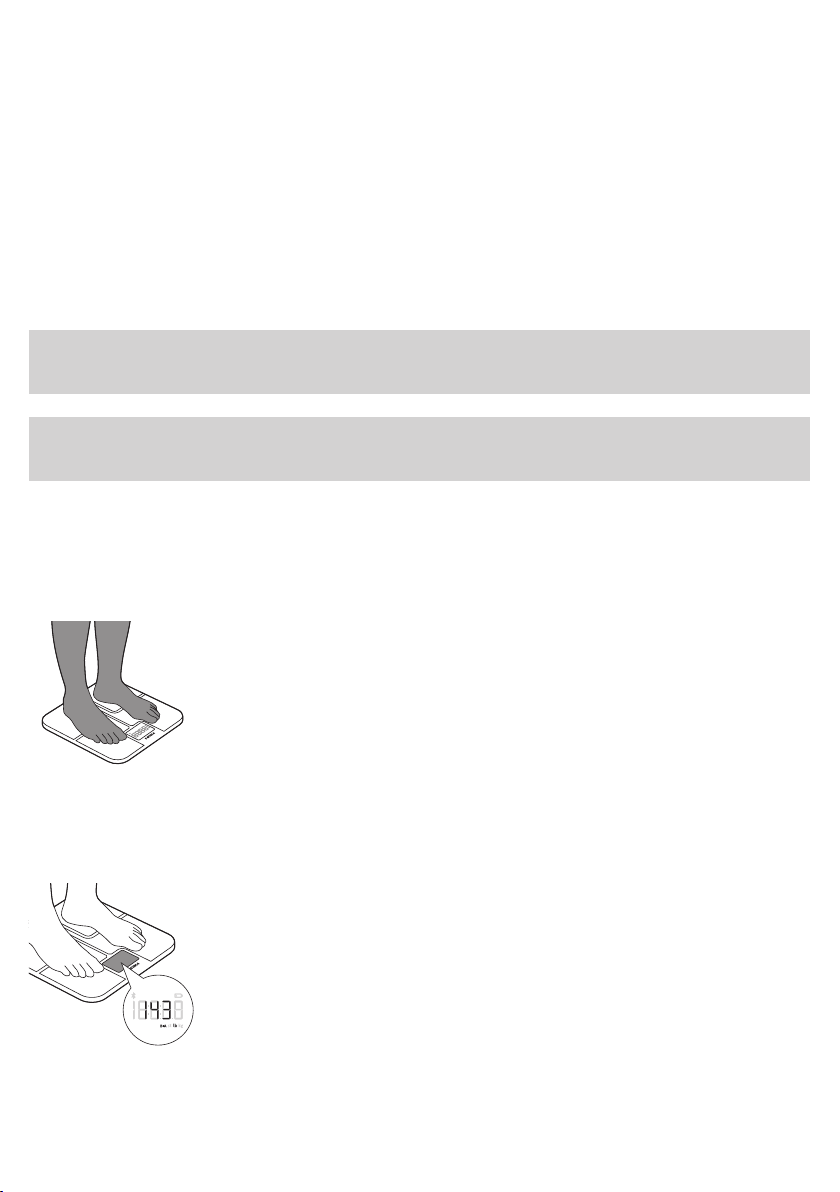

1 Step onto the scale barefoot to switch it on. The device beeps to indicate

it is ready for weighing.

- You can take a measurement barefoot. The device is able to perform the weight measurement and the BIA measurement and later on store the measurement data in the health app. Make sure your feet are clean and slightly damp.

2 Weight measurement starts.

- Weight is shown on the display of the device after weight measurement ends.

Page 17

English

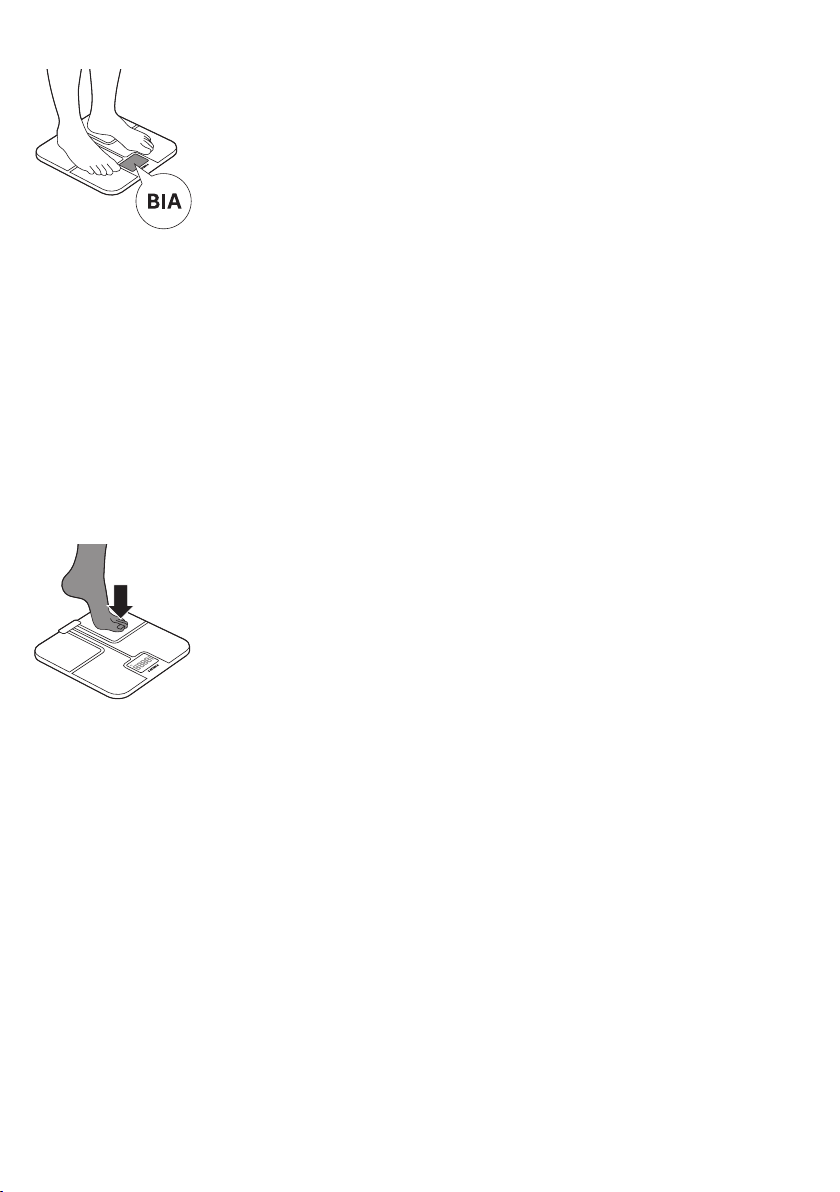

3 BIA measurement starts (when measuring barefoot).

- The symbol 'BIA' ashes on the display to indicate the device is analyzing your data.

4 Stand still and keep full contact with the measurement platform until

the symbol ‘BIA’ stops ashing. The device beeps to indicate that the measurement is completed. The results of the BIA will not be shown on the display.

5 The device is equipped with user prole recognition and automatically

selects the user based on their weight.

- When the device immediately displays the weight: no user is recognized and results are not stored. See below for instructions.

- When the device shows multiple users: more users are recognized based on your weight. See below for instructions.

6 The measurement results are stored in the device in case of a successful

BIA.

- The device can store up to 40 measurement results for each user prole. The oldest results will be replaced by new measurement results.

7 After measuring, step o the device. It switches o automatically.

When the device does not automatically recognize the correct user prole:

- To select the correct user prole, step o the device and tap on the measurement platform to conrm the correct user prole.

- All proles will be shown alternately on the display. Tap on the scale to conrm your user prole.

- Make sure that you select the correct user.

Factory reset

To add up to 8 new user proles or delete all measurement results from the device, you can perform a factory reset. With the factory reset the device is cleared from all existing user proles and measurement results.

1 With the device turned on, press and hold the measurement unit button

located on the bottom of the device for 20 seconds, until "FACt" is shown on the display. Now all data is deleted.

- After resetting the scale will automatically turn o.

- You can now create new users proles (see 'Pairing the body analysis scale to your mobile device and create a user prole').

Page 18

English

Cleaning and storage

Caution: Never immerse the device in water and do not rinse it under the tap.

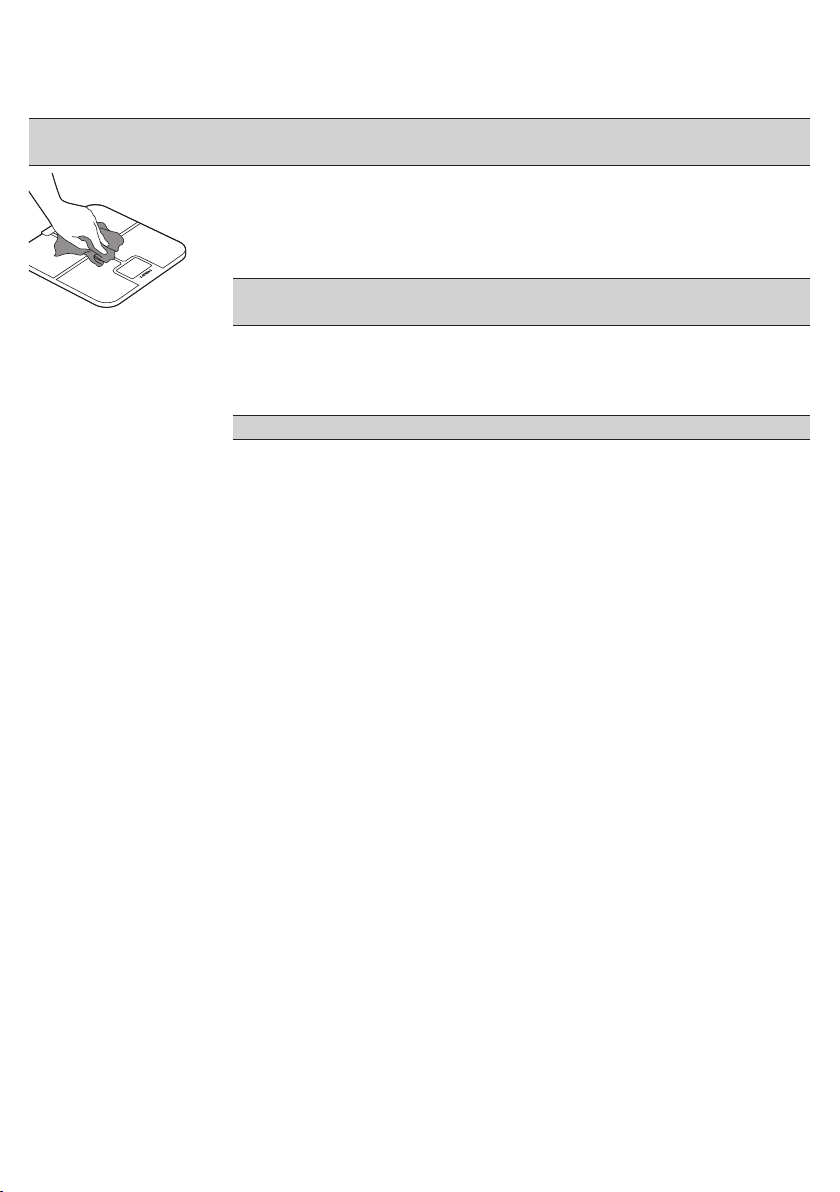

1 Wipe the surface of the device with a cloth.

- Use a dry cloth to wipe dust o the surface of the device.

- Use a slightly damp cloth to wipe dirt o the surface of the device. Dry the surface with a dry cloth after cleaning.

Accessories

Disposal

Caution: Do

the device in order to avoid discoloration or malfunction of the scale.

2 Store the device in a dry, dust-free place away from direct sunlight or

other heat sources. Avoid surroundings with uctuating temperatures (see Specications').

Caution: Do not drop the device.

This device has no other user-serviceable parts. For assistance call 1-844-531-6861.

Philips accessories may be purchased at a store near you, or on our website www.philips.com/store.

This product contains batteries:

- Dispose of batteries properly. Do not incinerate. Batteries may explode if overheated.

- Do not wrap in metal or aluminum foil. Tape the waste battery terminals before discarding.

- It is suggested that you contact your local town or city to determine proper battery recycling site(s) in your area.

- Battery must be removed from the device before discarding.

not use propellant, abrasive or other chemicals to clean

Assistance

For assistance, visit our website:

www.philips.com/support or call toll free 1-844-531-6861

Page 19

Full Two-Year Warranty

Philips Electronics North America Corporation warrants each new Philips product, models DL8781, DL8780, against defects in materials or workmanship for a period of two years from the date of purchase and agrees to repair or replace any defective product without charge.

IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the axing of any attachment not provided with the product or loss of parts or subjecting the product to any but the specied voltage.*

NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

In order to obtain warranty service, simply go to www.philips.com/support or call toll-free 1-844-531-6861. It is suggested that for your protection you return shipments of product by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this warranty. NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America Corporation. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion and limitations may not apply to you.

* Read enclosed instructions carefully.

Manufactured for: Philips Consumer Lifestyle, A division of Philips Electronics North America Corporation, P.O. Box 10313, Stamford, CT 06904.

PHILIPS and Philips Shield are registered trademarks of Koninklijke Philips N.V.

English

Troubleshooting

This chapter summarizes the most common problems you could encounter with the device. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or call 1-844-531-6861 for assistance.

Problem Possible cause Solution

The display shows ---and shuts down.

The display shows the battery low symbol and switches o after a few seconds.

The display shows E1. Pairing has failed. Check if Bluetooth® on your mobile

Maximum weight limit is reached. The scale has a weight limit of 28st 5 lb (397 lb) / 180 kg.

The batteries are almost empty.

The scale can accommodate a maximum of 28 st 5 lb (397 lb) / 180 kg. Stop using this device.

Replace all four batteries at the same time. We advise you to replace batteries before they are completely empty. Use 4x 1.5V AAA akaline batteries.

device is on, the Philips HealthSuite health app is open and if the scale and your mobile device are no more than 16 feet / 5 meters away from each other.

Page 20

English

Problem Possible cause Solution

Unexpected measurement results .

Incorrect posture. Please step on the measurement

platform and stand still. When measuring barefoot, make sure your feet are clean and slightly damp.

The device is placed on a soft

Your feet are too dry. Wipe your feet with a damp cloth to

The display remains blank when the device is switched on.

The batteries are empty. Replace all four batteries at the same

The device does not perform measurement/ analysis of body fat.

The device switches o automatically.

Data transmission failed. Bluetooth® is o. Turn on Bluetooth® on your mobile

The Philips HealthSuite

surface such as a carpet or on an uneven surface.

There are no batteries in the device.

You are standing on the measurement platform wearing socks or shoes.

The batteries are empty. Replace all four batteries at the same

health app is o.

Place the device on a at, hard surface or attach the carpet feet supplied to the feet of the scale.

make sure that they are slightly damp when you take the measurement.

Insert 4x 1.5V AAA alkaline batteries (see 'Inserting/removing the batteries').

time with new ones. Use 4x 1.5V AAA alkaline batteries.

Make sure you are barefoot during the BIA measurement and keep full contact with the measurement platform. Make sure your feet are clean and slightly damp.

time. We advise you to replace batteries before they are completely empty. Use 4x 1.5V AAA alkaline batteries.

device.

Press the icon on your mobile device to activate the health app.

The scale and your mobile

When the proles were

When the proles were shown alternately on the display, you selected the wrong prole.

device are more than 16 feet / 5 meters away from each other.

shown alternately on the display, you selected the wrong prole.

You are standing on the measurement platform wearing socks or shoes.

Place your mobile device closer to the scale.

Repeat the measurement and conrm the correct user prole by tapping on the scale.

Make sure you are barefoot during the BIA measurement and keep full contact with the measurement platform. Make sure your feet are clean and slightly damp.

Page 21

English

Specications

Product name. Philips body analysis scale with Bluetooth®.

Dimensions scale. 12 41/64 x 12 41/64 x 63/64 in / 321 x 321 x 25mm.

Net weight. Approximately 4.4 lb / 1.98 kg (excluding the batteries).

Display. LCD with white LED backlight.

Measurement units. Kilogram / stone / pound.

Measurement range. 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb .

Graduations. 0.1kg / 0.1lb.

Accuracy. 5-50 kg: ±0.3 kg / 11-110 lb: ±0.7 lb.

Measuring method Bioelectrical Impedance Analysis (BIA) for body fat analysis.

Accuracy BIA ±15 ohms in the range of 200 – 1000 ohms.

Operating environment. Temperature: 41°F to 104°F / 4,5°C to 40°C.

Storage and shipping environment. Temperature: -4°F to 140°F / -20°C to 60°C.

Power source. 6V (4x 1.5V AAA alkaline batteries).

Switch-on method. Sense-On technology.

Auto-o. The device turns o after about 10 seconds in case of inactivity.

Accessories. 1. 4x 1.5V AAA alkaline batteries.

Calibration of the device The device requires no calibration.

The manufacturer does not require such preventive inspections by other persons.

Mode of operation Continuous operation

50-100 kg: ±0.4 kg / 110-220 lb: ±0.9 lb. 100-150 kg: ±0.5 kg / 220-330 lb: ±1.1lb.

Humidity: 15% RH to 93%RH, atmospheric pressure: 70kPa to 106kPa.

Humidity: ³ 93% RH, atmospheric pressure: 50kPa to 106kPa.

2. User manual.

3. Carpet feet.

The manufacturer does not require such preventive inspections by other persons.

Degree of protection against harmful ingress of water of particular matter

Applied part (measurement platform) Type BF

Protection against electric shock Internally powered

The device is not suitable for use in the presence of ammable anesthetic mixtures with air or with oxygen or nitrous oxide.

IP22

Page 22

English

Electromagnetic emissions and immunity

The device is approved according to EMC safety standard EN 60601-1-2. It is designed to be used in typical domestic environments.

EMC Guidance

- The scale needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the accompanying documents.

- Wireless communications equipment such as wireless home network devices, mobile phones, cordless telephones and their base stations, walkie-talkies can aect this equipment and should be kept at least a distance d = 3.3 m (11ft) away from the equipment.

Note: As indicated in IEC 60601-1-2:2007 for ME equipment, a typical cell phone with a maximum output power of 2 W yields d = 3.3 m (11ft) at an immunity level of 3V/m.

Table 1 Guidance and manufacturer's declaration – electromagnetic emissions - for all ME equipment and ME systems

Guidance and manufacturer’s declaration – electromagnetic emissions

The device is intended for use in the electromagnetic environment specied below. The customer or the user of the device should assure that it is used in such an environment.

Emissions test Compliance Electromagnetic environment -

RF emissions CISPR 11 Group 1 The device must emit electromagnetic energy

guidance

in order to perform its intended function. Nearby electronic equipment may be aected.

RF emissions CISPR 11 Class B

Harmonic emissions IEC 610003-2

Voltage uctuations/icker emissions IEC 61000-3-3

Not applicable

Page 23

Table 2 Guidance and manufacturer's declaration – electromagnetic immunity – for all ME equipment and ME systems

Guidance and manufacturer’s declaration – electromagnetic immunity

The device is intended for use in the electromagnetic environment specied below. The customer or the user of the device should assure that it is used in such an environment.

Immunity test IEC 60601 test

level

Electrostatic discharge (ESD) IEC 61000-4-2

±6 kV contact ±8 kV air

Compliance level

±6 kV contact ±8 kV air

Electromagnetic environment guidance

Floors should be wood, concrete or ceramic tile. If oors are covered with synthetic material, the relative humidity should be at least 30%.

English

Power frequency (50/60Hz) magnetic eld IEC 61000-4-8

3A/m 3A/m Power frequency magnetic elds

should be at levels characteristic of a typical location in a typical commercial or hospital environment.

Table 4 Guidance and manufacturer's declaration – electromagnetic immunity –for ME equipment and ME systems that are not life supporting

Guidance and manufacturer’s declaration – electromagnetic immunity .

The device is intended for use in the electromagnetic environment specied below. The customer or the user of the device should assure that it is used in such an environment.

IMMUNITY test IEC 60601 TEST LEVEL Compliance level

Radiated RF IEC 61000-4-3

3 V/m 80 MHz to 2.5 GHz

3 V/m

Electromagnetic environment - guidance

Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

Recommended separation distance: d = 1.167 √P d = 1.167 √P 80 MHz to 800MHz d = 2.333 √P 800 MHz to 2.5 GHz where P is the maximum output power rating of the transmitter in watts

(W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).

Field strengths from xed RF transmitters, as determined by an electromagnetic site survey (a), should be less than the compliance level in each frequency range (b).

Page 24

English

Interference may occur in the vicinity of equipment marked with the following symbol:

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reection from structures, objects and people.

(a) Field strengths from xed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to xed RF transmitters, an electromagnetic site survey should be considered. If the measured eld strength in the location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the device.

(b) Over the frequency range 150 kHz to 80 MHz, eld strengths should be less than 3V/m.

Table 6 Recommended separation distances between portable and mobile RF communications equipment and the ME equipment or ME system – for ME equipment and ME systems that are not life supporting

Recommended separation distances between portable and mobile RF communications equipment and the device.

The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.

Separation distance according to frequency of transmitter (m)

Rated maximum output power of transmitter (W)

0.01 0.117 0.117 0.233

0.1 0.369 0.369 0.738

1 1.167 1.167 2.333

10 3.690 3.690 7.378

100 11.67 11.67 23.33

150 kHz to 80 MHz d = 1.167 √ P

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

80 MHz to 800 MHz d = 1.167 √ P

800 MHz to 2.5 GHz d = 2.333

Page 25

NOTE 1 At 80MHz and 800MHz, the separation distance for the higher frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reection from structures, objects and people.

FCC Compliance information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID(2AEFK-DL8780 and 2AEFK-DL8781)

Radio interference

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

English

RF Radiation exposure statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. For handheld/body-worn operation, this equipment has been tested and meets the FCC RF exposure guidelines. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Use of other accessories may not ensure compliance with FCC RF guidelines.

Do not attempt to repair or modify this equipment. Any repairs or alterations made by the user to the equipment may void the warranty and compliance of the equipment. Changes or modications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment. For assistance visit our website www.philips.com/support or call toll-free 1-844-531-6861.

Page 26
