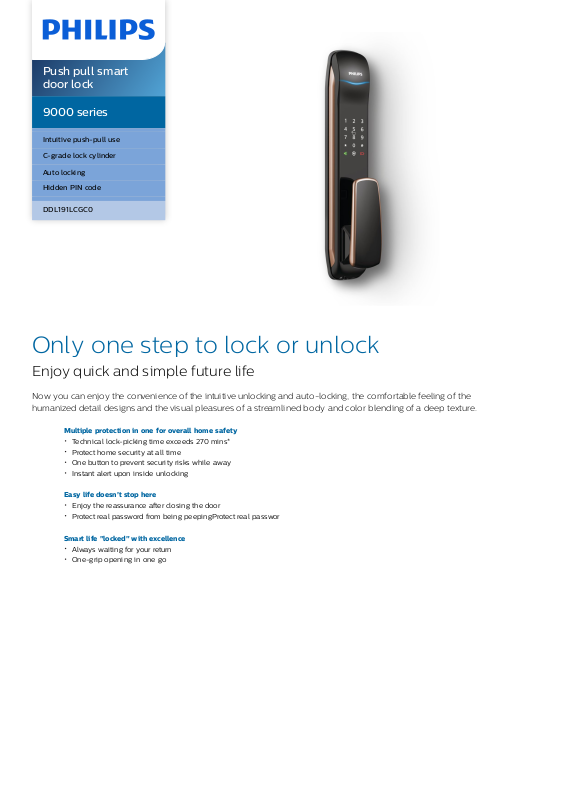

Push pull smart
door lock
9000 series
Intuitive push-pull use
C-grade lock cylinder
Auto locking
Hidden PIN code
DDL191LCGC0
Only one step to lock or unlock
Enjoy quick and simple future life
Now you can enjoy the convenience of the intuitive unlocking and auto-locking, the comfortable feeling of the
humanized detail designs and the visual pleasures of a streamlined body and color blending of a deep texture.
Multiple protection in one for overall home safety
Technical lock-picking time exceeds 270 mins*
Protect home security at all time
One button to prevent security risks while away
Instant alert upon inside unlocking
Easy life doesn't stop here
Enjoy the reassurance after closing the door
Protect real password from being peepingProtect real passwor
Smart life "locked" with excellence
Always waiting for your return
One-grip opening in one go
Push pull smart door lock
DDL191LCGC0/97
Highlights Specifications
C-grade lock cylinder
The lock cylinder is the core component that
controls the opening of the lock. The Philips
9100-5H-70 employs multiple anti-theft
technologies with a unique pin tumbler and
vane structure, which make the technical lockpicking time exceed 270 mins*. Together with
the concealed lock cylinder, the lock's security
level would further improve.
Multiple alert function
Featured the anti-dismantling alert, lowbattery level prompt, abnormal latch bolt alert
and outside forced lock alerts, etc. Philips
9100-5H-70 not only i mproves the security
level of your home, but also safeguards your
family i n real-time.
Safehandle
Once the safe handle function is enabled, the
indoor handle would lock up, allowing nobody
to open the door by pushing the indoor handle.
This feature can effectively prevent the
suspicious unlocking from the inside through
the door viewer, or children and pets from
unlocking the door accidentally by pushing the
indoor handle, thus reducing security risks for
the family.
Outside forced lock
When going out, long-press the outside forced
lock key for 2 seconds to enable outside forced
lock mode. Under this mode, an alert will
trigger if the door is unlocked from inside,
effectively reminding the existence of potential
risks and upgrading the level of home security.
Auto-locking
Without the need for any extra action, the
deadbolt of Philips 9100-5H-70 will
spontaneously pop up after closing the door. If
the door is not locked properly, the mortise will
give an alert to remind you of the door lock
status.
32-digit hidden PIN code
Featured with the 32-digit hidden PIN code
technology, Philips 9100-5H-70 allows you to
enter any random number combination for
verification and unlock the door as long as
there is a consecutive input of the valid
password. This feature can effectively prevent
peeping and safeguard the real password.
Automatic induction wake-up
When someone approaches the lock and the
lock detects the human body, the keypad will
light up and awake automatically. You can
directly get identified and unlock the door,
reduce the hassle of manually awake the
system, which allows having a fast and
comfortable using experience.
Intuitive fingerprinting
The fingerprint sensor is integrated at the axis
of the handle so that when you hold the
handle, your fingertip will naturally fall on the
semiconductor fingerprint reader. Upon
successful authentication, you can push the
handle and unlock the door swiftly, which
brings you a fast and convenient door opening
experience.
Access Solution
Card/Key Tag
Fingerprint
Mechanical Key
Password/PIN Code
Design & Appearance
Color: Red copper
Fingerprint Sensor: Semiconductor
Handle: Push-pull handle
Easy Operation
Indicator: D oor locks status prompt, Low
battery prompt, Mute status prompt, Outside
forced lock prompt, System locking prompt
Voice Guide: Human voice guide
Installation
Door Opening D irecti on: Left inward opening,
Left outward opening, Right inward opening,
Right outward oepning
Door Thickness: 38-60 mm, 60-90 mm, 90-
120 mm, Other range*
Door Type: Antitheft door, Copper door,
Wooden door
Lock Capacity
Master PIN Code: 1
One-time PIN Code: 1
User PIN Code: Up to 10
Power Specification
Emergency Power Supply: 5V power bank
Power Supply: 4 AA batteries
Maximum Batteries Capacity: 8 batteries
Time of Use: 10 months*
Smart Lock Functions
Alarm Function: Abnormal bolt alarm, Outside
forced lock alarm
Locking Function: Indoor deadlock, System
locking
Mortise: C grade lock cylinder
Safety Function: Dual verification, Fake PIN
code, Outside forced lock function
* May be less depen ding on the actu al usage .
* 270 mins:Data source from lock cylinder test report.
* The effect of the digital keypad showed in the photos
of this product may be inconsiste nt with the actual
display effect. Please be subject to the digita l keypad
displaying st atus under the actua l usage scenarios.
* If the th ickness of the door is out of th e mentioned
range , please contact our local dealers or consumer
care center.
© 20 21 Koninklijke Philips N.V.
All Right s reserved.
Specifications are subject to change
without notice. Trademarks are the
property of Koninklijke Philips N.V. or
their respective owners.
Issue date 2021‑ 08‑ 15
Version: 2.0.1
12 NC: 8670 001 61413
EAN: 69 71318 500 95 4
