Philips DCP851/37 Specifications

Download

Page 1

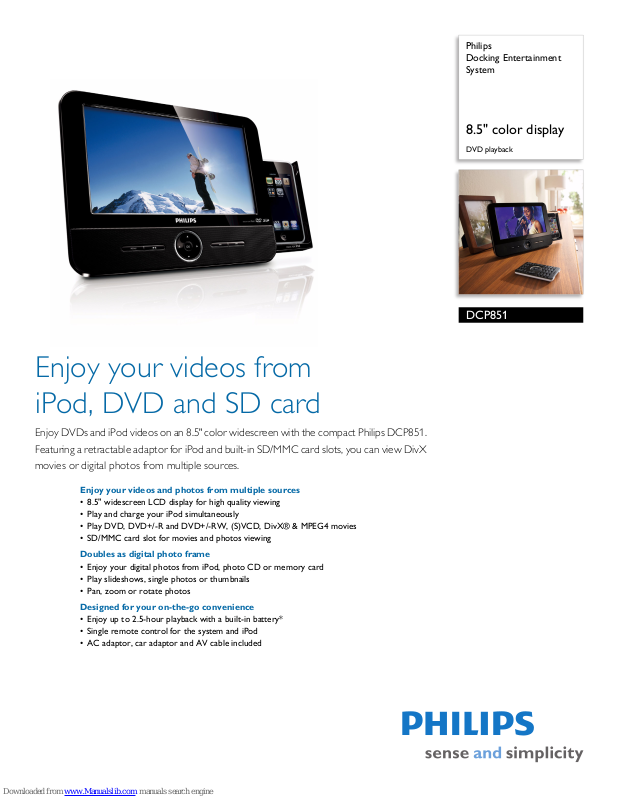

Philips Docking Entertainment System

8.5" color display

DVD playback

DCP851

Enjoy your videos from iPod, DVD and SD card

Enjoy DVDs and iPod videos on an 8.5" color widescreen with the compact Philips DCP851. Featuring a retractable adaptor for iPod and built-in SD/MMC card slots, you can view DivX movies or digital photos from multiple sources.

Enjoy your videos and photos from multiple sources

• 8.5" widescreen LCD display for high quality viewing

• Play and charge your iPod simultaneously

• Play DVD, DVD+/-R and DVD+/-RW, (S)VCD, DivX® & MPEG4 movies

• SD/MMC card slot for movies and photos viewing

Doubles as digital photo frame

• Enjoy your digital photos from iPod, photo CD or memory card

• Play slideshows, single photos or thumbnails

• Pan, zoom or rotate photos

Designed for your on-the-go convenience

• Enjoy up to 2.5-hour playback with a built-in battery*

• Single remote control for the system and iPod

• AC adaptor, car adaptor and AV cable included

Page 2

Docking Entertainment System

8.5" color display DVD playback

DCP851/37

Specifications

Picture/Display

• Display screen type: LCD TFT

• LCD panel type: Anti-glare polarizer

• Diagonal screen size (inch): 8.5 inch

• Resolution: 480(w)x234(H)x3(RGB)

• Brightness: 200 cd/m²

• Contrast ratio (typical): 250:1

• Effective viewing area: 187.2x105.3mm

• Pixel pitch: 0.13 (W) x 0.245 (H)

• Response time (typical): 30 ms

iPod compatibility

• Compatible with: iPod touch, iPod classic, iPod nano 3rd Generation, iPod 5th Generation

Multimedia Applications

• Memory Card Access: SD/MMC card slot

Video Playback

• Playback Media: DVD, DVD+R/+RW, DVD-R/-RW, SVCD, Video CD, CD, CD-R/CD-RW, MP3-CD, Picture CD

• Disc Playback Modes: OSD, A-B Rep Fast Backward, Fast Forward, Repeat, Shuffle Play, Slow Backward, Slow Forward, Zoom

• Video disc playback system: NTSC

Audio Playback

• Compression format: Dolby Digital, MP3

• Playback Media: CD, MP3-CD, CD-R, CD-RW

• File systems supported: ISO-9660, Jolliet

• MP3 bit rates: 32 - 320 kbps

Sound

• Output Power: 300mW RMS(built-in speakers)

eat, Disc Menu,

• Signal to noise ratio: >80dB(earphone), >62dB(builtin

speakers)

• Output power (RMS): 10mW RMS(earphone)

Connectivity

• DC in: 9V

• AV input: Composite (CVBS) x1

• AV output: Composite (CVBS) x1

• Headphone jack: 3.5mm Stereo Headphone x 2

Convenience

• Battery charging indication

Power

• Battery Type: Built-in battery, LI-Polymer

Accessories

• Remote control: 35 keys

• AC/DC Adaptor: (100-240v, 50/60Hz)

• Car kit: cigarette outlet adaptor, 12vDC

• Cables: 1 x AV Cable

• User Manual: English/French/Spanish

Dimensions

• Master carton dimensions: 262 x 305 x 284 mm

• Master carton quantity: 3

• Master carton weight: 5.3 kg

• Packaging type: D-box

• Packaging dimensions (W x H x D): 270 x 290 x 84 mm

• Product dimensions (W x H x D): 235 x 178 x 40 mm

• Product weight: 1.3 kg

•

Highlights

Play and charge your iPod

Enjoy your favorite MP3 music while charging your iPod! The dock lets you connect your iPod directly to the Docking entertainment system so you can listen to your favorite music in superb sound. It also charges your iPod while it plays so you can enjoy your music and not have to worry about your iPod battery running out. Use the remote control to navigate, select and playback the music stored on your iPod. The Docking entertainment system automatically charges your iPod while it is docked.

Play DVD, DivX and MPEG4

With DivX® support, you are able to enjoy DivX® encoded videos in the comfort of your living room. The DivX® media format is an MPEG4-based video compression technology that enables you to save large files like movies, trailers and music videos on media like CD-R/RW, memory cards and DVD-video. DivX® CDs can be played back on selected DVD players, DVD Recorders and Home Theater Systems.

SD/MMC card slot for movies

View and share your video clips, photos and music — easily and instantly. For ultra convenience, the player features a built-in card slot for SD/MMC memory cards. Simply insert the memory card into the slot located on the side of the player to access your multimedia files stored on the card.

Issue date 2011-01-06

Version: 2.0.6

12 NC: 8670 000 37669 UPC: 6 09585 15065 2

Specifications are subject t Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

o change without notice.
