Contents
1 Important 4
Safety 4
Notice 5
2 Your Micro Hi-Fi System 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 9
Placement 9
Prepare the remote control 9
Connect power 10
Auto install radio stations 10
Set clock 10
Turn on 11
4 Play 11
Play a disc 11
Play from USB 11
Play options 12
5 Play iPod 13
Compatible iPod 13
Play an iPod player 13
Charge the iPod 13
8 Adjust sound 16
Adjust volume level 16
Mute sound 16
Select a preset sound effect 16
Enhance bass 16
9 Product information 16
Specifications 16
USB playability information 17
Supported MP3 disc formats 17
Maintenance 17
10 Troubleshooting 18
English
6 Listen to radio 14
Tune to a radio station 14
Program radio stations automatically 14
Program radio stations manually 14
Select a preset radio station 14
7 Other features 15
Set the alarm timer 15
Set the sleep timer 15
Play from an external device 15
EN
3
1 Important
Safety
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
j Only use attachments/accessories
specified by the manufacturer.
k Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer or
sold with the apparatus.
When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
l Unplug this apparatus during lightning
storms or when unused for long periods
of time.
m Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
n Battery usage CAUTION – To prevent
battery leakage which may result in
bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - •
as marked on the unit.
Do not mix batteries (old and new •
or carbon and alkaline, etc.).
Remove batteries when the unit is •
not used for a long time.
o Apparatus shall not be exposed to
dripping or splashing.
p Do not place any sources of danger on
the apparatus (e.g. liquid filled objects,
lighted candles).
q Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain
readily operable.
r Visible and invisible laser radiation when
open. Avoid exposure to beam.
Warning
Never remove the casing of this apparatus. •
Never lubricate any par t of this apparatus. •
Never place this apparatus on other electrical •
equipment.
Keep this apparatus away from direct sunlight,
•
naked flames or heat.
Never look into the laser beam inside this
•
apparatus.
Ensure that you always have easy access to the
•
power cord, plug or adaptor to disconnect this
appar atus from the power.
4
EN
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can •
impair your hearing. This product can
produce sounds in decibel ranges that
may cause hearing loss for a normal
person, even for exposure less than a
minute. The higher decibel ranges are
offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your •
hearing ‘comfort level’ adapts to higher
volumes of sound. So after prolonged
listening, what sounds ‘normal’ can
actually be loud and harmful to your
hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting. •
Slowly increase the sound until you can •
hear it comfortably and clearly, without
distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even •
at normally ‘safe’ levels, can also cause
hearing loss.
Be sure to use your equipment •
reasonably and take appropriate breaks.
Be sure to observe the following guidelines
when using your headphones.
Listen at reasonable volumes for •
reasonable periods of time.
Be careful not to adjust the volume as •
your hearing adapts.
Do not turn up the volume so high that •
you can’t hear what’s around you.
You should use caution or temporarily •
discontinue use in potentially hazardous
situations. Do not use headphones while
operating a motorized vehicle, cycling,
skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a
double insulation system.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
English
EN
5
2 Your Micro Hi-
“Made for iPod” means that an electronic
accessory has been designed to connect
specifically to iPod and has been certified by
the developer to meet Apple per formance
standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
Fi System
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this unit, you can enjoy audio from discs,
USB devices, iPod players and other external
devices, or listen to radio stations.
The unit offers Digital Sound Control (DSC)
and Dynamic Bass Boost (DBB) to enrich
sound.
The unit supports the following media formats:
What’s in the box
Check and identify the contents of your
package:
Main unit•
Remote control•
1 x MP3 link cable•
Plug adaptor•
Mounting kit (2 dowels and 2 screws)•
Quick star t guide•
User manual •
Wall mounting instructions•
6
EN

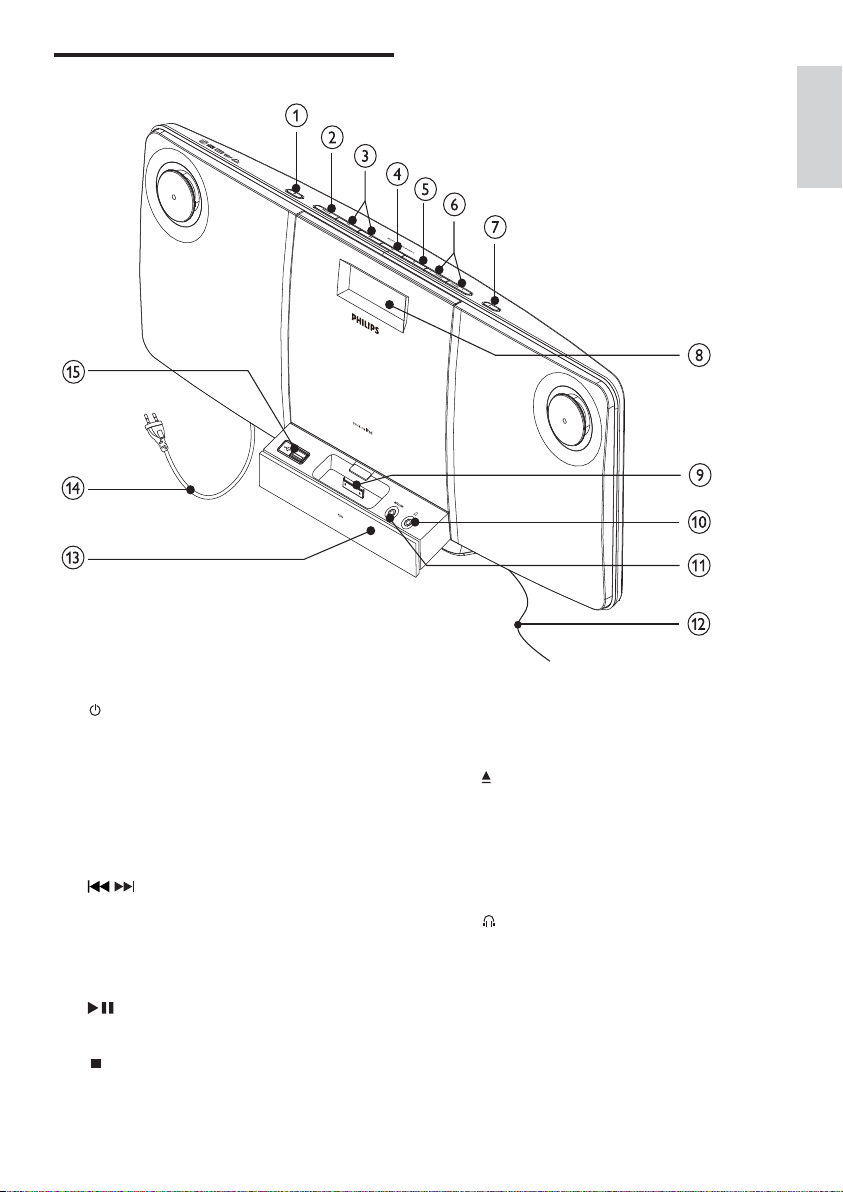

Overview of the main unit
English
a
Turn on the unit, or switch to •
standby mode, or switch to Eco
Power standby.
b SOURCE
Select a source: CD, FM tuner, USB, •
iPod, or MP3 link.
c
/
Skip to the previous/next track.•
Search within a track.•
Tune to a radio station.•
Select 12 hour or 24 hour format.•
d
Star t or pause play.•
e
Stop play or erase a program.•
f VOLUME + / -
Adjust volume.•
g
Open/close the disc compartment.•
h Display panel
Show current status.•
i Dock for iPod
j
Jack for the headphone.•
k MP3 LINK
Audio input jack (3.5mm ) for an •
external audio device.
l FM antenna
Improve FM reception.•
EN
7
m Remote sensor
n AC cord
o
Jack for a USB mass storage device. •

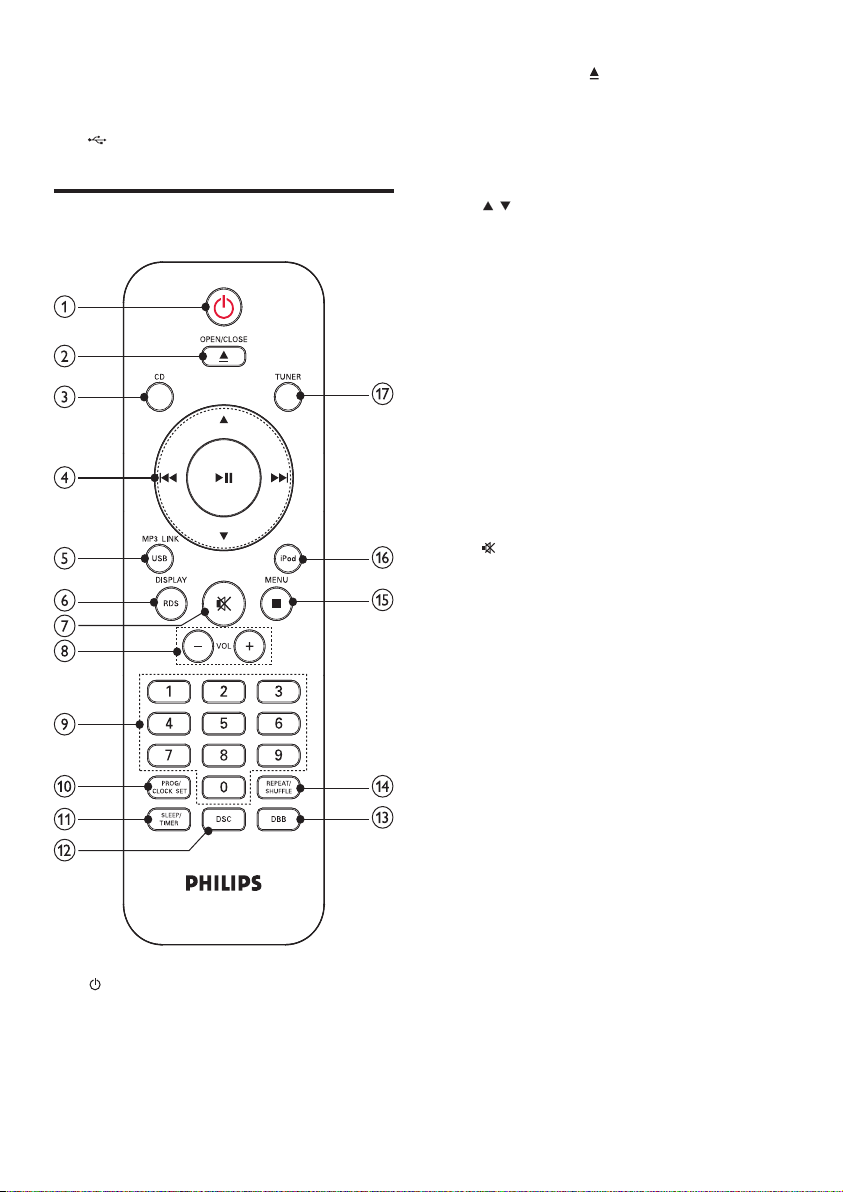

Overview of the remote
control
a
Turn on the unit, or switch to •
standby mode, or switch to Eco
Power standby.
b OPEN/CLOSE
Open or close the disc •
compartment.
c CD
Select disc source.•
d
/
Navigate in the iPod menu.•
Skip to the previous/next album. •
/Skip to the previous/next track.•
Search within a track. •
Tune to a radio station. •
Select 12 hour or 24 hour format.•
Star t or pause play.•
e USB/MP3 LINK
Select USB device source.•
Select external audio device source.•
f RDS/DISPLAY
Select display information during play.•
RDS is not available.
g
Mute or restore volume.•
h VOL +/-
Adjust volume.•
i Numeric keypad
Select a track from a disc directly.•
j PROG/CLOCK SET
Program tracks.•
Program radio stations.•
Set the clock.•
k SLEEP/TIMER
Set the sleep timer.•
Set the alarm timer.•
l DSC
Select a preset sound setting.•
m DBB
Turn on or off dynamic bass •
enhancement.
n REPEAT/SHUFFLE
Play a track or all tracks repeatedly.•
Play tracks randomly.•
8
EN
o /MENU
Stop play or erase a program.•
Access the iPod menu.•
p iPod
Select iPod source.•
q TUNER
Select tuner source.•
3 Get started
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
rear of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Placement
You can place the unit on a flat surface or
mount the unit on a wall.
Mount on a wall
To wall mount the unit, see the included
separate sheet of wall mounting instructions.
English

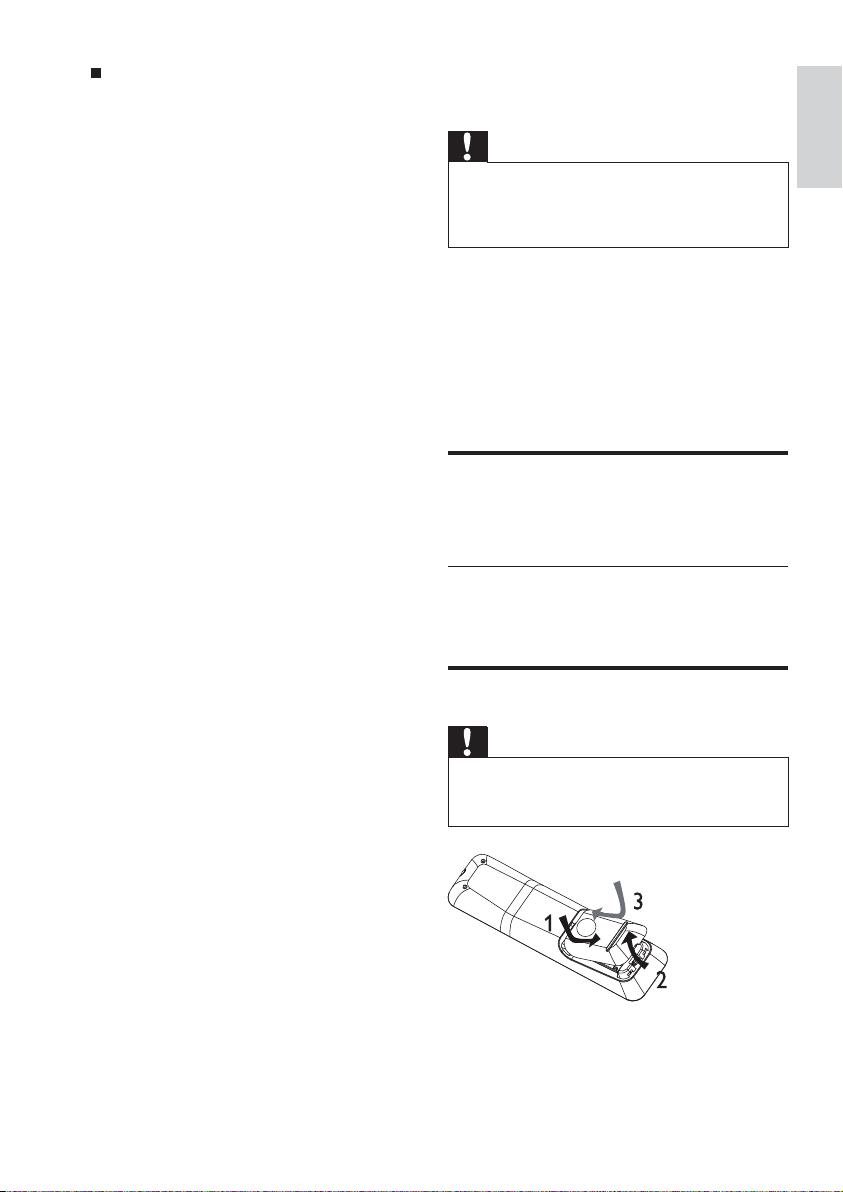

Prepare the remote control
Caution
Risk of explosion! Keep bat ter ies away from •
heat, sunshine or fire. Never discard batteries
in fire.
1 Open the battery compartment.
2 Inser t 2 A AA batteries with correct
polarity (+/-) as indicated.
EN
9
3 Close the battery compartment.
Auto install radio stations
Note
If you are not going to use the remote control •
for a long time, remove the bat teries.
Do not use old and new or different types of
•
batteries in combination.
Batteries contain chemical substances, so they
•
should be disposed of properly.

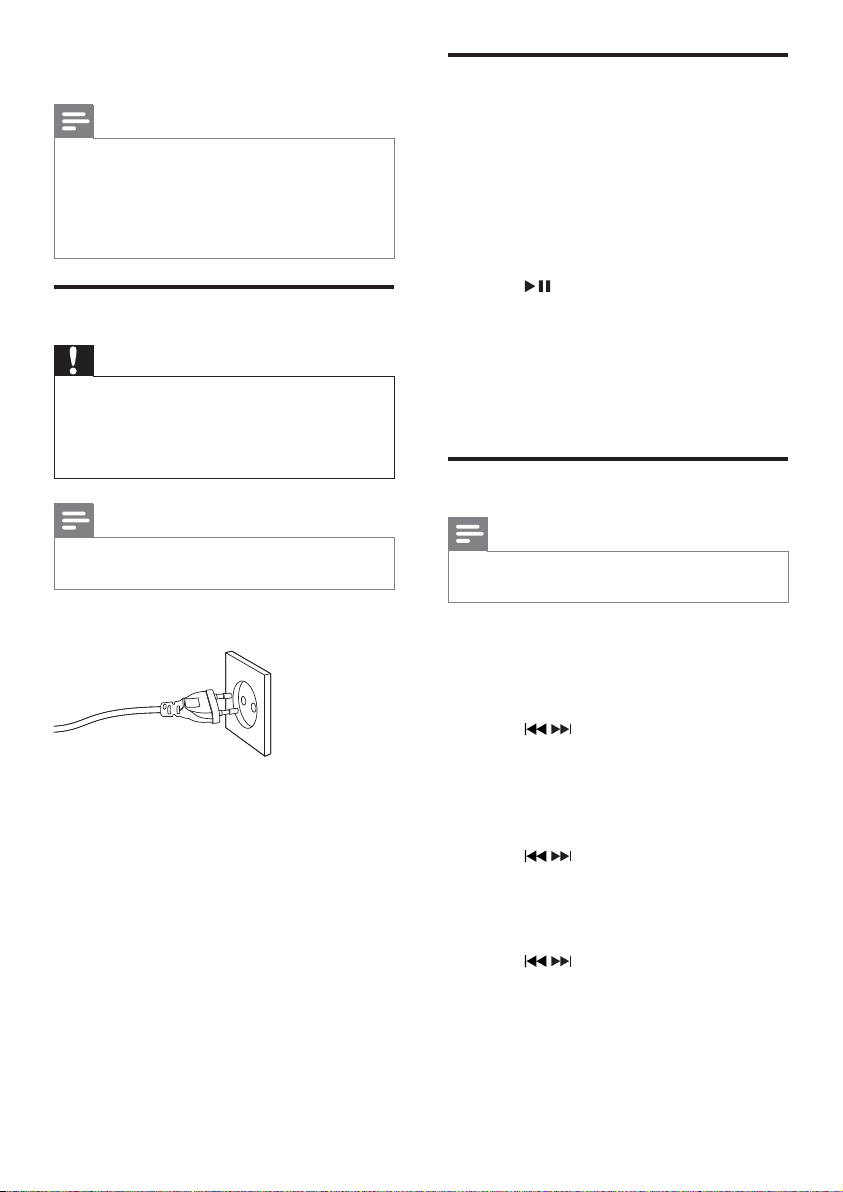

Connect power
Caution
Risk of product damage! Ensure that the •
power supply voltage corresponds to the
voltage printed on the bot tom of the unit.
Before connecting the AC cord, ensure you
•
have completed all other connections.
Note
The type plate is located on the rear of the •
main unit.
1 Connect the AC cord to the AC outlet.
When you connect power and no radio
stations are stored, the unit automatically begins
to store radio stations.
1 Connect the unit to the power supply.
[ » AUTO INSTALL - PRESS PLAY
KEY](auto install - press play key) is
displayed.
2 Press on the main unit to start
installation.
The unit automatically stores radio »
stations with sufficient signal strength.
When all the available radio stations »
are stored, the first preset radio station
is broadcast automatically.
Set clock
Note
You can set the clock in the standby mode •
only.
1 Press PROG/CLOCK SET to enter the
clock setting mode.
[ » SET CLOCK](set clock) scrolls on the
screen.
2 Press / repeatedly to select 12 hour
or 24 hour format.
3 Press PROG/CLOCK SET to confirm.
The hour digits are displayed and begin »
to blink.
4 Press / to set the hour.
5 Press PROG/CLOCK SET to confirm.
The minute digits are displayed and »
begin to blink.
6 Press / to set the minute.
7 Press PROG/CLOCK SET to confirm the
clock setting.
10
EN
Turn on
Press .
1
The unit switches to the last selected »
source.
Switch to standby
1 Press again to switch the unit to
standby mode.
The clock (if set) appears on the »
display panel.
To switch the unit to Eco Power Standby
mode:
1 In the standby mode, press and hold
for more than 2 seconds.
The backlight on the display panel »
turns off.
4 Play
Play a disc
Press CD to select the disc source.
1
2 Press to open the disc compartment.
3 Inser t a disc with the printed side facing
outward.
4 Press to close the disc compartment.
Play starts automatically. If not, press »
.
Play from USB
Note
Ensure that the USB device contains playable •
audio content.

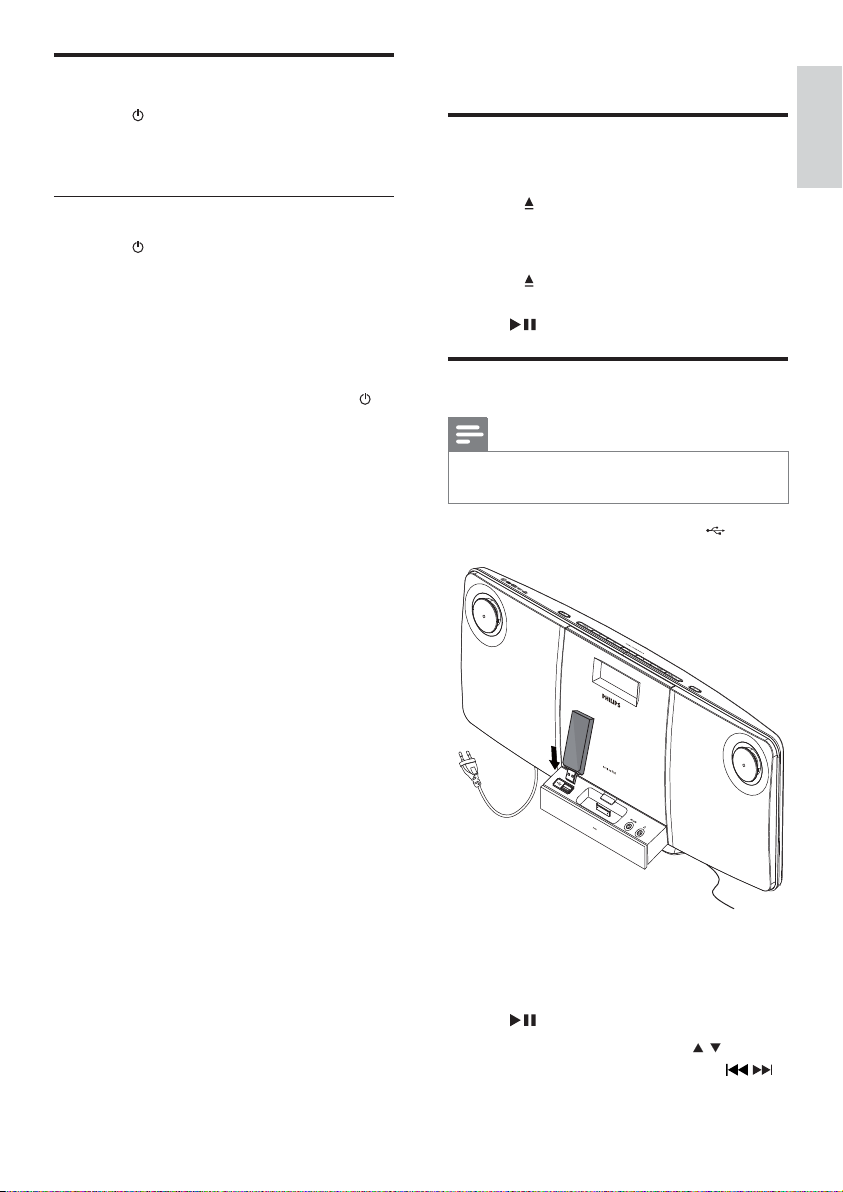

1 Inser t the USB device into the socket.
English
2 Press USB/MP3 LINK to select the USB
source.
Play starts automatically. If not, press »
.
To select a folder, press •
To select an audio file, press •
/ .
/ .
EN
11
Play options
Program tracks
Pause/resume play
1 During play, press to pause/resume
play.
Skip to a track
For CD:
1 Press / to select another track.
To select a track directly, you can •
also press a key on the numerical
keypad.
For MP3 disc and USB:
1 Press to select an album or a folder.
2 Press / to select a track or a file.
Search within a track
1 During play, press and hold / .
2 Release to resume normal play.
Select repeat/shuffle play options
1 During play, press REPEAT/SHUFFLE
repeatedly to select a repeat option or
the shuffle play mode.
[•
]: the current track is played
repeatedly.
[•
]: all tracks are played
repeatedly.
[•
]: all tracks are played randomly.
2 To resume normal play, press
REPEAT/SHUFFLE repeatedly until no
option is displayed.
Note
You can program track s only when the play •
stops.
You can program a maximum of 40 tracks.
1 Press PROG/CLOCK SET to activate the
program mode.
[ » PROG] (program) is displayed.
2 For MP3/WMA tracks, press / to
select an album.
3 Press / to select a track, then press
PROG/CLOCK SET to confirm.
4 Repeat steps 2 to 3 to program more
tracks.
5 Press to play the programmed tracks.
During play, [ » PROG] (program) is
displayed.
To erase the program, in the stop •
position, press
.
12
EN
5 Play iPod
You can enjoy audio from iPod through this
Micro Hi-Fi system.
Compatible iPod
Apple iPod models with a 30-pin dock
connector:
Made for:
iPod classic•
iPod touch•
iPod nano•
iPod 5th generation (video) •
iPod with color display•
iPod mini•
Play an iPod player

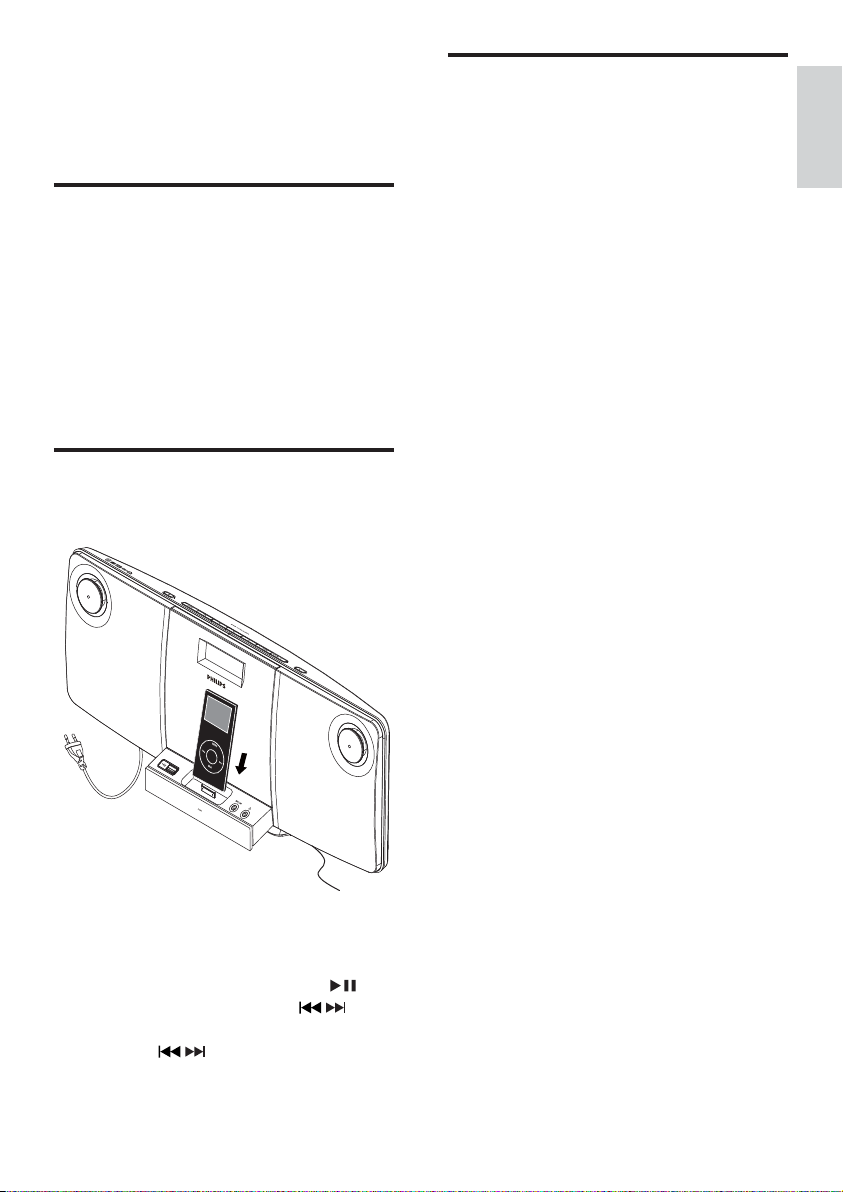

Place the iPod player in the dock.
1
Charge the iPod
When the unit is connected to power, the
docked iPod begins to charge.
English
2 Press iPod to select iPod source.
The connected iPod plays automatically. »
To pause/resume play, press •
To skip to a track, press •
To search during play, press and •
hold
/ , then release to resume
normal play.
/ .
.
13
EN
6 Listen to radio
Tune to a radio station
Press TUNER to select FM.
1
2 Press and hold / for more than 2
seconds.
[ » SEARCH] (search) is displayed.
The radio tunes to a station with »
strong reception automatically.
3 Repeat step 2 to tune to more stations.
To tune to a weak station, press •
/ repeatedly until you find optimal
reception.
3 Press / to allocate a number to this
radio station, then press PROG/CLOCK
SET to confirm.
4 Repeat the above steps to program other
stations.
Tip
To overwrite a programmed station, store •
another station in its place.
Select a preset radio station
In tuner mode, press / to select a
1
preset number.
Program radio stations
automatically
You can program a maximum of 20 preset
radio stations (FM).
1 In the tuner mode, press and hold
PROG/CLOCK SET for more than 2
seconds to activate automatic program
mode.
[ » AUTO] (auto) is displayed.
All available stations are programmed »
in the order of waveband reception
strength.
The first programmed radio station is »
broadcast automatically.
Program radio stations
manually
You can program a maximum of 20 preset
radio stations (FM).
1 Tune to a radio station.
2 Press PROG/CLOCK SET to activate
program mode.
[ » PROG] (program) is displayed.
Tip
Position the antenna as far as possible from •
TV, VCR or other radiation source.
For optimal reception, fully ex tend and adjust
•
the position of the antenna.
14
EN
7 Other features
Set the alarm timer
This unit can be used as an alarm clock. The
disc/radio/USB/iPod is activated to play at a
preset time.
To deactivate sleep timer
1 Press SLEEP/TIMER repeatedly until
[OFF] (off) is displayed.
When sleep timer is deactivated, »
disappears on the display.
Play from an external device
English
Note
Ensure that you have set the clock correctly. •
1 Press to switch to standby mode.
2 Press and hold SLEEP/TIMER for more
than two seconds.
A prompt to select the source is »
displayed.
3 Press CD, TUNER, USB or iPod to select
a source.
4 Press SLEEP/TIMER to confirm.
The clock digits are displayed. »
The hour digits begin to blink. »
5 Press / to set the hour.
6 Press SLEEP/TIMER to confirm.
The minute digits begin to blink. »
7 Press / to set the minute.
The timer is set and activated. »
»
is displayed.
Set the sleep timer
This unit can switch to standby automatically
after a set period of time.
1 When the unit is turned on, press
SLEEP/TIMER repeatedly to select a set
period of time (in minutes).
When sleep timer is activated, »
displayed.
is
You can also listen to an external audio device
through this unit.
1 Press USB/MP3 LINK to select the MP3
link source.
2 Connect the supplied MP3 link cable to:
the • MP3 LINK jack (3.5mm) on the
unit.
the headphone jack on an external •
device.
3 Star t to play the device (see the device
user manual).
EN
15
8 Adjust sound
9 Product
Adjust volume level
During play, press VOL +/- to increase/
1
decrease the volume level.
Mute sound
During play, press to mute/unmute
1
sound.
Select a preset sound effect
During play, press DSC repeatedly to
1
select:
[• POP] (pop)
[• JAZZ] ( jazz)
[• ROCK] (rock)
[• CLASSIC] (classic)
[• FLAT] (flat)
Enhance bass
During play, press DBB to turn on or off
1
dynamic bass enhancement.
If DBB is activated, [DBB] is displayed. »
information
Note
Product information is subject to change •
without prior notice.
Specifications
Amplifier
Total output power 2 x 5 W RMS
Frequency
response 125 Hz - 16 kHz, ± 3 dB
Signal to noise ratio > 60 dB
MP3 link input 0.5 V RMS 20 k
Disc
Laser type Semiconductor
Disc diameter 12 cm /8 cm
Support disc CD-DA, CD-R, CD-
RW, MP3-CD, WMA-
CD
Audio DAC 24 Bits / 44.1 kHz
Total harmonic
distortion < 1.5%
Frequency
response 60 Hz -16 kHz (44.1 kHz)
Signal to noise ratio > 75 dBA
Tuner
Tuning range FM: 87.5 - 108 MHz
Tuning grid 50 KHz
Number of presets 20
Speakers
Speaker driver 3” woofer
Speaker impedance 5 W, 4
16
EN
General information
AC power 110-127 V/ 220-240
V~, 50/60 Hz
Operation Power
Consumption 15 W
Standby Power
Consumption < 5 W
USB Direct Version 2.0/1.1
Dimensions
- Main Unit
(W x H x D)
Weight
- Main Unit 3.935 kg
542 x 238 x 102 mm
USB playability information
DRM protected WMA files (.wav, .m4a, •
.m4p, .mp4, .aac)
WMA files in Lossless format•
English
Supported MP3 disc formats
ISO9660, Joliet•
Maximum title number: 999 (depending •
on file name length)
Maximum album number: 99•
Supported sampling frequencies: 32 kHz, •
44.1kHz, 48 kHz
Supported Bit-rates: 32-320 (kbps), •
variable bit rates
ID3 tag v2.0 to v2.4•
Director y nesting up to a maximum of 8 •
levels
Compatible USB devices:
USB flash memory (USB 2.0 or USB 1.1)•
USB flash players (USB 2.0 or USB 1.1)•
memory cards (requires an additional •
card reader to work with this unit)
Supported formats:
USB or memory file format FAT12, •
FAT16, FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps and •
variable bit rate
WMA v9 or earlier•
Director y nesting up to a maximum of 8 •
levels
Number of albums/ folders: maximum 99•
Number of tracks/titles: maximum 999•
ID3 tag v2.0 to v2.4•
File name in Unicode UTF8 (maximum •
length: 128 bytes)
Unsupported formats:
Empty albums: an empty album is an •
album that does not contain MP3/WMA
files, and is not be shown in the display.
Unsupported file formats are skipped. For •
example, Word documents (.doc) or MP3
files with extension .dlf are ignored and
not played.
AAC, WAV, PCM audio files•
Maintenance
Clean the cabinet
Use a soft cloth slightly moistened with •
a mild detergent solution. Do not use
a solution containing alcohol, spirits,
ammonia or abrasives.

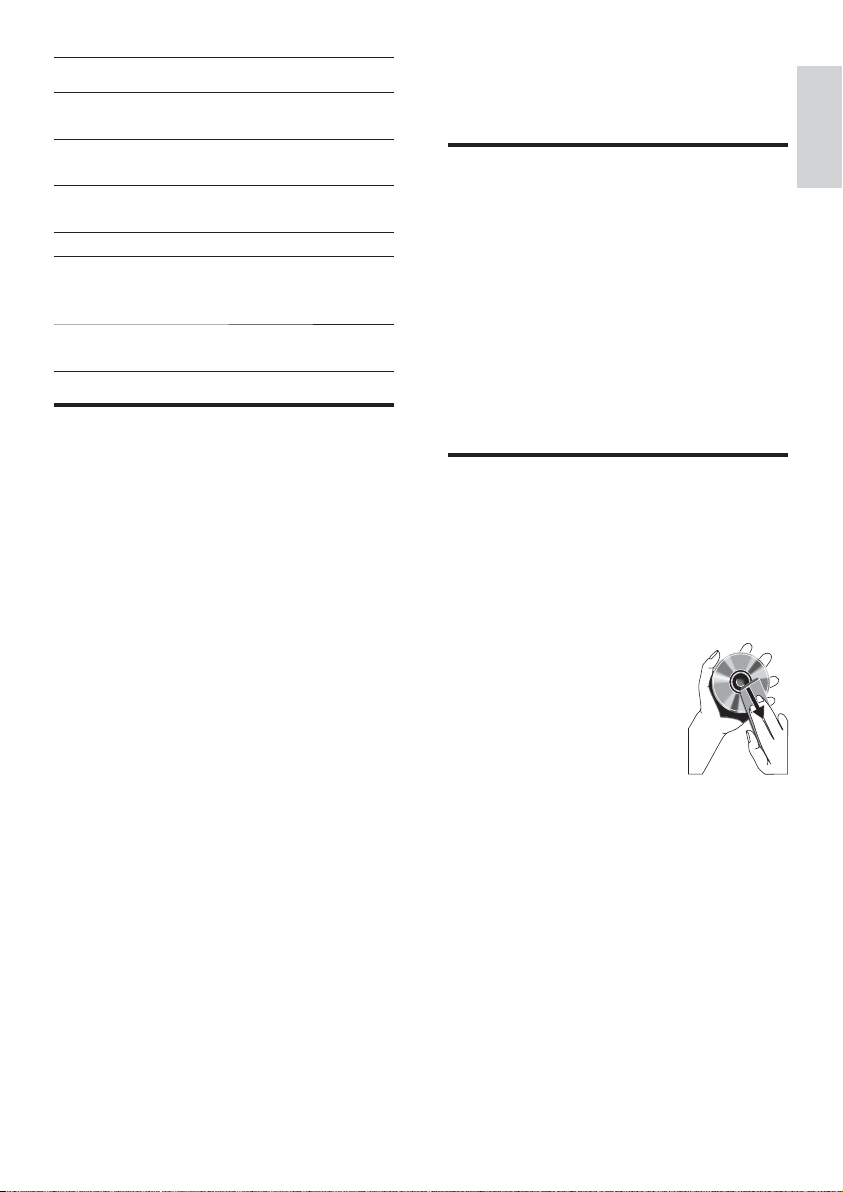

Clean discs
When a disc becomes •
dirty, clean it with a
cleaning cloth. Wipe the
disc from the centre out.
Do not use solvents •
such as benzene, thinner,
commercially available
cleaners, or antistatic spray intended for
analogue records.
Clean the disc lens
After prolonged use, dir t or dust may •
accumulate at the disc lens. To ensure
good play quality, clean the disc lens
with Philips CD lens cleaner or any
commercially available cleaner. Follow the
instructions supplied with cleaner.
EN
17
10 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site www.
philips.com/welcome. When you contact Philips,
ensure that the apparatus is nearby and the
model number and serial number are available.
No power
Ensure that the AC power plug of the •
unit is connected properly.
Ensure that there is power at the AC •
outlet.
To save power, the unit switches to •
standby automatically 15 minutes after
a play reaches the end and no control is
operated.
No sound
Adjust the volume. •
No response from the unit
Disconnect and reconnect the AC power •
plug, then turn on the unit again.
No disc detected
Insert a disc. •
Check if the disc is inserted with the print •
side facing inward.
Wait until the moisture condensation at •
the lens has cleared.
Replace or clean the disc. •
Use a finalized CD or correct format disc. •
Remote control does not work
Before pressing any function button, first •
select the correct source with the remote
control instead of the main unit.
Reduce the distance between the remote •
control and the unit.
Inser t the battery with its polarities (+/– •
signs) aligned as indicated.
Replace the battery. •
Aim the remote control directly at the •
sensor on the front of the unit.
Cannot display some files in USB device
The number of folders or files in the USB •
device has exceeded a cer tain limit. This
phenomenon is not a malfunction.
The formats of these files are not •
supported.
USB device not supported
The USB device is incompatible with the •
unit. Try another one.
Poor radio reception
Increase the distance between the unit •
and your TV or VCR .
Fully ex tend and adjust the FM antenna. •
Clock/timer setting erased
Power has been interrupted or the power •
cord has been disconnected.
Reset the clock/timer. •
Timer does not work
Set the clock correctly. •
Switch on the timer. •
18
EN
192021
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
DCM276_78_UM_V2.0
Loading...
