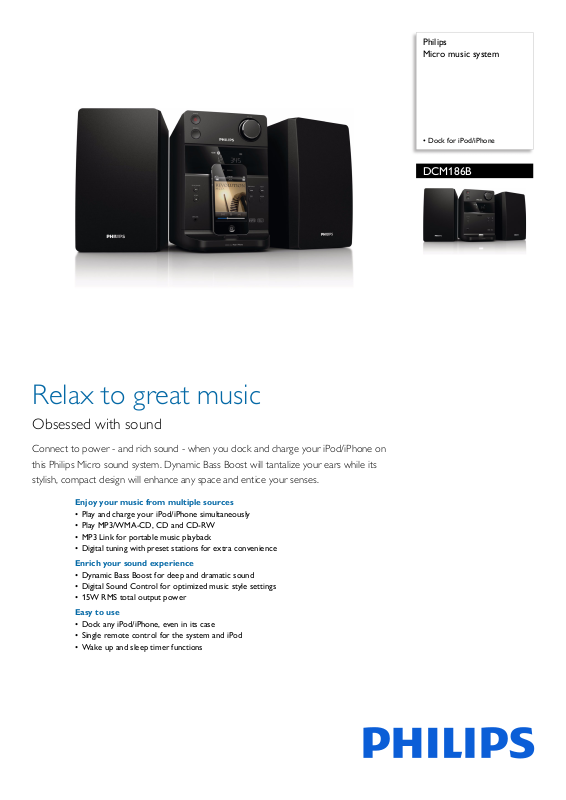

Page 1
Philips
Micro music system
• Dock for iPod/iPhone
DCM186B
Relax to great music
Obsessed with sound
Connect to power - and rich sound - when you dock and charge your iPod/iPhone on
this Philips Micro sound system. Dynamic Bass Boost will tantalize your ears while its
stylish, compact design will enhance any space and entice your senses.
Enjoy your music from multiple sources
• Play and charge your iPod/iPhone simultaneously
• Play MP3/WMA-CD, CD and CD-RW
• MP3 Link for portable music playback
• Digital tuning with preset stations for extra convenience
Enrich your sound experience
• Dynamic Bass Boost for deep and dramatic sound
• Digital Sound Control for optimized music style settings
• 15W RMS total output power
Easy to use
• Dock any iPod/iPhone, even in its case
• Single remote control for the system and iPod
• Wake up and sleep timer functions
Page 2
Micro music system
Dock for iPod/iPhone
DCM186B/79
Highlights
Dynamic Bass Boost
Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
Digital Sound Control
your music by precisely adjusting the sound balance
to match the type of music you are playing.
MP3 Link
The MP3 link connectivity allows direct playback of
MP3 content from portable media players. Besides
the benefit of enjoying your favorite music in the
superior sound quality delivered by the audio
system, the MP3 link is also extremely convenient as
all you have to do is to plug your portable MP3 player
to the audio system.
Dock iPod/iPhone in its case
Specifications
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD
• Disc Playback Modes: 20-Track Programmable,
epeat/one/all/program, Fast Forward/Backward,
R
Next/Previous Track Search, Shuffle Play, Repeat
Play
•Loader Type: Top
• Cradle playback mode: Fast forward and backward,
Sound
• Output Power: 15W RMS total power
• Sound Enhancement: Dynamic Bass Boost, Digital
• Sound System: Stereo
Loudspeakers
• Main Speaker: 3" woofer, Bass Reflex Speaker
Tuner/Reception/Transmission
• Tuner Bands: FM Stereo
• Auto digital tuning
• Station presets: 20
• Tuner Enhancements: Auto Store
Connectivity
• Other connections: FM fixed pigtail antenna
• Audio Connections: 3.5mm stereo line in
d Previous track, Play and Pause, Charging
Next an
iPhone, Charging iPod
Sound Control
System
-MP3 link
Digital Sound Control offers you a choice of pre-set
Jazz, Rock, Pop and Classic controls you can use to
optimise the frequency ranges for different musical
styles. Each mode uses graphic equalizing technology
to automatically adjust the sound balance and
enhance the most important sound frequencies in
your chosen music style. Ultimately, Digital Sound
Control makes it easy for you get the most out of
Smartly designed spring-loaded docking port
effortlessly accommodates any iPod or iPhone,
without special adaptors. What’s more, it works
even when most protective cases are on – just dock
your iPod or iPhone as it is. Now you can truly have
fuss-free enjoyment of your music.
Convenience
• Alarms: Sleep timer, Radio Alarm, CD Alarm
• Clock: On main display
• Display Type: LCD
• Backlight color: Blue
Accessories
• Included accessories: World Wide Warranty
leaflet
• Quick start guide: English
• User Manual: English
Dimensions
• Set dimensions (W x H x D): 148 x 233 x 232 mm
• Main speaker dimensions (W x H x D):
2 x 233 x 159 mm
13
• Packaging dimensions (W x H x D):
0 x 270 x 326 mm
37
• Weight incl. Packaging: 5.1 kg
Power
• Power supply: 220-240V, 50Hz
iPod compatibility
• Compatible with: iPod mini, iPod nano, iPod with
color display, iPod 5th Generation, iPod classic,
iPod, iPod 1G, iPod 6th Generation, iPod nano 1st
Generation, iPod nano 2nd Generation, iPod nano
3rd Generation, iPod nano 4th Generation, iPod
nano 5th Generation, iPod touch, iPod touch 2nd
Gen 8/16/32GB
iPhone compatibility
• Compatible with: iPhone, iPhone 3G, iPhone 3GS,
iPhone 4
•
Issue date 2013-05-10
Version: 1.0.1
12 NC: 8670 000 84268
EAN: 87 12581 62505 4
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
