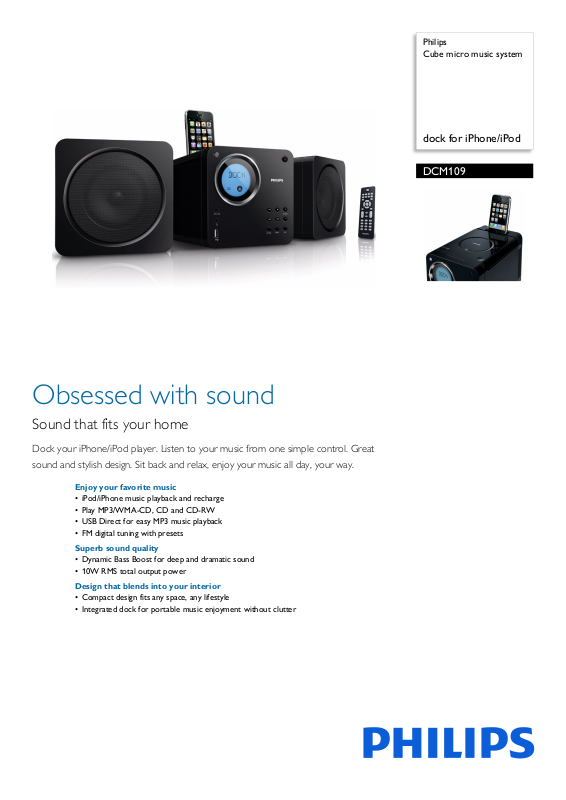

Philips DCM109/37 Leaflet
Philips
Cube micro music system
dock for iPhone/iPod
DCM109
Obsessed with sound
Sound that fits your home
Dock your iPhone/iPod player. Listen to your music from one simple control. Great
sound and stylish design. Sit back and relax, enjoy your music all day, your way.
Enjoy your favorite music
• iPod/iPhone music playback and recharge
• Play MP3/WMA-CD, CD and CD-RW
• USB Direct for easy MP3 music playback
• FM digital tuning with presets
Superb sound quality
• Dynamic Bass Boost for deep and dramatic sound
• 10W RMS total output power
Design that blends into your interior
• Compact design fits any space, any lifestyle
• Integrated dock for portable music enjoyment without clutter
Cube micro music system
dock for iPhone/iPod
DCM109/37
Specifications
Audio playback
• Playback media: CD, CD-R, CD-RW, MP3-CD,
WMA-CD
• Disc playback modes: fast forward/backward, next/
vious track search, repeat/shuffle/program
pre
• Others: ID3-tag support
• USB Direct playback modes: fast backward/fast
d, play/pause, previous/next, program play,
forwar
repeat, shuffle, stop
• Docking playback modes: fast forward and
Sound
• Sound enhancement: Dynamic Bass Boost, digital
• Output power: 2 x 5 W RMS
• Volume control: up/down
Loudspeakers
• Speaker drivers: 3.5" woofer
• Speaker types: bass reflex speaker system
Tuner/Reception/Transmission
• Tuner bands: FM stereo
• Station presets: 20
• Tuner enhancement: auto digital tuning
Connectivity
• Audio/Video output: Headphone (3.5mm)
• MP3 Link: 3.5mm stereo line in
Convenience
• Alarms: CD alarm, radio alarm, USB alarm, iPod
• Loader type: top
d, next and previous track, play and pause
backwar
sound control
alarm
• Clock: on main display, sleep timer
• Display type: LCD display
• Backlight color: white
• Charging device: iPhone, iPod
Accessories
• Cables/Connection: MP3 Link cable
•Remote control
• User Manual: English, French, Spanish
• Others: Quick start guide
• Warranty: World Wide Guarantee booklet
Dimensions
• Gross weight: 5.48 kg
• Main speaker dimensions (W x D): 150 x 197 mm
• Main speaker height: 152 mm
• Packaging depth: 202 mm
• Main unit depth: 250 mm
• Main unit height: 152 mm
• Packaging height: 302 mm
• Packaging width: 531 mm
• Main unit width: 150 mm
Power
• Power supply: 120V, 60Hz
iPod compatibility
• Compatible with: iPod, iPod 5th generation, iPod
classic, iPod mini, iPod nano 1st generation, iPod
nano 2nd generation, iPod nano 3rd generation,
iPod nano 4th generation, iPod touch, iPod touch
2nd generation, iPod with color display, iPod nano
iPhone compatibility
• Compatible with: iPhone, iPhone 3G, iPhone 3GS
•
Highlights
Dynamic Bass Boost
Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
iPod/iPhone music playback
iPod/iPhone music playback and recharge.
Play MP3/WMA-CD, CD and CD-RW
Issue date 2014-03-14
Version: 2.0.3
12 NC: 8670 000 56364
UPC: 6 09585 17635 5
Audio compression technology allows large digital
music files to be reduced up to 10 times in size
without radically degrading their audio quality. MP3
or WMA are two of the compression formats that
let you enjoy a world of digital music on your Philips
player. Download MP3 or WMA songs from
authorized music sites on the Internet or create
your own MP3 or WMA music files by ripping your
audio CDs and transferring them onto your player.
USB Direct for easy MP3 music
Thanks to the complete file transferability, you can
easily enjoy the convenience and fun of accessing
more digital music via the built-in USB Direct.
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
