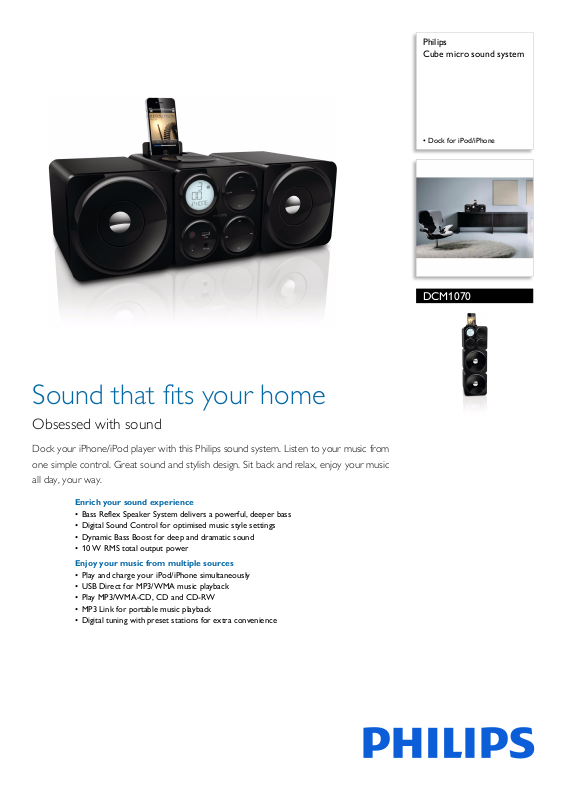

Page 1
Philips
Cube micro sound system
• Dock for iPod/iPhone
DCM1070
Sound that fits your home
Obsessed with sound
Dock your iPhone/iPod player with this Philips sound system. Listen to your music from
one simple control. Great sound and stylish design. Sit back and relax, enjoy your music
all day, your way.
Enrich your sound experience
• Bass Reflex Speaker System delivers a powerful, deeper bass
• Digital Sound Control for optimised music style settings
• Dynamic Bass Boost for deep and dramatic sound
• 10 W RMS total output power
Enjoy your music from multiple sources
• Play and charge your iPod/iPhone simultaneously
• USB Direct for MP3/WMA music playback
• Play MP3/WMA-CD, CD and CD-RW
• MP3 Link for portable music playback
• Digital tuning with preset stations for extra convenience
Page 2
Cube micro sound system
Dock for iPod/iPhone
Highlights
DCM1070/05
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep
bass experience from a compact loudspeaker
box system. It differs from a conventional
loudspeaker box system in the addition of a
bass pipe that is acoustically aligned to the
woofer to optimise the low frequency roll-off
of the system. The result is deeper controlled
bass and lower distortion. The system works
by causing the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a completely new dimension of deep
bass.
Digital Sound Control
important sound frequencies in your chosen
music style. Ultimately, Digital Sound Control
makes it easy for you get the most out of your
music by precisely adjusting the sound balance
to match the type of music you are playing.
Dynamic Bass Boost
Dynamic Bass Boost maximises your music
enjoyment by emphasising the bass content of
the music throughout the range of volume
settings - from low to high – at the touch of a
button! Bottom-end bass frequencies usually
get lost when the volume is set at a low level.
To counteract this, Dynamic Bass Boost can be
switched on to boost bass levels, so you can
enjoy consistent sound even when you turn
down the volume.
delivered by the audio system, the MP3 link is
also extremely convenient as all you have to do
is to plug your portable MP3 player into the
audio system.
Play and charge your iPod/iPhone
Enjoy your favourite MP3 music while charging
your iPod/iPhone! The dock lets you connect
your portable device directly to the Docking
entertainment system so you can listen to your
favourite music in superb sound. It also charges
your iPod/iPhone while it plays so you can
enjoy your music and not have to worry about
your portable player battery running out. The
Docking entertainment system automatically
charges your portable device while it is
docked.
Digital Sound Control offers you a choice of
pre-set Jazz, Rock, Pop and Classical controls
you can use to optimise the frequency ranges
for different musical styles. Each mode uses
graphic equalizing technology to automatically
adjust the sound balance and enhance the most
MP3 Link
The MP3 link connectivity allows direct
playback of MP3 content from portable media
players. Besides the benefit of enjoying your
favourite music in the superior sound quality
USB Direct
With the USB Direct mode, simply plug in your
USB device to the USB port on your Philips
device and your digital music will be played
directly from the Philips device.
Page 3
Cube micro sound system
Dock for iPod/iPhone
Specifications
DCM1070/05
Audio playback
• Playback media: CD, CD-R, CD-RW, MP3-CD,
WMA-CD
• Disc playback modes: fast forward/reverse, next/
vious track search, repeat/shuffle/programme
pre
• Others: ID3-tag support
• USB Direct playback modes: fast reverse/fast
d, play/pause, previous/next, programme
forwar
play, repeat, shuffle, stop
• Docking playback modes: fast forward and
next and previous track, play and pause
reverse,
Sound
• Output power: 2 x 5 W RMS
• Sound enhancement: Dynamic Bass Boost, digital
und control
so
• Volume control: up/down
Loudspeakers
• Speaker drivers: 3" woofer
• Speaker types: bass reflex speaker system
Tuner/Reception/Transmission
• Tuner bands: FM stereo
• Station presets: 20
• Tuner enhancement: auto digital tuning
Connectivity
• Audio/Video output: Headphone (3.5 mm)
• MP3 Link: 3.5 mm stereo line in
Convenience
• Alarms: CD alarm, radio alarm, iPod alarm, USB
alarm
• Loader type: top
• Clock: on main display, sleep timer
• Display type: LCD display
• Backlight colour: white
• Charging device: iPhone, iPod
Accessories
• Cables/Connection: MP3 Link cable
•Remote control
• User Manual: multi-lingual
• Others: Quick start guide
• Warranty: Worldwide Guarantee booklet
Dimensions
•Gross weight: 3.5 kg
• Main speaker dimensions (W x D): 140 x 198 mm
• Main speaker height: 143 mm
• Main unit depth: 250 mm
• Packaging width: 516 mm
• Main unit height: 143 mm
• Packaging height: 308 mm
• Packaging depth: 195 mm
• Main unit width: 140 mm
Power
• Power supply: 110-240 V, 50/60 Hz
iPod compatibility
• Compatible with: iPod, iPod mini, iPod nano, iPod
with colour display, iPod 5th generation, iPod
touch, iPod classic, iPod nano 1st generation, iPod
nano 2nd generation, iPod nano 3rd generation,
iPod nano 4th generation, iPod touch 2nd
generation, iPod 6th Generation, iPod nano 5th
generation, iPod nano 6th generation, iPod shuffle,
iPod touch 3rd generation, iPod touch 4th
generation
iPhone compatibility
• Compatible with: iPhone, iPhone 3G, iPhone 3GS,
iPhone 4, iPhone 4S
•
Issue date 2013-05-29
Version: 1.0.6
12 NC: 8670 000 93188
EAN: 87 12581 65444 3
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
