DCD7010

EN User manual 3

ZH-CN 用户手册 27

Page 2

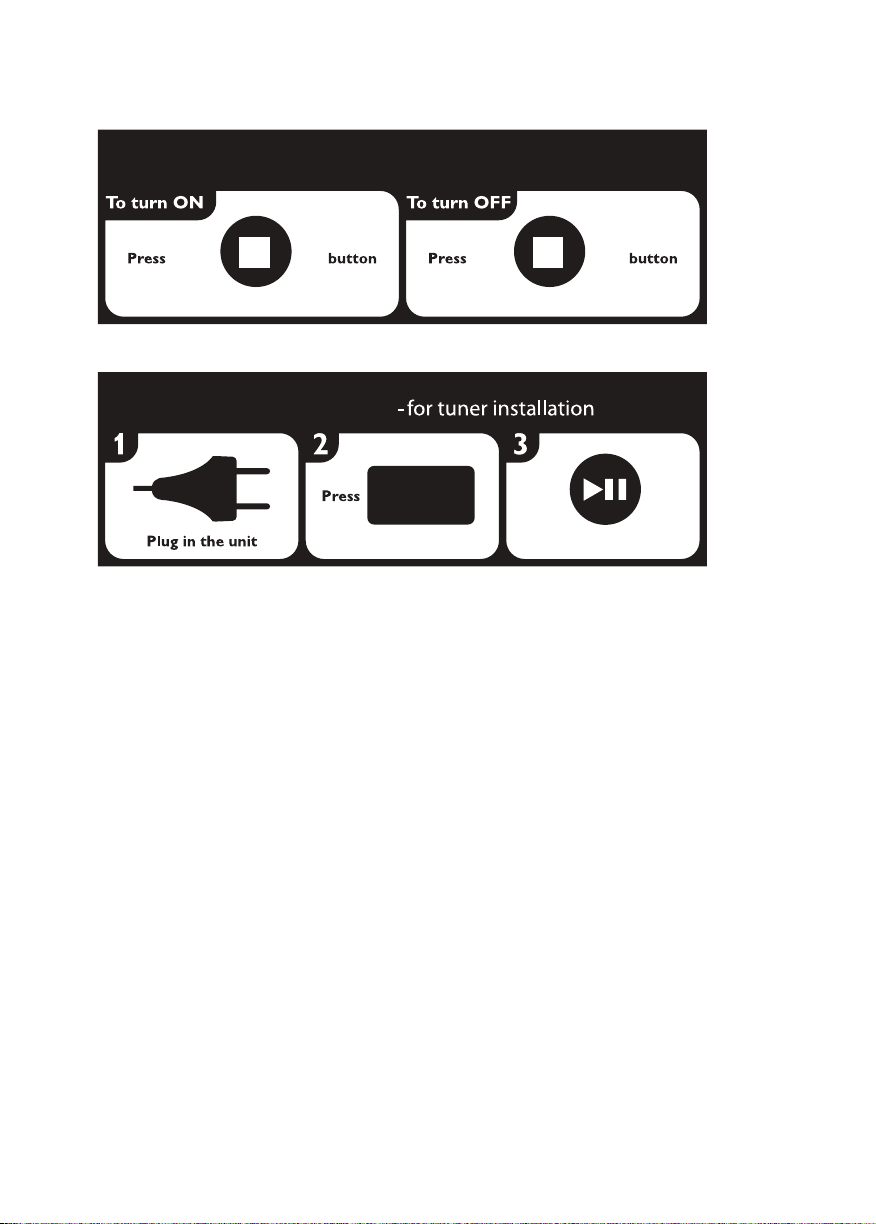

DEMO MODE

(in standby mode) (in standby mode)

PLUG&PLAY

RADIO

“AUTO INSTALL" scrolls

Press & HOLD

2 seconds

for

button

Page 3

Contents

1 Important 4

Know these safety symbols 4 Important Safety Instructions 4 Hearing safety 5 Copyright notice 5 Trademark notice 5

2 Congratulations 7

Feature introduction 7 What’s in the box 7 Overview of the main unit 8

3 Before use 11

Place the unit 11 Connect 11 Install/replace the battery of remote control

4 Get started 12

Turn on 12 Adjust brightness of display panel 13 Turn on or off LED light 13 Store radio stations automatically 13 Find the correct video input channel 13 Select the correct TV system 13 Select a language for on-screen display 13

5 Play disc/USB 14

Basic operation 14 Play a disc 14

Play recored les 14

Control the play 15 Search by time or title/chapter/track

number (for DVD or VCD) 16

Adjust sound 16

7 Listen to FM radio 18

Program radio stations automatically 18 Program radio stations manually 18 Tune to a programmed radio station 18

8 Setup 19

General setup 19 Audio Setup 19 Video Setup 19 Preference setup 20 Update software 20

9 Other features 21

Play audio from an external device 21 Listen through headphone 21 Timer and sleep 21

Add your le to play list 21

Use the sleep timer 21

10 Product information 22

Region Code 22

Specications 22

Supported disc formats 23 Supported audio 23 USB playability information 23

11 Troubleshooting 24

Picture 24 Sound 24 Play 24 Others 25

12 Notice 26

Compliance and Environment 26

English

6 Play iPod/iPhone/iPad 17

Compatible iPod/iPhone/iPad 17 Load the iPod/iPhone/iPad 17 Listen to the iPod/iPhone/iPad 17 Charge the iPod/iPhone/iPad 17 Remove the iPod/iPhone/iPad 17

Page 4

1 Important

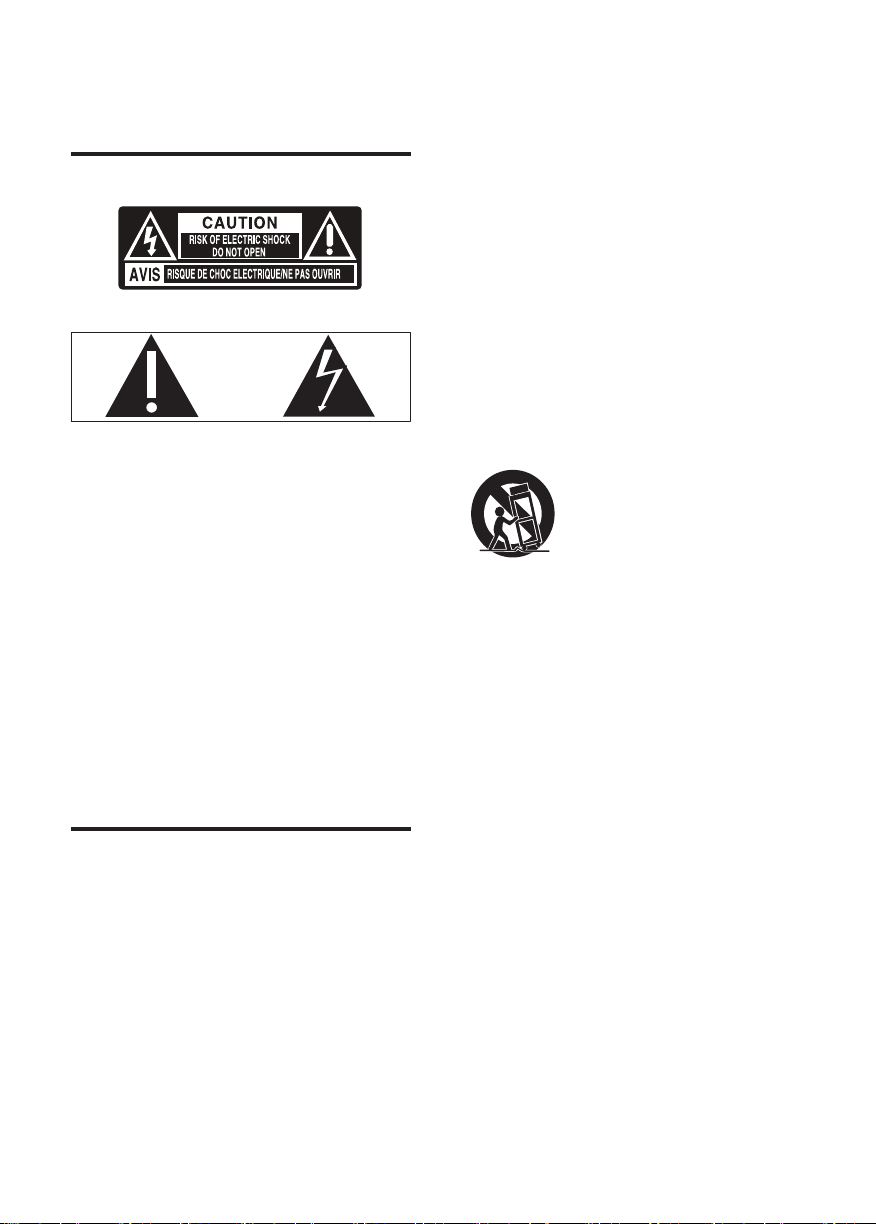

Know these safety symbols

This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of re or

electric shock, this apparatus should not be

exposed to rain or moisture and objects lled

with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Important Safety Instructions

a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

h Do not install near any heat sources

such as radiators, heat registers, stoves,

or other apparatus (including ampliers)

that produce heat.

i Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

j Only use attachments/accessories

specied by the manufacturer.

k Use only with the cart, stand, tripod,

bracket, or table specied by the

manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

l Unplug this apparatus during lightning

storms or when unused for long periods of time.

m Refer all servicing to qualied service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

n Battery usage CAUTION – To prevent

battery leakage which may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, + and as marked on the unit.

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries when the unit is not used for a long time.

o Apparatus shall not be exposed to

dripping or splashing.

Page 5

p Do not place any sources of danger on

the apparatus (e.g. liquid lled objects, lighted candles).

Caution

Use of controls or adjus tments or

•

performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally ‘safe’ levels, can also cause hearing loss.

• Be sure to use your equipment reasonably and take appropriate breaks.

English

Warning

Never remove the casing of this unit.

•

• Never lubricate any par t of this unit.

• Place this unit on a at, hard and stable

surface.

• Never place this unit on other electrical

equipment.

• Only use this unit indoors. Keep this unit away

from water, moisture and liquid-lled objects.

• Keep this unit away from direct sunlight, naked

ames or heat.

• Never look into the laser beam inside the unit.

Hearing safety

Listen at a moderate volume.

• Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss.

• Sound can be deceiving. Over time your hearing ‘comfor t level’ adapts to higher volumes of sound. So after prolonged listening, what sounds ‘normal’ can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

To establish a safe volume level:

• Set your volume control at a low setting.

Be sure to observe the following guidelines when using your headphones.

• Listen at reasonable volumes for reasonable periods of time.

• Be careful not to adjust the volume as your hearing adapts.

• Do not turn up the volume so high that you can’t hear what’s around you.

• You should use caution or temporarily discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling,

skateboarding, etc.; it may create a trafc

hazard and is illegal in many areas.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Trademark notice

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Page 6

‘DVD Video’ is a trademark of DVD Format/ Logo Licensing Corporation.

ABOUT DIVX VIDEO: DivX® is a digital video

format created by DivX, Inc. This is an ofcial DivX Cer tied device that plays DivX video.

Visit www.divx.com for more information and

software tools to convert your les into DivX

video.

ABOUT DIVX VIDEO-ON-DEMAND: This

DivX Cer tied

order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

DivX

, DivX Cer tied® and associated logos

are registered trademarks of DivX, Inc. and are used under license.

device must be registered in

note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

Note

The type plate is located on the bot tom of

•

the unit.

HDMI, the HDMI logo, and High-Denition

Multimedia Inter face are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessor y has been designed to connect

specically to iPod, iPhone, or iPad, respectively, and has been certied by the

developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulator y standards. Please

Page 7

XXXXXX

2 Congratulations

What’s in the box

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of this product. The model number and serial number are on the back of the main unit. Write the numbers here:

Model No. __________________________ Serial No. ___________________________

Feature introduction

This unit can

• play videos, audios, and display pictures from discs and USB storage devices

• play audios from iPod/iPhone/iPad

For the details of supported media, refer to

“Specications”.

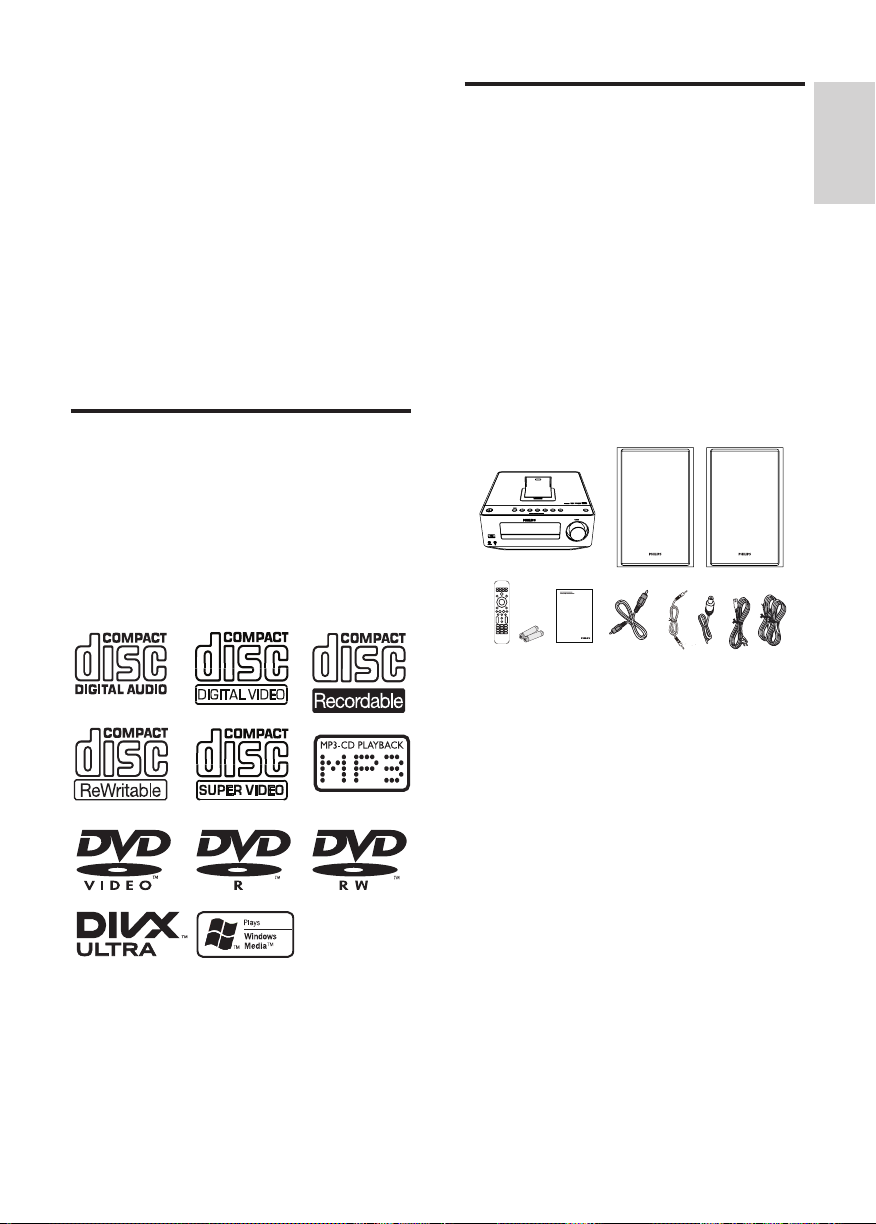

Check and identify the contents of your package:

• Main unit

• 2 speakers

• Remote control

• 2 AAA batteries

• AC power cord

• Video cable

• 2 speaker wires

• FM antenna wire

• MP3-LINK cord

• User manual

English

Page 8

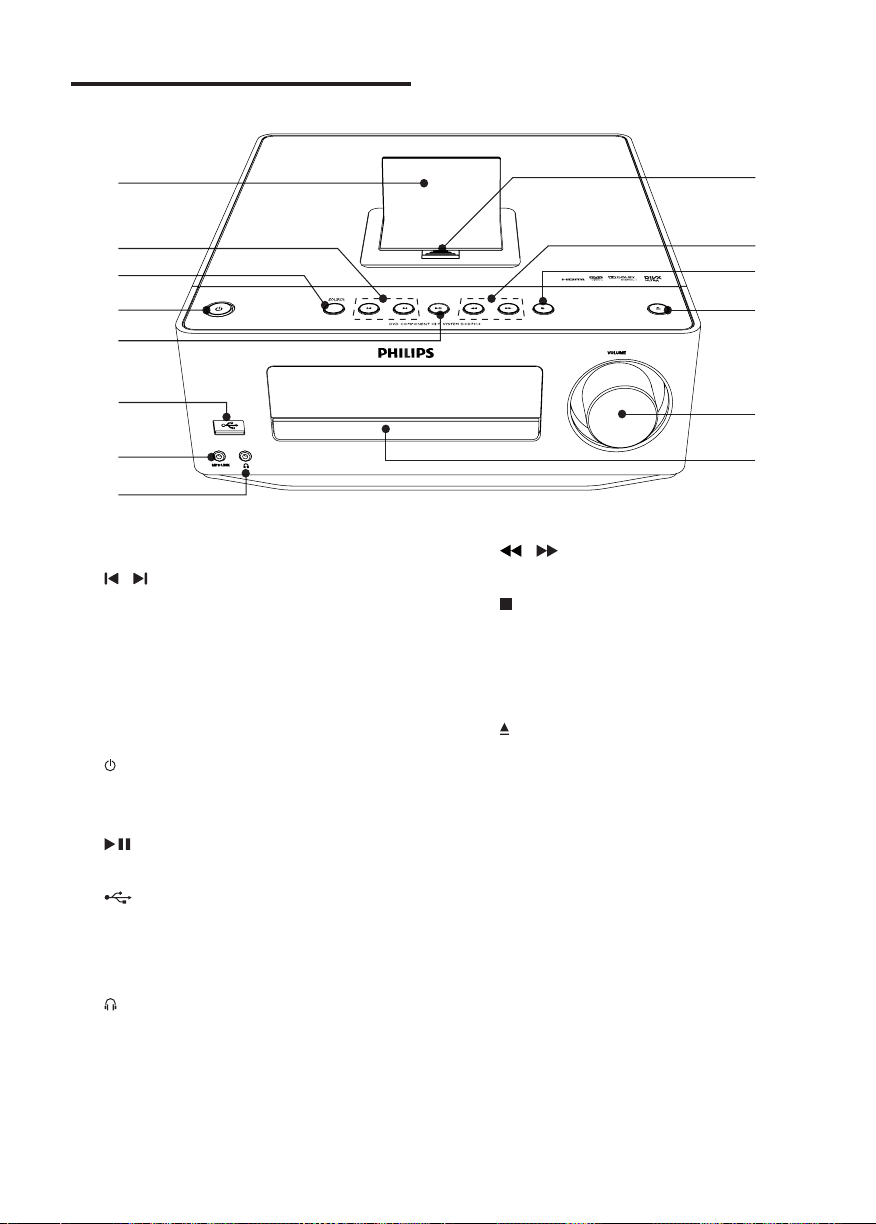

Overview of the main unit

d e

a Dock for iPod/iPhone/iPad b

• Skip to the previous or next title,

chapter, track, or le.

c SOURCE

• Select a media source (disc, USB

storage device, iPod/iPhone/iPad, FM tuner, or external device connected through MP3 link cable).

• Turn on or off the unit.

• Switch to ECO mode.

• Star t, pause or resume the play.

• Connect a USB storage device.

g MP3 LINK

• Connect an MP3 link cable.

• Socket for headphones.

i Pull open

• Pull to open the dock.

j /

• Search fast backward or forward.

• Stop the play.

• Erase a programed radio station.

• Activate/deactivate demonstration

mode.

• Eject or close the disc compartment.

m VOLUME

• Increase or decrease the volume level.

n Disc compartment

Page 9

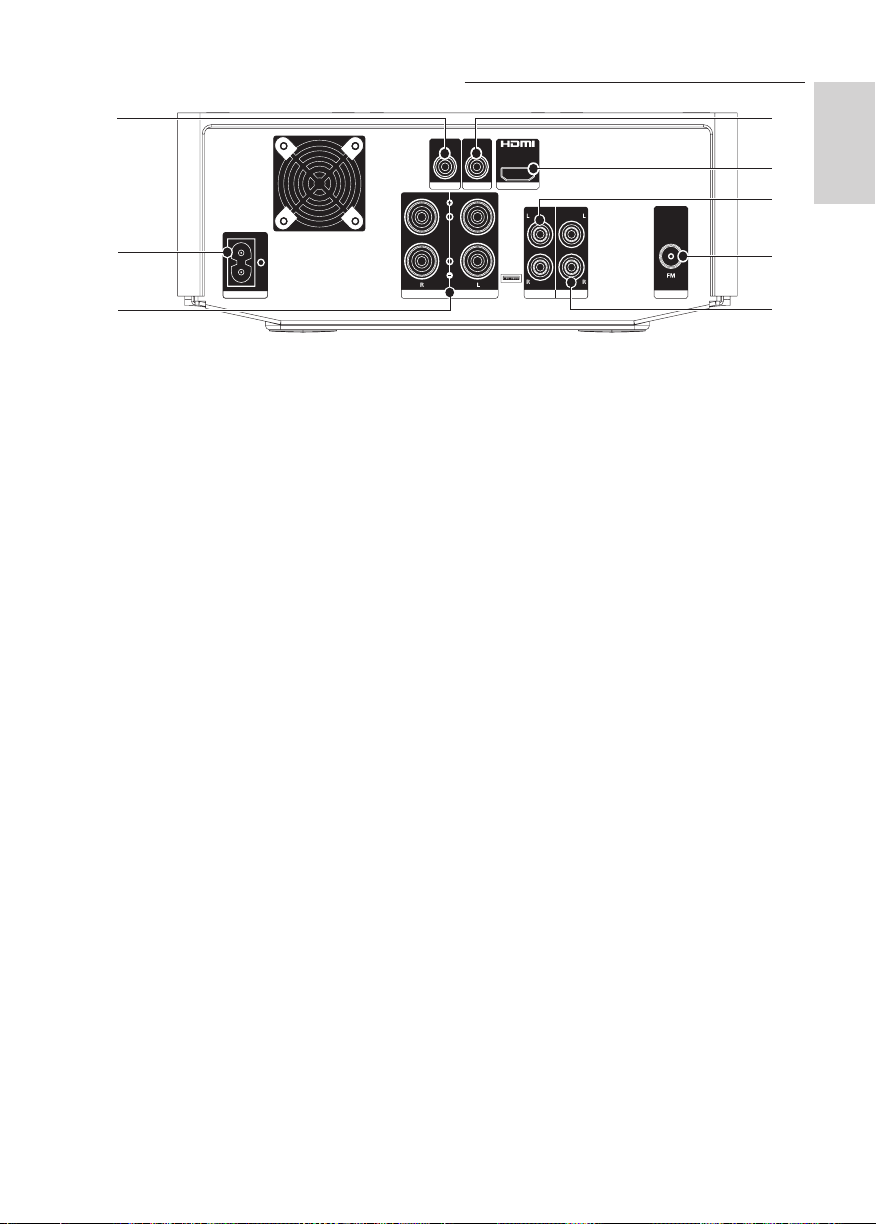

Back view

a COAXIAL/DIGITAL OUT

• Coaxial / digital out jack

b AC MAIN~

• Power supply socket.

c SPEAKER OUT

• Connect the speakers.

d AUX-IN

• Connect an external audio device.

e FM ANTENNA

• Improve FM reception.

f LINE OUT

• Connect audio cables.

g DIGITAL AV OUT

• Connect an HDMI cable.

h VIDEO OUT

• Video output jack.

English

Page 10

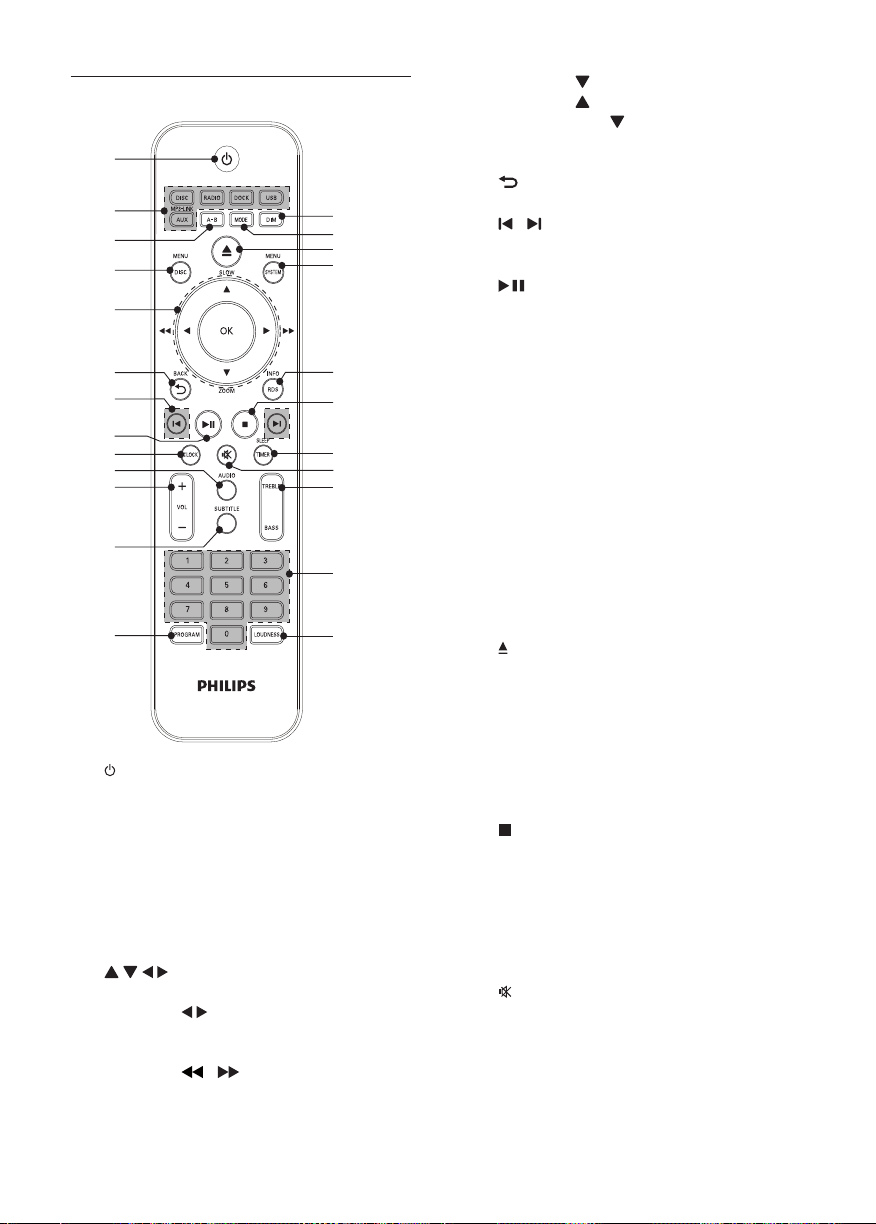

Overview of remote control

n o

• Switch the device on/off.

b DISC / RADIO / DOCK / USB / AUX/

MP3 LINK

• Select the source.

c A-B

• Marks the section for repeat play, or turns off repeat mode.

d DISC MENU

• Access the main menu of the disk.

• Navigate through the menus;

• Press

clockwise or counter-clockwise during slideshow.

• Press

forward; Press repeatedly to change the search speed.

to rotate a picture

/ to fast backward or

• Press (ZOOM) to slow forward.

• Press

• Long press

(SLOW) to slow backward.

(ZOOM) to zoom in/out.

• Press OK to conrm a selection or entr y.

BACK

• Return to a previous display menu.

• Skip to the previous or next title, chapter, track, or le.

• Star t, pause or resume play.

i CLOCK

• Show time.

j AUDIO

• Select an audio language or channel.

k VOL +/-

• Adjust the volume.

l SUBTITLE

• Select a subtitle language.

m PROGRAM

• Program radio stations.

n DIM

• Select different level of brightness.

• Turn on/off the VOL knob light and

the LED light.

o MODE

• Select repeat play or random play.

• Open or close the disc compartment.

q SYSTEM MENU

• Go to the system menu.

r RDS/INFO

• Show the disk information such as title, chapter, subtitle, time elapsed, total time etc.

• Stop play.

• Erase a programed radio station.

• Activate/deactivate the

demonstration mode.

t TIMER/SLEEP

• To time or enter SLEEP mode in 120/90/60/45/30/15 min.

• Mute.

v TREBLE/BASS

• Increase/decrease the treble/bass level.

w Numeric buttons

• Select a title/chapter/track to play.

x LOUDNESS

• Turn on/off loudness control.

Page 11

VIDEO R

3 Before use

Connect

Place the unit

Note

Risk of overheating! Never install this

•

appar atus in a conned space. Always leave a

space of at least 4 inches around this apparatus for ventilation. Ensure curtains or other objec ts never cover the ventilation slots on this apparatus.

• Place this unit on a at, hard, and stable

surface.

• Never place this unit in an enclosed cabinet,

nor on any other electrical equipment.

• Keep this unit away from direct sunlight, naked

ames, or heat.

• Do not insert any object other than indicated

into ventilation openings nor other openings.

• Appar atus shall not be exposed to dripping or

splashing.

• Do not place any sources of danger on the

unit (for example, liquid lled objects, lighted

candles).

• Install this unit near the AC outlet where the

AC power plug can be easily reached.

• To avoid magnetic interference or unwanted

noise, never place the main unit and speakers too close to any radiation devices.

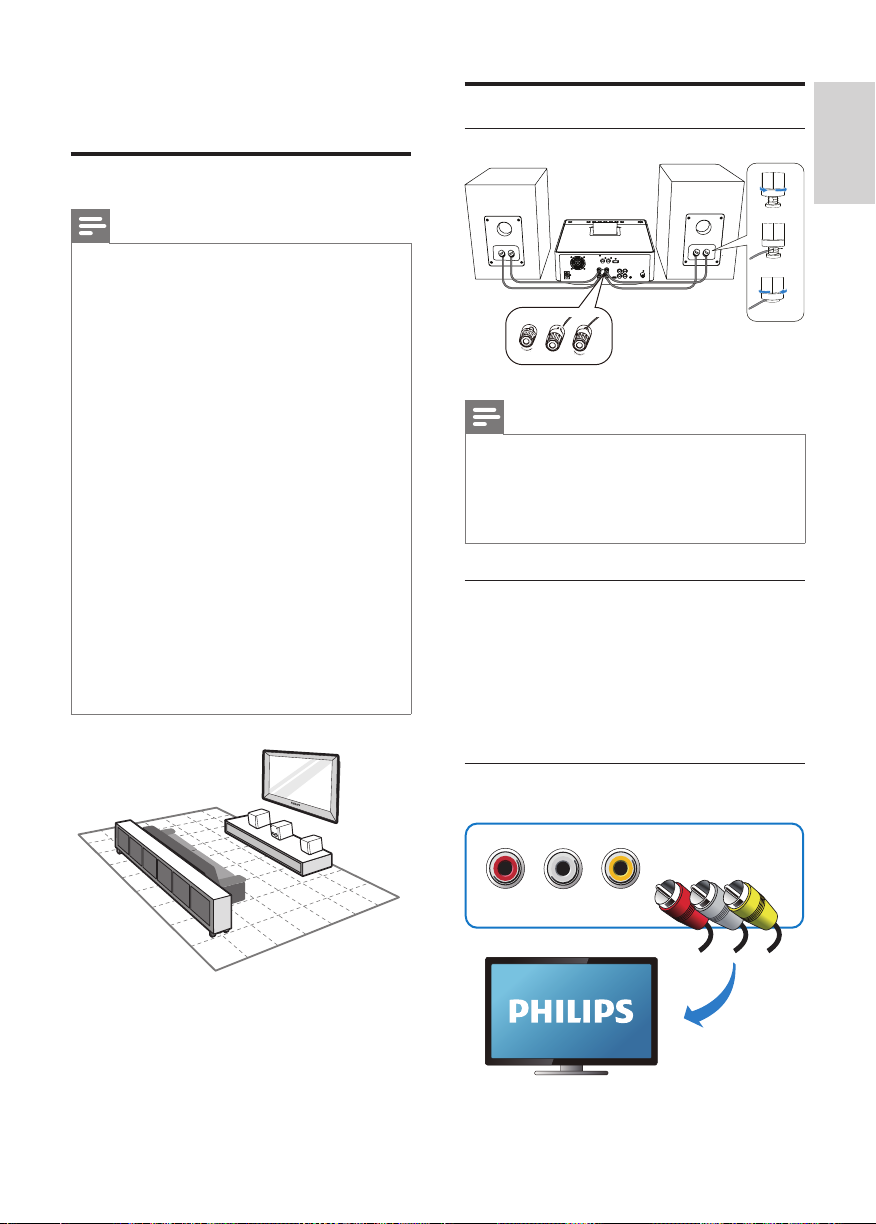

Connect speakers

Note

For the best sound quality, use the supplied

•

speakers only.

• Connect speakers with the same or

higher impedance only. Refer to “Product

information” > “Specications” for details.

Connect TV

Connect the audio and video cables to the output sockets on the unit and the corresponding input sockets on your TV.

Select the best video connection that your TV supports.

English

1 Place the unit near to the TV. 2 Place the speakers at a suitable

distance from the T V and at an angle of approximately 45 degrees from the listening position.

Connect through a composite video cable

Page 12

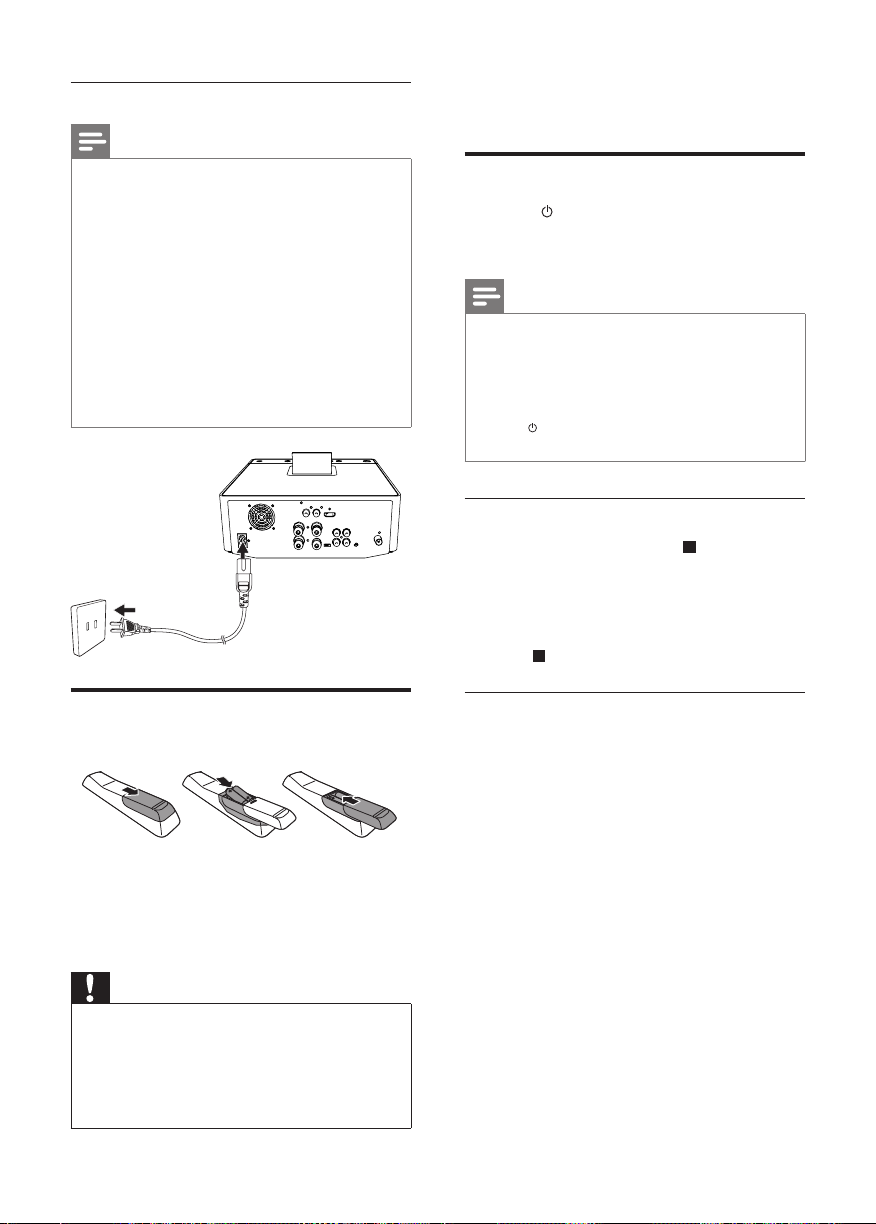

Connect power

Note

Where the MAINS plug or an appliance coupler

•

is used as the disconnect device, the disconnect device shall remain readily operable.

• Risk of product damage! Make sure that the

power supply voltage corresponds to the voltage printed on the back of the MAIN plug.

• Before you connect the AC power cord, make

sure that you have complete all other connections.

• Protect the power cord from being walked on

or pinched, particularly at plugs, convenience receptacles, and the points where they exit from the apparatus.

• Unplug this apparatus during lightning storms

or when unused for long periods of time.

4 Get started

Turn on

1 Press .

» The unit switches to the last selected

source.

Note

If no source is played within 15 minutes, the

•

unit switches to standby mode.

• If no operation is performed within 15 minutes

in standby mode, the unit switches to Ecopower standby mode.

• Press to switch the unit to the last source

when it was turned off.

Demonstrate the unit’s features

1. In the standby mode, press to turn on DEMO mode

» This system’s features are displayed

one by one.

• To turn off the demonstration, press

again.

Install/replace the battery of remote control

a Push to open the battery compartment

cover.

b Insert 2 AAA batteries with correct

polarity (+/-) as indicated.

c Close the cover.

Caution

Risk of explosion! Keep batteries away from heat,

•

sunshine or re. Never discard batteries in re.

• Do not mix batteries (old and new or carbon

and alkaline, etc).

• Remove the batter y if the remote control is

not to be used for an extended period of time.

Set the clock

The unit uses the 24-hour or 12-hour time format.

1 In standby mode, press and hold CLOCK

for 2 seconds.

» “CLOCK SET” scrolls on the display.

Then the time format [24H] or [12H] appears.

2 Press VOL +/- to select a time format.

Press CLOCK to conrm.

» The hour digits blink.

3 Press VOL +/- to set the hour. Press

CLOCK to conrm.

» The minute digits blink.

4 Press CLOCK to conrm the setup.

Page 13

Note

The number key on the RC is deactivated in

•

this mode.

Adjust brightness of display panel

1 Press DIM repeatedly to select different

brightness levels.

Turn on or off LED light

1 In power-on mode, press and hold DIM

to turn on or off the LED light at the bottom of the unit or at the volume knob.

Store radio stations automatically

If no radio stations are stored, the unit can store radio stations automatically.

1 Turn on the unit. 2 Press RADIO.

» [AUTO INSTALL ---- PRESS PLAY --

STOP CANCEL] (press

automatic installation, or press cancel) is displayed.

3 Press .

» The unit automatically stores radio

stations with sufcient signal strength.

» After all available radio stations are

stored, the rst stored radio station is

broadcast automatically.

to start

See the user manual of your TV for how to

•

switch between video-in channels.

Select the correct TV system

This unit is compatible with both NTSC and PAL. If the picture is abnormally displayed with the default setting, select a TV system that matches your TV. (Refer to “Setup” > “Video Setup” > [TV Type] for details)

Select a language for onscreen display

Chinese is the default language options for this setting. (See “Setup” > “General Setup” > [OSD

LANGUAGE] for details)

English

Find the correct video input channel

1 Turn on your unit. 2 Press DISC to select the disc source.

• Turn on the TV and switch to the correct video-in channel.

Page 14

5 Play disc/USB

Caution

Risk of damage to the unit! During play, never

•

move the unit.

• Never put any object other than a disc into the

disc compar tment.

• Never look at the laser beam inside the unit.

• Never play discs with accessories such as disc

stabilizer rings or disc treatment sheets.

When is displayed, it means that this operation is unavailable for the current media or at the current time.

Basic operation

Play recored les

You can play DivX/MP3/WMA/JPEG les that

are copied onto a CD-R/RW, recordable DVD, or USB storage device.

Note

You can only play DivX videos that are rented

•

or purchased with DivX® registration code of this unit. (See “Setup” > “General setup” > [DivX(R) VOD Code])

• Subtitle les with the following le ex tensions

(.srt, .smi, .sub, .ssa, .ass) are supported but not

displayed in the le lis t.

• The subtitle lename has to be the same

as the lename of the DivX video (the le

extension excluded).

• The DivX video le and the subtitle les must

be saved under the same directory.

The listed operations are applicable for all supported media.

Function Action

Press

/ .

Stop play Press Pause or resume play Press Skip to the previous/next

title, chapter, track, or le

Play a disc

1 Press DISC to select the disc source. 2 Press to eject the disc tray. 3 Place a disc onto the disc tray with the

printed side upward, and then press

4 The unit star ts playing automatically.

• To start the play manually, press

• To play a DVD that has a rating level

higher than your setting, enter the 6

(000000)-digit password rst.

Connect a USB storage device

1 Press USB to select the source for USB

storage device.

2 Insert the USB storage device.

» The unit starts playing automatically. » The user interface is displayed.

Page 15

• On the top: time elapsed, total time for the audio/video, the numeric place in the

USB storage les and the name of current

folder.

• On the left: the information source.

• In the middle: the folder and le list.

• On the right: the detailed le information.

Access a folder

1 Press / to highlight the selected

folder name.

2 Highlight [Previous] and press OK back

to the last-level menu.

Note

This unit can only display digital camera

•

pictures with JPEG-EXIF format, which is widely used in digital cameras. It cannot display Motion JPEG , nor pictures in formats other than JPEG. Sound clips associated with pic tures cannot be displayed either.

• If the JPEG photo is not recorded with an

“exif ” type le, it is displayed as a “blue

mountain” thumbnail picture.

Control the play

Follow the instructions to control the play.

English

Play a le

1 Access the selected folder. 2 Press / to highlight the selected le

name.

3 Press OK to conrm.

» The selected le starts playing. » The unit stops playing automatically

at the end of the last le of same

category.

Play slideshow and music simultaneously

Note

Make sure that the USB storage device or the

•

disc contains both WMA/MP3 les and JPEG

photos.

1 Play a WMA/MP3 le. 2 Access a photo folder. 3 Select a photo le. 4 Press OK to start the slideshow.

• The slideshow stops after all photos

are displayed for one time.

• To stop the slideshow, press

Media Function Action

Return to the disc menu

Enable/ disable the PBC (playback control) feature

Select an audio language or audio channel

Select a subtitle language

Select a play mode (repeat chapter, title , all,random or repeat off )

Press DISC MENU.

Press DISC MENU repeatedly.

• Enable PBC to

display the PBC menu, and then use Navigation

buttons and OK to enter

your choice.

Press AUDIO repeatedly.

Press SUBTITLE repeatedly.

Press MODE repeatedly.

Page 16

Media Function Action

Repeat a

specic

section within a chapter or track

Zoom in or out

Display the play information

Play or rewind in slow speed.

1) Press A-B to select the start point.

2) Press A-B again to select the end point.

»The selected section starts play repeatedly.

• To resume

normal play, press

[Repeat off ] is displayed.

• Long press

ZOOM repeatedly to change the zoom degree.

• Press

to move the zoomed picture up, down, left, or right.

Press INFO.

• During DVD/

VCD playback, press to play in slow speed.

• During DVD

playback, press

slow speed.

• Press

repeatedly to change the slow forward speed.

• Press

repeatedly to change the slow backward speed.

• Press OK back

to normal speed play.

A-B until

buttons

to rewind in

Media Function Action

Search backward or forward fast

Preview photos

Reverse a photo

Rotate a photo

Press / to search in a fast speed.

• Press OK back

to normal speed play.

Press to

highlight a le

info near the

le list

Press .

Press / .

Search by time or title/ chapter/track number (for

DVD or VCD)

1 During play, press INFO. 2 Press / to highlight the title

number, chapter number, track number,

or time eld.

3 Use the numeric buttons to enter the

number or time digits.

4 Press OK to conrm.

» the selected segment is displayed. » Play starts automatically.

Adjust sound

You can adjust the volume level and select sound effects.

Function Action

Increase/ decrease the volume level

Adjust treble or bass

Mute/unmute the speakers

Press + VOL -; turn VOLUME clockwise or anti-clockwise.

To activate treble level, press

TREBLE and then adjust with VOL +/-.

To activate bass level, press BASS and then adjust withVOL +/-.

Press

Page 17

6 Play iPod/

iPhone/iPad

You can enjoy audio from iPod/iPhone/iPad through this unit.

Note

The audio is only output through the supplied

•

speakers.

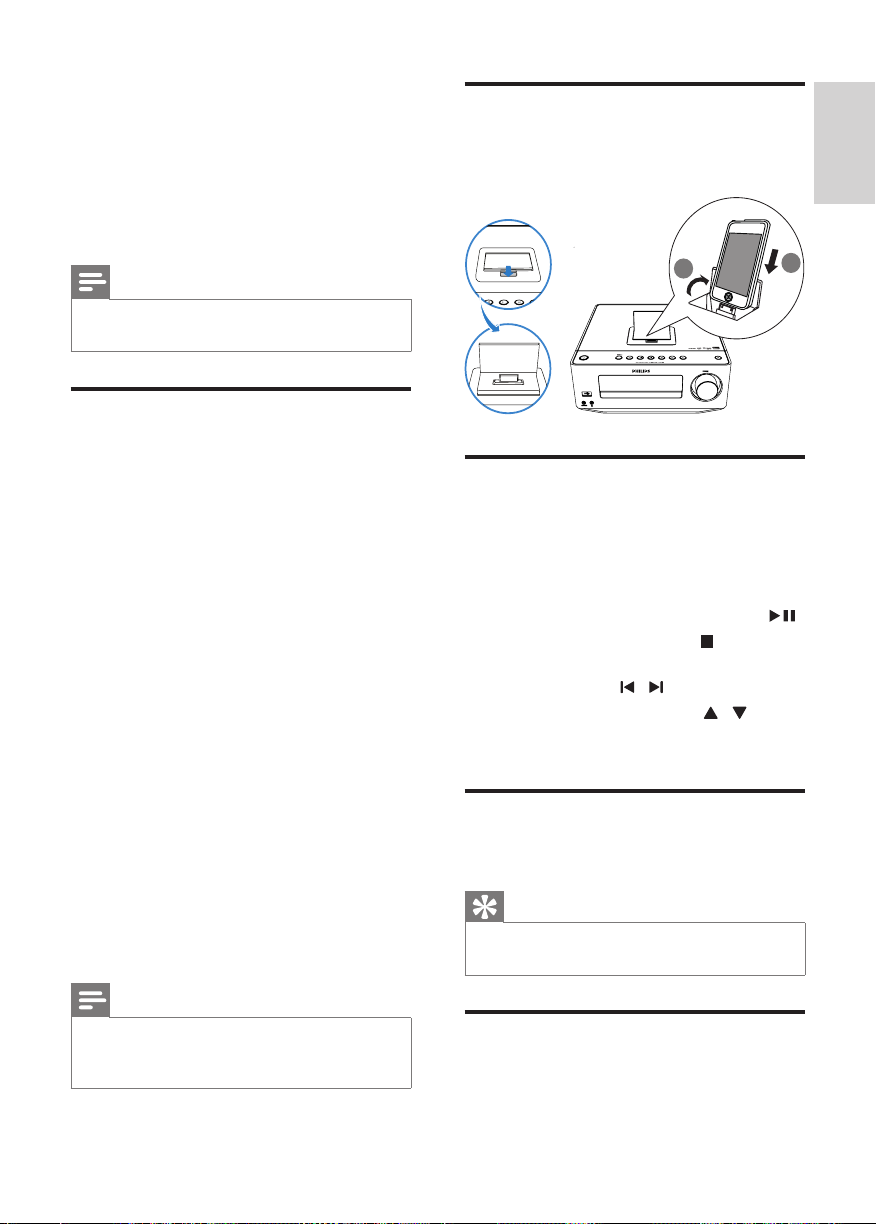

Load the iPod/iPhone/iPad

1 Lif t the lid of the dock. 2 Load the iPod/iPhone/iPad onto the dock.

English

Compatible iPod/iPhone/iPad

The unit supports the following iPod/iPhone/ iPad models:

• iPod 4G

• iPod 5G

• iPod nano (6th generation)

• iPod nano (5th generation)

• iPod nano (4th generation)

• iPod nano (3rd generation)

• iPod nano (2nd generation)

• iPod nano (1st generation)

• iPod Classic

• iPod Touch (4th generation)

• iPod Touch (3rd generation)

• iPod Touch (2nd generation)

• iPod Touch (1st generation)

• iPod Mini

• iPhone

• iPhone 3G

• iPhone 3GS

• iPhone 4

• iPad

Listen to the iPod/iPhone/iPad

1 Load your iPod/iPhone/iPad. 2 Press the button DOCK on your RC. 3 Play the selected track on your iPod/

iPhone/iPad.

• To pause/resume the play, press

• To stop the play, press

• To skip to the previous/next audio

track, press

• To select a track: press highlight a track, and then press OK

to conrm.

/ .

Charge the iPod/iPhone/iPad

When the unit is connected to power, the docked iPod/iPhone/iPad starts charging.

Tip

For cer tain iPod models, it may take up to a

•

minute before the charging indication appears.

/ to

Note

IPod with color display, iPod classic, and iPod

•

with video are not compatible with dock charging.

Remove the iPod/iPhone/iPad

1 Unload the iPod/iPhone/iPad from the dock. 2 Flip down the lid to hide the dock.

Page 18

7 Listen to FM

radio

Note

A maximum of 20 radio stations can be stored.

•

• Fully ex tend the FM antenna for better

reception.

Program radio stations automatically

1 Press RADIO. 2 Press and hold PROGRAM for 2 seconds.

Program radio stations manually

1 Press RADIO. 2 Long press / to search to a radio

3 Press PROGRAM to program the current

4 Press / to allocate a sequence

5 Press PROGRAM to conrm.

6 Repeat steps 2-5 to program more

AUTO

appears.

» Available stations are stored

automatically.

» The rst programmed radio station is

broadcast automatically.

station, or press tune to a radio station.

station .

» The sequence number blinks with the

current frequency displayed.

number from 01 to 20 to this radio station.

» The sequence number and the current

frequency are displayed.

stations.

/ to manually

Tip

To overwrite a programmed station, store

•

another station with its sequence number.

• [STEREO] is default set ting for tuner mode.

• Under tuner mode, you can press OK

repeatedly to toggle between [STEREO] and [MONO], and the unit memorizes your setting even if you turn off the unit or turn to other sources.

Tune to a programmed radio station

1 Press RADIO. 2 Press / repeatedly to select a

programmed radio station.

Page 19

8 Setup

1 After you press the button SYSTEM

MENU.

» The system menu appears. Click the

symbol to access each setup.

Note

You cannot change a menu option that is

•

grayed out.

• To return to the previous menu, press . To

exit the menu, press SYSTEM MENU again.

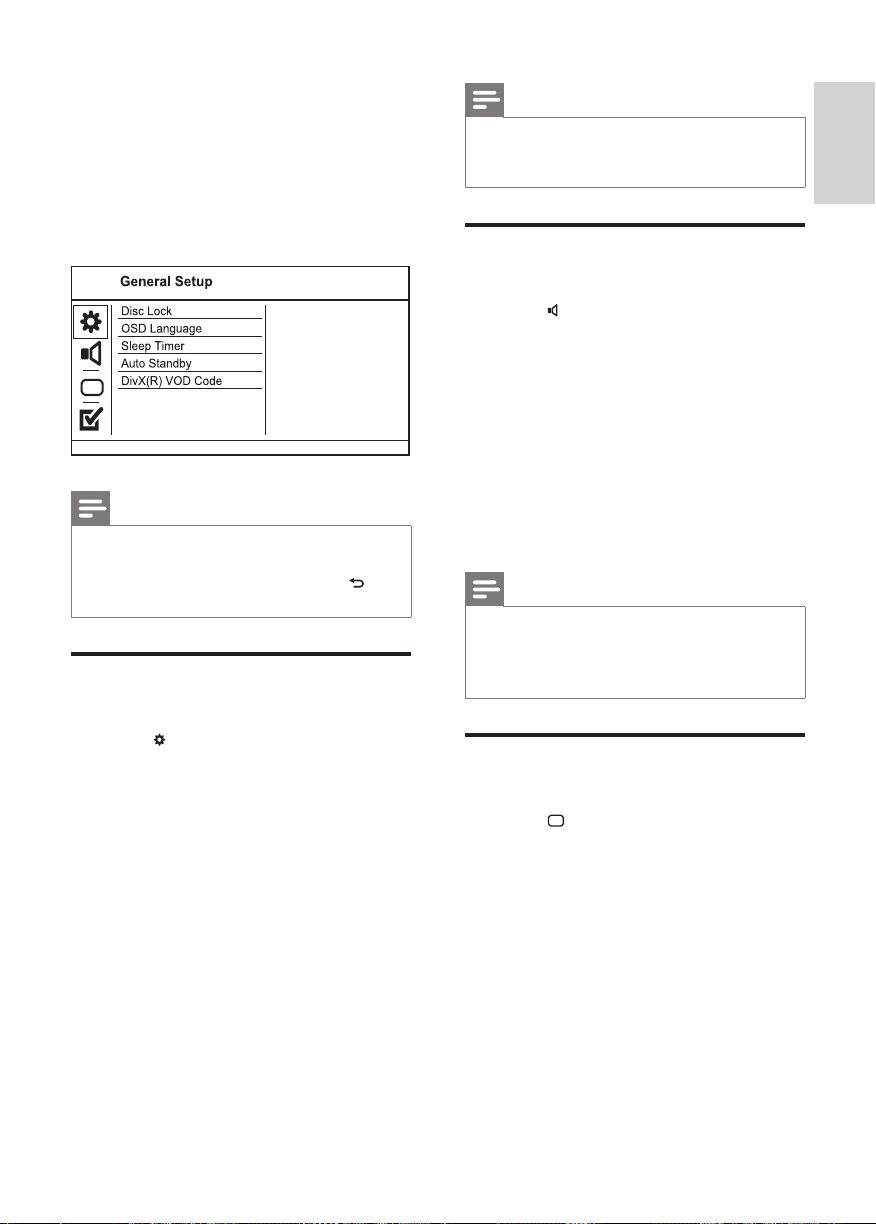

General setup

1 Press SYSTEM MENU button. 2 Select to access the [General Setup]

options.

• [Disc Lock]: Turn Disc lock.

• [Display Dim]: Change the brightness of

the display panel of the unit.

• [OSD Language]: Select an on-screen display menu language.

• [Screen Saver]: Enable or disable screen saver mode. If enabled, the screen enters idle mode after 5 minutes of inactivity (for example, in pause or stop mode).

• [Sleep Timer]: Enable a countdown timer to switch this unit to standby mode after

a specic period of time.

• [DivX(R) VOD Code]: Get registration

code of DivX Video On Demand Registration.

Note

If you select a language which is not available

•

on a disc, this unit uses the default language of the disc.

Audio Setup

1 Press SYSTEM MENU button. 2 Select to access the [Audio Setup]

options.

• [HDMI Audio]: Selects HDMI audio format when this unit is connected through HDMI or disables HDMI audio output for the TV.

• [Audio Sync]: Set the delay time for audio output when you play a video disc.

• [Night Mode]: Select quiet or full dynamic sound. Night mode decreases the volume of loud sound and increases the volume of soft sound (such as speech).

Note

For set tings related to HDMI, the T V mus t be

•

connected through HDMI.

• Night mode is only available for Dolby

encoded DVD.

Video Setup

1 Press SYSTEM MENU button. 2 Select to access the [Video Setup]

options.

• [T V Ty p e]: Select video output format(PAL, Multi or NTSC).

• [TV Display]: Set screen display format(Pan Scan, Letter Box or Wide Scree n).

• [Picture Settings]: Select a predened

color setting or set the color manually.

• [HDMI Setup]: When you connect this unit and TV with HDMI cable, select the best HDMI setup that your TV can support.

English

Page 20

Note

For set tings related to HDMI, the T V mus t be

•

connected through HDMI.

• Night mode is only available for Dolby

encoded DVD.

Preference setup

1 Press SYSTEM MENU button . 2 Select to access the [Preference Setup]

options.

• [Audio]: Select an audio language for video.

• [Subtitle]: Select a subtitle language for video.

• [Disc Menu]: Select a menu language for a video disc.

• [Parental]: Set the rating level to a disc. Restrict access to discs that are encoded with ratings These discs must be recorded with rating levels.

• [PBC]:Display or skip the content menu for VCD and SVCD.

• [MP3/JPEG Display]: Set Mp3 or jpeg view mode.

• [Password]: Set or change a password to play a restricted disc.

• [DivX Subtitle]:Select the language of the DivX.

• [Version Info.]:Display the software version for the .

• [Default]:Reset the home theater to the default settings programmed at the factory.

Update software

Before you update the software of this unit, check the current software version:

• Press SYSTEM MENU , and then select ([Preference Setup]).

• Use navigation button to nd [ Ver sion Info.], and nd out current version.

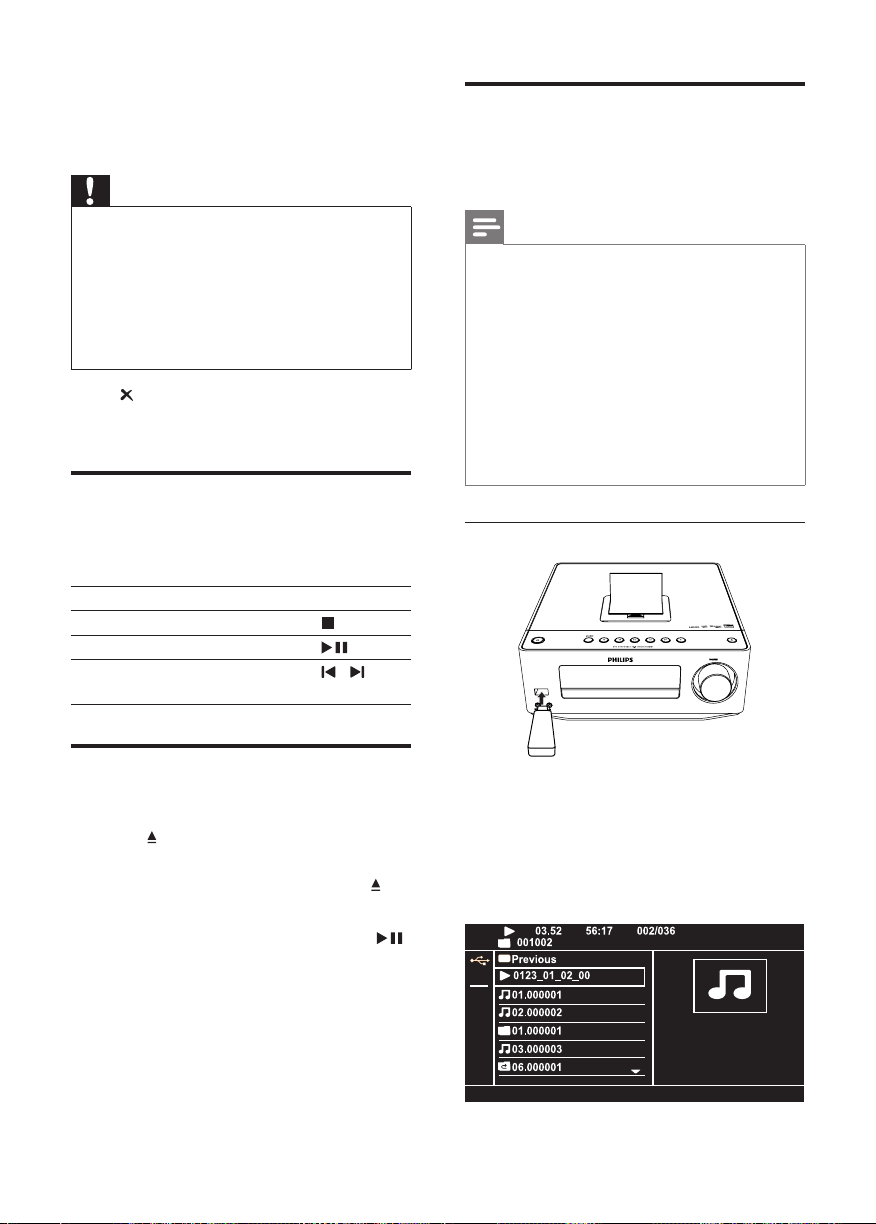

Update software via USB

1 Check the latest sof tware version on

www.philips.com/support.

• Search for your model and click on

“Software and drivers”.

2 Download the software into a USB

storage device.

3 Unzip the download in the root director y. 4 Connect the USB storage device to the

(USB) connector on this unit.

» The unit will read the le automatically.

A box comes out on the TV screen.

5 Follow the instructions on the TV screen

to update the software.

» When the update is complete, this unit

automatically turns off and on again.

Caution

Do not turn off the power or remove the USB

•

stor age device when the soft ware update is in progress because you might damage this unit.

• You may also burn a disc to update your

software.

Note

Ensure that the subtitle le has the exact same

•

le name as the movie le. If for example the le name of the movie is ‘Movie.avi’, then you need to name the tex t le ‘Movie.sub’ or

‘Movie.srt’.

Page 21

9 Other features

Play audio from an external device

You can use this unit to play audio from an external device.

1 Connect the MP3 link cable to

• the MP3 LINK jack of this unit

• the audio output jack (usually

headphone jack) of the external device.

2 Press MP3-LINK. 3 Play the external device (see the user

manual of this device for details).

Listen through headphone

Plug a headphone into the socket.

7 Press VOL +/- to select a volume for

the timer, and press SLEEP/TIMER to

conrm.

8 Press SLEEP/TIMER to activate the timer.

is displayed.

» The system turns on to the set source

at the set time.

• To deactivate the timer, press SLEEP/

TIMER again.

Note

Alarm timer is not available in MP3 LINK mode.

•

• If DISC/USB source is selected and the tr ack

cannot be played, tuner is activated automatically.

• If iPod/iPhone/iPad playlist is selected as

alarm source, you need create a playlist called “PHILIPS” in your iPod/iPhone/iPad.

• If no playlist called “PHILIPS” created in the

iPod/iPhone/iPad or no track is stored in the playlist, the unit switches to iPod/iPhone/iPad alarm source.

English

Timer and sleep

You can set a time for automatic back to one source.

Note

Make sure that you have set the clock before

•

this setup.

1 In standby mode, press and hold SLEEP/

TIMER.

2 Press VOL +/- to select

USB , DOCK, TUNER and PLAY LIST). Then press SLEEP/TIMER to conrm.

» The hour digits blink.

3 Press VOL +/- to set the hour. 4 Press SLEEP/TIMER again.

» The minute digits blink.

5 Press VOL +/- to set the minute. 6 Press SLEEP/TIMER to conrm the time

for auto power on.

SOURCE

(DISC

Add your le to play list

1 Select one le（ M P 3 、W M A ） . 2 Press PROGRAM to add this le into

playlist.

3 Repeat step 1 and 2 to add other les. 4 Press DISC MENU to view the detailed

information about playlist.

Use the sleep timer

The system can also turn off automatically after a preset period (120, 90, 60, 45, 30, 15 minutes).

1 During play, press SLEEP/TIMER

repeatedly to select a period.

SLEEP

is displayed.

2 To deactivate the sleep timer, press

SLEEP/TIMER repeatedly until

is displayed.

SLEEP OFF

Page 22

10 Product

information

Note

Product information is subject to change

•

without prior notice.

Region Code

You can play DVD discs with the following region codes:

DVD region code Country

China

Specications

Amplier

Rated Output Power

Frequency Response

Signal to Noise Ratio

Aux Input 1000 mV RMS 22kohm

2 X 50 W RMS

20-20000 Hz, ±3 dB

> 82 dB

Disc

La s e r Ty p e Semiconductor Disc Diameter 12 cm/8 cm Video Decoding MPEG-1 / MPEG-2 / DivX Video DAC 12 B i t s Signal System PAL / NTSC Video Format 4:3 / 16:9 Video S/N > 57 dB Audio DAC 24 Bits / 96 kHz Total Harmonic

Distortion Frequency

Response

S/N Ratio > 82 dBA

< 0.1% (1 kHz)

4 Hz - 20 kHz (44.1 kHz) 4 Hz - 22 kHz (48 kHz) 4 Hz - 24 kHz (96 kHz)

Tuner (FM)

Tuning Range 87.5 - 108MHz Tuning grid 50KHz Sensitivity - Mono, 26dB

S/N Ratio Sensitivity - Stereo, 46dB

S/N Ratio Search Selectivity <28dBf Total Harmonic

Distortion Signal to Noise Ratio >55dB

<22 dBf

<43 dBf

<2%

Speakers

Speaker Impedance

Speaker Driver

Sensitivity > 86 dB/m/W±4dB/m/W

6 ohm

13cm woofer+2.5cm”Dome tweeter

Page 23

General information

AC power 220 V, 50 Hz Operation Power

Consumption Eco Standby Power

Consumption Headphone output 2 X 15 mW, 32

USB Direct Version 2.0 Composite Video Output 1.0 Vp-p, 75 ohm Coaxial Output 0.5 Vpp±0.1Vpp,

Dimensions

- Main Unit (W x H x D)

- Speaker Box (W x H x D)

Weight

- With Packaging

- Main Unit

- Speaker Box

38 W

<1 W

ohm

75 ohm

250 X 92 X 285 mm

174 X 260 X 240 mm

10 kg

2.5 kg

6.1 kg

Supported disc formats

• Supported video media:

• DivX Ultra

• Digital Video Discs (DVDs)

• Picture CD

• Video CDs (VCDs)

• Super Video CDs (SVCDs)

• DVD-R/-RW

• MP3-CD

• CD-R/CD-RW

• DVD+R/+RW

• Compact Discs (CDs)

Supported compression formats:

• MPEG1, MPEG2, DivX(DivX Ultra+addendum 1.0), XivD, AVI(MPG), MPEG4, ASF

• JPEG le

Supported audio

• Supported audio media

• CD

• CD-R/RW

• MP3-CD

• WMA-CD

Supported following audio formats:

• Dolby Digital Plus/5.1

• PCM Audio

• MP3, MP3 ID3 Tag

• WMA, WMA Tags

• The following formats are not suppor ted:

• Files like *.VMA,, *.DLF, *.M3U

• *.PLS, *.WAV

• Discs recorded in Joliet format

• MP3 Pro

USB playability information

Compatible USB devices:

• USB ash memory (USB 2.0 or USB1.1)

• USB ash players (USB 2.0 or USB1.1)

• memor y cards is not compatible with this set.

Supported formats:

• USB host shall support FAT16 and FAT 32 File System

• Audio playback: MP3, WMA

• Video playback: MPEG4, AVI, DivX 5.0,

DivX Ultra+addendium 1.0

• Photo playback: JPEG

Unsupported formats:

• Empty albums: An empty album is an album that does not contain MP3/WMA les.

• Unsupported le formats are skipped. For

example, Word documents (.doc) or MP3

les with extension .dlf are ignored and

not played.

• AAC, WAV, DTS, PCM audio les

• Dolby True HD les

• DRM protected WMA les (.wav, .m4a,

.m4p, .aac)

• WMA les in Lossless format

English

Page 24

11 Troubleshooting

Caution

Never remove the casing of this apparatus.

•

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the philips web site (www. philips.com/support). When you contact philips, ensure that your apparatus is nearby and the model number and serial number are available.

No power

• Ensure that the AC cord of the apparatus is connected properly.

• Ensure that there is power at the AC outlet.

• As a power-saving feature, the system switches off automatically 15 minutes after track play reaches the end and no control is operated.


No picture

• Check the video connection.

• Turn on the TV to the correct Video-In channel.

• Progressive scan is activated but the TV does not suppor t progressive scan.

Black and white or distorted picture

• The disc does not match the TV color system standard (PAL/NTSC).

• Sometimes a slight picture distortion may appear. This is not a malfunction.

• Clean the disc.

• A distor ted picture may appear during progressive scan setup.

The aspect ratio of the TV screen cannot be changed even though you have set the TV display format.

• The aspect ratio is xed on the loaded DVD disc.

• The aspect ratio may not be changed for some TV systems.

The disc does not play high-denition video.

• Make sure that the disc contains high- denition video.

• Make sure that the TV supports high- denition video.

Sound

No audio output from the TV.

• Ensure that the audio cables are connected to the audio input of the TV.

• Assign the audio input of the TV to the corresponding video input. See the TV user manual for details.

No sound or poor sound

• Adjust the volume.

• Disconnect the headphones.

• Check that the speakers are connected correctly.

No audio output from the loudspeakers of the

audio device (stereo system/amplier/receiver).

• Ensure that the audio cables are connected to the audio input of the audio device.

• Turn on the audio device to its correct audio input source.

Play

No disc detected

• Insert a disc.

• Check if the disc is inserted upside down.

• Wait until the moisture condensation at the lens has cleared.

• Replace or clean the disc.

• Use a nalized CD or correct format disc.

Disc does not play

• Insert a readable disc with the label side facing you.

Page 25

• Check the disc type, color system and regional code. Check for any scratches or smudges on the disc.

• Press SYSTEM MENU to exit the system setup menu.

• Disable the password for parental control or change the rating level.

• Moisture has condensed inside the system. Remove the disc and leave the system turned on for about an hour. Disconnect and reconnect the AC power plug, and then turn on the system again.

• As a power-saving feature, the system turns off automatically 15 minutes after disc play reaches the end and no control is operated.

Remote control does not work

• Before you press any function button,

rst select the correct source with the

remote control instead of the main unit.

• Reduce the distance between the remote control and the unit.

• Insert the battery with its polarities (+/– signs) aligned as indicated.

• Replace the battery.

• Aim the remote control directly at the sensor on the front of the unit.

Audio or subtitle languages cannot be set

• The disc is not recorded with sound or subtitles in multiple languages.

• The audio or subtitle language setting is prohibited on the disc.

DivX video les cannot be played.

• Make sure that the DivX video le is complete.

• Make sure that the le extension is correct.

• Due to Digital Rights issue, the DRM-

protected video les stored on a

USB storage device cannot be played through an analog video connection (e.g. composite, component, and scar t). Transfer the video content onto a

supported disc to play these les.

Others

Poor radio reception

• Increase the distance between the apparatus and your TV or VCR .

• Fully extend the FM antenna.

• Connect an outdoor FM antenna instead.

Cannot display some les in USB device

• The number of folders or les in the USB device has exceeded a cer tain limit. This phenomenon is not a malfunction.

• The formats of these les are not supported.

USB device not supported

• The USB storage device is incompatible with the unitr. Try another one.

Timer does not work

• Set the clock correctly.

• Switch on the timer.

Clock/timer setting erased

• Power has been interrupted or the power cord has been disconnected.

• Reset the clock/timer.

English

Page 26

12 Notice

Compliance and Environment

Any changes or modications made to this

device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

This product complies with the radio inter ference requirements of the European Community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

waste.Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

This apparatus includes this label:

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC , which cannot be disposed with normal household

Page 27

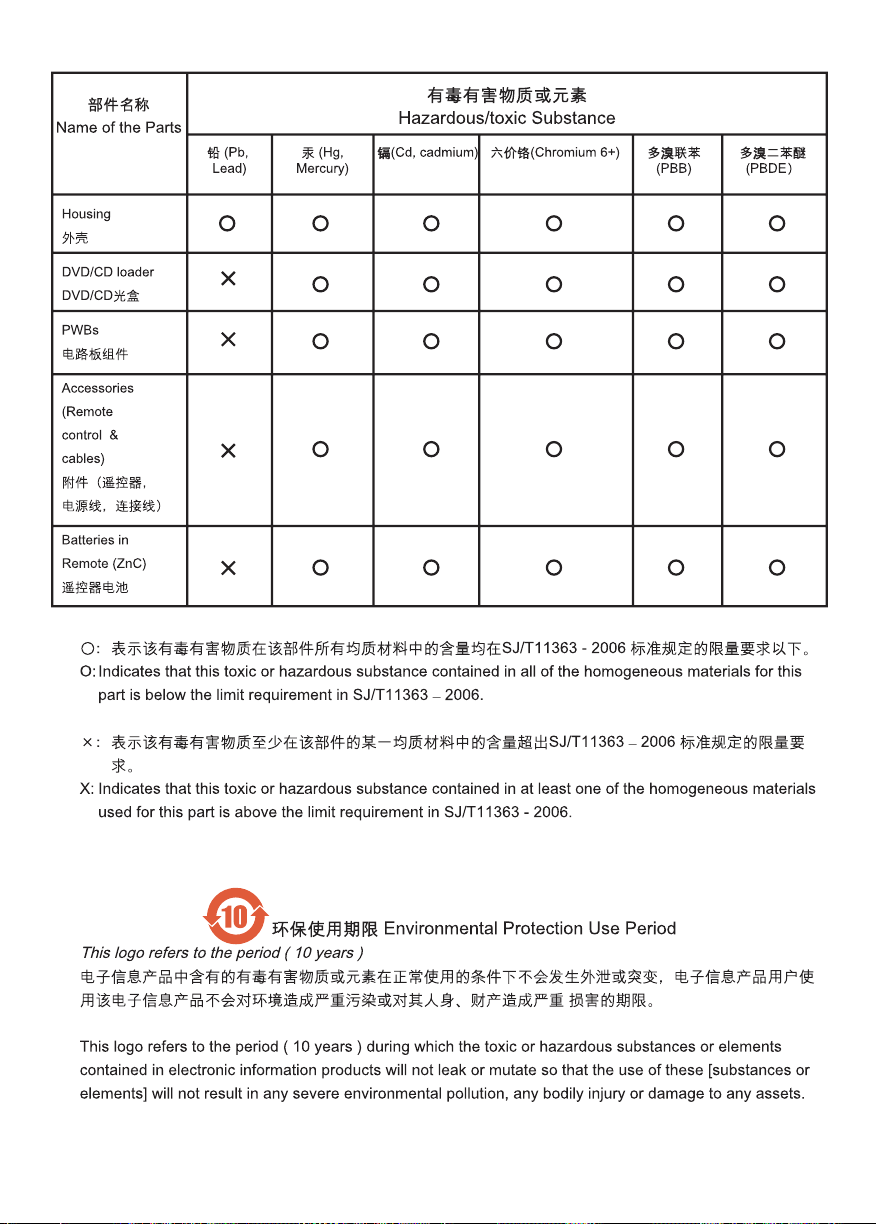

Page 28

DCD7010_UM_93_V4.0
