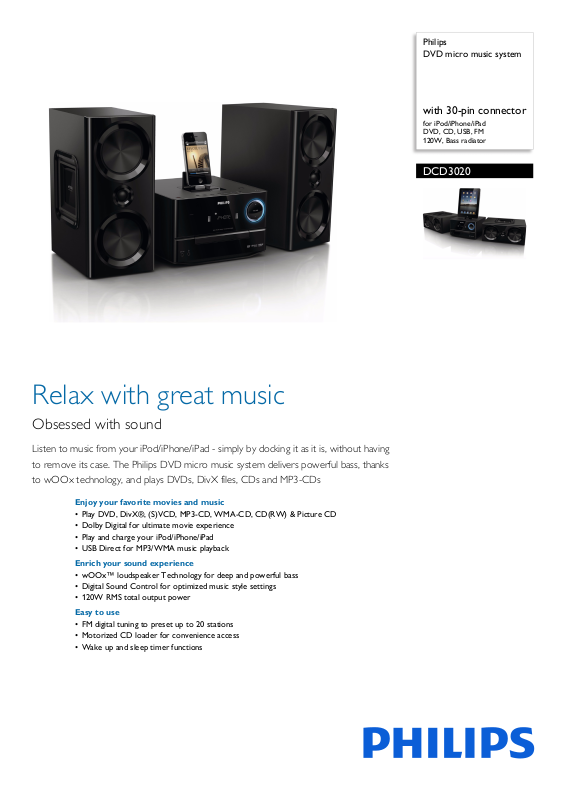

Philips
DVD micro music system
with 30-pin connector
for iPod/iPhone/iPad
DVD, CD, USB, FM
120W, Bass radiator
DCD3020
Relax with great music
Obsessed with sound
Listen to music from your iPod/iPhone/iPad - simply by docking it as it is, without having
to remove its case. The Philips DVD micro music system delivers powerful bass, thanks
to wOOx technology, and plays DVDs, DivX files, CDs and MP3-CDs
Enjoy your favorite movies and music
• Play DVD, DivX®, (S)VCD, MP3-CD, WMA-CD, CD(RW) & Picture CD
• Dolby Digital for ultimate movie experience
• Play and charge your iPod/iPhone/iPad
• USB Direct for MP3/WMA music playback
Enrich your sound experience
• wOOx™ loudspeaker Technology for deep and powerful bass
• Digital Sound Control for optimized music style settings
• 120W RMS total output power
Easy to use
• FM digital tuning to preset up to 20 stations
• Motorized CD loader for convenience access
• Wake up and sleep timer functions
DVD micro music system
with 30-pin connector for iPod/iPhone/iPad, DVD, CD, USB, FM, 120W, Bass radiator
Highlights
DCD3020/79
Play & charge iPod/iPhone/iPad
Enjoy your favorite MP3 music while charging
your iPod/iPhone/iPad! The dock lets you
connect your portable device directly to the
Philips system so you can listen to your
favorite music in superb sound. It also charges
your iPod/iPhone/iPad while it plays so you can
enjoy your music and not have to worry about
your portable player battery running out. The
system automatically charges your portable
device while it is docked.
Play DVD, DivX & MP
The Philips player is compatible with most
DVD and CD discs available in the market.
3/WMA-CD
DVD, DivX®, (S)VCD, MP3/WMA-CD,
CD(RW) and Picture CD - all of them can play
on the player. SVCD stands for "Super
VideoCD". The quality of a SVCD is much
better than a VCD, especially much more
sharpen picture than a VCD because of the
higher resolution. With DivX® support, you
are able to enjoy DivX® encoded videos. The
DivX media format is an MPEG4-based video
compression technology that enables you to
save large files like movies, trailers and music
videos on media like CD-R/RW, and DVD
recordable discs.
USB Direct
With the USB Direct mode, simply plug in your
USB device to the USB port on your Philips
device and your digital music will be played
directly from the Philips device.
wOOx™ Technology
wOOx technology is a revolutionary
l
oudspeaker concept that allows you to hear
and feel profoundly deep bass that is richer
than any other audio system. Special speaker
drivers work in harmony with the wOOx bass
radiator, and precise tuning between the main
driver and the tweeter ensures smooth
transitions from low-mid to high frequencies.
Dual suspension and a totally symmetrical
sandwich construction deliver low and precise
base without noticeable distortion. wOOx
produces exceptionally deep and dynamic bass
by using the speaker box full volume to truly
magnify the impact of the music.
Digital Sound Control
Digital Sound Control offers you a choice of
pre-set Jazz, Rock, Pop and Classic controls
you can use to optimise the frequency ranges
for different musical styles. Each mode uses
graphic equalizing technology to automatically
adjust the sound balance and enhance the most
important sound frequencies in your chosen
music style. Ultimately, Digital Sound Control
makes it easy for you get the most out of your
music by precisely adjusting the sound balance
to match the type of music you are playing.
DVD micro music system
with 30-pin connector for iPod/iPhone/iPad, DVD, CD, USB, FM, 120W, Bass radiator
Specifications
DCD3020/79
Sound
• Output Power: 2 x 60W
• Sound Enhancement: Digital Sound Control,
Dynamic Bas
• Sound System: Dolby Digital
s Boost
Loudspeakers
• Main Speaker: Dome tweeter, Dual woofer,
wOOx Bass Radiator
Video Playback
• Playback Media: DivX, DivX Ultra, DVD-Video,
Picture CD, Video CD/SVCD, DVD+R/+RW,
DVD-R/-RW
• Disc Playback Modes: A-B Repeat, Angle, PBC,
w Motion, Zoom, Parental control, Disc Menu,
Slo
Fast Backward, Fast Forward, OSD, Resume
Playback from Stop
• Video Enhancement: Progressive Scan
Audio Playback
• Playback Media: WMA-CD, MP3-CD, CD, CD-R,
CD-RW
• Disc Playback Modes: 20-Track Programmable,
eat/one/all/program, Shuffle Play, Fast Forward/
Rep
Backward, Next/Previous Track Search
• Loader Type: Motorised, Tray
• USB Direct Modes: Fast Backward/Fast Forward,
Play/Pause, Previou
Shuffle, Stop
• ID3-tag support
s/Next, Program Play, Repeat,
Still Picture Playback
• Picture Compression Format: JPEG
• Picture Enhancement: Slideshow with MP3
back
play
• Playback Media: Picture CD, CD-R/RW, DVD+R/
+RW
Tuner/Reception/Transmission
• Tuner Bands: FM Stereo
• Auto digital tuning
• Tuner Enhancements: Auto Store
• Station presets: 20
Connectivity
• Video Output - Analog: Composite CVBS (yellow
cinch), Component Y Pb Pr (cinch)
• Audio Connections: Analogue Audio In (L/R),
gue Audio Out (L/R)
Analo
• USB: USB host
• MP3 Link: 3.5mm stereo line in
• Headphone: 3.5 mm
• Other connections: FM Antenna
Convenience
• Alarms: CD Alarm, Sleep timer, Radio Alarm, USB
alarm
• Clock: On main display
• OSD Languages: English
• Display Type: VFD display
• Indications: DIM mode
Accessories
• Included accessories: Composite video cable (Y),
AC Power Cord, FM antenna, MP3 Link Cable
• Remote control: 41 key
•Quick start guide: .
• User Manual: English
• Warranty: World Wide Guarantee booklet
Dimensions
• Set dimensions (W x H x D): 230 x 141 x 230 mm
• Main speaker dimensions (W x H x D):
9 x 304 x 230 mm
13
• Packaging dimensions (W x H x D):
2 x 346 x 276 mm
51
• Weight incl. Packaging: 8.6 kg
Power
• Power supply: 220-240V, 50Hz
•
Issue date 2014-06-23
Version: 1.0.2
12 NC: 8670 000 96054
EAN: 87 12581 66215 8
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
