Contents
1 Important 4
Safety 4
Notice 6
2 Your Clock Radio for iPhone/iPod 8
Introduction 8
What’s in the box
Overview of the main unit
3 Get started 12
Connect power 12
Set time and date
Turn on
13
14
4 Play 15
Play from iPod/iPhone 15
Play from an external device
16
5 Listen to radio 17
8
9
Tune to a radio station 17
Program radio stations automatically
Program radio stations manually
Select a preset radio station
18
18
19
6 Other features 20
Set the alarm timer 20
Backup Battery Mode
2
EN
22
Page 3
Set the sleep timer 23
Adjust display brightness
24
7 Adjust sound 25
Adjust volume level 25
Enhance bass
25
8 Product information 26
Specifications 26
9 Troubleshooting 28
English
EN
3
Page 4
1 Important
Safety
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specified by the
manufacturer.
k Unplug this apparatus during lightning storms or when
unused for long periods of time.
l Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
4
EN
Page 5
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
m Battery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
•
Install all batteries correctly, + and - as marked on the
unit.
•
Do not mix batteries (old and new or carbon and
alkaline, etc.).
•
Remove batteries when the unit is not used for a long
time.
n Apparatus shall not be exposed to dripping or splashing.
o Do not place any sources of danger on the apparatus (e.g.
liquid filled objects, lighted candles).
p Where the MAINS plug or an appliance coupler is used as
English
the disconnect device, the disconnect device shall remain
readily operable.
Warning
Never remove the casing of this apparatus.
•
Never lubricate any part of this apparatus.
•
Never place this apparatus on other electrical equipment.
•
Keep this apparatus away from direct sunlight, naked flames or heat.
•
Ensure that you always have easy access to the power cord, plug or
•
adaptor to disconnect the apparatus from the power.
EN
5
Page 6
Notice
Any changes or modifications made to this device that are not
expressly approved by Philips Consumer Lifestyle may void the
user’s authority to operate the equipment.
This product complies with the radio interference requirements of
the European Community.
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means that the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste. Correct
disposal of your old product helps to prevent potential negative
consequences for the environment and human health.
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed with normal
household waste.Please inform yourself about the local rules on
separate collection of batteries because correct disposal helps to
6
EN
Page 7
prevent negative consequences for the environmental and human
health.
Environmental information
All unnecessary packaging has been omitted. We have tried
to make the packaging easy to separate into three materials:
cardboard (box), polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can be recycled and
reused if disassembled by a specialized company. Please observe
the local regulations regarding the disposal of packaging materials,
exhausted batteries and old equipment.
Note
The type plate is located on the bottom of the apparatus.•
English
EN
7
Page 8
2 Your Clock Radio for
iPhone/iPod
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With this unit, you can enjoy audio from the iPod, iPhone, other
audio devices, or the radio.
The radio, iPod, or iPhone can be set as the alarm timer. You can set
two alarm timers to go off at different time.
What’s in the box
Check and identify the contents of your package:
•
•
•
•
•
•
Main unit
AC power cord
AC power adaptor
MP3 LINK cable
User manual
Quick start guide
8
EN
Page 9
Overview of the main unit
Top View
a b c d e
a b c d e
AL
AL
2
SOURCE
SOURCE
AL1
AL1
SLEEP
SLEEP
2
BBD
BBD
DOCK for
DOCK for
TUNING
TUNING
TUNING
TUNING
English
MULOV
MULOV
E
E
REPEAT ALARM
REPEAT ALARM
BRIGHTNESS CONTROL
BRIGHTNESS CONTROL
l jk i gh f
a POWER
b DATE • AUTO TUNE/TIME SET
c AL 1/AL 2
l jk i gh f
•
•
•
•
•
•
Turn on the unit or switch to standby mode.
Deactivate the sleep timer.
Stop alarm.
Set the date and clock.
Search and program radio stations automatically.
Set the alarm timer.
•
•
Turn off the alarm tone.
View alarm settings.
EN
9
Page 10
d /
•
•
•
•
Skip to the previous/next audio file.
Search within an audio file.
Select a preset radio station.
Adjust time.
e TUNING +/-
•
•
Tune to a radio station.
Adjust time.
f VOL +/-
•
Adjust volume.
g
•
Start or pause iPod/iPhone play.
h REPEAT ALARM/BRIGHTNESS CONTROL
•
•
Repeat the alarm.
Adjust the display brightness.
i iPod/iPhone dock
•
Load an iPod/iPhone.
j DBB
•
Turn on or off dynamic bass enhancement.
k SLEEP
•
Set the sleep timer.
l SOURCE
•
Select a source: iPod/iPhone, FM tuner or AUX.
10
Back View
EN
Page 11
OPEN
OPEN
m
m
English
p
p
9V DC IN
9V DC IN
MP3 LINK
MP3 LINK
FM AERIAL
FM AERIAL

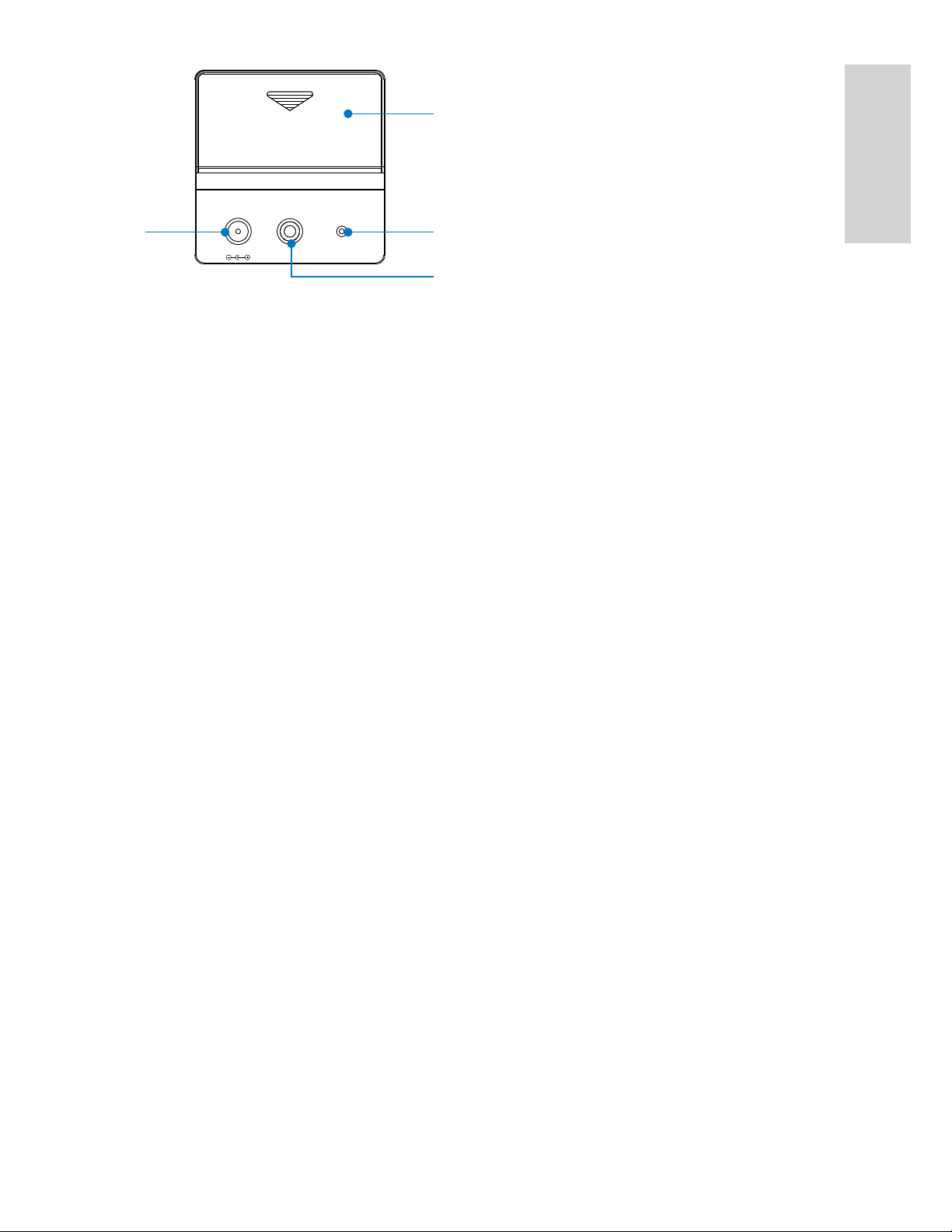

m Backup battery compartment
•
n FM AERIAL
•
o MP3-LINK
•
p DC IN
•
Insert 2 pieces of AAA/R03/UM4, 1.5V batteries.
Improve FM reception.
Jack for an external audio device.
Power supply socket.
n
n
o
o
EN
11
Page 12
3 Get started
Caution
Use of controls or adjustments or performance of procedures other
•
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial
number of this apparatus. The model number and serial number are
on the bottom of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Connect power
Caution
Risk of product damage! Ensure that the power voltage corresponds
•
to the voltage printed on the back or underside of the apparatus.
Risk of electric shock! When you unplug the AC adaptor, always pull
•
the plug from the socket. Never pull the cord.
Before connecting the power plug, ensure you have completed all
•
other connections.

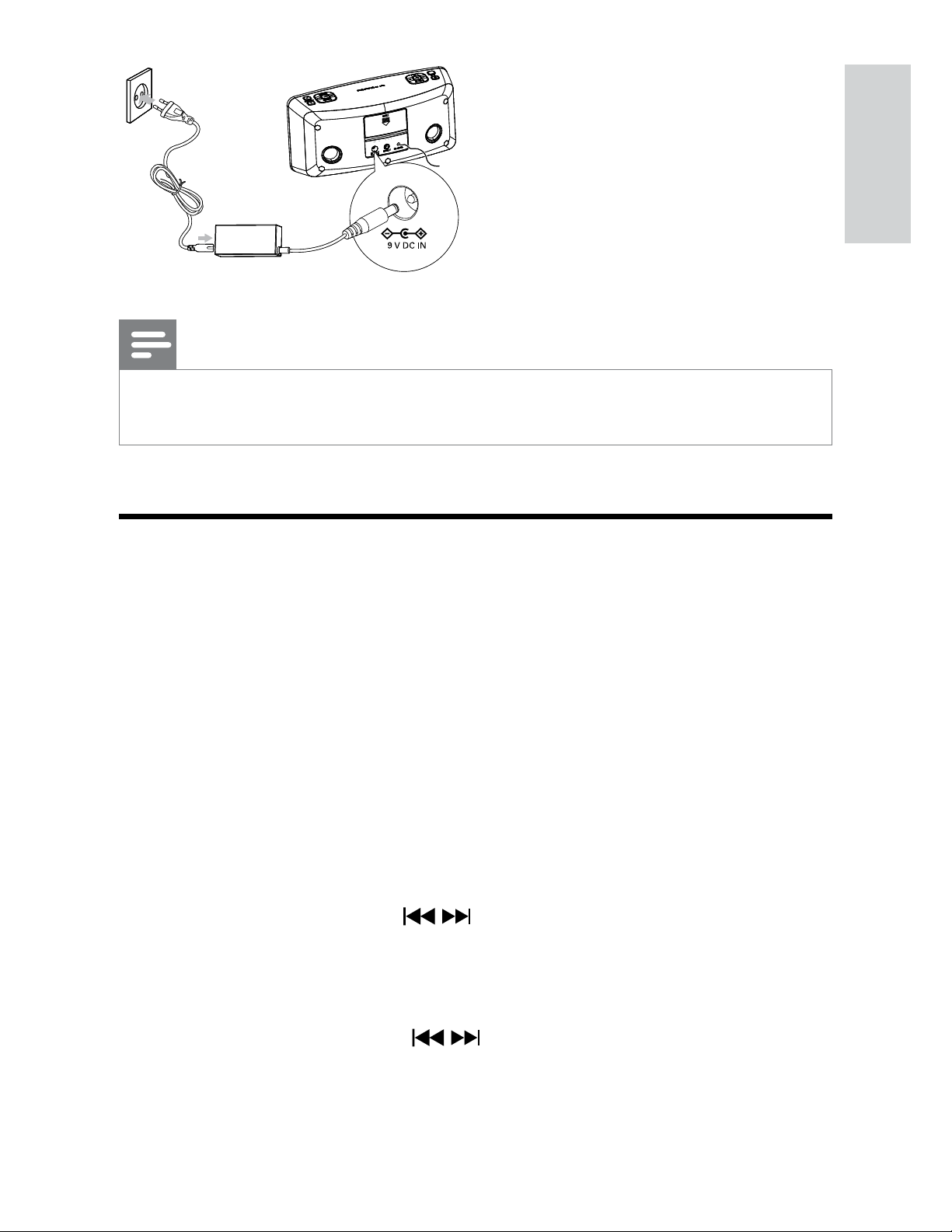

1 Connect the AC power cord and the AC adaptor.
2 Connect the AC adaptor to the DC IN socket on the main
unit.
3 Connect the power plug of the AC power cord to the wall
12
outlet.
EN
Page 13
c
c
b
a
a
b
Note
The voltage and power rating information is located on the bottom
•
of the unit.
Set time and date
English
1 Dock the iPod/iPhone on the unit.
2 Open the iPod/iPhone.
Time and date information on the iPod/iPhone transfers to
»
the unit automatically.
•
To set time and date manually:
1 In standby mode, press and hold DATE • AUTO TUNE/TIME
SET for 2 seconds.
[24HR] begins to blink.
»
2 PressTUNING +/- or / to select 12/24 hour format.
3 Press DATE • AUTO TUNE/TIME SET to confirm.
The hour digits begin to blink.
»
4 Press TUNING +/- or / to set the hour.
5 Press DATE • AUTO TUNE/TIME SETto confirm.
The minute digits begin to blink.
»
EN
13
Page 14
6 Repeat steps 4-5 to set the minute, year, month, and day.
Turn on
1 Press POWER.
The unit switches to the last selected source.
»
Switch to standby
1 Press POWER again to switch the unit to standby mode.
The time and date (if set) appear on the display panel.
»
14
EN
Page 15
4 Play
Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through this unit.
Compatible iPod/iPhone
Apple iPod and iPhone models with a 30-pin dock connector:
English
•
•
iPod classic, iPod touch, iPod nano, iPod 5th generation
(video), iPod with color display, iPod mini.
iPhone, iPhone 3G, iPhone 3GS.
Listen to the iPod/iPhone
1 Place the iPod/iPhone into the dock.
2 Press SOURCE repeatedly to select iPod/iPhone source.
The connected iPod/iPhone plays automatically.
»
•
•
•
To pause/resume play, press
To skip to a track, press
To search during play, press and hold
to resume normal play.
/ .
.
/ , then release
Charge the iPod/iPhone
When the unit is connected to power, the docked iPod/iPhone
begins to charge.
EN
15
Page 16
Tip
For certain iPod models, it may take up to a minute before the
•
charging indication appears.
Play from an external device
You can also listen to an external audio device through this unit.
1 Press SOURCE repeatedly to select AUX source.
2 Connect the supplied MP3 link cable to:
the
•
MP3 LINK jack (3.5mm) on the back of the unit.
•
the headphone jack on an external device.
3 Start to play the device (see the device user manual).
16
EN
Page 17
5 Listen to radio
Note
Only FM radio reception is available on this unit.•
Tune to a radio station
Tip
Position the antenna as far as possible from TV, VCR or other
•
radiation source.
English
Note
For optimal reception, fully extend and adjust the position of the
•
antenna.
1 Press SOURCE to select FM.
2 Press and hold TUNING +/- for more than 2 seconds.
»
[SRCH] (search) displays.
The radio tunes to a station with strong reception
»
automatically.
3 Repeat step 2 to tune to more stations.
•
To tune to a weak station, press
until you find optimal reception.
TUNING +/- repeatedly
EN
17
Page 18
Program radio stations automatically
You can program a maximum of 20 preset radio stations.
1 In the tuner mode, press and hold DATE • AUTO TUNE/
TIME SET for more than 2 seconds to activate automatic
program mode.
[AUTO] (auto) is displayed.
»
All available stations are programmed in the order of
»
waveband reception strength.
The first programmed radio station is broadcast
»
automatically.
Program radio stations manually
You can program a maximum of 20 preset radio stations.
1 Tune to a radio station.
2 Press DATE • AUTO TUNE/TIME SET to activate the
program mode.
PR01 begins to blink.
»
3 Press DATE • AUTO TUNE/TIME SET to confirm.
4 Repeat the above steps to program other stations.
Tip
To overwrite a programmed station, store another station in its
•
place.
18
EN
Page 19
Select a preset radio station
1 Press / to select a preset program number.
English
EN
19
Page 20
6 Other features
Set the alarm timer
You can set two alarms which go off at different time.
1 Ensure that you have set the clock correctly.
2 Press and hold AL 1 or AL 2 for 2 seconds.
[AL1] or [AL2] begin to blink.
»
3 Press SOURCE repeatedly to select an alarm sound source:
iPod/iPhone, iPod/iPhone playlist, FM tuner, or buzzer.
4 Press AL 1 or AL 2.
Hour digits begin to blink.
»
5 Press TUNING +/- or / repeatedly to set the hour.
6 Press AL 1 or AL 2 to confirm.
Minute digits begin to blink.
»
7 Repeat steps 5-6 to set the minute.
8 Repeat steps 5-6 to select whether to ring alarm the whole
week, on weekdays, or at weekend.
9 Repeat steps 5-6 to set the alarm volume.
Tip
If you want to wake up to specific music track(s) on iPhone/iPod, after
•
set iPhone/iPod playlist as the wake up source on the unit, you need
to create a playlist called ‘PHILIPS’ via iTunes and copy the track(s) to
this new ‘PHILIPS’ playlist.
If no playlist is created or there is no song in the playlist, the unit will
•
play the music track according to the last music playback preference
on iPhone/iPod.
20
EN
Page 21
Activate and deactivate the alarm timer
1 Press AL 1 or AL 2 repeatedly.
If the timer is activated,
»
If the timer is deactivated,
»
disappears.
Gentle wake
Gentle wake function peacefully wakes you with gently ascending
alarm volume.
[
AL1] or [ AL2] is displayed.
before [AL1] or [AL2]
English
•
•
If selected the alarm source iPhone/iPod, iPhone/iPod playlist
or FM, alarm volume will gentle increase.
If selected the alarm source Buzzer, the alarm will increases
beep tone frequency within seconds.
Repeat alarm
1 When the alarm rings, press BRIGHTNESS/REP ALM.
The alarm repeats ringing minutes later.
»
Tip
You can press / to adjust the interval to repeat alarm.•
Stop alarm ring
1 When the alarm rings, press the corresponding AL 1 or AL 2.
The alarm stops but the alarm settings remain.
»
EN
21
Page 22
View the alarm settings
1 Press AL 1 or AL 2.
Backup Battery Mode
Under normal use, the unit should be powered through the AC
adapter. If the AC adapter is disconnected, the unit will automatically
switch to Backup Battery mode.
Under Backup Battery mode:
•
•
When AC Power is plugged back, the unit will exit Backup Battery
mode and go to Standby mode.
The unit displays the same as under the Standby mode, with
backlight off.
Only the functions below are available:
•
•
Alarm source is defaulted to ‘Buzzer’ under Backup Battery mode.•
Clock
Alarm
Note
Note
Under Backup Battery mode, the unit can work over 3 months.
•
When the battery power is low, the display panel will indicate
•
“bAtt Lo” until the batteries are empty and the unit will switch off
automatically. In this case, please replace the batteries in the backup
battery compartment with 2 pieces of new 1.5V, AAA/R03/UM4
batteries.
22
EN
Page 23
Install backup batteries
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire.
•
Never discard batteries in fire.
Risk of product damage! When the apparatus is not used for long
•
periods, remove the battery.
1 Open the battery compartment on the back of the unit.
2 Insert 2 x 1.5V R03/UM-4/AAA batteries with correct
polarity.
3 Close the battery compartment.
Note
English
Batteries contain chemical substances, so they should be disposed of
•
properly.
Set the sleep timer
This unit can switch to standby automatically after a set period of
time.
1 Press SLEEP repeatedly to select a set period of time (in
minutes).
The sleep timer is activated
»
The display shows
»
The volume starts to decrease gradually from the last 5
»
minutes of sleep timer
The unit switches to standby when reaches the set time.
»
To deactivate sleep timer
EN
23
Page 24
1 Press SLEEP repeatedly until [OFF] displays.
»
disappears on the display.
Adjust display brightness
1 Press BRIGHTNESS/REP ALM repeatedly to select different
levels of display brightness.
24
EN
Page 25
7 Adjust sound
Adjust volume level
1 During play, press VOL +/- to increase/decrease the volume
level.
Enhance bass
1 During play, press DBB to turn on or off dynamic bass
enhancement.
English
If DBB is activated,
»
If DBB is deactivated,
»
[DBB 1] is displayed.
[DBB 0] is displayed.
EN
25
Page 26
8 Product information
Note
Product information is subject to change without prior notice.•
Specifications
Amplifier
Rated Output Power 2 x 2.5 W RMS
Frequency Response 125 Hz - 16 kHz, ±3 dB
Signal to Noise Ratio >55 dB
MP3 link 500 mV RMS 10 kohm
Tuner
FM
Tuning Range 87.5 - 108 MHz
Tuning grid 50 KHz
Sensitivity
- Mono, 26dB S/N Ratio
- Stereo, 46dB S/N Ratio
Search Selectivity <36 dBu
<22 dBu
<45 dBu
Total Harmonic Distortion
Signal to Noise Ratio >45 dB
26
EN
<3%
Page 27
General information
AC power (power adaptor) AS190-090-AQ180;
Input: 220 V, 50 Hz, 0.7 A;
Class II;
English
Output: 9.0 V
Operation Power
10 W
Consumption
Standby Power Consumption < 1 W
Dimensions
216.9 x105 x139.4 (mm)
- Main Unit (W x H x D)
Weight
0.75 kg
- Main Unit
1.8 A
EN
27
Page 28
9 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome).
When you contact Philips, ensure that the apparatus is nearby and
the model number and serial number are available.
No power
•
•
No sound
•
No response from the unit
•
Poor radio reception
•
•
Timer does not work
•
•
Clock/timer setting erased
Ensure that the AC power plug of the unit is connected
properly.
Ensure that there is power at the AC outlet.
Adjust the volume.
Disconnect and reconnect the AC power plug, then turn on
the unit again.
Increase the distance between the unit and your TV or VCR.
Fully extend the FM antenna.
Set the clock correctly.
Switch on the timer.
•
•
28
Power has been interrupted or the power plug has been
disconnected.
Reset the clock/timer.
EN
Loading...
