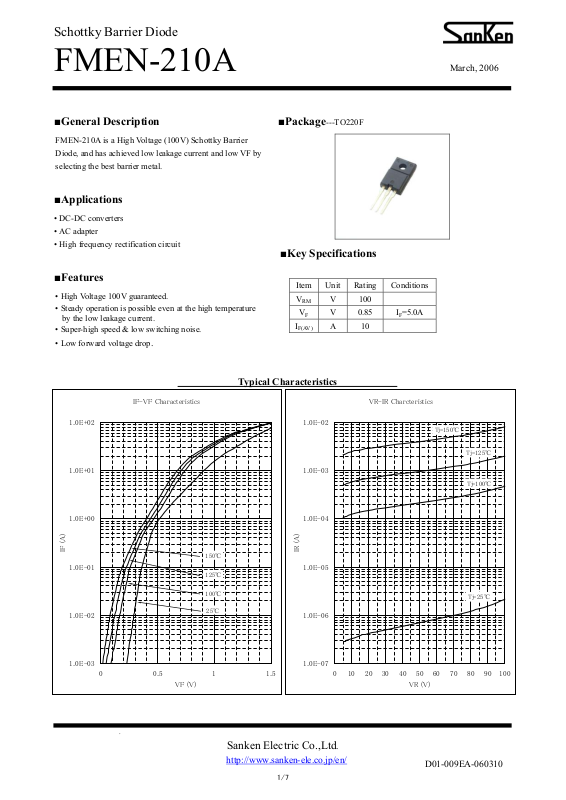

Schottky Barrier Diode
1/7
FMEN-210A March, 2006
■General Description
FMEN-210A is a High Voltage (100V) Schottky Barrier
Diode, and has achieved low leakage current and low VF by
selecting the best barrier metal.
■Package---TO220F
■Applications
• DC-DC converters
• AC adapter
• High frequency rectification circuit
■Features
• High Voltage 100V guaranteed.
• Steady operation is possible even at the high temperature
by the low leakage current.
• Super-high speed & low switching noise.
• Low forward voltage drop

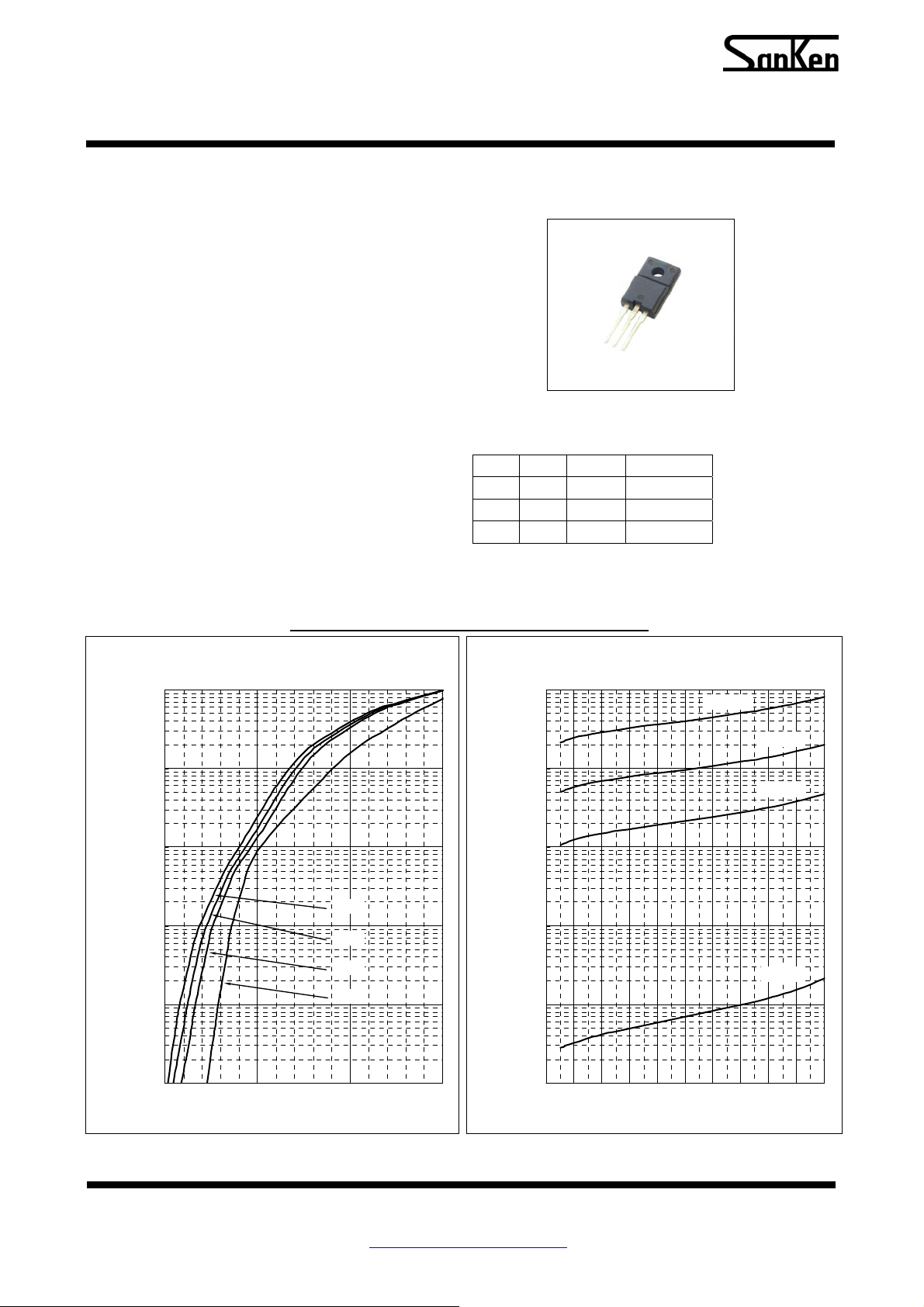

Typical Characteristics
1.0E+02
1.0E+01
1.0E+00
IF ( A)
1.0E-01
1.0E-02
1.0E-03
00.511.5
.
IF-VF Characteristics
150℃
125℃
100℃
25℃
VF (V)
■Key Specifications
Item Unit Rating Conditions
V
VF V 0.85 IF=5.0A
I
F(AV)
IR (A)
V 100
RM
A 10
VR-IR Charcteristics
1.0E-02
1.0E-03
1.0E-04
1.0E-05
1.0E-06
1.0E-07
0 102030405060708090100
Tj=150℃
Tj=125℃
Tj=100℃
Tj=25℃
VR (V)
.
Sanken Electric Co.,Ltd.
http://www.sanken-ele.co.jp/en/
D01-009EA-060310
Page 2
Schottky Barrier Diode
2/7
FMEN-210A March, 2006
Absolute maximum ratings
No.
Transient Peak Reverse Voltage
1
Peak Reverse Voltage
2
Average Forward Current
3
Peak Surge Forward Current
4
I2t Limiting Value
5
Junction Temperature
6
Storage Temperature
7
Parameter Symbol Unit Rating Conditions
No.1,2,4&5 show ratings per one chip.
V
V 100
RSM
VRM V 100
I
A 10
F(AV)
I
A 100
FSM
Half sinewave, one shot
I2t A2s 50 1msec ≤ t ≤ 10msec
Tj °C -40 to +150
T
°C -40 to +150
stg
Electrical characteristics(Ta=25°C，unless otherwise specified)
No. Parameter Symbol Unit Value Conditions
1 Forward Voltage Drop VF V 0.85 max. IF=5.0A
Reverse Leakage Current
2
Reverse Leakage Current Under
3
High Temperature
Thermal Resistance
4
No.1,2,&3 show characteristics per one chip.
IR uA 100 max. VR=VRM
H•IR mA 50 max. VR=VRM, Tj=150°C
R
°C/W 4.0 max.
th(j-c)
Between Junction and case
Sanken Electric Co.,Ltd.
D01-090EA-060310
Page 3
Schottky Barrier Diode
3/7
FMEN-210A March, 2006

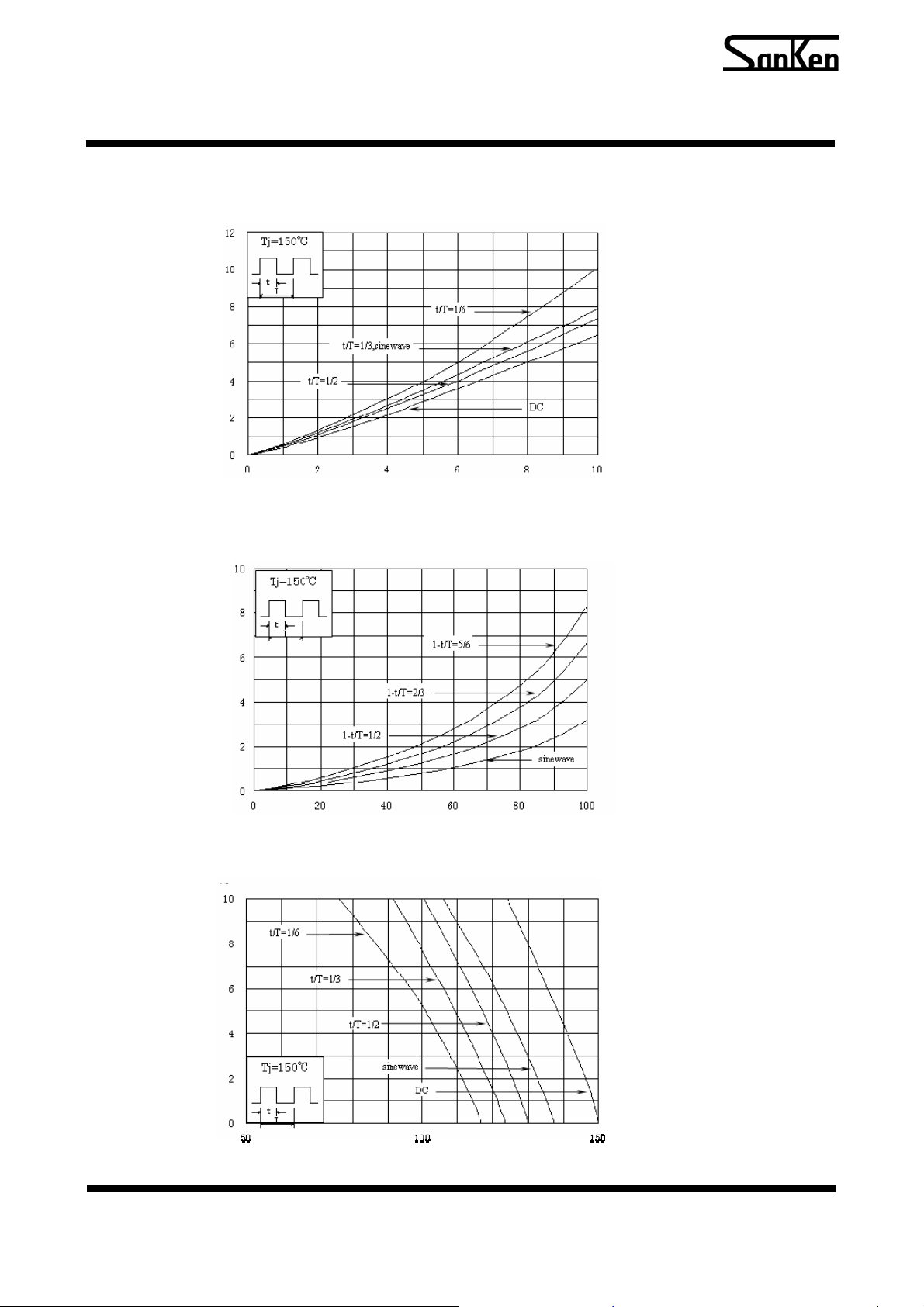

Characteristics
Forward Power Dissipation PF (W)
Forward Power Dissipation
Average Forward Current I
Reverse Power Dissipation
Reverse Power Dissipation PR (W)
Reverse Voltage VR (V)
Current Derating
(A)
F(AV)
F(AV)
(A)
Average Forward Current I
Case temperature Tc (°C)
Sanken Electric Co.,Ltd.
D01-090EA-060310
Page 4
Schottky Barrier Diode
4/7
FMEN-210A March, 2006

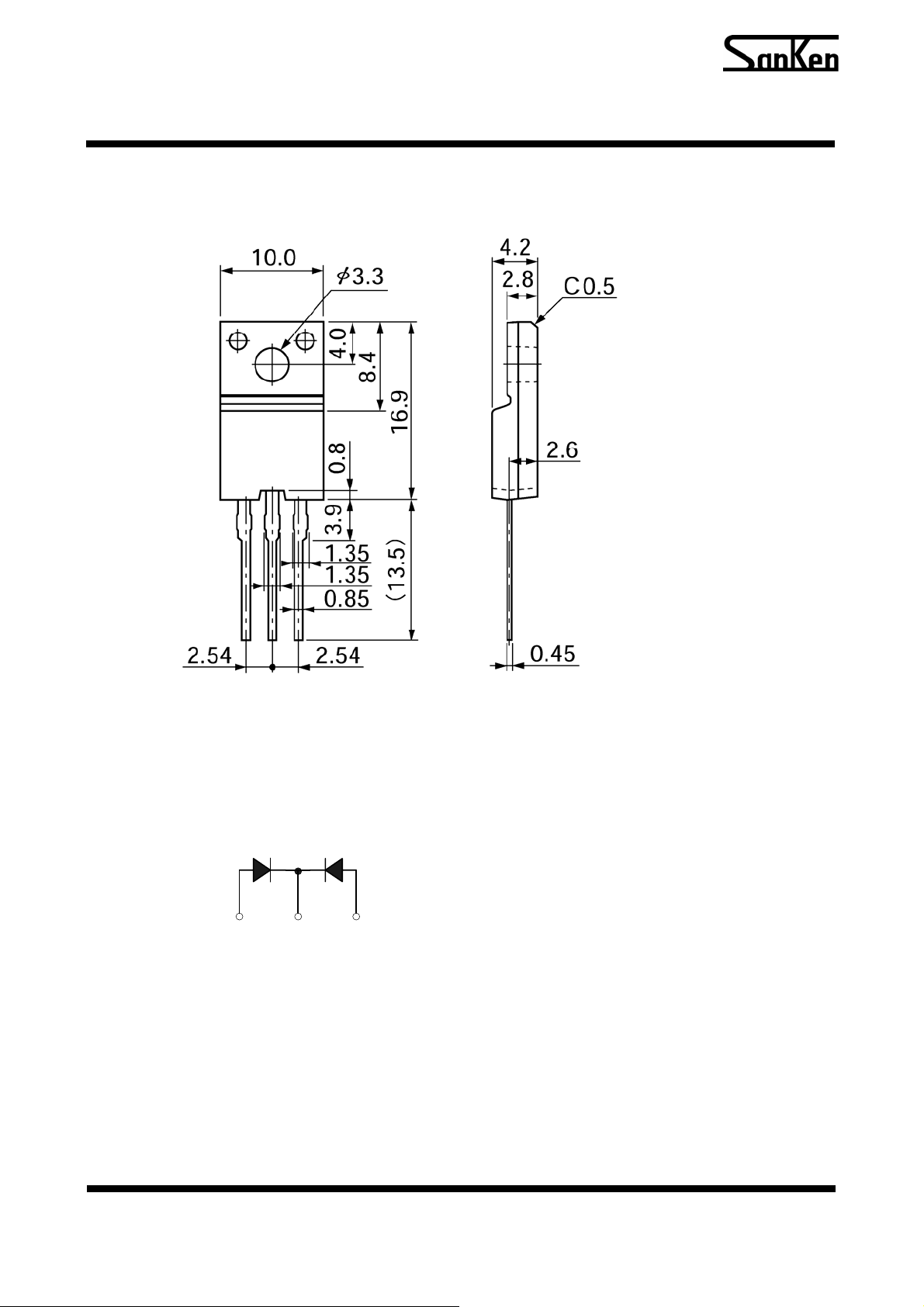

External Dimensions (Unit: mm)
(1) (2) (3)
Connection Diagram
1 2 3
(1)
(2)
Tolerance: ±0.2
(3)
Sanken Electric Co.,Ltd.
D01-090EA-060310
