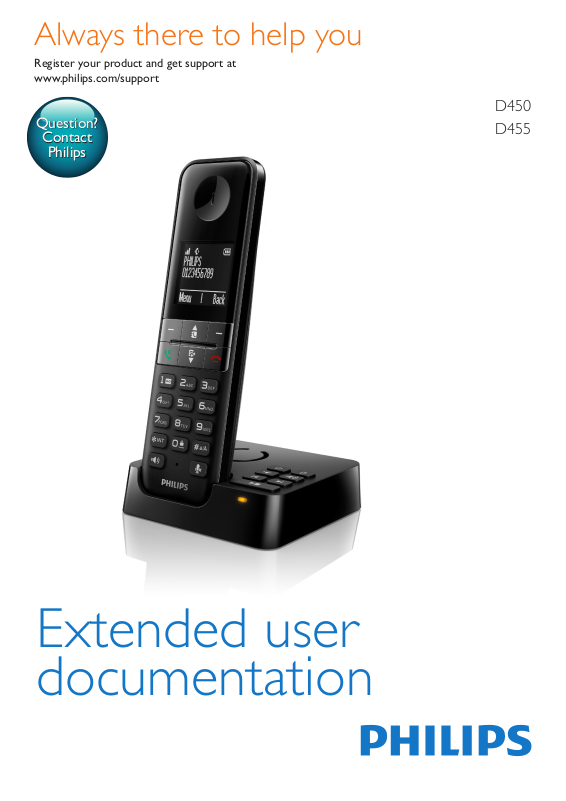

Always there to help you
Question?
Contact
Philips
Register your product and get support at
www.philips.com/support
D450
D455
Extended user
documentation
Contents
Switch between uppercase and
lowercase 17
1 Important safety instructions 3
2 Your phone 4
What is in the box 4
Overview of the phone 5
Overview of the base station 6
3 Get started 7
Connect the base station 7
Install the supplied batteries 8
Congure your phone (country
dependent) 8
Change the remote access PIN code
(for D455) 9
Charge the handset 9
Check the battery level 9
What is standby mode? 9
Display icons 10
Check the signal strength 10
Switch the handset on or off 11
4 Calls 12
Make a call 12
Answer a call 12
End a call 12
Adjust the earpiece/speaker volume 13
Mute the microphone 13
Turn the speaker on or off 13
Make a second call 13
Answer a second call 13
Switch between two calls 13
Make a conference call with the
external callers 13
5 Intercom and conference calls 15
Make a call to another handset 15
Make a conference call 15
6 Text and numbers 17
Enter text and numbers 17
7 Phonebook 18
View the phonebook 18
Search a record 18
Call from the phonebook 18
Access the phonebook during a call 18
Add a record 19
Edit a record 19
Delete a record 19
Delete all records 19
8 Call log 20
Call list type 20
View the call records 20
Save a call record to the phonebook 20
Return a call 20
Delete a call record 21
Delete all call records 21
9 Redial list 22
View the redial records 22
Save a redial record to the phonebook 22
Access the redial list during a call 22
Delete a redial record 22
Delete all redial records 22
10 Phone settings 23
Sound settings 23
ECO mode 24
ECO+ mode 24
Name the handset 24
Set the date and time 25
Set the display language 25
Auto answer 25
Activate/Deactivate auto hang up 25
11 Alarm clock 26
Set the alarm 26
Turn off the alarm 26
12 Telephone answering machine 27
1EN
Turn the answering machine on or off 27
Family notes 27
Set the answering machine language 27
Set the answer mode 28
Announcements 28
Incoming messages 28
Remote access 30
13 Services 32
Call list type 32
Auto conference 32
Call barring 32
Blacklist 33
Network type 33
Auto prex 33
Select the recall duration 34
Dial mode 34
Auto clock 34
Register additional handsets 35
Unregister the handsets 35
Restore default settings 35
14 Technical data 36
15 Notice 37
Declaration of conformity 37
Use GAP standard compliance 37
Compliance with EMF 37
Disposal of your old product and battery 37
16 Frequently asked questions 39
17 Appendix 41
Text and number input tables 41
18 Index 43
2 EN
1 Important safety
instructions
Power requirements
• This product requires an electrical supply
of 100-240 volts AC. In case of power
failure, the communication can be lost.
• The voltage on the network is classied
as TNV-3 (Telecommunication Network
Voltages), as dened in the standard EN
60950.
• Handsfree activation could suddenly increase the
volume in the earpiece to a very high level: make sure
the handset is not too close to your ear.
• This equipment is not designed to make emergency
calls when the power fails. An alternative has to be
made available to allow emergency calls.
• Do not allow the product to come into contact with
liquids.
• Do not use any cleaning agents containing alcohol,
ammonia, benzene, or abrasives as these may harm
the set.
• Do not expose the phone to excessive heat caused by
heating equipment or direct sunlight.
• Do not drop your phone or allow objects to fall on
your phone.
• Active mobile phones in the vicinity may cause
interference.
Warning
• The Electrical network is classied as hazardous. The
only way to power down the charger is to unplug the
power supply from the electrical outlet. Ensure that the
electrical outlet is always easily accessible.
To avoid damage or malfunction
Caution
• Use only the power supply listed in the user
instructions.
• Use only the batteries listed in the user instructions.
• Risk of explosion if battery is replaced by an incorrect
type.
• Dispose of used batteries according to the instructions.
• Do not dispose of batteries in re.
• Always use the cables provided with the product.
• Do not allow the charging contacts or the battery to
come into contact with metal objects.
• Do not let small metal objects come into contact with
the product. This can deteriorate audio quality and
damage the product.
• Metallic objects may be retained if placed near or on
the handset receiver.
• Do not use the product in places where there are
explosive hazards.
• Do not open the handset, base station or charger as
you could be exposed to high voltages.
• For pluggable equipment, the socket-outlet shall
be installed near the equipment and shall be easily
accessible.
About operating and storage temperatures
• Operate in a place where temperature is
always between 0°C to +40°C (up to 90%
relative humidity).
• Store in a place where temperature is
always between -20°C and +45°C (up to
95% relative humidity).
• Battery life may be shorter in low
temperature conditions.
3EN
2 Your phone
Congratulations on your purchase and welcome
to Philips!
To fully benet from the support that Philips
offers, register your product at www.philips.
com/welcome.
What is in the box
Handset**
Base station (D450)
Base station (D455)
Power adapter**
Line cord*
2 x AAA batteries
Guarantee
4XLFNVWDUWJXLGH
Short user manual
Note
• * In some countries, you have to connect the line
adapter to the line cord, then plug the line cord to the
telephone socket.
Charger (without telephone socket)**
4 EN
Tip
• ** In multi-handset packs, there are additional handsets
and chargers and power adapters.
Overview of the phone
m
l
k
j
i
h
a Earpiece
b
• Scroll up on the menu.
• Increase the earpiece/speaker volume.
• Access the phonebook in standby
mode.
c
• Delete text or digits.
• Cancel operation.
• Access the redial list in standby mode.
• Change the sound prole during a call.
d
• End the call.
• Exit the menu/operation.
• Press and hold to switch the handset
on or off.
e
a
b
c
d
e
f
g
n
o
• Press to enter a space during text
editing.
• Press and hold to lock/unlock the
keypad in standby mode.
f
• Press and hold to enter a pause when
making a call.
• Switch to upper/lower case during
editing.
g
• Mute or unmute the microphone.
• Access to the answer machine menu in
standby mode (for D455 only).
• Listen to new messages from the
answering machine (for D455 only).
h Microphone
i
• Turn the speaker phone on/off.
• Make and receive calls through the
speaker.
j
• Press and hold to make an intercom
call (for multi-handset version only).
• Set the dial mode (pulse mode or
temporary tone mode).
k
• Scroll down on the menu.
• Decrease the earpiece/speaker volume.
• Access the call log in standby mode.
l
• Make and receive calls.
• Recall key (This function is network
dependent.)
m
• Access the main menu in standby
mode.
• Conrm selection.
• Enter the options menu.
5EN
• Select the function displayed on the
handset screen directly above the key.
n Loudspeaker
o Battery door
Overview of the base station
D450
a
a
• Press to nd handsets.
• Press and hold to enter the registration
mode.
D455
b
Turn the answering machine on or off.
c
• Delete the current playback message.
• Press and hold to delete all old
messages.
d /
Decrease/increase the speaker volume.
e /
Skip backward/forward during playback.
f
• Play messages.
• Stop messages playback.
g LED indicator
h
• Press to nd handsets.
• Press and hold to enter the registration
mode.
a Speaker
6 EN
a
b
c
d
e
f
g
h
3 Get started
Caution
• Make sure that you have read the safety instructions in
the 'Important safety instructions' section before you
connect and install your handset.
Connect the base station
Warning
• Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back
or the underside of the phone.
• Use only the supplied power adapter to charge the
batteries.
Note
• If you subscribe to the digital subscriber line (DSL) high
speed internet service through your telephone line,
ensure you install a DSL lter between the telephone
line cord and the power socket. The lter prevents
noise and caller ID problems caused by the DSL
interference. For more information on the DSL lters,
contact your DSL service provider.
• The type plate is located on the bottom of the base
station.
1 Connect each end of the power adapter
to:
• the DC input jack at the back of the
base station;
• the power socket on the wall.
2 Connect each end of the line cord to:
• the telephone socket at the back of
the base station;
• the telephone socket on the wall.
3 Connect each end of the power adapter
to (for multi handset version only):
• the DC input jack at the bottom of the
extra handset charger.
• the power socket on the wall.
7EN
Install the supplied batteries
1
Congure your phone
(country dependent)
1 When using your phone for the rst time,
you see a welcome message.
2 Press [OK].
2
3
Caution
• Risk of explosion! Keep batteries away from heat,
sunshine or re. Never discard batteries in re.
• Use only the supplied batteries.
• Risk of decreased battery life! Never mix different
brands or types of batteries.
Note
• Charge the batteries for 8 hours before rst use.
• If the handset becomes warm when the batteries are
charging, it is normal.
Warning
• Check the battery polarity when inser ting in the
battery compar tment. Incorrect polarity may damage
the product.
Set the country/language
Select your country/language, then press [OK]
to conrm.
» The country/language setting is saved.
Note
• The country/language setting option is country
dependent. If no welcome message is displayed, it
means the country/language setting is preset for your
country. Then you can set the date and time.
To reset the language, see the following steps.
1 Select [Phone setup] > [Language], then
press [OK] to conrm.
2 Select a language, then press [OK] to
conrm.
» The setting is saved.
Set the date and time
1 Select [Menu] > [Phone setup] > [Date &
time], then press [OK] to conrm.
2 Press the numeric buttons to enter the
date, then press [OK] to conrm.
» The time setting menu is displayed on
the handset.
3 Press the numeric buttons to enter the
time.
• If the time is in 12-hour format, press
/ to select [am] or [pm] (Country
dependent).
4 Press [OK] to conrm.
8 EN
Change the remote access PIN code (for D455)
Note
• This feature is available only for models with answering
machine.
• The default answering machine remote access PIN
code is 0000 and it is important to change it to ensure
the security.
1 Select [Menu] > [Answ. Machine] >
[Remote access] > [Change PIN], then
press [OK] to conrm.
2 Enter the old PIN, then press [OK] to
conrm.
3 Enter the new PIN code, then press [OK]
to conrm.
4 Enter the new PIN code again, then press
[Save] to conrm.
» The setting is saved.
Charge the handset
Place the handset on the base station to
charge the handset. When the handset is
placed correctly on the base station, you hear a
docking sound.
» The handset starts charging.
Note
• Charge the batteries for 8 hours before rst use.
• If the handset becomes warm when the batteries are
being charged, it is normal.
You can activate or deactivate the docking tone
(see 'Set the docking tone' on page 23).
Your phone is now ready to use.
Check the battery level
The battery icon displays the current battery
level.
When the handset is off the
base station, the bars indicate the
battery level (full, medium and
low).
When the handset is on the base
station/charger, the bars ash until
charging is complete.
The empty battery icon ashes.
The battery is low and needs
recharging.
The handset turns off if the batteries are empty.
If you are on the phone, you hear warning
tones when the batteries are almost empty. The
call gets disconnected after the warning.
What is standby mode?
Your phone is in standby mode when it is idle.
The handset name, date and time, and handset
number are displayed on the standby screen.
9EN
Display icons
In standby mode, the icons shown on the main
screen tell you what features are available on
your handset.
Icon Descriptions
When the handset is off the base
station/charger, the bars indicate the
battery level (from full to low).
When the handset is on the base
station/charger, the bars keep scrolling
until charging is complete.
The empty battery icon ashes and
you hear an alert tone.
The battery is low and needs
recharging.
It shows the connection status
between the handset and base station.
The more bars are shown, the better
the signal strength is.
It remains steadily on when browsing
incoming calls in the call log.
It remains steadily on when browsing
outgoing calls in the redial list.
It ashes when there is a new missed
call or when browsing unread missed
calls in call log.
It remains steadily on when only old
call log exists or when browsing the
read missed calls in call log.
It remains steadily on when browsing
blocked calls in call log.
It ashes when receiving incoming call.
It remains steadily on when you are
in a call.
The speaker is on.
The ringer is off.
The silent mode is set and within
active period
(the phone does not ring).
Answering machine (D455 only):
it ashes when there is a new
message or when the memory is full.
It is displayed when the telephone
answering machine is turned on.
It ashes when there is a new voice
message.
It remains steadily on when the voice
messages are already viewed in the
call log.
The icon is not shown when there is
no voice message.
The silent mode is set, but is outside
of active period.
The alarm is activated.
It is displayed when you scroll up /
/
down a list or increase / decrease the
volume.
ECO The Eco mode is activated.
ECO+ The ECO+ mode is activated.
Check the signal strength
The number of bars indicates
the connection status between
the handset and base station. The
more bars are shown, the better
the connection is.
• Make sure the handset is connected to the
base station before you make or receive
calls and carry out the phone functions
and features.
• If you hear warning tones when you are
on the phone, the handset is almost out
of battery or the handset is out of range.
Charge the battery or move the handset
nearer to the base station.
Note
• When ECO+ is on, the signal strength is not displayed.
10 EN
Switch the handset on or off
Press and hold to switch the handset on or
off.
11EN
4 Calls
Note
• When the power fails, the phone cannot access
emergency services.
Note
• The talk time of your current call is displayed on the
call timer.
• If you hear warning tones, the phone is almost out of
battery or out of range. Charge the battery or move
the phone close to the base station.
Tip
• Check the signal strength before you make a call or
when you are in a call (see 'Check the signal strength'
on page 10).
Make a call
You can make a call in these ways:
• Normal call.
• Predial call.
You can also make a call from the redial list,
phonebook list (see 'Call from the phonebook'
on page 18) and call log (see 'Return a call' on
page 20).
Normal call
1 Press or .
2 Dial the phone number.
» The number is dialed out.
» The duration of your current call is
displayed.
Answer a call
When the phone rings, you can select from the
following options:
• press or to answer the call.
• pick up the phone to answer the call when
you activate the auto answer feature (see
'Auto answer' on page 25).
• select [Silent] to turn off the ringer of the
current incoming call.
Warning
• When the handset rings or when the handsfree is
activated, keep the handset away from your ear to
avoid ear damage.
Note
• The caller ID service is available if you have registered
to the caller ID service with your service provider.
Tip
• When there is a missed call, a notication message is
displayed.
Predial call
1 Dial the phone number
• To erase a digit, press [Clear].
• To enter a pause, press and hold .
2 Press or to dial out the call.
12 EN
End a call
You can end a call in these ways:
• Press ;
• Place the handset to the base station
or charging cradle.
Note
• Placing the handset to the base station or charging
cradle does not end the call when the auto hangup
feature is turned off (see 'Activate/Deactivate auto
hang up' on page 25).
Adjust the earpiece/speaker volume
Press / to adjust the volume during a call.
» The earpiece/speaker volume is
adjusted and the phone is back to the
call screen.
Mute the microphone
» The number displayed on the screen is
dialed out.
Answer a second call
Note
• This service is network dependent.
When there is a periodical beep to notify you
of an incoming call, you can answer the call in
these ways:
1 Press and to answer the call.
» The rst call is put on hold, and you
are now connected to the second call.
2 Press and to end the current call and
answer the rst call.
1 Press during a call.
» [Mute on] is displayed on the handset.
» The caller cannot hear you, but you
can still hear his voice.
2 Press again to unmute the microphone.
» You can now communicate with the
caller.
Turn the speaker on or off
Press .
Make a second call
Note
• This service is network dependent.
1 Press during a call.
» The rst call is put on hold.
2 Dial the second number.
Switch between two calls
Note
• This service is network dependent.
You can switch your calls in these ways:
• Press and ; or
• Press [Option] and select [Switch calls],
then press [OK] again to conrm.
» The current call is put on hold, and you
are now connected to the other call.
Make a conference call with the external callers
Note
• This service is network dependent. Check with the
service provider for additional charges.
When you are connected to two calls, you can
make a conference call in these ways:
• Press , then ; o r
13EN
• Press [Option], select [Conference] and
then press [OK] again to conrm.
» The two calls are combined and a
conference call is established.
14 EN
5 Intercom and
conference calls
Note
• This feature is available for multi- handset versions only.
An intercom call is a call to another handset
that shares the same base station. A conference
call involves a conversation between you,
another handset user and the outside callers.
» For multi-handset versions, the
handsets available for intercom are
displayed, then go to step 2.
2 Select a handset, then press [OK] to
conrm.
» Wait for the other side to answer your
call.
Switch between calls
Press and hold to switch between the
outside call and the intercom call.
Make a conference call
Make a call to another handset
Note
• If the base station only has 2 registered handsets, press
and hold to make a call to another handset.
1 Press and hold .
» For multi-handset versions, the
handsets available for intercom are
displayed, then go to step 2.
» For two-handset versions, the other
handset rings, then go to step 3.
2 Select a handset, then press [OK] to
conrm.
» The selected handset rings.
3 Press on the selected handset.
» The intercom is established.
4 Press to end the intercom call.
While you are on the phone
You can go from one handset to another during
a call:
1 Press and hold .
» The current caller is put on hold.
A 3-way conference call is between you,
another handset user and the outside callers. It
requires two handsets to share the same base
station.
During an external call
1 Press and hold to initiate an internal call.
» The external caller is put on hold.
» For multi-handset versions, the
handsets available for intercom are
displayed, then go to step 2.
» For two-handset versions, the other
handset rings, then go to step 3.
2 Select a handset, then press [OK] to
conrm.
» The selected handset rings.
3 Press on the selected handset.
» The intercom is established.
4 Press [Conf].
» You are now in a 3-way conference
call with an external call and a selected
handset.
5 Press to end the conference call and
transfer the existing call to the selected
handset.
15EN
Note
• Press to join an ongoing conference with another
handset if [Services] > [Conference] is set to [Auto].
During the conference call
1 Press [Int.] to put the external call on hold
and go back to the internal call.
» The external call is put on hold.
2 Press [Conf] to establish the conference
call again.
Note
• If a handset hangs up during the conference call, the
other handset remains connected to the external call.
16 EN
6 Text and
numbers
You can enter text and numbers for handset
name, phonebook records, and other menu
items.
Enter text and numbers
1 Press once or several times on the
alphanumeric key to enter the selected
character.
2 Press [Clear] to delete a character. Press
and hold [Clear] to delete all characters.
Press and to move the cursor left and
right.
3 Press to add a space.
Note
• For information on key mapping of characters and
numbers, see the chapter 'Appendix'.
Switch between uppercase and lowercase
By default, the rst letter of each word in a
sentence is uppercase and the rest is lowercase.
Press and hold to switch between the
uppercase and lowercase letters.
17EN
7 Phonebook
This phone has a phonebook that stores up to
50 records. You can access the phonebook from
the base station. Each record can have a name
up to 16 characters long. It can store up to 2
numbers, with each number up to 24 digits long.
You have up to 2 direct access memories (Keys
1 and 2). Depending on your country, keys 1
and 2 are preset to the voice mail number and
information service number of your service
provider respectively. When you press and hold
on the key in standby mode, the saved phone
number is dialed automatically.
Note
• The availability of direct access memory is country
dependent.
View the phonebook
Note
• You can view the phonebook on one handset only
each time.
1 Press or select [Menu] > [Phonebook]
> [View] > [OK] to access the
phonebook list.
2 Select a contact and view the available
information.
Search a record
You can search the phonebook records in these
ways:
• Scroll the contacts list.
• Enter the rst character of the contact.
Scroll the contact list
1 Press or select [Menu] > [Phonebook]
> [View] > [OK] to access the
phonebook list.
2 Press and to scroll through the
phonebook list.
Enter the rst character of a contact
1 Press or select [Menu] > [Phonebook]
> [View] > [OK] to access the
phonebook list.
2 Press the alphanumerical key that matches
the character.
» The rst record that starts with this
character is displayed.
Call from the phonebook
1 Press or select [Menu] > [Phonebook]
> [View] > [OK] to access the
phonebook list.
2 Select a contact in the phonebook list.
3 Press [View].
4 Select a type of number (mobile/home/
ofce), press to make the call.
Access the phonebook during a call
1 Press [Option] and select [Phonebook].
2 Press [OK] to conrm.
3 Select a contact, then press [OK] to view
the number.
18 EN
Add a record
Delete a record
Note
• If your phonebook memory is full, a notication
message is displayed on the handset. Delete some
records to add new ones.
• When you change the number of a record, the new
number will overwrite the old number.
1 Select [Menu] > [Phonebook] > [Add
new], then press [OK] to conrm.
2 Enter the name, then press [OK] to
conrm.
3 Enter the mobile number, home number
and ofce number (choose either two of
them), then press [Save] to conrm.
» Your new record is saved.
Tip
• Press and hold to insert a pause.
• Press once or several times on the alphanumeric key to
enter the selected character.
• Press [Clear] to delete the character. Press / to
move the cursor left and right.
Note
• You can save 2 numbers at maximum per each
phonebook entry.
1 Select [Menu] > [Phonebook] > [Delete],
then press [OK] to conrm.
2 Select a contact, then press [OK] to
conrm.
» A conrmation request is displayed on
the handset.
3 Press [OK] to conrm.
» The record is deleted.
Delete all records
1 Select [Menu] > [Phonebook] > [Delete
all], press [OK] to conrm.
» A conrmation request is displayed on
the handset.
2 Press [OK] to conrm.
» All records (except the 2 direct access
memory records) are deleted.
Edit a record
1 Select [Menu] > [Phonebook] > [Edit],
then press [OK] to conrm.
2 Select a contact, then press [OK] to
conrm.
3 Edit the name, then press [OK] to conrm.
4 Select the mobile/home/ofce number,
then press [OK] to conrm.
5 Edit the number, then press [Save] to
conrm.
19EN
8 Call log
The call log stores the call history of all missed,
received or blocked calls. The incoming call
history includes the name and number of the
caller, call time and date. This feature is available
if you have registered to the caller ID service
with your service provider.
Your phone can store up to 50 call records. The
call log icon on the handset ashes to remind
you of any unanswered calls. If the caller allows
the display of his identity, you can view his
name or number. The call records are displayed
in chronological order with the most recent
received call at the top of the list.
Note
• Make sure that the number in the call list is valid before
you can call back directly from the call list.
The icons shown on the screen tell you
whether they are missed/received/blocked calls.
Icons Description
It remains steadily on when browsing
answered incoming calls in the call log.
It ashes when there is a new missed
call or when browsing unread missed
calls in call log.
It remains steadily on when only old
call log exists or when browsing the
read missed calls in call log.
It remains steadily on when browsing
blocked calls in call log.
Call list type
You can set whether you can view all incoming
calls or missed calls from this menu.
Note
• This is a country dependent feature.
Select the call list type
1 Select [Menu] > [Services] > [Call list
type], then press [OK] to conrm.
2 Select an option, then press [OK] to
conrm.
View the call records
1 Press .
» The incoming call log is displayed.
2 Select a record, then press [Option].
3 Select [View] > [OK] for more available
information.
Save a call record to the phonebook
1 Press .
» The incoming call log is displayed.
2 Select a record, then press [Option].
3 Select [Save number], then press [OK] to
conrm.
4 Enter and edit the name, then press [OK]
to conrm.
5 Select a type of number (mobile/home/
ofce), then press [OK] to conrm.
6 Edit the number, then press [Save] to
conrm.
» The record is saved.
Return a call
20 EN
1 Press .
2 Select a record on the list.
3 Press to make the call.
Delete a call record
1 Press .
» The incoming call log is displayed.
2 Select a record, then press [Option].
3 Select [Delete], then press [OK] to
conrm.
» A conrmation request is displayed on
the handset.
4 Press [OK] to conrm.
» The record is deleted.
Delete all call records
1 Press .
» The incoming call log is displayed.
2 Press [Option] to enter the options menu.
3 Select [Delete all], then press [OK] to
conrm.
» A conrmation request is displayed on
the handset.
4 Press [OK] to conrm.
» All records are deleted.
21EN
9 Redial list
Delete a redial record
The redial list stores the call history of dialed
calls. It includes the names and/or numbers you
have called. This phone can store up to 20 redial
records.
View the redial records
Select [Redial].
Save a redial record to the phonebook
1 Press [Redial] to enter the list of dialed
calls.
2 Select a record, then press [Option] to
conrm.
3 Select [Save number], then press [OK] to
conrm.
4 Enter and edit the name, then press [OK]
to conrm.
5 Select a type of number (mobile/home/
ofce), then press [OK] to conrm.
6 Edit the number, then press [Save] to
conrm.
» The record is saved.
1 Press [Redial] to enter the list of dialed
calls.
2 Select a record, then press [Option] to
conrm.
3 Select [Delete], then press [OK] to
conrm.
» A conrmation request is displayed on
the handset.
4 Press [OK] to conrm.
» The record is deleted.
Delete all redial records
1 Press [Redial] to enter the list of dialed
calls.
2 Select [Option] > [Delete all], then press
[OK] to conrm.
» A conrmation request is displayed on
the handset.
3 Press [OK] to conrm.
» All records are deleted.
Access the redial list during a call
1 Press [Option] and select [Redial].
2 Press [OK] to conrm.
22 EN
10 Phone settings
You can customize the settings to make it your
own phone.
Sound settings
Set the handset's ringtone volume
You can select among 5 ringtone volume levels
or [Off].
1 Select [Menu] > [Phone setup] >
[Sounds] > [Ring volume], then press
[OK] to conrm.
2 Select a volume level, then press [OK] to
conrm.
» The setting is saved.
Set the handset's ringtone
You can select from 10 ringtones.
1 Select [Menu] > [Phone setup] >
[Sounds] > [Ring tones], then press [OK]
to conrm.
2 Select a ringtone, then press [OK] to
conrm.
» The setting is saved.
Silent mode
You can set your phone to silent mode and
enable the silent mode for a specied duration.
When the silent mode is turned on, your phone
does not ring or send any alerts or sound.
Note
• When you press to nd your handset, or when you
activate the alarm, your phone still sends alert even
when the silent mode is activated.
1 Select [Menu] > [Phone setup] >
[Sounds] > [Silent mode], then press
[OK] to conrm.
2 Select [On/off] > [On]/[Off], then press
[OK] to conrm.
» The setting is saved.
3 Select [Start & end], then press [OK] to
conrm.
4 Set the time, then press [OK] to conrm.
» The setting is saved.
» is displayed.
Set the key tone
Key tone is the sound made when you press a
key on the handset.
1 Select [Menu] > [Phone setup] >
[Sounds] > [Key tone], then press [OK]
to conrm.
2 Select [On]/[Off], then press [OK] to
conrm.
» The setting is saved.
Set the docking tone
Docking tone is the sound made when you
place the handset on the base station or
charger.
1 Select [Menu] > [Phone setup] >
[Sounds] > [Docking tone], then press
[OK] to conrm.
2 Select [On]/[Off], then press [OK] to
conrm.
» The setting is saved.
Set the battery tone
Battery tone is the sound made when the
battery is low and needs recharging.
1 Select [Menu] > [Phone setup] >
[Sounds] > [Battery tone], then press
[OK] to conrm.
23EN
2 Select [On]/[Off], then press [OK] to
conrm.
» The setting is saved.
Set the sound prole
You can set the sound in the earpiece among 3
different proles.
1 Select [Menu] > [Phone setup] >
[Sounds] > [MySound], then press [OK]
to conrm.
2 Select a prole, then press [OK] to
conrm.
» The setting is saved.
Access the sound prole during a call
Press [Sound] for once or several times to
change the sound prole during a call.
ECO mode
1 Select [Menu] > [Phone setup] >[ECO+
mode], then press [OK] to conrm.
2 Select [On]/[Off], and press [OK] to
conrm.
» The setting is saved.
» ECO+ is displayed in standby mode
after a while.
Note
• Make sure that all the handsets registered to the base
station are D450/D455 in order to have the ECO+
feature functioning properly.
• When ECO+ is activated, the standby time is reduced.
This is because in ECO+ mode the base station is not
transmitting any signal in standby mode; therefore the
handset needs to “listen” more frequently for signals
from the base station to detect incoming calls or other
requests from the base station. The time it takes for the
handset to access features like call setup, call log, paging,
and phonebook browsing is also delayed. The handset
will not alert you to link loss in case of power loss or
moving out of range.
The ECO mode reduces the transmission
power of the handset and base station when
you are on a call or when the phone is in
standby mode.
1 Select [Menu] > [Phone setup] > [Eco
mode], then press [OK] to conrm.
2 Select [On]/[Off], and press [OK] to
conrm.
» The setting is saved.
» ECO is displayed in standby mode.
Note
• When ECO mode is set to [On], the connection
range between the handset and the base station can
be reduced.
ECO+ mode
When the ECO+ mode is activated, it
eliminates the radiation of the handset and base
station in standby mode.
24 EN
The following table shows you the current
status of the handset screen with different ECO
mode and ECO+ mode settings.
ECO
mode
[Off] [Off]
[Off] [On]
[On] [Off]
[On] [On]
ECO+
mode
Handset icon display
and are off.
is displayed only
after the ECO+ mode is
activated during standby
mode .
is displayed.
is displayed and changed
to when the ECO+
mode is activated in
standby mode.
Name the handset
The name of the handset can be up to 14
characters. It is displayed on the handset screen
in standby mode.
1 Select [Menu] > [Phone setup] > [Phone
name], then press [OK] to conrm.
2 Enter or edit the name. To erase a
character, press [Clear].
3 Press [OK] to conrm.
» The setting is saved.
Set the date and time
For information, see 'Set the date and time (see
'Set the date and time' on page 8)'.
Set the display language
Note
• This feature only applies to models with multiple-
language support.
• Languages available vary from country to country.
1 Select [Menu] > [Phone setup] >
[Language], then press [OK] to conrm.
2 Select a language, then press [OK] to
conrm.
» The setting is saved.
Activate/Deactivate auto hang up
You can activate the auto hang up function so
that you can end a call by simply placing the
handset on the base station or charge cradle.
1 Select [Menu] > [Phone setup] > [Auto
hang-up], then press [OK] to conrm.
2 Select [On]/[Off], then press [OK] to
conrm.
» The setting is saved.
Note
• When auto hang up is deactivated, you can put the
handset to the base station or charging cradle and
continue with your call through the speaker.
Auto answer
When you activate the auto answer feature, you
can connect to the incoming call automatically
once you pick up the handset. When you
deactivate this feature, you have to press or
to answer the incoming call.
1 Select [Menu] > [Phone setup] > [Auto
answer], then select [OK] to conrm.
2 Select [On]/[Off], and select [OK] to
conrm.
» The setting is saved.
25EN
11 Alarm clock
Your phone has a built-in alarm clock. Check the
information below to set your alarm clock.
Set the alarm
1 Select [Menu] > [Alarm], then press [OK]
to conrm.
2 Select [On once] or [On daily], then press
[OK] to conrm.
3 Enter an alarm time, then press [OK] to
conrm.
» The alarm is set and is displayed on
the screen.
Tip
• Press / to switch between [am]/[pm] (Country
dependent).
Turn off the alarm
When the alarm rings
Press any key to turn off the alarm.
Before the alarm rings
Select [Menu] > [Alarm] > [Off], then press
[OK] to conrm.
» The setting is saved.
26 EN
12 Telephone
answering
Through the base
Press to turn the answering machine on or
off in standby mode.
machine
Note
• Available only for D455.
Your phone includes a telephone answering
machine that records unanswered calls when
it is on. You can access the answering machine
remotely and change the settings through the
answering machine menu on the handset.
The LED indicator on the base station lights up
when the answering machine is on.
Turn the answering machine on or off
You can turn the answering machine on or off
through the base station or the handset.
Through the handset
1 Select [Menu] > [Answ. Machine] >
[Voice answer], then press [OK] to
conrm.
2 Select [Answer only]/[Record also]/[Off],
then press [OK] to conrm.
» The setting is saved.
Note
• When the answering machine is switched on, it answers
incoming calls after a certain number of rings based on
the ring delay setting.
Family notes
You can leave your family an audio note in the
answering machine.
1 Select [Menu] > [Answ. Machine] >
[Family note], then press [OK] to conrm.
2 Start recording close to the microphone
after the beep.
3 Press [OK] to stop recording.
4 Press [OK] to listen to the audio note.
5 Press [OK] to save the family note or
[Delete] to remove it.
Set the answering machine language
Note
• This feature only applies to models with multiple-
language support.
Note
• [Answer only] means the answering machine is on.
Calls are only answered, messages are not recorded.
• [Record also] means the answering machine is on. Calls
are answered and messages are recorded.
• [Off] means the answering machine is off.
The answering machine language is the language
for the announcements.
1 Select [Menu] > [Answ. Machine] >
[Voice language], then press [OK] to
conrm.
2 Select a language, then press [OK] to
conrm.
» The setting is saved.
27EN
Set the answer mode
You can set the answering machine and select if
the callers can leave messages. Select [Record
also]if you allow the callers to leave messages.
Select [Answer only] if you forbid the callers to
leave messages.
1 Select [Menu] > [Answ. Machine] >
[Voice answer], then press [OK] to
conrm.
2 Select an answer mode, then press [OK]
to conrm.
» The setting is saved.
Note
• If the memory is full, the answering machine switches to
[Answer only] mode automatically.
5 Press [OK] to stop recording or the
recording stops after 3 minutes.
» You can listen to the newly recorded
announcement on the handset.
Note
• Make sure that you speak close to the microphone
when you record an announcement.
Listen to the announcement
1 Select [Menu] > [Answ. Machine] >
[Announcement], then press [OK] to
conrm.
2 Select [Answer only] or [Record also],
then press [OK] to conrm.
3 Select [Play], then press [OK] to conrm.
» You can listen to the current
announcement.
Announcements
The announcement is the message your caller
hears when the answering machine picks up the
call. The answering machine has 2 pre-recorded
announcements: [Record also] and [Answer
only].
Record an announcement
The maximum length of the announcement you
can record is 3 minutes. The newly recorded
announcement automatically replaces the old
one.
1 Select [Menu] > [Answ. Machine] >
[Announcement], then press [OK] to
conrm.
2 Select [Answer only] or [Record also],
then press [OK] to conrm.
3 Select [Record], then press [OK] to
conrm.
4 Start recording close to the microphone
after the beep.
28 EN
Note
• You can no longer listen to the announcement when
you pick up an incoming call.
Restore the default announcement
1 Select [Menu] > [Answ. Machine] >
[Announcement], then press [OK] to
conrm.
2 Select [Record also]or [Answer only],
then press [OK] to conrm.
3 Select [Use default], then press [OK] to
conrm.
» The default announcement is restored.
Incoming messages
Each message can be up to 3 minutes long.
When you receive new messages, the new
message indicator ashes on the answering
machine and the handset.
Note
• If you pick up the phone when the caller leaves a
message, the recording stops and you can talk to the
caller directly.
• If the memory is full, the answering machine switches
to [Answer only] automatically. Delete old messages to
receive new ones.
Listen to the incoming messages
You can listen to the incoming messages in the
sequence they are recorded.
From the base
• To start/stop listening, press .
• To adjust the volume, press / .
• To play the previous message/replay the
current message, press .
• To play the next message, press .
• To delete the current message, press .
Note
• No deleted messages can be recovered.
From the handset
• You can listen to the incoming messages in
the sequence they are recorded.
• If there are new messages, press to
listen. If there is no new message, press ,
then [OK] to listen to old messages.
• Select [Menu] > [Answ. Machine] > [Play],
then press [OK] to conrm.
» New messages start playing. Old
messages start playing if there is no
new message.
• Press [Back] to stop listening.
• Press [OK] to enter the options menu.
• Press / to increase/decrease the
volume.
Delete an incoming message
From the base
Press when you listen to the message.
» The current message is deleted.
From the handset
1 When you listen to the message, press
[Option] to enter the options menu.
2 Select [Delete], then press [OK] to
conrm.
» The current message is deleted.
Delete all old incoming messages
Press and hold on the base station in standby
mode.
» All old messages are permanently
deleted.
From the handset
1 Select [Menu] > [Answ. Machine] >
[Delete all], then press [OK] to conrm.
» A conrmation request is displayed on
the handset.
2 Press [OK] to conrm.
» All old messages are permanently
deleted.
Note
• You can only delete the read messages. No deleted
messages can be recovered.
Call screening
You can hear the caller while he is leaving a
message. Press to answer the call.
From the base
Press / to adjust the speaker volume
during call screening.
Note
• If you turn the speaker to the lowest volume level, the
call screening function is off.
29EN
Set the ring delay
You can set the number of times the phone
rings before the answering machine picks up
the call.
1 Select [Menu] > [Answ. Machine] > [Ring
delay], then press [OK] to conrm.
2 Select a new setting, then press [OK] to
conrm.
» The setting is saved.
Note
• Make sure that the answering machine is switched on
before this feature can be applied.
Tip
• When you access the answering machine remotely,
you are recommended to set the ring delay to [Toll
saver] mode. This is a cost effective way to manage
your messages. When there are new messages, the
answering machine picks up the call after 3 rings; When
there is no messages, it picks up the call after 5 rings.
Remote access
You can operate your answering machine when
you are away from home. Simply make a call to
your phone with a touch tone phone and enter
your 4-digit PIN code.
Note
• The remote access PIN code is the same as your
system PIN. The preset PIN is 0000.
2 Select [Activate]/[Deactivate], then press
[OK] to conrm.
» The setting is saved.
Change the PIN code
1 Select [Menu] > [Answ. Machine] >
[Remote access] > [Change PIN], then
press [OK] to conrm.
2 Enter the old PIN, then press [OK] to
conrm.
3 Enter the new PIN code, then press [OK]
to conrm.
4 Enter the new PIN code again, then press
[Save] to conrm.
» The setting is saved.
Access the answering machine remotely
1 Make a call to your home number with a
touch tone phone.
2 Enter # when you hear the announcement.
3 Enter your PIN code.
» You now have access to your
answering machine, and you can now
listen to the new messages.
Note
• You have 2 chances to enter the correct PIN code
before your phone hangs up.
4 Press a key to carry out a function. See the
Remote access commands table below for
a list of available functions.
Activate/deactivate the remote access
You can allow or block remote access to the
answering machine.
1 Select [Menu] > [Answ. Machine] >
[Remote access], then press [OK] to
conrm.
30 EN
Note
• When there is no message, the phone hangs up
automatically if no key is pressed for 8 seconds.
Remote access commands
Key Function
1 Listen to the previous message.
2 Listen to messages.
3 Skip to the next message.
6 Delete the current message.
7 Switch the answering machine on
(not available when you listen to the
messages).
8 Stop listening to the message.
9 Switch the answering machine off.
(not available when you listen to the
messages).
Behavior of the LED indicator on the base station
The table below shows you the current status
with different LED indicator behavior on the
base station.
LED
indicator
Steady on • There is no new message and
Flashing • There is a new message and the
Flashing
(Fast)
Message status
the memory is not full.
• The handset is switched on.
• Enter the paging mode.
memory is not full.
• There is an incoming call.
• Recording an incoming message/announcement.
• Message playback.
• Remote access/listen to mes-
sages from the handset.
• There is no new message and
the memory is full.
• Enter the registration mode.
31EN
13 Services
Call barring
The phone supports a number of features that
help you handle and manage the calls.
Call list type
You can set whether you can view all incoming
calls or missed calls from this menu.
Note
• This is a country dependent feature.
Select the call list type
1 Select [Menu] > [Services] > [Call list
type], then press [OK] to conrm.
2 Select an option, then press [OK] to
conrm.
Auto conference
To join an external call with another handset,
press .
Note
• This feature is available only for multi-handset versions.
Activate/Deactivate auto conference
You can block outgoing calls to numbers, such
as overseas calls or undesirable hotlines by
barring calls that start with certain digits. You
can create 4 sets of numbers with 4 digits at
maximum for each set of numbers. When you
make a call that starts with one of these 4 sets
of numbers, the outgoing call is then barred.
Select the barring mode
1 Select [Menu] > [Services] > [Call
barring] > [Barring mode], then press
[OK] to conrm.
2 Enter the call barring PIN/passcode. The
default PIN/passcode is 0000. Then press
[OK] to conrm.
3 Select [On]/[Off], then press [OK] to
conrm.
» The setting is saved.
Add new numbers to the barred list
1 Select [Menu] > [Services] > [Call
barring] > [Barring number], then press
[OK] to conrm.
2 Enter the call barring PIN/passcode. The
default PIN is 0000. Then press [OK] to
conrm.
3 Select a number from the list, then press
[OK] to conrm.
4 Edit the number, then press [OK] to
conrm.
» The setting is saved.
1 Select [Menu] > [Services] >
[Conference], then press [OK] to conrm.
2 Select [Auto]/[Off], then press [OK] to
conrm.
» The setting is saved.
32 EN
Change the barring PIN/passcode
1 Select [Menu] > [Services] > [Call
barring] > [Change PIN], then press [OK]
to conrm.
2 Enter the old barring PIN/passcode. The
default PIN is 0000. Then press [OK] to
conrm.
3 Enter the new PIN/passcode, then press
[OK] to conrm.
4 Enter the new PIN/passcode again, then
press [Save] to conrm.
» The setting is saved.
2 Select [Blacklist], then press [OK] to
conrm.
3 Enter the PIN/passcode. The default PIN is
0000. Then press [OK] to conrm.
4 Enter the number, then press [OK] to
conrm.
» The setting is saved.
Change the blacklist PIN/passcode
Blacklist
You can put numbers into the blacklist to block
incoming calls to certain undesirable numbers.
You can create 4 sets of numbers with 24 digits
at maximum for each set of numbers. When
there is an incoming call that starts with one
of these 4 sets of numbers, the ringer will be
muted.
Note
• Make sure you have subscribed to the caller ID service
before you use this feature.
• The contact's name in phonebook will not be displayed
if this contact's number matches the record saved in
the blacklist.
Activate/deactivate the blacklist
1 Select [Menu] > [Services] > [Blacklist],
then press [OK] to conrm.
2 Select [Blacklist mode], then press [OK]
to conrm.
3 Enter the PIN/passcode. The default PIN is
0000. Then press [OK] to conrm.
4 Select [On]/[Off], then press [OK] to
conrm.
» The setting is saved.
Add blacklist numbers
1 Select [Menu] > [Services] > [Blacklist],
then press [OK] to conrm.
1 Select [Menu] > [Services] > [Blacklist]>
[Change PIN], then press [OK] to conrm.
2 Enter the old barring PIN/passcode. The
default PIN is 0000. Then press [OK] to
conrm.
3 Enter the new PIN/passcode, then press
[OK] to conrm.
4 Enter the new PIN/passcode again, then
press [Save] to conrm.
» The setting is saved.
Network type
Note
• This is a country dependent feature. It only applies to
models with network type support.
1 Select [Menu] > [Services] > [Network
type], then press [OK].
2 Select a network type, then press [OK].
» The setting is saved.
Auto prex
This feature checks and formats your outgoing
call number before it is dialed out. The prex
number can replace the detect number you
set in the menu. For example, you set 604 as
the detect number and 1250 as the prex.
When you have dialed out a number such as
33EN
6043338888, your phone changes the number
to 12503338888 when it dials out.
Dial mode
Note
• The maximum length of a detect number is 10 digits.
The maximum length of an auto prex number is 10
digits.
• This is a country dependent feature.
Set auto prex
1 Select [Menu] > [Services] > [Auto
prex], then press [OK] to conrm.
2 Enter the detect number, then press [OK]
to conrm.
3 Enter the prex number, then press [OK]
to conrm.
» The setting is saved.
Note
• To enter a pause, press and hold .
• If the prex number is set and the detect number is left
empty, the prex number is added to all outgoing calls.
• The feature is unavailable if the dialed number starts
with * and #.
Note
• This feature only applies to models that support both
tone and pulse dial.
Dial mode is the telephone signal used in your
country. The phone supports tone (DTMF) and
pulse (rotary) dial. Consult the service provider
for detailed information.
Set the dial mode
1 Select [Menu] > [Services] > [Dial mode],
then press [OK] to conrm.
2 Select a dial mode, then press [OK] to
conrm.
» The setting is saved.
Note
• If your phone is in pulse dial mode, press during a
call for temporary tone mode. Digits entered for this
call are then sent out as tone signals.
Select the recall duration
Make sure that the recall time is set correctly
before you can answer a second call. In normal
case, the phone is already preset for the recall
duration. You can select among 3 options:
[Short], [Medium] and [Long]. The number of
available options varies with different countries.
For details, consult your service provider.
1 Select [Menu] > [Services] > [Recall
time], then press [OK] to conrm.
2 Select an option, then press [OK] to
conrm.
» The setting is saved.
34 EN
Auto clock
Note
• This service is countr y and network dependent.
• Make sure you have subscribed to the caller ID service
before you use this feature.
It synchronizes the date and time on your
phone with the public switched telephone
network (PSTN) automatically. For the date to
be synchronized, make sure the current year is
set.
1 Select [Menu] > [Services] > [Auto
clock], then press [OK] to conrm.
2 Select [On]/[Off] . Press [OK].
» The setting is saved.
Register additional handsets
Unregister the handsets
You can register additional handsets to the base
station. The base station can register up to 4
handsets.
Auto registration
Extra handsets of the same model can be auto-
registered. Place the unregistered handset on
the base station.
» The handset detects the base station
and registers automatically.
» Registration is complete in less
than two minutes. The base station
automatically assigns a handset number
to the handset.
Manual registration
If auto registration fails, register your handset
manually to the base station.
1 Select [Menu] > [Services] > [Register],
then press [OK] to conrm.
2 Press and hold on the base station for
5 seconds.
3 Enter the system PIN. Press [Clear] to
make corrections. Then press [OK] to
conrm the PIN.
» Registration is complete in less than 2
minutes. The base automatically assigns
a handset number to the handset.
1 Select [Menu] > [Services] > [Unregister],
then press [OK] to conrm.
2 Enter the system PIN. (The preset PIN
is 0000). Press [Clear] to remove the
number.
3 Select the handset number to be
unregistered.
4 Press [OK] to conrm.
» The handset is unregistered.
Tip
• The handset name is displayed beside the handset
number in standby mode.
Restore default settings
You can reset your phone settings to the
original factory settings.
1 Select [Menu] > [Services] > [Reset],
then press [OK] to conrm.
» A conrmation request is displayed on
the handset.
2 Press [OK] to conrm.
» All settings (except the phonebook
and direct access keys information) are
reset.
Note
• If the PIN is incorrect or no base is found within a
certain period, your handset displays a notication
message. Repeat the above procedure if registration
fails.
• The preset PIN is 0000. No change can be made on it.
35EN
14 Technical data
General specication and features
• Talk time: 16 hours
• Standby time: 250 hours
• Range indoor: 50 meters
• Range outdoor: 300 meters
• Phonebook list with 50 entries
• Redial list with 20 entries
• Call log with 50 entries
• Answering machine with up to 30 minutes
recording time
• Caller identication standard support: FSK,
DTMF
Battery
• Philips: 2 x AAA Ni-MH 1.2V 550 mAh
rechargeable batteries
Power adapter
Base and charger
• MEIC: MN-A102-U130, input: 100-240 V~,
50/60 Hz 200 mA, output: 6 Vdc 400 mA
• Philips: S003IB0600040, input: 100-240 V~,
50/60 Hz 150 mA, output: 6 Vdc 400 mA
Power consumption
• Power consumption in idle mode: around
0.70 W (D450), 0.75 W (D455)
Weight and dimensions (D450)
• Handset: 100.2 grams
163.6 x 48.87 x 23.90 mm (H x W x D)
• Base: 59.4 grams
81.8 x 79.0 x 24.0 mm (H x W x D)
• Charger: 46.0 grams
81.8 x 79.0 x 24.0 mm (H x W x D)
Weight and dimensions (D455)
• Handset: 100.2 grams
• 163.6 x 48.87 x 23.90 mm (H x W x D)
• Base: 84.2 grams
• 81.8 x 93.0 x 24.0 mm (H x W x D)
• Charger: 46.0 grams
• 81.8 x 79.0 x 24.0 mm (H x W x D)
36 EN
15 Notice
Declaration of conformity
Hereby, WOOX Innovations declares that this
product is in compliance with the essential
requirements and other relevant provisions
of Directive 1999/5/EC. You can nd the
Declaration of Conformity on www.p4c.philips.
com.
This product has been designed, tested and
manufactured according the European R&TTE
directive 1999/5/EC.
Use GAP standard compliance
The GAP standard guarantees that all DECT™
GAP handsets and base stations comply with
a minimum operating standard irrespective of
their make. The handset and base station are
GAP compliant, which means they guarantee
the minimum functions: register a handset,
take the line, make a call and receive a call. The
advanced features may not be available if you
use them with other makes. To register and use
this handset with a GAP compliant base station
of different make, rst follow the procedure
described in the manufacturer's instructions,
then follow the procedure described in this
manual for registering a handset. To register a
handset from different make to the base station,
put the base station in registration mode, then
follow the procedure described in the handset
manufacturer's instructions.
Compliance with EMF
This product complies with all applicable
standards and regulations regarding exposure to
electromagnetic elds.
Disposal of your old product and battery
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
This symbol means that the product contains
batteries covered by European Directive
2013/56/EU which cannot be disposed of with
normal household waste.
Inform yourself about the local separate
collection system for electrical and electronic
products and batteries. Follow local rules and
never dispose of the product and batteries
with normal household waste. Correct disposal
of old products and batteries helps prevent
negative consequences for the environment and
human health.
Removing the disposable batteries
To remove the disposable batteries, see section
‘Install the supplied batteries’.
When this logo is attached to a product, it
means a nancial contribution has been paid to
the associated national recovery and recycling
system.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
37EN
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
38 EN
16 Frequently
Telefon-Setup > Sprache
asked questions
No signal bar is displayed on the screen.
• The handset is out of range. Move it closer
to the base station.
• If the handset displays [Register your
Handset], put the handset on the base
until the signal bar appears.
Tip
• For further information, see the chapter 'Services',
section 'Register additional handsets'.
If I fail to pair (register) the additional
handsets to the base station, what do I do?
Your base memory is full. Unregister the unused
handsets and try again.
Tip
• For further information, see the chapter 'Services',
section 'Unregister the handsets'.
My handset is in searching status, what do I
do?
• Make sure that the base station has power
supply.
• Register the handset to the base station.
• Move the handset closer to the base
station.
I have chosen a wrong language which I cannot
read, what do I do?
1 Press to go back to the standby screen.
2 Press [Menu] to access the main menu
screen.
3 One of the following texts appears on the
screen:
Réglages > Langue
Phone setup > Language
Cong. tel. > Idioma
4 Select it to access the language options.
5 Select your own language.
The handset loses connection with the base
or the sound is distorted during a call.
Check if the ECO+ mode is activated. Turn it
off to increase the handset range and enjoy the
optimal call conditions.
No dialing tone.
• Check your phone connections.
• The handset is out of range. Move it closer
to the base station.
No docking tone.
• The handset is not placed properly on the
base station/charger.
• The charging contacts are dirty. Disconnect
the power supply rst and clean the
contacts with a damp cloth.
I cannot change the settings of my voice mail,
what do I do?
The voice mail service is managed by your
service provider but not the phone itself.
Contact your service provider to change the
settings.
The handset on the charger does not charge.
• Make sure the batteries are inserted
correctly.
• Make sure the handset is placed properly
on the charger. The battery icon animates
when charging.
• Make sure the docking tone setting is
turned on. When the handset is placed
correctly on the charger, you can hear a
docking tone.
• The charging contacts are dirty. Disconnect
the power supply rst and clean the
contacts with a damp cloth.
• Batteries are defective. Purchase new ones
with the same specications.
No display.
• Make sure the batteries are charged.
• Make sure there is power and the phone is
connected.
Bad audio (crackles, echo, etc.).
39EN
• The handset is nearly out of range. Move it
closer to the base station.
• The phone receives interference from the
nearby electrical appliances. Move the base
station away from them.
• The phone is at a location with thick walls.
Move the base away from them.
The handset does not ring.
Make sure the handset ringtone is turned on.
The caller ID does not display.
• The service is not activated. Check with
your service provider.
• The caller's information is withheld or
unavailable.
Note
• If the above solutions do not help, disconnect the
power supply from both the handset and base station.
Try again after 1 minute.
40 EN
17 Appendix
Text and number input tables
Key Upper case characters (for English/
French/ German/ Italian/Turkish/
Portuguese/Spanish/Dutch/Danish/
Finnish/Norwegian/ Swedish/Romanian/
Polish/Czech/Hungarian/Slovakian/
Slovenian/Croatian/Lithuanian/Estonian/
Latvian/Bulgarian)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \^ ~|
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § ...
2 A B C 2 À Â Æ Á Ã Ä Å Ą Ā Ç Č
3 D E F 3 È É Ê Ë Ė Ę Ē Δ Φ
4 G H I 4 Ğ Í Ï Į Ī İ Γ
5 J K L 5 Λ
6 M N O 6 Ñ Ó Ô Õ Ö
7 P Q R S 7 Ş Š Π Θ Σ
8 T U V 8 Ù Ú Ü Ū Ų
9 W X Y Z 9 Ø Ω Ξ Ψ Ž
Key Lower case characters (for English/
French/ German/ Italian/Turkish/
Portuguese/Spanish/Dutch/Danish/
Finnish/Norwegian/Swedish)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \ ^ ~ |
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ §
…
2 a b c 2 à â æ á ã ä å ą ā ç č
3 d e f 3 è é ê ë ė ę ē Δ Φ
4 g h i 4 ğ í ì ï į ī ı Γ
5 j k l 5 Λ
6 m n o 6 ñ ó ô õ ö ò
7 p q r s 7 β ş š Π Θ Σ
8 t u v 8 ù ú ü ū ų μ
9 w x y z 9 ø Ω Ξ Ψ ž
Key Upper case characters (for Greek)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \^ ~|
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § ...
2 A B Г 2 A B C Æ Ä Å Ç
3 Δ Ε Ζ 3 D E F É
4 Η Θ Ι 4 G H I
5 Κ Λ Μ 5 J K L
6 Ν Ξ Ο 6 M N O Ñ Ö
7 Π Ρ Σ 7 P Q R S
8 Τ Υ Φ 8 T U V Ü
9 Χ Ψ Ω 9 W X Y Z Ø
Key Lower case characters (for Greek)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \ ^ ~ |
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ §
…
2 α β γ 2 a b c à æ ä å
3 δ ε ζ 3 d e f è é
4 η θ ι 4 g h i ì
5 κ λ μ 5 j k l Λ
6 ν ξ ο 6 m n o ñ ö ò
7 π ρ σ ς 7 p q r s ß
8 τ υ φ 8 t u v ù ü
9 χ ψ ω 9 w x y z ø
Key Upper case characters (for Serbian)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \^ ~|
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ § ...
2 A B C Ђ Ć Č 2 А Б В Г
3 D E F Ј Đ 3 Д Е Ж З Δ Φ
4 G H I Љ 4 И Й К Л Γ
5 J K L Њ 5 М Н О П Λ
6 M N O Ћ 6 Р С Т У
7
P Q R S Җ Š 7 Ф Х Ц Ч Π Θ Σ ß
8 T U V 8 Ш Щ Ъ Ы
9 W X Y Z Ž 9 Ь Э Ю Я Ω Ξ Ψ
Key Lower case characters (for Serbian)
0 Space . 0 , / : ; " ' ! ¡ ? ¿ * + - % \ ^ ~ |
1 1 @ _ # = < > ( ) & € £ $ ¥ [ ] { } ¤ §
…
2 a b c Ђ Ć Č 2 А Б В Г
3 d e f Ј Đ 3 Д Е Ж З
4 g h i Љ 4 И Й К Л
5 j k l Њ 5 М Н О П
41EN
6 m n o Ћ 6 Р С Т У
7
p q r s Җ Š 7 Ф Х Ц Ч Π Θ Σ ß
8 t u v Lj 8 Ш Щ Ъ Ы
9 w x y z Ž 9 Ь Э Ю Я Ω Ξ Ψ
42 EN
18 Index
A
additional handsets 35
alarm 26
announcements 28
answering machine 27
answering machine language 27
auto answer 25
auto clock 34
auto conference 32
auto hang up 25
auto prex 34
B
base station
installation 7
overview 6
battery 8, 9, 36
blacklist 33
C
call barring 32
call list type 20
call log 20
caller ID 20
calling 12
charging 9
conference call 13, 15, 32
contacts 18
ECO+ mode 24
F
family note 27
nd handsets/paging 6
G
GAP 37
I
incoming message 28
intercom 15
internal call 15
L
language setting
answering machine 27
handset 25
LED behavior 31
listen to messages 29
M
missed calls 20
mute 13
N
name the handset 24
network type 33
D
date setting 8, 34
default settings 35
delete messages 29
dial mode 34
display icons 10
disposal 37
E
ECO mode 24
O
on or off 27
P
phone settings 23
phonebook 18, 20
PIN
answering machine 9, 30
blacklist 33
call barring 32
43EN
registration 35
power adapter 36
R
recall time 34
redial 22
register/unregister 35
remote access to the answering machine 30
ring delay 30
ringtone 23
S
safety 3
save a number 20
signal strength 10
silent mode 23
sounds
docking 23
keytone 23
sound prole 24
speaker phone 13
standby mode 9
T
text entry 17
time setting 34
troubleshooting/FAQ 39
two calls/call on hold 13
V
volume adjustment 13
44 EN
2014 © WOOX Innovations Limited. All rights
reserved.
Philips and the Philips’ Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.
UM_D450_455_05_EN_V1.0
wk1442
0168
Loading...
