Your phone
Headphone jack
Back of phone:
3.2MP camera lens
Left soft key
Left soft key
Navigation and confirm key
Pick-up key
Lock/unlock and symbol key
Philips continuously strives to improve its products. Due to software upgrading, some contents in this user guide
may be different from your product.Philips reserves the rights to revise this user guide or withdraw it at any
time without prior notice. Please take your product as standard.
Side volume key
TFT LCD
Right soft key
Hang up and power key
Charger & USB port
Home screen
Your phone’s home screen consists of the following
areas:
Status Bar
SIM status bar
Double clock status bar
Shortcuts
Keys
Learn about the main keys.
Key Definition Function
Dial Make or answer a call.
(
Confirm Select or confirm a option.
,
)
Hang-up/
Power/
Exit
End a call;
Return to home screen;
Hold to turn on/turn off the
phone.
L
R
*
Left soft
key
Right soft
key
Lock/
Unlock
Select the options on the screen.
Select the options on the screen.
Long press to lock/unlock keys on
the home screen.
Shortcut menu
The shortcut on home screen can open the
applications tab you often used.
Select shortcut menu:
1
Go to Menu>Settings>General>Shortcut
to enter shortcut list.
2
Press , to change shortcut menu.
3
Press L to edit the shortcut menu.
Icons & symbols
Learn about the icons and symbols on the screen.
Icons Definition Function
Silent
Your phone will not ring
when receiving a call.
Your phone 1
Vibration
only
Battery
SMS
MMS
Wap
message
Missed call
Call diverts
Bluetooth
Bluetooth
headset
Headset
Alarm
2 Your phone
Your phone will vibrate when
receiving a call.
The bars indicate the battery
level.
You have a new message.
You have a new multimedia
message.
You have received a Wap
push message.
You have missed a call.
All your incoming voice calls
are being forwarded to a
number.
Bluetooth is activated.
The Bluetooth headset is
connected.
The headset is plugged into
the phone.
The alarm clock is activated.
Roaming
Home zone
GSM
network
GPRS
attach
EDGE
attach
Blacklist
Key lock
Memory
card
Displayed when your phone
is registered to a network
other than your own
(especially when you’re
abroad).
A zone designated by your
network operator. Contact
your service provider for
details.
your phone is connected to a
GSM network.The more bars
are shown the better the
reception is.
Your phone is connected to
the GPRS network.
Your phone is connected to
the EDGE network.
Indicates that blacklist feature
is activated.
The keypad has been locked.
The memory card is in use.
Table of cotents
Getting started . . . . . . . . . . . . . . . . . . . . . . . .4
Insert SIM card and Charge the battery . . . . . . . . 4
Insert a Micro SD card (Memory card). . . . . . . . . 6
Customize your phone . . . . . . . . . . . . . . . . . . . . . 6
Basic function. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Use basic call functions . . . . . . . . . . . . . . . . . . . . . 8
Receive and send messages . . . . . . . . . . . . . . . . . . 9
Enter text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Manage your phonebook . . . . . . . . . . . . . . . . . . . . 11
MultiMedia . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Media player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Business applications . . . . . . . . . . . . . . . . . . . .18
Manage your calendar . . . . . . . . . . . . . . . . . . . . . . 18
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Read E-books . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
File management. . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Use blacklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Check world clock. . . . . . . . . . . . . . . . . . . . . . . . . 21
Currency converter. . . . . . . . . . . . . . . . . . . . . . . . 21
Web applications & Java . . . . . . . . . . . . . . . . .22
Browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Java applications. . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
SIM settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Call settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Restore factory settings . . . . . . . . . . . . . . . . . . . . . 26
Safety & Precaution . . . . . . . . . . . . . . . . . . . . .27
Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Trademark Declaration. . . . . . . . . . . . . . . . . . . . . .30
Specific Absorption Rate Information . . . . . . . . . . 30
Limited warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Declaration of Conformity . . . . . . . . . . . . . . . . . . . 32
Tips & tricks. . . . . . . . . . . . . . . . . . . . . . . . . . .33
Optimizing your Philips Xenium battery
performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Table of cotents 3
Getting started
Congratulations on your purchase and welcome to
Philips!
To get the most of your product and enjoy all
Philips has to offer, register your product at:
www. philips. com/mobilephones
More details about your product, please access:
www.philips.com/support
Note:
•
Please read the safety instructions in the "Safety & Precaution"
section before use.
Insert SIM card and Charge the battery
Learn about installing SIM card and charging the
battery for the first use.

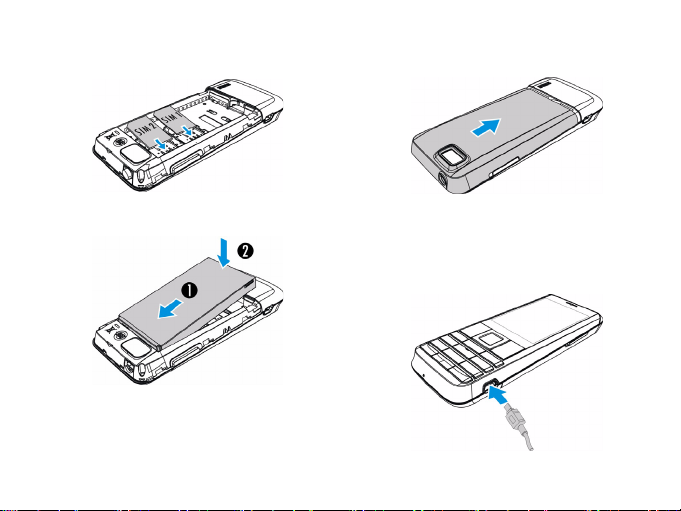

Insert SIM card
Follow the steps below to insert your SIM card.
Remember to turn off your mobile phone before
removing the back cover.
4 Getting started
1
Remove the back cover.
2
Take out the battery.
3
Insert the SIM 1/SIM 2.
4
Install the battery.
5
Replace the back cover.
Charge the battery
A new battery is partially charged. The battery icon
in the upper-right corner shows the battery level of
charging status.
Getting started 5
Tips:
•
You can use the phone while it is charging.
•
Keeping the charger plugged to the mobile phone when the
battery is fully charged will not damage the battery. The only
way to turn off the charger is to unplug it, so it is advisable to
use an easily accessible power socket.
•
If you do not intend to use your phone for several days, we
recommend that you remove the battery.
•
If a fully charged battery left unused, it will lost its charge over
time.
•
If a battery is being used for the first time or the battery has
not been used for a prolonged period, it may take longer time
to recharge.
Insert a Micro SD card (Memory card)
You can expand the memory of your phone by
adding a micro-SD card.
1
Align your micro-SD card with the slot. Put it in
place.
2
To remove the micro-SD card, press the card to
release it.
6 Getting started
Customize your phone
Customize your phone to match your preferences.
Set time & date
1
On the home screen, go to
Menu>Settings>General>
2
Select Set time/date: Enter the desired digits.
Time and date.
SIM settings
1
Check that your phone is turned on. Enter the
PIN code if required.
2
Go to Settings>SIM settings>Dual SIM
setting>SIM1 setup/SIM2 setup,
Name your SIM card
.
3
Go to Settings>SIM settings>Mode setting to
set SIM mode.
Note:
•
The PIN code is preconfigured and communicated to you by
your network operator or retailer.
•
If you enter an incorrect PIN code three times in succession,
your SIM card will be blocked. To unblock it, you must request
the PUK code from your operator.
•
If you enter an incorrect PUK code ten times in succession,
the SIM card will be locked permanently. When this happens,
please contact your network operator or retailer.
Profiles
The profiles are defined for several scenes. They
consist of the settings for ringtones, volume, and
others. With preset profiles, you can easily adjust
the settings for incoming calls and messages as
desired.
1
Go to Profiles, press , to activate the
profile.
2
Press L to modify ringtone, volume and
others.
To activate Meeting mode, long press
home screen.
# on the
Note:
•
If you select Flight mode, you disable the connection between
your phone and your mobile phone network.
Getting started 7
Basic function
Use basic call functions
Learn to make or answer a call and use basic call
functions.
Make a call
1
Enter the phone number.
2
Press ( to dial the number.
3
Press ) to hang up.
Tips:
•
For international calls, long press 0 to enter the "+" sign
for the international prefix.
Answer and end a call
1
Press
(
to answer the call (Press the side
volume key to adjust the volume).
2
Press , to select hands free mode.
3
Press ) to hang up.
Tips:
•
You can use the supplied headset to answer or end a call.
8 Basic function
Make a conference call
If network applicable, you can handle two or more
calls, or make a conference call.
1
During a call, enter a phone number, and then
press
( to dial the number. The second
number is dialled.
2
The first call is put on hold at this time.
3
You can press LOption>Conference to
connect 2 calls.
4
To end the call, select Option>End single/End
all.
Use speed dial
On the home screen, you can call a number by long
tapping a numeric icon.
To assign a contact to a speed-dial key:
1
Select Settings>General>Speed dial.
2
Choose a numeric key.
3
Press L to add a number.
Make an emergency call
Without a SIM card in phone, you can press R to
make the emergency call.
In Europe, the standard emergency number is 112;
in the UK, it is 999.
Receive and send messages
You can use the Messages menu to send text
message, multimedia message.
Send a SMS message
1
Select Menu>Messages>Create
Message>SMS
2
Write your text message.
3
Press , to send the message.
.
Send a MMS message
1
Select Menu>Messages>Create Message
.
>MMS
2
Edit contents, and press L\Options to add
multimedia contents (photo, audio, attachment
or bookmark text).
3
Press , to add a contact.
4
Press , to send the Multimedia message.
Note:
•
Copyright protected pictures and sound cannot be sent by
MMS.
Send an E-mail
1
Go to Menu>Messages>E-mail>E-mail
accounts>Options>New account
setting up a new account, press
2
Go to Write E-mail, enter the address (To ), a
copy (Cc), a blind copy (Bcc), subject and
attachment.
3
Edit the E-mail contents, select the Priority.
4
Press , to send the E-mail.
Note:
•
Consult your mail service provider for the mail server
configuration.
. After
, to activate it.
Receive E-mails
Select E-mail>Send and receive, you can receive
E-mails from the Internet.
To receive E-mails automatically:
1
Go to Menu>Messages>E-mail>E-mail
accounts>Options>Advance settings.
Basic function 9
2
Go to Account settings>Check interval to
set the time span, then your mail box will be
checked automatically after each time span.
Enter text
Your mobile phone supports a number of text entry
methods, including T9 input, English input, numeric
input and symbol input.
Virtual keypad:
Keys/Virtual
keypad
#
#
Function
Short press to select input method.
Long press to select input language.
* Enter symbols and punctuations.
*
Long press to switch T9 English input
on or off.
0 Insert a space.
R Delete the previous symbol.
10 Basic function
L Select corresponding symbol on the
,
•
Introduction of input methods:
Input method Function
English input Press the keys that are marked
T9
text input
screen.
Select or confirm symbol.
Note:
Depending on the language you select for your phone, the
supported input methods may vary.
with the letter you wish to enter.
Press once to get the first letter
on the key, press twice quickly to
get the second letter and so on
until the letter you want is
®
predictive
displayed on the screen.
You need to press only once on
the key corresponding to each
letter needed to spell a word:
keystrokes input are analyzed and
the word suggested by T9
displayed at the pop-up window.
®
is
Numeric input Press the numeric key to enter a
Stroke input Press the keys corresponding to
number.
the required strokes according to
sequence to get the desired
character. The stroke input
method classifies a Chinese
character into 5 basic strokes:
(horizontal, vertical, left falling
stroke, right falling stroke and
over-down) as well as a special
stroke. When the stroke you
need does not correspond to the
5 basic strokes, replace it with the
special strokes.
Manage your phonebook
Learn about basic phonebook function.
Add a new contact
Method one:
1
On the home screen, enter a number, select a
location. (To SIM1/To SIM2/To phone).
2
Save the number, and add details as desired.
3
Press , to finish saving.
Method two:
1
Go to Contacts.
2
Press L Options >Add to add a new contact.
Tips:
•
For contacts on the smart phonebook, you can add detailed
information, like home number, office number, contact
pictures and ringtones.
Search for a contact
1
Go to Contacts.
2
There are five phonebooks above the list: all,
Phone, SIM1, SIM2 and Groups.
3
Press navigation key < or > to select a desired
phonebook.
4
Enter the first few letters of the name in the
search bar. (For example “John Henry” enter
JH)
5
Select the contact from the list.
Manage your contacts
You can copy or move contacts between the SIM
card and phone, or delete contacts. Go to
Basic function 11
Contacts>Options>Phonebook settings to select
the desired option.
1
Set group:
You can group your contacts as different groups,
For different groups, you can use different ringtones
for identification, and send messages to a group.
2
Add contacts to a group:
-
Go to Contacts, press navigation key < or >
to select Groups.
-
In Groups, press , to add members for the
group.
12 Basic function
My vCard
You can send your contact information by My
vCard.
Edit my card:
1
Go to Contacts>Options>Phonebook
settings>My vCard>Edit my card.
2
Edit the contents.
3
Press , to save the contents.
Send my card:
1
Go to Contacts>Options>Phonebook
settings>My vCard>Send my card.
2
Select As SMS/As MMS/As E-mail/Via
bluetooth to send the card.
Special numbers
You can keep a list of useful numbers on your
phone, such as own numbers, service numbers,
voicemail and emergency numbers.
Go to Contacts>Options>Phonebook
settings>
Special numbers:
Function Definition
SIM1/SIM2
owner number
SIM1/SIM2
service dialing
number
SIM1/SIM2
SOS number
Edit the phone number and name.
Contact your network operator
for more information.
Edit your emergency phone
number.
Basic function 13
MultiMedia
Media player
Save MP3, AAC, AAC+, Midi, AMR, WMA and
WAV music files under the
phone and memory card.
Play music
1
Go to Media player>Music player>Tracks,
select your desired song in the folder.
2
Using the following keys to control playback:
Function Definition
,
<
Start or Pause playing.
Press navigation key < to select
previous track.
> Press navigation key > to select
next track.
Press side volume key to adjust
volume.
R Return to the previous menu.
)
14 MultiMedia
Go to the home screen.
Audio folder on your
Player settings
Go to Music player>Settings:
•
Lyrics show: Save the .lrc files with same name
under the same folder, then the lyrics will
display when playing this audio file.
•
Skin mode: Select your preferred skin.
•
Add to playlist: Manage your playlist.
•
Add to ringtone list: Add your preferred audio
files to the ringtone list.
•
Play mode:
-
Repeat one: play current file repeatedly.
-
Repeat all: play all the files in the folder
repeatedly.
-
Shuffle and repeat: Play music files in the
folder randomly and repeatly.
-
Shuffle: Play music files in the folder
randomly.
•
Equalizer: Select music style suitable to your
songs.
•
Info: Display the detailed information of audio
files.
To turn off the music player on the home screen.
Press ), and then
Note:
•
When listening to music, adjust the volume to a moderate
level. Continuous exposure to high volume may impair your
hearing.
,.
Camera
Learn about camera function. Let you take photos
as desired by using your phone.
Ta k e a ph o t o
1
Go to Menu>Camera, select camera mode.
2
Aim the lens at the subject.
-
Press navigation key < or
brightness.
3
Press , to take a photo.
4
Press R to exit.
Tips:
•
All the photos taken are saved to My files>Phone or
Memory card>Pictuers.
> to adjust the
View photos
Go to Media player>Image viewer,
1
View photos: press navigation key < or
select a photo.
2
Zoom in/out photos: press side volume key to
zoom in or out a photo. After zooming in a
photo, press navigation key
adjust the photo.
3
Rotate photos: press , to rotate a photo.
4
Set as full-screen wallpaper: press L.
+, -,
>
to
<
or
> to
Camera settings
While using the camera, press L to select settings:
Icon Option Function
Photo album
Image size
quality
Flash
Self-timer
Capture
mode
View the photos you have
taken.
Select image size.
Set image quality.
Use the flash to increase
the brightness.
Select a time span for auto
photographing.
Switch the picture mode.
MultiMedia 15
White
balance
Scene mode
Remove the effects on
colors by surroundings.
Select a scene to take a
photo.
Storage
Select default storage
location.
Effects
Add special effects to the
photos.
Shutter
sound
Anti-flicker
Adjust the shutter sound.
Select a band to avoid the
impacts on photos caused
by flickers from lighting
sources.
Restore
default
Restore to default settings.
Video recorder
Learn about video recorder function. Let you
record a video clip as desired by using your phone.
16 MultiMedia
Record a video
1
Go to Menu>Camera, select video recorder
mode.
2
Aim the lens at the subject.
-
Press navigation key < or
> to adjust the
brightness.
3
Press , to record a video clip.
4
Press R to exit.
Tips:
•
All the videos recorded are saved to My files>Phone or
Memory card>Videos.
Play a video clip
Go to Media player>video player,
1
Press , to start or pause playing a video clip.
2
Press navigation key < or > fast rewind or
forward.
3
Press * to enter full screen.
4
Press R to exit.
Video recorder settings
While using the camera, press * key to toggle
between full screen mode and normal mode. Other
settings, see Camera settings on page 15.
FM radio
Lear about listening to radio programs by using a FM
radio.
Listen to a radio station
1
Plug the supplied headset into your phone.
2
Go to Media player>FM radio, press L
Options>Auto presets. It starts scanning
automatically and save the available channels.
3
Press navigation key + to activate auto search,
and then press the navigation key
select a station.
4
Press the navigation key - to turn off FM radio.
< or > to
FM radio settings
Go to Options>Settings:
•
Background play: Continue playback after exit
FM radio.
•
Loud speaker: Listen to radio through the
speaker.
•
Record format: Select the format of
recording.
•
Audio quality: Select the audio quality.
•
Record storage: Select default storage location
for recording file.
•
Channel effect: Select the channel effect.
To turn off the FM radio on the home screen.
Press ), and then press
,.
Record radio programs
You can record a radio program when listen to it.
1
Go to LOptions>Record, or press , when
listening to the radio to start recording.
2
Press R to stop recording and edit the
filename.
3
Press , to save the file.
Tips:
•
The files recorded are saved to My files>Phone or Memory
card>Audio.
MultiMedia 17
Business applications
Manage your calendar
You can create your to-do list and make a plan on
your calendar.
Create your to-do list
1
Go to Tools>Calendar select a date, and then
press L
2
3
4
Check your to-do list
You can check your to-do list in weekly or monthly
view. Go to Tools>Cal
your to-do list.
Check the calendar
Go to Calendar, you can check the calendar.
18 Business applications
Options>Add task.
Edit reminder settings.
Press , to save the task.
To change your to-do list, select the task, and
then press L
Options to edit the task.
endar, press , to check
Alarm
Learn about how to set and use an alarm. You can
set up to five alarms.
Set an alarm
1
Go to Tools>Alarm.
2
Press , to turn on the alarm, press L to edit
the alarm.
3
Press , to save the setting.
Turn off an alarm
1
Go to Tools>Alarm.
2
Select the alarm you want to turn off.
3
Press , to turn off the alarm
.
Stop an alarm
When the alarm rings,
•
Select Stop : The alarm stops.
Or turn over your phone to mute the alarm.
•
Select Snooze: The alarm will sound again after
the set
Snooze(Mins) interval.
Bluetooth
Your phone can connect to a compatible Bluetooth
device for exchanging data.
Connect to a Bluetooth device
1
Go to Bluetooth>Power, turn on the
Bluetooth function.
2
Select Find devices, a list of available Bluetooth
devices appears.
3
Select the device you wish to connect.
4
Enter your Bluetooth password to start pairing
(0000 by default). The pairing is made if your
pairing request is accepted by the other part.
Send files via Bluetooth
1
Go to My files, select the file you want to send.
2
Press L Options>Send>Via Bluetooth.
3
Select a device.
4
Press , to start sending the file.
Receive files via Bluetooth
1
Go to Bluetooth>Setting to power on
Bluetooth.
2
Enter the password and accept the request.
3
The files received are saved to My files>Phone
or Memory card>Others.
Tips:
•
If you do not use the Bluetooth feature for some time, you
should deactivate it in order to conserve battery power.
Read E-books
You can read E-books (.txt file) on your phone.
Start reading an E-book
1
Go to Tools>Text reader.
2
Select the .txt file you wish to read.
3
Press , to start reading.
Go to
Options>Settings>Encoding, select the
encoding suitable to your language.
Reading setup
Go to Options, you can setup the following:
•
Find: Find specific words in the file.
•
Add bookmark: Add current page to
bookmark.
Business applications 19
•
Go to bookmark: Read the page saved as
bookmark.
•
Settings: Set font size, scroll screen
automatically or read E-book on full screen.
File management
Learn about how to use and manage your files and
folders.
Use your files
1
Set a photo as contact picture:
-
Open My files>Pictures, select a photo.
-
Press LOptions>Use as>Wallpaper,
Screen saver
2
Set an audio file as ringtone:
-
Select an audio file.
-
Press LOptions>Use as>To ringtone
list.
-
Go to
Profiles>General>Options>Ringtone to
select the audio files needed.
Tips:
•
To set photos you have taken as contact picture, the file sizes
should smaller than 200K.
20 Business applications
or Contact picture.
Share your files
You can share your photos, audio or video files with
others via MMS, E-mail or Bluetooth.
1
Select your desired photos, audio or video files.
2
Press LOptions>Send.
Tips:
•
To send multimedia message, the message size should smaller
than 100K.
Manage your files
You can copy, move or delete a file in a folder.
1
Open a folder, Press LOptions>Select
multiple
2
3
•
to enter multiple selection list.
Press , to Select or Unselect.
Go to Options to finish copying, moving or
deleting.
Note:
The insecurity audio, video files and pictures are not
recommended to save to you r phone.
Use blacklist
Learn about how to set the blacklist; you can reject
the incoming calls or messages from those
included in the blacklist.
Activate blacklist
1
Go to Settings>Call
settings>Blacklist>Mode.
2
Press , to activate blacklist function.
Add a phone number to blacklist
1
Go to Blacklist>Blacklist number.
2
Edit the blacklist, add contacts by entering a
phone number or select a contact from
phonebook.
Check world clock
You can display two clocks on the home screen:
one is local time, the other is foreign time.
Set world clock
Go to Settings>General>Time and
date>W
orld clock,
1
In Local settings/Foreign settings, press
navigation key
2
Press L Options to turn on/off Daylight
saving
3
In Switch local/foreign, press , to switch
clock.
Note:
•
Alarms, reminders, programmed events are t ime zone
independent.
< or > to select a city.
.
Calculator
Use the numerical keypad on the screen to
calculate.
Currency converter
1
Go to Tools>Currency converter, enter the
rate.
2
Enter the sum of money in Local. Press , to
confirm.
Note:
•
The result of the calculator is indicative only.
Business applications 21
Web applications & Java
Browser
You can use this function to browse the Internet.
Consult your network operator for the service
subscription, data account information, and WAP
settings.
Access web sites
1
Go to Browser>WAP>Enter address, enter
your desired websites.
2
Press L Options>Done to access the
website.
Set homepage
1
Go to Browser, browse a website.
2
Select Options, save current website as
Home. You can set the websites you usually
used as homepage.
Add bookmarks
1
Go to Browser, browse a website.
22 Web applications & Java
2
Select Options, add current website to
bookmark. You can add your favorite websites
to bookmarks.
Java applications
Learn about how to use Java applications and play
games. Your phone is preloaded with some Java
games and applications.
Install Java games
1
Connect your phone to a PC via supplied USB
cable.
2
Save .jar file to My files>Others.
3
Install the Java games.
Play Java games
1
Go to Applications>Java.
2
Select a game from the list.
3
Press , Launch to start playing the game.
Note:
•
To run some Java applications (entrusted third party software)
on your phone, you may need to adjust the Java settings. Tap
Options>Settings.
Java settings
Go to Applications>Java>Java settings.
Function
Java audio
Java
backlight
Java
vibration
Select SIM
Java SIM1/
SIM2
Profile
Heap size
Definition
Set the volume level.
Turn the backlight on or off.
Turn the vibration on or off.
Select SIM1 or SIM2.
Select a Java network (service
subscription-dependent).
Display allowed maximum size for
Java memory.
Web applications & Java 23
Settings
SIM settings
Icons
Dual SIM
setting
Primary SIM The default SIM card is SIM1.
SIM1/SIM2 setup Set SIM card name.
Mode setting
Query On
Power Up
General
Function
Time and date Set the clock of the phone.
Auto Power on/
off
Languages Select a language for your phone.
24 Settings
Definition
Change SIM card slot settings.
You are provided services by
primary SIM by default.
You can select SIM1 or SIM2 as
primary card.
Select dual/single SIM open.
Display mode setting screen or
not while power on the phone.
Definition
Set time for power on/off
automatically.
Display Select the wallpaper, themes,
Speed dial Call a contact by long tapping a
Memory
status
Fast keys
Shortcut Set shortcut keys menu.
backlight duration and other
display information.
numeric key.
Check the memory occupancy of
information of different memory
storage.
Set navigation keys menu.
Sounds
Function
Ringtone Select a ringtone for incoming calls
Volume
Alert Type Select alert type.
Definition
and messages.
Adjust the volume of rings.
Shutter
sound
Battery low Select whether a warning tone is
Select shutter sounds for your
camera.
emitted when the battery level is
low.
Network
Function
Select network Select the network for your phone
Preferred
networks
Definition
(service subscription dependent).
Automatic is recommended.
Select your preferred network.
Call settings
Function
Call settings
(SIM1/SIM2)
Caller ID Select hide/send ID of caller (set by
Call waiting Activate/Deactive call waiting.
Call divert Divert incoming calls to your voice
Definition
Set call services.
network).
mailbox or another phone number.
Call barring Set limits to your incoming and
outgoing calls.
Line switching Switch between Line1 and Line2.
Predictive
dialing
Blacklist
Auto redial Keep redialling the number that
IP number
Call time
display
Call time
reminder
Reject by SMS Reject the incoming call by sending
Quick search and list your phone
number while entering a number
on the home screen.
Select the blacklist mode and
number.
fails to go through.
Add present IP number to
outgoing numbers. (networkdependent, available only in China.)
Display the call time or not.
Get reminded after the call time
span once or repeatedly.
a SMS to the number.
Settings 25
Security Restore factory settings
Function
Privacy setup This menu allows you to use
Protected
applications
Application
password
SIM1/SIM2
security
settings
Phone lock
Auto keypad
lock
Change
password
Certificate
manager
26 Settings
Definition
passwords to protect your SIM
card, phone, and information
stored on the phone.
Select to protect your Messages/
Contacts/View calls.
Set the password to view your
protected applications.
Set SIM1/SIM2 PIN/PIN2 code.
security settings. (PIN code is
provided by network operator.)
Set password protection for your
phone. You are required to enter
the password each time you turn
on the phone (1122 by default).
Set an idle time span for the keypad
to be locked automatically.
Change the phone lock password.
View the authority certificate and
user cerficate.
Restore your phone settings to the default values.
You need to enter your phone password (0000 by
default).
Safety & Precaution
Precaution
Keep your phone away from small children
Keep your phone and all accessories out of the reach of small
children. Small parts may cause choking or serious injury i f
swallowed.
Radio Waves
Your phone transmits/receives radio waves in the GSM frequency
(850/900/1800/1900MHz).
Check with the vehicle manufacturer that electronic equipment
used in your vehicle will not be affected by radio energy.
Switch off your phone...
Turn off the phone when in an aircraft. The use of mobile phones in
an aircraft may be dangerous for the operation of the aircraft,
disrupt the mobile phones network and may be illegal.
In hospitals, clinics, other health care centers and anywhere else
where you may be in the close vicinity of medical equipment.
In areas with a potentially explosive atmosphere (e.g. petrol stations
and also areas where the air contains dust particles, such as metal
powders).In a vehicle transporting flammable products or a vehicle
powered by liquefied petroleum gas (LPG).In quarries or other areas
where blasting operations are in progress.
Your mobile phone and your car
Avoid using your phone while driving and obey all regulations that
restrict the use of mobile phones while driving. Use hands free
accessories to increase your safety when possible. Ensure that your
phone and car kit do not block any air bags or other security devices
fitted in your car.
Handle your phone carefully and sensibly
For the optimal and satisfactory operation of the phone you are
recommended to use the phone in the normal operating position.
•
Do not expose your phone to extreme temperatures.
•
Do not immerse the phone in any liquid; if your phone is damp,
switch it off, remove the battery and let them dry for 24hrs before
using them again.
•
To clean the phone, wipe it with a soft cloth.
•
In hot weather or after prolonged exposure to the sun (e.g., behind a
window or a windscreen), the temperature of your phone's casing
might increase. Be very careful in this case when pickin g up your
phone and also avoid using it with an ambient temperature over 40°
C.
Protect batteries from damage
You should only use Philips Authentic Accessories, as the use of
any other accessories may dam age your phone and may be
dangerous, and will make all guarantees for your Philips phone null and
void. The use of an unspecified type of battery may also cause an
explosion.
Make sure damaged parts are re placed immediately by a qualifie d
technician and that they are replaced with genuine Philips replacement
parts.
•
Your phone is powered by a rechargeable battery.
•
Use specified charger only.
•
Do not incinerate.
•
Do not deform or open the battery.
•
Do not allow metal object s (such as keys in your pock et) to short
circuit the battery contacts.
•
Avoid exposure to excessive heat (>60° C or 140° F), moisture or
caustic environments.
Environmental care
Remember to observe the local regulations regarding the disposal
of the packaging materials, exhausted batteries and old phone and
please promote their recycling.Philips has marked the battery and
packaging with standard symbols designed to promote the recycling and
appropriate disposal of your eventual waste.
:The labeled packaging material is recyclable.
:A financial contribution has been made to the associated national
packaging recovery and recycling syst em.
:The plastic material is recyclable (also identifies the type of plastic).
Safety & Precaution 27
WEEE Marking in the DFU: “Information to the Consumer”
Disposal of your old product
Your product is designed an d manufactured with high qua lity materials
and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means the product is co vered by the European
Directive 2002/96/EC
Please inform yourself about the local separate collection system
for electrical and electronic products .
Please act according to your loca l rules and do not dispose of your old
products with your norm al household waste. The co rrect disposal of
your old product will help prevent potential negative consequences for
the environment and human health.
This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.
Tips
Pacemakers
If you have a pacemaker:
•
Always keep the phone more than 15 cm from your pacemaker
when the phone is switched on, in order to avoid potential
interference.
•
Do not carry the phone in a breast pocket.
•
Use the ear opposite to the pacemaker to minimize the potential
interference.
•
Switch off your phone if you suspect that interference is taking place.
Hearing aids
If you are a user of a hearing aid, consul t your physician and hearing aid
manufacturer to learn whether your particular device is susceptible to
cellular phone interference.
How to prolong the battery life of your phone
To have your mobile phone function properly, sufficient battery power
is important. For the power-saving purpose, do the following, if
applicable:
28 Safety & Precaution
•
Turn off the Bluetooth function of your phone.
•
Set the backlight level and duration of your phone to a low value.
•
Turn on the auto keypad lock, turn off the key sounds, tap vibration,
or vibration alerts.
•
Establish GPRS connection wh en needed. Otherwise, your phone
will keep searching for GPRS connection, and drain your battery
power.
•
Turn off your phone if there is no coverage. Otherwise, the phone
will keep searching for network, and drain your battery power.
Troubleshooting
The phone does not switch on
Remove/reinstall the battery. Then charge the phone until the battery
icon stops scrolling. Unplug the charger and try to switch the mobile on.
The display shows BLOCKED when you switch on the phone
Somebody tried to use your phone but didn’t know th e PIN code nor
the unblocking code (PUK). Contact your service provider.
The display shows IMSI failure
This problem is related to your subscription. Contact your operator.
Your phone doesn’t return to idl e screen
Long press the hang-up key or switch off the phone, check that the SIM
card and the battery are installed correctly and switch it on again.
The network symbol is not di splayed
The network connection is lost. Either you are in a radio shadow (in a
tunnel or between tall buildings) or you are outside the network
coverage area. Try from an other place, try to reconnect to the netw ork
(especially when abroad), check that the antenna is in place if your mobile
has an external antenna, or contact your network operator for
assistance/information.
The display doesn’t respond (or the display responds slowly) to key presses
The display responds more slowly at very low temperatures. This is
normal and does not affect the operation of the phone. Take the phone
to a warmer place and try again. In other cases please contact your
phone supplier.
Your battery seems to over heat
You might be using a charger that was not intended for use with your
phone. Make sure you always use the Philips authentic accessory shipped
with your phone.
Your phone doesn’t display the phone numbers of incoming calls
This feature is network a nd subscription dependen t. If the network
doesn’t send the caller’s number, the phone will display Call 1 or
Withheld instead. Contact your operator for detailed information on
this subject.
You can’t send text messages
Some networks don’t all ow message exchanges with other networks.
First check that you have entered the number of your SMS centre, or
contact your operator for detailed information on this subject.
You can’t receive and/or store JP EG pictures
A picture may not be accept ed by your mobile phone if it is t oo large, if
its name is too long, or if it doesn’t have the correct file format.
You feel that you have missed some calls
Check your call divert options.
When charging, the battery icon shows no bar and the outline is flashing
Only charge the battery in an environment where the temperature does
not go below 0°C (32°F) or above 50°C (113°F).
In other cases please contact your phone supplier.
The display shows SIM failure
Check that the SIM card has been inserted correctly. If the problem
persists, your SIM card may be damaged. Contact your operator.
When attempting to use a feature in the menu, the display shows NOT ALLOWED
Some features are network dependent. They are only available,
therefore, if the network or your subscription supports them. Contact
your operator for detailed information on this subject.
The display shows INSERT YOUR SIM CARD
Check that the SIM card has been inserted correctly. If the problem
persists, your SIM card may be damaged. Contact your opera tor.
The autonomy of your phone seems lower than indicated on the user guide
The autonomy is linked to your settings (e.g., ringer volume, backlight
duration) and the features you use. To increase the autonomy, and
whenever possible, you must deactivate features you do not use.
Your phone doesn’t work well in your car
A car contains many metall ic parts that absorb elec tromagnetic waves
which can affect the pho ne’s performance. A car kit is available to
provide you with an external antenna and enables you to make and
receive phone calls without handling the handset.
Note:
•
Check with the local authorities whether or not you are allowed to
use the phone while driving.
Your phone is not charging
If the battery is completely flat, it might take several minutes of precharge (up to 5 minutes in some cases) before the charging icon is
displayed on the screen.
The picture captured with the phone camera is not clear
Make sure that the camera lens on both sides is clean.
Safety & Precaution 29
Trademark Declaration
®
T9
JAVA JAVA is a trademark of Sun Microsystems, In c.
Bluetooth™ Bluetooth™ is a trade-mark owned by
Philips PHILIPS and PHILIPS’ Shield Emblem are registered
Specific Absorption Rate Information
International standards
THIS MOBILE PHONE MEETS THE INTERNATIONAL
RECOMMENDATIONS FOR EXPOSURE TO RADIO WAVES
Your mobile phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the limits for exposure to radio frequency
(RF) energy defined by the international standards. These
recommendations have been established by the International
Commission on Non-Ionizing Radiation Protection (ICNIRP) and, the
Institute of Electrical and Electronics Engineers (IEEE) that forecast a
substantial safety margin for assuring the protection of all persons,
regardless of age and health.
The exposure recommendations for mobile phones use a measurement
unit known as the Specific Absorption Rate (SAR). The SAR limit
recommended by the ICNIRP for the mobile phones used by the general
public is
averaged over one gram of tissue
Tests for SAR have been conducted using recommended operating
positions with the mobile phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR levels of
T9® is a registered trademark of Nuance
Communications, Inc..
telefonaktiebolaget L M Ericsson, Sweden and licensed
to Philips.
trademarks of Koninklijke Philips Electronics N.V.
manufactured by Shenzhen Sang Fei Consumer
Communications Co., Ltd. Under license from
Koninklijke Philips Electronics N.V..
2.0W/kg averaged over ten grams of tissue and, is 1,6W/kg
by IEEE Std 1528 for the head.
30 Safety & Precaution
the mobile phone while operating are generally below the maximum SAR
value. This is because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the network. In
general, the closer you are t o a base station antenna, the l ower the
power output.
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the international
protection standards for exposure to radio waves.
The highest SAR value for this Xenium X523 model phone
when tested for compliance against the standard was 1.21W/kg
for ICNIRP recommendation.
For limiting the radio waves exposure, it is recommended to reduce the
mobile phone call duration or to use a headset. The purpose of those
precautions is to take the mobile phone away from the head and the
body.
Limited warranty
1
What Does This Limited Warranty Cover?
Philips warrants to the original retail purchaser (“Consumer” or “You”)
that this Philips cellular product and all accessories originally provided by
Philips in the sales package (“Product”) are free from defects in materials,
design and workmanship under normal use in accordance with the
operating instructions and pursuant to the following terms an d
conditions. This limited warranty extends only to the Consumer for
Products purchased and used in the original country of purchase. The
limited warranty is valid only in Philips’ intended country of sales of the
product.
2.
How Long is The Limited Warranty Period?
The limited warranty period for the Product extends for ONE (1) YEAR
from the date of purchase of the Product, documented by valid proof of
purchase. The limited warranty for original Philips rechargeab le battery
extends for six (6) m onths from the date of p urchase.
3.
What Will Philips Do if The Product is Not Free From Material
Defects in Materials and Workmanship During The Limited
Warranty Period?
During the limited warranty period, Philips or its authorized servi ce
representative will, at its option either repair or replace, without charge
for parts or labour, a materially defective Product with new or
refurbished parts or Product and return such repaired or replaced
Product to the Consumer in working condition. Philips will retain
defective parts, modules or equipment.
Repaired or replaced Product will be covered by this limited warranty
for the balance of the original limited warranty period or ninety (90) days
from the date of repair or replacement whichever is longer. Repair or
replacement of Product, at Philips’ option is your exclusive remedy.
4.
What is Not Covered By This Limited Warranty?
This limited warranty does not cover:
a) Product that has been subjected to misuse, accident, shipping or other
physical damage, improper installation, abnormal operation ha ndling,
neglect, inundation, fire, water or other liquid intrusion; or
b) Product that has been damaged due to repair, alteration, or
modification by anyo ne not authorized by Phil ips; or
c) Product that has reception or operation problems caused by signal
conditions, network reliability or cable or antenna systems; or
d) Product defects or problems caused by uses with non-Philips produc ts
or accessories; or
e) Product which warranty/quality stickers, product serial number or
electronic serial number has been removed, altered or rendered illegible;
or
f) Product purchased, used, serviced, or shipped for repair from outside
the original country of purchase, or used for commercial or institutional
purposes (including but not limited to Products used for rental
purposes); or
g) Product returned without valid proof of purchase or which proof of
purchase has been altered or is illegible.
h)Normal wear and tear or Force Majeure.
5.
How Do You Get Warranty Service?
a) Return the Product to an authorized service center of Philips. You may
contact the local Philips office for the location of the nearest authorized
service center.
b)The SIM card must be removed from the Product before it is given to
Philips. Philips assumes no liability for damaged or loss of the SIM card or
the data contained therein.
c)If the Product failure is not covered by this limited warranty, or this
limited warranty is inapplicable, void or invalid d ue to any terms and
conditions stated herein, the Consumer will be charged for th e cost of
repair or replacement of the Product and all other related cost incurred
in repairing or replacing the Product.
d) IMPORTANT - you are required to return the Product together with
a valid proof of purchase which must ide ntify the point of purchase, date
of purchase, Product model and Product serial number clearly.
6.
Other Limitation: This Warranty is The Entire Agreement.
EXCEPT FOR THE EXPRESS WARRANTIES SET FORTH ABOVE AND
THOSE IMPLIED BY LAW AND WHICH CANNOT BE EXCLUDED
OR MODIFIED BY AGREEMENT, PHILIP S PROVIDES NO OTHER
WARRANTY WHETHER EXPRESS OR IMPLIED (WHETHER BY
STATUTE, UNDER THE OPERATION OF LAW OR OTHE RWISE)
AND SPECIALLY DISCLAIMS ANY WARRANTY OF SATISFACTORY
QUALITY MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
PHILIPS’ TOTAL LIABILITY FOR DAMAGES RELATING TO OR
ARISING OUT OF THE PURCHASE OR USE OF THE PRODUCT,
REGARDLESS OF THE TYPE OR CAUSE OF SUCH DAMAGE OR THE
FORM OR CHARACTERISATION OF THE CLAIM ASSERTED (E.G.
CONTRACT OR TOPIT), SHALL NOT EXCEED THE ORIGINAL
PURCHASE PRICE PAID FOR THE PRODUCT.
HOWEVER IN NO EVENT SHALL PHILIPS BE LIABLE FOR ANY
PUNITIVE, SPECIAL, INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO
THE LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERIAL
LOSS, LOST PROFITS, LOST BUSINESS OPPORTUNITIES, COST OF
SUBSTITUTION OF GOODS OR SERVICES, INVESTMENTS,
DAMAGE TO GOODWILL OR REPUTATION, OR LOSS OF DATA
AND CLAIMS BY THIRD PARTIES) RESULTING FROM PURCHASE
OR USE OF THE PRODUCT, TO THE FULLEST EXTENT ALLOWED
BY LAW, WHETHER OR NOT PHILIPS HAS BEEN ADVISED OF THE
POSSIBILTY OF SUCH DAMAGES. THESE LIMITATIONS SHALL
Safety & Precaution 31
APPLY NOTWITHSTANDING THE FAILURE OF THE ESSENTIAL
PURPOSE OF ANY LIMITED REMEDY.
This limited warranty represents the complete and exclusive agreement
between the Consumer and Philips with respect to this cellular Prod uct
and it supercedes all prior agreements between the parties, oral or
written, and all other communications between the parties relating to
the subject matter of this limited warranty. No carrier, retailer, agent,
dealer, employee, thereof, or employee of Philips is authorized to make
modifications to this limited warranty and you should not rely on any
such representation.
This limited warranty does not affect the Consumer’s statutory rights
under applicable national laws in force.
Declaration of Conformity
We,
Shenzhen Sang Fei Consumer
Communications Co., Ltd.
11 Science and Technology Road,
Shenzhen Hi-tech Industrial Park,
Nanshan District, Shenzhe n 518057
China
declare under our sole responsibility that the product
Xenium X523
Philips GSM/GPRS 850/900/1800/1900
TAC number: 8675 9300
to which this declaration relates, is in conformity with t he following
Standards:
SAFETY : EN 60950-1:2006+A11:2009
HEALTH: EN 50360:2001
EN 62209-1:2006
EN 62209-2:2010
EMC: ETSI EN301 489-1 v1.8.1
ETSI EN 301 489-7 v1.3.1
ETSI EN 301 489-17 v2.1.1
SPECTRUM: ETSI EN 301 511 v9.0.2
ETSI EN 300 328 v1.7.1
32 Safety & Precaution
We hereby declare that all essent ial radio test suites have been carri ed
out and that the above named product is in conformity to all the essential
requirements of Directive 1999/5/EC.
The conformity assessment procedure referred to in Article 10 and detailed in Annex IV of Directive 1999/5/EC has been followed with the involvement of the following Notified Body:
British Approvals Board for Telecommunications TUV SUD Group
Balfour House Churdhfi eld Road-walton-on-Thames Surrey - KT12 2TD
United Kingdom
Identification mark: 0168
March 8th, 2011
Quality Manager
Tips & tricks
Optimizing your Philips Xenium battery performance
Here are some steps to help you optimize your Philips
Xenium’s battery performance.
How to optimize the standby and talk time of your phone?
•
Always ensure that your phone profile is
appropriately set to meet your actual usage.
Profile setting significantly impacts the phone’s
battery performance. In general, Outdoor Mode
is the most power-draining setting while Silent
Mode consumes the least amount of power.
•
If you’re using a Xenium phone with a dual SIM
feature, try to activate the 2 SIM cards only
when absolutely necessary. If you are in a
country with single coverage, deactivate the
non-covered SIM to prolong battery usage.
•
If you’re not using applications like Bluetooth,
WIFI, GPS and JAVA, turn them off. And be sure
to lock your phone to prevent accidental
pressing of the keys with the auto-lock feature.
•
Adjust the intensity and duration of your display
screen’s backlight to low or medium level and
for the shortest duration. In general, the lower
the backlight level and the shorter the duration,
the more power you will save.
•
Avoid using or placing your phone near
magnetic objects (eg. a radio or television) or on
metal surfaces, which will impact the network
connection and ultimately drain power from
your battery.
How to extend your battery’s life?
•
Full charging and full running down of your
battery will extend its life. Charge the battery
once the low-battery warning comes on.
•
Temperature will impact battery usage. Over
time, heat will degrade your battery’s
performance. Keep your phone out of the sun
or a hot car. If in low temperature, place your
phone in a warmer place (eg. your pocket), as
battery capacity decreases as the temperature
drops.
•
Always use authentic accessories as they enable
your battery to perform at its peak. Nonauthentic accessories (eg. chargers) can damage
your battery and even your phone.
Tips & tricks 33
Loading...
