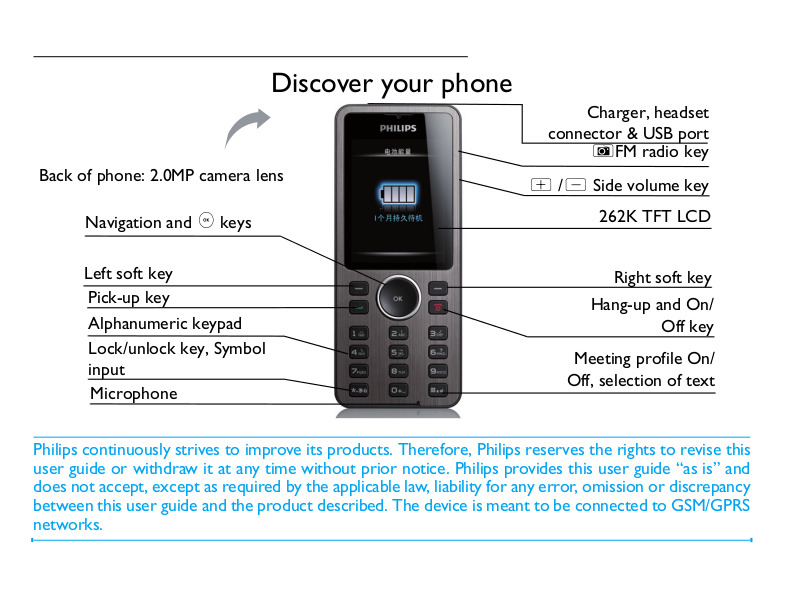

Discover your phone

V /W Side volume key

Hang-up and On/

Off key

Back of phone: 2.0MP camera lens

262K TFT LCD

Meeting profile On/

Off, selection of text

Left soft key

Navigation and , keys

Right soft key

Alphanumeric keypad Lock/unlock key, Symbol

input

Microphone

Pick-up key

Charger, headset

connector & USB port

FFM radio key

Philips continuously strives to improve its products. Therefore, Philips reserves the rights to revise this user guide or withdraw it at any time without prior notice. Philips provides this user guide “as is” and does not accept, except as required by the applicable law, liability for any error, omission or discrepancy between this user guide and the product described. The device is meant to be connected to GSM/GPRS networks.

How to ...

Swith the phone On/Off Long press and release ). Enter your PIN code Enter your PIN code using the keypad and press , to confirm.

Lock keypad Unlock keypad Make a call Enter the phone number using the keypad and press (. Answer a call When the phones rings, press (. End a call Press ). Activate/Deativate

handsfree mode

Access contacts list Listen to FM radio On idle screen, press F to listen to FM radio. To tune to a radio

Select text entry method Press # repeatedly on the editing screen. Long press * to turn T9

Access main menu On idle screen, press ,Menu.

On idle screen, long press *. On idle screen, press right soft key LUnlock and then *.

During a call, press right soft key RH-Free/H-Held.

On idle screen, press right soft key RContact.

station, please pull out the atenna on top of your phone or plug the supplied headset into your phone.

input on or off. Long press

and release to access Languages screen.

Quickly return to idle when browsing menus

Select/unselect Meeting profile

Press ).

On idle screen, long press #.

Soft keys

The ,, left and right soft keys are located at the top of the keypad area. Pressing the soft keys allow you to select the options above them on the screen. Such options are contexual: they vary according to current context.

Main Menu

The main menu gives you access to all the different features of your mobile phone. The table below summarizes the functional icons on the main menu. To find more information about their functions, refer to the pages.

Entertainment Browser Media player

第48页第44页第49页

Camera Messaging My files

第46页第21页第55页

Tools Contacts Profiles

第36页

第32页

第62页

Bluetooth Calls Settings

第59页第58页第63页

Press ,Menu on idle screen to access the main menu and press +, -, < or > to navigate through the icons and lists. Press ,Select to access the options related to the selected item. Press right soft key RBack to return to previous menu. Press ) to return to the idle screen.

Fast Keys

Long press to enter “+” when

making international calls.

Long press to access the voice mailbox.

You can configure the navigation keys +, -, < or > to access your favorite features directly.On idle screen, press the keys to access the features.

Go to Settings > General > Fast keys to check the default settings of the navigation keys +, -, < or >.

To change the default settings,

Long press to select/unselect

Meeting profile (by default,

vibration on or off for incoming calls or messages).

Select the item to be changed. Press left soft key REdit to assign a new shortcut to the key.

Press + or - to select, and left soft key

ROK to confirm.

Power-saving mode

After the set time span, the phone has the idle screen turned off automatically. To exit the power-saving mode, press any key. For powersaving purpose, set the time span to a low value in Settings > Display > Backlight duration &

Backlight level.

Auto keypad lock

In the idle mode, your phone can have the keypad locked automatically after the set time span.

To set the auto keypad lock

Go to Settings > General > Security > Auto keypad

lock.

To u nl o c k t h e ke yp a d

Press right soft key LUnlock and then *.

To l o ck t h e ke y p ad m a nu a l l y

On the idle screen, long press *.

Table of contents

1 Getting Started 11

Insert the SIM card 11 Charge the battery 13 Set clock 14 Insert the micro-SD card 15

2 Text Entry 16

Selecting text entry methods 16 Entering text 17

3 Calling 20

Making a call 20 Answering and ending a call 21 Options during a call 22 Handling multiple calls

(Network-dependent) 23 Making an emergency call 24

6 Table of contents

4 Messaging 25

Creating messages 25 Organizing your messages 28 Defining your message settings 29 E-mail 31 Broadcast messages 34

5 Contacts 35

Adding or editing contacts 35 Searching for a contact 36 Managing your contacts 36 Special numbers 38

6 Tools 40

Using your business organizer

Create your to-do list 40 Check your calendar 41 Edit your to-do list 41

Delete expired tasks 41

Using your business assistant

Sound recorder 41

Using your clock and timer

Alarm 43 World clock 44 Stopwatch 44

Using your file reader Text reader 45

Using the torch 45 Using your business assistant

Firewall 46 Others

Calculator 47

Currency converter 47

7 Browser 48

Managing your browser 48

Table of contents 7

Accessing web sites 48 Enabling/ disabling push messages 48 STK 49

8 Camera 50

Camera 50 Video recorder 57

9 Fun 60

Java games and application 61

10 Music 62

Music player 62 FM radio 65

11 My files 68

Finding your files 68 Managing your files 68 Sharing your files 69

Using your files 70

12 Calls 71

Call history 71

13 Bluetooth 73

About Bluetooth 73 Connecting to a Bluetooth device 73 Getting connected by

a Bluetooth device 74 Editing your device list 75

14 Profiles 76

Adjusting ringer settings to different scenes 76

15 Settings 77

Sounds 80 Connectivity 81

Icons & Symbols 83

Precautions 85

Tips 92

Troubleshooting 93

Philips Authentic Accessories 97

Trademark Declaration 100

Specific Absorption Rate Information 101

Limited Warranty 103

Declaration of Conformity 107

General 77 Display 79

8 Table of contents

Press on the bottom of the back cover, and

1 Getting Started

Congratulations on your purchase and welcom to Philips! To get the most of your product and enjoy all Philips has to offer, register your product at www.philips.com/welcom.

Please read the safety instructions in the "Precautions" section before use.

To use your phone, you must insert a valid SIM card supplied by your GSM operator or retailer. The SIM card contains your subscription information, your mobile phone number and a memory in which you can store phone numbers and messages.

slide the cover as shown.

As shown, take out the battery.

Inserting the SIM card

Follow the steps bellow to insert your new SIM cards. Remember to switch off your mobile phone before removing the back cover.

Getting Started 9

You may lose all your personal settings if you remove the battery when the phone is switched on.

As shown, align your SIM card with the SIM care slot, beveled corner facing you and gold contact downwards. Insert your SIM card under the metal clip holder.

As shown, put on the back cover, and press it down. You will hear a click when it is locked.

As shown, align the metallic connectors on the battery and battery slot. Insert the battery until it is locked.

10 Getting Started

Remove the protective film covering the screen and camera lens before using the phone.

Charging the battery

Your phone is powered by a rechargeable battery. A new battery is partially charged. The battery symbol indicates the state of the battery.

To charge the battery, plug in the connector as shown below. Then plug the other end into a power socket.

If you do not intend to use your phone for several days, we recommend that you remove the battery.

You can use the phone while it is charging. If the battery is completely flat, the battery symbol will only reappear after a few minutes of charging.

Set clock

Check that your phone is switched on. Long press ) if necessary. Enter the PIN

During charging, the battery symbol scrolls.

Keeping the charger plugged to the mobile phone when the battery is fully charged will not damage the battery. The only way to turn off the charger is to unplug it, so it is advisable to use an easily accessible power socket.

Getting Started 11

code if required. A PIN code is a 4- to 8digit secret code of your SIM card. It is preconfigured and communicated to you by your network or retailer.

If you enter an incorrect PIN code three times in succession, your SIM card will be blocked. To unblock it, you must request the PUK code from your operator.

On idle screen, press ,Menu and go to

Settings > General > Time and date. Set home city: Select a city that is within the

same time zone as yours.

Set date/Set time: Press + or - repeatedly

until you reach the desired digits.

Set format: Select the time (12-hour or 24-

hour clock) and date format by pressing the navigation keys +, -, < or > and left soft key

OK.

Clock type: To display time and date on idle

screen, press + or - show the time in a clock (Analog) or digits (Digital). Press soft key LOK to confirm.

Display local and international clocks

You can display two clocks on the idle screen, one showing your local time and the other the time of your destination.

Check that you have set your local time and

date.

12 Getting Started

Go to Tools > World clock, press < or > to select a city that is within the same time zone as your destination city.

Press left soft key L Options:

Daylight saving time for foreign city: Turn on

the daylight saving mode if applicable.

Set world clock: Set your destination city. World clock status: Press

turn on the international clock.

left soft key LOK to

Inserting Micro-SD card (memory card)

left

You can expand the memory of your phone by adding a micro-SD card. Supported capacity: up to 8GB

Follow Step 1 and Step 2 under "Inserting the SIM card" .

As shown, push down the card holder and lift it up. Aligh your micro-SD card with the slot. Put it in place.

Press down the card holder and pull it until it is locked.

Getting Started 13

2 Text Entry

Your mobile phone supports a number of text entry methods, including T9 input, multi-tap input, numeric input and symbol input.

Select text entry methods

To select your desired language on the editing screen, press seconds, and then, release it.

Press # repeatedly to select your desired inputs:

//: for English entry : for numeric entry

: Phonetic input for simplified

Chinese

Stroke input for Simplified /Tranditional Chinese

more than 3

Depending on the language you select for your phone, the supported input methods may vary.

To switch the T9 English input on or off, press * more than 3 seconds, and then release it.

To enter a symbol and punctuations, press

The text editor remembers the last input method you have used before you exit the editing screen. When you access the editor again, it will automatically select the last input method you have used.

Entering text

Select your desired text entry methods.

Enter text by using the alphanumeric keypad.

2 to 9 To input letters (T9/ phonetic input)

Press repeatedly to input desired letters (multi-tap input).

1 to 6 To enter strokes (stroke input)

14 Text Entry

<,> To browse candidate words (T9/ phonetic/

Tegic Euro. Pat.

App. 0842463

multi-tap input)

+,-

To browse the candidate words on the previous/next page (T9 input/multi-tap input)

Select To confirm the selection

0 To input a space R

Clear

Short press to clear a letter,

Long press to clear all entries.

If necessary, press R mode.

T9® input

T9® predictive text input is an intelligent editing mode for messages, which includes a comprehensive dictionary. It

You need to press only once on the key corresponding to each letter needed to spell a

Text Entry 15

allows you to quickly enter text.

Back

to exit the input

word: keystrokes input are analyzed and the word suggested by T9® is displayed at the popup window.

Examples: how to enter the word "home":

Press 4, 6, 6, 3. The screen displays the first word of a list:

Good.

Press - to scroll and select Home.

Press RSelect to confirm.

Multi-tap input (ABC/Abc/abc)

Press the keys that are marked with the corresponding letter you wish to enter. Press once to get the first letter on the key, press twice quickly to get the second letter and so on until the letter you want is displayed on the screen.

Example: how to enter the word "home":

Press 4, 4(GHI), 6, 6, 6 (MNO), 6 (MNO), 3, 3 (DEF).

Stroke input

The principle of stroke input is to dissect and separate every stroke of a Chinese character according to sequence. When you wish to input the character, press the keys corresponding to the required strokes according to sequence to get the desired character. The stroke input method in this phone classifies a Chinese character into 5 basic strokes: (horizontal, vertical, left falling stroke, right falling stroke and over-down) as well as a special stroke. When the stroke you need does not correspond to the 5 basic strokes, replace it with the special stroke(?).

16 Text Entry

IP dial.

3 Calling

Making a call

From idle screen

Enter the phone number.

Press ( to dial the number.

Press )

For international calls, long press 0 to enter the "+" sign for the international prefix.

Use the phonebook (see “Contacts” on page 32)

Calling 17

to hang up.

Go to Contacts > View contacts to open the contacts list. To search for a contact, enter the contact name (up to 5 characters) using the alphanumeric keypad, or select a contact from the list. Press ( to dial the selected number. For IP calls (China only), select Options >

You can preset your IP service number under Settings > Connectivity > Call options >

IP prefix.

Press )

to hang up.

Speed dial

On the idle screen, you can call a preset speeddial number by long pressing a numeric key (2 to 9).

Set your speed-dial number before dialing it.

To assign a speed-dial key to a contact:

Go to Settings > General > Speed dial.

If necessary, press left soft key R to turn speed dial on.

To make a speed dial, always check that the speed-dial function is enabled.

In Set number, select one of the locations (corresponding to the numeric keys 2 to 9).

Assign to the location a contact from your phonebook.

Answering and ending a call

When you receive a call, the number of the caller may be displayed, depending on whether or not the calling party has chosen to display his or her ID. If the number is stored in the phonebook, then the corresponding name is displayed.

• Answer the call: Press (.

• Hang up: Press ).

•

To answer or end a call using the supplied one-key headset, see “Headset” on page 82

To reject calls from certain contacts, you

can add the contacts or numbers to your blacklist. In Contacts

calls >

All calls

and press ROptions > Set black (For more information about blacklist, see “Firewall” on page 42).

18 Calling

View contacts

, select a contact or phone number,

Calls >

Options during a call

During a call, you can press right soft key R to

select

H-free or H-held mode. Press left soft key

ROptions to access the following options:

- Hold single call: Put current call on hold

- End single call: End current call

- New call: Make a new (a second) call

- Phonebook: Add or view contacts

- Messaging: Send or check messages

- Sound recorder: Record conversation during a call. (see “Sound recorder” on

View

page 38)

- Background sound: Select the background sound for your calls.

- Mute: Mute/unmute the call

- DTMF: Enable the touch tone dialing system

Sound recorder

In most countries, recording of telephone conversation is subject to legislation. We advise

you to notify the caller if you intend to record the conversation and only do so if they agree. You should also ensure confidentiality of the recordings.

To record a conversation during a call, select

Options and select Sound recorder. Recorded

sound is saved in *.amr format and stored in Audio of My files menu. (see “Finding your files” on page 55).

Mute or unmute a call

During a call, select

Mute

function On/

microphone will be deactivated.

Options

and select to set the

Off

. If you select

Mute

Adjust the volume

During a call, press side volume key V or W to increase or decrease the volume.

Calling 19

Handling multiple calls (Networkdependent)

You can handle two or more calls at the same time, as well as make conference calls with your phone. The availability of this feature is dependent on your network operator and/or your subscription.

Make a second call

You can make a second call when there is an active call or with a call on hold. While on the phone, enter the number (or select a contact

, the

from the phonebook) and press (. The first call is put on hold and the second number is dialed. You can then select Options to access the following options:

- Swap: To toggle between 2 calls.

- Conference: To introduce the caller into a conference call.

- End single call: To disconnect one party from the call.

- End all calls: To disconnect all party from the call.

- New call: Make a new call

- Phonebook: Add or view contacts

- Messaging: Send or check messages

- Sound recorder: Record conversation during a call. (see “Sound recorder” on page 38)

- Background sound: Select the background sound for your calls.

- Mute: Mute/unmute the call

- DTMF: Enable the touch tone dialing system

Answer a second call

When you receive a second call while already in communication, the phone will emit a beep tone and the screen displays information about the incoming call. You can then:

•Press ( to

put on hold).

•Press )

20 Calling

answer the call (the first one is

to reject the call.

• Press ROptions

o access the options list. You can select Answer, Hold Active, End

Active to hold or end the current call and

answer the incoming call.

To receive a second call, you must first deactivate Call Divert for (see page 66) and activate Call waiting (see page 66) must be activated.

Making an emergency call

Without a SIM card in phone, you can press

RSOS to make the emergency call.

With a SIM card in phone, you can enter the emergency number in the idle mode, then press

(

Note that an emergency call will not be stored in the call record.

In Europe, the standard emergency number is 112, in the UK, it is 999.

4 Messaging

Press left soft key ROptions to access the following options:

Save to Drafts

sSave the SMS message to

Drafts.

Creating messages

SMS

SMS enables you to send text messages to the other party, using Short Messaging Service (SMS). You can use the SMS menu to send messages to another hand-phone or a device that is capable of receiving SMS messages. To compose and send a SMS message, follow the steps below:

Select Create message > SMS, and write your message.

Messaging 21

Use templates Select to insert a preset

message, and then press

ROK.

Insert object Select to insert an icon,

Format text Set Text style, text Alignment

animation or sound file.

and the alignment of New

paragraph.

This feature only works if the settings are put in before the text is entered.

Insert number, Insert contact, Insert bookmark

Select to insert contact information (name or mobile number), or website information you saved as a bookmark (see “Browser” on page 44), and then press

ROK.

Input method Select your desired input

Press ,Send to send the message to the desired contact or contact group (see “Contacts” on page 32)

MMS

Your mobile phone can also send and receive MMS (Multimedia Messaging Service) messages. With MMS, you can send messages that contain pictures, sound and text.

When sending MMS messages, make sure that your recipient also has an MMS-enabled phone in order to view your messages. Follow the

22 Messaging

method.

steps described below to compose and send an MMS.

Select Create > MMS, press + or - to select:

To Press ,Edit to enter the number or

Cc Press ,Edit to enter the number or

Bcc Press ,Edit to enter the number or

Subject Press ,Edit to enter the subject of

Done Select to finish editing.

e-mail of the recipient.

e-mail of other recipients to whom you wish to send a copy of the message.

e-mail of the recipients to whom you wish to send a copy of the message, by which the recipients in the Bcc list will be invisible to other recipients.

the MMS.

In Edit content, press ROptions:

Input method

Add picture, Add audio, Add video

Add attachment

Add slide before, Add slide after

Add bookmark text

Preview Slide timing Set the play time of MMS slides.

Press RDone to access the next option:

Send only

Save and send

Messaging 23

Select your desired input method.

Insert image, audio or video files to your MMS.

Insert a file (such as .txt, .jar, etc) to your message.

Insert more slides into your message.

Add website information you saved as a bookmark (see “Browser” on page 44).

Preview the current MMS.

The default value is 5 seconds.

Send the MMS only. Save and Send the MMS.

Save to Drafts Save the MMS to Drafts.

Save as template

Send options Set Validity period, Delivery

Save the MMS as a template.

report, Read report, Priority.

Use templates for messages

You can use ready-made messages as new messages. 10 SMS and 5 MMS messages are preset in the Templates folder. You can also save a message as a template.

Select Templates > SMS or MMS.

Select your desired templates.

Press ROptions, and select Write message. The ready-made message appears on the edit screen.

Organizing your messages

In this phone, your messages are sorted in the following folders:

Inbox: received messages Sent: sent messages

Outbox: unsuccessfully sent messages Drafts: messages saved as drafts SIM archive: messages saved in the SIM card

Enter a folder and select a desired message. Press ROptions to access the following options:

For the SMS or MMS, or different folders, available options may vary.

View Read the selected message. Reply Reply to the sender.

Reply by SMS

24 Messaging

Reply to the MMS sender by SMS.

Reply all Reply to the sender and all

Forward Forward the selected message. Edit Edit and send the selected

Delete Delete the selected message. Delete all Delete all messages in the folder.

Delete Same Number

Save object Save to your phone or memory

recipients on the Cc and Bcc lists.

message.

Delete all text messages for the same number in the folder.

card (if inserted) the picture, audio, video, or other attached file of current MMS message.

Use details, Use number, Use URL, Use Email address

Properties Show the file information of

Extract the number of the sender or in the message to create messages, make a call, or save to the contact. Extract the URL in the message to connect to the website, add as a bookmark.

current message.

Defining your message settings

Some of your message settings are dependent on the service you subscribe with the network operator. Consult your network operator for your account settings, general settings, server profile, or other relevant settings.

Messaging 25

In Message settings > SMS,

Profile settings

Profile name: Edit the name of the current profile.

SC address: Select your default

SMS center. If not available on your SIM card, you must enter your SMS center number.

Validity period: Select the length of

time your messages will be stored in the SMS centre. This is useful when the recipient is not connected to the network (and thus cannot receive your message immediately).

This feature is subscription dependent.

Message type: Select the format of

your sent messages. This option is network dependent.

Common settings

Delivery report: When set to On,

this option will inform you via the SMS whether or not your own SMS message was sent.

This feature is subscription dependent.

Reply path: When set to On, this

option allows you to transmit the number of your SMS message center together with the message. The recipient can then reply using your SMS center and not theirs. This speeds up the rate of transmission. This feature is subscription dependent.

Pref. connection

This option allows you to set the preferred transmission mode. You can select Prefer GPRS, Prefer

GSM or GSM only. For further

details, please contact your network operator.

In Settings > MMS,

Compose Set Creation mode, Picture resizing,

Auto signature and Edit signature. In Edit signature, press ROK to enter

the content of signature.

Send Set Validity period, Delivery report,

Read report, Priority, Slide timing and Delivery time options for sending an

MMS message.

Retrieve Set Home network, Roaming, Read

report and Delivery report options

for receiving an MMS message.

26 Messaging

Filter Set Anonymous, and Advertisement

Server profile

Memory status

from whom you want to filter MM S or e-mail messages.

Set network configuration. Please contact your network provider for more information.

View the memory status of your MMS.

Voice mail server

This menu allows you to set your voice mail server number, as well as retrieve your voice mails. Consult the network operator for the account information.

Go to Contacts > Special numbers > Voice mail, press ROptions:

Edit: Edit voice mail server number. Connect to voice: Retrieve your voice mail.

Messaging 27

E-mail

If not included in your mobile phone contract, you will need to subscribe to an E-mail service in order to send and receive E-mails. In this case, all parameters are communicated to you by your operator.

This menu allows you to send E-mails to one or several recipients at a time, including with an attachment such as a JPEG picture. Once received, your messages can be forwarded and the attachments can be visualized with the appropriate software.

Set up E-mail profiles

The Email accounts allows you to Activate, or Edit one of the available email profiles. You can also create a new Email account. Consult the network operator for the account information. If necessary, consult your mail service provider for the mail server configuration.

Go to E-mail > E-mail profiles. Press

ROptions and select New account.

2. Enter your account information as prompted.

- When entering symbols like @ and _,

press *.

- While selecting data account in Advanced

settings > Account settings> Data account,

press RSelect, and then select GPRS. Check that you have selected a GPRS Internet/E-mail connection account.

- Consult your mail service provider for

the mail server configuration.

3. When returning to the list of Email accounts, select the desired account, and press ROptions > Activate to activate the selected E-mail account.

Write E-mail

To write an Email, select E-mail > Write e-mail. Enter the address (To), a copy (Cc), a blind copy (Bcc), Subject and Attachment (up to 3 files) and

28 Messaging

level of priority. Press R content. When you have finished writing your email, press R can then select to Send, Send and save, Save to

Drafts or Quit without saving.

To use a template for your E-mail, select E-mail > Template. Select your desired template, press

Edit

to edit the e-mail

Done

, and then select OK. You

ROptions to edit or create your mail.

If you exit the E-mail > Write E-mail menu before sending your e-mail or if you cancel the sending while it takes place, the e-mail content is deleted without being stored.

Send and receive E-mail

The E-mail > Send and receive allows you to send E-mails from your phone to the Internet, and receive E-mails from the Internet to the mailbox you have preset on your phone.

You can only attach one file (JPEG, MID, JAR, TXT, MP3) or one sound at a time.

Organize your E-mail

For your activated account, the Emails are sorted in the following folders:

Inbox: received E-mail Outbox: unsuccessfully sent E-mail Sent: sent E-mail Drafts: Email saved as drafts

1. Go to E-mail > E-mail profiles. Select the

desired account, and press ROptions >

Activate to activate the selected E-mail

account.

2. Enter a folder and select a desired email.

Press ROptions to access the following options:

For different folders, available options may vary.

View Read the current E-mail. Sort Show mails in the order of

mode (date, sender, subject or

size) or order (Ascending or

Mark as unread

Mark as deleted

Delete Delete the current E-mail.

When reading the selected email, press

ROptions to access the following options:

Reply Reply to the senders.

Reply without content

Reply all

Reply all without content

Forward Forward the downloaded E-mail to

Displays the current E-mail as unread. (Only for the read messages)

Displays the current E-mail as deleted.

Reply to the sender without the email history.

Reply to all senders. Reply to all senders without the

email history.

someone else.

Descending).

Messaging 29

Retrieve option

Mark as unread

Mark as deleted

Delete Delete the current E-mail.

To clear mailboxes

You can quickly remove all of mails under a folder, like Inbox, Outbox, or Sent.

30 Messaging

Retrieve the complete mail. This option is available when you select Header only in E-mail profiles >

Edit > Advance settings > Incoming server > Downloaded options (See

Step 3 in see “Set up E-mail profiles” on page 27).

Displays the current E-mail as unread.

Displays the current E-mail as deleted.

Go to E-mail > Delete all Emails. Select a folder to be emptied. Press left soft key R to empty the folder.

To delete marked Emails

The E-mail > Delete all marks allows you to remove all the mails marked as deleted.

Broadcast message

Broadcast messages are public messages broadcast to a group of mobile users. The messages are broadcast on coded channels. Generally, one broadcast channel can transmit one type of message. Please contact your network operator for a list of channel numbers and their respective broadcast information.

Define settings for broadcast messages

In Broadcast messages,

Receive mode

Read message

Press left soft key R to turn the receive mode on or off.

Read messages when there are received broadcast messages.

Languages Set language for the broadcast

message to be received.

Channel settings

Messaging 31

Define the channel for broadcast messages

1. Go to Contacts > Advanced:

5 Contacts

Contacts are stored in one of the two available phonebooks: SIM phonebook (located on your SIM card, by which the number of entries you can store depends on the card capacity) or the Smart Phonebook (located on your phone, which allows you to store up to 500 names). New contacts will only be added to the phonebook you have selected.

Adding or editing contacts

Add a contact to Smart phonebook

For contacts on the Smart Phonebook, you can add detailed information, like home number and office number, and identifying features, like contact pictures and ringtones.

32 Contacts

In Choose contacts list > Default contact

location, select Phone;

In Contact details, select the items to be defined for the new contact.

On the idle screen, enter the phone number you wish to save. Press ,Save:

Name: Press REdit to go to the editing

screen. To select input methods, press # repeatedly; long press * to turn T9 input on or off. Press RBack to exit the input mode, if necessary. Press ROptions > Done to finish editing.

Number: Enter the mobile number.

You can also edit your contact information in Contacts > Add new contact.

3. Add details as desired in other fields.

When selecting a contact picture, ringtone, or caller group, press < or > to select your desired picture, sound or caller group (To use a photo as contact picture, see “Set a photo as contact picture” on page 57).

Press RDone to save.

Add a contact to SIM phonebook

Go to Contacts > Advanced > Choose contacts

list > Default contact location. Select SIM.

Follow Step 2 under “Add a contact to Smart phonebook”.

Edit a contact

Go to Contacts > View contacts.

Select your desired contact (see "Searching for a contact").

Press ROptions > Edit to go to the editing options. For contacts on SIM phonebook, only name and mobile number are editable.

Searching for a contact

Go to Contacts > Advanced > Choose contacts

list > Default contact list. Select your desired

phonebook.

Go to Contacts > View contacts.

Contacts 33

To search for a contact, enter the contact information in full or part. Press # repeatedly to select an input method.

Managing your contacts

You can copy or move your contact entries between the two phonebooks. Also, you can group your contacts as Family, Friends, Business and others as you like. For different groups, you can use different ringtones for identification, and send messages to a group.

Copy, move or delete a contact

Go to Contacts > View contacts.

Select a desired contact (see "Searching for a contact").

Press ROptions to select Delete, Copy or

Move.

Copy or move all contacts

Go to Contacts > Advanced.

Press + or - to select Move to phone/SIM or Copy to phone/SIM.

Then press ROK to confirm.

Delete all contacts

Go to Contacts > Advanced > Delete all

contacts.

Press + or - to select From SIM/Phone, and then press ROK to confirm. If you want to delete contacts one by one, press + or - to select One by one, and then press ROK to enter Contact list. Press

RDelete to delete selected contact.

Group your contacts on the Smart phonebook

Go to Contacts > View groups.

Press + or -

You can rename the group, select a ringtone

and a contact picture, and add contacts to

Member list.

34 Contacts

and ROK to select a group.

Share contact information with others

You can share with others the contact information in your phonebook. As desired, the information can be sent via the SMS, MMS or Bluetooth.

In Contacts > View contacts, “”select your desired contact ("Searching for a contact").

Press ROptions > Send vCard to send the contact information via the SMS, MMS or Bluetooth.

Add a contact to blacklist

Go to Contacts > View contacts.

On the View contacts screen, select the desired contact.

Press ROptions to select:

•Set Black: Add the current contact to the blacklist. If necessary, go to Tools > Firewall, set Status to On (see “Firewall” on page 42).

Special numbers

This menu allows you to keep a list of useful numbers such as own numbers, voice mail and emergency numbers.

Options Description

My numbers

Emergency Press REdit to edit your

Contacts 35

Go to ROptions > Edit to edit the phone number or name to be shown on the idle screen.

To show the number on the idle screen, select On in Settings >

Display> Show owner number.

emergency phone number.

Voice mail

This menu allows you to set your voice mail server number, as well as retrieve your voice mails. Consult the network operator for the account information.

Select a voice mail box, and press

ROptions to select:

Edit: Edit voice mail server

number.

Connect to voice: Retrieve your

voice mail.

To keep yourself reminded, do the

6 Tools

Using your business organizer

You can add your new tasks to the phone. Such to-do tasks are marked in your calendar. You can always check your calendar and remind yourself as desired.

following:

Note Add a note about the task.

Press REdit to edit the task. On the editing screeen, press

ROptions > Use templates to use

the preset note.

Alarm Press < or > once or more to turn

the alarm on, have it sound 5, 15 or 30 minutes before the specified time, or turn the alarm off.

Create your task list

In Tools > Calendar, select a date in the calendar, and press ROptions > Add task to add a kind of task.

When setting a task, specify the date and time.

36 Tools

Repeat Press < or > once or more to

Location Enter the location of the task.

repeat the alarm at the specified time once, everyday, weekly or monthly.

To repeat the alarm at certain days, press < or > to select Days, press -

and < or > to select a

weekday or weekend, and press left soft key R to turn the alarm on or off on the certain day.

Press ,Done to save the task. At the set time, the task note appears as a new event on the idle screen.

Check your calendar

After creating your task lists, you can check your calendar in day, weekly, or monthly views. In

Tools > Calendar, press ROptions > View tasks;

Tools 37

Or select Tools > Quick note. You can also create your task list in the calendar of different views.

Edit your task list

In Tools > Calendar, press Options > View

tasks to enter the task list.

You can also select Tools > Quick note to enter the task list.

Select your desired task. Press ROptions to do the following:

View View the details of the selected

Add Add a task. Edit Edit the selected task. Delete Delete the selected task. Delete all Delete all the tasks.

Send vCalendar

task.

Send the task as a message.

Sound recorder

You can use this phone to record your sound memos.

Record a sound memo

You can make your own recording, and share it with your friends via the MMS, E-mail, or Bluetooth. Also, you can use the recording as the ringtone of incoming calls or a contact.

To make recording

Go to Tools > Sound recorder.

Press ROptions > Record to start recording.

Press RStop to stop recording. A file name is generated.

Edit the file name as desired. Select your desired text entry methods (see "Text entry" on page 11). Press right soft key R to exit the input mode, if necessary.

Press ROptions to select Save to save the recording.

38 Tools

To append recording to a file

Select the desired file.

Press ROptions > Append. The new recording is added to the file.

To edit recording files

Select the desired file.

Press ROptions to select Rename, Delete, or Delete all files.

To send an audio file

Select the desired file.

Press ROptions > Use to send the audio file via the MMS, E-mail, or Bluetooth.

To set your recording as a ringtone

Select the desired file.

Press ROptions > Use > To User profiles. The recording is added to your ringtone file list.

Using your clock and timer

Alarm

You can set up to five alarms.

To set an alarm

Check that your clock is correctly set (see "Set clock" on Page 11)

Go to Tools > Alarm. The screen of alarm list appears.

Select an alarm, and press REdit to enter the alarm setting screen.

On/Off: Press < or > to turn the alarm on or

off. 00:00: Set the alarm time.

Repeat: Repeat the alarm on one or some of

the weekdays or weekends. To repeat the alarm at certain days, press < or > to select

Days, press -

weekday or weekend, and press ROn/Off to select or unselect day.

Audio options: Select an alarm tone: To ne or FM radio.

Tools 39

and < or > to select a

•To use ringer as the alarm tone, press -,

and then ROptions to select a ringtone;

•To use FM radio as the alarm tone, press -,

and then ROptions to select a preset station in Channel list, or enter a radio station frequency in Manual input.

Snooze: Select an alarm interval: Default (5

minutes), or 1 - 10 minutes.

Press RDone when you finish setting the alarm.

Make sure that the preset radio station is in service at the set alarm time if you use FM radio as the alarm tone.

To use an alarm

On the set alarm time, your alarm sounds. Select Stop: The alarm stops. If you have selected repetition mode for the alarm (see “To set an alarm”), it will sound again at the set time.

Select Snooze: The alarm will sound again after the set Snooze interval. You can select Snooze ten times.

The alarm clock will ring even if your mobile phone is switched off, or the Profiles is set to Silent.

Worl d cl oc k

You can display two clocks on the idle screen, one showing your local time and the other the time of your destination.

Go to Settings > General > Time and date.

Set home city: press + or - to select a city as

your home city.

Go to Tools > World clock.

• To set foreign city: Press < or > repeatedly to select a city, and then press ROptions to select Set World

Clock.

• Daylight saving time for foreign city: If necessary, press

40 Tools

ROn/Off

to turn it on or off.

• World clock status: : Press

Off to turn on the international clock.

Alarms, reminders, programmed events are time zone independent! If you set an alarm or an event at 9:00 AM in time zone A, it will still ring or be due at 9:00 AM if you change to time zone B.

left soft key LOn/

Stopwatch

Two kinds of stopwatch for your timing needs

Typical stopwatch

Go to Stopwatch > Typical stopwatch.

Split timing Split the timing span manually

Lap timing Time lap by lap.

Press LStart to start timing.

Press RSplit or Lap to make a split or lap. A time split or lap span appears on the screen.

Press LStop to stop timing.

and as desired.

Press LCont. to continue timing. Long press left soft key L to reset the

timing.

Press RBack to save or cancel the timing record.

To view the timing records, go to Stopwatch >

Typical stopwatch > View record.

nWay stopwatch

Go to Stopwatch > nWay stopwatch. Four timings indicated left, up, right and down direction appear on the screen.

Press LStart to start timing. During the timing, press <, +, > or - as desired. The selected timing turns to red.

Press LStop to stop timing. Press LCont. to continue timing. Long press left soft key L to reset the

timing.

Press RBack to exit.

Tools 41

Use your file reader

Text reader

This menu allows you to view the text file (.txt file) saved in your phone or the memory card. To view a file through the text reader,

Copy and save the file to My files > Phone >

Others > Ebook.

Go to Tools > Text rea d er.

Press LOptions > Global settings > Select

memory to select Phone. Then press

RDone to confirm.

Existing files are listed.

To display a file correctly, select your desired file, and press LOptions > Global

settings > Encoding. Select the encoding

suitable to your language.

To search for information when viewing a file

You search for specific words, marked information, or different parts of the file. After opening the file, press LOptions to select:

• Find: Find specific words in the file.

• Go to bookmark: Go to the marked information. To do so, add a bookmark where desired by pressing LOptions > Add

bookmark.

• Jump to: Go to the beginning, middle, or end of the file. To skip a certain percentage of the file, select Enter percentage and press LEdit to enter your desired percentage number.

To clear the files created by the system

• In the Bookshelf list, select a desired file, and press LOptions > Clean up bookshelf.

To view a text file (.txt file) on the memory card

Save the file to My files > Memory card >

Others >Ebook.

Go to Tools > Tex t re ade r.

42 Tools

Press LOptions > Global settings > Select

memory to select Memory card. Then press

RDone to confirm.

Existing files are listed.

Use your business assistant

Firewall

Use the firewall to reject the incoming calls and messages from those included in blacklist.

Set the firewall for incoming calls

Go to Tools > Firewall:

Status Set status to On or Off.

Black list number

Edit a list of phone numbers or contacts. After finishing editing black list

number, press LOptionsto:

Edit: Edit black list number. Delete/Delete all: Delete black list

number.

Settings: Choose Incoming Call Refused/Incoming SMS Refused.

Press # to enter the decimal point.

Others

Calculator: Enter figures by using the numeric

keypad. Press +, -, <, >, or ,Ok to select “+”, “-”, “/” , “x” or “=” for your calculation. Press

# to enter a decimal point. Press * to enter

positive/negative sign. Unit converter: You can make different types of unit conversion

at a fixed rate. Press < or > to select unit types, and input figures in boxes.

Tools 43

Browser options: Define the time for an access

7 Browser

You can use this function to browse the Internet. Consult your network operator for the service subscription and WAP settings.

Selecting your WAP account

Usually, your WAP settings are pre-configured on your SIM card. To select your WAP account,

Go to Browser > WAP > Settings.

In WAP profile, select your desired WAP account. Press LOK > Activate profile. To edit the profile, press LOK > WAP

profile.

Managing your browser

In Browser > WAP > Settings,

44 Browser

attempt, choose whether to show images on web pages.

Clear cache, Clear cookies: Clear the history and

cookies of the browser.

Accessing web sites

You can access a web site in different ways:

Home: Access the homepage. To save your

favorite web site as your homepage, on a web page, press LOptions > Set as Homepage to set it as homepage.

Bookmarks: Access the web site saved as a

bookmark. By storing a website as bookmark, you can save and quickly access your favorite websites, and forward them in your messages(see "Creating messages" page 21).

History: Access a web site you visited before. Enter address: Enter a web site address. Offline pages: Access web pages you saved.

Enabling/disabling push messages

WAP push messages are specially formatted SMS messages that contain a URL. With such a URL, you can connect to a web site address through the WAP browser of your phone. To enable or disable the function, go to Browser >

WAP > Settings > Service message settings.

Browser 45

• Before taking a photo, press left soft key L

8 Camera

to select your desired photo settings and storage location.

After a photo is taken

Your mobile phone features a digital camera that allows you to take pictures (up to 2.0 Mega pixels) and record short video clips, store them in your phone/memory card or transfer them to your PC via a data cable, use them as wallpaper or send them to your friends via the MMS, Email or Bluetooth.

Camera

Take photos

On the idle screen, go to Camera > Camera.

• Press , to take a picture;

• Press side volume key V or W to increase or decrease the brightness;

• Press + or - to zoom in or out (image size equal to or smaller than 240×320)

46 Camera

After a photo is taken, it is saved to My files >

Phone or Memory card > Pictures.

• To send the photo, press , to send it via the

MMS.

• To continue photographing, press LBack.

• To delete the photo, press RDelete. To exit the camera, press ).

View pictures

Go to Camera > Camera.

Press left sofy key L to select Photos.

Select your desired photo. If necessary, press + or - to move to previous or next photos.

During viewing pictures, press side volume key V or W and , to zoom in/out and rotate the picture.

Video recorder

Video recording

On the idle screen, go to Camera > Video

recorder.

• Press , to start or pause recording;

• Press < or > to increase or decrease the

brightness;

• Press + or - to zoom in or out;

• Press right soft key R to stop recording;

• To select your desired camcorder settings, video settings, and storage location, press left soft key L; to return to the default settings, select Restore default.

• To save the video clip, press LYes.

Play video clips

Go to Camera > Video recorder.

Press left soft key L to select To pl a ye r.

Press + or - to select the desired video clip, and press ,Play or LOptions > Play.

When playing the video clip, press , to start or pause playback; press right soft key L to stop playback and return to the previous menu.

After a video clip is recorded

Your video clips are saved to My files > Phone

Memory card > Video.

• To send the video clip, press , to send it via the MMS.

• To delete the video clip, press RNo.

Camera 47

Consult your network operator for the serv ices.

9 Entertainment

Java game and application

Your mobile phone features a Java run-time environment, which allows you to run Java applications, such as games downloaded from the network. The first time you launch Java, a message appears to alert you that the installation and configuration of Java will take several moments.

Install Java games and applications

You can download Java games and applications from the Internet to your phone via the WAP, or install them from PC via the supplied USB cable. Before doing so, insert a memory card into your phone (see "Inserting Micro-SD card (memory card)" on Page 12).

48 Entertainment

With the supplied USB data cable, you can copy Java games or applications from a computer to your phone. Make sure that the .jar and .jad files are saved under the same file folder. Select one of the files, press LOptions > Install to start the installation to your phone as prompted.

Run Java games and applications

Your phone is preloaded with some Java games and applications. Select your desired program, and press LLaunch to start it.

Selecting Java settings

Go to Entertainment > Java settings to select your Java settings.

Java audio: Set the volume level. Java vibration: Turn the vibration On or Off. Java network: Select a Java network (service

subscription-dependent).

Stack size: Display allowed maximum size for

Java memory.

Click Title, Artist, Album to edit them as

10 Media player

Music player

Save MP3, MID, AMR, WAV, AAC music files under the Audio folder on your phone and memory card. You can play the music on your phone.

Creating your music library

Edit music files on your PC

Run Windows Media Player (or other music management program) on your PC.

To add music files, click Media Library on the left menu, and then click Add on the top menu.

On the left pane, select All Music. On the right pane, all the music files you added are displayed.

Media player 49

desired.

Operations may vary according to music management software or Windows Media Player versions. Consult the help file of the software.

Transfer music files from PC to your phone

Use the supplied USB data cable to connect your phone with the PC. Select Mass storage on your phone.

Copy the music files from the PC to the

Audio folder on your memory card (see

"Inserting Micro-SD card (memory card)" on Page 12). The first time you use the memory card on this phone, select My files > Memory card. Press LOptions > Format to get it formatted.

Save your music files directly to the Audio folder, instead of one of its sub-folders.

Remove your phone (a USB mass storage device) from the PC safely. Music files in supported formats are transferred to the music player. Go to My files to check the files you transfer to the memory card.

Playing music

The music files are organized in two folders on the phone or memory card.

Tracks: all the songs transferred to the music

player.

Artists: songs sorted by artist.

Play music files

In Media player > Music player, select your desired song in a folder. Press ,Play. You start playback from the song. On the

playback screen, the file information and selected playback settings are displayed.

To select your plackback settings, Press LOptions > Settings:

Repeat > Repeat One: Play current file

repeatedly.

Repeat > Repeat All: Play all the files in the

folder repeatedly.

Shuffle > On: Turn it on to play music files in

the folder randomly.

Play in background: Continue to play music

after exiting the music player.

To return to the playback screen, press

RBack.

During playback (on the playback screen)

< or >: Press repeatedly to select a song. < or >: Long press to select a section within

a song. Volu m e si d e ke ys V or W: Adjust the volume.

,: Pause and resume playback.

-: Press and hold to mute or unmute music.

50 Media player

RBack: Return to the previous menu ): Exit the music player and go to the idle

screen.

To turn off the music player on the idle screen,

• Press ), and then press LYes.

Create playlists

You can create up to 10 playlists for songs that you wish to play at this time.

Go to the Tracks or Artists folder. Select your desired song.

Press LOptions > Add to Playlists. Existing playlists are displayed.

To create a new playlist, select

playlist, and then assign a file name to the

playlist. Repeat Step 1 and 2.

Select a playlist where you add the song. The song is added to the selected playlist.

Listen to music through a stereo

Media player 51

Playlists

> New

Bluetooth headset

Check that the Bluetooth is powered on, and your stereo Bluetooth headset supports A2DP profile (Bluetooth stereo output).

For more information, please see "Connecting to a Bluetooth device" on Page 59。

FM radio

Tuning to a radio station

To tune to a radio station, always pull out the built-in antenna. Turn the antenna in different directions to get better reception. Or, plug the supplied headset into your phone.

•Auto tune

In Media player > FM radio, press LOptions > Preset auto search. The radio frequency scanning starts automatically. Up to 20 available radio stations are saved to Channel list. The first preset radio station starts to play.

Select your desired station from Channel list. If necessary, press RBack to go to the playback screen.

On the radio playback screen, press + or to search for an available station with sufficient reception. Press < or > select a preset station.

• Select band range

On the FM radio, you can define the band range for freqency scanning. On radio playback screen, press LOptions > Settings > Band to select your desired band range.

When changing to another band range, you need to re-edit your preset stations in the channel list.

• Manual tune

In Media player > FM radio, press LOptions > Set frequency.

Use numeric keypad to enter your desired radio frequency. Press LOK to confirm.

52 Media player

Editing the channel list

You can assign a preset to a certain location. When pressing the numeric key on the radio playback screen, you tune to the station immediately.

In Media player > FM radio, press LOptions > Channel list to select a location (1-9) for your preset (Location 1 to 9 corresponding to numeric keys 1 to 9).

Press LOptions:

Rename: Rename the channel. Delete: Delete current channel.

Tune to your desired station (see "Tuning to a radio station").

On the radio playback screen, long press your desired numeric key. Current station is saved to the location (corresponding to the numeric key) in

Channel list.

To edit the channel name, press LOptions > Channel list to select a channel. Press

LOptions to edit the channel name.

Listening to a radio station

You can listen the radio through the built-in loudspeaker, or plug in the supplied headset to listen through the headset.

Go to Media player > FM radio. The last played station starts to play.

Tune to your desired station (see "Tuning to a radio station"). Or on the playback screen, press a numeric key to select a preset station.

On the radio playback screen, press , to start/pause/resume playback.

Continuing playback after exiting the FM radio

On the playback screen, press LOptions >

Settings > Background play.

When playing music, press < or > to turn on the background play. Playback continues after you exit the FM radio.

During playback (on the idle screen), press < or > to select a preset station.

To stop playback, press , or ), and then press LYes to exit the FM radio.

Record radio programs

You can record a radio program when listening to it.

On the radio playback screen, press

LOptions > Record to start recording.

Press RPause/Cont. to pause or resume recording. Press RStop to stop recording. A file name is generated for the recording

Media player 53

file. Edit the file name as desired, if necessary.

Press ,Save to save the file. You can find the recording file under My files > Phone or Memory card > Audio.

RDS (dependent on the radio station service)

The feature RDS (Radio Data System) is a service that allows FM stations to send additional information along with the regular FM radio signal.

When you are listening to an RDS station, received text information appears on the screen, including station name, program type (for example, News, Sports, and Info), and frequency.

To enable the RDS reception of your phone

In Music > FM radio, press LOptions > Settings > RDS, and select On.

54 Media player

Select Phone or Memory card, if you have

11 My files

On the phone, all the files are stored under the folders of the phone memory or memory card.

Formatting the memory card

Format your memory card the first time you use it on the phone.

Go to My files > Memory card.

Press ROptions to select Format, and select

RYes to confirm.

If necessary, backup your information saved in the memory card before format the memory card.

installed a memory card on your phone. Select your desired file folder:

Pictures: for photos, like .jpg files and others Video: for video files, and others Audio: for audio files, like sound recording,

radio recording, music files, ringtones, and others

Others: for all other files, like Ebook (for

files readable through Tools > Text reader), and files received via the Bluetooth.

If necessary, open a folder, and press

ROptions

order of name, type, time or size.

To find your files on the phone, save the files under the Pictures, Video, Audio and Others folders on the phone or memory card.

Sort by to show files in the

Finding your files

Go to My files.

My files 55

Managing your files

Create sub-folders

You can create sub-folders under the folders (like Pictures, Video, Audio and Others) or an existing sub-folder.

Select a folder or sub-folder under which you wish to create a folder.

Press ROptions > New folder.

In the editing screen, enter a file name. Select your desired text entry methods (see “Text entry” on page 13). Press RBack to exit the input mode, if necessary, press

ROptions

A sub-folder is created.

Done to finish editing.

Manage your files

You can copy and move, delete, or rename your files.

Select a file under a folder.

56 My files

Press ROptions to select your desired option: Rename, Copy, Move, Delete, Delete

all files.

To copy or move a file, select the desired folder, and press:

,Open: Open a sub-folder under current

folder/sub-folder, and move or copy the file to it.

ROptions

current folder or sub-folder.

ROptions

under current folder/sub-folder, and move or copy the file to it.

Sharing your files

You can share your files with others via the MMS, E-mail, or Bluetooth.

Select the desired file, and press ROptions >

Use.

Select the option to send the file via the MMS, E-mail, or Bluetooth. If you send your files via the Bluetooth,

Done: Move or copy the file to

New folder: Create a sub-folder

check your Bluetooth connection first. (see "Bluetooth" on page 59)

Using photos

Set a photo as wallpaper

Select a photo under My files > Pictures. Image size equal to or smaller than 250KB.

Press ROptions

Use > To wallpaper.

Set a photo as screensaver

You can set a photo as the screensaver of your phone. After the set time span in idle mode, the screensaver appears, hiding the information on the idle screen of your phone.

Select a photo under My files > Pictures. Image size equal to or smaller than 250KB.

Press ROptions

Use > To screen saver.

"Add a contact to Smart phonebook" on page

32).

Select a photo under My files > Photos or

Images.

Image size equal to or smaller than 20KB.

Press ROptions

Select your desired contact or group (in the Smart Phonebook located on your phone, see "Add a contact to Smart phonebook" on page 32). Press RYes.

Use > To Phonebook.

Setting audio files as ringtone

Select an audio file under Audio.

Press ROptions

Use > To User profiles.

Set a photo as contact picture

You can use your photo as the contact picture of the contacts in your Smart Phonebook (see

My files 57

12 Calls

You are provided with the records about your incoming and outgoing calls.

Go to Calls to check your call history.

Go to Calls to check your call history. You can reply to such calls or add such contacts

to your phone book. Go to All calls/Missed calls/

Outgoing calls/Answered calls/Rejected calls, select

the contact or phone number, and press

LOptions to select your desired options.

Go to Clear history to clear your call history as desired.

58 Calls

Go to Bluetooth > Power. Press ROn if

13 Bluetooth

About Bluetooth

Your phone supports Bluetooth wireless technology, allowing connection to a compatible Bluetooth device within 10 meters. The Bluetooth connection can be subject to interference from obstructions such as walls or other electronic devices.

Before you can apply Bluetooth, make sure the other device supports Bluetooth function by contacting the device’s manufacturer or its accompanied documentation.

Connecting to a Bluetooth device

Consult the user documentation of the Bluetooth device to be connected. Prepare the Bluetooth device for pairing.

Bluetooth 59

necessary, to turn on the Bluetooth function.

Select Bluetooth > Find devices to start searching for available Bluetooth devices. A list of available Bluetooth devices appears.

Select the device you wish to connect. Press

RBond.

Enter the Bluetooth password (0000 by default) to start pairing. The pairing is made if your pairing request is accepted by the other device.

To check available services, select the device, and press ROptions > Service list.

Connect to a Bluetooth headset

Follow Step 1 and 2 under "Connecting to a Bluetooth device".

In Settings > Audio path, check that you have selected Forward to Bluetooth headset.

Select Find devices to start searching for available Bluetooth devices. A list of available Bluetooth devices appears.

Select the device you wish to connect. Press

RBond.

Enter the password of your Bluetooth headset to start pairing. The pairing is made if the password is correctly input.

Enter the password again for connection. You will find successfully connected device in My devices.

To listen to music or audio files through a Bluetooth stereo headset

Consult the user documentation of the Bluetooth headset. Check that your Bluetooth headset supports A2DP profile (Bluetooth stereo output).

To listen to music through the Bluetooth stereo headset, go to Media player > Music player, and select and play your desired songs.

60 Bluetooth

To control music playback through a Bluetooth headset

Consult the user documentation of the Bluetooth headset. Check that your Bluetooth headset supports AVRCP profile (audio/video remote control).

Use your phone as the remote control for other Bluetooth devices

You can use your phone to remotely control a Bluetooth-enabled HID-compliant device, like a PC. Refer to the steps in "Connecting to a Bluetooth device" when making Bluetooth connection in Remote control.

Connect to a device you connected previously

On the device, check that the Bluetooth function is enabled.

Turn on the Bluetooth of your phone.

On the phone, go to Bluetooth > My devices. Check that the device is in the list. The connection is established. If necessary, select the device and press ROptions >

Connect.

Getting connected by a Bluetooth device

Go to Bluetooth > Settings:

My name: Press ROK to edit your phone

name to be identified by other Bluetooth devices.

Visibility: Turn it on to make your phone

visible to other Bluetooth devices

Authentication: Turn it on if a password

(0000 by default) is required to accept the connection request.

Go to Bluetooth > Power. Press ROn if necessary, to turn on the Bluetooth function. The paring is made when you receive and

Bluetooth 61

accept the paring request (enter the password 0000 if necessary).

Editing your device list

All the devices you have connected are saved to

My devices. To edit the device list,

Go to Bluetooth > My devices.

To rename or delete a device, press

ROptions to select your options.

If you do not use the Bluetooth feature for some time, you should deactivate it in order to conserve battery power.

To change the settings:

14 Profiles

Adjusting ring settings to different scenes

The profiles are defined for several scenes. They consist of the settings for ringtones, ring volume, answer mode, and others. With preset profiles, you can easily adjust incoming calls and messages as desired.

Define your profiles

This phone has provide you with several preset profiles. You can use the default settings or change them as desired.

The settings for Silence and Flight mode (on a plane) are unchangeable.

62 Profiles

In Profiles, select the profile to be changed.

Press LSettings.

Select your desired option and make changes as desired.

Apply a profile

In Profiles, select the profile to be applied.

Press ,Select to activate the profile. To activate or deactivate the Meeting mode on idle screen (by default, vibration on or off for incoming calls or messages), long press # on the idle screen.

If you select Flight mode, you disable the connection between your phone and your mobile phone network.

PIN protection: Set PIN or PIN2

15 Settings

General

Language Select a language for your phone.

Time and date

Security setup

Settings 63

Set the clock of the phone (see "Set clock" on page 11).

This menu allows you to use passwords to protect your SIM card, phone, and information stored on the phone. After the password protection is enabled, you are required to enter passwords each time you access the functions or turn on the phone.

You can also set your auto keypad lock, and limits to outgoing calls.

password protection for your SIM card (The PIN or PIN2 are provided by the network operator).

If you enter an incorrect PIN code three times in succession, the PIN code of your SIM card will be locked automatically and you will be prompted to enter the PUK code to unlock it. You can obtain the PUK code from your network operator. If you enter an incorrect PUK code ten times in succession, the SIM card will be locked permanently. When this happens, please contact your network operator or retailer.

Phone lock: Set password

protection for your phone. You are required to enter the password each time you turn on the phone (0000 by default).

Auto keypad lock: Set an idle time

span for the keypad to be locked automatically. To unlock the keypad, long press

Change password: Change your

PIN, PIN2, phone, or IP passwords as desired.

Safeguard: Set password

protection for call history, messages, phonebook, or files stored on the phone (0000 by default). Select your choice, and press R to turn on or off the protection.

64 Settings

Fast keys Set a navigation key as a direct

Shortcuts Set a quick access menu consisting

Speed dail Set a numeric key as a direct dial

Memory status

Restore factory settings

access to a menu (See "Fast keys" on page 3).

of functional sub-menus. To use such a quick access menu, set it as a fast key first (see "Power-saving mode" on page 4).

to a contact (See "Speed dial" on page 16).

Check the memory occpancy of Contacts and Messages: on phone and SIM card, or on phone and memory card (if a memory card is inserted on your phone).

Restore your phone settings to the default values. You need to enter your phone lock password (0000 by default).

Display

Wallpaper Select an image as the wall paper

Screen saver

Backlight level

Backlight duration

Settings 65

of your phone. You can select either a default wallpaper or one of your pictures stored in My files.

The screen saver can be those preloaded on the phone, or your own pictures.

After the set time span, the preset image appears to hide the display on the screen.

Select the brightness of backlight.

Select the duration of backlight.

Show own number

Greeting Select whether to show greetings

Select whether to show your phone number or name on the idle screen. Set your phone number or name in Contacts > Special numbers > My

numbers.

when your phone is turned on.

Sounds

Alert type Select alert types. Ring tones Select a ringtone for incoming

Ring volume

Key sound Select whether the key sounds

Low battery alert

Connectivity

Call options Minute reminder: Get reminded

66 Settings

calls and messages. Adjust the volume of rings.

when pressed. Select whether a warning tone is

emitted when the battery level is low.

after the call time span once or repeatedly.

Call services:

• Call time display: Display call time during a call.

• Associate picture display: Display picture of a contact for incoming calls.

• Call time: Check call time.

• Call costs: network-dependent.

Call waiting: Get informed of an

incoming call when on phone (networkdependent, see "Answer a second call" on page

19).

Call forward: Divert incoming calls

to your voice mailbox or to another phone number (regardless of whether or not the number is in your phonebook).

Message settings

Call barring: Set limits to your

incoming and outgoing calls. Select Change barring password to change the call barring password. (network-dependent and requiring a call barring password provided by the network operator).

Auto redial: Keep redialing the call

number that fails to go through.

Fixed dialing: Restrict your

outgoing calls to certain numbers (PIN2 code required).

IP prefix: (network -dependent,

available only in China): Add the preset IP number to outgoing call numbers.

SMS and MMS settings. (see "Defining your message settings"

Network settings

Network selection: Select the

network for your phone (service subscription-dependent).

Automatic is recommended.

Preferred networks: Select your

preferred network.

GPRS connection: Select how to

search the network.

Connections The menu allows you to define

the Internet access profiles of your phone. Such profiles are usually pre-defined in your SIM card. Consult your network operator for details.

Java settings Java audio: Set the volume level.

Java vibration: Turn the vibration On or Off.

on page 25)

Settings 67

Java network: Select a Java

network (service subscriptiondependent).

Stack size: Display allowed

maximum size for Java memory.

68 Settings

Battery

- The bars indicate the battery

Icons & symbols

In idle mode, several symbols can be displayed simultaneously on the main screen. When pressing some of the status icons, the corresponding menu will be displayed on the screen.

If the network symbol isn’t displayed, the network is currently not available. You may be in a bad reception area, moving to a different location may help.

Silent

- Your phone will not ring when

receiving a call.

Vibration only

when there is an incoming call.

SMS

message.

MMS

multimedia message.

Icons & symbols 69

- Your phone will vibrate

- You have received a new SMS

- You have received a new

level (4 bars = full, 1 bar = low).

Missed call

- You have a missed call.

Call divert

- All your incoming voice

calls are being forwarded to a number.

Bluetooth - Bluetooth feature is

activated.

Bluetooth headset - The Bluetooth

headset is connected.

Headset

- The headset is plugged into

the phone.

Alarm - The alarm clock has been

activated.

Roaming

- Displayed when your phone is registered to a network other than your own (especially when you’re abroad).

Home zone

network operator. Subscription dependent, contact your service provider for details.

GSM network

to a GSM network.

Reception quality:

- A zone designated by your

: your phone is connected

the more bars are

Memory card - Indicates the memory

card is in use. You can access your memory card through the My files menu.

Keypad lock - The keypad has been

locked.

shown the better the reception is. Tap on the icon to switch between the

flight mode and normal mode.

Wap message - You have received a

Wap push message in the message inbox.

GPRS attach

- Your phone is connected

to the GPRS network.

70 Icons & symbols

Precautions

Radio Waves

Your cellular mobile phone is a low power radio transmitter and receiver. When it is operating, it

sends and receives radio waves. The

radio waves carry your voice or data signal to a base station that is connected to the telephone network. The network controls the power at which the phone transmits.

• Your phone transmits/receives radio waves in

the GSM frequency ( 900 / 1800 / 1900 MHz).

• The GSM network controls transmission

power (0.01 to 2 watts).

• Your phone complies with all relevant safety

standards.

• The CE mark on your phone shows

compliancy with European electromagnetic

compatibility (Ref. 89/336/EEC) and low

voltage directives (Ref. 73/23/EEC). Your cellular mobile phone is your responsibility. To avoid damage to yourself, to others or to the phone itself, read and follow all the safety instructions and make them known to anyone borrowing your phone. Furthermore to prevent unauthorised use of your phone:

Keep your phone in a safe place and keep it out of small children's reach.

Avoid writing down your PIN code. Try to remember it instead.

Switch off the phone and remove the battery if you are going to leave it unused for a long time. Change your PIN code after purchasing the phone and to activate call restriction options.

The design of your phone complies with all applicable laws and regulations. However your phone may cause interference with other electronic devices. Consequently you should

follow all local recommendations and regulations when using your cellular phone both at home and when away. Regulations on

the use of cellular phones in vehicles and aircraft are particularly stringent.

Public concern has been focused for some time on the possible health risks for users of cellular phones. The current research on radio wave technology, including the GSM technology, has been reviewed and safety standards have been drawn up to ensure protection from exposure to radio wave energy. Your cellular telephone

complies with all applicable safety standards

and the Radio Equipment and Telecommunications Terminal Equipment Directive 1999/5/EC.

Always switch off your phone...

Inadequately protected or sensitive electronic equipment may be affected by radio energy.

This interference can lead to accidents.

Before boarding an aircraft and/ or when packing the phone in your luggage: the use of mobile phones

the operation of the aircraft, disrupt the mobile phones network and may be illegal.

In a vehicle transporting flammable products (even if the vehicle is parked) or a vehicle powered by liquefied petroleum gas (LPG), check first that the vehicle complies with the applicable safety rules.

in an aircraft may be dangerous for

In hospitals, clinics, other health care centres and anywhere else where you may be in the close vicinity of medic

equ

ipment.

In areas with a potentially explosive atmosphere (e.g. petrol stations and

also areas where the air contains dust particles, such as metal powders).

In areas where you are requested to turn off radio transmitting devices, such as quarries or other areas where blasting operations are in progress.

Check with the vehicle manufacturer that electronic equipment used in your vehicle will not be affected by radio energy.

Pacemakers

If you have a pacemaker:

• Always keep the phone more than 15 cm from your pacemaker when the phone is switched on, in order to avoid potential interference.

• Do not carry the phone in a breastpocket.

• Use the ear opposite to the pacemaker to minimise the potential interference.

• Switch off your phone if you suspect that interference is taking place.

Hearing aids

If you are a user of a hearing aid, consult your physician and hearing aid manufacturer to learn whether your particular device is susceptible to cellular phone interference.

Improved performance

In order to improve the performance of your phone, reduce radio energy emission, reduce battery consumption and ensure safe operation adhere to the following guidelines:

For the optimal and satisfactory operation of the phone you are recommended to use the phone in the

normal operating position (when not using in hands-free mode or with a hands-free accessory).

• Do not expose your phone to extreme

temperatures.

• Treat the phone with care. Any misuse will void the International Guarantee.

• Do not immerse the phone in any liquid; if your phone is damp, switch it off, remove the battery and let them dry for 24hrs before using them again.

• To clean the phone, wipe it with a soft cloth.

• Placing and receiving calls consumes the same amount of battery energy. However, the mobile consumes less energy in idle screen when kept in the same place. When in idle screen and while you are moving, your phone consumes energy to transmit updated location information to the network. Setting the backlight for a shorter period of time as well as avoiding unnecessary navigating in the menus will also help to save the battery’s energy for longer phoning and stand-by performances.

Battery information

• Your phone is powered by a rechargeable battery.

• Use specified charger only.

• Do not incinerate.

• Do not deform or open the battery.

• Do not allow metal objects (such as keys in your pocket) to short circuit the battery contacts.

• Avoid exposure to excessive heat (>60° C or 140° F), moisture or caustic environments.

You should only use Philips Authentic Accessories, as the use of any other accessories may damage your phone

and may be dangerous, and will make all guarantees for your Philips phone null and void. The use of an incorrect type of battery may also cause an explosion.

Make sure damaged parts are replaced immediately by a qualified technician and that they

are replaced with genuine Philips replacement parts.

Your mobile phone and your car

Studies have shown that speaking on the telephone while driving lowers your concentration, which can be dangerous. Adhere to the following

guidelines:

• Give your full attention to driving. Pull off the road and park before using the phone.

• Respect the local regulations in countries where you drive and use your GSM phone.

• If you want to use your phone in a vehicle, install the hands-free car kit which is designed for that purpose.

• Ensure that your phone and car kit do not block any air bags or other security devices fitted in your car.

• The use of an alarm system to operate a vehicle's light or horn to indicate incoming

phone calls is prohibited on public roads in some countries. Check local regulations.

EN 60950 Norm

In hot weather or after prolonged exposure to the sun (e.g., behind a window or a windscreen), the temperature of your phone's casing might increase, especially when featuring a metallic finish. Be very careful in this case when picking up your phone and also avoid using it with an ambient temperature over 40° C.

For your phone, the socket-outlet shall be installed near the phone and shall be accessible.

Environmental care

Remember to observe the local regulations regarding the disposal of the packaging materials, exhausted batteries and old phone and please

promote their recycling.

Philips has marked the battery and packaging with standard symbols designed to promote the recycling and appropriate disposal of your eventual waste.

The labelled packaging material is recyclable.

A financial contribution has been made to the associated national packaging recovery and recycling system.

The plastic material is recyclable (also identifies the type of plastic).

WEEE Marking in the DFU: “Information to the Consumer”

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/ EC

Please inform yourself about the local separate collection system for

electrical and electronic products. Please act according to your local rules and do

not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Tips

How to prolong the battery life of your phone

To have your mobile phone function properly, sufficient battery power is important. For the power-saving purpose, do the following, if applicable:

Turn off the Bluetooth function of your phone.

Set the backlight level of your phone to a low value. Or, turn on the light sensor.

Set the backlight duration of your phone to a low value.

Turn on the auto keypad lock. When the keypad is locked, your phone goes to the power-saving mode.

Turn off the key sounds, tap vibration, or vibration alerts.

Establish GPRS connection when needed. Otherwise, your phone will keep searching for GPRS connection, and drain your battery power.

Turn off your phone if there is no coverage. Otherwise, the phone will keep searching for network, and drain your battery power.

Troubleshooting

The phone does not switch on

Remove/reinstall the battery. Then charge the phone until the battery icon stops scrolling. Unplug the charger and try to switch the mobile on.

The display shows BLOCKED when you switch on the phone

Somebody tried to use your phone but didn’t know the PIN code nor the unblocking code (PUK). Contact your service provider.

The display shows IMSI failure

This problem is related to your subscription. Contact your operator.

Your phone doesn’t return to idle screen

Long press the hang-up key or switch off the phone, check that the SIM card and the battery are installed correctly and switch it on again.

The network symbol is not displayed

The network connection is lost. Either you are in a radio shadow (in a tunnel or between tall buildings) or you are outside the network coverage area. Try from another place, try to reconnect to the network (especially when abroad), check that the antenna is in place if your mobile has an external antenna, or contact your network operator for assistance/information.

The display doesn’t respond (or the display responds slowly) to key presses

The display responds more slowly at very low temperatures. This is normal and does not affect

the operation of the phone. Take the phone to a warmer place and try again. In other cases please contact your phone supplier.

Your battery seems to over heat

You might be using a charger that was not intended for use with your phone. Make sure you always use the Philips authentic accessory shipped with your phone.

Your phone doesn’t display the phone numbers of incoming calls

This feature is network and subscription dependent. If the network doesn’t send the caller’s number, the phone will display Call 1 or

Withheld instead. Contact your operator for

detailed information on this subject.

You can’t send text messages

Some networks don’t allow message exchanges with other networks. First check that you have entered the number of your SMS centre, or

contact your operator for detailed information on this subject.

You can’t receive and/or store JPEG pictures

A picture may not be accepted by your mobile phone if it is too large, if its name is too long, or if it doesn’t have the correct file format.

You feel that you have missed some calls

Check your call divert options.

When charging, the battery icon shows no bar and the outline is flashing

Only charge the battery in an environment where the temperature does not go below 0°C (32°F) or above 50°C (113°F).

In other cases please contact your phone supplier.

The display shows SIM failure

Check that the SIM card has been inserted correctly. If the problem persists, your SIM card may be damaged. Contact your operator.

When attempting to use a feature in the menu, the display shows NOT ALLOWED

Some features are network dependent. They are only available, therefore, if the network or your subscription supports them. Contact your operator for detailed information on this subject.

The display shows INSERT YOUR SIM CARD

Check that the SIM card has been inserted correctly. If the problem persists, your SIM card may be damaged. Contact your operator.

The autonomy of your phone seems lower than indicated on the user guide

The autonomy is linked to your settings (e.g., ringer volume, backlight duration) and the features you use. To increase the autonomy, and whenever possible, you must deactivate features you do not use.

Your phone doesn’t work well in your car

A car contains many metallic parts that absorb electromagnetic waves which can affect the phone’s performance. A car kit is available to provide you with an external antenna and enables you to make and receive phone calls without handling the handset.

Check with the local authorities whether or not you are allowed to use the phone while driving.

Your phone is not charging

If the battery is completely flat, it might take several minutes of pre-charge (up to 5 minutes in some cases) before the charging icon is displayed on the screen.

The picture captured with the phone camera is not clear

Make sure that the camera lens on both sides is clean.

Philips Authentic Accessories

Some accessories, such as a standard battery, headset, USB cable and a charger, are included as standard accessories in your mobile phone package. Additional accessories may also be provided or sold separately. Package contents may therefore vary.

To maximize the performance of your Philips mobile phone and not to void the warranty, always purchase Philips Authentic Accessories that are specially designed for use with your phone. Philips Consumer Electronics cannot be held liable for any damages due to use with non authorised accessories.

Charger

Charges your battery in any AC outlet. Small enough to carry in a briefcase/handbag.

Headset

Your phone will activate the headset profile automatically when you plug in the headset.

When using the supplied one-key headset, press the key to answer a call, and long press the key to end the call.

USB cable

When connected to a computer through the USB cable (compatible with most computers), your phone can work as

Charger Charges the battery on the

Mass Storage

phone. Allows the data transfer between

PC and the phone, or the microSD card inserted into the phone;

Allows the data management on the phone, or micro-SD card through your PC.

Webcam Acts as a web camera on your

COM port Allows you to back up phone

When the transfer is finished, please make sure that you safely remove your device based on the instruction of your computer.

PC.

data, like phonebooks, on a computer or recover the data from the computer.

To do so, install the supplied Data communication software (MobilePhoneTools) on your computer (see "Data communication software" as below).

Data communication software

Data communication software (MobilePhoneTools) offers instant sychronization between your phone and your

computer. You can use the software for the data synchronization between your phone and PC, like phonebook, calendar, SMS messages, and audio/video/picture files. With the software and GPRS service, you can also connect your PC to the Internet through your phone.

Install MobilePhoneTools on your PC

Insert the supplied Data communication software into the CD drive.

Run the autorun.exe program.

Make selections as prompted, and installation starts automatically.

Connecting your Phone to the PC

Connect your phone to the PC using the supplied USB cable or through the Bluetooth. When using the USB cable for connection, select COM port on your phone. The first time you connect your phone to

the PC, wait till the USB driver of your phone is successfully installed.

On your PC, double click the MobilePhoneTools icon. On the bottom left of the menu, “Philips X320 is connected” is displayed.

Trademark Declaration

Tegic Euro. Pat.

App. 0842463

T9® is a registered trademark of Nuance Communications, Inc.

JAVA is a trademark of Sun Microsystems, Inc.

Bluetooth™ is a trademark owned by telefonaktiebolaget L M Ericsson, Sweden and licensed to Philips.

PHILIPS and PHILIPS’ Shield Emblem are registered trademarks of Koninklijke Philips Electronics N.V. manufactured by Shenzhen Sang Fei Consumer Communications Co., Ltd. under license from Koninklijke Philips Electronics N.V.

Specific Absorption Rate Information

International standards

THIS MOBILE PHONE MEETS THE INTERNATIONAL RECOMMENDATIONS FOR EXPOSURE

Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) energy defined by the international standards. These recommendations have been established by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) and, the Institute of Electrical and Electronics Engineers (IEEE) that forecast a substantial safety margin for assuring the protection of all persons, regardless of age and health.

The exposure recommendations for mobile phones use a measurement unit known as the Specific Absorption Rate (SAR). The SAR limit recommended by the ICNIRP for the mobile phones used by the general public is 2.0W/kg averaged over ten grams of tissue and, is 1,6W/kg averaged over one gram of tissue by IEEE Std 1528 for the head.

Tests for SAR have been conducted using recommended operating positions with the mobile phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR levels of the mobile phone while operating are generally below the maximum SAR value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.

TO RADIO WAVES

While there may be differences between the SAR levels of various phones and at various positions, they all meet the international protection standards for exposure to radio waves.

The highest SAR value for this Xenium X320 model phone when tested for compliance against the standard was 0.293 W/kg for ICNIRP recommendation.

For limiting the radio waves exposure, it is recommended to reduce the mobile phone call duration or to use a headset. The purpose of those precautions is to take the mobile phone away from the head and the body.

Limited Warranty

1. What Does This Limited Warranty

Cover?

Philips warrants to the original retail purchaser (“Consumer” or “You”) that this Philips cellular product and all accessories originally provided by Philips in the sales package (“Product”) are free from defects in materials, design and workmanship under normal use in accordance with the operating instructions and pursuant to the following terms and conditions. This limited warranty extends only to the Consumer for Products purchased and used in the original country of purchase. The limited warranty is valid only in Philips’ intended country of sales of the product.

2. How Long is The Limited Warranty Period? The limited warranty period for the

Product extends for ONE (1) YEAR from the date of purchase of the Product,

documented by valid proof of purchase. The limited warranty for original Philips rechargeable battery extends for six (6) months from the date of purchase.

3. What Will Philips Do if The Product is Not Free From Material Defects in Materials and Workmanship During The Limited Warranty Period?

During the limited warranty period, Philips or its authorized service representative will, at its option either repair or replace, without charge for parts or labour, a materially defective Product with new or refurbished parts or Product and return such repaired or replaced Product to the Consumer in working condition. Philips will retain defective parts, modules or equipment.

Repaired or replaced Product will be covered by this limited warranty for the balance of the original limited warranty period or ninety (90) days from the date of repair or replacement whichever is longer.

Repair or replacement of Product, at Philips’ option is your exclusive remedy.

4. What is Not Covered By This Limited Warranty?

This limited warranty does not cover: a) Product that has been subjected to

misuse, accident, shipping or other physical damage, improper installation, abnormal operation handling, neglect, inundation, fire, water or other liquid intrusion; or

b) Product that has been damaged due to

repair, alteration, or modification by anyone not authorized by Philips; or

c) Product that has reception or

operation problems caused by signal conditions, network reliability or cable or antenna systems; or

d) Product defects or problems caused by

uses with non-Philips products or accessories; or

e) Product which warranty/quality

stickers, product serial number or electronic serial number has been removed, altered or rendered illegible; or

f) Product purchased, used, serviced, or

shipped for repair from outside the original country of purchase, or used for commercial or institutional purposes (including but not limited to Products used for rental purposes); or

g) Product returned without valid proof

of purchase or which proof of purchase has been altered or is illegible.

h) Normal wear and tear or Force

Majeure.

5. How Do You Get Warranty Service? a) Return the Product to an authorized

service center of Philips. You may contact the local Philips office for the location of the nearest authorized service center.

b) The SIM card must be removed from

the Product before it is given to Philips. Philips assumes no liability for damaged or loss of the SIM card or the data contained therein.

c) If the Product failure is not covered by

this limited warranty, or this limited warranty is inapplicable, void or invalid due to any terms and conditions stated herein, the Consumer will be charged for the cost of repair or replacement of the Product and all other related cost incurred in repairing or replacing the Product.

d) IMPORTANT - you are required to

return the Product together with a valid proof of purchase which must identify the point of purchase, date of purchase, Product model and Product serial number clearly.

6. Other Limitation: This Warranty is The Entire Agreement.

EXCEPT FOR THE EXPRESS WARRANTIES SET FORTH ABOVE AND THOSE IMPLIED BY LAW AND WHICH CANNOT BE EXCLUDED OR MODIFIED BY AGREEMENT, PHILIPS PROVIDES NO OTHER WARRANTY WHETHER EXPRESS OR IMPLIED (WHETHER BY STATUTE, UNDER THE OPERATION OF LAW OR OTHERWISE) AND SPECIALLY DISCLAIMS ANY WARRANTY OF SATISFACTORY QUALITY MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

PHILIPS’ TOTAL LIABILITY FOR DAMAGES RELATING TO OR ARISING OUT OF THE PURCHASE OR USE OF THE PRODUCT, REGARDLESS OF THE TYPE OR CAUSE OF SUCH DAMAGE OR THE FORM OR CHARACTERISATION OF THE CLAIM ASSERTED (E.G. CONTRACT OR TOPIT), SHALL NOT EXCEED THE ORIGINAL PURCHASE PRICE PAID FOR THE PRODUCT.

HOWEVER IN NO EVENT SHALL PHILIPS BE LIABLE FOR ANY PUNITIVE, SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO THE LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERIAL LOSS, LOST PROFITS, LOST BUSINESS OPPORTUNITIES, COST OF SUBSTITUTION OF GOODS OR SERVICES, INVESTMENTS, DAMAGE TO GOODWILL OR REPUTATION, OR LOSS OF DATA AND CLAIMS BY THIRD PARTIES) RESULTING FROM PURCHASE OR USE OF THE PRODUCT, TO THE FULLEST EXTENT ALLOWED BY LAW, WHETHER OR NOT PHILIPS HAS BEEN ADVISED OF THE POSSIBILTY OF SUCH DAMAGES. THESE LIMITATIONS SHALL APPLY NOTWITHSTANDING THE FAILURE OF THE ESSENTIAL PURPOSE OF ANY LIMITED REMEDY.

This limited warranty represents the complete and exclusive agreement between the Consumer and Philips with respect to this cellular Product and it supercedes all prior agreements between the parties, oral or written, and all other communications between the parties relating to the subject matter of this limited warranty. No carrier, retailer, agent, dealer, employee, thereof, or employee of Philips is authorized to make modifications to this limited warranty and you should not rely on any such representation.

This limited warranty does not affect the Consumer’s statutory rights under applicable national laws in force.

Declaration of Conformity

We ,

Shenzhen Sang Fei Consumer Communications Co., Ltd. 11 Science and Technology Road, Shenzhen Hi-tech Industrial Park, Nanshan District, Shenzhen 518057 China

declare under our sole responsibility that the product

Xenium X320

Philips GSM/GPRS 900/1800/1900 TAC number: 35183704

to which this declaration relates, is in conformity with the following Standards:

SAFETY : EN 60950-1: 2006 HEALTH: EN50360: 2001 EN62209-1:2006 EMC: EN301 489-1 V1.8.1; EN 301 489-7 V1.3.1; EN 301 489-17 V1.3.2

SPECTRUM: EN 301 511 V9.0.2; EN 300 328 V1.7.1

We hereby declare that all essential radio test suites have been carried out and that the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

The conformity assessment procedure referred to in Article 10 and detailed in Annex IV of Directive 1999/5/EC has been followed with the involvement of the following Notified Body:

involvement of the following Notified Body: TÜV RHEINLAND PRODUCT SAFETY GMBH

Am Grauen Stein 51105 Köln Germany Identification mark: 0197

November 11, 2009

Connie Shen

Philips CTX 320 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Icons & Symbols 83

Precautions 85

Tips 92

Troubleshooting 93

Philips Authentic Accessories 97

Trademark Declaration 100

Specific Absorption Rate Information 101

Limited Warranty 103

Declaration of Conformity 107

Inserting the SIM card

Charging the battery

Set clock

Inserting Micro-SD card (memory card)

Select text entry methods

Entering text

Making a call

Answering and ending a call

Options during a call

Making an emergency call

Creating messages

Organizing your messages

Defining your message settings

Voice mail server

E-mail

Broadcast message

Adding or editing contacts

Searching for a contact

Managing your contacts

Special numbers

Using your business organizer

Sound recorder

Using your clock and timer

Use your file reader

Use your business assistant

Selecting your WAP account

Managing your browser

Accessing web sites

Enabling/disabling push messages

Camera

Video recorder

Java game and application

Music player

FM radio

Formatting the memory card

Finding your files

Managing your files

Sharing your files

Using photos

Setting audio files as ringtone

You are provided with the records about your incoming and outgoing calls.

About Bluetooth

Connecting to a Bluetooth device

Getting connected by a Bluetooth device

Editing your device list

Adjusting ring settings to different scenes

General

Display

Sounds

Connectivity

WEEE Marking in the DFU: “Information to the Consumer”
