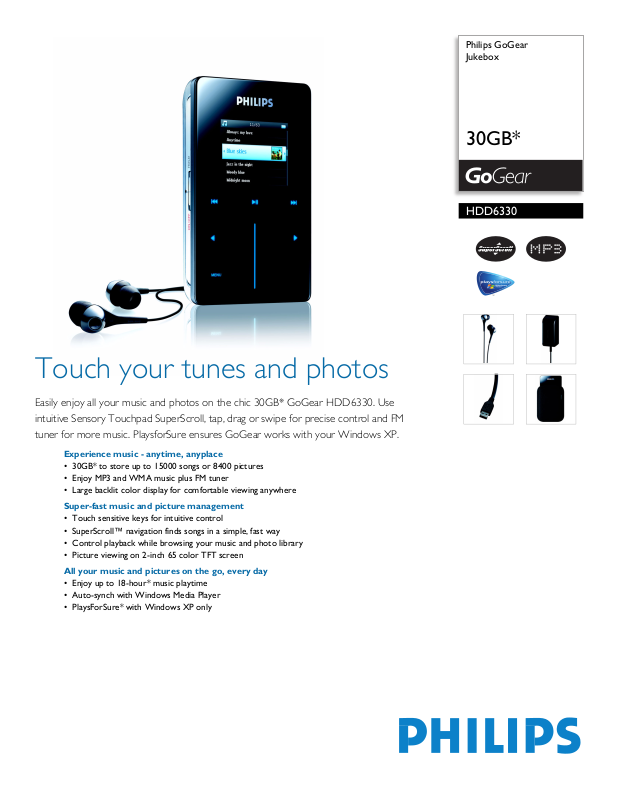

Philips GoGear
Jukebox
30GB*
HDD6330
Touch your tunes and photos
Easily enjoy all your music and photos on the chic 30GB* GoGear HDD6330. Use
intuitive Sensory Touchpad SuperScroll, tap, drag or swipe for precise control and FM
tuner for more music. PlaysforSure ensures GoGear works with your Windows XP.
Experience music - anytime, anyplace
• 30GB* to store up to 15000 songs or 8400 pictures
• Enjoy MP3 and WMA music plus FM tuner
• Large backlit color display for comfortable viewing anywhere
Super-fast music and picture management
• Touch sensitive keys for intuitive control
• SuperScroll™ navigation finds songs in a simple, fast way
• Control playback while browsing your music and photo library
• Picture viewing on 2-inch 65 color TFT screen
All your music and pictures on the go, every day
• Enjoy up to 18-hour* music playtime
• Auto-synch with Windows Media Player
• PlaysForSure* with Windows XP only
Page 2
Jukebox
30GB*
Technical specifications
For preview purpose only
HDD6330/17
Picture/Display
• Type: TFT-Transreflective
• Diagonal screen size (inch): 2inch
• Resolution: 220 x 176 pixels, 65K color
• Lines of text: 8
• Backlight color: White
Sound
• Equalizer: 5-bands
• Equalizer settings: Classic, Jazz, Hip Hop,
Spoken word, Rock, Pop, RnB, Dance,
Electronica, Lounge
• Frequency response: 20 - 16 000 Hz
• THD: 0.1%
• Signal to noise ratio: >82 dB
• Output Power: 2x5mW (16 Ohm)
• Sensitivity: < 100dB
• Equalizer customizable
• Bass enhancement: SRS WOW
Audio Playback
• Compression format: MP3, Windows
Media™ Audio, WAV
• MP3 bit rates: 8-320 kbps and VBR
• WMA bit rates: 32-192 kbps
• WMA sample rates:
8,11.025,16,22.050,32,44.1,48
• Buffer memory: 64 MB
• ID3 Tag support: Album title and artist
name, Genre ti tle, T rack tit le and ar tist n ame
Audio Capturing
• Voice recording
• Built-in microphone: mono
• Audio file format: WAV
Accessories
• AC/DC Adaptor/Charger: Multi-voltage
(AY4110)
• USB cable: combined with AC/ DC adaptor
in Y cable
• Headphones: SHE9500BI/00
• Pouch: Protective pouch (AY4238)
• CD-ROM: with installer, PC software,
manuals
• User Guide on CD-ROM: EN, FR, ES, NL,
DE, PO, SV, IT, SU, DA, CS, RU, HU, EL, PL,
SL
Green Specifications
• Lead-free soldered product
System Requirements
• PC OS: Windows XP (SP1 or above)
• Processor: Pentium II or better
• Hard disk space: 100 MB
• RAM memory: 64 MB
•CD-ROM drive
• Sound card
•Video card
Dimensions
• Master carton quantity: 3
• Product dimension (WxDxH) inch: 2.52 x
4.09 x 0.66 inch
• Packaging type: Clamshell
• Blister dimensions (WxDxH): 8.25" x 11.0" x
2.83"
• Carton dimensions (WxDxH): 9.25" x
10.83" x 12.01"
• Product weight: 150 g kg
Tuner/Reception/Transmission
• Frequency range: 87.5 - 108 MHz
• Station presets: 20
• Tuner Bands: FM
•
Storage Media
• Built-in memory type: Hard disk
• Hard Disk Capacity: 30* GB
• Music memory capacity: Up to 15000 songs*
Connectivity
• DC in: 5V
• Headphone: 3.5 mm
• USB: USB 2.0
• Connector: Philips dock connector
Convenience
• Battery charging indication
• Battery full indication
• Battery low indication
• Function: Keypad lock
• Language support:
Eng,Fr,Spa,Dutch,Ge,Port,Swe, It, Ch smpl,
Ch trad, Jap, Korean
•Superscroll
Date of issue 2006-07-03
Version: 3.0
12 NC: 9073 101 02188
Power
• Battery capacity: 830 mAh
• Battery Type: Li-ion
• Charging time: 1 hour fast charge (70%), 4
hrs full charge hr
• Rechargeable
• Playtime on internal battery: up to 17 hours*
Still Picture Playback
• Picture compression format: JPEG
• Slide show
Software
• Windows Media Player 10
•Device manager
• PlaysForSure: Audio Download, Audio
Subscription
Audio Recording
• FM recording
• Recording formats: PCM
• Line in: analogue
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
Page 3
Jukebox
30GB*
For preview purpose only
HDD6330/17
Product highlights
SuperScroll™ navigation
Doub le action sea rch keys a llow easy spe ed contro l wh en
scrolling through large libraries. You can choose to move
through your playlist one song at a time or just press and
hold down a little harder to SuperScroll™ swiftly to your
desired track.
PlaysForSure*
Enjoying your GoGear device is simple with PlaysForSure
which ensures compatibility with Windows Media Player
10 and Windows XP. Using Windows Media player you
can easily manage music on your GoGear digital audio
player and auto-synchronize your PC music collection.
Also, enjoy the widest online shopping selection by simply
looking for the PlaysForSure logo at your choice of online
store. Then rest assured knowing any music you purchase
there will work with your GoGear player.
* 1GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
* Storage capacity based on 4 minutes per song and 64 kbps WMA or
128 kbps MP3 encoding.
* Storage capacity based on 5 Mpixel pictures.
* The PlaysForSure, Windows Media and the Windows logo are
trademarks, or registered trademarks of Microsoft Corporation in
the United States and/or other countries.
* Actual transfer speed may vary based on your operating system and
software configuration.
