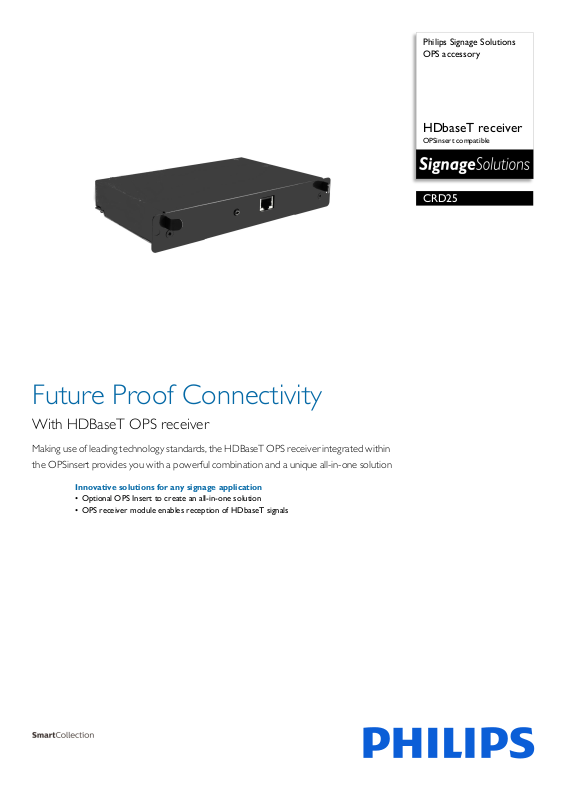

Page 1
Philips Signage Solutions
OPS accessory
HDbaseT receiver
OPSinsert compatible
CRD25
Future Proof Connectivity
With HDBaseT OPS receiver
Making use of leading technology standards, the HDBaseT OPS receiver integrated within
the OPSinsert provides you with a powerful combination and a unique all-in-one solution
Innovative solutions for any signage application
• Optional OPS Insert to create an all-in-one solution
• OPS receiver module enables reception of HDbaseT signals
Page 2
CRD25/00
OPS accessory
HDbaseT receiver OPSinsert compatible
Specifications
Related Products
• Compatible with: BDL4256ET, BDL4260EL,
BDL4271VL, BDL4280VL, BDL4660EL,
BDL4671VL, BDL4677XH, BDL4678XL,
BDL4680VL, BDL4765EL, BDL5551EL,
BDL5556ET, BDL5560EL, BDL5571VL,
BDL5580VL, BDL5588XH, BDL5588XL
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1280 x 768 60Hz
1280 x 800 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1920 x 1080p 60Hz
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
deo formats
• Vi
Resolution Refresh rate
1080i 50, 60Hz
1080p 50, 60Hz
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
Dimensions
•Set dimensions (W x H x D):
141.1 x 23.5 x 105.8 mm
Operating conditions
• Altitude: 0 ~ 3000 m
• Relative humidity: 20 ~ 80 %
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• MTBF: 60,000 hour(s)
Miscellaneous
• Regulatory approvals: CB, CE, C-Tick, FCC, Class
B, RoHS, UL/cUL, VCCI
• Warranty: 3 year warranty
Accessories
• Included accessories: Quick start guide, RS232
cable
•
Highlights
OPS Insert
Turn your display into an all-in-one digital signage
solution and create a display network which is
connected, intelligent and secure. Open Pluggable
Specification (OPS) is an industry standard slot into
which you can add an OPS-standardized media
player. This cable free solution gives you the ability
to install, use or maintain your hardware whenever
you need.
HDbaseT signals
HDbaseT is a connectivity standard over a single
CAT5e / 6 cable, converging uncompressed full HD
digital video, audio signals.
Issue date 2022-04-21
Version: 3.0.1
12 NC: 8670 001 11649
EAN: 87 12581 71116 0
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
