Philips Comfort HR2864 User Manual

Download

Page 1

Comfort

HR2864

Page 2

Page 3

Page 4

Page 5

HR2864

ENGLISH 6

Page 6

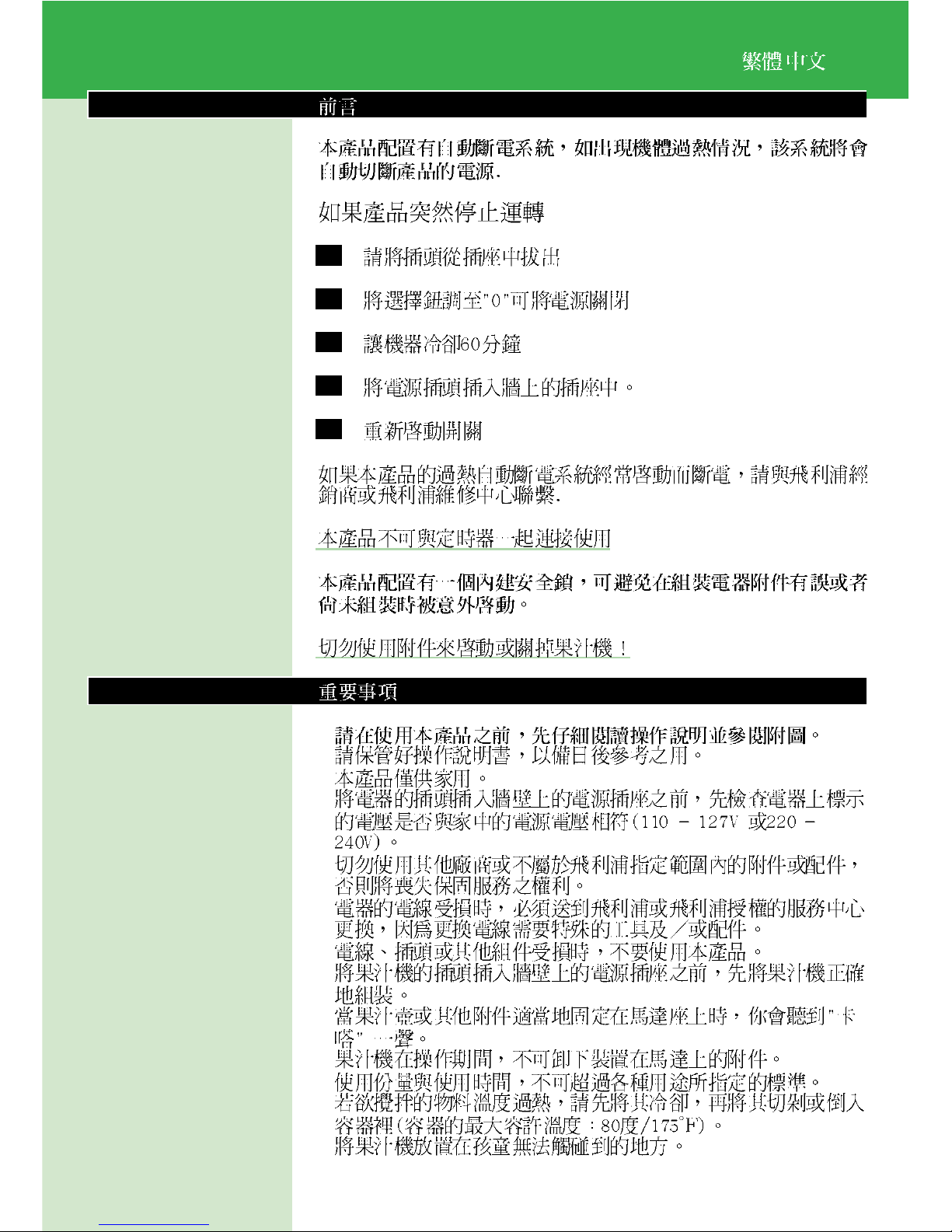

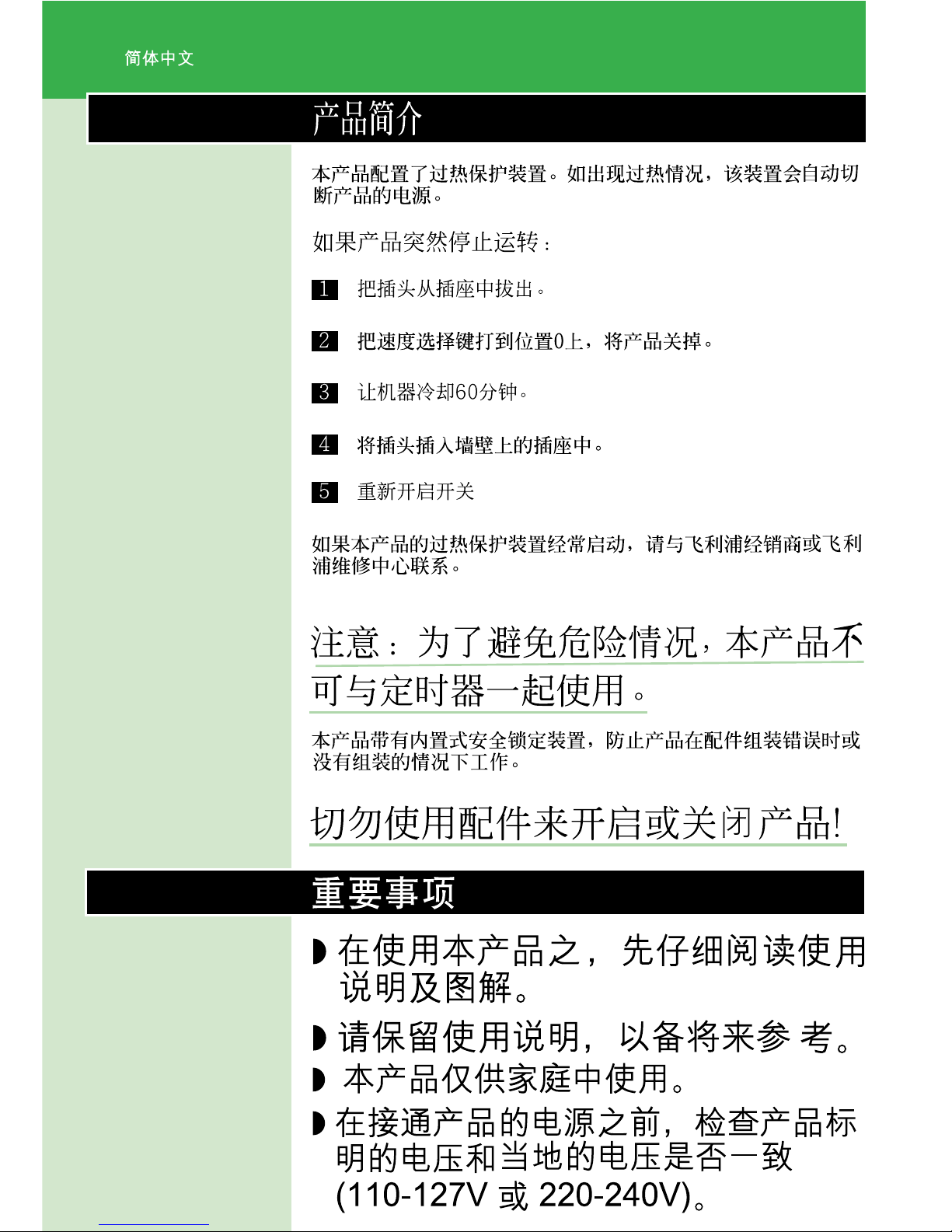

Introduction

The appliance has been equipped with an automatic thermal cut-off system.This system will automatically cut off the power supply to the appliance in case of overheating.

If your appliance suddenly stops running:

1 Pull the mains plug out of the wall socket.

2 Set the selector knob to position 0 to switch the aplliance off.

3 Let the appliance cool down for 60 minutes.

4 Put the mains plug in the wall socket.

5 Switch the appliance on again.

Please contact your Philips dealer or authorised Philips service centre if the automatic thermal cut-off system is activaed too often.

CAUTION: In order to avoid a hazardous situation, this appliance must never be connected to a timer switch.

The appliance has been equipped with a built-in safety lock that prevents it from functioning if the accessories have been assembled incorrectly or have not been assembled at all.

Never use the accessories to turn the appliance on and off!

Important

◗ Please read these instructions carefully and look at the illustrations

before using the appliance.

◗ Keep these instructions for further reference. ◗ This appliance is intended for household use only. ◗ Check if the voltage indicated on the appliance corresponds to the

local mains voltage (110 - 127V or 220 - 240V) before you connect the appliance to the wall socket.

◗ Never use any accessories or parts from other manufactures or

which have not been specifically advised by Philips.Your guarantee will become invalid if such accessories or parts have been used.

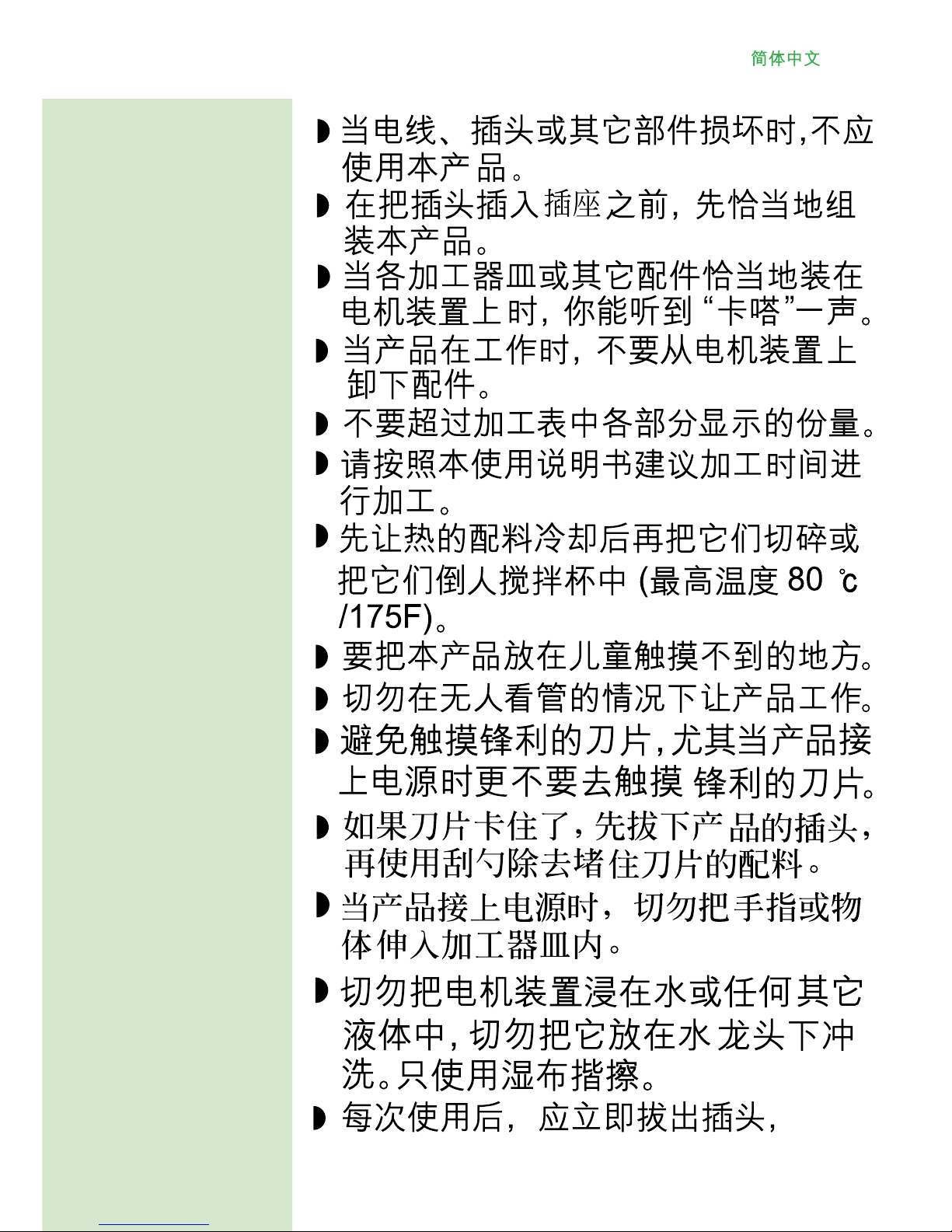

◗ If the mains cord of this appliance is damaged, it must always be

replaced by Philips or a service centre authorised by Philips, as special tools and/or parts are required.

◗ Do not use the appliance when the mains cord, the plug or other

components are damaged.

◗ Assemble the appliance properly before plugging it into the wall

socket.

◗ When the jar unit or other accessories are properly fixed on the

motor unit, you can hear the 'click' sound.

ENGLISH6

Page 7

◗ Do not remove accessories from the motorunit when the

appliance is working.

◗ Do not exceed the quantities and preparation times indicated in

the diverse sections.

◗ Let hot ingredients cool down before chopping them or pouring

them into the blender jar (max. temperature 80cC/175cF).

◗ Keep the appliance out of the reach of children. ◗ Never let the appliance operate unattended. ◗ Avoid touching the SHARP blades, especially when the appliance is

plugged in.

◗ If the blades get stuck, UNPLUG THE APPLIANCE before removing

the ingredients that are blocking the blades by using a spatula.

◗ Never reach into the jar or bowl with your fingers or an object

while the appliance is running.

◗ Never immerse the motor unit in water or any other fluid, nor

rinse it under the tap. Use only a moist cloth.

◗ Unplug the appliance immediately after use, e.g. before unscrewing

the jar.

◗ Please keep these instructions for use for further reference. ◗ This appliance is intended for household use only.

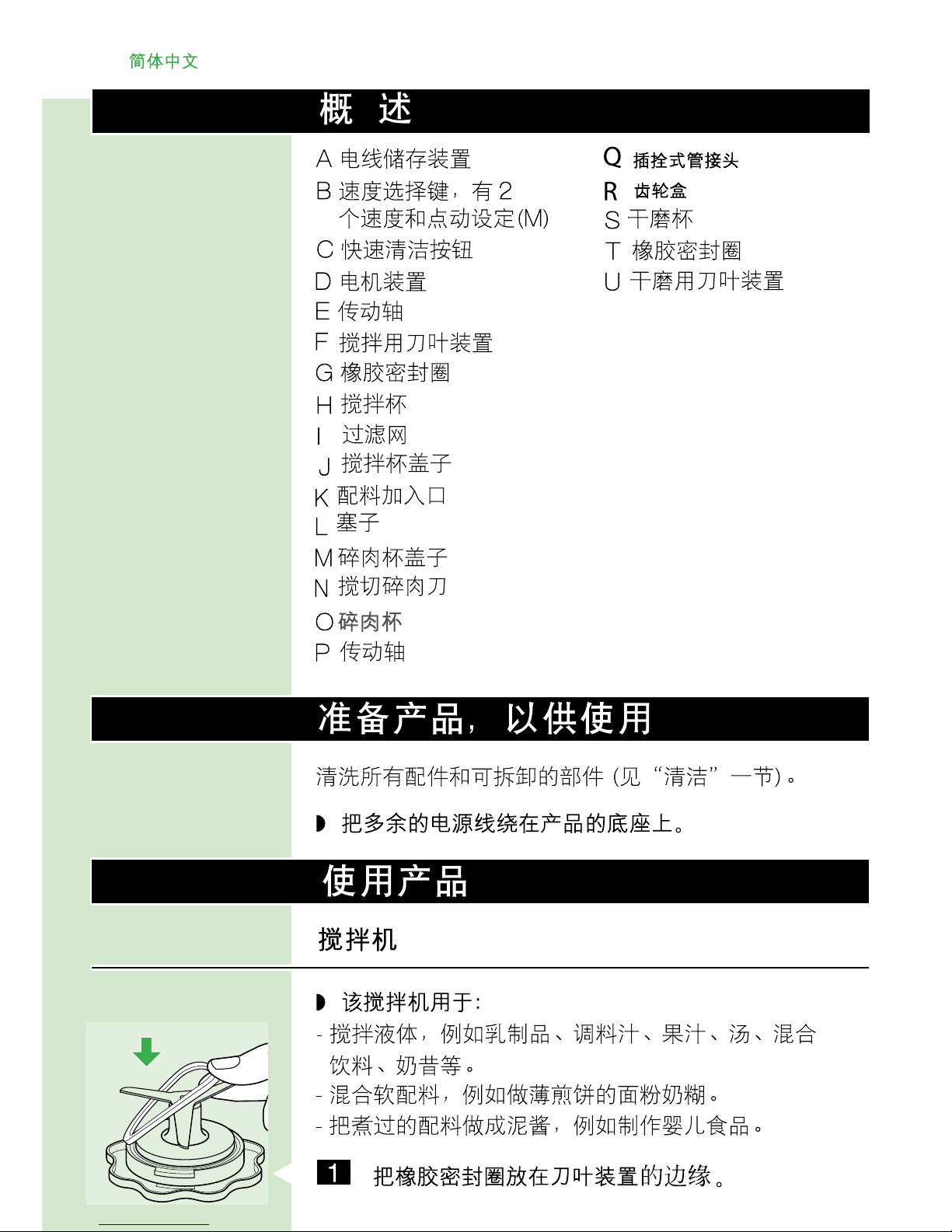

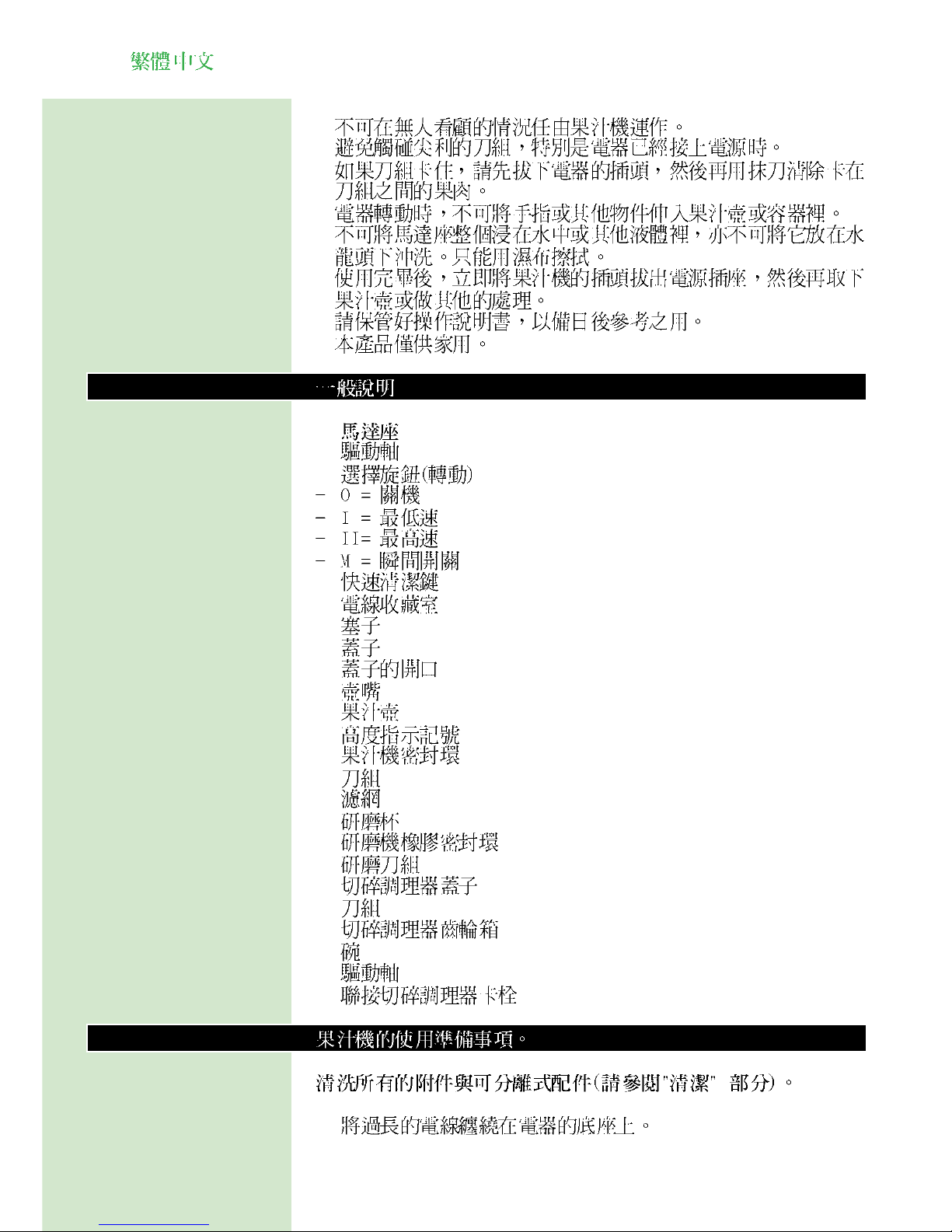

General description

A Cord storage B Speed selector with 2 speeds and pulse setting (M) C Quick Clean button D Motor unit E Driving Shaft F Knife unit G Rubber sealing ring H Blender jaR I Fruit filter J Lid of jar K Opening for adding ingredients L Stopper M Lid of chopper N Chopper blade O Bowl P Driving axis Q Bayonet coupling unit R Chopper gearing box S Mill beaker T Rubber sealing ring U Blade unit

Preparing the appliance for use

Wash all accessories and detachable parts (see section 'Cleaning').

◗ Wind excess mains cord around the base of the appliance.

ENGLISH 7

Page 8

Using the appliance

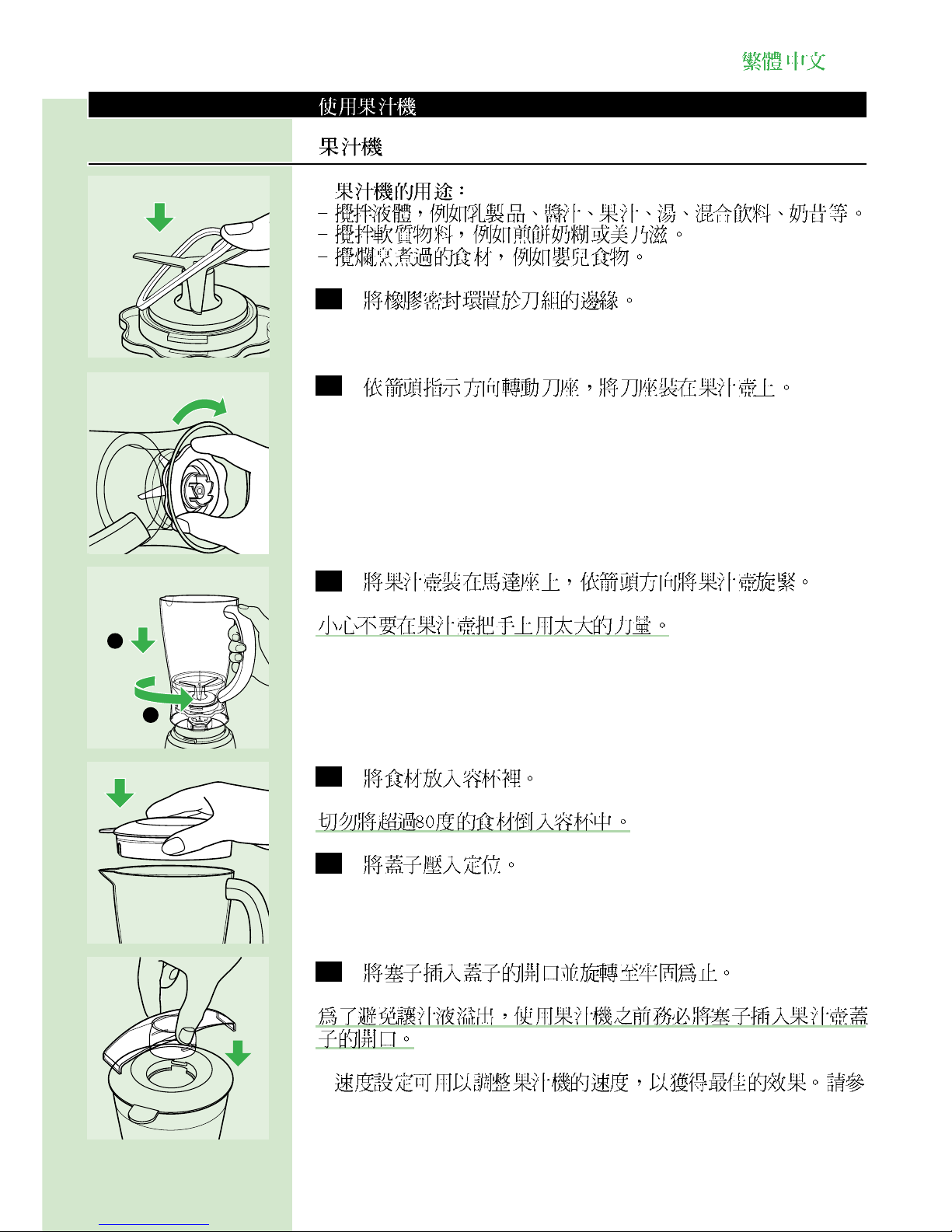

Blender

◗ The blender is intended for:

- Blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks, shakes.

- Mixing soft ingredients, e.g. pancake batter or mayonnaise.

- Pureeing cooked ingredients, e.g. for making baby food.

1 Put the rubber sealing ring around the edge of the knife unit.

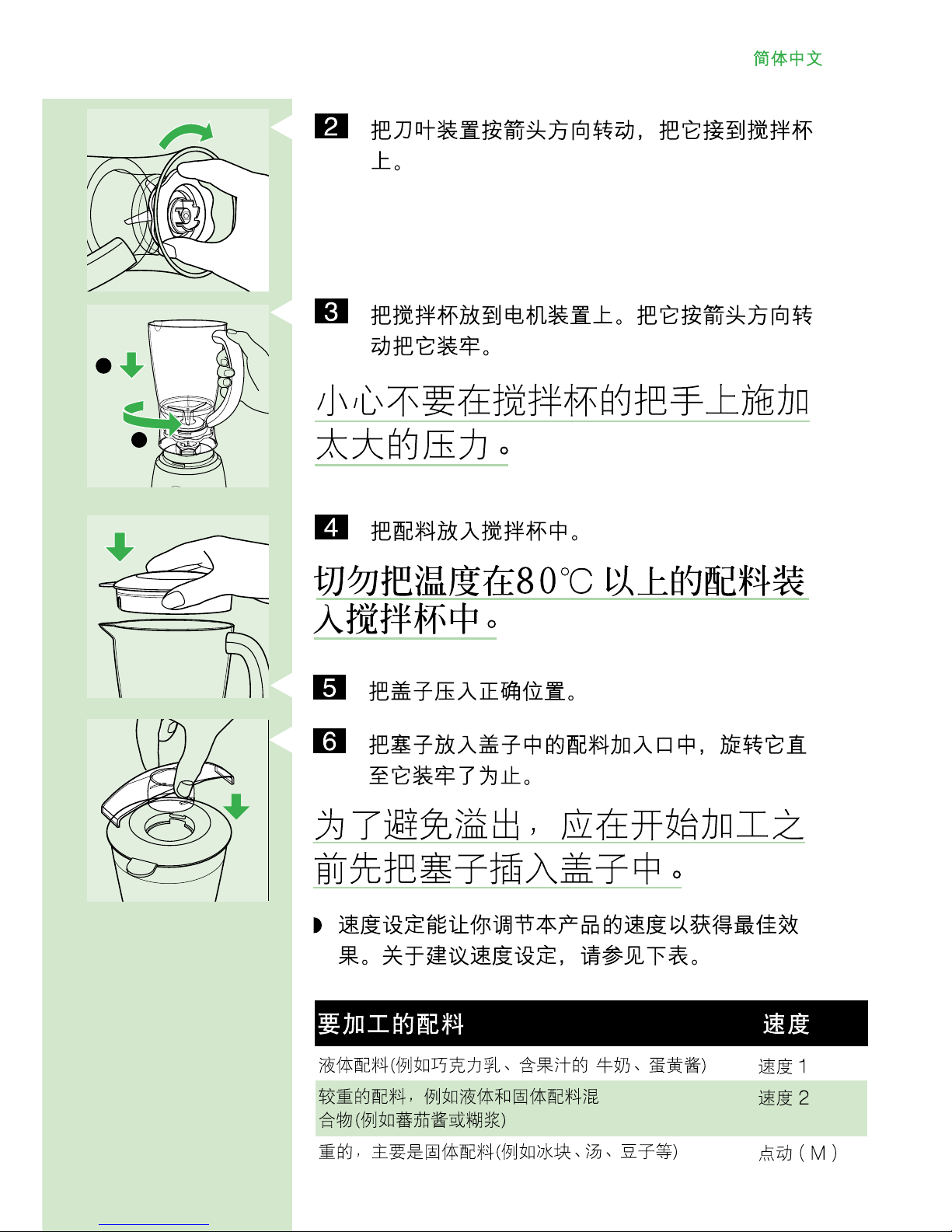

2 Attach the knife unit to the blender jar by turning it in the

direction of the arrow.

3 Mount the jar unit onto the motor unit. Fix it by turning it in

the direction of the arrow.

Be careful not to exert too much pressure on the handle of the jar.

4 Put the ingredients in the jar.

Never fill the jar with ingredients that have a temperature of over 80cC.

5 Press the lid into place.

6 Place the stopper into the opening in the lid and turn it until it

is firmly fixed.

To avoid spillage, always insert the stopper into the lid before you start processing.

◗ The speed settings allow you to adjust the speed of the appliance

to obtain optimal results. See the table for the recommended speed settings.

ENGLISH8

Page 9

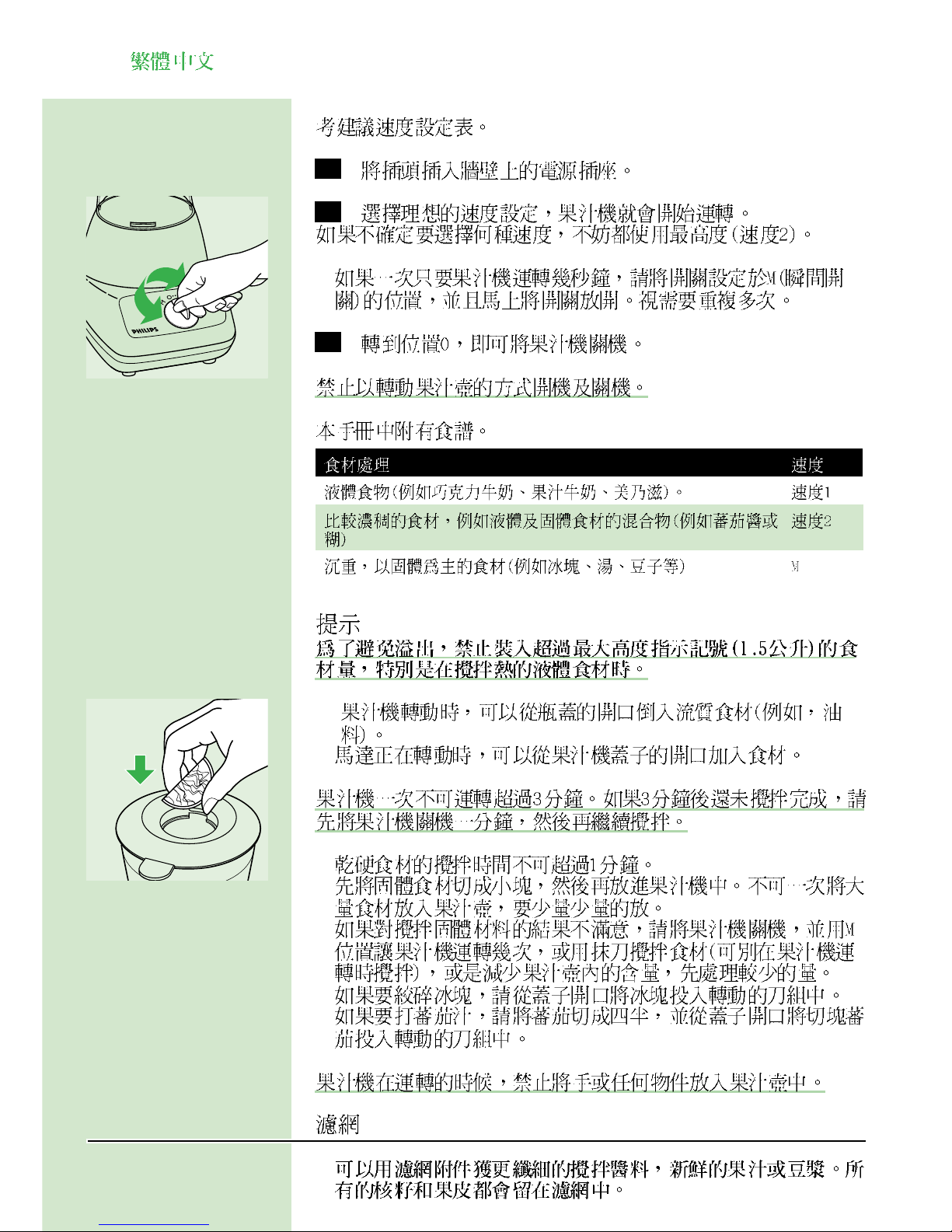

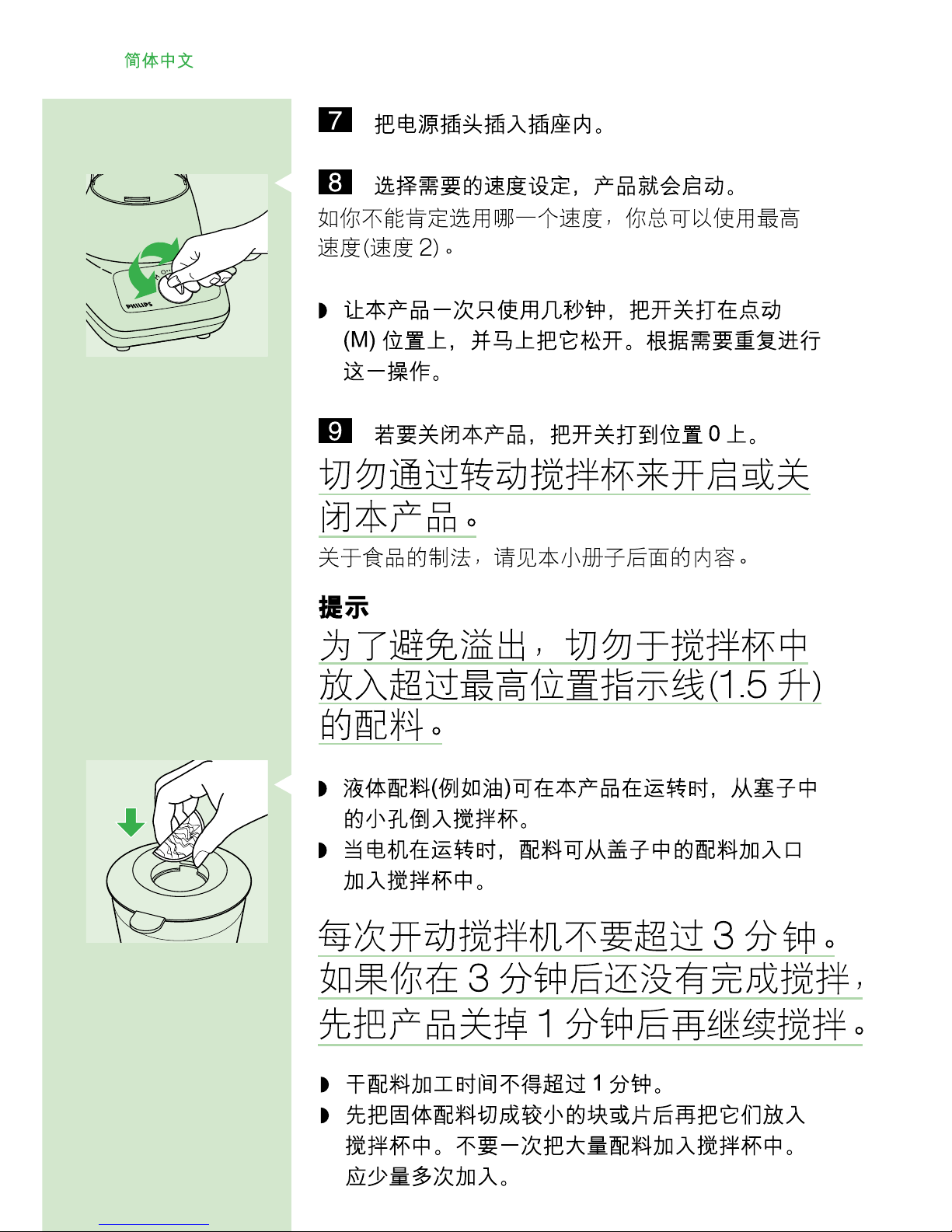

7 Put the mains plug in the wall socket.

8 Select the desired speed setting and the appliance will switch on.

If you are not sure which speed to select, you can always use the highest speed (speed 2).

◗ To let the appliance run for only a few seconds at a time, set the

switch to position M (Momentum) and release it straight away. Repeat this as often as necessary.

9 To switch the appliance off, switch to position 0.

Never switch the appliance on and off by turning the jar.

For recipes see further on in this booklet.

Tips

To avoid spillage, never fill the jar above the maximum level indication (1,5 litres), particularly not when you are blending hot liquids.

◗ Liquid ingredients (e.g. oil) can be poured into the blender jar

while the appliance is running through the opening in the stopper.

◗ While the motor is running, ingredients can be added into the

blender through the opening in the lid.

Do not run the blender for more than 3 minutes at a time. If you have not finished blending after 3 minutes, switch the appliance off for one minute before you continue blending.

◗ Dry ingredients must not be processed for more than 1 minute. ◗ Pre-cut solid ingredients into smaller pieces before putting them

into the blender. Do not feed a large quantity at once into the blender jar. Feed a series of small amounts.

◗ If you are not satisfied with the result at blending solid materials,

switch the blender off and let it run briefly a number of times by means of the M position. Or stir the ingredients with a spatula (not while the blender is running), or reduce the contents of the jar and process smaller amounts.

◗ To grind ice cubes, drop them into the rotating knives through the

opening in the lid.

◗ To make tomato juice, cut the tomatoes in four and drop the

pieces onto the rotating knives through the opening in the lid.

Never put your hand or any object in the jar while the blender isrunning.

ENGLISH 9

Speed

speed 1

speed 2

Ingredients to process

liquid ingredients (e.g. chocolate milk, milk with fruit, mayonnaise)

heavier ingredients e.g. a combination of liquid and solid ingredients (e.g. tomato sauce or pate)

heavy, mainly solid ingredients (e.g. ice cubes, soups, beans, etc.)

Page 10

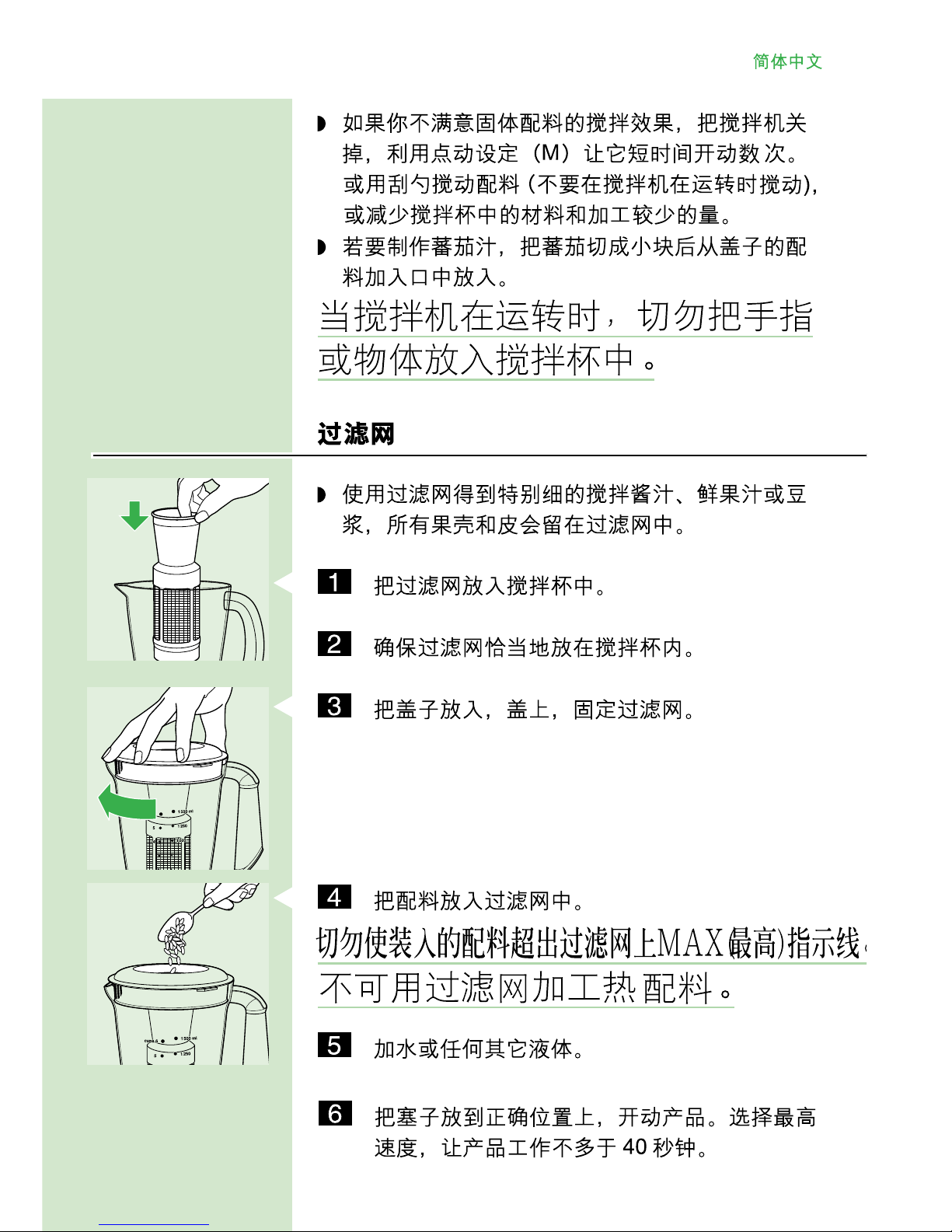

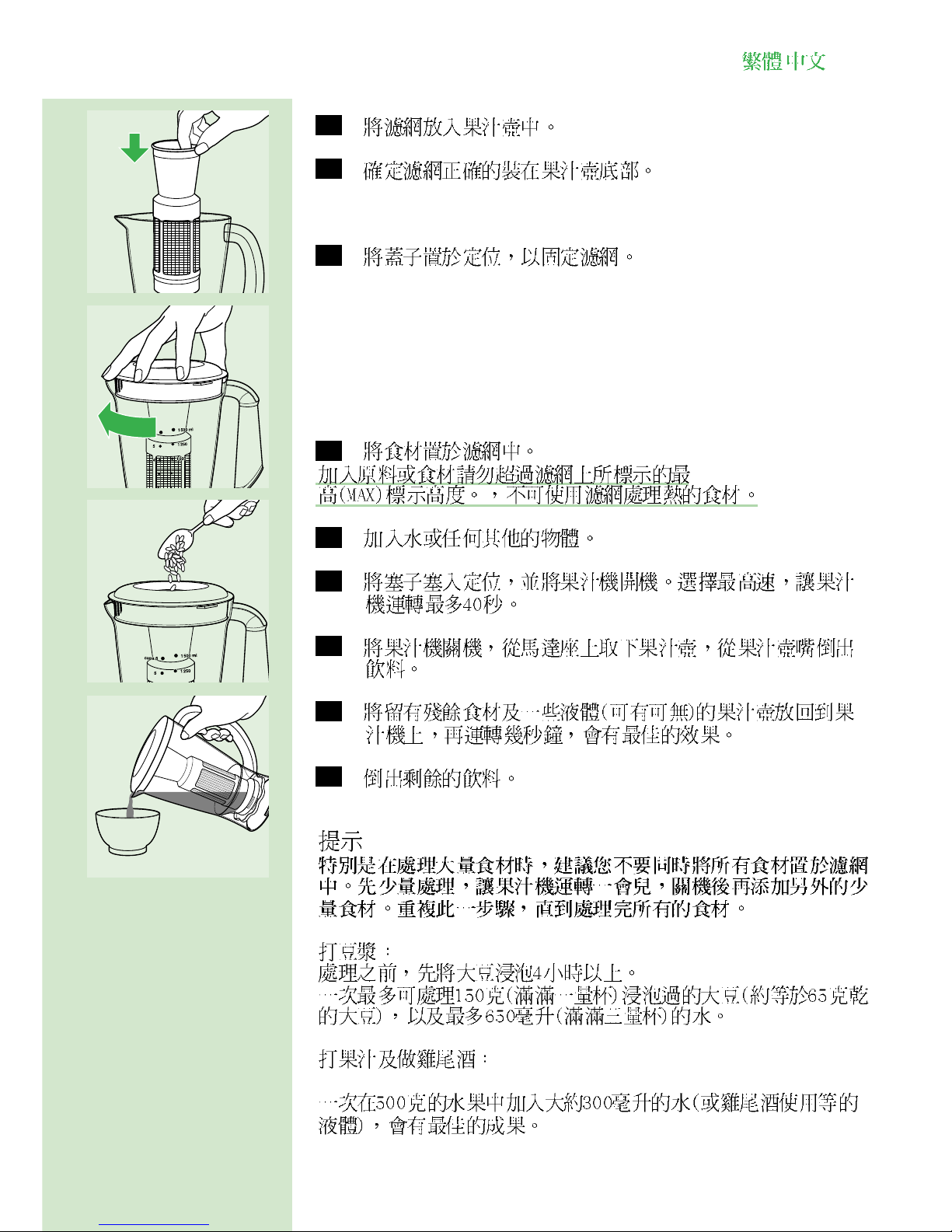

Filter

◗ You can use the filter accessory to obtain extra finely blended

sauces, fresh fruit juices or soy milk.All pips and skins will remain in the filter.

1 Put the filter in the blender jar.

2 Make sure the filter is properly fitted on the bottom of the jar.

3 Put the lid in place to fix the filter.

The filter should never be filled beyond its maximum (MAX) level indication.

4 Put the ingredients in the filter.

The filter should never be filled beyond its maximum (MAX) level indication.Do not use the filter to process hot ingredients.

5 Add water or any other liquid.

6 Put the stopper in place and switch the appliance on. Select the

highest speed and let the appliance run for max. 40 seconds.

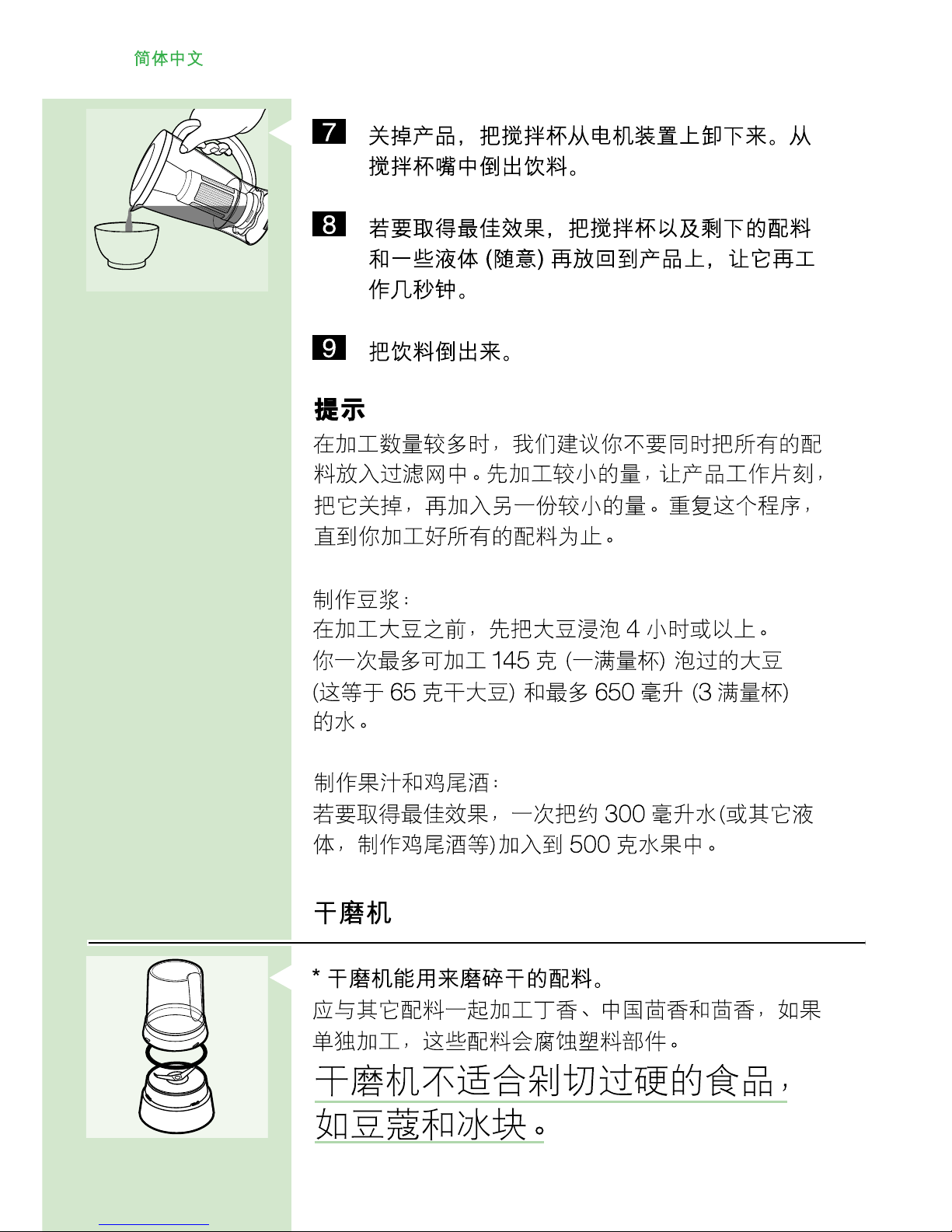

7 Switch the appliance off and remove the blender jar from the

motor unit. Pour out the drink through the spout of the blender jar.

8 For optimal results, put the jar with the remaining ingredients

and some liquid (optional) back onto the appliance and let it run for a few more seconds.

9 Pour out the rest of the drink.

Tips

Particularly when you are processing large quantities, we advise you not to put all the ingredients in the filter at the same time. Start processing a small quantity, let the appliance run for a moment, switch it off and then add another small quantity. Repeat this procedure until you have processed all the ingredients.

ENGLISH10

Page 11

For making soy milk: Soak soy beans for at least 4 hours before processing them. You can process max. 145 g. (a measuring cup full) of soaked soybeans (this is equal with 65 g. dried soybeans) with max. 650 ml. (3 measuring cups full) water at a time.

For making fruit juices and cocktails: For the best results add approx. 300 ml. water (or other liquid for cocktails, etc.) to 500 g. fruit at a time.

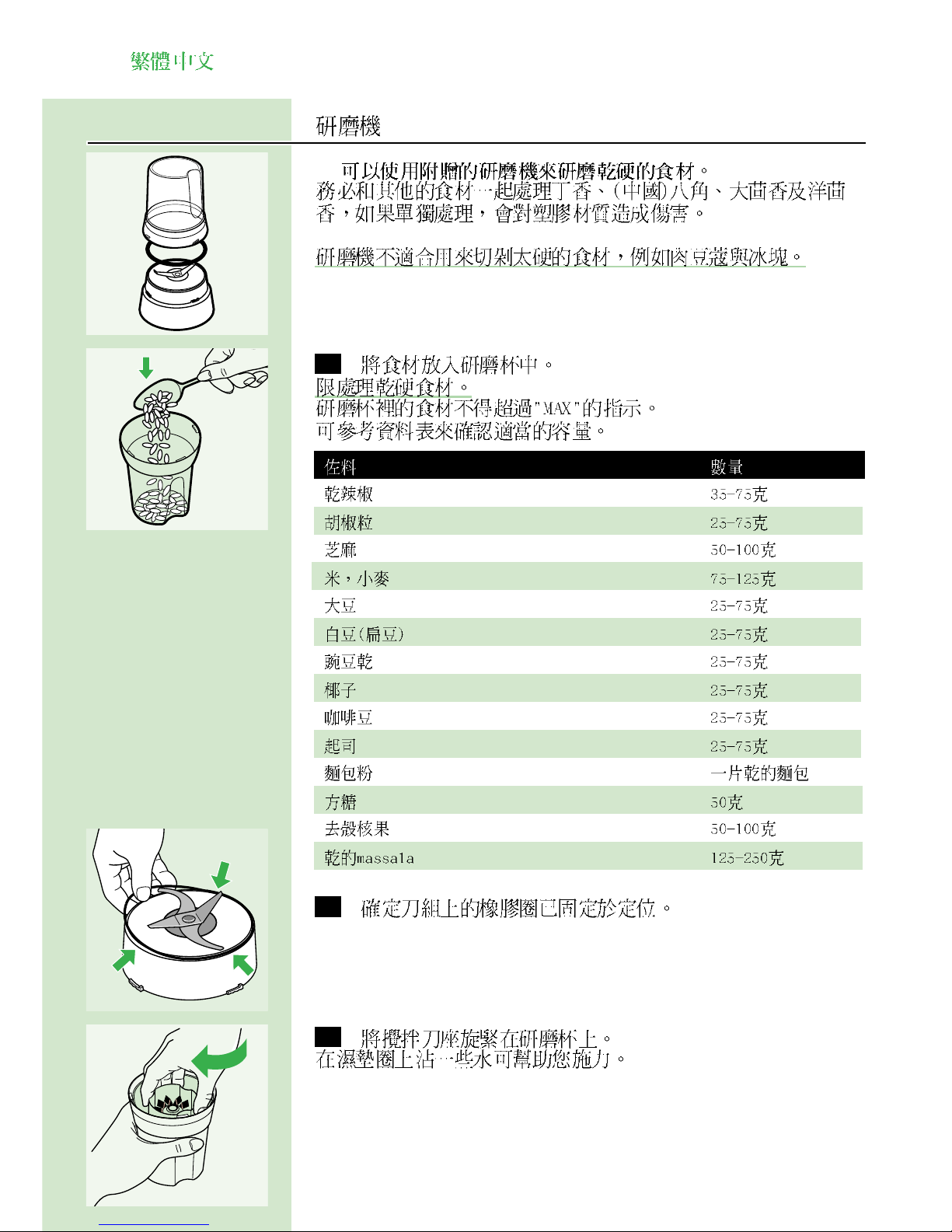

Mill

◗ The mill attachment can be used for grinding dry ingredients.

Always process cloves, star (Chinese) anise and aniseed in combination with other ingredients. If processed solely, they may be aggressive to the plastic materials.

The mill is not suitable for chopping very hard ingredients like nutmeg and ice cubes.

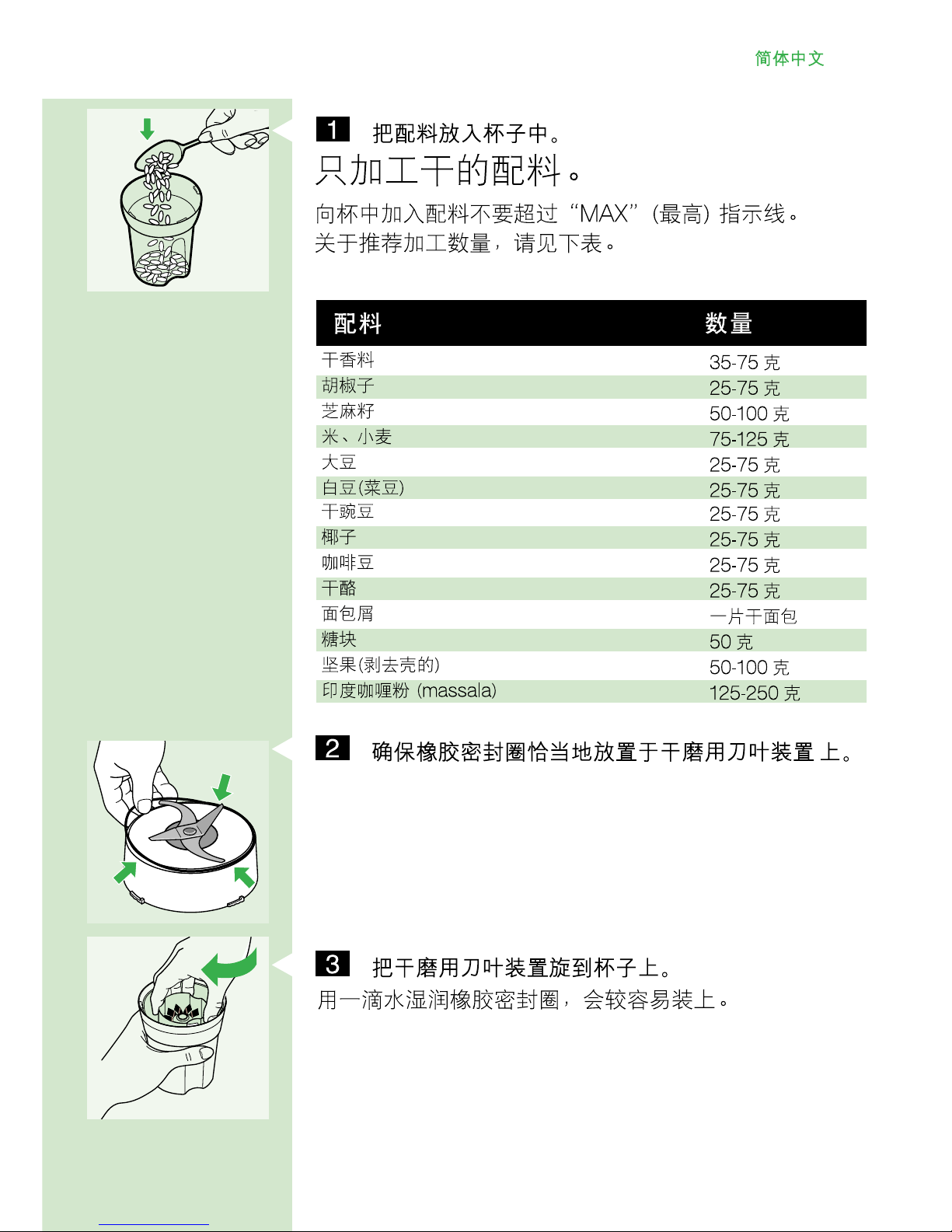

1 Put the ingredients in the beaker.

Process only dry ingredients. Do not fill the beaker beyond the 'MAX' indication. See the table for the advised quantities.

ENGLISH 11

Quantities

35-75 g

25-75 g

50-100 g

75-125 g

25-75 g

one dried slice of bread

50 g

50-100 g

125-250 g

Ingredients

dried spices

pepper corns

sesame seed

rice, wheat

soy beans

white beans (haricots)

dried peas

coconut

coffee beans

cheese

bread crumbs

sugar cubes

nuts (shelled)

dry massala

Page 12

2 Ensure the rubber ring on the blade unit is properly placed.

3 Screw the blade unit onto the beaker.

If this requires some effort, moisten the rubber ring with a drop of water.

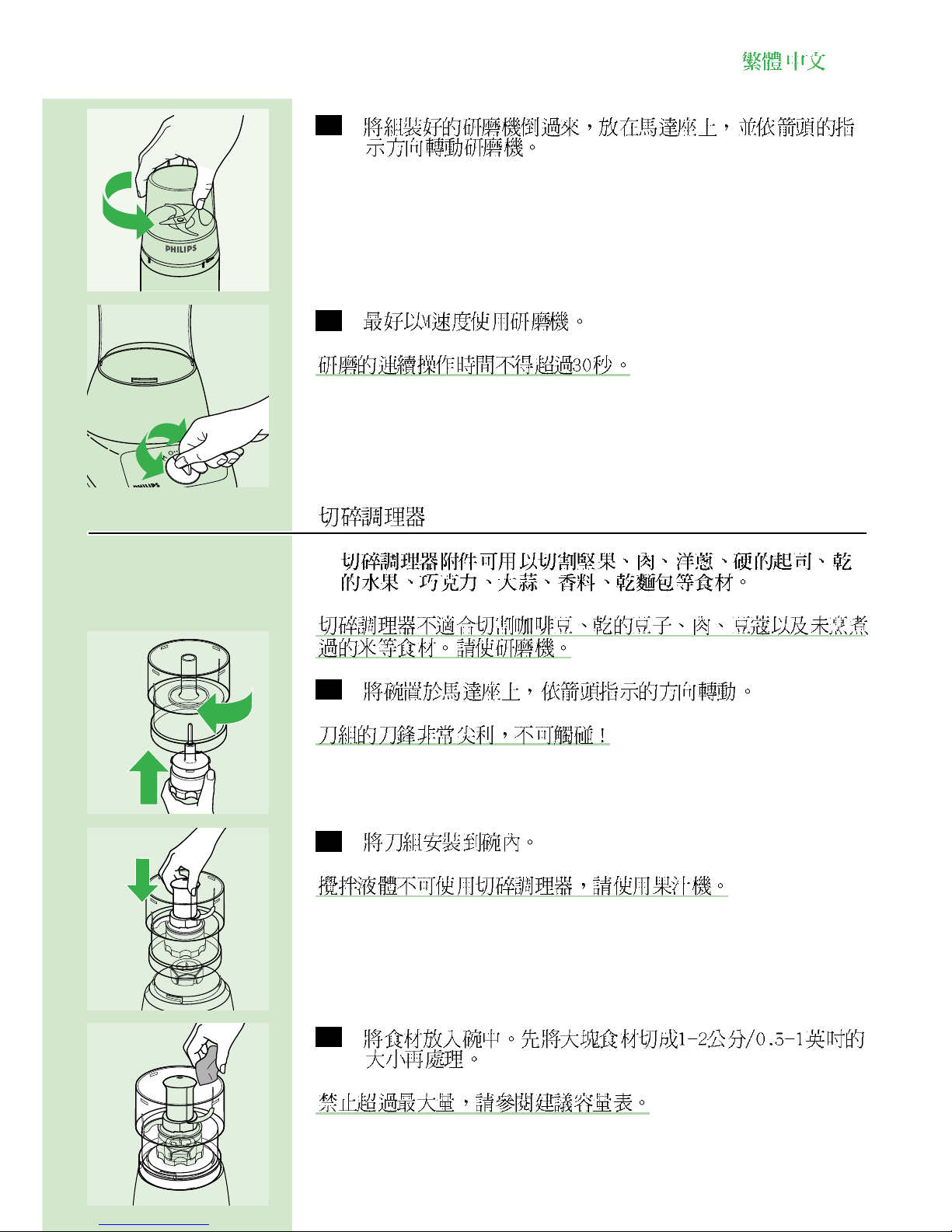

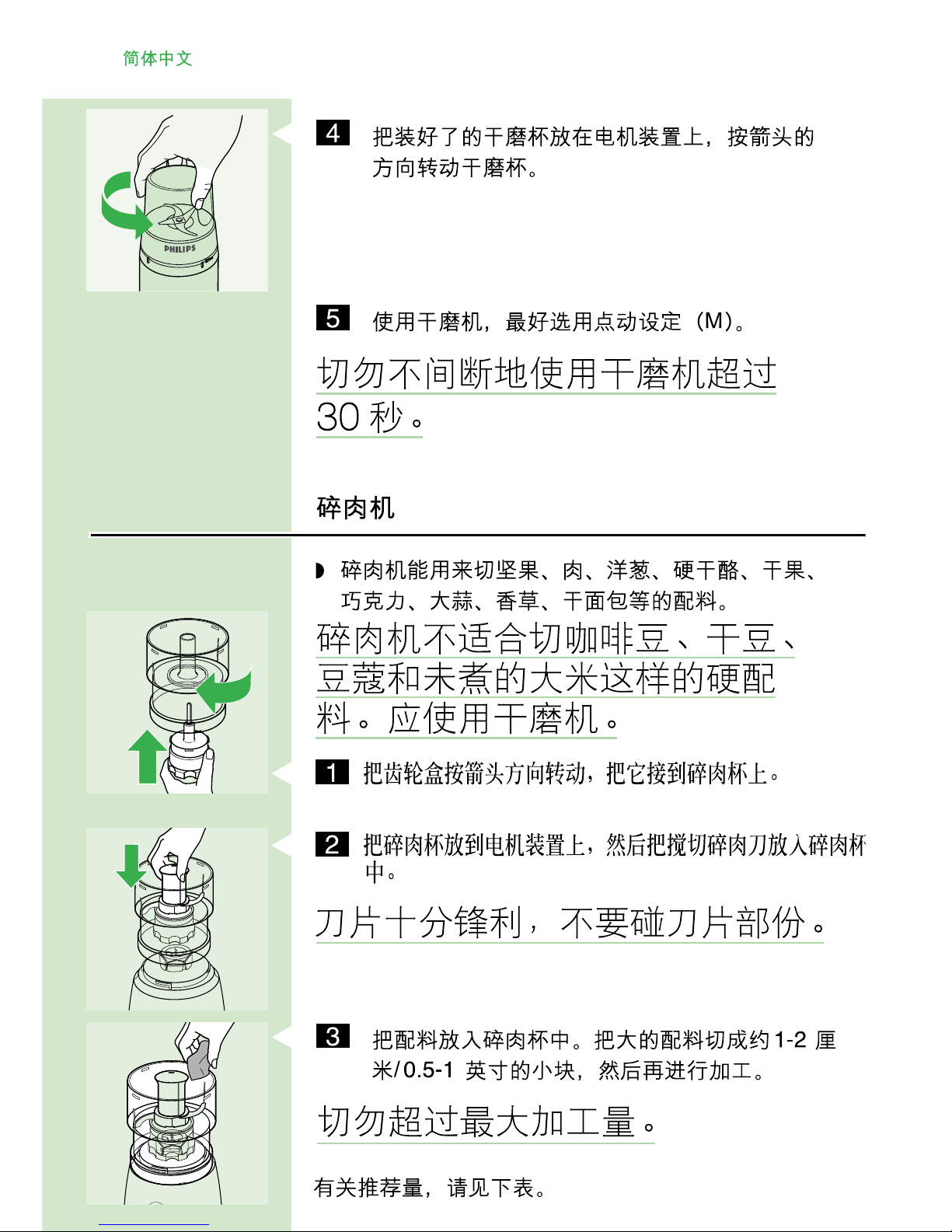

4 Turn the assembled mill upside down, place it on the motor

unit and turn the mill in the direction of the arrow.

5 Preferably use the mill at M-speed.

Never use the mill for more than 30 seconds without interruption.

Chopper

◗ The chopper attachment can be used for chopping ingredients

such as nuts, meat, onions, hard cheese, dried fruits, chocolate, garlic, herbs, dry bread etc.

The chopper is not suitable for chopping hard ingredients like coffee beans, dry beans, nutmeg and uncooked rice. Use the mill.

1 Place the bowl on the motor unit.Turn it in the direction of the

arrow.

ENGLISH12

Page 13

2 Put the blade unit in the bowl.

The cutting edges of the blades are very sharp: avoid touching them!

3 Put the ingredients in the bowl. Cut large ingredients into

pieces of approximately 1-2 cm/0.5-1 inch before processing.

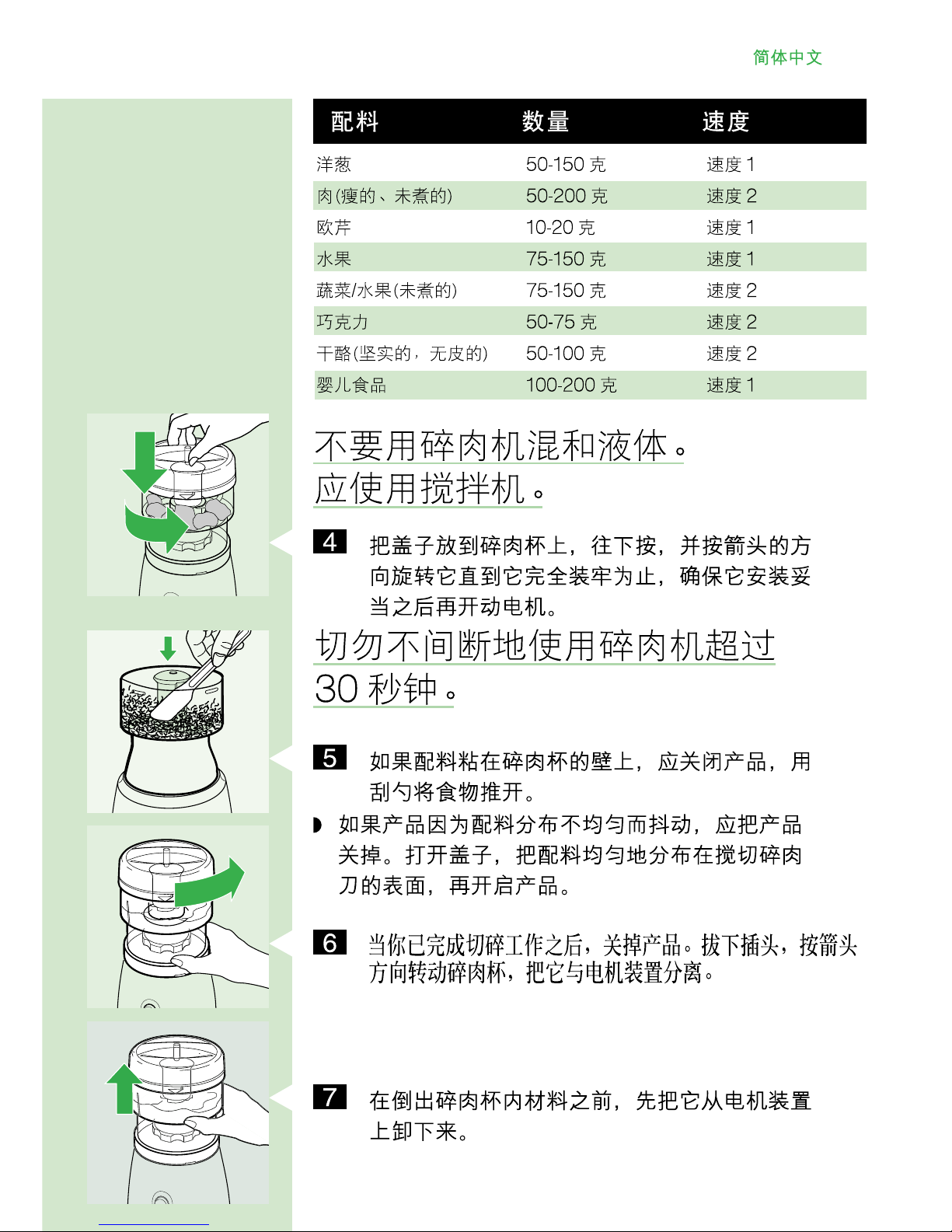

Never exceed the maximum quantity. See the table for the advised quantities.

Do not use the chopper for mixing liquids. Use the blender.

4 Put the lid on the bowl, push it down and turn it in the

direction of the arrow until it is entirely fixed. Make sure it is properly fixed before you switch the chopper on.

Never use the chopper for more than 30 seconds without interruption.

5 If the ingredients stick to the chopper beaker wall, stop the

appliance and loosen the ingredients by using a spatula.

◗ If the appliance shakes because the food is not evenly distributed,

turn the appliance off. Open the lid and distribute the ingredients evenly on the surface of the chopper.Turn the appliance on again.

ENGLISH 13

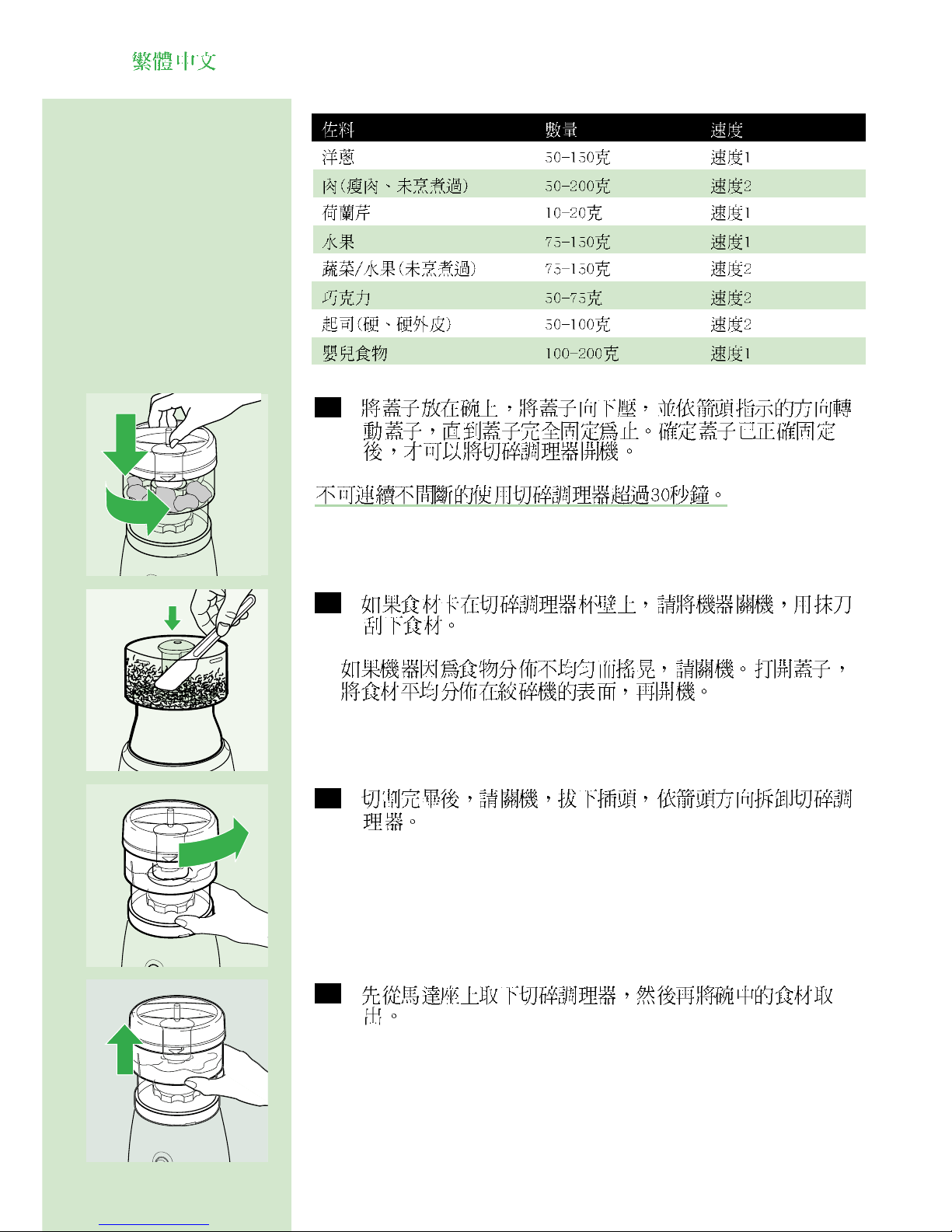

Speed

speed 1

speed 2

speed 1

speed 2

speed 1

Quantities

50-150 g

50-200 g

10-20 g

75-150 g

50-75 g

50-100 g

100-200 g

Ingredients

onions

meat (lean, uncooked)

parsley

fruits

vegetables/fruit (uncooked)

chocolate

cheese (firm, crust less)

baby food

Page 14

6 When you have finished chopping, switch the appliance off,

unplug it and detach the chopper by turning it in the direction of the arrow.

7 Remove the chopper from the motor unit before you empty

the bowl.

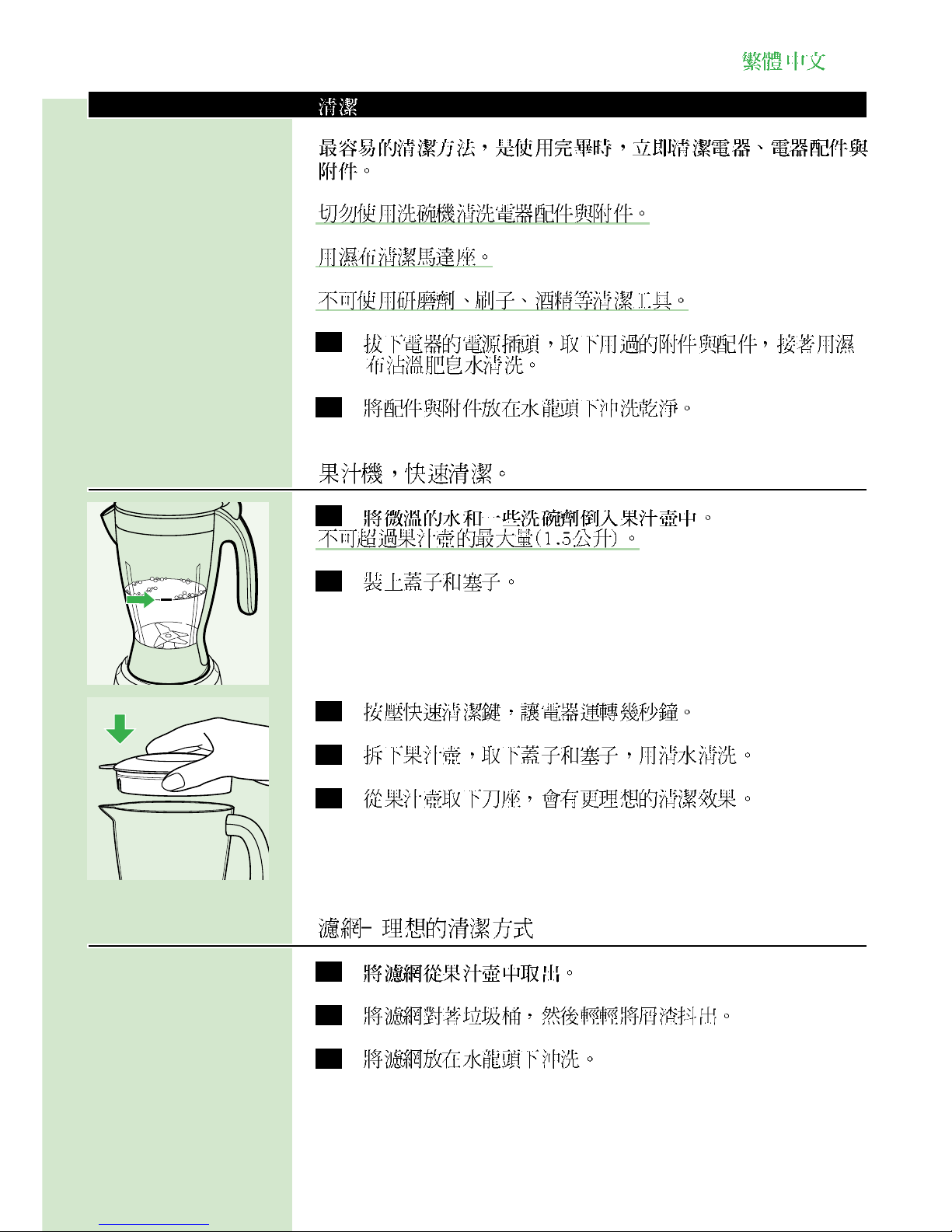

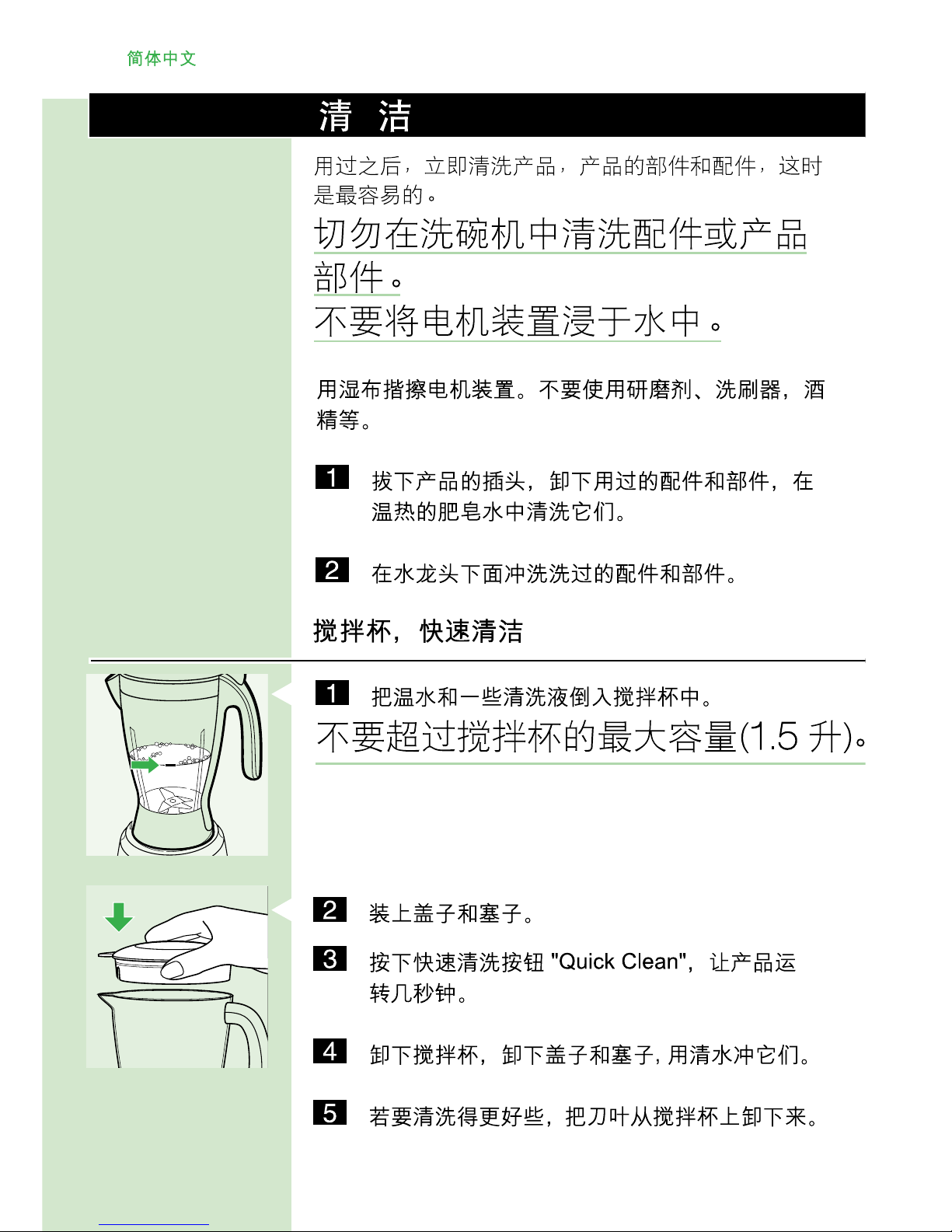

Cleaning

Cleaning of the appliance, its parts and accessories is easiest immediately after use.

Never clean the accessories or the appliance parts in the dishwasher.

Clean the motor unit with a moist cloth.

Do not use abrasives, scourers, alcohol, etc.

1 Unplug the appliance, detach the used accessories and parts

and clean them in lukewarm, soapy water.

2 Rinse all washed up accessories and parts under a tap.

Blender, quick cleaning

1 Pour lukewarm water and some washing-up liquid into the

blender jar.

Do not exceed the maximum quantity of the jar (1.5 litre).

2 Assemble the lid and the stopper.

ENGLISH14

Page 15

3 Let the appliance run for a few seconds by pressing the Quick

Clean button.

4 Detach the blender jar, remove the lid and stopper and rinse

them with clean water.

5 For better cleaning, remove the knife unit from the blender jar.

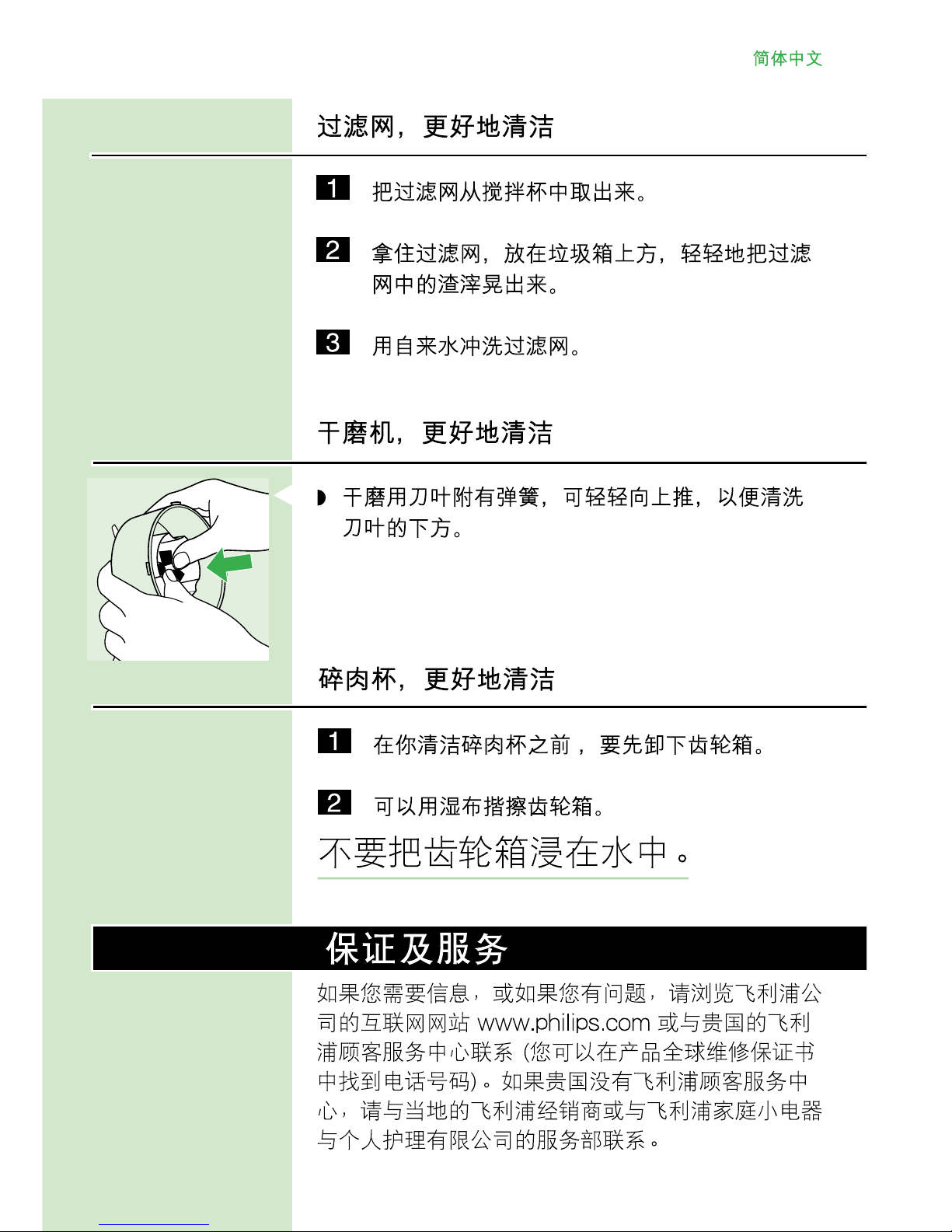

Filter, better cleaning

1 Take the filter out of the blender jar.

2 Hold the filter over a waste bin and gently shake out its

contents.

3 Rinse the filter under the tap.

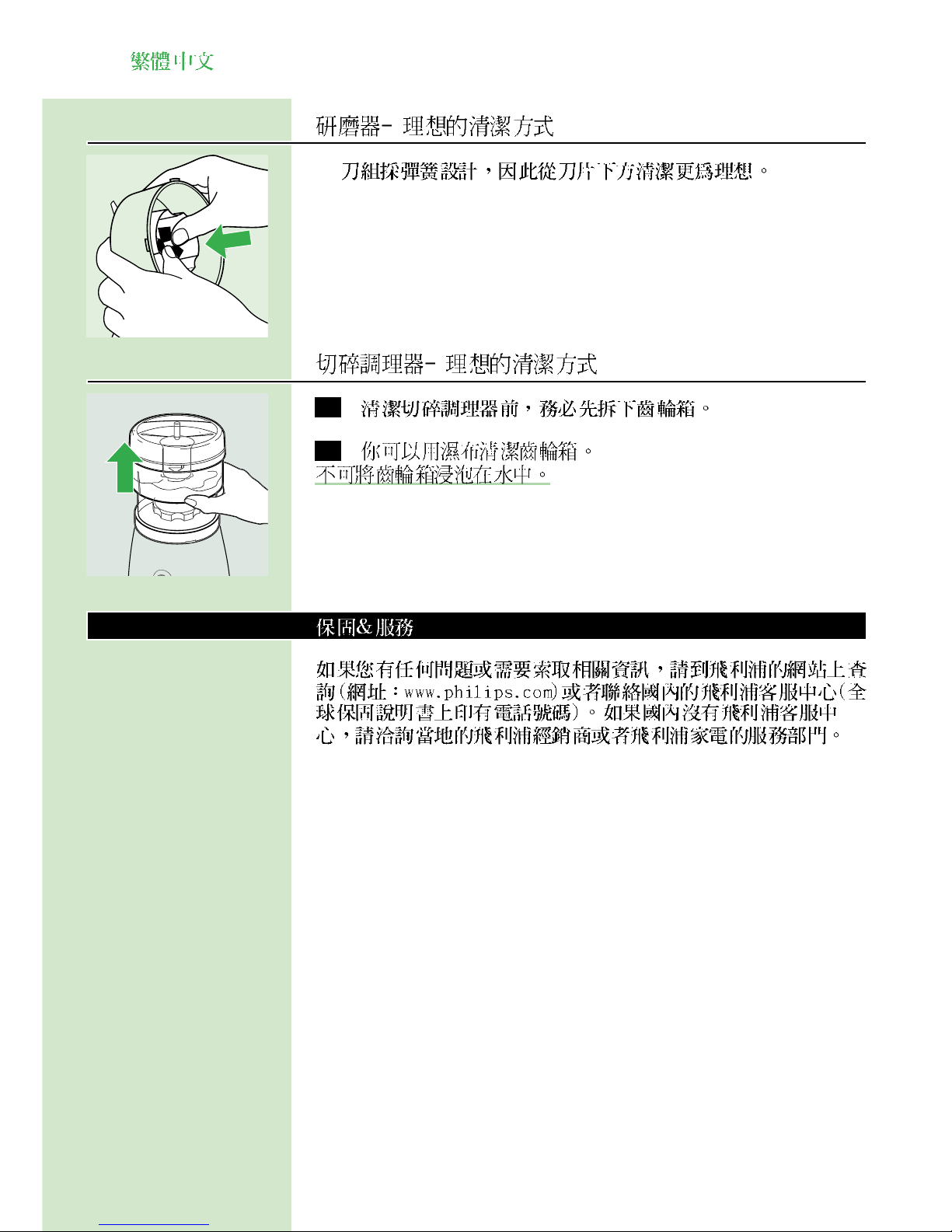

Mill, better cleaning

◗ The blade unit is spring-loaded to enable better cleaning under

the knifes.

Chopper, better cleaning

1 Always detach the gear box before you clean the chopper.

2 You can clean the gear box with a moist cloth.

Do not immerse the gear box into water.

Guarantee & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

ENGLISH 15

Page 16

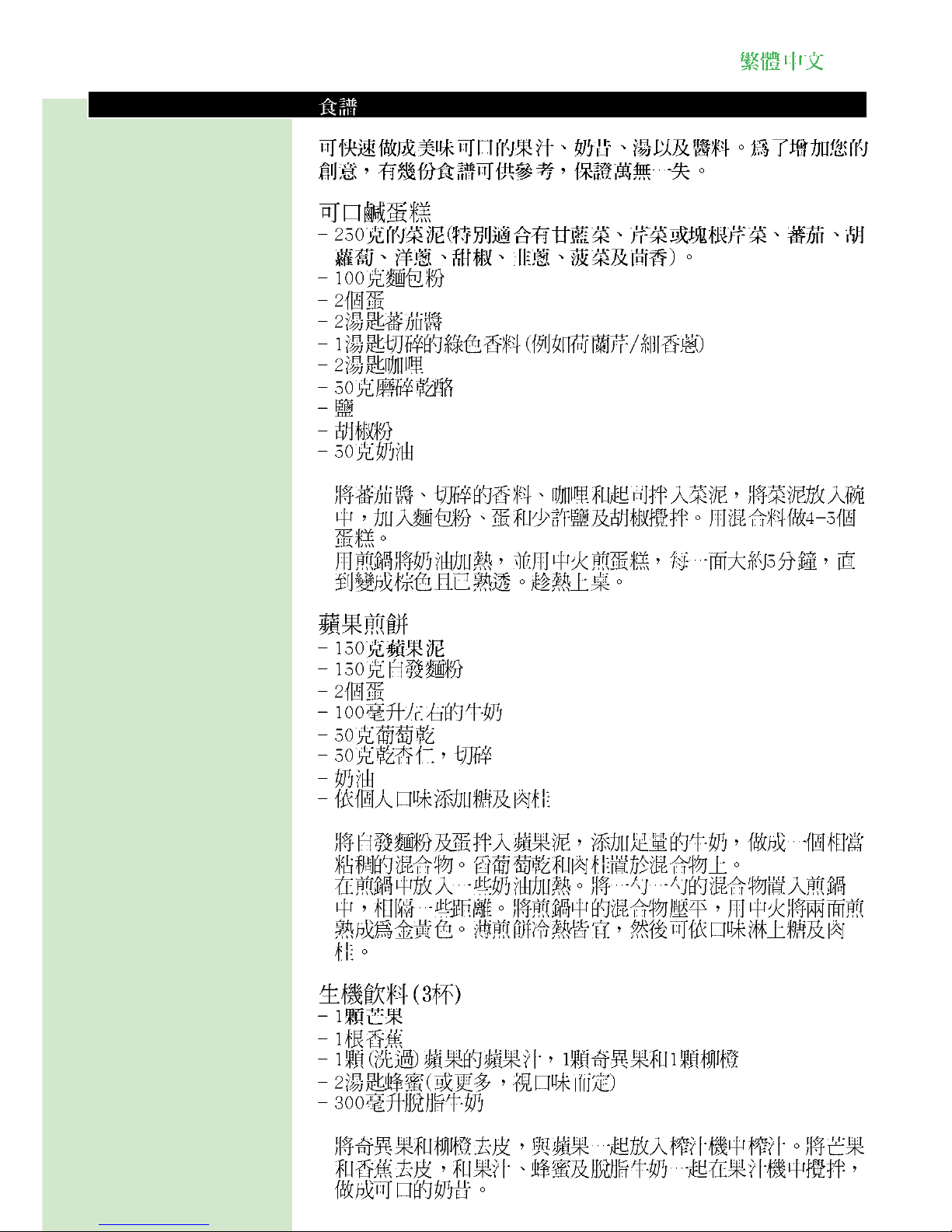

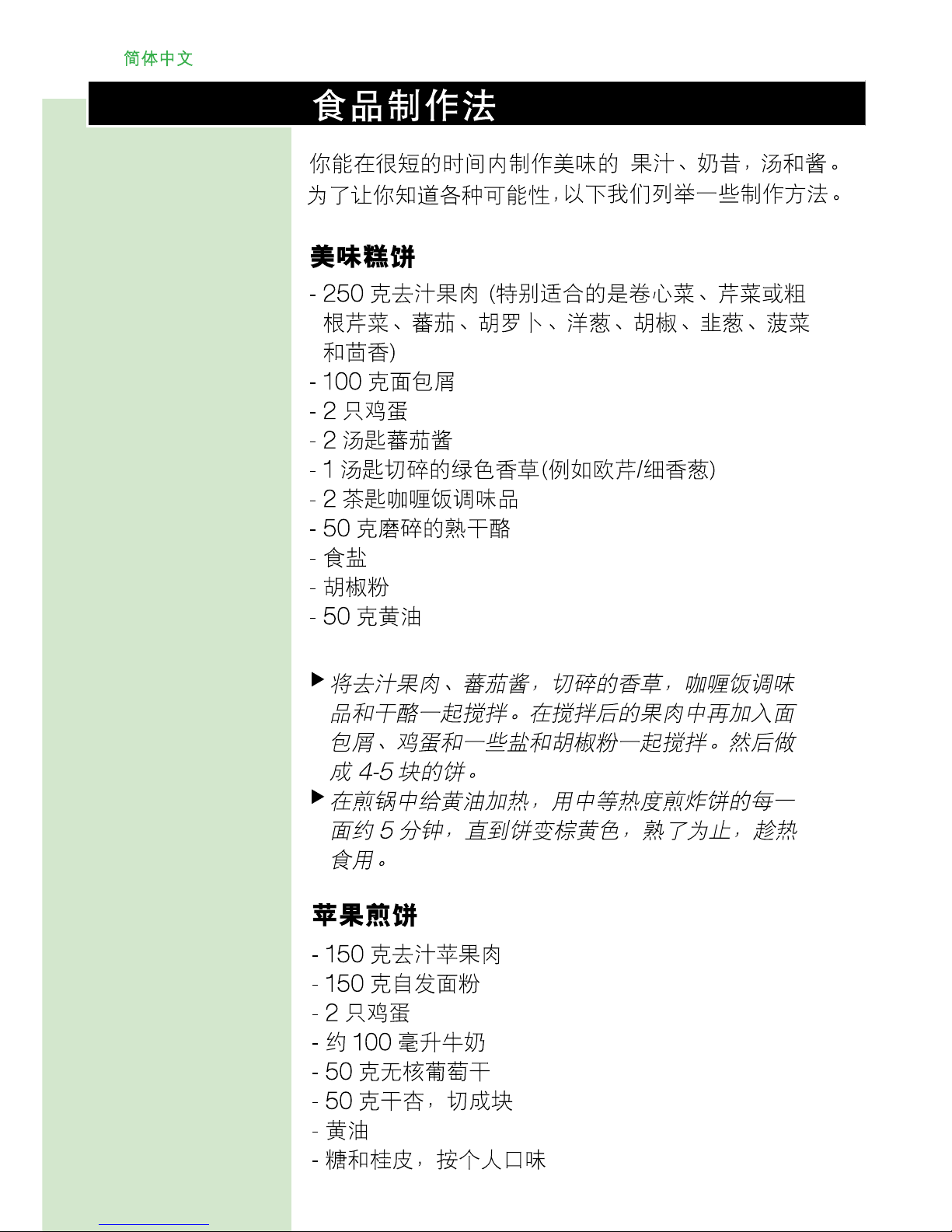

Recipes

You can make delicious juices, shakes, soups and sauces in no time at all.To give you an idea of the possibilities, we have included a number of recipes which will certainly prove a success.

Savoury cakes

- 250gr vegetable pulp (particularly suitable are cabbage, celery or celeriac, tomatoes, carrots, onions, peppers, leeks, spinach and fennel)

- 100 gr breadcrumbs

- 2 eggs

- 2 tbsp tomato ketchup

- 1 tbsp chopped green herbs (e.g. parsley/chives)

- 2 tsp sambal

- 50 gr grated mature cheese

- salt

- pepper

- 50 gr butter

Stir the tomato ketchup, chopped herbs, sambal and cheese through the pulp. Put the pulp in a bowl and mix the breadcrumbs, the eggs and some salt and pepper. Make 4 - 5 flat cakes of the mixture.

Heat the butter in a frying pan and fry the cakes over moderate heat for approx. 5 minutes on each side until they are brown and cooked. Serve hot.

Apple pancakes

- 150 gr apple pulp

- 150 gr self-raising flour

- 2 eggs

- approx. 100 ml milk

- 50 gr raisins

- 50 gr dried apricots, cut into pieces

- butter

- sugar and cinnamon according to taste

Stir the self-raising flour and the eggs through the apple pulp.Add enough milk to make a fairly firm mixture. Spoon the raisins and apricots through the mixture.

Heat some butter in a frying pan. Put scoops of mixture into the frying pan at a small distance from each other. Flatten the mixture into the pancakes and fry them over a moderate heat on both sides until they are golden and cooked. Serve the pancakes hot or cold and sprinkle them with sugar and cinnamon according to taste.

ENGLISH16

Page 17

Vitamin drink (three glasses)

- 1 mango

- 1 banana

- juice of 1 apple (washed), 1 kiwi fruit and 1 orange

- 2 tsp honey (or more, according to taste)

- 300 ml buttermilk

Peel the kiwi fruit and the orange. Process them in the blender together with the apple. Peel the mango and the banana and mix them in the blender together with the fruit juice, the honey and the buttermilk to create a delicious shake.

Tip: replace the buttermilk with quark or yoghurt to create a tasty and healthy dessert.

Ice-cold shake for a tropical day (two glasses)

- 1/2 pineapple

- 2 apples

- 1 pink grapefruit

- ice cubes (approx. 2 full glasses)

Skin the pineapple and peel the grapefruit, rinse the apples and cut everything into pieces. Process them in the blender.

Assemble the blender and put the ice cubes in the blender jar. Crunch the ice at the highest setting and add the fruit juice.You will have a delicious, ice-cold fresh fruit shake that will quench your thirst!

Vegetable shake (one large serving)

- 200 ml carrot juice

- 1/2 stalk of celery, cut into pieces

- 1 medium-sized tomato, peeled and cut into pieces

- 1/2 small green or red pepper, cut into pieces

- small handful of fresh spinach or several sprigs of parsley

- 2 or 3 ice cubes

- 1 long, thin stalk of celery for garnishing

Assemble the blender accessory. Put the carrot juice, the vegetables and the spinach or the parsley in the blender and mix for 15-30 seconds at maximum speed. Add the ice cubes and blend for a few more seconds. Pour the shake into a tall glass and garnish with a long, stick of celery.

Gazpacho blanco (4 servings)

- 500 gr seedless white grapes

- 2 cucumbers (approx. 750 gr)

- 1 shallot, cut into pieces

- 1 clove garlic, shopped

- 1/4 tsp salt

- 1/4 tsp white pepper

- 500 ml low-fat yoghurt

- 6 - 8 drops of Tabasco

ENGLISH 17

Page 18

Wash the grapes and remove the stalks. Process them in the blender.

Put the grape juice in the blender. Peel the cucumber, halve it lengthwise and remove the seeds. Cut the cucumber into thick slices and add these slices to the grape juice in the blender.Add the shallot, the garlic, the salt and the pepper and run the machine briefly. Pour the mixture into a bowl and stir the yoghurt and Tabasco through it.

Chill the soup by putting it in a covered bowl in the refrigerator for 30 minutes. Serve in large soup bowls and garnish with cucumber slices and halved grapes.

ENGLISH18

Page 19

ENGLISH 19

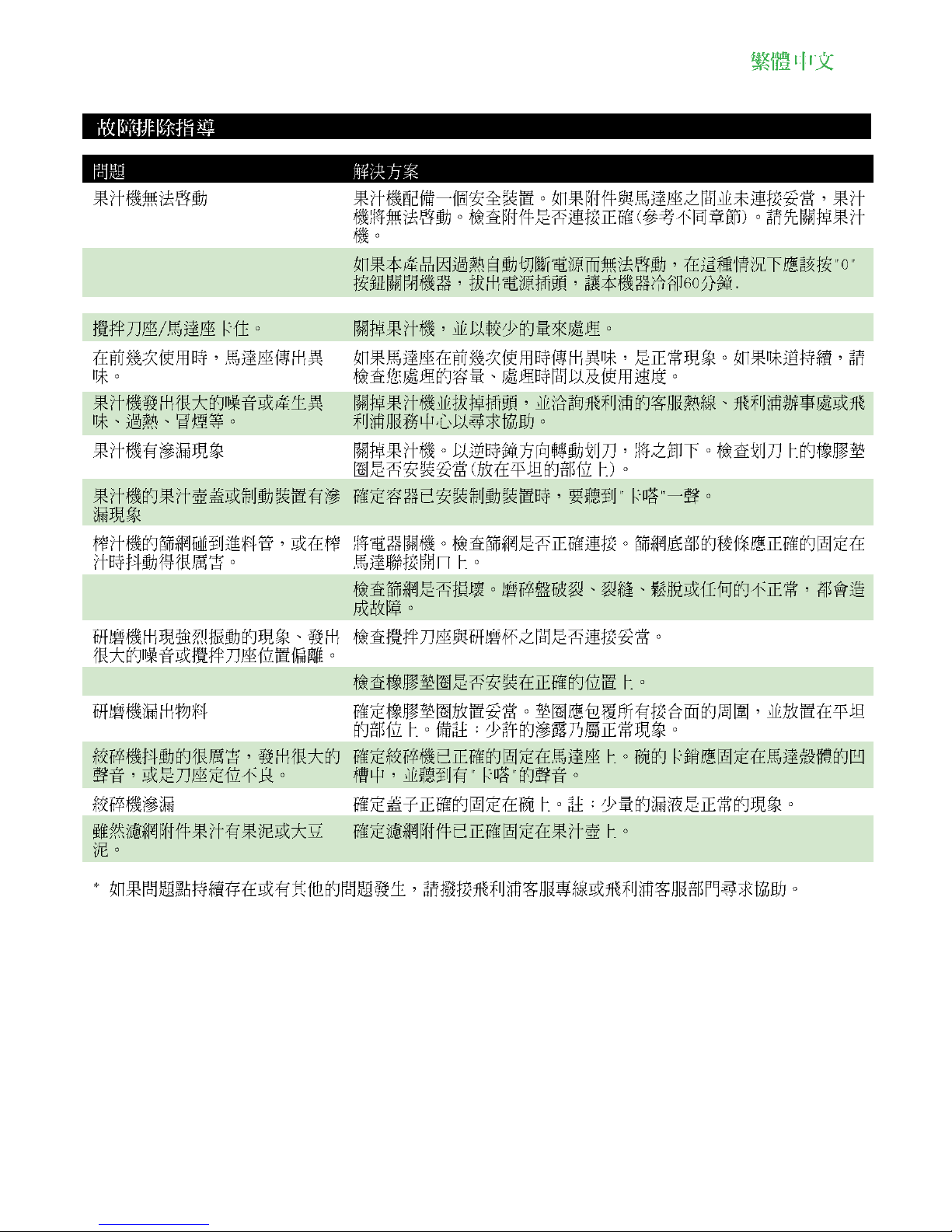

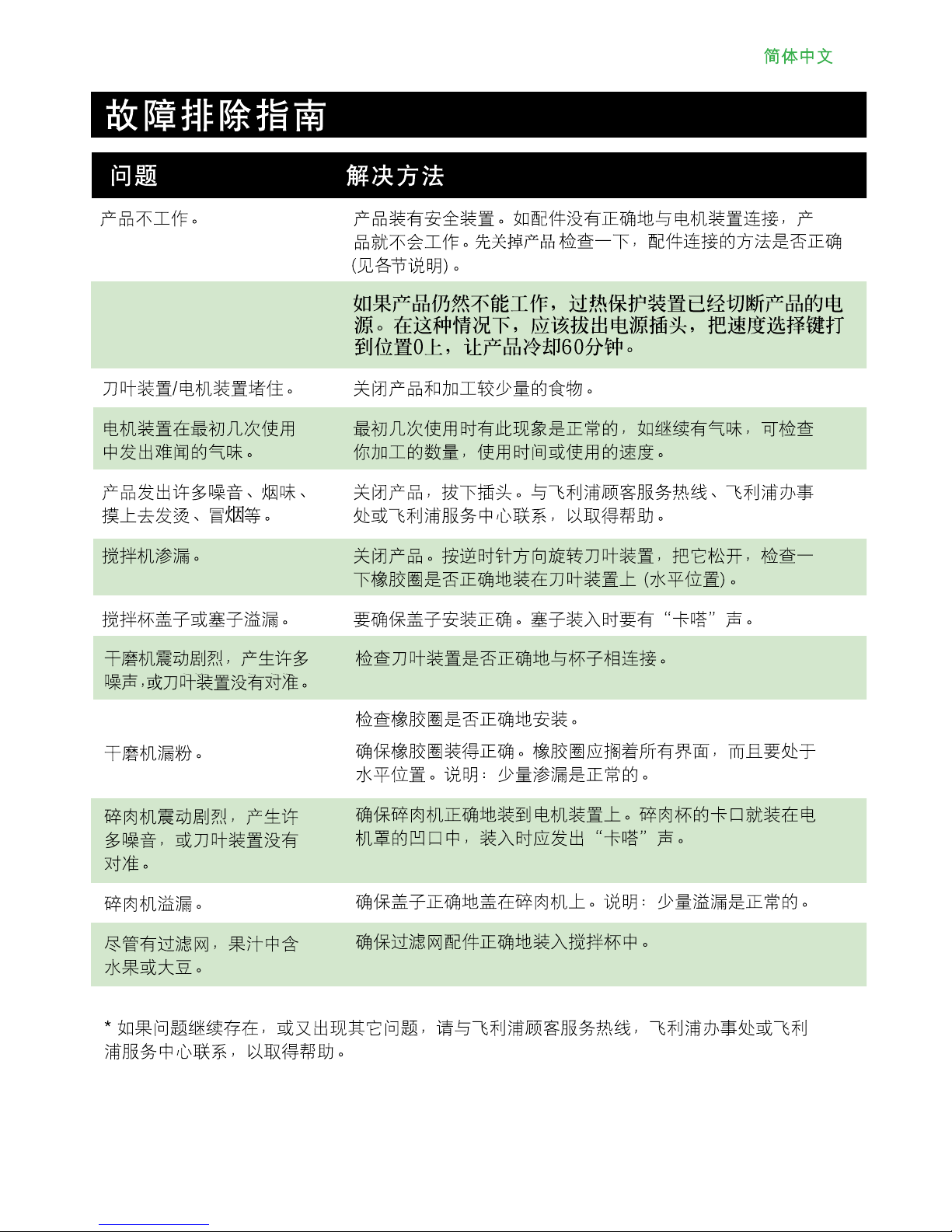

Troubleshooting guide

Solution

The appliance is provided with a safety system. If accessories are not properly connected with the motor unit, the appliance does not work. Check whether the accessories have been connected in the right way (see the various sections).Turn off the appliance first!

If the appliance still does not work, the thermal cut-off has switched off the appliance. In this case you should pull the mains plug out the socket, set the selector knob to position 0 and let the appliance cool down for 60 minutes.

Turn off the appliance and process a smaller quantity.

This is normal for the first few applications. If the smelling continues, check the quantity you are processing, the application time or used speed.

Turn off the appliance and unplug it. Contact Philips Customer Service Hotline, Philips Offices or Philips Service Centre for assistance.

Turn off the appliance. Release the knife unit by turning it anti-clockwise. Check whether the rubber ring is properly assembled on the knife unit (rest on flat position).

Make sure the lid is attached properly.The stopper fits with a 'click'.

Check whether the knife is properly attached to the beaker.

Check whether the rubber ring is assembled in a correct way.

Make sure the rubber ring is assembled properly.The ring should rest around all interface, in a flat position. Note: a small leakage is normal.

Make sure the chopper has been properly attached to the motor unit.The bayonets of the bowl should fit in the slots of the motor housing and 'click'.

Make sure the lid fits properly on the bowl. Note: a small leakage of liquid is normal.

Make sure that the filter accessory has been attached properly into the blender jar.

Problem

The appliance does not work

The knife unit / motor unit is blocked.

The motor unit gives an unpleasant smell during the first few times of use.

The appliance makes a lot of noise, smells, feels hot to touch, smokes, etc.

The blender shows leakage

The lid and/or stopper of the blender show leakage

The mill shows a high vibration, produces a lot of noise or the knife unit is out of alignment.

The mill leaks powder

The chopper shows a high vibration, produces a lot of noise or the knife unit is out of alignment.

The chopper leaks

Despite the filter accessory juices show pulp of fruits or soybean.

* If problems persist or if other problems occur, please contact Philips Customer Service Hotline, Philips Offices or Philips Service Centre for assistance.

Page 20
