Philips Cineos 42PF9731D, Cineos 42PF9731D/10 Specifications

Download

Page 1

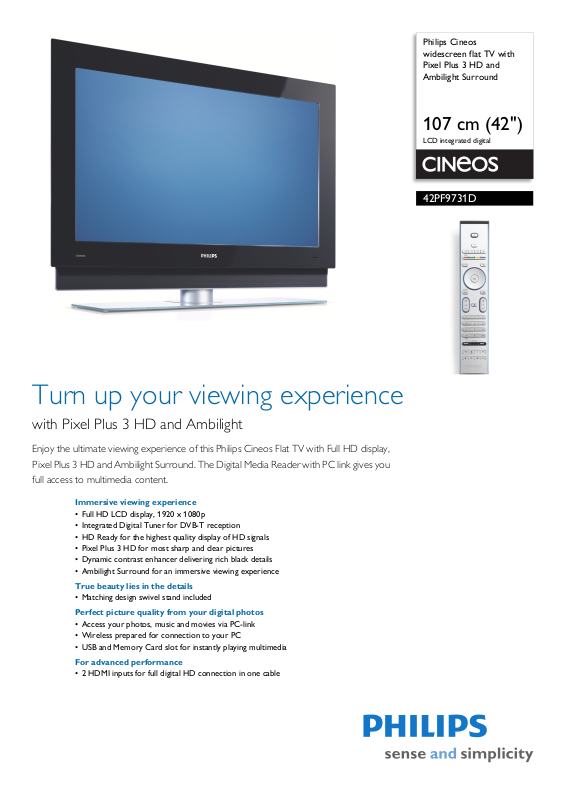

Philips Cineos widescreen flat TV with Pixel Plus 3 HD and Ambilight Surround

107 cm (42")

LCD integrated digital

42PF9731D

Turn up your viewing experience

with Pixel Plus 3 HD and Ambilight

Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Full HD display, Pixel Plus 3 HD and Ambilight Surround. The Digital Media Reader with PC link gives you full access to multimedia content.

Immersive viewing experience

• Full HD LCD display, 1920 x 1080p

• Integrated Digital Tuner for DVB-T reception

• HD Ready for the highest quality display of HD signals

• Pixel Plus 3 HD for most sharp and clear pictures

• Dynamic contrast enhancer delivering rich black details

• Ambilight Surround for an immersive viewing experience

True beauty lies in the details

• Matching design swivel stand included

Perfect picture quality from your digital photos

• Access your photos, music and movies via PC-link

• Wireless prepared for connection to your PC

• USB and Memory Card slot for instantly playing multimedia

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Page 2

Widescreen flat TV with Pixel Plus 3 HD and Ambilight Surround

107 cm (42") LCD integrated digital

Highlights

42PF9731D/10

Full HD LCD display 1920 x 1080p

This display has a resolution that is referred to as

Full HD. The state-of-the-art LCD screen technology has the full high definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colours. This vibrant and sharp image will provide you with an enhanced viewing experience.

Integrated Digital DVB-T tuner

The integrated Digital DVB-T tuner lets you receive

digital terrestrial TV without an additional set top box. Enjoy quality TV clutter free.

HD Ready

Enjoy the exceptional picture quality of High Definiti

on pictures and be fully prepared for HD sources like HDTV set-top boxes and Bluray discs. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer an HD screen that displays the benefits of the resolution and picture quality of a High Definition signal. It has a universal connection for both analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60 Hz.

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination o

f ultimate sharpness, natural detail, vivid colours and smooth natural motion on all qualities of HD, standard TV signals and multimedia content for high definition displays. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artefacts

and noise in all sources from multimedia to standard TV and also in highly compressed HD are detected and reduced, ensuring that the picture is clean and razor sharp.

Ambilight Surround

With lights surrounding the picture, Ambilight 3 mak

es an impressive contribution to the overall viewing experience with ambient light on 3 sides to complement the colours and light intensity of the image on screen. It creates ambience, stimulates more relaxed viewing and improves perceived picture detail, contrast and colour. Ambilight 3 automatically and independently adapts the colours of each screen side according to the changing content on the screen. With the third Ambilight the top of the picture is now fully surrounded, completely immersing you into the content.

Swivel stand included

For maximum freedom of placement, this highqu

ality stand is designed specifically for this TV and allows easy placement of your Flat TV without drilling holes in the wall. Enjoy the best viewing angle with the convenience of 40 degrees swivel (20 degrees each side). Invisible cable management is included in the back. This stand fits seamlessly on the matching accessory floor stand.

PC-link

The PC-link provides fun and easy access to y

our personal digital media files and multimedia content*. The widely used Ethernet (LAN) and Wi-Fi open standards are used for wired and (optional) wireless** connection and ensure interoperability. Browse your PC collection of digital photographs, multimedia videos and music files via your home LAN network. The intuitive user interface of the TV and the Philips Multimedia Manager for your PC makes it available at the push of a button (* see product for supported formats, PC-LAN

functionality required ** Additional 'Ethernetbridge' device required)

Wireless PC link prepared

Wi-Fi is the leading standard for wireless b

roadband. With the wireless prepared function* in the Philips TV you can share PC multimedia content anywhere in your house, without the hassle of wires. High Bandwidth means you can enjoy high quality multimedia pictures, music or video, over distances that can reach up to 100 metres**. Access your Wi-Fi PC or your home Wi-Fi network (router). (*requires optional, Wi-Fi Ethernetbridge. **may vary under local conditions)

USB and Memory Card slot

Instantaneously view and share your movies, p

hotos and music. The Memory Card slot will accept cards of the following types: Compact Flash I and II, Memory Stick, SD Card/Mini SD Card, Smart Media, Micro Drive (up to 2 GB) and Multi Media Card. Simply plug the memory card into the slot at the side of the TV and access the multimedia files stored on the card. The USB connector allows access to multimedia files on most USB sticks and most digital cameras (USB memory-class device).

2 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD set-top box and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

Widescreen flat TV with Pixel Plus 3 HD and Ambilight Surround

107 cm (42") LCD integrated digital

Specifications

42PF9731D/10

Picture/Display

• Aspect ratio: 16:9

• Brightness: 550 cd/m²

• Dynamic screen contrast: 4000:1

• Response time (typical): 8 ms

• Viewing angle: 176º (H)/176º (V)

• Diagonal screen size: 42 inch / 107 cm

• Display screen type: LCD Full HD W-UXGA Act. ix

mat

• Panel resolution: 1920 x 1080p

• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2

tio

n pull down, 3D Combfilter, Active Control

mo + Light sensor, Digital Natural Motion, Dynamic contrast enhancement, Jagged Line Suppression, Progressive scan, Pulse Killer Chip, Widescreen Plus

• Screen enhancement: Anti-Reflection coated

• Colour cabinet: High Gloss Black

Ambilight

• Ambilight Features: Ambilight Surround, Auto

adaptive to video content, Efficient low energy lamp

• Colour Settings: Full Multi-Colour

• Dimming Function: Manual and via Light Sensor

Supported Display Resolution

mputer formats

• Co

olution Refresh rate

Res 640 x 480 60 Hz 800 x 600 60 Hz 1024 x 768 60 Hz

deo Formats

• Vi

Res

olution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Output power (RMS): 2 x 15 W

• Sound Enhancement: Digital Signal Processing, mic Bass Enhancement, Graphic Equalizer

Dyna

• Sound System: Virtual Dolby Digital

Loudspeakers

• Built-in speakers: 4

• Loudspeaker types: Integrated woofers with wOOx,

Dome tweeter

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Ease of Installation: Auto Programme Naming,

• Ease of Use: Auto Volume Leveller (AVL), Delta

• Electronic Programme Guide: Now + Next EPG

• Picture in Picture: Full dual

• Remote Control: Amp, DVD, Sat, STB (Set-Top

• Remote control type: RC4401

• Screen Format Adjustments: 4:3, 6 Widescreen

• Teletext: 1200-page Hypertext

• Teletext enhancements: Habit Watch, Programme

• VESA Mount: Vesa compliant

tic Channel Install (ACI), Automatic

Automa Tuning System (ATS), Autostore, PLL Digital Tuning, Plug and Play

lume p

Vo Screen Display, Programme List, Side Control

dual screen

Box

Modes, Auto F expand 16:9, Subtitle and Heading Shift, Super Zoom, Widescreen

info

er preset, Graphical User Interface, On-

creen (2 tuners), Text

), VCR, Multi-functional

rmat, Movie expand 14:9, Movie

rmat

ion Line

Multimedia Applications

• Digital Content Management: Digital Media Reader

•Memory Card Types: Compact Flash type Compact Flash type II, Memory Stick, Microdrive, MultiMedia Card (MMC), Secure Digital Card (SD), Smart Media Card

• Multimedia connections: Ethernet-UTP5, UPnP, Wi-Fi (opt. Reader, USB (streaming video capable)

• Playback Formats: MP3, Slideshow files (.alb), JPEG St MPEG4, XviD

hernet-bridge), 7-in-1 Memory Card

ill pic

tures, DivX 3.11, DivX 5, MPEG1, MPEG2,

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K, PAL, SECAM

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial*

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB, Y/C

• Ext 3: YPbPr

• Ext 4: HDMI

• Ext 5: HDMI

• Ext 6: VGA PC-in, Audio L/R in

• Front/Side connections: Audio L/R in, CVBS in, Headpho memory card reader

• Other connections: Analogu Ethernet, S/PDIF in (coaxial), S/PDIF out (coaxial), Common Interface

es Out, S-video in, 2 x USB, Multi-slot

audio Left/Right out,

Power

• Ambient temperature: 5°C to 40°C

• Mains power: AC 220-240 V +/- 10%

• Power consumption: 248 W

• Standby power consumption: 0.8 W

Dimensions

•Set dimensions (W x H x D): 1095 x 764 x 114 mm

• Set dimensions with stand (H x D): 824 x 290

• Weight incl. Packaging: 59 kg

• Product weight: 35 kg

•Box dimensions (W x H x D):

x 1064 x 323 mm

• VESA wall mount compatible: 800 x 400 mm

Accessories

• Included accessories: Tabletop swivel stand, RF antenna cable

• Optional accessories: Floor stand

•

Issue date 2012-01-11

Version: 9.0.16

12 NC: 8670 000 23307 EAN: 87 10895 92050 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* DVB-T, supported in selected countries only
