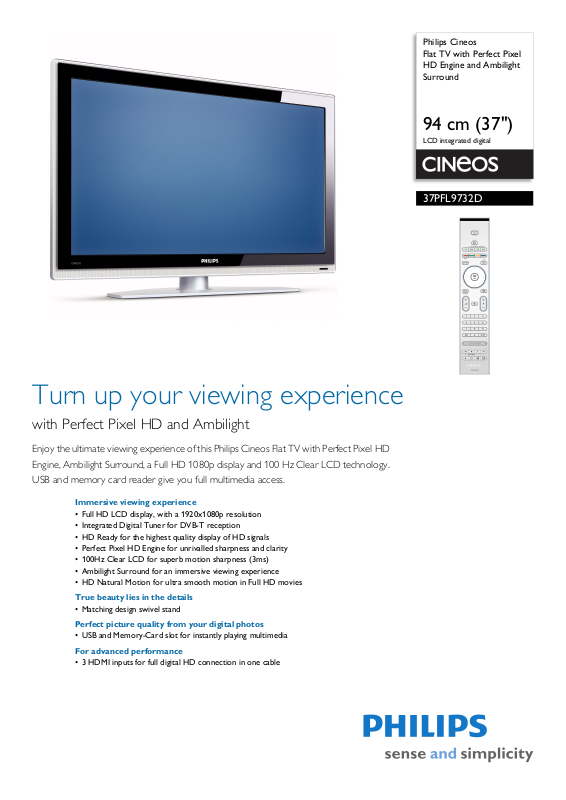

Philips Cineos
Flat TV with Perfect Pixel
HD Engine and Ambilight
Surround
94 cm (37")
LCD integrated digital
37PFL9732D
Turn up your viewing experience
with Perfect Pixel HD and Ambilight
Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Perfect Pixel HD
Engine, Ambilight Surround, a Full HD 1080p display and 100 Hz Clear LCD technology.
USB and memory card reader give you full multimedia access.
Immersive viewing experience
• Full HD LCD display, with a 1920x1080p resolution
• Integrated Digital Tuner for DVB-T reception
• HD Ready for the highest quality display of HD signals
• Perfect Pixel HD Engine for unrivalled sharpness and clarity
• 100Hz Clear LCD for superb motion sharpness (3ms)
• Ambilight Surround for an immersive viewing experience
• HD Natural Motion for ultra smooth motion in Full HD movies
True beauty lies in the details
• Matching design swivel stand
Perfect picture quality from your digital photos
• USB and Memory-Card slot for instantly playing multimedia
For advanced performance
• 3 HDMI inputs for full digital HD connection in one cable
Page 2
Flat TV with Perfect Pixel HD Engine and Ambilight Surround
94 cm (37") LCD integrated digital
Highlights
37PFL9732D/10
Full HD LCD display 1920x1080p
The Full HD screen has the widescreen
resolutio
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
Integrated Digital DVB-T tuner
The integrated Digital DVB-T tuner lets you
receive
additional set top box. Enjoy quality TV clutter
free.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Perfect Pixel HD Engine
Experience unrivalled sharpness and clarity
w
n of 1920 x 1080p. This is the highest
digital terrestrial TV without an
on pictures and be fully prepared for
ith Perfect Pixel HD Engine. Each pixel of the
picture is enhanced to better match the
surrounding pixels, resulting in a more natural
picture. The result is a unique combination of
sharpness, natural detail, vivid colors superior
contrast and smooth natural motion whatever
you are watching. Clean and razor sharp
images result from artifact and noise detection
and reduction in all content sources - from
multimedia to standard TV.
100Hz Clear LCD
100Hz Clear LCD creates extreme motion
sharpness for cle
with fast on-screen motion. The Double Frame
Rate Insertion works with a high 100Hz
refresh rate. It increases the sharpness of
motion reproduction to more than twice that
of conventional LCD, resulting in a response
time of 3 milliseconds (measured in Perceived
Blur-Edge-Width; BEW). This unique Philips
technology brings motion sharpness of LCD
displays to an unprecedented level.
Ambilight Surround
With lights surrounding the picture Ambilight
3 mak
es an impressive contribution to the
overall viewing experience with ambient light
on 3 sides to complement the colors and light
intensity of the image on screen. It creates
ambiance, stimulates more relaxed viewing,
and improves perceived picture detail, contrast
and color. Ambilight 3 automatically and
independently adapts the colors of each
screenside according to the changing content
on the screen. With the 3rd Ambilight the top
of the picture is now fully surrounded,
completely immersing you into the content.
ar and vibrant images even
Pre-mounted swivel stand
For maximum freedom of placement, this highq
uality stand is designed specifically for this TV.
The stand comes pre-mounted to the TV out
of the box. It allows easy placement of your
Flat TV without the hassle of building the stand
to the TV first. Enjoy the best viewing angle by
swivelling it the your personal preference.
USB and Memory Card slot
Instantaneously view and share your movies,
p
hotos and music. The Memory Card slot will
accept cards of type Compact Flash I and II,
Memory Stick, SD Card / Mini SD Card, Smart
Media, Micro Drive (up to 2 GB) and Multi
Media Card. Simply plug the memory card into
slot at the side of the TV, and access the
multimedia files stored on the card. The USB
connector allows access to multimedia files of
most USB-sticks and most digital cameras (USB
memory-class device).
3 HDMI inputs
HDMI makes an uncompressed digital RGB
c
onnection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection. With 3 HDMI inputs you can
connect multiple HD sources, for instance an
HD settop box, and a Blu-ray player. Your TV
is fully prepared for the HD future.
Page 3
Flat TV with Perfect Pixel HD Engine and Ambilight Surround
94 cm (37") LCD integrated digital
Specifications
37PFL9732D/10
Picture/Display
• Color cabinet: Brilliant Pearl
• Aspect ratio: 16:9
• Brightness: 550 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic screen contrast: 8000:1
• Response time (typical): 3 (BEW equiv.) ms
• Viewing angle: 176º (H) / 176º (V)
• Diagonal screen size: 37 inch / 94 cm
• Display screen type: LCD Full HD W-UXGA Act.
ix
r
mat
• Panel resolution: 1920x1080p
• Color processing: 4 trillion colors (14bit RGB)
• Picture enhancement: Perfect Pixel HD Engine, HD
ral Mot
Natu
1080p 50/60Hz processing, 1080p 24/25/30Hz
processing, 3/2 - 2/2 motion pull down, 3D
Combfilter, Active Control + Light sensor, Jagged
Line Suppression, Progressive scan, Pulse Killer
Chip, Widescreen Plus, 100Hz Clear LCD, Double
frame rate
• Screen enhancement: Anti-Reflection coated
re
sc
ion, Dynamic contrast enhancement,
en
Ambilight
• Ambilight Features: Ambilight Surround, Auto
adaptive to video content, Full operation in standby, Efficient low energy lamp
• Ambilight light system: LED wide color
• Dimming Function: Manual and via Light Sensor
Supported Display Resolution
mputer formats
• Co
Res
olution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz
deo formats
• Vi
Res
olution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 24, 25, 30Hz
1080p 24, 50, 60Hz
Sound
• Output power (RMS): 2x8W
• Sound Enhancement: Digital Signal Processing,
• Sound System: Virtual Dolby Digital, BBE
Equaliser, Dynamic Bass Enhancement
Graphic
Loudspeakers
• Built-in speakers: 4
• Loudspeaker types: Integrated woofers with
wOOx,
Dome tweeter
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
• Ease of Use: 4 favorite lists, Auto Volume Leveller
• Electronic Program Guide: Now + Next EPG, 8
• Remote Control: TV, DVD, HTS (Home Theater
•
• Screen Format Adjustments: unscaled (1080p dot
• Picture in Picture: Text dual screen
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Program
• Firmware upgradeable: Firmware auto upgrade
• Multimedia: Digital media reader (browser), USB
ic Channel Install(ACI), Automatic Tuning
Automat
System (ATS), Autostore, PLL Digital Tuning, Plug
& Play
), Delt
(AVL
Interface, On Screen Display, Program List,
Settings assistant Wizard, Side Control
day Electronic Progr
System), STB (Set-Top Box)
Remote control type: RC4422
dot
by
Movie expand 16:9, Super Zoom, Widescreen
info
wizard
autobr
a Volume per preset, Graphical User
am Gu
ide
), 4:3, Auto Format, Movie expand 14:9,
rmat
ion Line
, Firmware upgradeable via USB
eak-in
Multimedia Applications
•Memory Card Types: Compact Flash type I,
Compact Flash type II, Memory Stick, Microdrive,
MultiMedia Card (MMC), Secure Digital Card (SD),
Smart Media Card
• Multimedia connections: USB, 7-in-1 Memory Card
ader
Re
•
Playback Formats: MP3, Slideshow files (.alb), JPEG
ures
Still pict
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: DVB COFDM 2K/8K
• Video Playback: NTSC, SECAM, PAL
Digital TV: DVB Terrestrial *
•
• Tuner bands: Hyperband, S-Channel, UHF, VHF
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB
• Ext 3: YPbPr, Audio L/R in
• Ext 4: HDMI v1.3
• Ext 5: HDMI v1.3
• Ext 6: HDMI v1.3
• HDMI features: Cable equalization, Category 1 and
es, Compressed audio, Multirate pref. format
l
2 cab
support, PC format support, Resolutions 720p,
1080i, 1080p
• Front / Side connections: Audio L/R in, CVBS in,
• Other connections: Analog audio Left/Right out, S/
n
Headpho
memory card reader
PDIF
e Out, S-video in, USB, Multi-slot
ou
t (coaxial), Common Interface
Power
• Ambient temperature: 5 °C to 35 °C
• Mains power: AC 220 - 240 V +/- 10%
• Power consumption: 208 W
• Standby power consumption: 0.8W
Accessories
• Included accessories: Tabletop swivel stand, RF
antenna cable
Dimensions
• Set dimensions (W x H x D): 950 x 612 x 125 mm
• Set dimensions with stand (H x D): 677 x 184 mm
• Product weight: 24.7 kg
• Product weight (+stand): 27.6 kg
•Box dimensions (W x H x D):
66
x 818 x 300 mm
10
• Weight incl. Packaging: 29.7 kg
• VESA wall mount compatible: 600 x 400 mm
•
Issue date 2012-01-20
Version: 8.0.21
12 NC: 8670 000 24413
EAN: 87 12581 30063 0
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
* DVB-T, supported in selected countries only
