Contents
1 Important 4
Safety 4
Notice 4
2 Your in-car entertainment system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
7 Play with Bluetooth device 20
Pair the Bluetooth-enabled devices 20
Make a call 20
Answer call 21
Listen to music from Bluetooth device 21
Adjust Bluetooth settings 21
8 Adjust sound 22
Adjust volume 22
Mute 22
Adjust fader/balance 22
Set Dynamic Bass Boost (DBB) 23
English
3 Get started 9
Install the car audio 9
Turn on 12
Adjust screen 12
Set date and time 12
4 Use map 14
Upgrade the map 14
5 Listen to radio 15
Tune to a radio station 15
Store radio stations in memory 15
Tune to a preset station 15
6 Play 16
Load discs 16
Connect USB device 16
Insert USB or SD/MMC card 16
Play/Pause 17
Skip/search 17
Search within a title/folder 17
Repeat 18
Repeat a section 18
Random play 18
Select audio language 19
Select audio mode 19
Select subtitle language 19
Rotate pictures 19
Zoom 19
Select slide show duration 19
9 Adjust settings 23
Display system setup menu 23
Adjust general settings 23
Adjust video settings 24
Adjust Bluetooth settings 25
Adjust language settings 25
Adjust volume settings 26
Adjust DVD rating 26
10 Air conditioning 27
Turn on automatic climate control 27
Adjust climate control settings 27
11 CD compartment controls 28
12 Others 28
Listen to other devices 28
Reset 28
Remove the unit 29
Replace fuse 30
13 Product information 30
14 Troubleshooting 32
About Bluetooth device 32
15 Glossary 34
EN
3
Page 4
1 Important
Safety
Read and understand all instructions •
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or •
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground •
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do •
no watch video during driving.
To ensure safe driving, adjust the volume •
to a safe and comfortable level.
Improper fuses can cause damage or •
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware •
for a safe and secure installation.
To avoid short circuit, do not expose the •
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation •
slots or other openings on the apparatus.
Never place any objects other than discs •
into the disc tray/slot.
Visible and invisible laser radiation when •
open. Avoid exposure to beam.
Risk of damage to the screen! Never •
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene, •
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp •
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
The apparatus shall not be exposed to •
dripping or splashing.
Do not place any sources of danger on •
the apparatus (e.g. liquid filled objects,
lighted candles).
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
4
EN
Page 5
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
This product complies with the radio
inter ference requirements of the European
Community.
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
2010 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the proper ty of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
English
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX
versions of DivX
with standard playback of DivX
The Bluetooth
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
®
Certified product. Plays all
®
video (including DivX® 6)
®
word mark and logos are
®
media files.
EN
5
Page 6
2 Your in-car
What’s in the box
entertainment
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can:
quickly find routine through the •
navigation system
enjoy audio/video/JPEG pictures from•
DVD, VCD or CD•
USB devices•
SD/SDHC/MMC cards •
External devices•
listen to FM or AM (MW) radio•
play audio from Bluetooth-enabled •
devices
make/answer phone calls with Bluetooth-•
enabled devices
Check and identify the contents of your
package:
ab
cd
e
g
i
f
h
a Main unit
b Power cable
c AV OUT cable
d MZ-TFT/Video out 2 cable
e AV IN cable
f GPS antenna
g Cleaning cloth
h Printing materials (include User manual,
Quick start guide, Installation guide)
i QC card / Guarantee card
6
EN
Page 7
Overview of the main unit
g
h
i
j
k
l
q
English
p
o
n
m
a TUNE/ SELECT
Skip to the previous/next title, •
chapter, or track.
Confirm an entry or selection.•
Start, pause or resume play. •
b
Eject a disc.•
c
/
Open the cover and insert or •
remove the USB storage device/
SDHC card.
d AV IN/MAP
Open the cover and connect or •
remove the AV IN device.
Open the cover and insert or •
remove the GPS map card.
e Disc slot
f
TEMP
Adjust the temperature.•
EN
a
b
c
d
e
f
7
Page 8
g CLIMATE
Access the air conditioning interface.•
h
Select in-car air recycling system/air •
refreshing system.
i
Turn on the rear window defroster.•
j
Turn on the windscreen defroster.•
k AUTO
Turn on the automatic climate •
control mode.
l
Turn off the air conditioner.•
m DISP/
/
Adjust screen brightness.•
Turn on/off the screen display.•
n NAVI
Enter the GPS navigation system or •
exit.
o MENU
Return to the home menu.•
p
/MUTE/VOL
Turn the unit on or off.•
Mute or unmute audio.•
Adjust volume.•
q
Built-in microphone for phone calls. •
8
EN
Page 9
3 Get started
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground •
(earth) 12 V DC operation only.
Always install this unit in the car dashboard. •
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect, •
ensure that the ignition is off.
Ensure that you connect the yellow and red •
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with •
electrical tape.
Ensure that the leads do not get caught under •
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to •
a common ground (earth) point.
Use only the supplied mounting hardware for a •
safe and secure installation.
Improper fuses can cause damage or fire. •
When you need to change the fuse, consult a
professional.
Notes on speaker connection
Never connect speaker wires to the •
metal body or chassis of the car.
Never connect speaker wires with stripes •
to one another.
Connect wires
Caution
Ensure that all loose leads are insulated with •
electrical tape.
1 Check the car’s wirings carefully, then
connect them to the unit.
English
Note on the power supply lead (yellow)
When you connect other devices to this •
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
EN
9
Page 10
5HDUVFUHHQ
:LUHOHVVKHDGSKRQH
<HOORZ
<HOORZ
:KLWH
0DLQXQLW
*36DQWHQQD
%ODFN
ޮԬଇ
ڧᇽ൮ൿೊ
ڧᇽቔၿൿೊ
ڧᇽႻၿൿೊ
5HG
:KLWH
<HOORZ
$9V\VWHP
$8;
ޮ൮ൿԟ
5HG
ޮ൮ൿԟ
ޮႻၿൿԟ
ޮቔၿൿԟ
REVERSE
PARKING
CAMERA CVBS
<HOORZ
3,1
WRRULJLQDO&'
SOD\HU
3,1
WRRULJLQDO
GLVSOD\VFUHHQ
3,1
WRRULJLQDO&'
SOD\HU
Connect GPS antenna
To receive signal from satellites, connect the
supplied GPS antenna to the system and your
car.
1 Connect the supplier GPS antenna to the
system.
10
EN
WR&$1ER[
3,1
WRRULJLQDOLQFDU
V\VWHP
3,1
WRRULJLQDOLQFDU
V\VWHP
Page 11
2 Stick the other end of the GPS antenna to
a metal surface of the car.
English
Mount in the dashboard
Note
Check wire connections before you mount the •
main unit into a car.
If preset radio stations are lost when the •
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1 If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car batter y.
If you disconnect the car batter y in •
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
If the car battery is not disconnected, •
to avoid shor t-circuit, ensure that
bare wires do not touch each other.
2 Ensure that the horizontal slant of the car
dashboard opening is between 0 and 20
degrees. The unit cannot be used if the
dashboard opening’s slant angle is above
20 degrees.
3 Fix the plastic clips and base support
(removed from the original in-car system)
to the main unit.
4 Fix the mounting brackets (removed from
the original in-car system) to the left and
right side panels of the main unit.
5 Fix the exhaust outlets of the original air-
conditioner to the two openings.
EN
11
Page 12
6 Fix the hazard warning switch (removed
from the original in-car system) to the
main unit.
f
Turn on
Caution
Risk of road accidents! Never watch video or •
adjust settings while you drive.
1 Press and hold /MUTE/VOL to turn on
the unit.
The available OSD (On-Screen »
Display) languages are displayed.
2 Tap a language to select.
The OSD language is changed to the »
selected language immediately.
To turn off the unit, press and hold •
MUTE/VOL.
/

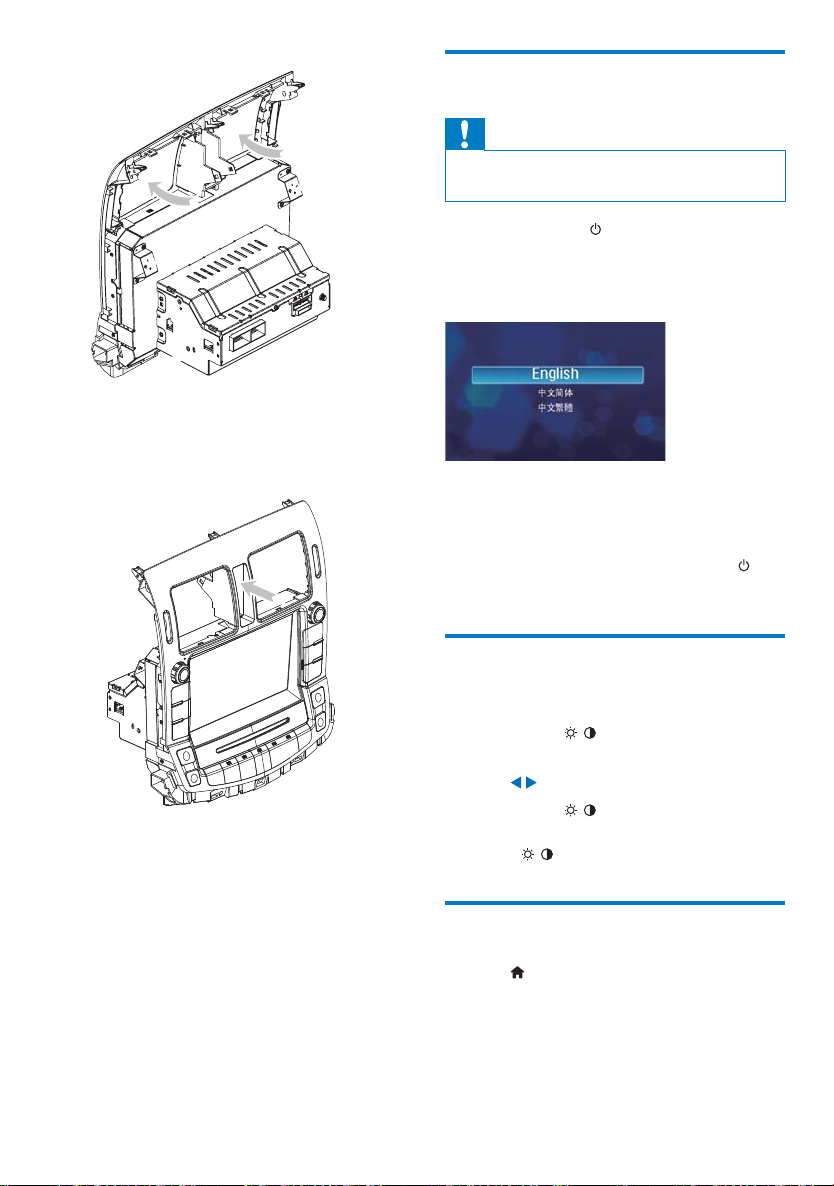

7 Slide the unit into the dashboard and fix
it to the car.
8 Reconnect the negative terminal of the
car battery.
12
EN

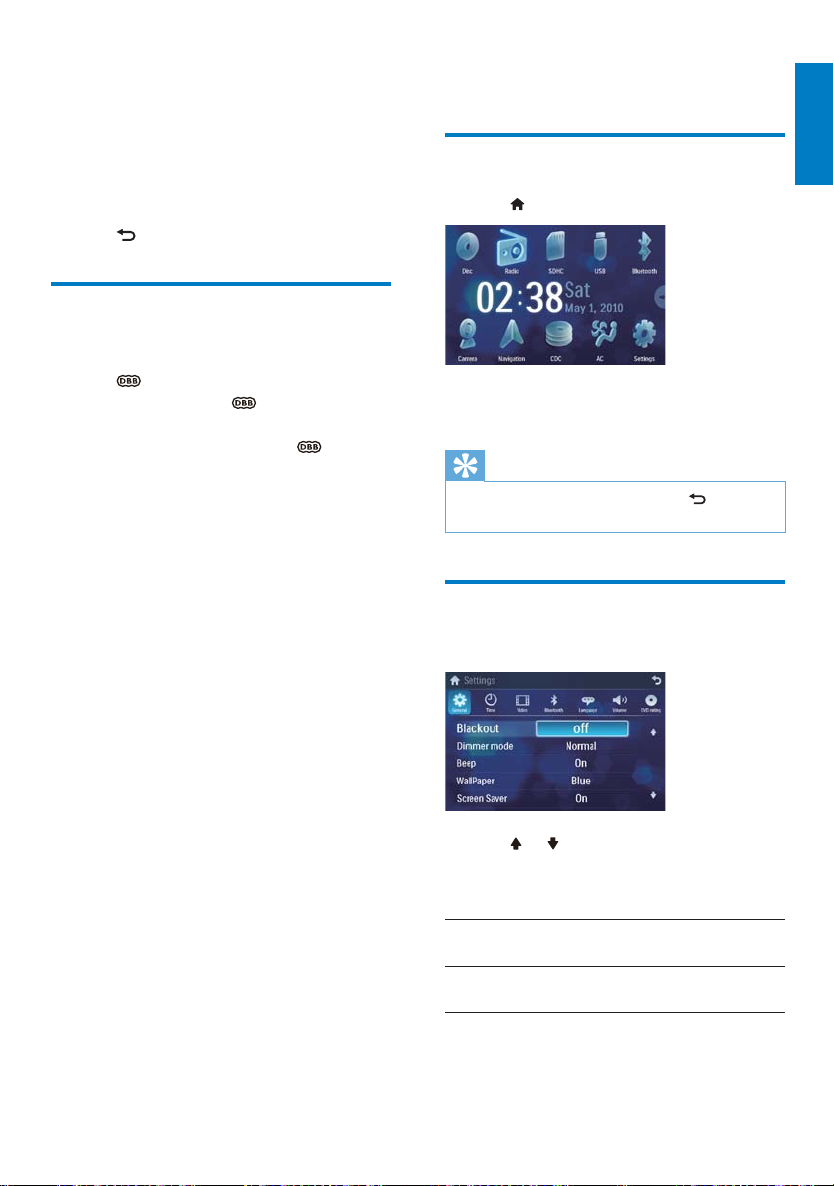

Adjust screen
To adjust screen brightness
1 Press DISP/ / to show the brightness
bar.
2 Tap / to adjust the value.
3 Press DISP/ / to confirm.
To turn on/off the screen, press and hold •
DISP/
/ .
Set date and time
Tap to display home menu.
1
Page 13

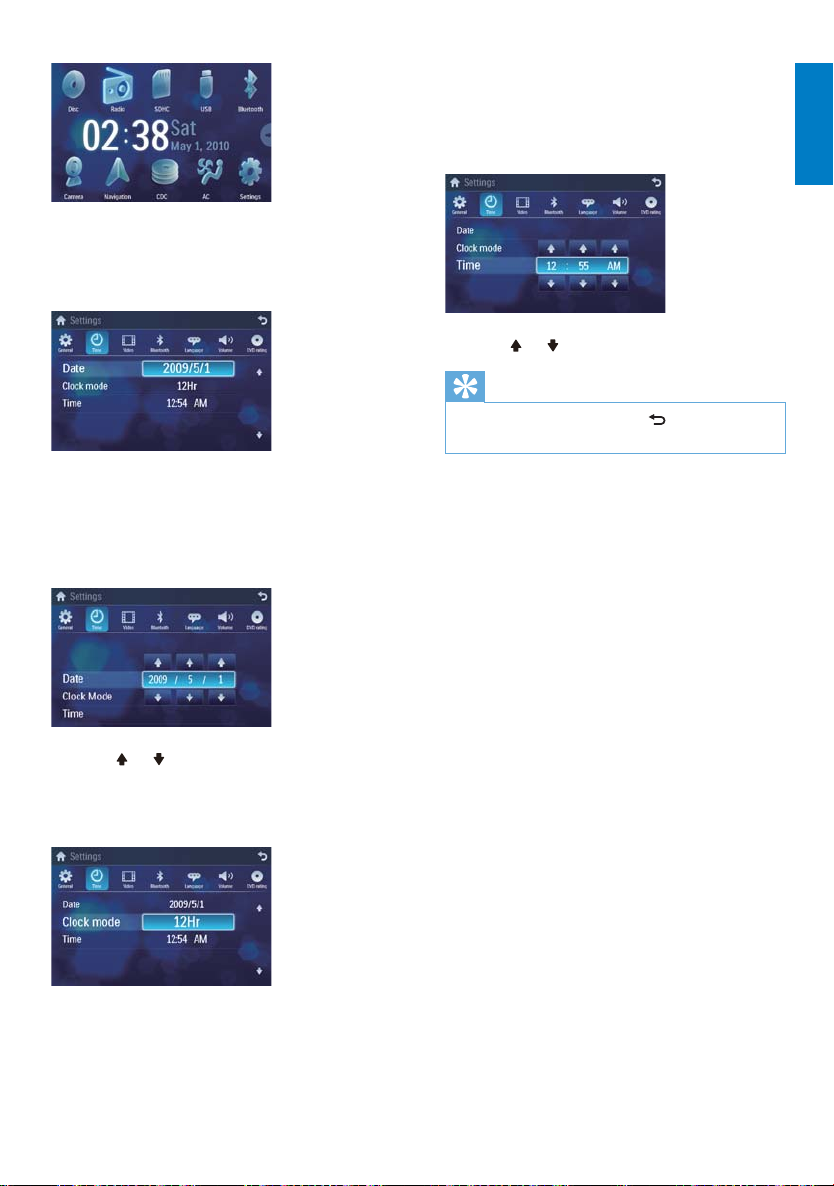

2 Tap [Settings].
3 Tap [Time].
The date/time setup menu is displayed. »
Set date
1 Tap [Date].
2 Tap on the displayed date information.
A submenu is displayed. »
Set time
1 Tap [Time].
2 Tap on the displayed time.
A submenu is displayed. »
3 Tap or to set hour and minute.
Tip
When date/time is set, tap • to return to
main menu.
English
3 Tap or to set year, month and day.
Set clock mode
1 Tap [Clock mode].
2 Tap on [12Hr] or [24Hr] to select clock
mode.
EN
13
Page 14
4 Use map
Note
You may need to upgrade the map (sold •
separ ately) before using it (see “ Upgrade the
map” section).
1 In the main menu, tap [Navigation].
The navigation menu is displayed in a »
few seconds.
2 See the map manual to operate the
navigation tool.
Tip
You can press • NAVI to enter/exit the
navigation system.
Upgrade the map
1
Turn off the car audio system.

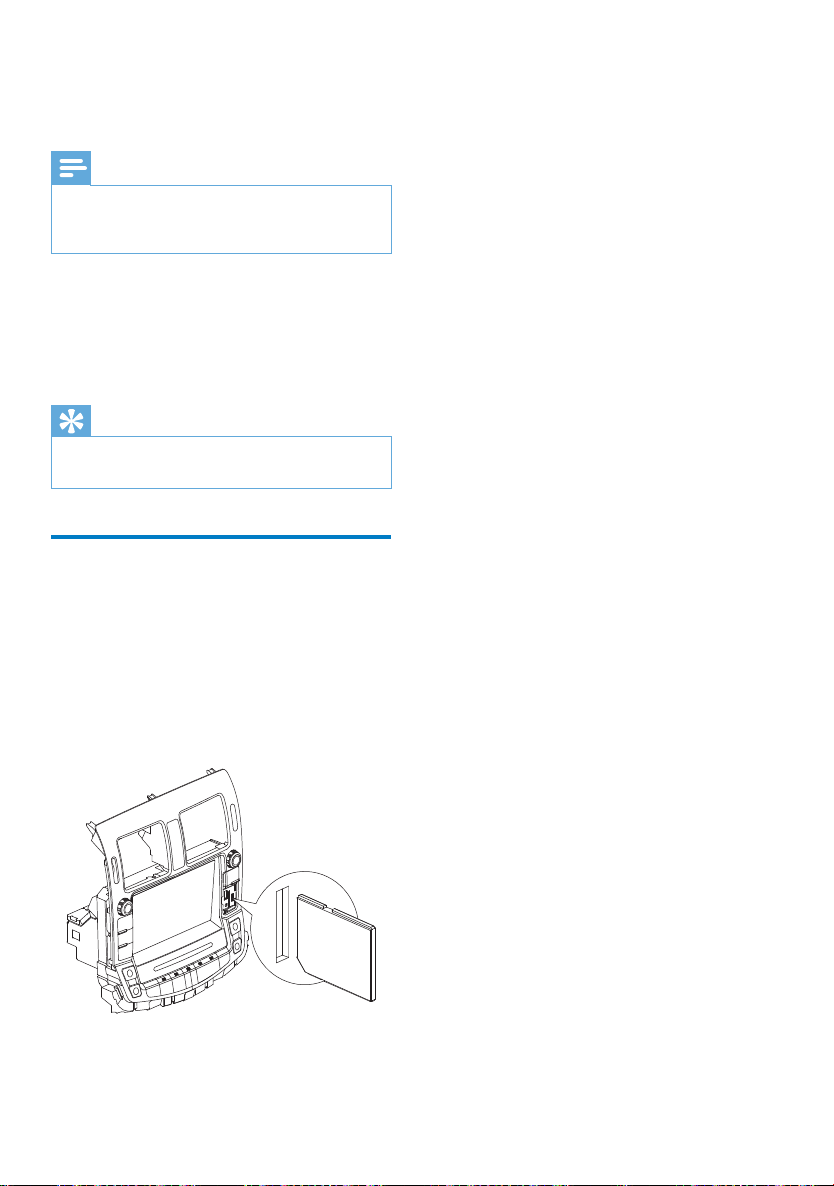

2 Open the AV-IN/MAP socket cover.
3 Press the map card (sold separately) until
you hear a click sound.
4 Take out the card and bring it to the
authorized service center for upgrade.
6 Turn on the in-car system.
The map upgrades in a few minutes. »
5 Insert the upgraded map card back into
the map card slot.
14
EN
Page 15

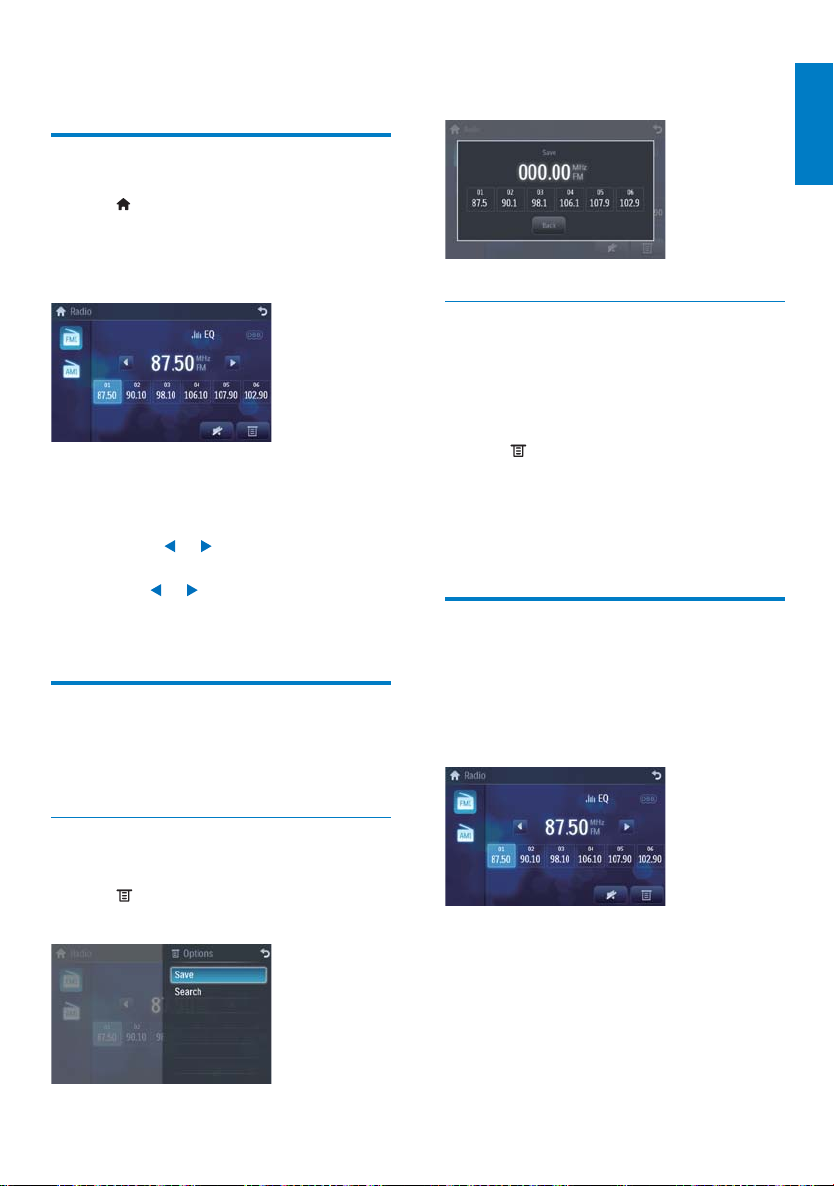

5 Listen to radio
4 Tap one of the channels 01 to 06 to save
the selected band.
Tune to a radio station
Tap to display the home menu.
1
2 Tap [Radio].
Band and frequency information is »
displayed.
3 Tap on FM or AM to select band:
FM band options: • FM1, FM2, FM3
AM band options: • AM1, AM2
4 Briefly tap or to tune to a radio
station by step.
Tap •
or for more than 1
second to tune to a radio station
automatically.
Store radio stations in
memory
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1 Select band.
2 Tap .
3 Tap [Search].
Auto search starts. The six strongest »
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
Tap [Radio].
1
2 Select band.
3 Tap one of the preset channels (01 to 06)
to select a preset station.
English
You can store up to 6 stations in each band.
Store stations manually
1 Tune to a station.
2 Tap .
3 Tap [Save].
EN
15
Page 16
6 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
Note

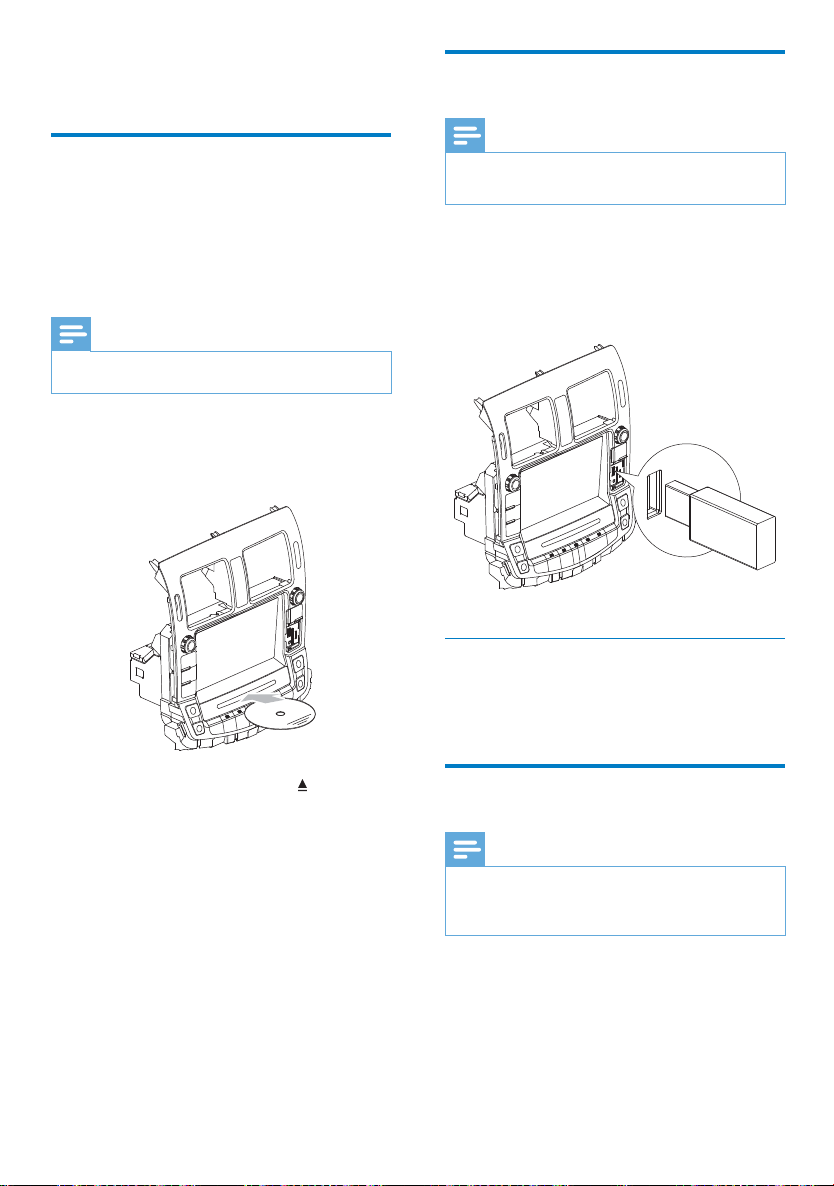

Ensure that the disc contains playable content. •
1 Insert a disc into the disc slot with the
label side facing up.
Play starts automatically. »
Connect USB device
Note
Ensure that the device contains playable •
content.
1 Open the USB/SDHC socket cover.
2 Insert the USB storage device to the USB
socket.
Play starts automatically. »
Remove the USB device
1 Switch to another (non-USB) source.
2 Remove the USB storage device.
To remove the disc, press » .
When the disc is ejected, the unit »
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
16
EN
Insert USB or SD/MMC card
Note
Ensure that the device contains playable •
content.
The unit supports SDHC card. •
1 Open the USB/SDHC socket cover.
2 Insert the SD/MMC card into the card
slot.
Play starts automatically. »

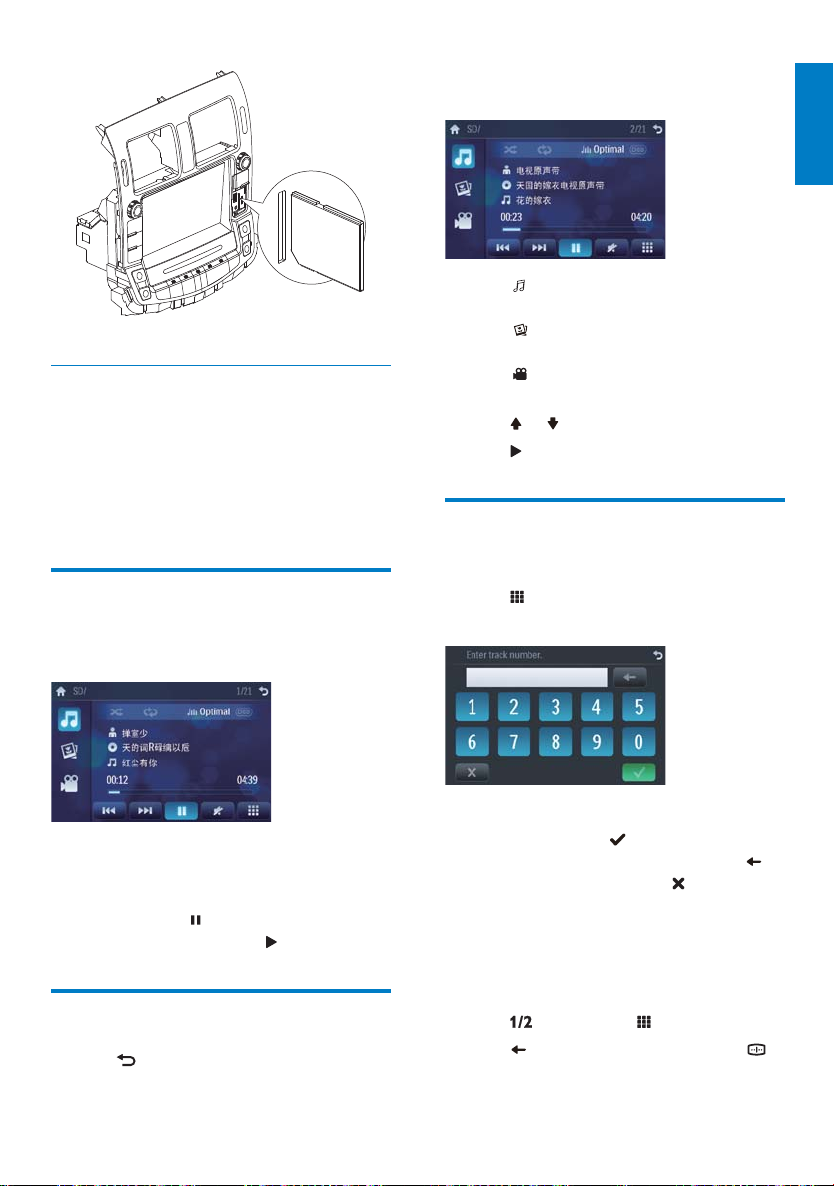

Page 17
Remove the SD/MMC card
1 Switch to another source.
2 Press the card until you hear a click
sound.
The card is now disengaged. »
3 Remove the SD or MMC card.
Play/Pause
Once a disc, USB or SD/MMC card is
1
inser ted, play starts automatically.
2 Tap one of below icons to select folder/
file:
• : To display all available audio
folders/track.
•
: To display all available picture
folders/files.
•
: To display all available video
folders/files
3 Tap or to select a folder/track.
4 Tap to star t play.
Search within a title/folder
For audio files:
1 Tap .
The search screen is displayed. »
English
For DVD movie, if a menu appears, tap a
item to start play.
2 To pause, tap .
To resume play, tap •
Skip/search
1
Tap to return to playlist menu.
.
2 Tap the numbers to input track/file
number, then tap
To clear the previous input, tap •
To clear all input, tap •
For video files:
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap , and then tap .
3 Tap to search by chapter/track or
to search by time.
.
.
EN
.
17
Page 18
4 Tap the numbers to input track/file
number or time, then tap
To clear all input, tap •
.
.

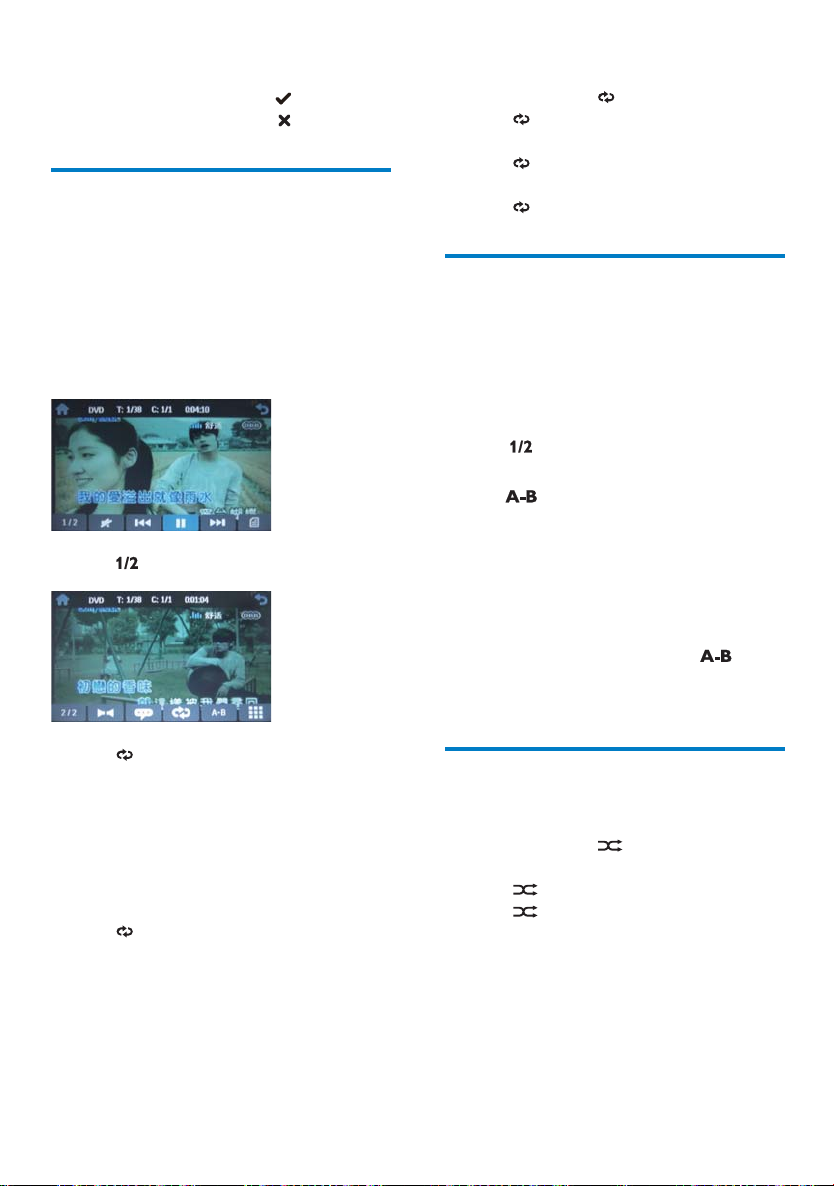

Repeat
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap to display the 2nd menu.
For MP3/WMA files:
1 During play, tap to select:
•
-1: play the current track
repeatedly.
•
-Folder: play all the tracks in the
current folder repeatedly.
•
(in grey color): cancel repeat play.
Repeat a section
You can repeat a specific section of video file
(repeat A-B).
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu, if
necessary.
3 Tap repeatedly to mark:
• [Repeat A-]: the start of the section
to repeat.
• [Repeat A-B]: the end of the section
to repeat.
The selected section plays •
repeatedly.
4 To exit A-B repeat mode, tap
repeatedly until [Repeat A-B off ] is
displayed.
3 Tap to select:
• [Repeat chapter]: play the current
chapter repeatedly.
• [Repeat title]: play all chapters in the
title repeatedly.
• [Repeat off ]: cancel repeat play.
For VCD karaoke:
1 Tap to select:
• [Repeat one]: play the current track
repeatedly.
• [Repeat all]: play all tracks
repeatedly.
• [Repeat off ]: cancel repeat play.
18
EN
Random play
You can play audio tracks/files in random order.
1 During play, tap repeatedly to turn
random play on or off.
•
is highlighted: start random play.
•
turns gray: cancel random play.
For VCD:
• [Shuffle on]: start random play.
• [Shuffle off]: cancel random play.
Page 19

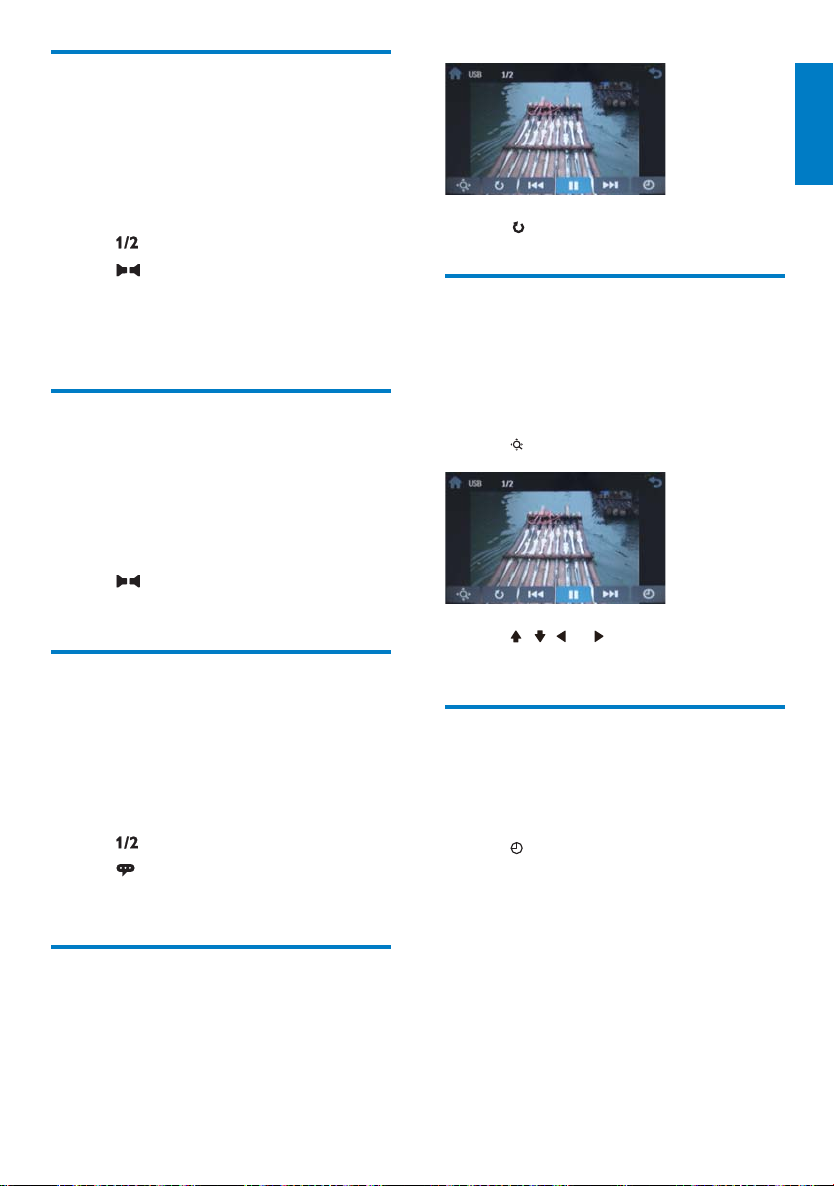

Select audio language
For video discs that contain two or more audio
channels.
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu.
3 Tap repeatedly.
The audio channel information is »
displayed on the upper line of the
screen.
Select audio mode
When you play VCDs, you can select an audio
mode (R/L/Stereo).
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen.
2 Tap repeatedly until the audio mode
is selected.
Select subtitle language
English
2 Tap repeatedly to rotate the picture.
Zoom
You can zoom in pictures for a close view.
1 During picture viewing, tap anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2 Tap repeatedly to zoom in the picture.
3 Tap , , or to pan through the
enlarged picture.
For DVD or DivX discs that contain two or
more subtitle languages.
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu
3 Tap repeatedly to select a language.
The selected language is displayed. »
Rotate pictures
When you view pictures, tap anywhere
1
except for the upper left corner to display
menu on the screen, if necessary.
Select slide show duration
Tap anywhere except for the upper left
1
corner to display menu on the screen, if
necessary.
2 Tap repeatedly to select:
• Fast: 3 seconds
• Normal: 5 seconds
• Slow: 8 seconds
EN
19
Page 20
7 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetoothenabled device.
Pair the Bluetooth-enabled
devices
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a •
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this •
unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not •
guaranteed.
Any obstacle between this unit and a •
Bluetooth device can reduce the operational
range.
Keep this unit away from any other electronic •
device that may cause interference.
Disconnect Bluetooth devices
1 To disconnect one device, tap (red).
»
(green) is displayed.
Tip
The device will also be disconnected when the •
device is moved beyond the operational range.
If you want to reconnect the device to the •
unit, place it within the operational range.
If you do not want to reconnect the device to •
the unit automatically, tap >[Auto connect],
then select [Off ]. For details, see the “Adjust
Bluetooth settings” section.
Make a call
1
Pair the phone with the unit.
2 Tap to display the home menu.
3 Tap [Bluetooth].
The Bluetooth menu is displayed. »
1 Turn on the Bluetooth function on the
device.
2 Search for Bluetooth device with the
device.
3 Select “CID3693” in the pairing list.
4 Enter default password “0000”.

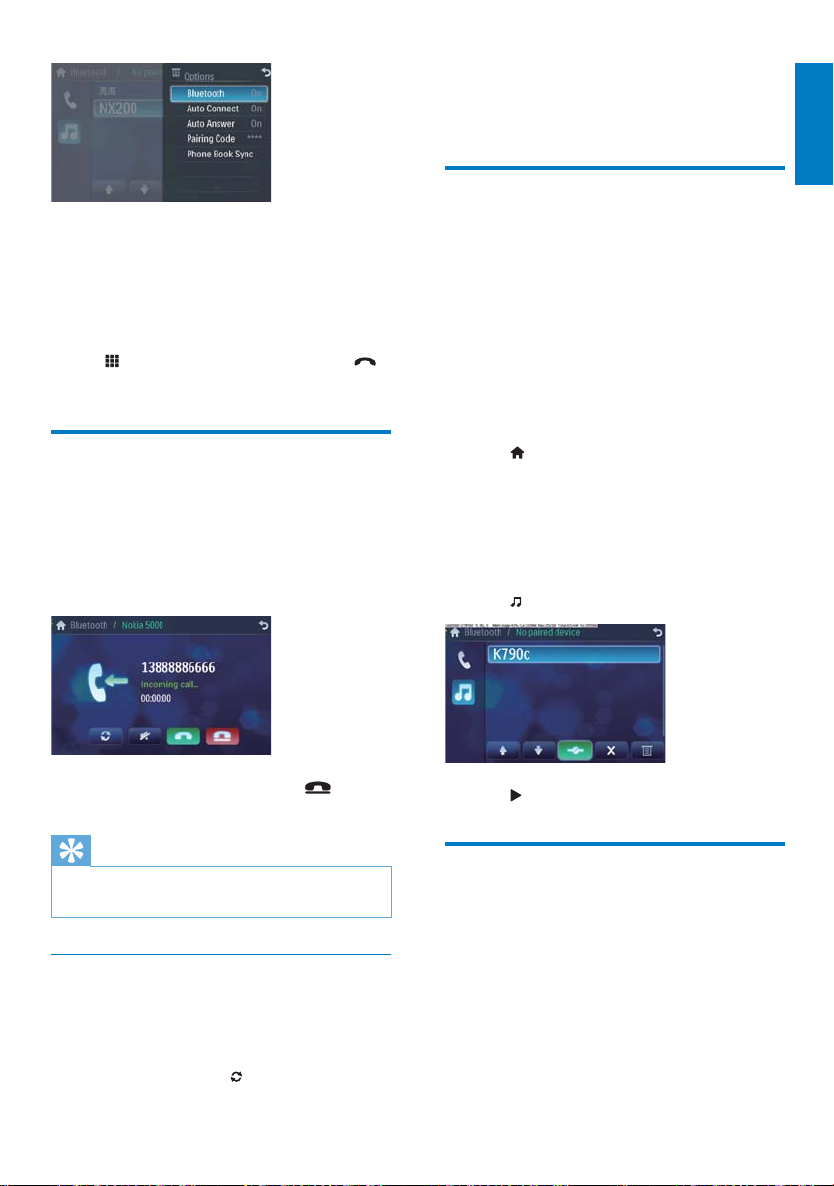

if pairing succeeds. phone call record is »
displayed.
20
EN
4 Tap or to select the paired phone,
then tap
5 Tap or to search for phone number
from the following list:
.
Page 21
The voice is transferred from the in-car »
system’s loudspeaker to the mobile
phone.
English
• [Missed calls]
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]
Or tap
to dial.
Answer call
By default, the in-car system answers all
incoming calls automatically.
1 If there is incoming call, [Incoming call...]
to dial number directly, then tap
flashes on the screen. Speak into the
Bluetooth microphone.
2 When conversation ends, tap (red)
to terminate the call.
Listen to music from
Bluetooth device
If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
Audio Video Remote Control Profile (AVRCP)
profile, you can use the control on the unit to
play music stored in the device.
1 Pair the phone with the unit.
2 Tap to return to home menu.
3 Tap [Bluetooth].
The Bluetooth menu is displayed. »
4 Star t to play music stored in the device.
If your device supports AVRCP,
1 Tap .
2 Tap to star t play.
Tip
To answer calls manually, set • [Auto answer]
to [Off ].
Switch phone call to the mobile
If you do not want your passenger to hear
your incoming call, you can switch the call to
your mobile phone.
1 During the call, tap .

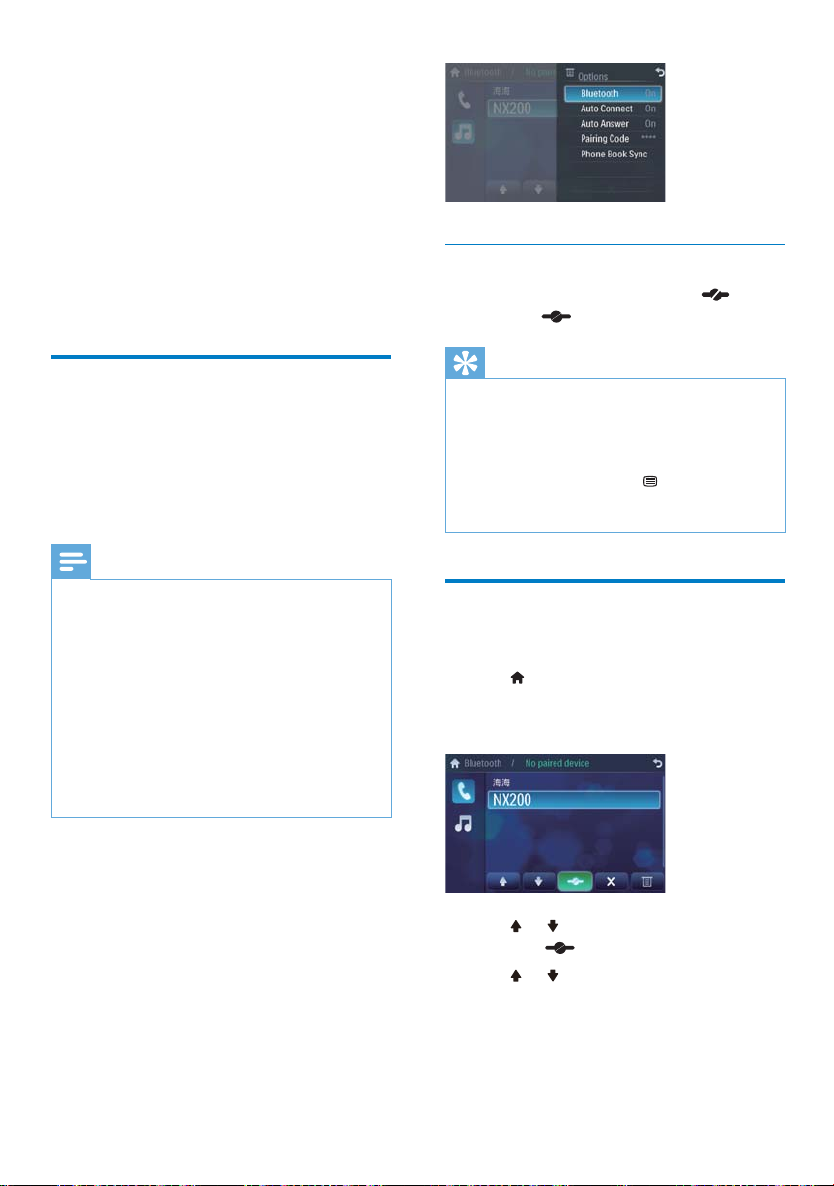

Adjust Bluetooth settings
You can change below Bluetooth settings:
• [Bluetooth]: to turn on or off
“Bluetooth” function
• [Auto connect]: to turn on or off
“Auto connect” function
• [Auto answer]: to turn on or off
“Auto answer” function
• [Pairing code]: to set paring code
EN
21
Page 22
• [Phone Book Sync]: to synchronize
phone book
1 In Bluetooth menu, tap .
The option menu is displayed. »
8 Adjust sound
Adjust volume
Turn /MUTE/VOL button clockwise to
1
increase volume.
2 Turn /MUTE/VOL button anti-clockwise
to reduce volume.
2 Tap an option to change the setting.
Tip

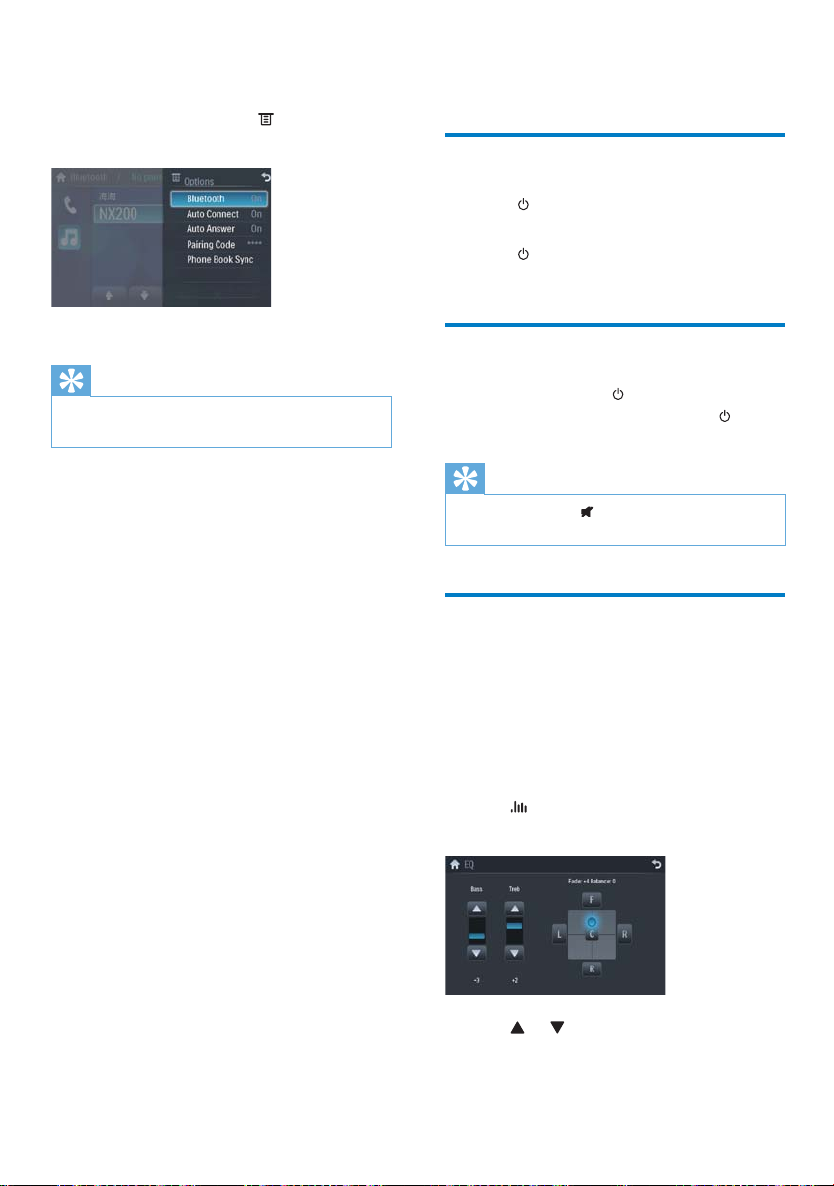

You can also adjust Bluetooth settings in the •
“Settings” menu.
Mute
1
During play, press /MUTE/VOL.
To restore the sound, press •
MUTE/VOL again.
Tip
You can also tap • on the screen to turn off
sound.
Adjust fader/balance
You can also adjust the front and rear speaker
balance, the left and right speaker balance, and
bass and treble settings.
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap .
Below options are displayed: »
/
3 Tap or to change bass and treble
settings.
• [Bass]: bass range: -5 to +5.
22
EN
Page 23
• [Treb]: treble range: -5 to +5.
4 Tap F, R, L, or R to adjust fader/balance
value.
• [Fade] fader range: +7 to -7. (F =
front speaker, R = rear speaker)
• [Balance] balance range: -7 to +7. (L
= left speaker, R = right speaker)
5 Tap to exit.
Set Dynamic Bass Boost
(DBB)
1
Tap to toggle between the settings.
• [DBB] on: The
illuminated.
• [DBB] off (default): The
gray.
icon is
icon is
9 Adjust settings
Display system setup menu
Tap to display main menu.
1
2 Tap [Settings].
The settings menu is displayed. »
Tip
When the setup is complete, tap • to return
to main menu.
Adjust general settings
English
1
Tap [General], if necessary.
2 Tap or to highlight a setting.
3 Tap on the option to display/select an
option.
General
settings
[Blackout] [off] Never turn on the
Options Description
screen saver.
EN
23
Page 24
[10s] Turn on the screen
saver automatically
10 seconds after
last operation.
[20s] Turn on the screen
saver automatically
20 seconds af ter
last operation.
[Dimmer
Mode]
[Key color] [Red] Button backlight
[Beep] [On] Turn on the
[WallPaper] [Blue] Turn background
[Screen
Saver]
[ScrSaver
Time]
[Calibration] Calibrate the
[Night] Select this mode
at night.
[Dark] Select this mode in
dark environment.
[Normal] Set screen dimmer
to normal mode.
[Bright] Select this
mode in bright
environment.
turns red.
[Blue] Button backlight
turns blue.
beep sound. Each
time you press a
button, the unit
beeps.
[Off] Turn off the beep
sound.
color to blue.
[Black] Turn background
color to black.
[Red] Turn background
color to red.
[F1] Select F1 picture
as wall paper.
[On] Turn on the screen
saver.
[Off] Turn off the screen
saver.
Select the screen
saver time.
touch screen.
4 Tap to exit.

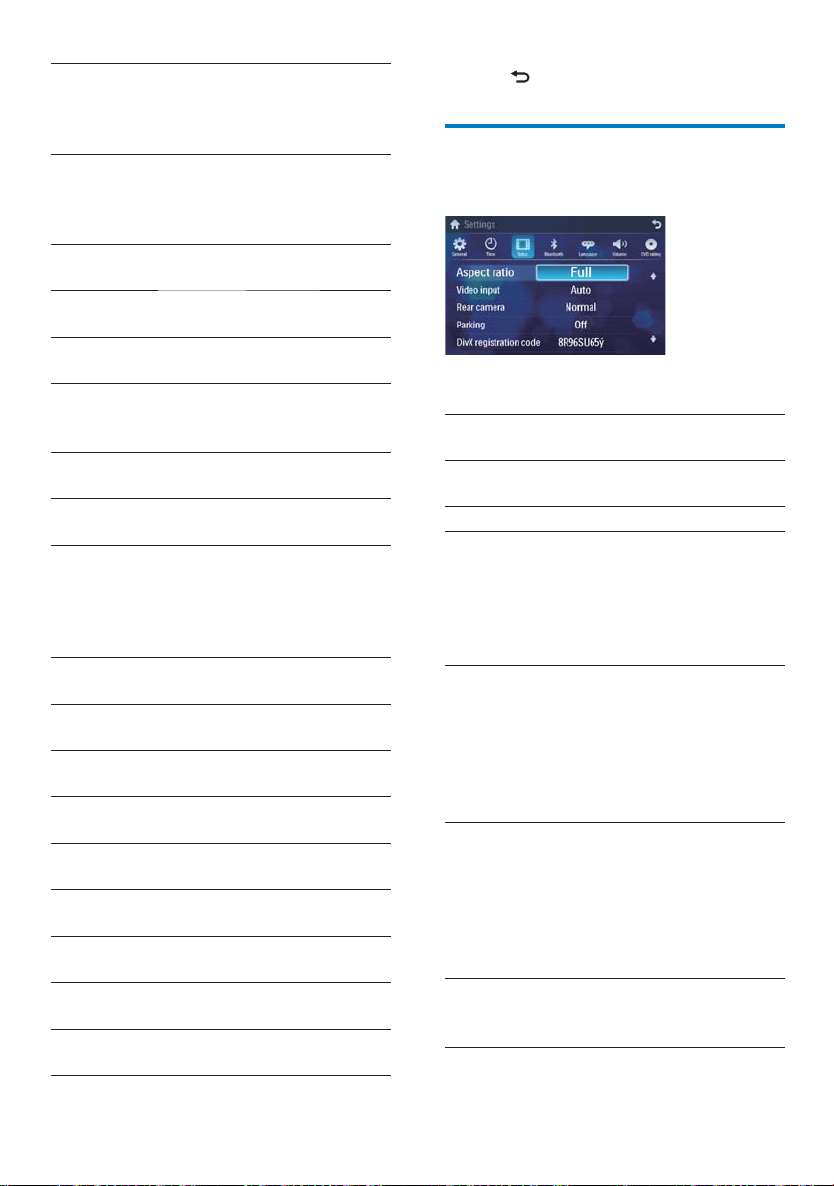

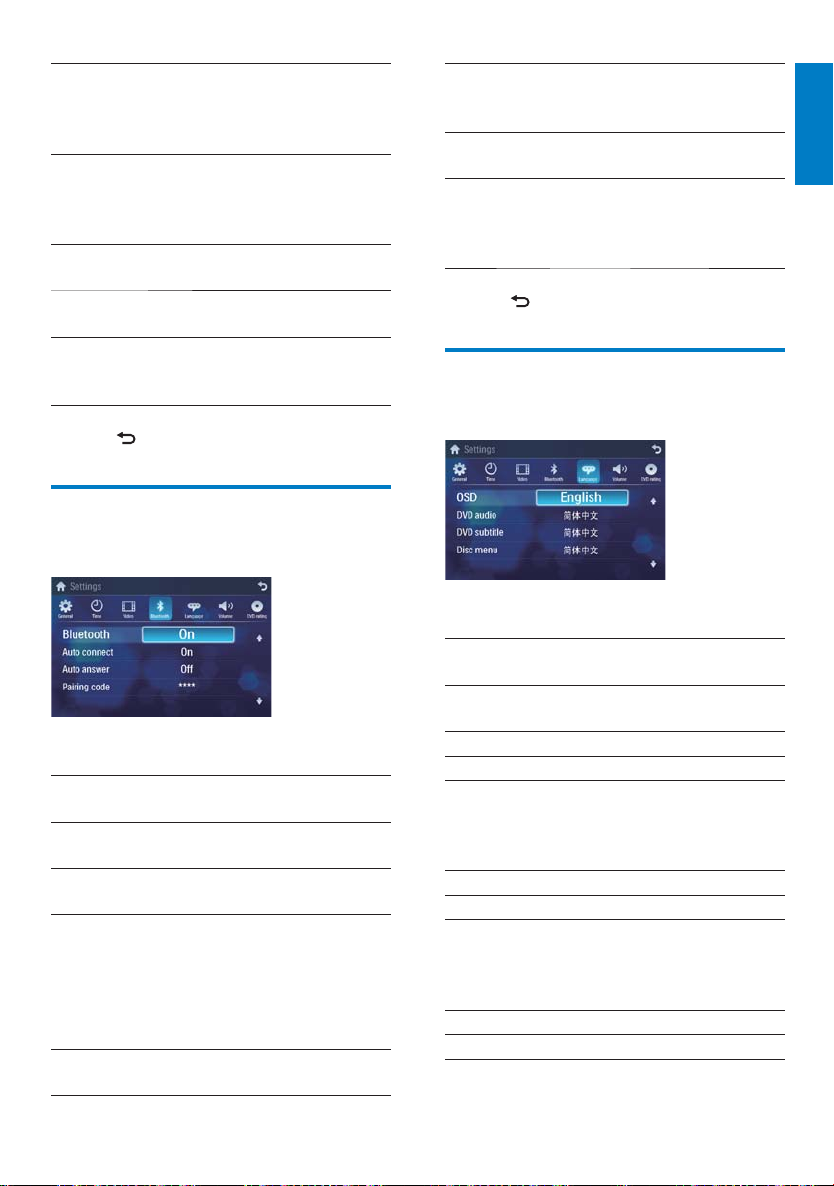

Adjust video settings
1
Tap [Video].
2 Tap an option repeatedly to select:
Video
settings
[Aspect
ratio]
[Video
input]
Options Description
[Full] For widescreen
display.
[Normal] For normal display.
[Auto] The correct format
is set automatically.
Select this option
if you are not sure
which format should
be selected.
[NTSC] Used in the United
States, Canada,
Japan, Mexico, the
Philippines, South
Korea, Taiwan,
and some other
countries.
[PAL] Used in China,
India, Singapore, the
western European
countries (except
France), Australia,
and some other
countries.
[Secam] Used in France,
Russia and other
countries.
24
EN
Page 25
[Rear
camera]
[Parking] [On] Disable video view
[DivX
registration
code]
[Normal] When you drive in
reverse, the rear
view is displayed
normally.
[Mirror] When you drive in
reverse, the rear
view is displayed in
mirror.
during drive.
[Off] Enable video view
during drive.
View code for DivX
registration.
3 Tap to exit.
Adjust Bluetooth settings
1
Tap [Bluetooth].
[Auto
answer]
[Pairing
code]
[On] Answer paired
phone call
automatically.
[Off] Answer phone call
manually.
View code for
pairing the unit with
other Bluetooth
devices.
3 Tap to exit.
Adjust language settings
1
Tap [Language].
2 Tap an option repeatedly to select:
English
2 Tap an option repeatedly to select:
Bluetooth
settings
[Bluetooth] [On] Turn on the
[Auto
connect]
Options Description
Bluetooth function.
[Off] Turn off the
Bluetooth function.
[On] If the pre-paired
device is within the
effective range, the
unit re-connects to
pre-paired device
automatically.
[Off] Need to re-connect
manually.
Language
settings
[OSD] [English] Select on-screen-
[DVD
audio]
[DVD
subtitle]
Options Description
display language.
ࡩᇓ໗]
[
ْᇓ໗]
[
[English] Select DVD audio
language. Options
available are depends
on DVD disc.
ࡩᇓ໗]
[
ْᇓ໗]
[
[English] Select DVD subtitle
language. Options
available are depends
on DVD disc.
ࡩᇓ໗]
[
ْᇓ໗]
[
EN
25
Page 26
[Disc
menu]
[Off] Turn off subtitle
language display.
[English] Select DVD menu
language. Options
available are depends
on DVD disc.
[
ࡩᇓ໗]
ْᇓ໗]
[

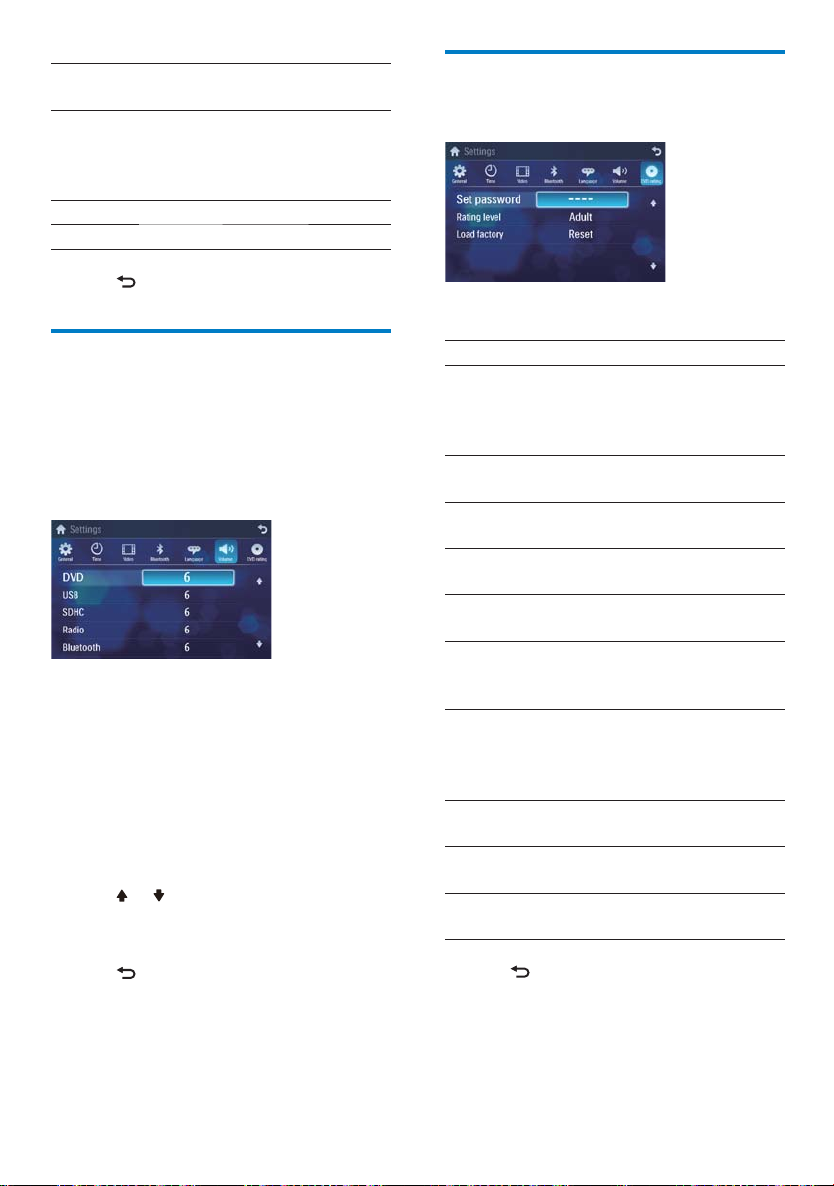

Adjust DVD rating
1
Tap [DVD rating].
3 Tap to exit.
Adjust volume settings
You can set different volume for different
modes.
1 Tap [Volume].
The volume setting sub-menu is »
displayed.
2 Tap on a source.
• [DVD]
• [USB]
• [SDHC]
• [Radio]
• [Bluetooth]
• [AV-IN1]
• [AV-IN2]
• [Navigation]
3 Tap or to assign a value: 0 to 12.
When you switch to the source, the »
volume increases automatically.
4 Tap to exit.
2 Tap an option repeatedly to select:
DVD rating Options Description
[Set
password]
[Rating
level]
[Load
factory]
[Kid
safe]
[G] Acceptable for general
[PG] Parental guidance
[PG-13] Unsuitable for children
[PG-R] Recommend parents
[R] Restricted.
[NC-17] Unsuitable for children
[Adult] Acceptable for adults
3 Tap to exit.
Set password to
restrict the play of
discs. The default
password is 0000.
Acceptable for
children.
viewers.
suggested.
under age 13.
to restrict children
under 17 to view.
Recommend parent to
guide children under
17 to view.
under age 17.
only.
Restore to default
settings.
26
EN
Page 27
10 Air conditioning

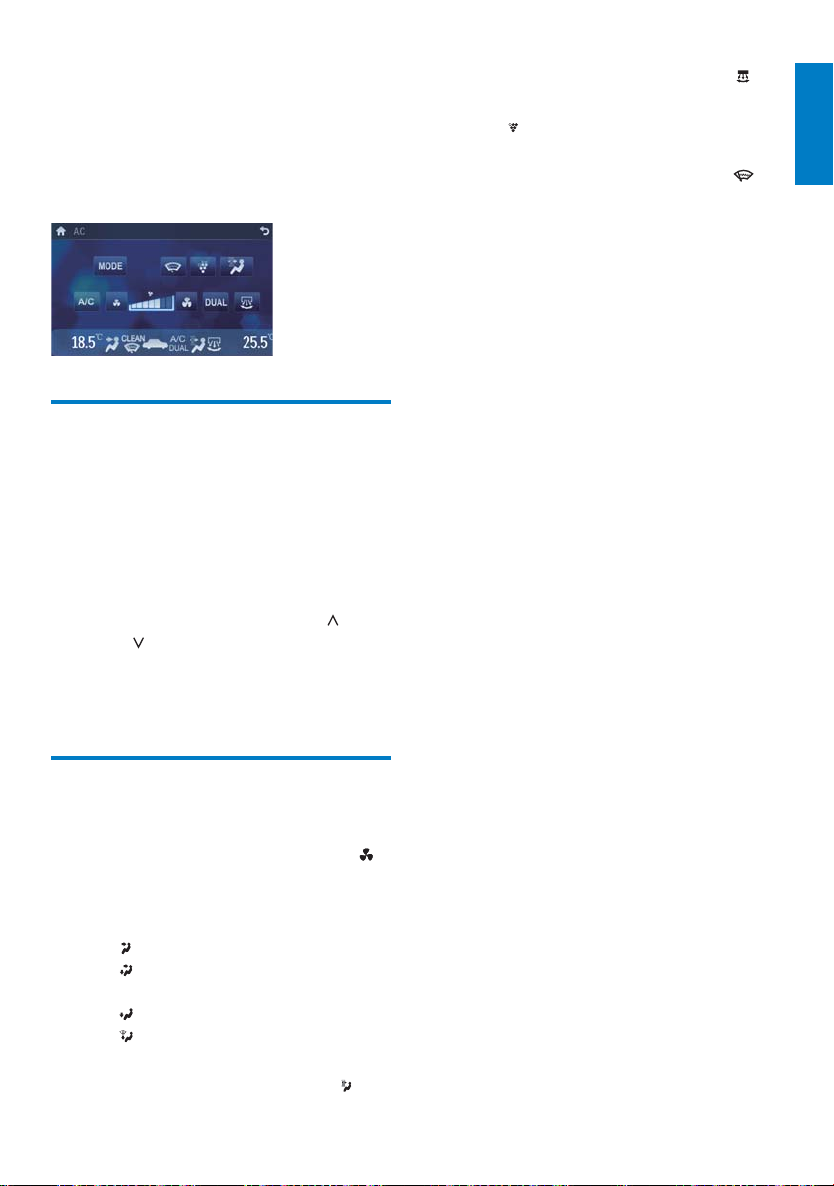

1 In the home menu, tap [AC].
The air conditioning interface is »
displayed.
Turn on automatic climate
control
Press AUTO on the main unit.
1
The air conditioner starts and the »
system controls the temperature, fan
speed, recirculation and air distribution
automatically.
2 To adjust the temperature, press
TEMP .
You can tap • [DUAL] to change the
temperature on the driver’ s side or
the front passenger side separately.
4 To turn on/off throttle control, tap .
5 To turn on/off the plasma cluster mode,
tap
ION
.
6 To remove ice and condensation from the
windscreen and side windows, tap
.
7 To turn on/off the refrigeration and
dehumidification function, tap [A/C].
English
Adjust climate control
settings
On the air conditioning inter face, tap
1
to change the fan speed.
2 To switch the air distribution modes, tap
[MODE] repeatedly.
•
: Direct air to the upper body.
•
: Direct air to the upper body and
footwell.
•
: Direct air to the footwell.
•
: Direct air to the footwell and turn
on the windscreen defroster.
3 To turn on/off the pollen filter, tap .
EN
27
Page 28
11 CD
compartment
controls
1 In the home menu, tap [CDC].

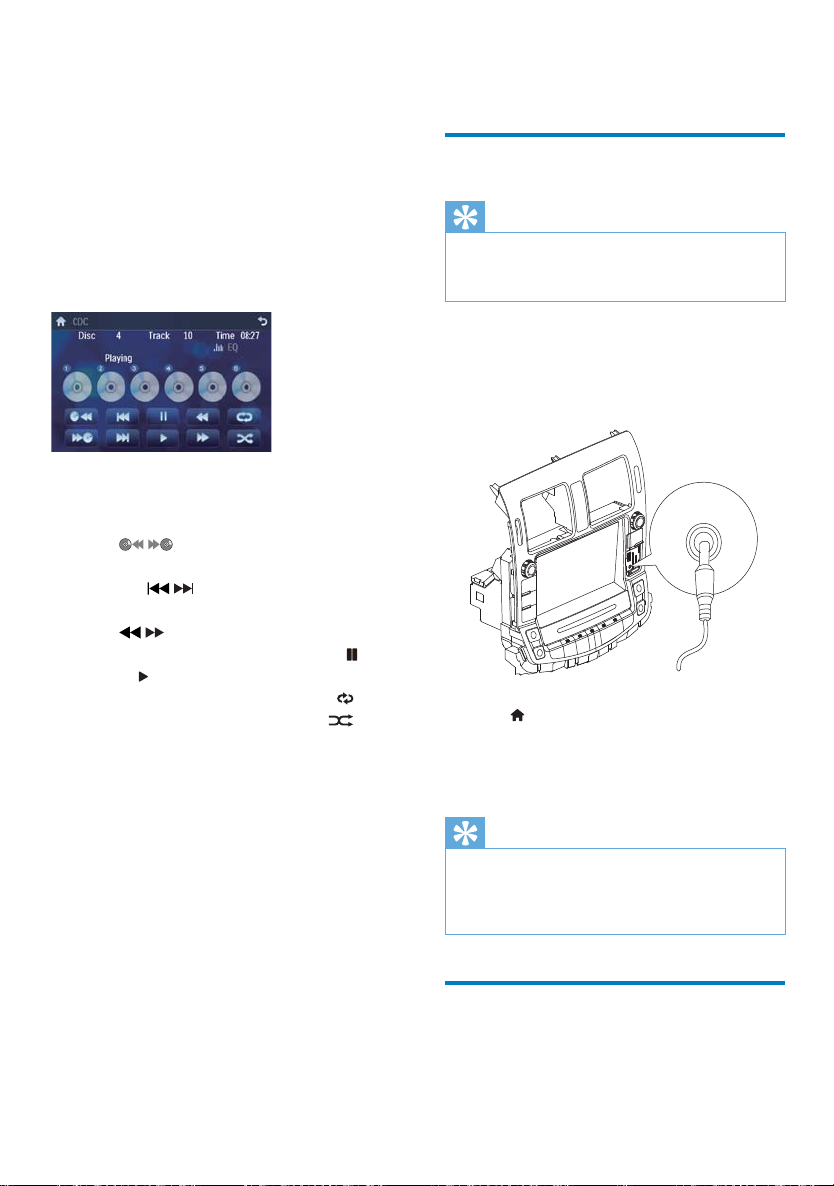

The CD compartment interface is »
displayed.
To select a disc, tap the available disc •
(1-6).
To skip to the previous/next disc, tap •
/ .
To skip to the previous/next track, •
tap
/ .
To search within a track or disc, tap •
/ .
To pause play or start play, tap •
or
.
To play tracks repeatedly, tap •
To play tracks randomly, tap •
12 Others
Listen to other devices
Tip
When air conditioning information changes, •
the air conditioning information interface will
be displayed for 10 seconds.
You can connect an external audio/video device
to the unit.
1 Connect the device to the unit with the
supplied AV cable.
AV IN
.
.
2 Tap to display home menu.
3 Tap [AV-IN1].
4 Play the connected device (see the
instructions manual of the device).
Tip
If you connect the system to other audio •
device through the REAR OUT L/R connector
(see “Connect wires” section), tap [AV-IN2] to
listen to that device.
Reset
When the unit hangs up, you can reset it.
1 Open the MAP/SD card socket cover.
28
EN
Page 29
2 Press the RESET button with a ball-point
pen or similar tool.
3 Remove the exhaust outlets, mounting
brackets, and plastic clips.
English
Tip
When the unit is reset, all the settings remain •
unchanged.
Remove the unit
To repair, replace fuse, or replace the unit,
remove it from the dashboard.

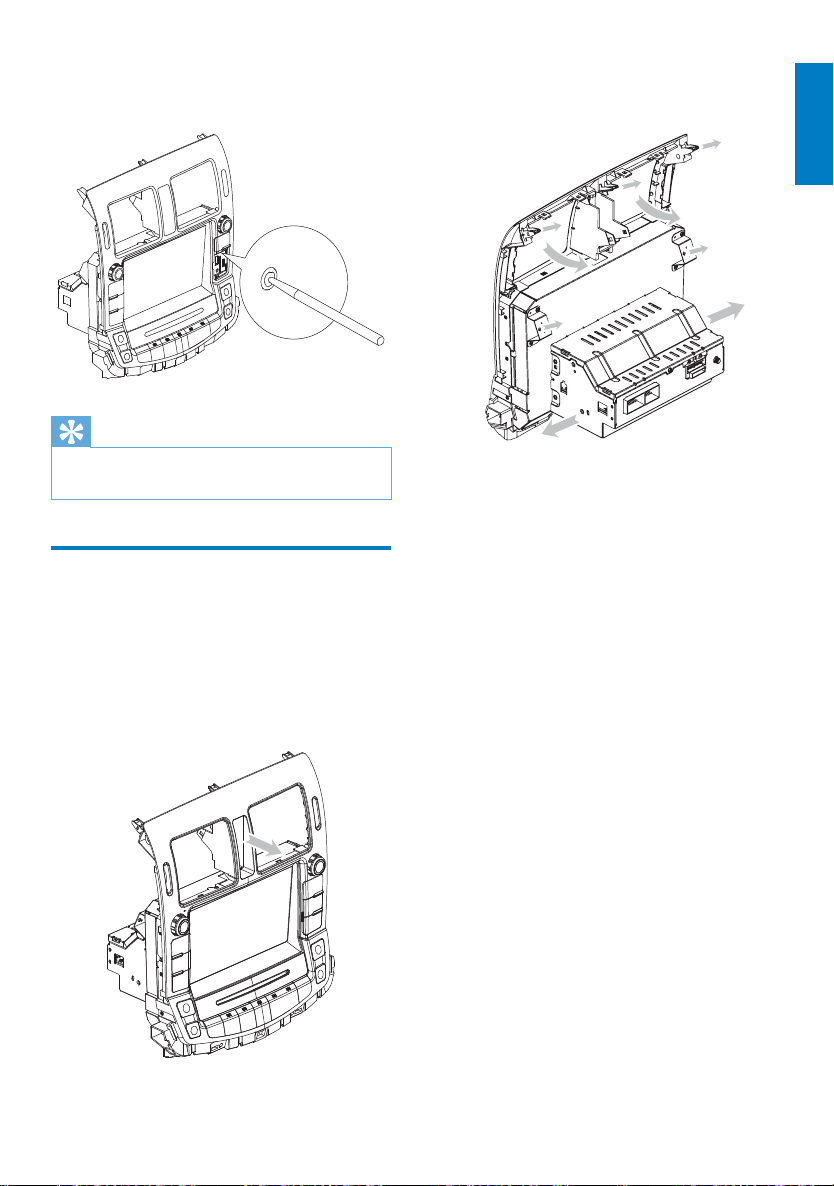

1 Pull the unit out from the dashboard.
2 Remove the hazard warning switch from
the main unit.
EN
29
Page 30

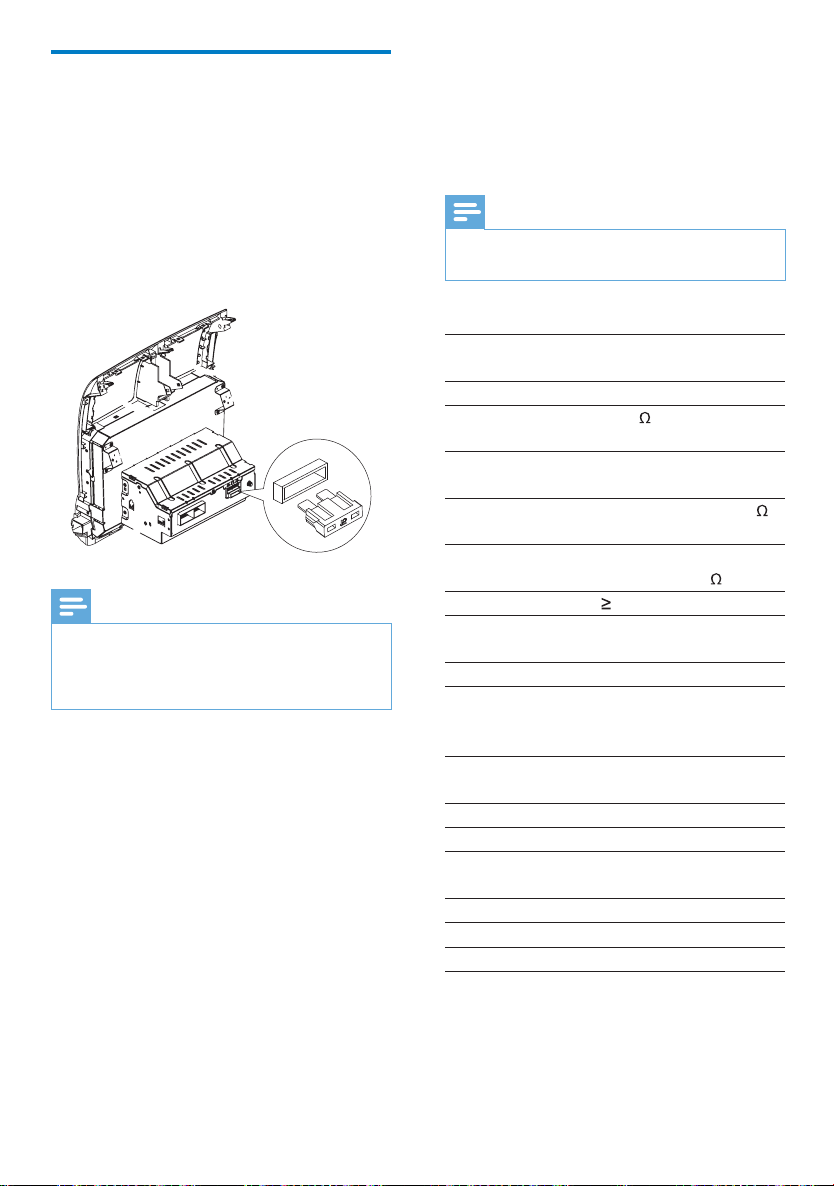

Replace fuse
13 Product
If there is no power, the fuse may be damaged
and need to be replaced.
1 Take out the unit from dashboard.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the
damaged fuse (5A)
4 Replace the fuse.
Note
If the fuse gets damaged immediately after it •
has been replaced, there may be an internal
malfunction. In such case, consult your Philips
dealer.
information
Note
Product information is subject to change •
without prior notice.
General
Power supply 12 V DC (11 V - 16 V),
negative ground
Fuse 5 A
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Aux-in level
Dimensions
(W x H x D) 288.7 x 302.4 x 185 mm
Weight (main unit) 2.5 kg
4 - 8
50 W x 4 channels
22 W x 4 channels (4
10% T.H.D.)
2.0 V ( CD play mode; 1
kHz, 0 dB, 10 k load)
500 mV
Disc player
System DVD / CD audio /
MP3 system
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75dB
Total harmonic
distortion
Channel separation >55dB
Video signal format NTSC only
Video output 1 +/- 0.2V
30
EN
Less than 1%
Page 31
LCD
Screen size 8 inches (16:9)
Display resolution 800 x 480 dots
Contrast ratio 500
Brightness 450 cd/m2
Bluetooth
Communication
system
Bluetooth Standard
version 2.0
Output Bluetooth Standard Power
Class 2
Maximum
Line of sight approx. 8m
communication
range
Frequency band 2.4 GHz band (2.4000
GHz - 2.4835 GHz)
Compatible
Bluetooth
profiles
Hands-Free Profile (HFP)
Handset Profile (HSP)
Advanced Audio
Distribution Profile
(A2DP)
Audio Video Remote
Control Profile (AVRCP)
Supported
codecs
Receive
Trans mit
SBC (Sub Band Codec)
SBC (Sub Band Codec)
File name in Unicode UTF8 (maximum •
length: 128 bytes)
Supported MP3 disc format:
ISO9660, Joliet •
Maximum title number: 512 (depending •
on file name length)
Maximum album number: 255 •
Supported sampling frequencies: 32 kHz, •
44.1kHz, 48 kHz
Supported Bit-rates: 32-320 Kbps and •
variable bit rate
Supported video formats:
DVD•
Divx Home theater•
Xvid•
Note
To ensure a better playback , it is •
recommended that:
- the image size is not larger than 640 X 480 •
pixels.
- the frame rate is 20 fps. •
- the data rate is not higher than 500 kbps. •
English
Compatible USB devices:
USB flash memory (USB 2.0 or USB1.1) •
USB flash players (USB 2.0 or USB1.1) •
Memory cards (SD / MMC / SDHC) •
Supported formats:
USB or memory file format: FAT16, •
FAT32
MP3 bit rate (data rate): 32-320 Kbps and •
variable bit rate
WMA v9 or earlier •
Directory nesting up to a maximum of 8 •
levels
Number of albums/ folders: maximum 99 •
Number of tracks/titles: maximum 999 •
ID3 tag V2.0 to V2.4 •
EN
31
Page 32
14 Troubleshooting
No image
Parking brake wire connection is •
incorrect. Check the parking wiring.
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Car engine has not been star ted. Start •
the car engine.
Connections is incorrect. •
Fuse has been damaged. Replace fuse. •
No sound
Volume is too low. Adjust volume. •
Speaker connections is incorrect. •
Disc does not play
Disc is upside down. Ensure the printed •
side is upwards.
Disc is dirty. Clean the disc with a •
clean, soft, lint-free cloth. Wipe the disc
outwards from the center.
Disc is defective. Try another disc. •
incompatible disc is used. Try another •
disc.
Disc rating exceeds the restrict setting. •
Change the rating settings to lower one.
Disc region code is not compatible with •
the unit. Use disc with proper region
code.
Image flashes or distorted
Video DVD settings do not match with •
the DVD. Adjust video DVD settings.
Video connection is improper. Check the •
connections.
Noise in broadcasts.
Signals are too weak. Select other •
stations with stronger signals.
Check the connection of the car antenna. •
Change broadcast from stereo to mono. •
Preset stations lost.
Battery cable is not correctly connected. •
Connect the battery cable to the terminal
that is always live.
Fuse is broken
The Fuse type is incorrect. Replace it with •
a 5A fuse.
Speaker wire or power wire is grounded. •
Check the connections.
Display show ERR-12
USB/SD/MMC data error. Check the USB •
device or SD/MMC card.
About Bluetooth device
Music playback is unavailable on the system
even after successful Bluetooth connection.
The device cannot be used with the •
system to play music.
The audio quality is poor after connection
with a Bluetooth-enabled device.
The Bluetooth reception is poor. Move •
the device closer to the system or
remove any obstacle between the device
and the system.
32
EN
Page 33
Cannot connect with the system.
The device does not suppor t the profiles •
required for the system.
The Bluetooth function of the device is •
not enabled. Refer to the user manual of
the device for how to enable the function.
The system is not in the pairing mode. •
The system is already connected with •
another Bluetooth-enabled device.
Disconnect that device or all other
connected devices and then try again.
The paired mobile phone connects and
disconnects constantly.
The Bluetooth reception is poor. Move •
the mobile phone closer to the system or
remove any obstacle between the mobile
phone and the system.
Some mobile phones may connect and •
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
For some mobile phones, the Bluetooth •
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
English
EN
33
Page 34
15 Glossary
B
Bite rate
The max data transfer through the USB por t.
Bluetooth
Bluetooth
that is meant to allow mobile devices to share
information and applications without the
worry of cables or interface incompatibilities.
The name refers to a Viking King who unified
Denmark. Operate at 2.4GHz. For more
information, see www.bluetooth.com.
M
MMC
MultimediaCard. A type of memory card with
a flash memory.
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Exper ts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
®
is a shor t-rang wireless protocol
SDHC
Secure Digital High Capacity (SDHC) is a
type of flash memory card based on the SDA
2.00 specification. The SDA 2.00 specification
enables SD cards to reach higher capacities
from 4GB to 32GB, and growing.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
R
Region code
A system that allows discs to be played only
in the region designated. This unit only plays
discs that have compatible region codes. You
can find the region code of your unit on the
product label. Some discs are compatible with
more than one region (or ALL regions.)
S
SD
Secure Digital. A type of memory card with a
flash memory.
34
EN
Page 35
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
CID3693_00_UM_V1.0
Loading...
