Contents

1 Important 4

Safety 4
Notice 4

7 Play with Bluetooth device 19

Pair the Bluetooth-enabled devices 19
Make a call 19
Receive call 20
Listen to music from Bluetooth device 20
Adjust Bluetooth settings 20

English

2 Your in-car entertainment system 6

Introduction 6
What’s in the box 6
Overview of the main unit 7

3 Get started 8

Install the car audio 8
Turn on 11
Adjust screen 11
Set date and time 11

4 Use map 12

Upgrade the map 12

5 Listen to radio 13

Tune to a radio station 13
Store radio stations in memory 14
Tune to a preset station 14

6 Play 15

Load discs 15
Connect USB device 15
Insert USB or SD/MMC card 15
Play/Pause 16
Skip/search 16
Search within a title/folder 16
Repeat 17
Repeat a section 17
Random play 17
Select audio language 17
Select audio mode 18
Select subtitle language 18
Rotate pictures 18
Zoom 18
Select slide show duration 18

8 Adjust sound 21

Adjust volume 21
Mute 21
Select preset equalizer 21
Adjust fader/balance 22
Set Dynamic Bass Boost (DBB) 22

9 Adjust settings 23

Display system setup menu 23
Adjust general settings 23
Adjust sound settings 24
Adjust video settings 24
Adjust Bluetooth settings 25
Adjust language settings 25
Adjust volume settings 26
Adjust DVD rating 26

10 Others 27

Listen to other devices 27
Reset 27
Remove the unit 27
Replace fuse 28

11 Product information 28

12 Troubleshooting 30

About Bluetooth device 30

13 Glossary 32

EN

3

1 Important

Safety

Read and understand all instructions •
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or •
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground •
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do •
no watch video during driving.
To ensure safe driving, adjust the volume •
to a safe and comfortable level.
Improper fuses can cause damage or •
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware •
for a safe and secure installation.
To avoid short circuit, do not expose the •
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation •
slots or other openings on the apparatus.
Never place any objects other than discs •
into the disc tray/slot.
Visible and invisible laser radiation when •
open. Avoid exposure to beam.
Risk of damage to the screen! Never •
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene, •
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp •
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
The apparatus shall not be exposed to •
dripping or splashing.

Do not place any sources of danger on •
the apparatus (e.g. liquid filled objects,
lighted candles).

Notice

Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.

Environmental information

All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.

Recycling

Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:

Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.

4

EN

Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.

“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.

This apparatus includes this label:

English

This product complies with the radio
inter ference requirements of the European
Community.

The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.

“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX
versions of DivX
with standard playback of DivX
The Bluetooth
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.

®

Certified product. Plays all

®

video (including DivX® 6)

®

word mark and logos are

®

media files.

2010 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the proper ty of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.

Manufactured under license from Dolby
Laboratories.

EN

5

2 Your in-car

What’s in the box

entertainment
system

Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.

Introduction

With the car entertainment system, you can:

quickly find routine through the •
navigation system
enjoy audio/video/JPEG pictures from•

DVD, VCD or CD•
USB devices•
SD/SDHC/MMC cards •

External devices•
listen to FM or AM (MW) radio•
play audio from Bluetooth-enabled •
devices
make/receive phone calls with Bluetooth-•
enabled devices

Check and identify the contents of your
package:

ab

cd

e

g

i

f

h

j

a Main unit x 1
b Power cable x 1
c Output cable x 1
d Connection cable x 2
e AV out cable x 1
f GPS antenna x 1
g Cleaning cloth x 1
h Stylus pen x 1
i Printing materials (include User manual,

Quick start guide, Installation guide)

j QC card / Guarantee card

6

EN

Overview of the main unit

g

p

o

English

n

m

l

k

j

i
h

a

Eject disc.•

b DISC

Select the disc source.•

c

Terminate call.•

d AMB

Display the air conditioning •

information.

e

/MAP

Open the cover and insert/remove •

the SDHC/GPS map card.

f A/C

Turn on/off the air conditioner.•

g

Select in-car air recycling system/air •

refreshing system.

h

Turn on the rear window defroster.•

i AV IN/

Open the cover and connect the AV •
IN/USB device.

j

/MUTE/VOL

Turn the unit on or off.•
Mute or unmute audio.•
Adjust volume.•

k NAV

Enter the GPS navigation system or •
exit.

l FM/AM

Switch to the FM/AM source. •

m MENU

Return to the home menu.•

a

b

c

d

e

f

EN

7

n DISP/

Adjust screen brightness.•

Turn on/off the screen display.•

o

Built-in microphone for phone calls. •

p Disc slot

/

3 Get started

Caution

Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.

Always follow the instructions in this chapter in
sequence.

Install the car audio

These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.

Caution

This unit is designed for negative ground •
(earth) 12 V DC operation only.
Always install this unit in the car dashboard. •
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect, •
ensure that the ignition is off.
Ensure that you connect the yellow and red •
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with •
electrical tape.
Ensure that the leads do not get caught under •
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to •
a common ground (earth) point.
Use only the supplied mounting hardware for a •
safe and secure installation.
Improper fuses can cause damage or fire. •
When you need to change the fuse, consult a
professional.

Note on the power supply lead (yellow)

When you connect other devices to this •
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.

8

EN

Notes on speaker connection

Never connect speaker wires to the •
metal body or chassis of the car.
Never connect speaker wires with stripes •
to one another.

Connect wires

Caution

Ensure that all loose leads are insulated with •
electrical tape.

1 Check the car’s wirings carefully, then

connect them to the unit.

English

<HOORZ *UHHQ

ޮ൮ࣨ൮௘ൿೊ

&$0(5$*1'

ޮ൮ࣨ܆׌ֽཐ

&$0(5$9,'(2

%ODFN

<HOORZ

CAMERA

%OXH:KLWH

܃٦ᇉ

֞Ӟࡣҭ

REVERSE

P.CONT

BRAKE

೯Ӟࡣҭ

3LQN5HG

*UHHQ:KLWH

Gearbox

<HOORZ

Connect GPS antenna

To receive signal from satellites, connect the
supplied GPS antenna to your car and the
system.

1 Connect the supplier GPS antenna to the

system first.

ڧᇽ൮௘ൿೊ

AUX INVIDEO

$9V\VWHP

$8;

:KLWH

AUXIN L

ڧᇽቔၿ௘ൿೊ

5HG

AUXIN R

ڧᇽႻၿ௘ൿೊ

REAR OUT/R

ޮ෿൮௘ൿԟ

ޮ෿൮௘ൿԟ

REAR VIDEO OUT 1

:KLWH

<HOORZ

5HDUVFUHHQ

:LUHOHVVKHDGSKRQH

REAR OUT/L

ޮ෿ቔၿ௘ൿԟ

5HG

ᇛֲၿൿԟ

SUB.W

ޮႻၿ௘ൿԟ

REARR

ޮቔၿ௘ൿԟ

REARL

ఱႻၿ௘ൿԟ

FRONTR

ఱቔၿ௘ൿԟ

FRONTL

CMMBBUS

ޮ෿Ԭଇ௤

5DGLRDQWHQQD

൰ၿࠓใཐ

5$',2$17

86%

*36DQWHQQD

2SWLRQDO

%ODFN

MZ-TFT

5HG

5HG

:KLWH

:KLWH

%URZQ

Amplifier

EN

9

Mount in the dashboard

Note

Check wire connections before you mount the •
unit into a car.
If preset radio stations are lost when the •
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.

2 Stick the other end of the GPS antenna to

a metal surface of the car.

Connect radio antenna

If your car has built-in radio antenna, connect
it to the radio antenna of the system for
better radio signal.

1 Connect the radio antenna to the car

antenna.

1 If the car does not have an on-board

drive or navigation computer, disconnect
the negative terminal of the car batter y.

If you disconnect the car batter y in •
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
If the car battery is not disconnected, •
to avoid shor t-circuit, ensure that
bare wires do not touch each other.

2 Ensure that the horizontal slant of the car

dashboard opening is between 0 and 20
degrees. The unit cannot be used if the
dashboard opening’s slant angle is above
20 degrees.

3 Fix the mounting brackets to the

unit with screws (supplied by the car
manufacturer).

10

EN

4 Slide the unit into the dashboard and fix

it to the car with four screws.

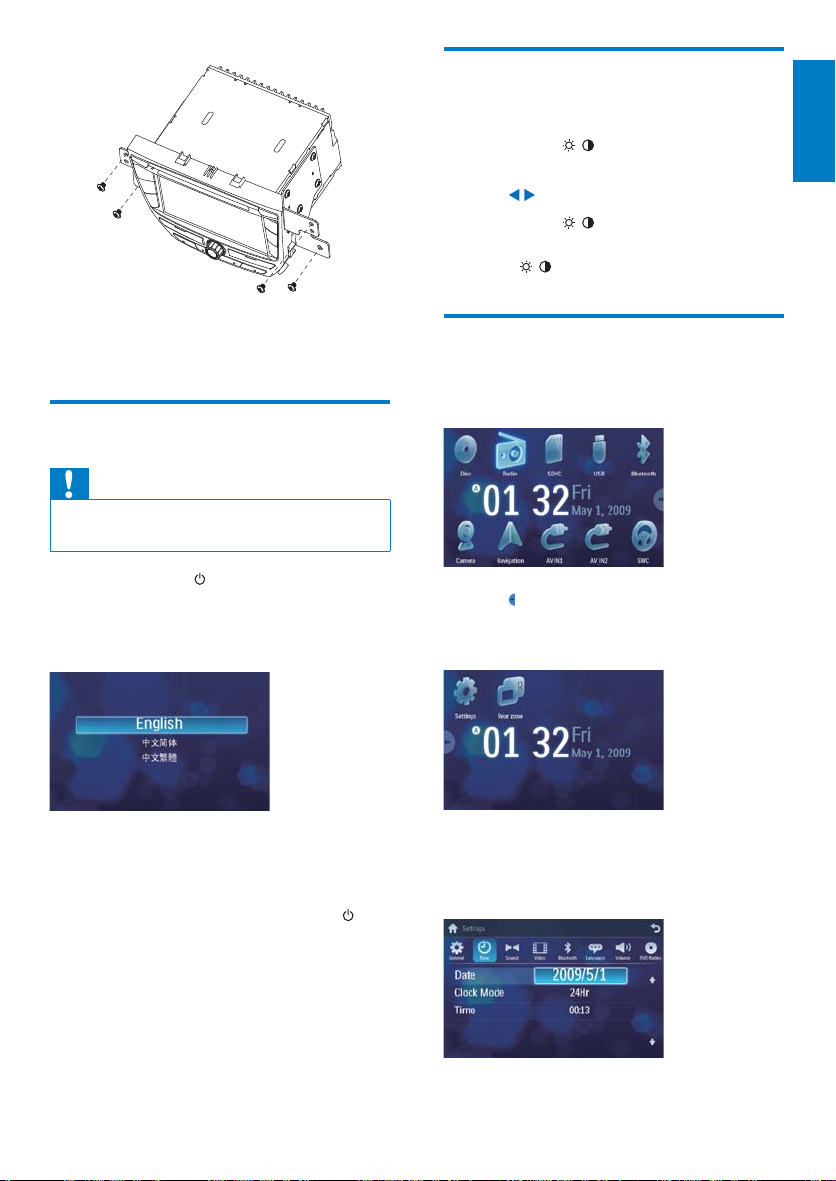

Adjust screen

5 Reconnect the negative terminal of the

car battery.

Turn on

Caution

Risk of road accidents! Never watch video or •
adjust settings while you drive.

1 Press and hold /MUTE/VOL to turn on

the unit.

The available OSD (On-Screen »
Display) languages are displayed.

To adjust screen brightness

1 Press DISP/ / to show the brightness

bar.

2 Tap / to adjust the value.
3 Press DISP/ / to confirm.

To turn on/off the screen, press and hold •

DISP/

/ .

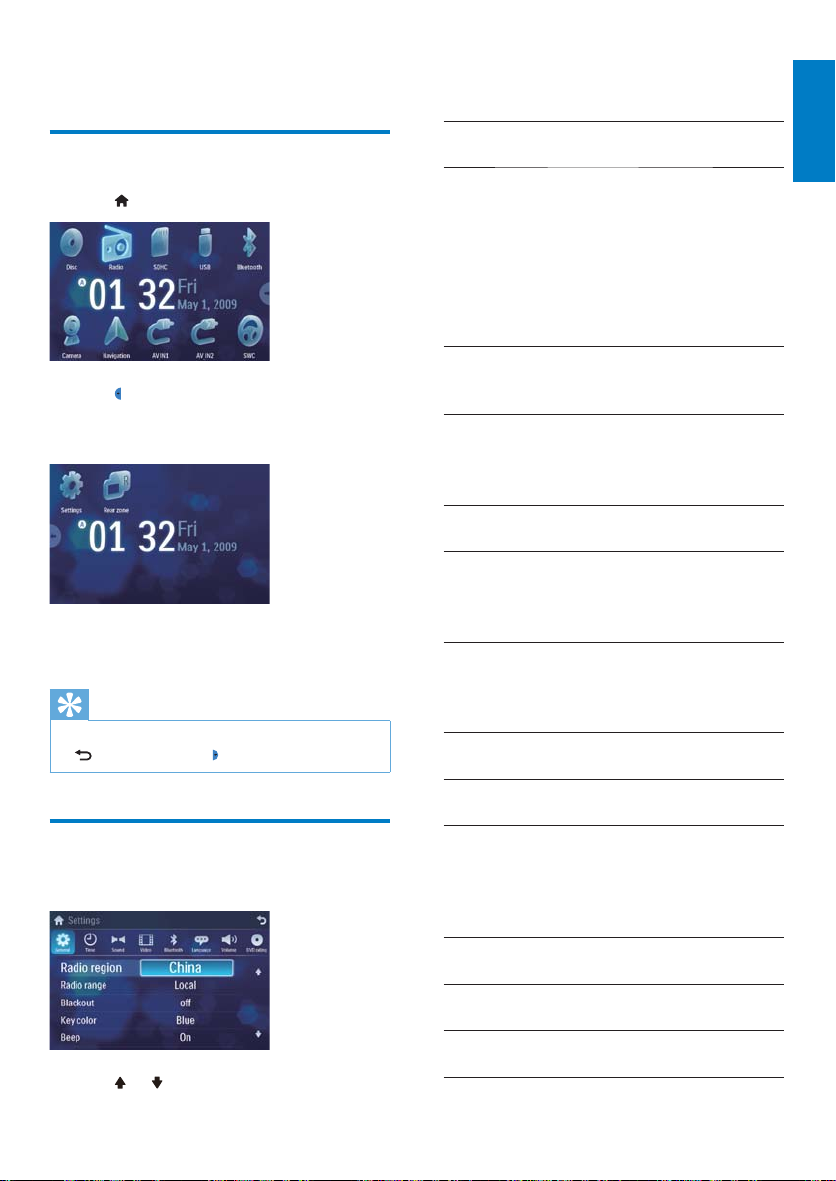

Set date and time

Tap the upper left corner to display the

1

main menu.

2 Tap in the middle right side of the

screen.

The second main menu is displayed. »

English

2 Tap a language to select.

The OSD language is changed to the »
selected language immediately.

To turn off the unit, press and hold •

MUTE/VOL.

3 Tap [Settings].
4 Tap [Time].

The date/time setup menu is displayed. »

/

11

EN

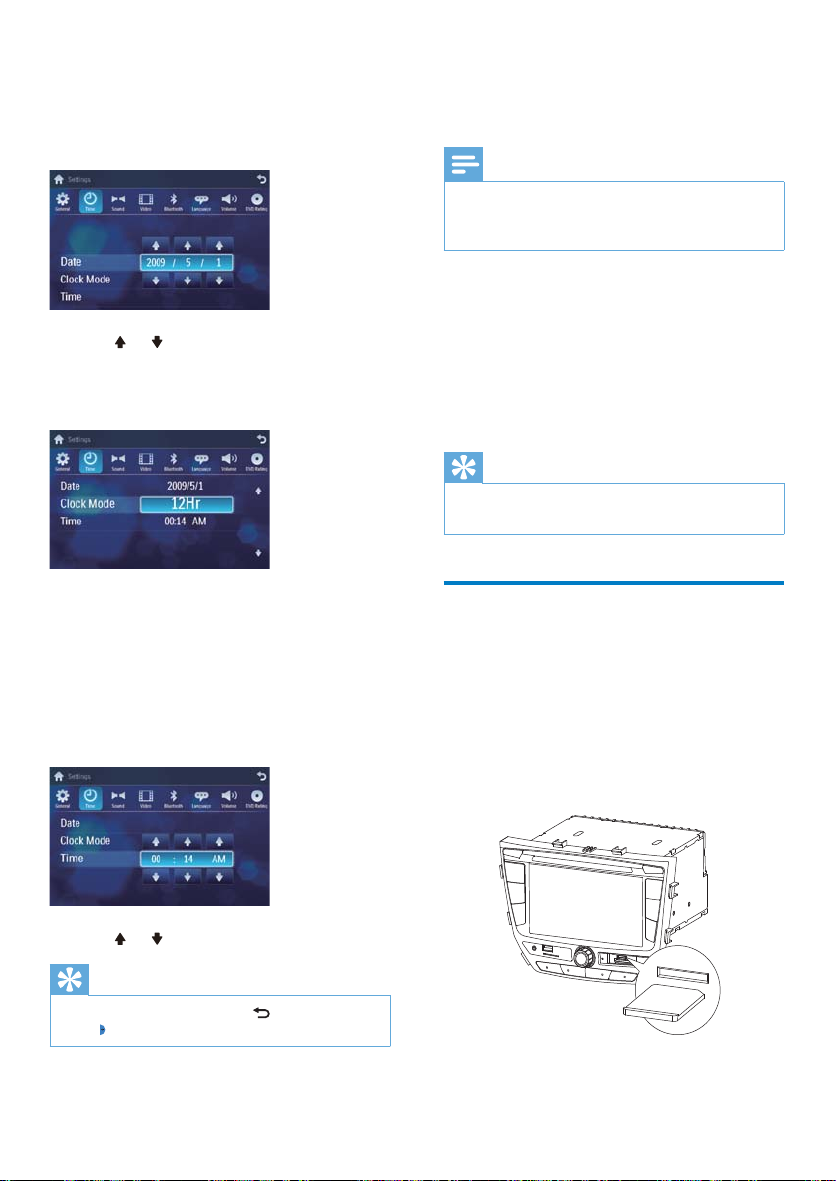

Set date

1 Tap [Date].
2 Tap on the displayed date information.

A submenu is displayed. »

3 Tap or to set year, month and day.

Set clock mode

1 Tap [Clock mode] .

4 Use map

Note

You may need to upgrade the map (sold •
separ ately) before using it (see “ Upgrade the
map” section)

1 Tap the upper left corner to display home

menu.

2 Tap [Navigation].

The navigation menu is displayed in a »
few seconds.

3 Refer to the map manual to operate the

navigation tool.

Tip

You can press • NAV to enter/exit the
navigation system.

2 Tap on [12Hr] or [24Hr] to select clock

mode.

Set time

1 Tap [Time].
2 Tap on the displayed time.

A submenu is displayed. »

3 Tap or to set hour and minute.

Tip

When date/time is set, tap • first and then
tap to return to the main menu.

12

EN

Upgrade the map

1

Turn off the car audio system.

2 Open the MAP/SD card socket cover.
3 Press the map card (sold separately) until

you hear a click sound.

4 Take out the card and bring it to the

authorized service center for upgrade.

5 Insert the upgraded map card back into

the map card slot.

6 Turn on the car audio.

The map upgrades in a few minutes. »

5 Listen to radio

Tune to a radio station

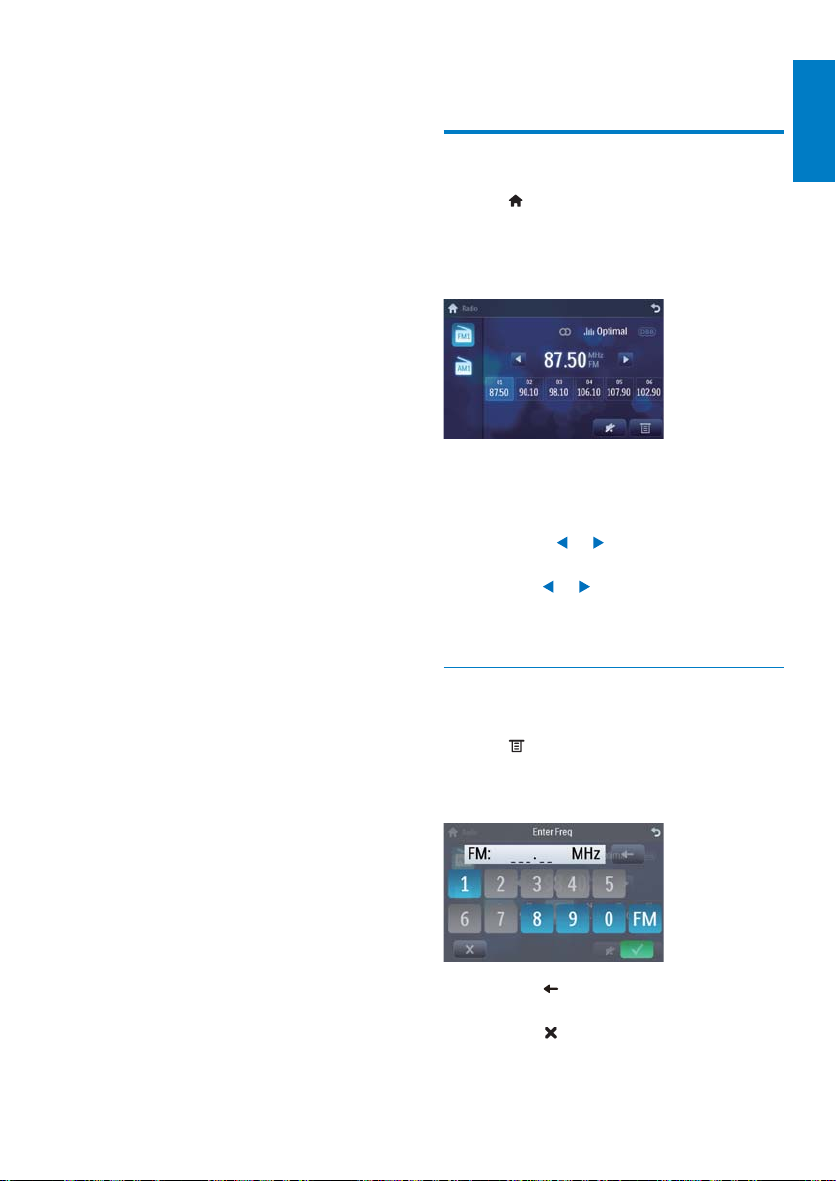

1 Tap to display the home menu.
2 Tap [Radio].

Band and frequency information is »
displayed.

3 Tap on FM or AM to select band:

FM band options: • FM1, FM2, FM3
AM band options: • AM1, AM2

4 Briefly tap or to tune to a radio

station by step.

Tap •

or for more than 1
second to tune to a radio station
automatically.

English

Tune by frequency

1 Tap FM or AM to select band.
2 Tap .
3 Tap [Goto].
4 Tap the numbers to enter frequency.

Tap • to clear the last entered
number.
Tap •

to clear all the entered

numbers.

EN

13

5 Tap to confirm.

The radio station is broadcast. »

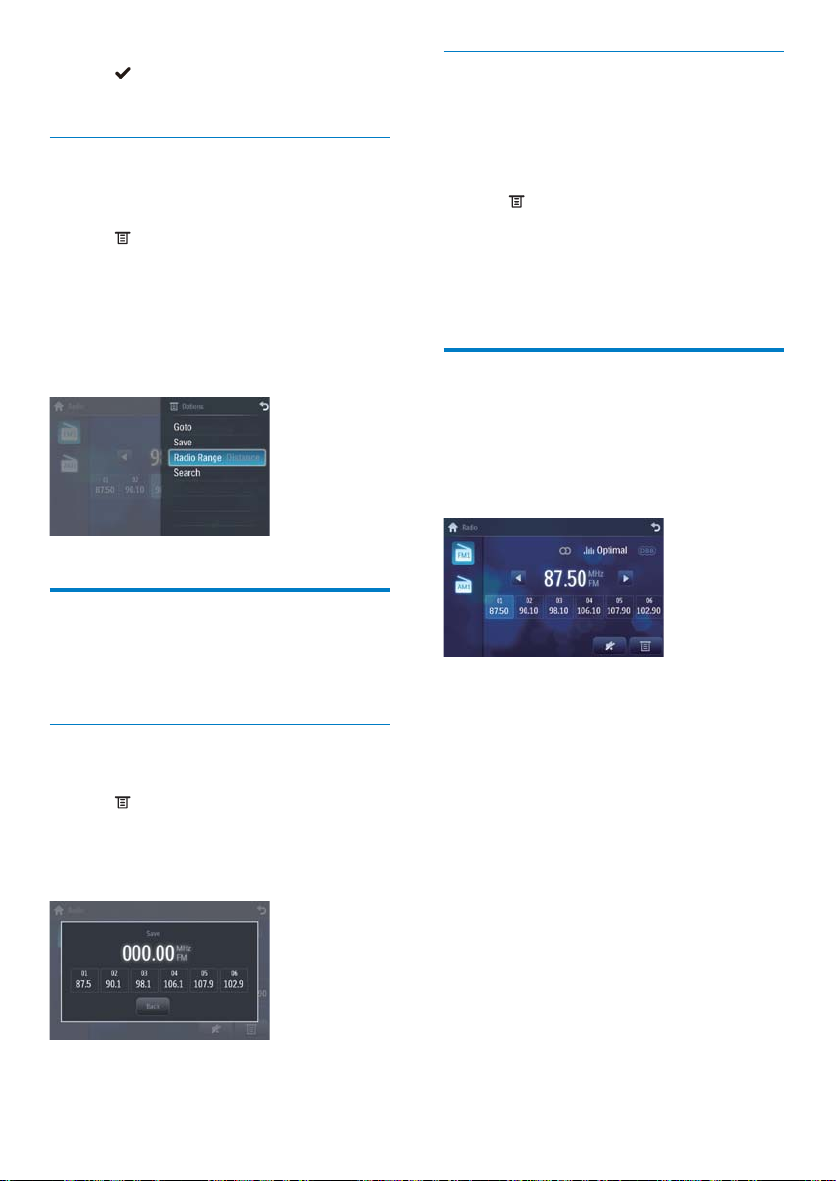

Select radio range

Before you start to search for radio stations,
you can select radio range.

1 Tap .
2 Tap [Radio range] to toggle tuner

sensitivity from normal to high sensitivity.

• [Distance]: Only stations with strong
signals can be broadcast.

• [Local]: Stations with strong and
weak signals can be broadcast.

Store radio stations in
memory

Store stations automatically

You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.

1 Select band.
2 Tap .
3 Tap [Search].

Auto search starts. The six strongest »
stations of the selected band are saved
in preset channels 1-6 automatically.

Tune to a preset station

1

Tap [Radio].

2 Select band.
3 Tap one of the preset channels (01 to 06)

to select a preset station.

You can store up to 6 stations in each band.

Store stations manually

1 Tune to the station.
2 Tap .
3 Tap [Save].
4 Tap one of the channels 01 to 06 to save

the select band.

14

EN

6 Play

Connect USB device

Load discs

You can play video, audio or images stored on
the following discs:

DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•

Note

Ensure that the disc contains playable content. •

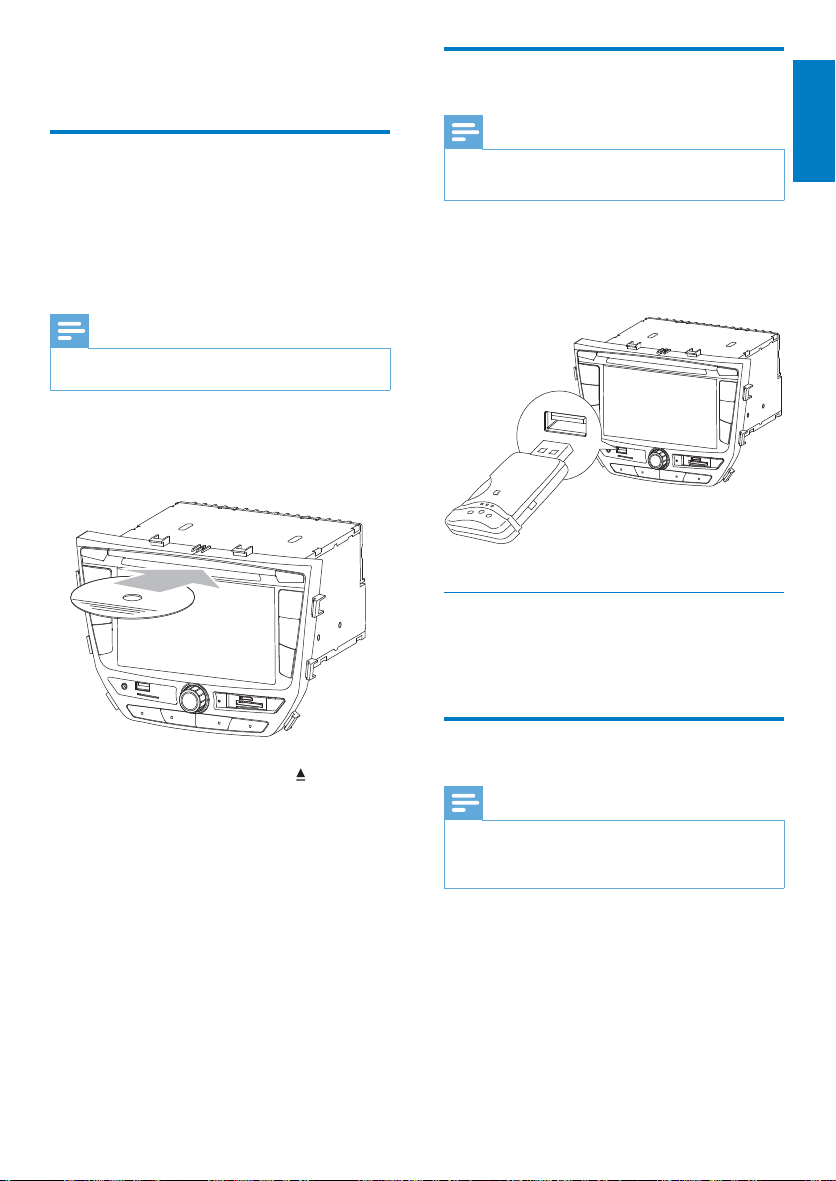

1 Insert a disc into the disc slot with the

label side facing up.

Play starts automatically. »

Note

Ensure that the device contains playable •
content.

1 Open the AV-IN/USB socket cover.
2 Insert the USB device to the USB socket.

Play starts automatically. »

Remove the USB device

1 Switch to another (non-USB) source.
2 Remove the USB device.

English

To remove the disc, press » .

When the disc is ejected, the unit »
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.

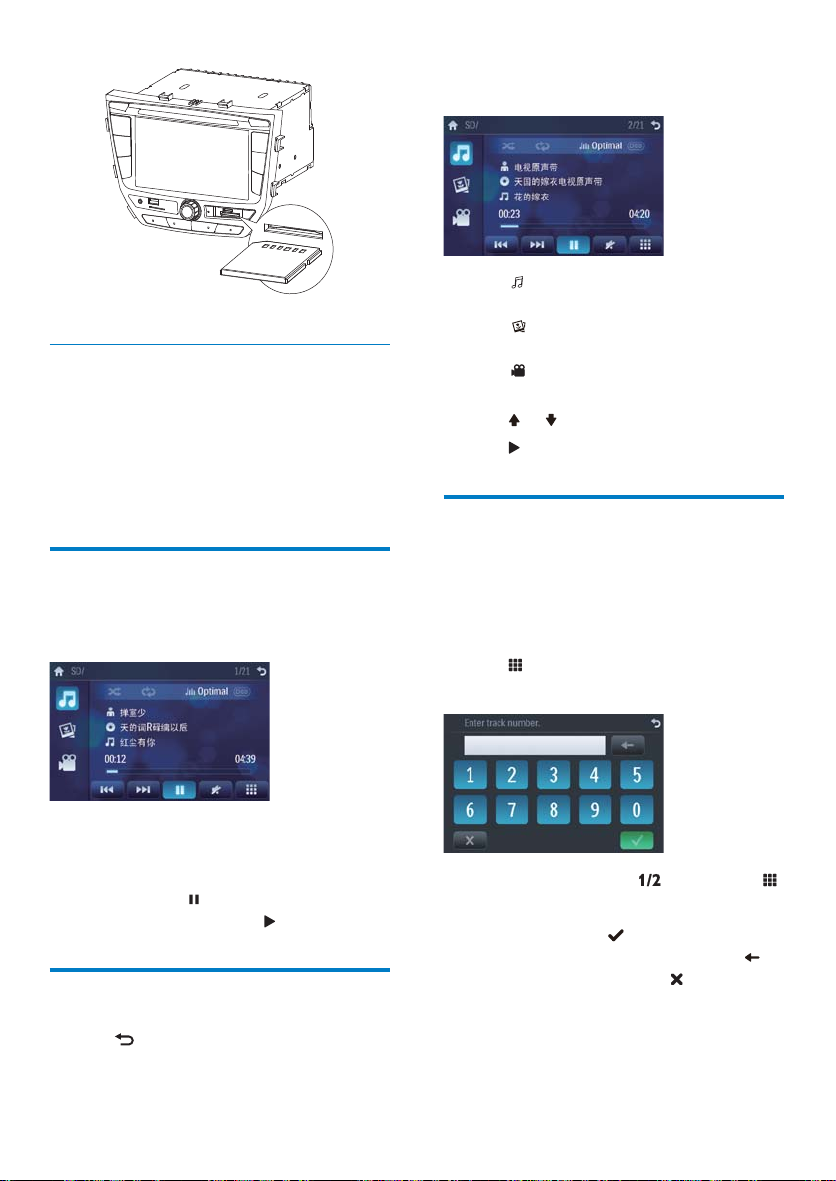

Insert USB or SD/MMC card

Note

Ensure that the device contains playable •
content.
The unit supports SDHC card. •

1 Open the MAP/SD card socket cover.
2 Insert the SD/MMC card into the card

slot.

Play starts automatically. »

EN

15

Remove the SD/MMC card

1 Switch to another source.
2 Press the card until you hear a click

sound.

The card is now disengaged. »

3 Remove the SD or MMC card.

2 Tap one of below icons to select folder/

file:

• : To display all available audio
folders/track.

•

: To display all available picture

folders/files.

•

: To display all available video

folders/files

3 Tap or to select a folder/track.
4 Tap to star t play.

Search within a title/folder

Play/Pause

Once a disc, USB or SD/MMC card is

1

inser ted, play starts automatically.

For DVD movie, if a menu appears, tap a
item to start play.

2 To pause, tap .

To resume play, tap •

Skip/search

1

Tap to return to playlist menu.

16

EN

.

Direct search

1 Tap anywhere except for the upper left

corner to display menu on the screen, if
necessary.

2 Tap .

The search screen is displayed. »

For video files, tap » first, then tap .

3 Tap the numbers to enter chapter/file

number, then tap

To clear the previous input, tap •
To clear all input, tap •

.

.

.

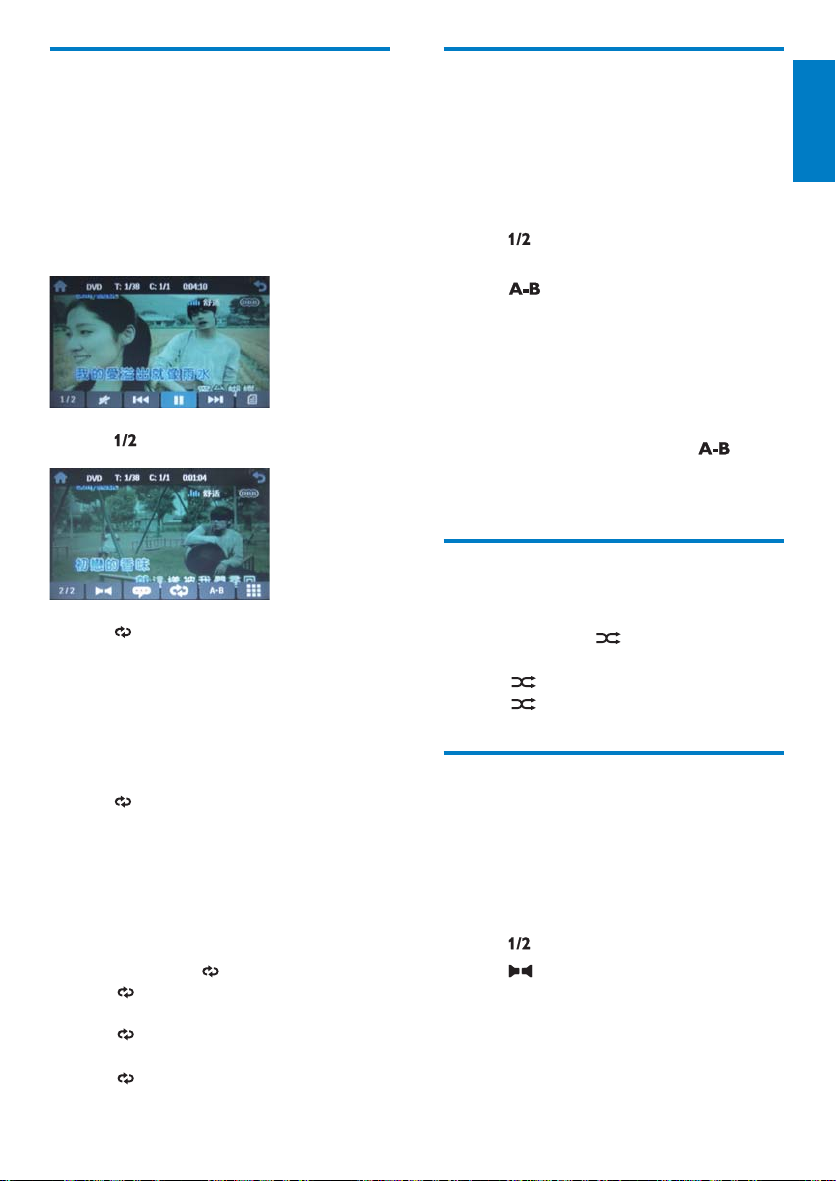

Repeat

Repeat a section

During play, you can select different repeat play
modes.

For DVD/VCD movie disc:

1 Tap anywhere except for the upper left

corner to display menu on the screen, if
necessary.

2 Tap to display the 2nd menu.

3 Tap to select:

• [Repeat chapter]: play the current
chapter repeatedly.

• [Repeat title]: play all chapters in the
title repeatedly.

• [Repeat off]: cancel repeat play.

You can repeat a specific section of video file
(repeat A-B).

1 During play, tap anywhere except for the

upper left corner to display menu on the
screen, if necessary.

2 Tap to display the 2nd menu, if

necessary.

3 Tap repeatedly to mark:

• [Repeat A-]: the start of the section
to repeat.

• [Repeat A-B]: the end of the section
to repeat.
The selected section plays •
repeatedly.

4 To exit A-B repeat mode, tap

repeatedly until [Repeat A-B off ] is
displayed.

Random play

You can play audio tracks/files in random order.

1 During play, tap repeatedly to turn

random play on or off.

•

is highlighted: start random play.

•

turns gray: cancel random play.

English

For VCD karaoke:

1 Tap to select:

• [Repeat one]: play the current track
repeatedly.

• [Repeat all]: play all tracks
repeatedly.

• [Repeat off]: cancel repeat play.

For MP3/WMA files:

1 During play, tap to select:

-1: play the current track

•
repeatedly.

-Folder: play all the tracks in the

•
current folder repeatedly.

•

(in grey color): cancel repeat play.

Select audio language

For video discs that contain two or more audio
channels.

1 During play, tap anywhere except for the

upper left corner to display menu on the
screen, if necessary.

2 Tap to display the 2nd menu.
3 Tap repeatedly.

The audio channel information is »
displayed on the upper line of the
screen.

EN

17

Select audio mode

Zoom

When you play VCDs, you can select an audio
mode (R/L/Stereo).

1 During play, tap anywhere except for the

upper left corner to display menu on the
screen.

2 Tap repeatedly until the audio mode

is selected.

Select subtitle language

For DVD or DivX discs that contain two or
more subtitle languages.

1 During play, tap anywhere except for the

upper left corner to display menu on the
screen, if necessary.

2 Tap to display the 2nd menu
3 Tap repeatedly to select a language.

The selected language is displayed. »

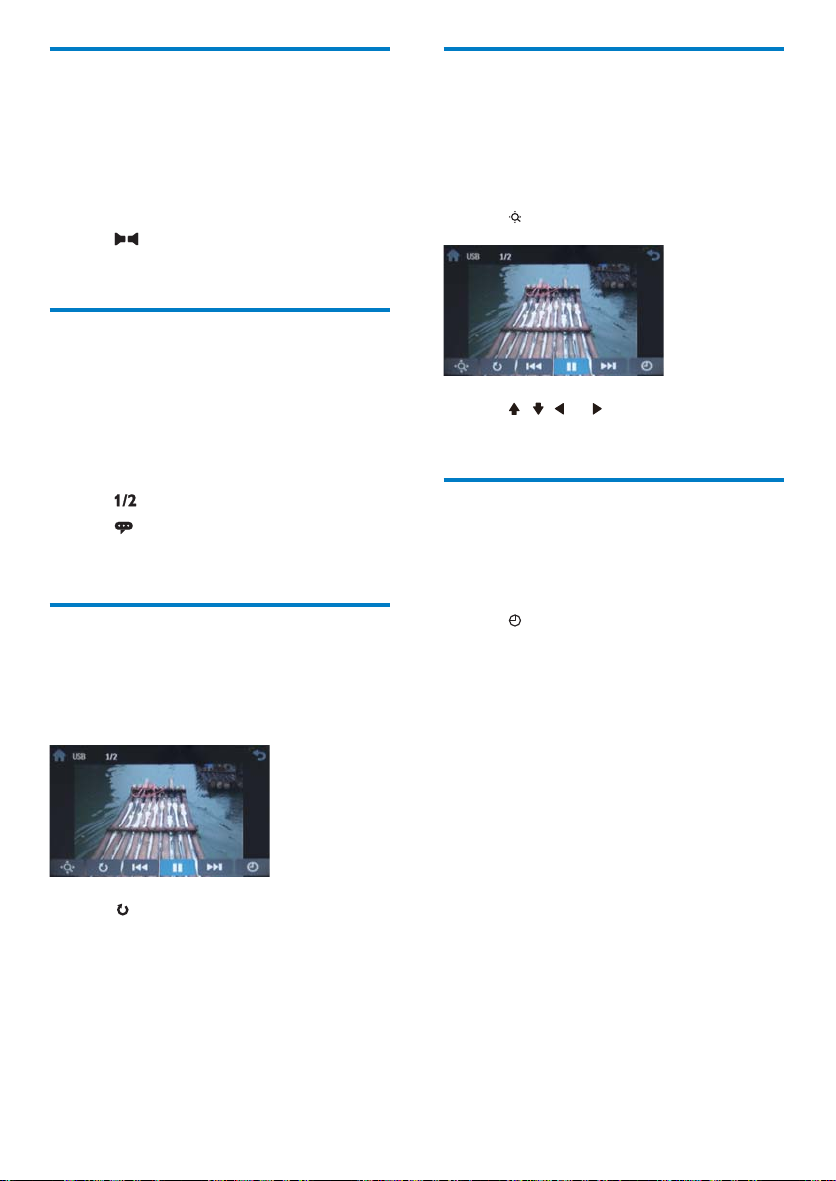

Rotate pictures

1

When you view pictures, tap anywhere

except for the upper left corner to display
menu on the screen, if necessary.

You can zoom in pictures for a close view.

1 During picture viewing, tap anywhere

except for the upper left corner to display
menu on the screen, if necessary.

2 Tap repeatedly to zoom in the picture.

3 Tap , , or to pan through the

enlarged picture.

Select slide show duration

Tap anywhere except for the upper left

1

corner to display menu on the screen, if
necessary.

2 Tap repeatedly to select:

• Fast: 3 seconds

• Normal: 5 seconds

• Slow: 8 seconds

2 Tap repeatedly to rotate the picture.

18

EN

7 Play with

Bluetooth
device

You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetooth­enabled device.

Pair the Bluetooth-enabled
devices

4 Enter default password “0000”.

if pairing succeeds. phone call record is »
displayed.

Disconnect Bluetooth devices

1 To disconnect one device, tap (red).

»

(green) is displayed.

English

To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.

Note

The operational range between this unit and a •
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this •
unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not •
guaranteed.
Any obstacle between this unit and a •
Bluetooth device can reduce the operational
range.
Keep this unit away from any other electronic •
device that may cause interference.

1 Turn on the Bluetooth function on the

device.

2 Search for Bluetooth device with the

device.

3 Select “CID3692” in the pairing list.

Tip

The device will also be disconnected when the •
device is moved beyond the operational range.
If you want to reconnect the device to the •
unit, place it within the operational range.
If you do not want to reconnect the device to •
the unit automatically, tap >[Auto connect],
then select [Off ]. For details, see the “Adjust
Bluetooth settings” section.

Make a call

1

Pair the phone with the unit.

2 Tap to display the home menu.
3 Tap [Bluetooth].

The Bluetooth menu is displayed. »

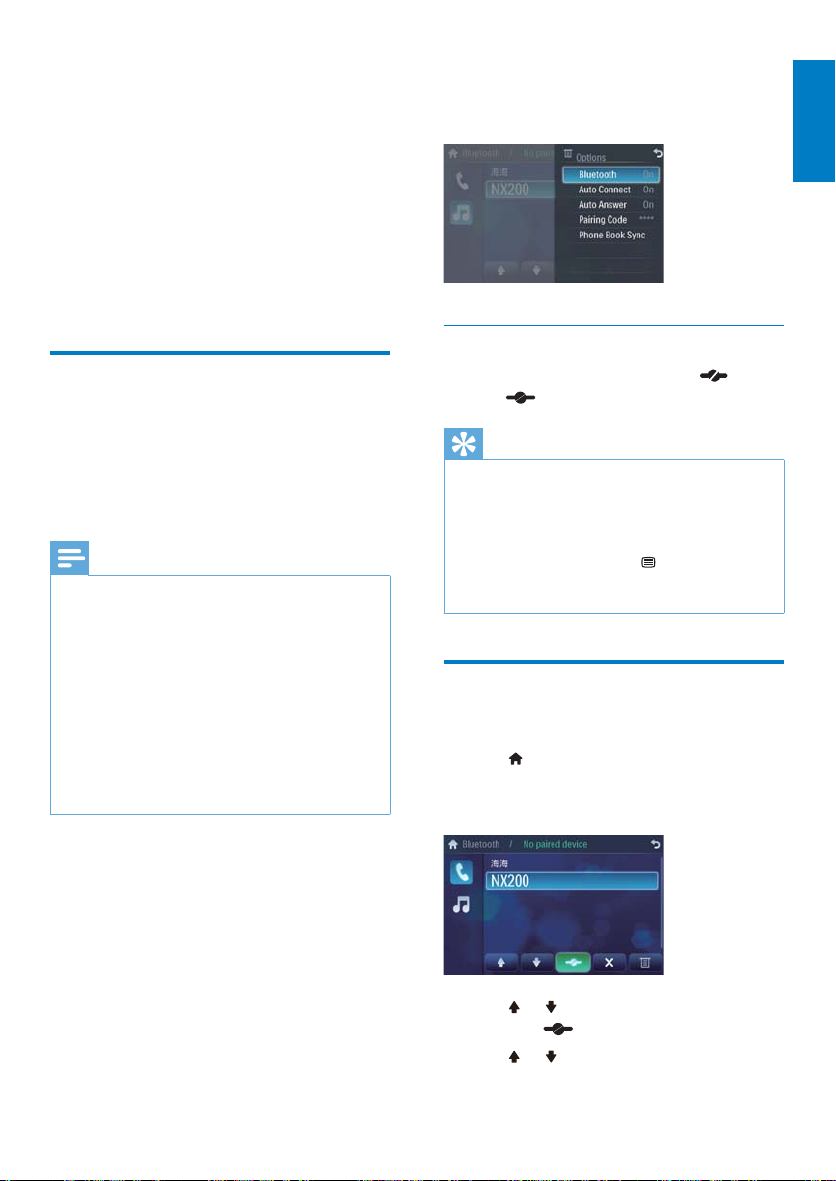

4 Tap or to select the paired phone,

then tap

5 Tap or to search for phone number

from the following list:

.

EN

19

• [Missed calls]

• [Received calls]

• [Dialed calls]

• [Phone book]

• [Sim phone book]

• [Local phone book]

Or tap
to dial.

Receive call

By default, all incoming calls are received
automatically.

1 If there is incoming call, [Incoming call...]

to dial number directly, then tap

flashes on the screen. Speak into the
Bluetooth microphone.

The voice is transferred from the unit’s »
loudspeaker to the mobile phone.

Listen to music from
Bluetooth device

If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
Audio Video Remote Control Profile (AVRCP)
profile, you can use the control on the unit to
play music stored in the device.

1 Pair the phone with the unit.
2 Tap to return to home menu.
3 Tap [Bluetooth].

The Bluetooth menu is displayed. »

4 Star t to play music stored in the device.

If your device supports AVRCP,

1 Tap .

2 When conversation ends, tap (red)

to terminate the call.

Tip

You can selec t to receive calls manually by •
setting [Auto answer] to [Off ] status.

Switch phone call to the mobile

If you do not want your passenger to hear
your incoming call, you can switch the call to
the mobile.

1 During talking, tap .

20

EN

2 Tap to star t play.

Adjust Bluetooth settings

You can change below Bluetooth settings:

• [Bluetooth]: to turn on or off
“Bluetooth” function

• [Auto connect]: to turn on or off “Auto
connect” function

• [Auto answer]: to turn on or off “Auto
answer” function

• [Pairing code]: to set paring code

• [Phone Book Sync]: to synchronize
phone book

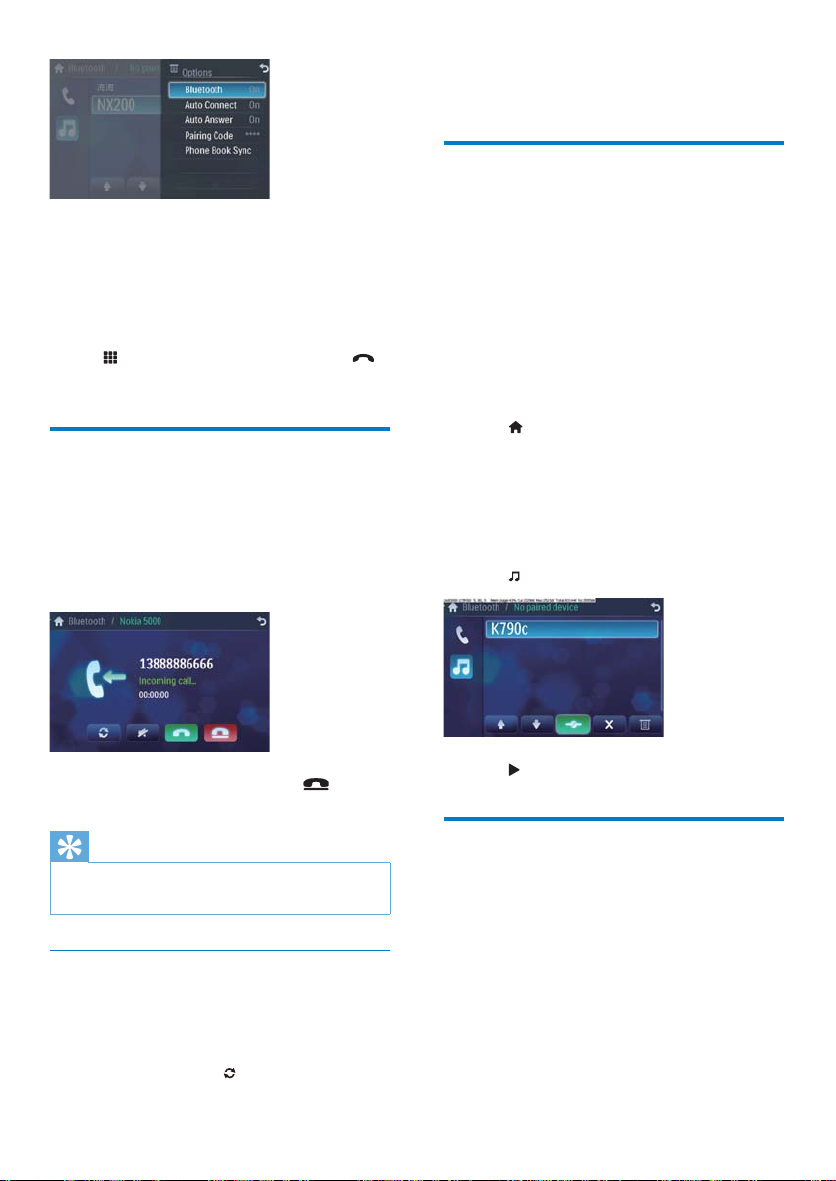

1 In Bluetooth menu, tap .

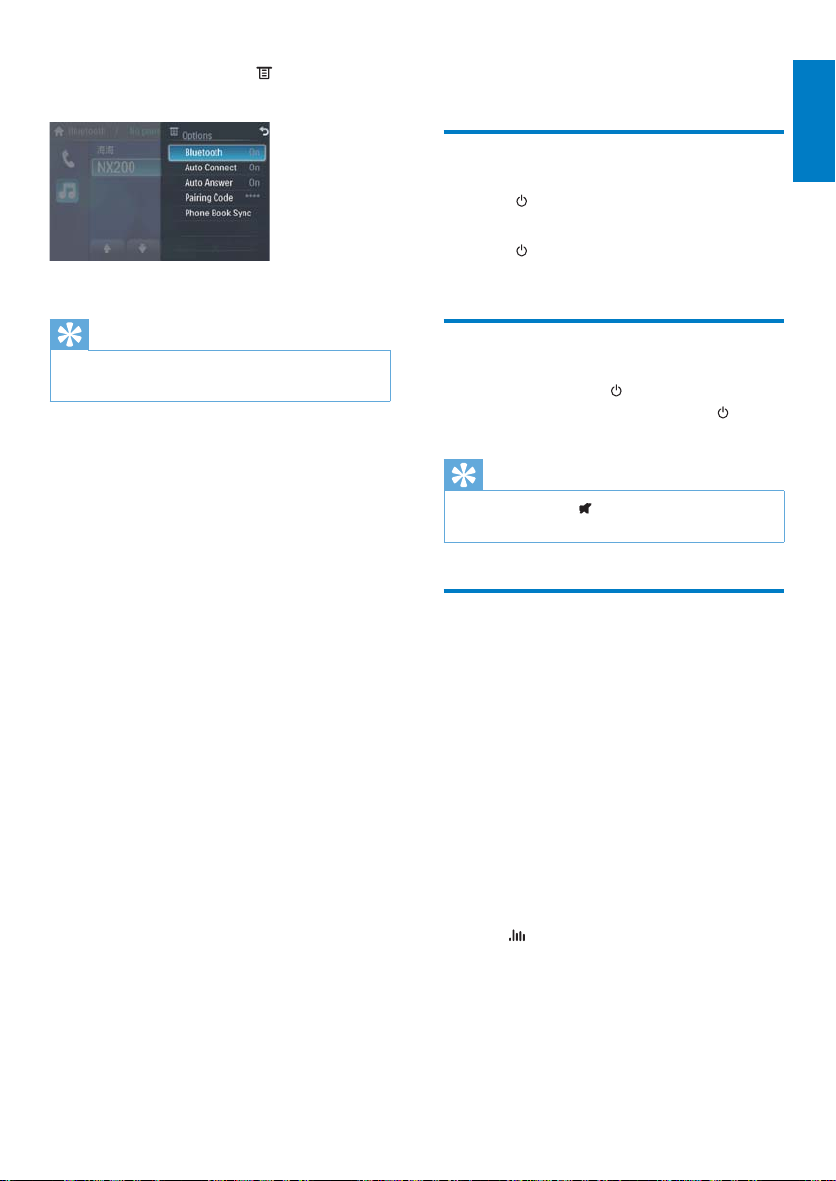

The option menu is displayed. »

8 Adjust sound

2 Tap an option to change the setting.

Tip

You can also adjust Bluetooth settings in the •
“Settings” menu.

Adjust volume

1

Turn /MUTE/VOL button clockwise to

increase volume.

2 Turn /MUTE/VOL button anti-clockwise

to reduce volume.

Mute

1

During play, press /MUTE/VOL.

To restore the sound, press •

MUTE/VOL again.

Tip

You can also tap • on the screen to turn off
sound.

/

Select preset equalizer

You can select preset equalizer:

• [User]

• [Techno]

• [Rock]

• [Classic]

• [Jazz]

• [Optimal]

• [Flat]

• [Pop]

1 Tap anywhere except for the upper left

corner to display menu on the screen, if
necessary.

2 Tap .

The current Equalizer setting is »
displayed.

English

EN

21

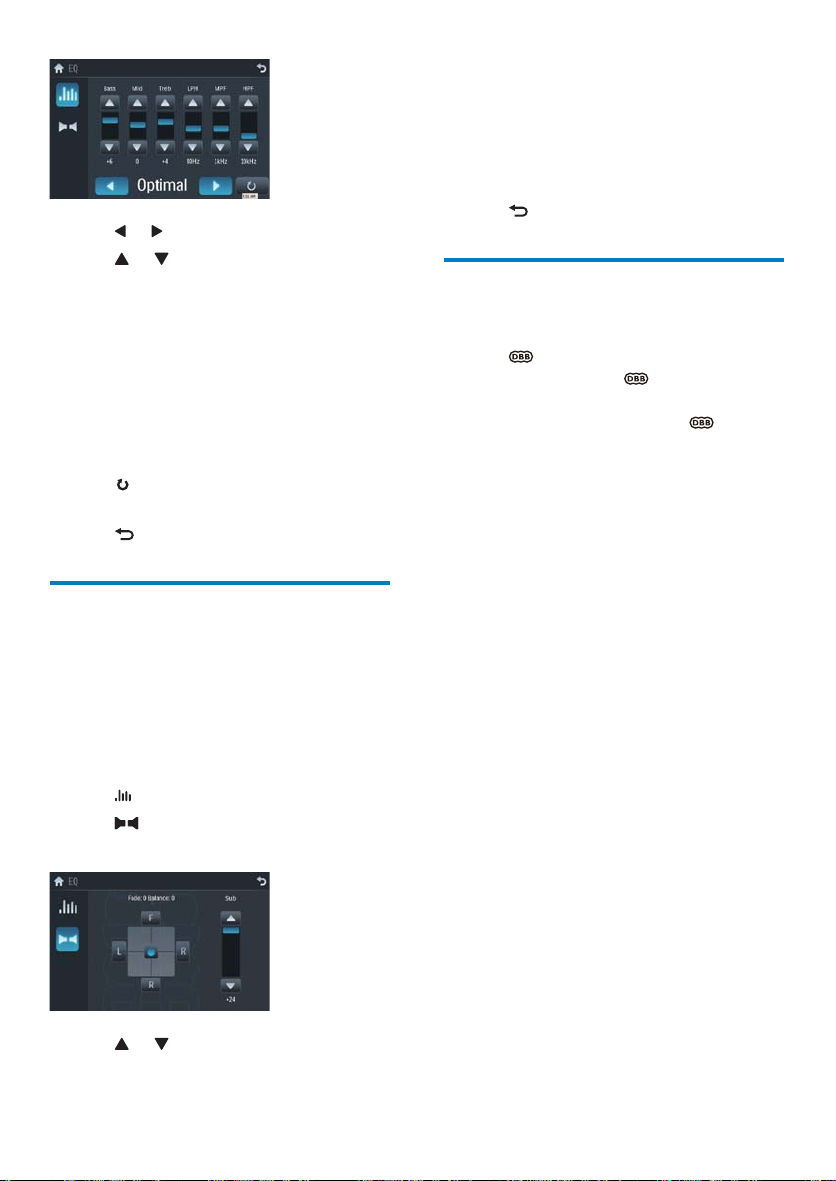

3 Tap or to select an EQ.
4 Tap or to adjust below settings:

• [Bass] bass range: -14 to +14

• [Mid] middle range: -14 to +14.

• [Treb] treble range: -14 to +14

• [LPH] low pass filter range: 60, 80,
100, 200.

• [MPF] middle pass filter range: 500,
1K, 1.5K, 2.5K.

• [HPF] high pass filter range:10K,

12.5K, 15K, 17.5K.

5 Tap to restore the above settings into

default settings.

6 Tap to exit.

Adjust fader/balance

You can also adjust the front and rear speaker
balance, the left and right speaker balance, and
subwoofer settings.

1 Tap anywhere except for the upper left

corner to display menu on the screen, if
necessary.

2 Tap .
3 Tap

Below options are displayed: »

5 Tap F, R, L, or R to adjust fader/balance

value.

• [Fade] fader range: +24 to -24. (F =
front speaker, R = rear speaker)

• [Balance] balance range: -24 to +24.
(L = left speaker, R = right speaker)

6 Tap to exit.

Set Dynamic Bass Boost
(DBB)

1

Tap to toggle between the settings.

• [DBB] on: The
illuminated.

• [DBB] off (default): The
gray.

icon is

icon is

4 Tap or to select subwoofer volume.

• [Sub] subwoofer volume: 0 to 24.

22

EN

9 Adjust settings

3 Tap on the option to display/select an

option.

Display system setup menu

1 Tap to display main menu.

2 Tap in the middle right side of the

screen.

The second main menu is displayed. »

3 Tap [Settings].

The settings menu is displayed. »

Tip

When the setup adjustment is completed, tap •

first and then tap to return to main menu.

Adjust general settings

Tap [General], if necessary.

1

2 Tap or to highlight a setting.

General
settings

[Radio
region]

[Radio
range]

[Blackout] [off] Never turn on the

[Key color] [Red] Button backlight

[Beep] [On] Turn on the

[WallPaper] [Blue] Turn background

Options Description

[USA], [S.
Amer-1],
[Arabia],
[China],[S.
Amer-2],
[Europe],
[Korea],
[OIRT]

[Local] Only stations with

[Distance] Stations with

[10s] Turn on the screen

[20s] Turn on the screen

[Blue] Button backlight

[Off] Turn off the beep

[Black] Turn background

Select one that
matches your
location.

strong signals can
be broadcast.

strong and weak
signals can be
broadcast.

screen saver.

saver automatically
10 seconds after
last operation.

saver automatically
20 seconds af ter
last operation.

turns red.

turns blue.

beep sound. Each
time you press a
button, the unit
beeps.

sound.

color to blue.

color to black.

English

EN

23

[Red] Turn background

color to red.

[F1] Select F1 picture

as wall paper.

[Calibration] Calibrate the

touch screen.

4 Tap to exit.

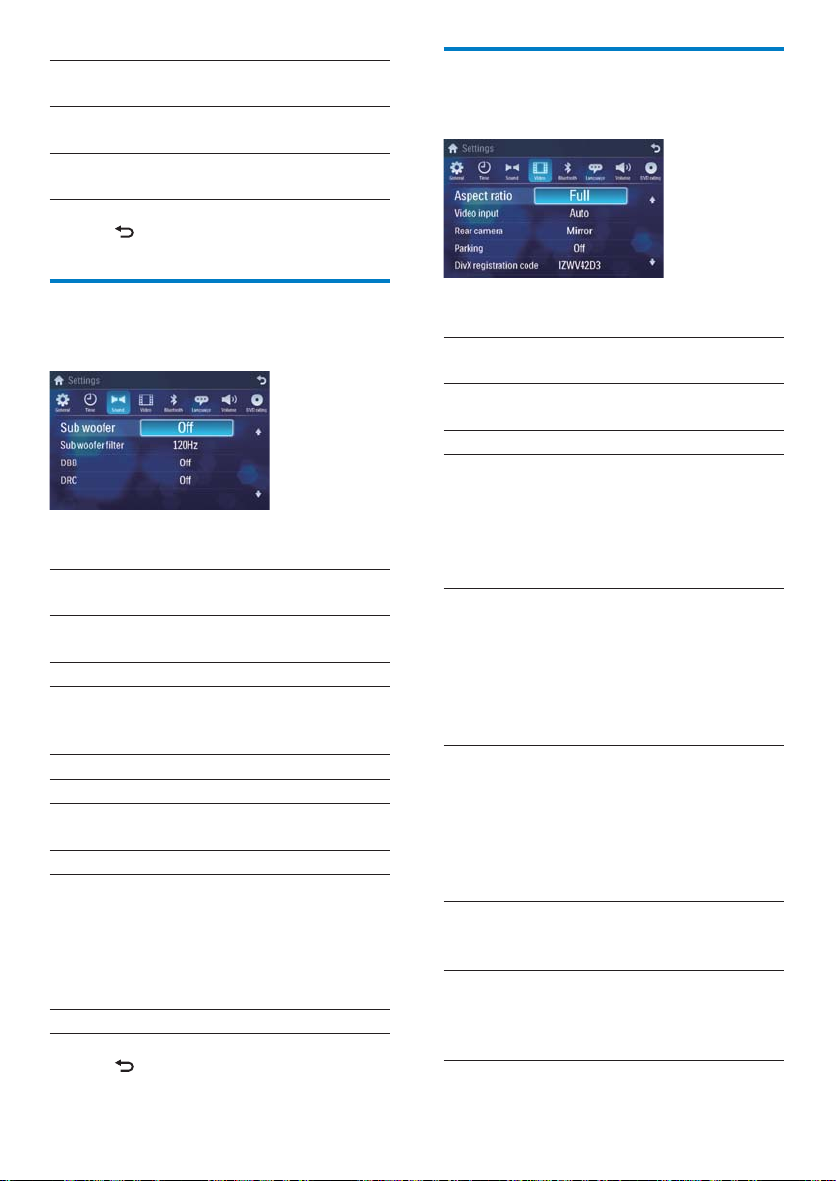

Adjust sound settings

Adjust video settings

1

Tap [Video].

2 Tap an option repeatedly to select:

Tap [Sound].

1

2 Tap an option repeatedly to select:

Sound
settings

[Sub
woofer]

[Sub
woofer
filter]

[DBB] [On] The Dynamic Bass Boost

[DRC] [On] Makes loud sound level

3 Tap to exit.

Options Description

[On] Turn on the subwoofer.

[Off] Turn off the subwoofer.
[80Hz] Select subwoofer filter

criteria.

[120Hz]
[160Hz]

(DBB) function is on.

[Off] The DBB function is off.

softer and soft sound
level louder so that you
can watch the DVD
movies at a low volume,
without disturbing others

[Off] The DRC function is off.

Video
settings

[Aspect
ratio]

[Video
input]

[Rear
camera]

Options Description

[Full] For widescreen

display.

[Normal] For normal display.
[Auto] The correct format

is set automatically.
Select this option
if you are not sure
which format should
be selected.

[NTSC] Used in the United

States, Canada,
Japan, Mexico, the
Philippines, South
Korea, Taiwan,
and some other
countries.

[PAL] Used in China,

India, Singapore, the
western European
countries (except
France), Australia,
and some other
countries.

[Secam] Used in France,

Russia and other
countries.

[Normal] When you drive in

reverse, the rear
view is displayed
normally.

24

EN

[Mirror] When you drive in

reverse, the rear
view is displayed in
mirror.

[Parking] [On] Disable video view

during drive.

[Off] Enable video view

during drive.

[DivX
registration
code]

View code for DivX
registration.

[Off] Answer phone call

manually.

[Pairing
code]

View code for
pairing the unit with
other Bluetooth
devices.

3 Tap to exit.

Adjust language settings

English

3 Tap to exit.

Adjust Bluetooth settings

1

Tap [Bluetooth].

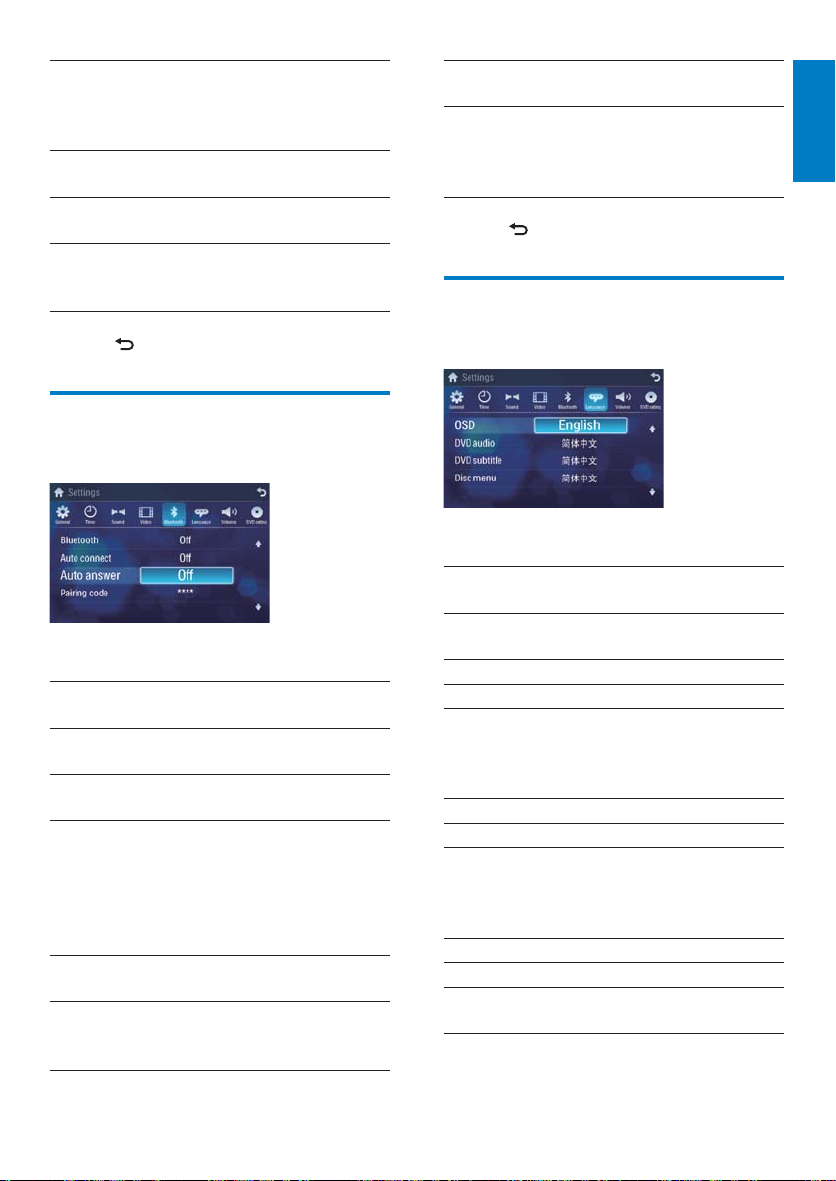

2 Tap an option repeatedly to select:

Bluetooth
settings

[Bluetooth] [On] Turn on the

[Auto
connect]

[Auto
answer]

Options Description

Bluetooth function.

[Off] Turn off the

Bluetooth function.

[On] If the pre-paired

device is within the
effective range, the
unit re-connects to
pre-paired device
automatically.

[Off] Need to re-connect

manually.

[On] Answer paired

phone call
automatically.

Tap [Language].

1

2 Tap an option repeatedly to select:

Language
settings

[OSD] [English] Select on-screen-

[DVD
audio]

[DVD
subtitle]

Options Description

display language.

ࡩ฼ᇓ໗]

[

ْ฼ᇓ໗]

[
[English] Select DVD audio

language. Options
available are depends
on DVD disc.

ࡩ฼ᇓ໗]

[

ْ฼ᇓ໗]

[
[English] Select DVD subtitle

language. Options
available are depends
on DVD disc.

ࡩ฼ᇓ໗]

[

ْ฼ᇓ໗]

[
[Off] Turn off subtitle

language display.

EN

25

[Disc
menu]

[English] Select DVD menu

language. Options
available are depends
on DVD disc.

[

ࡩ฼ᇓ໗]
ْ฼ᇓ໗]

[

3 Tap to exit.

Adjust volume settings

You can set different volume for different
modes.

1 Tap [Volume].

The volume setting sub-menu is »
displayed.

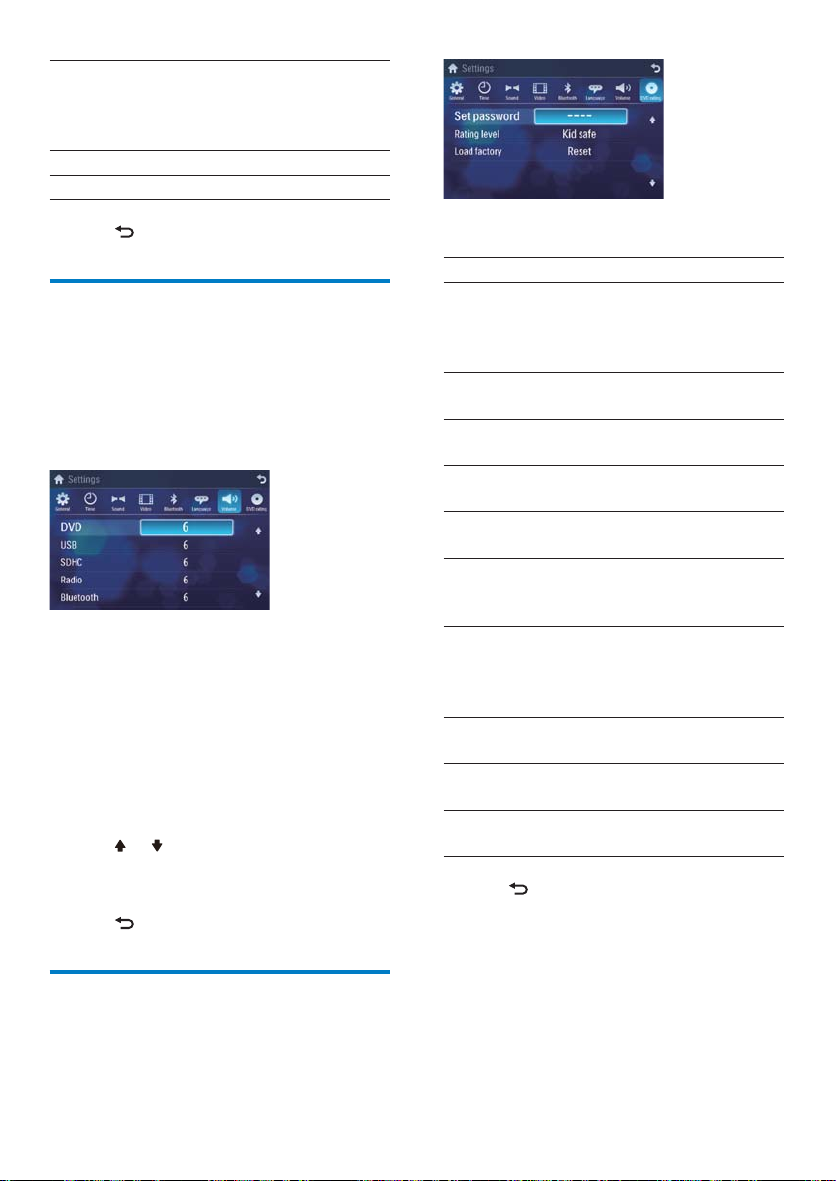

2 Tap on a source.

• [DVD]

• [USB]

• [SDHC]

• [Radio]

• [Bluetooth]

• [AV-IN1]

• [AV-IN2]

• [Navigation]

3 Tap or to assign a value: 0 to 12.

When you switch to the source, the »
volume increases automatically.

4 Tap to exit.

2 Tap an option repeatedly to select:

DVD rating Options Description
[Set

password]

[Rating
level]

[Load
factory]

[Kid
safe]

[G] Acceptable for general

[PG] Parental guidance

[PG-13] Unsuitable for children

[PG-R] Recommend parents

[R] Restricted.

[NC-17] Unsuitable for children

[Adult] Acceptable for adults

Set password to
restrict the play of
discs. The default
password is 0000.

Acceptable for
children.

viewers.

suggested.

under age 13.

to restrict children
under 17 to view.

Recommend parent to
guide children under
17 to view.

under age 17.

only.
Restore to default

settings.

3 Tap to exit.

Adjust DVD rating

Tap [DVD rating].

1

26

EN

10 Others

Reset

Listen to other devices

Tip

When air conditioning information changes, •
the air conditioning information interface will
be displayed for 10 seconds.

You can connect an external audio/video device
to the unit.

1 Connect the device to the unit with the

supplied AV cable.

AV IN

2 Tap to display the main menu.
3 Tap [AV-IN1].
4 Play the connected device (see the

instructions manual of the device).

When the unit hangs up, you can reset it.

1 Open the MAP/SD card socket cover.
2 Press the RESET button with a ball-point

pen or similar tool.

Tip

When the unit is reset, all the settings remain •
unchanged.

Remove the unit

To repair, replace fuse, or replace the unit,
remove it from the dashboard.

1 Screw off the four (4) screws on the left/

right side of the unit.

2 Pull the unit out from the dashboard.

English

Tip

If you connect the system to other audio •
device through the REAR OUT L/R connector
(see “Connect wires” section), tap [AV-IN2] to
listen to that device.

EN

27

Replace fuse

11 Product

If there is no power, the fuse may be damaged
and need to be replaced.

1 Take out the unit from dashboard.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the

damaged fuse (15A)

4 Replace the fuse.

Note

If the fuse gets damaged immediately after it •
has been replaced, there may be an internal
malfunction. In such case, consult your Philips
dealer.

information

Note

Product information is subject to change •
without prior notice.

General

Power supply 12 V DC (11 V - 16 V),

negative ground
Fuse 15 A
Suitable speaker

impedance
Maximum power

output
Continuous power

output
Pre-Amp output

voltage

Subwoofer output
voltage

Aux-in level
Dimensions

(W x H x D)
Weight (main unit) 2.3 kg

4 - 8

50 W x 4 channels

24 W x 4 channels (4

10% T.H.D.)

2.0 V ( CD play mode;

1 kHz, 0 dB, 10 k

load)

2.0 V (CD play mode,

61 Hz, 0 dB, 10 k

load)

500 mV

228.4 x 161.5 x 186 mm

Disc player

System DVD / CD audio /

MP3 system
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75dB
Total harmonic

distortion
Channel separation >55dB
Video signal format NTSC only
Video output 1 +/- 0.2V

28

EN

Less than 1%

Tuner

Frequency range - FM 87.5 - 108.0 MHz

(Europe)

Frequency range ­AM(MW)

522 - 1620 KHz

(Europe)
Usable sensitivity - FM 5 uV
Usable sensitivity -

50 uV
AM (MW)

LCD

Screen size 8 inches (16:9)
Display resolution 800 x 480 dots
Contrast ratio 300
Brightness 350 cd/m2

Bluetooth

Communication
system

Bluetooth Standard
version 2.0

Output Bluetooth Standard Power

Class 2

Maximum

Line of sight approx. 8m
communication
range

Frequency band 2.4 GHz band (2.4000

GHz - 2.4835 GHz)
Compatible

Bluetooth
profiles

Hands-Free Profile (HFP)

Handset Profile (HSP)

Advanced Audio

Distribution Profile

(A2DP)

Audio Video Remote

Control Profile (AVRCP)
Supported

codecs
Receive
Trans mit

SBC (Sub Band Codec)

SBC (Sub Band Codec)

Compatible USB devices:

USB flash memory (USB 2.0 or USB1.1) •
USB flash players (USB 2.0 or USB1.1) •
Memory cards (SD / MMC / SDHC) •

Supported formats:

USB or memory file format: FAT16, •
FAT32
MP3 bit rate (data rate): 32-320 Kbps and •
variable bit rate
WMA v9 or earlier •
Directory nesting up to a maximum of 8 •
levels
Number of albums/ folders: maximum 99 •
Number of tracks/titles: maximum 999 •
ID3 tag V2.0 to V2.4 •
File name in Unicode UTF8 (maximum •
length: 128 bytes)

Supported MP3 disc format:

ISO9660, Joliet•
Maximum title number: 512 (depending •
on file name length)
Maximum album number: 255•
Supported sampling frequencies: 32 kHz, •

44.1kHz, 48 kHz
Supported Bit-rates: 32-320 Kbps and •
variable bit rate

Supported video formats:

DVD•
Divx Home theater•
Xvid•

Note

To ensure a better playback , it is recommended
that:

the image size is not larger than 640 X 480 •
pixels.
the frame rate is 20 fps. •
the data rate is not higher than 500 kbps. •

English

EN

29

12 Troubleshooting

Warning

Never remove the casing of this apparatus. •

To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.

No power

Car engine has not been star ted. Start •
the car engine.
Connections is incorrect. •
Fuse has been damaged. Replace fuse. •

No sound

Volume is too low. Adjust volume. •
Speaker connections is incorrect. •

Disc does not play

Disc is upside down. Ensure the printed •
side is upwards.
Disc is dirty. Clean the disc with a •
clean, soft, lint-free cloth. Wipe the disc
outwards from the center.
Disc is defective. Try another disc. •
incompatible disc is used. Try another •
disc.
Disc rating exceeds the restrict setting. •
Change the rating settings to lower one.
Disc region code is not compatible with •
the unit. Use disc with proper region
code.

No image

Parking brake wire connection is •
incorrect. Check the parking wiring.

Image flashes or distorted

Video DVD settings do not match with •
the DVD. Adjust video DVD settings.
Video connection is improper. Check the •
connections.

Noise in broadcasts.

Signals are too weak. Select other •
stations with stronger signals.
Check the connection of the car antenna. •
Change broadcast from stereo to mono. •

Preset stations lost.

Battery cable is not correctly connected. •
Connect the battery cable to the terminal
that is always live.

Fuse is broken

The Fuse type is incorrect. Replace it with •
a 15A fuse.
Speaker wire or power wire is grounded. •
Check the connections.

Display show ERR-12

USB/SD/MMC data error. Check the USB •
device or SD/MMC card.

About Bluetooth device

Music playback is unavailable on the system
even after successful Bluetooth connection.

The device cannot be used with the •
system to play music.

The audio quality is poor after connection
with a Bluetooth-enabled device.

The Bluetooth reception is poor. Move •
the device closer to the system or
remove any obstacle between the device
and the system.

Cannot connect with the system.

The device does not suppor t the profiles •
required for the system.

30

EN

The Bluetooth function of the device is •
not enabled. Refer to the user manual of
the device for how to enable the function.
The system is not in the pairing mode. •
The system is already connected with •
another Bluetooth-enabled device.
Disconnect that device or all other
connected devices and then try again.

The paired mobile phone connects and
disconnects constantly.

The Bluetooth reception is poor. Move •
the mobile phone closer to the system or
remove any obstacle between the mobile
phone and the system.
Some mobile phones may connect and •
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
For some mobile phones, the Bluetooth •
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.

English

EN

31

13 Glossary

B

Bite rate

The max data transfer through the USB por t.

Bluetooth

Bluetooth
that is meant to allow mobile devices to share
information and applications without the
worry of cables or interface incompatibilities.
The name refers to a Viking King who unified
Denmark. Operate at 2.4GHz. For more
information, see www.bluetooth.com.

M

MMC

MultimediaCard. A type of memory card with
a flash memory.

MP3

A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Exper ts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.

®

is a shor t-rang wireless protocol

SDHC

Secure Digital High Capacity (SDHC) is a
type of flash memory card based on the SDA

2.00 specification. The SDA 2.00 specification
enables SD cards to reach higher capacities
from 4GB to 32GB, and growing.

W

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.

R

Region code

A system that allows discs to be played only
in the region designated. This unit only plays
discs that have compatible region codes. You
can find the region code of your unit on the
product label. Some discs are compatible with
more than one region (or ALL regions.)

S

SD

Secure Digital. A type of memory card with a
flash memory.

32

EN

© 2010 Koninklijke Philips Electronics N.V.

All rights reserved.

CID3692_00_UM_V1.0
