Page 1
Register your product and get support at
www.philips.com/welcome
CID3687
EN User manual
ES Manual del usuario
PT-BR Manual do Usuário
ZH-HK
ZH-CN Ⴌ߀൱Ҭ
Ԛʹ˫
Page 2
Page 3
Contents
1 Important 4
Safety 4
Notice 4
2 Your in-car entertainment system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
3 Get started 8
Install the car audio 8
Turn on 11
Set date and time 11
4 Use map 12
Upgrade the map 12
5 Listen to radio 13
Tune to a radio station 13
Store radio stations in memory 14
Tune to a preset station 14
Play with RDS (Optional) 14
6 Play 17
Load discs 17
Connect USB device 17
Insert USB or SD/MMC card 18
Play/Pause 18
Skip/search 18
Search within a title/folder 18
Repeat 19
Repeat a section 19
Random play 20
Select audio language 20
Select audio mode 20
Select subtitle language 20
Rotate pictures 20
Zoom 20
Select slide show duration 21
7 Play with Bluetooth device 21
Pair the Bluetooth-enabled devices 21
Make a call 22
Receive call 22
Listen to music from Bluetooth device 23
Adjust Bluetooth settings 23
8 Adjust sound 24
Adjust volume 24
Mute 24
Select preset equalizer 24
Adjust fader/balance 24
Set Dynamic Bass Boost (DBB) 25
9 Adjust settings 25
Display system setup menu 25
Adjust general settings 25
Adjust sound settings 26
Adjust video settings 27
Adjust Bluetooth settings 27
Adjust language settings 28
Adjust volume settings 28
Adjust DVD rating 29
10 Others 29
Listen to other devices 29
Reset 29
Remove the unit 30
Replace fuse 30
11 Product information 31
12 Troubleshooting 32
About Bluetooth device 33
13 Glossary 34
English
EN
3
Page 4
1 Important
Safety
Read and understand all instructions •
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or •
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground •
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do •
no watch video during driving.
To ensure safe driving, adjust the volume •
to a safe and comfortable level.
Improper fuses can cause damage or •
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware •
for a safe and secure installation.
To avoid short circuit, do not expose the •
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation •
slots or other openings on the apparatus.
Never place any objects other than discs •
into the disc tray/slot.
Visible and invisible laser radiation when •
open. Avoid exposure to beam.
Risk of damage to the screen! Never •
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene, •
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp •
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
The apparatus shall not be exposed to •
dripping or splashing.
Do not place any sources of danger on •
the apparatus (e.g. liquid filled objects,
lighted candles).
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
4
EN
Page 5
Your product contains batteries covered by
the European Directive 2006/66/EC , which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
This product complies with the radio
inter ference requirements of the European
Community.
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
2010 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reser ves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
English
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX
versions of DivX
with standard playback of DivX
The Bluetooth
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
®
Certified product. Plays all
®
video (including DivX® 6)
®
word mark and logos are
®
media files.
EN
5
Page 6
2 Your in-car
What’s in the box
entertainment
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can:
quickly find routine through the •
navigation system
enjoy audio/video/JPEG pictures from•
DVD, VCD or CD•
USB devices•
SD/SDHC/MMC cards •
External devices•
listen to FM or AM (MW) radio•
play audio from Bluetooth-enabled •
devices
make/receive phone calls with Bluetooth-•
enabled devices
Check and identify the contents of your
package:
ab
cd
e
g
i
f
h
j
a Main unit
b Power cable
c AV OUT cable
d MZ-TFT/Video out 2 cable
e Control cable
f AV IN cable
g GPS antenna
h Cleaning cloth
i Printing materials (include User manual,
Quick start guide, Installation guide)
j QC card / Guarantee card
6
EN
Page 7
Overview of the main unit
b
a
c
d
e
l
k
j
i
h
g
f
English
a Disc slot
b DISP/
c AV IN/
d
e TUNE/
f
g RESET button
/
Adjust screen brightness.•
Turn on/off the screen display.•
Open the cover and connect the AV •
IN/USB device.
/MAP
Open the cover and insert/remove •
the SDHC/GPS map card.
SELECT
Skip to the previous or next title, •
chapter, or track.
Search backward/forward at •
different speeds.
Confirm an entry or selection.•
Start, pause or resume play. •
/MUTE/VOL
Turn the unit on or off.•
Mute or unmute audio.•
Adjust volume.•
Reset the unit when it hangs up.•
h
Terminate call.•
i NAVI
Enter the GPS navigation system or •
exit.
j MENU
Return to the home menu. •
k
Built-in microphone for phone calls. •
l
Eject disc.•
EN
7
Page 8
3 Get started
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Note on the power supply lead (yellow)
When you connect other devices to this •
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the •
metal body or chassis of the car.
Never connect speaker wires with stripes •
to one another.
Connect wires
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground •
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.
•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,
•
ensure that the ignition is off.
Ensure that you connect the yellow and red
•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
•
electrical tape.
Ensure that the leads do not get caught under
•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
•
a common ground (earth) point.
Use only the supplied mounting hardware for a
•
safe and secure installation.
Improper fuses can cause damage or fire.
•
When you need to change the fuse, consult a
professional.
Caution
Ensure that all loose leads are insulated with •
electrical tape.
EN
8
Page 9
1 Check the car’s wirings carefully, then
connect them to the unit.
Yellow Green Blue
Yellow
Blue/white
Pink
Green/white
Gearbox
black
white
brown
White/
Brown/
Orange/
English
Radio antenna
GPS antenna
Black
Touch controller
Yellow
Red
White
Yellow
AV system
AUX
Rear screen
Red
Red
White
Amplifier
Brown
White
Connect GPS antenna
To receive signal from satellites, connect the
supplied GPS antenna to your car and the
system.
1 Connect the supplier GPS antenna to the
system first.
2 Stick the other end of the GPS antenna to
a metal surface of the car.
Connect radio antenna
If your car has built-in radio antenna, connect
it to the radio antenna of the system for
better radio signal.
1 Connect the radio antenna to the car
antenna.
EN
9
Page 10
Mount in the dashboard
Note
Check wire connections before you mount the •
unit into a car.
If preset radio stations are lost when the
•
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1 If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in •
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
If the car battery is not disconnected, •
to avoid short-circuit, ensure that
bare wires do not touch each other.
2 Ensure that the horizontal slant of the car
dashboard opening is between 0 and 20
degrees. The unit cannot be used if the
dashboard opening’s slant angle is above
20 degrees.
3 Fix the four plastic buckles (supplied by
the car manufacturer for the original
audio system) to the unit.
4 Fix the mounting brackets to the
unit with screws (supplied by the car
manufacturer).
5 Slide the unit into the dashboard and fix
it to the car with four screws.
10
EN
Page 11
6 Reconnect the negative terminal of the
car battery.
Turn on
Caution
Risk of road accidents! Never watch video or •
adjust settings while you drive.
1 Press and hold /MUTE/VOL to turn on
the unit.
The available OSD (On-Screen »
Display) languages are displayed.
2 Tap a language to select.
The OSD language is changed to the »
selected language immediately.
To turn off the unit, press and hold •
MUTE/VOL.
/
English
3 Tap [Settings].
4 Tap [Time] .
The date/time setup menu is displayed. »
Set date
1 Tap [Date].
2 Tap on the displayed date information.
A submenu is displayed. »
Set date and time
Tap to display main menu.
1
2 Tap in the middle right side of the
screen.
The second main menu is displayed. »
3 Tap or to set year, month and day.
Set clock mode
1 Tap [Clock mode] .
2 Tap on [12Hr] or [24Hr] to select clock
mode.
EN
11
Page 12

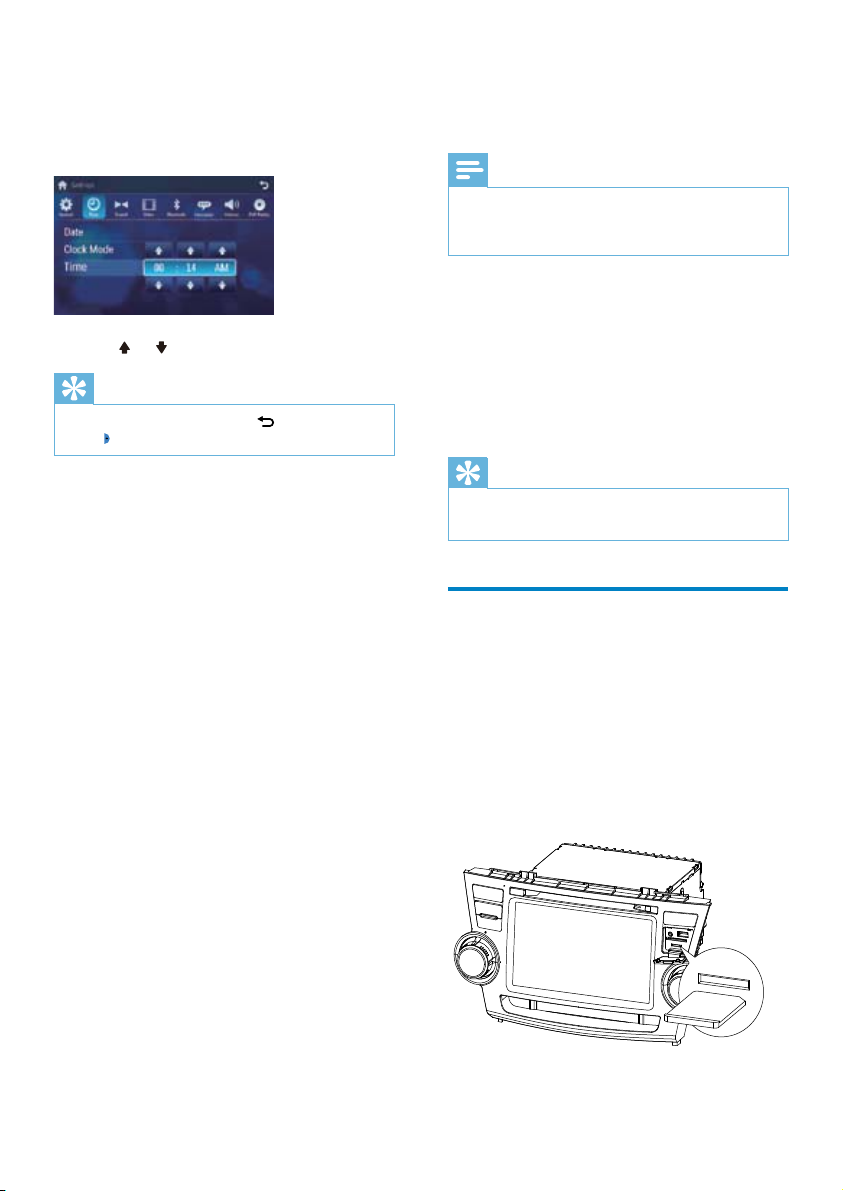

Set time
1 Tap [Time].
2 Tap on the displayed time.
A submenu is displayed. »
3 Tap or to set hour and minute.
Tip
When date/time is set, tap • first and then
tap
to return to main menu.
4 Use map
Note
You may need to upgrade the map (sold •
separ ately) before using it (see “ Upgrade the
map” section)
1 Tap the upper left corner to display home
menu.
2 Tap [Navigation].
The navigation menu is displayed in a »
few seconds.
3 Refer to the map manual to operate the
navigation tool.
Tip
You can press • NAVI to enter/exit the
navigation system.
Upgrade the map
Turn off the car audio system.
1
2 Open the AV-IN/USB/SD/MAP socket
cover.
3 Press the map card (sold separately) until
you hear a click sound.
4 Take out the card and bring it to the
authorized service center for upgrade.
12
EN
Page 13
5 Inser t the upgraded map card back into
the map card slot.
6 Turn on the car audio.
The map upgrades in a few minutes. »

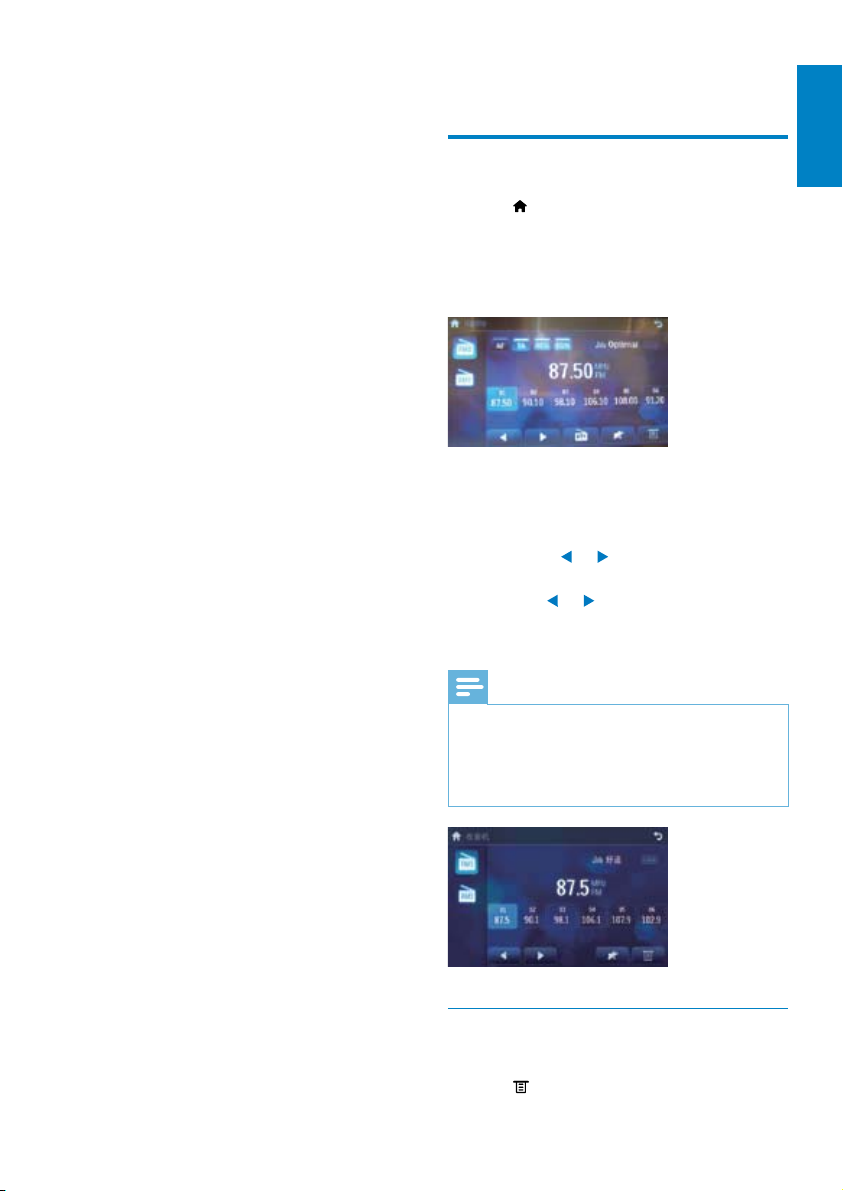

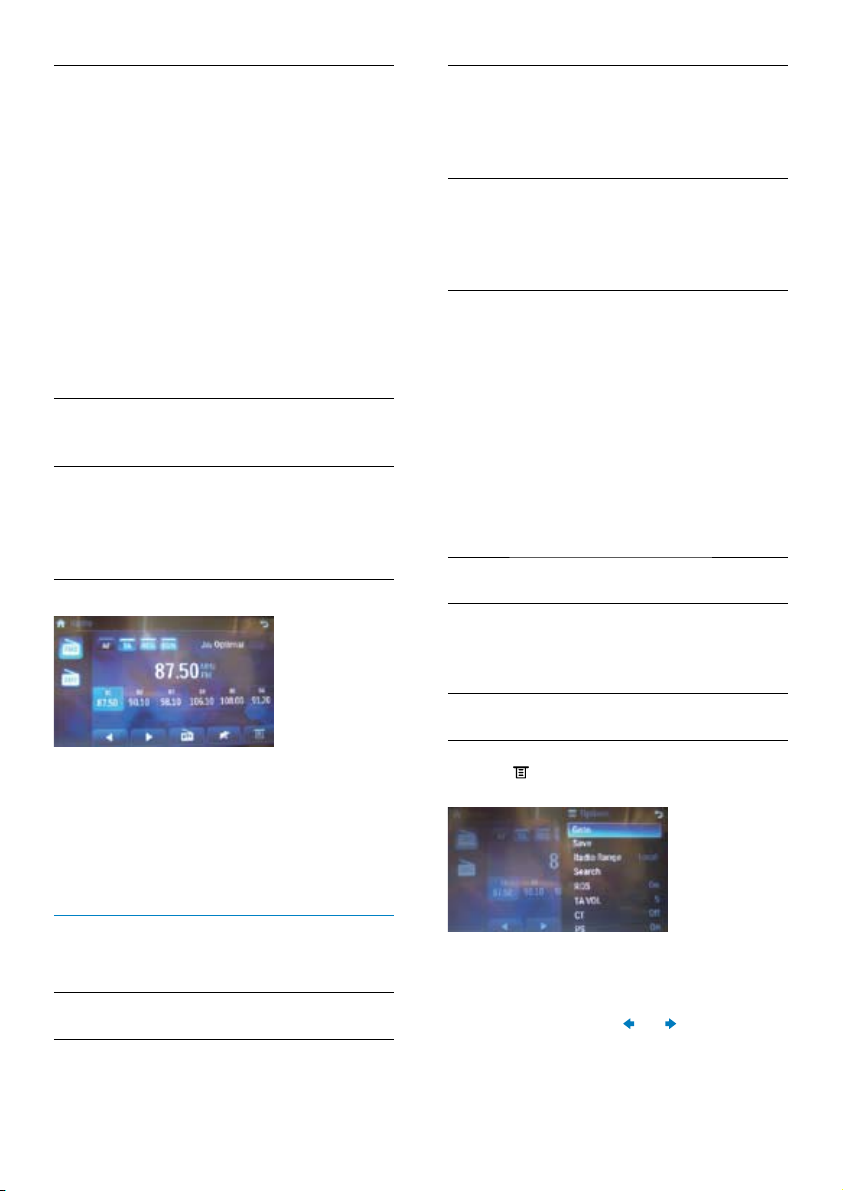

5 Listen to radio
Tune to a radio station
Tap to display home menu.
1
2 Tap [Radio].
Band and frequency information is »
displayed.
3 Tap FM or AM to select band:
FM band options: • FM1, FM2, FM3
AM band options: • AM1, AM2
4 Briefly tap or to tune to a radio
station by step.
Tap •
or for more than 1
second to tune to a radio station
automatically.
English
Note
If simplified Chinese is selec ted as OSD (on- •
screen-display) language, the RDS functions
(see ‘Play with RDS (Optional)’ on page 15)
are not available. The tuner screen displays as
below:
Tune by frequency
1 Tap FM or AM to select band.
2 Tap .
EN
13
Page 14

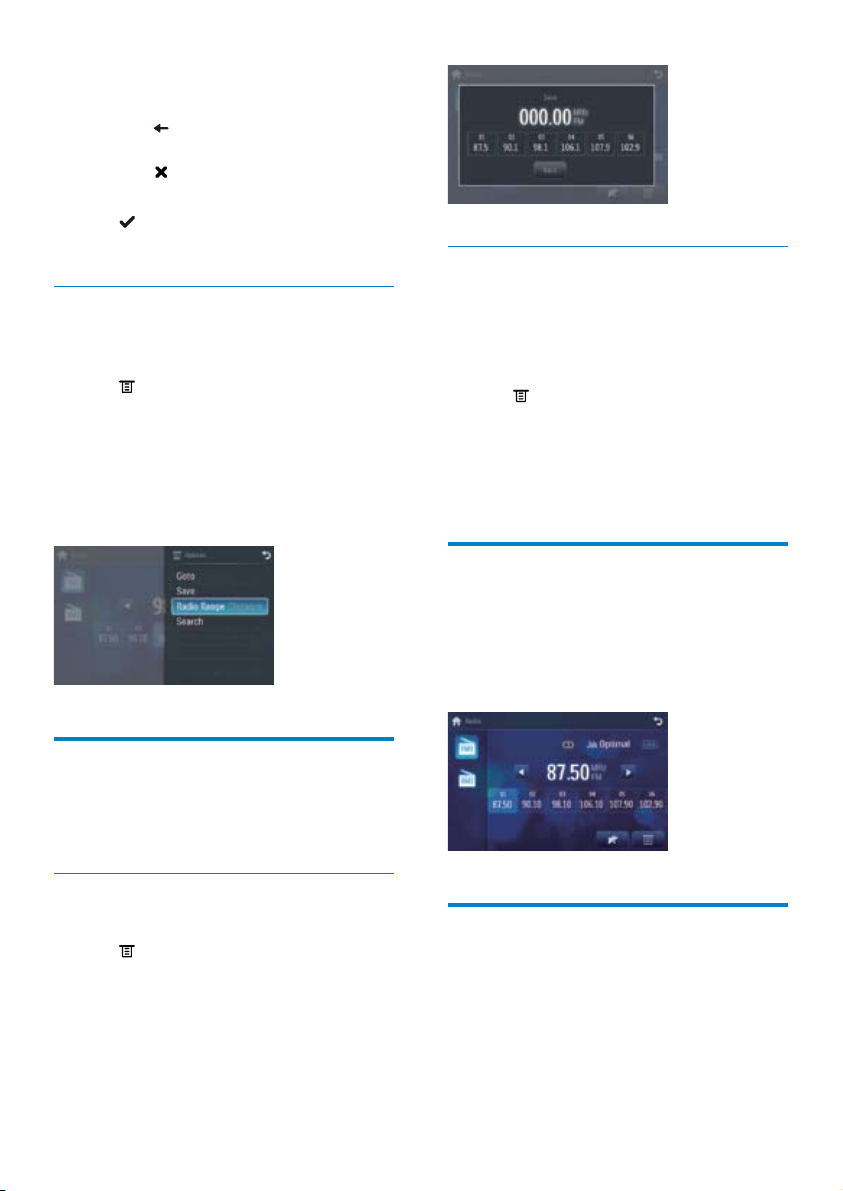

3 Tap [Goto].
4 Tap the numbers to enter frequency.
Tap •
to clear the last entered
number.
Tap •
to clear all the entered
numbers.
5 Tap to confirm.
The radio station is broadcast. »
Select radio range
Before you start to search for radio stations,
you can select radio range.
1 Tap .
2 Tap [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
• [Distance]: Only stations with strong
signals can be broadcast.
• [Local]: Stations with strong and
weak signals can be broadcast.
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1 Select band.
2 Tap .
3 Tap [Search].
Auto search starts. The six strongest »
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
Tap [Radio].
1
2 Select band.
3 Tap one of the preset channels (01 to 06)
to select a preset station.
Store radio stations in memory
You can store up to 6 stations in each band.
Store stations manually
1 Tune to the station.
2 Tap .
3 Tap [Save].
4 Tap one of the channels 01 to 06 to save
the select band.
14
EN
Play with RDS (Optional)
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and information about the
presenter, station or program is displayed.
Page 15

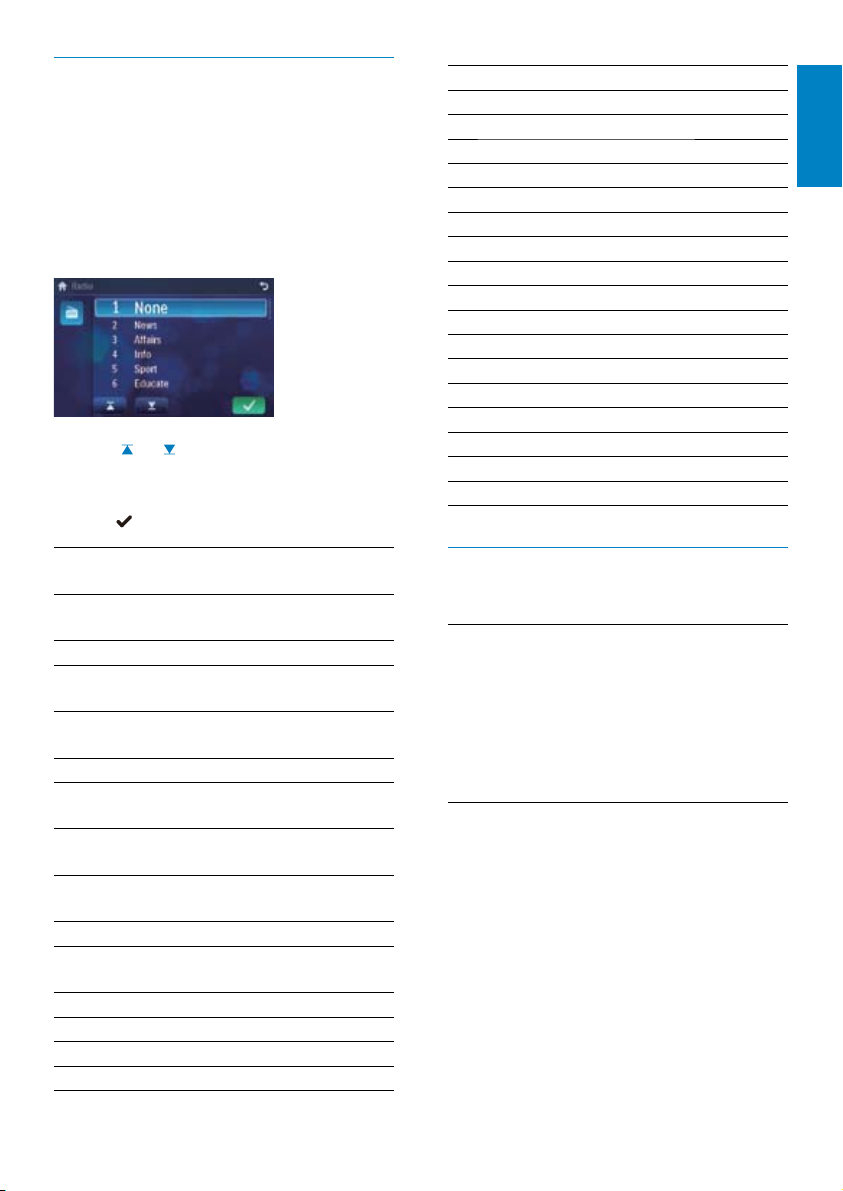

Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1 Tap FM band to select FM1, FM2, or FM3.
2 Tap [PTY] .
List of available program type is »
displayed.
3 Tap or to display the next/previous
screen.
4 Tap on the selected program and then
tap
to activate searching.
15 Classics Classical music
16 Other M Special music programs
17 Weather Weather
18 Finance Finance
19 Children Children’s programs
20 Social Social Affairs
21 Religion Religion
22 Phone In Phone In
23 Trav e l Travel
24 Leisure Leisure
25 Jazz Jazz Music
26 Country Country Music
27 Nation M National Music
28 Oldies Oldies Music
29 Folk M Folk Music
30 Document Documentary
31 Te st Alarm Test
32 Alarm Alarm
English
Item Program
type
1 None No program type or
2 News News services
3 Affairs Politics and current
4 Info Special information
5 Sport Sports
6 Educate Education and advanced
7 Drama Radio plays and
8 Culture Culture, religion and
9 Science Science
10 Varied Entertainment
11 Pop M Pop music
12 Rock M Rock music
13 Easy M Light music
14 Light M Light classical music
Description
undefined
affairs
programs
training
literature
society
programs
Select alternate frequencies
You can turn on or off below RDS functions:
[AF] (Alternate
Frequency)
If the radio signal of the
current station is poor,
you can turn on the [AF]
function to let the unit
searches for another station
with stronger signal but
with the same program
identification.
EN
15
Page 16
[TA] (Traffic
Announcement)
[REG] (Regional
radio)
[EON]
(Enhanced
Other
Networks)
If you do not want to miss
traffic announcement
during enjoying music,
you can turn on the [TA]
function. When there is
traffic announcement,
the unit switches to
tuner mode (regardless
of the current mode)
and begins to broadcast
the announcement on
traffic conditions. When
the traffic announcement
is over, it returns to the
previous mode.
When [REG] is turned on,
only stations in the current
region can be tuned to.
When [EON] is turned on,
local stations ‘break into’ a
national station’s broadcast
for the duration of a Traffic
Announcement.
1 Tap [AF], [TA], [REG], or [EON] to turn
it on or off.
When the icon is highlighted with »
blue background color, the function is
turned on.
[TA VOL]
(Traffic
announcement
Volume)
[CT] (cl ock
time)
[PS] (Program
Service)
1 Tap .
[Off] When RDS is
turned off, all the
RDS related icons
(e.g. PTY, TA)
disappear.
0 to 10 When TA signal is
cut in, the volume
can be increased
for a certain level:
0 to 10.
[On] Turn on the
RDS clock. Time
shown on the unit
synchronize with
that on the RDS
station.
Note: The accuracy
of the transmitted
time depends on
the RDS station
that transmits the
time signal.
[Off] Turn off the RDS
clock
[On] Displays
information such
as RDS station
identity name etc.
[Off] Turn off the PS
function.
Turn on RDS
You can select below RDS functions:
[RDS] [On] Turn on RDS
functions.
16
EN
2 Tap [RDS], [TA VOL], [CT] or [PS].
3 Tap it again to select on or off.
For • [TA VOL], tap
volume.
or to select
Page 17

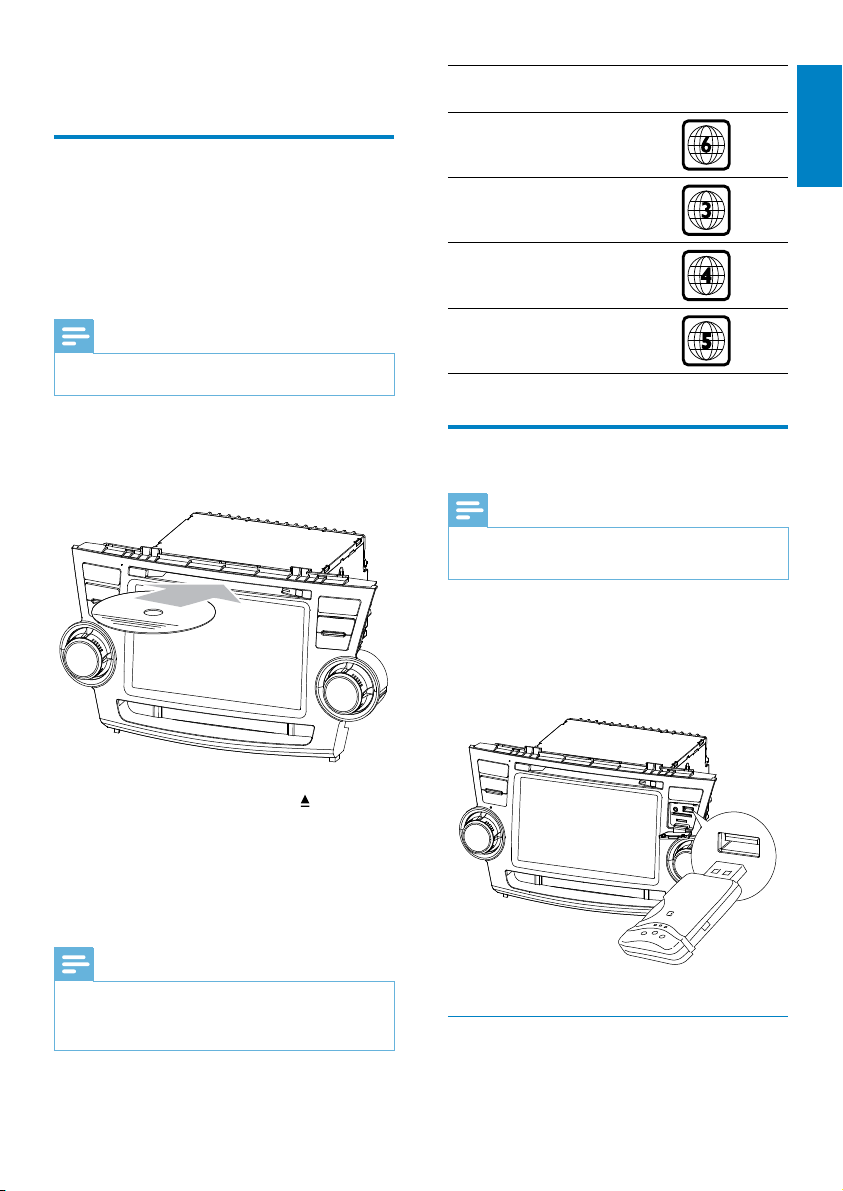

6 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
Note
Ensure that the disc contains playable content. •
1 Inser t a disc into the disc slot with the
label side facing up.
Play starts automatically. »
Countries where you
bought the unit
China
Supported DVD
region code
Asia Pacific, Taiwan,
Korea
Latin America
Russia, India
Connect USB device
Note
Ensure that the device contains playable •
content.
1 Open the AV-IN/USB/SD/MAP socket
cover.
2 Inser t the USB device to the USB socket.
Play starts automatically. »
English
To remove the disc, press » .
When the disc is ejected, the unit »
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
Note
Depends on where you bought the unit, you •
can play DVD discs with one of the following
region codes:
Remove the USB device
1 Switch to another (non-USB) source.
EN
17
Page 18
2 Remove the USB device.

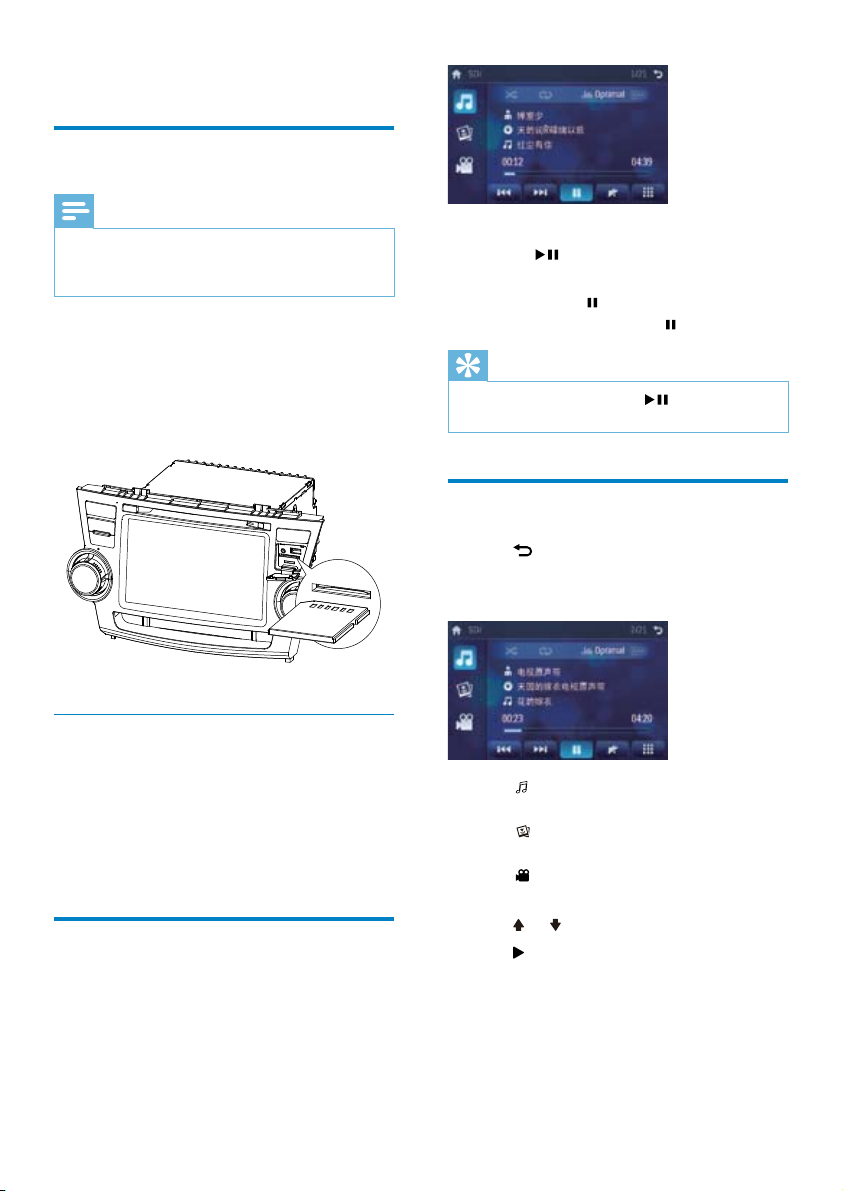

Insert USB or SD/MMC card
Note
Ensure that the device contains playable •
content.
The unit supports SDHC card.
•
1 Open the AV-IN/USB/SD/MAP socket
cover.
2 Inser t the SD/MMC card into the SD/
MMC card slot.
Play starts automatically. »
Remove the SD/MMC card
1 Switch to another source.
2 Press the card until you hear a click
sound.
The card is now disengaged. »
3 Remove the SD or MMC card.
Play/Pause
For DVD movie, if a menu appears, press
TUNE/
2 To pause, tap .
Tip
You can also press •
repeatedly to pause/resume play.
Skip/search
Tap to return to playlist menu.
1
2 Tap one of below icons to select folder/
file:
SELECT
To resume play, tap •
to start play.
again.
TUNE/ SELECT
• : To display all available audio
folders/track.
•
: To display all available picture
folders/files.
•
: To display all available video
folders/files
3 Tap or to select a folder/track.
4 Tap to star t play.
Once a disc, USB or SD/MMC card is
1
inser ted, play starts automatically.
18
EN
Page 19

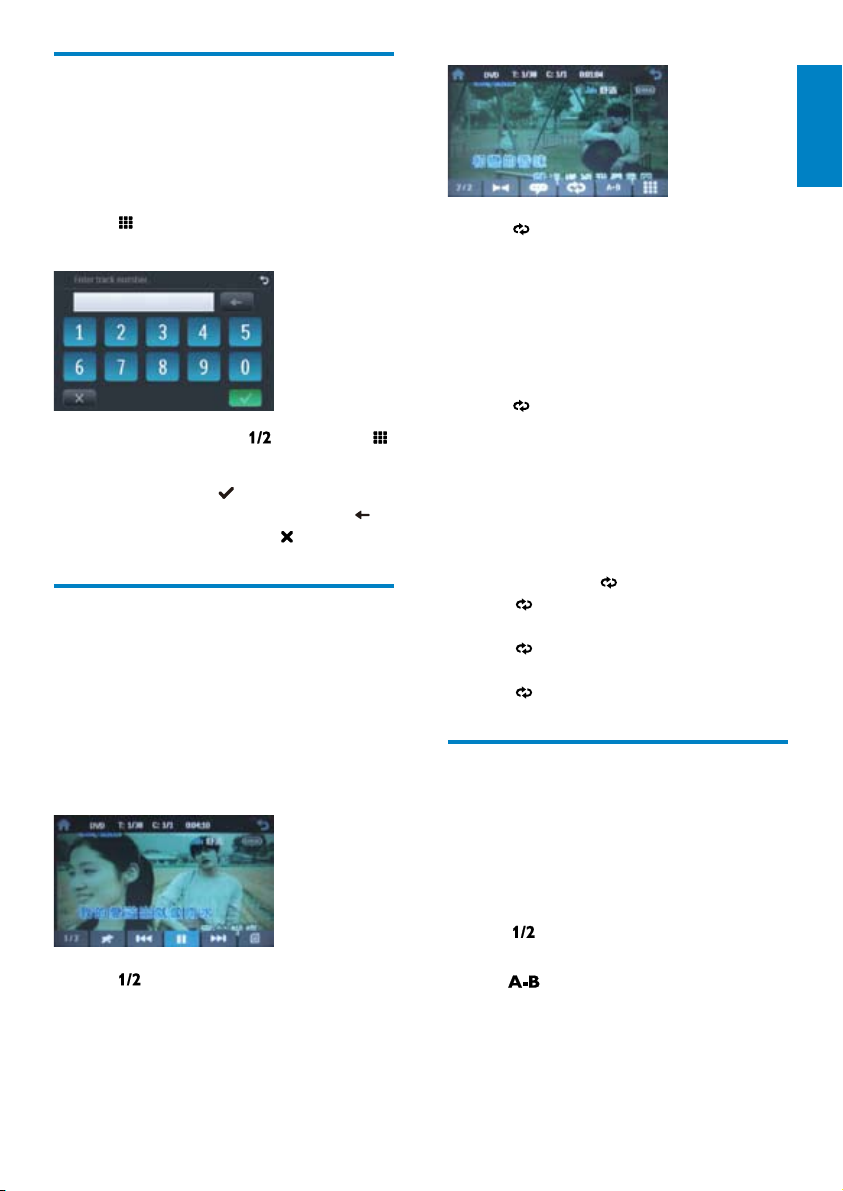

Search within a title/folder
Direct search
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap .
The search screen is displayed. »
For video files, tap » first, then tap .
3 Tap the numbers to enter chapter/file
number, then tap
To clear the previous input, tap •
To clear all input, tap •
Repeat
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap to display the 2nd menu.
.
.
.
3 Tap to select:
• [Repeat chapter]: play the current
chapter repeatedly.
• [Repeat title]: play all chapters in the
title repeatedly.
• [Repeat off]: cancel repeat play.
For VCD karaoke:
1 Tap to select:
• [Repeat one]: play the current track
repeatedly.
• [Repeat all]: play all tracks
repeatedly.
• [Repeat off]: cancel repeat play.
For MP3/WMA files:
1 During play, tap to select:
•
-1: play the current track
repeatedly.
•
-Folder: play all the tracks in the
current folder repeatedly.
•
(in grey color): cancel repeat play.
Repeat a section
You can repeat a specific section of video file
(repeat A-B).
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu, if
necessary.
3 Tap repeatedly to mark:
English
EN
19
Page 20
• [Repeat A-]: the start of the section
to repeat.
• [Repeat A-B]: the end of the section
to repeat.
The selected section plays •
repeatedly.
4 To exit A-B repeat mode, tap
repeatedly until [Repeat A-B off ] is
displayed.

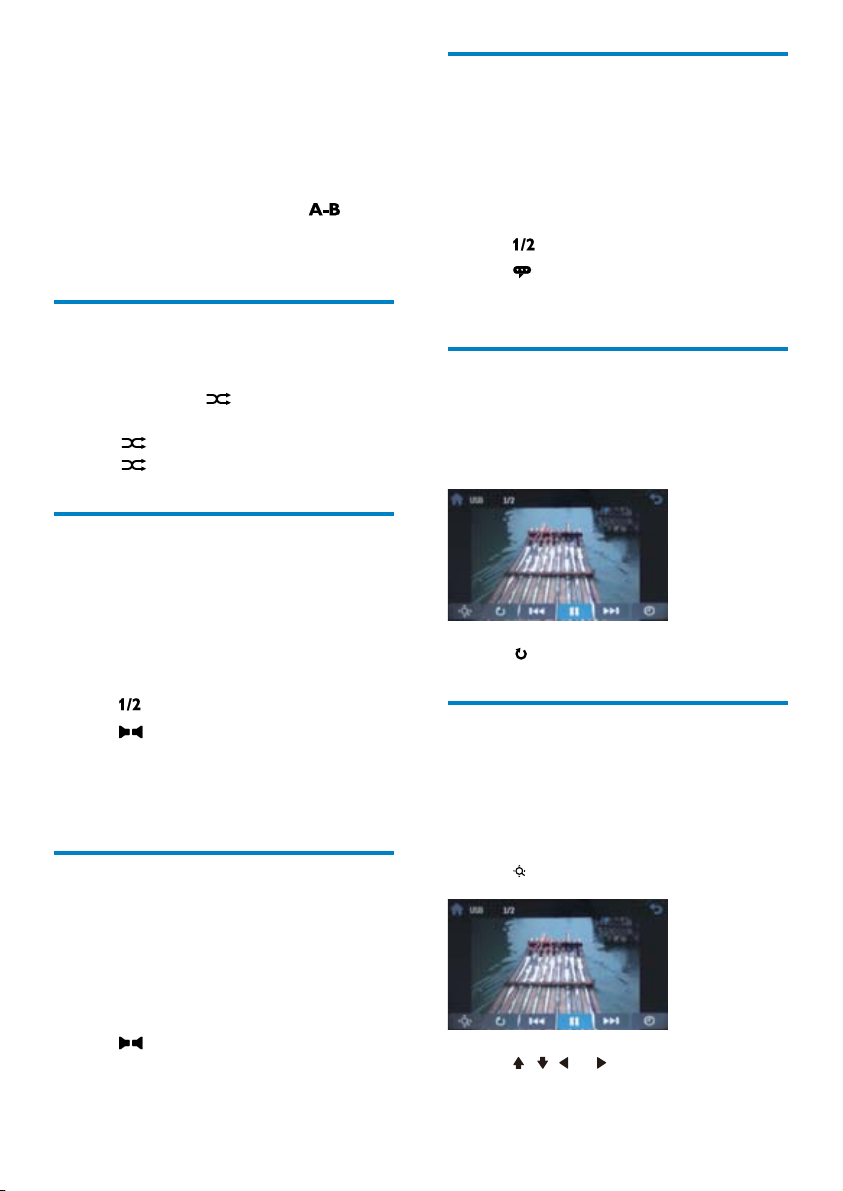

Random play
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu
3 Tap repeatedly to select a language.
The selected language is displayed. »
You can play audio tracks/files in random order.
1 During play, tap repeatedly to turn
random play on or off.
•
is highlighted: start random play.
•
turns gray: cancel random play.
Select audio language
For video discs that contain two or more audio
channels.
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu.
3 Tap repeatedly.
The audio channel information is »
displayed on the upper line of the
screen.
Select audio mode
When you play VCDs, you can select an audio
mode (R/L/Stereo).
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen.
2 Tap repeatedly until the audio mode
is selected.
Rotate pictures
When you view pictures, tap anywhere
1
except for the upper left corner to display
menu on the screen, if necessary.
2 Tap repeatedly to rotate the picture.
Zoom
You can zoom in pictures for a close view.
1 During view pictures, tap anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2 Tap repeatedly to zoom in the picture.
3 Tap , , or to pan through the
enlarged picture.
20
EN
Page 21
Select slide show duration
Tap anywhere except for the upper left
1
corner to display menu on the screen, if
necessary.
2 Tap repeatedly to select:
• Fast: 3 seconds
• Normal: 5 seconds
• Slow: 8 seconds
7 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetoothenabled device.
Pair the Bluetooth-enabled devices
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a •
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this
•
unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not
•
guaranteed.
Any obstacle between this unit and a
•
Bluetooth device can reduce the oper ational
range.
Keep this unit away from any other electronic
•
device that may cause interference.
English
1 Turn on the Bluetooth function on the
device.
2 Search for Bluetooth device with the
device.
3 Select “CID3687” in the pairing list.
4 Enter default password “0000”.
If pairing succeeds. phone call record is »
displayed.
EN
21
Page 22

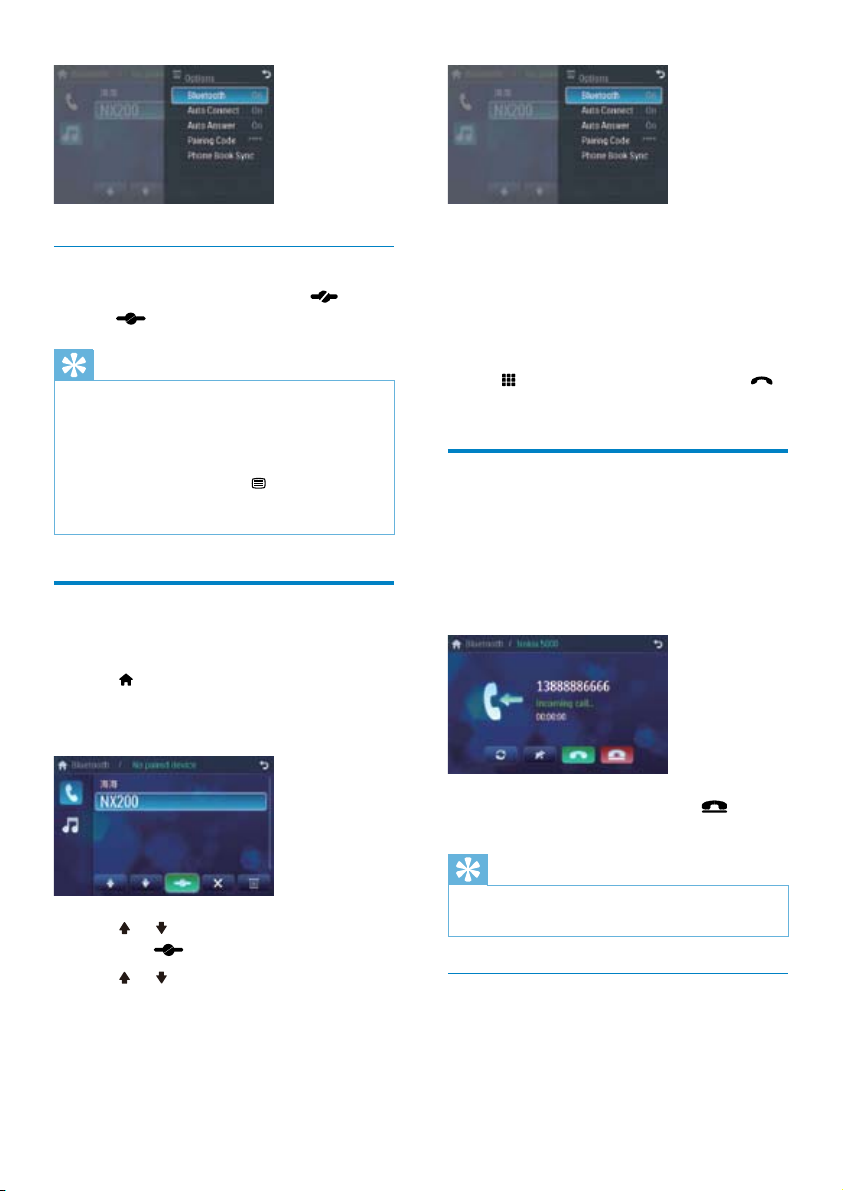

Disconnect Bluetooth devices
1 To disconnect one device, tap (red).
»
(green) is displayed.
Tip
The device will also be disconnected when the •
device is moved beyond the operational range.
If you want to reconnect the device to the
•
unit, place it within the operational range.
If you do not want to reconnect the device to
•
the unit automatically, tap >[Auto connec t],
then select [Off ]. For details, see the “Adjust
Bluetooth settings” section.
Make a call
Pair the phone with the unit.
1
2 Tap to display the home menu.
3 Tap [Bluetooth].
The Bluetooth menu is displayed. »
• [Missed calls]
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]
Or tap
to dial.
Receive call
By default, all incoming calls are received
automatically.
1 If there is incoming call, [Incoming call...]
to dial number directly, then tap
flashes on the screen. Speak into the
Bluetooth microphone.
4 Tap or to select the paired phone,
then tap
5 Tap or to search for phone number
from the following list:
22
EN
.
2 When conversation ends, tap (red)
to terminate the call.
Tip
You can selec t to receive calls manually by •
setting [Auto answer] to [Off ] status.
Switch phone call to the mobile
If you do not want your passenger to hear
your incoming call, you can switch the call to
the mobile.
Page 23
1 During talking, tap .
The voice is transferred from the unit’s »
loudspeaker to the mobile phone.

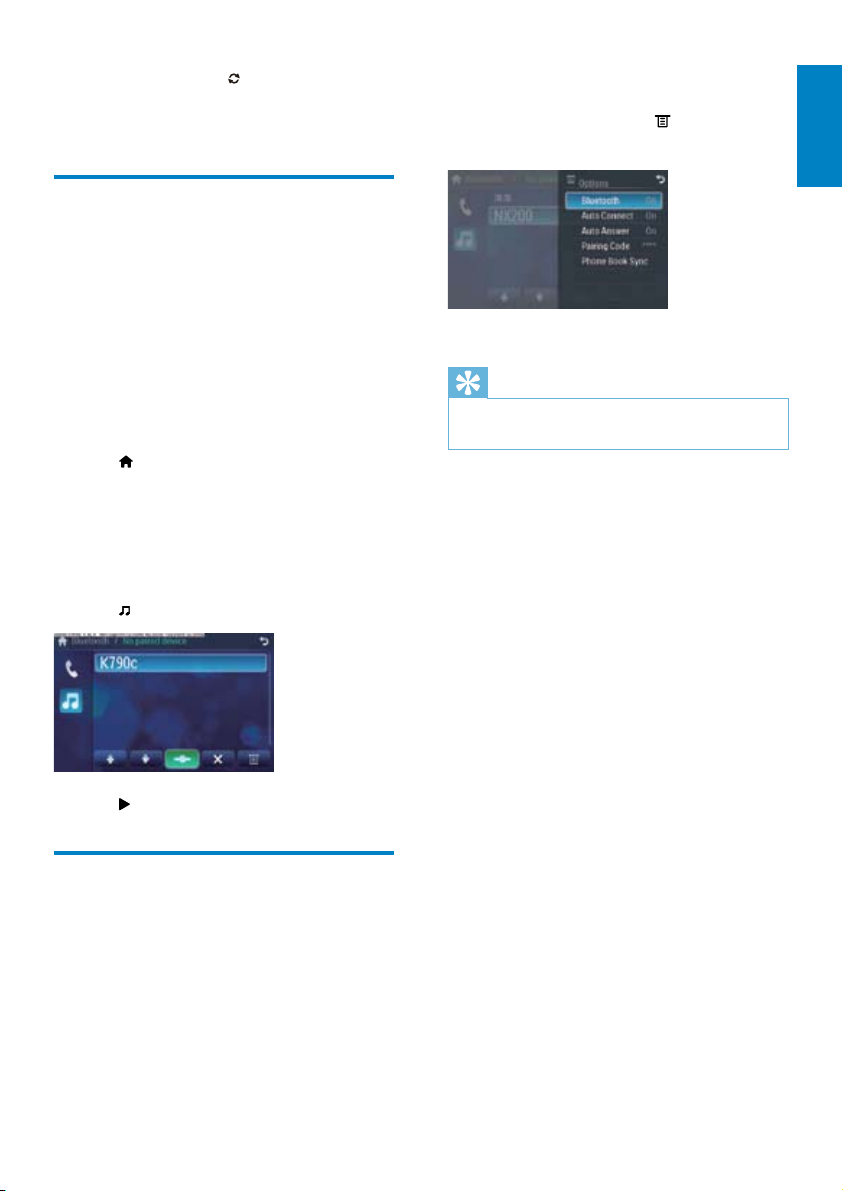

Listen to music from Bluetooth device
If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
Audio Video Remote Control Profile (AVRCP)
profile, you can use the control on the unit to
play music stored in the device.
1 Pair the phone with the unit.
2 Tap to return to home menu.
3 Tap [Bluetooth].
The Bluetooth menu is displayed. »
4 Star t to play music stored in the device.
If your device supports AVRCP,
1 Tap .
• [Phone Book Sync]: to synchronize
phone book
1 In Bluetooth menu, tap .
The option menu is displayed. »
2 Tap an option to change the setting.
Tip
You can also adjust Bluetooth settings in the •
“Settings” menu.
English
2 Tap to star t play.
Adjust Bluetooth settings
You can change below Bluetooth settings:
• [Bluetooth]: to turn on or off
“Bluetooth” function
• [Auto connect]: to turn on or off “Auto
connect” function
• [Auto answer]: to turn on or off “Auto
answer” function
• [Pairing code]: to set paring code
EN
23
Page 24
8 Adjust sound
Adjust volume
Turn /MUTE/VOL button clockwise to
1
increase volume.
2 Turn /MUTE/VOL button anti-clockwise
to reduce volume.
Mute
During play, press /MUTE/VOL.
1
To restore the sound, press •
MUTE/VOL again.
Tip
You can also tap • on the screen to turn off
sound.
/

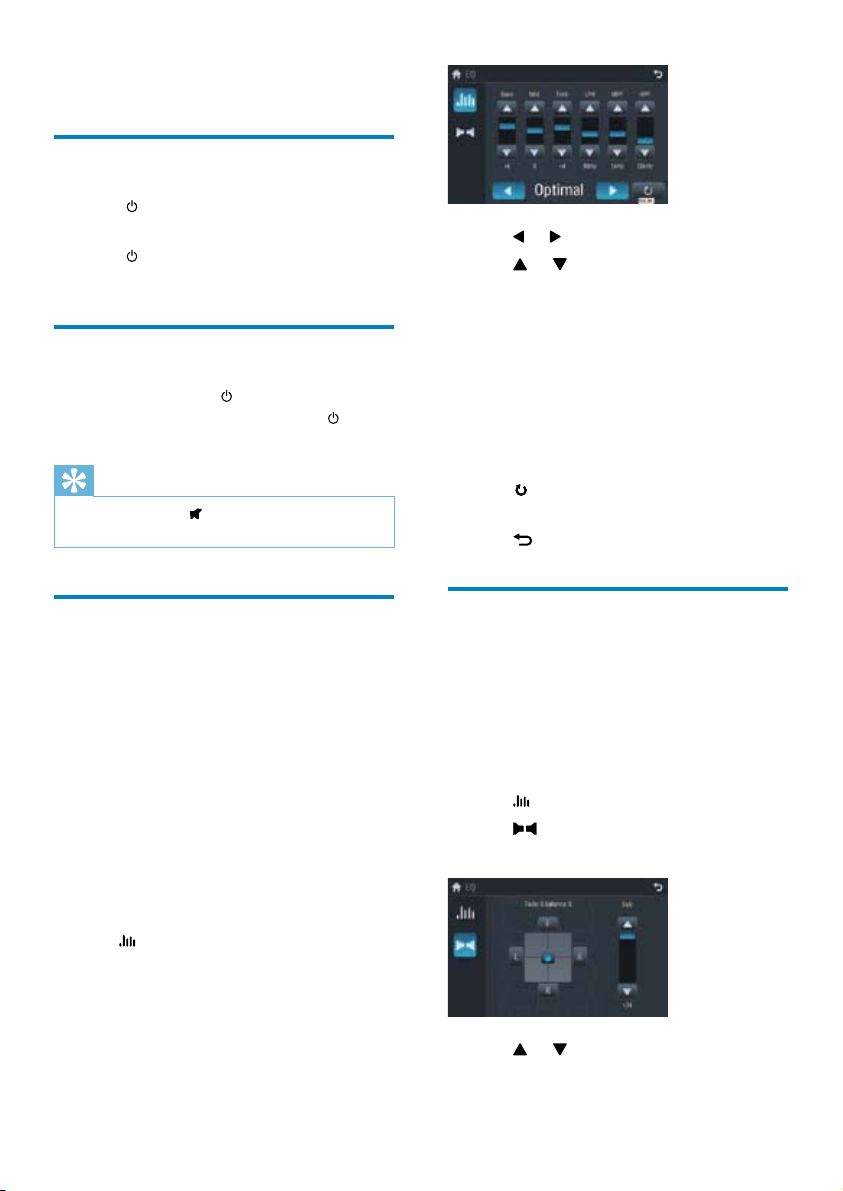

Select preset equalizer
You can select preset equalizer:
• [User]
• [Techno]
• [Rock]
• [Classic]
• [Jazz]
• [Optimal]
• [Flat]
• [Pop]
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap .
The current Equalizer setting is »
displayed.
3 Tap or to select an EQ.
4 Tap or to adjust below settings:
• [Bass] bass range: -14 to +14
• [Mid] middle range: -14 to +14.
• [Treb] treble range: -14 to +14
• [LPH] low pass filter range: 60, 80,
100, 200.
• [MPF] middle pass filter range: 500,
1K, 1.5K, 2.5K.
• [HPF] high pass filter range:10K,
12.5K, 15K, 17.5K.
5 Tap to restore the above settings into
default settings.
6 Tap to exit.
Adjust fader/balance
You can also adjust the front and rear speaker
balance, the left and right speaker balance, and
subwoofer settings.
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap .
3 Tap
Below options are displayed: »
4 Tap or to select subwoofer volume.
• [Sub] subwoofer volume: 0 to 24.
24
EN
Page 25
5 Tap F, R, L, or R to adjust fader/balance
value.
• [Fade] fader range: +24 to -24. (F =
front speaker, R = rear speaker)
• [Balance] balance range: -24 to +24.
(L = left speaker, R = right speaker)
6 Tap to exit.
Set Dynamic Bass Boost (DBB)
Tap to toggle between the settings.
1
• [DBB] on: The
illuminated.
• [DBB] off (default): The
gray.
icon is
icon is
9 Adjust settings
Display system setup menu
Tap to display main menu.
1
2 Tap in the middle right side of the
screen.
The second main menu is displayed. »
English
3 Tap [Settings].
The settings menu is displayed. »
Tip
When the setup adjustment is completed, tap •
first and then tap to return to main menu.

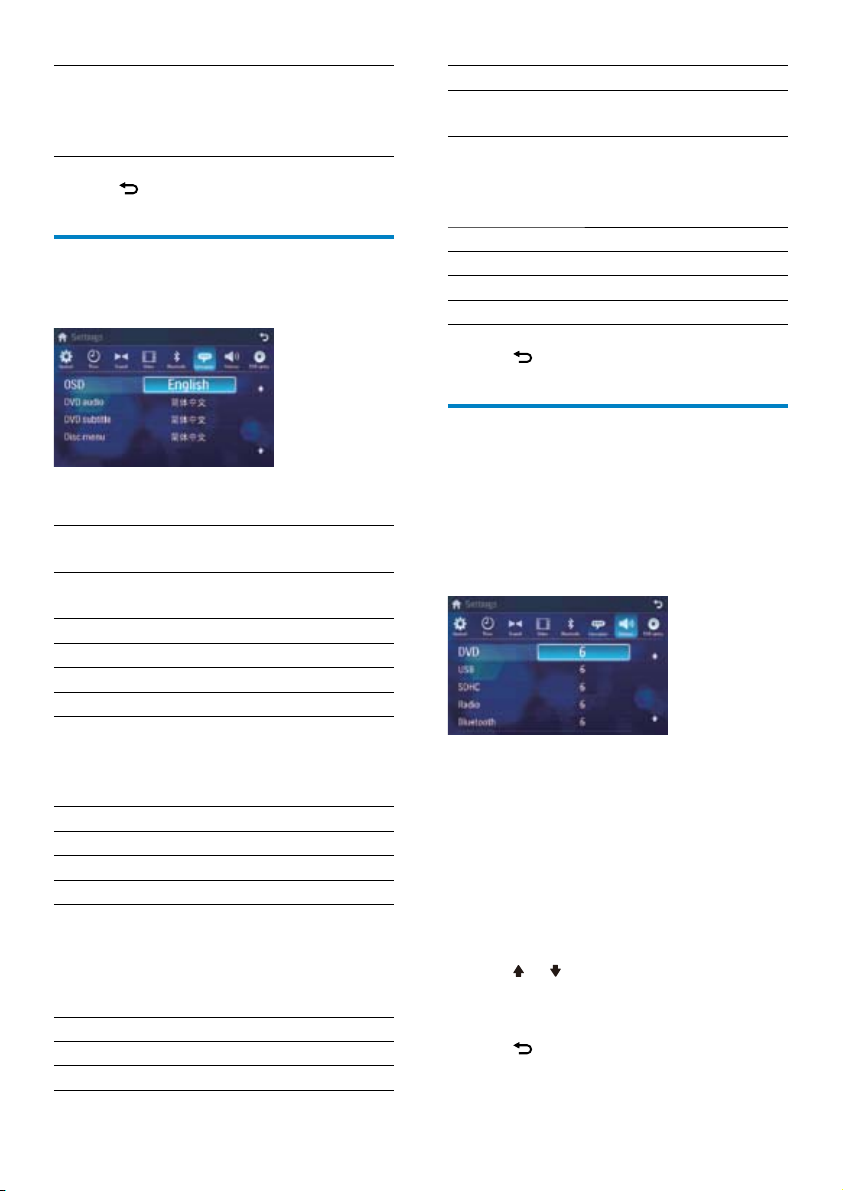

Adjust general settings
Tap [General], if necessary.
1
EN
25
Page 26
2 Tap or to highlight a setting.
3 Tap on the option to display/select an
option.
General
settings
[Radio
region]
[Radio
range]
[Blackout] [off] Never turn on the
[Key color] [Red] Button backlight
[Beep] [On] Turn on the
[WallPaper] [Blue] Turn background
Options Description
[USA], [S.
Amer-1],
[Arabia],
[China],[S.
Amer-2],
[Europe],
[Korea],
[OIRT]
[Local] Only stations with
[Distance] Stations with
[10s] Turn on the screen
[20s] Turn on the screen
[Blue] Button backlight
[Off] Turn off the beep
Select one that
matches your
location.
strong signals can
be broadcast.
strong and weak
signals can be
broadcast.
screen saver.
saver automatically
10 seconds after
last operation.
saver automatically
20 seconds after
last operation.
turns red.
turns blue.
beep sound. Each
time you press a
button, the unit
beeps.
sound.
color to blue.
[Black] Turn background
color to black.
[Red] Turn background
color to red.
[F1] Select F1 picture
as wall paper.
[Calibration] Calibrate the
touch screen.
4 Tap to exit.

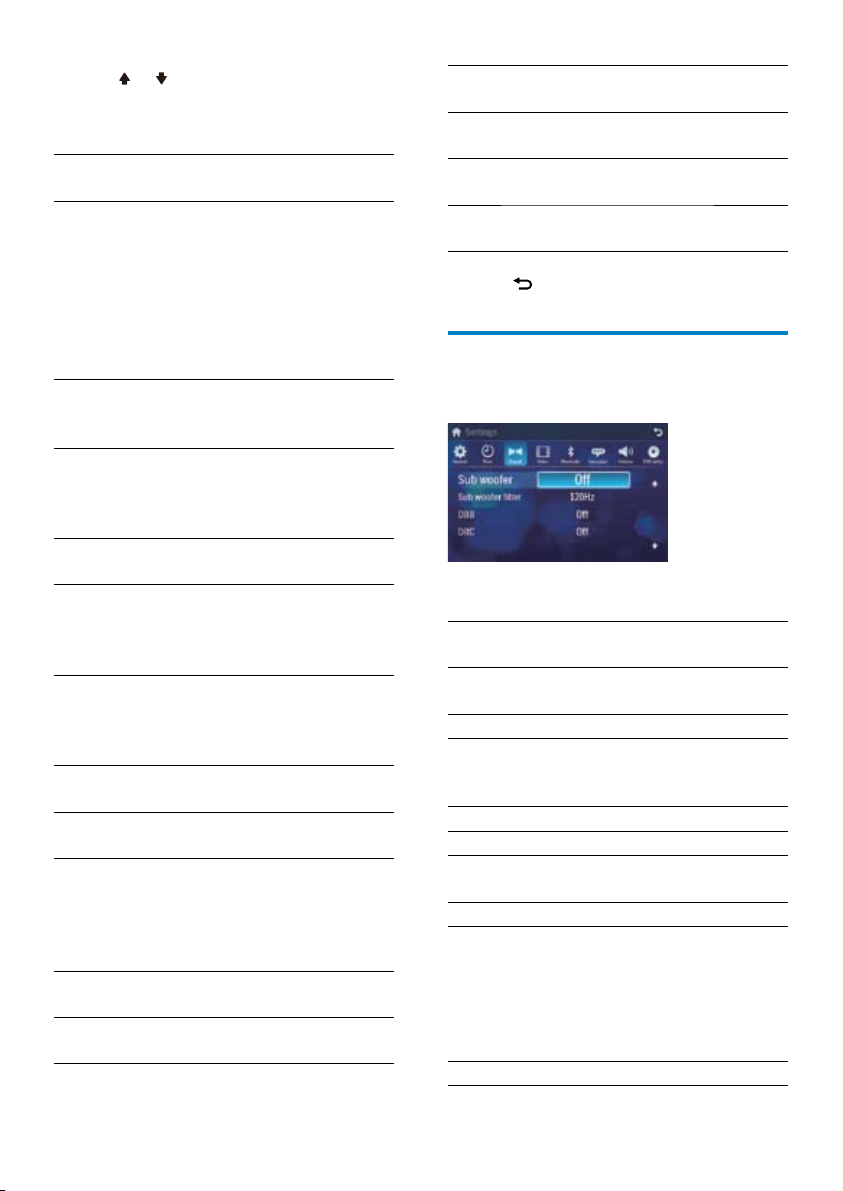

Adjust sound settings
Tap [Sound].
1
2 Tap an option repeatedly to select:
Sound
settings
[Sub
woofer]
[Sub
woofer
filter]
[DBB] [On] The Dynamic Bass Boost
[DRC] [On] Makes loud sound level
Options Description
[On] Turn on the subwoofer.
[Off] Turn off the subwoofer.
[80Hz] Select subwoofer filter
criteria.
[120Hz]
[160Hz]
(DBB) function is on.
[Off] The DBB function is off.
softer and soft sound
level louder so that you
can watch the DVD
movies at a low volume,
without disturbing others
[Off] The DRC function is off.
26
EN
Page 27
3 Tap to exit.

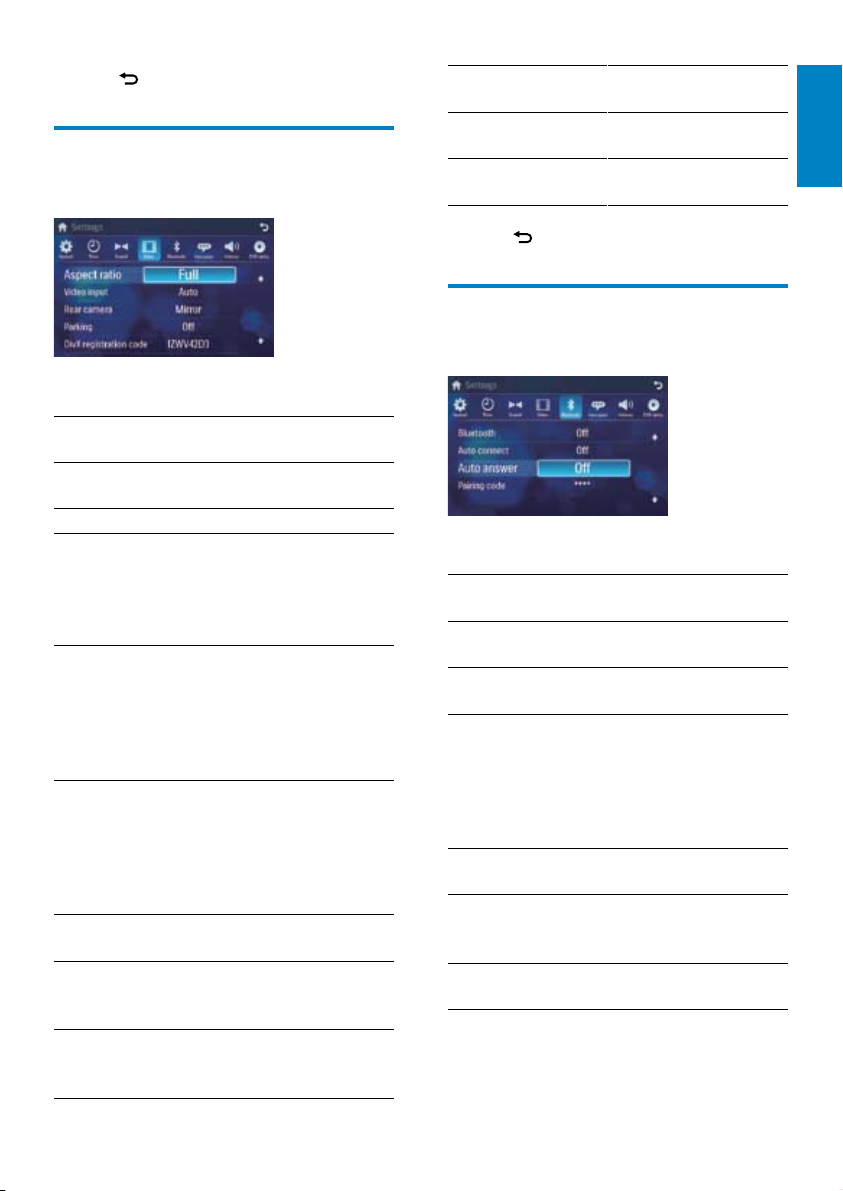

Adjust video settings
Tap [Video].
1
[On] Disable video view
during drive.
[Off] Enable video view
during drive.
[DivX View code for DivX
registration.
3 Tap to exit.
Adjust Bluetooth settings
English
2 Tap an option repeatedly to select:
Video
settings
[Aspect
ratio]
[Video
input]
[Rear
camera]
Options Description
[Full] For widescreen display.
[Normal] For normal display.
[Auto] The correct format is
set automatically. Select
this option if you are
not sure which format
should be selected.
[NTSC] Used in the United
States, Canada, Japan,
Mexico, the Philippines,
South Korea, Taiwan,
and some other
countries.
[PAL] Used in China, India,
Singapore, the western
European countries
(except France),
Australia, and some
other countries.
[Secam] Used in France, Russia
and other countries.
[Normal] When you drive in
reverse, the rear view
is displayed normally.
[Mirror] When you drive in
reverse, the rear view
is displayed in mirror.
Tap [Bluetooth].
1
2 Tap an option repeatedly to select:
Bluetooth
settings
[Bluetooth] [On] Turn on the
[Auto
connect]
[Auto
answer]
Options Description
Bluetooth function.
[Off] Turn off the
Bluetooth function.
[On] If the pre-paired
device is within the
effective range, the
unit re-connects to
pre-paired device
automatically.
[Off] Need to re-connect
manually.
[On] Answer paired
phone call
automatically.
[Off] Answer phone call
manually.
EN
27
Page 28
[Pairing
code]
View code for
pairing the unit with
other Bluetooth
devices.
3 Tap to exit.
Adjust language settings
Tap [Language].
1
2 Tap an option repeatedly to select:
Language
settings
[OSD] [English] Select on-screen-
[DVD
audio]
[DVD
subtitle]
Options Description
display language.
ࡩᇓ໗]
[
ْᇓ໗]
[
Español
Português
[English] Select DVD audio
language. Options
available depend
on DVD disc.
ࡩᇓ໗]
[
ْᇓ໗]
[
Español
Português
[English] Select DVD
subtitle language.
Options available
depend on DVD
disc.
ࡩᇓ໗]
[
ْᇓ໗]
[
Español
Português
[Off] Turn off subtitle
language display.
[Disc
menu]
[English] Select DVD menu
language. Options
available depend
on DVD disc.
ࡩᇓ໗]
[
ْᇓ໗]
[
Español
Português
3 Tap to exit.
Adjust volume settings
You can set different volume for different
modes.
1 Tap [Volume].
The volume setting sub-menu is »
displayed.
2 Tap on a source.
• [DVD]
• [USB]
• [SDHC]
• [Radio]
• [Bluetooth]
• [AV-IN1]
• [AV-IN2]
• [Navigation]
3 Tap or to assign a value: 0 to 12.
When you switch to the source, the »
volume increases automatically.
4 Tap to exit.
28
EN
Page 29

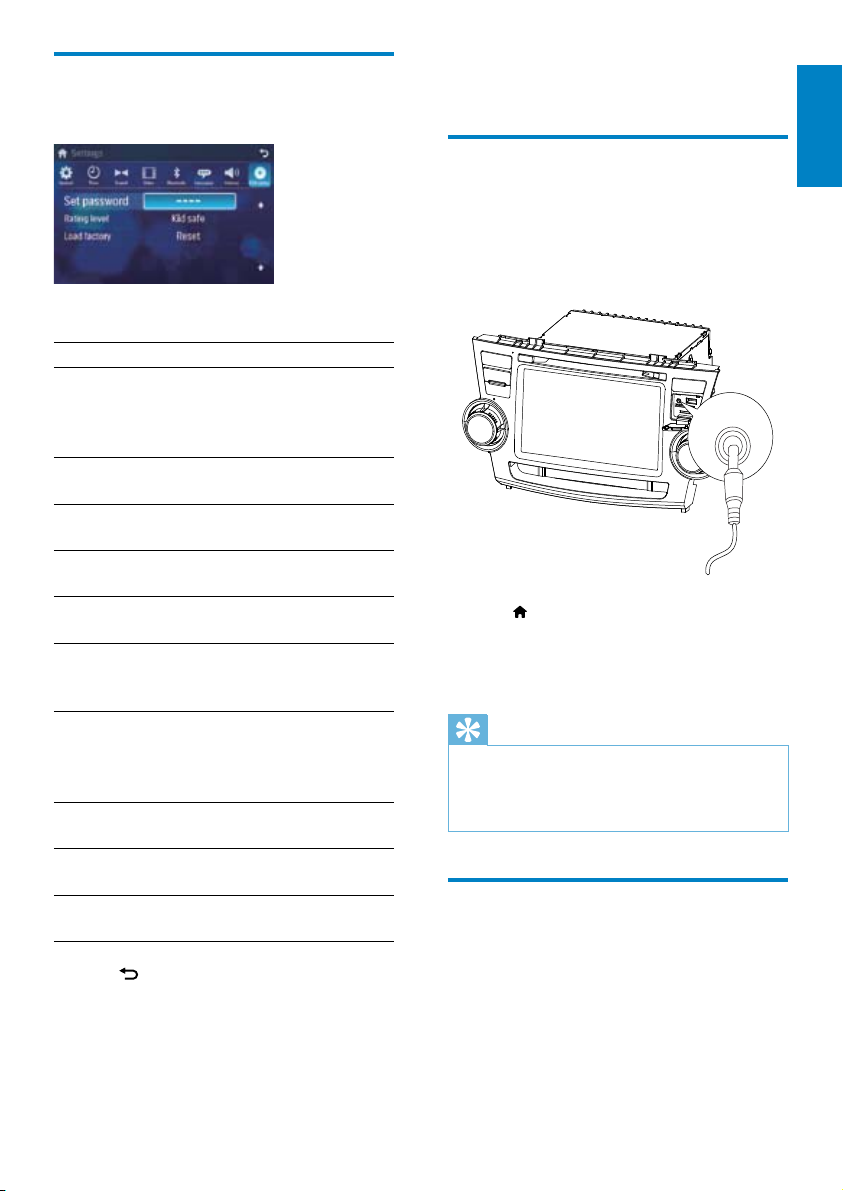

Adjust DVD rating
Tap [DVD rating].
1
2 Tap an option repeatedly to select:
DVD rating Options Description
[Set
password]
[Rating
level]
[Load
factory]
3 Tap to exit.
[Kid
safe]
[G] Acceptable for general
[PG] Parental guidance
[PG-13] Unsuitable for children
[PG-R] Recommend parents
[R] Restricted.
[NC-17] Unsuitable for children
[Adult] Acceptable for adults
Set password to
restrict the play of
discs. The default
password is 0000.
Acceptable for
children.
viewers.
suggested.
under age 13.
to restrict children
under 17 to view.
Recommend parent to
guide children under
17 to view.
under age 17.
only.
Restore to default
settings.
10 Others
English
Listen to other devices
You can connect an external audio/video device
to the unit.
1 Connect the device to the unit with the
supplied AV cable.
AV IN
2 Tap to display the main menu.
3 Tap [AV-IN1].
4 Play the connected device (see the
instructions manual of the device).
Tip
If you connect the system to other audio •
device through the REAR OUT L/R connector
(see “Connect wires” section), tap [AV-IN2] to
listen to that device.

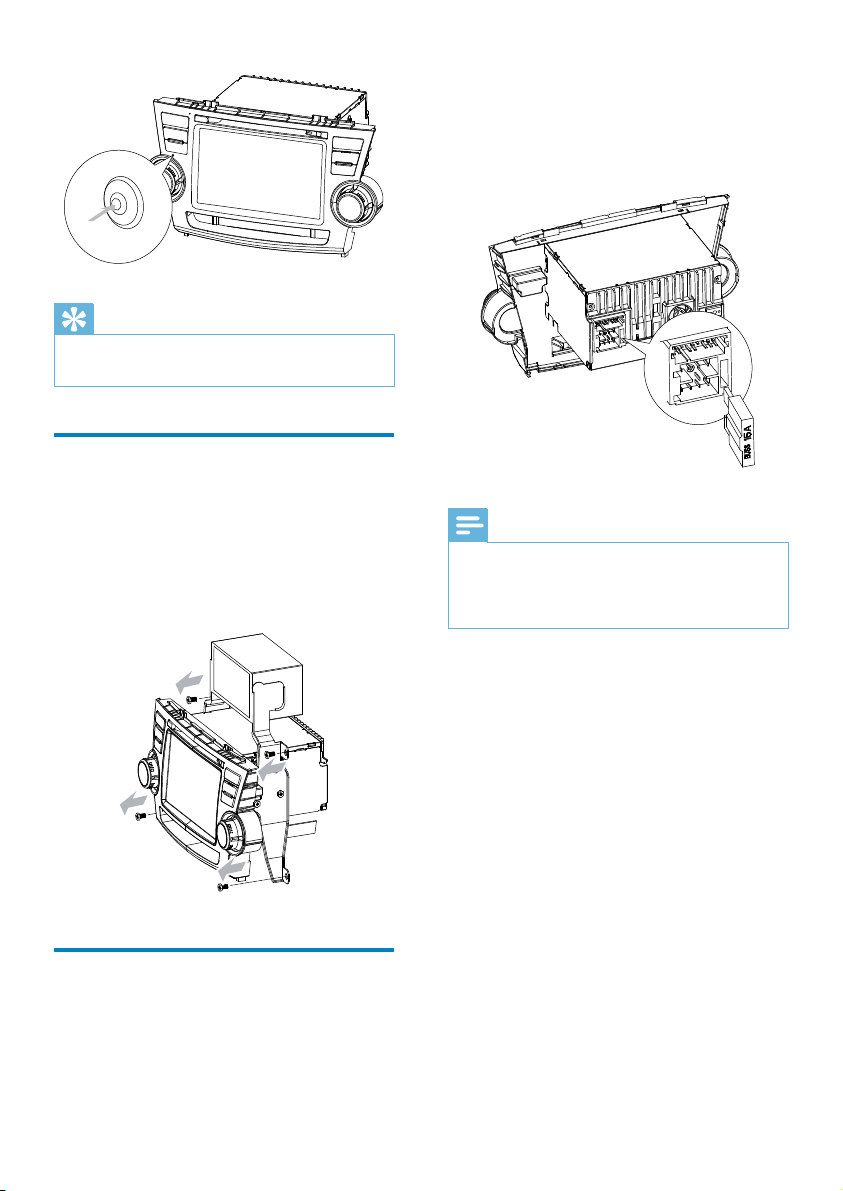

Reset
When the unit hangs up, you can reset it.
1 Press the RESET button with a ball-point
pen or similar tool.
EN
29
Page 30
Tip
When the unit is reset, all the settings remain •
unchanged.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the
damaged fuse (15A)
4 Replace the fuse.
Remove the unit
To repair, replace fuse, or replace the unit,
remove it from the dashboard.
1 Screw off the four (4) screws on the left/
right side of the unit.
2 Pull the unit out from the dashboard.
Replace fuse
If there is no power, the fuse may be damaged
and need to be replaced.
1 Take out the unit from dashboard.
Note
If the fuse gets damaged immediately after it •
has been replaced, there may be an internal
malfunction. In such case, consult your Philips
dealer.
30
EN
Page 31
11 Product
information
Note
Product information is subject to change •
without prior notice.
Tuner
Frequency range - FM 87.5 - 108.0 MHz
(Europe)
Frequency range AM(MW)
Usable sensitivity - FM 5 uV
Usable sensitivity -
AM (MW)
522 - 1620 KHz
(Europe)
50 uV
English
General
Power supply 12 V DC (11 V - 16
V), negative ground
Fuse 15 A
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Subwoofer output
voltage
Aux-in level
Dimensions
(W x H x D) 178 x 100 x 160 mm
Weight (main unit) 2.7 kg
Disc player
System DVD / CD audio /
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75dB
Total harmonic
distortion
Channel separation >55dB
Video signal format NTSC only
Video output 1 +/- 0.2V
4 - 8
50 W x 4 channels
24 W x 4 channels
(4
10% T.H.D.)
2.0 V ( CD play
mode; 1 kHz, 0 dB, 10
k load)
2.0 V (CD play mode,
61 Hz, 0 dB, 10 k
load)
500 mV
MP3 system
Less than 1%
LCD
Screen size 8 inches (16:9)
Display resolution 800 x 480 dots
Contrast ratio 300
Brightness 350 cd/m2
Bluetooth
Communication
system
Output Bluetooth Standard Power
Maximum
communication
range
Frequency band 2.4 GHz band (2.4000
Compatible
Bluetooth
profiles
Supported
codecs
Receive
Trans mit
Compatible USB devices:
USB flash memory (USB 2.0 or USB1.1) •
USB flash players (USB 2.0 or USB1.1) •
memor y cards (SD / MMC / SDHC) •
Bluetooth Standard
version 2.0
Class 2
Line of sight approx. 8m
GHz - 2.4835 GHz)
Hands-Free Profile (HFP)
Handset Profile (HSP)
Advanced Audio
Distribution Profile
(A2DP)
Audio Video Remote
Control Profile (AVRCP)
SBC (Sub Band Codec)
SBC (Sub Band Codec)
EN
31
Page 32
Supported formats:
USB or memory file format: FAT16, •
FAT32
MP3 bit rate (data rate): 32-320 Kbps and •
variable bit rate
WMA v9 or earlier •
Directory nesting up to a maximum of 8 •
levels
Number of albums/ folders: maximum 99 •
Number of tracks/titles: maximum 999 •
ID3 tag v2.0 or later •
File name in Unicode UTF8 (maximum •
length: 128 bytes)
Supported MP3 disc format:
ISO9660, Joliet•
Maximum title number: 512 (depending •
on file name length)
Maximum album number: 255•
Supported sampling frequencies: 32 kHz, •
44.1kHz, 48 kHz
Supported Bit-rates: 32-320 Kbps and •
variable bit rate
Supported video formats:
DVD•
Divx Home theater•
MP4•
Xvid•
Note
To ensure a better playback, bit rate of 4. 5 •
Mbps is recommended.
12 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Car engine has not been started. Start •
the car engine.
Connections is incorrect. •
Fuse has been damaged. Replace fuse. •
No sound
Volume is too low. Adjust volume. •
Speaker connections is incorrect. •
Disc does not play
Disc is upside down. Ensure the printed •
side is upwards.
Disc is dirty. Clean the disc with a •
clean, soft, lint-free cloth. Wipe the disc
outwards from the center.
Disc is defective. Try another disc. •
incompatible disc is used. Try another •
disc.
Disc rating exceeds the restrict setting. •
Change the rating settings to lower one.
Disc region code is not compatible with •
the unit. Use disc with proper region
code.
No image
Parking brake wire connection is •
incorrect. Check the parking wiring.
32
EN
Page 33
Image flashes or distorted
Video DVD settings do not match with •
the DVD. Adjust video DVD settings.
Video connection is improper. Check the •
connections.
The system is not in the pairing mode. •
The system is already connected with •
another Bluetooth-enabled device.
Disconnect that device or all other
connected devices and then try again.
English
Noise in broadcasts.
Signals are too weak. Select other •
stations with stronger signals.
Check the connection of the car antenna. •
Change broadcast from stereo to mono. •
Preset stations lost.
Battery cable is not correctly connected. •
Connect the battery cable to the terminal
that is always live.
Fuse is broken
The Fuse type is incorrect. Replace it with •
a 15A fuse.
Speaker wire or power wire is grounded. •
Check the connections.
Display show ERR-12
USB/SD/MMC data error. Check the USB •
device or SD/MMC card.
About Bluetooth device
Music playback is unavailable on the system
even after successful Bluetooth connection.
The device cannot be used with the •
system to play music.
The paired mobile phone connects and
disconnects constantly.
The Bluetooth reception is poor. Move •
the mobile phone closer to the system or
remove any obstacle between the mobile
phone and the system.
Some mobile phones may connect and •
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
For some mobile phones, the Bluetooth •
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
The audio quality is poor after connection
with a Bluetooth-enabled device.
The Bluetooth reception is poor. Move •
the device closer to the system or
remove any obstacle between the device
and the system.
Cannot connect with the system.
The device does not suppor t the profiles •
required for the system.
The Bluetooth function of the device is •
not enabled. Refer to the user manual of
the device for how to enable the function.
EN
33
Page 34
13 Glossary
B
Bite rate
The max data transfer through the USB por t.
Bluetooth
Bluetooth
that is meant to allow mobile devices to share
information and applications without the
worry of cables or interface incompatibilities.
The name refers to a Viking King who unified
Denmark. Operate at 2.4GHz. For more
information, see www.bluetooth.com.
M
MMC
MultimediaCard. A type of memory card with
a flash memory.
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Exper ts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
®
is a shor t-rang wireless protocol
Region code
A system that allows discs to be played only
in the region designated. This unit only plays
discs that have compatible region codes. You
can find the region code of your unit on the
product label. Some discs are compatible with
more than one region (or ALL regions.)
S
SD
Secure Digital. A type of memor y card with a
flash memory.
SDHC
Secure Digital High Capacity (SDHC) is a
type of flash memory card based on the SDA
2.00 specification. The SDA 2.00 specification
enables SD cards to reach higher capacities
from 4GB to 32GB, and growing.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
R
RDS (Radio Data System)
RDS tuners can automatically tune in stations
according to the types of music (or talk)
they broadcast. RDS also enables a receiver
to display text messages and even graphics
(usually call letters and format information)
that many FM stations include on a sub-carrier
signal within their normal broadcast signal.
Some RDS equipped tuners can even override
with traffic aler ts or emergency broadcasts,
during playback of other media - CD MD, or
cassette. There are other useful features too,
many of which are offered by the growing
number of RDS stations.
34
EN
Page 35
Page 36
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
CID3687_00_UM_V1.0
Loading...
