Page 1
Register your product and get support at
CID3685
EN User manual
Page 2
Contents
1 Important 2
Safety 2
Notice 2
Introduction 3
What’s in the box 3
Overview of the main unit 4
2 Get started 6
Install the car audio 6
Turn on 9
Adjust screen 9
Set date and time 9
3 Use map 11
Upgrade the map 11

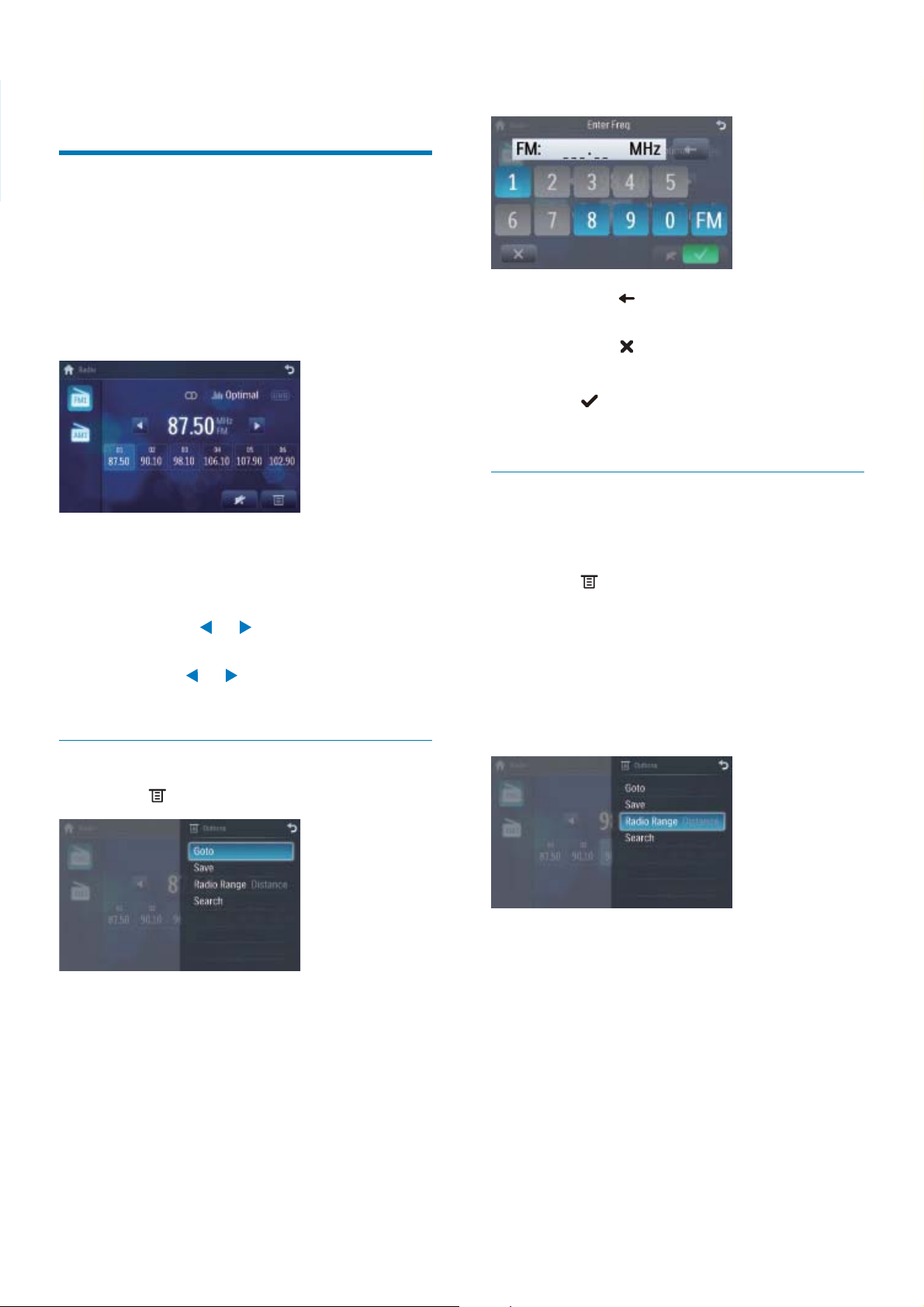

4 Listen to radio 12
Tune to a radio station 12
Store radio stations in memory 13
Tune to a preset station 13
5 Play 14
Load discs 14
Connect USB device 14

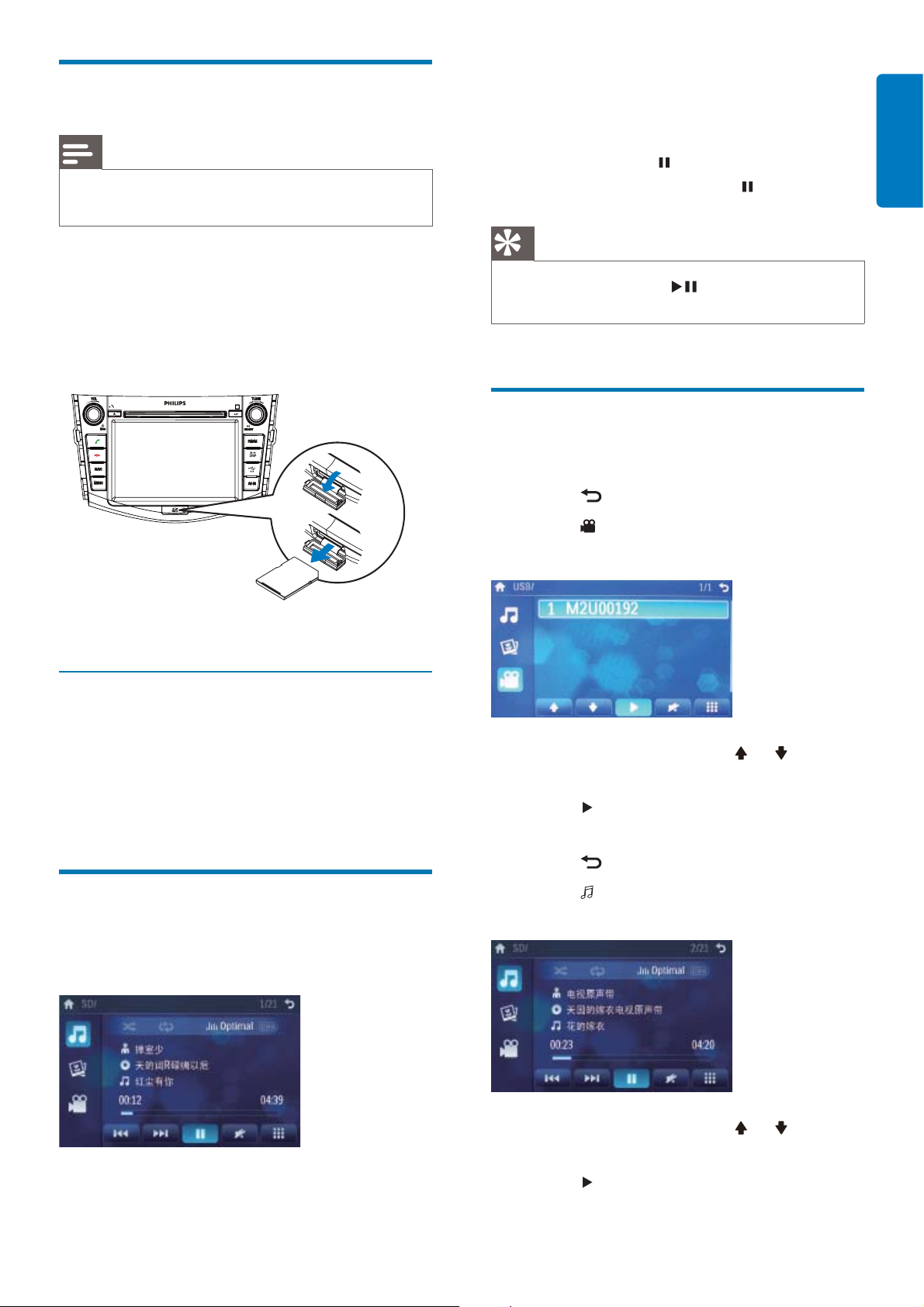

Insert SD/MMC card 15
Play/Pause 15
Search for a folder 15
Search within a title/folder 16
Repeat 16

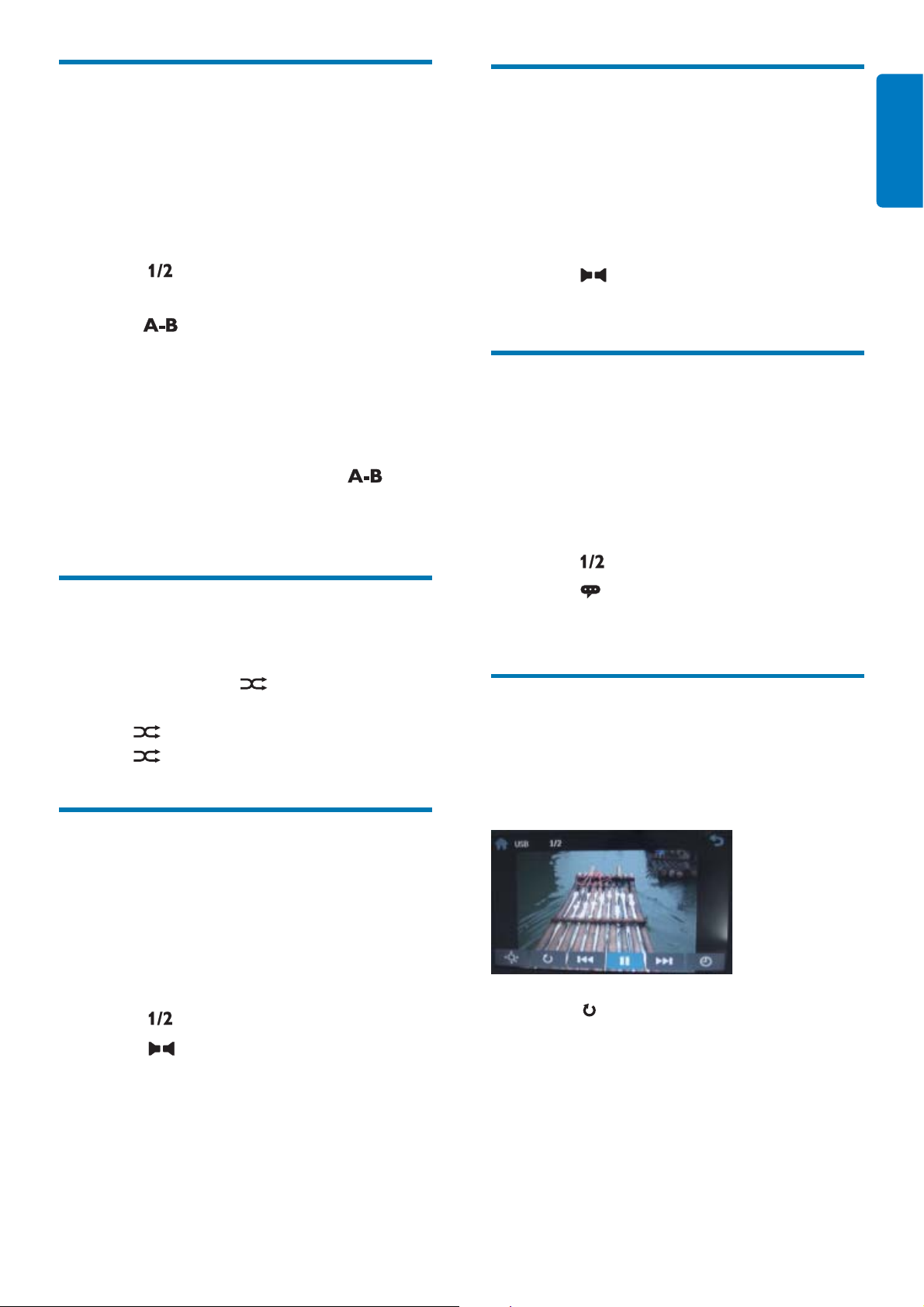

Repeat a section 17
Random play 17
Select audio language 17
Select audio mode 17
Select subtitle language 17
Rotate pictures 17
Zoom 18
Select slide show duration 18

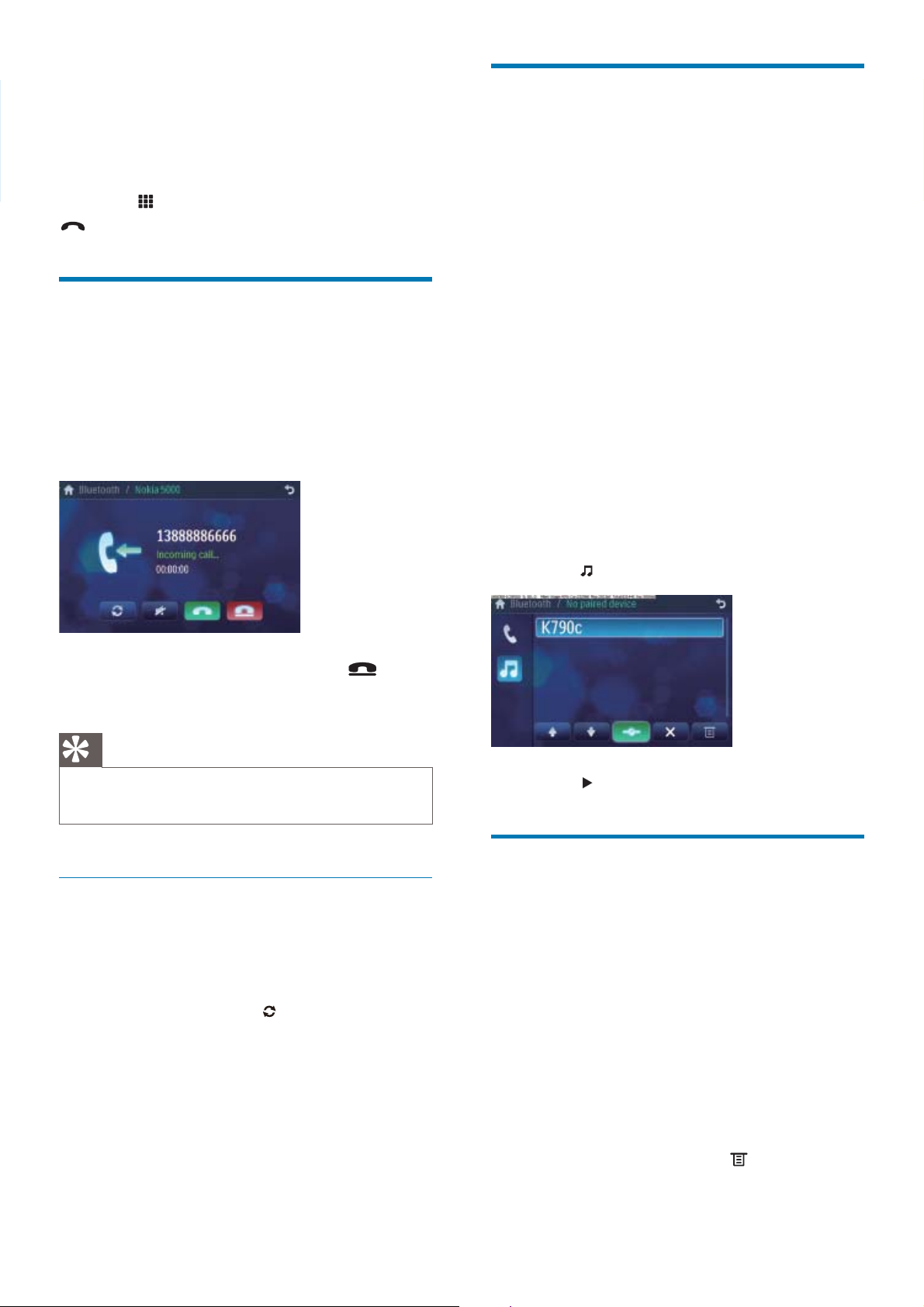

Receive call 20
Listen to music from Bluetooth device 20

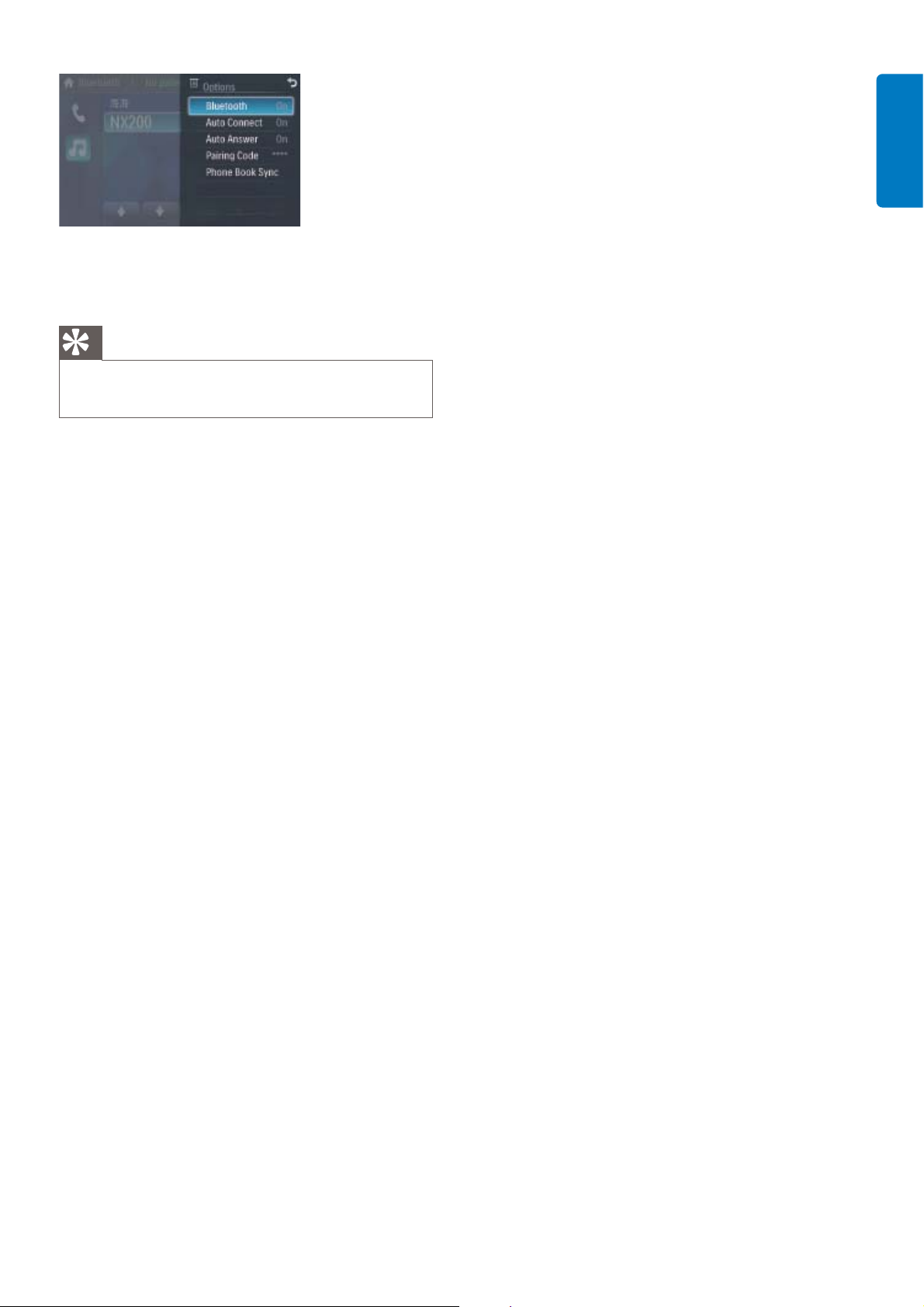

Adjust Bluetooth settings 20
7 Adjust sound 22
Adjust volume 22
Mute 22
Select preset equalizer 22

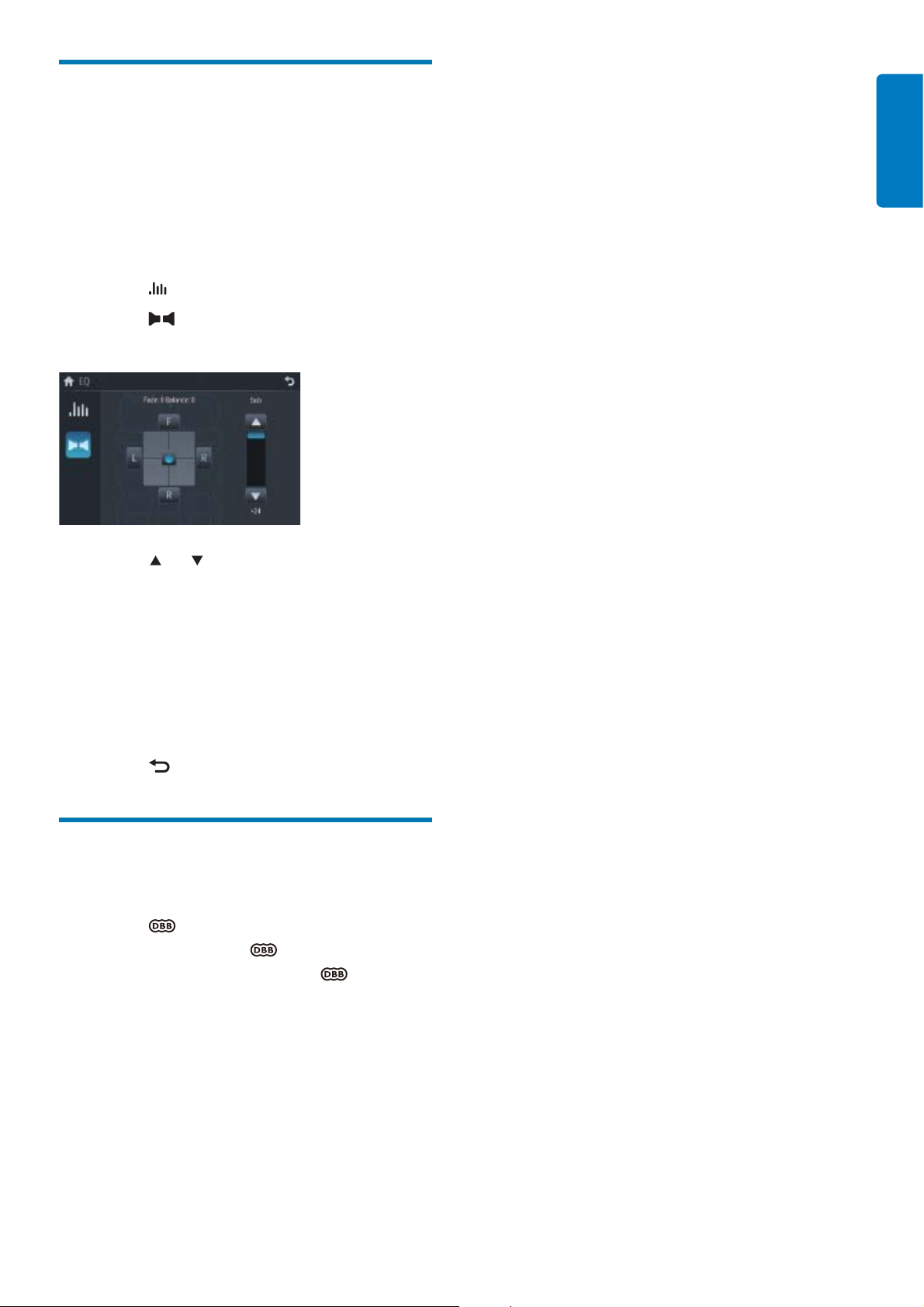

Adjust fader/balance 23
Set Dynamic Bass Boost (DBB) 23
8 Adjust settings 24
Display system setup menu 24
Adjust sound settings 25
Adjust video settings 26
Adjust Bluetooth settings 27
Adjust language settings 27

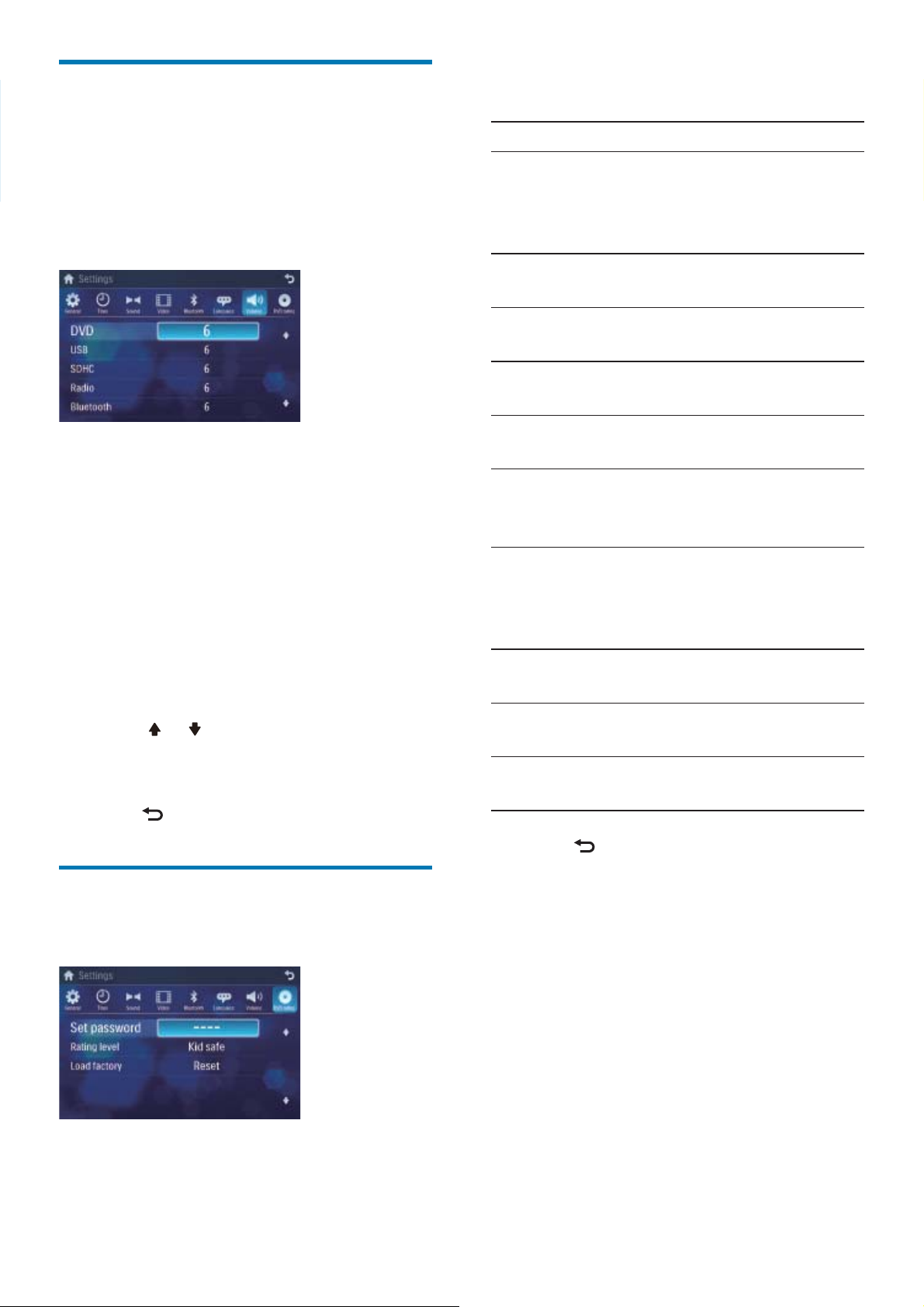

Adjust volume settings 28
Adjust DVD rating 28
9 Others 29
Listen to other devices 29
Reset 29
Replace fuse 29
10 Product information 30
11 Troubleshooting 32
About Bluetooth device 32
12 Glossary 34
English
6 Play with Bluetooth device 19
Pair the Bluetooth-enabled devices 19
Make a call 19
EN 1
Page 3
1 Important
Safety
Notice
Read and understand all instructions •
before you use the apparatus. If damage is
caused by failure to follow instructions, the
warranty does not apply.
Use of controls or adjustments or •
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground •
(earth) 12 V DC operation only.
To reduce the risk of traffi c accident, do no •
watch video during driving.
To ensure safe driving, adjust the volume to •
a safe and comfortable level.
Improper fuses can cause damage or •
fi re. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware •
for a safe and secure installation.
To avoid short circuit, do not expose the •
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation •
slots or other openings on the apparatus.
Never place any objects other than discs •
into the disc tray/slot.
Visible and invisible laser radiation when •
open. Avoid exposure to beam.
Risk of damage to the screen! Never touch, •
push, rub or strike the screen with any
object.
Never use solvents such as benzene, •
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
Clean the apparatus with soft, damp cloth. •
Never use substances such as alcohol,
chemicals or household cleaners on the
apparatus.
The making of unauthorized copies of copyprotected material, including computer
programs, fi les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
“DivX, DivX” Certifi ed, and associated logos
are trademarks of DivX, Inc. and are used under
license.
Offi cal DivX® Certifi ed product. Plays all
versions of DivX® video (including DivX® 6)
with standard playback of DivX® media fi les.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips is
under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
2 EN
Page 4
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Any changes or modifi cations made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2008 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifi cations are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.philips.com/welcome.
What’s in the box
Check and identify the contents of your
package:
abc
def
ghi
jkl
a Main unit
b AV out cable
c ISO wire
English
Introduction
With the car entertainment system, you can
Quickly found routine through the •
navigation system
And you can also enjoy:
Audio/video/JPEG pictures from•
DVD, VCD or CD•
USB devices•
SD/SDHC/MMC cards •
External devices•
FM or AM (MW) radio•
Audio from Bluetooth-enabled devices•
Besides, you can make/receive phone calls with
Bluetooth-enabled devices.
d MZ-TFT/Video out 2 cable
e GPS antenna
f AV in cable
g Control/Camera wire
h QC card
i GPS user manual
j Screen cleaning cloth
k Printing material
(User manual, Quick start guide)
l Guarantee card
EN 3
Page 5
Overview of the main unit
f
g
h
i
e
d
c
b
a
a MENU
Return to the home menu.•
b NAVI
Enter the GPS navigation system or •
exit.
c
(Red)
Terminate call.•
d
(Green)
Answer phone.•
Dial number.•
p
i MAP
Open the cover and insert/remove •
the GPS map card.
j TUNE/
Skip to the previous or next title, •
chapter, or track.
Search backward/forward at different •
speeds.
Confi rm an entry or selection.•
Start, pause or resume play. •
Display the equalizer setting interface. •
j
k
l
m
n
o
SELECT
e
/MUTE/VOL
Turn the unit on or off.•
Mute or restore volume.•
Adjust volume.•
f
Built-in microphone for phone calls.•
g
Eject disc.•
h Disc slot
4 EN
k FM/AM
Switch to the FM/AM source. •
l DISP/
Adjust screen brightness/contrast/•
color.
Turn on/off the screen display. •
Adjust the display aspect ratio. •
m RESET
Reset the unit when it hangs up.•
/
Page 6
n
USB socket.•
o AV IN
External equipment audio/video in •
socket.
p SD/SDHC/MMC card slot
English
EN 5
Page 7
2 Get started
Caution
Use of controls or adjustments or performance of •
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Notes on speaker connection
Never connect speaker wires to the metal •
body or chassis of the car.
Never connect speaker wires with stripes •
to one another.
Caution
This unit is designed for negative ground (earth) 12 V DC •
operation only.
•
Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
•
To avoid short-circuit: before you connect, ensure that
the ignition is off.
•
Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
•
Ensure that all loose leads are insulated with electrical
tape.
•
Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
•
Ensure that all ground (earth) leads are run to a common
ground (earth) point.
•
Use only the supplied mounting hardware for a safe and
secure installation.
•
Improper fuses can cause damage or fi re. When you
need to change the fuse, consult a professional.
Note on the power supply lead (yellow)
When you connect other devices to this •
system, ensure that the rating of the car
circuit is higher than the total fuse value of
all the connected devices.
6 EN
Page 8
Connect wires
Caution
Ensure that all loose leads are insulated with electrical •
tape.
1 Check the car’s wiring carefully, then do the
other connections:
English
Yellow Green Blue
Black
Red
Black
Black
Red
White
Yellow
Yellow
Red
White
１
1
Yellow
Touch controller
White
Rear screen
Red
White
Amplifier
Red
Brown
EN 7
Page 9
Connect GPS antenna
Mount into the dashboard
To receive signal from satellites, connect the
supplied GPS antenna to your car and the
system.
1 Connect the supplied GPS antenna to the
system fi rst.
2 Stick the other end of the GPS antenna to
a surface for signal reception.
Note
Check wire connection before you mount the unit into •
a car.
1 Take off the trim plate of the car.
2 Screw off the host car audio.
3 Fix the mounting brackets to CID3685
with screws (supplied by the car
manufacturer).
Connect Radio antenna
If your car has built-in radio antenna, connect it
to the radio antenna of the system for better
radio signal.
1 Connect the radio antenna to the car
antenna.
4 Fix the unit to the dashboard with screws
(supplied by the car manufacturer).
8 EN
5 Attach the trim plate.
6 Reconnect the negative terminal of the car
battery.
Page 10
Turn on
Caution
Risk of road accidents! Never watch video or adjust •
settings while you drive.
1 Press and hold /MUTE/VOL to turn on
the unit.
The available OSD (On-Screen »
Display) languages are displayed.
Set date and time
1 Touch the upper left corner to display
main menu.
2 Touch in the middle right side of the
screen.
The second main menu is displayed.»
English
2 Touch a language to select.
The OSD language is changed to the »
selected language immediately.
To turn off the unit, press and hold •
MUTE/VOL.
Adjust screen
To adjust screen brightness/contrast/color
1 Press DISP/ / to show the manual.
2 Press or to select an item.
3 Touch / to adjust the value.
4 Press DISP/ / to confi rm.
To turn on/off the screen, press and hold
DISP/
/ .
/
3 Touch [Settings].
4 Touch [Time].
The date/time setup menu is displayed.»
Set date
1 Touch [Date].
2 Touch on the displayed date information.
A submenu is displayed.»
EN 9
Page 11
3 Touch or to set year, month and day.
Set clock mode
1 Touch [Clock mode] .
2 Touch on [12Hr] or [24Hr] to select clock
mode.
Set time
1. Touch [Time].
2. Touch on the displayed time.
A submenu is displayed.»
3. Touch
When date/time is set, touch • fi rst and then touch to
return to main menu.
or to set hour and minute.
Tip
10 EN
Page 12
3 Use map
Note
You may need to upgrade the map before using it (see •
“Upgrade the map” section)
1 Touch the upper left corner to display
home menu.
2 Touch [Navigation].
The navigation menu is displayed in a »
few seconds.
3 Take out the card and bring it to the
authorized service center for upgrade.
English
4 Insert the upgraded map card back into
the map card slot.
5 Turn on the car audio.
The map upgrades in a few minutes.»
3 Refer to the map manual (in Chinese) to
operate the navigation tool.
Tip
You can press • NAVI to enter/exit the navigation system.
Upgrade the map
1 Turn off the car audio system.
2 Press the map card until you hear a click
sound.
EN 11
Page 13
4 Listen to radio
Tune to a radio station
1 Touch the upper left corner to display
home menu.
2 Touch [Radio].
Band and frequency information is »
displayed.
3 Touch on FM or AM to select band:
FM band options: • FM1, FM2, FM3
AM band options: • AM1, AM2
4 Briefl y touch or to tune to a radio
station by step.
Touch •
tune to a radio station automatically.
or for over 1 seconds to
4 Touch the numbers to enter frequency.
Touch •
number.
Touch •
numbers.
to clear the last entered
to clear all the entered
5 Touch to confi rm.
The radio station is broadcast.»
Select radio range
Before you start to search for radio stations,
you can select radio range.
1 Touch .
2 Touch [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
• [Distance]: Only stations with strong
signals can be broadcast.
• [Local]: Stations with strong and weak
signals can be broadcast.
Tune by frequency
1 Touch .
2 Touch [Goto].
3 Touch FM or AM to select band.
12 EN
Page 14
Store radio stations in
Tune to a preset station
memory
You can store up to 6 stations in each band.
Store stations manually
1 Tune to the station.
2 Touch .
3 Touch [Save].
4 Touch one of the channels 01 to 06 to
save the select band.
1 Touch [Radio].
English
2 Select band.
3 Touch one of the preset channels ( 01 to
06) to select a preset station.
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1 Select band.
2 Touch .
3 Touch [Search].
Auto search starts. The six strongest »
stations of the selected band are saved
in preset channels 1-6 automatically.
EN 13
Page 15
5 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
Note
Ensure that the disc contains playable content. •
1 Insert the disc into the disc slot with label
side facing up.
Play starts automatically. »
Connect USB device
Note
Ensure that the device contains playable content. •
1 Open the USB door.
2 Insert your USB device to the USB socket.
Play starts automatically.»
To remove the disc, press the »
When the disc is ejected, the unit »
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
Remove the USB device
1 Select another source.
2 Remove the USB device.
button.
14 EN
Page 16
Insert SD/MMC card
For DVD movie, if a menu appears, press
TUNE/ SELECT to start play.
Note
Ensure that the device contains playable content. •
The unit supports SDHC card. •
1 Open the SD/MMC card cover.
2 Insert the SD/MMC card into the SD/
MMC card slot.
Play starts automatically.»
2 To pause, touch .
To resume play, touch •
Tip
You can also press • TUNE/ SELECT repeatedly to
pause/resume play.
again.
Search for a folder
For video fi les
1 Touch to return to playlist menu.
2 Touch to display all available video fi le
folders.
English
Remove the SD/MMC card
1 Select another source.
2 Press the card until you hear a click sound.
The card is now disengaged.»
3 Remove the SD or MMC card.
Play/Pause
1 Once a disc, USB or SD/MMC card is
inserted, play starts automatically.
3 Touch a folder, then touch or to select
a fi le.
4 Touch to star t play.
For audio fi les
1 Touch to return to playlist menu.
2 Touch to display all available audio
folders.
3 Touch a folder, then touch or to select
a fi le.
4 Touch to star t play.
EN 15
Page 17
For picture fi les
1 Touch to return to playlist menu.
2 Touch to display all available picture
folders.
3 Touch a folder, then touch or to select
a picture.
4 Touch to view the picture.
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
Search within a title/folder
Search by step
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Touch or to skip to the previous or
next chapter/track.
Direct search
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Touch .
The search screen is displayed.»
2 Touch to display the 2nd menu.
3 Touch to select:
• [Repeat chapter]: play the current
chapter repeatedly.
• [Repeat title]: play all chapters in the
title repeatedly.
• [Repeat off]: cancel repeat play.
For VCD karaoke or audio CD:
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
For video fi les, touch » fi rst, then touch
.
3 Touch the numbers to enter chapter/fi le
number, then touch
To clear the previous input, touch •
To clear all input, touch •
.
.
.
Repeat
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
16 EN
2 Touch to select:
• [Repeat]: play the current track
repeatedly.
• [Repeat off]: cancel repeat play.
For MP3/WMA fi les:
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Touch to select:
• [Repeat]: play the current track
repeatedly.
• [Repeat folder]: play all the tracks in
the current folder repeatedly.
• [Repeat off]: cancel repeat play.
Page 18
Repeat a section
Select audio mode
You can repeat a specifi c section of video fi le
(repeat A-B).
1 During play, touch anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Touch to display the 2nd menu, if
necessary.
3 Touch repeatedly to mark:
• [Repeat A-]: the start of the section
to repeat.
• [Repeat A-B]: the end of the section
to repeat.
The selected section plays repeatedly. •
4 To exit A-B repeat mode, touch
repeatedly until [Repeat A-B off] is
displayed.
When you play VCDs, you can select an audio
mode (R/L/Stereo).
1 During play, touch anywhere except for the
upper left corner to display menu on the
screen.
2 Touch repeatedly until the audio mode
is selected.
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1 During play, touch anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Touch to display the 2nd menu
English
Random play
You can play audio tracks/fi les in random order.
1 During play, touch repeatedly to turn
random play on or off.
•
•
is highlighted : start random play.
turns gray: cancel random play.
Select audio language
For video discs that contain two or more audio
channels.
1 During play, touch anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Touch to display the 2nd menu.
3 Touch repeatedly to select a language.
The selected language is displayed.»
Rotate pictures
1 When you view pictures, touch anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2 Touch repeatedly to rotate the picture.
3 Touch repeatedly.
The audio channel information is »
displayed on the upper line of the
screen.
EN 17
Page 19
Zoom
You can zoom in pictures for a close view.
1 During view pictures, touch anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2 Touch repeatedly to zoom in the picture.
3 Touch , , or to pan through the
enlarged picture.
Select slide show duration
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Touch repeatedly to select:
• Fast: 3 seconds
• Normal: 5 seconds
• Slow: 8 seconds
18 EN
Page 20
6 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetoothenabled device.
Pair the Bluetooth-enabled
devices
Disconnect Bluetooth devices
1 To disconnect one device, touch (red).
»
Tip
The device will also be disconnected when the device is •
moved beyond the operational range.
•
If you want to reconnect the device to the unit, place it
within the operational range.
•
If you do not want to reconnect the device to the unit
automatically, touch > [Auto connect], then select
[Off]. For details, see the “Adjust Bluetooth settings”
section.
(green) is displayed.
English
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a Bluetooth •
device is approximately 10 meters (30 feet).
•
Before you connect a Bluetooth device to this unit,
familiarize yourself with the Bluetooth capabilities of the
device.
•
Compatibility with all Bluetooth devices is not guaranteed.
Any obstacle between this unit and a Bluetooth device •
can reduce the operational range.
•
Keep this unit away from any other electronic device that
may cause interference.
•
Turn on the Bluetooth function on the device.
1 Search for Bluetooth device with the
device.
2 Select “CID3685” in the pairing list.
Make a call
1 Pair the phone with the unit.
2 Touch the upper left corner to display the
home menu.
3 Touch [Bluetooth].
The Bluetooth menu is displayed.»
4 Touch or to select the paired phone,
then touch
.
5 Touch or to search for phone number
from the following list:
3 Enter default password “0000”.
if pairing succeeds. phone call record is »
displayed.
• [Missed calls]
EN 19
Page 21
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]
Or touch
to dial.
to dial number directly, then touch
Receive call
By default, all incoming calls are received
automatically.
1 If there is incoming call, [Incoming call...]
fl ashes on the screen. Speak into the
Bluetooth microphone.
Listen to music from
Bluetooth device
If the connected Bluetooth device supports
Advanced Audio Distribution Profi le (A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
Audio Video Remote Control Profi le (AVRCP)
profi le, you can use the control on the unit or
its remote control to play music stored on the
device.
1 Pair the phone with the unit.
2 Touch the upper left corner to return to
home menu.
3 Touch [Bluetooth].
The Bluetooth menu is displayed.»
4 Start play music via device.
• If your device support AVRCP,
2 When conversation ends, touch (red)
to terminate the call.
Tip
You can select to receive calls manually by set • [Auto
answer] to [Off] status.
Switch phone call to the mobile
If you do not want your passenger to hear your
incoming call, you can switch the call to the
mobile.
1 During talking, touch .
The voice is transferred from the unit’s »
loudspeaker to the mobile phone.
1 Touch .
2 Touch to star t play.
Adjust Bluetooth settings
You can change below Bluetooth settings:
• [Bluetooth]: to turn on or off
“Bluetooth” function
• [Auto connect]: to turn on or off
“Auto connect” function
• [Auto answer]: to turn on or off
“Auto answer” function
• [Pairing code]: to set paring code
• [Phone Book Sync]: to synchronize
phone book
20 EN
1 In Bluetooth menu, touch .
The option menu is displayed.»
Page 22
2 Touch on the selected option to change
the setting.
Tip
You can also adjust Bluetooth settings in the “Settings” •
menu.
English
EN 21
Page 23
7 Adjust sound
Adjust volume
1 Tur n /MUTE/VOL button clockwise to
increase volume.
2 Tur n /MUTE/VOL button anti-clockwise
to reduce volume.
2 Touch .
The current Equalizer setting is »
displayed.
3 Touch or to select an EQ.
Mute
1 During play, press /MUTE/VOL.
To turn the sound back on, press •
MUTE/VOL again.
Tip
You can also turn off sound by touching • on the screen.
Select preset equalizer
You can select preset equalizer:
• [User]
• [Techno]
• [Rock]
• [Classic]
• [Jazz]
• [Optimal]
• [Flat]
• [Pop]
4 Touch or to adjust below settings:
• [Bass]bass range: -14 to +14
• [Mid]middle range: -14 to +14.
/
• [Treb]treble range: -14 to +14
• [LPH] low pass fi lter range: 60, 80,
100, 200.
• [MPF]middle pass fi lter range: 500, 1K,
1.5K, 2.5K.
• [HPF]high pass fi lter range:10K, 12.5K,
15K, 17.5K.
5 Touch to restore the above settings into
default settings.
6 Press to exit.
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
22 EN
Page 24
Adjust fader/balance
You can also adjust the front and rear speaker
balance, the left and right speaker balance, and
subwoofer settings.
Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
1 Touch .
2 Touch
Below options are displayed:»
English
3 Touch or to select subwoofer volume.
• [Sub] subwoofer volume: 0 to 24.
4 Touch F, R, L, or R to adjust fader/balance
value.
• [Fade]fader range: +24 to -24. (F =
front speaker, R = rear speaker)
• [Balance] balance range: -24 to +24.
(L = left speaker, R = right speaker)
5 Touch to exit.
Set Dynamic Bass Boost
(DBB)
1 Touch to toggle between the settings.
• [DBB] on: The
• [DBB] off (default): The
gray.
icon is illuminated.
icon is
EN 23
Page 25
8 Adjust settings
General
settings
Options Description
Display system setup menu
1 Touch the upper left corner to display
main menu.
2 Touch in the middle right side of the
screen.
The second main menu is displayed.»
[Radio
region]
[Radio
range]
[Blackout] [off] Never turn on the
[USA], [S.
Amer-1],
[Arabia],
[China],[S.
Amer-2],
[Europe],
[Korea],
[OIRT]
[Local] Only stations with
[Distance] Stations with
[10s] Turn on the
Select one that
matches your
location.
strong signals can
be broadcast.
strong and weak
signals can be
broadcast.
screen saver.
screen saver
automatically 10
seconds after last
operation.
3 Touch [Settings].
The settings menu is displayed.»
Tip
When the setup adjustment is completed, touch • fi rst
and then touch
to return to main menu.
Adjust general settings
1 Touch [General], if necessary.
2 Touch or to highlight a setting.
3 Touch on the option to display/select an
option.
[20s] Turn on the
screen saver
automatically 20
seconds after last
operation.
[Auto
dimmer]
[Key color] [Red] Button backlight
[Beep] [On] Turn on the
[On] Turn on the
screen dim
automatically 5
seconds after last
operation.
[Off] Never turn the
screen dim.
turns red.
[Blue] Button backlight
turns blue.
beep sound. Each
time you press a
button, the unit
beeps.
24 EN
Page 26
[Off] Turn off the beep
sound.
[Calibration] Calibrate the
touch screen.
4 Press to exit.
Adjust sound settings
1 Touch [Sound].
English
2 Touch an option repeatedly to select:
Sound
settings
[Sub
woofer]
[Sub
woofer
fi lter]
[DBB] [On] The Dynamic Bass Boost
[DRC] [On] Makes loud sound level
Options Description
[On] Turn on the subwoofer.
[Off] Turn off the subwoofer.
[80Hz] Select subwoofer fi lter
criteria.
[120Hz]
[160Hz]
(DBB) function is on.
[Off] The DBB function is off.
softer and soft sound level
louder so that you can
watch the DVD movies
at a low volume, without
disturbing others
[Off] The DRC function is off.
3 Press to exit.
EN 25
Page 27
Adjust video settings
1 Touch [Video].
Video
settings
[Aspect
ratio]
Options Description
[Full] For widescreen
display.
[Normal] For normal display.
2 Touch an option repeatedly to select:
[Video
input]
[Auto] The correct format
is set automatically.
Select this option
if you are not sure
which format should
be selected.
[NTSC] Used in the United
States, Canada,
Japan, Mexico, the
Philippines, South
Korea, Taiwan,
and some other
countries.
[PAL] Used in China,
India, Singapore, the
western European
countries (except
France), Australia,
and some other
countries.
[Secam] Used in France,
Russia and other
countries.
[Rear
camera]
[Parking] [On] Disable video view
[DivX
registration
code]
[Normal] When you drive in
reverse, the rear
view is displayed
normally.
[Mirror] When you drive in
reverse, the rear
view is displayed in
mirror.
during drive.
[Off] Enable video view
during drive.
View code for DivX
registration.
26 EN
Page 28
3 Press to exit.
Adjust Bluetooth settings
1 Touch [Bluetooth].
Adjust language settings
1 Touch [Language].
English
2 Touch an option repeatedly to select:
2 Touch an option repeatedly to select:
Bluetooth
settings
[Bluetooth] [On] Turn on the
[Auto
connect]
[Auto
answer]
[Pairing
code]
Options Description
Bluetooth function.
[Off] Turn off the
Bluetooth function.
[On] If the pre-paired
device is within the
effective range, the
unit re-connects to
pre-paired device
automatically.
[Off] Need to re-connect
manually.
[On] Answer paired
phone call
automatically.
[Off] Answer phone call
manually.
View code for
pairing the unit with
other Bluetooth
devices.
Language
settings
[OSD] [English] Select on-screen-
[DVD
audio]
[DVD
subtitle]
[Disc
menu]
Options Description
display language.
>ࣇບሱ༵@
[ᐥᦥɻʼ]
[English] Select DVD audio
language. Options
available are depends
on DVD disc.
>ࣇບሱ༵@
[ᐥᦥɻʼ]
[English] Select DVD subtitle
language. Options
available are depends
on DVD disc.
>ࣇບሱ༵@
[ᐥᦥɻʼ]
[Off] Turn off subtitle
language display.
[English] Select DVD menu
language. Options
available are depends
on DVD disc.
>ࣇບሱ༵@
3 Press to exit.
[ᐥᦥɻʼ]
3 Press to exit.
EN 27
Page 29
Adjust volume settings
2 Touch an option repeatedly to select:
You can set different volume for different
modes.
1 Touch [Volume].
The volume setting sub-menu is »
displayed.
2 Touch on a source.
• [DVD]
• [USB]
• [SDHC]
• [Radio]
• [Bluetooth]
• [AV-IN1]
• [AV-IN2]
• [CDC]
• [TV]
• [Navigation]
3 Touch or to assign value: 0 to 12.
When switches to the source, the »
volume increases automatically.
4 Press to exit.
DVD rating Options Description
[Set
password]
[Rating
level]
[Load
factory]
[Kid
safe]
[G] Acceptable for general
[PG] Parental guidance
[PG-13] Unsuitable for children
[PG-R] Recommend parents
[R] Restricted.
[NC-17] Unsuitable for children
[Adult] Acceptable for adults
Set password to
restrict the play of
discs. The default
password is 0000.
Acceptable for
children.
viewers.
suggested.
under age 13.
to restrict children
under 17 to view.
Recommend parent to
guide children under
17 to view.
under age 17.
only.
Restore to default
settings.
Adjust DVD rating
1 Touch [DVD rating].
28 EN
3 Press to exit.
Page 30
9 Others
Listen to other devices
You can connect an external audio/video device
to the unit.
1 Connect the car audio to the device with
the supplied AV cable.
1 Press RESET with a ball-point pen or
similar tool.
English
When the unit is reset, all the settings remain
unchanged.
Replace fuse
If there is no power, the fuse may be damaged
and need to be replaced.
2 Touch the upper left corner to display the
main menu.
3 Touch [AV-IN1].
4 Operated the connected the device (see
the instructions manual of the device).
Tip
If you connected the system to other audio device •
through the REAR OUT L/R connector (see “Connect
wires” section), touch [AV-IN2] to listen to that device.
Reset
When the unit hangs up, you can reset it.
1 Take out the unit from dashboard.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the
damaged fuse (15A).
4 Replace the fuse.
Tip
If the fuse gets damaged immediately after it has been •
replaced, there may be an internal malfunction. In such
case, consult your Philips dealer.
EN 29
Page 31
10 Product
information
Note
Product information is subject to change without prior •
notice.
General
Disc player
System DVD / CD audio /
MP3 system
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75dB
Total harmonic
distortion
Channel separation >55dB
Video signal format NTSC only
Video output 1 +/- 0.2V
Less than 1%
Power supply 12 V DC (11 V - 16 V),
negative ground
Fuse 15 A
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Subwoofer output
voltage
Aux-in level
Dimensions (W x H
x D)
4 - 8
50 W x 4 channels
24 W x 4 channels
(4
10% T.H.D.)
2.0 V ( CD play mode;
1 kHz, 0 dB, 10 k
load)
2.0 V (CD play mode,
61 Hz, 0 dB, 10 k
load)
500 mV
260 x 185 x 154 mm
Tuner
Frequency range - FM 87.5 - 108.0 MHz
(Europe)
Frequency range AM(MW)
Usable sensitivity - FM 5 uV
Usable sensitivity - AM
(MW)
LCD
Screen size 7 inches (16:9)
Display resolution 800 x 480 dots
Contrast ratio 300
Brightness 350 cd/m2
522 - 1620 KHz
(Europe)
50 uV
Weight (main unit) 2.4 kg
30 EN
Page 32
Bluetooth
Communication
system
Bluetooth Standard version
2.0
Output Bluetooth Standard Power
Class 2
Maximum
Line of sight approx. 8m
communication
range
Frequency band 2.4 GHz band (2.4000 GHz
- 2.4835 GHz)
Compatible
Bluetooth profi les
Hands-Free Profi le (HFP)
Handset Profi le (HSP)
Advanced Audio
Distribution Profi le (A2DP)
Audio Video Remote
Control Profi le (AVRCP)
Supported
codecs
SBC (Sub Band Codec)
SBC (Sub Band Codec)
Receive
Transmit
Unsupported fi le formats are skipped. •
For example, Word documents (.doc)
or MP3 fi les with extension .dlf are
ignored and not played.
AAC, WAV, PCM audio fi les•
DRM protected WMA fi les (.wav, •
.m4a, .m4p, .mp4, .aac)
WMA fi les in Lossless format•
Supported MP3 disc format:
ISO9660, Joliet•
Maximum title number: 512 (depending on •
fi le name length)
Maximum album number: 255•
Supported sampling frequencies: 32 kHz, •
44.1kHz, 48 kHz
Supported Bit-rates: 32-320 Kbps and •
variable bit rate
Supported video formats:
DVD•
Divx Home theater•
MP4•
Xvid•
English
Compatible USB devices:
USB fl ash memory (USB 2.0 or •
USB1.1)
USB fl ash players (USB 2.0 or USB1.1)•
memory cards (SD / MMC / SDHC)•
Supported formats:
USB or memory fi le format: FAT16, •
FAT32
MP3 bit rate (data rate): 32-320 Kbps •
and variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum •
of 8 levels
Number of albums/ folders: maximum •
99
Number of tracks/titles: maximum 999•
ID3 tag v2.0 or later•
File name in Unicode UTF8 •
(maximum length: 128 bytes)
Unsupported formats:
Empty albums: an empty album is an •
album that does not contain MP3/
WMA fi les, and is not be shown in the
display.
Note
To ensure a better playback, bit rate of 4.5 Mbps is •
recommended.
EN 31
Page 33
11 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Car engine has not been started. Start the •
car engine.
Connections is incorrect.•
Fuse has been damaged. • Replace fuse. (see
‘Replace fuse’ on page 31)
No sound
Volume is too low. Adjust volume.•
Speaker connections is incorrect.•
Disc does not play
Disc is upside down. Ensure the printed •
side is upwards.
Disc is dirty. Clean the disc with a clean, •
soft, lint-free cloth. Wipe the disc outwards
from the center.
Disc is defective. Try another disc.•
Incompatible disc is used. Try another disc.•
Disc rating exceeds the restrict setting. •
Change the rating settings to lower one.
Disc region code is not compatible with •
the unit. Use disc with proper region code.
No image
Parking brake wire connection is incorrect. •
Check the parking wiring.
Image fl ashes or distorted
Video DVD settings do not match with the •
DVD. Adjust video DVD settings.
Video connection is improper. Check the •
connections.
Noise in broadcasts.
Signals are too weak. Select other stations •
with stronger signals.
Check the connection of the car antenna.•
Change broadcast from stereo to mono.•
Preset stations lost.
Battery cable is not correctly connected. •
Connect the battery cable to the terminal
that is always live.
Fuse is broken
The Fuse type is incorrect. Replace it with •
a 15A fuse.
Speaker wire or power wire is grounded. •
Check the connections.
Display show ERR-12
USB/SD/MMC data error. Check the USB •
device or SD/MMC card.
About Bluetooth device
Music playback is unavailable on the system
even after successful Bluetooth connection.
The device cannot be used with the •
system to play music.
The audio quality is poor after connection
with a Bluetooth-enabled device.
The Bluetooth reception is poor. Move •
the device closer to the system or remove
any obstacle between the device and the
system.
Cannot connect with the system.
The device does not support the profi les •
required for the system.
The Bluetooth function of the device is not •
enabled. Refer to the user manual of the
device for how to enable the function.
The system is not in the pairing mode. •
The system is already connected with •
another Bluetooth-enabled device.
32 EN
Page 34
Disconnect that device or all other
connected devices and then try again.
The paired mobile phone connects and
disconnects constantly.
The Bluetooth reception is poor. Move •
the mobile phone closer to the system or
remove any obstacle between the mobile
phone and the system.
Some mobile phones may connect and •
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
For some mobile phones, the Bluetooth •
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
English
EN 33
Page 35
12 Glossary
B
S
SD
Secure Digital. A type of memory card with a
fl ash memory.
Bite rate
The max data transfer through the USB port.
Bluetooth
Bluetooth® is a short-rang wireless protocol
that is meant to allow mobile devices to share
information and applications without the worry
of cables or interface incompatibilities. The name
refers to a Viking King who unifi ed Denmark.
Operate at 2.4GHz. For more information, see
www.bluetooth.com.
M
MMC
MultimediaCard. A type of memory card with a
fl ash memory.
MP3
A fi le format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
than a regular CD.
SDHC
Secure Digital High Capacity (SDHC) is a type
of fl ash memory card based on the SDA 2.00
specifi cation. The SDA 2.00 specifi cation enables
SD cards to reach higher capacities from 4GB
to 32GB, and growing.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
R
Region code
A system that allows discs to be played only in
the region designated. This unit only plays discs
that have compatible region codes. You can fi nd
the region code of your unit on the product
label. Some discs are compatible with more
than one region (or ALL regions.)
34 EN
Page 36
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
12NC
CID3685_UM_93_V1.0
Document order number:
G_V1.0
Loading...
