Page 1
Register your product and get support at
www.philips.com/welcome
EN User manual
ZH-CN Ⴌ߀൱Ҭ
ZH-TW Ԛʹ˫
ES Manual del usuario
PT-BR Manual do Usuário
CED1700
Page 2
3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
Introduction 5
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 9
2 Get started 10
Install the car audio 10

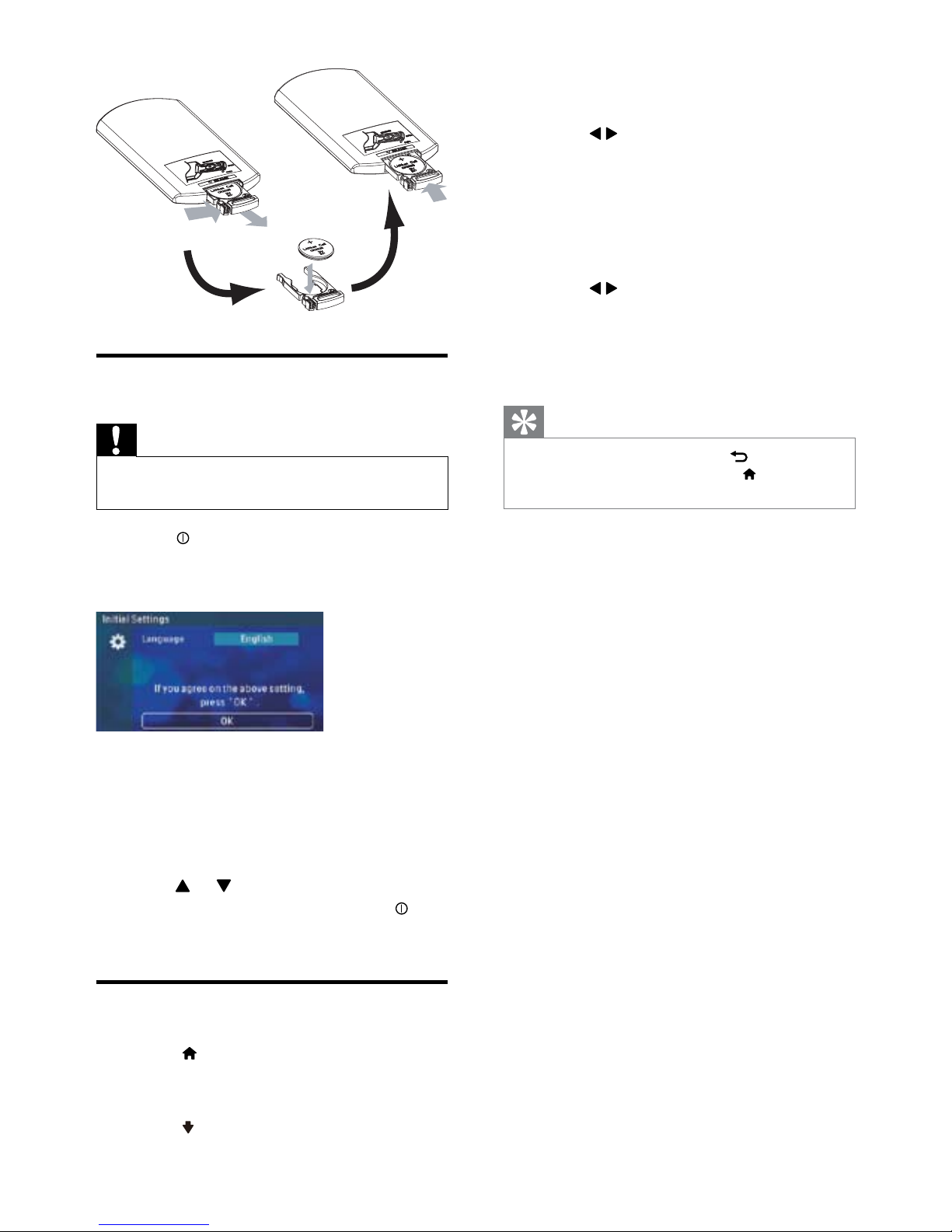

Install remote control battery 15
Turn on 16
Set date and time 16

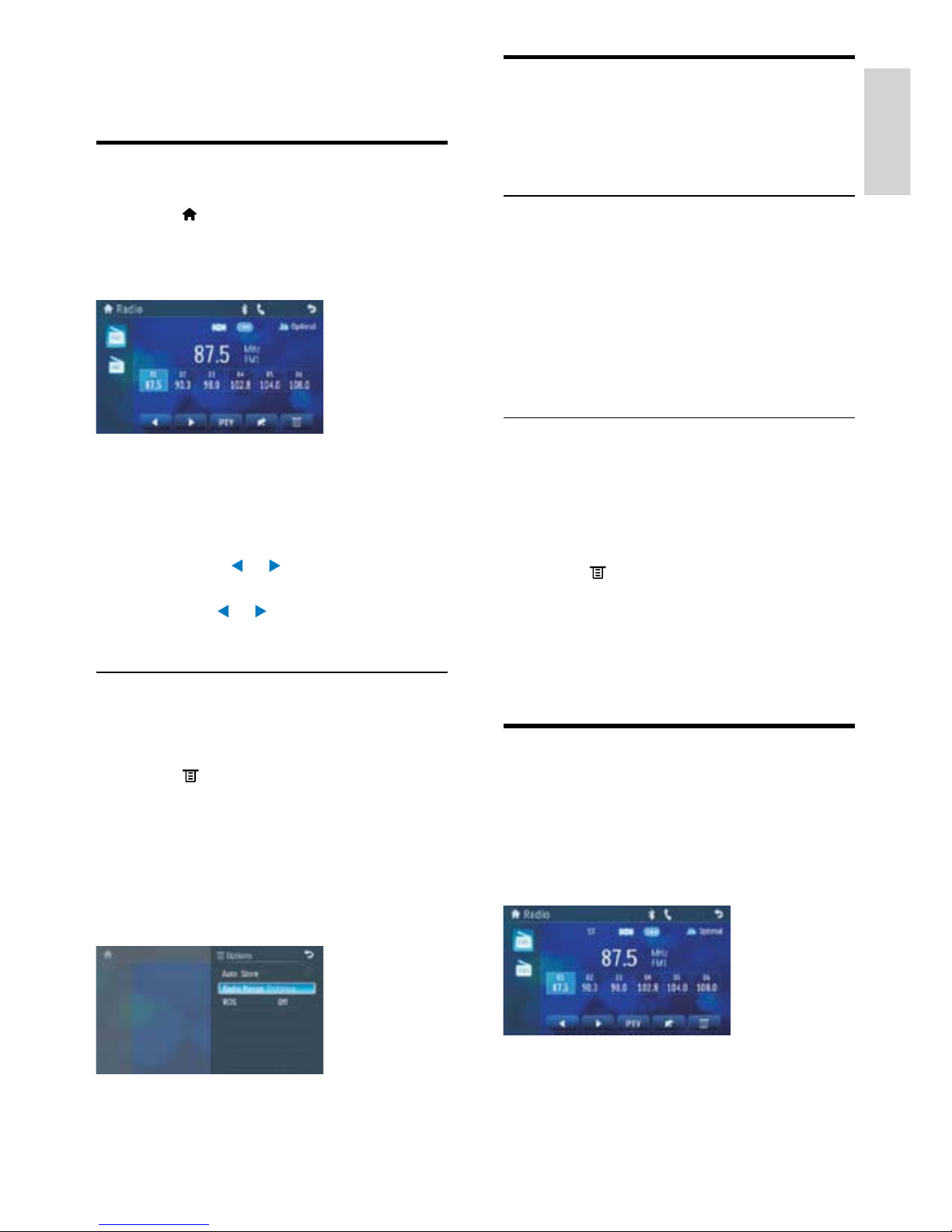

3 Listen to radio 17
Tune to a radio station 17
Store radio stations in memory 17
Tune to a preset station 17
Play with RDS 18
4 Play 20

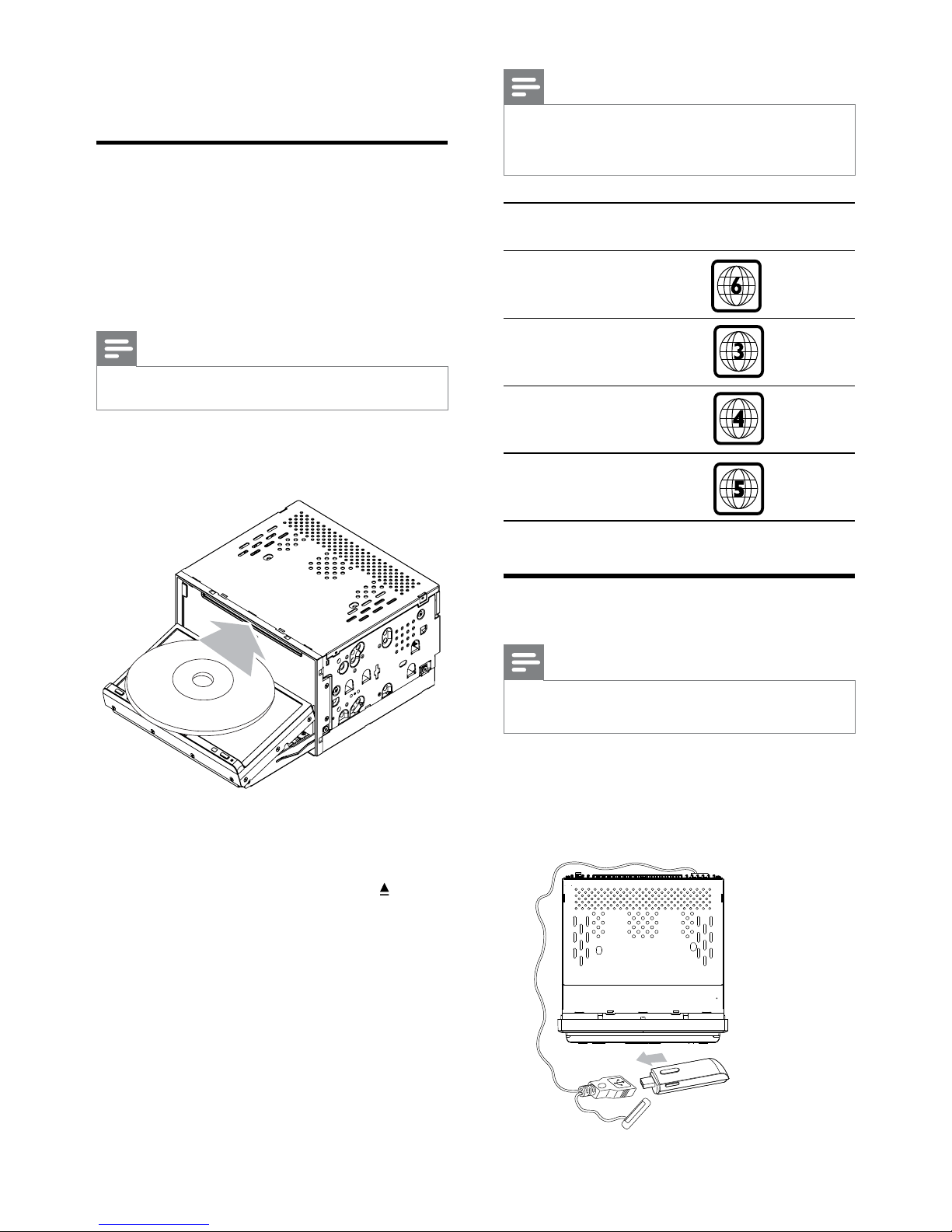

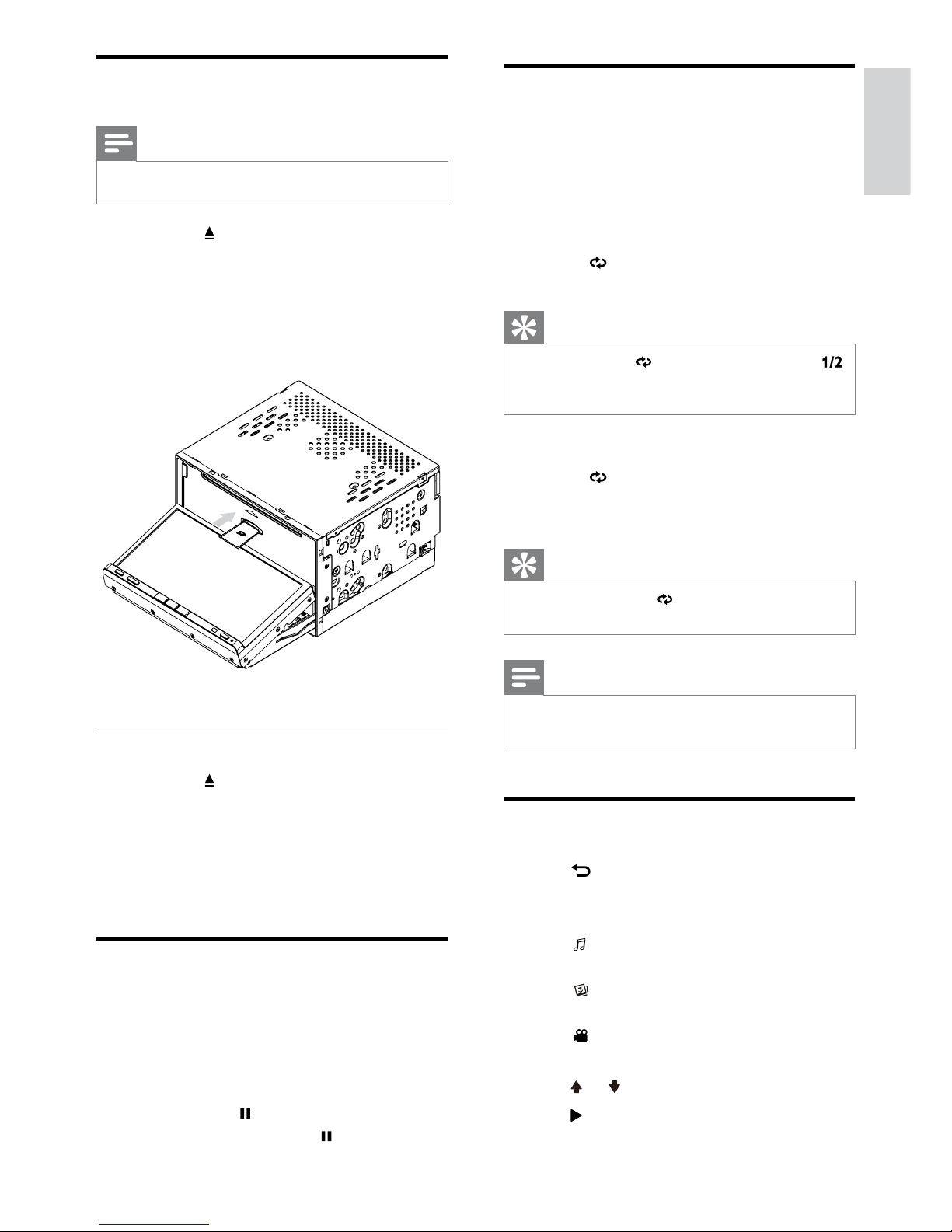

Load discs 20
Connect USB device 20
Insert SD/MMC card 21
Play/Pause 21
Repeat 21
Skip/search 21
Search within a title/folder 22
Random play 22
Select audio language 22
Select subtitle language 22
Rotate pictures 23
Zoom 23
5 Play with Bluetooth device 24

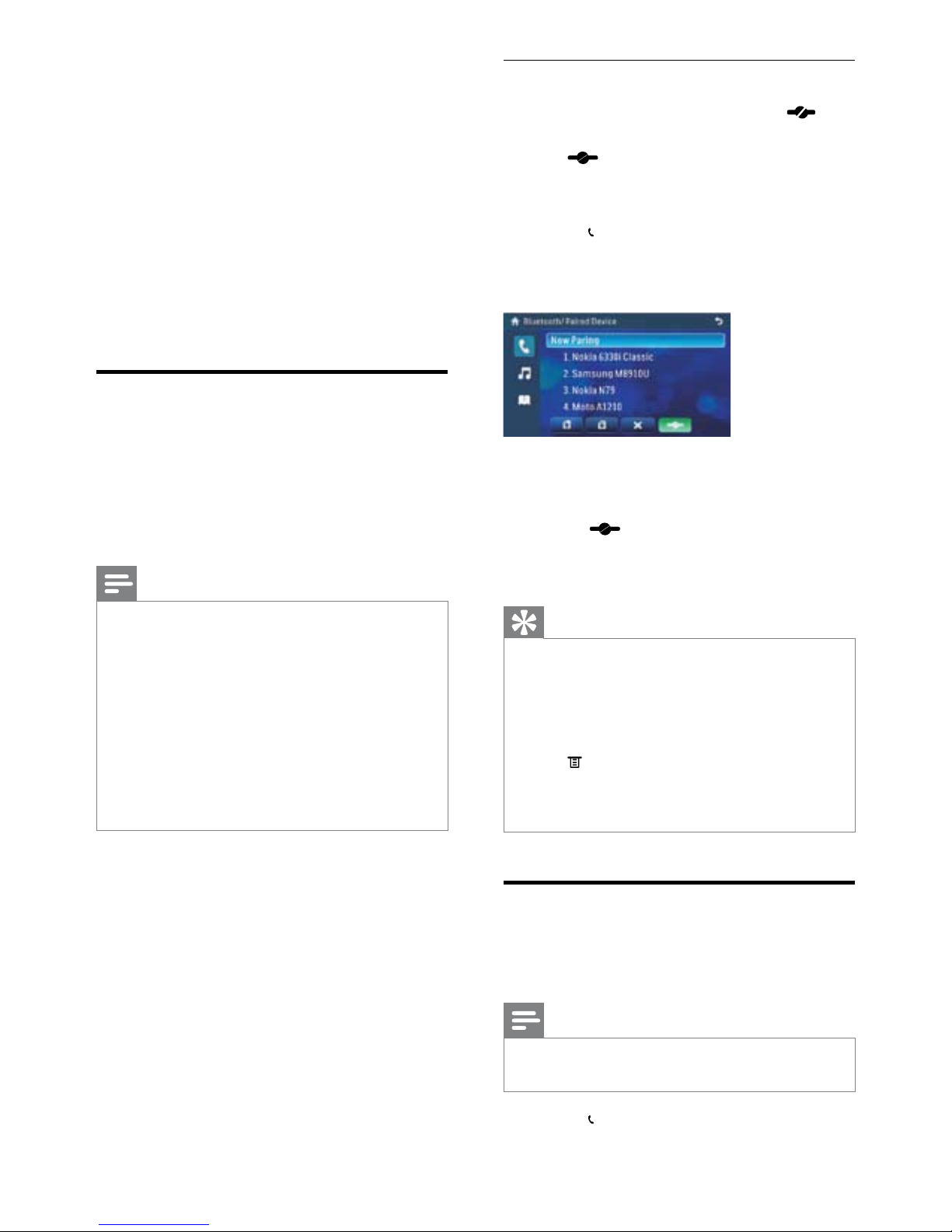

Pair the Bluetooth-enabled devices 24
Make a call 24
Receive call 25

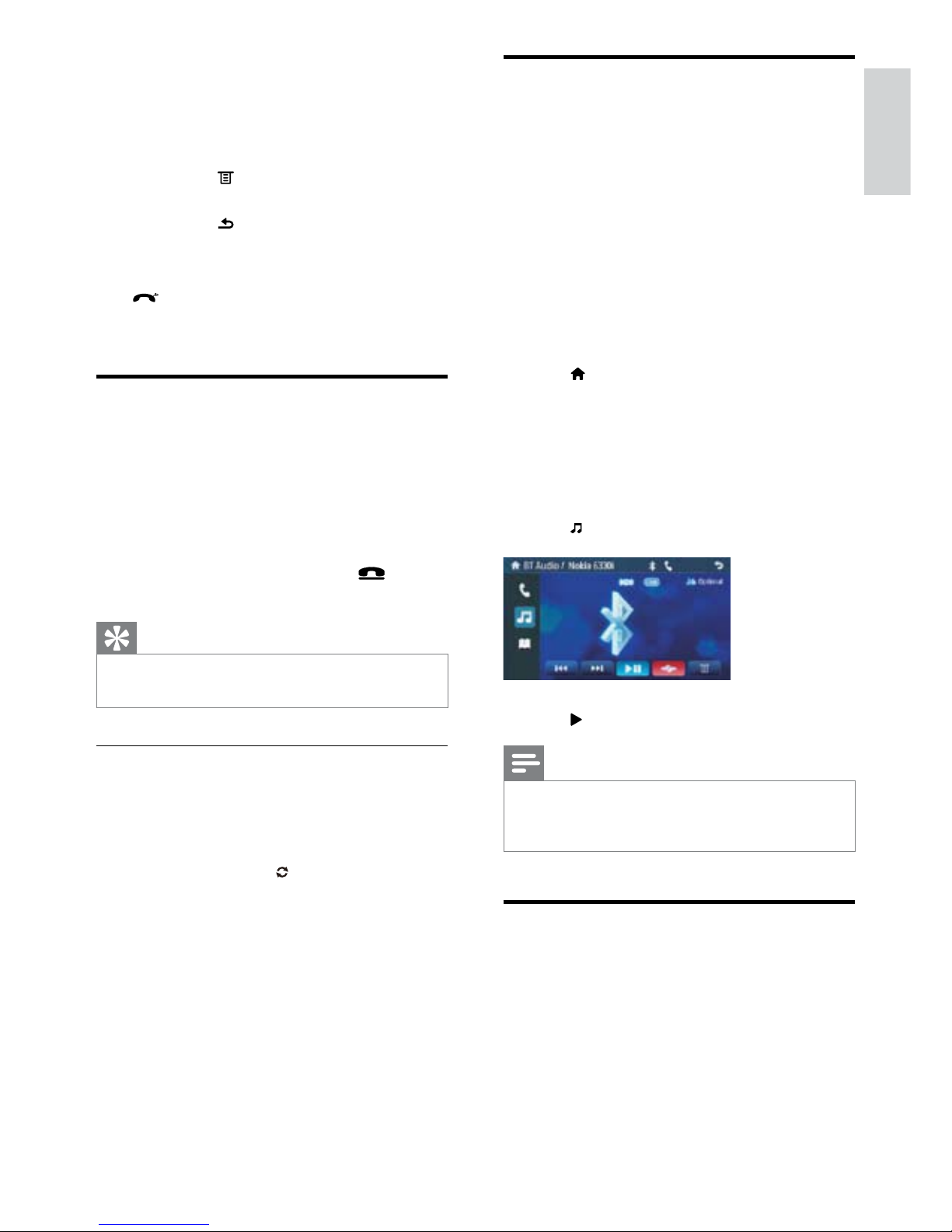

Listen to music from Bluetooth device 25
Adjust Bluetooth settings 25

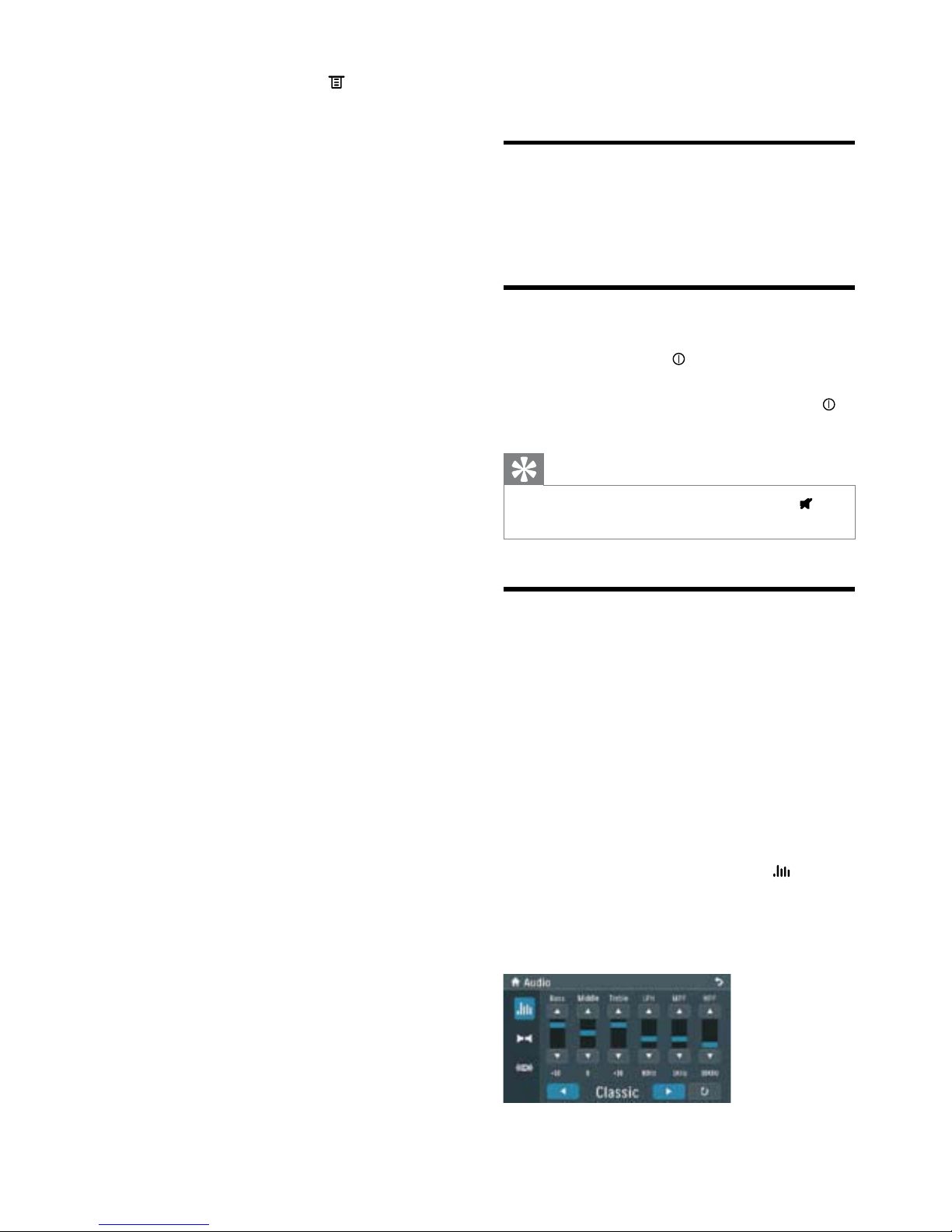

6 Adjust sound 26
Adjust volume 26
Mute 26
Select preset equalizer 26
Adjut fader/balance 27
Adjust Subwoofer value 27
Set Dynamic Bass Boost (DBB) 27
7 Adjust settings 28
Adjust general settings 28
Adjust Bluetooth settings
28
8 Others 29
Listen to other devices 29
Reset 29
Remove the unit 29
Replace fuse 29
9 Product information 30
10 Troubleshooting 32
About Bluetooth device 33
11 Glossary 34
Page 3
4
Do not place any sources of danger on •
the apparatus (e.g. liquid filled objects,
lighted candles).
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
The Bluetooth
®
word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX
®
Certified product. Plays all
versions of DivX
®
video (including DivX® 6)
with standard playback of DivX
®
media files.
The Bluetooth
®
word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
1 Important
Safety
Read and understand all instructions •
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or •
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground •
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do •
no watch video during driving.
To ensure safe driving, adjust the volume •
to a safe and comfortable level.
Improper fuses can cause damage or •
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware •
for a safe and secure installation.
To avoid shor t circuit, do not expose the •
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation •
slots or other openings on the apparatus.
Never place any objects other than discs •
into the disc tray/slot.
Visible and invisible laser radiation when •
open. Avoid exposure to beam.
Risk of damage to the screen! Never •
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene, •
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp •
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
The apparatus shall not be exposed to •
dripping or splashing.
EN
Page 4
5
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
2010 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
enjoy:
Audio/video/JPEG pictures from•
DVD, VCD or CD•
USB devices•
SD/SDHC/MMC cards •
External devices•
FM or AM (MW) radio•
Audio from Bluetooth-enabled devices•
This apparatus includes this label:
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
This product complies with the radio
interference requirements of the European
Community.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
English
EN
Page 5
6
a Main unit and front panel
b Remote control
c Trim plate
d Hexagon head screw
e ISO standard connector
f Audio and Video cable
g Screws
- M5x8mm x 4 pcs
h Rubber cushion
i Remote control battery
j User manual
k Quick start guide
l Warranty card
Besides, you can make/receive phone calls with
Bluetooth-enabled devices and quickly find
the destination you seek with external GPS
navigation box (Philips model CEA100).

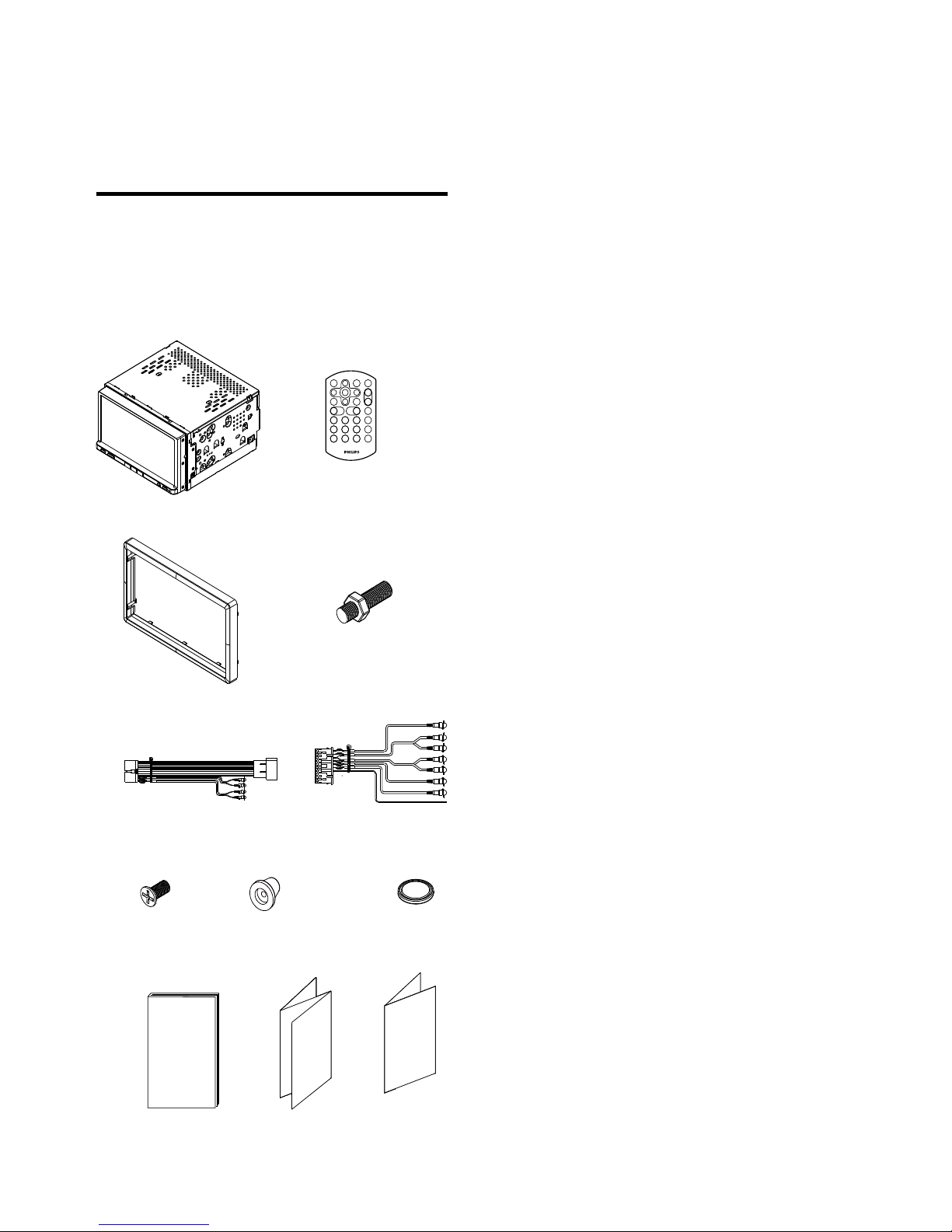

What’s in the box
Check and identify the contents of your
package:
R-CHL-CHR-CHL-CH
ab
cd
ef
gih
jlk
EN
Page 6
7
h TILT
Adjust the position of the front •
panel.
Press and hold to close the front •
panel.

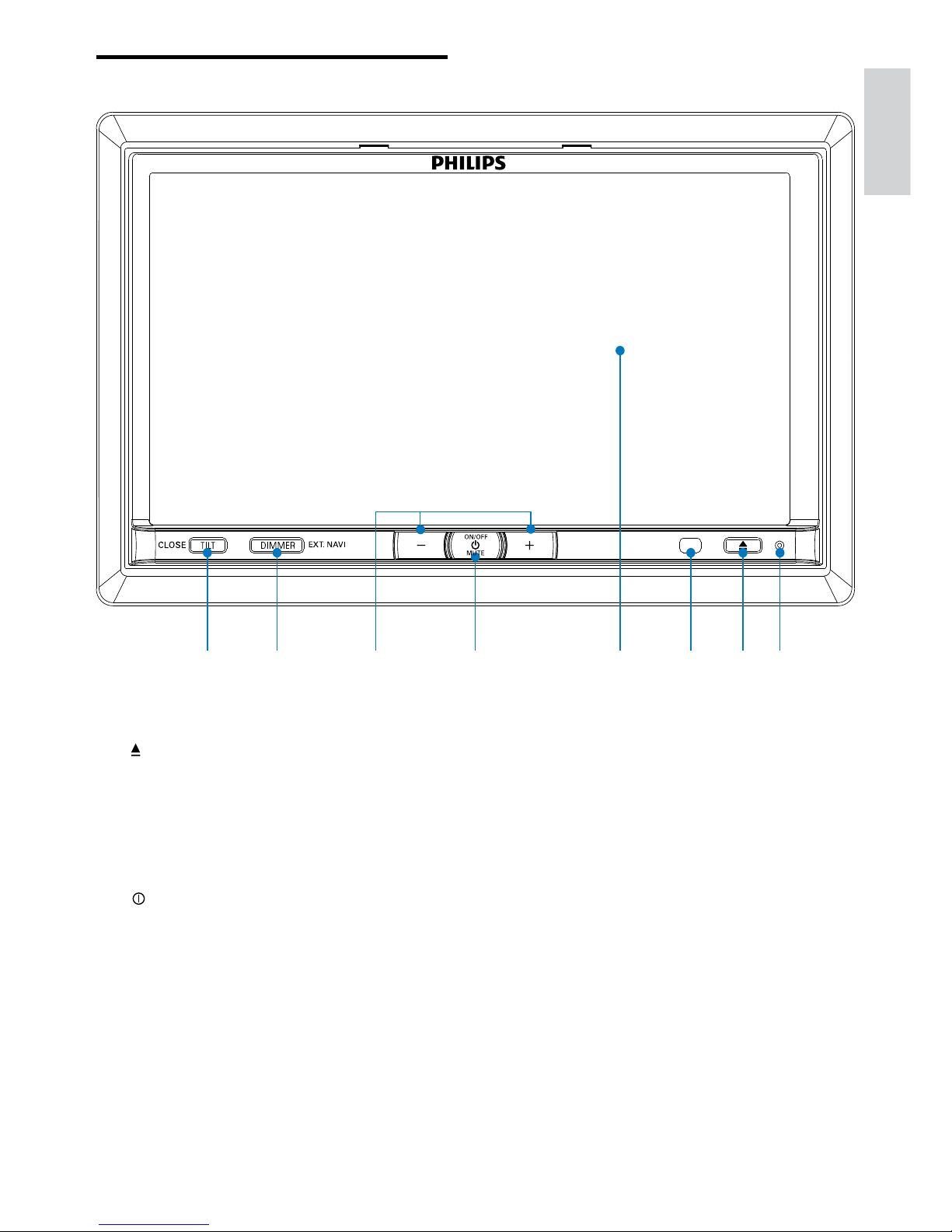

Overview of the main unit
a RESET
b
Open the front panel to insert/eject •
disc/card.
c Remote sensor
d Touch panel
e
/MUTE
Turn the unit on or off.•
Turn mute on or off.•
f +/-
Increase/decrease volume.•
g DIMMER
Adjust dimmer settings.•
Press and hold to enter or exit GPS •
navigation system
e
d
h
g
c
b
a
f
English
EN
Page 7
8

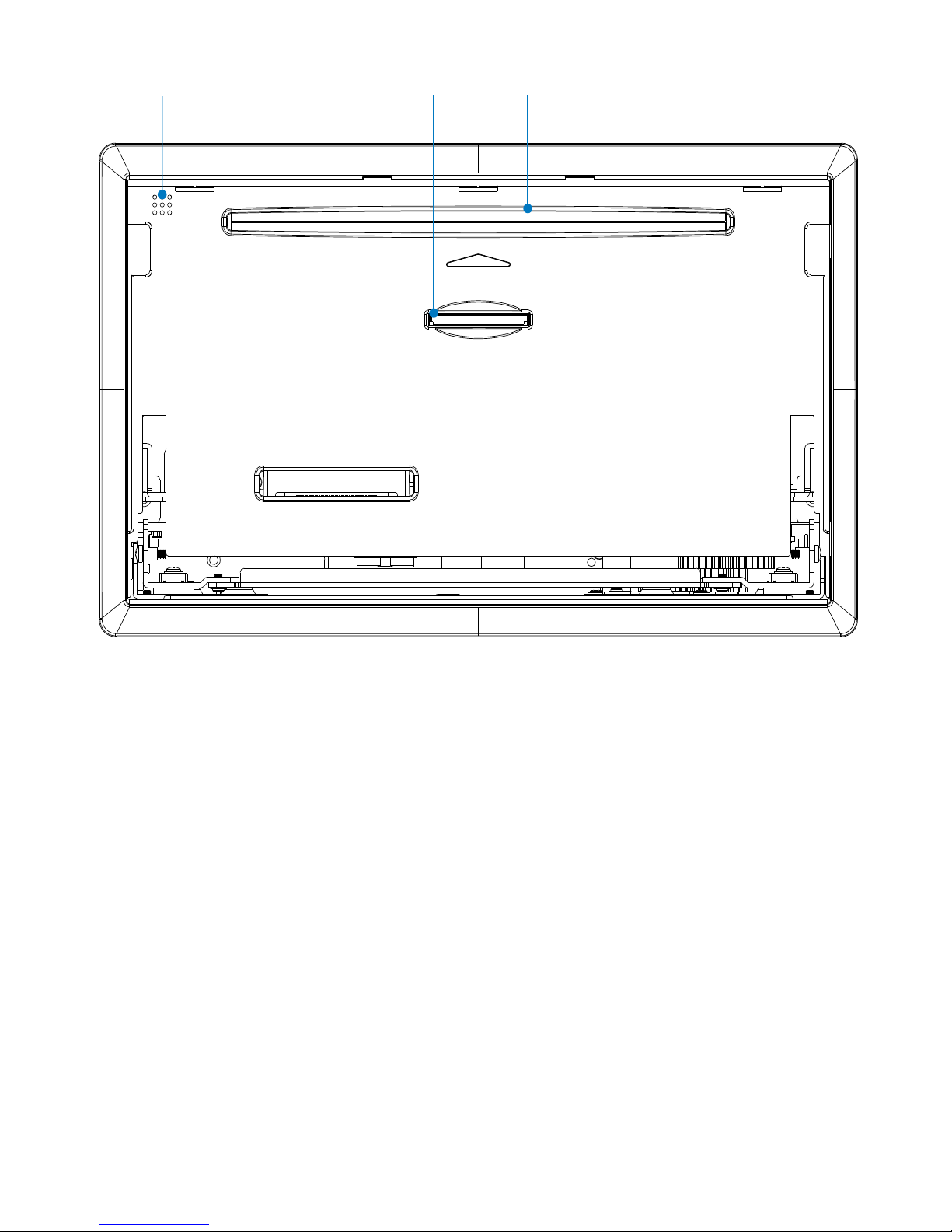

i Built-in microphone
j SD/SDHC/MMC card slot
k Disc slot
j
k
i
EN
Page 8
9
i AUDIO
Access speaker fader/banlance menu.•
j DVD TITLE
Select DVD/DivX subtitle language.•
k DIMMER
Access illuminate dimmer settings.•
l SW
Tur n on/off su bwoofer.•
m DBB
Turn on or off Dynamic Bass Boost •
(DBB) sound.
n EQ
Access equalizer setting menu.•
o DVD MENU
Access DVD main menu.•
p DVD AUDIO
Select audio language or audio •
channel.
q NAVI
Enter/exit the navigation system.•
r
Adjust shuffle play mode.•
s
Star t or pause play.•
t
/RECEIVE
Answer phone.•
Dial number.•
u OK
Confirm selection.•
v
/
Skip to previous/next track/chapter.•
Play fast backward/forward.•
Tune for radio station.•
w
Turn the unit on or off.•
x /
Skip to the previous/next preset •
station.
Skip to the previous/next folder.•
Search backward/forward for DVD •
video.
Move c• ursor up/down.

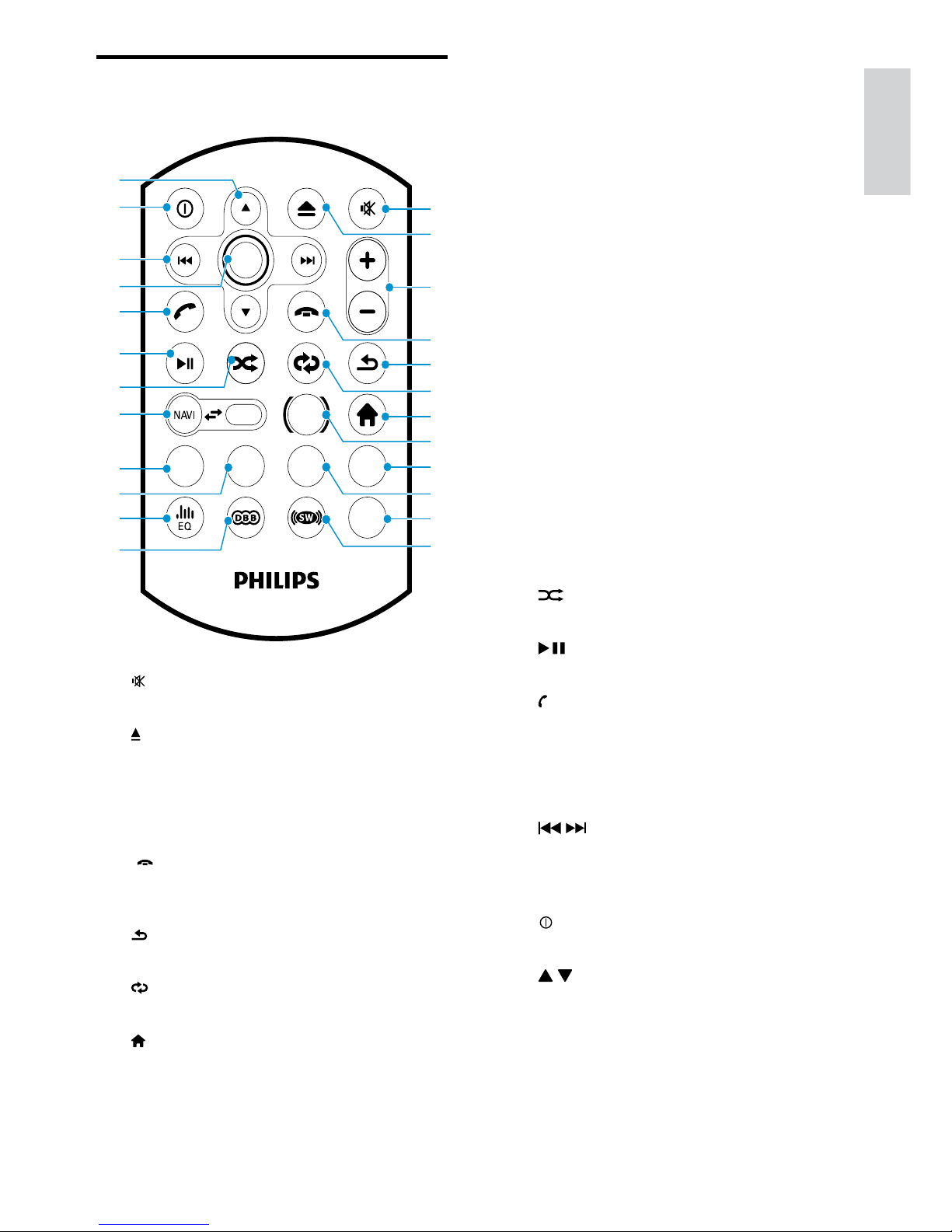

Overview of the remote
control
a
Mute or unmute audio.•
b
Open the front panel to insert/eject •
disc/card.
c VOLUME +/-
Adjust volume.•
d
/REJECT
Terminate call.•
Reject incoming call.•
e
Return to previous menu or exit.•
f
Adjust repeat mode.•
g
Access home menu. •
h TILT
Adjust the position of the front •
panel.
w
x
v
t
s
r
p
n
q
u
m
o
c
e
g
i
k
a
f
h
j
l
d
b
w
x
v
t
s
r
p
n
q
u
m
o
c
e
g
i
k
a
f
h
j
l
d
b
'9'
7,7/(
92/80 (
'9'
0(18
'9'
$8',2
7,/7
086,&
2.
$8',2
',00(5
English
EN
Page 9
10

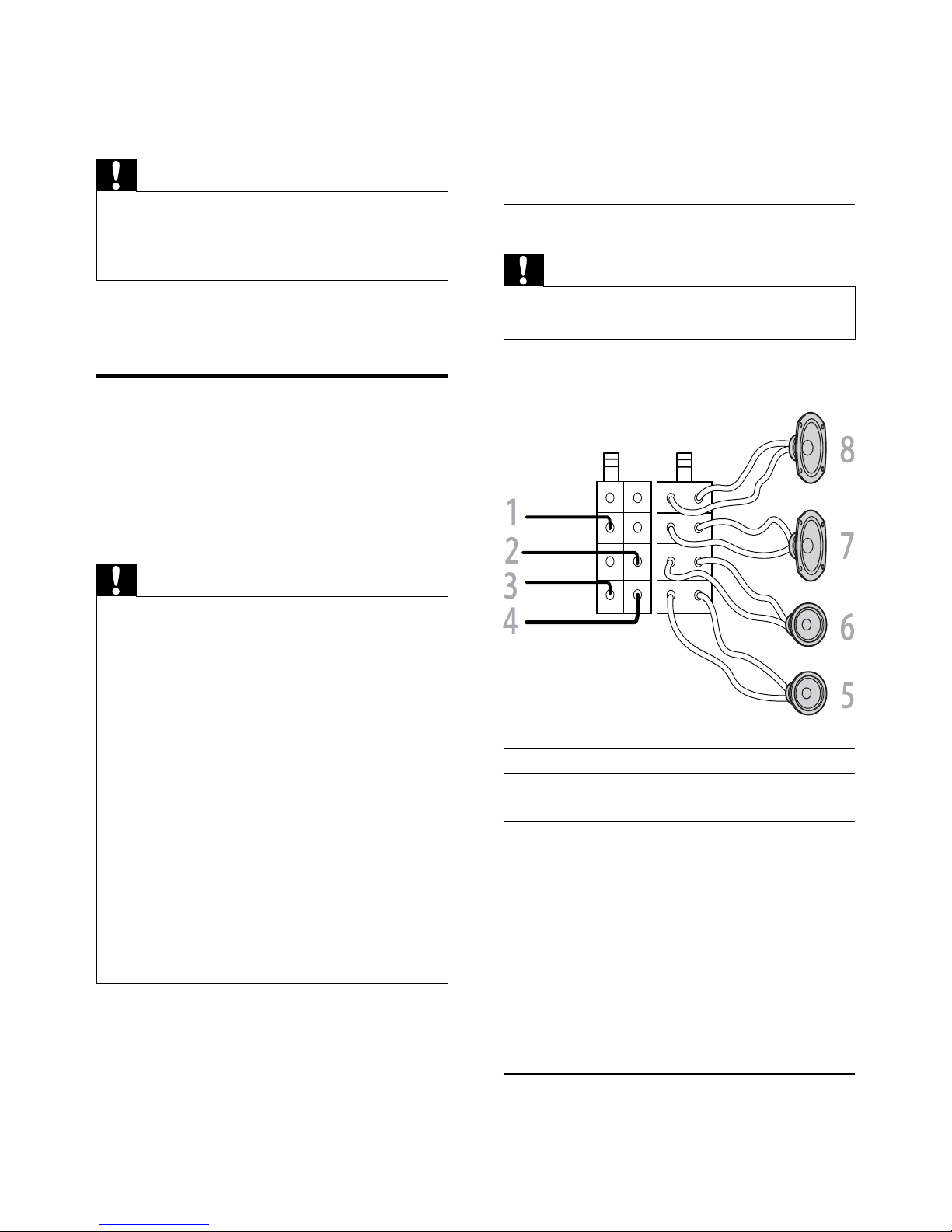

Notes on speaker connection
Never connect speaker wires to the •
metal body or chassis of the car.
Never connect speaker wires with stripes •
to one another.

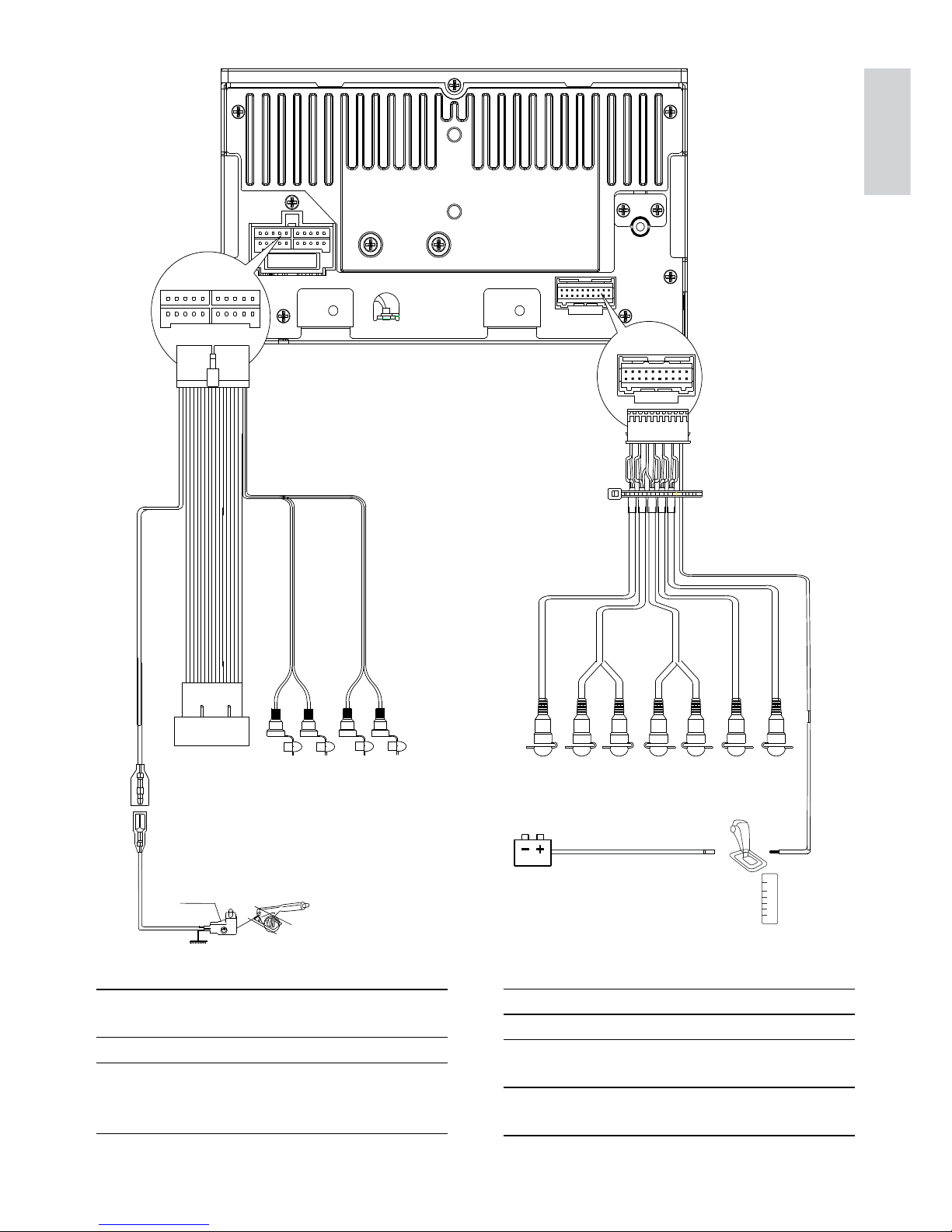

Connect wires
Caution
Ensure that all loose leads are insulated with •
electrical tape.
1 Check the car’s wiring carefully, then
connect them to the supplied ISO wires.
Connector Connect to
1Yellow wireThe +12V car battery
which is live at all times.
2Blue wireThe electric antenna
control lead or power
supply lead of the
antenna booster
If there is no electric
antenna or antenna
booster, or it is manually
operated telescopic
antenna, it is not
necessary to connect this
lead.
2 Get started
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.

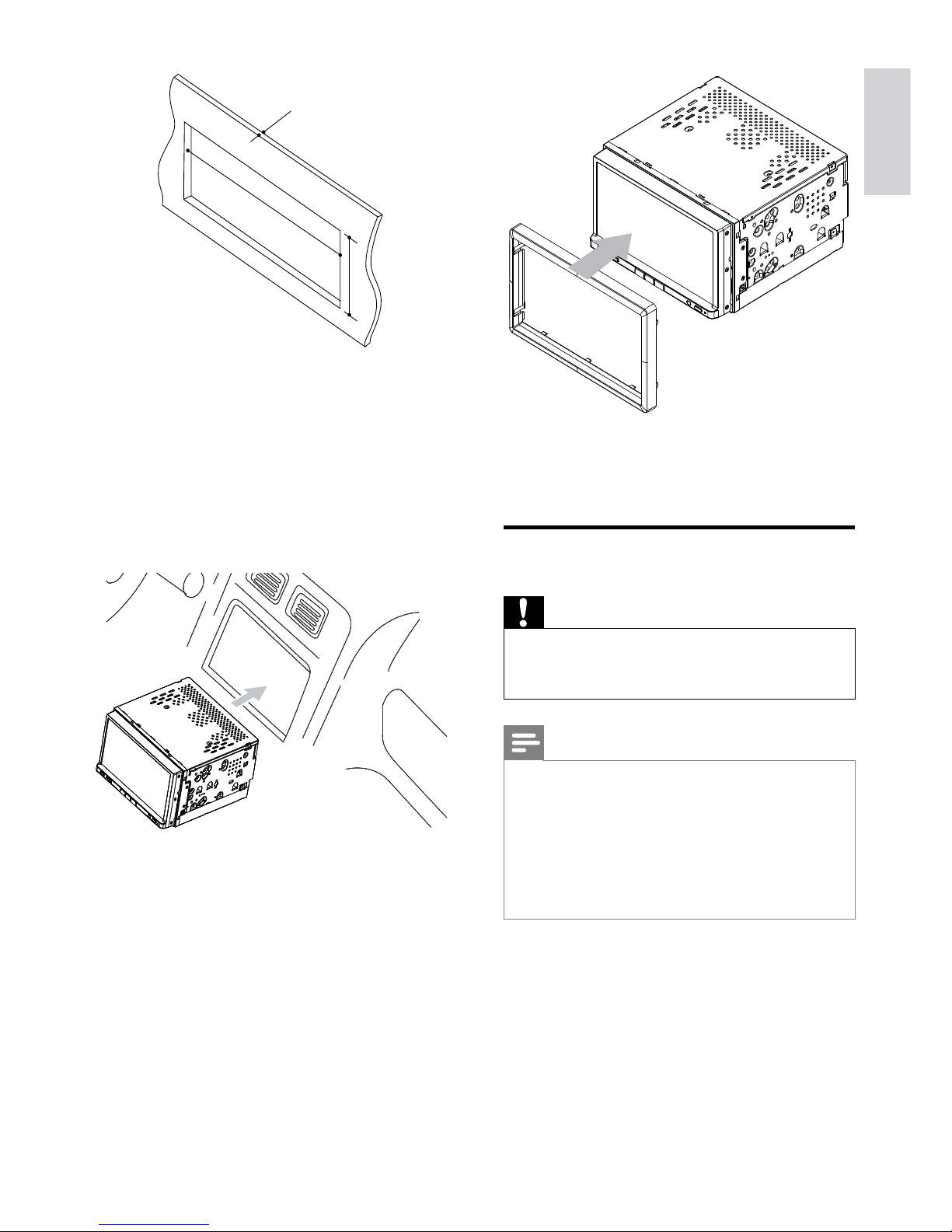

Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground •
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.
•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,
•
ensure that the ignition is off.
Ensure that you connect the yellow and red
•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
•
electrical tape.
Ensure that the leads do not get caught under
•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
•
a common ground (ear th) point.
Use only the supplied mounting hardware for a
•
safe and secure installation.
Improper fuses can cause damage or fire.
•
When you need to change the fuse, consult a
professional.
Note on the power supply lead (yellow)
When you connect other devices to this •
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
EN
Page 10
11
English
EN
Page 11
12

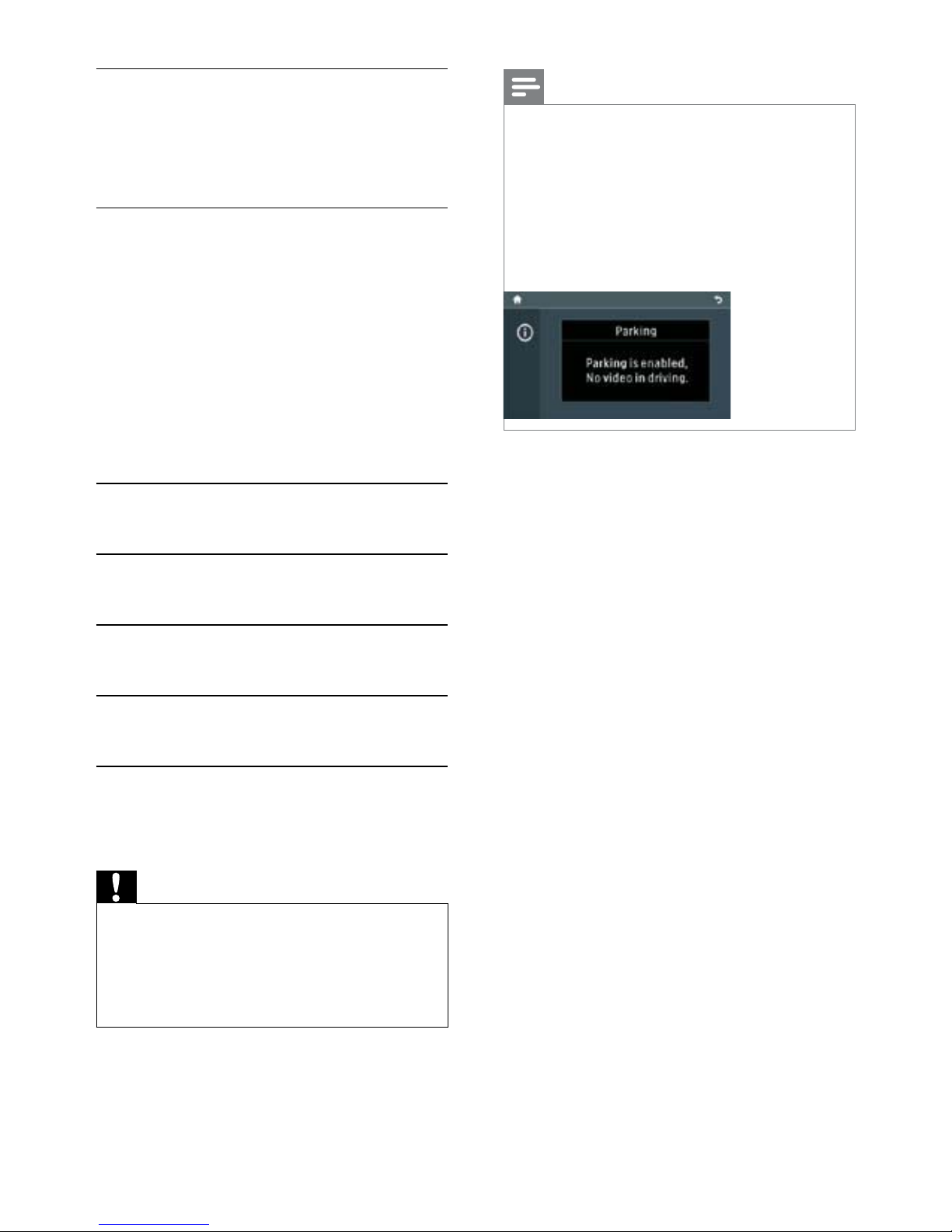

Note
The video blocking system under parking •
brake not engaged only control this unit’s
display, and will not affect the video output
through the rear RCA video output.
If watch moving video from Disc or AV-In
•
source but parking brake is not properly
connected, the video signal will be blocked
by the system, and the below display will be
shown on TFT:
3Black wireA metal surface of the
car
First connect the black
ground (earth) lead, then
connect the yellow and
red power supply leads.
4Red wire The +12V power terminal
which is live in the
accessory (ACC) position
of the ignition switch
If there is no accessory
position, connect to the
+12V car battery terminal
that is always live. Be
sure to connect the black
ground (earth) lead to a
metal surface of the car
first.
5 Green and
green/black
wires
Left speaker (Rear)
6 White and
white/black
wires
Left speaker (Front)
7 Gray and
gray/black
wires
Right speaker (Front)
8 Purple and
purple/black
wires
Right speaker (Rear)
2 Connect the other end of the supplied
standard connector to the car audio
system.
Caution
In order to avoid any accident, the driver must •
not watch video while driving. This unit is
designed to not allow watching moving video
while driving. Park your car in a safe place and
engage the parking brake before watching
moving video.
EN
Page 12
13
3 Brake switch
4Ground
5 ISO wires Connected in step 1
above.
6 Grey wire Rear line out Left/
Right
Connector/
Obeject
Connect to/with
1 Pink wire Extension wire
2 2.5m extension
wire(Not
included)
Parking brake (-)
R-CH
L-CH
R-CH
L-CH
1
2
3
4
5
6
7
8
9
0
!
"
P
R
N
D
2
L
$%
&
§
/
English
EN
Page 13
14
Note
Please consult your Phillips dealer or •
distributer to purchase the CEA100 external
navigation box.
Mount in the dashboard
Note
Check wire connection before you mount the •
unit into a car.
If preset radio stations are lost when the
•
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1 If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in •
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
If the car battery is not disconnected, •
to avoid short-circuit, ensure that
bare wires do not touch each other.
2 Ensure that car dashboard opening is
within these measurements:
CEA100
7 Black wire Front line out Left/
Right
8 Blue cable Subwoofer
9 Red cable Aux Right
10 White cable Aux Left
11 Yellow cable Video in
12 Yellow cable Camera in
13 Yellow cable Video out 1
14 Yellow cable Video out 2
15 Purple wire Reverse camera (B+)
16 Gearbox switch
17 Reverse gear
signal
Back lamp lead +

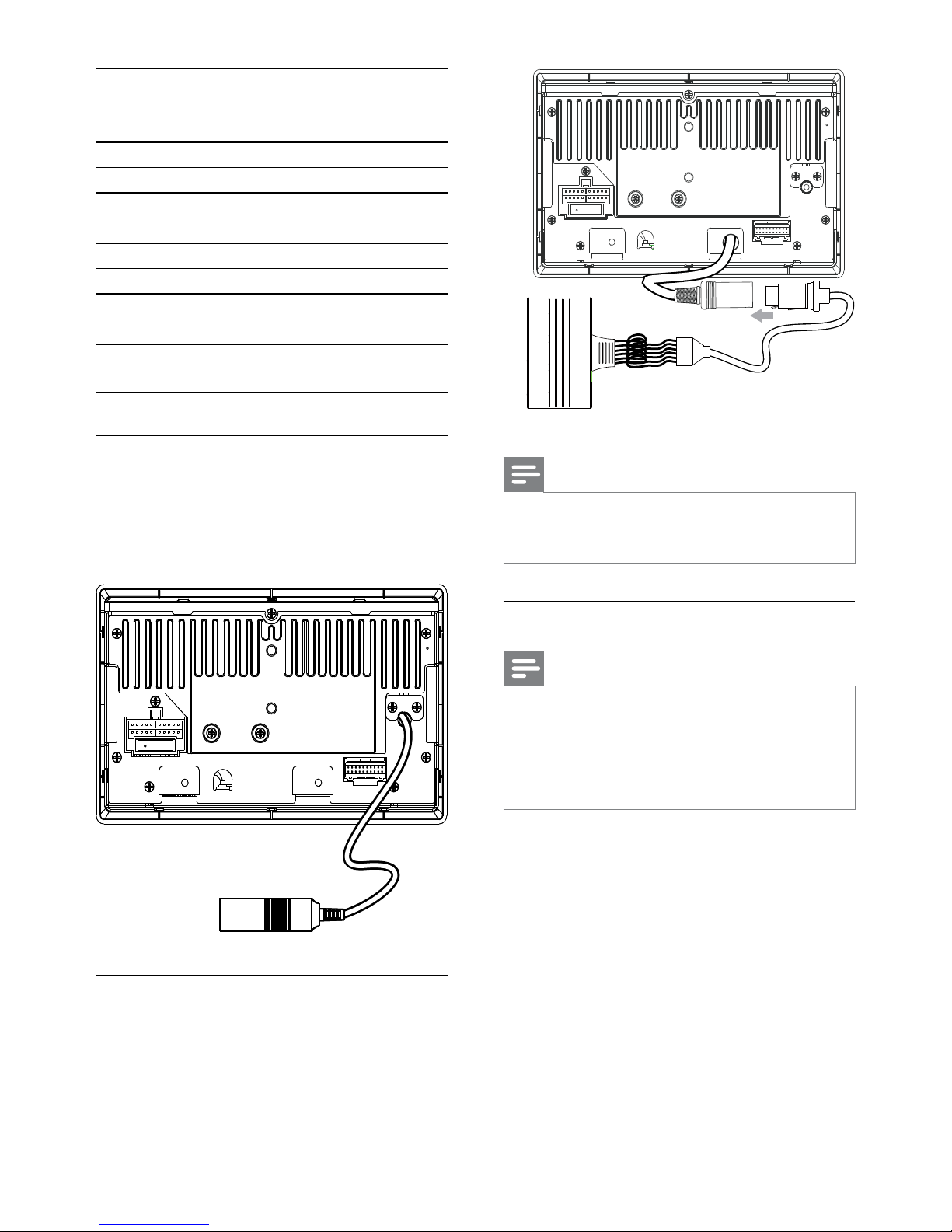

Connect radio antenna
Connect the radio antenna to the radio
antenna of the system for better radio signal.
1 Connect the radio antenna to the car
antenna.
Connect external navigation box
This unit supports GPS navigation by
connecting Philips CEA100 external GPS
navigation box.
EN
Page 14
15
5 Reconnect the negative terminal of the
car battery.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from •
heat, sunshine or fire. Never discard batteries
in fire.
Note
Remove batteries if they are exhausted or if •
the remote control is not to be used for a long
time.
Batteries contain chemical substances, they
•
should be disposed of properly.
Perchlorate Material - special handling may
•
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
1 Open the battery compartment.
2 Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3 Close the battery compartment.
Since the unit cannot be used if the •
dashboard opening’s slant angle is
above 20 degrees: Ensure that the
horizontal slant of the car dashboard
opening is between 0 and 20
degrees.
3 Slide the unit into the dashboard until a
click sound is heard.
4 Attach the trim plate.
183 mm
53mm
5mm
English
EN
Page 15
16
4 Touch [Date].
5 Touch year digit to highlight this digit.
6 Touch / to set year.
7 Repeat step 5 and 6 to set month and day.
Set Time
1 Touch [Set time].
2 Touch hour/minute digit to highlight the digit.
3 Touch / to set hour/minute.
Set time format
1 Touch [Clock Mode]repeatedly to toggle
between [12Hr] and [24Hr] options.
Tip
When date/time is set, touch • to go back to
the upper level menu, or touch
to go to the
main menu.
Turn on
Caution
Risk of road accidents! Never watch video or •
adjust settings while you drive.
1 Press to turn on the unit.
The available OSD (On-Screen »
Display) languages are displayed.
2 Touch a language to select.
The OSD language is changed to the »
selected language immediately.
To adjust screen brightness, press •
DIMMER on the remote control, then
press
or .
To turn off the unit, press and hold•
for
3 seconds.
Set date and time
1
Touch to display main menu.
2 Touch [Settings].
Setting menu displays. »
3 Touch to access 2nd page.
EN
Page 16
17
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations manually
1 Select a band.
2 Tune to the station you want to store.
3 Touch and hold one of the channels 01 to
06 over 2 seconds.
The station is saved under the selected »
channel.
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1 Select band.
2 Touch .
3 Touch [Auto Store].
Auto search starts. The six strongest »
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
1
Tap [Radio].
2 Select band.
3 Tap one of the preset channels (01 to 06)
to select a preset station.
3 Listen to radio
Tune to a radio station
1
Touch to display home menu.
2 Touch [Radio].
Radio screen displays. »
3 Touch on FM or AM repeatedly on the
left of the screen to select band:
FM band options: • FM1, FM2, FM3
AM band options: • AM1, AM2
4 Briefly touch or to tune to a radio
station by step.
Touch •
or for over 1 seconds to
tune to a radio station automatically.
Select radio range
Before you star t to search for radio stations,
you can select radio range.
1 Touch .
2 Touch [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
• [Distance]: Only stations with strong
signals can be broadcast.
• [Local]: Stations with strong and
weak signals can be broadcast.
English
EN
Page 17
18
3 Touch or to display the next/previous
screen.
4 Touch on the selected program type
The unit starts to search stations of »
the selected program type.
Item Program
type
Description
1 News News services
2 Affairs Politics and
current affairs
3 Info Special
information
programs
4 Sport Sports
5 Educate Education and
advanced training
6 Drama Radio plays and
literature
7 Culture Culture, religion
and society
8 Science Science
9 Varied Entertainment
programs
10 Pop M Pop music
11 Rock M Rock music
12 Easy M Light music
13 Light M Light classical
music
14 Classics Classical music
15 Other M Special music
programs
16 Weather Weather
17 Finance Finance
18 Children Children’s
programs
19 Social Social Affairs
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and the station name are
displayed.
Activate AF/TA/REG/CT functions
1 Under radio mode, Touch .
The radio option menu is displayed. »
2 Touch [Off ] after [RDS].
RDS turns on. »
3 Touch on each option repeatedly to turn
on/off the corresponding function.
AF (alternate frequency): •
automatically searches for a different
station when the tuner cannot get a
good reception.
TA (traffic announcement): allows •
you to receive traffic announcements
automatically no matter what source
you are listening to.

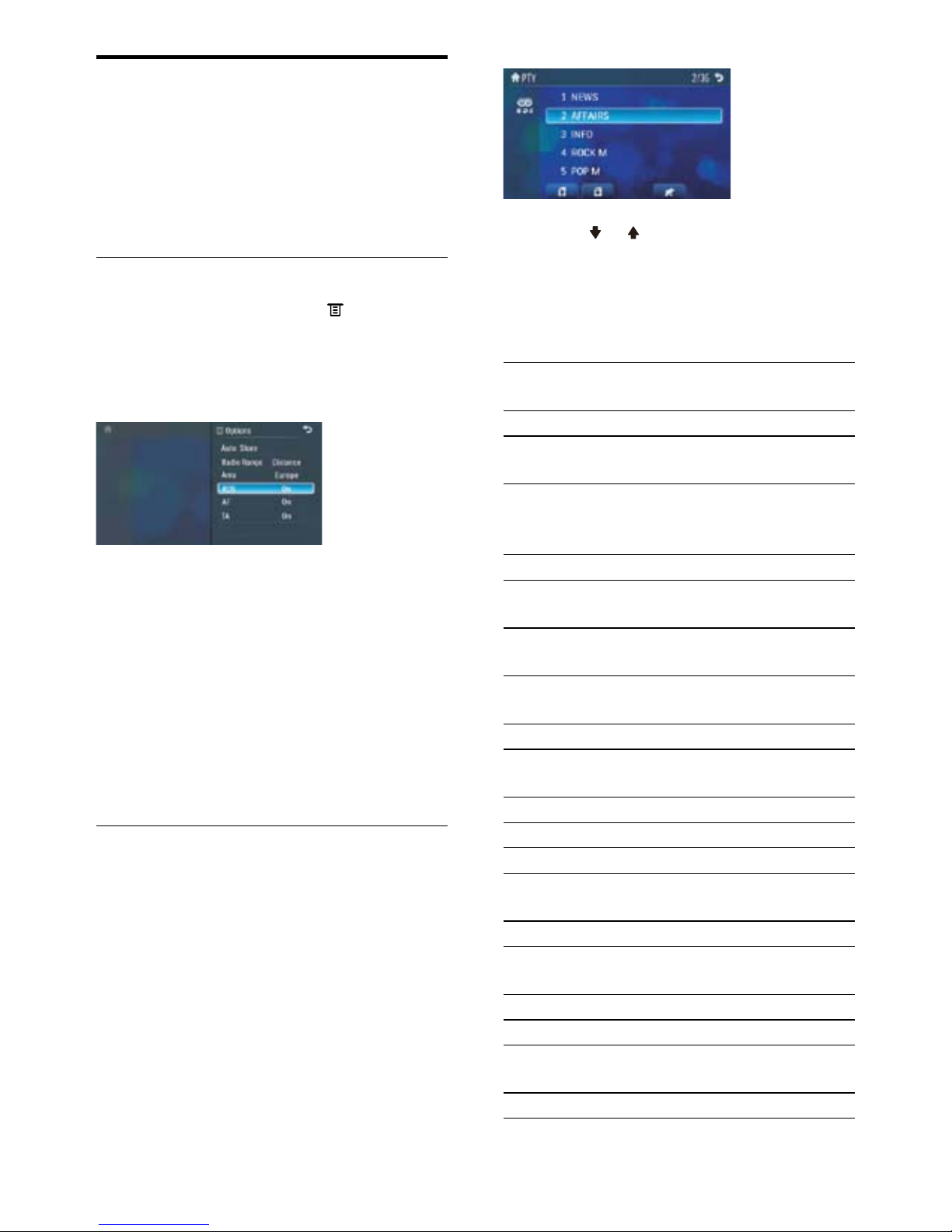

Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1 Touch on FM band to select FM1, FM2,
or FM3.
2 Touch [PTY].
List of available program type is »
displayed.
EN
Page 18
19
20 Religion Religion
21 Phone In Phone In
22 Travel Travel
23 Leisure Leisure
24 Jazz Jazz Music
25 Country Country Music
26 Nation M National Music
27 Oldies Oldies Music
28 Folk M Folk Music
29 Document Documentary
30 Tes t Alarm Test
31 Alarm Alarm
English
EN
Page 19
20
Note
Depends on where you bought the unit, you •
can play DVD discs with one of the following
region codes:
Countries where you
bought the unit
Supported DVD
region code
China
Asia Pacific, Taiwan,
Korea
Latin America
Russia, India
Connect USB device
Note
Ensure that the device contains playable •
content.
1 Open the lid of USB socket.
2 Insert the USB to the USB socket.
Play starts automatically. »
4 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
Note
Ensure that the disc contains playable content. •
1 Insert the disc into the disc slot with label
side facing up.
Front panel closes automatically. »
Play starts automatically. »
To remove the disc, press the »
button.
When the disc is ejected, the unit »
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
EN
Page 20
21

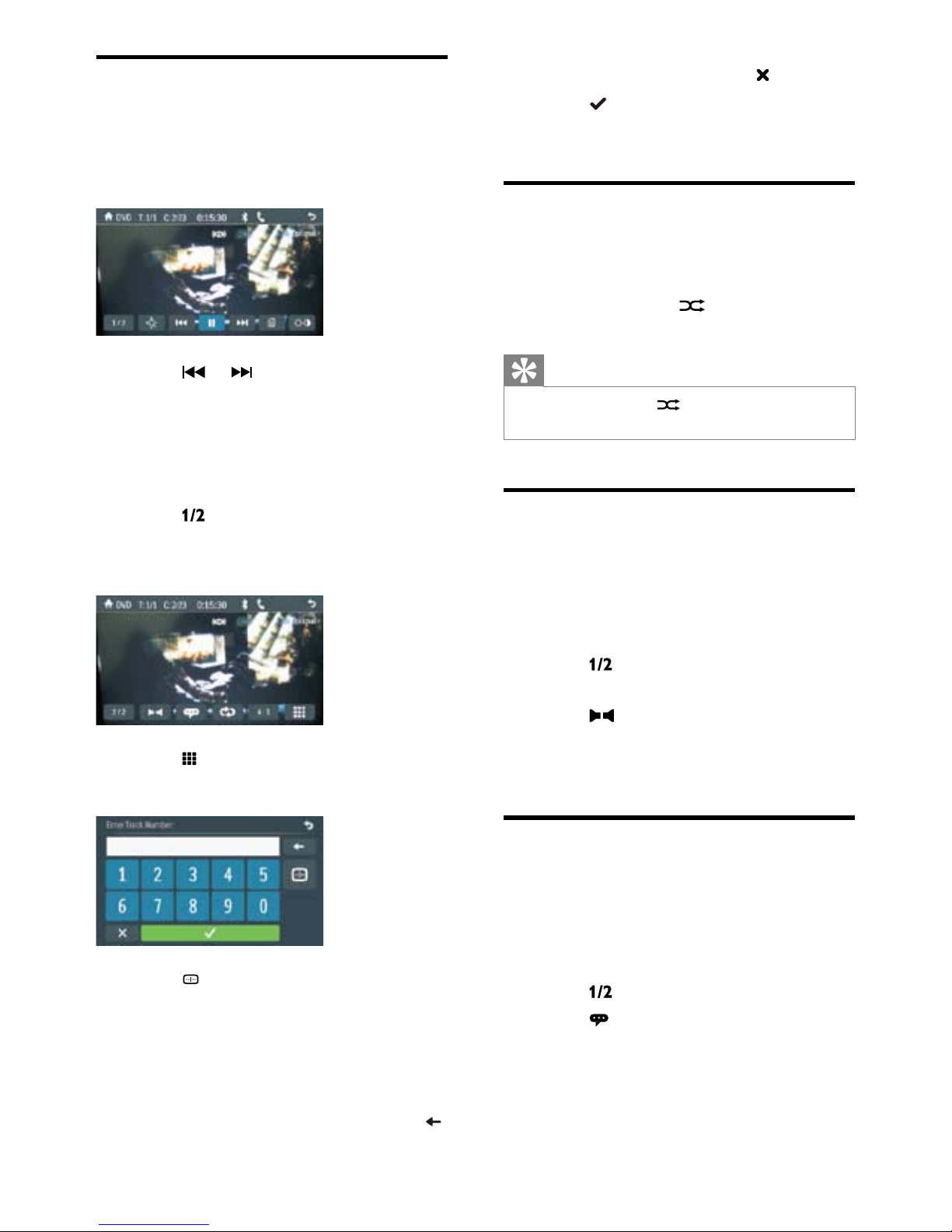

Repeat
During play, you can select different repeat play
modes.
For DVD/VCD video disc:
1 Touch anywhere on the screen to display
the control bar.
2 Touch repeatedly to select different
repeat mode.
Tip
If you can’t find • in the control bar, touch
on the left lower of the screen to display the
2nd control bar.
For MP3/WMA/CD audio files:
1 Touch on the upper line of the screen
repeatedly to select different repeat
mode.
Tip
You can also press • on the remote control to
select repeat play mode.
Note
Repeat options available depend on the media •
type being played.
Skip/search
1
Tap to return to playlist menu.
2 Tap one of below icons to select folder/
file:
•
: To display all available audio
folders/track.
•
: To display all available picture
folders/files.
•
: To display all available video
folders/files
3 Tap or to select a folder/track.
4 Tap to start play.
Insert SD/MMC card
Note
Ensure that the card contains playable content. •
1 Press the button on the front panel.
front panel opens. »
2 Insert the card into the card slot until a
click sound is heard.
Play starts automatically. »
Remove the SD/MMC card
1 Press the button to open the front
panel.
2 Press the card until a click sound is heard.
The card is now disengaged. »
3 Remove the card.
Play/Pause
1
Once a disc, USB or SD card is inserted,
play starts automatically.
For DVD movie, if a menu appears, press
to start play.
2 To pause, tap .
To resume play, tap •
again.
English
EN
Page 21
22
To clear all input, touch • .
6 Touch after finished entering.
Play starts from the selected section. »
Random play
You can play audio tracks/files or VCD videos in
random order.
1 During play, touch repeatedly to turn
random play on or off.
Tip
You can also press • on the remote control
to select random play mode.
Select audio language
For video discs that contain two or more audio
channels.
1 During play, touch anywhere on the
screen to display control bar.
2 Touch on the left lower of the screen
to display the 2nd control bar.
3 Touch repeatedly.
The audio channel information is »
displayed on the top of the screen.
Select subtitle language
For DVD/DivX discs that contain two or more
subtitle languages.
1 During play, touch anywhere on the
screen to display control bar.
2 Touch to display the 2nd control bar.
3 Touch repeatedly to select a language.
The selected language is displayed. »
Search within a title/folder
Search by step
1 Touch anywhere on the screen to display
control bar.
2 Touch or to skip to the previous or
next chapter/track.
Direct search
1 Touch anywhere on the screen to display
control bar.
2 Touch on the left lower corner of the
screen.
The second control bar displays. »
3 Touch .
The search screen is displayed. »
4 Touch repeatedly to choose searching
by chapter/title/time.
The search options available depends •
on the media source type.
5 Touch the numbers to enter chapter/title/
time number.
To clear the previous input, touch •
.
EN
Page 22
23
Tip
You may also press • DVD TITLE on the remote
control repeatedly to select subtitle language.
Rotate pictures
1
When you view pictures, touch anywhere
on the screen to display control bar.
2 Touch repeatedly to rotate the picture.
Zoom
You can zoom in pictures for a close view.
1 During viewing pictures, touch anywhere
on the screen to display menu bar.
2 Touch repeatedly to zoom in the
picture.
3 Touch , , or to pan through the
enlarged picture.
English
EN
Page 23
24
Disconnect Bluetooth devices
1 To disconnect one device, touch
(red).
»
(green) is displayed.
Re-connect Bluetooth devices
1 Touch on top of the screen.
The bluetooth/paired device screen »
displays.
2 Touch on one device that you want to
re-connect.
3 Touch (green).
Start to re-connect the selected »
device.
Tip
The device will also be disconnected when the •
device is moved beyond the operational range.
If you want to reconnect the device to the
•
unit, place it within the operational range.
If you do not want to reconnect the device to
•
the unit automatically, under Bluetooth mode,
touch
, and then touch option after [Auto
connect] repeatedly until [Off] displays. For
details, see the “Adjust Bluetooth settings”
section.
Make a call
You can make phone call with the unit under
any mode.
Note
Make sure the phone is connected to the unit •
via Bluetooth.
1 Touch on top of the screen.
5 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetoothenabled device.
Pair the Bluetooth-enabled
devices
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a •
Bluetooth device is approximately 5 meters.
Before you connect a Bluetooth device to this
•
unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not
•
guaranteed.
Any obstacle between this unit and a
•
Bluetooth device can reduce the operational
range.
Keep this unit away from any other electronic
•
device that may cause interference.
1 Turn on the Bluetooth function on your
device.
2 Search for other Bluetooth device with
your device.
3 Select “CED1700” in the pairing list.
4 Enter default password “0000”.
If pairing succeeds. the dial screen »
displays.
EN
Page 24
25
Listen to music from
Bluetooth device
If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
Audio Video Remote Control Profile (AVRCP)
profile, you can use the control on the unit or
its remote control to play music stored on the
device.
1 Pair the phone with the unit.
2 Tap to return to home menu.
3 Tap [Bluetooth].
The Bluetooth menu is displayed. »
4 Star t play music via device.
If your device support AVRCP,
1 Tap .
2 Tap to start play.
Note
Check the manual of your Bluetooth device •
and see whether it allows you to have full
Bluetooth controls.
Adjust Bluetooth settings
You can change below Bluetooth settings:
• [Auto answer]: to turn on or off
“Auto answer” function
• [Auto connect]: to turn on or off
“Auto connect” function
• [Paired Device]: display paired
device
The dial screen displays. »
2 Touch number icons directly to input
phone number.
Touch •
c
to delete last input
Touch •
to access Bluetooth option
menu.
Touch •
to go back to previous
screen.
3 After the phone number entered, touch
.
The unit starts dialing. »
Receive call
By default, all incoming calls are received
automatically.
1 If there is incoming call, [Incoming call...]
flashes on the screen. Speak into the
Bluetooth microphone.
2 When conversation ends, tap (red)
to terminate the call.
Tip
You can select to receive calls manually by set •
[Auto answer] to [Off] status.
Switch phone call to the mobile
If you do not want your passenger to hear
your incoming call, you can switch the call to
the mobile.
1 During talking, tap .
The voice is transferred from the unit’s »
loudspeaker to the mobile phone.
English
EN
Page 25
26
6 Adjust sound
Adjust volume
1
Press +/- on the front panel to increase/
decrease volume.
Mute
1
During play, press /MUTE on the front
panel.
To turn the sound back on, press•
/MUTE again.
Tip
You can also turn off sound by touching • on
the screen.
Select preset equalizer
You can select preset equalizer:
• [User]
• [Techno]
• [Rock]
• [Classic]
• [Jazz]
• [Optimal]
• [Flat]
• [Pop]
1 During audio/video play, touch on the
screen.
The current Equalizer setting is »
displayed.
1 In Bluetooth menu, touch .
The option menu is displayed. »
2 Touch an option to change the setting.
EN
Page 26
27
3 Touch [On] to turn on the subwoofer.
4 Touch / to adjust value of subwoofer
level and subwoofer low pass filter (LPF).
5 Touch to exit.
Set Dynamic Bass Boost
(DBB)
1
Tap to toggle between the settings.
• [DBB] on: The
icon is
illuminated.
• [DBB] off (default): The
icon is
gray.
2 Touch or to select an EQ.
3 Touch or to adjust below settings:
• [Bass] bass range: -15 to +15
• [Mid] middle range: -15 to +15.
• [Treb] treble range: -15 to +15
• [LPH] low pass filter range: 60Hz,
80Hz, 100Hz, 200Hz.
• [MPF] middle pass filter range:
500Hz, 1KHz, 1.5KHz, 2.5KHz.
• [HPF] high pass filter range:10KHz,
12.5KHz, 15KHz, 17.5KHz.
4 Touch to restore the above settings into
default settings.
5 Touch to exit.

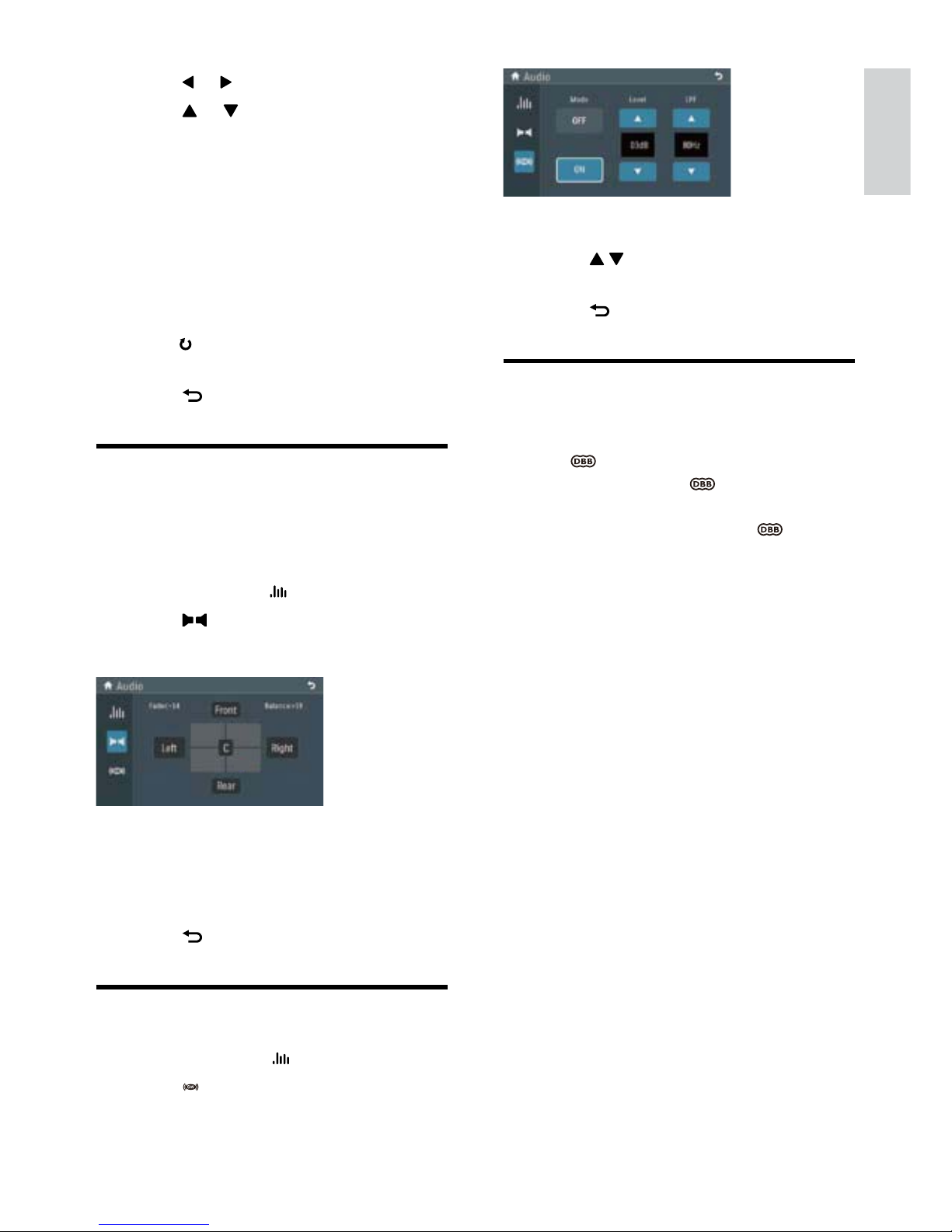

Adjut fader/balance
You can also adjust the front and rear speaker
balance, the left and right speaker balance
settings.
1 During play touch on the screen.
2 Touch .
Sceen below displays: »
3 Touch [Front], [Rear], [Left], [Right]or
[C] (center) to adjust fader/balance value.
Fader range: +16 to -16. •
Balance range: -16 to +16.•
4 Touch to exit.
Adjust Subwoofer value
1
During play, touch on the screen.
2 Touch .
Sceen below displays: »
English
EN
Page 27
28
[Parking
wire]
[off ] Turn off parking
wire
[on] Turn on parking
wire
[Information]
[Enter] Display the infor-
mation on the unit.
[Calibration]
[Start] Calibrate the touch
screen.
5 Touch to exit.
Adjust Bluetooth settings
1
Touch [Bluetooth] on the home menu.
Bluetooth menu displays. »
2 Touch to display Bluetooth option
menu.
3 Touch on the options to select:
Bluetooth
settings
Options Description
[Auto
answer]
[On] Answer paired phone
call automatically.
[Off] Answer phone call
manually.
[Auto
connect]
[On] If the pre-paired
device is within the
effective range, the
unit re-connects to
pre-paired device
automatically.
[Off] Need to re-connect
manually.
[Paired
Device]
Touch to display
paired device(s).
4 Touch to exit.
7 Adjust settings
Adjust general settings
1
Touch to display home menu.
2 Touch [Settings].
Setting menu displays. »
3 Touch or to access 2nd page.
4 Touch on an option to display/select the
option.
General
settings
Options Description
[Dimmer] [High] / [Mid-
dle] / [Low]
Turn on the screen
dim high/middle/
low.
[Beep] [On] Turn on the beep
sound. Each time
you press a button/icon, the unit
beeps.
[Off] Turn off the beep
sound.
[Language]
[English], [
ࡩᇓ໗], [
ْᇓ໗],
[Português],
[Español]
Select the on
screen display
language.
[External
Navi]
[Off]/ [On] Turn the external
GPS off/on.
[Tuner
Area]
[USA] /
[Latin]/ [Asia]
/ [Mid-East]
/ [Europe] /
[Russia]
Select the suitable
country area of the
radio.
[Date] Set the system
date.
[Clock
Mode]
[12Hr]/[24Hr] Select time format.
[Set Time] Adjust clock of the
unit.
EN
Page 28
29
Remove the unit
To repair, replace fuse, or replace the unit
with another car audio, remove it from the
dashboard.
1 Take off the trim plate.
2 Pull the unit out from the dashboard.
Replace fuse
If there is no power, the fuse may be damaged
and need to be replaced.
1 Take out the unit from dashboard.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the
damaged fuse (15A)
4 Replace the fuse.
8 Others
Listen to other devices
You can connect an external audio/video device
to the unit.
1 Connect the car audio to the device
through the REAR OUT L/R connector
(see “Connect wires” section)
2 Touch to display the home menu.
3 Touch [AV-IN].
4 Operated the connected the device (see
the instructions manual of the device).
Reset
When the unit hangs up, you can reset it.
1 Press reset button on the lower right of
the front panel with a ball-point pen or
similar tool.
Tip
When the unit is reset, all the settings remain •
unchanged.
English
EN
Page 29
30
9 Product
information
Note
Product information is subject to change •
without prior notice.
General
Power supply 12 V DC (11 V - 16 V),
negative ground
Fuse 15 A
Suitable speaker
impedance
4 - 8
Maximum power
output
50 W x 4 channels
Continuous power
output
24 W x 4 channels
(4 10% T.H.D.)
Pre-Amp output
voltage
2.0 V ( CD play mode;
1 kHz, 0 dB, 10 k
load)
Subwoofer output
voltage
2.0 V (CD play mode,
61 Hz, 0 dB, 10 k
load)
Aux-in level
500 mV
Dimensions
(W x H x D) 178 x 100 x 185.4 mm
Weight (main unit) 2.4 kg
Disc player
If the fuse gets damaged immediately after it
has been replaced, there may be an internal
malfunction. In such case, consult your Philips
dealer.
EN
Page 30
31
Communication
system
Bluetooth Standard
version 2.1
Output Bluetooth Standard Power
Class 2
Maximum
communication
range
Line of sight approx. 8m
Frequency band 2.4 GHz band (2.4000
GHz - 2.4835 GHz)
Compatible
Bluetooth
profiles
Hands-Free Profile (HFP)
Handset Profile (HSP)
Advanced Audio
Distribution Profile
(A2DP)
Audio Video Remote
Control Profile (AVRCP)
Supported
codecs
Receive
Trans mit
SBC (Sub Band Codec)
SBC (Sub Band Codec)
Compatible USB devices:
USB flash memory (USB 2.0 or USB1.1)•
USB flash players (USB 2.0 or USB1.1)•
memory cards (SD / SDHC)•
Supported formats:
USB or memory file format: FAT16, •
FAT32
MP3 bit rate (data rate): 32-320 Kbps and •
variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum of 8 •
levels
Number of albums/ folders: maximum 99•
Number of tracks/titles: maximum 999•
ID31• tag v2.0 to v2.4
File name in Unicode UTF8 (maximum •
length: 128 bytes)
Supported MP3 disc format:
ISO9660, Joliet•
Maximum title number: 512 (depending •
on file name length)
Maximum album number: 255•
System DVD / CD audio /
MP3 system
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75dB
Total harmonic
distortion
Less than 1%
Channel separation >55dB
Video signal format NTSC only
Video output 1 +/- 0.2V
Tuner
Frequency range - FM 87.5 - 108.0 MHz
(Europe)
Frequency range -
AM(MW)
522 - 1620 KHz
(Europe)
Usable sensitivity - FM 5 uV
Usable sensitivity -
AM (MW)
50 uV
LCD
Screen size 6.95 inches (16:9)
Display resolution 800 x 480 dots
Contrast ratio 300
Brightness 350 cd/m2
Bluetooth
English
EN
Page 31
32
10 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Car engine has not been star ted. Start •
the car engine.
Connections is incorrect. •
Fuse has been damaged. Replace fuse. •
No sound
Volume is too low. Adjust volume. •
Speaker connections is incorrect. •
No response to the remote control
Ensure that the path between the •
remote control and the unit is clear from
obstacles.
From a close distance, point the remote •
control directly at the unit.
Switch •F/R to correct position (F for front
control and R for rear control).
The function does not work. Refer to the •
instructions.
Replace the remote control battery. •
Disc does not play
Supported sampling frequencies: 32 kHz, •
44.1kHz, 48 kHz
Supported Bit-rates: 32-320 Kbps and •
variable bit rate
Supported video formats:
DVD•
Divx Home theater•
MP4•
Xvid•
Note
To ensure a better playback, recommend that •
file image size is not higher than 640X480,
frame rate is 20 fps, data rate is not higher
than 500kbps.
EN
Page 32
33
USB/SD data error. Check the USB •
device or SD card.
About Bluetooth device
Music playback is unavailable on the system
even after successful Bluetooth connection.
The device cannot be used with the •
system to play music.
The audio quality is poor after connection
with a Bluetooth-enabled device.
The Bluetooth reception is poor. Move •
the device closer to the system or
remove any obstacle between the device
and the system.
Cannot connect with the system.
The device does not support the profiles •
required for the system.
The Bluetooth function of the device is •
not enabled. Refer to the user manual of
the device for how to enable the function.
The system is not in the pairing mode. •
The system is already connected with •
another Bluetooth-enabled device.
Disconnect that device or all other
connected devices and then try again.
The paired mobile phone connects and
disconnects constantly.
The Bluetooth reception is poor. Move •
the mobile phone closer to the system or
remove any obstacle between the mobile
phone and the system.
Some mobile phones may connect and •
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
For some mobile phones, the Bluetooth •
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
Disc is upside down. Ensure the printed •
side is upwards.
Disc is dirty. Clean the disc with a •
clean, soft, lint-free cloth. Wipe the disc
outwards from the center.
Disc is defective. Try another disc. •
incompatible disc is used. Try another •
disc.
Disc rating exceeds the restrict setting. •
Change the rating settings to lower one.
Disc region code is not compatible with •
the unit. Use disc with proper region
code.
No image
Parking brake wire connection is •
incorrect. Check the parking wiring.
Image flashes or distorted
Video DVD settings do not match with •
the DVD. Adjust video DVD settings.
Video connection is improper. Check the •
connections.
Noise in broadcasts.
Signals are too weak. Select other •
stations with stronger signals.
Check the connection of the car antenna. •
Change broadcast from stereo to mono. •
Preset stations lost.
Battery cable is not correctly connected. •
Connect the battery cable to the terminal
that is always live.
Fuse is broken
The Fuse type is incorrect. Replace it with •
a 15A fuse.
Speaker wire or power wire is grounded. •
Check the connections.
Display show ERR-12
English
EN
Page 33
34
SDHC
Secure Digital High Capacity (SDHC) is a
type of flash memory card based on the SDA
2.00 specification. The SDA 2.00 specification
enables SD cards to reach higher capacities
from 4GB to 32GB, and growing.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
11 Glossary
B
Bite rate
The max data transfer through the USB port.
Bluetooth
Bluetooth
®
is a short-rang wireless protocol
that is meant to allow mobile devices to share
information and applications without the
worry of cables or interface incompatibilities.
The name refers to a Viking King who unified
Denmark. Operate at 2.4GHz. For more
information, see www.bluetooth.com.
M
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
R
Region code
A system that allows discs to be played only
in the region designated. This unit only plays
discs that have compatible region codes. You
can find the region code of your unit on the
product label. Some discs are compatible with
more than one region (or ALL regions.)
S
SD
Secure Digital. A type of memory card with a
flash memory.
EN
Page 34
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
CED1700_00_UM_V5.0
Loading...
