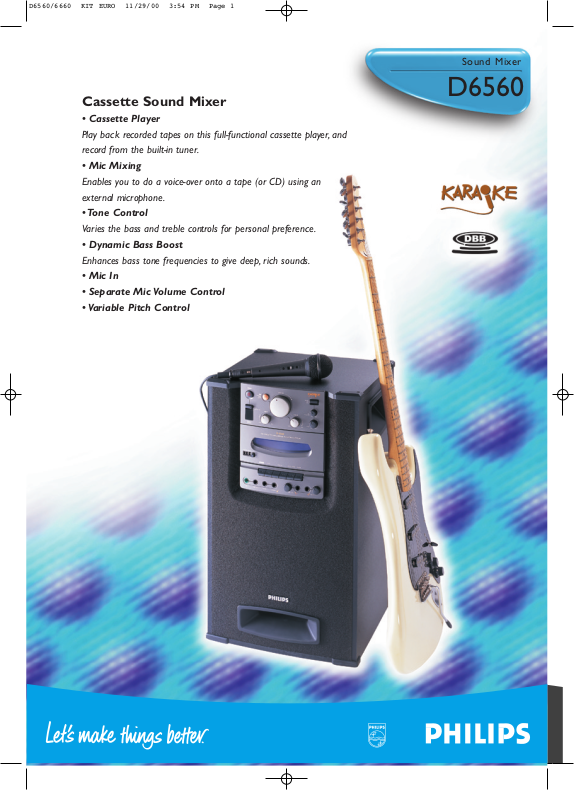

Page 1
Sound Mixer
D6560
Cassette Sound Mixer
• Cassette Player
Play back recorded tapes on this full-functional cassette player, and
record from the built-in tuner.
• Mic Mixing
Enables you to do a voice-over onto a tape (or CD) using an
external microphone.
• Tone Control
Varies the bass and treble controls for personal preference.
• Dynamic Bass Boost
Enhances bass tone frequencies to give deep, rich sounds.
• Mic In
• Separate Mic Volume Control
• Variable Pitch Control
D6560/6660 KIT EURO 11/29/00 3:54 PM Page 1
Page 2
Sound Mixer
D6560
Product Highlights
• Mic In
Lets you connect 2 mics to the sound mixers amplifier and speakers for great
sound effects.
• Separate Mic Volume Control
Gives you independent volume control over each microphone connected to the
sound mixer.
• Variable Pitch Control
Varies the speed of the tape in play-back mode so that the musical tone can be
varied to suit your personal preference.
• Echo control
Adds echo to your voice for a more “concert-hall” effect.
• Auto Vocal Fader
Automatically suppresses the original vocals so that they are barely audible in
the background as long as you sing into the microphone. Once you stop, the
original vocals re-appear.
• Aux In
Lets you connect any electrical musical instrument to the sound mixer’s amplifier
and speakers for great sound effects.
• Guitar In
Lets you connect an electric guitar (or other electrical musical instrument) to the
sound mixer’s amplifier and speakers for great sound effects.
• Line out
Lets you connect a tape recorder to the sound mixer to record the whole
music mix.
• 2-way speaker (6.5" sub-woofer and 2.5" tweeter)
Provides higher musical clarity and enhanced stereo sound quality
• 20 RMS power output
• 12V DC input (car battery)
Cassette Deck
• Tape speed : standard 4.76 cm/sec
• 6-key cassette mechanism
• Cue and review functions
• 3 digit tape counter
• Automatic recording level control
• Full automatic stop
• Normal (type 1) cassette tape and chrome cassettes (type II)
• Signal to noise ratio : 45 dB
• Track separation : >55dB @ 1KHz
• Pitch control
Amplifier
• Maximum output power : 20W RMS (mains operation)
: 15W RMS (battery operation)
Karaoke Features
• Mic mixing
• Separate mic volume controls
• Music/vocal selector
• Vocal fader
• Echo Control
• DBB, Bass,Treble
Speaker System (two way system)
• Sub-woofer : 165.1mm (6.5"), 4 Ohm
• Tweeter : 63.5mm (2.5"), 4 Ohm
Power Supply
• DC car battery operation : 12V
• AC mains
/00 : 220-240V, 50 Hz
Connections
Headphone socket : 6.35 mm jack-type
Microphone sockets : 6.35 mm jack-type x 2
Guitar socket : 6.35 mm jack-type
Line-in socket : 6.35 mm jack-type
Line-out socket : 6.35 mm jack-type
External DC socket : 12V centre positive, 5.5 mm type
External mains cord : /00 IEC type
Accessories
• Microphone : SBC-MD100 (included)
: SBC-MC300 (not included)*
: SBC-MC600 (not included)*
General
• Material : Polystyrene and wood
• Weight : 10 Kg
• Dimensions : 540 mm H x 320 mm D x 291 mm W
• Display box dimensions : 612 mm H x 398 mm D x 412 mm W
• Quantity/mastercarton : 1
* These wireless microphones are available from Philips tape and
accessory centres.
Standard product information
http://www.philips.com
EAN:
/00- 8710101340722
/05- 8710101340739
Printed in Hong Kong
Subject to modification without notice
D6560/6660 KIT EURO 11/29/00 3:54 PM Page 2
Page 3
CD Sound Mixer
CD6660
CD/Cassette Sound Mixer
• CD Player
Compact Disc technology that combines superb digital sound quality
with the convenience of random track access and CD functions like
CD programme, Shuffle Play and Repeat.
• Cassette Player
Play back recorded tapes on this full-functional cassette player, and
record from the built-in CD player or tuner.
• Mic Mixing
Enables you to do a voice-over onto a tape (or CD) using an external
microphone.
• CD Synchro Start Recording
• Tone Control
• Dynamic Bass Boost
D6560/6660 KIT EURO 11/29/00 3:54 PM Page 3
Page 4
CD Sound Mixer
CD6660
Product Highlights
• CD Synchro Start Recording
Synchronises the start of a recording on audio cassette with the start of a CD at
the touch of a button.
• Tone Control
Varies the bass and treble controls for personal preference.
• Dynamic Bass Boost
Enhances bass tone frequencies to give deep, rich sounds.
• Mic In
Lets you connect 2 mics to the sound mixers amplifier and speakers for great
sound effects.
• Key Control
Changes the musical key of the singer and the music to match your own voice.
Choose from 12 different settings.
• Echo Control
Adds echo to your voice for a more “concert-hall” effect.
• Auto Vocal Fader
Automatically suppresses the original vocals so that they are barely audible in the
background as long as you sing into the microphone. Once you stop, the original
vocals re-appear.
• Separate Mic Volume Control
Gives you independent volume control over each microphone connected to the
CD sound mixer.
• Aux In
Lets you connect any electrical musical instrument to the sound mixer’s amplifier
and speakers for great sound effects.
• Guitar In
Lets you connect an electric guitar (or other electrical musical instrument) to the
sound mixer’s amplifier and speakers for great sound effects.
• Line Out Connection
Lets you connect a tape recorder to the sound mixer to record the whole
music mix.
• 2-Way Speaker (6.5" Sub-Woofer and 2.5" Tweeter)
Provides higher musical clarity and enhanced stereo sound quality.
• 20W RMS Power Output
• 12V DC Input
• 6 key Infra-Red Remote Control
CD Player
• CD program, shuffle and repeat functions
• CD synchro start recording
Display
• Large backlit LCD (2 digits display)
Cassette Deck
• Tape speed : standard 4.76 cm/sec
• 6-key cassette mechanism
• Cue and review functions
• 3 digit tape counter
• Automatic recording level control
• Full automatic stop
• Normal (type 1) cassette tape and type II
• Signal to noise ratio : 45 dB
• Track separation : >55dB @ 1KHz
Amplifier
• Maximum output power : 20W RMS (mains operation)
: 15W RMS (battery operation)
Karaoke
• Mic mixing
• Separate Mic volume controls
• Music/vocal selector
• Vocal fader
• DBB, Bass,Treble
• 12 step key control
Speaker System (2 way system)
• Sub-woofer : (6.5"), 4 Ohm
• Tweeter : (2.5"), 4 Ohm
Power Supply
• DC car battery operation : 12V
• AC mains /00 : 220-240V, 50 Hz
Connections
Headphone socket : 6.35 mm jack-type
Microphone sockets : 6.35 mm jack-type x 2
Guitar socket : 6.35 mm jack-type
Line-in socket : 6.35 mm jack-type
Line-out socket : 6.35 mm jack-type
External DC socket : 12V centre positive, 5.5 mm type
External mains cord : /00 IEC type
Accessories
• Microphone : SBC-MD100 (included)
: SBC-MC300 (not included)*
: SBC-MC600 (not included)*
General
• Material : Polystyrene and wood
• Weight : 10.5 Kg
• Dimensions : 540 mm H x 320 mm D x 291 mm W
• Display box dimensions : 612 mm H x 398 mm D x 412 mm W
• Quantity/mastercarton : 1
*These wireless microphones are available from Philips Tapes and
Accessories centres
Standard product information
http://www.philips.com
EAN:
/00- 8710101340777
/05- 8710101340784
Printed in Hong Kong
Subject to modification without notice
D6560/6660 KIT EURO 11/29/00 3:54 PM Page 4
