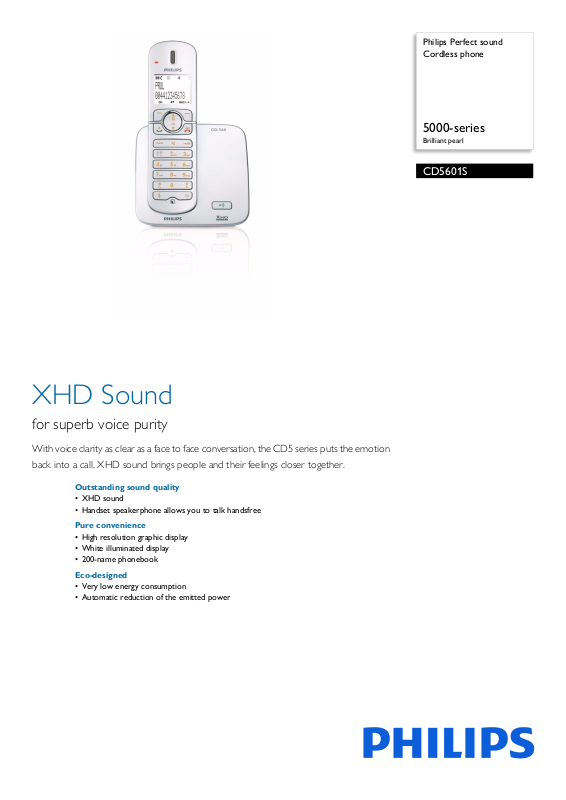

Page 1
Philips Perfect sound
Cordless phone
5000-series
Brilliant pearl
CD5601S
XHD Sound
for superb voice purity
With voice clarity as clear as a face to face conversation, the CD5 series puts the emotion
back into a call. XHD sound brings people and their feelings closer together.
Outstanding sound quality
• XHD sound
• Handset speakerphone allows you to talk handsfree
Pure convenience
• High resolution graphic display
• White illuminated display
• 200-name phonebook
Eco-designed
• Very low energy consumption
• Automatic reduction of the emitted power
Page 2
CD5601S/FT
Cordless phone
5000-series Brilliant pearl
Specifications
Picture/Display
•Backlight
• Backlight color: White
• Display colors: Black & White
•Lines of text: 3
• Main Display Technology: STN
• Main Display Type: Full graphic
Sound
• Handset ringers: Polyphonic
• Volume Control: Volume Control up/down
Convenience
• Alarms: Alarm Clock
• Base Station keys: Paging key
• Battery charging indication
• Call Management: Call Wai
Conference Call, Explicit Call Transfer,
Microphone mute
• Ease of Use: Full Duplex Handsfree, Graphical User
terface, Keypad Lock, Menu Control
In
• Multi base capability: 1
• Multi handset capability: Up to 5 handsets
• Signal strength indication
• Backlit keypad: Yes (Amber)
• Speakerphone - talk handsfree
ting*, Caller ID*,
Network Features
• Antenna: Integrated on base, Integrated on handset
•Compatible: GAP
• Dialing: Tone, Pulse
Operator Requirements
• Name and Caller ID
• Caller ID on call waiting
Memory Capacity
• Call log entries: 50
• Phonebook: 200 names and numbers
• Redial List Capacity: 10
Dimensions
• Base dimensions: 108 x 105 x 107 mm
• Handset dimensions: 164.5 x 46.2 x 26.5 mm
Power
• Battery Capacity: 650 mAh
• Battery type: AAA NiMH
• Kind of Battery: Rechargeable
• Mains power: AC 220-240V - 50Hz
• Number of batteries: 2 per handset
• Standby time: Up to 170 hours
• Talk time: Up to 14 hours
•
Highlights
XHD sound
No matter where you are, you can have a phone
conversation that is free from noise, with incredible
loudness and sound purity in the voice. Thanks to a
high-quality speaker, sophisticated technology and to
a real acoustic chamber, you can enjoy the
unbelievable sound quality in every phone
conversation.
Handset speakerphone
Handsfree mode uses a built-in loud speaker to
amplify the voice of the caller, allowing you to speak
and listen during a call without holding the phone to
your ear. This is especially useful if you want to share
the call with others or simply multitask.
Very low energy consumption
Thanks to a high efficiency power supply, the overall
energy consumption is reduced by more than 50%
compared to a conventional power supply.
Issue date 2019-06-11
Version: 1.4.2
12 NC: 8670 000 66609
EAN: 87 12581 55838 3
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
